ENGLISH

Sub-Zero Built-In Refrigeration 3

Sub-Zero Built-In Features 3

Sub-Zero Built-In Models 4

Sub-Zero Built-In Use & Care 7

Keeping Food at Its Best 15

Food Storage Recommendations 17

Tro ub le sh oo ti ng Gu id e 20

Service Information 21

ESPAÑOL

Refrigeración Empotrable Sub-Zero 22

Características de los Modelos Empotrables de Sub-Zero 22

Modelos Empotrables Sub-Zero 23

Uso y Mantenimiento de Productos Empotrables de Sub-Zero 26

Conservación Óptima de los Alimentos 34

Recomendaciones Relativas a la Conservación de Alimentos 36

Guía de Localización y Solución de Problemas 39

Información Sobre el Mantenimiento 40

FRANÇAIS

Appareils de Réfrigération Encastrables Sub-Zero 41

Caractéristiques des Appareils Encastrables Sub-Zero 41

Modéles Encastrables Sub-Zero 42

Utilisation et Entratien des Appareils Encastrables Sub-Zero 45

Conservation Optimale des Aliments 53

Recommandations pour la Conservation des Aliments 55

Guide de Dépistage des Pannes 58

Service Aprés-Vente 59

ITALIANO

Frigoriferi da Incasso Sub-Zero 60

Caratteristiche da Incasso Sub-Zero 60

Modelli da Incasso Sub-Zero 61

Utilizzo e Manutenzione delle Unitá da Incasso Sub-Zero 64

Per Conservare gli Alimenti in Maniera Ideale 72

Consigli per la Conservazione degli Alimenti 74

Guida alla Soluzione dei Problemi 77

Informazioni sul Servizio di Assistenza 78

DEUTSCH

Einbaukühltechnik von Sub-Zero 79

Merkmale der Einbaugeräte von Sub-Zero 79

Einbaugerätemodelle von Sub-Zero 80

Bedienung und Pflege von Einbaumodellen Sub-Zero 83

Optimale Aufbewahrung von Lebensmitteln 91

Empfehlungen zur Lagerung von Lebensmitteln 93

Fehlersuche und - Behebung 96

Serviceinformationen 97

BUILT-IN FEATURES

•

Overlay models blend seamlessly into your overall room design and complement surrounding cabinetry.

• New flush inset application allows the unit to

be flush with surrounding cabinetry. Options include using custom panels or Sub-Zero accessory panels in classic stainless steel. Classic stainless steel models feature wrapped doors, stainless steel tubular handles and flip-up grille, designed specifically to enhance the aesthetics of today’s professional looking kitchens.

• Models ICBBI-36RG, ICBBI-30UG and

ICBBI-36UG offer a unique feature—a glass door. These units each come in the overlay/ flush inset or classic stainless steel design and meet stringent energy requirements.

• Glass door models add a contemporary look

that is quite unique and innovative, with subdued interior lighting.

• Shallow-depth design means access is easy

to any area of the refrigerator.

• Built-In combination models have the

Sub-Zero dual refrigeration system, which ensures the freshest food and energy efficiency at the same time. You have precise independent control of the refrigerator and freezer sections.

THANK YOU

Thank you for purchasing your new Sub-Zero Built-In unit. With Sub-Zero, you can rely on a 60-year tradition of quality and reliability. The Built-In line brings together the latest and finest features in home refrigeration to give you the freshest food possible.

Sub-Zero’s design, beauty and quality are reflected in the broad range of standard features that put Sub-Zero in a class by itself. The custom design appearance of the Sub-Zero Built-In line gives you options no other line offers, whether you have chosen an overlay/ flush inset, stainless steel or glass door style unit.

This Use & Care Information will answer most of your questions about the features, operation and maintenance of your Built-In unit. If you have questions that are not addressed here, contact your Sub-Zero dealer or visit our website,

subzero.com.

As you read this Use & Care Information, take particular note of the CAUTION and WARNING symbols when they appear. This information is impor tant for safe and efficient use of the Sub-Zero equipment.

In addition, this Use & Care Information may signal an IMPORTANT NOTE which highlights information that is especially important.

SUB-ZERO®is a registered trademark of Sub-Zero, Inc.

• All Built-In models have a microprocessor to

give you better control, automatic defrosting that senses, then adapts to your use patterns, and a service indicator light. Our microprocessor continuously monitors each section, and should a problem arise, the processor will turn on the indicator in the control display panel.

• Controls are up front and easy to use.

They give you digital readings for quick, easyto-read reference. Up-front controls also keep you informed about the operation of the unit on a continuous basis.

• All Built-In models have a flip-up grille,

making it even easier to clean your condenser.

• Air Purification—bacteria, odors and gases

are removed by this advanced air purification system.

• Bright lighting spreads even illumination

throughout each section. The source of the illumination is concealed.

• A door alarm will let you know with an

audible chime if your refrigerator or freezer door is left ajar.

• The full-extension, high-humidity crisper

drawer(s) are large and deep, with smooth sides and removable dividers in most models.

• The steel reinforced cantilevered glass

shelves make repositioning quick and easy. They’re easy to clean and spill proof.

SUB-ZERO BUILT-IN FEATURES

• In-door shelves are adjustable in 25 mm

increments for complete flexibility.

• The dairy compartment is adjustable,

with one-door access. The dairy shelf is magnetically sealed to maintain freshness.

• Over-and-under models offer a full-extension

freezer drawer.

• Ice maker provides high-quality, crescent-

shaped ice.

• Max Ice feature increases the rate of ice

production for a 24 hour period.

• Magnetic gaskets around all doors give extra-

tight seals.

• Our solid-core doors improve insulation and

structural integrity.

• Solid, adjustable kickplate gives a true

built-in look.

SUB-ZERO BUILT-IN REFRIGERATION

These appliances are Star-K compliant to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

signals a situation where minor injury or product damage may occur if you do not follow instructions.

CAUTION

states a hazard that may cause serious injury or death if precautions are not followed.

WARNING

SUB-ZERO BUILT-IN MODELS

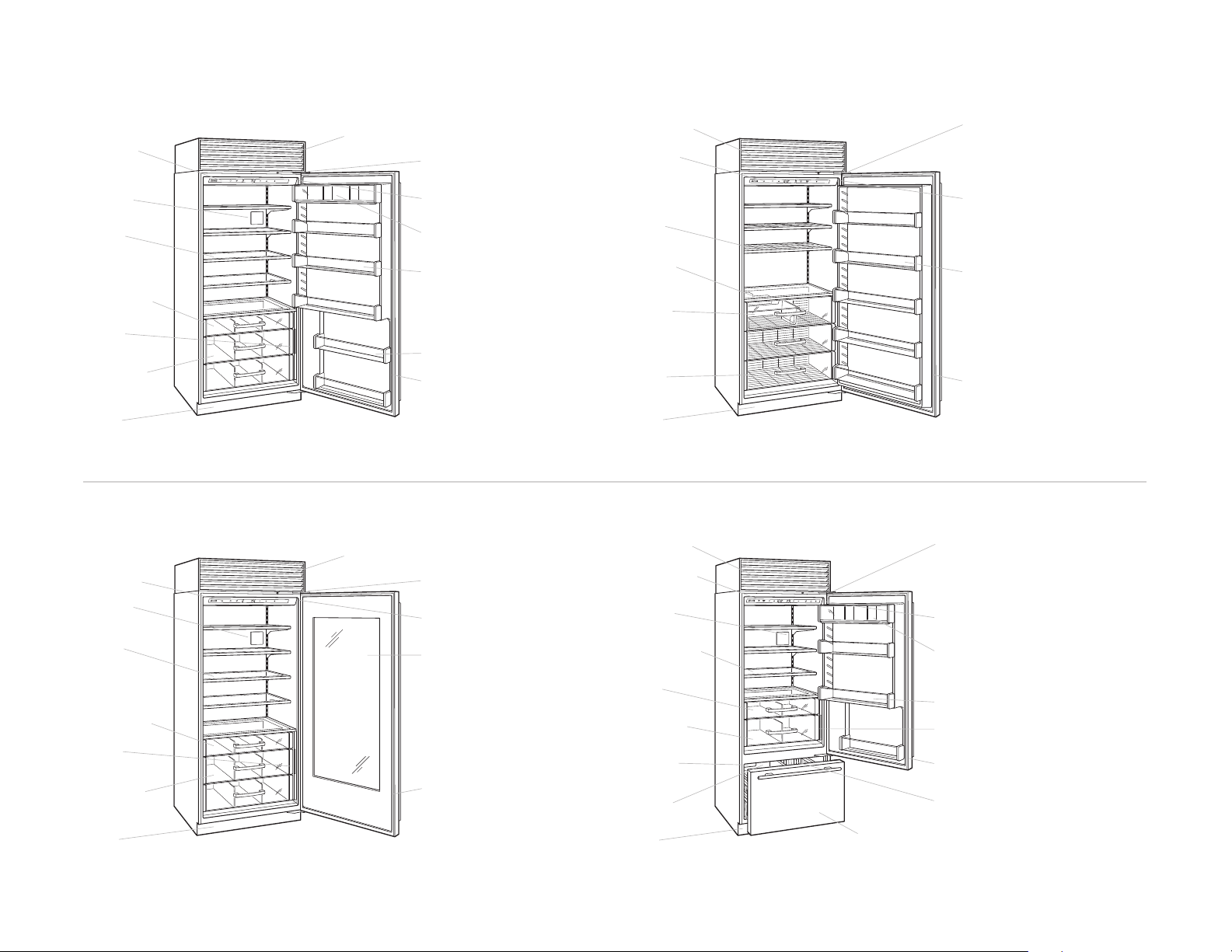

MODEL ICBBI-36F

ALL FREEZER

MODEL ICBBI-30U

OVER-AND-UNDER REFRIGERATOR|FREEZER

Location of rating plate

Four-sided magnetic gaskets

Removable kickplate

Removable ice container

Adjustable wire shelves

Lighted, electronic control panel

Door closer

Freezer storage baskets

Automatic ice maker

Adjustable door shelves

Location of rating plate

Adjustable dairy compartment

Two -t ie r fr ee ze r storage baskets

Removable kickplate

High-humidity crisper drawer

Adjustable, spillproof glass shelves

Air purification system

Lighted, electronic control panel

Door closer

Automatic ice maker

Removable ice container

Full-extension rollout freezer drawer

Refrigerator storage drawer

Four-sided magnetic gaskets

Adjustable door shelves

User reference cards

Easy-access, flip-up grille

MODEL ICBBI-36R

ALL REFRIGERATOR

Location of rating plate

Adjustable dairy compartment

Four-sided magnetic gaskets

Removable kickplate

Refrigerator storage drawers

Adjustable, spillproof glass shelves

Air purification system

Lighted, electronic control panel

Easy-access, flip-up grille

Door closer

User reference cards

High-humidity crisper drawer

Stationary door shelves

Adjustable door shelves

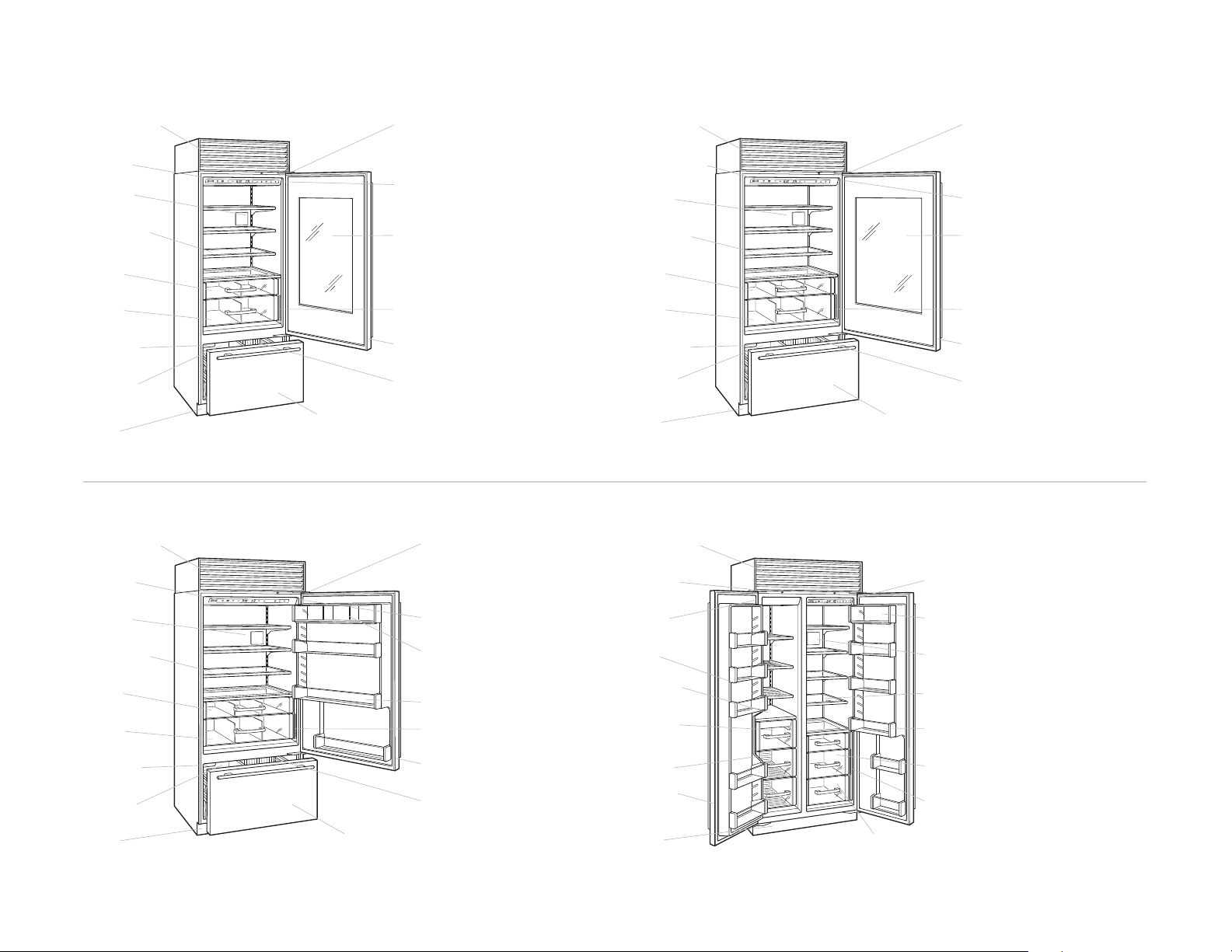

MODEL ICBBI-36RG

ALL REFRIGERATOR WITH GLASS DOOR

Location of rating plate

Tri pl e- pa ne , UVresistant glass door

Four-sided magnetic gaskets

Removable kickplate

Refrigerator storage drawers

Adjustable, spillproof glass shelves

Air purification system

Lighted, electronic control panel

Easy-access, flip-up grille

Door closer

User reference cards

High-humidity crisper drawer

MODEL ICBBI-30UG

OVER-AND-UNDER WITH GLASS DOOR

Location of rating plate

Tri pl e- pa ne , UVresistant glass door

Two -t ie r fr ee ze r storage baskets

Removable kickplate

High-humidity crisper drawer

Adjustable, spillproof glass shelves

Air purification system

Lighted, electronic control panel

Door closer

Automatic ice maker

Removable ice container

Full-extension rollout freezer drawer

Refrigerator storage drawer

Four-sided magnetic gaskets

User reference cards

Easy-access, flip-up grille

SUB-ZERO BUILT-IN MODELS

MODEL ICBBI-36U

OVER-AND-UNDER REFRIGERATOR|FREEZER

MODEL ICBBI-36UG

OVER-AND-UNDER WITH GLASS DOOR

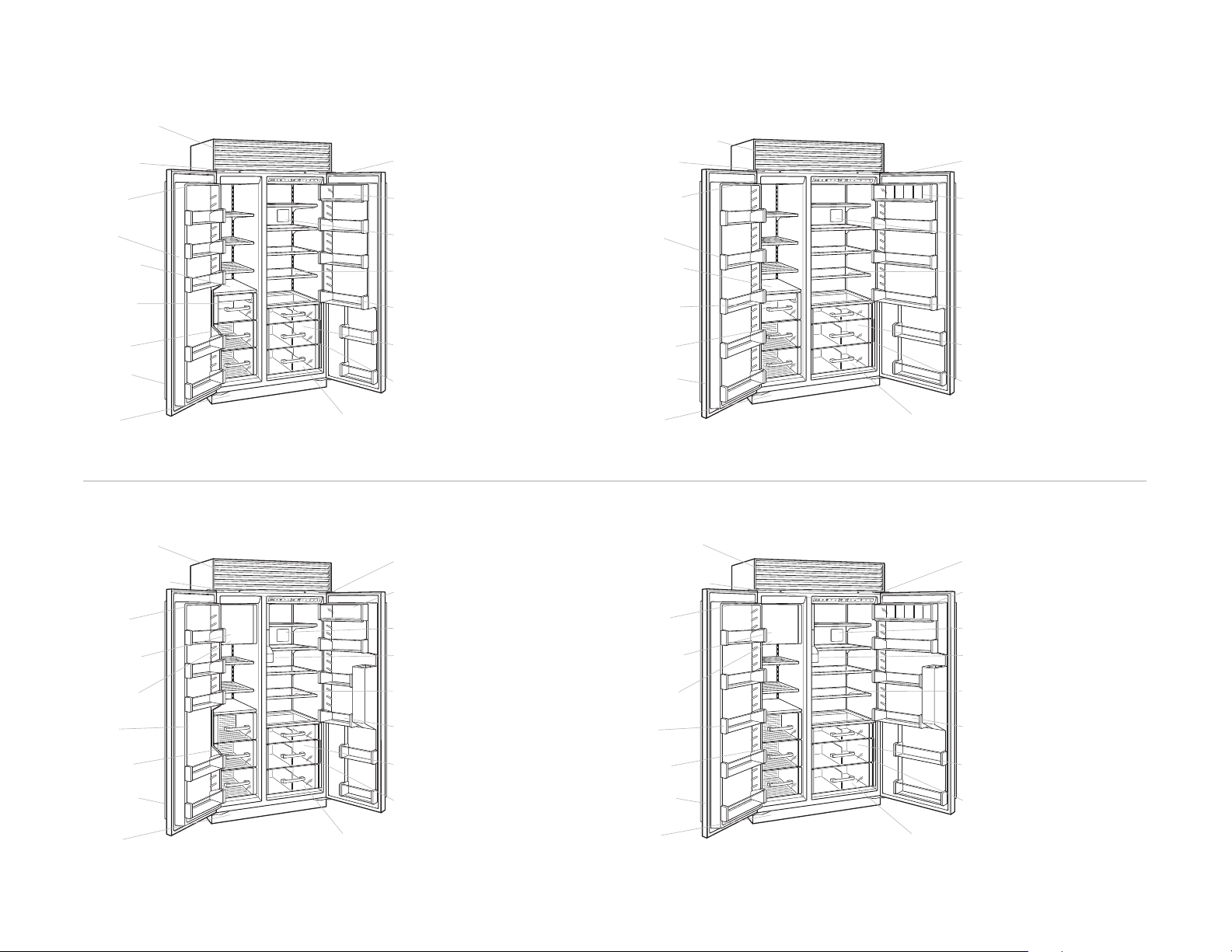

MODEL ICBBI-36S

SIDE-BY-SIDE REFRIGERATOR|FREEZER

Location of rating plate

Adjustable dairy compartment

Two -t ie r fr ee ze r storage baskets

Removable kickplate

High-humidity crisper drawer

Adjustable, spillproof glass shelves

Air purification system

Lighted, electronic control panel

Door closer

Automatic ice maker

Removable ice container

Full-extension rollout freezer drawer

Refrigerator storage drawer

Four-sided magnetic gaskets

Adjustable door shelves

User reference cards

Location of rating plate

Tri pl e- pa ne , UV- re si stant glass door

Two -t ie r fr ee ze r storage baskets

Removable kickplate

High-humidity crisper drawer

Adjustable, spillproof glass shelves

Air purification system

Lighted, electronic control panel

Door closer

Automatic ice maker

Removable ice container

Full-extension rollout freezer drawer

Refrigerator storage drawer

Four-sided magnetic gaskets

User reference cards

Easy-access, flip-up grille

Adjustable dairy compartment

Air purification system

User reference cards

Removable kickplate

Removable ice container

Adjustable door shelves

Location of rating plate

Door closers

Easy-access, flip-up grille

Lighted, electronic control panel

Freezer storage baskets

Four-sided magnetic gaskets

Refrigerator storage drawers

Automatic ice maker

High-humidity crisper drawer

Adjustable, spillproof glass shelves

Adjustable door shelves

Air purification system

Bulk ice dispenser

User reference cards

Removable kickplate

Adjustable door shelves

Automatic ice maker

Location of rating plate

Lighted, electronic control panel

Easy-access, flip-up grille

Adjustable dairy compartment

Freezer storage baskets

Four-sided magnetic gaskets

Refrigerator storage drawers

Removable ice container

Door closers

High-humidity crisper drawer

Adjustable, spillproof glass shelves

Adjustable door shelves

SUB-ZERO BUILT-IN MODELS

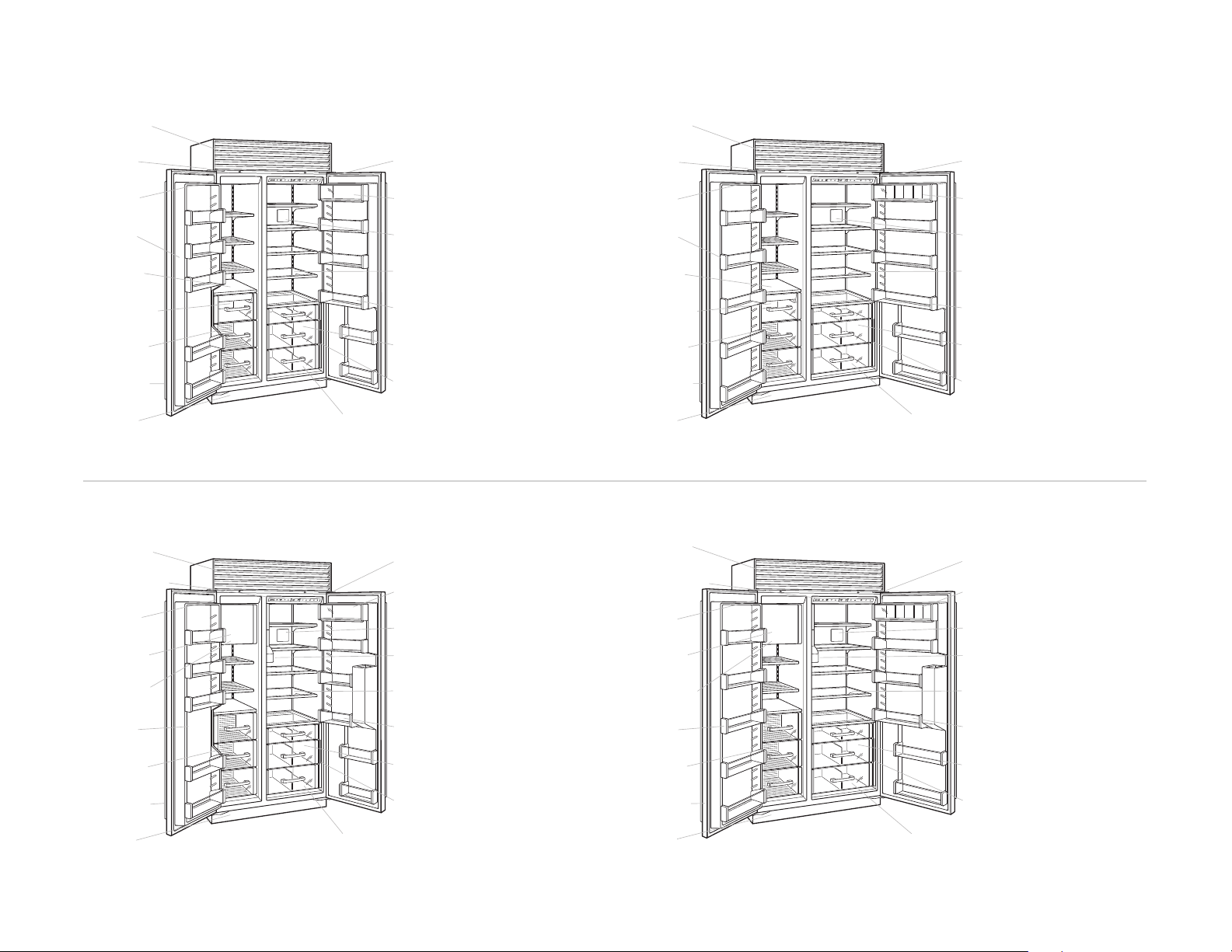

MODEL ICBBI-48S

SIDE-BY-SIDE REFRIGERATOR|FREEZER

MODEL ICBBI-48SD

SIDE-BY-SIDE WITH ICE|WATER DISPENSING

Adjustable dairy compartment

Air purification system

User reference cards

Removable kickplate

Removable ice container

Adjustable door shelves

Location of rating plate

Door closers

Easy-access, flip-up grille

Lighted, electronic control panel

Freezer storage baskets

Four-sided magnetic gaskets

Refrigerator storage drawers

Automatic ice maker

High-humidity crisper drawer

Adjustable, spillproof glass shelves

Adjustable door shelves

Air purification system

Bulk ice dispenser

User reference cards

Removable kickplate

Adjustable door shelves

Automatic ice maker

Location of rating plate

Lighted, electronic control panel

Easy-access, flip-up grille

Adjustable dairy compartment

Freezer storage baskets

Four-sided magnetic gaskets

Refrigerator storage drawers

Removable ice container

Door closers

High-humidity crisper drawer

Adjustable, spillproof glass shelves

Adjustable door shelves

MODEL ICBBI-42SD

SIDE-BY-SIDE WITH ICE|WATER DISPENSING

Adjustable dairy compartment

Air purification system

User reference cards

Removable kickplate

Removable ice container

Adjustable door shelves

Location of rating plate

Door closers

Easy-access, flip-up grille

Lighted, electronic control panel

Freezer storage baskets

Four-sided magnetic gaskets

Refrigerator storage drawers

Automatic ice maker

High-humidity crisper drawer

Adjustable, spillproof glass shelves

Adjustable door shelves

MODEL ICBBI-42S

SIDE-BY-SIDE REFRIGERATOR|FREEZER

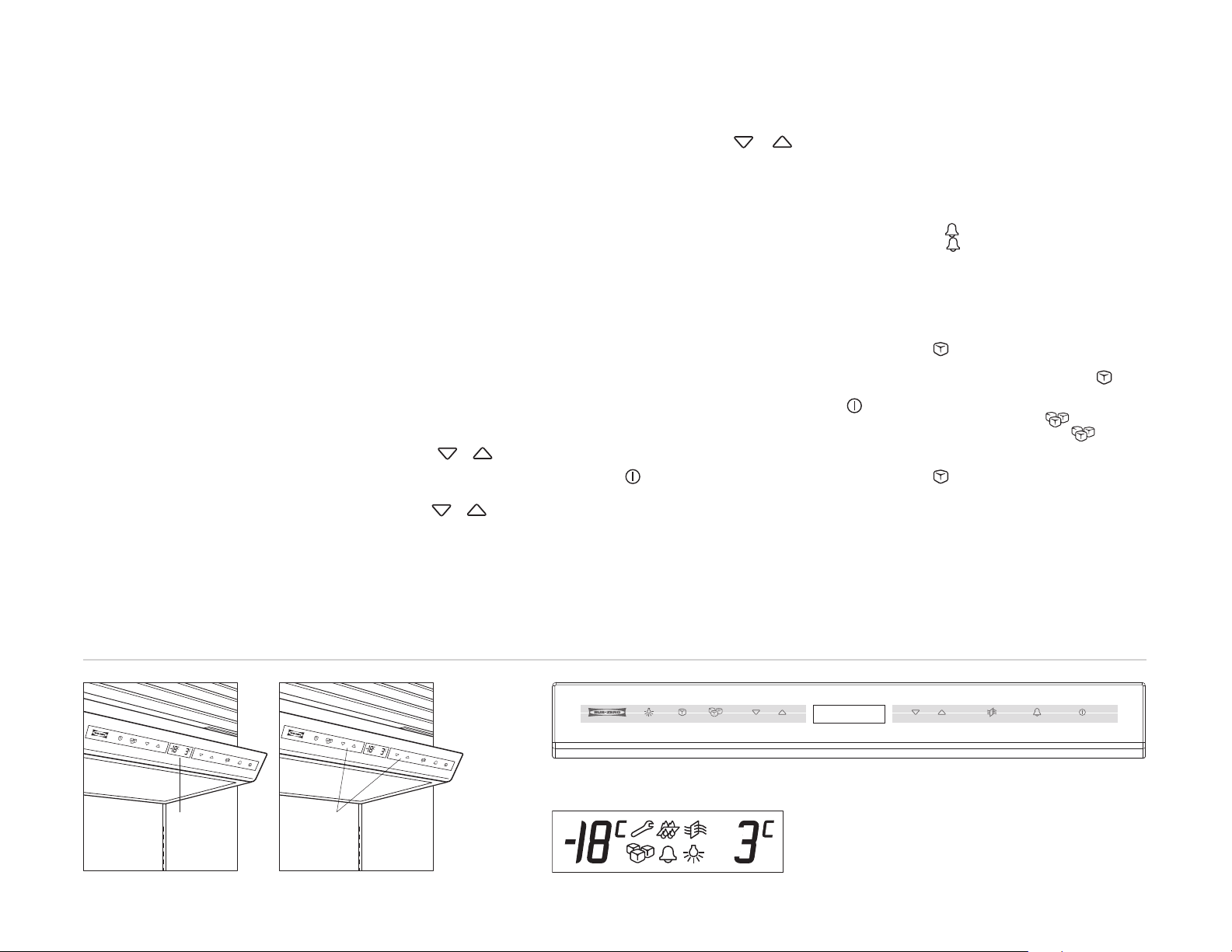

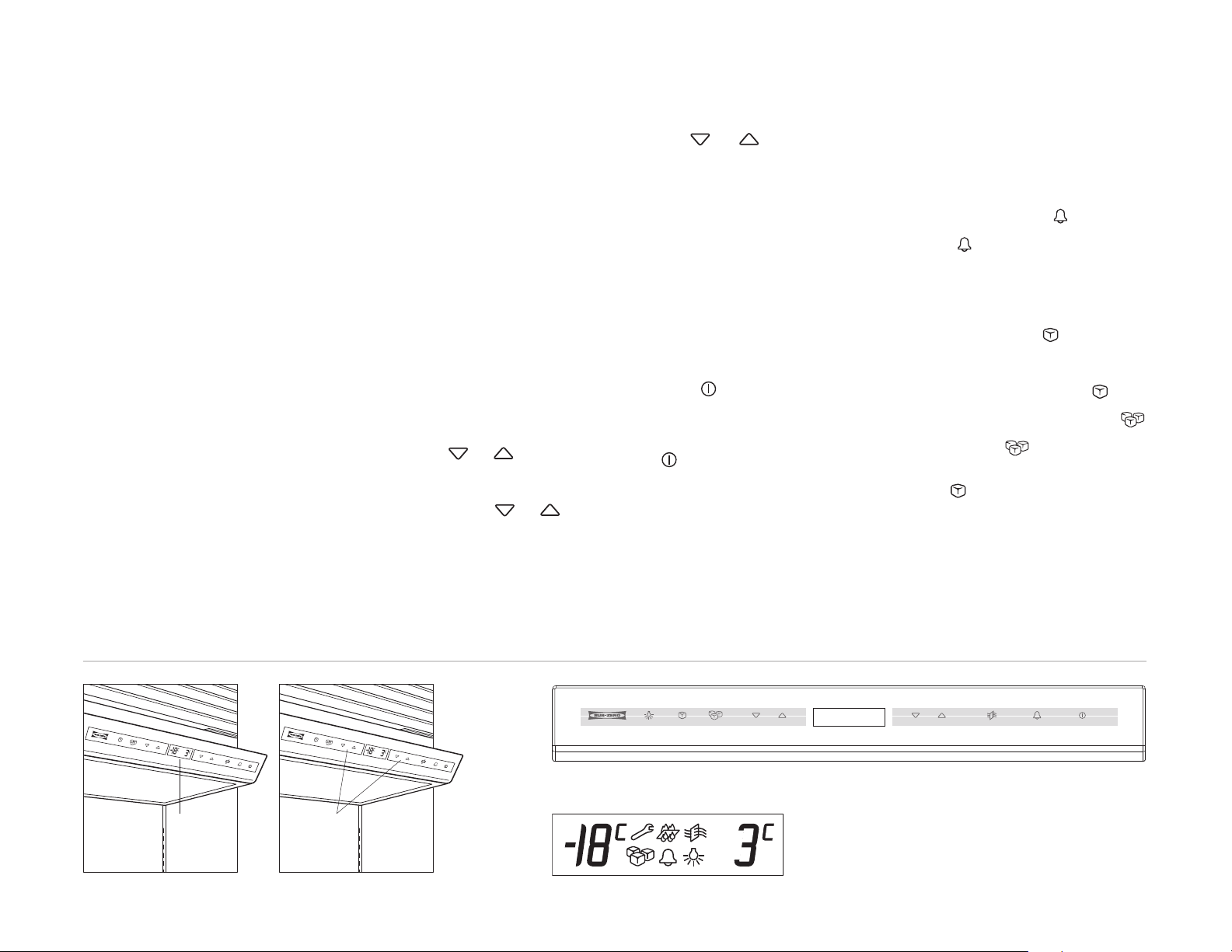

ELECTRONIC CONTROL SYSTEM

The Electronic Control System of your Sub-Zero Built-In unit monitors and accurately displays temperatures within one degree of your preset temper ature. It also monitors operation of the unit and lets you know if there’s a problem. Yo u’ ll f in d t he C o nt ro l C en te r l oc at ed in t he refrigerator section of all models, except Model ICBBI-36F where it is in the freezer section. Refer to the illustration below.

TEMPERATURE CONTROL

Yo ur n ew B u il t- In un it w a s th or o ug hl y i ns pe ct e d and tested before it was shipped from the Sub-Zero factory. Temper atures are preset at 3˚C in the refrigerator section and -18˚C in the freezer section. Temper atures are displayed in the Control Center display panel.

For combination units, there are two sets of and key pads on the Control Center, one for the refrigerator section and the other for the freezer section. Models ICBBI-36R, ICBBI-36RG and ICBBI-36F have only one set of and key pads.

To a dj us t t he t e m per ature in either section, depress the or key padson the Control Center.

The temperature ranges are -23˚C to -15˚C in the freezer section, and 1˚C to 7˚C in the refrigerator section. It is normal for temperatures to fluctuate slightly, depending on external influences such as an open door, the degree of humidity and room temperature.

IMPORTANT NOTE:

Always allow 24 hours

for the unit to reach the temperature you set.

POWER

All Sub-Zero Built-In models feature a key pad on the Control Center. This key pad will turn off all electrical power to the unit. When the power is off, the OFF indicator light will be visible in the Control Center display panel. This key pad means you don’t have to shut off power at the circuit breaker or wall receptacle. To service or replace a light bulb, disconnect power supply from the receptacle before changing light bulb. The power cord is located in the far right corner behind the flip-up grille.

ALARM FEATURE

All Built-In models have an alarm feature with an audible chime if the door is left ajar.

The alarm will sound after 30 seconds. It can be deactivated by depressing the key pad. When the alarm is activated, the indicator will be visible in the Control Center display panel.

ICE MAKER CONTROL

Built-In models with an ice maker feature an

key pad on the Control Center. This key pad switches the power to the ice maker system on or off. When the ice maker system is on, the indicator will be illuminated in the Control Center display panel. The ice maker can also be turned on using the key pad, activating the Max Ice feature. The indicator will be illuminated in the Control Center display panel when this feature is on. Use the key pad to shut down the ice maker during extended vacations.

SUB-ZERO BUILT-IN USE & CARE

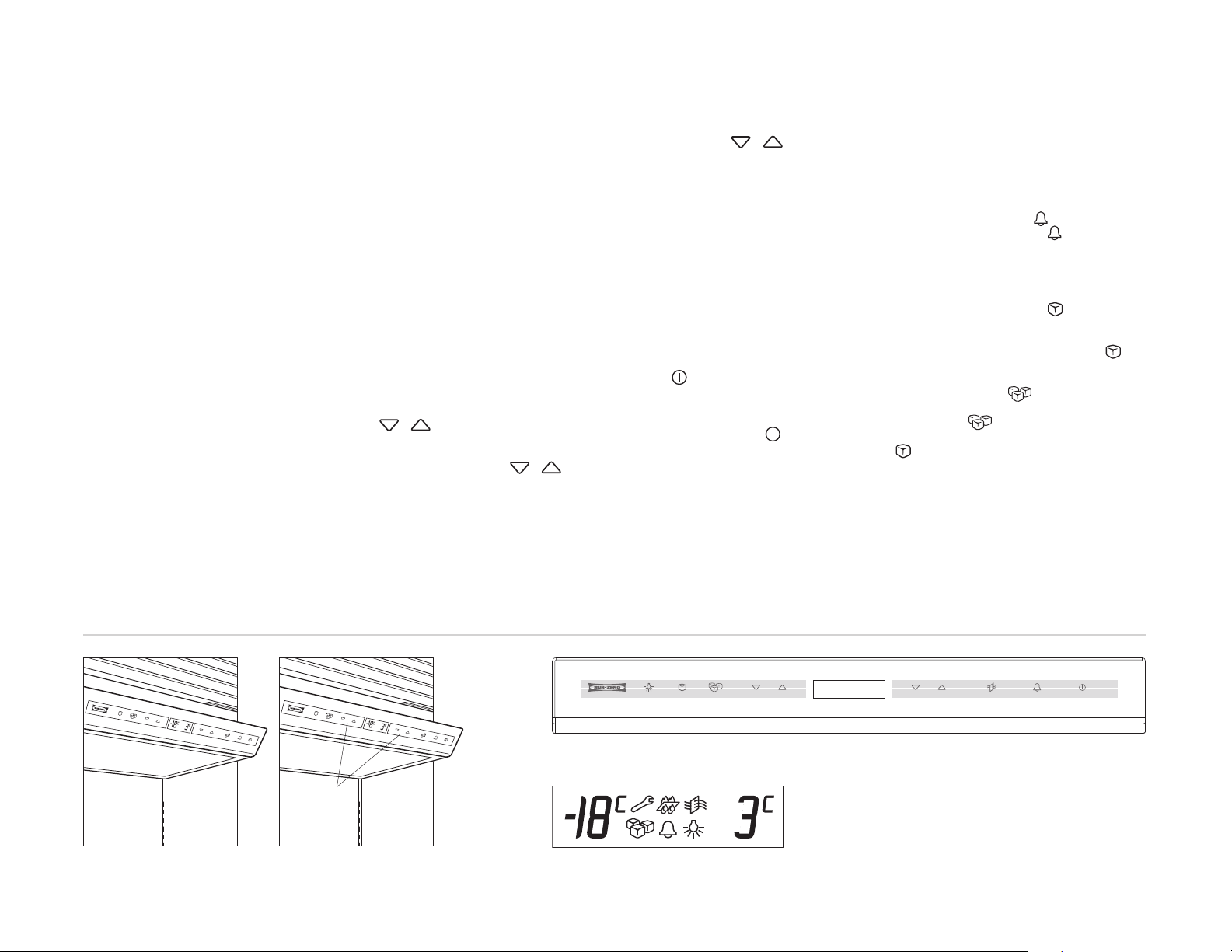

Display

Panel

Colder/ Warmer

Key Pa ds

Electronic control center display panel

Tem pe ra tu re a dj ust me nt k ey p ad s

Display Panel

Control Panel (Model ICBBI-30UG)

DUAL REFRIGERATION

The Built-In line continues the Sub-Zero tradition of superior quality and reliability. Sub-Zero pioneered the develop ment of our dual refrigeration system, giving you optimum fresh and freezer food storage in ideal self-contained sections. Both refrigerator and freezer maintain accurate, consistent temperatures. Dual refrigeration keeps your food fresh longer than any other system available.

With dual refrigeration, the freezer maintains a constant temperature within one degree of the temperature you set within our range of -23˚C to

-15˚C, without unwanted moisture and odor from the refrigerator. Similarly, you can adjust the refrigerator temperature within a range of 1˚C to 7˚C, for proper humid ity levels tailored for longer food life expectancy.

The dual refrigeration system also means there is no transfer of fresh food odors to frozen food or ice. The Sub-Zero system does not freeze the moisture out of the air in the fresh food section.

Sub-Zero dual refrigeration is also more energy efficient than old-fashioned single refrigeration systems. When the refrigerator is used frequently during the day it does not require the freezer to circulate its very cold, dry air to the refrigerator. Instead, the refrigerator uses moist air to keep fresh foods fresh and energy use minimal.

SUB-ZERO BUILT-IN USE & CARE

REFRIGERATOR STORAGE

STORAGE DRAWERS

To r em ov e a s to r ag e d ra we r i n th e r ef ri g er at o r section, pull the drawer out until it stops. Lift the font of the drawer slightly and pull the drawer straight forward. Refer to the illustration below.

IMPORTANT NOTE:

If the door is limited to a 90° door opening, the shallow door shelves will need to be removed from the bottom of the door in order to remove a drawer.

To r ei ns t al l, pu sh t h e dr aw e r sl i de s ba c k in t o th e refrigerator. Align the drawer with the slides, then push the drawer straight back on to the slides until it stops. The front of the drawer should drop slightly and click when it is properly engaged onto the slides.

DOOR SHELVES AND DAIRY COMPARTMENT

The door shelves and dairy compartment are adjustable within the guides of the door liner.

NOTE: Glass door models do not have door shelves or a dairy compartment.

To r em ov e a s he l f or th e da i ry c o mp ar tm e nt , l if t it up and out from the bottom. To reinstall, push it down into the guides. Refer to the illustration below.

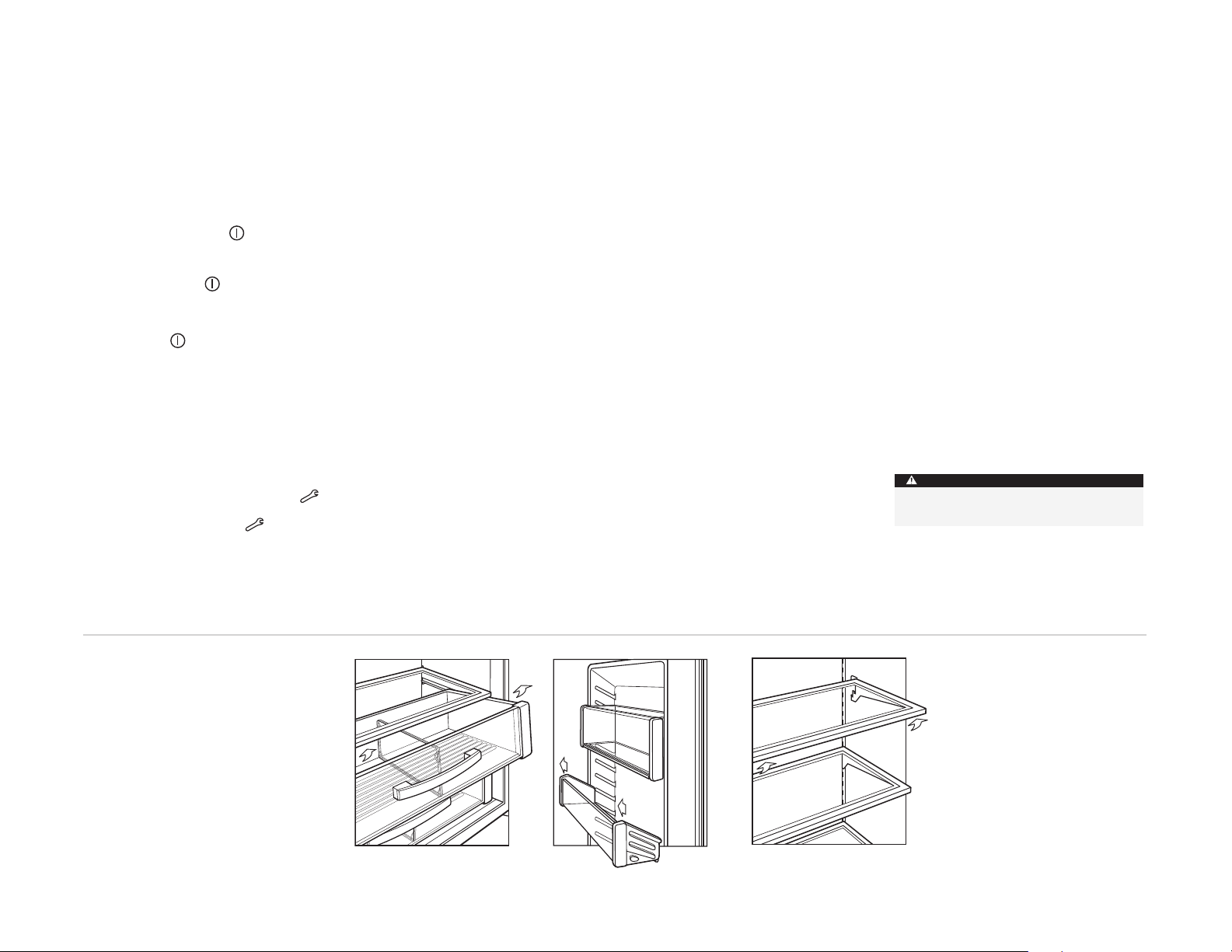

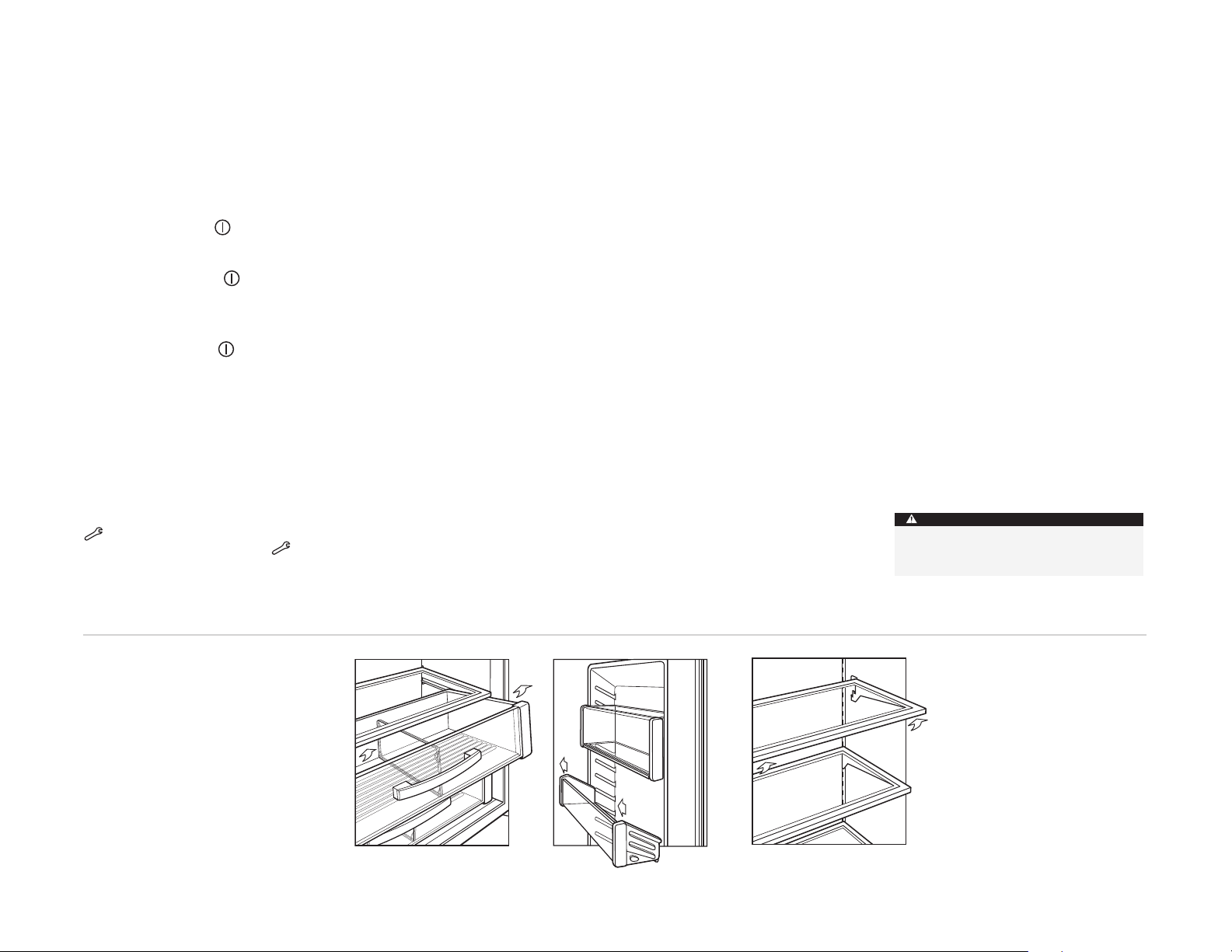

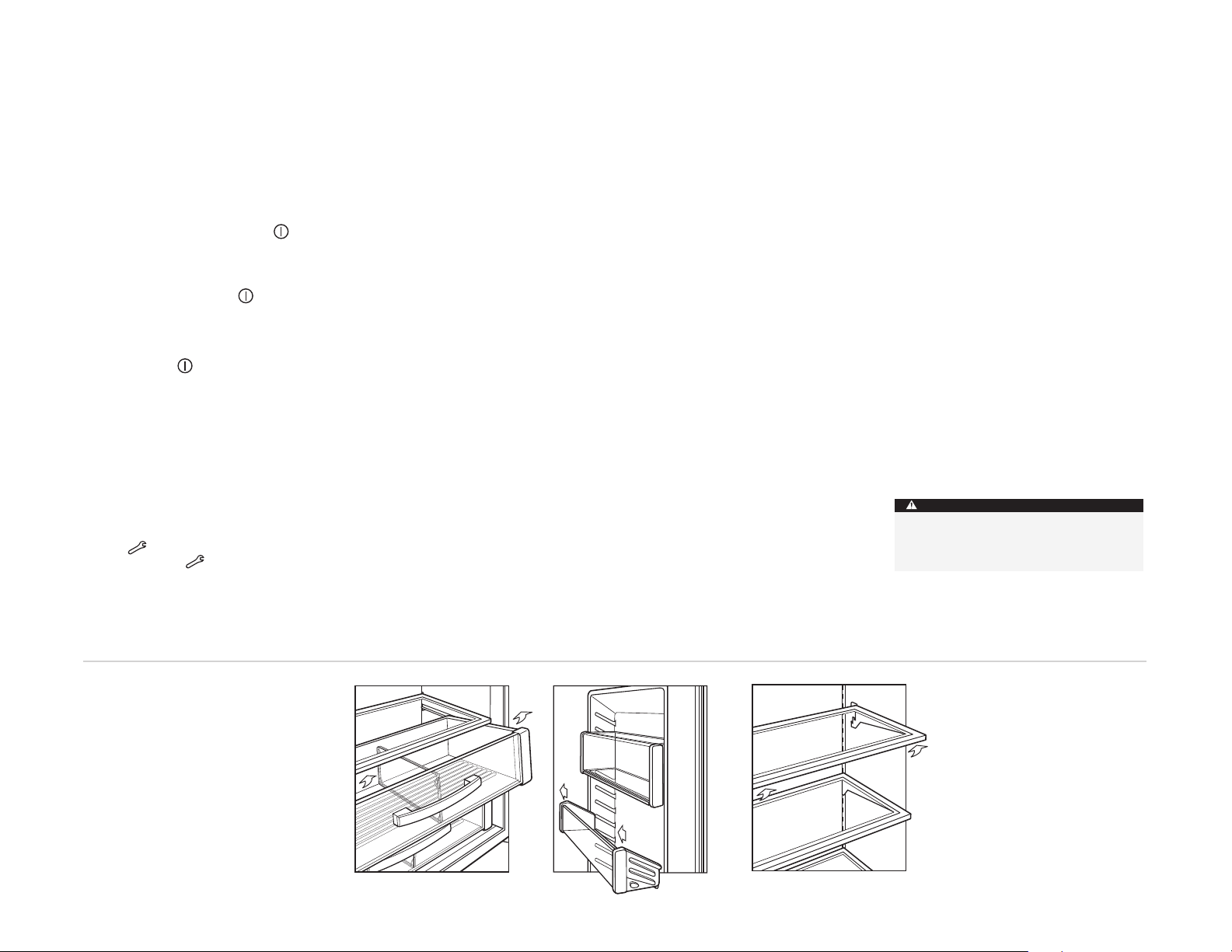

Refrigerator storage drawer removal Door shelf removal

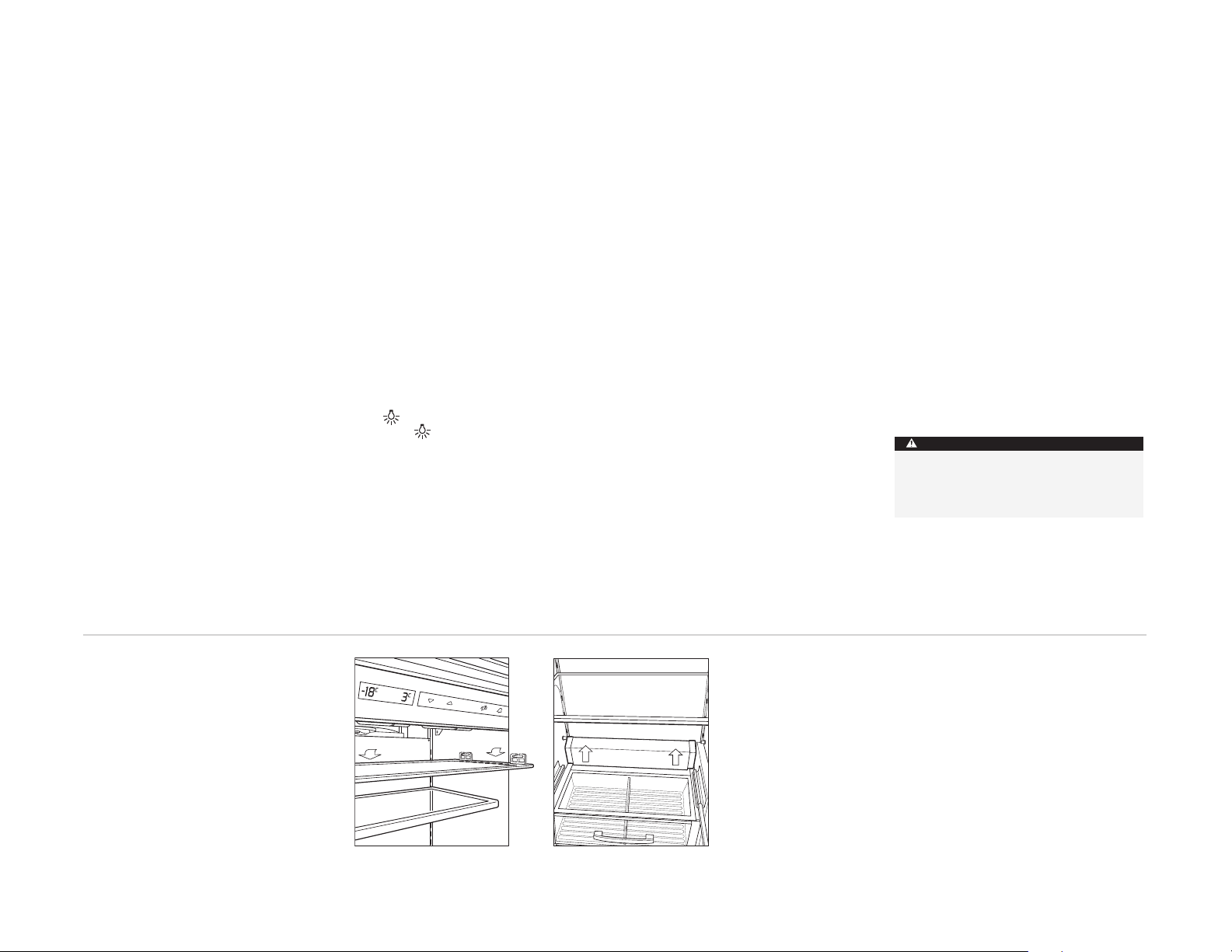

Adjustable glass shelf removal

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit our website, subzero.com.

ADJUSTABLE GLASS SHELVES

Be sure to read and understand the following instructions before removing or adjusting shelves. To remove or adjust shelves, first tilt the shelf up at the front, then lift it up and out of the tracks on the rear wall of the refrigerator. Refer to the illustration below.

If the door is limited to a 90° opening, you'll need to clear the door shelves in order to remove a shelf. Lift and pivot the end of the shelf nearest the door upward, and remove.

To r ep la c e a s he lf , i ns er t i t in th e tr a ck s a t th e rear of the refrigera tor with the front of the shelf raised slightly. As you push the shelf in, lower the front of the shelf until it locks into position.

IMPORTANT NOTE:

Always be careful in handling glass shelves to prevent breaking or scratching the interior.

ELECTRONIC CONTROL SYSTEM

SABBATH MODE (STAR-K)

All Built-In models feature the Sabbath Mode. This is for certain religious observances where the lights and ice maker function need to be turned off.

To i ni ti a te S ab b at h Mo d e, w h il e th e u ni t i s on press the key pad so that OFF is visible in the Control Center display panel. Your unit will be off.

Then press and hold the key pad for 10 seconds. This will turn the unit back on and will disable the lights and ice maker. To return the unit to normal operating conditions, press and release the key pad.

If you have questions about Star-K compliance, visit www.star-k.org.

VISUAL SERVICE DISPLAY

The Control Center monitors refrigerator and freezer temperatures as well as the ice maker system. If there is a temperature or ice maker problem, you’ll be alerted by an illuminated or flashing indicator in the Control Center display panel. The indicator may also be illuminated if the condenser needs cleaning. Before calling for service, please check and see if your condenser area needs cleaning. See Condenser Cleaning, page 13.

Glass shelves should warm to room temperature before immersing in warm water.

CAUTION

Over-and-under models:

First, unload the freezer baskets. To remove the upper freezer basket, lift up on the front and pull forward to release the basket. To remove the lower freezer basket, lift the basket directly upward and out. Refer to the illustration below.

To r ei ns t al l t he l ow e r fr ee z er b a sk et , i ns er t t he basket into the four corner retainers. To reinstall the upper freezer basket, position the basket onto the slide rails. Slide the basket towards the back. You should hear an audible click when the engagement is made.

IMPORTANT NOTE:

Unload the freezer baskets

before removing.

FREEZER STORAGE

FREEZER BASKET REMOVAL

All freezer and side-by-side models:

First, unload the freezer basket. To remove the basket, pull it out until it stops. Behind the bottom two corners of the front face of the basket are metal clips. Pull these clips toward the front of the basket and lift and rotate the basket up.

IMPORTANT NOTE:

To r em ov e t he b a sk et s f ro m Models ICBBI-36S, ICBBI-42S or ICBBI-42SD, the basket must be raised and pulled through the opening in the door liner after disengaging the basket from the slides.

IMPORTANT NOTE:

If Models ICBBI-36F or ICBBI-36S are limited to a 90° opening, it may be necessary to remove the basket and/or shelf above in order to remove the basket.

To r ei ns t al l, pu sh t h e dr aw e r sl i de s ba c k in t o th e freezer. Align the basket with the slides, and push the basket straight back onto the slides until it stops. Press downward on the front of the basket to engage the basket clips with the slides.

Models ICBBI-42SD and ICBBI-48SD:

To remove the ice bucket, pull the bucket out part of the way, then rotate the right side of the bucket as you continue to pull the bucket out. Refer to the illustration below.

ICE BUCKET REMOVAL

Over-and-under models and Model ICBBI-36F:

To r em ov e t he i c e bu c ke t, p u ll t h e fr ee z er d r aw er or basket out until it stops and lift the ice bucket out.

Models ICBBI-36S, ICBBI-42S and ICBBI-48S:

To r em ov e t he i c e bu c ke t, p u ll t h e bu ck e t fo rward until it stops. Next, lift the bucket to clear the carrier assembly along the back edge of the bucket. Once the bucket has cleared the assembly, continue to pull forward and out. If the door is limited to a 90° opening, repeat the procedure, but when lifting the ice bucket out, pivot the right side of the bucket toward you and out. This will allow the ice bucket to clear the door. Refer to the illustration below.

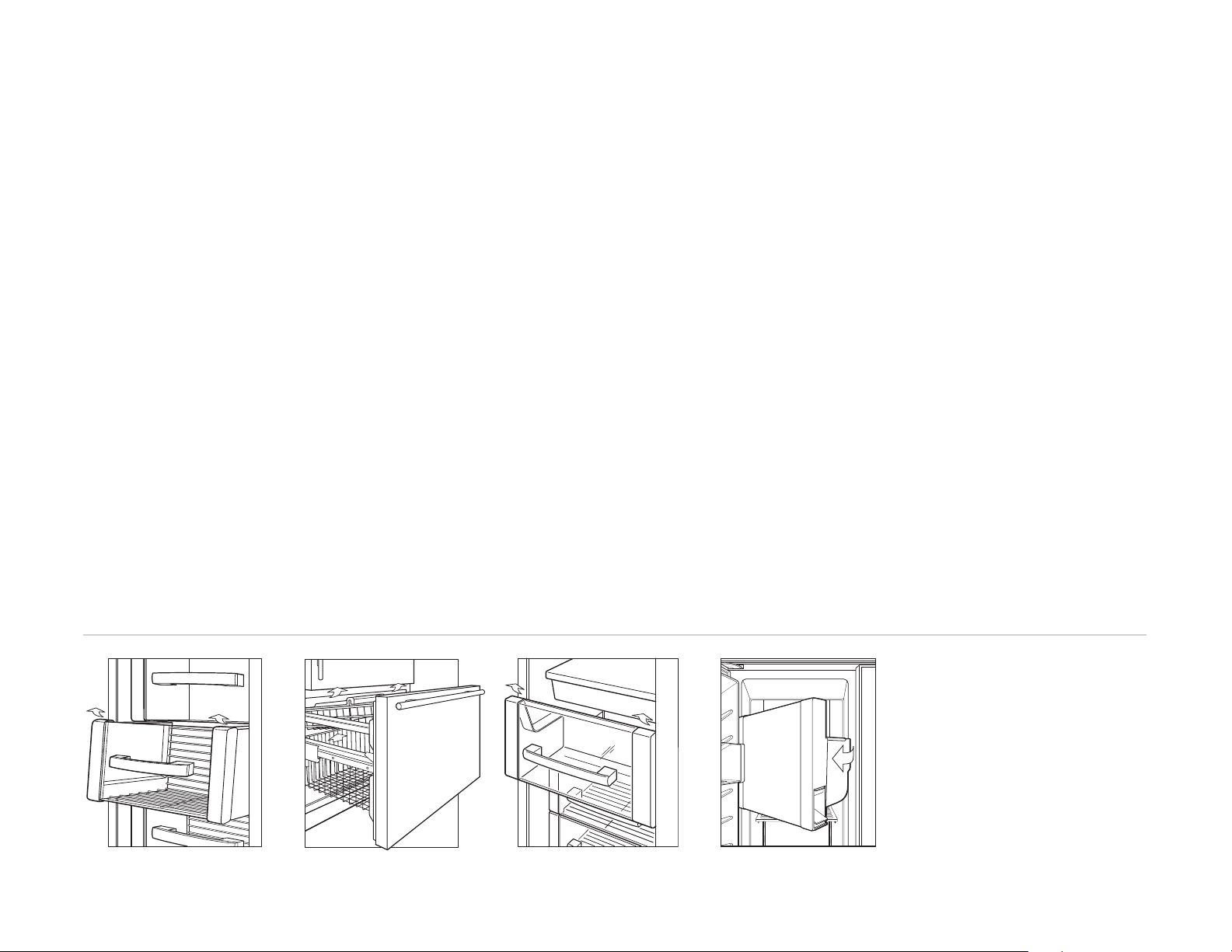

Freezer basket removal—all freezer and side-by-side models

Freezer basket removal— over-and-under models

Ice bucket removal—Models ICBBI-36S, ICBBI-42S and ICBBI-48S

Ice bucket removal—Models ICBBI-42SD and ICBBI-48SD

SUB-ZERO BUILT-IN USE & CARE

MAX ICE FEATURE

The Max Ice feature increases the rate of ice production for times where you need more than normal. The increased ice production will last for 24 hours, at which time it will return to the normal production level. You can expect about a 40% increase in ice production when this feature is turned on.

To i ni ti a te t h e Ma x I ce f ea t ur e, pr es s t he k ey pad on the Control Center so that the indicator is visible in the display panel. Refer to the illustration below.

To t ur n o ff t he Ma x I ce f ea t ur e, si mp ly pr es s t he

key pad and the unit will return to normal

ice production.

ICE MAKER OPERATION

The ice maker in your Sub-Zero freezer is fully automatic and has been tested at the factory. To start making ice, activate the key pad on the Control Center.

The ice maker system will not shut off if the ice bucket is not in place.

When removing the ice bucket for an extended period, deactivate the ice maker by depressing the key pad on the Control Center.

ICE PRODUCTION

The ice maker is designed to produce enough ice for normal family use. The timing of ice-making cycles will vary depending on load conditions, door openings and room temperature. On average, you can expect a cycle of ice (eight cubes per cycle) every two hours.

The ice maker operates on water pressure of 2.1 bar to 6.9 bar. In some cases, a reverse osmosis water filter system may not be able to maintain the minimum pressure.

IMPORTANT NOTE:

If ice is not used regularly it tends to fuse together. To avoid this, empty and replace the ice in the container as needed.

SUB-ZERO BUILT-IN USE & CARE

Max Ice Key Pa d

Max Ice key pad

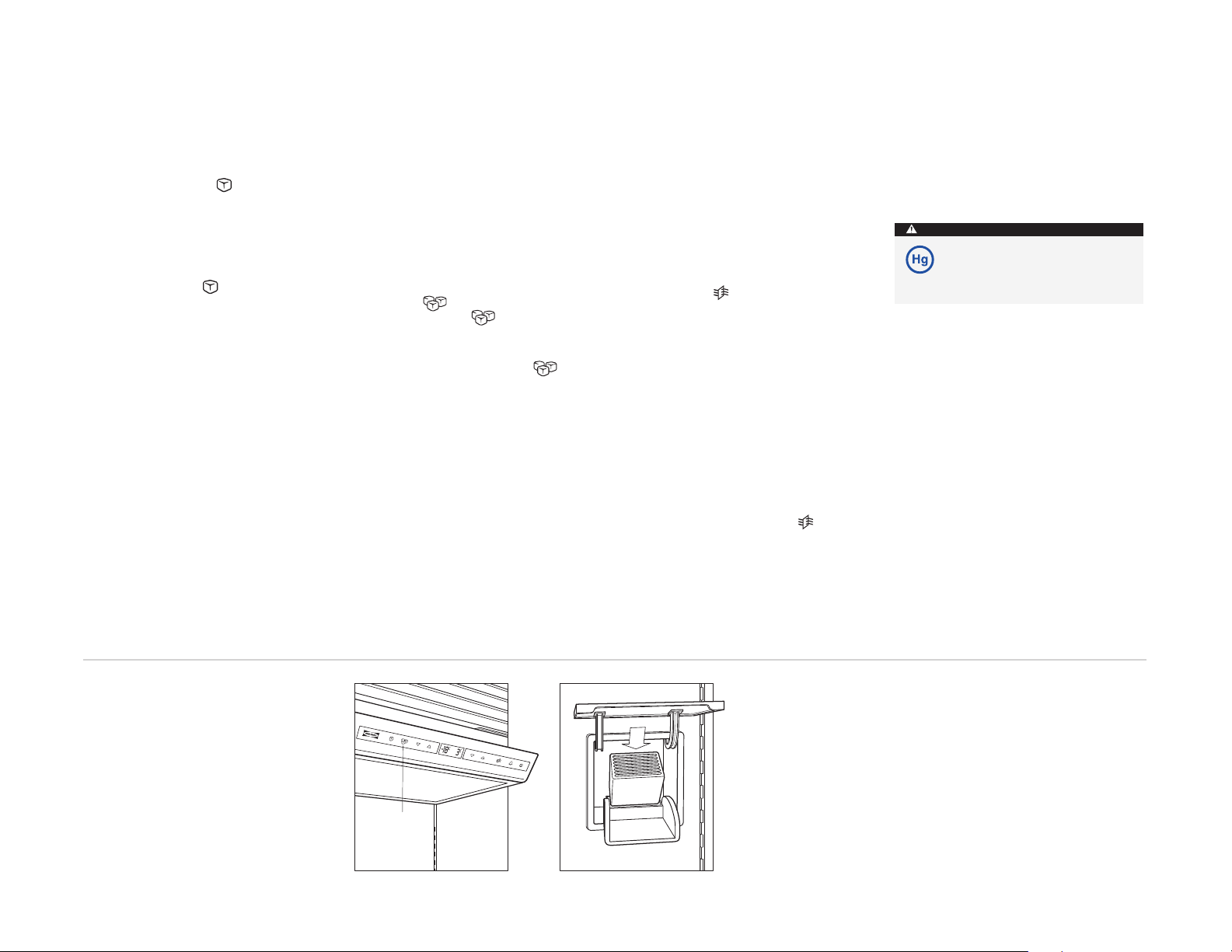

AIR PURIFICATION SYSTEM

All Sub-Zero Built-In models (except Model ICBBI-36F) include an advanced air purification system. This system reduces bacteria, odors, and even ethylene gas, which causes premature ripening in fruits and vegetables. The air purification cartridge has been factory installed and is located inside the refrigerator, on the right-hand side of the back wall.

The air purification cartridge will last for approximately one year. The indicator will flash in the Control Center display panel when it needs to be replaced. To replace the cartridge, grab the outside cover from the bottom and pull it forward. It will flip up and expose another flap and the cartridge. Refer to the illustration below. Pull the flap forward from the top, which will cause the cartridge to pop out of position. Remove the cartridge.

To r ep la c e, p ut th e ne w c ar t ri dg e i nt o pl a ce , wi t h the connector pointing down. Once in place, close the flap until you hear a click. Then flip down the outside cover until it closes against the wall.

Once the air purification cartridge has been replaced, press the keypad on the Control Center for 5 seconds. This will reset the air purification indicator and will no longer be displayed.

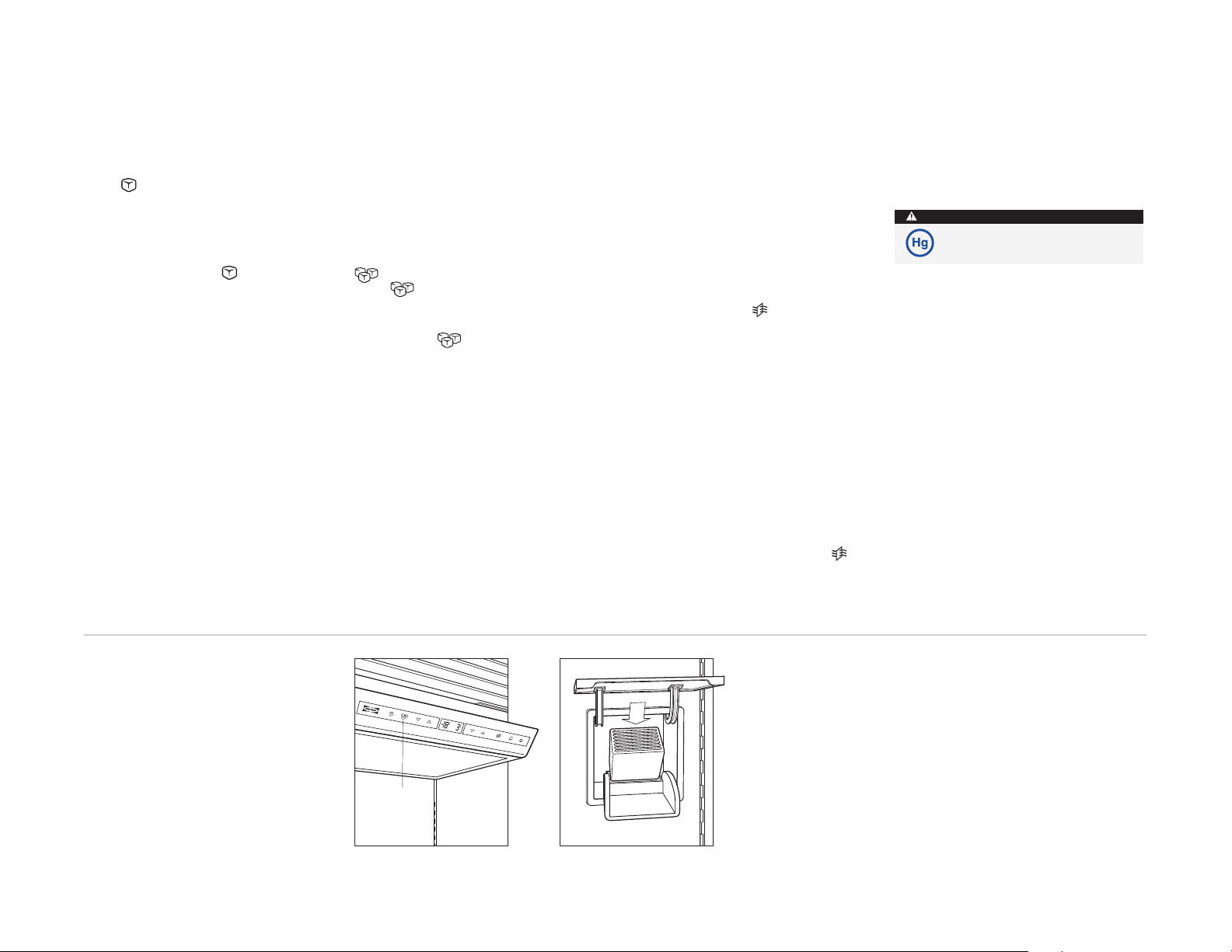

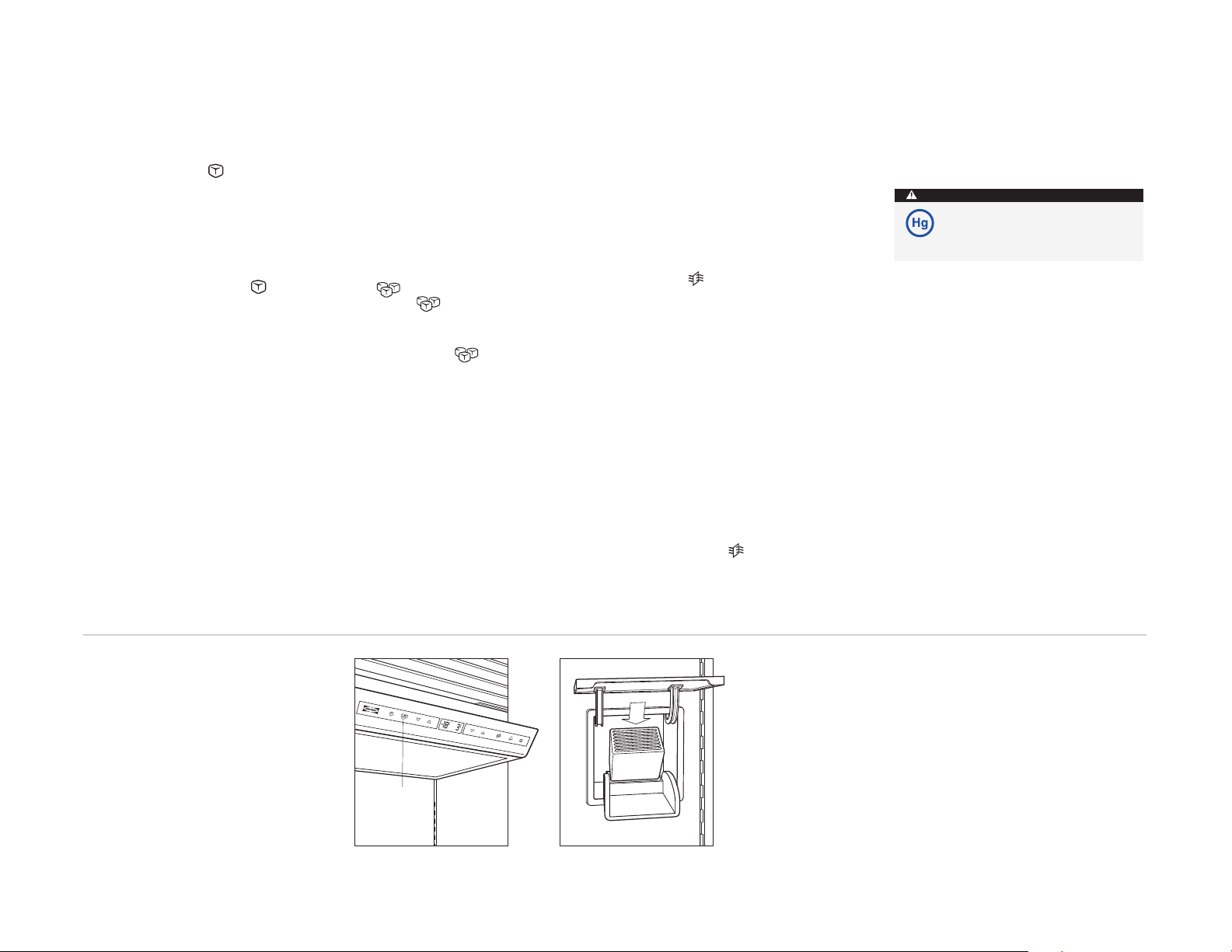

Air purification cartridge

REPLACEMENT CARTRIDGES

Replacement air purification cartridges can be ordered by contacting your Sub Zero dealer.

IMPORTANT NOTE:

The warranty for the air purification cartridge supplied with the unit only covers defects in materials or workmanship and not replacement due to normal use.

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit our website, subzero.com.

CAUTION

LAMP CONTAINS MERCURY Manage in accordance with disposal

laws.

ICE DISPENSING

Models ICBBI-42SD and ICBBI-48SD have a feature that limits the maximum amount of ice that is dispensed each time the key pad on the glasswell is pressed.

To d is pe n se i ce , h ol d d ow n t he k ey p ad fo r approximately two seconds. The dispenser will meter out ice for about two seconds, collect the ice directly above the glass, then drop the ice into the glass. If less ice is desired, hold the key pad down for less than two seconds. If more ice is desired, hold the key pad down until the dispensing cycle repeats.

IMPORTANT NOTE:

Be sure that dispenser key pads are clean and dry when pressed to avoid problems with the dispenser operation.

SUB-ZERO BUILT-IN USE & CARE

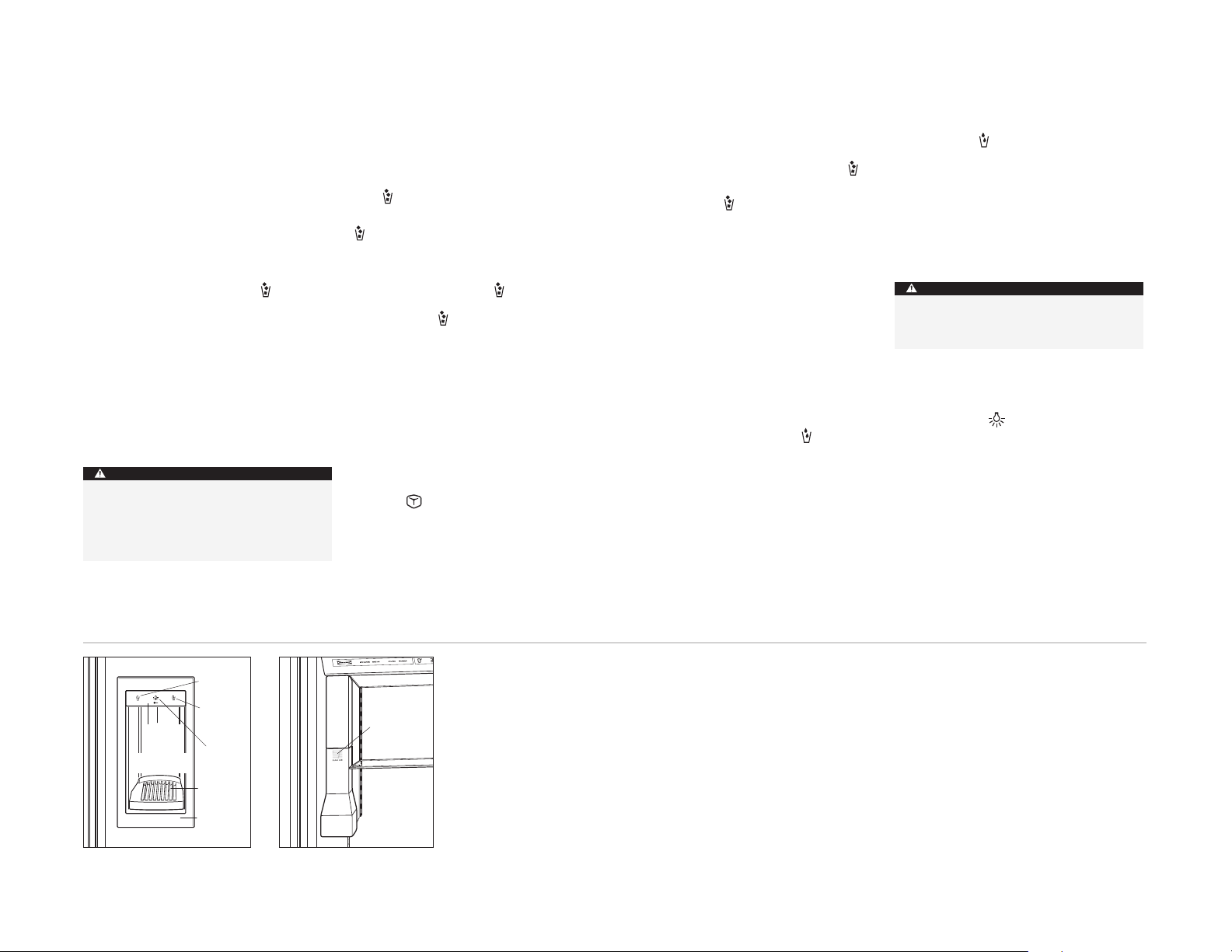

ICE AND WATER DISPENSER

For dispenser Models ICBBI-42SD and ICBBI-48SD, the automatic ice and water dispenser gives you both ice and chilled water without having to open doors.

ICE DISPENSER OPERATION

To o pe ra t e th e i ce d i sp en se r f or Mo de ls ICBBI-42SD and ICBBI-48SD, set a glass on the water grille of the glasswell, and press and hold the key pad on the glasswell until you have the ice you need. For larger quantities of ice, open the refrigerator door and place an ice container under the dispenser chute, then press the

BULK ICE

pad on the left hand wall inside the refrigerator section. Refer to the illustration below.

After initial ice maker start-up, discard the first few batches of ice—they may be discolored by the new system plumbing.

Initially, for water to dispense properly, the key pad must be depressed and held until water flows from the dispenser. You may have to hold the key pad for 60 seconds for water to fill the internal reservoir tank.

IMPORTANT NOTE:

The chilled water reservoir tank is mounted inside the refrigerator section. It will take several hours to chill the water to the refrigerator temperature during the original fill or after a lot of water is used.

DISPENSER LIGHTS

For dispenser models, there are three lighting states than can be cycled by pressing the key pad on the glasswell.

• All lights OFF

• All lights ON (blue key pad and white

glasswell)

• Key pad lights ON only

During water or ice dispensing, all lights will illuminate until dispensing is complete, then lights will return to their previous state.

ICE DISPENSER OPERATING TIPS

•

If there’s no ice, make sure the ice maker system is turned on and indicator is illuminated in the Control Center display panel.

• Make sure there is a supply of ice in the ice

bucket. See Ice Bucket Removal, page 9.

• Make sure the ice bucket is all the way in and

engaging the auger motor at the back of the bucket. If it is not all the way back, push on the ice bucket and depress the key pad on the glasswell at the same time.

• Press the key pad on the glasswell. If you

do not hear auger motor noise, wait five minutes, then try again. If you do not hear auger noise after the second try, contact your Sub-Zero dealer.

• If the ice dispenser is not used for a long

period, the ice may fuse together. To avoid this, empty the ice bucket as needed.

WATER DISPENSER OPERATION

To o pe ra t e th e w at er di sp en s er f o r Mo de l s IC B BI 42SD and ICBBI-48SD, set a glass on the water grille of the glasswell, and press and hold the key pad on the glasswell until the glass is filled.

The first time you use the water dispenser, purge the water system and storage tank for three minutes. This will clear out any air in the system, along with foreign material in the new plumbing connection.

Water

Grille

Ice

Key Pad

Light

Key Pad

Water

Key Pad

Touch Pad

Lock

Indicator

Bezel

Bulk Ice

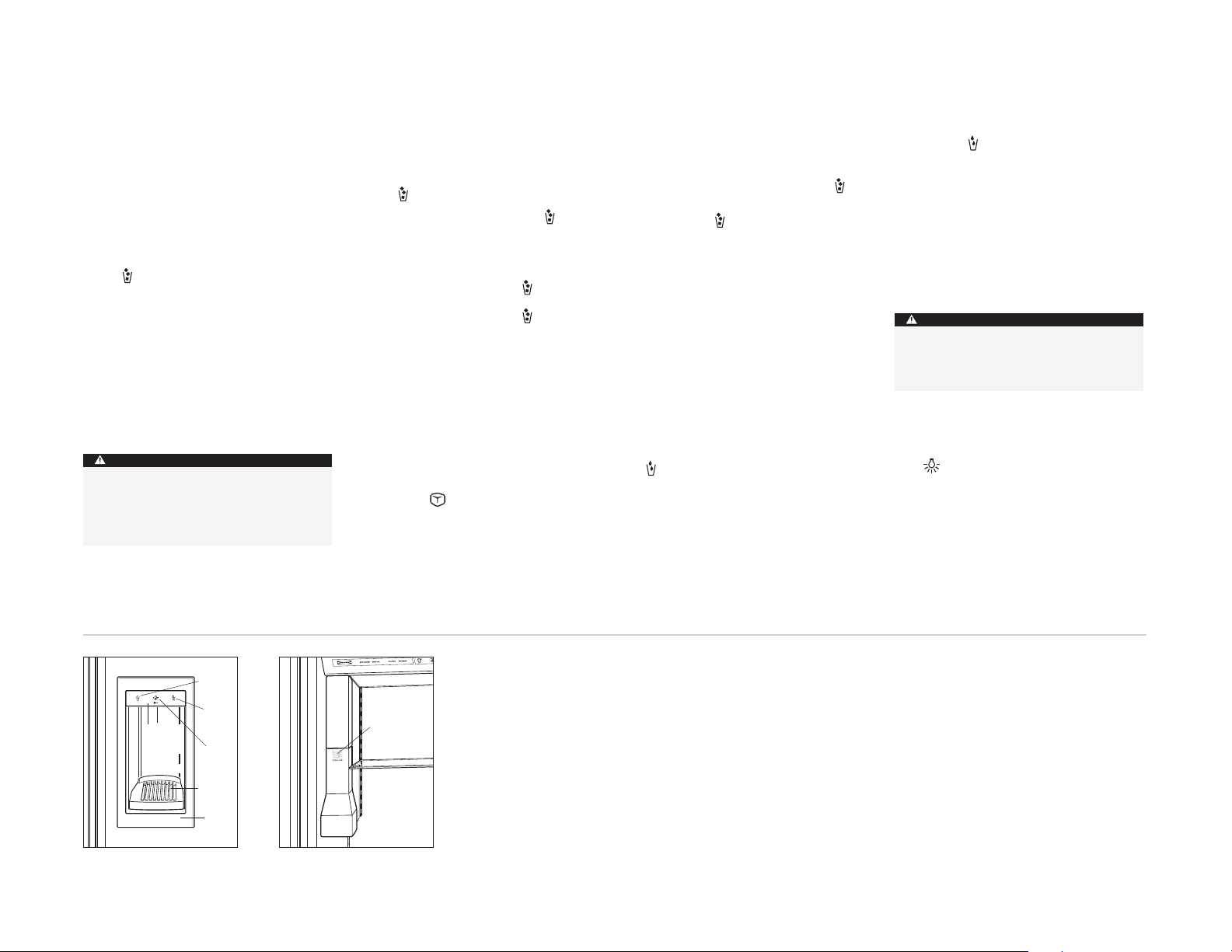

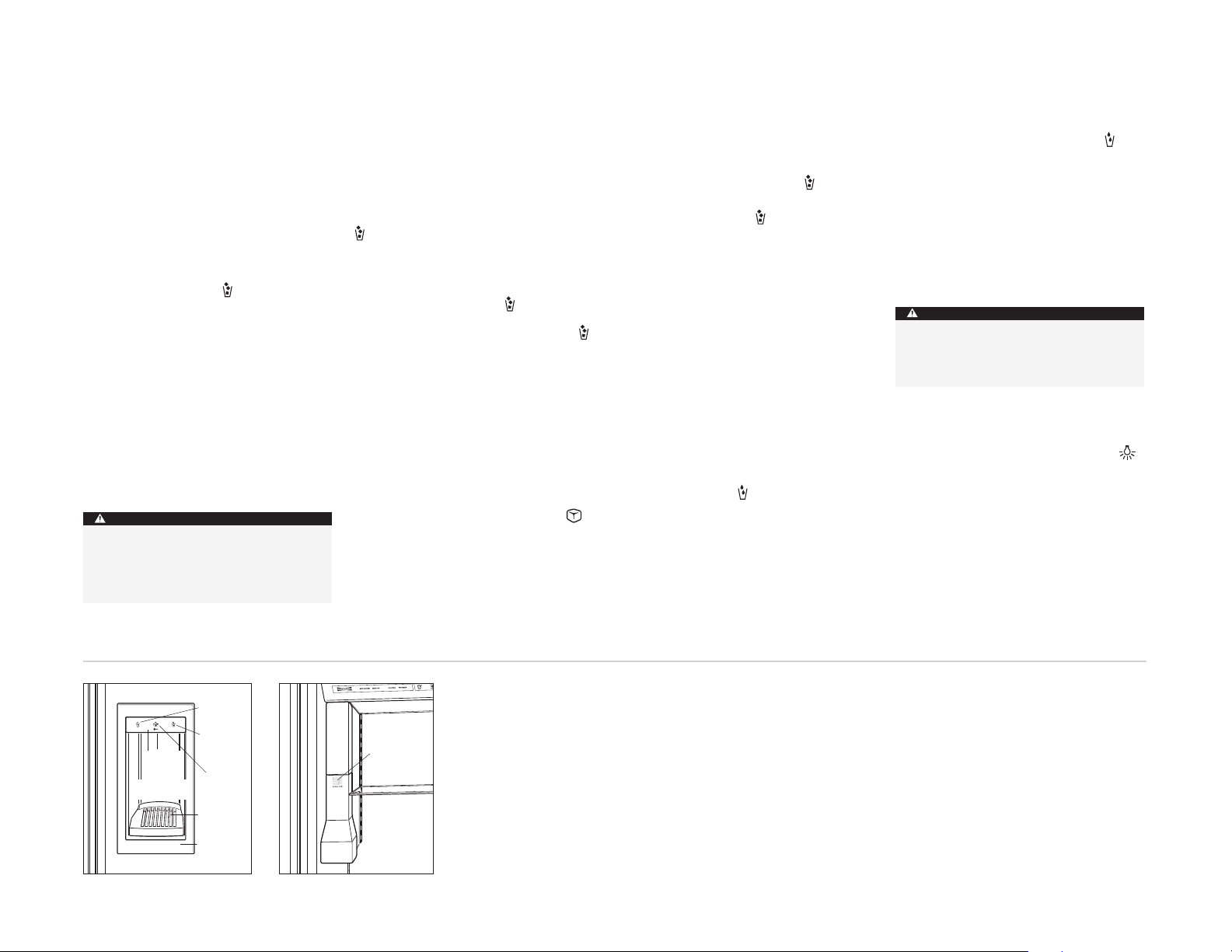

Glasswell—Models ICBBI-42SD and ICBBI-48SD

Bulk ice dispenser—Models ICBBI-42SD and ICBBI-48SD

Limit continuous ice and/or water dispenser operation to seven minutes or less, to avoid damaging the equipment.

CAUTION

Use a sturdy glass to catch ice crescents. Fragile glasses can break. Also, to avoid breakage, make sure that the glass is sitting vertically on the water grille.

CAUTION

SUB-ZERO BUILT-IN USE & CARE

OPERATIONS

DOOR AND DRAWER CLOSING

Over-and-under models:

Yo ur r ef r ig er at o r do or has a door closing cam to help in closing the door. With the door opened to about 110°, the cam will hold in the open position if the door is stopped. As you close the door, the cam will take over at about 15° to help close the door.

Yo ur f re e ze r dr a we r ha s a s el f -c lo si n g me ch a nism. The incline, built into roller assemblies on the drawer, uses gravity to assist in closing the drawer.

If your Built-In unit is positioned in a corner, you may want to install an optional door stop, which limits door opening to 90°. This door stop is provided with each Built-In model and is shipped in a plastic bag in the grille area.

DOOR CLOSING

All refrigerator, all freezer and side-by-side models:

Yo ur r ef r ig er at o r an d f re ez er do or s h av e spring-loaded closure mechanisms. As the doors are closed, the door closure engages to help close and seal the doors. A 90° door stop is provided with each unit and is shipped in a plastic bag in the grille area.

CONDENSER FAN MOTOR

All Sub-Zero Built-In models have a fan behind the grille to cool the compressor area. This fan runs with either compressor.

AUTOMATIC DEFROST

Yo ur S ub -Z e ro u ni t i s eq u ip pe d w it h an au to matic defrost system. The refrigerator section will defrost during each off cycle of the refrigerator compressor. The freezer section is controlled by an energy-saving Adaptive Defrost system, which defrosts as needed.

SOUNDS

Yo u ma y h ea r so m e no is e s in t h e no rm a l op er ation of the unit. Surrounding acoustics like walls, floors and cabinets may affect the sound of your unit. For example, a gurgling or running water sound is probably refrigerant circulating through the tubing. In Models ICBBI-42SD and ICBBI48SD, the ice dispenser motor inside the refrigerator door closes five seconds after either the or key pad is released.

During the ice maker cycle you may hear the sound of ice dropping into the container or the water valve operating while refilling the ice maker with water. During the freezer defrost you may hear crackling and/or sizzling as the heat from the defrost element clears the frost from the freezer coil and water runs into the water pan.

While the compressors are in operation, you may hear a slight hum. During the start-up and shutdown of the compressor, you may feel vibration for a few seconds.

Some of these noises may be enhanced when the unit door(s) are open.

VACATION TIME

For extended vacations, shut off power to the unit. Empty the unit and block the doors open slightly. A 25 mm space will let fresh air in to keep the interior dry and fresh.

For short vacations, remove all perishable items. Shut off the ice maker and empty the ice bucket. Do not change the control settings.

If the unit is put into service temporarily and later shut off, block the doors open to allow fresh air to circulate inside the unit. Be sure to shut off power to the unit.

If your religious observances (Sabbath Mode) require turning off the lights and ice maker, see Sabbath Mode, page 8.

ICE AND WATER DISPENSER

DISPENSER WATER GRILLE

For dispenser models, a water grille at the base of the glasswell will catch and evaporate small spills. Because there is no drain in this area, do not pour water into the water grille. To clean the area, remove the water grille by pressing the front left corner of the grille and lifting it out.

LOCK

For dispenser models, the lock feature is used to prevent unintended ice and water dispensing. When the dispenser is locked, all key pads on the glasswell are deactivated to allow cleaning or to prevent small children from using the dispenser.

To a ct iv a te t he lo ck f e at ur e , ho ld do wn t h e key pad on the glasswell until the key pad lights flash once and the red icon is illuminated (approximately five seconds). The lights will remain in the state they were in before the lock feature was activated.

To d ea ct i va te t h e lo ck fe at u re , ho l d do wn th e key pad until the key pad lights flash once and the red icon is no longer illuminated (approximately five seconds). The lights will remain in the state they were in before the lock feature was deactivated.

Be sure to block doors open when unit is not in service. Moisture buildup during even the shortest amount of run time could attack the interior metal surfaces.

CAUTION

CONDENSER CLEANING

In all Sub-Zero Built-In models, the condenser is located behind the grille. First, pull out on the bottom edge of the grill and tilt forward. Then using a soft bristle brush, vacuum to remove dust and lint from the condenser. Refer to the illustration below for location of the condenser. NOTE: To avoid bending the condenser fins, be sure to vacuum in the direction of the fins (up and down). Clean the condenser area every three to six months.

CLEANING

STAINLESS STEEL EXTERIOR

Classic stainless steel finish:

To c le an th e ex t erior of the classic stainless steel finish, use a soft, nonabrasive stainless steel cleaner and apply with a soft 100% lint-free cloth.

Different light types and source locations can result in variations in shading on different components and areas of large appliances.

To b ri ng ou t th e n at u ra l lu s te r, l ig ht l y wi p e th e surface with a water-dampened microfiber cloth followed by a dry polishing chamois. All work should follow the grain direction of the finish. Better results are obtained by keeping the cloth in continuous contact with the stainless steel.

INTERIOR CLEANING

To c le an in te r io r su r fa ce s a nd r e mo va bl e p ar t s, wash with a mild solution of soap and luke warm water with a little baking soda. Rinse and dry thoroughly. Avoid getting water on lights, Control Center and display panel.

GLASSWELL CLEANING

To c le an th e gl a ss we l l of M o de ls IC BB I- 4 2S D a nd ICBBI-48SD, use a mild solution of soap and water with a little baking soda. Wipe up spills after removing the dispenser water grille.

For the stainless steel areas of the glasswell on Models ICBBI-42SD and ICBBI-48SD, you may use the Stainless Steel Exterior cleaning procedure.

SUB-ZERO BUILT-IN USE & CARE

CLEANING COMBINATION UNITS

For over-and-under and side-by side models, it is possible to turn off one section of your combination unit for an extended period without disrupting the other.

First, turn the unit off. Press and hold the key pad of the section you want to disable. While holding the key pad, depress the key pad. Then, release both key pads. The disabled section will appear blank in the Control Center display panel. Repeat the process to turn the section back on. See Electronic Control System, page 7.

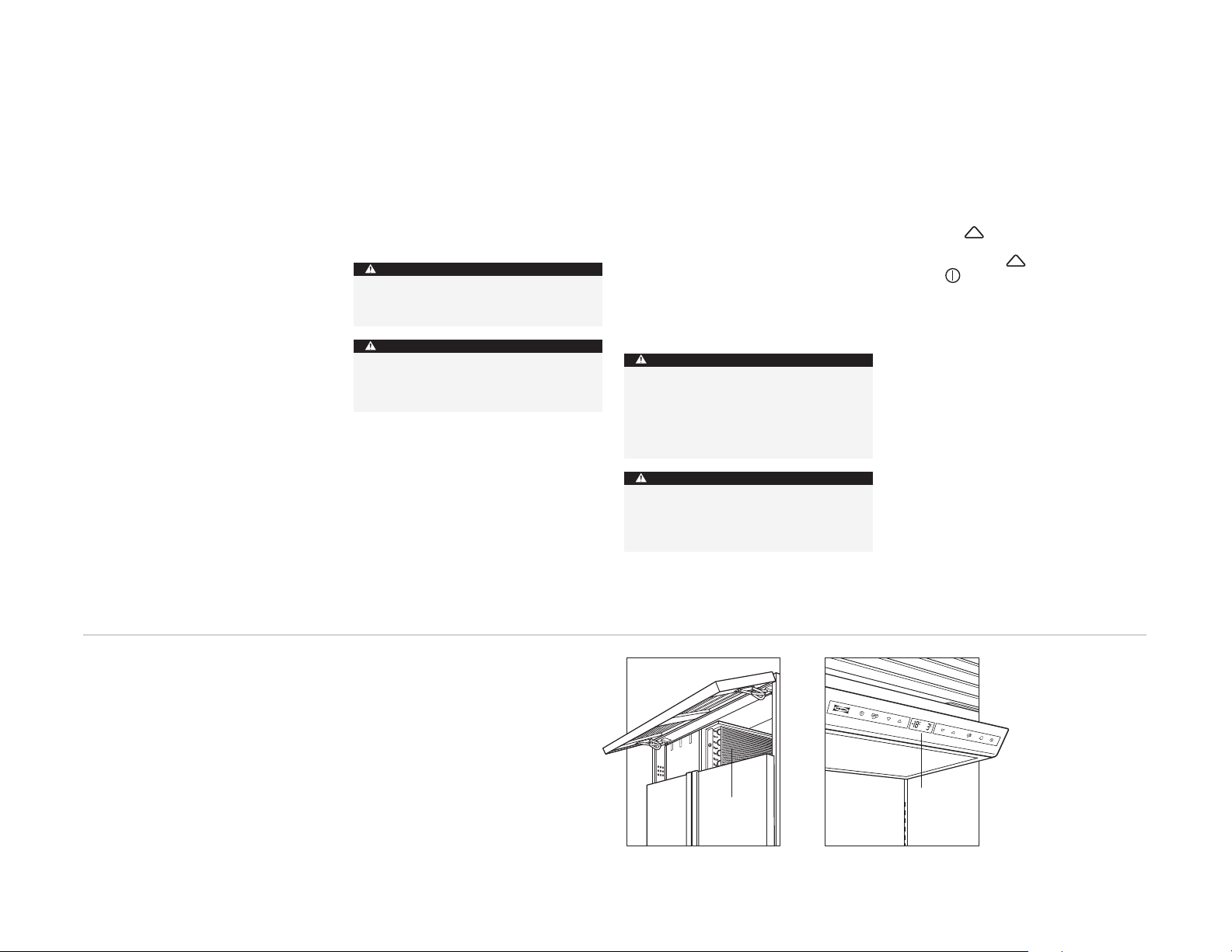

Display

Panel

Control center display panel

Location of condenser

Failure to clean the condenser could result in temperature loss or mechanical failure or damage.

CAUTION

Do not use vinegar, rubbing alcohol or other alcohol-based cleaners on any interior surface.

CAUTION

Do not submerge or pour hot water over cold glass shelves.

CAUTION

Before cleaning the unit, shut the electricity off at the control panel. When you clean the condenser, wear gloves to avoid injury from the sharp condenser fins.

CAUTION

Condenser

LIGHTING INFORMATION

IMPORTANT NOTE:

When the refrigerator or freezer doors are left open for a long time, the lights may go off. This protects the internal parts from overheating. To reset the light system, close the door for 15 to 30 minutes.

Yo ur S ub -Z e ro B ui l t- In u n it c on t ai ns u n iq ue 4 0 watt appliance bulbs (7009935) in refrigerator and freezer sections.

IMPORTANT NOTE:

To r ep la c e a li g ht b ul b , di s connect power supply from the receptacle before changing light bulb. The power cord is located in the far right corner behind the flip-up grille.

SUB-ZERO BUILT-IN USE & CARE

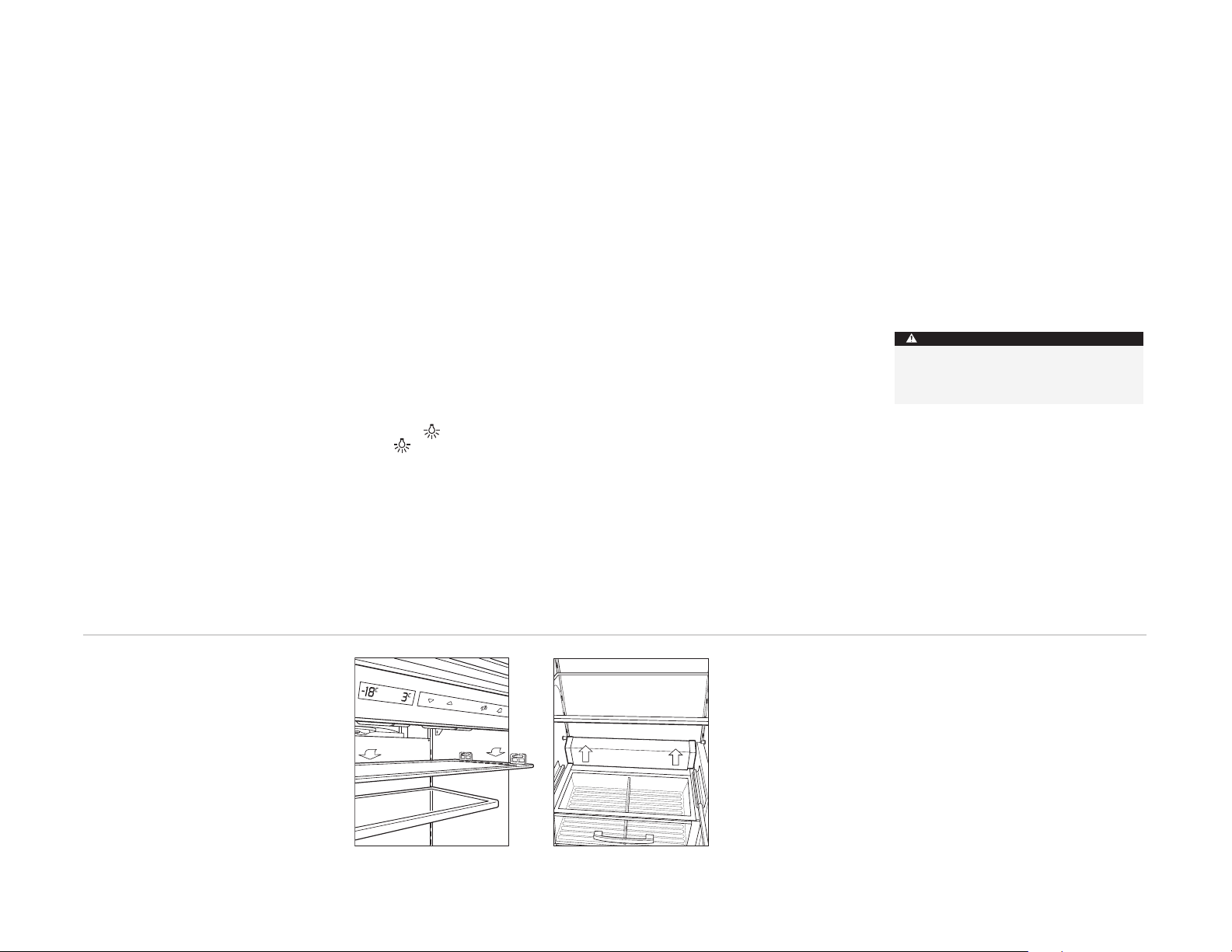

Overhead light shield removal

OVERHEAD LIGHTING

Yo u’ ll n e ed t o r em ov e t he l ig h t sh ie l d in t h e to p of the refrigerator or freezer to replace the bulbs. Place your hands under the light shield and slide back slowly until the key slots on the sides of the light shield drop past the mounting studs in the upper brackets. Then remove the shield. The bulbs are now accessible. Refer to the illustration below.

Models ICBBI-36RG, ICBBI-30UG and ICBBI-36UG:

Like all Sub-Zero units, lights in glass door models will fully illuminate when the door is open. With the ICBBI-36RG, ICBBI-30UG and ICBBI-36UG, however, you have the option of having subdued lighting even with the door closed. You can easily turn this feature off by depressing the key pad on the Control Center. The indicator will appear when accent lights are enabled.

CRISPER LIGHTING

Crisper drawer lighting is located behind the upper crisper drawer and mounted to the back wall of the refrigerator. To remove the light shield first remove the crisper drawer. Next remove the upper crisper shelf. Then place both hands under the bottom right and left sides of the light shield and push upward. See illustration below.

FREEZER LIGHTING

Models ICBBI-30U, ICBBI-30UG, ICBBI-36U and ICBBI-36UG:

Freezer lighting is located in upper front section of the freezer compartment. To r em ov e t he l i gh t s hi el d, ge nt l y co mp r es s t he shield to release it from the supporting guides.

Models ICBBI-42S and ICBBI-48S:

Freezer basket lighting is located above the ice bucket. To a cc es s t he bu lb s, re mo ve th e i ce b uc k et . N ex t, push the ice bucket assembly to the back of the unit. Once the assembly is against the back wall of the unit, the bulb will be accessible under the fixed shelf in front of the icemaker.

Models ICBBI-42SD and ICBBI-48SD:

Freezer lighting above the ice bucket is accessible by removing the ice bucket. See Ice Bucket Removal, page 9. Once the bucket has been removed, remove the light shield. See Overhead Lighting, page 14.

Freezer lighting below the Ice bucket is accessible by removing the glass light shield. To remove the glass, press the plastic lip up and pull the glass out of the supporting guides. Freezer basket lighting is located below the fixed shelf on the back wall of the freezer. To access the light first remove the freezer basket below the fixed shelf. To remove the light shield, gently compress the shield to release it from the supporting guides.

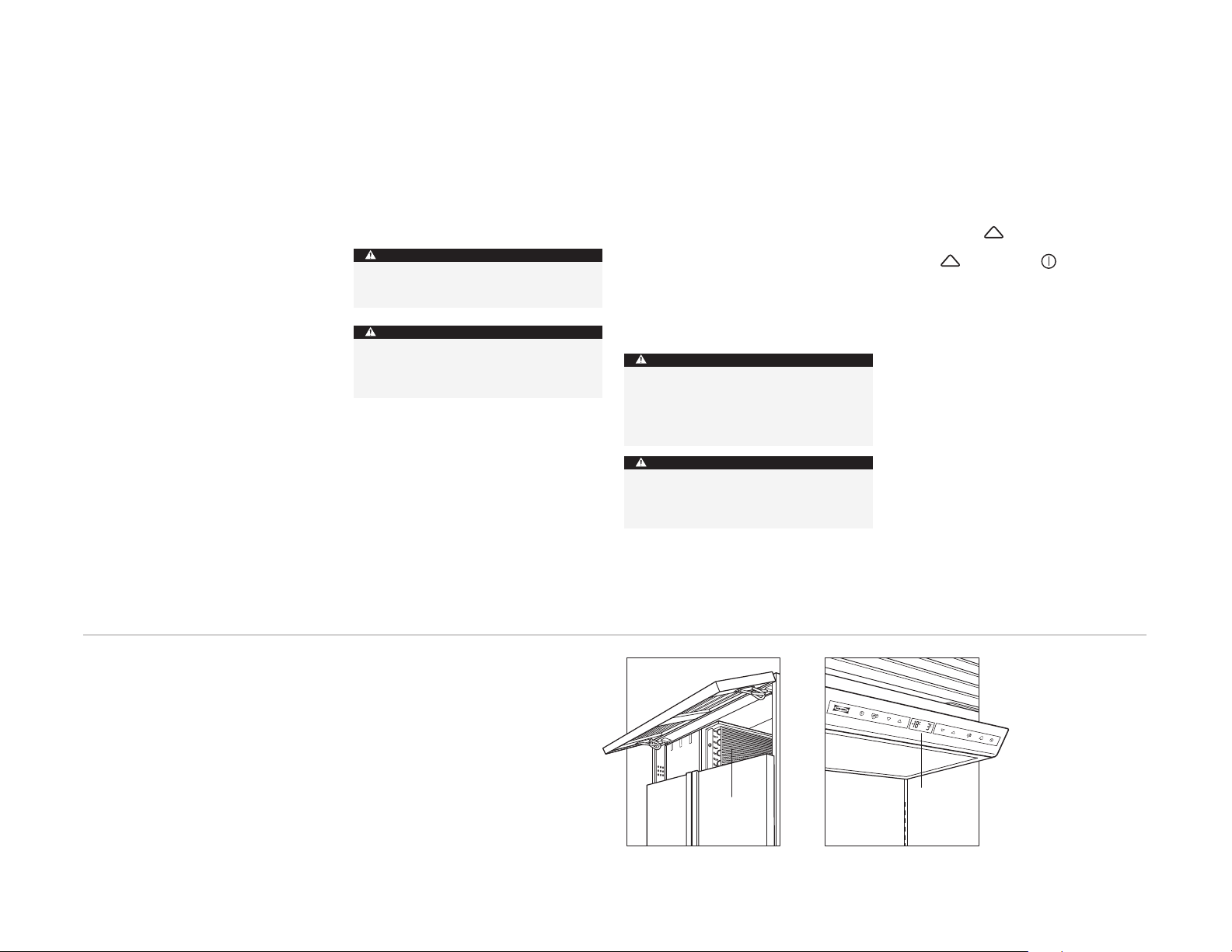

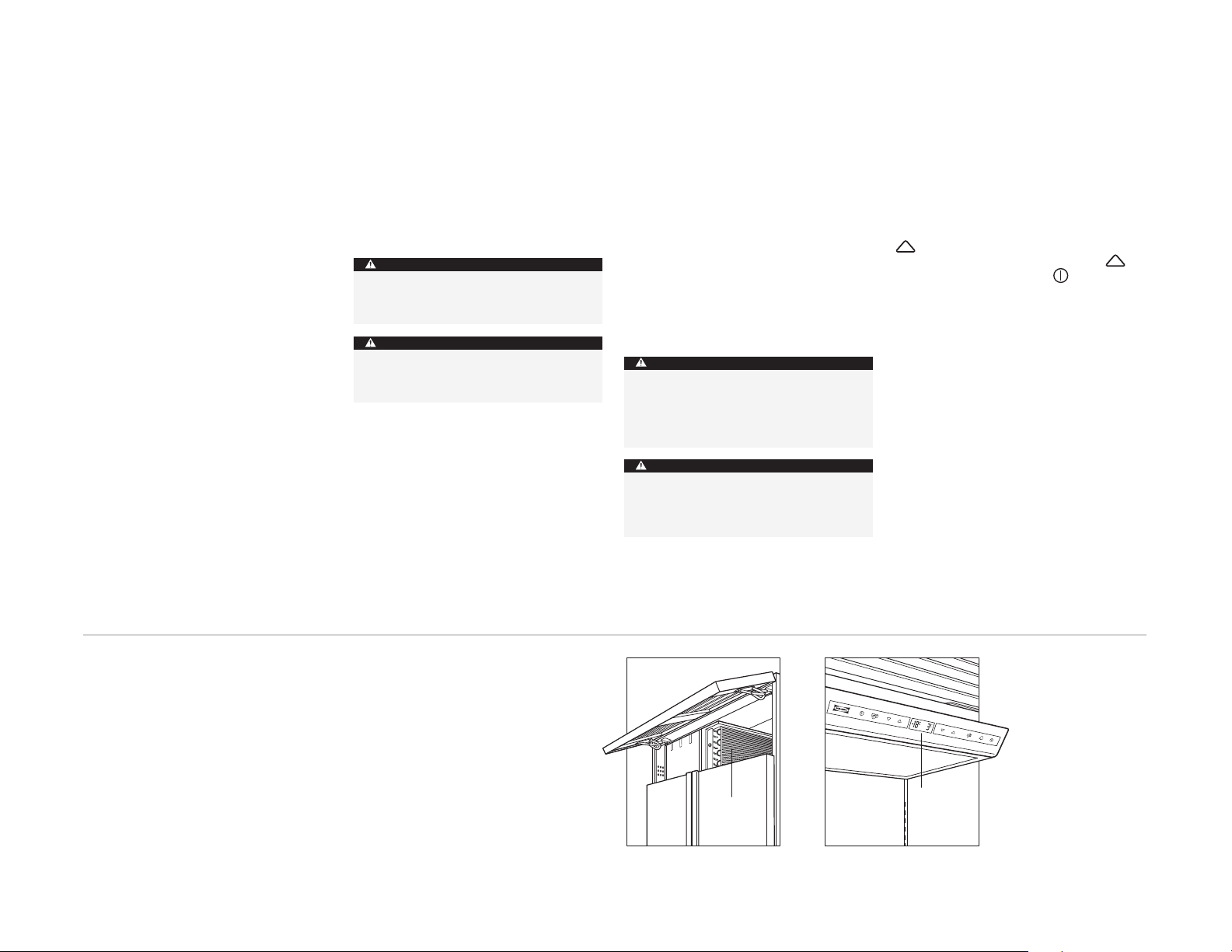

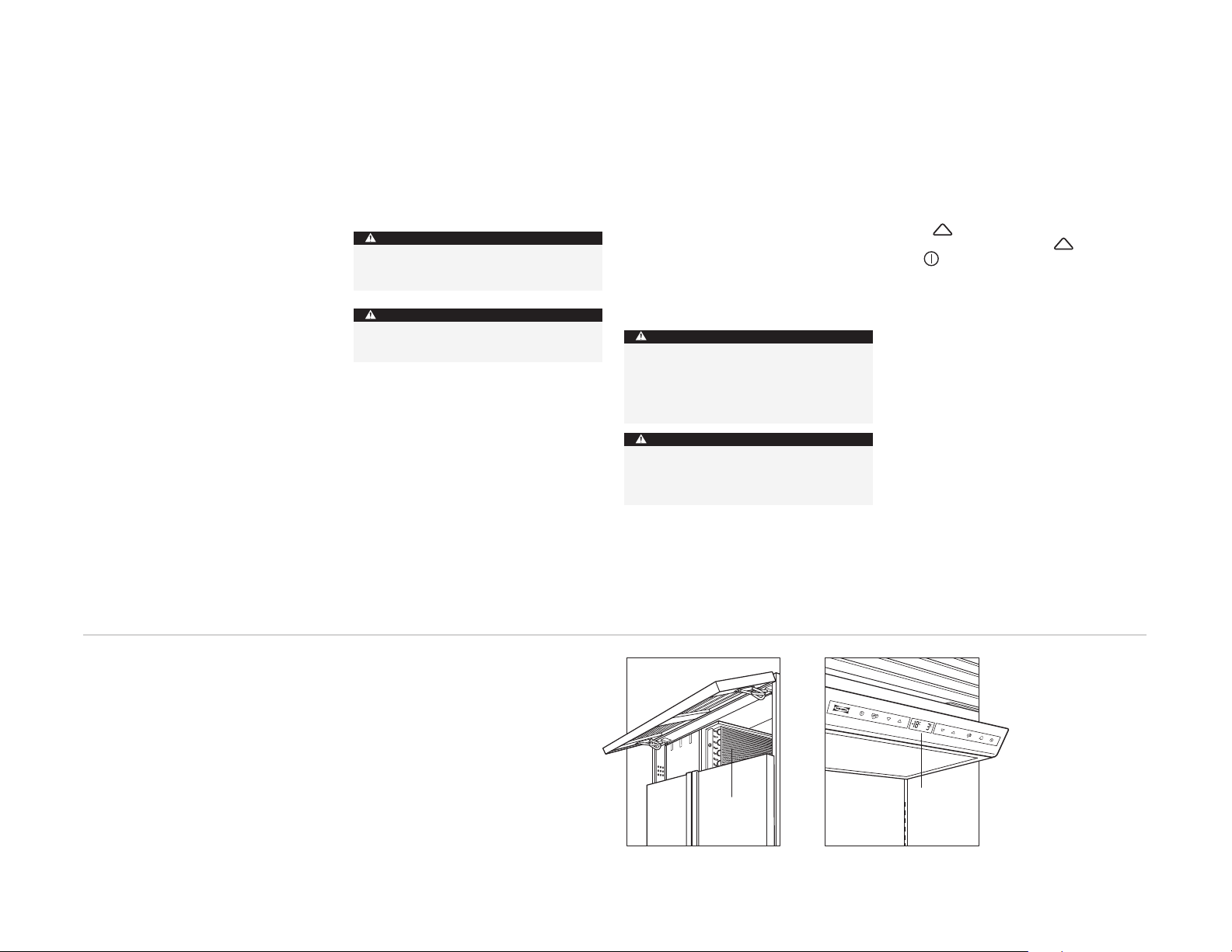

Light shield removal—crisper

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit our website, subzero.com.

Disconnect power supply from the receptacle before changing light bulb. Wear protective gloves when handling bulbs.

CAUTION

KEEPING FOOD AT ITS BEST

KEEPING FOOD FRESH

Yo ur S ub - Ze ro u n it f ea t ur es o u r un iq u e du al compressor refrigeration system to keep food fresher longer. However, the quality and safety of your food also depends on how you handle it.

The information in this section gives you the most up-to-date handling and storage recommen dations to help you keep food at its best. If you have specific questions that are not addressed here, contact a University or County Extension Service or your local utility company.

Most food inevitably deteriorates over time. From the very beginning until it is consumed, food undergoes changes. Microorganisms get into food, multiply and cause spoiling.

Enzymes that occur naturally in food continue the ripening process even after the food is harvested. Improper temperatures cause food to deteriorate faster. Changes in humidity cause wilting and shriveling that can lead to spoiling.

Sub-Zero’s dual refrigeration system is specifically designed to combat these changes and keep your food fresh longer. The individual refrigerator and freezer systems have been designed to maintain accurate, consistent temperatures and proper humidity levels for longer food life expectancy. Dual refrigeration eliminates transfer of fresh food odors to frozen food or ice and does not freeze the moisture out of the air in the fresh food section.

In addition, good handling practices can minimize the rate of changes in food.

HANDLING RECOMMENDATIONS

•

Follow the recommended storage times and temperatures in this guide. Your Sub-Zero unit helps to slow the ripening process by tailoring temperatures to each section as needed.

• Use specially designed compartments for

dairy foods, deli foods and fresh produce. These compartments maintain temperature and humidity levels that keep specific food groups fresh.

• Rotate food in refrigeration units, using a

first-in, first-out system.

• When food does spoil, it’s usually obvious. It

becomes moldy, has an off-odor and looks rotten. But there are times when spoiling may not be so apparent. If you think a food has been stored too long, discard it. Don’t taste it to check if it’s okay.

KEEPING FOOD SAFE TO EAT

Most food-borne illness is caused by bacteria such a

Staphylococcus, Salmonella, E-coli

and

Clostridium botulinum

, the bacteria that causes botulism. These bacteria grow rapidly at temperatures between 4˚C and 60˚C, a range that’s called the

Danger Zone

. Never leave food in the danger zone for more than two hours. When the bacteria have multiplied to the millions in warm temperatures, they cause illness. Some bacteria cause flu-like symptoms, while others cause serious illness or even death. Young children, the elderly and people who are already ill are more likely to become sick from food poisoning.

To r ed uc e y ou r r is k o f fo od - bo rn e i ll ne s s, u s e th e following techniques to keep your food safe to eat:

WHEN YOU’RE SHOPPING

• Place packages of raw meat, seafood or

poultry in plastic bags to keep them from dripping on other foods.

• Shop for meat, seafood and poultry last.

Don’t leave these foods in a hot car when you’ve finished shopping. Take along a cooler in hot weather or when you have to travel long distances.

• Check

use by

and

sell by

dates on foods to make sure they’re fresh. Use extra care when buying deli food. Buy only the amount you will use in 1–2 days. Discard hot or cold deli food that has been at room temperature for more than two hours.

WHEN YOU STORE FOOD

•

Monitor temperatures of the refrigerator and freezer sections on the electronic control panel of your Sub-Zero unit. Keep the refrigerator temperature at 4˚C or below and freezer temperature at -18˚C.

• Follow the recommended refrigerator and

freezer storage times and temperatures in this guide.

• Store raw meat, poultry and seafood separate

from other foods. Keep juices from these packages from dripping on other food.

• Never taste food that looks or smells strange

to test its freshness. Discard it.

• For refrigerator storage, leave raw meat,

poultry and seafood in its original wrapper unless it is torn. Repeated handling can introduce bacteria to these foods.

• Wrap food stored in the refrigerator unit in

foil or plastic wrap, or place it in plastic bags or airtight containers to keep it from drying out. Date all packages.

• For freezer storage, use freezer wrap, freezer-

quality plastic bags or aluminum foil over the commercial wrap if foods will be stored in the freezer for more than a couple of months. This minimizes dehydration and quality loss. Single layers of aluminum foil may tear and cause freezer burn.

KEEPING FOOD AT ITS BEST

KEEPING FOOD SAFE TO EAT

WHEN YOU PREPARE FOOD

•

Clean everything that comes in contact with food.

• Wash your hands for 20 seconds before and

after handling food.

• Sanitize counters, equipment and utensils

after handling raw meat, seafood or poultry. Rinse with a diluted chlorine bleach solution, 5 ml to 1 L of water.

• Use clean kitchen towels, sponges and cloths.

Replace sponges every few weeks.

• Use disposable plastic gloves if you have an

infected cut or burn on your hands.

• Thaw food in the refrigerator or microwave

oven, not on the counter. When you thaw food in a microwave oven, cook it immediately.

• Marinate food only in the refrigerator.

• Rinse poultry and seafood in cold water

before cooking.

• Avoid cross-contamination in preparing food.

Keep raw meat, poultry and seafood and their juices away from other food. For example, don’t use the same surface and utensils for preparing raw meat, poultry and seafood that you use for preparing salad ingredients.

• Thoroughly clean your plastic and wooden

cutting boards. Wash with hot water and soap and rinse with a diluted chlorine bleach solution of 5 ml to 1 L of water.

WHEN YOU COOK FOOD

•

Cook meat to an internal temperature of 75˚C or above, poultry to 80˚C or above. For cuts more than 51 mm thick, use a meat thermometer to check the temperature. For thinner cuts, clear juices (not pink) are a sign of doneness.

• If you are cooking frozen meat or poultry that

has not been defrosted, increase the cooking time to 1

/2times the time required for

thawed items.

• Roast meats or poultry in oven temperatures

of 165˚C or above.

• Cook eggs until the yolk and white are firm,

not runny.

• Don’t use recipes in which eggs remain raw

or partially cooked.

• If your microwave has a temperature probe,

use it. Check temperatures of meat and poultry in at least three spots. Rotate foods during microwaving.

• Don’t taste raw or partially cooked meat,

poultry, eggs or fish.

FRESH FOOD STORAGE

Shelf life of fresh foods varies depending on how fresh it is when you buy it. To keep your food fresher longer, follow the recommended storage tips.

Veg eta ble s:

Wash vegetables in cool water and drain. Store in airtight containers or plastic wrap. Veg eta ble s s tay f res h l ong er in high hum idi ty storage.

Fruits:

Wash and dry fresh fruits. Store more aromatic fruits in plastic bags. Most fruits stay fresh longer in low humidity storage.

Prepackaged Meats:

Store in original packaging. After opening, rewrap tightly in plastic wrap or aluminum foil.

Fresh Meats, Fish and Poultry:

Remove store wrappings, then rewrap in plastic wrap, foil or waxed paper and refrigerate immediately.

Eggs:

Store eggs unwashed in their carton or a

portable egg tray. Use within 3 weeks.

Milk, Cream and Cottage Cheese:

Keep carton closed. Store on refrigerator shelf and use within 1–2 weeks.

Cheese:

Store in original packaging until ready to use. After opening, rewrap tightly in plastic wrap or aluminum foil.

Leftovers:

Let cool and cover tightly with plastic wrap or foil. Airtight plastic containers work well to prevent drying out and odor transfer.

ETHYLENE

Some fruits and vegetables will produce ethylene, a gas that initiates the ripening process. Ethylene can cause premature ripening in some foods, while in others, it can actually cause damage. To reduce unnecessary spoilage of your fresh produce, do not store ethylene producing fruits and vegetables with those that are ethylene sensitive. Refer to the chart on page 18.

WHEN YOU HAVE LEFTOVERS

•

Refrigerate or freeze cooked leftovers in small, covered containers within 2 hours after cooking. Make sure there is adequate air space around the containers so that food can cool down quickly.

• Remove the stuffing from meat or poultry and

store it separately.

• Date packages of leftovers and use within a

safe period of time.

• Cover and reheat leftovers thoroughly before

serving.

• Bring sauces, soups and gravy to a boil. Heat

other foods to 75˚C.

• If you think food may be spoiled, discard it.

When in doubt, throw it out.

FROZEN FOOD STORAGE

Freezer Storage:

Wrap foods in material designed for frozen food storage. The wrap must seal out air and moisture.

Do not refreeze

thawed meats.

Ice Cream:

The firmness of the ice cream will depend on its cream content. Higher quality ice creams usually have a higher cream content, requiring colder freezer temperatures to maintain their firmness. Soft ice cream is not always an indication of a temperature problem.

Make sure your refrigerator and freezer doors close freely and completely. Overloading will affect temperatures inside the unit. Do not fill your freezer with large quantities of unfrozen foods expecting them to fast freeze. Give the freezer ample time to circulate cold air around unfrozen items before adding additional items.

SUGGESTED FOOD STORAGE

The food storage charts on the following pages give you specific informa tion to help you keep food safe and keep it at its best quality. The recommended storage tempera tures will help you determine optimal storage conditions for your food. As a general rule, food that is handled properly and kept at temperatures below 4˚C will be safe to eat.

Storing food at temperatures below 4˚C keeps it out of the

Danger Zone

. The storage times for refrigeration will help keep food from spoiling or becoming dangerous to eat. The time limits for frozen foods are to maintain flavor and texture. Food kept frozen longer than the recommended time will still be safe to eat, but its quality may diminish.

FISH, MEATS AND POULTRY

Recommended

Tem pe ra tu re

Storage Life

(refrigerator)

Storage Life

(freezer)*

Comments

FRESH FISH & SEAFOOD

cod, flounder, haddock sole bluefish, perch mackerel, salmon shrimp, oysters

1˚C 1˚C 1˚C 1˚C

2 days 2 days 4 days

1 day

6 months 2–3 months 5–9 months

6 months

Freeze in original wrap up to 2 weeks. Use freezer wrap, freezer-quality plastic bags or aluminum foil over the commercial wrap if foods will be frozen for more than a couple of months.

FRESH MEAT

beef steaks, roasts lamb chops, roasts pork and veal chops, roasts variety meats (tongue, liver, etc.)

1–2˚C 1–2˚C 1–2˚C 1–2˚C

3–5 days 3–5 days 3–5 days 1–2 days

6–12 months

6–9 months 4–6 months 3–4 months

Freeze in original wrap up to 2 weeks. Use freezer wrap, freezer-quality plastic bags or aluminum foil over the commercial wrap if foods will be frozen for more than a couple of months.

HAMBURGER, GROUND & STEW MEATS

hamburger, stew meats, ground turkey, veal, pork, lamb and mixtures

1–2˚C

1–2 days

3–4 months

Freeze in original wrap up to 2 weeks. Use freezer wrap, freezer-quality plastic bags or aluminum foil over the commercial wrap if foods will be frozen for more than a couple of months.

HOTDOGS & LUNCH MEATS

hotdogs (opened package) hotdogs (unopened package) lunch meats (opened package) lunch meats (unopened package)

1–2˚C 1–2˚C 1–2˚C 1–2˚C

1 week

2 weeks

3–5 days

2 weeks

1–2 months 1–2 months 1–2 months 1–2 months

Freeze in freezer wrap. Check ”sell by” dates. Do not use more than 1 week after this date.

BACON & SAUSAG E

bacon raw sausage (pork, beef, turkey) smoked breakfast links or patties hard sausage (pepperoni, jerky sticks)

1–2˚C 1–2˚C 1–2˚C 1–2˚C

7 days

1–2 days

7 days

2–3 weeks

1 month 1–2 months 1–2 months 1–2 months

Keep wrapped, and store at recommended refrigerator temperatures.

HAM & CORNED BEEF

corned beef ham, whole ham, half ham, slices

1–2˚C 1–2˚C 1–2˚C 1–2˚C

5–7 days

7 days 3–5 days 3–4 days

1 month 1–2 months 1–2 months 1–2 months

For freezer storage, drain juices.

FRESH POULTRY

chicken or turkey, whole chicken or turkey, pieces duck or goose

1–2˚C 1–2˚C 1–2˚C

1–2 days 1–2 days 1–2 days

12 months

9 months 6 months

Freeze in original wrap up to 2 weeks. Use freezer wrap, freezer-quality plastic bags or aluminum foil over the commercial wrap if foods will be frozen for more than a couple of months.

*Recommended freezer storage temperature is -18˚C.

FOOD STORAGE RECOMMENDATIONSKEEPING FOOD AT ITS BEST

FRESH VEGETABLES

Recommended

Tem pe ra tu re

Storage Life

(refrigerator)

Comments

FRESH VEGETABLES

anise artichokes asparagus beans, green/ snap/lima* bean sprouts beets belgian endive bok choy

1–2˚C

1˚C 1–2˚C 4–7˚C

1˚C

1˚C 2–3˚C

1˚C

2–3 weeks 1–2 weeks 2–3 weeks 7–10 days

7–9 days

3–4 months

2–4 weeks

3 weeks

Wash vegetab les in cool wa ter and drain . Store in air tight c ontainer or plastic wrap.

Most vegetables should be stored in higher humidity.

broccoli brussels sprouts cabbage carrots cauliflower celeriac celery chinese broccoli

1˚C

1–2 weeks 3–5 weeks 3–6 weeks

1–5 months

3–4 weeks 6–8 months 1–2 months

10–14 days

Discard any fresh vegetables that are moldy or have other signs of spoilage and wipe out the refrigerator compartment.

For fresh-cut produce, follow storage directions on package.

chinese cabbage corn, sweet cucumbers* daikon eggplant* endive/ escarole garlic horseradish

1˚C 1˚C 7˚C 1˚C 7˚C 1˚C 1˚C 1˚C

2–3 months

5–8 days

10–14 days

4 months 1–2 weeks 2–3 weeks

6–7 months

10–12 months

Refer to the list of ethylene sensitive and ethylene producing vegetables and fruits.

jerusalem artichokes kale kohlrabi leeks lettuce mushrooms okra* onions, bulb

1˚C 1˚C 1˚C 1˚C 1˚C 1˚C 7˚C 1˚C

1–2 weeks

1–2 months

10–14 days

2 months 2–3 weeks 1–2 weeks 1–2 weeks

1–6 months

onions, green parsley parsnips peas, pods and shelled peppers, bell* peppers, chile pumpkins* radicchio

1˚C 1˚C 1˚C 1˚C 7˚C 7˚C

3–7˚C

1˚C

7–10 days

1–2 months 4–5 months

1–2 weeks 2–3 weeks 2–3 weeks

3–4 months

2–3 weeks

*Sensitive to chill injury, a cause of spoilage. Damage may not be apparent until the vegetable is returned to a warmer temperature. NOTE: See food preservation guide for complete instructions on freezing vegetables. Recommended freezer storage temperature is -18˚C.

FRESH VEGETABLES

ETHYLENE GAS

Recommended

Tem pe ra tu re

Storage Life

(refrigerator)

Comments

FRESH VEGETABLES

radishes romaine rutabagas salsify shallots snow peas spinach squash, summer*

1˚C 1˚C 1˚C 1˚C 1˚C 1˚C 1˚C

4–7˚C

1–2 months

2–3 weeks 4–6 months 2–4 months

6 months

1–2 weeks

10–14 days

1–2 weeks

Wash vegetab les in cool wa ter and drain . Store in air tight c ontainer or plastic wrap.

Most vegetables should be stored in higher humidity.

tamarillos tomatoes (ripe) turnips water chestnuts watercress

3–4˚C

8–10˚C

1˚C

1–2˚C

1˚C

10 weeks

1–3 weeks 4–5 months 2–4 months

2–3 weeks

Discard any fresh vegetables that are moldy or have other signs of spoilage and wipe out the refrigerator compartment.

For fresh-cut produce, follow storage directions on package.

Refer to the list of ethylene sensitive and ethylene producing vegetables and fruits.

ETHYLENE PRODUCING FOODS

apples apricots avocados ripening bananas cantaloupe

cherimoyas figs guavas honeydew kiwifruit

mamey sapote mangoes mangosteen nectarines papayas

passion fruit peaches pears persimmons plantains

plums prunes quince tomatoes

ETHYLENE SENSITIVE FOODS

unripe bananas green beans belgian endive broccoli brussels sprouts

cabbage carrots cauliflower chard cucumbers

eggplant unripe kiwifruit leafy greens lettuce okra

peas peppers spinach squash sweet potatoes

watercress watermelon

NOTE: Do not store ethylene producing foods with ethylene sensitive foods.

FOOD STORAGE RECOMMENDATIONS

FRESH FRUITS

Recommended

Tem pe ra tu re

Storage Life

(refrigerator)

Comments

FRESH FRUITS

apples* (macintosh,

grimes golden,

yellow newtown) apples apricots asian pears avocados* blackberries blood oranges blueberries cantaloupe*

1–4˚C

-1˚C 1˚C 1˚C 4˚C 1˚C

4–7˚C

1˚C

2–5˚C

1–2 months

3–6 months

1–2 weeks

5–6 months

2–4 weeks

2–3 days

3–8 weeks

10–18 days

2–3 weeks

Wash and dry most f ruits, and sto re in the cri sper co mpartment. (Do not wash berries and cherries until you are ready to use them, however.)

Most fruits should be stored in lower humidity.

cassavas cherries, sweet clementines cranberries* figs, fresh grapes guavas* honeydew

1˚C 1˚C 4˚C

2–4˚C

1˚C 1˚C

4–7˚C

7˚C

1–2 months

2–3 weeks 2–4 weeks

2–4 months

7–10 days 2–3 weeks 2–3 weeks 3–4 weeks

Fully ripe fruits should be stored in the refrigerator at recommended temperatures to slow down the ripening process.

To h as te n t he r i pe ni ng pr oc es s , yo u c an p l ac e u nr ip e f ru it in a paper bag that has holes poked in it. Close the bag and set it on a counter. The fruit will produce ethylene, a gas that initiates the ripening process. Check the bag each day.

kiwifruit kumquats lychees nectarines oranges* papayas* peaches pears

1˚C 4˚C 2˚C 1˚C

1–7˚C

7˚C 1˚C 1˚C

4–6 weeks 2–4 weeks 3–5 weeks 2–4 weeks 3–8 weeks 1–3 weeks 2–4 weeks 2–3 weeks

Discard any fresh fruits that are moldy or have other signs of spoilage and wipe out the refrigerator compartment.

Refer to the list of ethylene sensitive and ethylene producing vegetables and fruits.

persimmons pineapple* plums and prunes pomegranates* quinces raspberries rhubarb strawberries

1˚C 7˚C 1˚C 4˚C 1˚C 1˚C 1˚C 1˚C

3–4 months

2–4 weeks

2–5 weeks 2–3 months 2–3 months

3–6 days 2–3 weeks 7–10 days

tangerines watermelon*

4˚C 7˚C

2–4 weeks 2–3 weeks

*Sensitive to chill injury, a cause of spoilage. Damage may not be apparent until the fruit is returned to a warmer temperature. NOTE: See food preservation guide for complete instructions on freezing fruits. Recommended freezer storage temperature is -18˚C.

DELI FOODS, DAIRY PRODUCTS AND OTHER FOODS

Recommended

Tem pe ra tu re

Storage Life

(refrigerator)

Storage Life

(freezer)*

Comments

DELI FOODS

thinly sliced lunch meats egg, chicken, tuna and ham salads macaroni salads pre-stuffed chops, chicken breasts store-prepared convenience meals

1–2˚C 1–2˚C 1–2˚C 1–2˚C 1–2˚C

1–2 days 3–5 days 3–5 days

1 day

1–2 days

NR NR NR NR NR

Check ”use by” or ”sell by” dates. These foods do not freeze well. If you need to freeze, do so immediately, not after they have been held in the refrigerator.

DAIRY FOO DS

butter cottage or ricotta cheese cream cheese natural cheese (cheddar, brick, etc.) process cheese grated Parmesan or Romano yogurt whole, lowfat or skim milk

1–2˚C 1–2˚C 1–2˚C 1–2˚C 1–2˚C 1–2˚C 1–2˚C 1–2˚C

3 months

1–2 weeks

2 weeks

3–6 months

3–4 weeks

1 year

1 month

1–2 weeks

1 year

4 weeks

6–8 months 6–8 months

Check ”sell by” dates.

Store cheese in original packaging until ready to use. After opening, rewrap tightly in plastic wrap or aluminum foil.

Thaw frozen cheese in the refrigerator to reduce crumbling.

EGGS

fresh, in shell hard cooked liquid pasteurized or egg substitutes

opened unopened

1˚C

1–2˚C

1–2˚C 1–2˚C

3 weeks

1 week

3 days

10 days

NR NR

1 year

Keep fresh eggs refrigerated.

Do not eat hard cooked eggs that have been at room temperature for more than 2 hours.

COOKED MEAT & POULTRY LEFTOVERS

cooked meat and meat dishes gravy and meat broth fried or plain chicken, pieces cooked poultry dishes pieces covered with broth, gravy chicken nuggets, patties

1–2˚C 1–2˚C 1–2˚C 1–2˚C 1–2˚C 1–2˚C

3–4 days 1–2 days 3–4 days 3–4 days 1–2 days 1–2 days

2–3 months 2–3 months

4 months

4–6 months

6 months

1–3 months

Refrigerate or freeze leftovers in covered shallow containers within 2 hours after cooking. Reheat leftovers to 74˚C.

SOUPS & STEWS

vegetable meat added

1–2˚C 1–2˚C

3–4 days 3–4 days

2–3 months 2–3 months

Reheat to at least 74˚C before serving.

*Recommended freezer storage temperature is -18˚C. (NR) stands for not recommended for freezing.

FOOD STORAGE RECOMMENDATIONS

TROUBLESHOOTING GUIDE

FREQUENTLY ASKED QUESTIONS

ICE PRODUCTION

IMPORTANT NOTE:

Make sure that the power is on for your ice maker. The indicator will be visible in the Control Center display panel.

IMPORTANT NOTE:

Dispose of the first two buckets of ice produced by your new unit to ensure that pipe residue or other particles associated with new water lines are not consumed.

My ice maker isn’t producing very much ice.

On average, you can expect a cycle of ice (eight cubes per cycle) every two hours. Increased ice production can be achieved with the Max Ice feature.

My ice is freezing together and clumping.

If ice is not used regularly it tends to fuse together. You may need to discard the ice and allow ice to be replenished.

NOISE

Why do I hear my unit running constantly?

It is normal to hear the operation of fans and motors. Sounds will be accentuated based on the placement of the unit and overall room design.

TEMPERATURE

IMPORTANT NOTE:

Unless the unit is being serviced, make sure the power for your unit is on. If the unit is not on, OFF will be visible in the Control Center display panel.

How do I adjust the temperatures?

To a dj us t t em p er at ur e s, r ef e r to Tem pe ra t ur e Control, page 7.

What are the suggested temperature settings?

The recommended settings are 3˚C for the refrigerator section and -18˚C for the freezer section.

Condensation is forming on the inside and outside of my unit.

In climates with higher humidity, condensation will form and is considered normal. Leaving the door open for a long period of time may also contribute to condensation forming on the inside your unit.

My unit isn’t cooling properly.

Clean the condenser area as outlined on page

13.

DOOR OPERATION

Why is my door hard to open?

Yo ur u ni t w as d es i gn ed f o r an a i rt ig ht se al . A vacuum seal can form after the door is closed. Wait several seconds for pressure to equalize before reopening the door.

The door on my unit is opening too fast and hitting the wall or surrounding cabinets.

The unit may not be leveled properly or a door stop may be required. Install the optional 90° door stop provided with the unit.

TROUBLESHOOTING

If your Built-In unit is not operating properly, use the following troubleshooting guide before contacting your Sub-Zero dealer. This guide will save you time and trouble and may help you avoid the expense of a service call.

The indicator is illuminated or flashing in the Control Center display panel.

• The microprocessor has sensed a problem

with the operating system. There may be instructions in the Control Center display panel to solve the problem.

• This may also indicate that the condenser

needs cleaning. Follow the Condenser Cleaning procedure outlined on page 13.

• If this occurs, turn the unit off with the key

pad and then restart by depressing the key pad again. If the indicator is still present, contact your Sub-Zero dealer.

The flashing with audible chime and indicators are both flashing in the Control Center display panel.

• Check for excess water near the unit. If you

see excess water, turn off the water at the shut-off valve. Also, verify temperatures inside the unit and manage the contents accordingly. Once you have verified there is an issue, contact your Sub-Zero dealer. The audible chime can be reset for 24 hours by holding the key and depressing the key.

Refrigerator/Freezer is not running.

• Is there electrical power to the unit?

• Is the home circuit breaker or fuse off?

• Is the refrigerator/freezer control on?

• Is the condenser area clean?

• Has a door or drawer been left open for an

extended period? Be sure that food is not obstructing proper door or drawer closing.

• Has one section been manually disabled? See

Cleaning Combination Units, page 13.

• If the unit is still not running, it may be in

defrost mode.

• Wait 30 minutes and try to restart again.

Refrigerator/Freezer is warmer than usual.

• Is the control set properly?

• Is the condenser area clean?

• Has a door or drawer been left open for an

extended period? Be sure that food is not obstructing proper door or drawer closing.

• Has a large amount of food been added

recently?

There is an odor inside the unit.

• Replace air purification system cartridge.

• Clean the unit thoroughly.

• Cover all food tightly.

• Clean the unit drain pipe.

• Clean the drain pan.

Light bulb needs to be replaced.

• See Lighting Information, page 14.

You n ee d se rv ic e.

• If service is necessary, maintain the quality

built into your Sub-Zero unit by contacting a Sub-Zero dealer.

• To o bt ai n t he n a me a nd nu mb e r of a

Sub-Zero dealer, check the Showroom Locator section of our website,

subzero.com

• When calling for service, you will need the

model and serial number of your unit. Both numbers are listed on the product rating plate located at the top of the side frame, inside the unit, close to the hinge.

TROUBLESHOOTING

Refrigerator/Freezer runs for long periods of time.

• Is the condenser area clean?

• Has a door or drawer been left open for an

extended period? Be sure that food is not obstructing proper door or drawer closing.

• Has a large amount of food been added

recently?

• On hot days and in warm room temperatures,

the motor runs longer.

• There may be normal operation noises

related to refrigerant circulation, fan operation, ice maker operation, defrost cycle or compressor operation.

Refrigerator/Freezer is frosted up.

• Has a door or drawer been left open for an

extended period? Be sure that food is not obstructing proper door or drawer closing.

• Are door(s) and/or drawer closing and

sealing properly? Contact your dealer if door(s) are not adjusted properly. NOTE: When opening the freezer drawer, you may notice a side-to-side motion in the drawer. This motion is normal, with the tolerance built into the drawer slides. When the drawer is closed it will automatically adjust and close with correct alignment.

You h ea r un us ual n oi se s.

• These noises may be normal operating

sounds related to refrigerant circulation, fan operation, ice maker operation, defrost cycle or compressor operation. Noises may be more noticeable when door(s) are open.

TROUBLESHOOTING GUIDE

SERVICE INFORMATION

This Use & Care Information book gives you the tools necessary to preserve food at optimum quality in your Built-In unit. Keep doors and drawers closed as much as possible whenever the unit is operating.

If you do need service, be sure to have the model and serial number when you call. You’ll find these numbers on the product rating plate located at the top of the side frame, inside the unit, close to the hinge. Refer to pages 4–6 for location of the rating plate for your specific model. Record this information below for future reference.

Model Number

Serial Number

Installation Date

Sub-Zero Dealer and Phone

BEFORE CALLING FOR SERVICE

Before calling a Sub-Zero dealer, refer to the Tro ub le sh oo ti ng G ui de o n pa ges 2 0– 21 . Ch ec k the household fuse or circuit breaker to see if it has been blown or tripped and that the electrical connection to the appliance has not been disconnected. A power outage may also have caused a disruption in service.

The information and images in this guide are the copyright property of Sub-Zero, Inc. Neither this book nor any information or images contained herein may be copied or used in whole or in part without the express written permission of Sub-Zero, Inc.

SERVICE INFORMATION

You h ea r oc ca sio na l bu zz in g.

• Is the water supply connected to ice maker

and turned on?

Condensation forms inside the unit.

• This is normal during periods of higher

humidity (summer) and with frequent door openings.

• Are door(s) and/or drawer closing and

sealing properly?

Condensation forms outside the unit.

• During periods of high humidity, some con-

densation may appear on outside surfaces. The condensation will disappear when the humidity drops. Be sure that door(s) and/or drawer are closing and sealing properly. If condensation persists, contact your Sub-Zero dealer.

Outside of the freezer section heats up.

• Clean the condenser area.

There is no ice.

• Is the ice bucket in position?

• Is the ice maker turned on?

• Is the water supply connected?

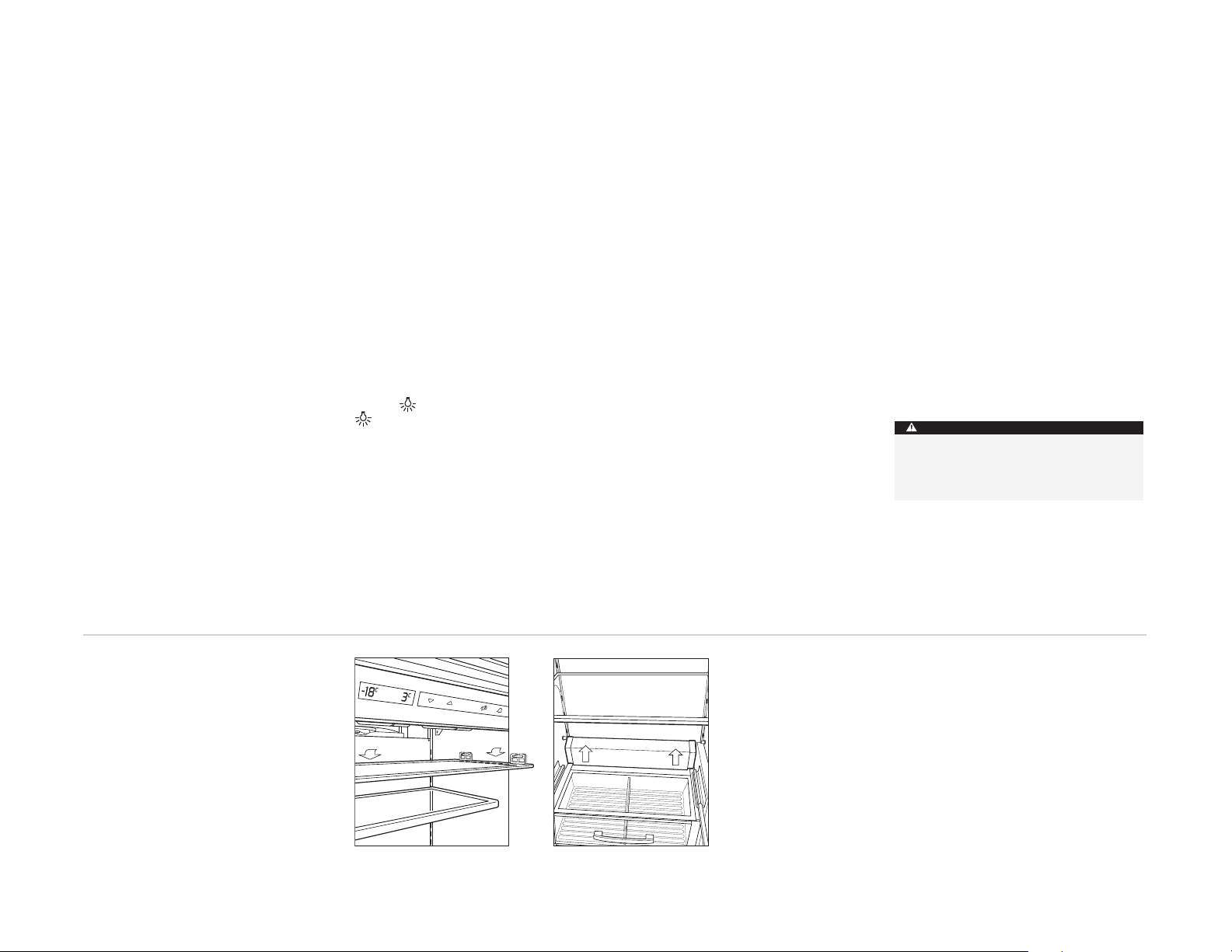

Shut off power to the unit at the circuit breaker before replacing light bulbs. Wear protective gloves when handling bulbs.

WARNING

CARACTERÍSTICAS DE LOS MODELOS EMPOTRABLES

• Los modelos revestibles se integran a la

perfección en el diseño global de la habitación y son el complemento ideal del mobiliario circundante.

• La nueva aplicación empotrable permite que

la unidad quede perfectamente al ras con el resto del mobiliario. Entre las opciones disponibles se incluye la de utilizar paneles personalizados o paneles accesorios de Sub-Zero de acero inoxidable. Los modelos clásicos de acero inoxidable incluyen puertas acabadas en este material, tiradores tubulares de acero inoxidable y una rejilla que sale hacia arriba: todo ello diseñado específicamente para mejorar la estética de las cocinas actuales de aspecto profesional.

• Los modelos ICBBI-36RG, ICBBI-30UG e

ICBBI-36UG incorporan una característica exclusiva—una puerta de cristal. Estas unidades se entregan con el diseño revestible/empotrable o en acero inoxidable clásico y cumplen estrictos requisitos energéticos.

• Los modelos con puerta de cristal ofrecen

un aspecto moderno exclusivo e innovador, con una iluminación interior tenue.

• El diseño de poca profundidad permite el

fácil acceso a cualquier zona del frigorífico.

• To do s lo s m od e lo s co m bi e mp o tr ab l es

disponen del doble sistema de refrigeración de Sub-Zero que garantiza la conservación de los alimentos con la máxima frescura al tiempo que se consigue un ahorro energético. De este modo, puede controlar de forma independiente y precisa los compartimentos del frigorífico y del congelador.

GRACIAS

Gracias por comprar el nuevo modelo de unidad empotrable de Sub-Zero. Con Sub-Zero, puede confiar en una tradición que avala 60 años de calidad y fiabilidad. La línea de productos empotrable unifica las opciones de decoración más elegantes y novedosas en refrigeración para el hogar con el fin de mantener los alimentos con la máxima frescura posible.

El diseño, la belleza y la calidad de Sub-Zero se reflejan en el amplio conjunto de características de serie que convierten a Sub-Zero en una clase en sí misma. La apariencia personalizada de la línea empotrable de Sub-Zero le da opciones que no le ofrece ninguna otra línea, tanto si ha optado por una unidad revestible/empotrable, de acero inoxidable o de puerta de cristal.

Esta guía de información de uso y mantenimiento responderá a la mayoría de las preguntas que puedan surgirle sobre las características, el funcionamiento y el mantenimiento de su unidad empotrable. Si no encuentra en esta guía respuesta a sus preguntas, póngase en contacto con el distribuidor de Sub-Zero o visite nuestra página web, www.subzero.com.

Cuando lea esta guía de uso y mantenimiento deberá prestar especial atención cuando aparezcan los símbolos de PRECAUCIÓN y AVISO. Esta información es importante para utilizar de forma segura y eficaz el equipo de Sub-Zero.

Además, esta guía de uso y mantenimiento puede incluir una NOTA IMPORTANTE para resaltar información especialmente importante.

SUB-ZERO®es una marca comercial registrada de Sub-Zero, Inc.

• To do s lo s m od e lo s em p ot ra bl e s di s po ne n d e

un microprocesador que le permite un mejor control, un sensor de descongelación automático y que se adapta a sus patrones de uso y una luz indicadora de servicio. Nues- tro microprocesador controla permanentemente todos los compartimentos y, en caso de que se produzca un problema, enciende el indicador del panel de mandos.

• Los mandos digitales son de última gen-

eración y fáciles de utilizar.Le muestran los valores registrados de forma digital para facilitar y agilizar su consulta. Asimismo, los mandos digitales le mantienen permanentemente informado del funcionamiento de la unidad.

• To do s lo s m od e lo s em p ot ra bl e s ti e ne n un a

rejilla que sale hacia arriba, lo que permite limpiar más fácilmente el condensador.

• Purificación del aire: las bacterias, olores

y gases se eliminan mediante este avanzado sistema de purificación del aire.

• La iluminación brillante se propaga de forma

uniforme por todos los compartimentos. La fuente de la iluminación permanece oculta.

• La alarma de la puerta emitirá un pitido

audible si se ha dejado la puerta del frigorífico o del congelador entreabierta.

• Los cajones para frutas y verduras de extrac-

ción total y de alta humedad son grandes y profundos, con laterales lisos y divisores extraíbles en la mayoría de los modelos.

• Los estantes de cristal de tipo voladizo

reforzados con acero permiten su colocación de forma rápida y sencilla. Son fáciles de limpiar y están hechos a prueba de goteo.

• Los estantes de la puerta se pueden ajustar

en incrementos de 25 mm, lo que le ofrece una flexibilidad completa.

CARACTERÍSTICAS DE LOS MODELOS EMPOTRABLES DE SUB-ZERO

• El compartimento de los productos lácteos es

ajustable y consta de una puerta. Además, dispone de un sistema magnético de hermeticidad que asegura la frescura de los productos.

• Los modelos combi ofrecen además un cajón

de extracción total para el congelador.

• El fabricador de cubitos de hielo proporciona

hielo semicircular de alta calidad.

• La característica Max Ice aumenta la

velocidad de producción de hielo durante un período de 24 horas.

• Las juntas magnéticas colocadas alrededor

de todas las puertas proporcionan una hermeticidad adicional.

• Las puertas de núcleo sólido de nuestros

modelos mejoran el aislamiento y la integridad de la estructura.

• El zócalo sólido y ajustable proporciona

un aspecto realmente integrado.

REFRIGERACIÓN EMPOTRABLE SUB-ZERO

Estos aparatos llevan el certificado Star-K que indica que cumplen rigurosas normas religiosas junto con instrucciones específicas que aparecen en la página www.star-k.org.

indica una situación en la que se pueden sufrir heridas leves o provocar daños secundarios al producto si no se siguen las instrucciones.

PRECAUCIÓN

indica peligro de que se produzcan heridas personales graves o incluso puede provocar la muerte si no se siguen las precauciones especificadas.

AVISO

MODELOS EMPOTRABLES SUB-ZERO

MODELO ICBBI-36F

TODO FRIGORÍFICO

MODELO ICBBI-30U

COMBI FRIGORÍFICO|CONGELADOR

Ubicación de la placa de datos

Juntas magnéticas de cuatro lados

Zócalo extraíble

Recipiente extraíble de hielo

Estantes metálicos ajustables

Panel de mandos electrónico iluminado

Sistema de cierre de puertas

Cestas de almacenamiento del congelador

Fabricador de cubitos de hielo automático

Estantes en la puerta ajustables

Ubicación de la placa de datos

Compartimento para productos lácteos ajustable

Cestas del congelador en dos niveles

Zócalo extraíble

Cajón para frutas y verduras de alta humedad

Estantes de cristal ajustables a prueba de goteo

Sistema de purificación de aire

Panel de mandos electrónico iluminado

Sistema de cierre de puertas

Fabricador de cubitos de hielo automático

Recipiente extraíble de hielo

Cajón congelador deslizante de extracción total

Cajón de almacenamiento del frigorífico

Juntas magnéticas de cuatro lados

Estantes en la puerta ajustables

Fichas de referencia para el usuario

Rejilla de fácil acceso, sale hacia arriba

MODELO ICBBI-36R

TODO FRIGORÍFICO

Ubicación de la placa de datos

Compartimento para productos lácteos ajustable

Juntas magnéticas de cuatro lados

Zócalo extraíble

Cajones de almacenamiento del frigorífico

Estantes de cristal ajustables a prueba de goteo

Sistema de purificación de aire

Panel de mandos electrónico iluminado

Rejilla de fácil acceso, sale hacia arriba

Sistema de cierre de puertas

Fichas de referencia para el usuario

Cajón para frutas y verduras de alta humedad

Estantes fijos de las puertas

Estantes en la puerta ajustables

MODELO ICBBI-36RG

TODO FRIGORÍFICO CON PUERTA DE CRISTAL

Ubicación de la placa de datos

Puerta de cristal triple resistente a los rayos UV

Juntas magnéticas de cuatro lados

Zócalo extraíble

Cajones de almacenamiento del frigorífico

Estantes de cristal ajustables a prueba de goteo

Sistema de purificación de aire

Panel de mandos electrónico iluminado

Rejilla de fácil acceso, sale hacia arriba

Sistema de cierre de puertas

Fichas de referencia para el usuario

Cajón para frutas y verduras de alta humedad

MODELO ICBBI-30UG

COMBI CON PUERTA DE CRISTAL

Ubicación de la placa de datos

Puerta de cristal triple resistente a los rayos UV

Cestas del congelador en dos niveles

Zócalo extraíble

Cajón para frutas y verduras de alta humedad

Estantes de cristal ajustables a prueba de goteo

Sistema de purificación de aire

Panel de mandos electrónico iluminado

Sistema de cierre de puertas

Fabricador de cubitos de hielo automático

Recipiente extraíble de hielo

Cajón congelador deslizante de extracción total

Cajón de almacenamiento del frigorífico

Juntas magnéticas de cuatro lados

Fichas de referencia para el usuario

Rejilla de fácil acceso, sale hacia arriba

MODELOS EMPOTRABLES SUB-ZERO

MODELO ICBBI-36U

COMBI FRIGORÍFICO|CONGELADOR

MODELO ICBBI-36UG

COMBI CON PUERTA DE CRISTAL

MODELO ICBBI-36S

SIDE-BY-SIDE FRIGORÍFICO |CONGELADOR

Ubicación de la placa de datos

Compartimento para productos lácteos ajustable

Cestas del congelador en dos niveles

Zócalo extraíble

Cajón para frutas y verduras de alta humedad

Estantes de cristal ajustables a prueba de goteo

Sistema de purificación de aire

Panel de mandos electrónico iluminado

Sistema de cierre de puertas

Fabricador de cubitos de hielo automático

Recipiente extraíble de hielo

Cajón congelador deslizante de extracción total

Cajón de almacenamiento del frigorífico

Juntas magnéticas de cuatro lados

Estantes en la puerta ajustables

Fichas de referencia para el usuario

Ubicación de la placa de datos

Puerta de cristal triple resistente a los rayos UV

Cestas del congelador en dos niveles

Zócalo extraíble

Cajón para frutas y verduras de alta humedad

Estantes de cristal ajustables a prueba de goteo

Sistema de purificación de aire

Panel de mandos electrónico iluminado

Sistema de cierre de puertas

Fabricador de cubitos de hielo automático

Recipiente extraíble de hielo

Cajón congelador deslizante de extracción total

Cajón de almacenamiento del frigorífico

Juntas magnéticas de cuatro lados

Fichas de referencia para el usuario

Rejilla de fácil acceso, sale hacia arriba

Compartimento para productos lácteos ajustable

Sistema de purificación de aire

Fichas de referencia para el usuario

Zócalo extraíble

Recipiente extraíble de hielo

Estantes en la puerta ajustables

Ubicación de la placa de datos

Sistema de cierre de puertas

Rejilla de fácil acceso, sale hacia arriba

Panel de mandos electrónico iluminado

Cestas de almacenamiento del congelador

Juntas magnéticas de cuatro lados

Cajones de almacenamiento del frigorífico

Fabricador de cubitos de hielo automático

Cajón para frutas y verduras de alta humedad

Estantes de cristal ajustables a prueba de goteo

Estantes en la puerta ajustables

Sistema de purificación de aire

Dispensador de hielo a granel

Fichas de referencia para el usuario

Zócalo extraíble

Estantes en la puerta ajustables

Fabricador de cubitos de hielo automático

Ubicación de la placa de datos

Panel de mandos electrónico iluminado

Rejilla de fácil acceso, sale hacia arriba

Compartimento para productos lácteos ajustable

Cestas de almacenamiento del congelador

Juntas magnéticas de cuatro lados

Cajones de almacenamiento del frigorífico

Recipiente extraíble de hielo

Sistema de cierre de puertas

Cajón para frutas y verduras de alta humedad

Estantes de cristal ajustables a prueba de goteo

Estantes en la puerta ajustables

MODELOS EMPOTRABLES SUB-ZERO

MODELO ICBBI-48S

SIDE-BY-SIDE FRIGORÍFICO |CONGELADOR

MODELO ICBBI-48SD

SIDE-BY-SIDE CON DISPENSADOR DE HIELO|AGUA

Compartimento para productos lácteos ajustable

Sistema de purificación de aire

Fichas de referencia para el usuario

Zócalo extraíble

Recipiente extraíble de hielo

Estantes en la puerta ajustables

Ubicación de la placa de datos

Sistema de cierre de puertas

Rejilla de fácil acceso, sale hacia arriba

Panel de mandos electrónico iluminado

Cestas de almacenamiento del congelador

Juntas magnéticas de cuatro lados

Cajones de almacenamiento del frigorífico

Fabricador de cubitos de hielo automático

Cajón para frutas y verduras de alta humedad

Estantes de cristal ajustables a prueba de goteo

Estantes en la puerta ajustables

Sistema de purificación de aire

Dispensador de hielo a granel

Fichas de referencia para el usuario

Zócalo extraíble

Estantes en

la puerta

ajustables

Fabricador de cubitos de hielo automático

Ubicación de la placa de datos

Panel de mandos electrónico iluminado

Rejilla de fácil acceso, sale hacia arriba

Compartimento para productos lácteos ajustable

Cestas de almacenamiento del congelador

Juntas magnéticas de cuatro lados

Cajones de almacenamiento del frigorífico

Recipiente extraíble de hielo

Sistema de cierre de puertas

Cajón para frutas y verduras de alta humedad

Estantes de cristal ajustables a prueba de goteo

Estantes en la puerta ajustables

MODELO ICBBI-42SD

SIDE-BY-SIDE CON DISPENSADOR DE HIELO|AGUA

Compartimento para productos lácteos ajustable

Sistema de purificación de aire

Fichas de referencia para el usuario

Zócalo extraíble

Recipiente extraíble de hielo

Estantes en la puerta ajustables

Ubicación de la placa de datos

Sistema de cierre de puertas

Rejilla de fácil acceso, sale hacia arriba

Panel de mandos electrónico iluminado

Cestas de almacenamiento del congelador

Juntas magnéticas de cuatro lados

Cajones de almacenamiento del frigorífico

Fabricador de cubitos de hielo automático

Cajón para frutas y verduras de alta humedad

Estantes de cristal ajustables a prueba de goteo

Estantes en la puerta ajustables

MODELO ICBBI-42S

SIDE-BY-SIDE FRIGORÍFICO |CONGELADOR

SISTEMA DE CONTROL ELECTRÓNICO

El sistema de control electrónico de su unidad empotrable de Sub-Zero controla y muestra con precisión la temperatura de grado en grado con respecto a la temperatura preseleccionada. Ta mb ié n c on tr ol a e l fu n ci on a mi en to de l a u ni da d y le permite saber si existe algún problema. Encontrará el Centro de control en la sección del frigorífico en todos los modelos, excepto en el modelo ICBBI-36F, en el que está situado en el congelador. Observe la siguiente ilustración.

CONTROL DE TEMPERATURA

Su nueva unidad empotrable se ha inspeccionado y verificado al completo antes de salir de la fábrica de Sub-Zero. La preselección de la temperatura es de 3 °C para el frigorífico y

-18 °C en el congelador. La temperatura se muestra en el panel del Centro de control.

En el caso de unidades combi, tienen dos conjuntos de botones y en el Centro de control, uno para el frigorífico y otro para el congelador. Los modelos ICBBI-36R, ICBBI-36RG e ICBBI-36F sólo cuentan con un conjunto de botones y .

Si desea ajustar la tem per atura de los compartimentos, pulse los botones o del Centro de control.

La selección de temperatura es de -23 °C a -15 °C en el congelador y de 1 °C a 7 °C en el frigorífico. Es normal que las temperaturas fluctúen ligeramente dependiendo de las circunstancias externas, por ejemplo, una puerta abierta, el grado de humedad y la temperatura ambiente.

NOTA IMPORTANTE:

Deje transcurrir siempre 24 horas para que la unidad alcance la temperatura que ha configurado.

ALIMENTACIÓN ELÉCTRICA

To do s lo s m od e lo s em p ot ra bl e s de Su b- Ze r o incorporan un botón en el Centro de control. Este botón desconecta el suministro eléctrico de la unidad. Cuando la unidad esté desconectada, la luz indicadora de apagado (OFF) aparece en la pantalla del Centro de control. Este botón supone que no tiene que desconectar la alimentación en el cortacircuitos o del enchufe. Para realizar labores de mantenimiento o cambiar una bombilla, desconecte la alimentación eléctrica del enchufe antes de cambiar la bombilla. El cable de alimentación está situado en la esquina del extremo derecho, por detrás de la rejilla que sale hacia arriba.

OPCIÓN DE ALARMA

To do s lo s m od e lo s em p ot ra bl e s di s po ne n d e una función de alarma que emite un pitido audible si la puerta queda entreabierta.

La alarma suena después de 30 segundos. Se puede desactivar al pulsar el botón . Cuando la alarma esté activada, el indicador aparece en la pantalla del Centro de control.

CONTROL DEL FABRICADOR DE HIELO

Los modelos empotrables con fabricador de cubitos de hielo incorporan un botón de en el Centro de control. Este botón conecta o desconecta la alimentación del sistema de fabricación de hielo. Si está activado el fabricador de cubitos de hielo, el indicador se iluminará en el panel del Centro de control. Asimismo, el fabricador de cubitos de hielo también se puede encender mediante el botón , que activa la función Max Ice. El indicador se iluminará en el panel del Centro de control cuando esté activada esta función. Utilice el botón para desconectar el fabricador de cubitos de hielo durante periodos de vacaciones largos.

USO Y MANTENIMIENTO DE PRODUCTOS EMPOTRABLES DE SUB-ZERO

Panel

Más frío/más

templado

Botones

Panel del centro de control electrónico

Botones de ajuste de la temperatura

Panel

Panel de mandos (Modelo ICBBI-30UG)

DOBLE REFRIGERACIÓN

La línea empotrable continúa con la tradición de Sub-Zero de ofrecer una calidad y fiabilidad superiores. Sub-Zero ha sido pionero en el desarrollo de nuestro sistema de doble refrigeración, que permite conservar los alimentos en su máxima frescura en compartimentos independientes. Tanto el frigorífico como el congelador mantienen temperaturas constantes y precisas. La doble refrigeración mantiene los alimentos frescos durante mucho más tiempo que cualquier otro sistema actual.

Con el sistema de doble refrigeración, el congelador mantiene una temperatura constante que se selecciona de grado en grado conforme a su necesidad y que oscila entre -23 °C y -15 °C, evitando así el traspaso de humedades y olores del frigorífico. De igual manera, la temperatura del frigorífico se puede seleccionar entre 1 °C y 7 °C para obtener el nivel de humedad adecuado en el que los alimentos se conserven durante mucho más tiempo.

Con el sistema de doble refrigeración, los alimentos frescos no traspasarán sus olores a los alimentos congelados o al hielo. El sistema Sub-Zero no congela la humedad del aire en los compartimentos de los alimentos frescos.

Asimismo, la doble refrigeración de Sub-Zero ahorra más energía que los sistemas de refrigeración convencionales. Otra de las diferencias es que cuando el frigorífico se utiliza con frecuencia a lo largo del día, con la doble refrigeración el aire seco y frío del congelador no pasa al compartimento del frigorífico. En su lugar, el frigorífico utiliza aire húmedo para mantener los alimentos frescos y así, el consumo de energía es menor.

USO Y MANTENIMIENTO DE PRODUCTOS EMPOTRABLES DE SUB-ZERO

SISTEMA DE ALMACENAJE DEL FRIGORÍFICO

CAJONES DE ALMACENAMIENTO

Para extraer un cajón de almacenamiento del frigorífico, tire del mismo hasta que llegue al tope. Levante la parte delantera ligeramente y tire del cajón hacia usted. Observe la siguiente ilustración.

NOTA IMPORTANTE:

Si la puerta tiene un tope de apertura de 90°, será necesario extraer los estantes de poca profundidad de la puerta para poder sacar el cajón.

Para volver a ponerlo en su sitio, deslice el cajón por las guías dentro del frigorífico. Alinee el cajón con las guías y empuje el cajón hasta que se detenga. La parte delantera del cajón deberá caer un poco y hacer clic una vez que esté correctamente metido en las guías.

ESTANTES DE LA PUERTA Y COMPARTIMENTO DE PRODUCTOS LÁCTEOS

Los estantes de la puerta y el compartimento de productos lácteos se regulan según las guías de la puerta.

NOTA: los modelos con puerta de cristal no tienen estantes en la puerta ni compartimento de productos lácteos.

Si desea extraer un estante o el compartimento de productos lácteos, levántelo y tire de él desde la parte inferior. Para volver a colocarlo en su sitio, presione hasta que encaje en las guías. Observe la siguiente ilustración.

Extracción del cajón de almacenamiento del frigorífico Extracción de los estantes

de la puerta

Extracción de los estantes de cristal ajustables

ACCESORIOS

Podrá disponer de accesorios opcionales a través de su distribuidor de Sub-Zero. Para obtener la información del distribuidor más cercano, visite nuestra página web www.subzero.com

ESTANTES DE CRISTAL AJUSTABLES

Asegúrese de leer y comprender las siguientes instrucciones antes de extraer o regular los estantes. Para extraer o ajustar un estante, incline el estante hacia arriba por la parte delantera y, a continuación, levántelo y sáquelo de las guías de la pared trasera del frigorífico. Observe la siguiente ilustración.

Si la apertura de la puerta está limitada a 90°, antes tendrá que vaciar los estantes de la puerta para poder extraer el estante. Levante y gire hacia arriba el extremo del estante más cercano a la puerta y extráigalo.

Para colocar el estante, insértelo en las guías de la parte trasera del frigorífico con la parte delantera del estante ligeramente levantada. A medida que empuja el estante, baje la parte delantera del mismo hasta que encaje en la posición adecuada.

NOTA IMPORTANTE:

maneje con cuidado los estantes de cristal para evitar que se rompa o se raye el interior.

SISTEMA DE CONTROL ELECTRÓNICO

MODO SABBATH (STAR-K)

To do s lo s m od e lo s em p ot ra bl e s in c or po ra n e l Modo Sabbath. Este modo se utiliza durante determinadas festividades religiosas de modo que las luces y la función de fabricación de hielo permanecen desconectadas esos días.

Para iniciar el modo Sabbath cuando la unidad está encendida, presione el botón para que se visualice OFF en el panel del Centro de control. A continuación, la unidad se apaga.

Mantenga presionado el botón durante 10 segundos. Mediante este proceso la unidad volverá a encenderse, pero con las luces y el fabricador de cubitos de hielo desactivados. Para que la unidad vuelva a funcionar de manera normal, presione y suelte el botón .

Si tiene alguna pregunta referente al cumplimiento de la certificación Star-K para productos kosher, visite la página web www.star-k.org.

PANTALLA INFORMATIVA DE MANTENIMIENTO

El Centro de control controla la temperatura del frigorífico y del congelador, así como la del sistema del fabricador de cubitos de hielo. Si se produce algún problema relacionado con la temperatura o el fabricador de cubitos de hielo, se iluminará o parpadeará un indicador del panel del Centro de control para avisarle. Es posible que el indicador se ilumine también si detecta que es necesario limpiar el condensador. Antes de avisar al servicio técnico, compruebe si es necesario limpiar el área del condensador. Consulte la sección Limpieza del condensador, página 32.

Es necesario que los estantes se calienten a la temperatura ambiente antes de sumergirlos en agua caliente.

PRECAUCIÓN

Modelos combi:

En primer lugar, descargue las cestas del congelador. Si desea extraer la cesta superior del congelador, levante por la parte delantera y tire de ella para liberarla. Para sacar la cesta inferior, levante la cesta directamente y tire de ella para sacarla. Observe la siguiente ilustración.

Para volver a colocar la cesta inferior del congelador, introdúzcala en los cuatro retenedores de las esquinas. Para volver a colocar la cesta superior, colóquela en los rieles guía. Deslice la cesta hasta el fondo. Cuando se enganche escuchará un clic.

NOTA IMPORTANTE:

Descargue las cestas del

congelador antes de extraerlas.

ALMACENAMIENTO DEL CONGELADOR

EXTRACCIÓN DE LA CESTA DEL CONGELADOR

Modelos todo congelador y side-by-side:

En primer lugar, descargue la cesta del congelador. Para extraerla, tire de ella hasta que llegue al tope. Detrás de las dos esquinas inferiores del frontal de la cesta hay sujeciones metálicas. Tir e d e es tas suj eci ones ha cia la part e d elan ter a de la cesta y levante y gire la cesta hacia arriba.

NOTA IMPORTANTE:

si desea extraer las cestas de los modelos ICBBI-36S, ICBBI-42S o ICBBI-42SD, debe levantar la cesta y tirar de ella a través de la abertura de las guías de la puerta una vez desenganchada de las guías.

NOTA IMPORTANTE:

si los modelos ICBBI-36F o ICBBI-36S tienen la apertura de la puerta limitada a 90 grados, es posible que sea necesario extraer la cesta y/o el estante superior para poder hacerlo.

Para volver a ponerlo en su sitio, deslice el cajón por las guías dentro del congelador. Alinee la cesta con las guías y empújela por las mismas hasta que se detenga. Presione hacia abajo en la parte delantera de la cesta para enganchar las sujeciones de ésta con las guías.

Modelos ICBBI-42SD e ICBBI-48SD:

Para extraer la cubeta del hielo, saque la cubeta parcialmente y a continuación gire el lado derecho de la misma mientras continúa tirando. Observe la siguiente ilustración.

EXTRACCIÓN DE LA CUBETA DEL HIELO

Modelos combi y modelo ICBBI-36F:

Para extraer la cubeta del hielo, saque el cajón o la cesta del congelador hasta que llegue al tope y levante la cubeta del hielo hasta que salga.

Modelos ICBBI-36S, ICBBI-42S e ICBBI-48S:

Para extraer la cubeta del hielo, tire de ésta hasta que llegue al tope. A continuación, levántela para dejar libre el conjunto de desplazamiento situado a lo largo del borde posterior de la cubeta. Una vez llegado a este punto, sigua tirando hacia fuera. Si la apertura de la puerta está limitada a 90 grados, repita el procedimiento, pero al levantar la cubeta del hielo para sacarla, gire el lado derecho de la misma hacia usted y sáquela. Esto permitirá que la cubeta de hielo pueda salir por la puerta. Observe la siguiente ilustración.

Extracción de las cestas de congelador — modelos todo congelador y side-by-side

Extracción de las cestas de congelador — modelos combi

Extracción de la cubeta del hielo — Modelos ICBBI-36S, ICBBI-42S e ICBBI-48S

Extracción de la cubeta del hielo — Modelos ICBBI-42SD e ICBBI-48SD

USO Y MANTENIMIENTO DE PRODUCTOS EMPOTRABLES DE SUB-ZERO

FUNCIÓN MAX ICE

La función Max Ice aumenta la velocidad de producción de hielo en aquellos momentos en los que necesita más de lo normal. El aumento en la producción de hielo dura 24 horas, después de las cuales el nivel de producción vuelve a su ritmo normal. Si activa esta función, el aumento en la producción de hielo es de aproximadamente un 40%.

Para activar la función Max Ice, pulse el botón

del Centro de control hasta que aparezca el indicador en el panel. Observe la siguiente ilustración.

Para desactivar la función Max Ice, pulse el botón y la producción de la unidad volverá al ritmo normal.

FUNCIONAMIENTO DEL FABRICADOR DE CUBITOS DE HIELO

El fabricador de cubitos de hielo de su congelador Sub-Zero es completamente automático y se ha sometido a numerosas pruebas en la fábrica. Para que comience a producir hielo, active el botón del Centro de control.

El sistema del fabricador de cubitos de hielo no se desconecta si la cubeta no está en su sitio.

Si va a extraer la cubeta del hielo durante un periodo prolongado de tiempo, desactive el fabricador de cubitos de hielo al pulsar el botón del Centro de control.

FABRICACIÓN DEL HIELO

El fabricador de cubitos de hielo está diseñado para que fabrique hielo suficiente para el uso normal de una familia. La duración de los ciclos de fabricación de los cubitos de hielo varía según las condiciones de carga, apertura de la puerta y temperatura ambiente. Normalmente, se produce un ciclo de fabricación de hielo cada dos horas (ocho cubitos de hielo por ciclo).

El fabricador de cubitos de hielo funciona con presiones de agua entre 2,1 bares y 6,9 bares. En algunas ocasiones, es posible que el sistema de filtrado de agua por ósmosis invertida no sea capaz de mantener la presión de agua mínima.

NOTA IMPORTANTE:

Si los cubitos de hielo no se utilizan de manera regular, el hielo tiende a fundirse. Para evitarlo, vacíe y sustituya el hielo del contenedor según sea conveniente.

USO Y MANTENIMIENTO DE PRODUCTOS EMPOTRABLES DE SUB-ZERO

Botón Max Ice

SISTEMA DE PURIFICACIÓN DE AIRE

To do s lo s m od e lo s em p ot ra bl e s de Su b- Ze r o (excepto el modelo ICBBI-36F) incluyen un sistema avanzado de purificación de aire. Este sistema reduce las bacterias, los olores e incluso el etileno, que provoca la maduración prematura de frutas y verduras. El cartucho de purificación de aire viene instalado de fábrica y está situado en el frigorífico, en el lado derecho de la pared trasera.

El cartucho de purificación del aire dura aproximadamente un año. El indicador parpadea en el panel del Centro de control cuando es necesario sustituirlo. Para sustituir el cartucho, sujete la cubierta externa por la parte inferior y tire de ella. Ésta saldrá hacia arriba y dejará al descubierto otra solapa y el cartucho. Observe la siguiente ilustración. Tire de la solapa por la parte superior, lo que provocará que el cartucho salga de su posición. Extraiga el cartucho.

Para volver a colocarlo, ponga el cartucho nuevo en su sitio con el conector hacia abajo. Una vez que esté en su lugar, cierre la solapa hasta que haga clic. A continuación coloque la cubierta exterior hasta que se cierre contra la pared.

Una vez colocado el cartucho de purificación de aire, pulse el botón del Centro de control durante cinco segundos. De esta manera se restablecerá el indicador de purificación del aire y ya no aparecerá.

Cartucho de purificación de aire

CARTUCHOS DE SUSTITUCIÓN

Puede pedir los repuestos de cartuchos de purificación de aire al ponerse en contacto con su distribuidor de Sub Zero.

NOTA IMPORTANTE:

La garantía del cartucho de purificación del aire que se suministra con la unidad cubre únicamente defectos de los materiales o mano de obra, pero no su sustitución por el uso normal.

ACCESORIOS

Podrá disponer de accesorios opcionales a través de su distribuidor de Sub-Zero. Para obtener la información del distribuidor más cercano, visite nuestra página web www.subzero.com

PRECAUCIÓN

LA BOMBILLA CONTIENE MERCURIO A la hora de deshacerse de ella,

observe las leyes vigentes al respecto.

DISPENSADOR DE CUBITOS DE HIELO

Los modelos ICBBI-42SD e ICBBI-48SD cuentan con una función que limita la cantidad máxima de hielo que se dispensa cada vez que se pulsa el botón del hueco para vasos.

Para utilizar el dispensador de hielo, mantenga pulsado el botón durante aproximadamente dos segundos. El dispensador medirá el hielo durante alrededor de dos segundos, recogerá los cubitos directamente encima del vaso y a continuación los dejará caer dentro de éste. Si desea menos hielo, mantenga pulsado el botón

menos de dos segundos. Si desea más hielo, mantenga pulsado el botón hasta que se repita el ciclo de dispensación.

NOTA IMPORTANTE:

asegúrese de que los botones del dispensador estén limpios y secos al pulsarlos para así evitar problemas en el funcionamiento del mismo.

CONSEJOS DE FUNCIONAMIENTO DEL DISPENSADOR DE HIELO

• Si no hay hielo, compruebe que el sistema

del fabricador de cubitos de hielo esté encendido y que el indicador esté iluminado en el panel del Centro de control.

USO Y MANTENIMIENTO DE PRODUCTOS EMPOTRABLES DE SUB-ZERO

DISPENSADOR DE HIELO Y AGUA

En los dispensadores de los modelos ICBBI-42SD e ICBBI-48SD, el dispensador automático de agua y hielo le proporciona hielo y agua fría sin necesidad de abrir la puerta.

FUNCIONAMIENTO DEL DISPENSADOR DE CUBITOS DE HIELO

Para utilizar el dispensador de cubitos de hielo en los modelos ICBBI-42SD e ICBBI-48SD, coloque un vaso en la rejilla del agua del hueco para vasos y pulse de manera continua el botón

del hueco para vasos hasta tener el hielo que necesite. Si necesita cantidades más grandes de hielo, abra la puerta del frigorífico y coloque un contenedor de hielo bajo la tolva del dispensador, pulse el botón

BULK ICE

situado en la pared izquierda del interior del frigorífico. Observe la siguiente ilustración.

Tra s la p ue st a en m ar ch a in ici al d el f ab ri ca do r de cubitos de hielo, deseche las primeras tandas de hielo—pueden aparecer descoloridas por los nuevos conductos del sistema.

Al principio, para que el agua salga correctamente, deberá pulsar el botón y mantenerlo pulsado hasta que el agua fluya del dispensador. Es posible que tenga que mantener pulsado el botón durante 60 segundos para que se rellene de agua el depósito interno.

NOTA IMPORTANTE:

El depósito de agua fría se instala en el interior del compartimento del frigorífico. La primera vez que se rellena el depósito o después de utilizar una gran cantidad de agua se tarda varias horas en enfriar el agua a la temperatura del frigorífico.

LUCES DEL DISPENSADOR

En los modelos con dispensador hay tres estados de iluminación cuyos ciclos se pueden pasar al pulsar el botón del hueco para vasos.

• To da s la s l uc e s APA G AD AS

• To da s la s l uc e s EN CE N DI DA S ( bo tó n a zu l

y hueco para vasos blanco)

• Sólo luces de los botones ENCENDIDAS

Al dispensar agua o cubitos de hielo, todas las luces se iluminarán hasta que finalice la operación, momento en el que las luces vuelven a su estado anterior.

• Asegúrese de que haya producción de hielo

en la cubeta del hielo. Consulte Extracción de la cubeta del hielo, página 28.

• Asegúrese de que la cubeta del hielo esté

totalmente metida y conectada con el motor transportador de la parte trasera de la misma. Si no está totalmente introducida, empuje la cubeta del hielo y pulse el botón del hueco para vasos simultáneamente.

• Pulse el botón del hueco para vasos. Si

no escucha el ruido del motor transportador, espere cinco minutos y vuelva a intentarlo. Si tampoco escucha el ruido del transportador tras el segundo intento, póngase en contacto con su distribuidor de Sub-Zero.

• Si no se utiliza el dispensador de hielo

durante un periodo de tiempo prolongado, es posible que el hielo se funda. Para evitarlo, vacíe la cubeta del hielo según sea necesario.

FUNCIONAMIENTO DEL DISPENSADOR DE AGUA

Para utilizar el dispensador de agua de los modelos ICBBI-42SD e ICBBI-48SD, coloque un vaso en la rejilla del agua del hueco para vasos y pulse de manera continua el botón del hueco para vasos hasta que se haya llenado el vaso.

La primera vez que utilice el dispensador de agua, purgue el sistema de agua y el depósito de almacenamiento durante tres minutos. Con ello eliminará todo el aire que haya en el sistema, así como los posibles elementos extraños de la nueva conexión de conductos.

Rejilla

del agua

Botón

para el hielo

Botón

para la luz

Botón

para el agua

Indicador

de bloqueo

Mando digital

Bisel

Hielo

a granel

Hueco para vasos—Modelos ICBBI-42SD e ICBBI-48SD

Dispensador de hielo a granel Modelos ICBBI-42SD e ICBBI48SD

No utilice el dispensador de hielo y/o agua durante más de siete minutos seguidos para evitar dañar el equipo.

PRECAUCIÓN

Utilice un vaso resistente para recoger los cubitos de hielo. Si utiliza un vaso frágil, éste se puede romper. Asimismo, para evitar roturas, compruebe que el vaso esté en posición vertical sobre la rejilla del agua.

PRECAUCIÓN

+ 68 hidden pages
