Sub-Zero ICB424GOLH User Manual
WINE STORAGE
USE & CARE INFORMATION
GUÍA DE USO Y MANTENIMIENTO
GUIDE D’UTILISATION ET D’ENTRETIEN
INFORMAZIONI SU USO E MANUTENZIONE
BEDIENUNGS- UND PFLEGEANLEITUNG
CONTENTS
Sub-Zero Wine Storage 3
Sub-Zero Wine Storage Features 4
Sub-Zero Wine Storage Models 5
Sub-Zero Wine Storage Use & Care 8
Keeping Wine at Its Best 18
Troubleshooting Guide 20
Service Information 22
SUB-ZERO®is a registered trademark of Sub-Zero, Inc.
As you read this Use & Care Information,
take particular note of the CAUTION and
WARNING symbols when they appear.
This information is impor tant for safe and
efficient use of the Sub-Zero equipment.
In addition, this Use & Care Information may
signal an IMPORTANT NOTE which highlights
information that is especially important.
signals a situation where minor injury or
product damage may occur if you do not
follow instructions.
states a hazard that may cause serious
injury or death if precautions are not
followed.
3
THANK YOU
Thank you for purchasing your new Sub-Zero
Wine Storage unit. The ultimate in beauty,
engineering, detailing and functionality,
this Wine Storage equipment continues the
Sub-Zero tradition of superior quality and
reliability, giving you the peace of mind
that your wine is stored properly, at the
exact temperature you select.
This Use & Care Information will answer
most of your questions about the features,
operation and maintenance of your Wine
Storage unit. If you have questions that
are not addressed here, visit our website,
subzero.com.
SUB-ZERO
WINE STORAGE
4
With the installation of a harness kit, these
appliances are Star-K compliant to meet
strict religious regulations in conjunction
with specific instructions found on
www.star-k.org. For details about the
harness kit, contact your Sub-Zero dealer.
WINE STORAGE FEATURES
Dual temperature zones—all Wine Storage
models allow you to have precise independent temperature control within one degree
of your preset temperature in each of the
two temperature zones.
Model ICB427R has a third temperature
zone—bottle storage drawers—for items to
be stored at a cooler temperature than your
wine.
Electronic controls—a microprocessor
controls all electronic functions and allows
you to monitor the exact temperature you
have preset and make adjustments easily.
Correct temperature—each temperature
zone of your Wine Storage unit has a range
of 3°C to 18°C, and your set temperature is
shown in the LED display, located on the
control panel.
Proper humidity is maintained throughout
the entire unit.
Discreet lighting—our soft low-wattage LED
lighting can be controlled independently of
the door’s opening, which will allow you to
display your collection of wine for special
occasions.
Sturdy, rustproof wire shelves can easily
accommodate standard 750 ml bottles,
half bottles, as well as magnums. Finished
off with a natural cherry wood facing, all
shelves ensure that the wine is stored
properly, with the corks in contact with
the bottles‘ contents.
Roller-assembly shelves with a full threequarter extension for easy access to all
stored bottles.
Display shelf— featured on Models ICB427,
ICB427R and ICB430, this shelf allows you
to display those prized bottles in your wine
collection. It is illuminated with discreet
lighting mounted in the control panel.
Service alert—an indicator light in the LED
display on the control panel will let you know
if service may be necessary.
Home alarm—wiring connections give you
the option of hooking the Wine Storage unit
up to your home security system.
Model ICB427R has an alarm feature that will
make an audible beeping sound if a drawer
has been left open.
Sabbath Mode will allow the lights to remain
off during certain religious observances.
UV-resistant glass in the door filters out
harmful UV light.
Optional lock—lock is available as a sales
accessory. Contact your Sub-Zero dealer
for details.
Magnetic gaskets around the doors give
extra-tight seals.
The solid, adjustable kickplate gives a true
built-in look.
Front venting—all Sub-Zero Wine Storage
models are designed for mechanical system
airflow at the front of the unit.
SUB-ZERO WINE STORAGE FEATURES
5
SUB-ZERO WINE STORAGE MODELS

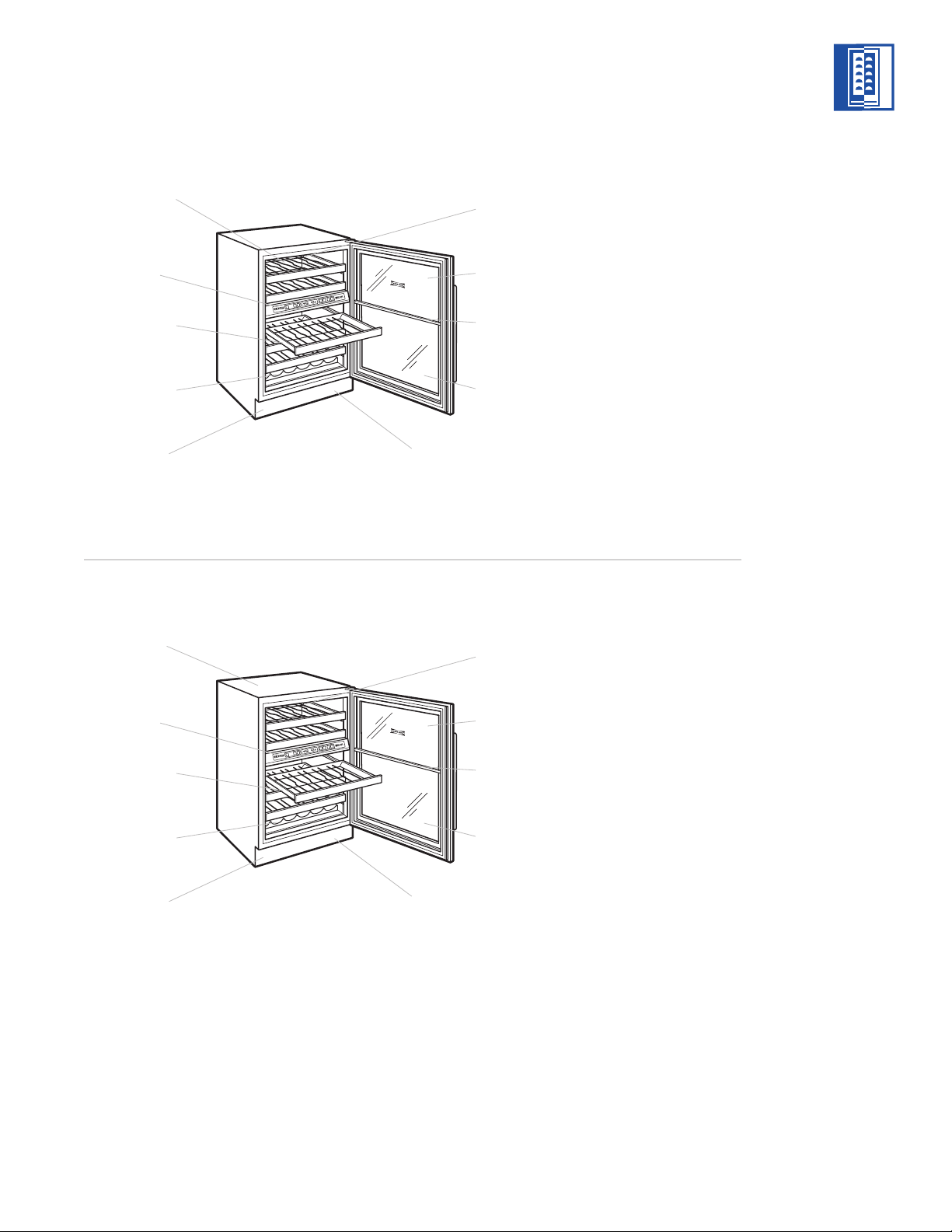

MODEL ICB424
UNDERCOUNTER WINE STORAGE
Roller-assembly
shelves
Lighted electronic
control panel
Discreet lighting
Full-view glass
door (standard)
Serial and model
number plate
Home security
tie-in
Stationary shelf UV-resistant glass
Divider gasket
Front venting with
removable kickplate
MODEL ICB424FS
FREE-STANDING WINE STORAGE
Roller-assembly
shelves
Lighted electronic
control panel
Stainless steel
exterior
Full-view glass
door (standard)
Serial and model
number plate
Home security
tie-in
Stationary shelf UV-resistant glass
Divider gasket
Front venting with
removable kickplate
6
SUB-ZERO WINE STORAGE MODELS
MODEL ICB427
ALL WINE STORAGE
MODEL ICB427R
WINE STORAGE WITH BOTTLE STORAGE DRAWERS
UV-resistant glass
Lighted electronic
control panel
Discreet lighting
Full-view glass
door (standard)
Roller-assembly
shelves
Lighted display
shelf
Serial and model
number plate
Divider gasket
Home security
tie-in
Front venting with
removable kickplate/grille
Bottle storage
drawers
Lighted electronic
control panel
Roller-assembly
shelves
Discreet lighting
UV-resistant glass
Full-view glass
door (standard)
Lighted display
shelf
Serial and model
number plate
Divider gasket
Home security
tie-in
Front venting with
removable kickplate/grille
7
SUB-ZERO WINE STORAGE MODELS
MODEL ICB430
ALL WINE STORAGE
Serial and model
number plate
Lighted electronic
control panel
Discreet lighting Full-view glass
door (standard)
Roller-assembly
shelves
Lighted display
shelf
Divider gasket
UV-resistant glass
Home security
tie-in
Removable
kickplate
Hermetically sealed
refrigeration units
8
ELECTRONIC CONTROL SYSTEM
The Electronic Control System of your
Sub-Zero Wine Storage unit gives you the
most accurate temperature control for your
peace of mind. You can be assured your wine
is stored at the temperature you have selected,
whether it is long-term aging or staging wine
for consumption that evening.
A microprocessor accurately samples the
temperature every second in each zone to be
sure the temperatures stay within one degree
of your preset temper atures. It also monitors
the unit’s operation and will let you know if
service may be necessary.
TEMPERATURE CONTROL
With all Wine Storage models you have the
capability of setting two distinct temperatures
within the two zones of your Wine Storage
unit. Your model has been thoroughly tested
and inspected before it was shipped from the
factory. The temperature has been preset at
7°C in the top zone and 13°C in the bottom
zone.
There are two sets of and key pads on
the control panel, one for each of the two
separate temperature zones. An arrow next to
the temperature in the LED display, will
indicate which temperature corresponds with
each zone. Refer to the illustration below.
The key pad on the control panel allows
you to decrease the temperature in the corresponding zone by one degree each time you
depress the key pad. Remember that the
temperature range in each zone is 3°C to 18°C
and you can set two different temperatures—
one for each zone.
Similar to the key pad, you can raise the
temperature in the corresponding zone by one
degree each time you depress the key pad
on the control panel.
SUB-ZERO WINE STORAGE USE & CARE
Temperature
Controls
13
7
Electronic control panel
9
LED DISPLAY
Electronic control system functions, such as
digital temperatures and service indicators, are
shown in the LED display, located on the
control panel. The temperatures of each zone
will be visible through the glass door of your
Wine Storage unit. If you are using your unit
frequently, the numbers may fluctuate.
UNIT ON/OFF
The key pad on the control panel will shut
off all electrical power to the Wine Storage unit
for cleaning or service.
LIGHTS ON/OFF
All Wine Storage units have the capability of
having the lights on independently of the
door’s opening and closing. This will allow you
to display your collection of wine for special
occasions.
To have the lights remain on independently of
the door’s opening and closing, press the
key pad. Press the key pad again to have the
lights to go off when the door is closed.
ALARM FEATURE
If the microprocessor detects temperature
fluctuations or a faulty component, you will
hear an audible beep and a bell symbol will
flash in the LED display on the control panel.
Also, if the unit is tied in with your home
security, it will alert this system. You can deactivate the alarm feature and the audible sound
by depressing the key pad. If the alarm is
deactivated, the bell symbol will not be visible
in the LED display.
SABBATH MODE (STAR-K)
All Wine Storage units feature the Sabbath
Mode. This is for certain religious observances
where the lights need to be turned off.
To initiate Sabbath Mode, while the unit is on
press the key pad so that OFF is visible in
the LED display on the control panel. Your unit
will be off.
Then press and hold the key pad for 10
seconds. This will turn the unit back on and
will disable the lights. To return the unit to
normal lighting, press and release the key
pad.
If you have questions about Star-K compliance,
visit www.star-k.org.
VISUAL SERVICE DISPLAY
The electronic control system monitors
temperatures as well as the the unit’s operation. If there is a temperature or operation
problem, you will notice the wrench icon illuminated in the LED display on the control
panel. Before calling for service, please check
to see if your condenser area needs cleaning.
Refer to Condenser Cleaning on page 16.
SUB-ZERO WINE STORAGE USE & CARE
You should not leave the lights on
overnight or for extremely long periods of
time. The heat from the lights will cause
the unit to work unnecessarily hard.
10
SUB-ZERO WINE STORAGE USE & CARE
BOTTLE STORAGE DRAWERS –
MODEL ICB427R
TEMPERATURE CONTROL
Model ICB427R:
The bottle storage drawers
have their own microprocessor and control
panel located in the top drawer. The preset
temperature is 3°C from the factory, but you
have the option of adjusting the temperature
within the range of 1°C to 7°C. The LCD display
on the control panel displays the actual
temperature of both drawers in your unit.
The key pad on the control panel allows
you to decrease the temperature of the
drawers by one degree each time you depress
the key pad. You can raise the temperature in
the drawers by one degree each time you
depress the key pad on the control panel.
ALARM FEATURE
Model ICB427R:
An alarm feature will make
an audible beeping sound if a drawer has been
left open accidentally.
When the alarm is activated, a bell symbol will
be illuminated in the LCD display of the control
panel. When the alarm is deactivated, the bell
symbol will not be visible.
TEMPERATURE SETTINGS
In all instances, the temperature settings are
your individual preference, and with the Wine
Storage model you purchased, you can be
confident the unit will maintain those temperatures. A chart with suggested storing and
serving temperatures can be found on page 19.
While each temperature zone of your Wine
Storage unit has a range of 3°C to 18°C, you
can set the temperatures at the exact temperature you think best—whether it’s for consumption or for duplicating the temperatures of
cellars for long-term storage.
11
WINE STORAGE
WINE STORAGE SHELVES
All Sub-Zero Wine Storage models have rollerassembly shelves with a full three-quarter
extension for easy access to all stored bottles.
IMPORTANT NOTE:
Models ICB424 and
ICB424FS have roller-assembly shelves in all
instances with the exception of the bottom
stationary shelf.
The shelves have a solid natural cherry wood
facing that can be replaced with other wood to
match your cabinetry. Details on how to
replace the shelves’ wood facing can be found
in the Sub-Zero Design Guide or check our
website at subzero.com.
IMPORTANT NOTE:
If you choose to stain or
seal the shelves’ natural cherry wood facing,
be aware that some of these substances are
hazardous and will damage stored wine.
Your Wine Storage unit is intended to
maximize the storage of bottles in an ideal
environment where the wine stays in contact
with the cork at an even temperature. Refer to
the illustration below for the proper arrangement of bottles on the shelves.
If you are storing half bottles or magnums,
they are nestled in the shelves in the same
manner as the 750 ml bottles.
WINE STORAGE SHELF REMOVAL
To remove a wine storage shelf, pull the shelf
out to its full extension, gently and evenly lift
up on both sides of the front of the shelf and
remove. Refer to the illustration below.
Reverse the procedure to reinstall the shelf.
LIGHT
ON/OFF
WARMER
COLDER
WAR
58
42
LIGHT
ON/OFF
WARMER
COLDER
WARM
58
42
Wine storage arrangement Wine storage shelf removal
SUB-ZERO WINE STORAGE USE & CARE
DESIGN
GUIDE
Details on how to
replace the wine
storage shelves’
cherry wood facing
can be found in
the Sub-Zero
Design Guide or
check our website
at subzero.com.
When storing magnum bottles you must
remove the shelf just above the intended
storage shelf to allow for these larger
bottles to be moved in and out of the
unit. Failure to do so will cause the
bottles to break.
Be sure to unload all bottles from the
wine storage shelf before removing it.
12

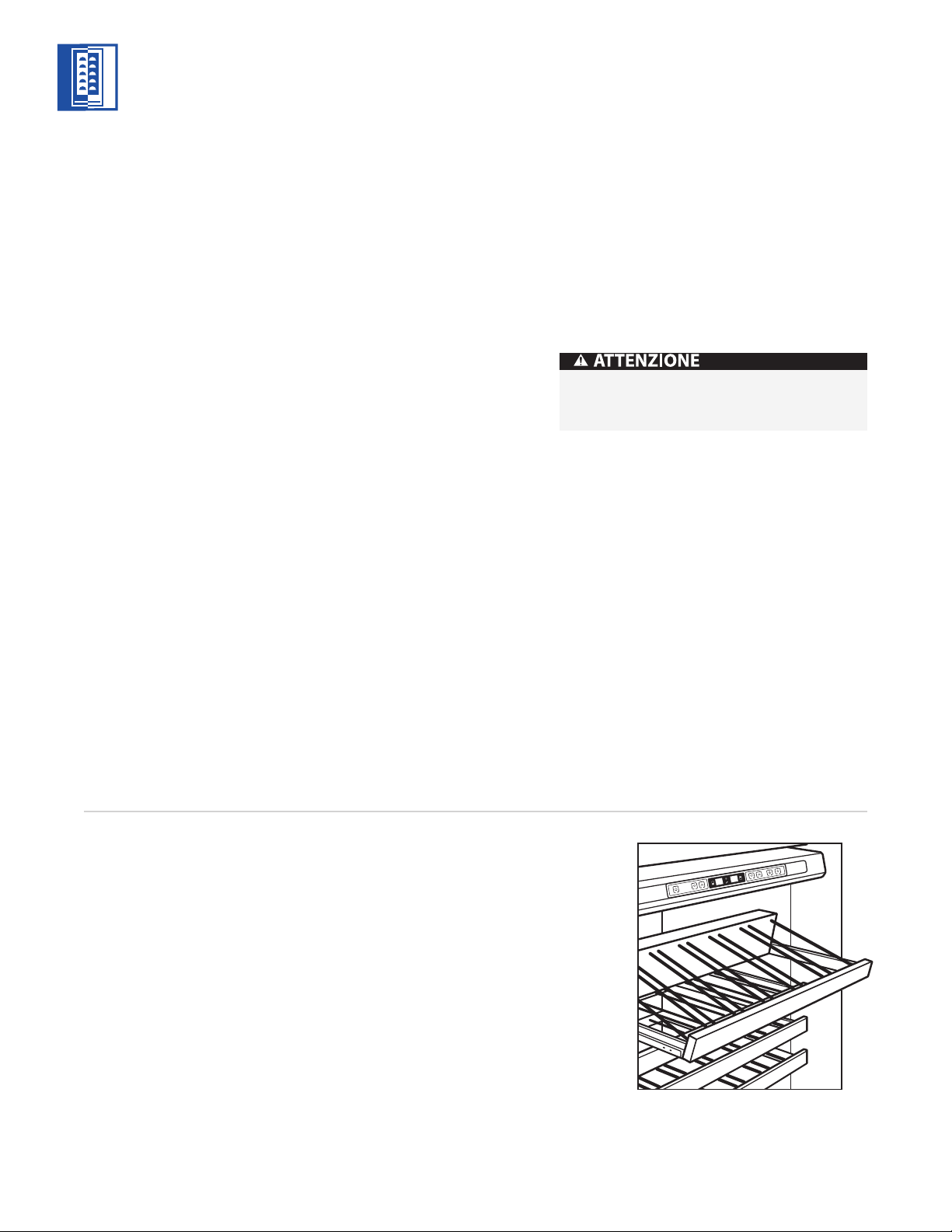

DISPLAY SHELF REMOVAL
Models ICB427, ICB427R and ICB430:
To
remove the display shelf, pull the shelf out to
its full extension, gently and evenly lift up on
both sides of the front of the shelf and remove.
Reverse the procedure to reinstall the shelf.

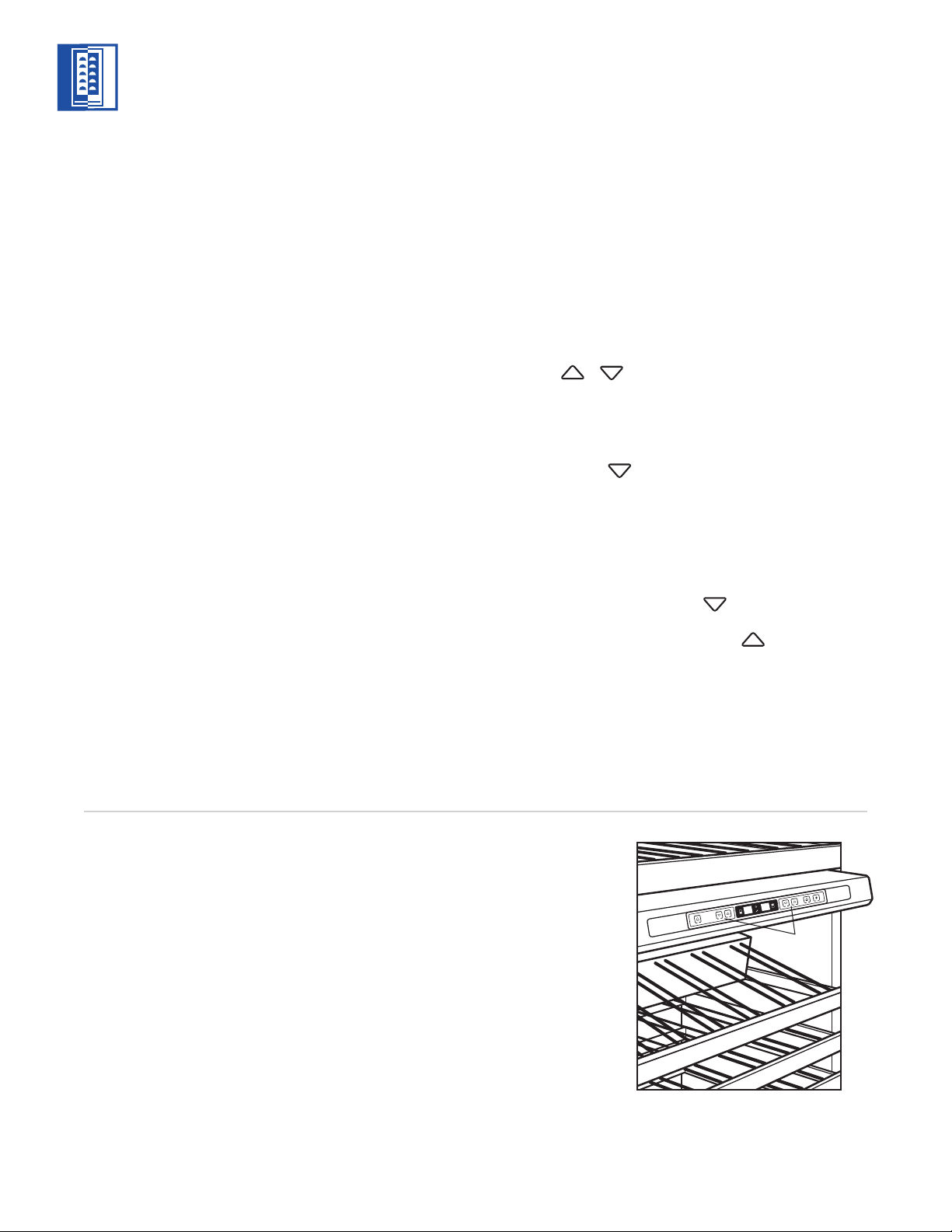

WINE STORAGE
DISPLAY SHELF
Models ICB427, ICB427R and ICB430:
These
Wine Storage models feature a display shelf
that allows you to display those prized bottles
in your wine collection. It is illuminated with
discreet lighting mounted in the control panel.
The display shelf is designed so that the wine
will stay in proper contact with the cork. Refer
to the illustration below.
IMPORTANT NOTE:
The display shelf is
designed for only one row of bottles laid in
such a way that the bottom portion of the
bottle is against the wood rail and the top and
cork of the bottle are toward the back of the
Wine Storage unit.
IMPORTANT NOTE:
Models ICB424 and
ICB424FS do not include the display shelf.
SUB-ZERO
WINE STORAGE USE & CARE
13
7
Display shelf – Models ICB427,
ICB427R and ICB430
Be sure to unload all wine bottles from
the display shelf before removing it.
DRAWER DIVIDER
Model ICB427R:
Each drawer of the Model
ICB427R has a permanent divider.
13
BOTTLE STORAGE DRAWERS –
MODEL ICB427R

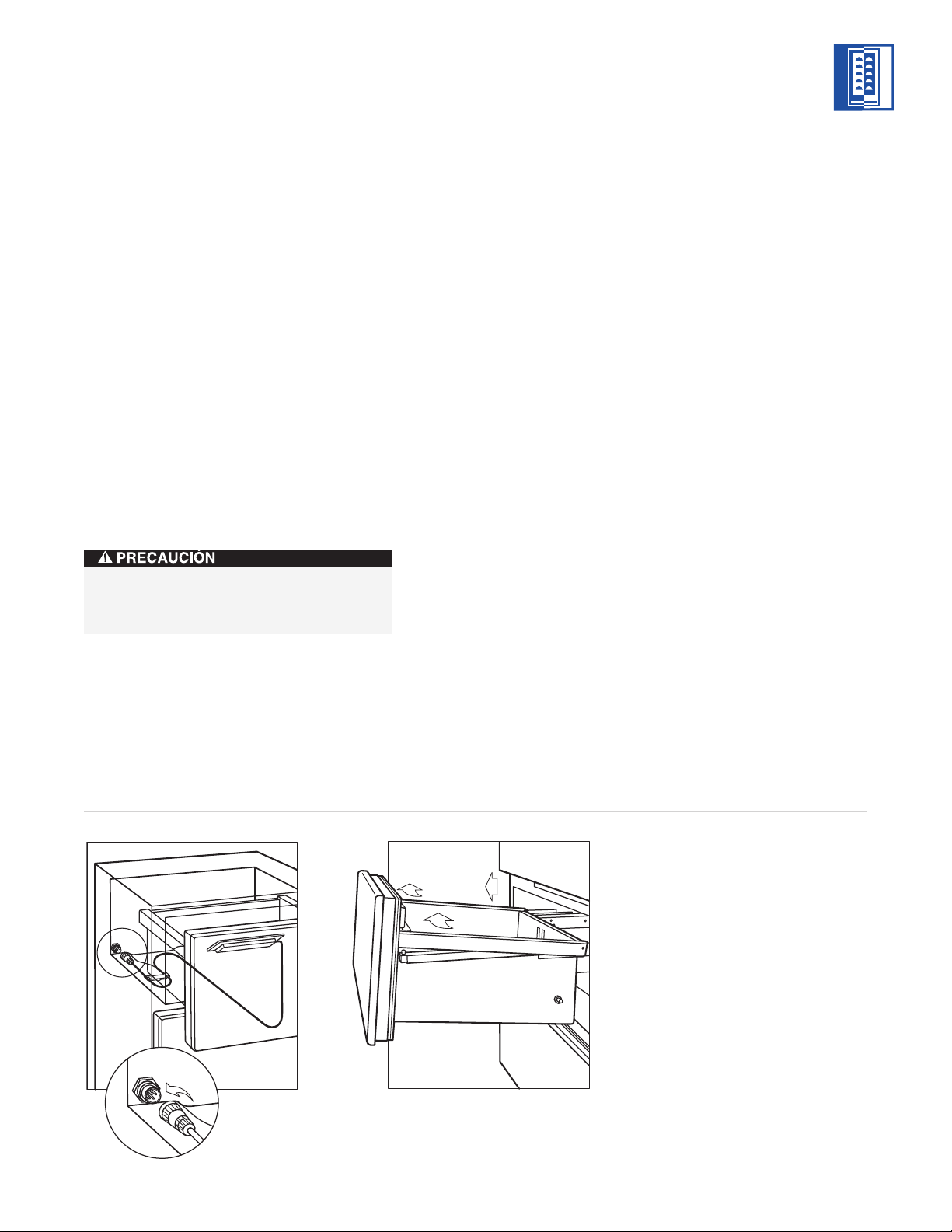

DRAWER REMOVAL
Model ICB427R:
Disconnect the control cable
before removing the top drawer. Refer to the
illustration below.
To remove a drawer from the Model ICB427R,
pull the drawer open until it stops. Lift up
evenly on both sides of the drawer front and
pull out, as shown in the illustration below.
IMPORTANT NOTE:
Be sure to unload the
contents before removing the drawer.
To replace a drawer, raise the front of the
drawer up and place onto the drawer slide
tracks. Be sure to engage the front holes of the
drawer slide with the small pegs at the end of
each rail.
Control cable –
Model ICB427R
Drawer removal – Model ICB427R
SUB-ZERO WINE STORAGE USE & CARE
Before removing the top drawer of the
Model ICB427R, you MUST disconnect
the control cable.
14
SUB-ZERO WINE STORAGE USE & CARE
Models ICB427 and ICB427R:
These models
have a 90° door stop built into the hinge
system. You can easily actuate the stop by
using a blade-type screwdriver and rotating
the brass cam in both the top and bottom
hinges. You must position both stops at 90° if
you want to safely use the door. Refer to the
illustration below.
You can go to the maximum of a 105° door
opening by using the screwdriver and rotating
the brass cam to the next stop.
Model ICB430:
An optional 90° door stop is
available as a sales accessory. Contact your
Sub-Zero dealer for details.
DOOR OPERATION
DOOR CLOSING
The door of your Wine Storage unit has a
spring-loaded closure mechanism. As the door
is closed, the door closer engages to help
close and seal the door.

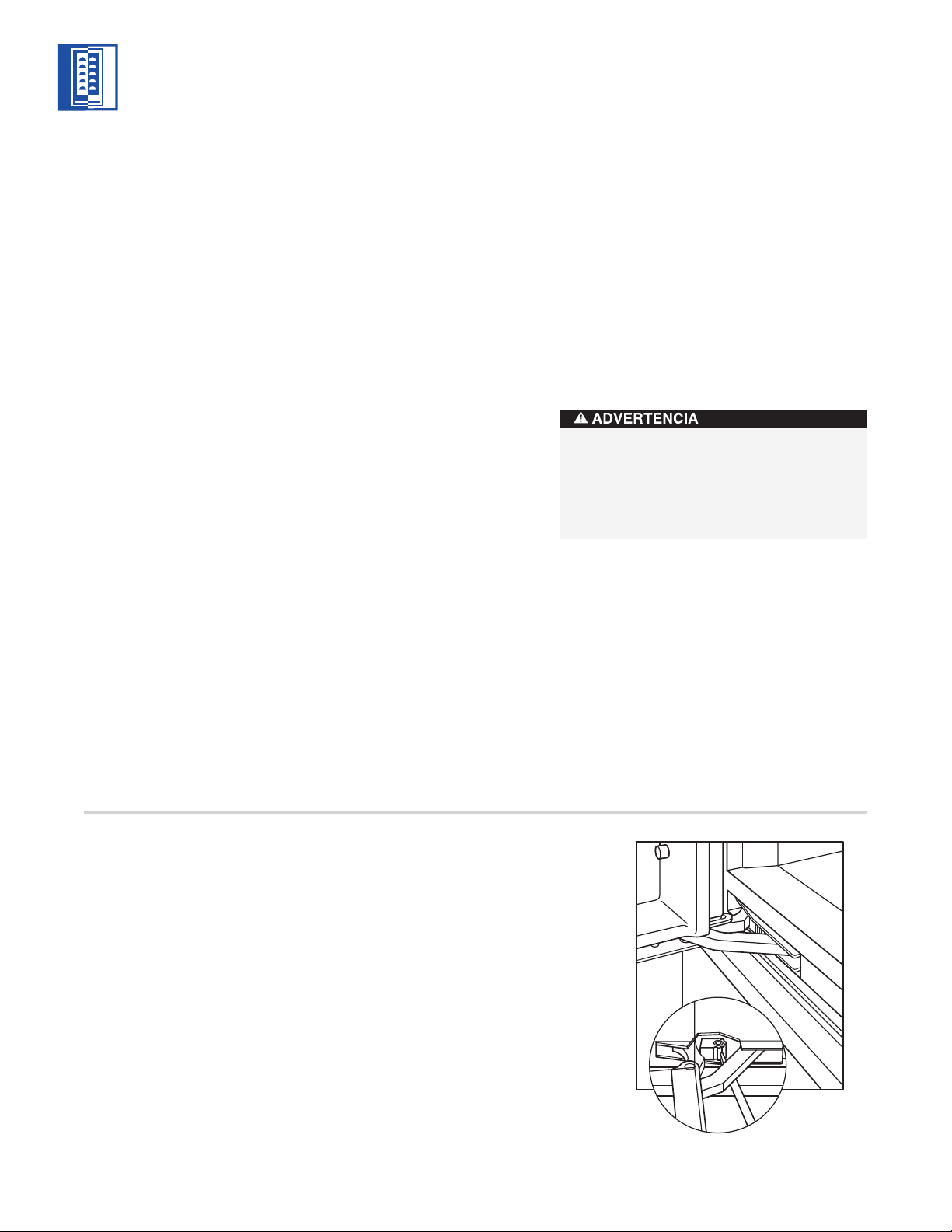

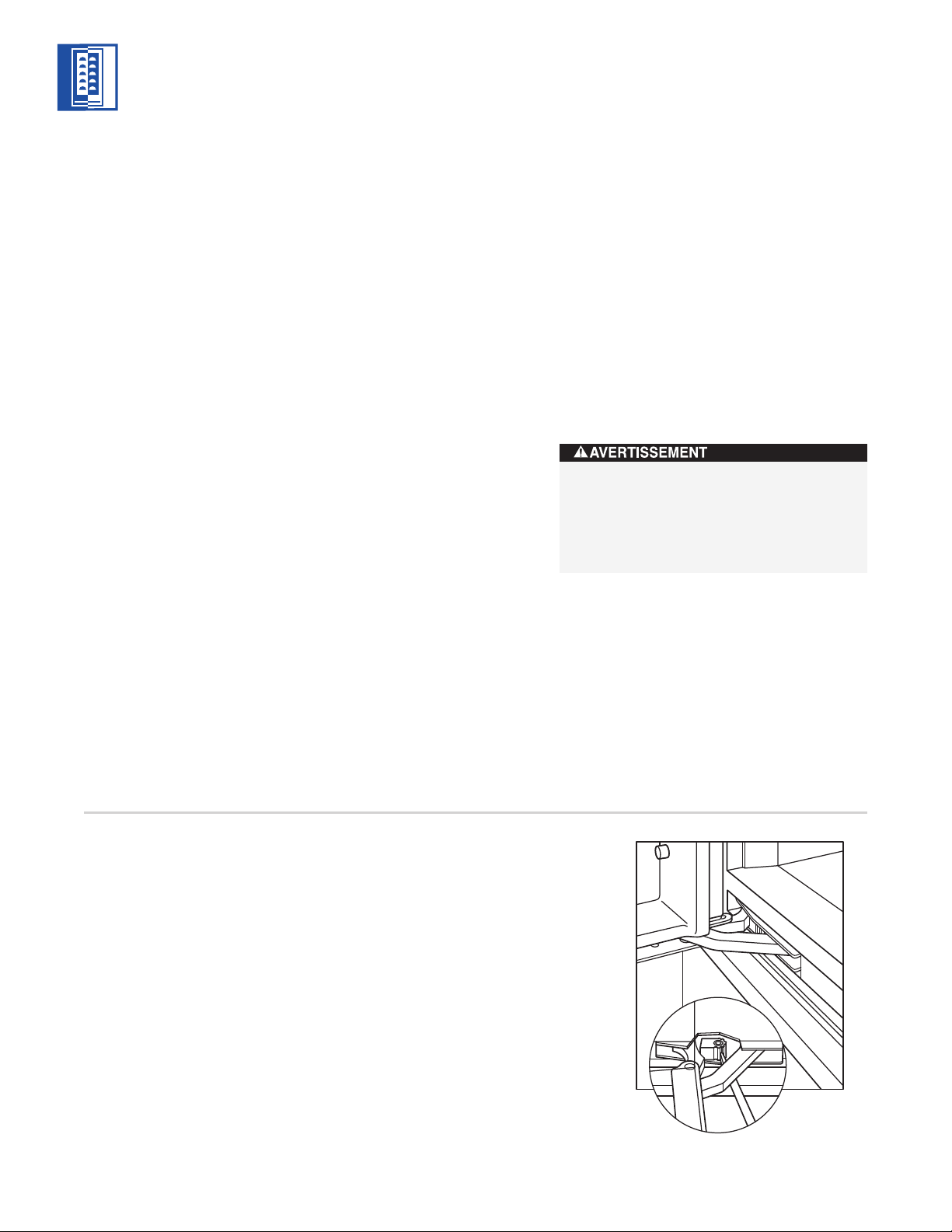

90-DEGREE DOOR STOP
If your Wine Storage unit is positioned in a
corner, you may want to limit the door
opening to 90°. If so, see the appropriate
section for your Wine Storage Model ICB427,
ICB427R or ICB430.
IMPORTANT NOTE:
A 90° door stop is not
available for Models ICB424 and ICB424FS.
90° Door stop – Models ICB427
and ICB427R
The door swing on Models ICB427 and
ICB427R may cause severe finger pinching.
Watch that fingers are not placed in the
door opening on the hinge side when the
door is open.
15
SUB-ZERO WINE STORAGE USE & CARE
CLEANING
STAINLESS STEEL EXTERIOR
Classic stainless steel finish:
To clean the
exterior, use a soft, nonabrasive stainless steel
cleaner and apply with a soft 100% lint-free
cloth.
To bring out the natural luster, lightly wipe the
surface with a water-dampened microfiber
cloth followed by a dry polishing chamois. All
work should follow the grain direction of the
finish. Better results are obtained by keeping
the cloth in continuous contact with the stainless steel.
GLASS DOOR CLEANING
The glass door panel can be cleaned using any
standard glass cleaner available on the market
today.
INTERIOR CLEANING
To clean interior surfaces and removable parts,
wash with a mild solution of soap and luke warm water with a little baking soda. Do not
use vinegar. Rinse and dry thoroughly. Avoid
getting water on lights, control panel and the
solid cherry wood facing on the shelves.
Do not use abrasive cleaners or cloths on any
of the interior or exterior surfaces, including
the glass door panel.
Under no circumstances should you use
a metallic or highly abrasive cleaner or
cloth, as this will scratch the classic
stainless steel finish.
Before cleaning the unit, shut the electricity off at the control panel.
16
SUB-ZERO WINE STORAGE USE & CARE
CONDENSER LOCATION
Models ICB424 and ICB424FS:
On these
models the condenser is located behind the
kickplate. First, remove the kickplate to expose
the condenser area. Refer to the illustration
below.
Models ICB427 and ICB427R:
On these
models the condenser is located behind the
kickplate/grille. Remove the screws holding the
kickplate/grille. This assembly will slide
forward easily, giving you access to the
condenser area. Refer to the illustration below.
Model ICB430:
The condenser is located
behind the grille at the top of the unit. To
remove the louvered grille, first open the door
to access three Phillips head screws. Remove
the three grille screws. Tilt the grille forward at
the top and release the springs from behind the
grille, and then lift off the grille. Refer to the
illustration below.
To remove a panel grille on Model ICB430, lift
the grille up, then pull out at the bottom and
down to release it from its mounting bracket.
Kickplate
Condenser location – Models
ICB424 and ICB424FS
Condenser location – Models
ICB427 and ICB427R
Condenser location – Model
ICB430
CLEANING
CONDENSER CLEANING
Clean the condenser area every three to six
months. The cleaning schedule will depend on
the amount of dust and lint that accumulates
in this area.
To access the condenser on your specific Wine
Storage model, see Condenser Location. Use a
soft bristle brush and vacuum hose to remove
dust and lint from the condenser area. NOTE:
To avoid bending the condenser fins, be sure
to vacuum in the direction of the fins (up and
down).
Before cleaning the condenser, shut the
electricity off at the control panel. When
you clean the condenser, wear gloves to
avoid injury from the sharp condenser fins.
Failure to clean the condenser could
result in temperature loss or mechanical
failure or damage.
Grille Springs
Grille
Screws
(inside door)
LIGHTING INFORMATION
CABINET LIGHTING
Models ICB424 and ICB424FS:
In these
models, rope-style LED lighting is mounted to
the top of the cabinet and cascades down the
entire front of the unit.
Models ICB427, ICB427R and ICB430:
These
models have discreet lighting provided in two
places. Rope-style LED lighting is mounted to
the top of the cabinet and additional lighting is
mounted in the control panel to illuminate the
display shelf. Refer to the illustration below.
These lights have an extended life and it
should be some time before they need to be
replaced. If you have problems with the
cabinet lighting or need replacements, contact
your Sub-Zero dealer.
17
DRAWER LIGHTING – MODEL ICB427R
Model ICB427R:
Lighting is recessed into the
top area of each refrigerated drawer compartment. Refer to the illustration below.
To replace a light bulb in the drawer compartment, you must pull the drawer out to its
maximum extension. It is recommended that
you remove the drawer. Refer to page 13 for
the drawer removal procedure.
Remove the 25-watt bulb by unscrewing it
from its socket and complete the reinstallation
by following the reverse steps.
SUB-ZERO
WINE STORAGE USE & CARE
Cabinet Lighting
Drawer Compartment
Lighting
Cabinet lighting – Models ICB427,
ICB427R and ICB430
Drawer compartment lighting –
Model ICB427R
Shut off power to the unit before replacing
light bulbs. Wear protective gloves when
handling bulbs.
18
KEEPING WINE AT ITS BEST
STORING AND SERVING WINE
There is a right way to store and serve wine.
And there is a wrong way. The Sub-Zero Wine
Storage equipment is committed to the right
way. Wine enthusiasts know that wine, optimally, likes to be stored for long periods of
time in caves that are vibration free, dark,
damp and kept at a constant 13°C. However,
how many of us have these situations available?
When you think about wine, think about
preserving fruit and the fact that you must
refrigerate it at the proper temperature before
it spoils. After all, wine is the juice of grapes in
its simplest interpretation.
Wine needs to be selected and cared for
properly. The wine aficionado knows that
proper storage will ensure the wine is served
at the best conditions.
You have taken the extra step to ensure that
your wine is kept in the best possible environment by purchasing your Sub-Zero Wine
Storage unit. Now how you use the unit is up
to you.
You can devote the entire Wine Storage unit to
long-term storage and have the temperature
set to 13°C in both zones—the ideal temperature for long-term storage or aging. If,
however, you want to devote only a small
portion of the unit to that feature, you can
adjust the temperature in the smaller zone to
long-term storage and adjust the other temperature zone to accommodate the wine you will
be enjoying soon.
The temperature in this zone can be anything
you choose. Sure, there are ideal temperatures
for serving wine, but it is very subjective, with
everyone’s palate reacting differently to different temperatures.
The chart on the following page offers some
universally accepted storing and serving
temperatures for the most common wines
consumed today.
Enjoy the wine and your Sub-Zero Wine
Storage unit. And thank you for your trust in
Sub-Zero.
19
KEEPING WINE AT ITS BEST
Muscadet
Sancerre / Pouilly
Sauternes
5°C4°C 6°C 7°C 8°C 9°C 10°C 11°C 12°C 13°C 14°C 15°C 16°C 17°C 18°C
Gewurtztraminer
Macon
Bordeaux Blanc
Aligote
Muscats
Gros Plant
Alsace / Riesling
Sylvaner
Good German /
Austrian Wines
Best Champagne
Liebraumilch
Eiswein
Non-Vintage ChampagneTo ka y
Sparkling Wine (Sekt, Cava, etc.)
Fino Sherry
Hungarian Whites
Sweet Loire Chenin Blancs
Orvieto
Frascati
SWEET WHITES LIGHT REDSDRY WHITES FULL SCALE REDS
Domestic Refrigerator Temperature Ideal Long-Term Storage / Aging Temperature Room Temperature
Chablis
Chinon
Vinho Verde
Fendant
Soave
Verdicchio
Chardonnay
Top California / Australian
Chardonnays
Lambrusco
Retsina Yugoslav Riesling
S.A. Chenin Blanc
Light Muscats
N.Z. Sauvignon Blanc
Johannisberg Riesling
Vin Rose
California Sauvignon
Blanc
Barossa Riesling
Beaujolais Nouveau
Montlla
Amontillado
Vin Jaune
Best White
Burgundies / Graves
Cream Sherry
Old Hunter Valley
Whites
Liqueur Muscats
Best Dry
German Wines
Best Sweet
German Wines
Beaujolais Crus
Madeira
Sicilian Reds
Bull’s Blood
Midi Reds
(Corbieres, etc.)
Tawny Port
Ordinary Red Bordeaux
Cotes du Rhone (Red)
Madiran
Top Red Rhone
Red Burgundy
Vintage Port
Fine Red Bordeaux
Cahors
Bandol
Fiasco Chianti
Valpolicella Chianti Reservas
Rioja Reservas
Barbera
Chilean Cabernet
Barolo
Best Portuguese Reds
Light Zinfandels
Va l d e p en a s
California / Australian / Oregon Pinot Noir
Best California
Cabernets /Zinfandels
Top Australian
Cabernet / Shiraz
Dole
© Octopus Publishing Group Ltd., reproduced from Hugh Johnson’s ‘The World Atlas of Wine’, published by Mitchell Beazley, London.
5°C4°C 6°C 7°C 8°C 9°C 10°C 11°C 12°C 13°C 14°C 15°C 16°C 17°C 18°C
STORING AND SERVING TEMPERATURES
Merlots / Pinot Noirs
20
Condensation forms inside the unit
This is normal during periods of higher
humidity (summer) and with frequent door
openings.
Are the door and drawers (Model ICB427R)
closing and sealing properly?
Condensation forms outside the unit
During periods of high humidity, some
condensation may appear on outside
surfaces. The condensation will disappear
when the humidity drops. Be sure that the
door and drawers (Model ICB427R) are
closing and sealing properly. If condensation persists, contact your Sub-Zero authorized service center.
You need product information
Visit our website, subzero.com,
for planning, installation and product
information.
You need service
If service is necessary, maintain the quality
built into your Sub-Zero unit by calling a
Sub-Zero authorized service center.
To obtain the name and number of a
Sub-Zero authorized service center, check
the Contact & Support section of our
website, subzero.com.
When calling for service, you will need the
model and serial number of your unit. For
Models ICB424 and ICB424FS, the model
and serial number plate is located on the
underside of the top wall. For Models
ICB427 and ICB427R, it is attached to the
underside of the control panel. For Model
ICB430, the plate is located inside the door
near the top hinge on the main frame
extrusion.
TROUBLESHOOTING
If your Wine Storage unit is not operating
properly, refer to the following Troubleshooting guide before calling your Sub-Zero
authorized service center or dealer. This guide
will save you time and trouble and may help
you avoid the expense of a service call.
The Wine Storage unit is not operating
Is there electrical power to the unit?
Is your home circuit breaker or fuse on?
Is the unit on? Depress the key pad.
Is the condenser area clean?
The Wine Storage unit is warmer than
usual
Is the control set properly?
Is the condenser area clean?
Have the door or drawers (Model ICB427R)
been open for a long time?
The Wine Storage unit runs for long periods
of time
Is the condenser area clean?
On hot days and in warm room temperatures, the compressor runs longer.
Have the door or drawers (Model ICB427R)
been open for a long time?
Have you recently added a large amount
of wine?
TROUBLESHOOTING GUIDE
21
NOISE
Q:
Why do I hear my unit running frequently?
A:
It is normal to hear the operation of fans
and motors. Sounds will be accentuated
based on the placement of the unit and
overall room design.
FREQUENTLY ASKED
QUESTIONS
TEMPERATURE
IMPORTANT NOTE:
Unless the Wine Storage
unit is being serviced, make sure the power for
your unit is on.
Q:
How do I adjust the temperatures?
A:
To adjust temperatures, see Temperature
Control on page 8. For Model ICB427R, also
refer to page 10.
Q:
What are the suggested temperature
settings?
A:
Temperature settings are your individual
preference. While each temperature zone
of your Wine Storage unit has a range of
3°C to 18°C, you can set the temperatures
you think best. A chart with suggested
storing and serving temperatures can be
found on page 19.
Q:
Condensation is forming on the inside and
outside of my unit.
A:
In climates with higher humidity, condensation will form and is considered normal.
Leaving the door open for a long period of
time may also contribute to condensation
forming on the inside of your unit.
Q:
My unit isn’t cooling properly.
A:
Clean the condenser area as outlined on
page 16.
TROUBLESHOOTING GUIDE
22
SERVICE INFORMATION
This Use & Care Information book gives you
the information necessary to preserve your
wine at optimum quality in your Sub-Zero
Wine Storage unit.
If you do need service, be sure to have the
model and serial number of your unit when
you call. You’ll find these numbers on the
model and serial number plate. For Models
ICB424 and ICB424FS, the model and serial
number plate is located on the underside of
the top wall. For Models ICB427 and ICB427R,
it is attached to the underside of the control
panel. For Model ICB430, the plate is located
inside the door near the top hinge on the main
frame extrusion. Refer to pages 5–7 for
location of the rating plate for your specific
model. For warranty purposes, you will also
need the date of installation and the name of
your Sub-Zero dealer. Record this information
below for future reference.
Model Number
Serial Number
Installation Date
Sub-Zero Authorized Service Center and Phone
Sub-Zero Dealer and Phone
BEFORE CALLING FOR SERVICE
Before calling a Sub-Zero authorized service
center, refer to the Troubleshooting Guide on
pages 20–21. Check the household fuse or
circuit breaker to see if it has been blown or
tripped and that the electrical connection to
the appliance has not been disconnected.
A power outage may also have caused a
disruption in service.
PRODUCT REGISTRATION
Register your new Sub-Zero today so that we
may ensure your satisfaction. You may register
by one of the following options:
1)
Mail in the completed Sub-Zero Product
Registration Card.
2)
Register online at
subzero.com
.
The model and serial numbers of your unit
are printed on the enclosed Sub-Zero Product
Registration Card. If you provide us with your
e-mail address, we will send you exciting new
product updates and recipes as they become
available, along with information on special
events.
SERVICE INFORMATION
CONTACT
INFORMATION
Website:
subzero.com
The information and images in this guide are
the copyright property of Sub-Zero, Inc. Neither
this book nor any information or images
contained herein may be copied or used in
whole or in part without the express written
permission of Sub-Zero, Inc.
©Sub-Zero, Inc. all rights reserved.
ÍNDICE
Conservador de vino de Sub-Zero 25
Características del conservador de vino
de Sub-Zero 26
Modelos de conservador de vino de Sub-Zero 27
Uso y mantenimiento del conservador
de vino de Sub-Zero 30
Cómo mantener el vino en perfecto estado 40
Guía de localización y solución de problemas 42
Información de mantenimiento 44
SUB-ZERO®es una marca comercial registrada de Sub-Zero, Inc.
Cuando lea esta guía de uso y mantenimiento,
deberá prestar especial atención cuando aparezcan los símbolos de PRECAUCIÓN y ADVERTENCIA. Esta información es importante para utilizar
de forma segura y eficaz el equipo de Sub-Zero.
Además, esta guía de uso y mantenimiento
puede incluir una NOTA IMPORTANTE para
resaltar información especialmente importante.
indica una situación en la que se pueden
sufrir heridas leves o provocar daños
secundarios al producto si no se siguen
las instrucciones.
indica peligro de que se produzcan heridas
personales graves o incluso puede provocar
la muerte si no se siguen las precauciones
especificadas.
25
GRACIAS
Gracias por comprar el nuevo modelo de
conservador de vino de Sub-Zero. Este conservador de vino es la última novedad en belleza,
ingeniería de diseño, cuidado del último detalle
y funcionalidad. De esta manera continúa la
tradición de Sub-Zero de ofrecer la máxima
calidad y fiabilidad para proporcionarle la tranquilidad de que sus vinos están perfectamente
conservados, a la temperatura exacta que usted
seleccione.
Esta guía de información de uso y mantenimiento responderá a la mayoría de las preguntas que puedan surgirle sobre las características,
el funcionamiento y el mantenimiento de su
conservador de vino. Si tiene alguna otra
pregunta que no se ha abordado en esta guía,
visite nuestra página Web, subzero.eu.com.
CONSERVADORES DE VINO DE SUB-ZERO
26
Gracias a la instalación de un kit de
aprovechamiento, estos electrodomésticos han
obtenido el certificado Star-K que indica que
cumplen rigurosas normas religiosas, así como
las instrucciones específicas que aparecen en
la página www.star-k.org. Para obtener más
información sobre esto, póngase en contacto
con su distribuidor de Sub-Zero.
CARACTERÍSTICAS DEL CONSER-
VADOR DE VINO
Dos zonas de temperatura—todos los modelos
del conservador de vino le permiten controlar
la temperatura de un modo preciso para
ajustar las temperaturas preseleccionadas de
grado en grado en una de las dos zonas de
temperatura.
El modelo ICB427R dispone de una tercera
zona de temperatura—los cajones para
guardar botellas—para las botellas que es
necesario conservar a una temperatura más
fría que la del vino.
Controles electrónicos—un microprocesador
controla todas las funciones electrónicas y
permite al usuario controlar la temperatura
exacta que ha establecido y realizar los ajustes
de manera sencilla.
Temperatura correcta—cada zona del conservador de vino cuenta con un rango de temperatura que oscila entre 3°C y 18°C; la temperatura establecida se muestra en la pantalla LED
situada en el panel de control.
En toda la unidad se mantiene la humedad
adecuada.
Iluminación tenue—las luces de la pantalla
LED son de baja potencia y proporcionan una
iluminación suave que se puede controlar
independientemente de la apertura de la
puerta, lo cual le permitirá exhibir su colección de vinos en ocasiones especiales.
En los estantes metálicos inoxidables y
resistentes se pueden colocar botellas
normales de 750 ml, de 375 ml y botellas
mágnum. Acabados con un frente de madera
de cerezo natural, todos los estantes conservan el vino de manera perfecta manteniendo
los corchos en contacto continuo con el
contenido de la botella.
Estantes con sistema de rodamiento con
extracción de tres cuartos para acceder a
todas las botellas almacenadas de manera
sencilla.
Estante de exposición— incluido en los
modelos ICB427, ICB427R y ICB430. Este
estante le permite exhibir las botellas más
preciadas de su colección de vinos. Dispone
de iluminación tenue colocada en el panel de
mandos.
Aviso de avería—una luz en la pantalla LED
del panel de control le permitirá saber si el
conservador necesita asistencia técnica.
Alarma doméstica—las conexiones de
cableado permiten conectar el conservador
de vino al sistema de seguridad de la casa.
El modelo ICB427R incluye una opción de
alarma que emite un sonido audible en el
caso de que haya dejado abierto el cajón.
El modo Sabbath se utiliza durante determinadas festividades religiosas de modo que las
luces permanecen desconectadas esos días.
Cristal resistente a los rayos ultravioleta en la
puerta que filtra los rayos ultravioleta perjudiciales.
Bloqueo opcional—el bloqueo está disponible
como accesorio opcional. Póngase en
contacto con el distribuidor de Sub-Zero
para conocer más detalles.
Las juntas magnéticas colocadas alrededor
de las puertas proporcionan una hermeticidad
adicional.
El zócalo sólido y ajustable proporciona un
aspecto realmente integrado.
Ventilación frontal—Todos los modelos de
conservadores de vino de Sub-Zero tienen un
sistema mecánico diseñado para permitir la
ventilación en la parte delantera de la unidad.
CARACTERÍSTICAS DEL CONSERVADOR DE VINO DE SUBZERO
27
MODELOS DE CONSERVADOR DE VINO DE SUBZERO
MODELO
ICB424
CONSERVADOR DE VINO BAJO ENCIMERA
Estantes con sistema
de rodamiento
Panel de mandos
electrónico iluminado
Iluminación tenue
Puerta de cristal
panorámica
(estándar)
Referencia del
modelo y número
de serie
Conexión a la
alarma doméstica
Estante fijo Cristal resistente a
rayos ultravioleta
Junta separadora
Ventilación frontal con
zócalo extraíble
MODELO ICB424FS
CONSERVADOR DE VINO DE LIBRE COLOCACIÓN
Estantes con sistema
de rodamiento
Panel de mandos
electrónico iluminado
Exterior de acero
inoxidable
Puerta de cristal
panorámica
(estándar)
Referencia del
modelo y número
de serie
Conexión a la
alarma doméstica
Estante fijo
Cristal resistente a
rayos ultravioleta
Junta separadora
Ventilación frontal con
zócalo extraíble
28
MODELOS DE CONSERVADOR DE VINO DE SUBZERO
MODELO
ICB427
TODO CONSERVADOR DE VINO
MODELO ICB427R
CONSERVADOR DE VINO CON CAJONES PARA CONSERVAR BOTELLAS
Cristal resistente a
rayos ultravioleta
Panel de mandos
electrónico iluminado
Iluminación tenue
Puerta de cristal
panorámica
(estándar)
Estantes con sistema
de rodamiento
Estante de exposición
iluminado
Referencia del
modelo y número
de serie
Junta separadora
Conexión a la
alarma doméstica
Ventilación frontal con
zócalo/rejilla extraíble
Cajones para
conservar botellas
Panel de mandos
electrónico iluminado
Estantes con sistema
de rodamiento
Iluminación tenue
Cristal resistente a
rayos ultravioleta
Puerta de cristal
panorámica
(estándar)
Estante de exposición
iluminado
Referencia del
modelo y número
de serie
Junta separadora
Conexión a la
alarma doméstica
Ventilación frontal con
zócalo/rejilla extraíble
29
MODELOS DE CONSERVADOR DE VINO DE SUBZERO
MODELO
ICB430
TODO CONSERVADOR DE VINO
Referencia del
modelo y número
de serie
Panel de mandos
electrónico iluminado
Iluminación tenue Puerta de cristal
panorámica
(estándar)
Estantes con sistema
de rodamiento
Estante de exposición
iluminado
Junta separadora
Cristal resistente a
rayos ultravioleta
Conexión a la
alarma doméstica
Zócalo extraíble
Unidades de refrigeración
selladas herméticamente
30
SISTEMA DE CONTROL
ELECTRÓNICO
El sistema de control electrónico del conservador
de vino de Sub-Zero le proporciona un control de
temperatura de gran precisión que le permite
conservar sus vinos con absoluta tranquilidad.
Puede estar seguro de que sus vinos se conservan a la temperatura que ha seleccionado, tanto
si son vinos de guarda como si son vinos que va
a tomar esa misma noche.
Un microprocesador comprueba de manera
precisa la temperatura cada segundo en todas
las zonas para asegurarse de que las temperaturas se mantienen dentro del rango de un grado
respecto a las temperaturas predefinidas. Este
microprocesador también controla el
funcionamiento de la unidad y le permite
saber cuando es necesario realizar una tarea
de mantenimiento.
CONTROL DE TEMPERATURA
Todos los modelos de conservador de vino
permiten configurar dos temperaturas diferentes
en las dos zonas de su conservador de vino.
Su modelo ha sido inspeccionado y sometido a
rigurosas pruebas en la fábrica de Sub-Zero antes
de enviarlo. La temperatura se ha preconfigurado
a 7°C en la zona superior y a 13°C en la zona
inferior.
Hay dos grupos de botones y en el panel
de mandos, uno para cada una de las dos zonas
de temperatura independientes. Una flecha la
lado de la temperatura en la pantalla LED indica
la temperatura que corresponde a cada una de
las zonas. Observe la siguiente ilustración.
El botón del panel de mandos permite bajar
la temperatura de la zona correspondiente; cada
vez que pulse el botón la temperatura baja un
grado. Recuerde que el rango de temperatura en
cada zona oscila entre 3°C y 18°C y que puede
configurar dos temperatura diferentes—una
para cada temperatura.
De igual manera, el botón del panel de
mandos le permite subir la temperatura de la
zona correspondiente; cada vez que pulse el
botón la temperatura sube un grado.
USO Y MANTENIMIENTO DEL CONSERVADOR DE VINO DE SUB-ZERO
Controles de
temperatura
13
7
Panel de mandos electrónico
Loading...
