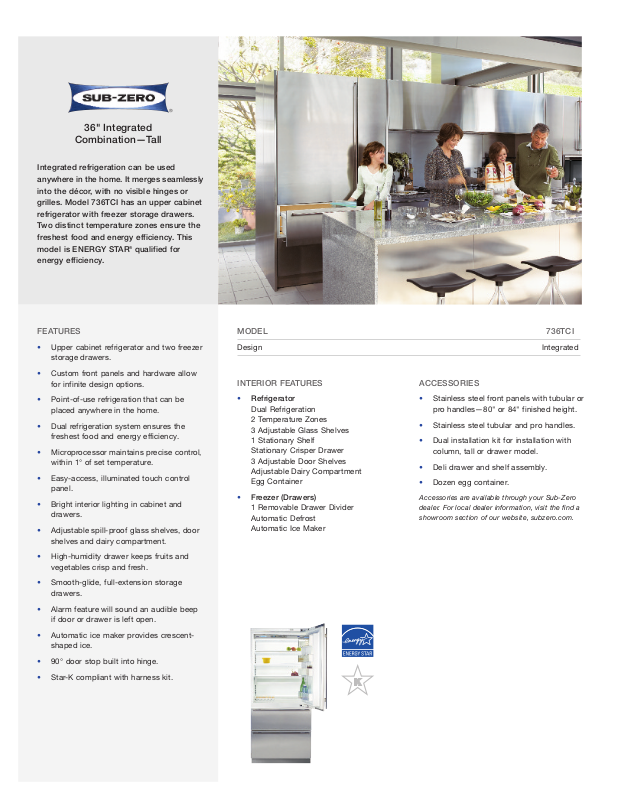

Sub-Zero 736TCI User Manual
6" Integrated
3
Combination—Tall
Integrated refrigeration can be used
anywhere in the home. It merges seamlessly
into the décor, with no visible hinges or
grilles. Model 736TCI has an upper cabinet
refrigerator with freezer storage drawers.
Two distinct temperature zones ensure the
freshest food and energy efficiency. This
model is ENERGY STAR®qualified for
energy efficiency.
FEATURES
• Upper cabinet refrigerator and two freezer
storage drawers.
• Custom front panels and hardware allow
for infinite design options.
• Point-of-use refrigeration that can be
placed anywhere in the home.
• Dual refrigeration system ensures the
freshest food and energy efficiency.
• Microprocessor maintains precise control,
within 1° of set temperature.
• Easy-access, illuminated touch control
panel.
• Bright interior lighting in cabinet and
drawers.
• Adjustable spill-proof glass shelves, door
shelves and dairy compartment.
• High-humidity drawer keeps fruits and
vegetables crisp and fresh.
• Smooth-glide, full-extension storage
drawers.
• Alarm feature will sound an audible beep
if door or drawer is left open.
• Automatic ice maker provides crescent-
shaped ice.
• 90° door stop built into hinge.
• Star-K compliant with harness kit.
MODEL 736TCI
Design Integrated
INTERIOR FEATURES
• Refrigerator
Dual Refrigeration
2 Temperature Zones
3 Adjustable Glass Shelves
1 Stationary Shelf
Stationary Crisper Drawer
3 Adjustable Door Shelves
Adjustable Dairy Compartment
Egg Container
• Freezer (Drawers)
1 Removable Drawer Divider
Automatic Defrost
Automatic Ice Maker
ACCESSORIES
• Stainless steel front panels with tubular or
pro handles—80" or 84" finished height.
• Stainless steel tubular and pro handles.
• Dual installation kit for installation with
column, tall or drawer model.
• Deli drawer and shelf assembly.
• Dozen egg container.
Accessories are available through your Sub-Zero
dealer. For local dealer information, visit the find a
showroom section of our website, subzero.com.
36" Integrated
36" (914)
1
4"
(356)
8
0"
(2032)
TO TOP OF
OPENNG
24" (610)
15/16"
(33)
7
7
13
/16"
(1976)
341/2"
(876)
2
0
3
/8"
(
518)
101/4"
(260)
131/4"
(337)
9
3
/4"
(248)
4
"
(102)
1
/2"
(13)
3
/8"
(10)
HEIGHT DIMENSIONS ±
1
/2"
(13)
2
4"
(610)
DIMENSIONS WILL VARY WITH PANEL THICKNESS
191/2"
(495)
341/2"
(876)
7" (178)
171/2" (445)
41/2"
(
114
)
POSITION OUTLET WITH
GROUNDING PRONG
TO THE RIGHT
FRONT VIEW
FLOOR
21/2" (64)
1
/4" (6)
131/2"
(343)
3" (76)
FRONT VIEW
3
/4"
(19)
FLOOR
21/2" (64)
131/2"
(343)
TOP VIEW
6"
(152)
11/2"
(38)
21/2"
(64)
BACK
WALL
36" (914)
OPENING WIDTH
25" (635)
O
PENING DEPTH
80" (2032)
OPENING
HEIGHT
FRONT VIEWSIDE VIEW
25" (635)
OPENING
DEPTH
TOP VIEW
Combination—Tall
OVERALL DIMENSIONS
Unit dimensions may vary by ±1/8".
SPECIFICATIONS
Overall Width 36"
Overall Height 80"
Overall Depth 24"
Door Clearance 341/2"
Drawer Clearance 191/2"
Refrigerator Capacity 13.3 cu ft
Freezer Capacity 7.1 cu ft
Finished Opening 36" W x 80" H x 25" D*
Electrical Requirements 115 V AC, 60 Hz
Plumbing Requirements
braided stainless steel or PEX tubing
Shipping Weight 480 lbs
*Depth is 24" from the front of the unit to its back.
Your design may necessitate moving the unit back,
or cabinets forward to achieve a flush fit. This will
require a minimum opening depth of 25".
INSTALLATION NOTES
Stainless steel panels with handles are
available as accessories. These panels are
not installed at the factory.
Complete installation specifications, including
panel sizes, can be found on our website,
subzero.com/ specs.
15 amp dedicated circuit
1
/4" OD copper,
35–120 psi
INSTALLATION SPECIFICATIONS
Opening Dimensions
Dimensions in parentheses are in
millimeters unless otherwise specified.
Location of Electrical Supply Location of Water Supply
©Sub-Zero, Inc. all rights reserved. Features and specifications are subject to change at any time without notice. 9/11
