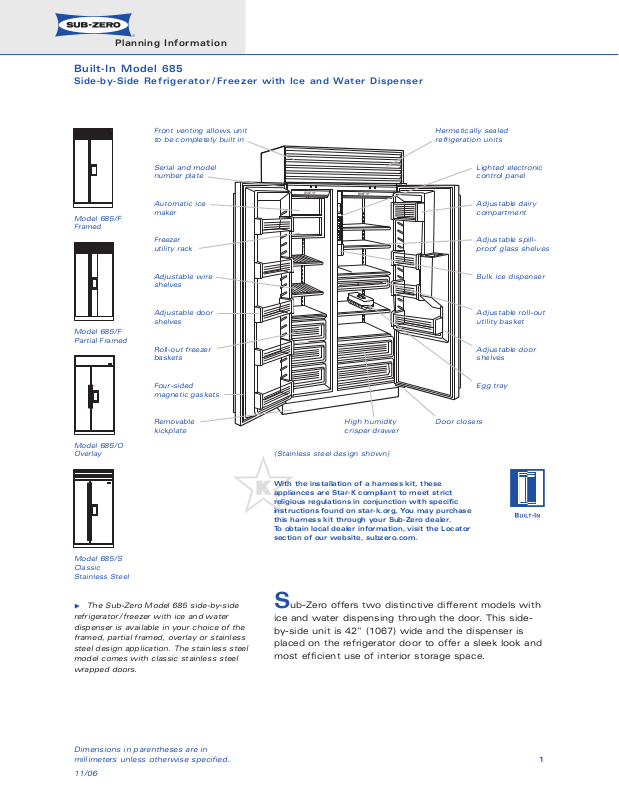

Planning Information
Built-In Model 685
Side-by-Side Refrigerator/ Freezer with Ice and Water Dispenser
odel 685/F
M
ramed
F
odel 685/F
M
Pa
Model 685/O
Overlay
rtial Fra
med
Front venting allows unit
to be completely built in
erial and model
S
umber plate
n
Automatic ice
aker
m
reezer
F
utility rack
djustable wire
A
helves
s
djustable door
A
shelves
Roll-out freezer
baskets
Four-sided
magnetic gaskets
Removable
kickplate
High humidity
crisper drawer
(Stainless steel design shown )
Hermetically sealed
refrigeration units
ighted electronic
L
ontrol panel
c
Adjustable dairy
ompartment
c
djustable spill-
A
proof glass shelves
ulk ice dispenser
B
djustable roll-out
A
utility basket
Adjustable door
shelves
Egg tray
Door closers
Model 685/S
Classic
Stainless Steel
The Sub-Zero Model 685 side-by-side
refrigerator/ freezer with ice and water
dispenser is available in your choice of the
framed, partial framed, overlay or stainless
steel design application. The stainless steel
model comes with classic stainless steel
wrapped doors.
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
With the installation of a harness kit, these
appliances are Star-K compliant to meet strict
religious regulations in conjunction with specific
instructions found on star-k.org. You may purchase
this harness kit through your Sub-Zero dealer.
To obtain local dealer information, visit the Locator
section of our website, subzero.com.
Sub-Zer
ice and w
o offer
ater dispensing through the door
s two distinctive different models with
. This sideby-side unit is 42" (1067) wide and the dispenser is
placed on the refrigerator door to offer a sleek look and
most efficient use of interior storage space.
1
42"
(1067)
24"
(610)
84"
(2134)
259/16"
(649)
42"
(1067)
237/8"
(606)
BEHIND
FRAME
411/4"
(1048)
3
/8" (10)
FRAME EXTENSION
Planning Information
Built-In Model 685
FEATURES
4
2" (1067) wide side-by-side refrigerator/
freezer with ice and water dispenser
Framed, overlay and classic stainless steel
applications provide complete design
flexibility
I
f you choose not to use custom wood
panels above or below the glasswell, you
can order a partial framed accessory kit for
your framed unit – the kit includes molding
and a stainless steel panel that surrounds
the glasswell and runs the total height of the
refrigerator door
With the framed retrofit accessory kit,
existing Model 680 door panels can be used
on a new Model 685 framed unit
Sub-Zero's dual refrigeration system ensures
the freshest food and energy efficiency
Shallow-depth design means access is easy
to any area of the refrigerator
Electronic digital controls are up front and
easy to use
Bright interior lighting
Adjustable, spill-proof glass shelves
H
igh-humidity crisper drawer is large with
smooth sides for easy cleaning – there's
even an added storage drawer
Door alarm will let you know with an audible
b
eeping if your refrigerator or freezer door is
left ajar
Automatic ice maker provides an ample
s
upply of crescent-shaped ice – also has a
bulk ice dispenser
Solid core doors with magnetic gaskets and
door closers
ront venting allows unit to be completely
F
built in and serviced from the front
Meets strict Department of Energy requirements
UL listed for US and Canada
Two, five and twelve year residential
warranty – exclusions apply, warranty
information can be found on our website,
subzero.com
OVERALL DIMENSIONS
Stainless steel design shown.
1
±
y
ary b
Dimensions ma
Dimensions in parentheses are in
millimeters unless otherwise specified.
y v
/8" (3).
2
Planning Information
Built-In Model 685
MODEL OPTIONS
Framed Design 685/F
Partial Framed Design 685/F
(accessory kit required)
Overlay Design 685/O
Classic Stainless Steel 685/S
ACCESSORIES
artial framed kit
FRAMP
includes molding and a stainless
steel insert panel for above and
below the glasswell on a framed
unit
FRAMRET – Framed retrofit kit
includes moldings and stainless
steel insert panels to accommodate existing Model 680 framed
door panels
Louvered, panel or stainless steel
grilles in 1" (25) increments from
10" (254) to 15" (381) high
Front and grille panels for framed
design in white
classic stainless steel
Side panels in white
classic stainless steel
Stainless steel and polished
chrome handles for overlay design
Gallon door shelf
Dozen egg container with lid
90˚ and 105˚ door stop kits
Accessories are available through your
Sub-Zero dealer. To obtain local dealer
information, visit the Locator section of
our website
AR – P
, subzer
, almond and
, almond and
o.com.
SPECIFICATIONS
M
odel 685 Side-by-Side Refrigerator/ Freezer
w
ith Ice and Water Dispenser
Overall Width 42" (1067)
Overall Height 84" (2134)
Overall Depth 24" (610)
Refrigerator Capacity 15.6 cu ft (442 L)
F
reezer Capacity 8.2 cu ft (232 L)
Minimum Height (levelers in) 83" (2108)
Door Swing Clearance 259/16" (649)
Electrical Requirements
Plumbing Requirements
115 V AC, 60 Hz, 15 amp circuit
1
/4" copper line
Water Supply 20–100 psi
Annual Energy Usage 694 kWh / $ 63
(based on 9.06 cents per kilowatt hour)
Shipping Weight Framed – 569 lbs (258 kg)
Overlay – 569 lbs (258 kg)
Stainless Steel – 608 lbs (276 kg)
Special Note Overlay design is now available
for this ice and water dispensing unit
Specifications are subject to change without notice.
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
Planning Information
833/4"
(2127)
ROUGH
OPENING
HEIGHT
WITH
STANDARD
11" (279)
GRILLE
751/2"
(1918)
7"
(178)
6"
(
152)
411/2"
(1054)
ROUGH OPENING WIDTH
24"
(
610)
R
OUGH
O
PENING
D
EPTH
E
3"
(76)
18"
(457)
W
LOCATE WATER SUPPLY
WITHIN SHADED AREA
LOCATE ELECTRICAL
WITHIN SHADED AREA
6"
(152)
SHUT-OFF
V
ALVE
E
XTEND WATER LINE
APPROX. 36" (914)
FROM BACK WALL
FRONT VIEW
T
OP VIEW
Built-In Model 685
INSTALLATION SPECIFICATIONS
DIMENSIONS
Finished Rough Opening Width 411/2" (1054)
Finished Rough Opening Height 833/4" (2127)
Finished Rough Opening Depth 24" (610)
Location of Electrical Within upper shaded area
Location of W
ater Supply
See Installation Instructions shipped with unit for detailed specifications.
Refer to the Sub-Zero Design Guide pdf file for additional specifications.
Dimensions in parentheses are in
millimeters unless otherwise specified.
Within lower shaded area
4
Planning Information
Built-In Model 685
INSTALLATION NOTES
R
efer to the illustrations and specifications
for overall dimensions, finished rough opening
dimensions and installation specifics.
A
llow the doors to open a minimum of 90˚ or
you'll have problems removing drawers. With
the doors opening at 90˚, you may have to
move drawers slightly to clear the door interior.
Refer to the minimum door swing clearances in
the specifications chart.
For corner installations, allow for a minimum
3" (76) filler so that the door can open to 90˚.
If you're using raised panels, consider using a
wider filler. A 90˚ door stop is available as an
accessory.
Be sure to add the filler strip width to your
finished rough opening dimension. In any sideby-side installation without a filler strip, add an
additional
This will allow for the proper width.
Refer to the full-scale illustrations at the end
of this section for specifics on door openings
and filler size alternatives.
If your client has chosen the stainless steel
design, the unit will be shipped complete with
wrapped stainless steel doors and handle
hardware. You will not have to install front
panels.
If your client has chosen the framed or
overlay design, you will be adding front panels
to give the unit the custom Sub-Zero look. The
overlay design also allows you to add your own
handles, or you may choose accessory handles
available through your Sub-Zero dealer. Refer to
pages 6– 12 for detailed information on adding
panels.
For Built-In models with an automatic ice
maker, rough in the water supply line. Connect
1
/4" OD copper line to the house supply, being
a
sure to use an easily accessible shut off v
between the supply and the unit.
Do not use self-piercing valves. A saddle
alve kit (4200880) is av
v
Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website
subzero.com.
1
/2" (13) to your combined numbers.
alve
ailable from your
,
A
line filter is required when water conditions have a high sediment content. The ice
maker operates on water pressure of 20 psi
(1.4 bar) to 100 psi (6.9 bar). In some cases a
r
everse osmosis water filter system may not be
able to maintain the minimum water pressure
consistently.
The water line should be routed up through
1
the floor within
/2" (13) from the back wall and
no higher than 3" (76) off the floor. If you have
to come through the wall, make sure the water
line is no more than 3" (76) from the floor.
Locate water supply within the shaded area
shown in the installation illustration.
Regardless of the routing, allow 3' (.9 m) of
excess copper tubing to remain outside the wall
or floor for easy connection to the unit.
A 115 volt, 60 Hz, 15 amp electrical supply
is required. The supply circuit for this appliance
must be protected by a 15 amp fuse or circuit
breaker. It is recommended that a separ
ate
circuit, serving only this appliance, be provided.
All Built-In models are equipped with a 6'
(1.8 m) power supply cord with a 3
-prong
grounding plug which must be plugged into a
mating 3
-prong grounding type wall receptacle.
Locate electrical within the shaded area shown
in the installation illustration.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
To prevent the unit from tipping forward and
provide a stable installation, the unit must be
secured in place with an anti-tip blocking kit. If
there is a solid soffit a
bove the unit with clear
ance between the unit and the soffit of 1" (25)
or less, you won't need to block the unit.
For installations with clearances of more
than 1" (25),
anti-tip bloc
you must block the unit with the
king kit (wood bloc
k and hardw
are)
provided with each Built-In unit.
Refer to the
Built-In Installation Instructions
packed with the appliance, which provides
step-b
y-step pr
ocedures for making sure the
unit is installed properly.
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
