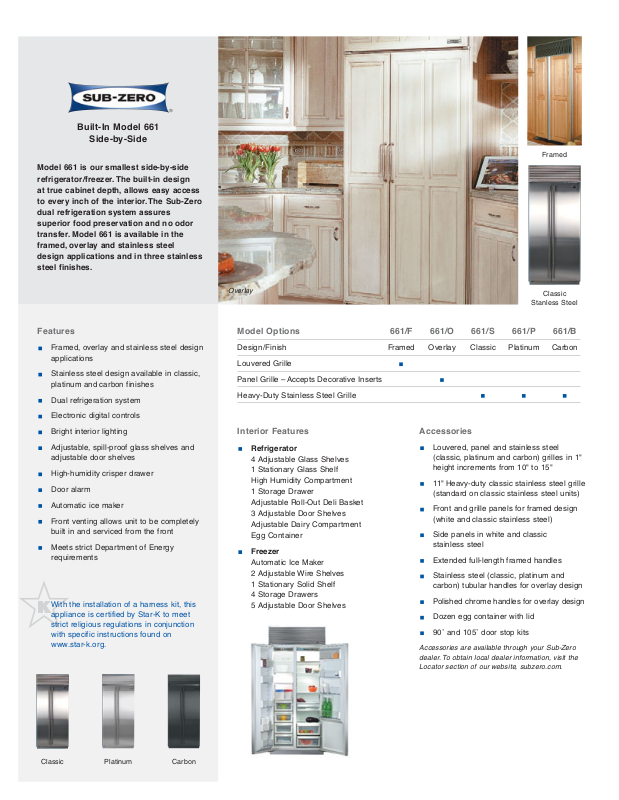

Sub-Zero 661-S, 661-F, 661-P, 661-O, 661-B User Manual

Model 661 is our smallest side-by-side refrigerator/ freezer. The built-in design at true cabinet depth, allows easy access to every inch of the interior.The Sub-Zero dual refrigeration system assures superior food preservation and no odor transfer. Model 661 is available in the framed, overlay and stainless steel design applications and in three stainless steel finishes.

Built-In Model 661

Side-by-Side

Features

Framed, overlay and stainless steel design applications

Stainless steel design available in classic, platinum and carbon finishes

Dual refrigeration system

Electronic digital controls

Bright interior lighting

Adjustable, spill-proof glass shelves and adjustable door shelves

High-humidity crisper drawer

Door alarm

Automatic ice maker

Front venting allows unit to be completely built in and serviced from the front

Meets strict Department of Energy requirements

With the installation of a harness kit, this appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

Model Options 661/F 661/O 661/S 661/P 661/B

Design/Finish Framed Overlay Classic Platinum Carbon

Louvered Grille

Panel Grille – Accepts Decorative Inserts

Heavy-Duty Stainless Steel Grille

Classic

Stanless Steel

Interior Features

Refrigerator

4 Adjustable Glass Shelves 1 Stationary Glass Shelf High Humidity Compartment 1 Storage Drawer Adjustable Roll-Out Deli Basket 3 Adjustable Door Shelves Adjustable Dairy Compartment Egg Container

Freezer

Automatic Ice Maker 2 Adjustable Wire Shelves 1 Stationary Solid Shelf 4 Storage Drawers 5 Adjustable Door Shelves

Framed

Overlay

Classic CarbonPlatinum

Accessories

Louvered, panel and stainless steel (classic, platinum and carbon) grilles in 1" height increments from 10" to 15"

11" Heavy-duty classic stainless steel grille (standard on classic stainless steel units)

Front and grille panels for framed design (white and classic stainless steel)

Side panels in white and classic stainless steel

Extended full-length framed handles

Stainless steel (classic, platinum and carbon) tubular handles for overlay design

Polished chrome handles for overlay design

Dozen egg container with lid

90˚ and 105˚ door stop kits

Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzero.com.

Installation Notes

For framed and overlay models, you will be adding door panels for a custom look. Overlay models also allow you to match surrounding cabinetry hardware and the panel grille accepts custom panel inserts.

Complete installation specifications, including panel sizes, can be found on our website, subzero.com.

Unit dimensions may vary by ±1/8".

Specifications

Overall Width 36"

Overall Height (with standard 11" grille) 84"

Overall Depth 24"

Door Swing Clearance 203/4"

Refrigerator Capacity 12.5 cu ft

Freezer Capacity 8.8 cu ft

Opening Width 351/2"

Opening Height 833/4"*

Minimum Height Required 83"

Opening Depth 24" D

Electrical Requirements 115 V AC, 60 Hz

15 amp dedicated circuit

Plumbing Requirements

/4" OD copper line

20–100 psi

Annual Energy Usage $58**

Shipping Weight Framed – 500 lbs

Overlay – 500 lbs

Stainless Steel – 538 lbs

*Height with standard 11" grille. **Based on 9.06 cents per kilowatt hour.

Installation Specifications

Overall Dimensions

Built-In Model 661

Side-by-Side

Dimensions in parentheses are in millimeters unless otherwise specified.

351/4"

(895)

84"

(2134)

36"

(914)

24"

(610)

ROUGH

OPENING

DEPTH

TOP VIEW

LOCATE ELECTRICAL

WITHIN SHADED AREA

351/2"

(902)

ROUGH OPENING WIDTH

833/4"

(2127)

ROUGH

OPENING

HEIGHT

WITH

STANDARD

11" (279)

GRILLE

24"

(610)

EXTEND WATER LINE

APPROX. 36" (914) FROM BACK WALL

SHUT-OFF

VALVE

(178)

(152)

751/2"

(1918)

/8" (10)

FRAME

EXTENSION

36"

(914)

237/8"

(606)

BEHIND

FRAME

203/4"

(527)

LOCATE WATER SUPPLY

WITHIN SHADED AREA

(76)

18"

(457)

FRONT VIEW

(152)
