The Sub-Zero Model 661 side-by-side
refrigerator/ freezer is available in your
choice of the framed, overlay or stainless
steel design application. Three stainless
steel finishes are offered— classic (/S),
platinum (/P) and carbon (/B).

(Stainless steel design shown )

With the installation of a harness kit, these
appliances are Star-K compliant to meet strict
religious regulations in conjunction with specific
instructions found on star-k.org. You may purchase
this harness kit through your Sub-Zero dealer.
To obtain local dealer information, visit the Locator
section of our website, subzero.com.

If you like the strong vertical lines of side-by-side

refriger
line av

ator freezer

ble for your consider

aila
the Model 661, the smallest side-by-side unit at 36"
(914) wide. It has all the features and benefits of its
larger companions, but just carries them in a smaller
package.

s, Sub-Zero has the most complete

ation. It all starts with

Dimensions in parentheses are in
millimeters unless otherwise specified.

11/06

1

24"

(610)

84"

(2134)

203/4"

(527)

36"

(914)

36"

(914)

237/8"

(606)

BEHIND

FRAME

3

/8" (10)

FRAME

EXTENSION

351/4"

(895)

Planning Information

Built-In Model 661

FEATURES

36" (914) wide side-by-side refrigerator/
freezer

Framed, overlay and stainless steel applica­tions provide complete design flexibility

Sub-Zero's dual refrigeration system ensures
the freshest food and energy efficiency

Shallow-depth design means access is easy
to any area of the refrigerator

Electronic digital controls are up front and
easy to use

Bright interior lighting

Adjustable, spill-proof glass shelves

High-humidity crisper drawer is large and
deep with smooth sides for easy cleaning

Door alarm will let you know with an audible
beeping if your refrigerator or freezer door is
left ajar

Automatic ice maker provides an ample
supply of crescent-shaped ice

Solid core doors with magnetic gaskets and
door closers

Front venting allows unit to be completely
b

uilt in and serviced from the front

Meets strict Department of Energy require­ments

UL listed for US and Canada

Two, five and twelve year residential
warranty – exclusions apply; warranty
information can be found on our website,
subzero.com

OVERALL DIMENSIONS

Stainless steel design shown.

1

±

y

ary b

Dimensions ma

Dimensions in parentheses are in
millimeters unless otherwise specified.

y v

/8" (3).

2

Planning Information

Built-In Model 661

SPECIFICATIONS

M

odel 661 Side-by-Side Refrigerator/ Freezer

Overall Width 36" (914)

Overall Height 84" (2134)

MODEL OPTIONS

Framed Design 661/F

Overlay Design 661/O

Classic Stainless Steel 661/S

Platinum Stainless Steel 661/P

Carbon Stainless Steel 661/B

ou must allow 90 days from order to

Y
delivery for platinum and carbon finishes.

A CCESSORIES

Front and grille panels for framed
design in white, almond and
classic stainless steel

Side panels in white, almond and
classic stainless steel

Louvered, panel or stainless steel
grilles in 1" (25) increments from
10" (254) to 15" (381) high

Extended framed handles

Stainless steel and polished
chrome handles for overlay design

Dozen egg container with lid

90˚ and 105˚ door stop kits

Accessories are available through your
Sub-Zero dealer. To obtain local dealer
information, visit the Locator section of
our website

, subzer

o.com.

Overall Depth 24" (610)

Refrigerator Capacity 12.5 cu ft (354 L)

F

reezer Capacity 8.8 cu ft (249 L)

Minimum Height (levelers in) 83" (2108)

Door Swing Clearance 203/4" (527)

Electrical Requirements 115 V AC, 60 Hz, 15 amp circuit

Plumbing Requirements

1

/4" copper line

Water Supply 20–100 psi

Annual Energy Usage 636 kWh / $ 58
(based on 9.06 cents per kilowatt hour)

Shipping Weight Framed – 500 lbs (227 kg)

Overlay – 500 lbs (227 kg)

Stainless Steel – 538 lbs (244 kg)

Specifications are subject to change without notice

.

Dimensions in parentheses are in
millimeters unless otherwise specified.

3

Planning Information

833/4"

(2127)

ROUGH

OPENING

HEIGHT

WITH

STANDARD

11" (279)

GRILLE

751/2"

(1918)

7"

(178)

6"

(152)

351/2"

(902)

ROUGH OPENING WIDTH

24"

(

610)

R

OUGH

O

PENING

D

EPTH

E

3"

(76)

18"

(457)

W

LOCATE WATER SUPPLY

WITHIN SHADED AREA

L

OCATE ELECTRICAL

W

ITHIN SHADED AREA

6"

(152)

S

HUT-OFF

V

ALVE

EXTEND WATER LINE

APPROX. 36" (914)

F

ROM BACK WALL

FRONT VIEW

TOP VIEW

Built-In Model 661

INSTALLATION SPECIFICATIONS

DIMENSIONS

Finished Rough Opening Width 351/2" (902)

Finished Rough Opening Height 833/4" (2127)

Finished Rough Opening Depth 24" (610)

Location of Electrical Within upper shaded area

Location of W

ater Supply

See Installation Instructions shipped with unit for detailed specifications.
Refer to the Sub-Zero Design Guide pdf file for additional specifications.

Dimensions in parentheses are in
millimeters unless otherwise specified.

Within lower shaded area

4

Planning Information

Built-In Model 661

INSTALLATION NOTES

R

efer to the illustrations and specifications
for overall dimensions, finished rough opening
dimensions and installation specifics.

A

llow the doors to open a minimum of 90˚ or
you'll have problems removing drawers. With
the doors opening at 90˚, you may have to
move drawers slightly to clear the door interior.
Refer to the minimum door swing clearances in
the specifications chart.

For corner installations, allow for a minimum
3" (76) filler so that the door can open to 90˚.
If you're using raised panels, consider using a
wider filler. A 90˚ door stop is available as an
accessory.

Be sure to add the filler strip width to your
finished rough opening dimension. In any side­by-side installation without a filler strip, add an
additional
This will allow for the proper width.

Refer to the full-scale illustrations at the end
of this section for specifics on door openings
and filler size alternatives.

If your client has chosen the stainless steel
design, the unit will be shipped complete with
wrapped stainless steel doors and handle
hardware. You will not have to install front
panels.

If your client has chosen the framed or
overlay design, you will be adding front panels
to give the unit the custom Sub-Zero look. The
overlay design also allows you to add your own
handles, or you may choose accessory handles
available through your Sub-Zero dealer. Refer to
pages 6– 10 for detailed information on adding
panels.

For Built-In models with an automatic ice
maker, rough in the water supply line. Connect

1

/4" OD copper line to the house supply, being

a
sure to use an easily accessible shut off v
between the supply and the unit.

Do not use self-piercing valves. A saddle

alve kit (4200880) is av

v
Sub-Zero dealer. To obtain local dealer informa­tion, visit the Locator section of our website
subzero.com.

1

/2" (13) to your combined numbers.

alve

ailable from your

,

A

line filter is required when water condi­tions have a high sediment content. The ice
maker operates on water pressure of 20 psi
(1.4 bar) to 100 psi (6.9 bar). In some cases a
r

everse osmosis water filter system may not be
able to maintain the minimum water pressure
consistently.

The water line should be routed up through

1

the floor within

/2" (13) from the back wall and
no higher than 3" (76) off the floor. If you have
to come through the wall, make sure the water
line is no more than 3" (76) from the floor.
Locate water supply within the shaded area
shown in the installation illustration.

Regardless of the routing, allow 3' (.9 m) of
excess copper tubing to remain outside the wall
or floor for easy connection to the unit.

A 115 volt, 60 Hz, 15 amp electrical supply
is required. The supply circuit for this appliance
must be protected by a 15 amp fuse or circuit
breaker. It is recommended that a separ

ate

circuit, serving only this appliance, be provided.

All Built-In models are equipped with a 6'
(1.8 m) power supply cord with a 3

-prong
grounding plug which must be plugged into a
mating 3

-prong grounding type wall receptacle.
Locate electrical within the shaded area shown
in the installation illustration.

You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.

To prevent the unit from tipping forward and
provide a stable installation, the unit must be
secured in place with an anti-tip blocking kit. If
there is a solid soffit a

bove the unit with clear

­ance between the unit and the soffit of 1" (25)
or less, you won't need to block the unit.

For installations with clearances of more
than 1" (25),
anti-tip bloc

you must block the unit with the

king kit (wood bloc

k and hardw

are)

provided with each Built-In unit.

Refer to the

Built-In Installation Instructions
packed with the appliance, which provides
step-b

y-step pr

ocedures for making sure the

unit is installed properly.

Dimensions in parentheses are in
millimeters unless otherwise specified.

5

Planning Information

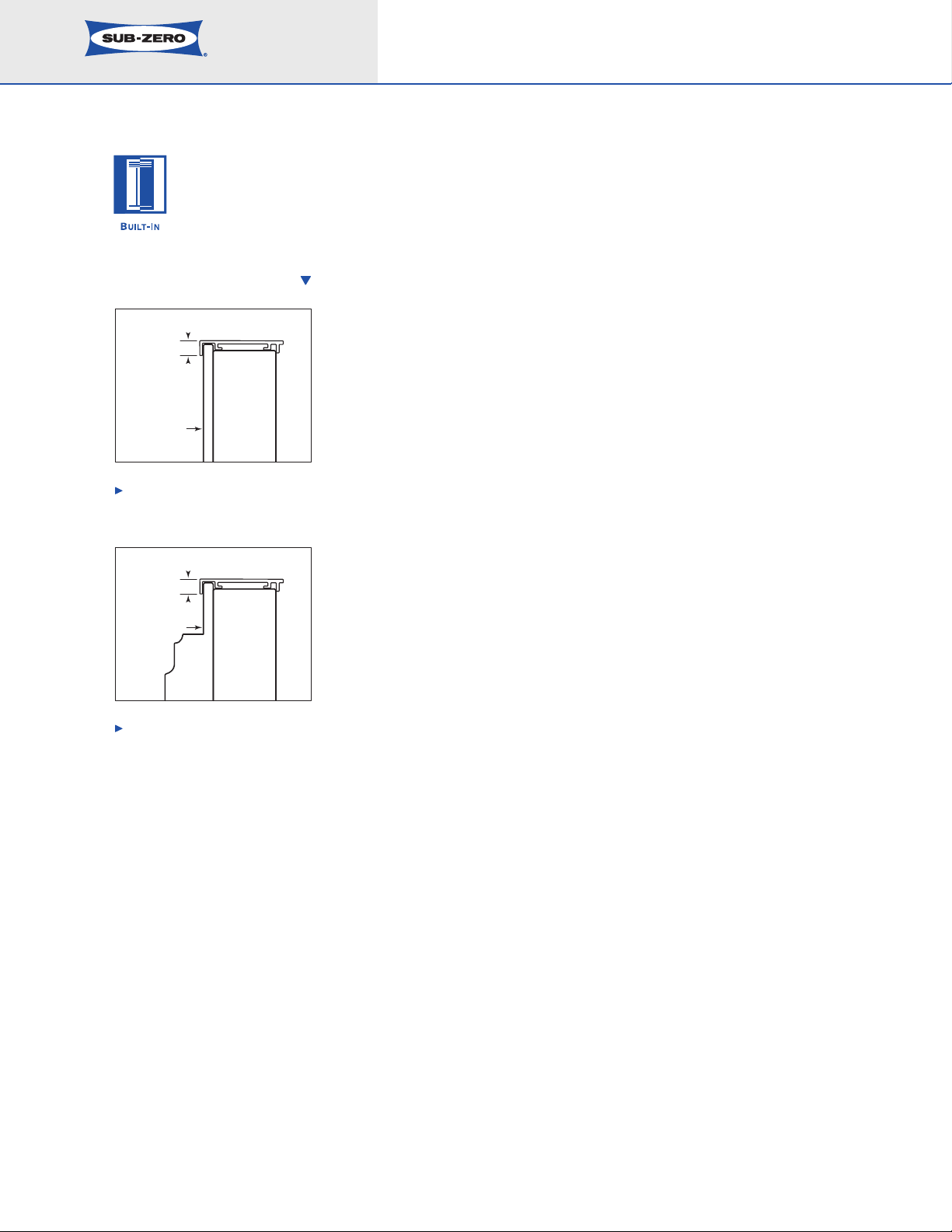

PANELS

1

/4" (6) THICK OR LESS

1

/4" (6) Panel

Trim reveal

1

/4" (6) min

PANELS THICKER THAN

1

/4" (6)

Trim reveal

1

/4" (6) min

Rout to 1/4" (6)

thickness

Built-In Model 661

FRAMED PANELS

ADDING PANELS

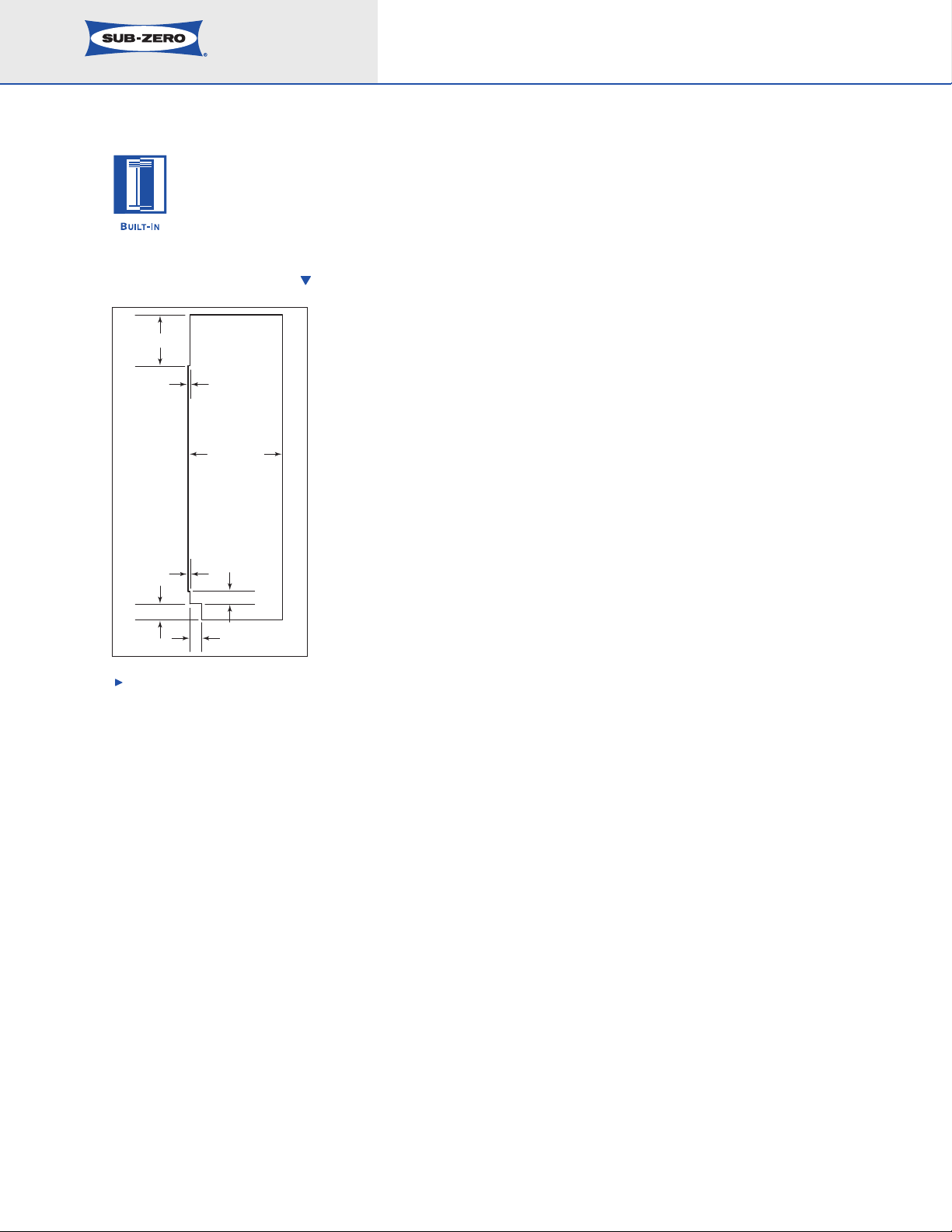

In your plan for panels, be sure you are working with the
Sub-Zero panel design family called for in your design. If
you have chosen the stainless steel design, the unit will be
shipped complete with wrapped stainless steel doors and
handle hardware. You will not have to install front door
p

anels.

If you and your client have ordered a framed or overlay
design model, you will be adding panels to give the unit
the custom Sub-Zero look. Specifications on the following
pages provide installation considerations for framed and
overlay door panels.

Side panels can be used with the framed, overlay and
stainless steel design applications. Refer to specifications
on page 10.

Framed door panel 1/4" (6) thick or less

Framed door panel thicker than 1/4" (6)

FRAMED PANELS

If the thickness of the custom panels is less than 1/4"
(6), they must be backed up with a sheet of shim material

1

to build the total thickness to

1

than

/4" (6), an edge must be routed ar

/4" (6). If the panel is thicker

ound the panel to

ensure a proper fit. Refer to the illustrations on this page.

IMPORTANT NOTE: Routing, recessing or optional
extended handles may be required on raised panels for
finger clearance under the handle. Refer to the full-scale
illustrations on pages 11– 14.

IMPORTANT NOTE: The weight of each panel cannot
exceed 50 lbs (23 kg).

The traditional framed models come with an 11" (279)
louvered grille and elegant full-length handle. Optional
extended full-length handles that provide additional finger

ance for raised panels are available through your

clear
Sub-Zero dealer. To obtain local dealer information, visit
the Locator section of our website, subzero.com.

For framed door panel dimensions and dimensions for the
optional panel grille for the framed application, refer to
specifications on page 7.

To install framed panels, refer to the installation instruc­tions shipped with each unit

. These instructions can also

be found on our website, subzero.com.

Dimensions in parentheses are in
millimeters unless otherwise specified.

6

Planning Information

W

WW

H

A

14" (

356)

H

Built-In Model 661

FRAMED PANELS

An 11" (279) louvered grille is standard on framed applica­tions. Optional louvered grilles are available in 1" (25)
height increments from 10" (254) to 15" (381).

You may choose to use Sub-Zero's optional panel grille for
the framed application. Optional panel grilles are available
i

n 1" (25) height increments from 10" (254) to 15" (381).

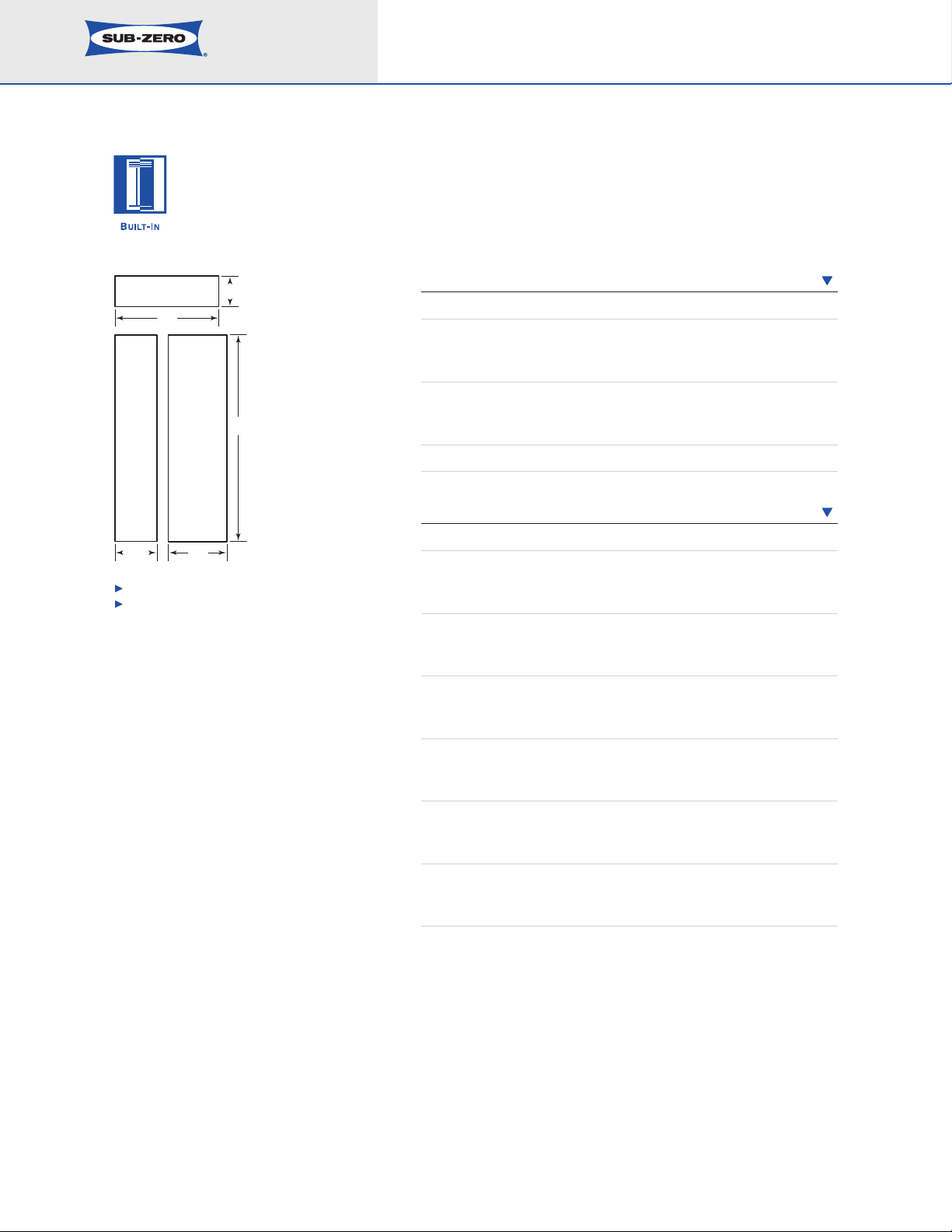

Refer to the chart below for panel dimensions.

FRAMED PANEL DIMENSIONS

WIDTH HEIGHT

Refrigerator Door Panel 191/8" (486) 6711/16"(1719)

Freezer Door Panel 145/8" (371) 6711/16"(1719)

Handle Recess Location (optional) A – 385/32" (969)

Maximum Weight (per panel) 50 lbs (23 kg)

FRAMED GRILLE PANEL DIMENSIONS

Framed Door Panels
Framed Grille Panel

10" (254) Grille 343/16" (868) 815/16" (227)

WIDTH HEIGHT

11" (279) Grille 343/16" (868) 915/16" (252)

12" (305) Grille 343/16" (868) 1015/16" (278)

13" (330) Grille 343/16" (868) 1115/16" (303)

14" (356) Grille 343/16" (868) 1215/16" (329)

15" (381) Grille 343/16" (868) 1315/16" (354)

Dimensions in parentheses are in
millimeters unless otherwise specified.

7

Planning Information

Door/Drawer/

Grille Trim

1

/16" (2)

5

/32" (4)

1

/4" (6) Backer Panel

5

/16" (8) min

.

10"

(3)

Spacer Panel

Overlay Panel

Spacer Panel

Overlay Panel

1

/4" (6)

Backer

Panel

.10"

(3)

~3/4"

(19)

Built-In Model 661

OVERLAY PANELS

OVERLAY PANELS

The overlay design allows decorative panels to cover the
door trim for a more seamless appearance that blends
with the design of the room. To achieve this look, the
most common way is to work with three panels—the
decorative overlay panel, a .10" (3) spacer panel and a

1

/4"
(6) backer panel. Depending on your cabinet manufacturer,
this could be one panel routed for different dimensions or
more likely, three different panels.

Regardless of the physical construction of the panels
(routing or three panel assembly), you will need to follow
the exact dimensions and panel placement to ensure a
proper fit.

The top illustration on this page is a cross section view of
the three panel assembly showing placement of the
door / drawer/grille trim. The bottom illustration shows a
rear view of the three panel assembly and critical dimen­sions, standard for all overlay models.

Three panel assembly— cross section

Three panel assembl

y— rear view

Overlay models will come with no handle hardware,
because the beauty of this design is that you can match
the surr

ounding cabinetry hardware. These models will
come with an 11" (279) panel grille which will accept
decorative panel inserts to match the look of the door
panels. For overlay door and grille panel dimensions, refer
to specifications on page 9.

IMPOR

TANT NOTE:

Keep in mind that the Sub-Zero door
panels have the potential for hitting adjacent cabinets
and/or countertops when they are opened. You need to be

are of your surrounding cabinetry and space limitations

aw
when using the overlay models. Refer to the full-scale
illustrations on pages 13–14.

IMPORTANT NOTE: The weight of each door panel

-

assembly cannot exceed 50 lbs (23 kg). The total thic

k

ness of all panels for an overlay model must be at least

5

/8" (16) thick.

To install overlay panels, refer to the installation instruc­tions shipped with each unit

. These instructions can also

be found on our website, subzero.com.

Do not exceed the dimensions listed for the overlay
grille panel. The decorative panel cannot be any larger

estrict the air flow to the compressor area

or it ma

y r

and cause problems with the operation of the unit.

Dimensions in parentheses are in
millimeters unless otherwise specified.

8

Planning Information

WW

H

W

H

Built-In Model 661

OVERLAY PANELS

An 11" (279) panel grille is standard on overlay applica­tions. Optional panel grilles are available in 1" (25) height
increments from 10" (254) to 15" (381).

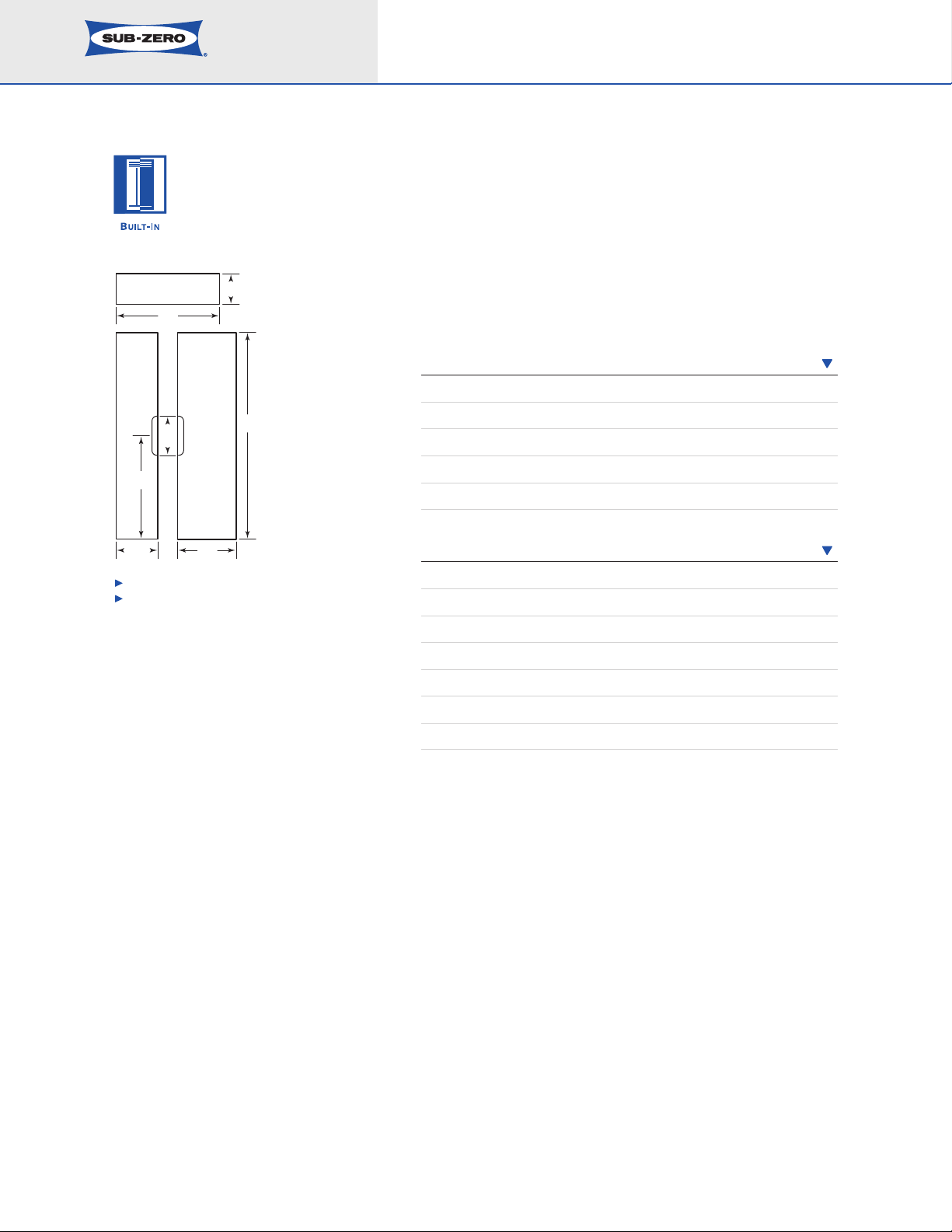

OVERLAY PANEL DIMENSIONS

WIDTH HEIGHT

Refrigerator Door Panel 197/16" (494) 68" (1727)
Refrigerator Door Spacer 181/2" (470) 671/16" (1703)
Refrigerator Door Backer 191/8" (486) 6711/16" (1719)

Freezer Door Panel 1415/16" (379) 68" (1727)
Freezer Door Spacer 14" (356) 671/16" (1703)
Freezer Door Backer 145/8" (371) 6711/16" (1719)

Maximum Weight (per panel assembly) 50 lbs (23 kg)

OVERLAY GRILLE PANEL DIMENSIONS

WIDTH HEIGHT

10" (254) Grille Panel 347/16" (875) 91/4" (235)

y Door Panels

Overla

y Grille Panel

Overla

10" (254) Grille Spacer 331/2" (851) 85/16" (211)
10" (254) Grille Backer 341/8" (867) 815/16" (227)

(279) Grille Panel34

11"

7

/16" (875) 101/4" (260)
11" (279) Grille Spacer 331/2" (851) 95/16" (237)
11" (279) Grille Backer 341/8" (867) 915/16" (252)

12" (305) Grille Panel 347/16" (875) 111/4" (286)
12" (305) Grille Spacer 331/2" (851) 105/16" (262)
12" (305) Grille Backer 341/8" (867) 1015/16" (278)

13" (330) Grille Panel 347/16" (875) 121/4" (311)
13" (330) Grille Spacer 331/2" (851) 115/16" (287)
13" (330) Grille Backer 341/8" (867) 1115/16" (303)

14" (356) Grille Panel 347/16" (875) 131/4" (337)

(356) Grille Spacer

14"

1

3

3

/2" (851) 1

5

2

/16" (313)

14" (356) Grille Backer 341/8" (867) 1215/16" (329)

15" (381) Grille Panel 347/16" (875) 141/4" (362)
15" (381) Grille Spacer 331/2" (851) 135/16" (338)

(381) Grille Backer 34

15"

1

/8" (867) 1

15

3

/16" (354)

Dimensions in parentheses are in
millimeters unless otherwise specified.

9

Planning Information

131/4" (337)

4"

(102)

1

/4" (6)

1

/4" (6)

3"

(

7

6

)

3"

(76)

237/8" (606)

B

EHIND FRAME

1

Built-In Model 661

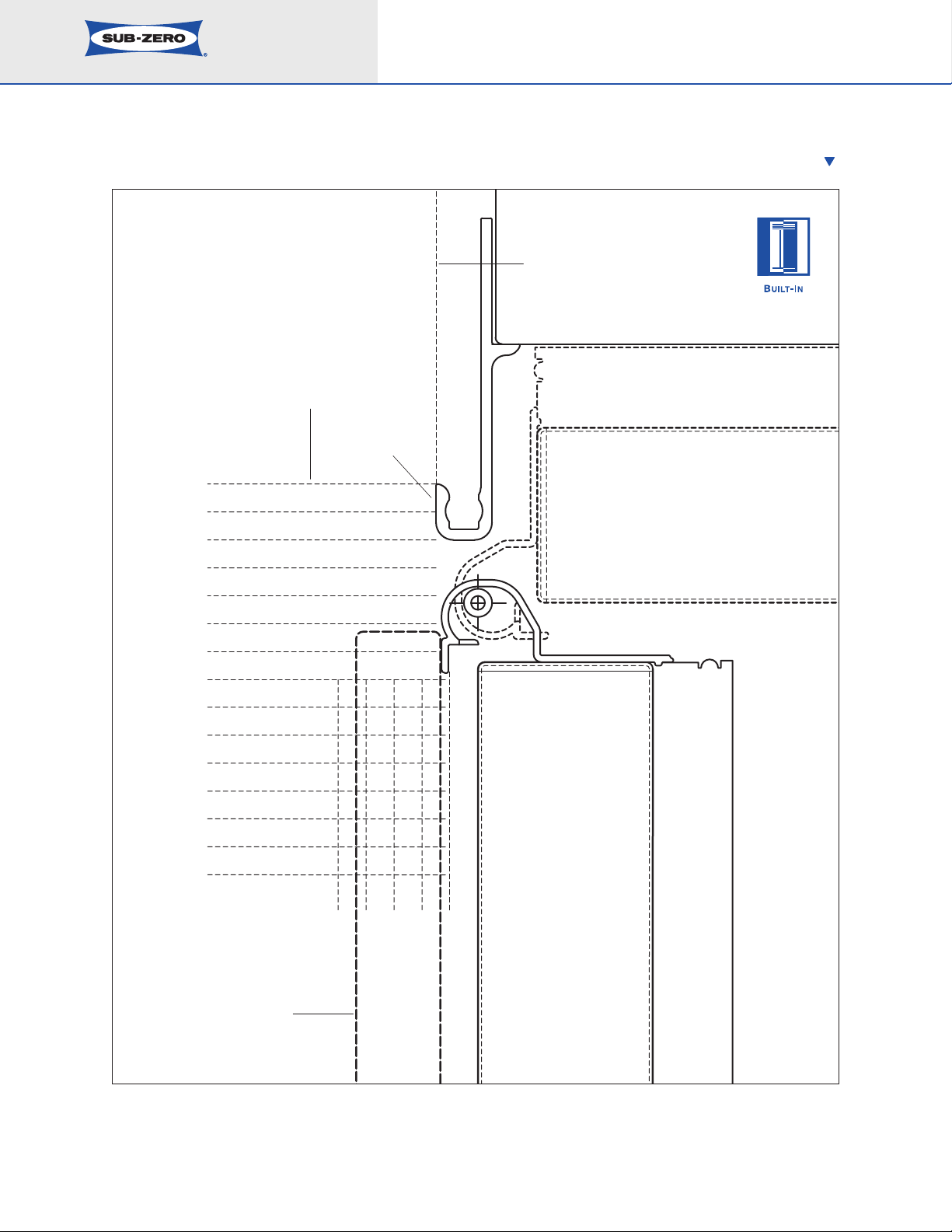

SIDE PANELS

SIDE PANELS

Side panels can be used with the framed, overlay and
stainless steel design applications. When planning for side
panels with the installation of the Built-In model, you need
to be aware of space configuration to achieve a pleasing
fit. Depending on the exact panel you are using with your
unit, the height of the panel will vary.

Cut-outs around the toe kick and grille area are required if

1

a

/4" (6) thick panel will be inserted into the main frame
channel. The panel will need to be 24" (610) deep. Refer to
the illustration on this page for placement of toe kick and
grille area cut-outs. If a
panel will abut the main frame and should be 23

3

/8" (10) thick panel is used, the

7

/8" (606)
deep. The toe kick area may or may not be cut out
depending on the look you want to achieve.

IMPORTANT NOTE: The use of side panels may change
the width of your rough opening.

Cut-outs for grille and toe kick area

HARDWARE CONSIDERATIONS

Overlay models come without handle hardware. The
beauty of this design is that you can match the surround­ing cabinet hardware. You or the cabinet manufacturer
must provide handle hardware to match the overall deco­rating scheme.

The handle hardware must be installed before installing
the panel assembly. Use larger D-style handles. If screws
with thick heads are used, the screws will need to be
countersunk into the door before the panel is put into

. Refer to the full-scale illustr

place

ations on pages 1

1–12

for handle hardware considerations.

IMPORTANT NOTE: Sub-Zero does not recommend using
single pull knobs on any of its Built-In models.

Optional stainless steel handles are available in a variety of
diameter

s and lengths in the classic, platinum and carbon
stainless steel finishes and polished chrome. Contact
your Sub-Zero dealer for specifics. To obtain local dealer
information, visit the Locator section of our website,

o.com.

subzer

Dimensions in parentheses are in
millimeters unless otherwise specified.

10

Planning Information

11/4"(

32) PANEL

1"(25) PANEL

1

/4"(6) P

ANEL

1

/2"(13) PANEL

3

/4"(19) PANEL

O

PTIONAL

EXTENDED

FULL-LENGTH

HANDLE

S

TANDARD

FULL-LENGTH

HANDLE

DOOR

1

/4"(

6)

FRAMED PANEL

1"

(25)

2"

(

51)

3"

(

76)

Built-In Model 661

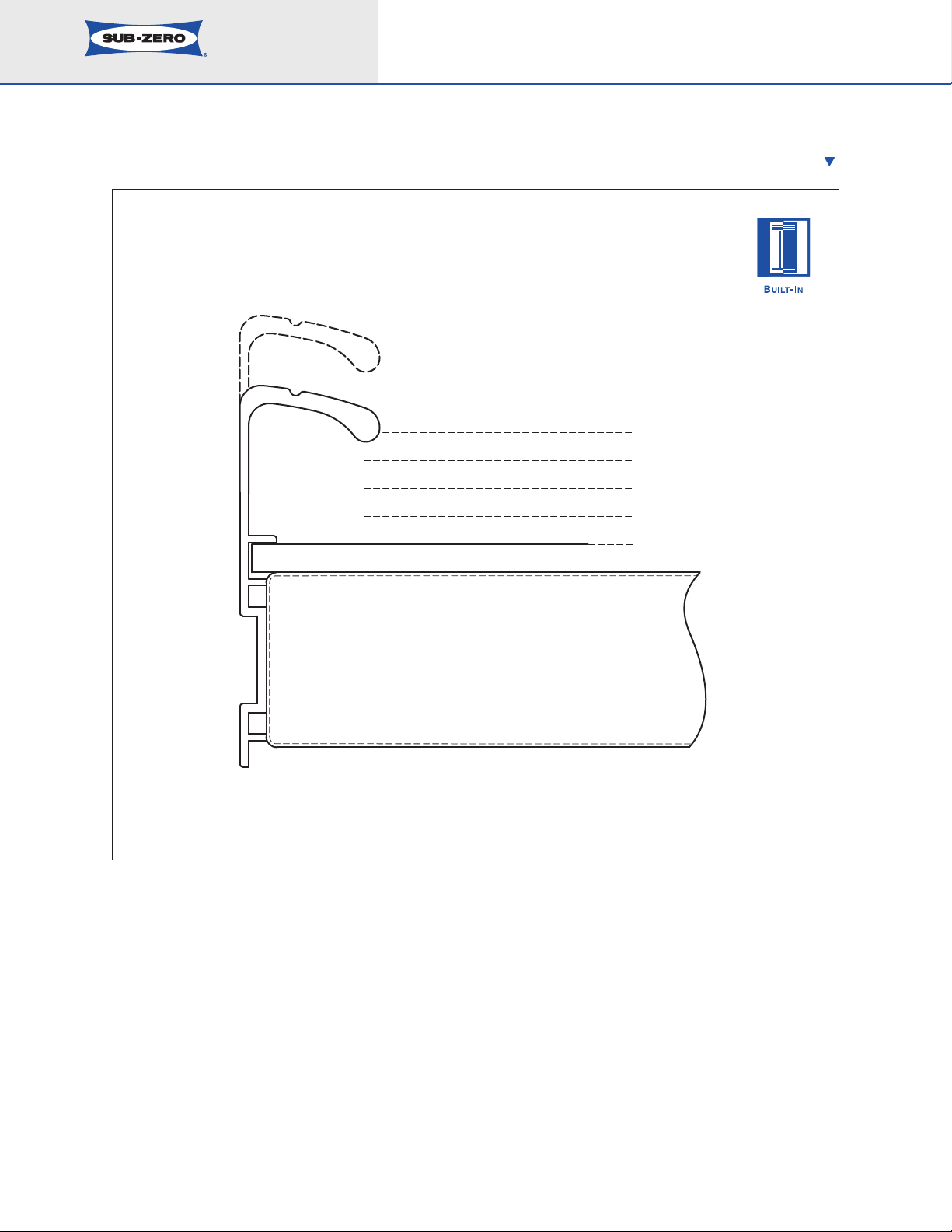

HANDLE PROFILE – FRAMED APPLICATION

FULL-SCALE TEMPLATES

The following full-scale illustrations enable you
to under

stand some of the unique situations
you may face as you design the Built-In units
into homes. These templates can be easily
photocopied or used in y

Dimensions in parentheses are in
millimeters unless otherwise specified.

our tr

acings.

HANDLE PROFILE

The full-scale illustration above shows handle
placement for the fr

amed a

pplication standard
full-length handle and the optional extended
full-length handle shown in the dashed line.

11

Planning Information

11/4" (32) PANEL

1" (25) PANEL

1

/4" (

6) PANEL

1

/2" (

13) PANEL

3

/4" (19) PANEL

5

/8" (16) PANEL

DOOR

1

/4" (

6)

APPROXIMATE THICKNESS OF WRAPPED STAINLESS STEEL DOOR

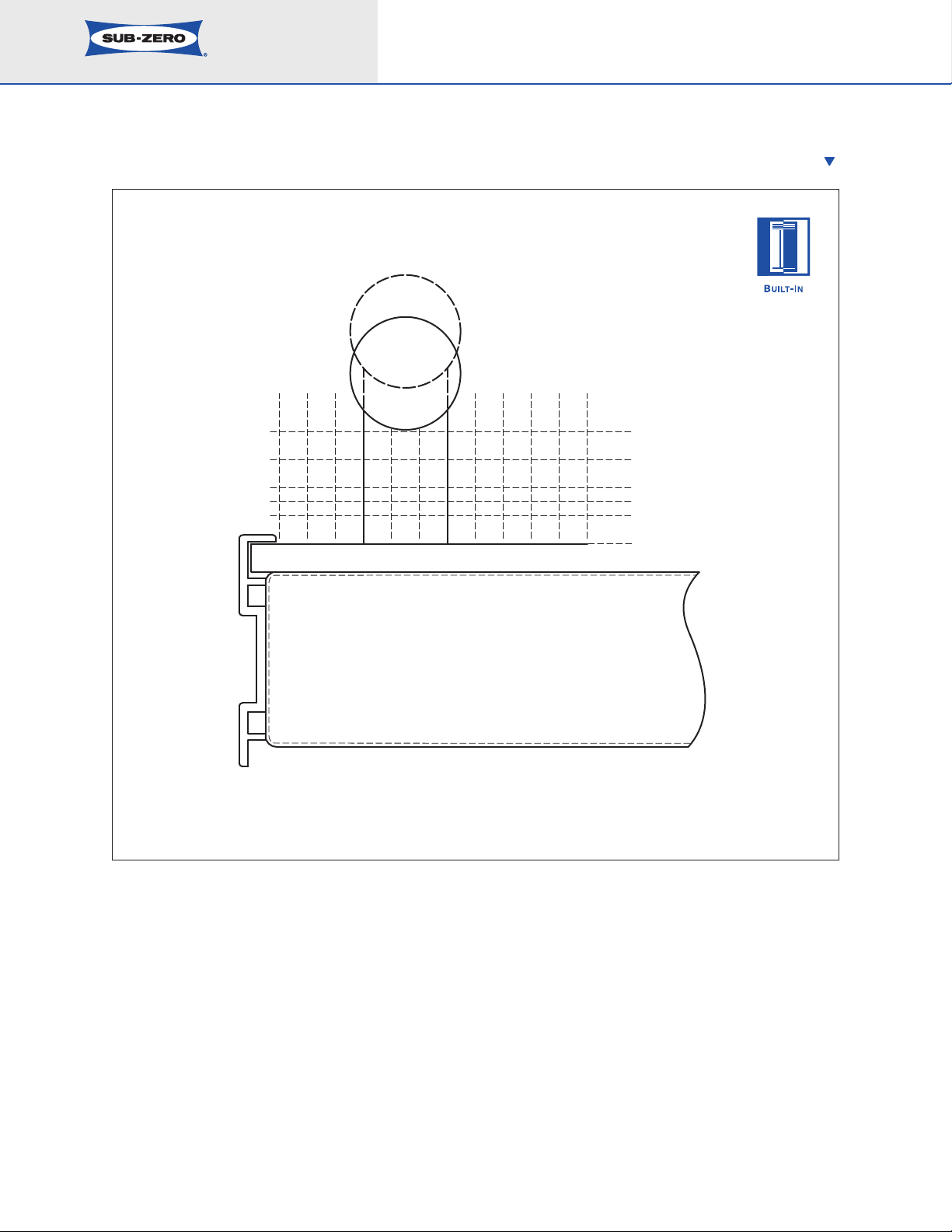

NOTE: FOR OVERLAY APPLICATIONS, OPTIONAL STAINLESS STEEL HANDLE

MUST BE MOUNTED ON PANEL MINIMUM 5/8" (16) THICK.

1"

2"

(

51)

3"

(

76)

S

TANDARD STAINLESS STEEL HANDLE

Built-In Model 661

HANDLE PROFILE – STAINLESS STEEL / OVERLAY APPLICATIONS

PANEL AND HANDLE PROFILE

The full-scale illustr
placement for the standard stainless steel

ation a

bove shows handle

handle on the wrapped stainless steel door and
on overla
dashed line

y panel applications shown in the

.

IMPORTANT NOTE: For overlay applications,
the optional stainless steel handle must be
mounted on a panel at least

5

/8" (16) thick.

For overlay applications, mount door handles
close to the opening edge of the door for ease
of opening

.

Dimensions in parentheses are in
millimeters unless otherwise specified.

12

1

1

/

4

"

(32)

PA N

EL

1"

(25)

PA N

EL

*

1

/

4

"

(6)

PA N

EL

1

/

2

"

(13)

PA N

EL

3

/

4

"

(19)

PA N

EL

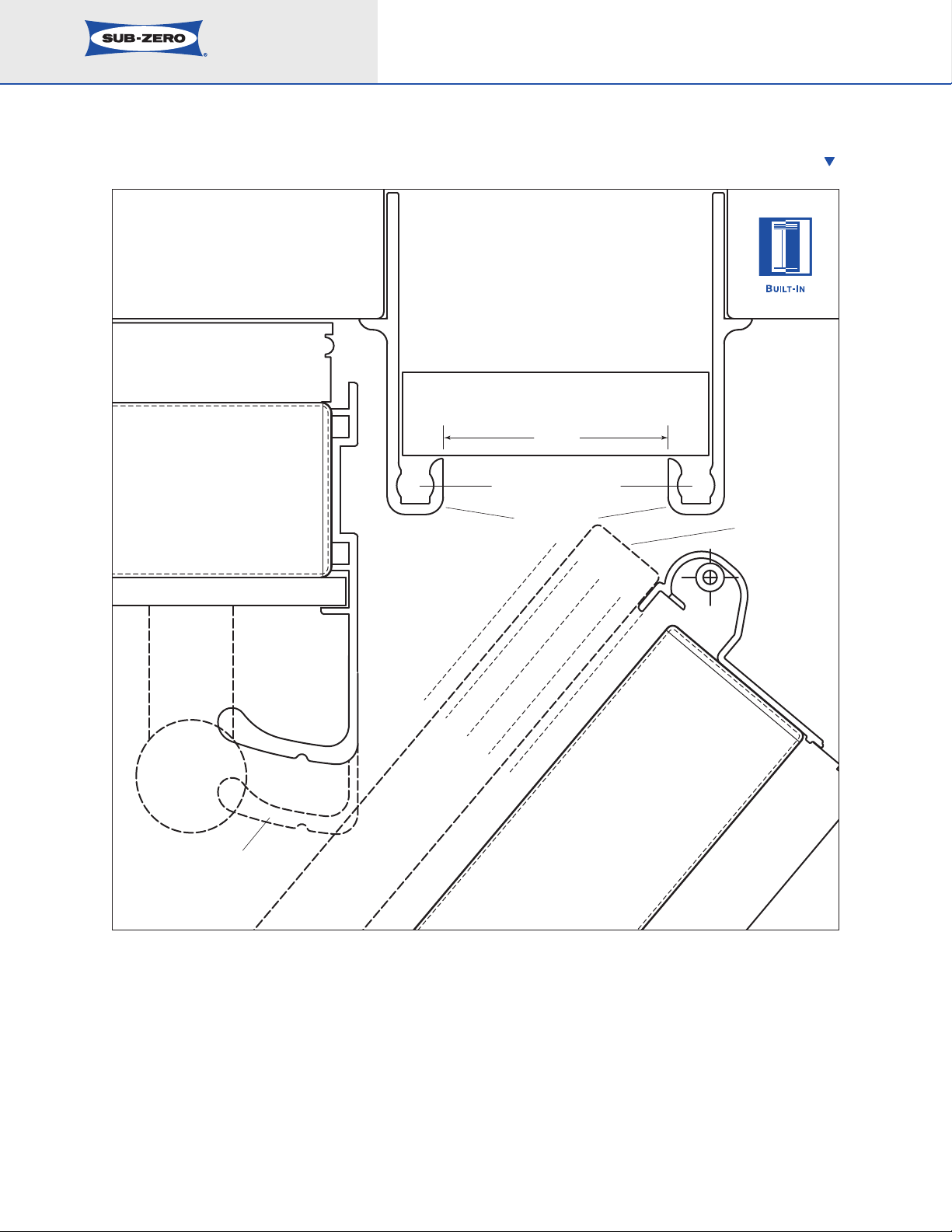

130˚ DOOR OPENING

WITH 2" (51) FILLER STRIP

(

TOP VIEW)

OPTIONAL

FRAMED EXTENDED

FULL-LENGTH HANDLE

STANDARD

FRAMED

FULL-LENGTH

HANDLE

D

OOR CLOSED

DOOR OPEN @ 130˚

HINGE

2" (51)

F

ILLER STRIP

MAIN FRAME

A

LLOW FOR FILLER LAP

BEHIND FLANGE

APPROX

PROFILE OF

STAINLESS
STEEL DOOR
AND HANDLE

OVERLAY PANEL

3/4" (19) THICK

(NOMINAL)

S

UB-ZERO UNITSUB-ZERO UNIT

Planning Information

Built-In Model 661

PANEL AND HANDLE PROFILE – 130˚ DOOR OPENING

The full-scale illustration above shows the panel
and handle profile of a 130˚ door opening with
2" (51) filler strip for framed applications.

Interference of door panels with handles at
maximum door s
optional 90˚ door stop available through your
Sub-Zero dealer.

oximate thic

Appr

*
stainless steel door

Dimensions in parentheses are in
millimeters unless otherwise specified.

wing ma

y require the use of an

kness of wr

.

pped

a

To obtain local dealer information, visit the
Locator section of our website, subzero.com.

The full-scale illustration on the following page
lets you see what considerations you need to

e for any overla

mak
how they may interact with adjacent cabinets

y panel applications, and

and/ or countertops.

13

Planning Information

1

1

/4

"

(32)

PA N

EL

1"

(25)

PA N

EL

*

1

/4

"

(6)

PA N

EL

1

/2

"

(13)

PA N

EL

3

/4

"

(19)

PA N

EL

1

1

/4

"

(32)

1

1

/2

"

(38)

1

3

/4

"

(44)

0"

(0)

1"

(25)

2"

(51)

2

1

/4

"

(57)

2

1

/

2

"

(63)

2

3

/

4

"

(70)

3"

(76)

3

1

/4

"

(83)

3

1

/

2

"

(89)

1

/4

"

(6)

1

/2

"

(25)

3

/4

"

(19)

HINGE

OVERLAY PANEL

3/4" (19) THICK (NOMINAL)

DOOR CLOSED

DOOR OPEN @ 90˚

90˚ DOOR OPENING

(TOP VIEW)

M

AIN FRAME

NOMINAL OVERALL

WIDTH OF SUB-ZERO

S

UB-ZERO UNIT

237/8" (606) TO REAR

O

F SUB-ZERO

Built-In Model 661

OVERLAY PANEL APPLICATION – 90˚ DOOR OPENING

kness of wr

.

oximate thic

Appr

*
stainless steel door

Dimensions in parentheses are in

pped

a

millimeters unless otherwise specified.

14
