Sub-Zero 650-PS User Manual

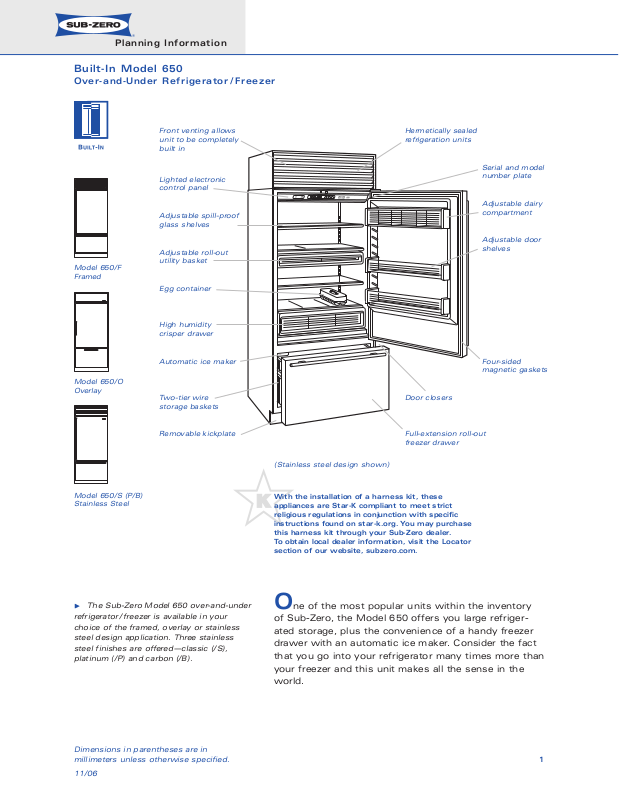

Planning Information
Built-In Model 650
Over-and-Under Refrigerator / Freezer
odel 650/F
M F
ramed
Model 650/O Overlay
Front venting allows unit to be completely
uilt in
b
ighted electronic
L
ontrol panel
c
Adjustable spill-proof glass shelves
djustable roll-out
A utility bask
Egg container
High humidity crisper drawer
Automatic ice maker
Two-tier wire storage baskets
t
e
Hermetically sealed refrigeration units
Door closers
erial and model
S
umber plate
n
Adjustable dairy
ompartment
c
djustable door
A shelves
Four-sided magnetic gaskets
Removable kickplate
Model 650/S (P/B) Stainless Steel
The Sub-Zero Model 650 over-and-under refrigerator/freezer is available in your choice of the framed, overlay or stainless steel design application. Three stainless steel finishes are offered— classic (/S), platinum (/P) and carbon (/B).
Full-extension roll-out freezer drawer
(Stainless steel design shown )
One of the most popular units within the inventory
of Sub-Zer ated stor
o, the Model 650 offer
, plus the convenience of a handy freezer
age drawer with an automatic ice maker. Consider the fact that you go into your refrigerator many times more than
our freezer and this unit makes all the sense in the
y world.
s you large refriger-
Dimensions in parentheses are in millimeters unless otherwise specified.
11/06
1
36"
(914)
24"
(610)
84"
(2134)
36"
(914)
361/16"
(916)
351/4"
(895)
237/8"
(606)
BEHIND
FRAME
3
/8" (10)
FRAME
EXTENSION
Planning Information
Built-In Model 650
FEATURES
36" (914) wide over-and-under refrigerator/ freezer
Energy Star qualified
Framed, overlay and stainless steel applica­tions provide complete design flexibility
Sub-Zero's dual refrigeration system ensures the freshest food and energy efficiency
Shallow-depth design means access is easy to any area of the refrigerator
Electronic digital controls are up front and easy to use
Bright interior lighting
Adjustable, spill-proof glass shelves in the refrigerator
High-humidity crisper drawer is large and deep with removable divider and smooth sides for easy cleaning
Full-extension freezer drawer
D
oor alarm will let you know with an audible beeping if your refrigerator door or freezer drawer are left ajar
Automatic ice maker provides an ample supply of crescent-shaped ice
Solid core door and drawer with magnetic gaskets and door/ drawer closers
Front venting allows unit to be completely built in and serviced from the front
UL approved for US and Canada
Two, five and twelve year residential warranty – exclusions apply; warranty information can be found on our website
,
subzero.com
OVERALL DIMENSIONS
Stainless steel design shown.
1
±
y
ary b
Dimensions ma
Dimensions in parentheses are in millimeters unless otherwise specified.
y v
/8" (3).
2
Planning Information
Built-In Model 650
SPECIFICATIONS
M
odel 650 Over-and-Under Refrigerator/ Freezer
Overall Width 36" (914)
Overall Height 84" (2134)
MODEL OPTIONS
Framed Design 650/F
Overlay Design 650/O
Classic Stainless Steel 650/S
Platinum Stainless Steel 650/P
Carbon Stainless Steel 650/B
ou must allow 90 days from order to
Y delivery for platinum and carbon finishes.
A CCESSORIES
Louvered, panel or stainless steel grilles in 1" (25) increments from 10" (254) to 15" (381) high
Front and grille panels for framed design in white, almond and classic stainless steel
Side panels in white, almond and classic stainless steel
Extended framed handles
Stainless steel and polished chrome handles for overlay design
Gallon door shelf
Dozen egg container with lid
Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website
, subzer
o.com.
Overall Depth 24" (610)
Refrigerator Capacity 15.7 cu ft (445 L)
F
reezer Capacity 4.9 cu ft (139 L)
Minimum Height (levelers in) 83" (2108)
Door Swing Clearance 361/16" (916)
Electrical Requirements 115 V AC, 60 Hz, 15 amp circuit
Plumbing Requirements
1
/4" copper line
Water Supply 20–100 psi
Annual Energy Usage 481 kWh / $ 44 (based on 9.06 cents per kilowatt hour) Energy Star Qualified
Shipping Weight Framed – 482 lbs (219 kg)
Overlay – 482 lbs (219 kg)
Stainless Steel – 515 lbs (234 kg)
Special Note Model 650 can also be ordered with
a glass door as Model 650G
Specifications are subject to change without notice.
Dimensions in parentheses are in millimeters unless otherwise specified.
3
Planning Information
833/4"
(2127)
ROUGH
OPENING
HEIGHT
WITH
STANDARD
11" (279)
GRILLE
751/2"
(1918)
7"
(178)
6"
(152)
351/2"
(902)
ROUGH OPENING WIDTH
24"
(
610)
R
OUGH
O
PENING
DEPTH
E
3"
(76)
18"
(457)
W
LOCATE WATER SUPPLY
WITHIN SHADED AREA
L
OCATE ELECTRICAL
W
ITHIN SHADED AREA
6"
(152)
S
HUT-OFF
V
ALVE
E
XTEND WATER LINE
A
PPROX. 36" (914)
F
ROM BACK WALL
FRONT VIEW
T
OP VIEW
Built-In Model 650
INSTALLATION SPECIFICATIONS
DIMENSIONS
Finished Rough Opening Width 351/2" (902)
Finished Rough Opening Height 833/4" (2127)
Finished Rough Opening Depth 24" (610)
Location of Electrical Within upper shaded area
Location of W
ater Supply
See Installation Instructions shipped with unit for detailed specifications. Refer to the Sub-Zero Design Guide pdf file for additional specifications.
Dimensions in parentheses are in millimeters unless otherwise specified.
Within lower shaded area
4
Planning Information
Built-In Model 650
INSTALLATION NOTES
R
efer to the illustrations and specifications for overall dimensions, finished rough opening dimensions and installation specifics.
A
llow the door to open a minimum of 90˚ or you'll have problems removing drawers. With the door opening at 90˚, you may have to move drawers slightly to clear the door interior. Refer to the minimum door swing clearance in the specifications chart.
For corner installations, allow for a minimum 3" (76) filler so that the door can open to 90˚. If you're using raised panels, consider using a wider filler.
Be sure to add the filler strip width to your finished rough opening dimension. In any side­by-side installation without a filler strip, add an additional This will allow for the proper width.
Refer to the full-scale illustrations at the end of this section for specifics on door openings and filler size alternatives.
If your client has chosen the stainless steel design, the unit will be shipped complete with wrapped stainless steel doors and handle hardware. You will not have to install front panels.
If your client has chosen the framed or overlay design, you will be adding front panels to give the unit the custom Sub-Zero look. The overlay design also allows you to add your own handles, or you may choose accessory handles available through your Sub-Zero dealer. Refer to pages 6– 11 for detailed information on adding panels.
For Built-In models with an automatic ice maker, rough in the water supply line. Connect
1
/4" OD copper line to the house supply, being
a sure to use an easily accessible shut off valve between the supply and the unit.
Do not use self-pier valve kit (4200880) is available from your Sub-Zer tion, visit the Locator section of our website, subzer
1
/2" (13) to your combined numbers.
cing valves. A saddle
o dealer
. To obtain local dealer informa-
o.com.
A
line filter is required when water condi­tions have a high sediment content. The ice maker operates on water pressure of 20 psi (1.4 bar) to 100 psi (6.9 bar). In some cases a r
everse osmosis water filter system may not be able to maintain the minimum water pressure consistently.
The water line should be routed up through
1
the floor within
/2" (13) from the back wall and no higher than 3" (76) off the floor. If you have to come through the wall, make sure the water line is no more than 3" (76) from the floor. Locate water supply within the shaded area shown in the installation illustration.
Regardless of the routing, allow 3' (.9 m) of excess copper tubing to remain outside the wall or floor for easy connection to the unit.
A 115 volt, 60 Hz, 15 amp electrical supply is required. The supply circuit for this appliance must be protected by a 15 amp fuse or circuit breaker. It is recommended that a separ
ate
circuit, serving only this appliance, be provided.
All Built-In models are equipped with a 6' (1.8 m) power supply cord with a 3
-prong grounding plug which must be plugged into a mating 3
-prong grounding type wall receptacle. Locate electrical within the shaded area shown in the installation illustration.
You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.
To prevent the unit from tipping forward and provide a stable installation, the unit must be secured in place with an anti-tip blocking kit. If there is a solid soffit a
bove the unit with clear
­ance between the unit and the soffit of 1" (25) or less, you won't need to block the unit.
For installations with clearances of more than 1" (25), anti-tip bloc
you must block the unit with the
king kit (wood bloc
k and hardw
are)
provided with each Built-In unit.
Refer to the
Built-In Installation Instructions packed with the appliance, which provides step-b
y-step pr
ocedures for making sure the
unit is installed properly.
Dimensions in parentheses are in millimeters unless otherwise specified.
5
