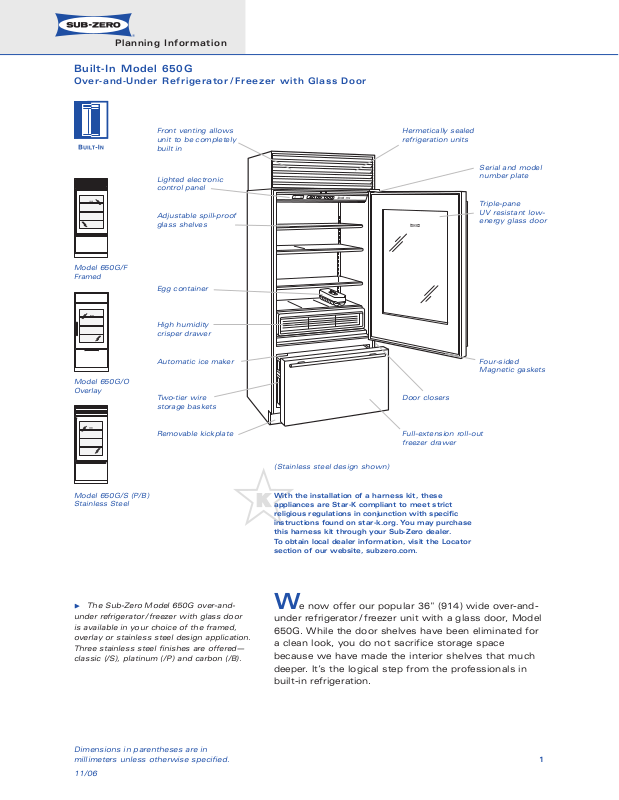

Planning Information

Built-In Model 650G

Over-and-Under Refrigerator / Freezer with Glass Door

odel 650G/F

M F

ramed

Model 650G/O Overlay

Front venting allows unit to be completely

uilt in

ighted electronic

ontrol panel

Adjustable spill-proof glass shelves

Egg container

High humidity crisper drawer

Automatic ice maker

Two-tier wire storage baskets

Hermetically sealed refrigeration units

Door closers

erial and model

umber plate

Triple-pane

V resistant low-

nergy glass door

Four-sided Magnetic gaskets

Removable kickplate

Model 650G/S (P/B) Stainless Steel

The Sub-Zero Model 650G over-andunder refrigerator/freezer with glass door is available in your choice of the framed, overlay or stainless steel design application. Three stainless steel finishes are offered— classic (/S), platinum (/P) and carbon (/B).

Full-extension roll-out freezer drawer

(Stainless steel design shown )

With the installation of a harness kit, these appliances are Star-K compliant to meet strict religious regulations in conjunction with specific instructions f this harness kit thr T

o obtain local dealer information, visit the Locator

section of our w

We now offer our popular 36" (914) wide over

under refriger

ound on star-k.org. You may purchase

ough your Sub-Zero dealer.

ebsite, subzero.com.

/ freezer unit with a glass door, Model

ator

-and-

650G. While the door shelves have been eliminated for a clean look, you do not sacrifice storage space because we have made the interior shelves that much deeper. It’s the logical step from the professionals in built-in refriger

ation.

Dimensions in parentheses are in millimeters unless otherwise specified.

11/06

Page 2

36"

(914)

24"

(610)

84"

(2134)

36"

(914)

361/16"

(916)

351/4"

(895)

237/8"

(606)

BEHIND

FRAME

/8" (10)

FRAME

EXTENSION

Planning Information

Built-In Model 650G

FEATURES

36" (914) wide over-and-under refrigerator/

freezer with glass door

Framed, overlay and stainless steel applica-

tions provide complete design flexibility

Sub-Zero's dual refrigeration system ensures

the freshest food and energy efficiency

Shallow-depth design means access is easy

to any area of the refrigerator

Electronic digital controls are up front and

easy to use

Bright interior lighting

Adjustable, spill-proof glass shelves in the

refrigerator

High-humidity crisper drawer is large and

deep with removable divider and smooth

sides for easy cleaning

Full-extension freezer drawer

Door alarm will let you know with an audible beeping if your refrigerator door or freezer drawer are left ajar

Automatic ice maker provides an ample supply of crescent-shaped ice

Triple-pane UV-resistant low-energy glass door improves insulation

Solid core door and drawer with magnetic g

askets and door/drawer closers

Front venting allows unit to be completely built in and serviced from the front

Meets strict Department of Energy requirements

pproved for US and Canada

UL a

Two, five and twelve year residential warranty – exclusions apply; warranty information can be found on our website,

o.com

subzer

OVERALL DIMENSIONS

Stainless steel design shown.

ary b

Dimensions ma

Dimensions in parentheses are in millimeters unless otherwise specified.

y v

/8" (3).

Page 3

Planning Information

Built-In Model 650G

MODEL OPTIONS

Framed Design 650G/F

Overlay Design 650G/O

Classic Stainless Steel 650G/S

Platinum Stainless Steel 650G/P

Carbon Stainless Steel 650G/B

ou must allow 90 days from order to

Y delivery for platinum and carbon finishes.

SPECIFICATIONS

odel 650G Over-and-Under Refrigerator/Freezer

ith Glass Door

Overall Width 36" (914)

Overall Height 84" (2134)

Overall Depth 24" (610)

Refrigerator Capacity 16.0 cu ft (453 L)

reezer Capacity 4.9 cu ft (139 L)

Minimum Height (levelers in) 83" (2108)

Door Swing Clearance 361/16" (916)

Electrical Requirements

Plumbing Requirements

115 V AC, 60 Hz, 15 amp circuit

/4" copper line

Water Supply 20–100 psi

A CCESSORIES

Louvered, panel or stainless steel

grilles in 1" (25) increments from

10" (254) to 15" (381) high

Grille panels for framed design in

white, almond and classic stain-

less steel

Side panels in white, almond and

classic stainless steel

Stainless steel and polished

chrome handles for overlay design

Roll-out deli basket

Dozen egg container with lid

Accessories are av Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzero.com.

ailable through your

Annual Energy Usage 565 kWh / $ 52 (based on 9.06 cents per kilowatt hour)

Shipping Weight Framed – 523 lbs (237 kg)

Overlay – 523 lbs (237 kg)

Stainless Steel – 529 lbs (240 kg)

Special Note Model 650G has a triple-pane

UV-resistant, low-energy glass door

Specifications are subject to change without notice.

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 4

Planning Information

833/4"

(2127)

ROUGH

OPENING

HEIGHT

WITH

STANDARD

11" (279)

GRILLE

751/2"

(1918)

(178)

(152)

351/2"

(902)

ROUGH OPENING WIDTH

24"

(

610)

OUGH

PENING

DEPTH

(76)

18"

(457)

LOCATE WATER SUPPLY

WITHIN SHADED AREA

OCATE ELECTRICAL

ITHIN SHADED AREA

(152)

HUT-OFF

ALVE

XTEND WATER LINE

PPROX. 36" (914)

ROM BACK WALL

FRONT VIEW

OP VIEW

Built-In Model 650G

INSTALLATION SPECIFICATIONS

DIMENSIONS

Finished Rough Opening Width 351/2" (902)

Finished Rough Opening Height 833/4" (2127)

Finished Rough Opening Depth 24" (610)

Location of Electrical Within upper shaded area

Location of W

ater Supply

See Installation Instructions shipped with unit for detailed specifications. Refer to the Sub-Zero Design Guide pdf file for additional specifications.

Dimensions in parentheses are in millimeters unless otherwise specified.

Within lower shaded area

Page 5

Planning Information

Built-In Model 650G

INSTALLATION NOTES

efer to the illustrations and specifications for overall dimensions, finished rough opening dimensions and installation specifics.

llow the door to open a minimum of 90˚ or you'll have problems removing drawers. With the door opening at 90˚, you may have to move drawers slightly to clear the door interior. Refer to the minimum door swing clearance in the specifications chart.

For corner installations, allow for a minimum 3" (76) filler so that the door can open to 90˚. If you're using raised panels, consider using a wider filler.

Be sure to add the filler strip width to your finished rough opening dimension. In any sideby-side installation without a filler strip, add an additional This will allow for the proper width.

Refer to the full-scale illustrations at the end of this section for specifics on door openings and filler size alternatives.

If your client has chosen the stainless steel design, the unit will be shipped complete with wrapped stainless steel doors and handle hardware. You will not have to install front panels.

If your client has chosen the framed or overlay design, you will be adding front panels to give the unit the custom Sub-Zero look. The overlay design also allows you to add your own handles, or you may choose accessory handles available through your Sub-Zero dealer. Refer to pages 6– 11 for detailed information on adding panels.

The refrigerator door panel must include a cut-out to accommodate the window. Refer to the panel specifications for exact dimensions. The glass portion of the door must be exposed and not covered b

F maker, rough in the water supply line. Connect

/4" OD copper line to the house supply

a sure to use an easily accessible shut off valve between the supply and the unit.

Do not use self-piercing valves. A saddle valve kit (4200880) is available from your Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzer

/2" (13) to your combined numbers.

y any part of the panel.

or Built-In models with an automatic ice

, being

o.com.

line filter is required when water conditions have a high sediment content. The ice maker operates on water pressure of 20 psi (1.4 bar) to 100 psi (6.9 bar). In some cases a r

everse osmosis water filter system may not be able to maintain the minimum water pressure consistently.

The water line should be routed up through

the floor within

/2" (13) from the back wall and no higher than 3" (76) off the floor. If you have to come through the wall, make sure the water line is no more than 3" (76) from the floor. Locate water supply within the shaded area shown in the installation illustration.

Regardless of the routing, allow 3' (.9 m) of excess copper tubing to remain outside the wall or floor for easy connection to the unit.

A 115 volt, 60 Hz, 15 amp electrical supply is required. The supply circuit for this appliance must be protected by a 15 amp fuse or circuit breaker. It is recommended that a separ

ate

circuit, serving only this appliance, be provided.

All Built-In models are equipped with a 6' (1.8 m) power supply cord with a 3

-prong grounding plug which must be plugged into a mating 3

-prong grounding type wall receptacle. Locate electrical within the shaded area shown in the installation illustration.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

To prevent the unit from tipping forward and provide a stable installation, the unit must be secured in place with an anti-tip blocking kit. If there is a solid soffit a

bove the unit with clear

ance between the unit and the soffit of 1" (25) or less, you won't need to block the unit.

For installations with clearances of more than 1" (25), anti-tip bloc

you must block the unit with the

king kit (wood bloc

k and hardw

are)

provided with each Built-In unit.

Refer to the

Built-In Installation Instructions packed with the appliance, which provides step-b

y-step pr

ocedures for making sure the

unit is installed properly.

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 6

Planning Information

PANELS

/4" (6) THICK OR LESS

/4" (6) Panel

Trim reveal

/4" (6) min

PANELS THICKER THAN

/4" (6)

Trim reveal

/4" (6) min

Rout to 1/4" (6)

thickness

Built-In Model 650G

FRAMED PANELS

ADDING PANELS

In your plan for panels, be sure you are working with the Sub-Zero panel design family called for in your design. If you have chosen the stainless steel design, the unit will be shipped complete with wrapped stainless steel doors and handle hardware. You will not have to install front door p

anels.

If you and your client have ordered a framed or overlay design model, you will be adding panels to give the unit the custom Sub-Zero look. Specifications on the following pages provide installation considerations for framed and overlay door panels.

Side panels can be used with the framed, overlay and stainless steel design applications. Refer to specifications on page 11.

Framed door panel 1/4" (6) thick or less

Framed door panel thicker than

/4" (6)

FRAMED PANELS

If the thickness of the custom panels is less than 1/4" (6), they must be backed up with a sheet of shim material

to build the total thickness to

than

/4" (6), an edge must be routed ar

/4" (6). If the panel is thicker

ound the panel to

ensure a proper fit. Refer to the illustrations on this page.

IMPORTANT NOTE: Routing, recessing or optional extended handles may be required on raised panels for finger clearance under the handle. Refer to the full-scale illustrations on pages 12– 15.

IMPORTANT NOTE: The weight of each panel cannot exceed 50 lbs (23 kg).

The traditional framed models come with an 11" (279) louvered grille and elegant full-length handle. Optional extended full-length handles that provide additional finger

ance for raised panels are available through your

clear Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzero.com.

For framed door panel dimensions and dimensions for the optional panel grille for the framed application, refer to specifications on page 7.

To install framed panels, refer to the installation instructions shipped with each unit

. These instructions can also

be found on our website, subzero.com.

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 7

Planning Information

C C

14"

(356) 1

Built-In Model 650G

FRAMED PANELS

The refrigerator door panel must include a cut-out to accommodate the window. Refer to the chart below for exact dimensions. The glass portion of the door must be exposed and not covered by any part of the panel.

An 11" (279) louvered grille is standard on framed applicat

ions. Optional louvered grilles are available in 1" (25)

height increments from 10" (254) to 15" (381).

ou may choose to use Sub-Zero's optional panel grille for the framed application. Optional panel grilles are available in 1" (25) height increments from 10" (254) to 15" (381). Refer to the chart below for panel dimensions.

FRAMED PANEL DIMENSIONS

WIDTH HEIGHT

Refrigerator Door Panel 341/8" (867) 481/16" (1221)

Framed Door Panels Framed Grille Panel

Freezer Door Panel 341/8" (867) 183/8" (467)

Handle Recess Location A – 241/32" (610)

B – 171/16" (433)

Window Cut-Out 253/8" (645) 395/16" (999)

Window Cut-Out Location C – 43/8" (111)

D – 43/8" (111)

Maximum Weight (per panel) 50 lbs (23 kg)

FRAMED GRILLE PANEL DIMENSIONS

WIDTH HEIGHT

10" (254) Grille 343/16" (868) 815/16" (227)

11" (279) Grille 343/16" (868) 915/16" (252)

(305) Grille

12"

/16" (868) 1

/16" (278)

13" (330) Grille 343/16" (868) 1115/16" (303)

14" (356) Grille 343/16" (868) 1215/16" (329)

15" (381) Grille 343/16" (868) 1315/16" (354)

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 8

Planning Information

Door/Drawer /

Grille Trim

/16" (2)

/32" (4)

/4" (6) Backer Panel

/16" (8) min

10"

(3)

Spacer Panel

Overlay Panel

Spacer Panel

Overlay Panel

/4" (6)

Backer

Panel

.10"

(3)

~3/4"

(19)

Built-In Model 650G

OVERLAY PANELS

The overlay design allows decorative panels to cover the door trim for a more seamless appearance that blends with the design of the room. To achieve this look, the most common way is to work with three panels—the decorative overlay panel, a .10" (3) spacer panel and a

/4" (6) backer panel. Depending on your cabinet manufacturer, this could be one panel routed for different dimensions or more likely, three different panels.

Regardless of the physical construction of the panels (routing or three panel assembly), you will need to follow the exact dimensions and panel placement to ensure a proper fit.

The top illustration on this page is a cross section view of the three panel assembly showing placement of the door /drawer/grille trim. The bottom illustration shows a rear view of the three panel assembly and critical dimensions, standard for all overlay models.

Three panel assembly— cross section

Three panel assembl

y— rear view

Overlay models will come with no handle hardware, because the beauty of this design is that you can match the surr

ounding cabinetry hardware. These models will come with an 11" (279) panel grille which will accept decorative panel inserts to match the look of the door panels. For overlay door and grille panel dimensions, refer to specifications on page 9.

IMPOR

TANT NOTE:

Keep in mind that the Sub-Zero door panels have the potential for hitting adjacent cabinets and/or countertops when they are opened. You need to be

are of your surrounding cabinetry and space limitations

aw when using the overlay models. Refer to the full-scale illustrations on pages 14–15.

IMPORTANT NOTE: The weight of each door panel

assembly cannot exceed 50 lbs (23 kg). The total thic

ness of all panels for an overlay model must be at least

/8" (16) thick.

To install overlay panels, refer to the installation instructions shipped with each unit

. These instructions can also

be found on our website, subzero.com.

Do not exceed the dimensions listed for the overlay

he decorative panel cannot be any larger

grille panel.

T or it may restrict the air flow to the compressor area and cause problems with the operation of the unit.

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 9

Planning Information

A A

Built-In Model 650G

OVERLAY PANELS

An 11" (279) panel grille is standard on overlay applicat

ions. Optional panel grilles are available in 1" (25) height

increments from 10" (254) to 15" (381).

OVERLAY PANEL DIMENSIONS

WIDTH HEIGHT

Refrigerator Door Panel 347/16" (875) 487/8" (1241)* Refrigerator Door Spacer 331/2" (851) 477/16" (1205) Refrigerator Door Backer 341/8" (867) 481/16" (1221)

Freezer Door Panel 347/16" (875) 18

/16" (475)

Freezer Door Spacer 331/2" (851) 173/4" (451)

Freezer Door Backer

/8" (867) 183/8" (467)

Overlay Door Panels Overlay Grille Panel

*The overlay refrigerator door panel will require a recessed area to prevent the unit's lower hinge plate from hitting the door panel. Refer to page 10 for detailed information.

Window Cut-Out 257/16" (646) 393/8" (1000)

Window Cut-Out Location A – 41/2" (114)

B – 5" (127)

Maximum Weight (per panel assembly) 50 lbs (23 kg)

O VERLAY GRILLE PANEL DIMENSIONS

WIDTH HEIGHT

10" (254) Grille Panel 347/16" (875) 91/4" (235) 10" (254) Grille Spacer 331/2" (851) 85/16" (211) 10" (254) Grille Backer 341/8" (867) 815/16" (227)

11" (279) Grille Panel 347/16" (875) 101/4" (260)

(279) Grille Spacer 33

11"

/2" (851) 95/16" (237)

11" (279) Grille Backer 341/8" (867) 915/16" (252)

12" (305) Grille Panel 347/16" (875) 111/4" (286)

(305) Grille Spacer

12"

/2" (851) 1

/16" (262)

12" (305) Grille Backer 341/8" (867) 1015/16" (278)

13" (330) Grille Panel 347/16" (875) 121/4" (311) 13" (330) Grille Spacer 331/2" (851) 115/16" (287)

(330) Grille Bac

13"

(356) Grille Panel 34

14"

/8" (867) 1

/16" (875) 1

/16" (303)

/4" (337) 14" (356) Grille Spacer 331/2" (851) 125/16" (313) 14" (356) Grille Backer 341/8" (867) 1215/16" (329)

(381) Grille P

15"

anel

/16" (875) 1

/4" (362) 15" (381) Grille Spacer 331/2" (851) 135/16" (338) 15" (381) Grille Backer 341/8" (867) 1315/16" (354)

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 10

Planning Information

/4"(6) Backer Panel

Overlay Panel

3" (76)

Bottom Edge –

Hinge Side (rear view)

Spacer Panel

/8" (10)

/2"

(13)

Overlay Panel

/16"

(8)

/32

(13)

/32"

(21)

Spacer Panel

Backer

Panel

Built-In Model 650G

OVERLAY PANELS

IMPORTANT NOTE: For overlay door panels, it is neces-

sary to rout a space for the unit‘s lower hinge plate so that it does not strike the door panel. Refer to the top illustration on this page.

OVERLAY PANELS

Recessed area for hinge plate

You will minimize the reveal between the bottom of the o

verlay door panel and the top of the overlay drawer panel.

Refer to the bottom illustration on this page.

f you choose not to rout a space for the lower hinge plate, you can reduce the total height of the overlay panel (decorative panel only) by

/2" (13).

Do not exceed the overlay panel dimensions listed. If you try to make the reveal tighter between the door and drawer panels, the panels may hit when opening and closing, causing possible damage to the panels and the Sub-Zero unit.

Reveal area for door panel

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 11

Planning Information

131/4" (337)

4" (102)

/4" (

3" (76)

237/8" (606)

BEHIND FRAME

Built-In Model 650G

SIDE PANELS

Side panels can be used with the framed, overlay and stainless steel design applications. When planning for side panels with the installation of the Built-In model, you need to be aware of space configuration to achieve a pleasing fit. Depending on the exact panel you are using with your unit, the height of the panel will vary.

Cut-outs around the toe kick and grille area are required if

/4" (6) thick panel will be inserted into the main frame channel. The panel will need to be 24" (610) deep. Refer to the illustration on this page for placement of toe kick and grille area cut-outs. If a panel will abut the main frame and should be 23

/8" (10) thick panel is used, the

/8" (606) deep. The toe kick area may or may not be cut out depending on the look you want to achieve.

IMPORTANT NOTE: The use of side panels may change the width of your rough opening.

Cut-outs for grille and toe kick area

HARDWARE CONSIDERATIONS

Overlay models come without handle hardware. The beauty of this design is that you can match the surrounding cabinet hardware. You or the cabinet manufacturer must provide handle hardware to match the overall decorating scheme.

The handle hardware must be installed before installing the panel assembly. Use larger D-style handles. If screws with thick heads are used, the screws will need to be countersunk into the door before the panel is put into

. Refer to the full-scale illustr

place

ations on pages 1

2–13

for handle hardware considerations.

IMPORTANT NOTE: Sub-Zero does not recommend using single pull knobs on any of its Built-In models.

Optional stainless steel handles are available in a variety of diameter

s and lengths in the classic, platinum and carbon stainless steel finishes and polished chrome. Contact your Sub-Zero dealer for specifics. To obtain local dealer information, visit the Locator section of our website,

o.com.

subzer

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 12

Planning Information

11/4"(

32) PANEL

1"(25) PANEL

/4"(6) P

ANEL

/2"(13) PANEL

/4"(19) PANEL

PTIONAL

EXTENDED

FULL-LENGTH

HANDLE

TANDARD

FULL-LENGTH

HANDLE

DOOR

/4"(

FRAMED PANEL

(25)

(

51)

(

76)

Built-In Model 650G

HANDLE PROFILE – FRAMED APPLICATION

FULL-SCALE TEMPLATES

The following full-scale illustrations enable you to under

stand some of the unique situations you may face as you design the Built-In units into homes. These templates can be easily photocopied or used in y

Dimensions in parentheses are in millimeters unless otherwise specified.

our tr

acings.

HANDLE PROFILE

The full-scale illustration above shows handle placement for the fr

amed a

pplication standard full-length handle and the optional extended full-length handle shown in the dashed line.

Page 13

Planning Information

11/4" (32) PANEL

1" (25) PANEL

/4" (

6) PANEL

/2" (

13) PANEL

/4" (19) PANEL

/8" (16) PANEL

DOOR

/4" (

APPROXIMATE THICKNESS OF WRAPPED STAINLESS STEEL DOOR

NOTE: FOR OVERLAY APPLICATIONS, OPTIONAL STAINLESS STEEL HANDLE

MUST BE MOUNTED ON PANEL MINIMUM 5/8" (16) THICK.

(

51)

(

76)

TANDARD STAINLESS STEEL HANDLE

Built-In Model 650G

HANDLE PROFILE – STAINLESS STEEL / OVERLAY APPLICATIONS

PANEL AND HANDLE PROFILE

The full-scale illustr placement for the standard stainless steel

ation a

bove shows handle

handle on the wrapped stainless steel door and on overla dashed line

y panel applications shown in the

IMPORTANT NOTE: For overlay applications, the optional stainless steel handle must be mounted on a panel at least

/8" (16) thick.

For overlay applications, mount door handles close to the opening edge of the door for ease of opening

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 14

(32)

PA N

(25)

PA N

(6)

PA N

(13)

PA N

(19)

PA N

130˚ DOOR OPENING

WITH 2" (51) FILLER STRIP

(

TOP VIEW)

OPTIONAL

FRAMED EXTENDED

FULL-LENGTH HANDLE

STANDARD

FRAMED

FULL-LENGTH

HANDLE

OOR CLOSED

DOOR OPEN @ 130˚

HINGE

2" (51)

ILLER STRIP

MAIN FRAME

LLOW FOR FILLER LAP

BEHIND FLANGE

APPROX

PROFILE OF

STAINLESS STEEL DOOR AND HANDLE

OVERLAY PANEL

3/4" (19) THICK

(NOMINAL)

UB-ZERO UNITSUB-ZERO UNIT

Planning Information

Built-In Model 650G

PANEL AND HANDLE PROFILE – 130˚ DOOR OPENING

The full-scale illustration above shows the panel and handle pr 2" (51) filler strip for framed applications.

Interference of door panels with handles at maximum door s 90˚ door stop provided with the unit.

oximate thic

Appr

* stainless steel door

Dimensions in parentheses are in millimeter

ofile of a 130˚ door opening with

wing ma

kness of wr

y require use of the

apped

s unless otherwise specified.

To obtain local dealer information, visit the Locator section of our website

, subzero.com.

The full-scale illustration on the following page

ou see what considerations you need to

lets y

e for any overla

mak how they may interact with adjacent cabinets

y panel a

pplications, and

and/ or countertops.

Page 15

Planning Information

(32)

PA N

(25)

PA N

(6)

PA N

(13)

PA N

(19)

PA N

(32)

(38)

(44)

(0)

(25)

(51)

(57)

(63)

(70)

(76)

(83)

(89)

(6)

(25)

(19)

HINGE

OVERLAY PANEL

3/4" (19) THICK (NOMINAL)

DOOR CLOSED

DOOR OPEN @ 90˚

90˚ DOOR OPENING

(TOP VIEW)

AIN FRAME

NOMINAL OVERALL

WIDTH OF SUB-ZERO

UB-ZERO UNIT

237/8" (606) TO REAR

F SUB-ZERO

Built-In Model 650G

OVERLAY PANEL APPLICATION – 90˚ DOOR OPENING

*Approximate thickness of wrapped stainless steel door.

Dimensions in parentheses are in millimeters unless otherwise specified.
