PRO 48 FEATURES

PRO 48 Features

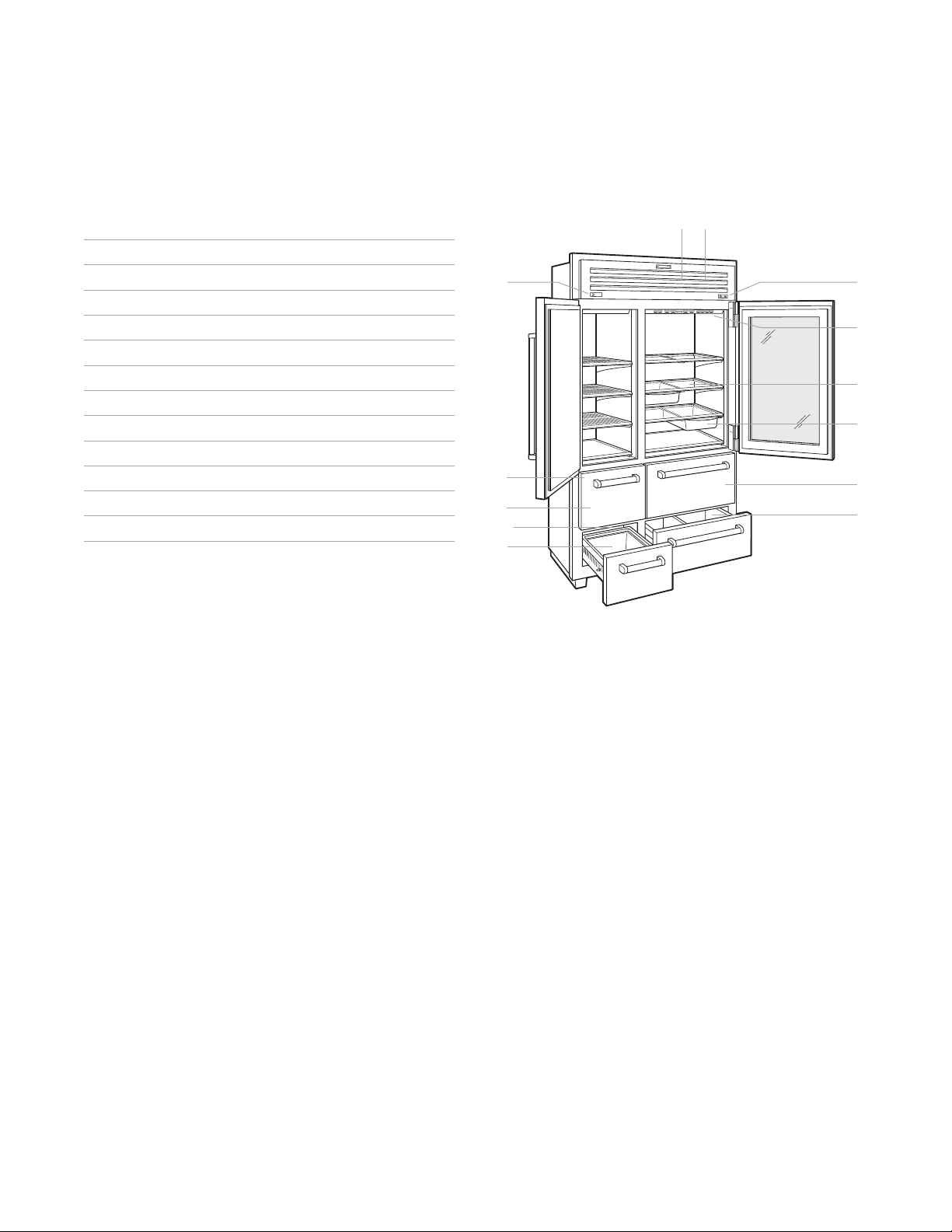

FEATURES

Product Rating Plate (inside drawer)

Interior Control Panel

External Display

Glass Shelves

Slide-Out Bins

Refrigerator Crisper Drawer

Refrigerator Storage Drawer

Freezer Storage Drawer

Ice Container

Water Filtration System (behind grille)

Automatic Ice Maker

Condenser (behind grille)

8 11 9

PRO 48 glass door model.

4 | Sub-Zero Customer Care 800.222.7820

ELECTRONIC CONTROLS

Control Panel

FUNCTION

COLDER WARMER

ICE MAKER Turns power to ice maker on or off. Use to disable

POWER Turns unit on or off. When power is off, ‘OFF’ will

ALARM Activates or deactivates door alarm. An audible

LIGHT Turns interior accent lighting on or off for glass door

Adjusts tem per ature in one-degree increments for the refrigerator, refrigerator drawers and freezer. Temper atures are preset at 38°F (3°C) and 0°F (-18°C).

ice maker during extended vacations.

appear in the external display. Turning power off at the control panel eliminates the need to unplug or turn power off at the circuit breaker during service or extended vacations.

chime indicates door has been left ajar for more than 30 seconds.

model.

External Display

FUNCTION

Indicates freezer temperature.

Indicates refrigerator temperature.

Indicates refrigerator drawers temperature.

Illuminates when ice maker system is activated.

Illuminates when door alarm is activated.

REPLACE FILTER

SERVICE Illuminates or ashes when electronic control system

Illuminates when water lter needs to be replaced.

has detected a temperature or ice maker problem, or if the condenser needs to be cleaned.

Control panel (glass door model).

Freezer external display.

Refrigerator external display.

subzero.com | 5

STORAGE

Keeping Food At Its Best

DUAL REFRIGERATION

This Sub-Zero features a unique Dual Refrigeration® system to keep food fresher longer. Three separate controls allow the refrigerator, refrigerator drawers and freezer to be set at different temperatures.

With the Sub-Zero Dual Refrigeration refrigerator and freezer systems have been designed to maintain accurate, consistent temperatures and proper humidity levels for longer food life expectancy. Dual Refrig-

eration

eliminates transfer of fresh food odors to frozen food and ice and does not freeze the moisture out of the air in the fresh food section.

system, individual

Refrigerator Storage

GLASS SHELVES

To remove or adjust a glass shelf, tilt up, then lift up and out. To reposition, insert shelf in the tracks along the back wall, then lower the front until it locks into position. Refer to the illustration below.

IMPORTANT NOTE: Use care when handling glass shelves to

prevent breakage or scratching the interior.

CAUTION

Glass shelves should warm to room temperature before immersing in warm water.

SLIDE-OUT BINS

Integrated rails mounted below the glass shelves allow slide-out bins to be positioned in a variety of locations. To remove or adjust a slide-out bin, pull the handle of the bin forward until it stops, lift up and out of the rails. Refer to the illustration below.

6 | Sub-Zero Customer Care 800.222.7820

Glass shelf removal.

Slide-out bin removal.

STORAGE

Refrigerator Storage

CRISPER LID

To remove the crisper lid assembly, pull the upper refrigerator drawer all the way out, raise the front edge of the crisper lid up and pull out from the back. Refer to the illustration below.

DRAWER DIVIDERS

Dividers are interchangeable between the upper and lower refrigerator drawers. Two long dividers run the full depth of the drawer, with shorter dividers that connect to the long dividers to compartmentalize the drawer.

To remove short dividers, lift up and out of supports on the long dividers and sides of the drawer. Long dividers can be removed by lifting up and out of drawer support tabs.

Freezer Storage

ICE CONTAINER

To remove the ice container, pull the lower freezer drawer forward until it stops, then lift the container up and out.

Storage Drawers

Refrigerator and freezer storage drawers are removable for cleaning. An automatic stop is built in to prevent drawers from coming all the way out unintentionally.

To remove, pull the drawer all the way out, lift up evenly on both sides of the drawer front and pull out. To reinstall, raise the front of the drawer and place onto drawer slide tracks. Be sure to engage the front of the drawer slide with the drawer assembly. Refer to the illustration below.

IMPORTANT NOTE: To reduce the weight of the drawer,

unload contents before removing.

Crisper lid removal.

Storage drawer removal.

subzero.com | 7

OPERATION

Water Filtration System

The water ltration system of Sub-Zero PRO 48 models supplies ltered water to the ice maker to produce greattasting ice.

IMPORTANT NOTE: When using the water ltration system

for the rst time and after lter replacement, it is necessary to clear any air from the system and allow the lter to assist in cleaning the water lines. Discard the rst two full containers of ice.

If the water ltration system will not be utilized, it can be placed in water lter bypass mode by removing the lter.

The lter is rated for 750 gallons

(2839 L) or one year,

whichever comes rst. When the lter needs to be replaced, ‘REPLACE FILTER’ will be visible in the external display.

Replacement Sub-Zero water lters can be ordered online at subzerowolfstore.com. For questions, contact Sub-Zero customer care at 800-222-7820.

WATER FILTER REPLACEMENT

1 To access the water lter, pull out on the bottom edge

of the grille and rotate upward.

2 To remove the old lter, rotate counterclockwise one-

quarter turn, then pull out. Refer to the illustration below. It is normal for a small amount of water to drip when the lter is removed. It should be wiped up with a paper towel or cloth.

3 Remove the new lter from packaging and remove the

plastic cap.

4 Insert the new lter into the manifold and turn clockwise.

5 Once the new lter has been installed, the water lter life

monitor will automatically reset.

WATER FILTER

8 | Sub-Zero Customer Care 800.222.7820

Open grille.

Water lter removal.

OPERATION

Ice Maker Operation

To initiate ice production, touch ICE MAKER on the control panel. start-up, discard the rst few batches of ice. The ice may contain impurities from new plumbing connections.

The ice maker will cycle (eight cubes) every two hours. If ice is not used regularly it may fuse together. To avoid, discard ice and allow ice maker to replenish.

To increase the ice storage capacity, remove the ice container and allow the drawer to ll with ice.

will be visible in the external display. After initial

Sabbath

This appliance is certied by Star-K to meet strict religious regulations in conjunction with specic instructions found on www.star-k.org.

To initiate Sabbath mode, while the unit is on, touch POWER on the control panel. ‘OFF’ appears in the external display. Touch and hold POWER for 10 seconds. Four audible chimes indicate Sabbath mode has been initiated. This will turn the unit on and disable external displays, lights, ice maker and door alarm. To return to normal operating conditions, touch POWER twice.

Interior Lighting

OVERHEAD LIGHTING

For the glass door model, the LED accent lighting can be left on with the door closed. Accent lighting can be turned on and off by touching LIGHT on the control panel.

DRAWER LIGHTING

Refrigerator and freezer storage drawers use standard 40-watt appliance bulbs. The bulbs are recessed into the top of the compartment.

CAUTION

Turn power off at the control panel before replacing light bulbs. Wear protective gloves when handling bulbs.

subzero.com | 9

CARE RECOMMENDATIONS

Cleaning

INTERIOR CLEANING

To clean interior surfaces and all removable parts, wash with a mild solution of soap, water and baking soda. Rinse and dry thoroughly. Avoid getting water on lights and control panel.

CAUTION

Do not use vinegar, rubbing alcohol or other alcoholbased cleaners on any interior surface.

STAINLESS STEEL EXTERIOR

Use a nonabrasive stainless steel cleaner and apply with a soft lint-free cloth. To bring out the natural luster, lightly wipe surface with a water-dampened microber cloth followed by a dry polishing chamois. Always follow the grain of stainless steel.

CONDENSER CLEANING

CAUTION

Before cleaning the condenser, turn power off at the control panel. Wear gloves to avoid injury from sharp condenser ns.

The condenser is located behind the grille. To access, pull out on the bottom edge of the grille and rotate upward. Use a soft bristle brush and vacuum to remove dust and lint from the condenser. Clean the condenser every three to six months. Refer to the illustration below.

IMPORTANT NOTE: To avoid damaging condenser ns,

vacuum in the direction of the ns.

CAUTION

Failure to clean the condenser could result in temperature loss, mechanical failure or damage.

VACATIONS

For extended vacations, turn power off at the control panel. Empty the unit and block doors open slightly to let fresh air in and keep interior dry. Water lter should be replaced before start up.

10 | Sub-Zero Customer Care 800.222.7820

CONDENSER

Condenser location.

TECHNICAL DATA

Sub-Zero Water Filtration System Data

REPLACEMENT CARTRIDGE (4204490)

Tested and certied by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste & Odor, Particulate Class I; and against NSF/ANSI Standard 53 for the reduction of Lead, Mercury, Atrazine, Benzene, Carbofuran, 1,4-dichlorobenzene, Lindane, Toxaphene, Turbidity, Cysts and Asbestos.

This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specied in NSF/ANSI 42/53.

OPERATING SPECIFICATIONS

Capacity: certied for up to 750 gallons (2,838 L); up to twelve months Pressure Requirement: 35 – 120 psi (2.8 – 8.2 bar) Temperature: 33 – 100°F (0.6 – 38°C) Flow Rate: 0.78 gpm (2.9 Lpm)

Standard

Chlorine, Taste & Odor 42 2.0 mg/L ± 10% 1.88 mg/L 0.05 mg/L 0.06 mg/L 97.34% 96.80% ≥ 50%

Particulate 42

Lead at pH 6.5 53 0.15 mg/L ± 10% 0.153 mg/L <0.001 mg/L <0.001 mg/L 99.34% 99.34% 0.010 mg/L

Lead at pH 8.5 53 0.15 mg/L ± 10% 0.150 mg/L <0.001 mg/L <0.001 mg/L 99.33% 99.33% 0.010 mg/L

Mercury at pH 6.5 53 0.006 mg/L ± 10% 0.006 mg/L 0.0003 mg/L 0.0005 mg/L 95.00% 91.66% 0.002 mg/L

Mercury at pH 8.5 53 0.006 mg/L ± 10% 0.006 mg/L 0.0008 mg/L 0.0015 mg/L 86.66% 75.00% 0.002 mg/L

Atrazine 53 0.009 mg/L ± 10% 0.009 mg/L <0.002 mg/L <0.002 mg/L 77.77% 77.77% 0.003 mg/L

Benzene 53 0.015 mg/L ± 10% 0.014 mg/L 0.0006 mg/L 0.0011 mg/L 95.71% 92.14% 0.005 mg/L

Carbofuran 53 0.08 mg/L ± 10% 0.081 mg/L <0.001 mg/L <0.001 mg/L 98.76% 98.76% 0.04 mg/L

1,4-dichlorobenzene 53 0.225 mg/L ± 10% 0.208 mg/L <0.0005 mg/L <0.0005 mg/L 99.75% 99.75% 0.075 mg/L

Lindane 53 0.002 mg/L ± 10% 0.002 mg/L 0.00003 mg/L 0.00007 mg/L 98.50% 96.50% 0.0002 mg/L

Toxaphene 53 0.015 mg/L ± 10% 0.015 mg/L <0.001 mg/L <0.001 mg/L 93.33% 93.33% 0.003 mg/L

Turbidity 53 11 ± 1 NTU 10.7 NTU 0.31 NTU 0.49 NTU 97.10% 95.42% 0.5 NTU

Cysts** 53 Minimum 50,000/L 166,500/L <1/L <1/L >99.99% >99.99% >99.95%

Asbestos 53 10

**Based on the use of Cryptosporidium Parvum oocysts † Fibers greater than 10 μm in length

Concentration

At least 10,000

particles/ml

to 108 bers/L

Inuent Challenge

NSF

Average Inuent

Concentration

5,700,000/ml 30,583/ml 69,000/ml 99.46% 98.78% ≥ 85%

†

155 MF/L <1 MF/L <1 MF/L >99.99% >99.99% >99%

Product Water Concentration % Reduction

Max Permissable

Product Water ConcentrationSubstance Average Max Efuent Average Minimum

SPECIAL NOTES

• Replacement Sub-Zero water lter cartridges can be ordered online

at subzerowolfstore.com. For questions, contact Sub-Zero customer care at 800-222-7820.

• Change lter cartridge at least every twelve months. High sediment

areas may require more frequent lter cartridge replacement.

• Installation and operation instructions, parts and service availability,

and standard warranty are included with the product when shipped.

• Replace water lter cartridge when the lter indicator is lit or when

water ow becomes too low. Use replacement water lter cartridge part number 4204490. Replacement lter pricing information can be found at subzero.com.

• Do not use with water that is microbiologically unsafe or of unknown

water quality without adequate disinfection before or after the system.

• Systems certied for cyst reduction may be used on disinfected

waters that may contain lterable cysts.

• This system must be installed, operated, maintained and lters

replaced as required in order for the product to perform as advertised.

• Note that while the testing was performed under standard labora-

tory conditions, actual performance may vary. The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water.

Manufactured for: Sub-Zero, Inc., P.O. Box 44848, Madison, WI 53744, 800-222-7820

subzero.com | 11

TECHNICAL DATA

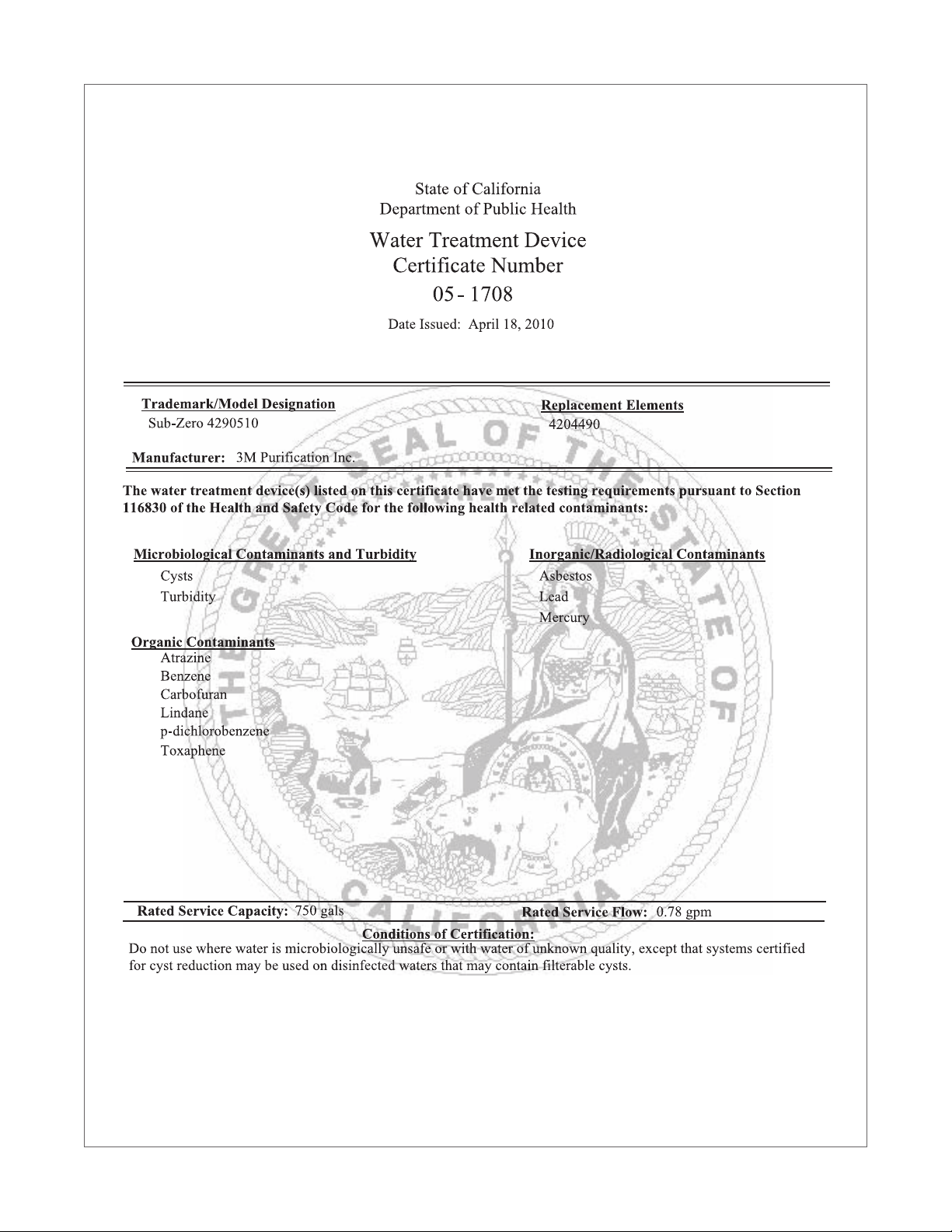

12 | Sub-Zero Customer Care 800.222.7820

TROUBLESHOOTING

Troubleshooting

UNIT OPERATION

No lights or cooling.

• Verify power is on.

• Verify electrical power to unit and home circuit breaker

is on.

No lights in refrigerator or freezer.

• Door may have been left ajar which has disabled lights

to eliminate excess heat. If lights are out, close door for one hour. If lights are still out, contact Sub-Zero Factory Certied Service.

• LED interior lighting must be replaced by Sub-Zero

Factory Certied Service.

Frost, condensation or ice build up inside unit.

• Verify condenser is clean.

• Verify door/drawer is closing properly.

• Verify door/drawer has not been left ajar.

• Verify door/drawer gasket does not have rips or tears. If

it does, contact Sub-Zero Factory Certied Service.

• If icing is heavy, turn unit off and use a hair dryer to melt

ice. Hair dryer should be set on low and kept moving at all times. Once ice has melted, wipe up water with a cloth or paper towel.

High temperatures, unit runs excessively or unit giving off too much heat.

• Verify condenser is clean.

• Verify door/drawer is closing properly.

• Verify door/drawer has not been left ajar.

• Increased ambient temperatures may cause compres-

sors to run longer.

ICE PRODUCTION

No ice.

• Verify

• Verify ice maker has been on for at least 24 hours.

• Verify freezer temperature near 0°F.

• Verify ice container is properly installed.

• Verify ice maker arm in down position.

• Verify water is being supplied to unit.

• Verify water lter has been replaced within the last 12

months and installed properly.

• Verify water lter has been removed if a reverse osmosis

ltration system is being utilized.

• Verify

Factory Certied Service.

Blue or green ice.

• Possible copper supply line corrosion. Contact plumber

to clean or replace.

Black ecks in cubes.

• Stop use and contact Sub-Zero Factory Certied

Service.

Bad taste.

• Defrost freezer and clean with soap and water.

• Place coffee grounds or charcoal briquettes in freezer to

absorb odor.

Hollow cubes.

• Clean condenser. Contact Sub-Zero Factory Certied

Service if unresolved.

appears in freezer external display.

is not ashing. If ashing, contact Sub-Zero

• If temperature display shows 38° and 0°, but is not

cooling, unit may be in showroom mode. Contact Sub-Zero Customer Care at 800-222-7820.

subzero.com | 13

TROUBLESHOOTING

Troubleshooting

ODOR

• Unit should be cleaned before using for the rst time.

This will clear any odors that may have been trapped during shipping.

• Clean unit and shelving thoroughly.

• Uncovered food could create odor which may require

cleaning.

• Remove and clean drain pan located behind kickplate,

and reinstall.

SERVICE

• Maintain the quality built into your product by contacting

Sub-Zero Factory Certied Service. For the name of the nearest Sub-Zero Factory Certied Service, check the Support and Service section of our website, subzero.com or call Sub-Zero customer care at 800-222-7820.

• When contacting service, you will need the model and

serial number of your unit. Both numbers are listed on the product rating plate. Refer to page 4 for rating plate location.

• For warranty purposes, you will also need the date

of installation and name of your authorized Sub-Zero dealer. This information should be recorded on page 3.

Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowake Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, Wolf, Wolf & Design, Wolf Gourmet, W & Design, red colored knobs, Cove, and Cove & Design are registered trademarks and service marks of Sub-Zero Group, Inc. and its subsidiaries. All other trademarks are property of their respective owners in the United States and other countries.

14 | Sub-Zero Customer Care 800.222.7820

+ 30 hidden pages
