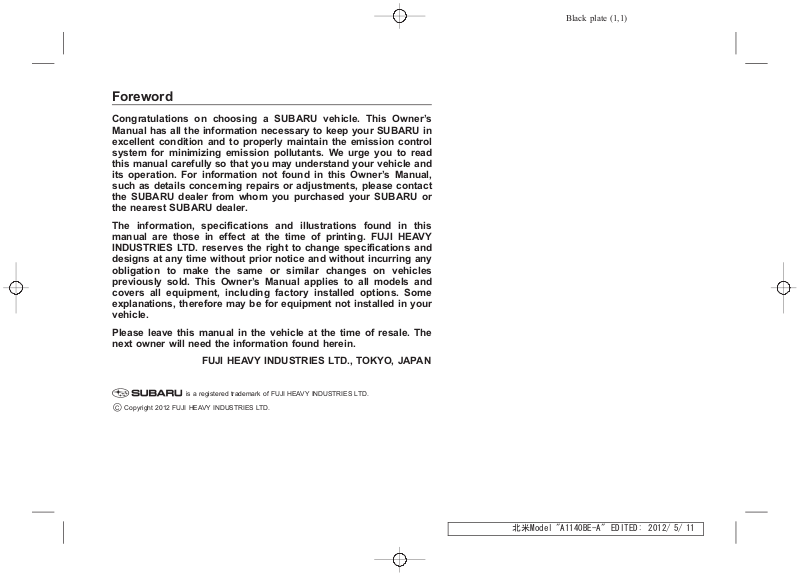

Foreword
Congratulations on choosing a SUBARU vehicle. This Owners Manual has all the information necessary to keep your SUBARU in excellent condition and to properly maintain the emission control system for minimizing emission pollutants. We urge you to read this manual carefully so that you may understand your vehicle and its operation. For information not found in this Owners Manual, such as details concerning repairs or adjustments, please contact the SUBARU dealer from whom you purchased your SUBARU or the nearest SUBARU dealer.
The information, specifications and illustrations fo und in this manual are those in effect at the time of printing. FUJI HEAVY INDUSTRIES LTD. reserves the right to change specifications and designs at any time without prior notice and without incurring any obligation to make the same or similar changes on vehicles previously sold. This Owners Manual applies to all models and covers all equipment, including factory installed options. Some explanations, therefore may be for equipment not installed in your vehicle.
Please leave this manual in the vehicle at the time of resale. The next owner will need the information found herein.
FUJI HEAVY INDUSTRIES LTD., TOKYO, JAPAN
is a registered trademark of FUJI HEAVY INDUSTRIES LTD.
C
*
Copyright 2012 FUJI HEAVY INDUSTRIES LTD.
This manual describes the following vehicle types.
1) 4-door models
2) 5-door models except XV CROSSTREK
3) XV CROSSTREK models
1
Warranties
& Warranties for U.S.A.
All SUBARU vehicles distributed by Subaru of America, Inc. and sold at retail by an authorized SUBARU dealer in the United States come with the following warranties:
. SUBARU Limited Warranty . Emission Control Systems Warranty . Emissions Performance Warranty
All warranty information, including details of coverage and exclusions, is in the Warranty and Maintenance Booklet. Please read these warranties carefully.
& Warranties for Canada
All SUBARU vehicles distributed by Subaru Canada, Inc. and sold at retail by an authorized SUBARU dealer in Canada come with the following warranties:
. SUBARU Limited Warranty . Anti-Corrosion Warranty . Emission Control Warranty
All warranty information, including details of coverage and exclusions, is in the Warranty and Service Booklet. Please read these warranties carefully.
& Models with HID headlights
CAUTION
High Intensity Discharge (HID) head­lights contain m ercury. For that reason, it is necessary to remove HID headlights before vehicle dis­posal. Once removed, please reuse, recycle or dispose of the HID head­lights as hazardous waste.
& Models without HID head-
lights
NOTE
This vehicle does not contain mercury devices or parts.
How to use this Owners Manual
& Using your Owners Manual
Before you operate your vehicle, carefully read this manual. To protect yourself and extend the service life of your vehicle, follow the instructions in this manual. Failure to observe these instructions may result in serious injury and damage to your vehicle.
This manual is composed of fourteen chapters. Each chapter begins with a brief table of contents, so you can usually tell at a glance if that chapter contains the information you want.
Chapter 1: Seat, seatbelt and SRS airbags
This chapter informs you how to use the seat and seatbelt and contains precau­tions for the SRS airbags.
Chapter 2: Keys and doors
This chapter informs you how to operate the keys, locks and windows.
Chapter 3: Instruments and controls
This chapter informs you about the opera­tion of instrument panel indicators and how to use the instruments and other switches.
CONTINUED
2
Chapter 4: Climate control
This chapter informs you how to operate the climate control.
Chapter 5: Audio
This chapter informs you how to operate your audio system.
Chapter 6: Interior equipment
This chapter informs you how to operate interior equipment.
Chapter 7: Starting and operating
This chapter informs you how to start and operate your SUBARU.
Chapter 8: Driving tips
This chapter informs you how to drive your SUBARU in various conditions and ex­plains some safety tips on driving.
Chapter 9: In case of emergency
This chapter informs you what to do if you have a problem while driving, such as a flat tire or engine overheating.
Chapter 10: Appearance care
This chapter informs you how to keep your SUBARU looking good.
Chapter 11: Maintenance and service
This chapter informs you when you need to take your SUBARU to the dealer for scheduled maintenance and informs you how to keep your SUBARU running properly.
Chapter 12: Specifications
This chapter informs you about dimen­sions and capacities of your SUBARU.
Chapter 13: Consumer information and Reporting safety defects
This chapter informs you about Uniform tire quality grading standards and Report­ing safety defects.
Chapter 14: Index
This is an alphabetical listing of all thatsin this manual. You can use it to quickly find something you want to read.
& Safety warnings
You will find a number of WARNINGs, CAUTIONs and NOTEs in this manual.
These safety warnings alert you to poten­tial hazards that could result in injury to you or others.
Please read these safety warnings as well as all other portions of this manual care­fully in order to gain a better understand­ing of how to use your SUBARU vehicle safely.
WARNING
A WARNING indicates a situation in which serious injury or death could result if the warning is ignored.
CAUTION
A CAUTION indicates a situation in which inj ur y or damage to your vehicle, or both, could result if the caution is ignored.
NOTE
A NOTE gives information or sugges­tions how to make better use of your vehicle.
& Safety symbol
You will find a circle with a slash through it in this manual. This symbol means Do not, Do not do this,or“Do not let this happen, depending upon the context.
3
& Abbreviation list
You may find several abbreviations in this manual. The meanings of the abbrevia­tions are shown in the following list.
Abbreviation Meaning
A/C Air conditioner
A/ELR
ABS Anti-lock brake system
AKI Anti knock index
ALR Automatic locking retractor
AT Automatic transmission
ATF Automatic transmission fluid
AWD All-wheel drive
CVT
DCCD
DRL Daytime running light
EBD
ELR Emergency locking retractor
FWD Front-wheel drive
GAW Gross axle weight
GAWR Gross axle weight rating
GPS Global positioning system
Automatic/Emergency locking retractor
Continuously variable trans­mission
Drivers control center differ­ential
Electronic brake force distri­bution
Abbreviation Meaning
GVW Gross vehicle weight
GVWR Gross vehicle weight rating
HID High intensity discharge
INT Intermittent
LATCH
LED Light emitting diode
LSD Limited slip differential
MIL Malfunction indicator light
MMT
MT Manual transmission
OBD On-board diagnostics
RON Research octane number
SI-DRIVE SUBARU Intelligent Drive
SRS
TIN Tire identification number
TPMS
Lower anchors and tethers for children
Methylcyclopentadienyl man­ganese tricarbonyl
Supplemental restraint sys­tem
Tire pressure monitoring sys­tem
Vehicle symbols
There are some of the symbols you may see on your vehicle.
For warning and indicator lights, refer to Warning and indicator lightsF20.
Mark Name
WARNING
CAUTION
Power door lock
Power door unlock
Power window with automatic open and close function
Passengerswindows lock and unlock
Fuel
Front fog lights
CONTINUED
4
Mark Name
Hazard warning flasher
Engine hood
Trunk lid (4-door)
Seat heater
Child restraint top tether an­chorages
Child restraint lower an­chorages
Horn
Windshield wiper
Wiper intermittent
Windshield washer
Mark Name
Rear window washer
Lights
Tail lights, license plate light and instrument panel illumi­nation
Headlights
Turn signal
Illumination brightness
Fan speed
Instrument panel outlets
Instrument panel outlets and foot outlets
Foot outlets
Mark Name
Windshield defroster
Rear window defogger/Out­side mirror defogger/Wind­shield wiper deicer
Air recirculation
Engine oil
Washer
Door lock (transmitter)
Door unlock (transmitter)
Trunk lid open (4-door) or rear gate unlock (5-door) (trans­mitter)
Rear window wiper
Windshield defroster and foot outlets
5
Safety precautions when driving
& Seatbelt and SRS airbag
WARNING
. All persons in the vehicle should
fasten their seatbelts BEFORE the vehicle starts to move. Other­wise, the possibility of serious injury becomes greater in the event of a sudden stop or acci­dent.
. To obtain maximum protection in
the event of an accident, the driver and all passengers in the vehicle should always wear seat­belts when the vehicle is moving. The SRS (Supplemental Restraint System) airbag does not do away with the need to fasten seatbelts. In combination with the seat­belts, it offers the best combined protection in case of a serious accident.
Not wearing a seatbelt increases the chance of severe injury or death in a crash even when the vehicle has the SRS airbag.
. The SRS airbags deploy with
considerable speed and force. Occupants who are out of proper position when the SRS airbag deploys could suffer very serious injuries. Because the SRS airbag needs enough space for deploy­ment, the driver should always sit upright and well back in the seat as far f rom the steering wheel as practical while still maintaining full vehicle control and the front passenger should move the seat as far back as possible and sit upright and well back in the seat.
For instructions and precautions, carefully read the following sections.
. For the seatbelt system, refer to Seat- beltsF1-12.
. For the SRS airbag system, refer to *SRS airbag (Supplemental Restraint System airbag)F1-38.
& Child safety
WARNING
. Never hold a child on your lap or
in your arms while the vehicle is moving. The passenger cannot protect the child from injury in a collision, because the child will be caught between the passen­ger and objects inside the vehi­cle.
. While riding in the vehicle, in-
fants and small children should always be placed in the REAR seat in an infant or child restraint system which is appropriate for the childs age, height and weight. If a child is too big for a child restraint system, the child should sit in the REAR seat and be restrained using the seatbelts. According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seat­ing positions. Never allow a child to stand up or kneel on the seat.
. Put children aged 12 and under in
the REAR seat properly re­strained at all times in a child restraint device or in a seatbelt.
CONTINUED
6
The SRS airbag deploys with considerable speed and force and can injure or even kill chil­dren, especially if they are 12 years of age and under and are not restrained or improperly re­strained. Because children are lighter and weaker than adults, their risk of being injured from deployment is greater.
. NEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY PLACING THE CHILDS HEAD TOO CLOSE TO THE SRS AIRBAG.
. Always turn the child safety locks
to the LOCKposition when children sit in the rear seat. Serious injury could result if a child accidentally opens the door and falls out. Refer to Child safety locksF2-17.
. Always lock the passengers win-
dows using the lock switch when children are riding in the vehicle. Failure to follow this procedure could result in injury to a child operating the power window. Re­fer to WindowsF2-17.
. Never leave unattended children,
adults or animals in the vehicle. They could accidentally injure themselves or others through inadvertent operation of the ve­hicle. Also, on hot or sunny days, temperature in a closed vehicle could quickly become high en­ough to cause severe or possibly fatal injuries to them.
. Help prevent children, adults or
animals from locking themselves in the trunk. On hot or sunny days, the temperature in the trunk could quickly become high enough to cause death or serious heat-related injuries including brain damage to anyone locked inside, particularly for small chil­dren.
. When leaving the vehicle, either
close all windows and lock all doors. Also make certain that the trunk is closed.
For instructions and precautions, carefully read the following sections.
. For the seatbelt system, refer to Seat- beltsF1-12.
. For the child restraint system, refer to Child restraint systemsF1-25.
. For the SRS airbag system, refer to *SRS airbag (Supplemental Restraint System airbag)F1-38.
& Engine exhaust gas (carbon
monoxide)
WARNING
. Never inhale engine exhaust gas.
Engine exhaust gas contains carbon monoxide, a colorless and odorless gas which is dan­gerous, or even lethal, if inhaled.
. Always properly maintain the en-
gine exhaust system to prevent engine exhaust gas from enter­ing the vehicle.
. Never run the engine in a closed
space, such as a garage, except for the brief time needed to drive the vehicle in or out of it.
. Avoid remaining in a parked
vehicle for a lengthy time while the engine is running. If that is unavoidable, then use the venti­lation fan to force fresh air into the vehicle.
. Always keep the front ventilator
inlet grille free from snow, leaves or other obstructions to ensure
7
that the ventilation system a l­ways works properly.
. If at any time you suspect that
exhaust fumes are entering the vehicle, have the problem checked and corrected as soon as possible. If you must drive under these conditions, drive only with all windows fully open.
. Keep the trunk lid or rear gate
closed while driving to prevent exhaust gas from entering the vehicle.
& Drinking and driving
WARNING
Drinking and then driving is very dangerous. Alcohol in the blood­stream delays your reaction time and impairs your perception, judg­ment and attentiveness. If you drive after drinking – even if you drink just a little – it will increase the risk of being involved in a serious or fatal accident, injuring or killing yourself, your passengers and others. In addition, if you are injured in the accident, alcohol may increase the severity of that injury.
Please dont drink and drive.
Drunken drivi ng is one of the most frequent causes of accidents. Since alco­hol affects all people differently, you may have consumed too much alcohol to drive safely even if the level of alcohol in your blood is below the legal limit. The safest thing you can do is never drink and drive. However if you have no choice but to drive, stop drinking and sober up comple­tely before getting behind the wheel.
& Drugs and driving
WARNING
There are some drugs (over the counter and prescription) that can delay your reaction time and impair your perception, judgment and at­tentiveness. If you drive after taking them, it may increase your, your passengersand other personsrisk of being involved in a serious or fatal accident.
If you are taking any drugs, check with your doctor or pharmacist or read the literature that accompanies the medication to determine if the drug you are taking can impair your driving ability. Do not drive after taking any medications that can make you drowsy or otherwise affect your ability to safely operate a motor vehicle. If you have a medical condition that requires you to take drugs, please consult with your doctor.
Never drive if you are under the influence of any illicit mind-altering drugs. For your own health and well-being, we urge you not to take illegal drugs in the first place and to seek treatment if you are addicted to those drugs.
CONTINUED
8
& Driving when tired or sleepy
WARNING
When you are tired or sleepy, your reaction time will be delayed and your perception, judgment and at­tentiveness will be impaired. If you drive when tired or sleepy, your, your passengersand other per­sonschances of being involved in a serious accident may increase.
Please do not continue to drive but instead find a safe place to rest if you are tired or sleepy. On long trips, you should make periodic rest stops to refresh yourself before continuing on your journey. When possible, you should share the driving with others.
& Modification of your vehicle
CAUTION
Your vehicle should not be modified other than with genuine SUBARU parts and accessories. Other types of modifications could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or
performance problems resulting from modification may not be cov­ered under warranties.
& Car phone/cell phone and
driving
CAUTION
Do not use a car phone/cell phone while driving; it may distract your attention from driving and can lead to an accident. If you use a car phone/cell phone, pull off the road and park in a safe place before using your phone. In some States/ Provinces, only hands-free phones may legally be used while driving.
& Driving vehicles equipped
with navigation system
WARNING
Do not allow the monitor to distract your attention from driving. Also, do not operate the controls of the navigation system while driving. The loss of attention to driving could lead to an accident. If you
wish to operate the controls of the navigation system, first take the vehicle off the road and stop it in a safe place.
& Driving with pets
Unrestrained pets can interfere with your driving and distract your attention from driving. In a collision or sudden stop, unrestrained pets or cages can be thrown around inside the vehicle and hurt you or your passengers. Besides, the pets can be hurt under these situations. It is also for their own safety that pets should be properly restrained in your vehicle. Re­strain a pet with a special traveling harness which can be secured to the rear seat with a seatbelt or use a pet carrier which can be secured to the rear seat by routing a seatbelt through the carriers handle. Never restrain pets or pet carriers in the front passengers seat. For further information, consult your veterinarian, local animal protectio n society or pet shop.
Table of contents
Seat, seatbelt and SRS airbags
Keys and doors
Instruments and controls
Climate control
Audio
Interior equipment
Starting and operating
Driving tips
In case of emergency
Appearance care
Maintenance and service
Specifications
Consumer information and Reporting safety defects
1
2
3
4
5
6
7
8
9
10
11
12
13
Index
14
12
Illustrated index
& Exterior
1) Engine hood (page 11-5)
2) Wiper switch (page 3-69)
3) Headlight switch (page 3-63)
4) Replacing bulbs (page 11-37)
5) Moonroof (page 2-24)
6) Outside mirrors (page 3-78)
7) Door locks (page 2-3)
8) Tire pressure (page 11-23)
9) Flat tires (page 9-5)
10) Snow tires (page 8-10)
11) Fog light switch (page 3-67)
12) Tie-down hooks (page 9-12)
13) Towing hook (page 9-12)
1) Rear window defogger (page 3-80)
2) Fuel filler lid and cap (page 7-4)
3) Child safety locks (page 2-17)
4) Tie-down hole (page 9-12)
5) Trunk lid (page 2-20)
6) Rear gate (page 2-23)
7) Towing hook (page 9-12)
13
CONTINUED
14
& Interior
! Passenger compartment area
1) Lower anchorages for child restraint system (page 1-32)
2) Seatbelt (page 1-12)
3) Front seat (page 1-2)
4) Rear seat (page 1-7)
15
1) Power windows (page 2-17)
2) Door locks (page 2-3)
3) Outside mirror switch (page 3-78)
4) Glove box (page 6-5)
5) Front power supply socket (page 6-7)
6) Shift lever (MT) (page 7-16)/Select lever (CVT) (page 7-18)
7) Parking brake lever (page 7-32)
8) Cup holder (page 6-6)
9) Center console (page 6-5)
CONTINUED
16
& Instrument panel
1) Illumination brightness control (page 3-66)
2) Vehicle Dynamics Control OFF switch (page 7-30)
3) Audio control buttons (page 5-30)
4) Combination meter (page 3-5)
5) Cruise control (page 7-37)
6) Information display (page 3-23)/Multi function display (page 3-28)
7) Hazard warning flasher switch (page 3-5)
8) Audio (page 5-1)
9) Climate control (page 4-1)
10) Tilt/telescopic steering (page 3-81)
11) Horn (page 3-82)
12) SRS airbag (page 1-38)
13) Multi function display control switches (page 3-28)
14) Hands-free switches (page 5-34)
15) Fuse box (page 11-35)
16) Hood lock release knob (page 11-5)
17
& Light control and wiper control levers/switches
1) Windshield wiper (page 3-68)
2) Mist (page 3-69)
3) Windshield washer (page 3-70)
4) Rear window wiper and washer switch (page 3-70)
5) Wiper intermittent time control switch (page 3-69)
6) Wiper control lever (page 3-69)
7) Light control switch (page 3-63)
8) Fog light switch (page 3-67)
9) Headlight ON/OFF/AUTO (page 3-63)
10) Headlight flasher High/Low beam change (page 3-64)
11) Turn signal lever (page 3-66)
CONTINUED
18
& Combination meter
! U.S.-spec. models
The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.
1) Tachometer (page 3-7)
2) Trip meter and odometer (page 3-6)
3) Select lever/gear position indicator (page 3-21)
4) Speedometer (page 3-6)
5) Information display selection knob (page 3-23)
6) ECO gauge (page 3-8)
7) Fuel gauge (page 3-8)
8) Trip meter A/B selection and trip meter reset knob (page 3-7)
19
! Except U.S.-spec. models
The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.
1) Tachometer (page 3-7)
2) Trip meter and odometer (page 3-6)
3) Select lever/gear position indicator (page 3-21)
4) Speedometer (page 3-6)
5) Information display selection knob (page 3-23)
6) ECO gauge (page 3-8)
7) Fuel gauge (page 3-8)
8) Trip meter A/B selection and trip meter reset knob (page 3-7)
CONTINUED
20
& Warning and indicator lights
Mark Name Page
Seatbelt warning light 3-9
Front passengers seatbelt warning light
SRS airbag system warning light
Front passengers
/
frontal airbag ON indi­cator
Front passengers
/
frontal airbag OFF in­dicator
CHECK ENGINE warning light/Malfunc­tion indicator light
Coolant temperature low indicator light/ Coolant temperature high warning light
Charge warning light 3-14
Oil pressure warning light
Engine oil level warn­ing light
3-9
3-11
3-11
3-11
3-12
3-13
3-14
3-14
Mark Name Page
AT OIL TEMP warning light (CVT models)
ABS warning light 3-16
Brake system warning light
Door open warning light
AWD warning light (AWD CVT models)
Power steering warn­ing light
Hill start assist warn­ing light/Hill start assist OFF indicator light
Vehicle Dynamics Control warning light/ Vehicle Dynamics Control operation indi­cator light
Vehicle Dynamics Control OFF indicator light
Turn signal indicator lights
3-15
3-17
3-18
3-19
3-19
3-18
3-19
3-21
3-22
Mark Name Page
High beam indicator light
Automatic headlight beam leveler warning light (if equipped)
Front fog light indicator light (if equipped)
Security indicator light 3-21
Headlight indicator light (if equipped)
Cruise control indica­tor light
Cruise control set in­dicator light
Low fuel warning light 3-18
Low tire pressure warning light (U.S.-spec. models)
Windshield washer fluid warning light
3-22
3-22
3-22
3-22
3-22
3-22
3-15
3-14
21
Function settings
A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Contact the nearest SUBARU dealer for details. If your vehicle is equipped with a multi function display, the settings for some of these functions can be changed using the display. For details, refer to Multi function display (Non-US vehicles only; if equipped)F3-28.
Item Function Possible settings Default setting
Alarm system Alarm system Operation/Non-operation Operation
Monitoring start delay time (after closure of doors) 0 second/30 seconds 30 seconds
Impact sensor operation (only models with shock sensors (dealer option))
Passive arming Operation/Non-operation Non-operation
Dome light and map lights illumination (models with moonroof)
Dome light illumination (models without moonroof)
Remote keyless entry system Hazard warning flasher Operation/Non-operation Operation
Audible signal Operation/Non-operation Operation
Key lock-in prevention Key lock-in prevention Operation/Non-operation Operation
Defogger and deicer system for models with the automatic climate control system
Dome light Operation of dome light/map light OFF delay timer OFF/Short/Normal/Long Long
Map light for models with a moonroof
Battery drainage prevention function Battery drainage prevention function Operation/Non-operation Operation
Seatbelt warning Sounds a chime while driving Operation/Non-operation Operation
Auto on/off headlights (if equipped) Sensitivity of the operation of the auto on/off headlights Low/Normal/High/Very high Normal
Rear window defogger, outside mirror defogger and windshield wiper deicer
Operation/Non-operation Non-operation
ON/OFF OFF
Operation for 15 minutes/ Continuous operation
Operation for 15 minutes
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
Seat, seatbelt and SRS airbags
Front seats........................................................... 1-2
Forward and backward adjustment ...................... 1-3
Reclining the seatback ........................................ 1-3
Seat cushion height adjustment (drivers seat) ..... 1-4
Head restraint adjustment (if equipped)................ 1-4
Seat heater (if equipped) .................................... 1-6
Rear seats............................................................ 1-7
Armrest (if equipped)........................................... 1-7
Head restraint adjustment.................................... 1-8
Folding down the rear seatback........................... 1-9
Seatbelts ............................................................. 1-12
Seatbelt safety tips............................................. 1-12
Emergency Locking Retractor (ELR) ................... 1-13
Automatic/Emergency Locking Retractor
(A/ELR) ............................................................ 1-13
Seatbelt warning light and chime ........................ 1-13
Fastening the seatbelt ........................................ 1-13
Seatbelt maintenance ......................................... 1-20
Front seatbelt pretensioners ............................. 1-21
Seatbelt with shoulder belt pretensioner . . ........... 1-21
Seatbelt with shoulder belt and lap belt
pretensioners................................................... 1-22
System monitors ................................................ 1-24
System servicing ............................................... 1-24
Precautions against vehicle modification ............ 1-24
Child restraint systems ..................................... 1-25
Where to place a child restraint system.............. 1-26
Choosing a child restraint system ...................... 1-27
Installing child restraint systems with A/ELR
seatbelt ........................................................... 1-27
Installing a booster seat..................................... 1-31
Installation of child restraint systems by use of
lower and tether anchorages (LATCH) .............. 1-32
Top tether anchorages ....................................... 1-35
*SRS airbag (Supplemental Restraint
System airbag)................................................ 1-38
Models with SRS airbags and lap/shoulder
restraints for driver, front passenger, and
window-side rear passengers........................... 1-38
SUBARU advanced frontal airbag system ........... 1-42
SRS side airbag and SRS curtain airbag............. 1-53
SRS airbag system monitors .............................. 1-63
SRS airbag system servicing ............................. 1-64
Precautions against vehicle modification ............ 1-65
1
1-2 Seat, seatbelt and SRS airbags
Front seats
WARNING
. Never adjust the seat while driv-
ing to avoid the possibi lity of loss of vehicle control and of personal injury.
. Before adjusting the seat, make
sure the hands and feet of rear seat passengers and cargo are clear of the adjusting mechan­ism.
. After adjusting the seat, push it
slightly to make sure it is se­curely locked. If the seat is not securely locked, it may move or the seatbelt may not operate properly.
. Do not put objects under the front
seats. They may interfere with front seat locking and cause an accident.
. Seatbelts provide maximum re-
straint when the occupant sits well back and upright in the seat. To reduce the risk of sliding under the seatbelt in a collision, the front seatbacks should be always used in the upright posi­tion while the vehicle is running.
If the front seatbacks are not used in the upright position in a collision, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will increase, and both can result in serious internal injury or death.
. The SRS airbags deploy with
considerable speed and force. Occupants who are out of proper position when the SRS airbag deploys could suffer very serious injuries. Because the SRS airbag needs enough space for deploy­ment, the driver should always sit upright and well back in the seat as far f rom the steering wheel as practical while still maintaining full vehicle control and the front passenger should move the seat as far back as possible and sit upright and well back in the seat.
WARNING
Put children aged 12 and under in the rear seat properly restrained at all times. The SRS airbag deploys with considerable speed and force and can injure or even kill children, especially if they are 12 years of age and under and are not restrained or improperly restrained. Because chil­dren are lighter and weaker than adults, their risk of being injured from deployment is greater. For that reason, we strongly recommend that ALL children (including those in child seats and those that have outgrown child restraint devices) sit in the REAR seat properly re­strained at all times in a child
Seat, seatbelt and SRS airbags 1-3
restraint device or in a seatbel t, whichever is appropriate for the childs age, height and weight. Se­cure ALL types of child restraint devices (including forward facing child seat) in the REAR seats at all times.
NEVER INSTALL A REARWARD FA­CING CHILD SEAT IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY PLACING THE CHILDS HEAD TOO CLOSE TO THE SRS AIRBAG.
According to accident statistics, children are safer when properly restrained in the rear seating posi­tions than in the front seating posi­tions. For instructions and precau­tions concerning child restraint sys­tems, refer to Child restraint sys­temsF1-25.
& Forward and backward ad-
justment
Pull the lever upward and slide the seat to the desired position. Then release the lever and try to move the seat back and forth to make sure that it is securely locked into place.
& Reclining the seatback
Pull the reclining lever up and adjust the seatback to the desired position. Then release the lever and make sure the seatback is securely locked into place.
The seatback placed in a reclined position can spring back upward with force when the lever is pulled. While operating the lever to return the seatback, hold the seatback lightly so that it may be raised back gradually.
CONTINUED
1-4 Seat, seatbelt and SRS airbags
WARNING
To prevent the passenger from slid­ing under the seatbelt in the event of a collision, always put the seatback in the upright position while the vehicle is in motion. Also, do not place objects such as cushions between the passenger and the seatback. If you do so, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will increase, and both can result in serious internal injury or death.
& Seat cushion height adjust-
ment (drivers seat)
1) When the lever is pushed down, the seat is lowered.
2) When the lever is pulled up, the seat rises.
The height of the seat can be adjusted by moving the seat cushion adjustment lever up and down.
& Head restraint adjustment (if
equipped)
WARNING
. Never drive the vehicle with the
head restraints removed because they are designed to reduce the risk of serious neck injury in the event that the vehicle is struck from the rear. Also, never install the head restraints the opposite way round. Doing so will prevent the head restraints from func­tioning as intended. Therefore, when you remove the head re­straints, you must reinstall all head restraints correctly to pro­tect vehicle occupants.
. All occupants, including the dri-
ver, should not operate a vehicle or sit in a vehicles seat until the head restraints are placed in their proper positions in order to mini­mize the risk of neck injury in the event of a crash.
The head restraints for the drivers seat and front passengers seat are adjustable in the following ways.
Seat, seatbelt and SRS airbags 1-5
! Head restraint height adjustment
1) Head restraint
2) Release button
Each head restraint should be adjusted so that the center of the head restraint is closest to the top of the occupants ears.
To raise:
Pull the head restraint up.
To lower:
Push the head restrai nt down while pressing the release button on the top of the seatback.
To remove:
While pressing the release button, pull out the head restraint.
To install:
Install the head restraint into the holes that
are located on the top of the seatback until the head restraint locks.
! Head restraint angle adjustment
The angle of the head restraint can be adjusted in several steps. While maintain­ing a suitable driving posture, adjust the head restraint to a position where the back of your head is as close to the head restraint as possible.
To tilt:
Tilt the head restraint by hand to the preferred position. A click will be audible when the head restraint is locked.
To return:
Tilt the head restraint once as far forward as it can go. The head restraint will automatically return to the fully upright position. Then, adjust the head restraint
again to the preferred angle.
1-6 Seat, seatbelt and SRS airbags
Seat heater (if equipped)
The seat heater is equipped in the front seats.
The seat heater operates when the igni­tion switch is either in the ACCor ON position.
CAUTION
. There is a possibility that people
with delicate skin may suffer slight burns even at low tempera­tures if they use the seat heater for a long period of time. When using the heater, always be sure to warn the persons concerned.
. Do not put anything on the seat
which insulates against heat, such as a blanket, cushion, or similar items. This may cause the seat heater to overheat.
NOTE
Use of the seat heater for a long period of time while the engine is not running can cause battery discharge.
depending on the temperature. Selecting the HIposition will cause the
seat to heat up quicker.
To turn off the seat heater, lightly press the opposite side of the current position.
The indicator located on the switch illumi­nates when the seat heater is in operation. When the vehicles interior is warmed enough or before you leave the vehicle, be sure to turn the switch off.
1) HI – Rapid heating
2) LO – Normal heating
3) Off
A) Left-hand side B) Right-hand side
To turn on the seat heater, push the LO or HIposition on the switch, as desired,
Seat, seatbelt and SRS airbags 1-7
Rear seats
WARNING
Seatbelts provide maximum r e­straint when the occupant sits well back and upright in the seat. Do not put cushions or any other materials between occupants and seatbacks or seat cushions. If you do so, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will increase, and both can result in serious internal injury or death.
WARNING
Never stack luggage or other cargo higher than the top of the seatback because it could tumble forward and injure passengers in the event of a sudden stop or accident.
& Armrest (if equipped)
To lower the armrest, pull on the top edge of the armrest.
WARNING
To avoid the possibility of serious injury, passengers must never be allowed to sit on the center armrest while the vehicle is in motion.
CONTINUED
Loading...
+ 375 hidden pages
