Studer ON-AIR-2000 Schematic

Download
OnAir 2000 Digital Mixing Console
Page: 1 of 1
Correlator 30 LED, 2-CH 1.913.109.81 ( 0)
MP 9 1.913.109.04 STUDER-NR.-ETIKETTE 10 * 2001 pce MP 11 1.913.010.41 FRONTSCHILD 1E 30LED CORR.2CH01 pce MP 12 1.913.010.40 TRAEGER 1E 30LED CORRELATOR01 pce MP 13 21.99.0175 M3*6 S-Schraube IS A2 sw oxydiert02 pcs MP 14 1.913.136.03 FENSTER BUS SELECTOR +VU01 pce MP 15 1.913.212.93 LL KORRELATOR 2CH01 pce MP 16 1.913.109.93 LL CORRELATOR 30 LED01 pce MP 17 1.913.212.00 CORRELATOR BOARD ,A01 pce MP 18 24.16.3023 2.3 Wellensicherung02 pcs MP 19 1.010.022.21 M3*8 L-Schraube IS sw spezial02 pcs MP 20 21.01.2353 M3*5 S - Schraube Zn bl chr03 pcs MP 21 1.913.095.00 CORRELATOR 30LED 2CH ,A01 pce
End of List
Part No. Qty. Type/Val. DescriptionPos.Idx. Part No. Qty. Type/Val. DescriptionPos.Idx .
Page: 1 of 1
Correlator 30 LED, 4-CH 1.913.100.81 ( 0)
MP 9 1.913.100.04 STUDER-NR.-ETIKETTE 10 * 2001 pce MP 10 1.010.031.22 1/4*40NS Abdeck-Mutter Ms Ni01 pce MP 11 1.913.010.42 FRONTSCHILD 1E 30LED CORR.4CH01 pce MP 12 1.913.010.40 TRAEGER 1E 30LED CORRELATOR01 pce MP 13 21.99.0175 M3*6 S-Schraube IS A2 sw oxydiert02 pcs MP 14 1.913.136.03 FENSTER BUS SELECTOR +VU01 pce MP 15 1.913.211.93 LL KORRELATOR 4CH01 pce MP 16 1.913.109.93 LL CORRELATOR 30 LED01 pce MP 17 1.913.212.00 CORRELATOR BOARD ,A01 pce MP 18 24.16.3023 2.3 Wellensicherung02 pcs MP 19 1.010.022.21 M3*8 L-Schraube IS sw spezial02 pcs MP 20 21.01.2353 M3*5 S - Schraube Zn bl chr03 pcs MP 21 1.913.095.00 CORRELATOR 30LED 2CH ,A01 pce S 1 55.01.0115 4*on-none-on Kippschalter Ag01 pce
End of List
Correlator 30 LED, 2-CH 1.913.109.81 ( 0) / 4-CH 1.913.100.81 ( 0)
twisted
Date printed: 12.09.06
Toggle Switch S1
twisted
Section 1
Correlator PCB 1.913.212.00 ( 4)
OnAir 2000 Digital Mixing Console
Section 1Date printed: 12.09.06
OnAir 2000 Digital Mixing Console
Correlator PCB 1.913.212.00 ( 0)
Part No. Qty. Type/Val. DescriptionPos.Idx. Part No. Qty. Type/Val. DescriptionPos.Idx.
C 1 59.34.1120 12p CER 63V, 5%, NP 00 C 2 59.02.5683 68n MPC, 5%, 250V0 C 3 59.12.7752 7n5 PS 63V 1%0 C 4 59.22.5101 100u EL 25V 20% RM50 C 5 59.12.7392 3n9 PS 63V 1%0 C 6 59.34.4680 68p CER 63V, 5%, N7500 C 7 59.22.5101 100u EL 25V 20% RM50 C 8 59.34.1120 12p CER 63V, 5%, NP 00 C 9 59.02.5683 68n MPC, 5%, 250V0 C 10 59.12.7752 7 n5 PS 63V 1%0 C 11 59.22.5101 1 00u EL 25V 20% RM50 C 12 59.12.7392 3 n9 PS 63V 1%0 C 13 59.34.4680 6 8p CER 63V, 5%, N7500 C 14 59.22.5101 1 00u EL 25V 20% RM50 C 15 59.22.5101 1 00u EL 25V 20% RM50 C 16 59.26.1220 2 2u SAL 10V 20%0 C 17 59.26.1220 2 2u SAL 10V 20%0 C 18 59.22.4221 2 20u EL 16V 20% RM50 C 19 59.22.4221 2 20u EL 16V 20% RM50 D 1 50.04.0125 1N4448 75V, 150mA, 4ns, DO-350 D 2 50.04.0125 1N4448 75V, 150mA, 4ns, DO-350 D 3 50.04.0125 1N4448 75V, 150mA, 4ns, DO-350 D 4 50.04.0125 1N4448 75V, 150mA, 4ns, DO-350 IC 1 50.09.0107 4559 Dual Op-Amp0 IC 2 50.09.0107 4559 Dual Op-Amp0 IC 3 50.05.0122 1496 Multiplier TO1000 MP 1 1.913.210.11 CORRELATOR BOARD01 pcs MP 2 54.02.0471 Stift d 1.5 * 5.5 löt0 25 pcs P 1 54.14.2012 1 6p Winkelstecker Au0 R 1 57.11.3562 5k6 MF, 1%, 02070 R 2 57.11.3562 5k6 MF, 1%, 02070 R 3 57.11.3151 150R MF, 1%, 02070 R 4 58.01.7102 1k0 Cermet, 10% 0.25W0 R 5 57.11.3472 4k7 MF, 1%, 02070 R 6 57.11.3103 10k MF, 1%, 02070 R 7 57.11.3103 10k MF, 1%, 02070 R 8 57.11.3221 220R MF, 1%, 02070 R 9 57.11.3333 33k MF, 1%, 02070 R 10 57.11.3562 5 k6 MF, 1%, 02070 R 11 57.11.3562 5 k6 MF, 1%, 02070 R 12 57.11.3151 1 50R MF, 1%, 02070 R 13 58.01.7102 1 k0 Cermet, 10% 0.25W0 R 14 57.11.3472 4 k7 MF, 1%, 02070 R 15 57.11.3103 1 0k MF, 1%, 02070 R 16 57.11.3103 1 0k MF, 1%, 02070 R 17 57.11.3221 2 20R MF, 1%, 02070 R 18 57.11.3333 3 3k MF, 1%, 02070 R 19 57.11.3471 4 70R MF, 1%, 02070 R 20 57.11.3471 4 70R MF, 1%, 02070 R 21 57.11.3682 6 k8 MF, 1%, 02070
0
R 22 57.11.3332 3 k3 MF, 1%, 0207 R 23 57.11.3332 3 k3 MF, 1%, 02070 R 24 57.11.3153 1 5k MF, 1%, 02070 R 25 57.11.3472 4 k7 MF, 1%, 02070 R 26 58.01.8203 2 0k Cermet, 10%, 0.5W, horizontal0 R 27 57.11.3822 8 k2 MF, 1%, 02070 R 28 57.11.3822 8 k2 MF, 1%, 02070 R 29 58.01.8103 1 0k Cermet, 10%, 0.5W, horizontal0 R 30 57.11.3471 4 70R MF, 1%, 02070 R 31 57.11.3471 4 70R MF, 1%, 02070 R 32 57.11.3223 2 2k MF, 1%, 02070 R 33 57.11.3479 4 R7 MF, 1%, 02070 R 34 57.99.0206 5 0R PTC, 25V, 0.5W0 R 35 57.99.0206 5 0R PTC, 25V, 0.5W0 T 1 1.022.218.00 1 : 1 EINGANGSTRAFO 1 : 10 T 2 1.022.218.00 1 : 1 EINGANGSTRAFO 1 : 10 W 1 1.010.324.64 RM10.2 U shaped wire 0.6mm0 W 2 1.010.324.64 RM10.2 U shaped wire 0.6mm0 XIC 1 53.03.0166 8p DIL-socket 0.3"0 XIC 2 53.03.0166 8p DIL-socket 0.3"0
Page: 1 of 1
Date printed: 11.09.2006
End of List
Section 1

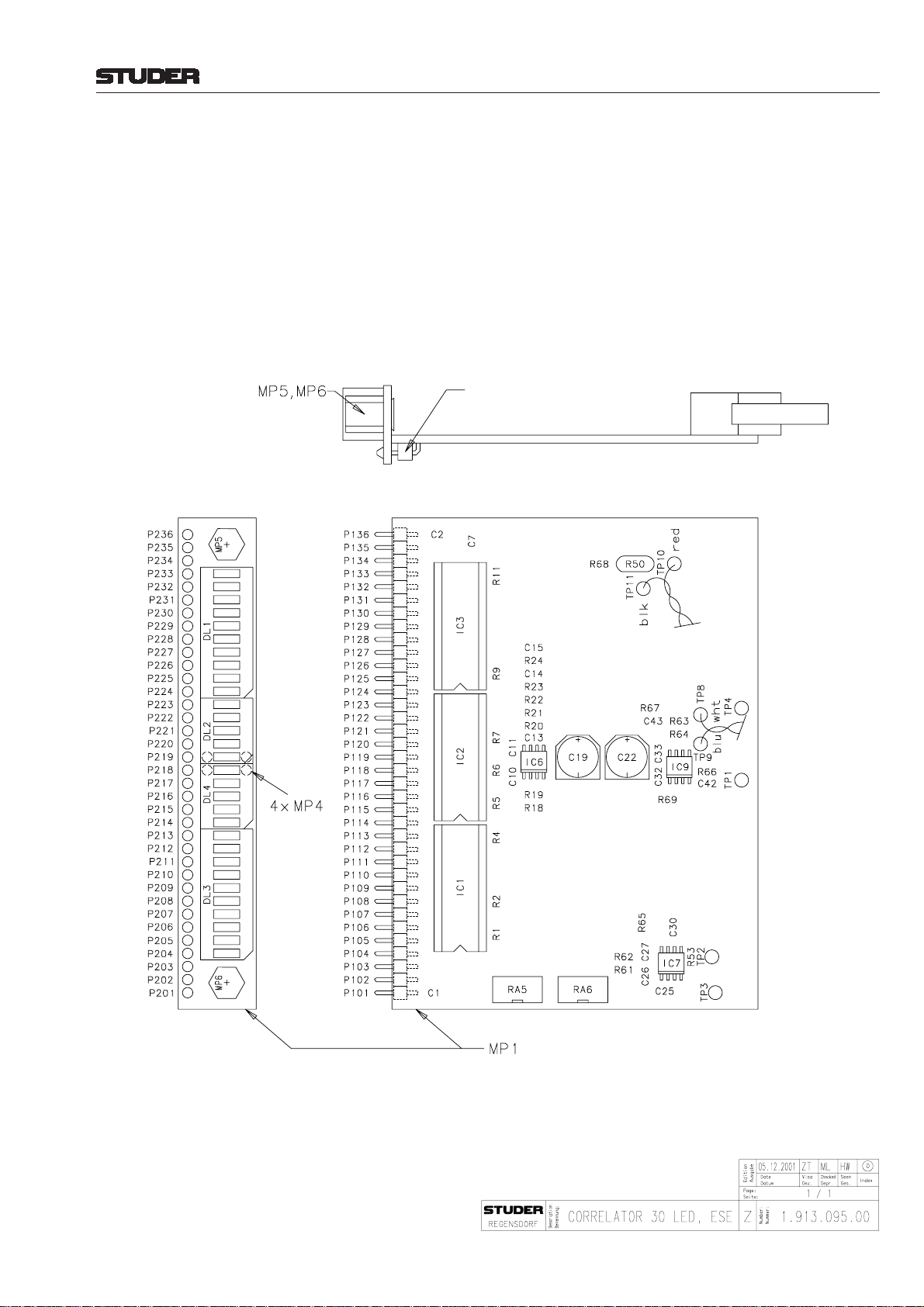

Correlator 30 LED PCB 1.913.095.00 ( 0)
OnAir 2000 Digital Mixing Console
P101...P136 on solder side
Section 1Date printed: 12.09.06
OnAir 2000 Digital Mixing Console
Correlator 30 LED PCB 1.913.095.00 ( 0)
Part No. Qty. Type/Val. DescriptionPos.Idx. Part No. Qty. Type/Val. DescriptionPos.Idx.
C 1 59.60.3337 100n CER 50V, 10%, X7R, 080501 pce C 2 59.60.3337 100n CER 50V, 10%, X7R, 080501 pce C 7 59.60.3337 100n CER 50V, 10%, X7R, 080501 pce C 10 59.60.3337 1 00n CER 50V, 10%, X7R, 080501 pce C 11 59.60.3337 1 00n CER 50V, 10%, X7R, 080501 pce C 13 59.60.2241 4 7p CER 50V, 5%, C0G, 060301 pce C 14 59.60.3337 1 00n CER 50V, 10%, X7R, 080501 pce C 15 59.60.3337 1 00n CER 50V, 10%, X7R, 080501 pce C 19 59.68.0073 2 20u EL 16V, 8.0*10.701 pce C 22 59.68.0073 2 20u EL 16V, 8.0*10.701 pce C 25 59.60.2373 1 n0 CER 50V, 5%, C0G, 080501 pce C 26 59.60.3337 1 00n CER 50V, 10%, X7R, 080501 pce C 27 59.60.3337 1 00n CER 50V, 10%, X7R, 080501 pce C 30 59.60.3337 1 00n CER 50V, 10%, X7R, 080501 pce C 32 59.60.3337 1 00n CER 50V, 10%, X7R, 080501 pce C 33 59.60.3337 1 00n CER 50V, 10%, X7R, 080501 pce C 42 59.60.3337 1 00n CER 50V, 10%, X7R, 080501 pce C 43 59.60.3337 1 00n CER 50V, 10%, X7R, 080501 pce DL 1 50.04.2150 MV57164 10*LED-Bargraf rot diffus01 pce DL 2 1.913.109.01 5 LED DISPLAY RED01 pce DL 3 50.04.2161 GRN DLZ MV 54 164,LTA1000G 10*D GN01 pce DL 4 1.913.109.02 5 LED DISPLAY GREEN01 pce IC 1 50.11.0119 LM3914 IC LM 3914 N,01 pce IC 2 50.11.0119 LM3914 IC LM 3914 N,01 pce IC 3 50.11.0119 LM3914 IC LM 3914 N,01 pce IC 6 50.61.0207 LF353 Dual Op-Amp JFET SO 801 pce IC 7 50.61.0207 LF353 Dual Op-Amp JFET SO 801 pce IC 9 50.61.0207 LF353 Dual Op-Amp JFET SO 801 pce MP 1 1.913.293.11 VU/PPM/GRM METER PCB01 pce MP 2 1.913.109.04 STUDER-NR.-ETIKETTE 10 * 2001 pce MP 3 43.01.0108 L abel ESE-Warnschild01 pce MP 4 1.913.109.03 DISPLAY UNTERLAGE04 pcs MP 5 1.010.057.22 M3*7.4 Nietmutter sw 601 pce MP 6 1.010.057.22 M3*7.4 Nietmutter sw 601 pce P 101 54.11.0125 1p Pin, 1reihig, winkel0 P 102 54.11.0125 1p Pin, 1reihig, winkel0 P 103 54.11.0125 1p Pin, 1reihig, winkel0 P 104 54.11.0125 1p Pin, 1reihig, winkel0 P 105 54.11.0125 1p Pin, 1reihig, winkel0 P 106 54.11.0125 1p Pin, 1reihig, winkel0 P 107 54.11.0125 1p Pin, 1reihig, winkel0 P 108 54.11.0125 1p Pin, 1reihig, winkel0 P 109 54.11.0125 1p Pin, 1reihig, winkel0 P 110 54.11.0125 1p Pin, 1reihig, winkel0 P 111 54.11.0125 1p Pin, 1reihig, winkel0 P 112 54.11.0125 1p Pin, 1reihig, winkel0 P 113 54.11.0125 1p Pin, 1reihig, winkel0 P 114 54.11.0125 1p Pin, 1reihig, winkel0 P 115 54.11.0125 1p Pin, 1reihig, winkel0 P 116 54.11.0125 1p Pin, 1reihig, winkel0 P 117 54.11.0125 1p Pin, 1reihig, winkel0 P 118 54.11.0125 1p Pin, 1reihig, winkel0 P 119 54.11.0125 1p Pin, 1reihig, winkel0 P 120 54.11.0125 1p Pin, 1reihig, winkel0 P 121 54.11.0125 1p Pin, 1reihig, winkel0 P 122 54.11.0125 1p Pin, 1reihig, winkel0 P 123 54.11.0125 1p Pin, 1reihig, winkel0 P 124 54.11.0125 1p Pin, 1reihig, winkel0 P 125 54.11.0125 1p Pin, 1reihig, winkel0 P 126 54.11.0125 1p Pin, 1reihig, winkel0 P 127 54.11.0125 1p Pin, 1reihig, winkel0 P 128 54.11.0125 1p Pin, 1reihig, winkel0 P 129 54.11.0125 1p Pin, 1reihig, winkel0 P 130 54.11.0125 1p Pin, 1reihig, winkel0 P 131 54.11.0125 1p Pin, 1reihig, winkel0 P 132 54.11.0125 1p Pin, 1reihig, winkel0 P 133 54.11.0125 1p Pin, 1reihig, winkel0 P 134 54.11.0125 1p Pin, 1reihig, winkel0 P 135 54.11.0125 1p Pin, 1reihig, winkel0 P 136 54.11.0125 1p Pin, 1reihig, winkel0 R 1 57.60.1222 2k2 MF, 1%, 0204, E2401 pce R 2 57.60.1223 22k MF, 1%, 0204, E2401 pce R 4 57.60.1000 0R0 MF, 020401 pce R 5 57.60.1222 2k2 MF, 1%, 0204, E2401 pce R 6 57.60.1222 2k2 MF, 1%, 0204, E2401 pce R 7 57.60.1223 22k MF, 1%, 0204, E2401 pce R 9 57.60.1000 0R0 MF, 020401 pce R 11 57.60.1000 0 R0 MF, 020401 pce R 18 57.60.1682 6 k8 MF, 1%, 0204, E2401 pce R 19 57.60.1682 6 k8 MF, 1%, 0204, E2401 pce R 20 57.60.1330 3 3R MF, 1%, 0204, E2401 pce R 21 57.60.1122 1 k2 MF, 1%, 0204, E2401 pce R 22 57.60.1102 1 k0 MF, 1%, 0204, E2401 pce R 23 57.60.1512 5 k1 MF, 1%, 0204, E2401 pce R 24 57.60.1512 5 k1 MF, 1%, 0204, E2401 pce R 50 57.92.7012 0 .3A PTC 60V01 pce R 53 57.60.1223 2 2k MF, 1%, 0204, E2401 pce R 61 57.60.1682 6 k8 MF, 1%, 0204, E2401 pce R 62 57.60.1223 2 2k MF, 1%, 0204, E2401 pce R 63 57.60.1222 2 k2 MF, 1%, 0204, E2401 pce R 64 57.60.1223 2 2k MF, 1%, 0204, E2401 pce R 65 57.60.1105 1 M0 MF, 1%, 0204, E2401 pce R 66 57.60.1103 1 0k MF, 1%, 0204, E2401 pce R 67 57.60.1103 1 0k MF, 1%, 0204, E2401 pce R 68 57.60.1000 0 R0 MF, 020401 pce R 69 57.60.1000 0 R0 MF, 020401 pce RA 5 58.01.9502 5k0 Cermet, 10%, 0.5W, vertical01 pce RA 6 58.01.9103 10k Cermet, 10%, 0.5W, vertical01 pce TP 1 54.02.0471 Stift d 1.5 * 5.5 löt01 pce TP 2 54.02.0471 Stift d 1.5 * 5.5 löt01 pce
01 pce
TP 3 54.02.0471 Stift d 1.5 * 5.5 löt TP 4 54.02.0471 Stift d 1.5 * 5.5 löt01 pce
TP 8 54.02.0471 Stift d 1.5 * 5.5 löt01 pce TP 9 54.02.0471 Stift d 1.5 * 5.5 löt01 pce TP 10 54.02.0471 Stift d 1.5 * 5.5 löt01 pce TP 11 54.02.0471 Stift d 1.5 * 5.5 löt01 pce
End of List
Page: 1 of 1
Date printed: 12.09.2006
Section 1
