Stryker 4400-110-083A Maintenance Manual

4400 Infant Bassinet

Operations/Maintenance Manual

For Parts or Technical Assistance
800–327–0770

Table of Contents

Introduction

Specifications 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warning / Caution / Note Definition 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety Tips and Guidelines 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Features and Dimensions 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Proper Bassinet Pushing Technique 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trendelenburg Positioning 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preventative Maintenance Checklist 7, 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bassinet Assembly and Parts List 9–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warranty

Obtaining Parts and Service 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Supplemental Warranty Coverage 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Return Authorization 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Freight Damage Claims 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction

INTRODUCTION

The Stryker Infant Bassinet is intended for use as a support and transport surface for an infant in a health
care environment.

This manual is designed to assist you with the operation of the Stryker Infant Bassinet. Read it thoroughly
before using the equipment or beginning any maintenance on it.

SPECIFICATIONS

Overall Length 34.22”
Overall Width 21.50”
Patient Surface Width 16.75”
Overall Height 38.38” $ .25”
Height to Patient Surface 32.00”

WARNING / CAUTION / NOTE DEFINITION

The words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed.

WARNING

The personal safety of the patient or user may be involved. Disregarding this information could result in injury
to the patient or user.

CAUTION

These instructions point out special procedures or precautions that must be followed to avoid damaging the
equipment.

NOTE

This provides special information to make maintenance easier or important instructions clearer.

2

Introduction

SAFETY TIPS AND GUIDELINES

Before operating the Stryker Infant Bassinet, it is important to read and understand all information in this
manual. Carefully read and strictly follow the safety guidelines listed on this page.

WARNING

To avoid risk of injury, never leave an infant unattended and do not leave sheets, blankets, pillows or other
items in the bassinet with the infant.

Use the pull–out chart board only as a writing surface. Do not sit or lean on it, or apply excessive weight to
it, or tipping of the bassinet could occur and injury could result.

To prevent the bassinet from tipping and causing injury, do not place more than 25 pounds (11 kilograms) in
the bassinet drawer.

Push the bassinet only from the ends. Do not push the bassinet from the sides or tipping of the bassinet could
occur and injury could result.

When putting the bassinet into Trendelenburg/Reverse Trendelenburg, verify the “J” hook is engaged and
secure before releasing the tub or injury could occur.

3

Introduction

WARNING

Use the pull–out chart board only as a writing surface. Do not sit or lean on it, or apply excessive weight to
it, or tipping of the bassinet could occur and injury could result.
To prevent the bassinet from tipping and causing injury, do not place more than 25 pounds (11 kilograms) in
the bassinet drawer.

4

Bassinet Operating Instructions

PROPER BASSINET PUSHING TECHNIQUE

DIRECTIONS

PUSH ONLY

IN THESE

TOP VIEW OF BASSINET

LABEL #1

WARNING

DO NOT PUSH IN

THESE DIRECTIONS

LABEL #2

WARNING

Push the bassinet only from the ends as indicated by the illustrations above. Do not push the bassinet from
the sides or tipping of the bassinet could occur and injury could result.

DRAWER / DOOR SIDE

5

Bassinet Operating Instructions

TRENDELENBURG POSITIONING

To put the bassinet into the Trendelenburg/Reverse Trendelenburg position, lift up on the tub, then lower it
until the hook engages securely with the end rail (see above).

WARNING

When putting the bassinet into Trendelenburg/Reverse Trendelenburg, verify the “J” hook is engaged and
secure before releasing the tub or injury could occur.

Tub with “J” Hooks – part number 8800–455–200
12 1/2” x 26” Mattress – part number 8800–346–300

6

Preventive Maintenance

MAINTENANCE CHECKLIST

All fasteners secure
All casters secure and swiveling properly
No debris in casters
Front casters hold when brakes are applied
Base counterweight present and secure
Pull–out chart board intact and secure
Trendelenburg hook intact
Drawers intact and sliding smoothly
Doors intact and hinges operating smoothly
Warning labels intact and legible

Serial No.______________
______________
______________

Completed By:_________________________________ Date:_____________

CLEANING

To clean the bassinet cabinet, wipe it with a soft cloth and a mild soap and water solution. Rinse thoroughly.
Clean the bassinet tub with a mild anti–bacterial soap and warm water solution. Rinse thoroughly.

CAUTION

The bassinet tub should not be exposed to alcohol, solvents or abrasives or damage could occur.

7

Modern–Style Bassinet Assembly

EACH INTERIOR

SIDE

EACH SIDE

BUMPER ASSEMBLY

TYPICAL 4 PLACES

Item Part No. Part Name Qty.

1 8800–455–200 Tub 1
2 4400–110–001 Modern Style Cabinet 1
3 8800–469–800 Pad 2
4 8800–346–300 Mattress 1
5 8804–002–700 Bumper 4
6 8801–580–200 Grabber Screw 16
8 8804–202–500 Counterweight 1
9 4400–110–076 Lag Screw 4
10 4400–090–003 Push Direction Label 2
11 4400–110–901 Bassinet Warning Label 2
12 4400–110–083 Manual 1
13 8801–410–100 Serial Number Label 1

8

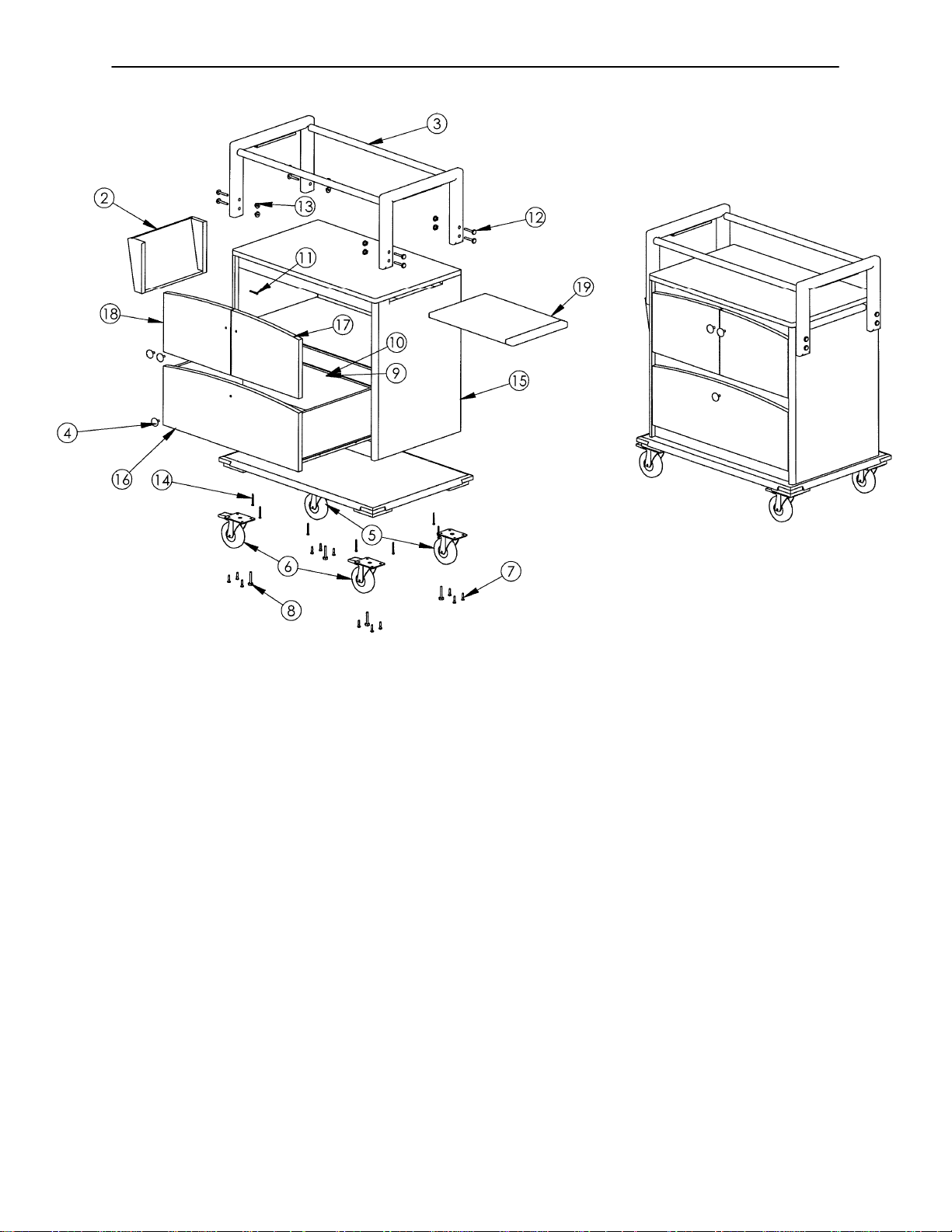

Modern–Style Bassinet Assembly

Item Part No. Part Name Qty.

1 4400–110–115 Base Assembly 1
2 4400–110–052 Chart Holder 1
3 4400–110–090 Push Handle Assembly 1
4 (page 14) Knob 3
5 4400–110–061 Non–Locking Swivel Caster 2
6 4400–110–060 Locking Swivel Caster 2
7 4400–110–057 Wood Screw 12
8 4400–110–058 Hex Bolt 4
9 4400–110–059 Lock Washer 4
10 4400–110–068 Hex Nut 4
11 4400–110–063 Screw 4
12 4400–110–064 Bolt 8
13 4400–110–065 T–Nut 8
14 4400–110–066 Screw 10
15 4400–110–110 Cabinet Assembly 1
16 4400–110–012 Cabinet Drawer Assembly 1
17 4400–110–011 Cabinet Drawer, Right 1
18 4400–110–010 Cabinet Drawer, Left 1
19 4400–110–030 Chart Board 1

9

Shaker–Style Bassinet Assembly

EACH INTERIOR SIDE

EACH SIDE

BUMPER ASSEMBLY

TYPICAL 4 PLACES

Item Part No. Part Name Qty.

1 8800–455–200 Tub 1
2 4400–210–001 Shaker Cabinet 1
3 8800–469–800 Pad 2
4 8800–346–300 Mattress 1
5 8804–002–700 Bumper 4
6 8801–580–200 Grabber Screw 16
8 8804–202–500 Counterweight 1
9 4400–110–076 Lag Screw 4
10 4400–110–083 Manual 1
11 8801–410–100 Serial Number Label 1
12 4400–110–901 Bassinet Warning Label 2
13 4400–090–003 Push Direction Label 2

10

Shaker–Style Bassinet Assembly

Item Part No. Part Name Qty.

1 4400–210–115 Base Assembly 1
2 4400–210–110 Cabinet Assembly 1
3 4400–210–071 Cabinet Bottom Base Trim 2
4 4400–210–072 Cabinet Bottom Base Trim 2
5 4400–110–030 Chart Board 1
6 4400–110–052 Chart Holder 1
7 4400–110–090 Push Handle Assembly 1
8 4400–210–012 Cabinet Drawer Assembly 1
9 4400–210–010 Drawer Door 1
10 4400–210–011 Drawer Door 1
11 (page 14) Knob 3
12 4400–110–061 Non–Locking Swivel Caster 2
13 4400–110–060 Locking Swivel Caster 2
14 4400–110–057 Wood Screw 12
15 4400–110–058 Hex Bolt 4
16 4400–110–059 Lock Washer 4
17 4400–110–068 Hex Nut 4
18 4400–110–063 Screw 4
19 4400–110–064 Bolt 8
20 4400–110–065 T–Nut 8
21 4400–110–066 Screw 10
22 4400–110–070 Top Face Board 1

11

Traditional–Style Bassinet Assembly

EACH INTERIOR

SIDE

EACH SIDE

BUMPER ASSEMBLY

TYPICAL 4 PLACES

Item Part No. Part Name Qty.

1 8800–455–200 Tub 1
2 4400–310–001 Traditional Cabinet 1
3 8800–469–800 Pad 2
4 8800–346–300 Mattress 1
5 8804–002–700 Bumper 4
6 8801–580–200 Grabber Screw 16
8 8804–202–500 Counterweight 1
9 4400–110–076 Lag Screw 4
10 4400–090–003 Push Direction Label 2
11 4400–110–083 Manual 1
12 8801–410–100 Serial Number Label 1
13 4400–110–901 Bassinet Warning Label 2

12

Traditional–Style Bassinet Assembly

Item Part No. Part Name Qty.

1 4400–210–115 Base Assembly 1
2 4400–210–110 Cabinet Assembly 1
3 4400–210–071 Cabinet Bottom Base Trim 2
4 4400–210–072 Cabinet Bottom Base Trim 2
5 4400–110–052 Chart Holder 1
6 4400–110–090 Push Handle Assembly 1
7 (page 14) Knob 3
8 4400–110–061 Non–Locking Swivel Caster 2
9 4400–110–060 Locking Swivel Caster 2
10 4400–110–057 Wood Screw 12
11 4400–110–058 Hex Bolt 4
12 4400–110–059 Lock Washer 4
13 4400–110–068 Hex Nut 4
14 4400–110–063 Screw 4
15 4400–110–064 Bolt 8
16 4400–110–065 T–Nut 8
17 4400–110–066 Screw 10
18 4400–310–012 Cabinet Drawer Assembly 1
19 4400–310–010 Cabinet Drawer Front 1
20 4400–310–011 Cabinet Drawer Front 1
21 4400–110–030 Chart Board 1

13

Knobs and Hinges – All Bassinets

KNOBS AND HINGES

Part Number Description

Round Knob, Colonial Black

8100–000–001

8100–000–002

8100–000–003

Part Number Description

8100–000–004 Round Knob, Polished Brass
8100–000–005 Oval Knob, Polished Chrome
8100–000–006 Oval Knob, Black Nickel
8100–000–007 Round Knob, White Porcelain
8100–000–008 Flat Oval Knob, Satin Brass
8100–000–009 Flat Oval Knob, Satin Silver

Butterfly Hinge, Colonial Black

Round Knob, Antique Copper

Butterfly Hinge, Antique Copper

Round Knob, Antique Brass

Butterfly Hinge, Antique Brass

KNOBS

14

Warranty

Limited Warranty:

Stryker Medical Division, a division of Stryker Corporation, warrants to the original purchaser that its products
should be free from defects in material and workmanship for a period of one (1) year after date of delivery.
Stryker’s obligation under this warranty is expressly limited to supplying replacement parts and labor for, or
replacing, at its option, any product which is, in the sole discretion of Stryker, found to be defective. Stryker
warrants to the original purchaser that the frame and welds on its beds will be free from structural defects
for as long as the original purchaser owns the bed. If requested by Stryker, products or parts for which a
warranty claim is made shall be returned prepaid to Stryker’s factory. Any improper use or any alteration or
repair by others in such manner as in Stryker’s judgement affects the product materially and adversely shall
void this warranty. Any repair of Stryker products using parts not provided or authorized by Stryker shall void
this warranty. No employee or representative of Stryker is authorized to change this warranty in any way.

Stryker Medical stretchers are designed for a 10 year expected life under normal use conditions and appropri­ate periodic maintenance as described in the maintenance manual for each device.

This statement constitutes Stryker’s entire warranty with respect to the aforesaid equipment. STRYKER
MAKES NO OTHER WARRANTY OR REPRESENTATION, EITHER EXPRESSED OR IMPLIED, EXCEPT
AS SET FORTH HEREIN. THERE IS NO WARRANTY OF MERCHANTABILITY AND THERE ARE NO
WARRANTIES OF FITNESS FOR ANY PARTICULAR PURPOSE. IN NO EVENT SHALL STRYKER BE
LIABLE HEREUNDER FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM OR IN ANY
MANNER RELATED TO SALES OR USE OF ANY SUCH EQUIPMENT.

To Obtain Parts and Service:

Stryker products are supported by a nationwide network of dedicated Stryker Field Service Representatives.
These representatives are factory trained, available locally, and carry a substantial spare parts inventory to
minimize repair time. Simply call your local representative, or call Stryker Customer Service at (800)
327–0770.

Service Contract Coverage:

Stryker has developed a comprehensive program of service contract options designed to keep your equip­ment operating at peak performance at the same time it eliminates unexpected costs. We recommend that
these programs be activated before the expiration of the new product warranty to eliminate the potential of
additional equipment upgrade charges.

A SERVICE CONTRACT HELPS TO:

S Ensure equipment reliability
S Stabilize maintenance budgets
S Diminish downtime
S Establish documentation for JCAHO
S Increase product life
S Enhance trade–in value
S Address risk management and safety

15

Warranty

Stryker offers the following service contract programs:

SPECIFICATIONS GOLD SILVER PM* ONLY

Annually scheduled preventative maintenance X X
All parts,** labor, and travel X X
Unlimited emergency service calls X X
Priority one contact; two hour phone response X X X
Most repairs will be completed within 3 business days X X
JCAHO documentation X X X
On–site log book w/ preventative maintenance & emergency service records X
Factory–trained Stryker Service Technicians X X X
Stryker authorized parts X X X
End of year summary X
Stryker will perform all service during regular business hours (9–5) X X X

* Replacement parts and labor for products under PM contract will be discounted.

** Does not include any disposable items, I.V. poles (except for Stryker HD permanent poles), mattresses, or damage re-

sulting from abuse.

Stryker Medical also offers personalized service contracts.

Pricing is determined by age, location, model and condition of product.

For more information on our service contracts,

please call your local representative or call (800) 327–0770 (option #2).

Return Authorization:

Merchandise cannot be returned without approval from the Stryker Customer Service Department. An autho­rization number will be provided which must be printed on the returned merchandise. Stryker reserves the
right to charge shipping and restocking fees on returned items.

SPECIAL, MODIFIED, OR DISCONTINUED ITEMS NOT SUBJECT TO RETURN.

Damaged Merchandise:

ICC Regulations require that claims for damaged merchandise must be made with the carrier within fifteen
(15) days of receipt of merchandise. DO NOT ACCEPT DAMAGED SHIPMENTS UNLESS SUCH DAMAGE
IS NOTED ON THE DELIVERY RECEIPT AT THE TIME OF RECEIPT. Upon prompt notification, Stryker
will file a freight claim with the appropriate carrier for damages incurred. Claim will be limited in amount to
the actual replacement cost. In the event that this information is not received by Stryker within the fifteen
(15) day period following the delivery of the merchandise, or the damage was not noted on the delivery receipt
at the time of receipt, the customer will be responsible for payment of the original invoice in full.

Claims for any short shipment must be made within thirty (30) days of invoice.

International Warranty Clause:

This warranty reflects U.S. domestic policy. Warranty outside the U.S. may vary by country. Please contact
your local Stryker Medical representative for additional information.

16

European Representative

Stryker France Phone: [phone]
BP 50040–95946 Roissy Ch. de Gaulle Fax: [phone]
Cedex–France

6300 Sprinkle Road, Kalamazoo, MI 49001–9799 (800) 327–0770

www.strykermedical.com

DH 9/01 4400–110–083 REV A
