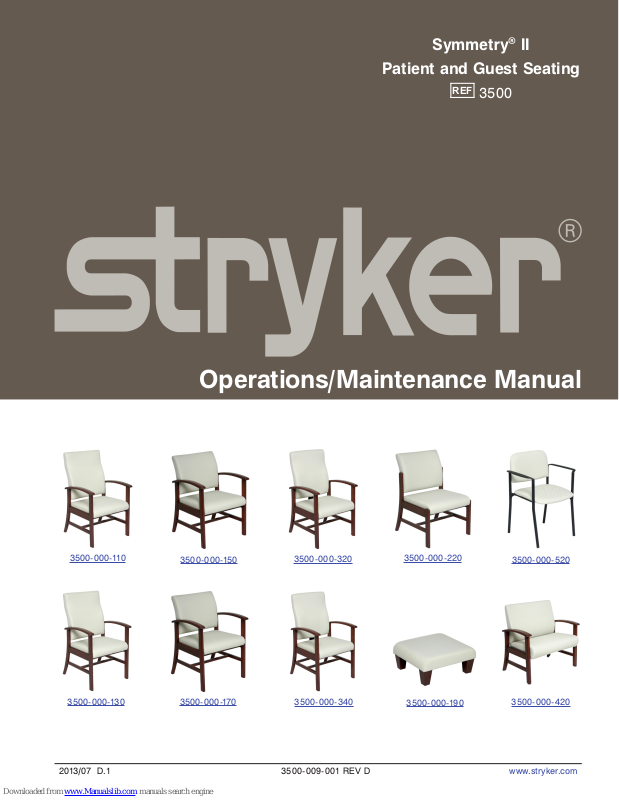

Stryker 3500-000-150, 3500-000-520, 3500-000-320, 3500-000-110, 3500-000-220 Operation & Maintenance Manual

Symmetry® II

White letters and
outline with
transparent
rectangle

Patient and Guest Seating

REF

3500

3500-000-110

Operations/Maintenance Manual

3500-000-150

3500-000-320

3500-000-220

3500-000-520

3500-000-130

3500-000-170

2013/07 D.1 3500-009-001 REV D www.stryker.com

3500-000-340

3500-000-190

3500-000-420

Table of Contents

Symbols and Definitions ....................................................................4

Symbols ............................................................................4

Warning/Caution/Note Definition ...........................................................4

Summary of Safety Precautions ..............................................................4

3500-000-110 Highback Chair (18” Seat Height) ..................................................5

Reference P/N: STR3840 ................................................................5

Specifications ........................................................................6

3500-000-130 Highback Chair (21” Seat Height) ..................................................7

Reference P/N: STR3840-21 .............................................................7

Specifications ........................................................................8

3500-000-150 Lowback Chair with Arms (18”) ....................................................9

Reference P/N: STR3 841 ................................................................9

Specifications .......................................................................10

3500-000-170 Lowback Chair with Arms (21”) ...................................................11

Reference P/N: STR3841-21.............................................................11

Specifications .......................................................................12

3500-000-220 Lowback Chair witho Arms (18” only) ..............................................13

Reference P/N: STR3842 ...............................................................13

Specifications .......................................................................14

3500-000-320 Highback Flexback Chair (18”) ...................................................15

Reference P/N: STR3843 ...............................................................15

Specifications .......................................................................16

3500-000-340 Highback Flexback Chair (21”) ...................................................17

Reference P/N: STR3843-21 ............................................................17

Specifications .......................................................................18

3500-000-520 Steel Chair .................................................................19

Reference P/N: STR2183 ...............................................................19

Specifications .......................................................................20

3500-000-420 Bariatric Chair ..............................................................21

Reference P/N: STR4125 W .............................................................21

Specifications .......................................................................22

3500-000-190 Ottoman....................................................................23

Reference P/N: STR3844 ...............................................................23

Warranty ..............................................................................24

Limited Lifetime Warranty ...............................................................24

One Year Warranty ...................................................................24

To Obtain Parts and Service ............................................................25

Return Authorization...................................................................25

Damaged Merchandise ................................................................25

International Warranty Clause............................................................25

www.stryker.com 3500-009-001 REV D 3

Symbols and Definitions

SYMBOLS

Warning/Caution: Consult accompanying documentation

Manufacturer

WARNING/CAUTION/NOTE DEFINITION

The words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed.

WARNING

Alerts the reader about a situation which, if not avoided, could result in death or serious injury. It may also describe
potential serious adverse reactions and safety hazards.

CAUTION

Alerts the reader of a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the
user or patient or damage to the equipment or other property. This includes special care necessary for the safe and
effective use of the device and the care necessary to avoid damage to a device that may occur as a result of use or
misuse.

NOTE

Provides special information to make maintenance easier or important instructions clearer.

Summary of Safety Precautions

WARNING

• To avoid the risk of serious injury or product damage, do not stand on chair seat or ottoman.

• To avoid the risk of serious injury or product damage, do not sit on chair arms.

• To avoid the risk of serious injury or product damage, while standing behind the chair, do not lean on chair backrest

or chair arms.

• To avoid the risk of serious injury or product damage, keep all four chair legs on the ground when seated.

• To avoid the risk of serious injury or product damage, do not lay infants or infant carriers in the chair or on the

ottoman.

• Stow the ottoman under the chair when not in use to avoid a tripping hazard.

• Failure to properly clean a contaminated surface will increase the risk of exposure to bloodborne pathogens.

CAUTION

• To avoid the risk of product or floor damage, do not use chairs and/or ottoman if all glides are not present.

• Cleaning products may be harmful to your skin and/or eyes. Use protective gloves and eye protection. Protect the

surrounding area and clothing from exposure to cleaners. Do not inhale or swallow any cleaning agents. Follow
all cleaning product manufacturer’s warnings.

• The use of certain agents can be harmful to the surface appearance and lifespan of fabrics. Check compatibility

of any cleaning product with other surfaces on the furniture, such as painted surfaces or varnish.

• Clean all stains immediately as some stains may become permanent if not removed quickly.

Return To Table of Contents

4 3500-009-001 REV D www.stryker.com

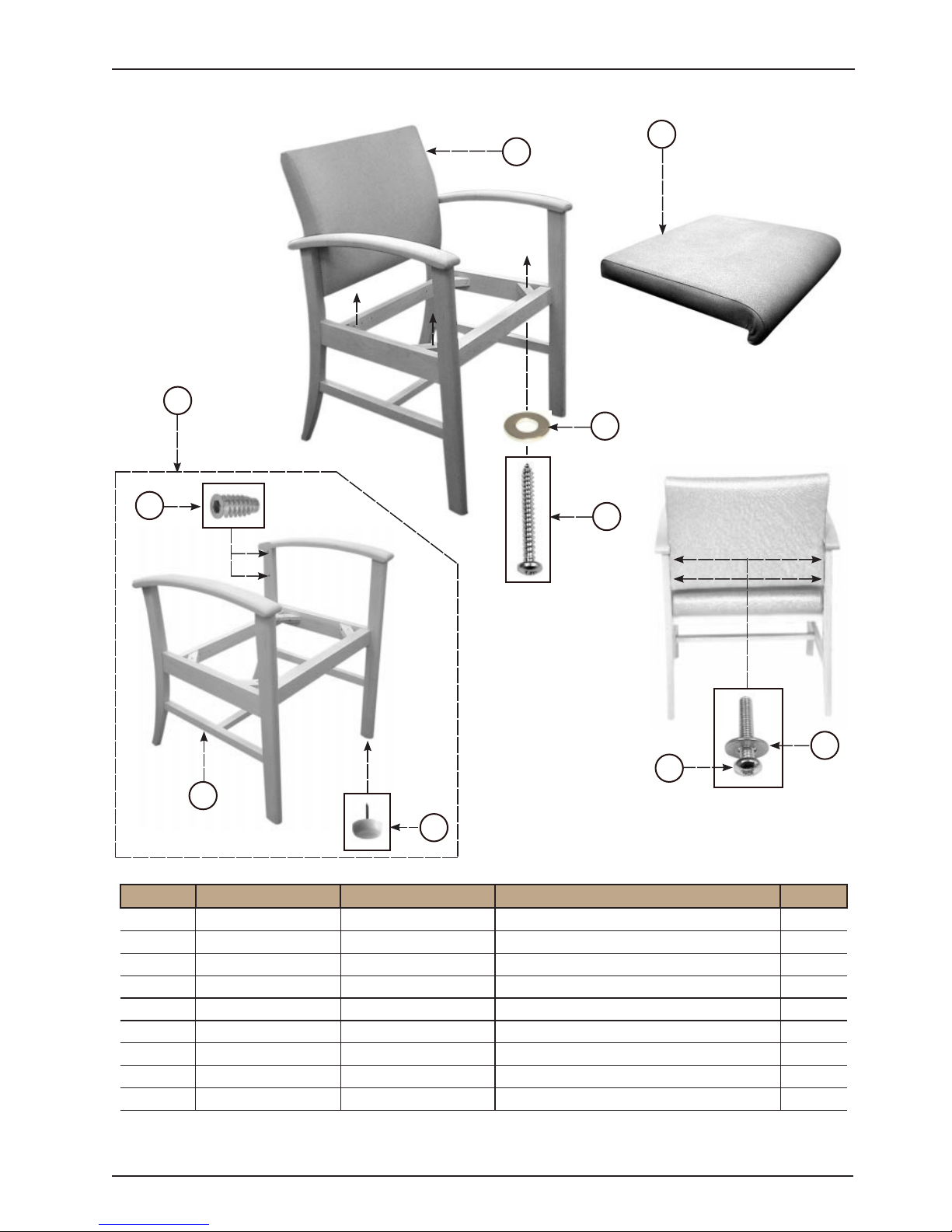

3500-000-110 Highback Chair (18” Seat Height)

Reference P/N: STR3840

1.3

4

2

1

6

3

6

5

1.1

1.2

Item Stryke r P/N Reference P/N Part Description Qt y.

1 (not serviceable) 17006STR3840 Chair Frame with Glides and Inserts 1

1.1 (not serviceable) 00206STR3840 Chair Frame 1

1.2 3500-100-001 004350019 3/4” Tack Glide, White 4

1.3 (not serviceable) 0043500512 1/4”-20 x 20mm Type D Inst. Nut 4

2 3500-100-002 16071STR3 840 UPH Seat Only 1

3 3500-100-003 004310164 #12 x 2” Pan Quad TS Zinc 4

4 (not serviceable) 16032STR3840 UPH Back Only 1

5 (not serviceable) 0 04310287B LK 1/4”-20 x 1-1/2” Pan Quad M 4

6 (not serviceable) 004 310612 5/16” ID x 3/4” OD x 1/16” Washer 8

www.stryker.com 3500-009-001 REV D 5

Note: Back attached to frame
from inside upholstery, using
Loctite® on screw.

Return To Table of Contents

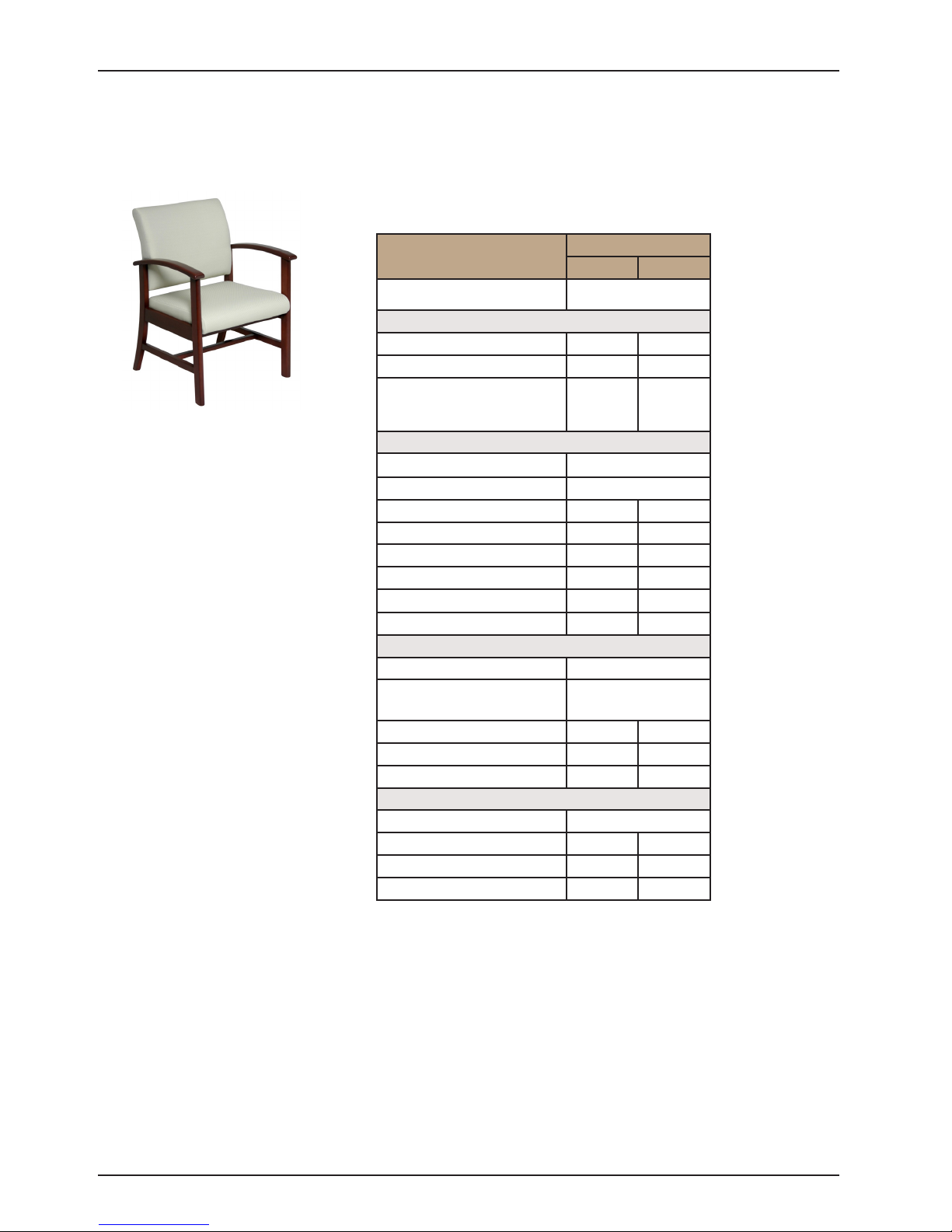

3500-000-110 Highback Chair (18” Seat Height)

SPECIFICATIONS

Reference P/N: STR3840

DESCRIPTION

SPECIFICATIONS

INCHES (MM)

Weight Capacity 300 lbs

CHAIR DIMENSIONS

Length 26 (66 0)

Width 24 (610)

Height

(Controls at mid-point or
nominal design position)

40.5 (1029)

SE AT

(Ty p e)

Seat

Seat Foam

(Ty p e) Ultracell/Slab

Plywood & Web

Seat Foam Thickness 2.0 (51)

Seat Depth (Min.) 18 (4 4 5)

Seat Depth (Max.) --- (0)

Seat Width 21 (553)

Seat Height (Min.) 18 (44 5 )

Seat Height

(Ma x.) --- (0)

BACK

Back Pan (Ty pe) Frame & Web

Back Foam (Ty pe) Regular Slab

Foam Only

Back Foam Thickness 1.5 (38)

Back Width 20.5 (521)

Back Height (Min.) 22-1/2 (58 4)

ARMRESTS

Armrest (Ty pe) Wooden

Armrest Clearance 19 (483)

Arm Height from Seat (Min.) 8.0 (203)

Arm Height from Floor (Min.) 25.5 (64 8)

Return To Table of Contents

6 3500-009-001 REV D www.stryker.com

3500-000-130 Highback Chair (21” Seat Height)

Reference P/N: STR3840-21

1.3

4

1

6

3

2

6

1.1

1.2

Item Stryker P/N Reference P/N Part Description Q ty.

1 (not serviceable) 17006STR3840-21 Chair Frame with Glides and Inserts 1

1.1 (not serviceable) 00206STR3840-21 Chair Frame 21” ST HT 1

1.2 3500-100-001 004350019 3/4” Tack Glide, White 4

1.3 (not serviceable) 0043500512 1/4”-20 x 20mm Type D Inst. Nut 4

2 3500-100-002 16 071STR 3840 UPH Seat Only 1

3 3500-100-003 004310164 #12 x 2” Pan Quad TS Zinc 4

4 (not serviceable) 16032STR3840 UPH Back Only 1

5 (not serviceable) 004310287BL K 1/4”-20 x 1-1/2” Pan Quad M 4

6 (not serviceable) 004310612 5/16” ID x 3/4” OD x 1/16” Washer 8

www.stryker.com 3500-009-001 REV D 7

5

Note: Back attached to frame
from inside upholstery, using
Loctite® on screw.

Return To Table of Contents

3500-000-130 Highback Chair (21” Seat Height)

SPECIFICATIONS

Reference P/N: STR3840-21

DESCRIPTION

SPECIFICATIONS

INCHES (MM)

Weight Capacity 300 lbs

CHAIR DIMENSIONS

Length 27 (66 0)

Width 24 (610)

Height

(Controls at mid-point or
nominal design position)

43.5 (110 5 )

SE AT

Seat ( Type)

Seat Foam

(Ty p e) Ultracell/Slab

Plywood & Web

Seat Foam Thickness 2.0 (51)

Seat Depth (Min.) 18 (457)

Seat Depth (Max.) --- (0)

Seat Width 21 (553)

Seat Height (Min.) 21 (55 3)

Seat Height (Max.) --- (0)

BACK

Back Pan (Ty pe) Frame & Web

Back Foam (Ty pe) Regular Slab

Foam Only

Back Foam Thickness 1.5 (38)

Back Width 20.5 (521)

Back Height (Min.) 22.5 (572)

ARMRESTS

Armrest (Ty pe) Wooden

Armrest Clearance 19 (483)

Arm Height

from Seat (Min.) 8.0 (203)

Arm Height from Floor (Min.) 29 (737)

Return To Table of Contents

8 3500-009-001 REV D www.stryker.com

3500-000-150 Lowback Chair with Arms (18”)

Reference P/N: STR3841

2

4

1

1.3

1.1

1.2

Item Stryker P/N Reference P/N Part Description Qty.

1 (not serviceable) 17006STR3840 Chair Frame with Glides and Inserts 1

1.1 (not serviceable) 00206STR3840 Chair Frame 1

1.2 3500-100-001 004350019 3/4” Tack Glide, White 4

1.3 (not serviceable) 0043500512 1/4”-20 x 20mm Type D Inst. Nut 4

2 3500-100-002 16071STR 3840 UPH Seat Only 1

3 3500-100-003 004310164 #12 x 2” Pan Quad TS Zinc 4

4 (not serviceable) 16032STR3841 UPH Back Only 1

5 (not serviceable) 004 310287BLK 1/4”-20 x 1-1/2” Pan Quad M 4

6 (not serviceable) 004310612 5/16” ID x 3/4” OD x 1/16” Washer 8

6

3

5

Note: Back attached to frame
from inside upholstery, using
Loctite® on screw.

6

www.stryker.com 3500-009-001 REV D 9

Return To Table of Contents

3500-000-150 Lowback Chair with Arms (18”)

SPECIFICATIONS

Reference P/N: STR3841

DESCRIPTION

SPECIFICATIONS

INCHES (MM)

Weight Capacity 300 lbs

CHAIR DIMENSIONS

Length 26 (66 0)

Width 24 (610)

Height

(Controls at mid-point or
nominal design position)

34.5 (876)

SE AT

(Ty p e)

Seat

Seat Foam

(Ty p e) Ultracell/Slab

Plywood & Web

Seat Foam Thickness 2.0 (51)

Seat Depth (Min.) 18 (457)

Seat Depth (Max.) --- (0)

Seat Width 21 (553)

Seat Height

Seat Height

(Mi n.)

(Ma x.) --- (0)

18 (44 5 )

BACK

Back Pan

(Ty p e) Frame & Web

Back Foam (Ty pe) Regular Slab

Foam Only

Back Foam Thickness 1.5 (38)

Back Width 20.5 (521)

Back Height

(Mi n.) 16-1/2 (43 2)

ARMRESTS

Armrest (Ty pe) Wooden

Armrest Clearance 19 (483)

Arm Height from Seat (Min.) 8.0 (203)

Arm Height from Floor (Min.) 26 (648)

Return To Table of Contents

10 3500-009-001 REV D w ww.stryker.com

3500-000-170 Lowback Chair with Arms (21”)

Reference P/N: STR3841-21

4

1

6

2

1.3

1.1

1.2

Item Stryker P/N Reference P/N Part Description Qt y.

1 (not serviceable) 17006STR3840-21 Chair Frame with Glides and Inserts 1

1.1 (not serviceable) 00206STR3840-21 Chair Frame 1

1.2 3500-100-001 004350019 3/4” Tack Glide, White 4

1.3 (not serviceable) 0043500512 1/4”-20 x 20mm Type D Inst. Nut 4

2 3500-100-002 16071ST R384 0 UPH Seat Only 1

3 3500-100-003 004310164 #12 x 2” Pan Quad TS Zinc 4

4 (not serviceable) 16032STR3841 UPH Back Only 1

5 (not serviceable) 004 310287BLK 1/4”-20 x 1-1/2” Pan Quad M 4

6 (not serviceable) 004310612 5/16” ID x 3/4” OD x 1/16” Washer 8

3

5

Note: Back attached to frame
from inside upholstery, using
Loctite® on screw.

6

www.stryker.com 3500-009-001 REV D 11

Return To Table of Contents

3500-000-170 Lowback Chair with Arms (21”)

SPECIFICATIONS

Reference P/N: STR3841-21

DESCRIPTION

SPECIFICATIONS

INCHES (MM)

Weight Capacity 300 lbs

CHAIR DIMENSIONS

Length 26 (66 0)

Width 24 (610)

Height

(Controls at mid-point or
nominal design position)

37.5 (953)

SE AT

Seat ( Type)

Seat Foam

(Ty p e) Ultracell/Slab

Plywood & Web

Seat Foam Thickness 2.0 (51)

Seat Depth (Min.) 18 (457)

Seat Depth (Max.) --- (0)

Seat Width 21 (553)

Seat Height (Min.) 21 (53 3)

Seat Height (Max.) --- (0)

BACK

Back Pan (Ty pe) Frame & Web

Back Foam (Ty pe) Regular Slab

Foam Only

Back Foam Thickness 1.5 (38)

Back Width 20.5 (521)

Back Height (Min.) 16 -1/2 (432)

ARMRESTS

Armrest (Ty pe) Wooden

Armrest Clearance 19 (483)

Arm Height

from Seat (Min.) 8.0 (203)

Arm Height from Floor (Min.) 29 (737)

Return To Table of Contents

12 3500-009-001 REV D www.stryker.com

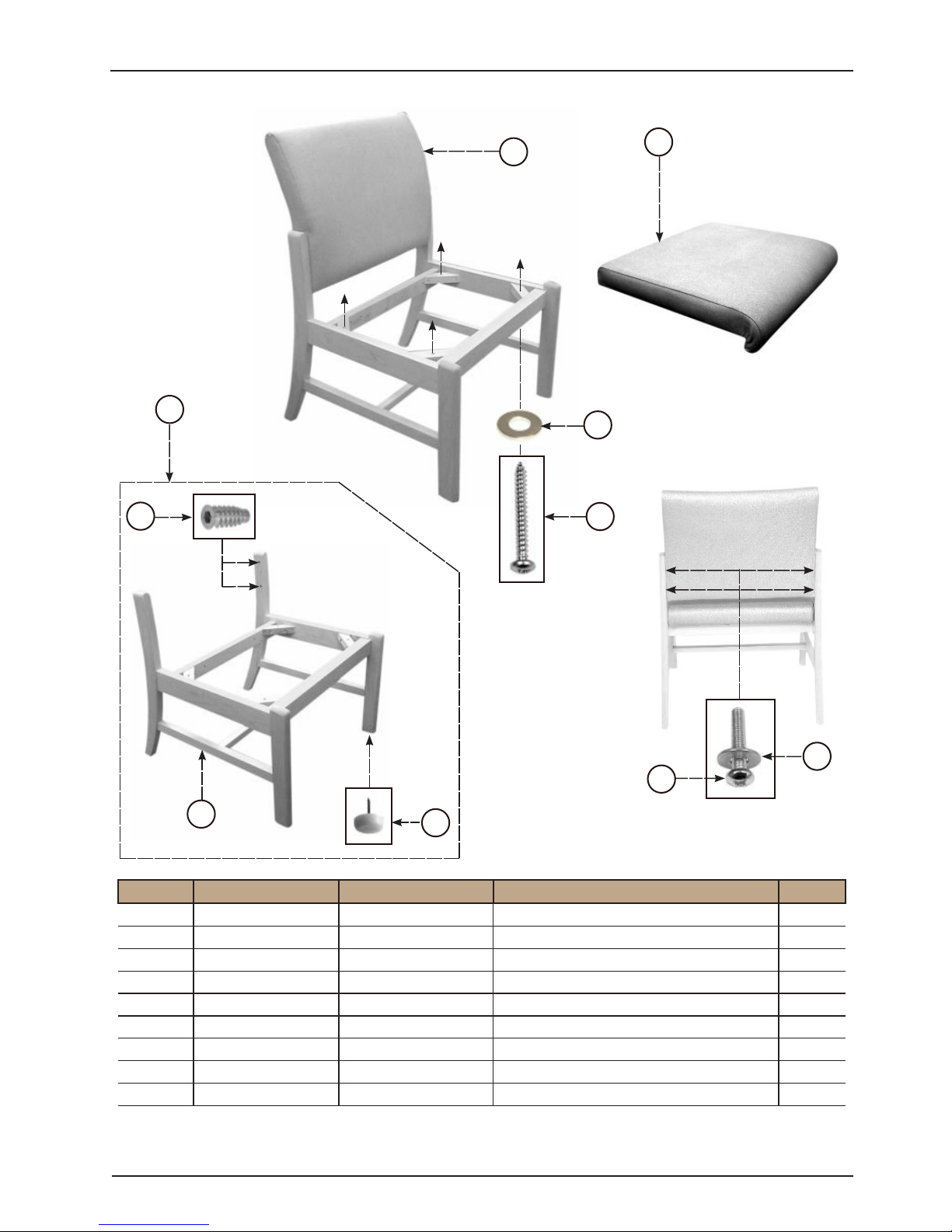

3500-000-220 Lowback Chair witho Arms (18” only)

Reference P/N: STR3842

1.3

4

1

6

3

2

6

5

1.1

Item Stryker P/N Reference P/N Part Description Qt y.

1 (not serviceable) 17006STR3842 Chair Frame with Glides and Inserts 1

1.1 (not serviceable) 00206STR3842 Chair Frame 1

1.2 3500-100-001 004350019 3/4” Tack Glide, White 4

1.3 (not serviceable) 0043500512 1/4”-20 x 20mm Type D Inst. Nut 4

2 3500-100-002 16071STR 3840 UPH Seat Only 1

3 3500-100-003 004310164 #12 x 2” Pan Quad TS Zinc 4

4 (not serviceable) 16032STR3841 UPH Back Only 1

5 (not serviceable) 004310287 BLK 1/4”-20 x 1-1/2” Pan Quad M 4

6 (not serviceable) 004310612 5/16” ID x 3/4” OD x 1/16” Washer 8

www.stryker.com 3500-009-001 REV D 13

1.2

Note: Back attached to frame
from inside upholstery, using
Loctite® on screw.

Return To Table of Contents

3500-000-220 Lowback Chair witho Arms (18” only)

SPECIFICATIONS

Reference P/N: STR3842

DESCRIPTION

SPECIFICATIONS

INCHES (MM)

Weight Capacity 300 lbs

CHAIR DIMENSIONS

Length 26 (66 0)

Width 22.5 (572)

Height

(Controls at mid-point or
nominal design position)

34.5 (876)

SE AT

Seat ( Type)

Seat Foam

(Ty p e) Ultracell/Slab

Plywood & Web

Seat Foam Thickness 2.0 (51)

Seat Depth (Min.) 18 (457)

Seat Depth (Max.) --- (0)

Seat Width 21 (553)

Seat Height (Min.) 18 (44 5 )

Seat Height (Max.) --- (0)

BACK

Back Pan (Ty pe) Frame & Web

Back Foam (Ty pe) Regular Slab

Foam Only

Back Foam Thickness 1.5 (38)

Back Width 20.5 (521)

Back Height (Min.) 17 (4 32)

Return To Table of Contents

14 3500-009- 001 REV D www.stryker.com

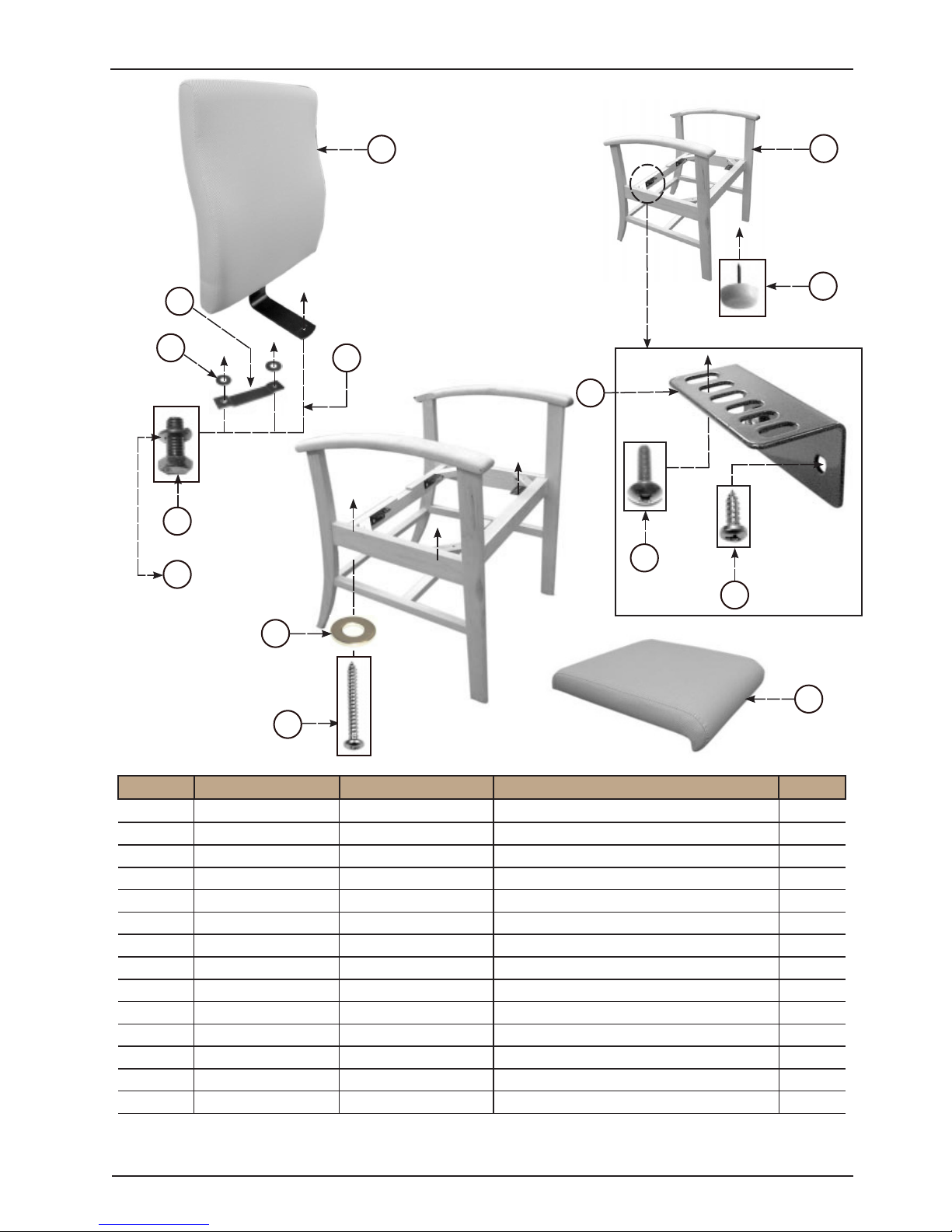

3500-000-320 Highback Flexback Chair (18”)

Reference P/N: STR3843

5

10

9

8

7

7

1.3

4

1.4

1.1

1.2

6

3

Item Stryker P/N Reference P/N Part Description Qt y.

1 3500-100-038 17006STR3843 Chair Frame with Glide and Brackets 1

1.1 3500-100-039 00206STR3843 Chair Frame 1

1.2 3500-100-001 004350019 3/4” Tack Glide, White 4

1.3 3500-100-040 00437C70032 281 Seat Bracket 90 Degree 4

1.4 3500-100-041 004 310147 #12 x 3/4” Pan Quad Screw 8

2 3500-100-050 16071STR3843 UPH Seat Only 1

3 3500-100-003 04310164 #12 x 2” Pan Quad TS Zinc 4

4 3500-100-042 004310266BLK 1/4”-20 x 7/8” Truss Quadrex ZCBLK 4

5 3500-100-043 16032STR3843 UPH Back withBU 1

6 (not serviceable) 004310612 5/16” ID x 3/4” OD x 1/16” Washer 4

7 3500-100-045 004320007BLK 5/16” Split Lock Washer BLK 3

8 3500-100-046 00431033 4 5/16”-18 x 1” Hex Bolt BLK Z GR2 3

9 3500-100-047 00 4310 612 BLK 5/16” ID x 3/4” OD x 1/16” Washer BLK 2

10 3500-100-044 004378944 8944 3” Omega Bracket BLK 1

2

www.stryker.com 3500-009-001 REV D 15

Return To Table of Contents

3500-000-320 Highback Flexback Chair (18”)

SPECIFICATIONS

Reference P/N: STR3843

DESCRIPTION

SPECIFICATIONS

INCHES (MM)

Weight Capacity 300 lbs

CHAIR DIMENSIONS

Length 26 (66 0)

Width 24 (610)

Height

(Controls at mid-point or
nominal design position)

40.5 (1029)

SE AT

Seat ( Type)

Seat Foam

(Ty p e) Ultracell/Slab

Plywood & Web

Seat Foam Thickness 2.0 (51)

Seat Depth (Min.) 18 (457)

Seat Depth (Max.) --- (0)

Seat Width 21 (553)

Seat Height (Min.) 18 (44 5 )

Seat Height (Max.) --- (0)

BACK

Back Pan (Ty pe) Frame & Web

Back Foam (Ty pe) Regular Slab

Foam Only

Back Foam Thickness 1.5 (38)

Back Width 20.5 (521)

Back Height (Min.) 22-1/2 (58 4)

ARMRESTS

Armrest (Ty pe) Wooden

Armrest Clearance 19 (483)

Arm Height

from Seat (Min.) 8.0 (203)

Arm Height from Floor (Min.) 26 (648)

FRAME

Frame (Typ e) Wood

MISCELLANEOUS

Unit Weight (lbs (kgs)) 22 (10.0)

Carton Count 1-PER

Return To Table of Contents

16 3500-009-001 REV D w ww.stryker.com

3500-000-340 Highback Flexback Chair (21”)

Reference P/N: STR3843-21

5

10

9

8

7

7

1.3

4

1.4

1.1

1.2

6

3

Item Stryker P/N Reference P/N Part Description Qt y.

1 3500-100-048 17006STR3843-21 Chair Frame with Glide and Brackets 1

1.1 3500-100-049 00206STR3843-21 Chair Frame 1

1.2 3500-100-001 004350019 3/4” Tack Glide, White 4

1.3 3500-100-040 00437C70032 281 Seat Bracket 90 Degree 4

1.4 3500-100-041 004 310147 #12 x 3/4” Pan Quad Screw 8

2 3500-100-050 16071STR3843 UPH Seat Only 1

3 3500-100-003 04310164 #12 x 2” Pan Quad TS Zinc 4

4 3500-100-042 004310266BLK 1/4”-20 x 7/8” Truss Quadrex ZCBLK 4

5 3500-100-043 16032STR3843 UPH Back withBU 1

6 (not serviceable) 004310612 5/16” ID x 3/4” OD x 1/16” Washer 4

7 3500-100-045 004320007BLK 5/16” Split Lock Washer BLK 3

8 3500-100-046 00431033 4 5/16”-18 x 1” Hex Bolt BLK Z GR2 3

9 3500-100-047 00 4310 612 BLK 5/16” ID x 3/4” OD x 1/16” Washer BLK 2

10 3500-100-044 004378944 8944 3” Omega Bracket BLK 1

2

www.stryker.com 3500-009-001 REV D 17

Return To Table of Contents

3500-000-340 Highback Flexback Chair (21”)

SPECIFICATIONS

Reference P/N: STR3843-21

DESCRIPTION

SPECIFICATIONS

INCHES (MM)

Weight Capacity 300 lbs

CHAIR DIMENSIONS

Length 27 (66 0)

Width 24 (610)

Height

(Controls at mid-point or
nominal design position)

43.5 (110 5 )

SE AT

(Ty p e)

Seat

Seat Foam

(Ty p e) Ultracell/Slab

Plywood & Web

Seat Foam Thickness 2.0 (51)

Seat Depth (Min.) 18 (457)

Seat Depth (Max.) --- (0)

Seat Width 21 (553)

Seat Height

Seat Height

(Mi n.) 21 (553)

(Ma x.) --- (0)

BACK

Back Pan (Ty pe) Frame & Web

Back Foam (Ty pe) Regular Slab

Foam Only

Back Foam Thickness 1.5 (38)

Back Width 20.5 (521)

Back Height

(Mi n.) 23 (584)

ARMRESTS

Armrest (Ty pe) Wooden

Armrest Clearance 19 (483)

Arm Height from Seat (Min.) 8.0 (203)

Arm Height from Floor (Min.) 29 (737)

FRAME

Frame (Typ e) Wood

MISCELLANEOUS

Unit Weight (lbs (kgs)) 22 (10.0)

Carton Count 1-PER

Return To Table of Contents

18 3500-009-001 REV D w ww.stryker.com

3500-000-520 Steel Chair

Reference P/N: STR2183

5

6

2

1

1.1.1

1.2.1

1.2.2

4

3

1.2

1.1.2

1.2.3

Item Stryker P/N Reference P/N Part Description Q ty.

1 3500-100-024 18 23 52183 Arm and Frame Assembled 1

1.1 (not serviceable) 00 4062183BL K 4 Leg Metal Frame 1” Round Tube 1

1.1.1 3500-100-026 0100022171 Split Plastic Sleeve 4

1.1.2 3500-100-027 010050027 1” OD Round CLSR/GLD 14/18G 4

1.2 (not serviceable) 17 0 0 3217 1 2171 Arm Assembly Only BLK PR

1.2.1 (not serviceable) 010 0 3217 1 2171 Plastic Arms BLK PR

1.2.2 (not serviceable) 004 310 610 1/4”-20 16 GA Tube Connector 4

1.2.3 (not serviceable) 004310097Q #8 x 5/8” Pan QD L.RT WS BLK 4

2 3500-100-033 16071STR 2183 2171 UPH Seat withUC Foam 1

3 3500-100-034 004310282BLK 1/4”-20 x 1-1/4” FLT QD BLK 4

4 3500-100-035 0 0 8 0 6217 1T-A 2171 Seat Bottom Tray ECN 1

5 3500-100-036 16032STR2183 Upholstery Back Only 1

6 3500-100-037 004 310276 1/4”-20 x 5/8” TRS QD MS SR B 4

www.stryker.com 3500-009-001 REV D 19

Return To Table of Contents

SPECIFICATIONS

3500-000-520 Steel Chair

REFERENCE P/N: STR2183

DESCRIPTION

SPECIFICATIONS

INCHES (MM)

Weight Capacity 300 lbs

CHAIR DIMENSIONS

Length 20 (508)

Width 23 (58 4)

Height

(Controls at mid-point or
nominal design position)

32 (813)

SE AT

Seat ( Type)

Seat Foam

(Ty p e) Ultracell

Plywood

Seat Foam Thickness 2.0 (51)

Seat Depth (Min.) 17.5 (4 4 5)

Seat Depth (Max.) --- (0)

Seat Width 18 (4 57)

Seat Height (Min.) 18 (45 7)

Seat Height (Max.) --- (0)

BACK

Back Pan

(Ty p e) Plywood

Back Foam (Ty pe) Slab

Back Foam Thickness 1. 25 (3 2)

Back Width 17. 5 (445)

Back Height (Min.) 14 (356)

ARMRESTS

Armrest (Ty pe) Plastic

Armrest Clearance 19. 5 (495)

Arm Height from Seat (Min.) 8.0 (203)

Arm Height from Floor (Min.) 26 (660)

FRAME

Frame (Typ e) 1” Round Tubing

Thickness/Guage 16 G uage

MISCELLANEOUS

Unit Weight (lbs (kgs)) 14 (6.4)

Com Yardage (yd s (m)) 1. 0 (0.9)

Carton Count 2-PER

Cubage 13. 25. (0.3 5)

Shipment Weight
(lbs (kgs))

46 (2 0. 9)

Return To Table of Contents

20 3500-009-001 REV D www.stryker.com

3500-000-420 Bariatric Chair

Reference P/N: STR4125W

2

5

3

1

4

2.2

2.3

6

Item Stryker P/N Reference P/N Part Description Qt y.

1 3500-100-006 14001GC4125TUN Seat Frame with Mesh 1

2 3500-100-007 17003STR4125W Lt. & Rt. Arm Frame withGlides and Inserts PR

2.1 3500-100-008 00206STR4125WL Left Arm Wood Frame 1

2.2 3500-100-009 00206STR4125WR Right Arm Wood Frame 1

2.3 3500-100-010 0435GC3751 1-1/2” Dia. N/Marking Nail Glide 4

2.4 (not serviceable) 004350049 5/16”-18 x 25mm Type D Insert 8

3 3500-100-012 004310410 5/16”-18 x 1” Button Head Screw BLK 8

4 3500-100-013 16031GC4125 UPH Seat Cushion 1

5 3500-100-014 16032STR4125 Upholstered Back Only 1

6 3500-100-015 004310705 5/16”-18 Heavy Nylon Insert Locknut 6

2.4

2.1

www.stryker.com 3500-009-001 REV D 21

Return To Table of Contents

SPECIFICATIONS

3500-000-420 Bariatric Chair

Reference P/N: STR4125W

DESCRIPTION

SPECIFICATIONS

INCHES (MM)

Weight Capacity 750 lbs

CHAIR DIMENSIONS

Length 27 (635)

Width 36 (889)

Height

(Controls at mid-point or
nominal design position)

37 (94 0)

SE AT

Seat ( Type)

Seat Foam

(Ty p e) Ultracell

Steel/Perma Mesh

Seat Foam Thickness 2.5 (64)

Seat Depth (Min.) 18 (457)

Seat Depth (Max.) --- (0)

Seat Width 31.5 (8 00)

Seat Height (Min.) 18 (47 0)

Seat Height (Max.) --- (0)

BACK

Back Pan (Ty pe) Plywood

Back Foam (Ty pe) Slab

Back Foam Thickness 2.25 (57 )

Back Width 30 (762)

Back Height (Min.) 18. 5 (47 0)

ARMRESTS

Armrest (Ty pe) Wooden

Armrest Clearance 30 (762)

Arm Height

from Seat (Min.) 8.0 (203)

Arm Height from Floor (Min.) 26 (673)

MISCELLANEOUS

Unit Weight (lbs (kgs)) 70 (31.8)

Carton Count 1-PER

Return To Table of Contents

22 3500-009-001 REV D www.stryker.com

3500-000-190 Ottoman

Reference P/N: STR3844

4

2

1

3

Item Stryker P/N Reference P/N Part Description Qt y.

1 3500-100-001 17006STR3844 Cushion 1

2 3500-100-004 17224STR3844 Leg Assembly 4

3 3500-100-005 004350019 3/4” Tack Glide, White 4

4 (not serviceable) 00 4 318928-1 5/16” B.S x 1-1/8” OD x 1-3/32”

Plastic Washer

8

www.stryker.com 3500-009-001 REV D 23

Return To Table of Contents

Warranty

Stryker Medical stands behind the craftsmanship of our products. Providing our customers quality products is our
mission, and we pledge to do everything we can to quickly resolve any problems encountered within the terms of the
warranties listed below. These warranties apply only to products manufactured after January 1, 2008.

LIMITED LIFETIME WARRANTY

Stryker Medical warrants our Symmetry® II and Symmetry® PLUS seating line for the lifetime of the product, classified
as 10 years, under normal use and proper care. Subject to the limitations set below, Stryker will repair or, at our option,
replace defective merchandise free of charge.

Symmetry® PLUS Recliners

• 10 years on casters, metal arms, metal bases, metal frames, glass-reinforced nylon bases and plastic-engineered

components.

• 10 years on metal reclining mechanism (first 5 years—parts, labor and shipping; after 5 years to 10 years—parts

only).

• 5 years on seat springs, wood frame components, wood arms and wood bases.

• 3 years on Stryker Medical textiles and foam.

Symmetry® II Patient & Guest Seating

• 10 years on wood.

• 5 years on steel components.

• 3 years on Stryker Medical textiles.

• 1 year on foam.

Symmetry® II Sleepers

• 10 years on wood.

• 5 years on mechanism.

• 3 years on casters, seat springs, mattress and Stryker Medical textiles.

• 1 year on foam.

ONE YEAR WARRANTY

Stryker warrants the following products for one year under normal use and proper care. For one year from date of
shipment, Stryker will repair or, at our option, replace defective merchandise free of charge (parts, labor and shipping
included).

• Tru -Fit® Overbed Tables.

• Bedside Stands (*Note: LIFETIME WARRANTY on metal drawer frames and glides).

• Maternity Furniture.

• Flexsteel Hospital Recliner.

The Limited Lifetime and One Year warranties listed above are void in cases of modifications, misuse, improper assembly
or maintenance, accidents, damage caused by a carrier other than Stryker Medical, and the use of customer’s own
material.

Stryker makes no other warranty or representation, either expressed or implied, except as set forth herein. There is no
warranty of merchantability and there are no warranties of fitness for any particular purpose. In no event shall Stryker
be liable hereunder for incidental or consequential damages arising from or in any manner related to sales or use of
any such equipment.

Return To Table of Contents

24 3500-009-001 REV D www.stryker.com

Warranty

TO OBTAIN PARTS AND SERVICE

Stryker products are supported by a nationwide network of dedicated Stryker Field Service Representatives. These
representatives are factory trained, available locally, and carry a substantial spare parts inventory to minimize repair
time. Simply call your local representative, or call Stryker Customer Service USA at 1-800-327−0770.

RETURN AUTHORIZATION

Merchandise cannot be returned without approval from the Stryker Customer Service Department. An authorization
number will be provided which must be printed on the returned merchandise. Stryker reserves the right to charge ship­ping and restocking fees on returned items. Special, modified, or discontinued, items not subject to return.

DAMAGED MERCHANDISE

ICC Regulations require that claims for damaged merchandise must be made with the carrier within fifteen (15) days of
receipt of merchandise. Do not accept damaged shipments unless such damage is noted on the delivery receipt at
the time of receipt. Upon prompt notification, Stryker will file a freight claim with the appropriate carrier for damages
incurred. Claim will be limited in amount to the actual replacement cost. In the event that this information is not
received by Stryker within the fifteen (15) day period following the delivery of the merchandise, or the damage was not
noted on the delivery receipt at the time of receipt, the customer will be responsible for payment of the original invoice
in full. Claims for any short shipment must be made within thirty (30) days of invoice.

INTERNATIONAL WARRANTY CLAUSE

This warranty reflects U.S. domestic policy. Warranty outside the U.S. may vary by country. Please contact your local
Stryker Medical representative for additional information.

www.stryker.com 3500-009-001 REV D 25

Return To Table of Contents

Manufactured for

Stryker Medical
3800 E. Centre Ave.
Portage, Michigan 49002
USA

2013/07 3500-009-001 REV D www.stryker.com
