Stryker 1288010000, 1288010001, 1288210105, 1288710105 User Manual
1288 HD Video Camera
User Guide
1288010000
1288010001
1288210105
1288710105
Contents
Warnings and Cautions ...................................... 3
Product Description and Intended Use .............. 6
Indications/Contraindications ......................................................7
The Camera Console ...................................................................8
The Camera Head ......................................................................10
The C-Mount Coupler ................................................................11
Setup and Interconnection ..............................12
Setting Up the Console ..............................................................12
Setting Up the Camera Head .....................................................17
Setting Up the Coupler ..............................................................18
Operation ........................................................ 20
Powering the Camera On/Off ....................................................20
Using the Camera Head Buttons ...............................................20
Using the Touchscreen Interface ...............................................22
Controlling Remote Video Accessories .....................................26
Using the SFB Serial Interface ...................................................26
Using the DVI Fiber Outputs ......................................................26
Operating the Camera with a Light Source ...... 27
Troubleshooting............................................... 28
Cleaning, Reprocessing, and Maintenance ...... 31
Cleaning the Camera Console ...................................................31
Reprocessing the Camera Head ................................................31
Using Sterile Drapes ..................................................................38
Replacing the Fuses ..................................................................39
Periodic Maintenance Schedule ................................................39
Electromagnetic Compatibility ........................ 42
Warranty and Return Policy ............................. 46
3
Warnings and Cautions
Please read this manual and follow its instructions carefully. e words warning,
caution, and note carry special meaning and should be carefully reviewed:
Warning Indicates risks to the safety of the patient or user. Failure to
follow warnings may result in injury to the patient or user.
Caution Indicates risks to the equipment. Failure to follow cautions
may result in product damage.
Note: Provides special information to clarify instructions or present additional
useful information.
An exclamation mark within a triangle is intended to alert the
user to the presence of important operating and maintenance
instructions in the manual.
A lightning bolt within a triangle is intended to warn of the
presence of hazardous voltage. Refer all service to authorized
personnel.
IMPORTANT SAFETY NOTICE: Before operating this device, please read
this operating manual thoroughly and carefully. When using this device
with a light source, re and/or severe injury may result to the patient, user,
or inanimate objects if the instructions in this manual are not followed.
All light sources can generate signicant amounts of heat at the scope tip,
the scope light post, the light cable tip, and/or near the light cable adapter.
Higher levels of brightness from the light source result in higher levels of
heat. Always adjust the brightness level of the camera and the monitor before
adjusting the brightness level of the light source. Adjust the brightness
level of the light source to the minimum brightness necessary to adequately
illuminate the surgical site. In addition, adjust the internal shutter of the
camera higher in order to run the light source at a lower intensity. Avoid
touching the scope tip or the light cable tip to the patient, and never place
them on top of the patient, as doing so may result in burns to the patient
or user. In addition, never place the scope tip, the scope light post, the light
cable adapter, or the light cable tip on the surgical drapes or other ammable
material, as doing so may result in re. Always place the light source in
standby mode whenever the scope is removed from the light cable or the
device is unattended. e scope tip, scope light post, light cable adapter,
and light cable tip will take several minutes to cool o aer being placed in
standby mode, and therefore may still result in re or burns to the patient,
user, or inanimate objects.
4
Warnings
To avoid potential serious injury to the user and the patient and/or damage to
this device, please note the following warnings:
1. Carefully unpack this unit and check if any damage occurred during
shipment. If damage is detected, refer to the Warranty and Return Policy
section of this manual.
2. Read this operating manual thoroughly, especially the warnings, and be
familiar with its contents before connecting and using this equipment.
3. Be a qualied physician, having complete knowledge of the use of this
equipment.
4. Test this equipment prior to a surgical procedure. is unit was fully tested
at the factory before shipment. Never use this equipment in the presence of
ammable or explosive gases.
5. Avoid dissembling any part of the camera head, as doing so may break the
seals, causing leakage and/or electric shock.
6. Avoid removing covers on the control unit, as doing so may cause damage to
electronics and/or electric shock.
7. Attempt no internal repairs or adjustments not specically detailed in this
operating manual.
8. Pay close attention to the care and cleaning instructions in this manual. Any
deviation may cause damage.
9. Never sterilize the camera console, because the delicate electronics cannot
withstand this procedure.
10. Disconnect the control unit from the electrical outlet when inspecting the
fuses.
11. Before each use, check the outer surface of the endoscope to ensure that
there are no rough surfaces, sharp edges, or protrusions.
12. Avoid dropping the camera system. e camera system contains sensitive
parts that are precisely aligned.
13. Ensure that readjustments, modications, and/or repairs are carried out by
persons authorized by Stryker Endoscopy.
14. Ensure that the electrical installation of the relevant operating room complies
with the NEC and CEC guidelines.
15. To avoid the risk of electric shock, this equipment must only be connected to
a supply mains with protective earth.
16. Multiple portable socket-outlets shall not be placed on the oor.
e warranty is void if any of these warnings are disregarded.
5
Symbol Definitions
In addition to the cautionary symbols already listed, other symbols found on
the 1288 HD Camera and in this manual have specic meanings that clarify the
proper use and storage of the 1288 HD Camera. e following list denes the
symbols associated with this product:
Operating humidity ratings
Operating pressure ratings
Operating temperature ratings
Denotes compliance to CAN/CSA C22.2 No601.1-M90
UL60601-1.
Type BF applied part
Equipotentiality
Protective Ground Earth
FireWire
Fuse rating
is symbol indicates that the waste of electrical and electronic
equipment must not be disposed as unsorted municipal waste
and must be collected separately. Please contact the manufacturer
or other authorized disposal company to decommission your
equipment.
6
Product Description and Intended Use
e Stryker Endoscopy 1288 HD Medical Video Camera is a high-denition
camera used to capture still and video images of endoscopic surgical applications.
e 1288 HD Medical Video Camera consists of three main components:
Component Stryker Part Number
Camera console 1288010000; 1288010001
Camera head 1288210105, 1288710105
C-mount coupler 1288020122
e 1288 HD also comes with various connection cables which, like the other
components, can be purchased together or separately.
Federal law (United States of America) restricts this device to use
by, or on the order of, a physician.
7
Indications/Contraindications
e 1288 HD Camera is indicated for use in general laparoscopy,
nasopharyngoscopy, ear endoscopy, sinuscopy, and plastic surgery wherevera
laparoscope/endoscope/arthroscope is indicated for use. A few examples of
the more common endoscopic surgeries are laparoscopic cholecystectomy,
laparoscopic hernia repair, laparoscopic appendectomy, laparoscopic pelvic
lymph node dissection, laparoscopically assisted hysterectomy, laparoscopic and
thorascopic anterior spinal fusion, anterior cruciate ligament reconstruction,
knee arthroscopy, shoulder arthroscopy, small joint arthroscopy, decompression
xation, wedge resection, lung biopsy, pleural biopsy, dorsal sympathectomy,
pleurodesis, internal mammary artery dissection for coronary artery bypass,
coronary artery bypass graing where endoscopic visualization is indicated
and examination of the evacuated cardiac chamber during performance of
valve replacement. e users of the camera are general surgeons, gynecologists,
cardiac surgeons, thoracic surgeons, plastic surgeons, orthopedic surgeons, ENT
surgeons and urologists.
ere are no known contraindications.
8
The Camera Console
e camera console or Camera Control Unit (CCU) is the control center for
the 1288 HD Medical Video Camera and processes the video and photographic

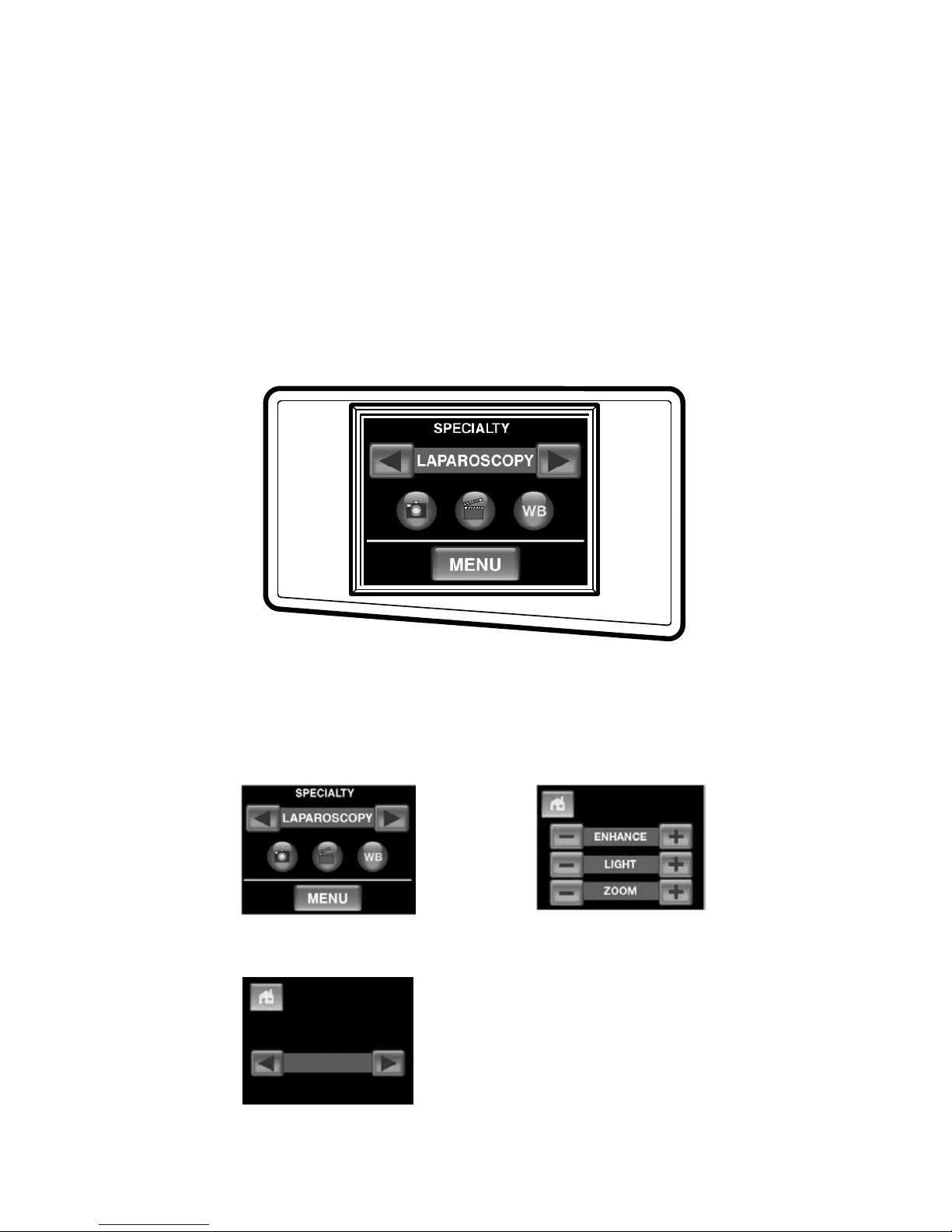

images captured during the surgical procedure. e console front panel features
a touch screen, where dierent menus can be accessed, including the controls
for adjusting the enhancement level, light level, zoom, and white balance, as
well as allows the selection of surgical specialty settings that optimize camera
performance for various, specic surgical procedures. e front panel also allows
activation of remote outputs. e rear panel provides ports for connecting the
1288 HD Camera to viewing and recording equipment, such as video monitors,
the SDC Ultra, or photo printers.

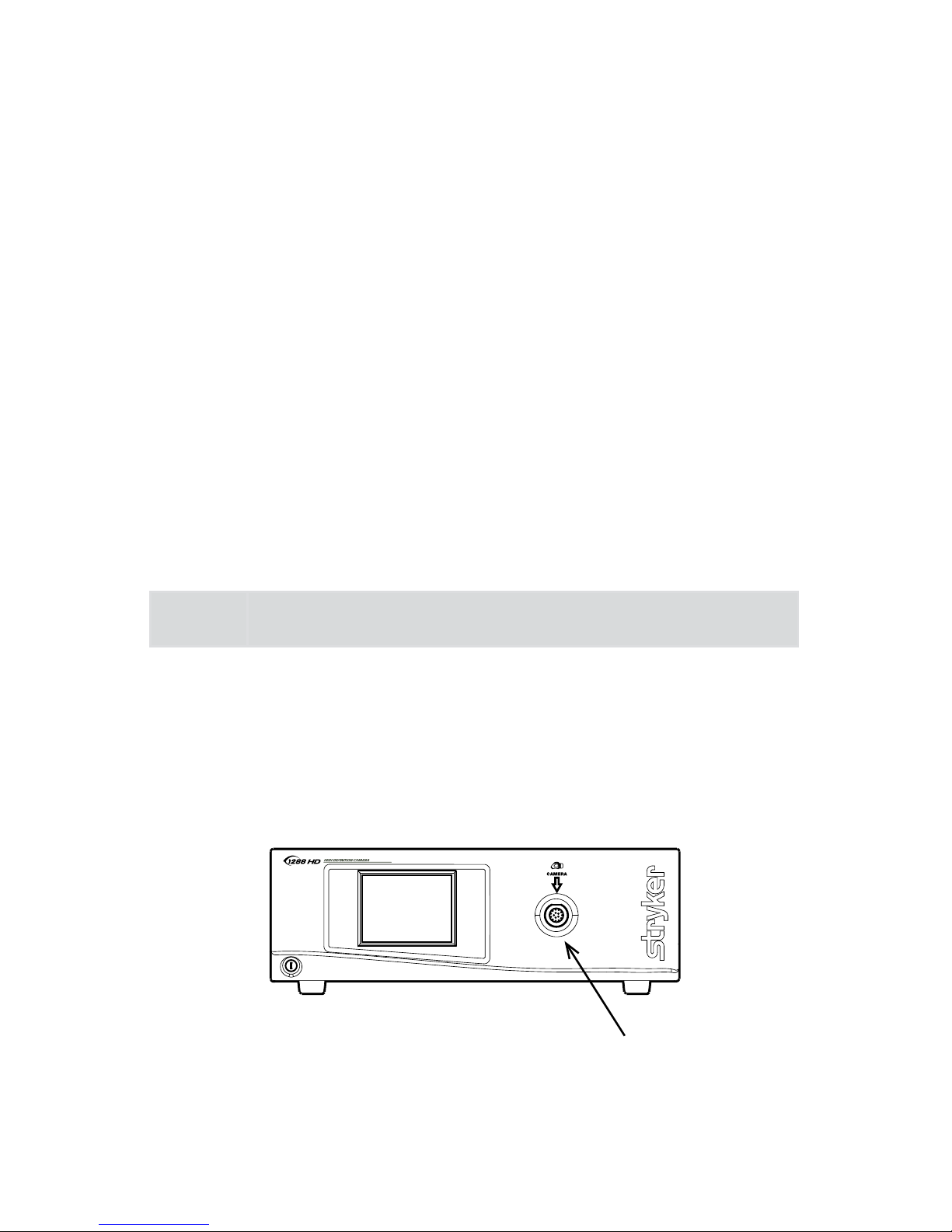

Front Panel
3
1 2
1. Power Switch Powers the camera ON and OFF
2. Touch Screen Allows navigation through dierent menus
for controlling the camera and adjusting the
system settings
3. Camera Connector Port Connects to the 1288 HD Camera Head
9
Rear Panel
213 64 5 7 8 9 10 11
12
1. SFB Connectors Enables FireWire connection with Stryker
FireWire devices; provides connection for remote
diagnoses and future soware upgrades
2. SIDNE® Port Connects to the SIDNE® Console to enable voice
operation and/or graphic tablet control
3. Remote Out 1 Connects to a video accessory remote switch
4. Remote Out 2 Connects to a video accessory remote switch
5. S-Video Out Analog video output
6. DVI Out 1 Digital video output
7. DVI Out 2 Digital video output
8. Display Port Digital video output
9. AC Power Inlet Connects to seperable power cord, which can be
used for mains isolation
10. Fuse Panel Contains two 0.63 A fuses
11. Equipotential
Ground Plug
12. Fiber Outputs
(optical)
DVI output for connection to Lucent connector
bers (optional: 1288010001)
10
The Camera Head
e camera head connects to the camera console and captures video and
photographic images, which it relays to the camera console. It features several
controls that are accessible through a button keypad located on the top of the
camera head (see the “Operation Instructions” section of this manual).
1 42 3
1. Soaking Cap Protects the cable connector during cleaning and
sterilization
2. Cable Connector Connects the camera head to the camera console
3. Camera Cable
4. Camera Head Captures photographic and video images, provides
camera controls, and connects with a focusing
coupler
11
The C-Mount Coupler
e C-Mount coupler threads onto the face of the camera head, enabling a
scope to be attached to the camera. It provides a focusing ring to adjust image
sharpness. e features of the coupler are listed in Figure 3 below. Additional
instructions are available in the “1288 C-Mount Coupler User Guide” (P/N
1000401152).
2
3
1
4
1. Rear Adapter reads onto the camera head
2. Focusing Ring Adjusts the coupler focus
3. Endobody Clamp Secures the scope to the coupler
4. Scope End Receives the endoscope
12
Setup and Interconnection
Note: Stryker Endoscopy considers instructional training, or inservice, an
integral part of the 1288 HD Medical Video Camera. Your local Stryker
Endoscopy sales representative will perform at least one inservice at your
convenience to help set up your equipment and instruct you and your sta on its
operation and maintenance. To schedule an inservice, contact your local Stryker
Endoscopy representative aer your equipment has arrived.
Setting Up the 1288 HD Camera involves three steps:
1. Setting up the console
2. Setting up the camera head
3. Setting up the coupler
Setting Up the Console
Always connect the camera to an appropriate power source,
using a hospital-grade power cord. Loss of AC power will cause
the camera to shut down and the surgical image to be lost.
Only connect items to the camera that have been specied for
use with the camera. Connecting incompatible equipment may
cause unexpected results.
When the 1288 HD Camera is used with other equipment,
leakage currents may be additive. Ensure that all systems are
installed according to the requirements of IEC60601-1-1.
Caution Equipment which employs RF communications may
aect the normal function of the 1288 HD Camera. When
choosing a location for the 1288 HD Camera, consult the
“Electromagnetic Compatibility” section of this manual to
ensure proper function.
Always set up the console in a location that allows adequate
ventilation (airow) to the console. Insucient ventilation may
cause the console to overheat and shut down.
13
To set up the console, make the following connections:
1. Connect the AC power.
• Connect the AC power cord to the AC inlet on the rear console
panel.
• Connect the other end to a hospital-grade outlet.
2. Connect the video output.
• e rear panel provides one analog and three (or four with the
optional ber digital-video outputs, which can be used together or
independently:
Output Type Output Cable Connector
Analog *S-VHS 1 S-VHS 4 pin Mini-Din
(push-only connectors)
Digital **DVI-I1 DVI 29 pin (push-only
connectors, with two
tightening knobs)
**DVI-I2 DVI 29 pin (push-only
connectors, with
two tightening knobs)
Displayport Displayport 20 pin Displayport
(auto-locking connector)
Optional DVI over
optical Fiber
Fiber (×4) Lucent connector ber
(× 4) (push only)
* On some monitors, S-VHS inputs may be labeled Y/C.
** e DVI connectors can also output analog SXGA signals through a DVI-I
to VGA adapter.
Use the cables and outputs described above to connect the 1288 HD to other
operating-room equipment. Wiring Diagrams 1-3 describe typical set-ups.
• If desired, connect any remote outputs using the remote cables
supplied with the 1288 HD Camera. (See Wiring Diagram 2.)
Devices connected to the remote outputs of the 1288 HD Camera
can be operated using the P buttons on the camera head and/or
console. See the “Operation Instructions” section of this manual for
details.
• If desired, connect the SIDNE® interface as well. (See Wiring
Diagram 2.)
14
Wiring Diagram 1: Camera and Flat-Panel Monitor
WiSe 26" HDTV Surgical Display
1288 HD Video Camera
DVI-I/VGA
Adapter
DVI
DVI
Loading...
