IMPORTANT File in your

maintenance records

Renaissance Series

1010 Emergency Care Stretcher 1510 PACU Stretcher 721 Advanced Transport Stretcher

MAINTENANCE MANUAL

For Parts or Technical Assistance 1–800–327–0770

Page 2

Table of Contents

Introduction

Specifications 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warning / Caution / Note Definition 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preventative Maintenance

Cleaning 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Biannual Checklist 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Information

Pneumatic Fowler Adjustment 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Transfer Board Counterbalance Adjustment 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Siderail Latch Adjustment 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pedal Linkage Adjustment – Dual Side Control Base 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pedal Linkage Adjustment – Dual End Control Base 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Caster Assembly Replacement 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Caster Cover Installation And Removal 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hydraulic System Troubleshooting 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking Hydraulic Fluid Level 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal Of Excess Air (Vacuum) From The Hydraulic System 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Jack Descent Rate Adjustment 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hydraulic Check Valve Replacement

Replacement Of Valve #1 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacement Of Valve #2 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacement Of Valve (Poppet) #3 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Brake Adjustment 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Base Lubrication 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Assembly Drawings and Parts Lists

Side Control Base Assembly (with Brakes) 18, 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Brake Adjuster Assembly 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Brake Cam Assembly 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Reduced Length Brake/Steer Base Option 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

End Control Base Assembly (with Brakes) 24, 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

End Control Brake Pedal Assembly, Foot 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

End Control Brake Pedal Assembly, Head 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

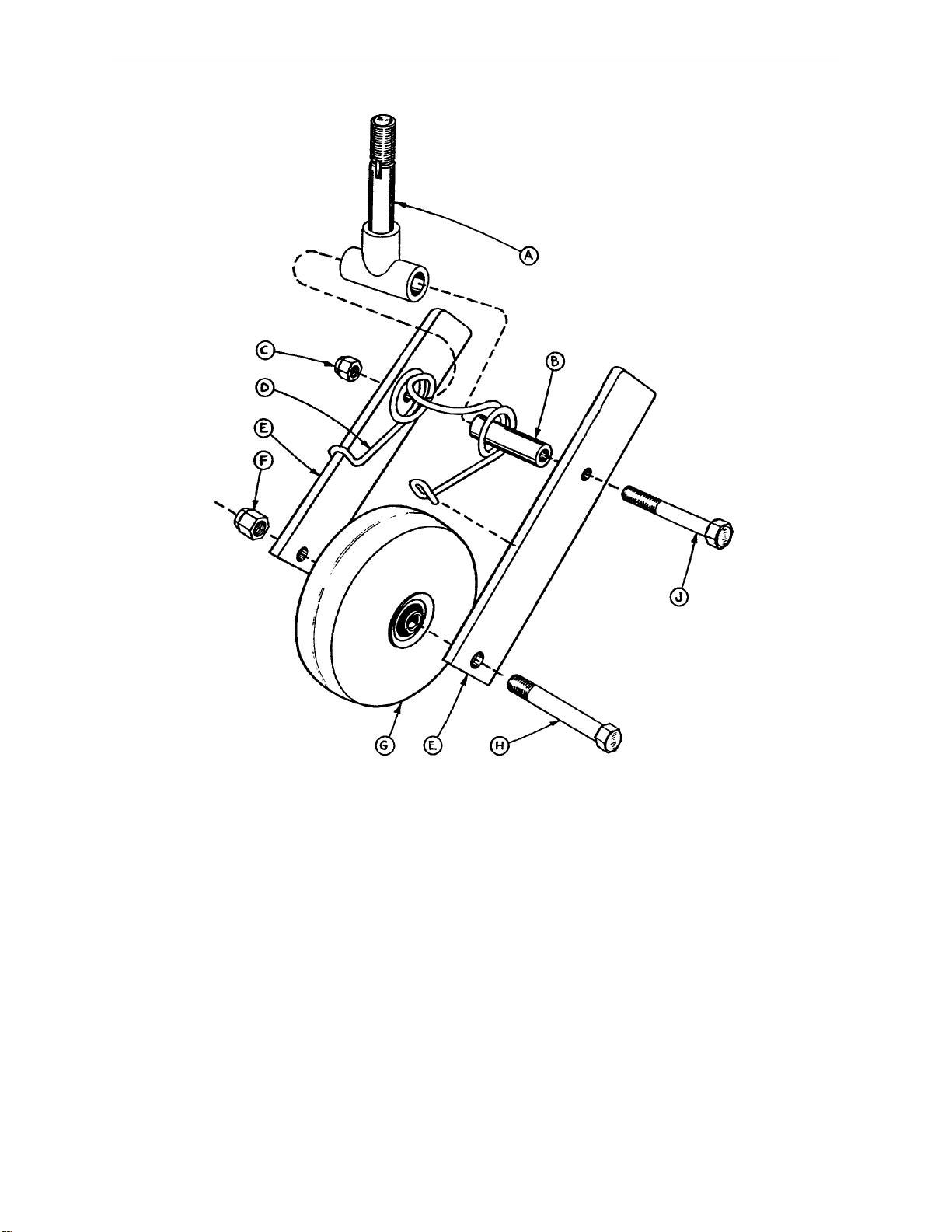

Caster Assembly with Steerlock 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Caster and Caster Cover Replacement Kits 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fifth Wheel Assembly 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side Control Base Labeling Assembly (for serial # before 93073000 – 1010,1510 & 9309000 – 721) 30. End Control Base Labeling Assembly (for serial # before 93073000 – 1010,1510 & 9309000 – 721) 31. .

Side Control Base Assembly (with Jacks) 32, 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pedal Base Assembly, Pump 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pedal Base Assembly, Head End, Left 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pedal Base Assembly, Head End, Right 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side Control Base Hood Assembly 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

End Control Base Assembly (with Jacks) 38, 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pump Pedal Assembly, Head 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pump Pedal Assembly, Foot 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

End Control Base Hood Assembly 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Jack Assembly 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Jack Base Assembly 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Folddown Siderail Litter Assembly (for 1010 stretchers with serial # before 93073000) 44–46. . . . . . . . . . . . .

Folddown Siderail Litter Assembly (for 1510 stretchers with serial # before 93073000) 47–49. . . . . . . . . . . . .

Jack Support and Trend. Limiter Assembly 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trend. Limiter Assembly 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Short Transfer System to Frame Ass’y (for 1010 & 1510 stretchers with serial # before 93073000) 52. . . Long Transfer System to Frame Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 53 Short Transfer System Assembly, Left (for 1010 & 1510 stretchers with serial # before 93073000) 54. . .

Page 3

Table of Contents

Assembly Drawings and Parts Lists (Continued)

Short Transfer System Assembly, Right (for 1010 & 1510 stretchers with serial # before 93073000) 55. . Long Transfer System Assembly, Left Long Transfer System Assembly, Right

Board Support Assembly 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crank Fowler Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 59. . . . . . . . . . . . . . . .

Crank Fowler Subassembly (for 1010 & 1510 stretchers with serial # before 93073000) 60. . . . . . . . . . . .

Fowler Crankscrew Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 61. . . . . . . . . .

Manual Fowler Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 62. . . . . . . . . . . . . .

Pneumatic Fowler Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 63. . . . . . . . . . .

Pneumatic Fowler to Frame Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 64. . .

Knee Gatch Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 65. . . . . . . . . . . . . . . . .

Foot/Thigh & Midsection Subass’y (for 1010 & 1510 stretchers with serial # before 93073000) 66. . . . . .

Knee Gatch Crankscrew Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 67. . . . . .

Footsection Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 68. . . . . . . . . . . . . . . . .

Foot End Push Handle Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 69. . . . . . .

Head End Push Handle Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 70. . . . . . .

Push Handle Assembly 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Siderail Ass’y, Right & Left 72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tethered I.V. Pole Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 73. . . . . . . . . . . .

Tethered I.V. to Frame Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 74. . . . . . . .

Permanent I.V. Pole Assembly (for 1010 stretchers with serial # before 93073000) 75. . . . . . . . . . . . . . . .

Permanent I.V. Pole Mounting Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 76. Replacement Perm. I.V. Pole Ass’y, Foot (for 1010 & 1510 stretchers with serial # before 93073000) 77. Replacement Perm. I.V. Pole Ass’y, Head (for 1010 & 1510 stretchers with serial # before 93073000) 78 Replacement Permanent I.V. Pole Ass’y (for 1010 & 1510 stretchers with serial # before 93073000) 79.

Foot Extension/ Defibrillator Tray Ass’y80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fowler X–Ray Cassette Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 81. . . . . .

Fowler X–Ray Cassette Mounting Ass’y (for 1010 & 1510 stretchers with serial # before 93073000) 82. .

Foot Board/Chartholder Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 83. . . . . . .

Upright Oxygen Bottle Holder Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 83.

Heel Stirrup and Support Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 84. . . . .

Right Stirrup Support Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 85. . . . . . . . .

Left Stirrup Support Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 86. . . . . . . . . .

Heel Stirrup Assembly (for 1010 & 1510 stretchers with serial # before 93073000) 87. . . . . . . . . . . . . . . . .

C–Spine Cassette Holder Assembly (for serial # before 93073000 – 1010,1510 & 9309000 – 721) 87.1. . .

C–Spine Support Pole Assembly (for serial # before 93073000 – 1010,1510 & 9309000 – 721) 87.2. . . . . .

C–Spine Storage Bracket Assembly (for serial # before 93073000 – 1010,1510 & 9309000 – 721) 87.3. . .

Litter Assembly (for 721 stretchers with serial # before 9309000) 88–90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Jack Support and Trend. Limiter Assembly 91. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Transfer System Assembly, Right (for 721 stretchers with serial # before 9309000) 92. . . . . . . . . . . . . . .

Transfer System Assembly, Left (for 721 stretchers with serial # before 9309000) 93. . . . . . . . . . . . . . . . .

Pneumatic Fowler to Litter Assembly (for 721 stretchers with serial # before 9309000) 94. . . . . . . . . . . .

Pneumatic Fowler Assembly (for 721 stretchers with serial # before 9309000) 95. . . . . . . . . . . . . . . . . . . .

Manual Fowler to Litter Assembly (for 721 stretchers with serial # before 9309000) 96. . . . . . . . . . . . . . .

Manual Fowler Assembly (for 721 stretchers with serial # before 9309000) 97. . . . . . . . . . . . . . . . . . . . . .

Footsection Assembly (for 721 stretchers with serial # before 9309000) 98. . . . . . . . . . . . . . . . . . . . . . . . .

Siderail Ass’y, Right & Left (for 721 stretchers with serial # before 9309000) 99. . . . . . . . . . . . . . . . . . . . .

Tethered I.V. Pole Assembly (for 721 stretchers with serial # before 9309000) 100. . . . . . . . . . . . . . . . . . . .

Foot Board/Chartholder (for 721 stretchers with serial # before 9309000) 101. . . . . . . . . . . . . . . . . . . . . . . .

Upright Oxygen Bottle Holder (for 721 stretchers with serial # before 9309000) 101. . . . . . . . . . . . . . . . . . .

Defibrillator Tray Assembly (for 721 stretchers with serial # before 9309000) 102. . . . . . . . . . . . . . . . . . . . .

Litter Assembly (for 1010 stretchers with serial # after 93073000) 103–105. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

(for 1010 & 1510 stretchers with serial # before 93073000) 56. . .

(for 1010 & 1510 stretchers with serial # before 93073000) 57. .

Page 4

Table of Contents

Assembly Drawings and Parts Lists (Continued)

Litter Assembly (for 1510 stretchers with serial # after 93073000) 106–108. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stat. Foot End Ass’y (Aluminum) (for 1010 & 1510 stretchers with serial # after 93073000) 109. . . . . . . . .

Stat. Foot End Ass’y (Fiberresin) (for 1010 & 1510 stretchers with serial # after 93073000) 110. . . . . . . . .

Pneumatic Fowler Ass’y (for 1010 & 1510 stretchers with serial # after 93073000) 111. . . . . . . . . . . . . . . . .

Crank Fowler Assembly (for 1010 & 1510 stretchers with serial # after 93073000) 112. . . . . . . . . . . . . . . . .

Fowler Crankscrew Ass’y (for 1010 & 1510 stretchers with serial # after 93073000) 113. . . . . . . . . . . . . . . .

Knee Gatch Assembly (for 1010 & 1510 stretchers with serial # after 93073000) 114. . . . . . . . . . . . . . . . . .

Knee Gatch Assembly (Aluminum) (for 1010 & 1510 stretchers with serial # after 93073000) 115. . . . . . . .

Knee Gatch Assembly (Fiberresin) (for 1010 & 1510 stretchers with serial # after 93073000) 116. . . . . . . .

Knee Gatch Crankscrew Assembly (for 1010 & 1510 stretchers with serial # after 93073000) 117. . . . . . .

Short Transfer System Assembly, Left (for 1010 & 1510 stretchers with serial # after 93073000) 118. . . . .

Short Transfer System Assembly, Right (for 1010 & 1510 stretchers with serial # after 93073000) 119. . . Foot End Push Handle to Frame Assembly (for 1010 & 1510 stretchers with serial # after 93073000) 120

2– Stage I.V. Ass’y, Head & Foot (for 1010 & 1510 stretchers with serial # after 93073000) 121. . . . . . . . .

2–Stage I.V. Pole Assembly 122. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–Stage I.V. Ass’y, Head & Foot (for 1010 & 1510 stretchers with serial # after 93073000) 123.1. . . . . . . . . .

3–Stage I.V. Pole Assembly (for 1010 stretchers with serial # after 93073000) 123.2. . . . . . . . . . . . . . . . . . . .

3–Stage I.V. Pole Assembly (for 1510 stretchers with serial # after 93073000) 123.3. . . . . . . . . . . . . . . . . . . .

2nd Stage Assembly (for 1010 & 1510 stretchers with serial # after 93073000) 123.4. . . . . . . . . . . . . . . . . . . .

3rd Stage Assembly (for 1010 & 1510 stretchers with serial # after 93073000) 123.5. . . . . . . . . . . . . . . . . . . .

Tethered I.V. Pole Mounting Assembly (for 1010 & 1510 stretchers with serial # after 93073000) 124. . . .

Tethered I.V. Pole Assembly (for 1010 & 1510 stretchers with serial # after 93073000) 125. . . . . . . . . . . . .

Tethered I.V. Pole Trough Assembly (for 1010 & 1510 stretchers with serial # after 93073000) 126. . . . . .

Litter Assembly (for 721 stretchers with serial # after 9309000) 128. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Short Transfer System to Frame Ass’y (for 721 stretchers with serial # after 9309000) 130. . . . . . . . . . . .

Long Transfer System to Frame Assembly (for 721 stretchers with serial # after 9309000) 131. . . . . . . . .

Long Transfer System Assembly, Left (for 721 stretchers with serial # after 9309000) 132. . . . . . . . . . . . .

Long Transfer System Assembly, Right (for 721 stretchers with serial # after 9309000) 133. . . . . . . . . . . .

Pneumatic Fowler Assembly (for 721 stretchers with serial # after 9309000) 134. . . . . . . . . . . . . . . . . . . . .

Manual Fowler Assembly (for 721 stretchers with serial # after 9309000) 135. . . . . . . . . . . . . . . . . . . . . . . .

2–Stage I.V. Ass’y, Head & Foot (for 721 stretchers with serial # after 9309000) 135.1. . . . . . . . . . . . . . . . . .

2–Stage I.V. Pole Assembly (for 721 stretchers with serial # after 9309000) 135.2. . . . . . . . . . . . . . . . . . . . . .

3–Stage I.V. Assembly, Head & Foot (for 721 stretchers with serial # after 9309000) 135.3. . . . . . . . . . . . . .

3–Stage I.V. Pole Assembly (for 721 stretchers with serial # after 9309000) 135.4. . . . . . . . . . . . . . . . . . . . . .

2nd Stage Assembly (for 721 stretchers with serial # after 9309000) 135.5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

3rd Stage Assembly (for 721 stretchers with serial # after 9309000) 135.6. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tethered I.V. Pole Mounting Assembly (for 721 stretchers with serial # after 9309000) 136. . . . . . . . . . . . .

Tethered I.V. Pole Trough Assembly (for 721 stretchers with serial # after 9309000) 137. . . . . . . . . . . . . . .

C–Spine Cassette Holder Assembly (for serial # after 93073000 – 1010,1510 & 9309000 – 721) 138. . . .

Defibrillator Tray Assembly (for serial # after 93073000 – 1010,1510 & 9309000 – 721) 139. . . . . . . . . . . .

Foot Board/Chartholder Assembly (for serial # after 93073000 – 1010,1510 & 9309000 – 721) 140. . . . . .

Upright Oxygen Bottle Holder Assembly (for serial # after 93073000 – 1010,1510 & 9309000 – 721) 140.

Fowler X–Ray Cassette Assembly (for 1010 & 1510 stretchers with serial # after 93073000) 141. . . . . . . .

X–Ray Cassette Mounting Assembly (for 1010 & 1510 stretchers with serial # after 93073000) 142. . . . . .

Side Control Base Labeling Ass’y 143, 144. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side Control Graphics 145, 146. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

End Control Base Labeling Ass’y 147, 148. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

End Control Graphics 149, 150. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacement Parts 151. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warranty

Obtaining Parts and Service 152. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Supplemental Warranty Coverage 152. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Return Authorization 153. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Freight Damage Claims 153. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 5

Introduction

INTRODUCTION

This manual is designed to assist you with the operation and maintenance of the 1010 Emergency Care Stretcher, the 1510 PACU Bed and the 721 Advanced Transport Stretcher. Read it thoroughly before using the equipment or beginning any maintenance on it.

SPECIFICATIONS

1010 1510 721

Maximum Weight Capacity 500 pounds 500 pounds 500 pounds Overall Bed Length \ Width 83 1/2” \ 31 1/2” 81 1/2” \ 34” 81”/30” Minimum \ Maximum Bed Height 22” \ 35” 22” \ 35” 24.5”/38.0” Fowler Angle 0 to 90 degrees 0 to 90 degrees 0 to 90 degrees Knee Gatch Angle 0 to 35 degrees 0 to 35 degrees N/A Trendelenberg \ Reverse Trendelen-

berg

+12 to –18 degrees +12 to –18 degrees +12 to –12 degrees

WARNING / CAUTION / NOTE DEFINITION

The words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed.

WARNING

The personal safety of the patient or user may be involved. Disregarding this information could result in injury to the patient or user.

CAUTION

These instructions point out special procedures or precautions that must be followed to avoid damaging the equipment.

NOTE

This provides special information to make maintenance easier or important instructions clearer.

WARNING

Patients should be discouraged from sitting directly on the ends of the stretcher. Excessive weight will cause the litter surface to tip up, possibly causing patient injury.

Page 6

Preventative Maintenance

CHECKLIST (PERFORM A MINIMUM OF TWICE A YEAR)

All fasteners secure (reference all assembly prints) Siderails move and latch properly (page 7) All casters lock with brake pedal engaged (page 16) Steer function working properly All casters secure and swivel properly Body restraints working properly I.V. pole intact and operating properly (page 73–79, 121–126 or 135.1–137.2) Oxygen bottle holder intact and operating properly (page 37, 41, 101 or 140) Fowler operates and latches properly Knee Gatch operates properly (page 65) Trendelenberg/Reverse Trendelenberg operating properly No rips or cracks in mattress cover Transfer boards intact and operating properly (page 6) Arm board support levers intact and operating properly (page 58) Ground chain intact No leaks at hydraulic connections Hydraulic jacks holding properly (page 11) Hydraulic drop rate set properly (page 13) Hydraulic oil level sufficient (page 12) Lubricate where required, including the brake adjuster assembly and brake cam (page 16) Accessories and mounting hardware in good condition and working properly

Serial No.______________ ______________ ______________ ______________ ______________

Completed By:_________________________________ Date:_____________

Page 7

Cleaning

Clean Velcro AFTER EACH USE. Saturate Velcro with disinfectant and allow disinfectant to evaporate. (Appropriate disinfectant for nylon Velcro should be determined by the hospital.)

In general, when used in those concentrations recommended by the manufacturer, either phenolic type or quaternary type disinfectants can be used with Staph–Chek fabrics. Iodophor type disinfectants are not recommended for use on Staph–Chek fabrics because staining may result. The following products have been tested by the Herculite Laboratory and have been found not to have a harmful effect on Staph–Chek fabrics WHEN USED IN ACCORDANCE WITH MANUFACTURERS RECOMMENDED DILUTION.*

TRADE NAME

A33 Quaternary Airwick (Professional Products Division) 2 ounces/gallon A33 (dry) Quaternary Airwick (Professional Products Division) 1/2 ounce/gallon Beaucoup Phenolic Huntington Laboratories 1 ounce/gallon Blue Chip Quaternary S.C. Johnson 2 ounces/gallon Elimstaph Quaternary Walter G. Legge 1 ounce/gallon Franklin

Phenomysan F2500

Franklin Sentinel Quaternary Purex Corporation 2 ounces/gallon Galahad Phenolic Puritan Churchill Chemical Company 1 ounce/gallon Hi–Tor Quaternary Huntington Laboratories 1/2 ounce/gallon LPH Phenolic Vestal Laboratories 1/2 ounce/gallon Matar Phenolic Huntington Laboratories 1/2 ounce/gallon Omega Quaternary Airwick (Professional Products Division) 1/2 ounce/gallon Quanto Quaternary Huntington Laboratories 1 ounce/gallon Sanikleen Quaternary West Chemical Products 2 ounces/ gallon Sanimaster II Quaternary Service Master 1 ounce/gallon Vesphene Phenolic Vestal Laboratories 1 1/4 ounce/ gallon

DISINFECTANT

Phenolic Purex Corporation 1 1/4 ounce/gallon

TYPE

MANUFACTURER

*MANUFACTURER’S

RECOMMENDED

DILUTION

Quaternary Germicidal Disinfectants, used as directed, and/or Chlorine Bleach products, typically 5.25% So dium Hypochlorite in dilutions ranging between 1 part bleach to 100 parts water, and 2 parts bleach to 100 parts water are not considered mild detergents. These products are corrosive in nature and may cause damage to your stretcher if used improperly . If these types of products are used to clean Stryker patient handling equipment, measures must be taken to insure the stretchers are rinsed with clean water and thoroughly dried following cleaning. Failure to properly rinse and dry the stretchers will leave a corrosive residue on the surface of the stretcher, possibly causing premature corrosion of critical components. Failure to follow the above directions when using these types of cleaners may void this product’s warranty.

REMOVAL OF IODINE COMPOUNDS

This solution may be used to remove iodine stains from mattress cover and foam footrest pad surfaces.

1. Use a solution of 1–2 tablespoons Sodium Thiosulfate in a pint of warm water to clean the stained area. Clean as soon as possible after staining occurs. If stains are not immediately removed, allow solution to soak or stand on the surface.

2. Rinse surfaces which have been exposed to the solution in clear water before returning bed to service.

Page 8

Service Information

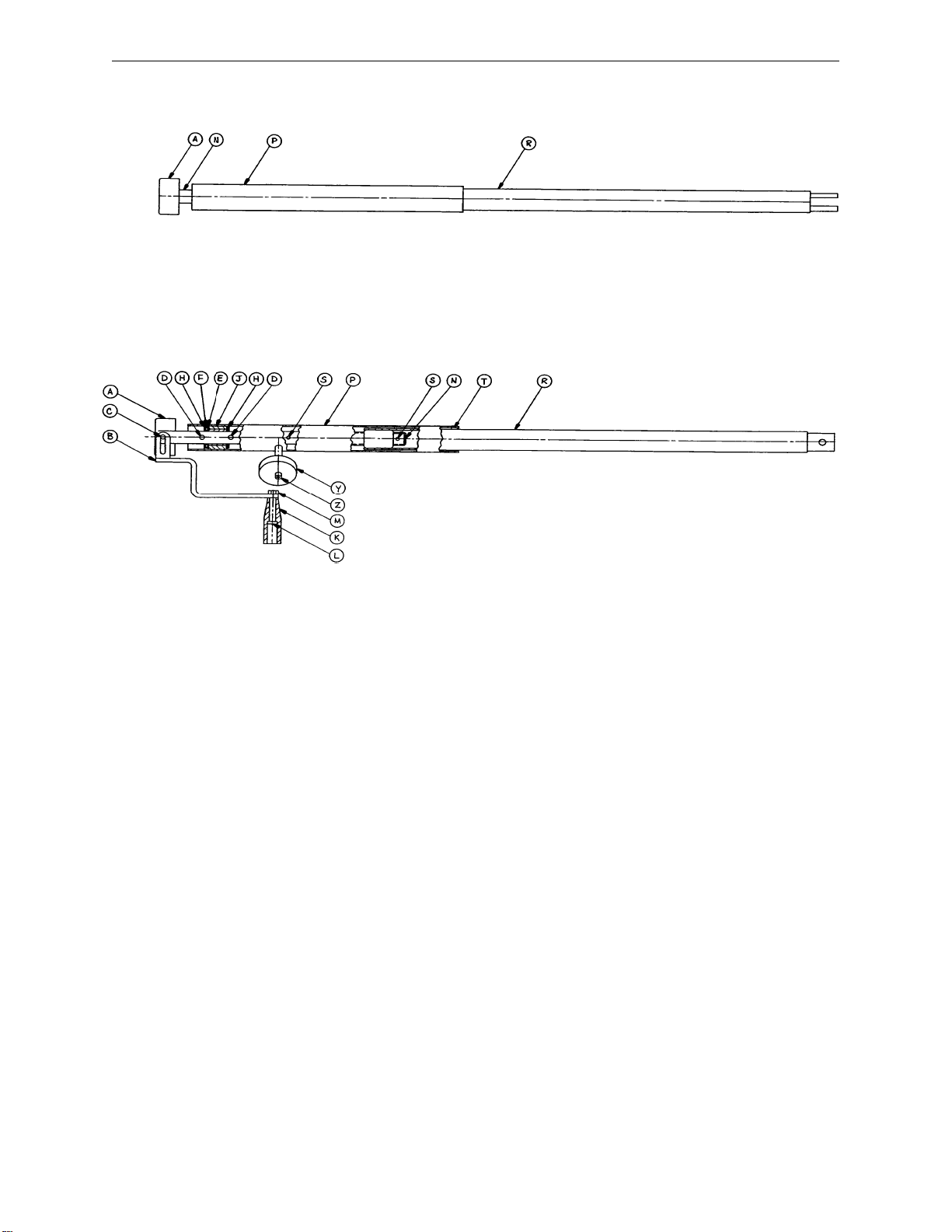

PNEUMATIC FOWLER ADJUSTMENT

Required Tools:

3/32 Hex Allen Wrench 5/8 Open End Wrench 1/8 Hex Allen Wrench Channel Lock Pliers 3/16 Hex Allen Wrench Towel or Cloth 7/16 Open End Wrench Thread ”Locktite”

Adjustment Procedure:

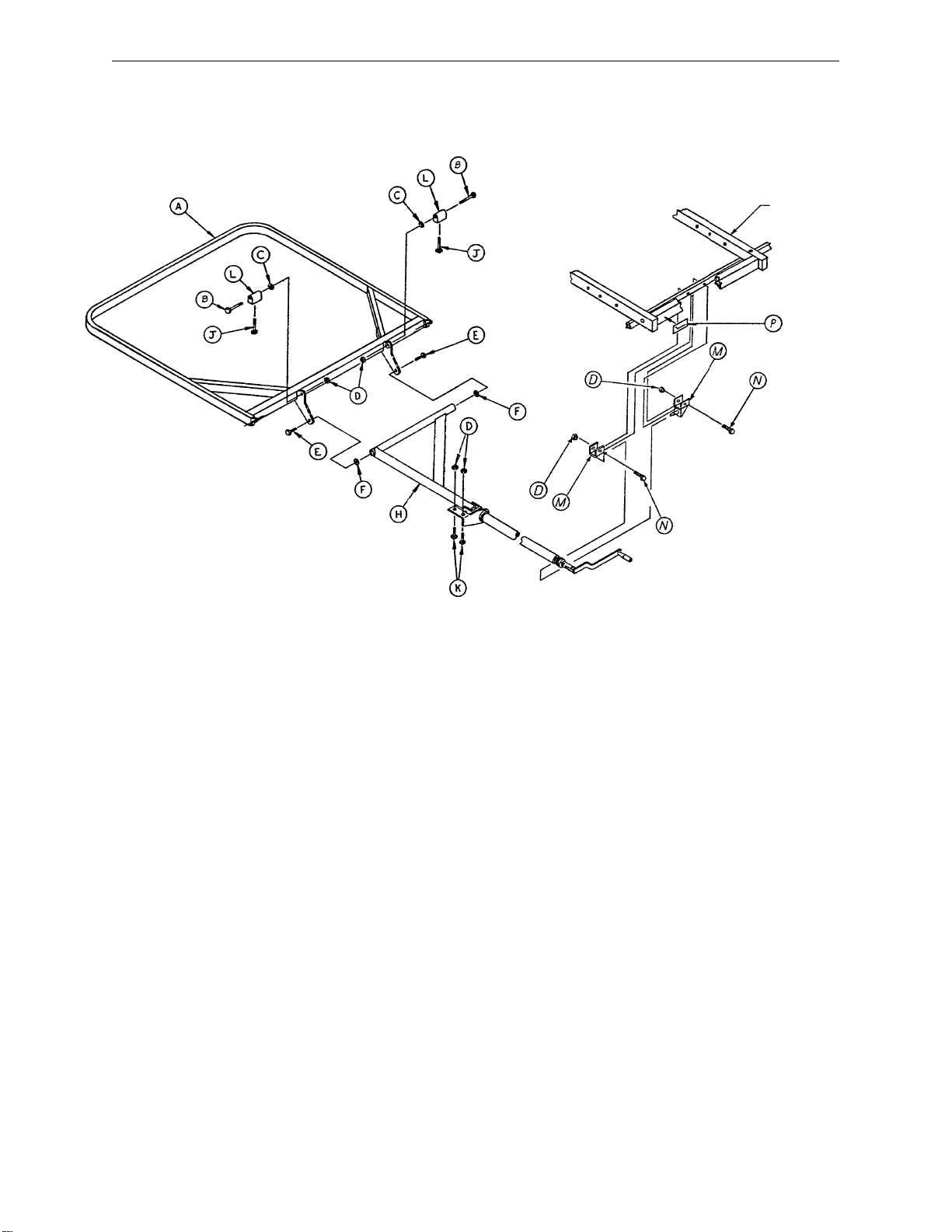

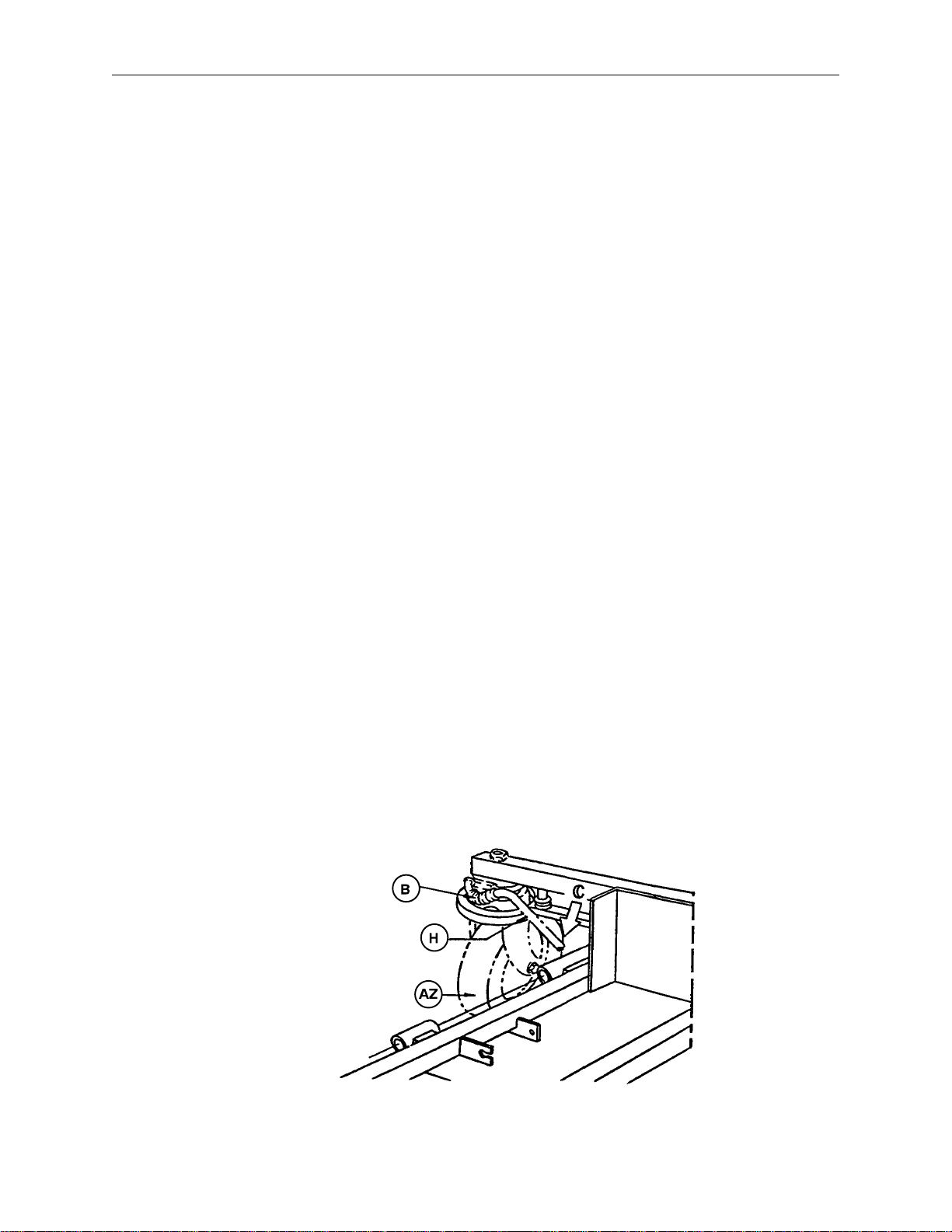

1. Refer to drawings 1010–31–90 and 1510–31–25 (Pneumatic Fowler Assembly, page 63) or 721–31–70 (Pneumatic Fowler Assembly, page 95).

2. For easier access, move Fowler to 75 degrees or higher.

3. Using a 3/32 hex Allen wrench, remove set screws (N), located in center of yokes (D).

4. Wrap a towel or cloth around the gas cylinder actuator shaft(s) so as not to mark the shaft. Using channel lock pliers, turn actuator shaft(s) into yoke(s) (D) until tight.

5. Using thread locktite, reinstall set screws (N).

6. While holding the jam nut spacers (R) with a 5/8 open end wrench, turn the adjustment screws (P) using a 3/16 hex Allen wrench until they JUST touch the cylinder pins.

7. Bring the Fowler fully down, and with the handle fully released, using a 1/8 hex Allen wrench, tighten the bottom set screws (S) so the handle is lifted 1/8–1/4 inch above the spine tube. Both set screws must touch the handle. Using a 7/16 open end wrench, tighten the jam nuts (Y) on these set screws.

8. Be sure the Fowler will travel from flat to at least 90 degrees. If it doesn’t, turn each adjustment screw (P) clockwise 1/2 turn. Repeat until at least 90 degrees of travel is achieved.

9. Lower the Fowler to a 5–10 degree angle and release the handle. Apply approximately 50 pounds downward to the end of the Fowler. If either side drifts down, turn the adjustment screw (P) on that side 1/4 turn counterclockwise. Repeat until the Fowler is firm with 50 pounds applied.

10. While holding the adjustment screws (P), tighten the jam nut spacers (R).

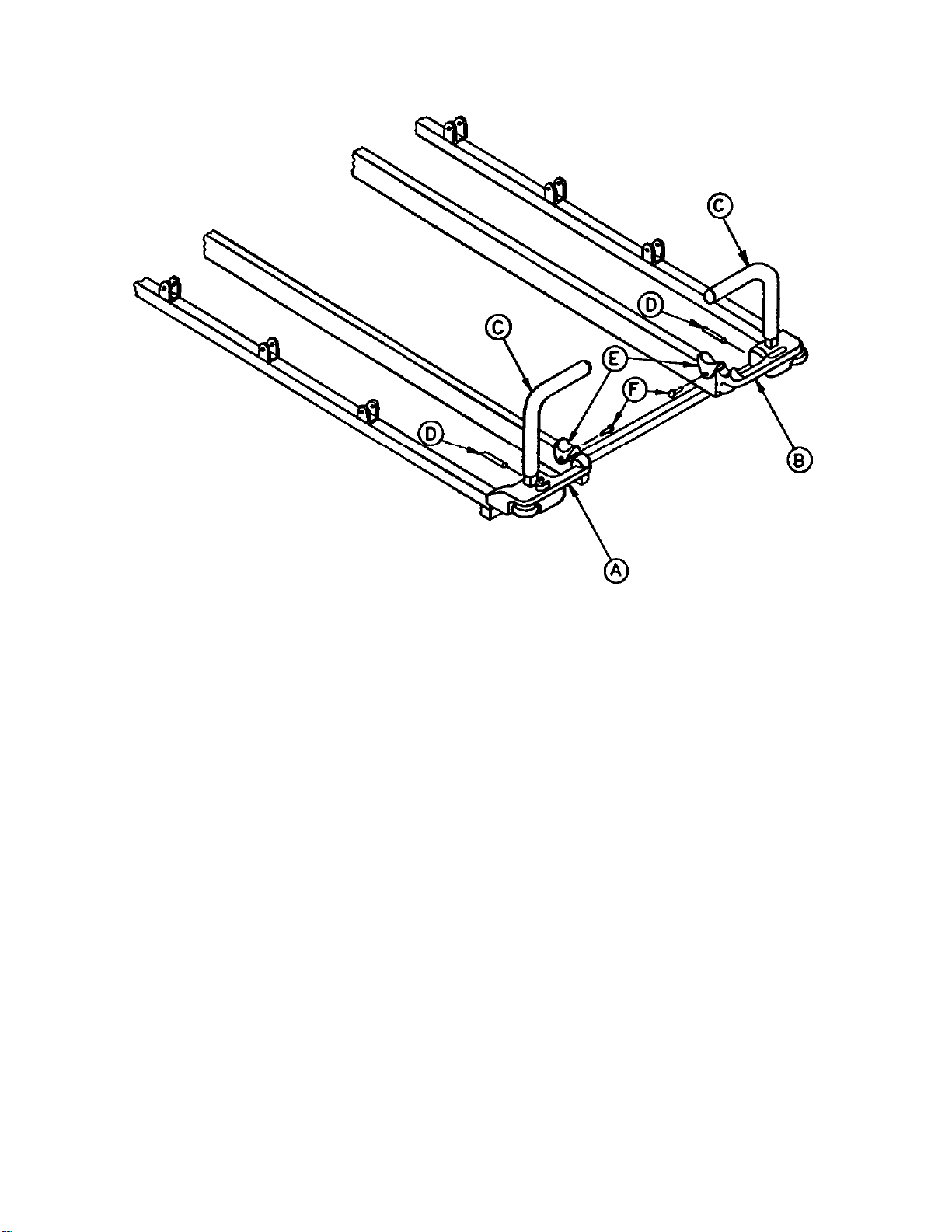

TRANSFER BOARD COUNTERBALANCE ADJUSTMENT

Required Tools:

7/16 Open End Wrench

Adjustment Procedure:

1. Raise the transfer board to the full up position.

2. Unhook the extension spring at the eye bolt.

3. Using a 7/16 open end wrench, loosen the jam nut at the eye bolt.

4. Adjust the eye bolt to the desired position.

5. Tighten the jam nut.

6. Hook the extension spring to the eye bolt.

7. Allow the transfer board to lower on its own.

8. Repeat steps 1–7 until the desired counterbalance is achieved.

Page 9

Service Information

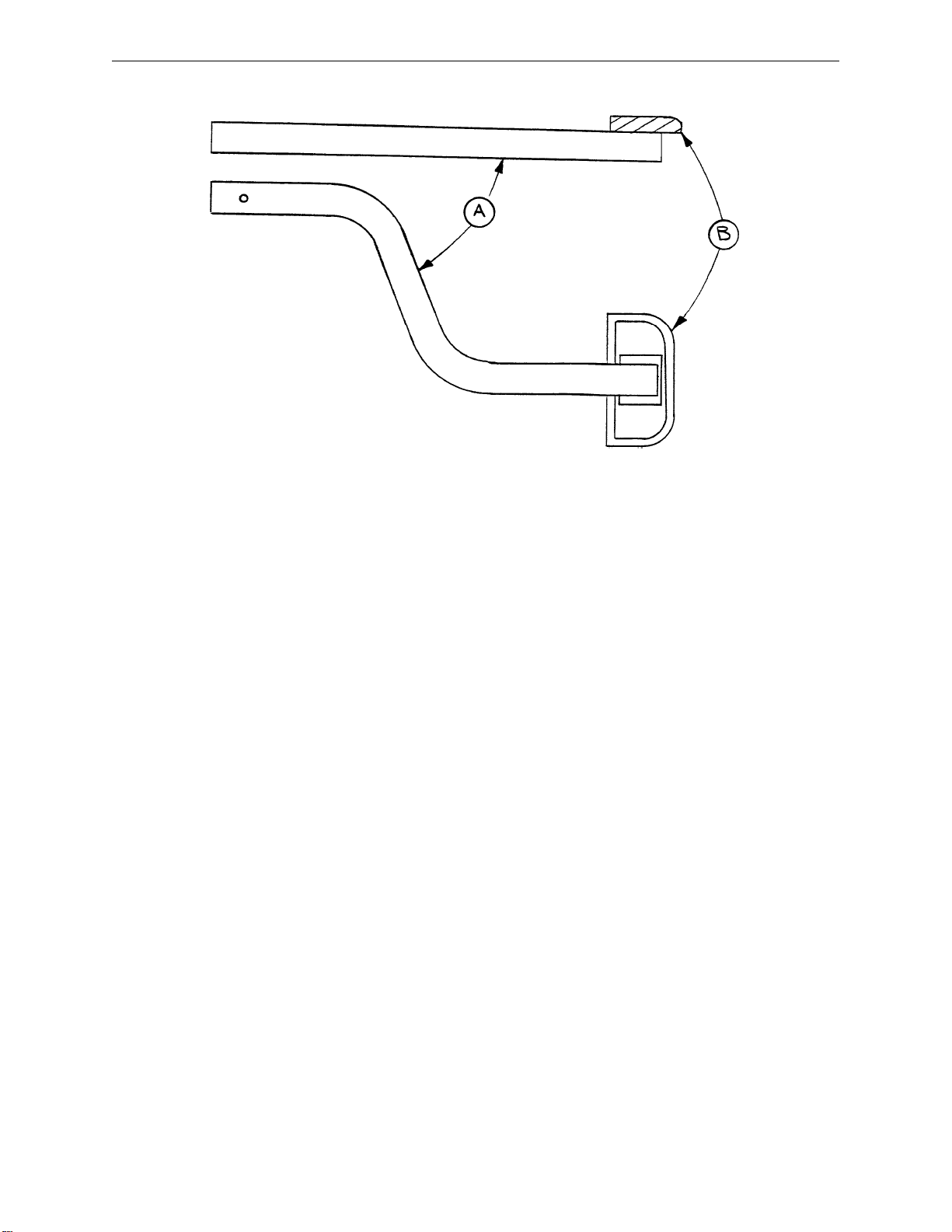

SIDERAIL LATCH ADJUSTMENT

Required Tools:

1/8 Hex Allen Wrench

WARNING

The siderail latch adjustment is pre–set at the factory, and there should not normally be a need for readjustment. If adjustment must be done it is important to follow the procedure below. If it is no t don e pro per ly, injury to the patient or user could occur.

Adjustment Procedure:

1. Using a 1/8 hex Allen wrench, adjust the hex Allen screw located on the latch assembly opposite the latch. Turning the Allen screw clockwise will DECREASE the amount of ”play” in the latching mechanism. T urn- ing counterclockwise will INCREASE the amount.

NOTE

The amount of ”play” in the siderail, when in full up engaged position, should be approximately 1/8 to 3/16 inches.

CAUTION

Too much ”play” when the siderail is in the full up engaged position will give the siderail the appearance of being unstable and could also cause premature wearing of the latch system. Too little ”play” will obstruct the latch and keep it from engaging completely in the full up position, which may cause damage to the latch and/or injury to the patient or user.

Page 10

Service Information

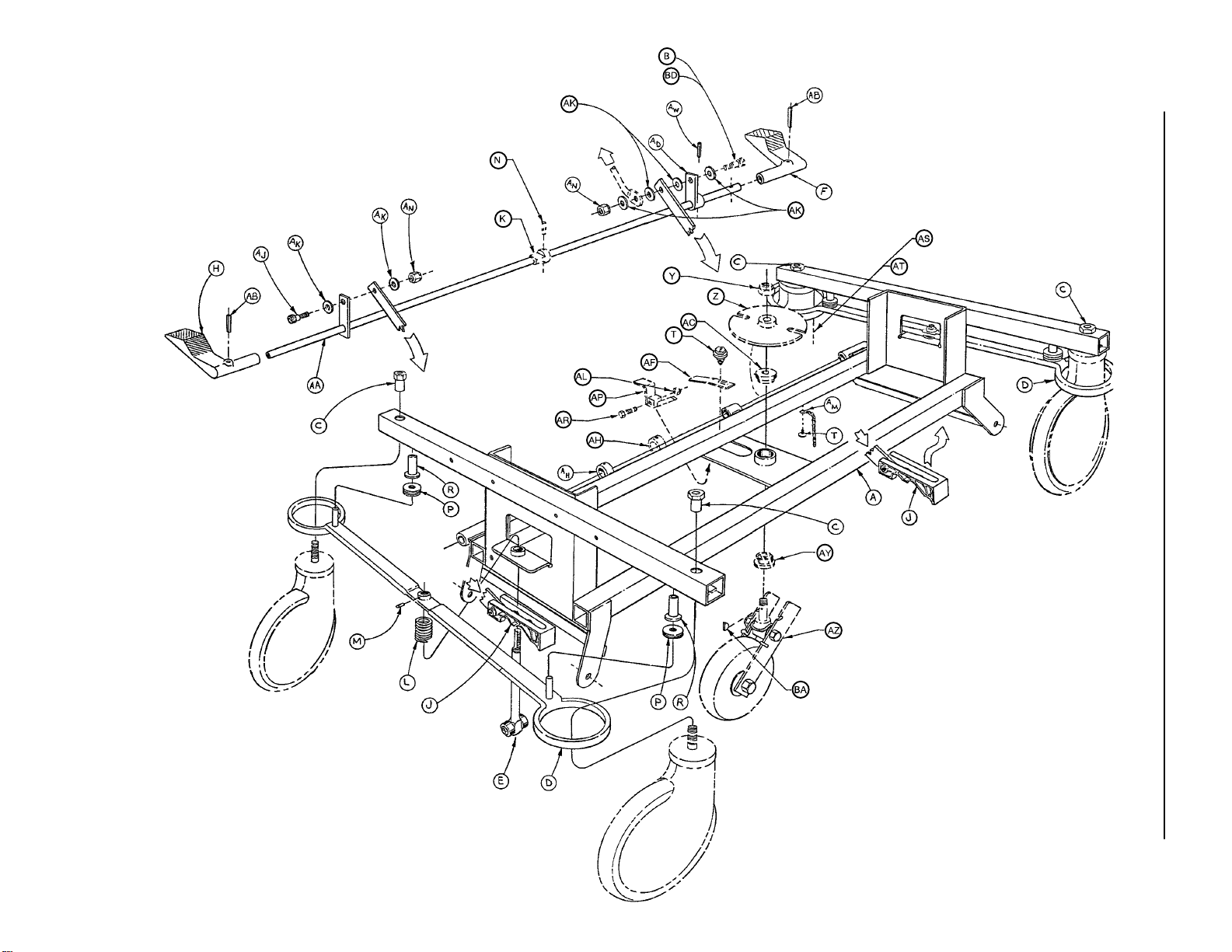

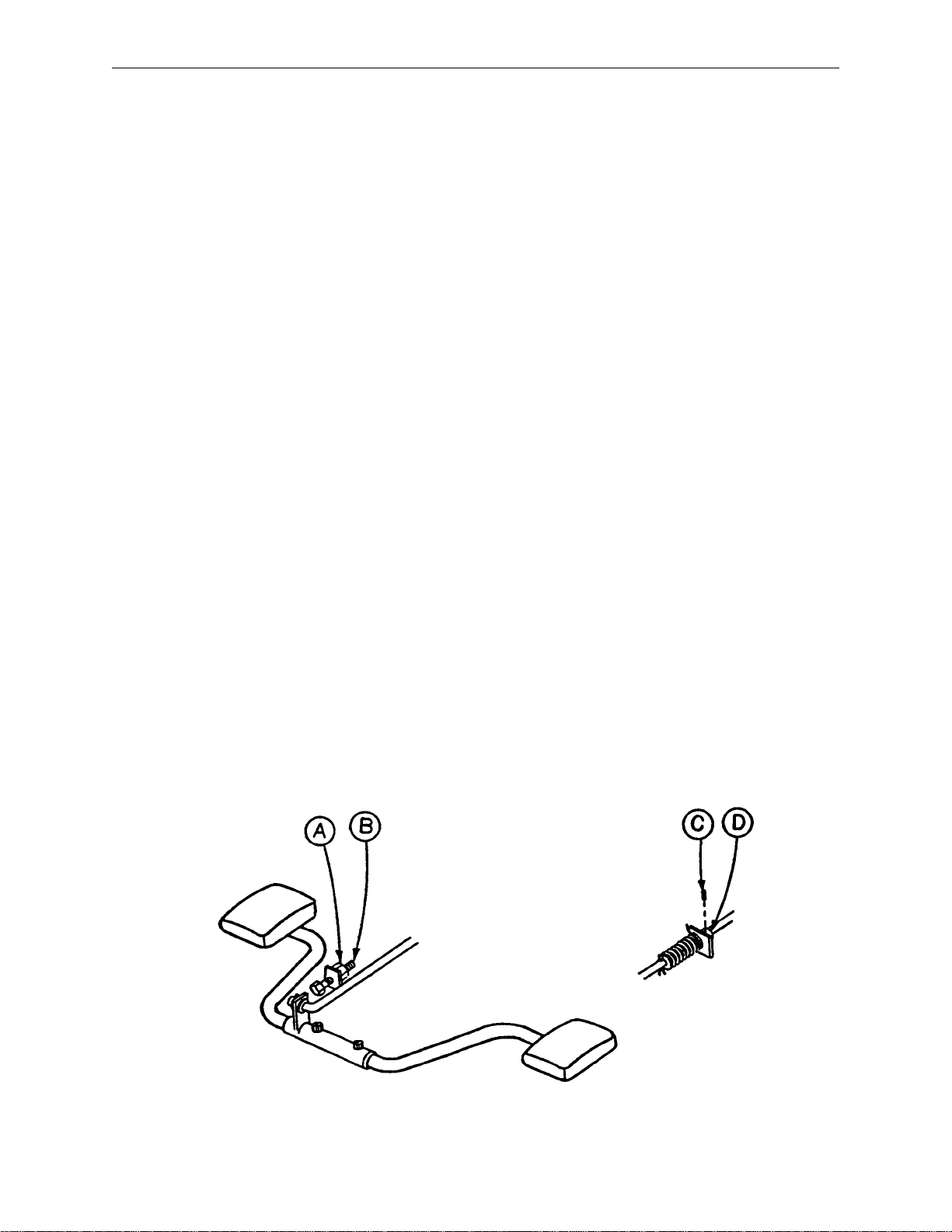

PEDAL LINKAGE ADJUSTMENT – DUAL SIDE CONTROL BASE

Required Tools:

3/32 Hex Allen Wrench 7/16 Open End Wrench 1/2 Open End Wrench (2) Wooden blocks (10 – 12 inches in length)

Adjustment Procedure:

1. Pump the litter up to full height.

2. Lift the base hood, separating the hood from the base frame. Using the wooden blocks, support the base hood.

3. To adjust the foot end descent pedal, use a 5/32 hex Allen wrench to loosen the set screw (C) in the stop collar (D) on the release rod. Hold the pedal parallel to the floor and slide the collar up to the bracket on the release rod. Tighten the set screw on the stop collar. Be sure the head end and foot end descent pedals are level with each other. Repeat for the head end pedal, if necessary.

4. Once the pedals are level, be sure the paddle on the end of the release rod for the foot end jack is slightly touching the actuating stem on the jack base. If it is not, use a 3/32 hex Allen wrench to loosen the set screw on the paddle hub. Adjust the paddle to JUST touch the stem of the jack. Tighten the set screw in the paddle hub. Repeat for the head end jack, if necessary.

5. Depress the pedal for the foot end jack. The jack should start to descend about the same time the paddle on the end of the rod contacts the sleeve on the jack actuating stem. The bracket on the foot pedal body should hit the stop screw (B). Any further movement could cause damage to the stem components inside the jack housing. To adjust the stop screw, use a 1/2 open end wrench to loosen the hex jam nut (A). Turn the screw and re–tighten the hex jam nut. Repeat for the head end jack.

6. Pump the litter up to full height.

7. Step on both descent pedals at the same time. Both ends of the litter should lower with the foot end lowering slightly faster than the head end. If it does not, refer to the procedure for adjusting the jack descent rate.

8. Remove the wooden blocks supporting the base hood. Use the pedal cut–outs on the side of the hood as a guide for proper re–positioning.

Page 11

Service Information

PEDAL LINKAGE ADJUSTMENT – DUAL END CONTROL BASE

Required Tools:

7/16 Open End Wrench 1/2 Open End Wrench (2) Wooden Blocks (10 – 12 inches in length)

Adjustment Procedure:

1. Pump the litter up to full height.

2. Lift the base hood, separating the hood from the base frame. Using the wooden blocks, support the base hood.

3. The descent pedals should be level with each other and there should be approximately 4 inches between the floor and the bottom of the pedal. To raise the pedal height, use a 1/2 open end wrench to loosen the hex jam nut (E). Using your hand, turn the screw (D) into the bracket. To lower the pedal height, loosen the screw. Tighten the hex jam nut (E) after the correct height is achieved.

4. Once the pedals are level, the release rod can be adjusted. Using a 7/16 wrench, turn nut (B) clockwise to shorten the release length and counterclockwise to increase the length.

5. Depress the pedal and be sure the jack descent is triggered when the pedal is approximately one inch from the floor. The descent should stop when the pedal is released and the jack height should hold. Repeat the above procedures for the descent pedal at the other end of the bed.

6. After adjusting each descent pedal individually, depress both pedals at the same time. Both jacks should start descending when the pedals are approximately one inch from the floor. The foot end should lower slightly faster than the head end. If it does not, see procedure for adjusting the jack descent rate.

7. Remove the wooden blocks supporting the base hood and secure the hood to the base frame.

Page 12

Service Information

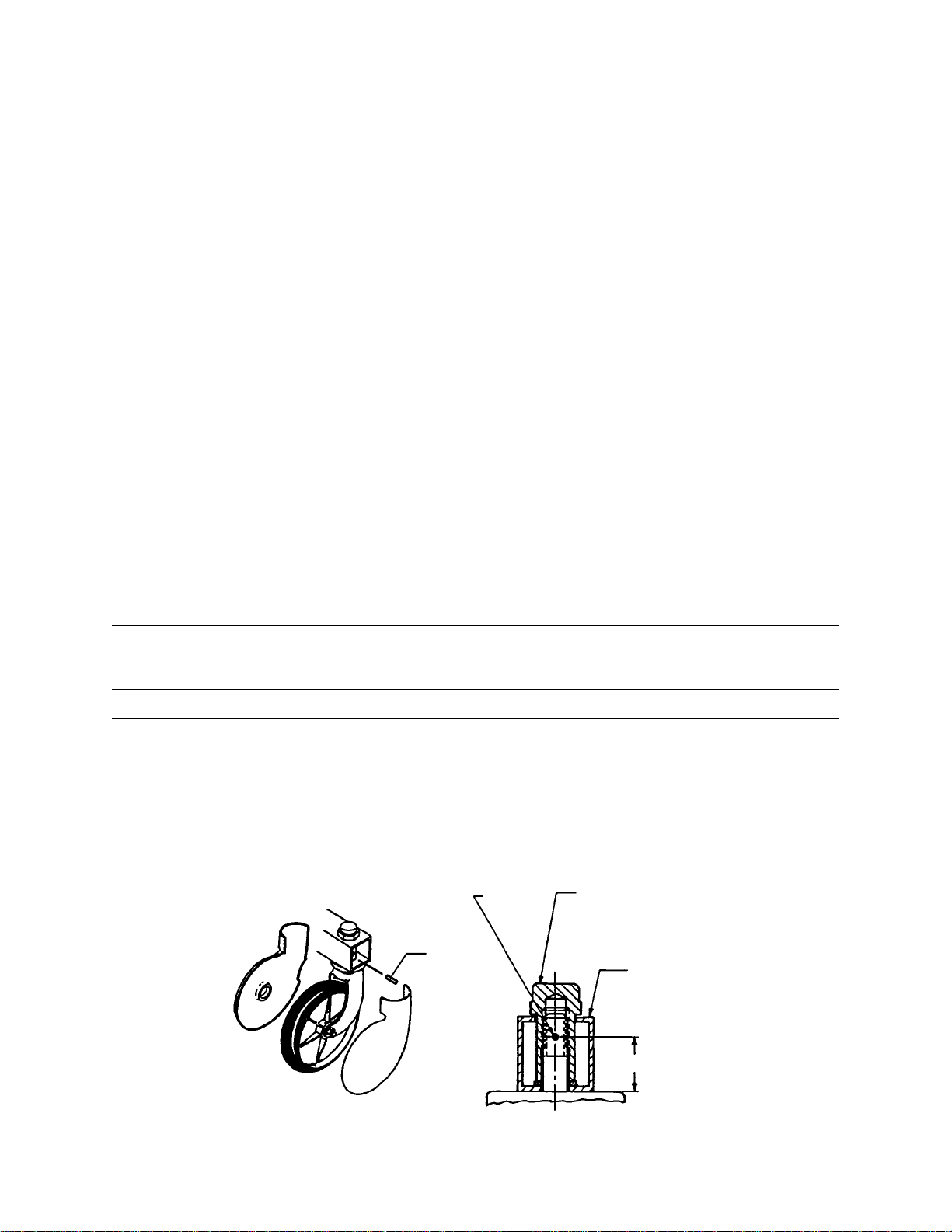

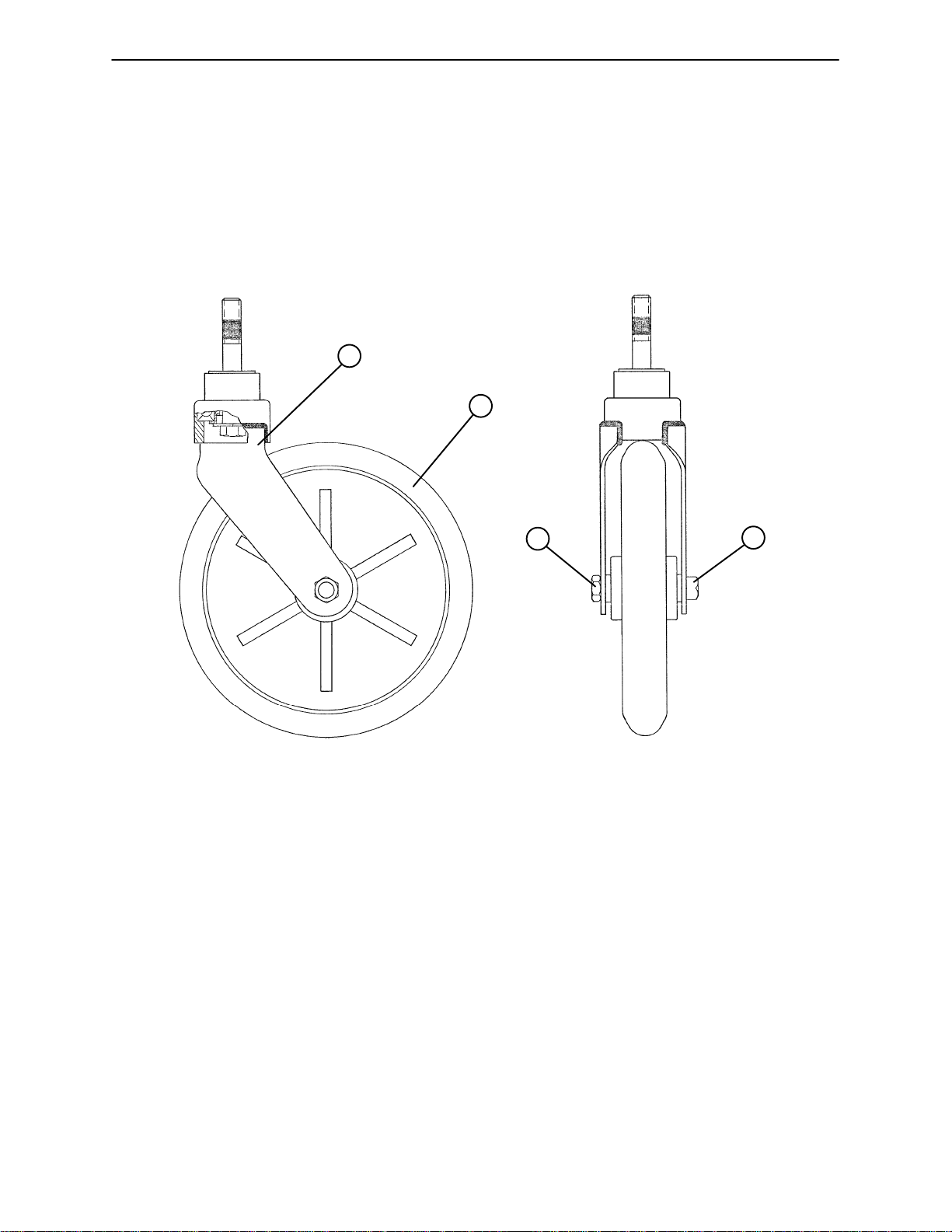

CASTER ASSEMBLY REPLACEMENT*

Required Tools:

1/8 Roll Pin Punch Drill with 1/8 inch Drill Bit Flat Punch (any size larger than 1/8) Hammer Needle Nose Pliers Floor Jack 3/4 Inch Wrench (2) Wooden Blocks (10 – 12 inches in length) 1 Inch Wrench Torque Wrench (w/ Ft. Lbs. Adjust.)

Replacement Procedure:

1. Pump the litter up to full height.

2. Lift the base hood, separating the hood from the base frame. Using the wooden blocks, support the base hood.

3. Using a 1/8 roll pin punch and hammer, remove roll pin located in center of lug nut holding wheel assembly to base frame.

4. Carefully remove plastic wheel covers.

5. Using a floor jack, lift base frame approximately 4 inches off the ground.

6. While holding cap screw with a 3/4 inch wrench, turn lug nut with a 1 inch wrench to loosen wheel assembly from base frame. Remove wheel.

7. Install the new wheel assembly with new lug nut and tighten down to 60 – 65 foot–pounds torque.

WARNING

Never reuse the old lug nut, cap screw or roll pin once removed from base frame.

8. Lower the floor jack and set aside to be used, if needed, with another wheel.

9. Drill a 1/8 hole in center of lug nut, going completely through the lug nut.

CAUTION

Be careful not to ”oblong” the hole in the lug nut when drilling.

10. Using needle nose pliers, hold on to roll pin and tap into place. Finish driving roll pin with a flat head punch and a hammer until flush with the lug nut.

11. Install plastic wheel covers onto wheel.

12. Remove the wooden blocks supporting the base hood and secure the hood to the base frame.

*Replacement Part Number 715–100–127 (Caster and Cover Assembly)

1/8 Inch

Dia.

Through

Roll Pin

Lug Nut

(60–65 Ft.–Lb.)

Support Tube

1 Inch

Page 13

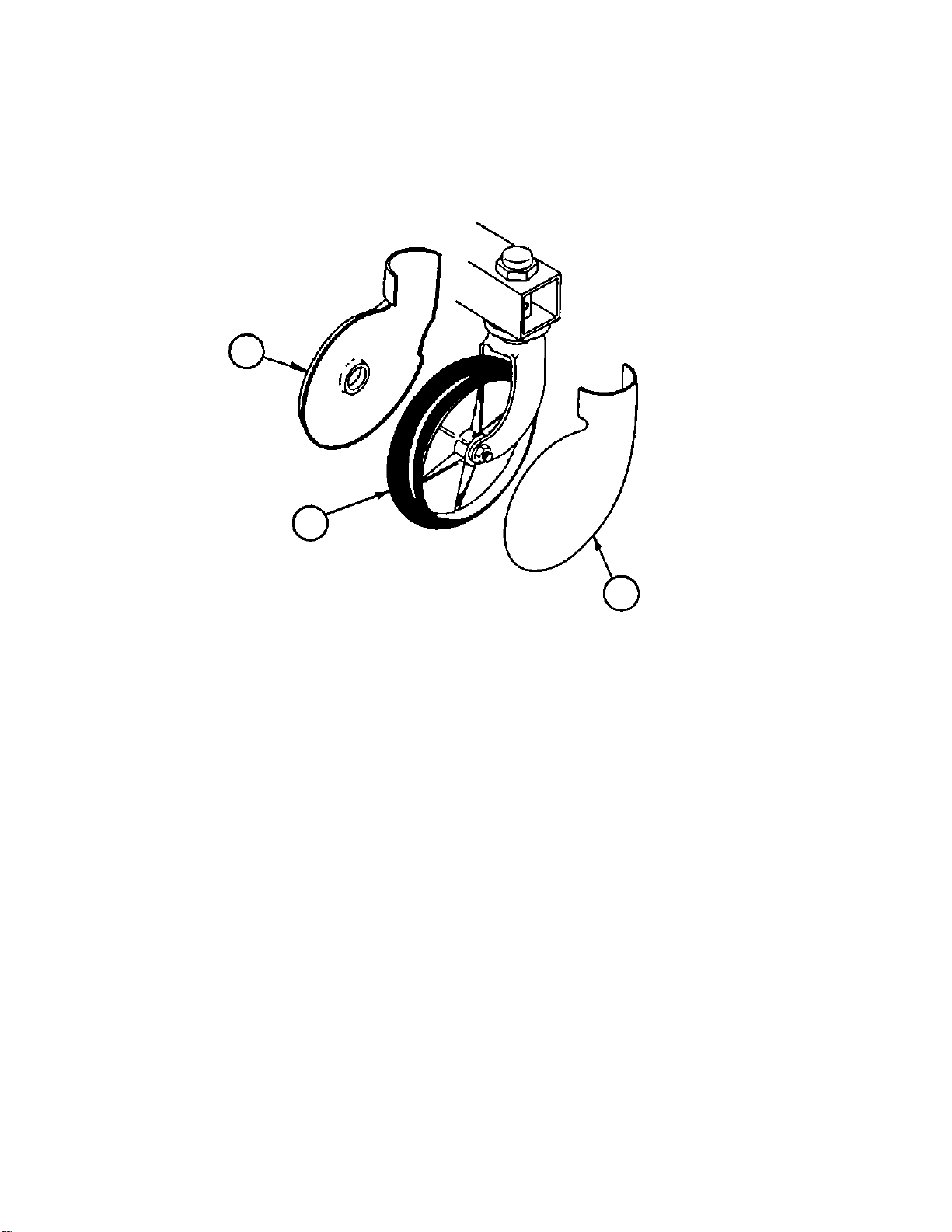

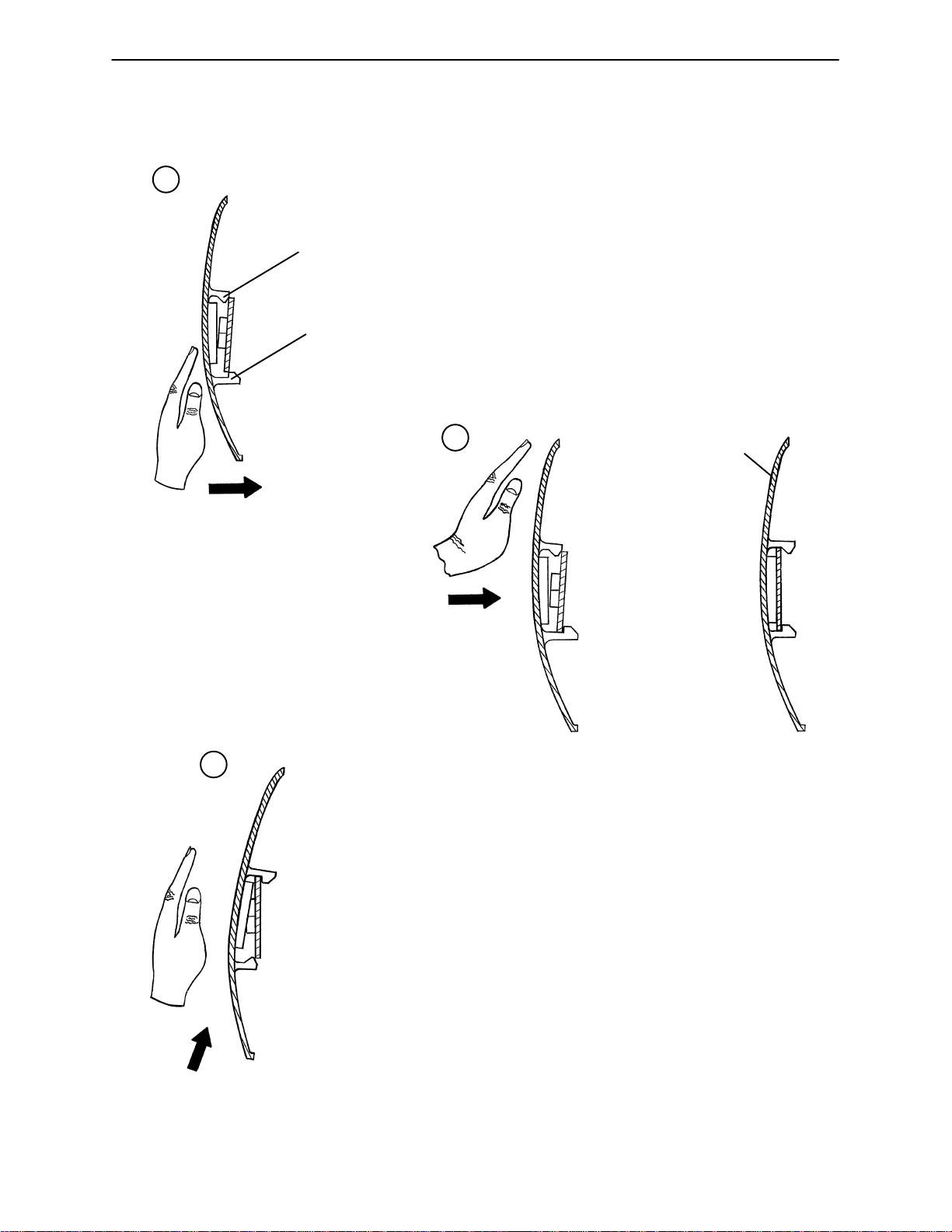

CASTER COVER INSTALLATION AND REMOVAL

Looking through the larger of the two side cut–outs,

Double Prongs

Single Prong

align cover with axle nut or bolt head, as shown. Push down on the opposite side of the cover until single prong engages with caster horn.

Service Information

Top View (Cut–Away)

Push with palm on cover until double prongs engage.

To remove wheel cover, insert large screwdriver into cut–out in side of wheel cover and into the space between the double prongs. Pry up cover to disengage double prongs and push sharply upward to disengage single prong.

Properly Attached

Cover

Top View (Cut–Away)

10.1

Page 14

Service Information

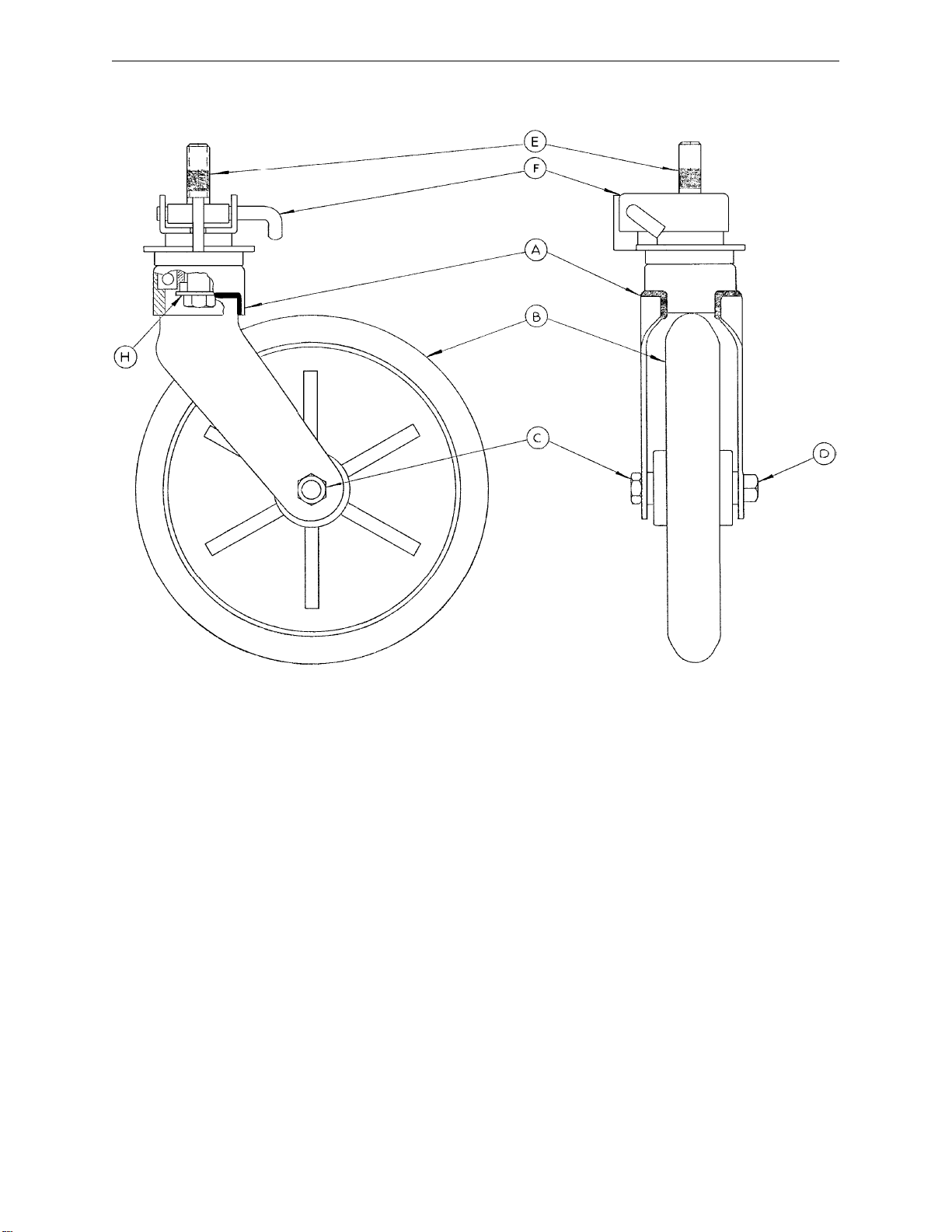

CASTER MAINTENANCE

Required Tools:

5/8” Wrench 11/16” Wrench

Maintenance Procedure:

Remove the plastic caster cover (see page 10.1). Using the 5/8” wrench and the 11/16” wrench, remove the centerlock nut (item A) from the through bolt

(item B) for the caster wheel.

Support the corner of the stretcher where the wheel is being removed and remove the through bolt (item

B) and the molded wheel (item C) .

Clean the through bolt, molded wheel, and the inside of the caster horn (item D) removing any dirt and

debris. Ensure the bearings in the molded wheel spin freely and easily.

Replace the molded wheel and the through bolt.

Replace the centerlock nut on the through bolt and use the 5/8” and 11/16” wrenches to tighten it securely.

10.2

Page 15

Service Information

HYDRAULIC SYSTEM TROUBLESHOOTING

NOTE

Be sure the pedal linkage has been adjusted properly before beginning service on the jacks (see page 8 or page 9).

PROBLEM/SYMPTOM SOLUTION

Jack will not raise to full height. Add hydraulic fluid (see p.12). Check for leaks. Jack will not hold in raised position. Close the needle valve completely. If the jack

holds, replace valve #1 (see p. 14). If the jack does not hold, replace valve #2 (see p. 15).

Jack will not pump up and the jack actuator rod

does not move.

Jack will not pump up but the jack actuator rod

does move when the pump pedal is activated.

Jack will not pump up and the jack actuator rod may or may not move.

Close the needle valve. If the jack will now pump up, replace valve #1. If the jack still will not pump up after closing the needle valve, replace valve #3 (see p. 15).

Replace valve #2 (see p. 15).

Remove excess air (vacuum) in system (see p.

12).

Contact Stryker technical service at 1–800–327–0770 for further assistance.

Page 16

Service Information

CHECKING HYDRAULIC FLUID LEVEL

Required Tools:

3/8 Open End Wrench 3/4 Open End Wrench

Procedure:

WARNING

To avoid personal injury or damage to the stretcher, remove the litter and the base hood before beginning service on the jacks.

1. Using a 3/8 open end wrench, remove square head set screws from both head and foot end jack support tubes. Remove litter top and set aside.

2. Lift base hood off base frame and set aside.

3. Be sure there are no hydraulic leaks. If there are, jack replacement will be necessary.

4. Lower the jack to the full down position.

5. Using a 3/4 open end wrench, slowly turn the fill plug located on the side of the reservoir counterclockwise to allow excess system pressure to vent. Remove the fill plug.

6. The hydraulic fluid should be visible at the bottom of the fill hole. If it is not, add Mobil Aero HFA hydraulic fluid (Stryker part number 2020–70–475) until the fluid is visible at the bottom of the fill hole. Replace the fill plug.

CAUTION

Use of other types of oil may damage hydraulic units.

7. Replace the hood and the litter.

REMOVAL OF EXCESS AIR (VACUUM) FROM THE HYDRAULIC SYSTEM

Procedure:

1. Verify all hydraulic linkages are secure and operating properly (see pedal linkage adjustment procedure page 8 or 9).

2. Using pump pedal, actuate system several times. This will force the air through the system and the jack should now pump up.

Page 17

Service Information

JACK DESCENT RATE ADJUSTMENT

Required Tools:

Screwdriver (2) Wooden Blocks (10 – 12 inches in length)

Adjustment Procedure:

1. Pump the litter up to full height.

2. Lift the base hood, separating the hood from the base frame. Using the wooden blocks, support the base hood.

3. The descent rate needle valve is located on the base of the jack. Turning the needle valve clockwise, with a screwdriver, will decrease the rate of descent. Turning it counterclockwise will increase the rate of descent.

4. Adjust the needle valve so that the foot end of the stretcher descends slightly faster than the head end.

NOTE

The larger percentage of a patient’s weight is located in the torso area. Adjust descent rate accordingly.

5. Remove the wooden blocks supporting the base hood and secure the hood to the base frame.

NOTE

The jack descent rate was preset at the factory to drop the foot end faster than the head. It is recommended that the foot drop faster to avoid patient disorientation.

Page 18

Service Information

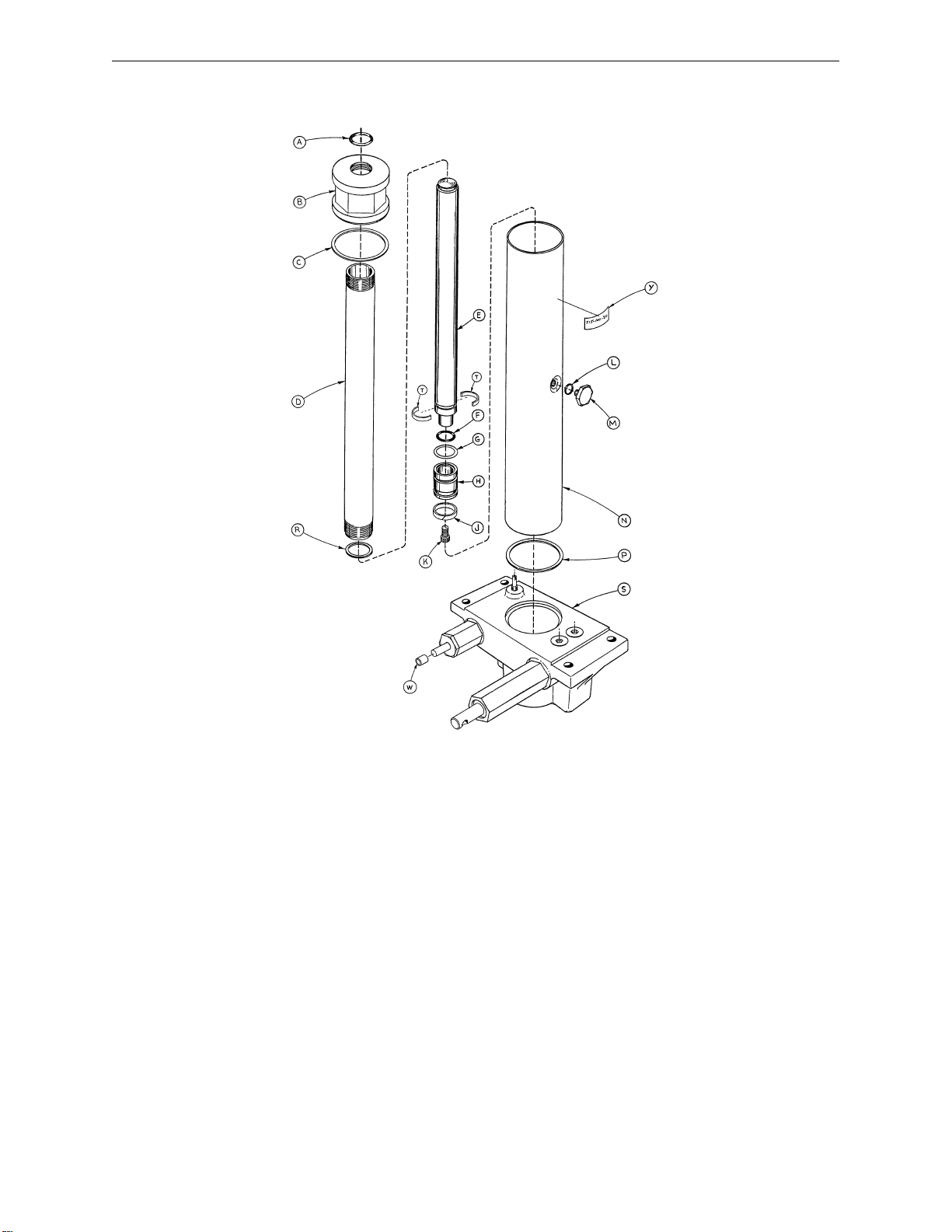

HYDRAULIC CHECK VALVE REPLACEMENT

Required Tools:

3/8 Open End Wrench Stiff Wire (with bent, pointed end) Small Needle Nose Pliers 3/4 Open End Wrench Torque Wrench (with Ft. Lbs. adjust.) 7/32 Hex Allen Wrench 1/2 Inch Diameter Rod

Replacement of Valve #1

WARNING

To avoid personal injury or damage to the stretcher, remove the litter and the base hood before beginning service on the stretcher.

1. Using a 3/8 open end wrench, remove square head set screws from both head and foot end jack support tubes. Remove litter top and set aside.

2. Lift base hood off base frame and set aside.

3. Lower the jack to full down position. The actuator must be manually lowered while depressing the appropriate release pedal.

4. Remove the pin body assembly (4) with a 3/4 open end wrench and discard the housing gasket (5).

NOTE

Although the hydraulic fluid is not under pressure, some fluid loss will occur . The fluid loss should be minimal but covering the floor is advisable.

5. Using a 7/32 hex Allen wrench, remove the valve plug (6).

6. Using a stiff wire with a bent, pointed end, remove and discard the valve (1) and the seal (7).

7. Install the new seal (7) flat to the bottom of its hole with a 1/2 inch diameter rod and install the new valve (1) with the beveled end out (as shown in the illustration).

8. Install the valve plug (6) with the countersunk end first and the beveled end out. Tighten to 10 foot pounds torque.

9. Install the pin body assembly (4) with the new housing gasket (5) and tighten to 10 foot pounds torque.

10. Pump up the jack to the maximum height. Apply weight to be sure the jack holds its position and there are no hydraulic leaks before replacing the base hood and the litter.

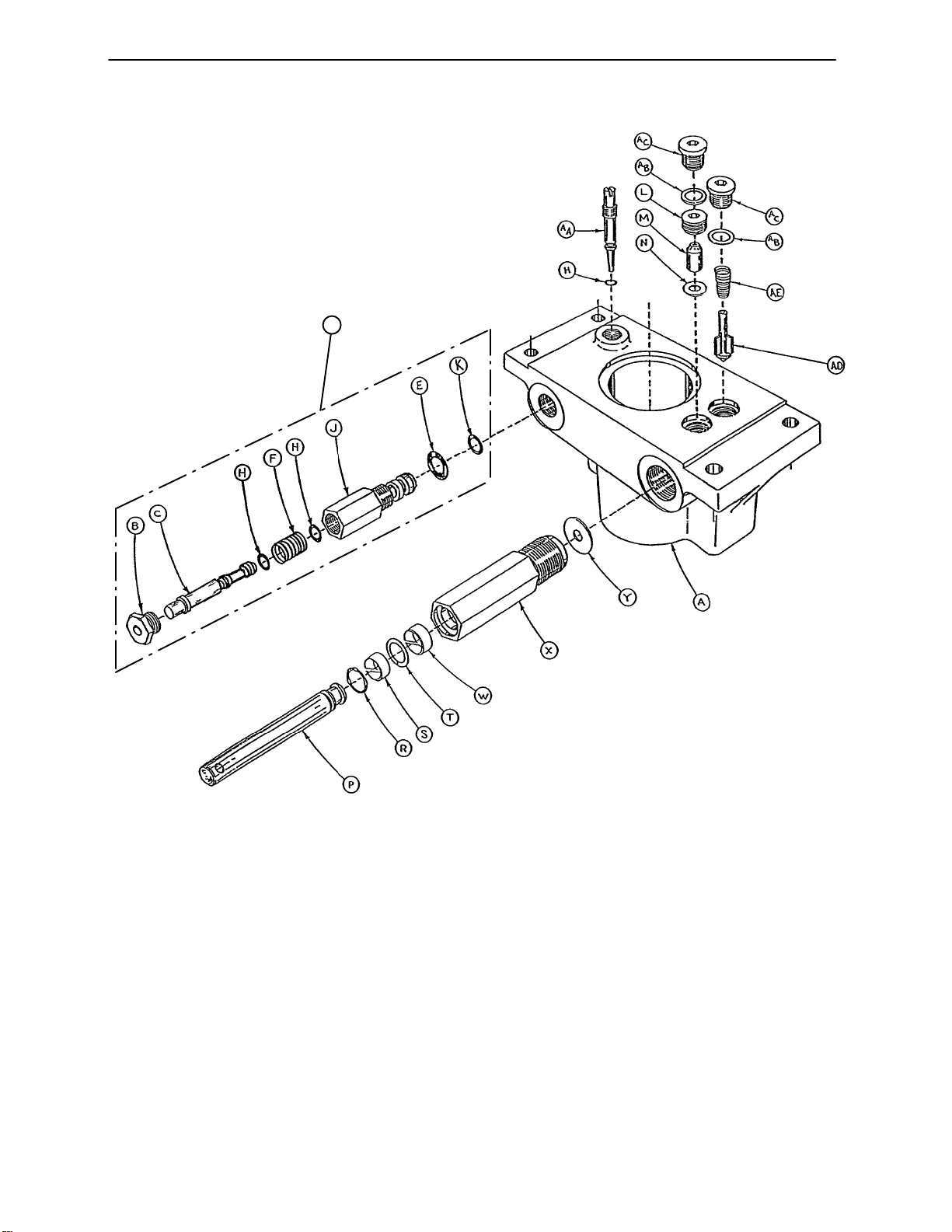

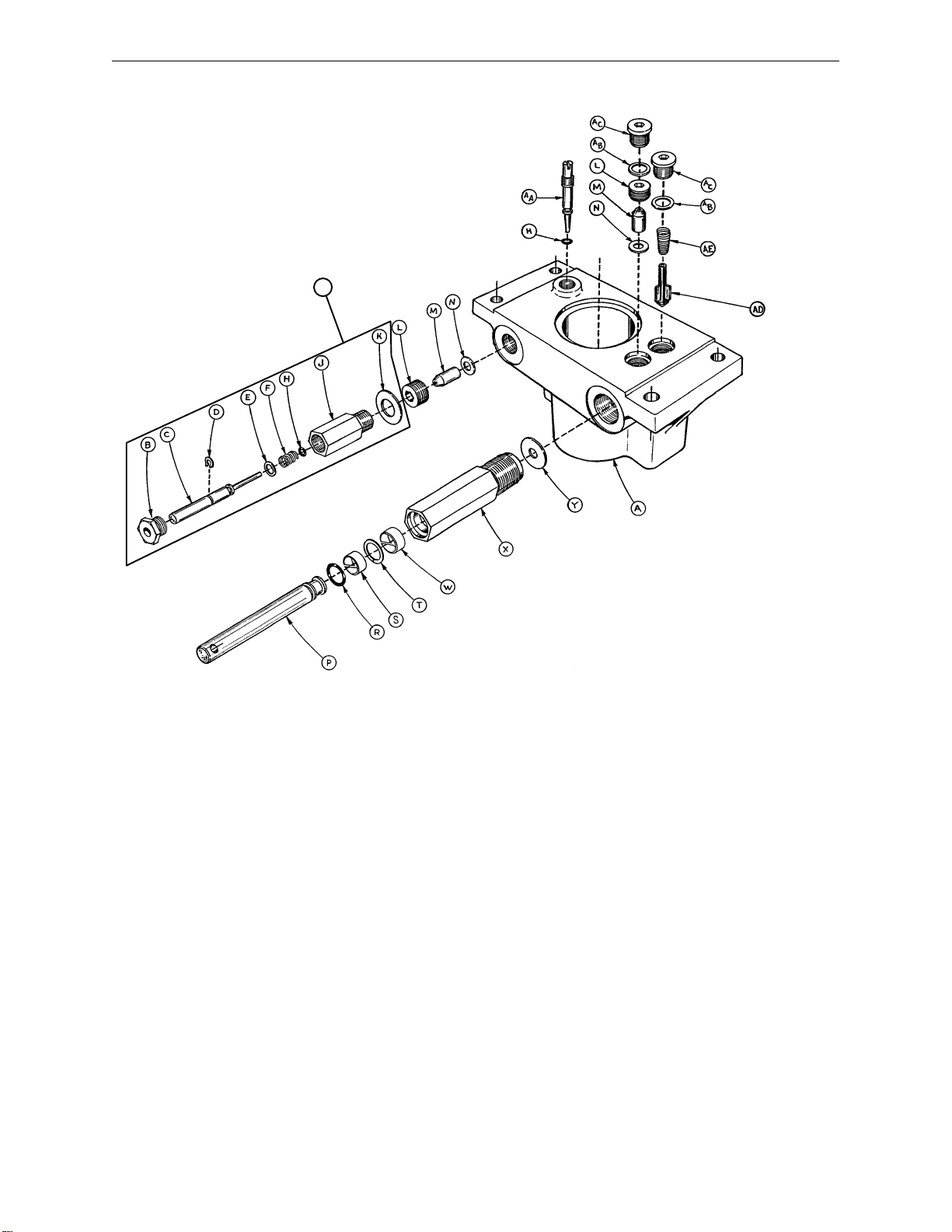

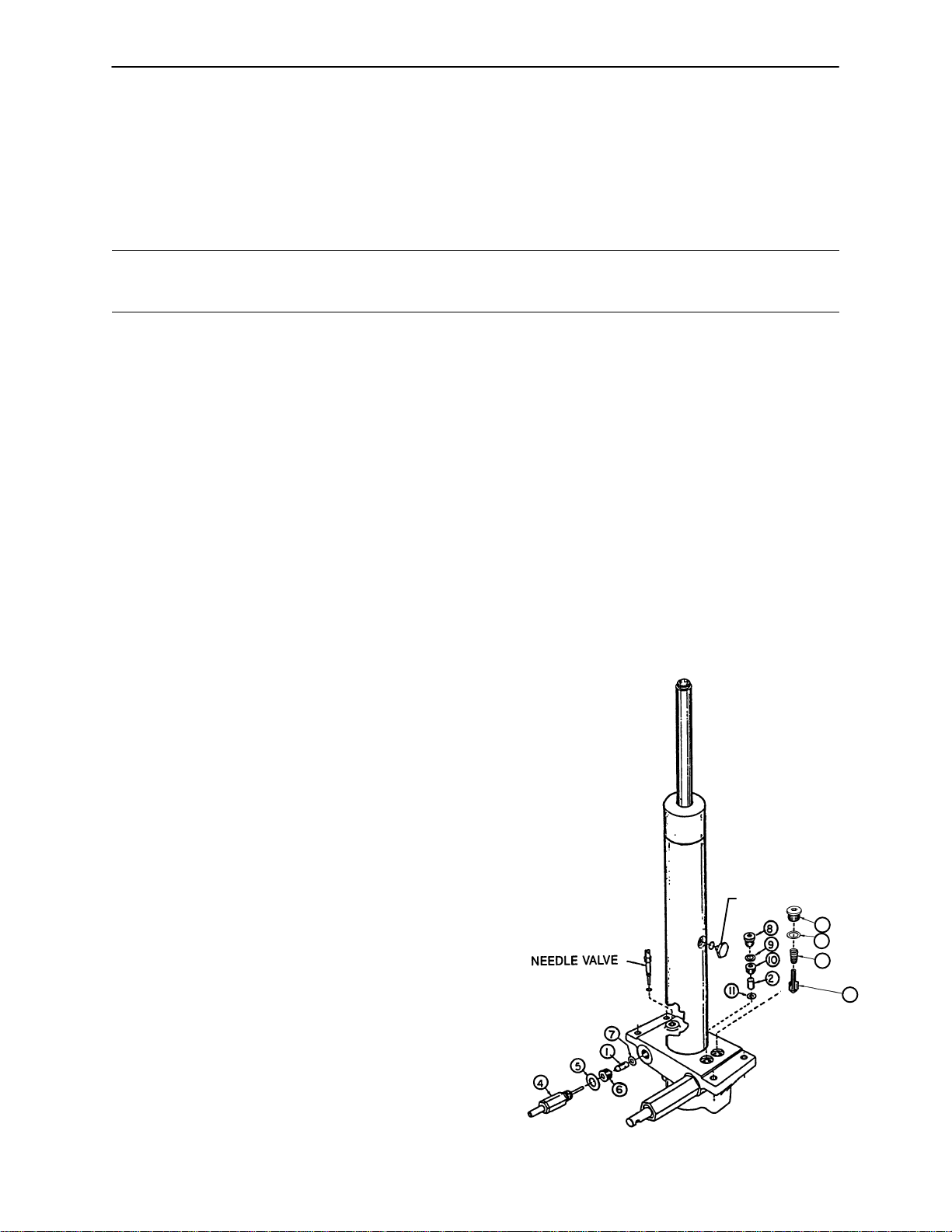

ITEM PART NO. PART NAME

1 926–20–153 Check Valve 2 926–20–153 Check Valve 3 715–1–341 Poppet 4 715–100–312 Pin Housing Assembly*

715–270–100 Valve Assembly** 5 715–1–330 Housing Gasket 6 715–1–309 Valve Plug 7 926–20–154 Seal 8 715–1–101 Base Plug 9 926–20–156 Seal 10 715–1–309 Valve Plug 11 926–20–154 Seal 12 715–1–301 Base Plug 13 926–20–156 Seal 14 390–2–134 Conical Comp. Spring

* Used on jack part number 715–100–310. ** Used on jack part number 715–270–10.

(see label on side of jack reservoir for jack part number)

FILLER PLUG

12 13

Page 19

Service Information

HYDRAULIC CHECK VALVE REPLACEMENT (CONT’D)

Replacement of Valve #2

WARNING

To avoid personal injury or damage to the stretcher, remove the litter and the base hood before beginning service on the jacks. Lower the jack rod completely to relieve the pressure on the pump piston side of the jack. This will prevent large hydraulic fluid loss and possible damage when the base plugs are removed.

1. Remove the base plug (8) and discard the seal (9).

2. Remove the valve plug (10).

3. Using a stiff wire with a bent, pointed end, remove the valve (2) and the seal (11) and discard the seal.

4. Install the new seal (11) flat to the bottom of its hole with a 1/2” diameter rod.

5. Install the new valve (2) with the beveled end out (as shown in the illustration).

6. Install the valve plug (10) and tighten to 10 foot–pounds torque.

7. Install the new seal (9) with the base plug (8) and tighten to 10 foot–pounds torque.

8. Pump up the jack to the maximum height.

9. Be sure there are no hydraulic leaks before replacing the base hood and the litter.

Replacement of Valve (Poppet) #3

WARNING

1. Remove the base plug (12) and discard the seal (13).

2. Remove the compression spring (14).

3. Using a small needle nose pliers, remove the poppet (3).

4. Install the new poppet (3).

5. Install the compression spring (14).

6. Install the new seal (13) and the base plug (12) and tighten to 10 foot–pounds torque.

7. Pump up the jack to the maximum height to check its operation.

8. Check for hydraulic leaks before replacing the base hood and the litter.

Page 20

Service Information

Required Tools:

3/32” Hex Allen Wrench

Pry Bar

Thread ”Locktite”

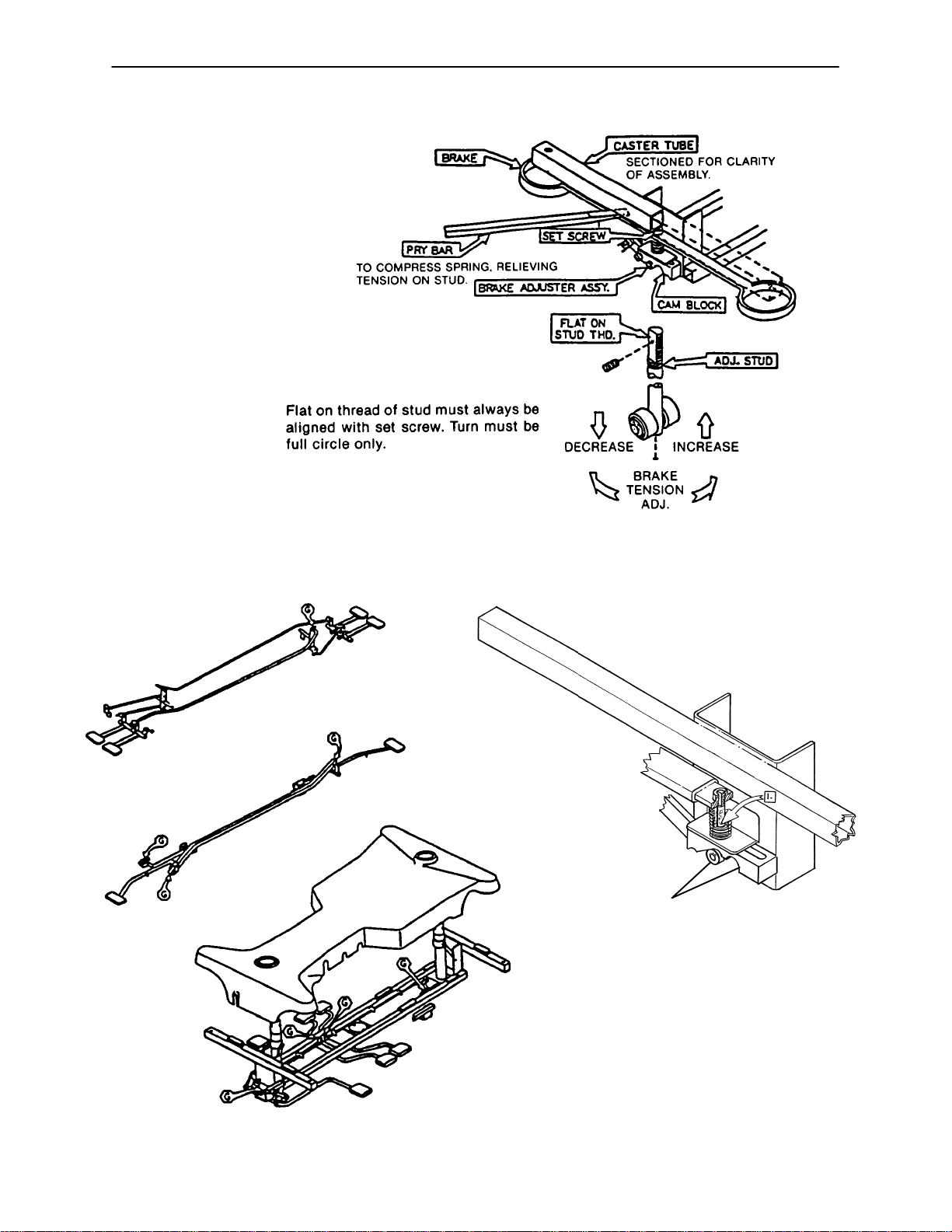

BRAKE ADJUSTMENT

BASE LUBRICATION

Do not grease area shown.

1. Lubricate brake adjuster rod around area shown with MPG–2 grease or equivalent.

Page 21

Notes

Page 22

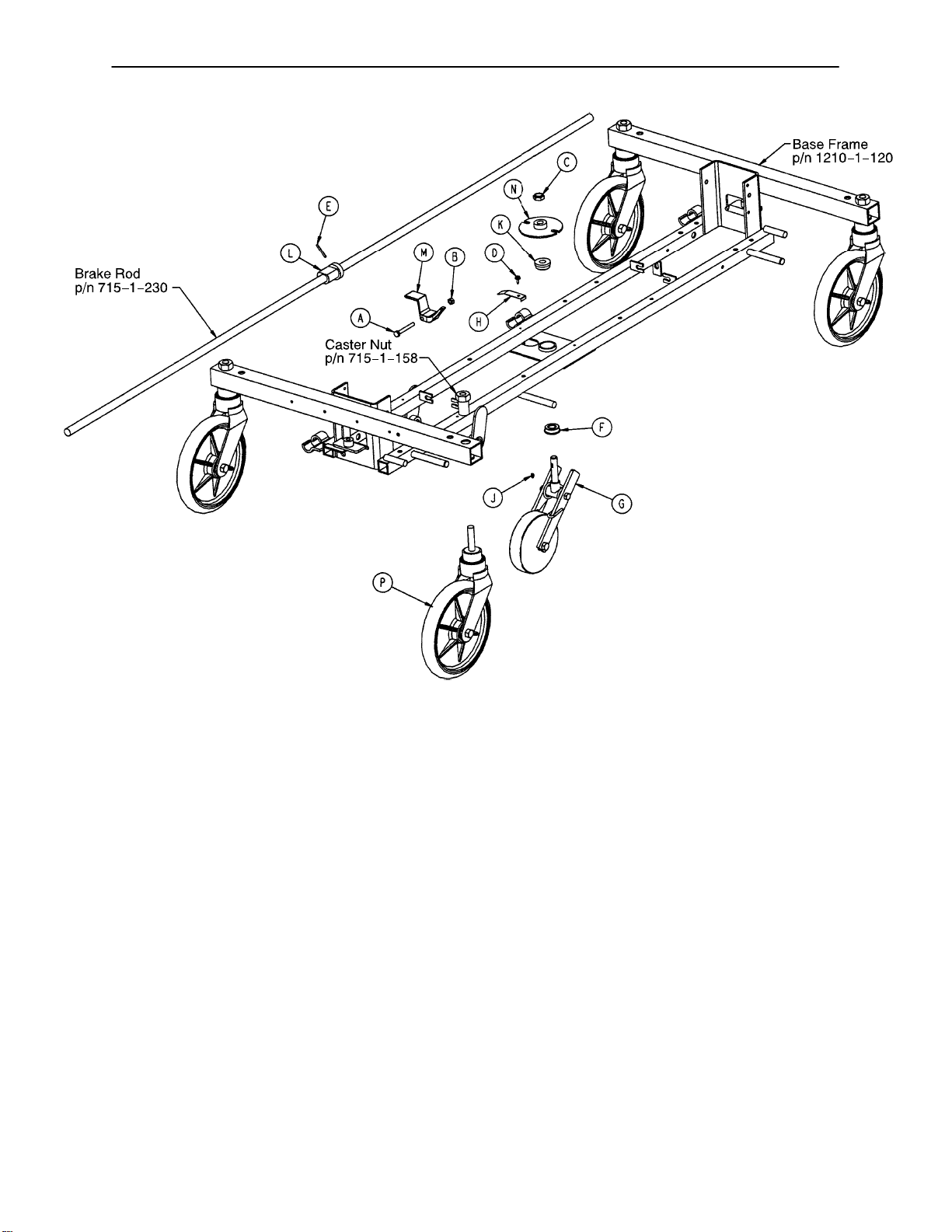

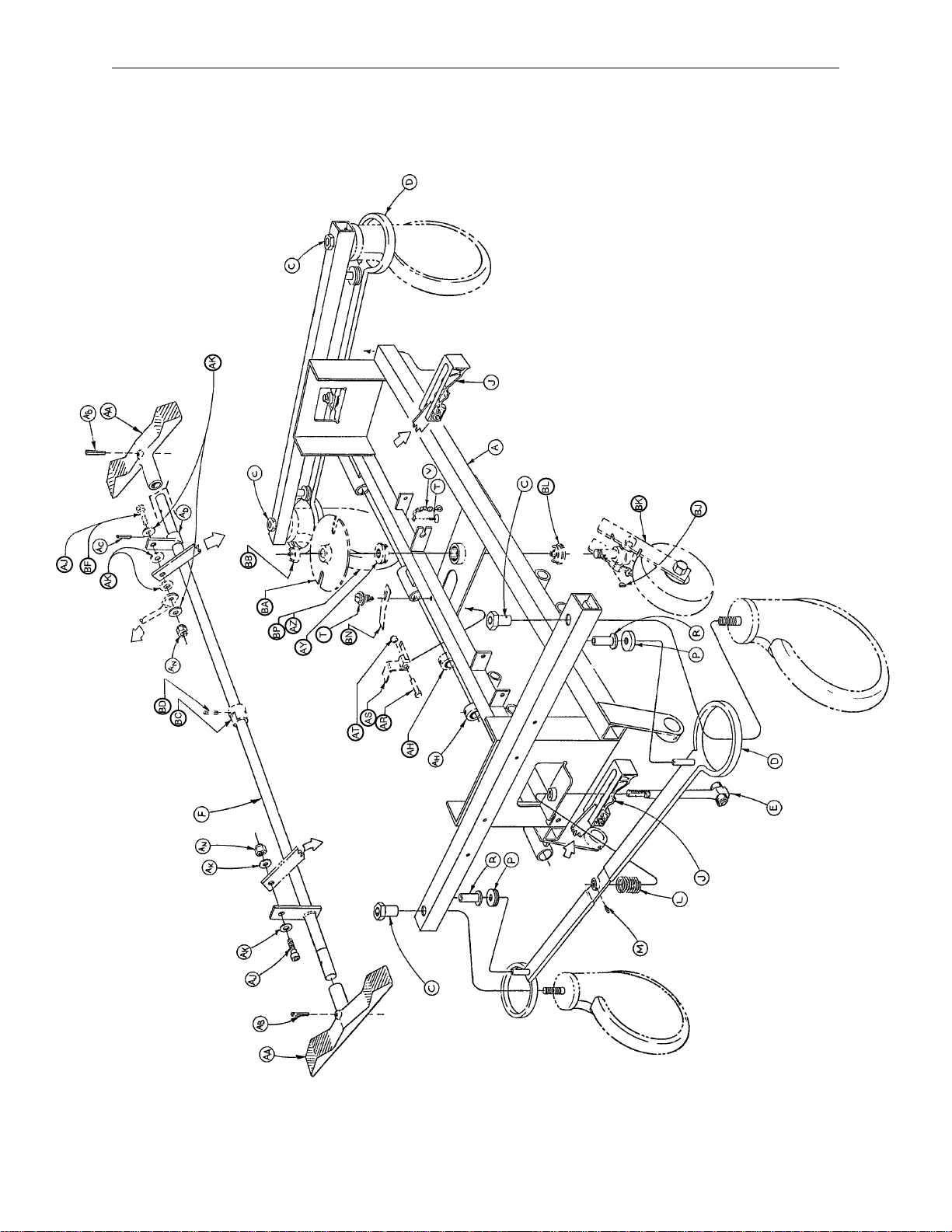

715–1–250 Side Control Base Assembly (with Brakes)

Page 23

715–1–250 Side Control Base Assembly (with Brakes)

Item Part No. Part Name Qty.

A 715–1–245 Base Weldment Assembly 1

B38–211 Spring 1

C 715–1–158 Caster Nut 4

D 715–1–61 Caster Brake Assembly 2

E (Page 20) Brake Adjuster Assembly 2

F 715–1–231 Brake/Steering Rod Assembly 1

H 1000–10–62 Steering Lock Linkage Bar 1

J (Page 21) Brake Cam Assembly 2

L 715–1–94 Compression Spring 2

M21–50 Set Screw 2

P 715–1–11 Brake Cushion 4

R 946–1–116 Brake Bar Bushing 4

T23–25 Self–Tapping Screw 2

V 715–1–156 Grounding Chain 1

AA 715–201–201 Brake/Steer Pedal 2

AB 26–261 Groove Pin 2

AC 26–13 Roll Pin 1

AD 715–1–165 Actuator Plate Assembly 1

AH 42–20 Collar w/ Set Screw 2

AJ 8–17 Soc. Hd. Cap Screw 2*

AK 14–2 Nylon Washer 4

AN 16–2 Fiberlock Nut 2

AR 3–20 Hex Hd. Cap Screw 1

AS 715–1–217 Fifth Wheel Latch 1

AT 16–16 Nylock Nut 1

AY 715–1–157 Fifth Wheel Bearing 1

AZ (Page 27) Steering Caster Assembly 1**

BA 715–1–337 Fifth Wheel Plate Assembly 1

BB 16–49 Flexlock Nut 1

BC 715–1–161 Fifth Wheel Cam 1

BD 26–8 Roll Pin 1

BF 8–21 Soc. Hd. Cap Screw 1**

BJ 715–1–149 Woodruff Key 1

BK (Page 29) Fifth Wheel Assembly 1

BL 81–219 Bearing 1

BN 715–1–136 Fifth Wheel Spring 1

BP (Page 28) Caster Wheel Assembly 3 ***

*Item AJ to be used only when fifth wheel is ordered. **Items AZ and BF to be used only when steerlock caster is ordered. ***Item BP quantity of four when fifth wheel is ordered.

STEERLOCK ASSEMBLY DETAIL

Page 24

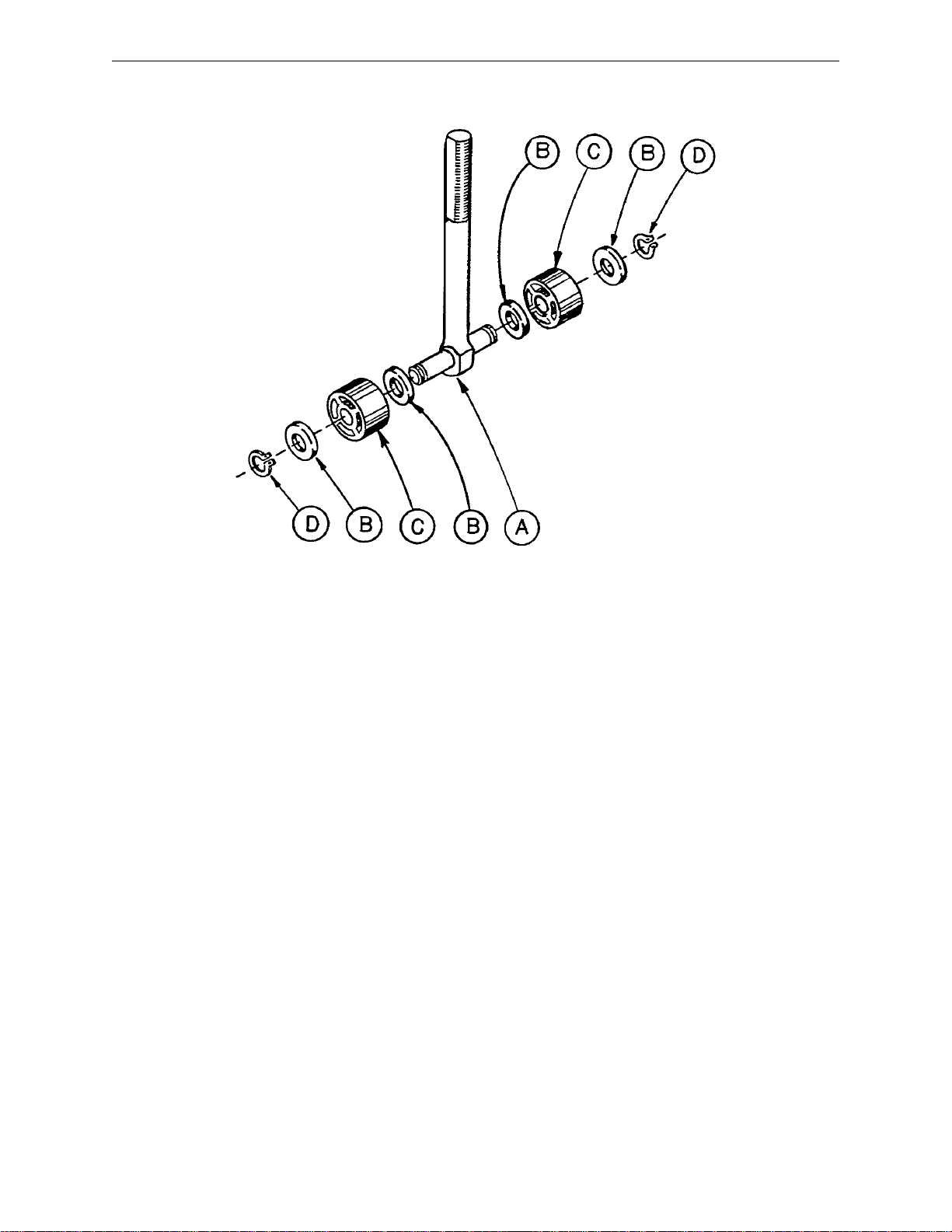

715–1–150 Brake Adjuster Assembly

Item Part No. Part Name Qty.

A 715–1–62 Threaded Stud Assembly 1 B14–4 Nylon Washer 4 C 715–1–180 Bearing 2 D28–8 Retaining Ring 2

Page 25

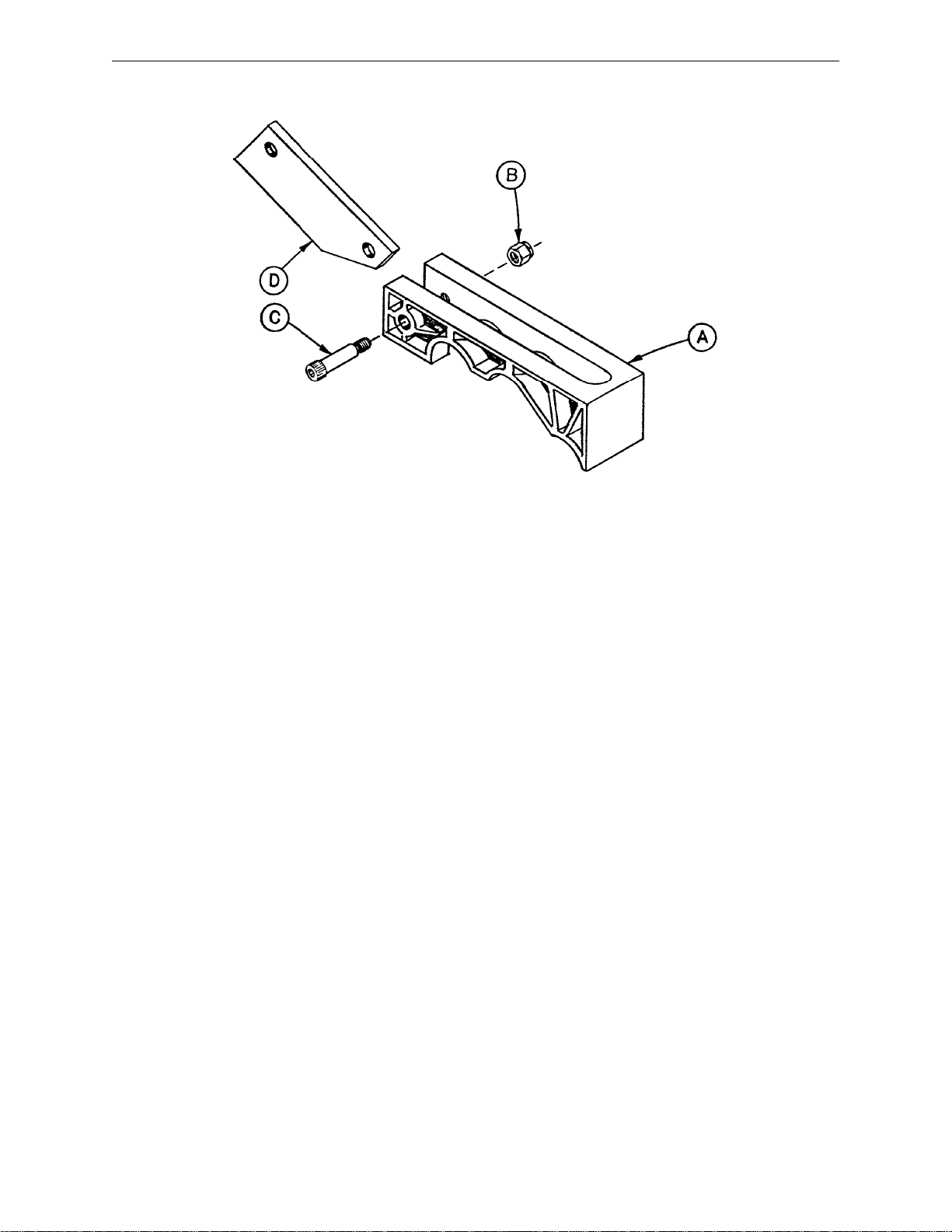

715–1–213 Brake Cam Assembly

Item Part No. Part Name Qty.

A 715–1–221 Brake Cam 1

B16–59 Fiberlock Nut 1

C8–21 Soc. Hd. Cap Screw 1

D 715–1–173 Brake Connecting Link 1

Page 26

Notes

Page 27

1010–90 Reduced Length Brake/Steer Base Option

Steering Lock Linkage Bar p/n 1000–10–62 (Ref.)

Collar w/Set Screw p/n 42–20 (Ref.)

Fifth Wheel Cam p/n 715–1–161 (Ref.)

Item Part No. Part Name Qty.

A 1010–90–10 Brake Pedal Assembly 2 B 1010–90–24 Brake Bar 1 C 715–1–165 Actuator Plate Assembly 1 D26–35 Roll Pin 2 E26–13 Roll Pin 1 F8–17 Shoulder Bolt 1 G14–2 Nylon Washer 6 H16–2 Fiberlock Nut 2 J26–8 Roll Pin 1 K8–21 Shoulder Bolt 1

NOTE

This assembly pertains only to units equipped with the reduced length brake/steer option (for Surgi–lift clearance). The width of the brake/steer pedal will be 11 1/4 inches if the unit is equipped with this option. If the pedal is wider than 11 1/4 inches, base assembly 715–1–250 (page 18 & 19) or 716–1–251 (page 24 & 25) should be referenced.

Page 28

Assembly part number 716–1–251

End Control Base Assembly (with Wheels and Brakes)

Note:

Parts and assemblies drawn with broken

lines are part of optional accessories.

Page 29

End Control Base Assembly (with Wheels and Brakes)

Item Part No. Part Name Qty.

A 716–1–246 Base Weldment Ass’y1

B8–17 Soc. Hd. Shoulder Bolt 1

C 715–1–158 Caster Nut 4

D 715–1–61 Caster Brake Assembly 2

E (Page 20) Brake Adjuster Assembly 2

F 1210–1–345 Brake/Steer Pedal, Ft. End 1

H 1210–1–346 Brake/Steer Pedal, Hd. End 1

J (Page 21) Brake Cam Assembly 2

K26–8 Roll Pin 1

L 715–1–94 Compression Spring 2

M21–50 Set Screw 2

N 715–1–161 Fifth Wheel Cam 1

P 715–1–11 Brake Cushion 4

R 946–1–116 Brake Bar Bushing 4

T23–25 Self–Tapping Screw 2

Y16–49 Flexlock Nut 1

Z 715–1–337 Fifth Wheel Plate Ass’y1

AA 715–1–231 Brake/Steer Rod Weldment 1

AB 26–261 Clevis Pin 2

AC 715–1–157 Fifth Wheel Bearing 1

AD 715–1–165 Actuator Plate Assembly 1

AF 715–1–136 Fifth Wheel Spring 1

AH 42–20 Collar w/ Set Screw 2

AJ 8–17 Soc. Hd. Shoulder Bolt 1

AK 14–2 Nylon Washer 6

AL 16–16 Nylock Nut 1

AM 715–1–156 Grounding Chain 1

AN 16–2 Fiberlock Nut 2

AP 715–1–217 Fifth Wheel Latch 1

AR 3–20 Hex Hd. Cap Screw 1

AS (Page 27) Steering Caster Ass’y1

AT (Page 28) Caster Wheel Ass’y3

AY 81–219 Bearing 1

AW 26–13 Roll Pin 1

AZ (Page 29) Fifth Wheel Ass’y1

BA 715–1–149 Woodruff Key 1

BB 1000–10–62 Steering Lock Linkage Bar 1

BC 38–211 Spring 1

BD 8–21 Soc. Hd. Shoulder Bolt 1

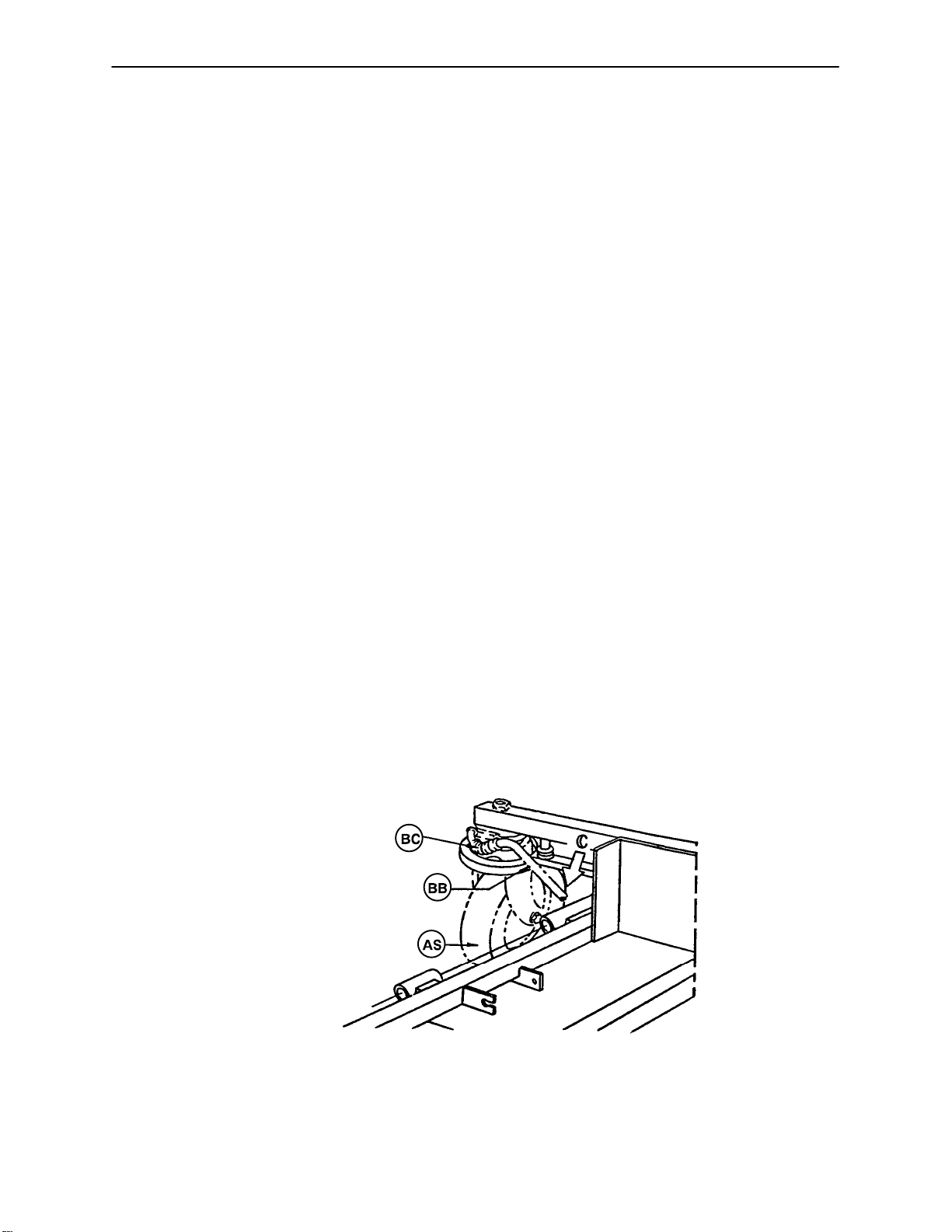

STEERLOCK ASSEMBLY DETAIL

Page 30

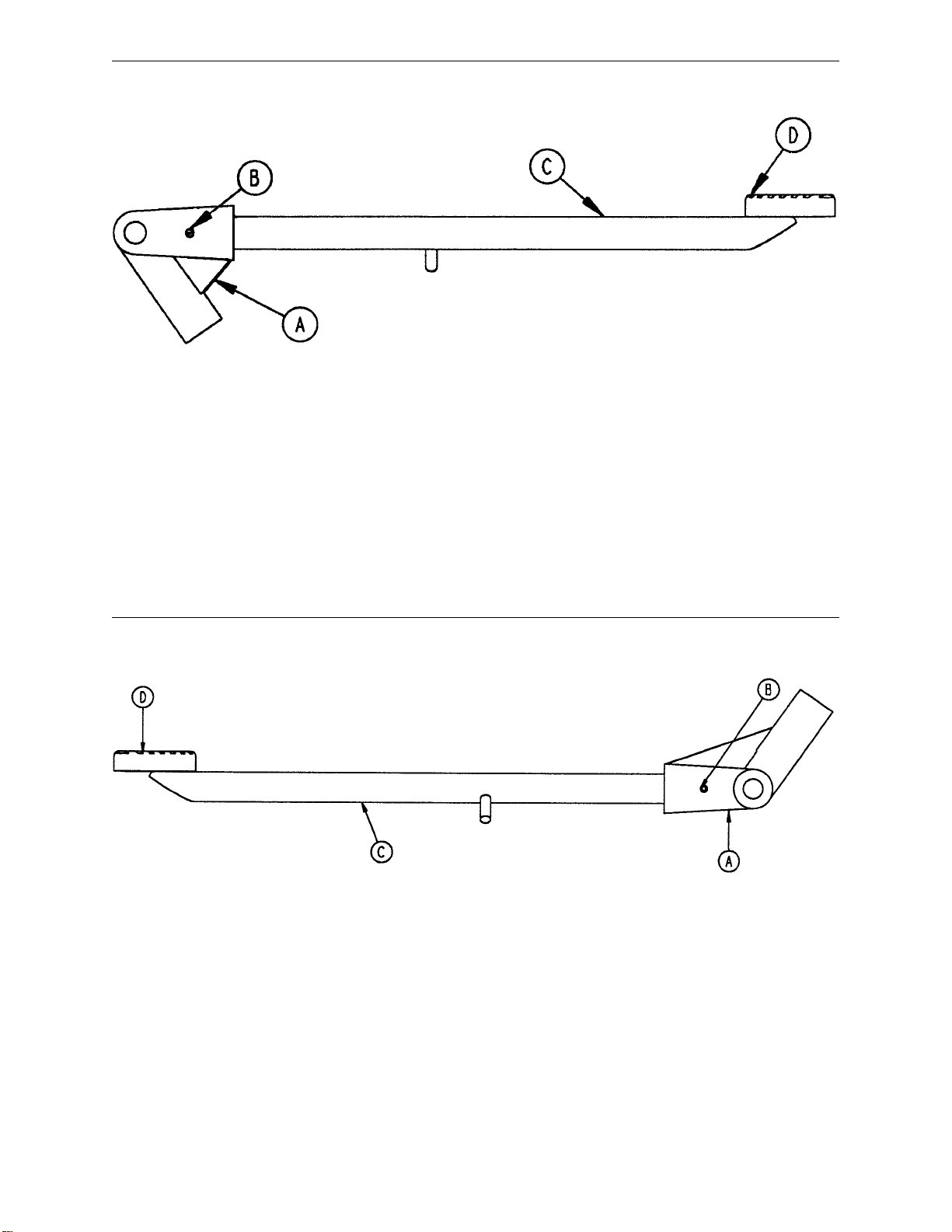

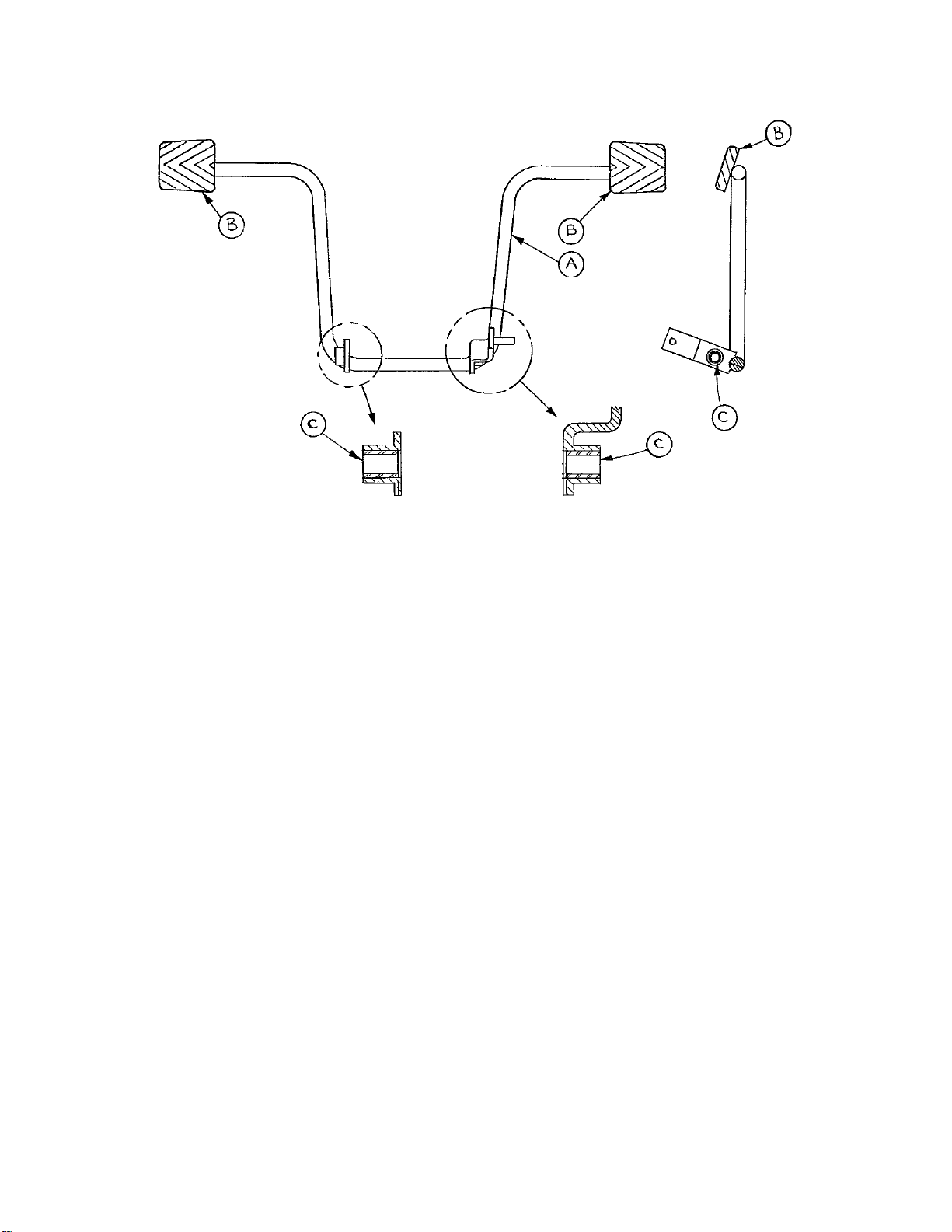

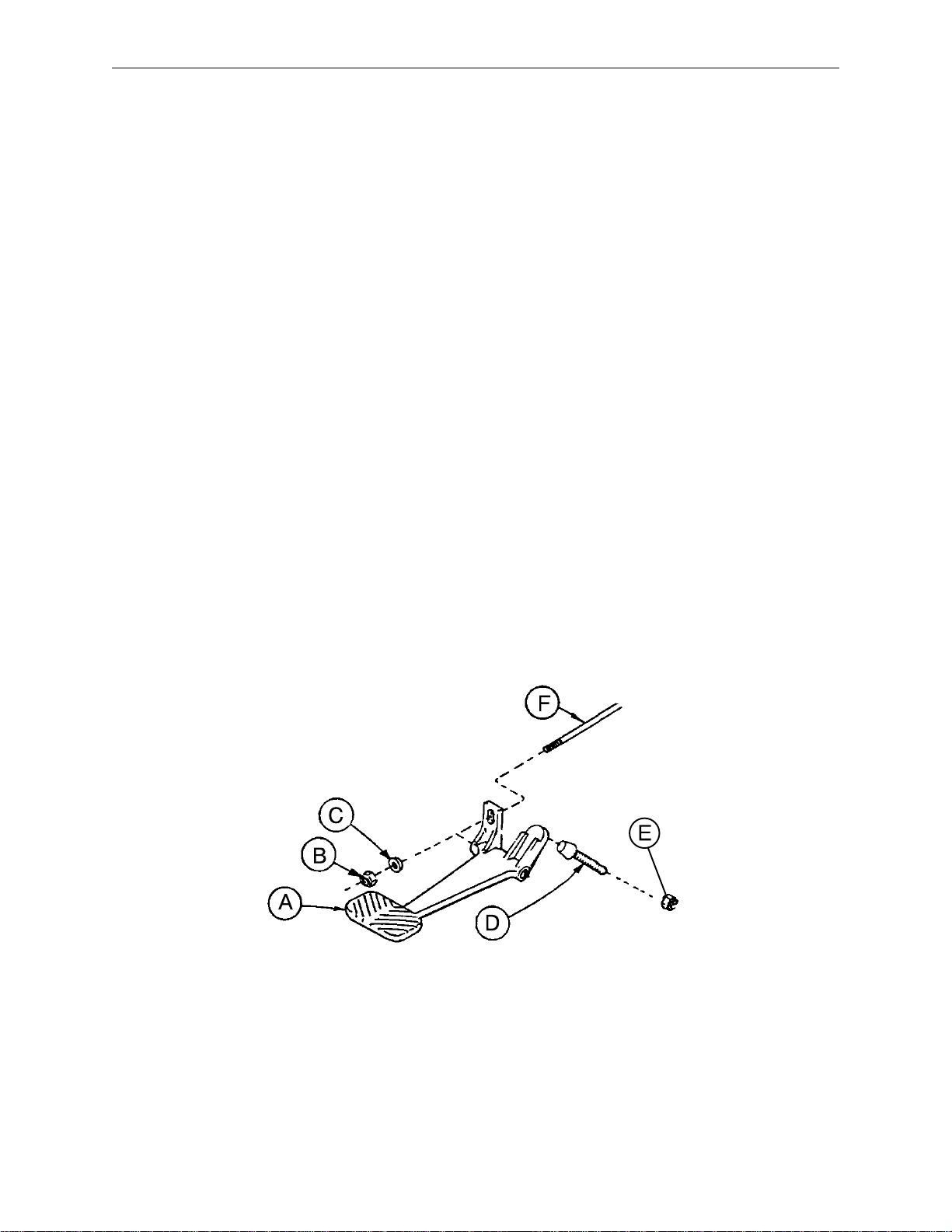

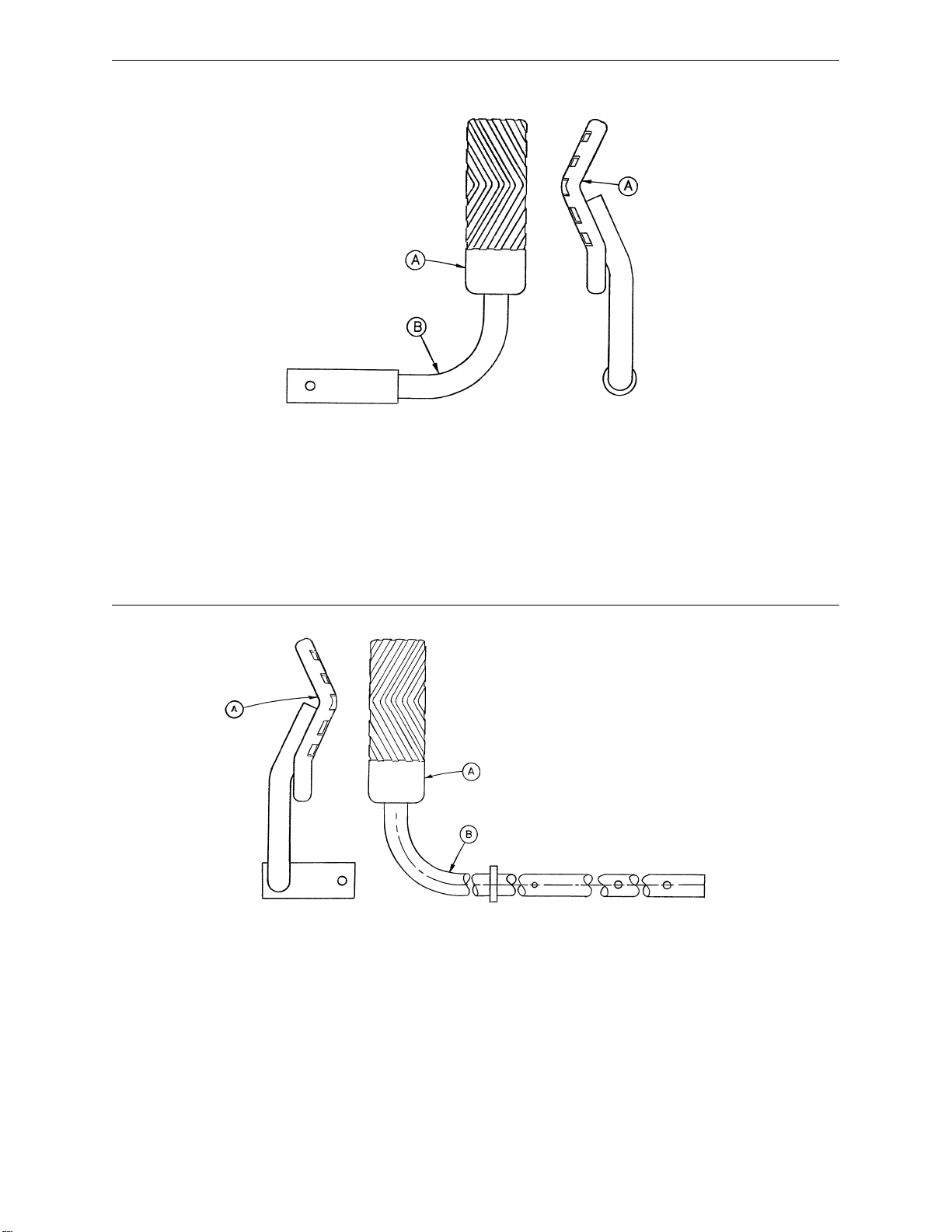

716–1–263 End Control Brake Pedal Assembly, Foot

Item Part No. Part Name Qty.

A 716–1–275 Brake Pedal 1 B 716–1–262 Brake Rod Ass’y, Ft. End 1

716–1–269 End Control Brake Pedal Assembly, Head

Item Part No. Part Name Qty.

A 716–1–275 Brake Pedal 1 B 716–1–267 Brake Rod Ass’y, Welded 1

NOTE

Apply plastic adhesive to the mating surfaces of item A prior to assembly.

Page 31

715–2–21 Caster Assembly with Steerlock

Item Part No. Part Name Qty.

A 700–10–50 Steer Lock Caster Weldment 1

B 715–2–25 Caster Wheel 1

C16–60 Hex Nut 1

D3–99 Hex Bolt 1

E 715–3–96 Hex Bolt 1

F 1000–59–10 Latch Assembly 1

H11–310 Flat Washer 1

Page 32

Caster and Caster Cover Replacement Kits

Item Part No. Part Name Qty.

A 715–2–20 Caster Assembly 1

B 715–1–266 Caster Cover, Left 1

C 715–1–265 Caster Cover, Right 1

P/N 715–259–400 – Kit to replace 4 standard caster assemblies with necessary hardware – no caster covers. P/N 715–269–400 – Kit to replace 3 standard caster assemblies and 1 steerlock caster with necessary hard-

ware – no caster covers. P/N 715–259–100 – Kit to replace 1 standard caster assembly with necessary hardware – no caster covers. P/N 1010–56–200 – Kit to replace both caster covers on all four wheels.

Page 33

Optional Fifth Wheel Base Assembly

Item Part Name Part No. Qty.

A3–20 Hex Hd. Cap Screw 1

B16–16 Fiberlock Nut 1

C16–49 Nylock Hex Nut 1

D23–25 Hex Washer Hd. Screw 1

E26–8 Roll Pin 1

F81–219 Bearing 1

G (page 29) Fifth Wheel Assembly 1

H 715–1–136 Fifth Wheel Spring 1

J 715–1–149 Key 1

K 715–1–157 Fifth Wheel Bearing 1

L 715–1–161 Fifth Wheel Cam 1

M 715–1–217 Fifth Wheel Latch 1

N 715–1–337 Fifth Wheel Plate 1

P (page 28) Caster Assembly 4

28.1

Page 34

Notes

28.2

Page 35

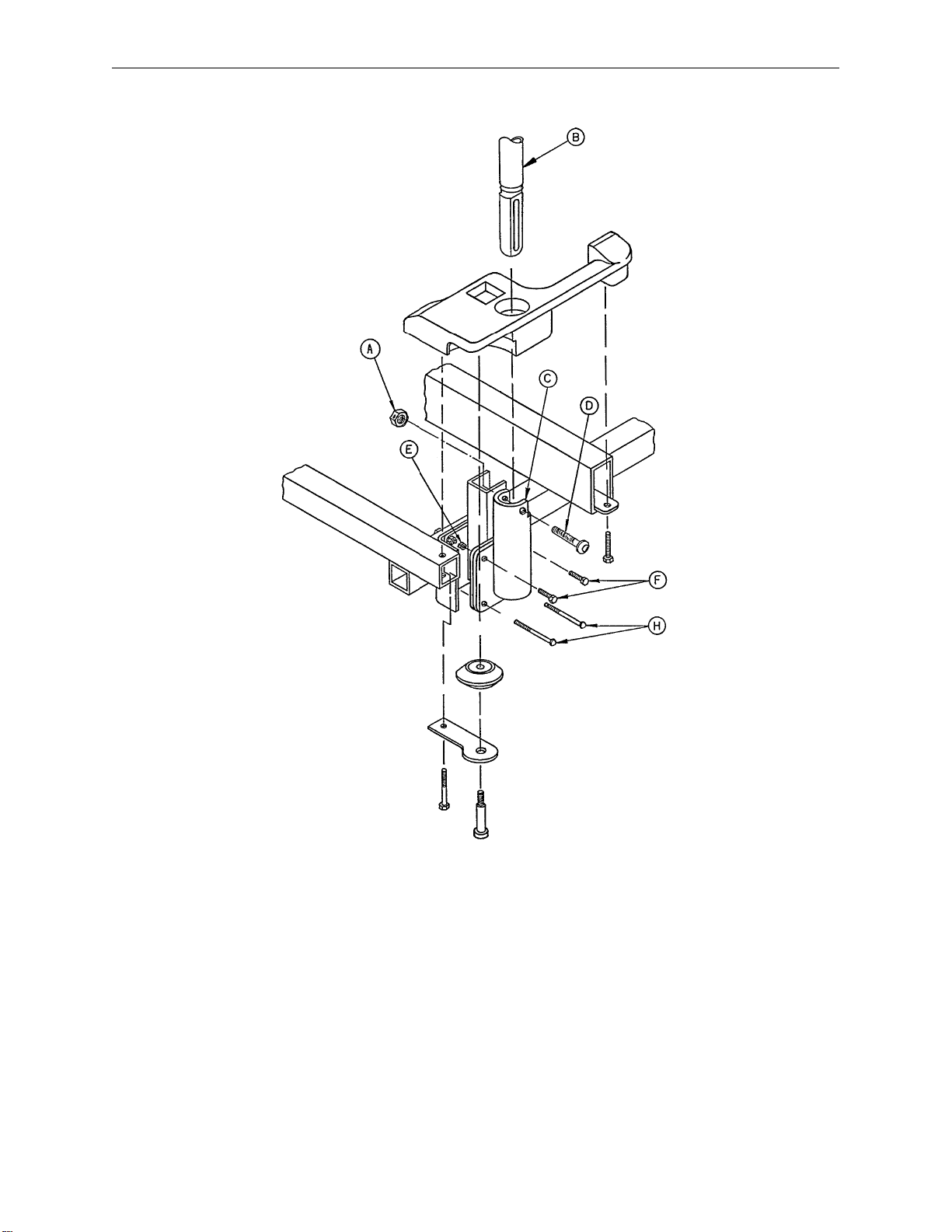

715–1–25 Fifth Wheel Assembly

Item Part No. Part Name Qty.

A 715–1–339 Fifth Wheel Pivot Assembly 1 B 715–1–17 Fifth Wheel Bushing 1 C16–11 Flexlock Nut 1 D 715–1–15 Spring 1 E 715–1–13 Fifth Wheel Bracket 2 F16–12 Flexlock Nut 1 G 390–1–54 Wheel 1 H3–31 Hex Head Cap Screw 1 J3–82 Hex Head Cap Screw 1

Page 36

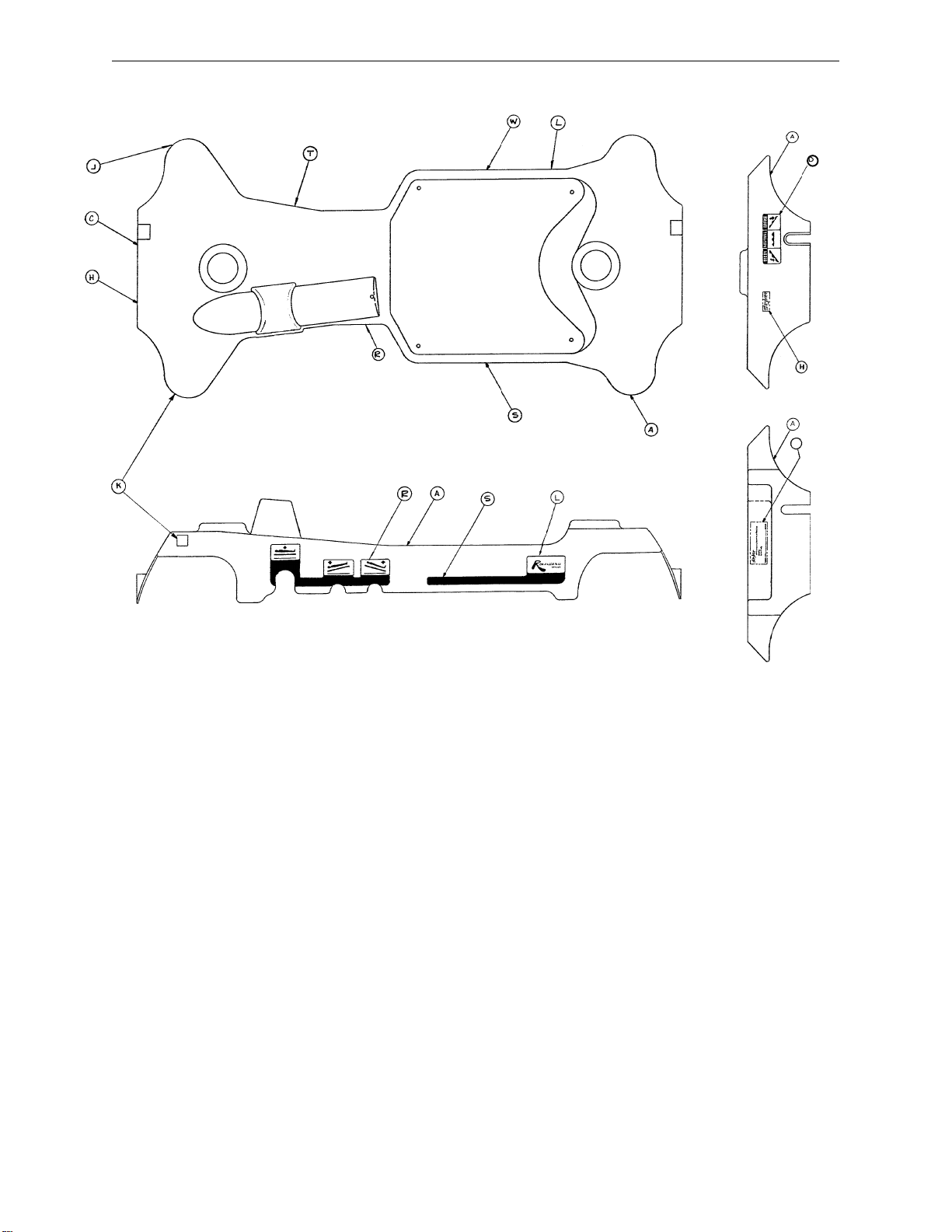

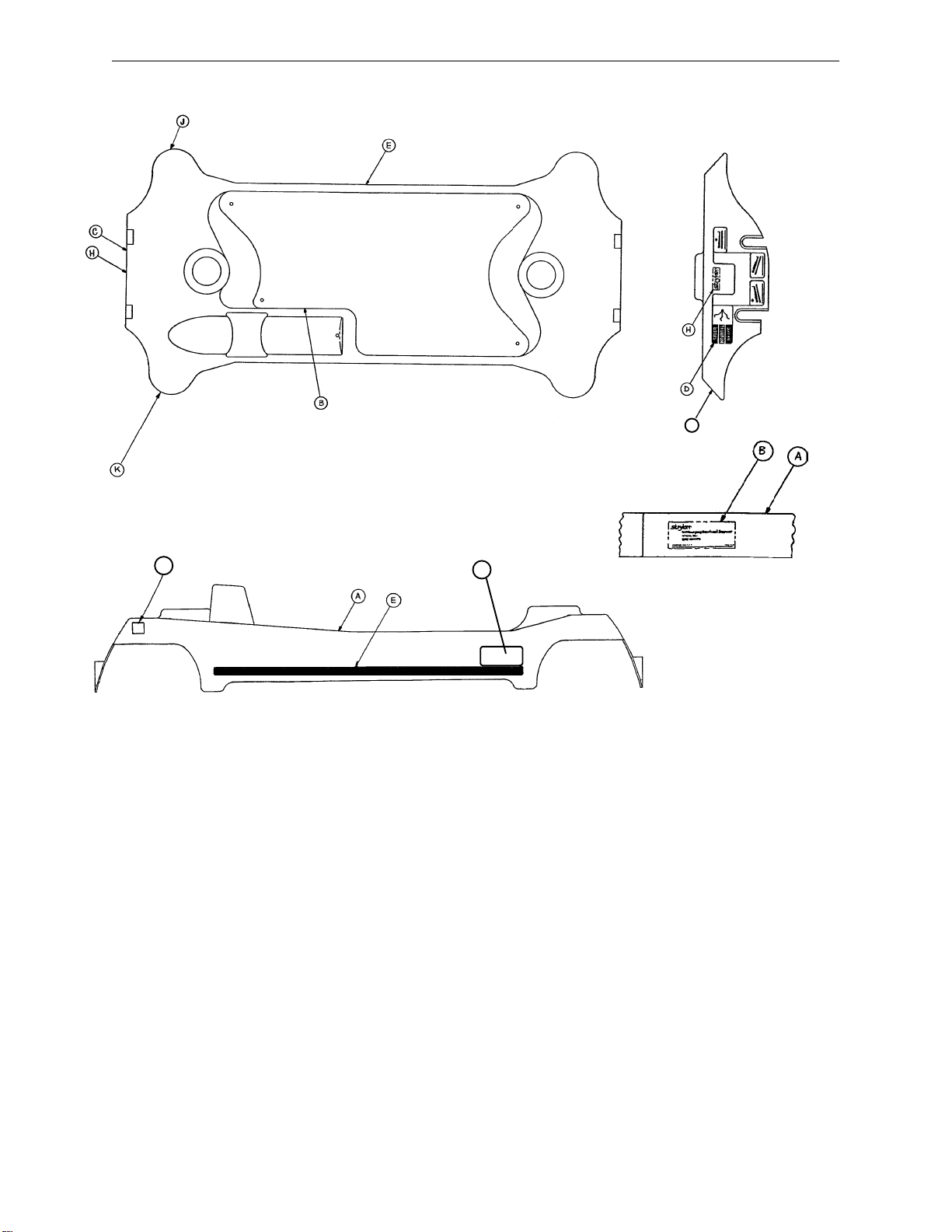

Side Control Base Labeling Assembly

Item 721 P/N 1010 P/N 1510 P/N Part Name Qty

A (page 37) (page 37) (page 37) Hood Assembly 1 B 721–32–90 741–1–131 781–1–16 Specification Label 1 C 741–1–145 741–1–145 741–1–145 Brake/Steer Label, Head 1 D 741–1–146 741–1–146 741–1–146 Brake/Steer Label, Foot 1 H 946–1–60 946–1–60 946–1–60 Stryker Logo Label 2 J 741–34–18 741–34–18 741–34–18 ”Head Point” Label, Left 1 K 741–34–19 741–34–19 741–34–19 ”Head Point Label, Right 1 L 1010–1–50 1010–1–50 1010–1–50 Renaissance Series Logo Label 2 R 741–2–1 741–2–13 741–2–9 Right Side Control Label 1 S 741–2–2 741–2–14 741–2–10 Right Side Strip Label 1 T 741–2–3 741–2–15 741–2–11 Left Side Control Label 1 W 741–2–4 741–2–16 741–2–12 Left Side Strip Label 1

Page 37

End Control Base Labeling Assembly

Item 721 P/N 1010 P/N 1510 P/N Part Name Qty.

A (page 41) (page 41) (page 41) Hood Assembly 1 B 721–32–90 741–1–131 781–1–16 Specification Label 1 C 721–1–163 716–1–78 1510–35–20 Brake/Steer Label, Head 1 D 721–1–164 716–1–79 1510–35–21 Brake/Steer Label, Foot 1 E 721–1–165 741–1–141 1510–35–19 Side Strip Label 2 F 1010–1–50 1010–1–50 1010–1–50 Renaissance Series Logo Label 2 H 946–1–60 946–1–60 946–1–60 Stryker Logo Label 2 J 741–34–18 741–34–18 741–34–18 ”Head Point” Label, Left 1 K 741–34–19 741–34–19 741–34–19 ”Head Point” Label, Right 1

Page 38

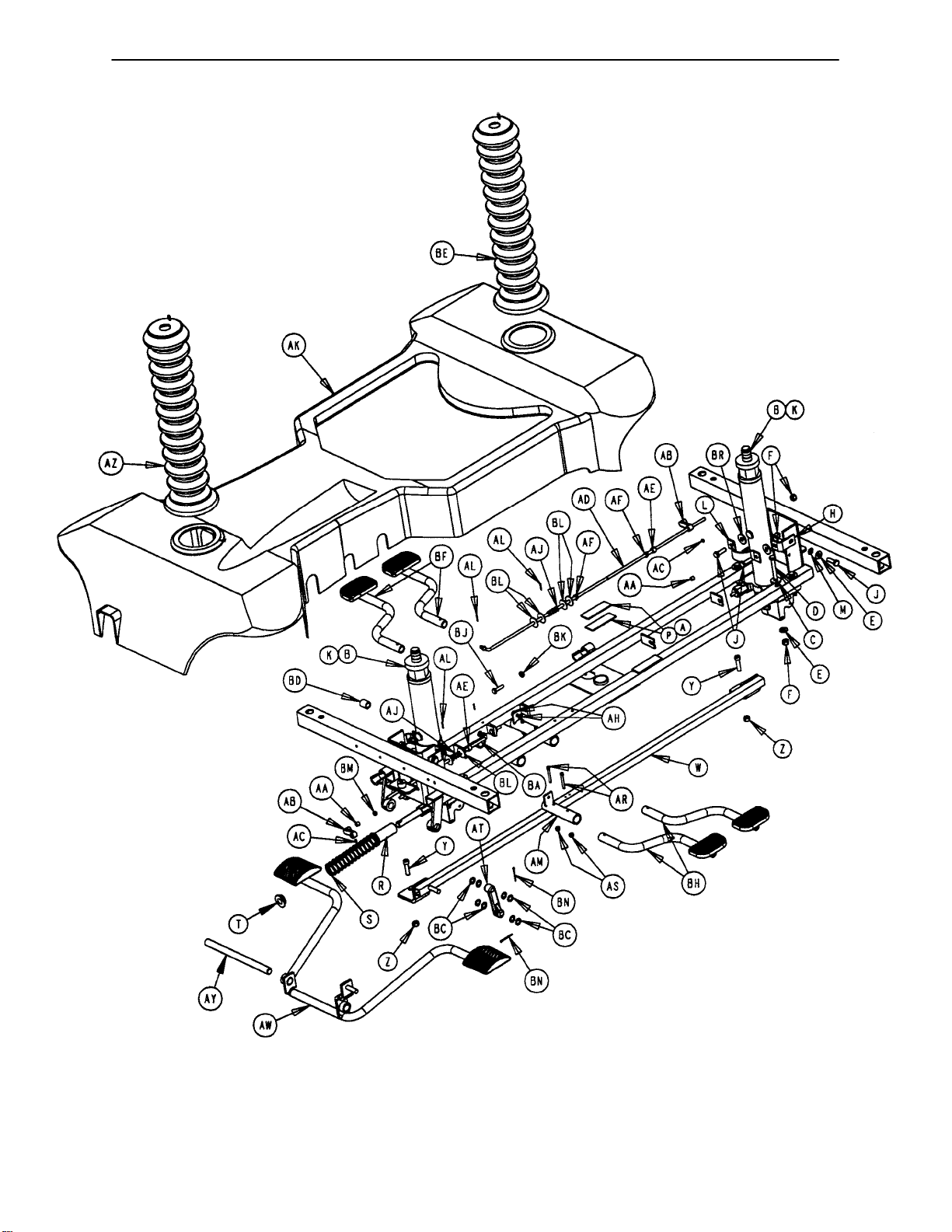

Side Control Base Assembly (with Jacks)

Assembly part number 715–1–260

Page 39

Side Control Base Assembly (with Jacks)

Item Part No. Part Name Qty.

A29–7 Dual Lock 2

B (Page 43.1) Jack Assembly 2

C11–262 Flat Washer 8

D3–62 Hex Hd. Cap Screw 8

E11–3 Flat Washer 12

F16–36 Nylock Hex Nut 16

H 715–1–192 Jack Support 2

J3–85 Hex Hd. Cap Screw 8

L 715–1–193 Jack Support Clamp 2

M13–38 Ext. Tooth Lock Washer 4

P29–9 Dual Lock 2

R 763–1–16 Spring Holder 1

S38–246 Jack Spring 1

T 715–1–133 Collar 1

W 715–1–27 Pump Connect. Rod Ass’y1

Y4–146 Hex Socket Hd. Cap Screw 2

Z16–48 Nylock Hex Nut 2

AA 715–1–333 Release Rod Stop Sleeve 2

AB 715–1–346 Release Paddle 2

AC 21–50 Hex Socket Set Screw 2

AD 715–1–40 Release Rod Ass’y, Ft. End 1

AE 42–13 Shaft Collar w/ Set Screw 2

AF 52–245 Nyliner 2

AH 14–4 Nylon Washer 4

AJ 38–234 Compression Spring 2

AK 1010–245–17 Hood 1

AL 27–4 Cotter Pin 3

AM 715–1–187 Rel. Pedal Sleeve Ass’y2

AR 4–85 Soc. Hd. Cap Screw 4

AS 16–3 Fiberlock Nut 4

AT 715–1–214 Connector Link, Mach’d1

AW (Page 34) Pedal Base Assembly 1

AY 715–1–92 Pump Pedal Shaft 1

AZ 715–1–134 Bellows 2

BA 715–1–46 Rel. Rod Ass’y, Hd. End 1

BC 14–9 Nylon Washer 8

BD 715–1–140 Raufilam Braid Tubing 1

BF (Page 35) Pedal Base Ass’y, Hd. Left 2

BH (Page 36) Pedal Base Ass’y, Hd. Right 2

BJ 3–3 Hex Hd. Cap Screw 2

BK 15–11 Fiberlock Nut 2

BL 11–53 Washer 8

BM 21–22 Set Screw 2

BN 27–3 Cotter Pin 2

BP 921–1–252 Serial Number Label 1

BR 11–262 Washer 4

Page 40

715–1–108 Pedal Base Assembly, Pump

Item Part No. Part Name Qty.

A 715–1–83 Pedal Ass’y Weldm’t, Pump 1 B 715–1–126 Side Control Pedal Pad 2 C81–44 Bearing, Bronze 2

NOTE

Apply plastic adhesive to the mating surfaces of item B prior to assembly.

Page 41

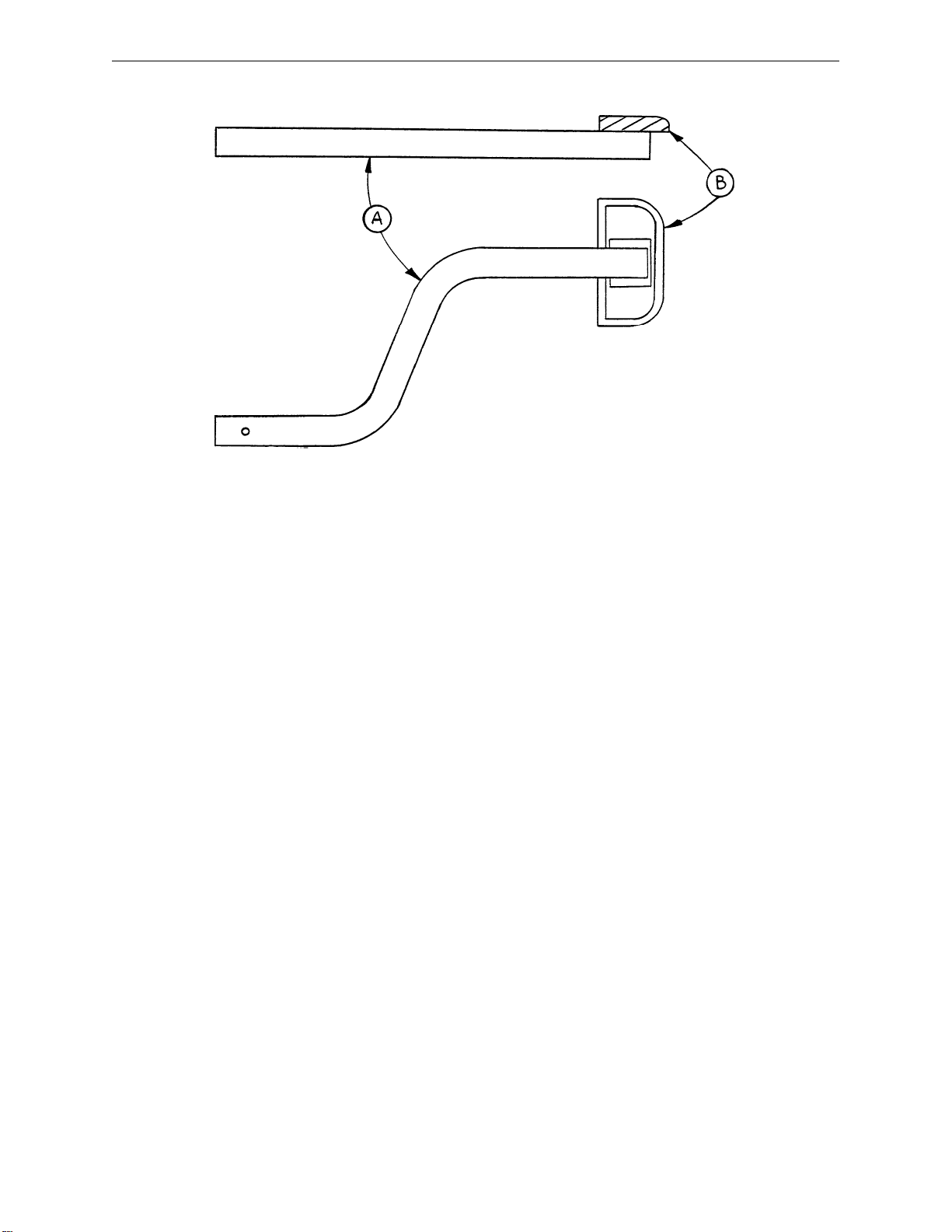

715–1–109 Pedal Base Assembly, Head End, Left

Item Part No. Part Name Qty.

A 715–1–98 Release Ped. Wldmt., Hd. Lt. 1 B 721–40–25 Pedal 1

NOTE

Apply plastic adhesive to the mating surfaces of item B prior to assembly.

Page 42

715–1–110 Pedal Base Assembly, Head End, Right

Item Part No. Part Name Qty.

A 715–1–97 Release Pedal Weldment 1 B 721–40–25 Pedal 1

NOTE

Apply plastic adhesive to the mating surfaces of item B prior to assembly.

Page 43

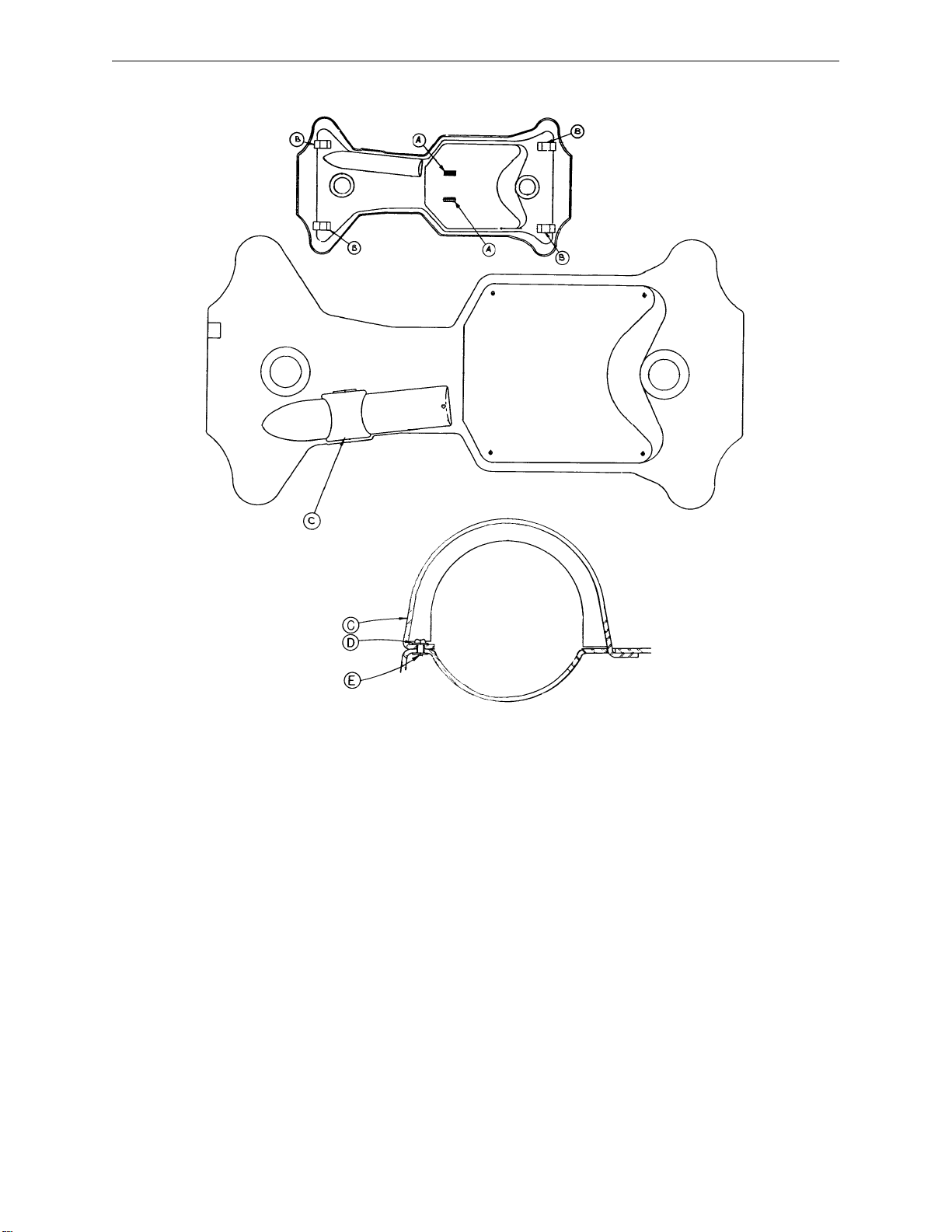

715–1–135 Side Control Base Hood Assembly

Item Part No. Part Name Qty.

A 715–1–153 Hood Spacer 2 B 715–1–151 Foam Hood Mount 4 C 715–1–176 Oxygen Bottle Retainer 1 D11–16 Washer 2 E25–77 Pop Rivet 2

Page 44

Side Control Base Assembly (With Jacks)

Assembly part number 1210–2–10

37.1

Page 45

Side Control Base Assembly (With Jacks)

Item Part No. Part Name Qty.

A3–47 Hex Hd. Cap Screw 4

B3–62 Hex Hd. Cap Screw 8

C3–85 Hex Hd. Cap Screw 8

D4–146 Soc. Hd. Cap Screw 2

E11–3 Washer 12

F11–4 Washer 1

G11–262 Washer 12

H13–38 Ext. Tooth Lock Washer 4

J14–2 Nylon Washer 3

K16–28 Nylock Nut 4

L16–36 Nylock Nut 16

M16–48 Nylock Nut 2

N16–49 Nylock Jam Nut 1

P21–22 Set Screw 2

R21–50 Set Screw 1

S27–4 Cotter Pin 2

T27–7 Cotter Pin 2

W29–7 Dual Lock 3

Y29–9 Dual Lock 3

Z38–246 Compression Spring 1

AA 38–355 Extension Spring 2

AB 52–245 Nyliner Bearing 3

AC 52–284 Spacer 3

AD 52–747 Nyliner Bearing 4

AE 715–1–92 Pump Pedal Shaft 1

AF (page 34) Pump Pedal Assembly 1

AH 715–1–133 Collar 1

AJ 715–1–140 Vinyl Tubing 1

AK 715–1–192 Jack Support 2

AL 715–1–193 Jack Support Clamp 2

AM 715–1–333 Release Valve Stop Sleeve 2

AN 715–1–346 Release Paddle 1

AP (page 43.1) Jack Assembly 2

AR 763–1–16 Spring Holder 1

AS 1210–1–104 Pump Pedal Link Assembly 1

AT 1210–1–114 Pedal Pivot, Right 1

AW 1210–1–115 Pedal Pivot, Left 1

AZ 1210–1–127 Pump Connecting Rod Weldmt. 1

BA 1210–1–134 Release Pedal Linkage Weldmt.1

BB 1210–1–138 Release Rod Clamp 1

BC 1210–1–139 Release Rod Weldment 1

BD (page 37.3) Release Pedal Assembly 2

BE 5050–1–222 Head End Linkage 1

37.2

Page 46

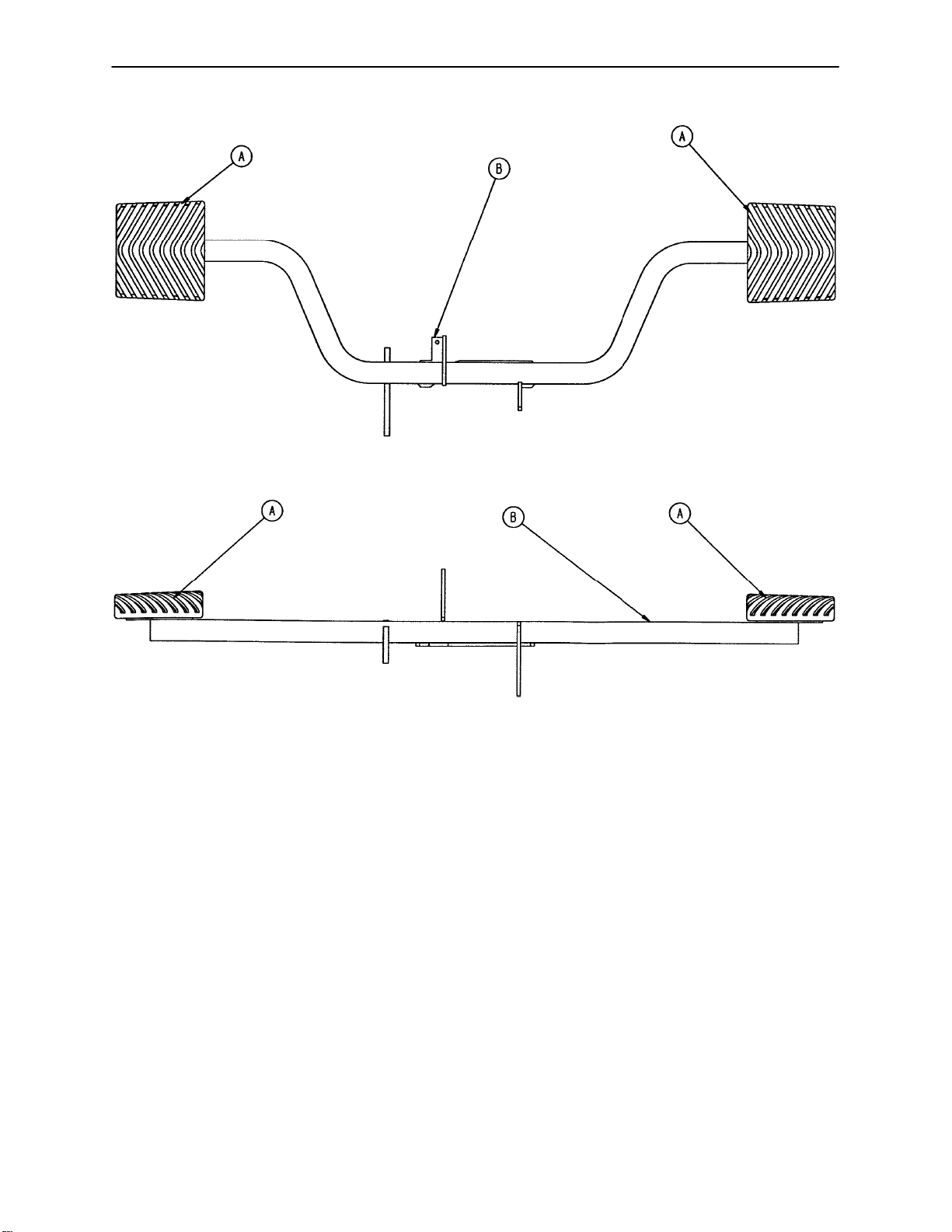

Side Release Pedal Assembly

Assembly part number 1210–1–150

Item Part Name Part No. Qty.

A 715–1–126 Side Control Pedal Pad 2

B 1210–1–152 Side Release Pedal Weldment 1

37.3

Page 47

Notes

37.4

Page 48

Assembly part number 716–1–270

End Control Base Assembly (with Jacks)

FOOT END

HEAD END

Page 49

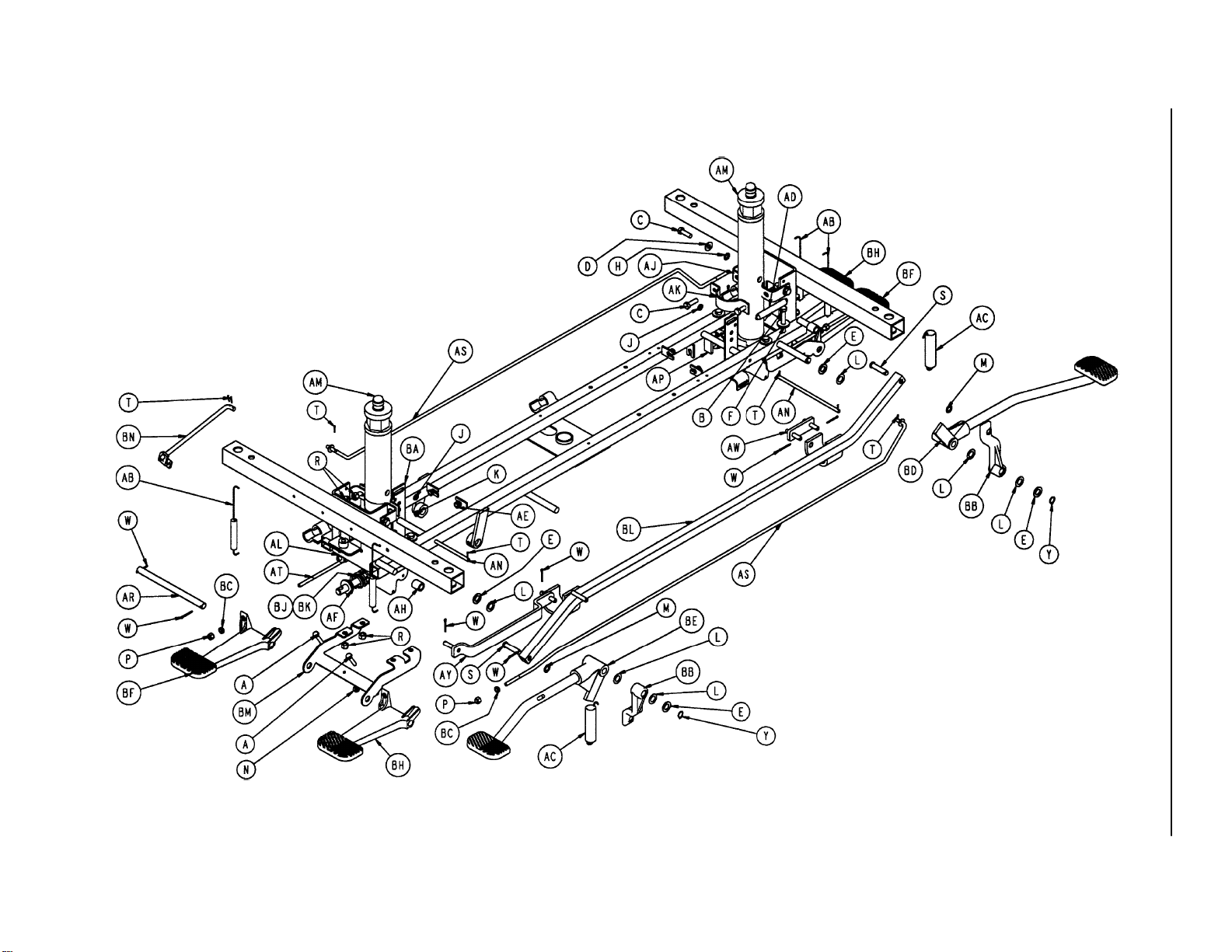

End Control Base Assembly (with Jacks)

Item Part No. Part Name Qty.

A3–4 Hex Head Cap Screw 4

B3–62 Hex Hd. Cap Screw 8

C3–85 Hex Hd. Cap Screw 8

D11–3 Washer 4

E11–13 Flat Washer 4

F11–262 Flat Washer 8

H13–38 Ext. Tooth Lock Washer 4

J14–2 Washer 4

K14–3 Washer 2

L14–7 Nylon Flat Washer 6

M14–9 Washer 2

N15–11 Hex Jam Nut 4

P16–16 Nylock Nut 4

R16–36 Nylock Hex Nut 16

S26–195 Clevis Pin 2

T27–4 Cotter Pin 10

W27–3 Cotter Pin 10

Y28–97 Snap Ring 2

Z29–7 Dual Lock 3

AA 29–9 Dual Lock 3

AB 38–235 Spring 4

AC 38–251 Spring 2

AD 38–326 Extension Spring 2

AE 52–245 Nyliner 4

AF 715–1–133 Spring Collar 1

AH 715–1–140 PVC Tubing 2

AJ 715–1–192 Jack Support 2

AK 715–1–193 Jack Clamp 2

AL 715–1–333 Release Rod Stop Sleeve 2

AM (Page 43.1) Jack Assembly 2

AN 716–1–15 Release Pivot Bar 2

AP 716–1–52 Pivot Assembly, Foot 1

AR 716–1–61 Pedal Shaft 2

AS 716–1–71 Release Rod Ass’y2

AT 716–1–75 Release Rod 2

AW 716–1–102 Pump Link Wldmt. Ass’y, Ft. 1

AY 716–1–109 Pump Link Bar Wldmt., Hd. 1

BA 716–1–119 Pivot Assembly, Head End 1

BB 716–1–281 Pump Idler Link 2

BC 716–1–286 Cam, Release Pedal 4

BD (Page 40) Pump Pedal Ass’y, Foot 1

BE (Page 40) Pump Pedal Ass’y, Head 1

BF 716–1–293 Rel Pedal, Hd. Lt. & Ft. Rt. 2

BH 716–1–294 Rel. Pedal, Hd. Rt. & Ft. Lt. 2

BJ 763–1–15 Spring 1

BK 763–1–16 Spring Guide 1

BL 1210–1–27 Pump Conn. Rod Ass’y1

BM 1210–1–111 End Release Pedal Bracket 2

BN 1210–1–112 Release Rod Wldmt., Head, Left 1

Page 50

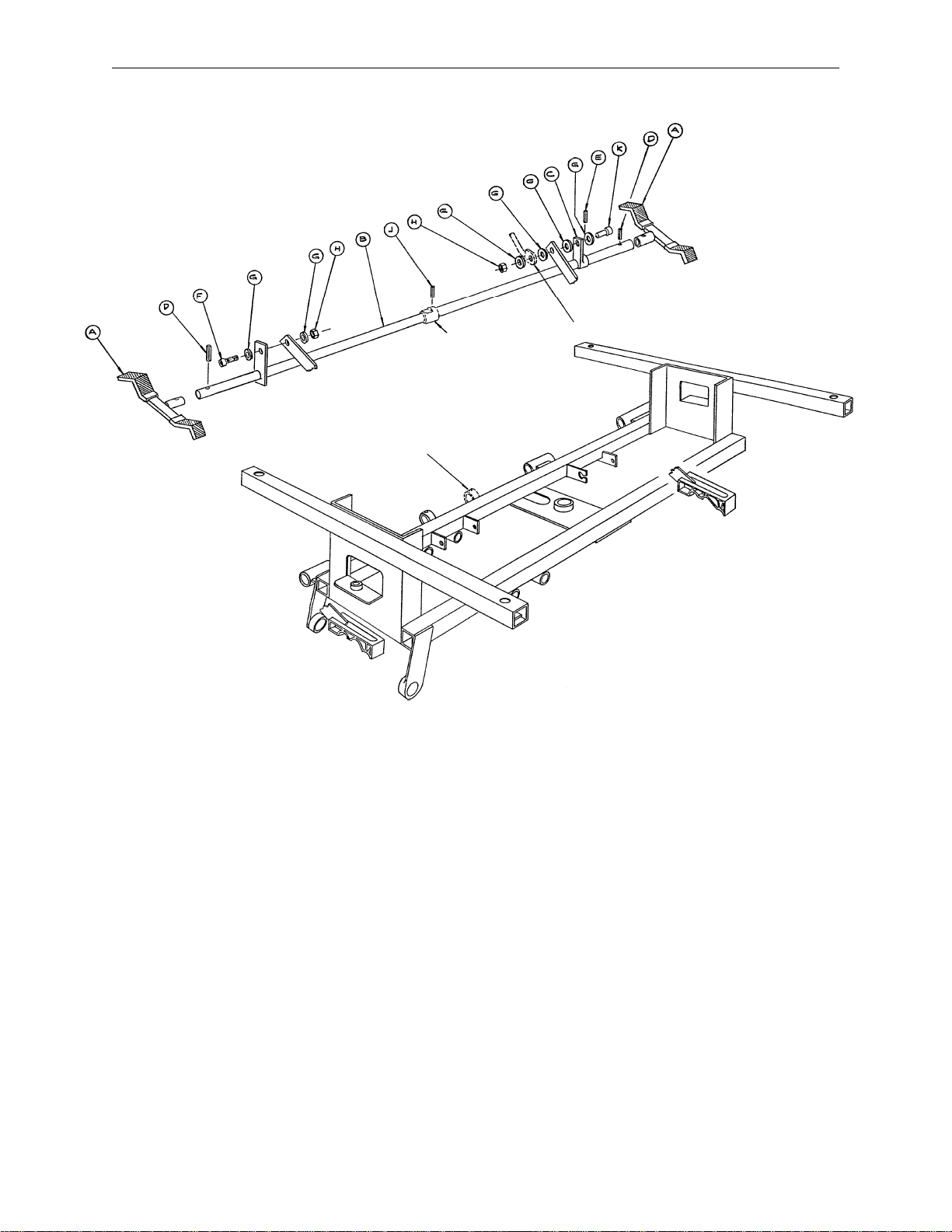

End Control Pump Pedal Assembly, Head

Assembly part number 716–1–292

Item Part No. Part Name Qty.

A 716–1–285 Pump Pivot, Head End 1 B26–12 Roll Pin 1 C 716–1–290 Pump Ped. Wldmt., Head 1 D 721–40–25 Pedal 1

End Control Pump Pedal Assembly, Foot

Assembly part number 716–1–288

Item Part.No. Part Name Qty.

A 716–1–283 Pump Pivot, Foot End 1 B26–12 Roll Pin 1 C 716–1–289 Pump Ped. Wldmt., Foot 1 D 721–40–25 Pedal 1

NOTE

Apply plastic adhesive to the mating surfaces of item D prior to assembly.

Page 51

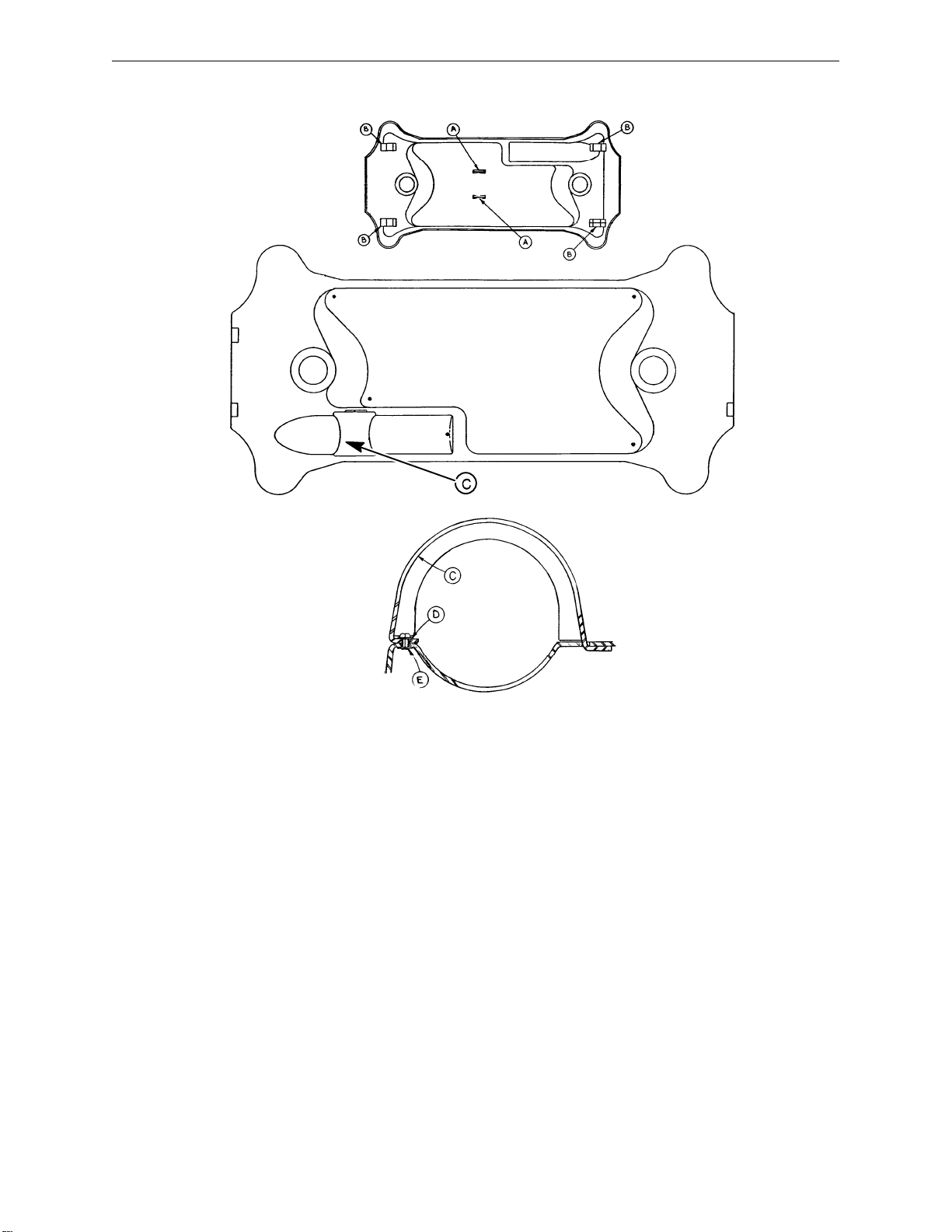

716–1–99 End Control Base Hood Assembly

Item Part No. Part Name Qty.

A 716–1–153 Hood Spacer 2 B 715–1–151 Foam Hood Mount 4 C 715–1–176 Oxygen Bottle Retainer 1 D11–16 Washer 2 E25–77 Pop Rivet 2

Page 52

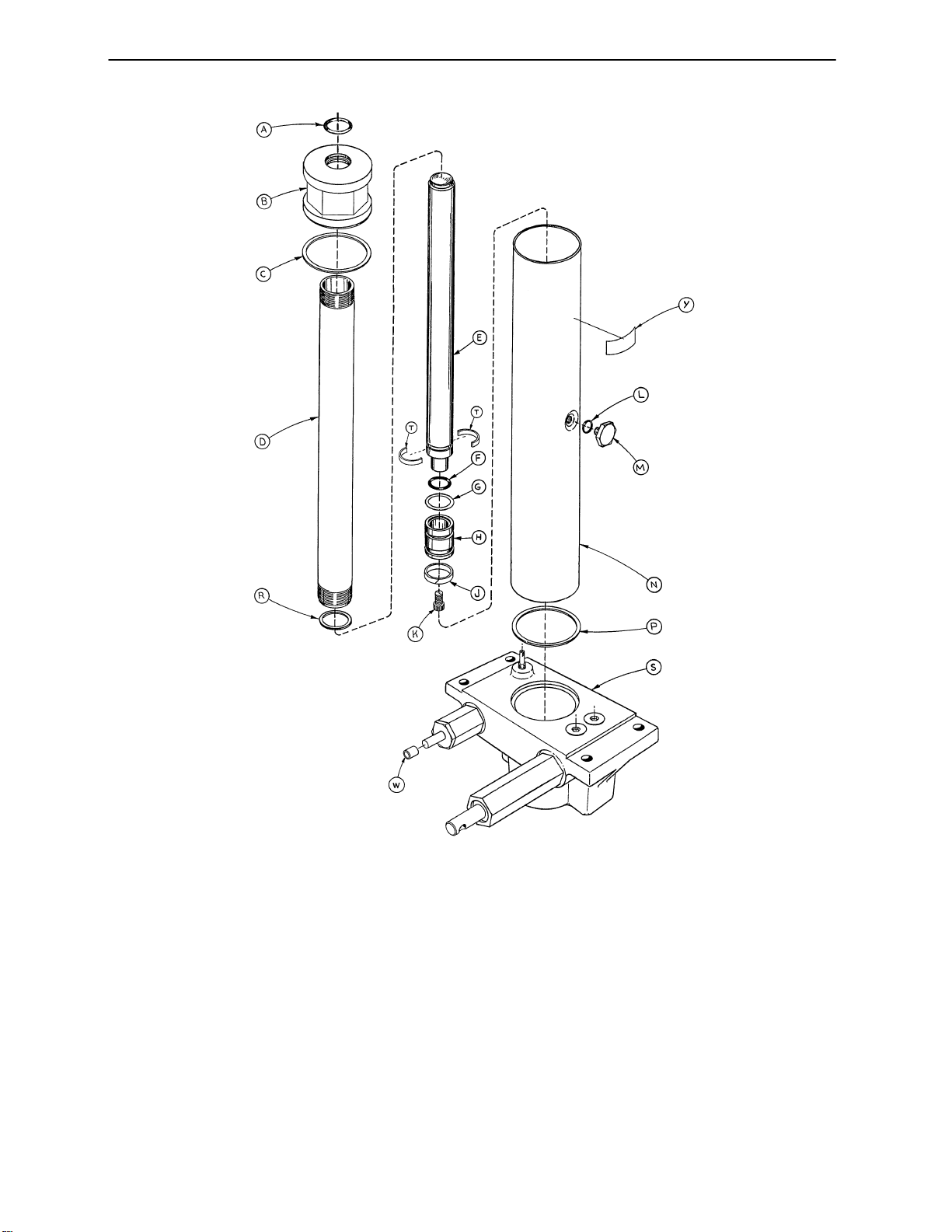

715–1–310* Jack Assembly

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A45–904 O–Ring 1 L 45–110 O–Ring 1 B 715–1–340 Cap Assembly 1 M 388–1–38 Plug 1 C 390–1–243 Gasket 1 N 715–1–322 Reservoir 1 D 715–1–323 Actuator Cylinder 1 P 390–1–244 Gasket 1 E 715–1–325 Actuator 1 R 390–1–238 Gasket, Actuator 1 F45–14 O–Ring 1 S (Page 43) Jack Base Assembly 1 G 926–20–161 Parker Packing 1 T 390–2–139 Retaining Collar 2 H 715–1–331 Piston End 1 W 715–1–333 Rel. Valve Stop Sleeve 1 J 926–20–162 Wear Ring 1 Y 715–100–311 Label 1 K4–14 Soc. Hd. Cap Screw 1

*Replacement Part Number 715–100–310.

Page 53

715–1–300 Jack Base Assembly

Item Part No. Part Name Qty.

A 715–1–312 Base, Machined 1 B 715–1–308 Base Plug 1 C 715–1–306 Pin 1 D28–8 Snap Ring 1 E 390–2–176 Washer 1 F38–231 Compression Spring 1 H45–6O–Ring 2 J 715–1–305 Pin Housing 1 K 715–1–330 Housing Gasket 1 L 715–1–309 Valve Plug 2 M 926–20–153 Check Valve 2 N 926–20–154 Seal 2 P 715–1–318 Pump Piston 1 R45–110 O–Ring 1 S 715–1–328 Piston Wear Ring 1 T14–50 Bearing Retainer 1 W 715–1–327 Cylinder Wear Ring 1 X 715–1–316 Pump Cylinder 1 Y 715–1–329 Pump Seal 1 AA 715–1–307 Needle Valve 1 AB 926–20–156 Seal 2 AC 715–1–301 Base Plug 2 AD 715–1–341 Poppet 1 AE 390–2–134 Conical Comp. Spring 1 AF 715–100–312 Pin Housing Assembly 1

Page 54

715–270–10 Jack Assembly

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A45–904 O–Ring 1 L 45–110 O–Ring 1 B 715–1–340 Cap Assembly 1 M 388–1–38 Plug 1 C 390–1–243 Gasket 1 N 715–1–322 Reservoir 1 D 715–1–323 Actuator Cylinder 1 P 390–1–244 Gasket 1 E 715–1–325 Actuator 1 R 390–1–238 Gasket, Actuator 1 F45–14 O–Ring 1 S (page 43.2) Jack Base Assembly 1 G 926–20–161 Parker Packing 1 T 390–2–139 Retaining Collar 2 H 715–1–331 Piston End 1 W 715–1–333 Rel. Valve Stop Sleeve 1 J 926–20–162 Wear Ring 1 Y 715–270–11 Label 1 K4–14 Soc. Hd. Cap Screw 1

43.1

Page 55

715–270–5 Jack Base Assembly

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A 1210–70–12 Jack Base 1 R 45–110 O–Ring 1 B 1210–70–13 Base Plug 1 S 715–1–328 Piston Wear Ring 1 C 715–270–1 Pin 1 T 14–50 Bearing Retainer 1 E45–966 O–Ring 1 W 715–1–327 Cylinder Wear Ring 1 F38–311 Compression Spring 1 X 715–1–316 Pump Cylinder 1 H45–006 O–Ring 3 Y 715–1–329 Pump Seal 1 J 715–270–2 Pin Housing 1 AA 715–1–307 Needle Valve 1 K43–967 O–Ring 1 AB 926–20–156 Seal 2 L 715–1–309 Valve Plug 1 AC 715–1–301 Base Plug 2 M 926–20–153 Check Valve 1 AD 715–1–341 Poppet 1 N 926–20–154 Seal 1 AE 390–2–134 Conical Comp. Spring 1 P 715–1–310 Pump Piston 1 AF 715–270–100 Valve Assembly 1

43.2

Page 56

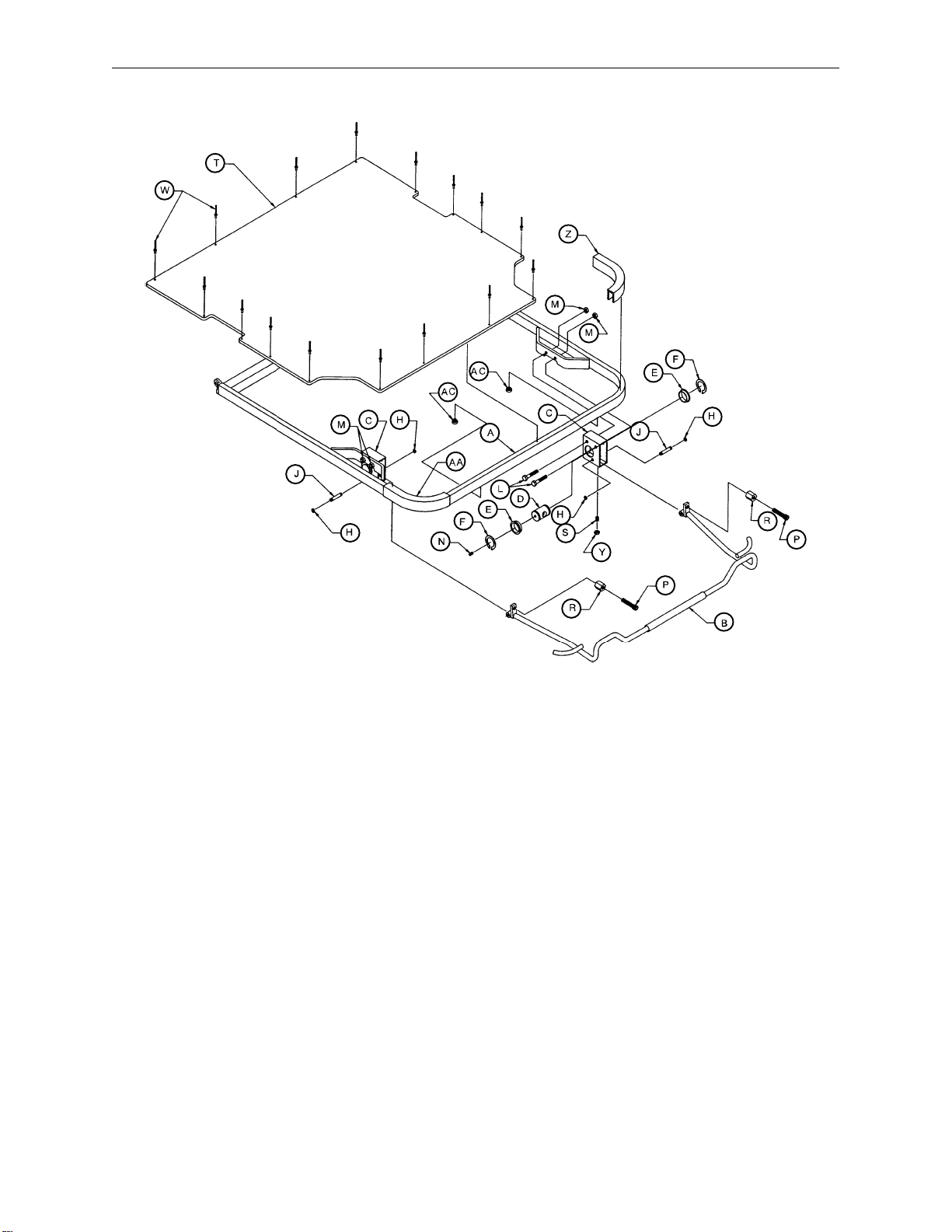

1010–1–10 Folddown Siderail Litter Assembly

Page 57

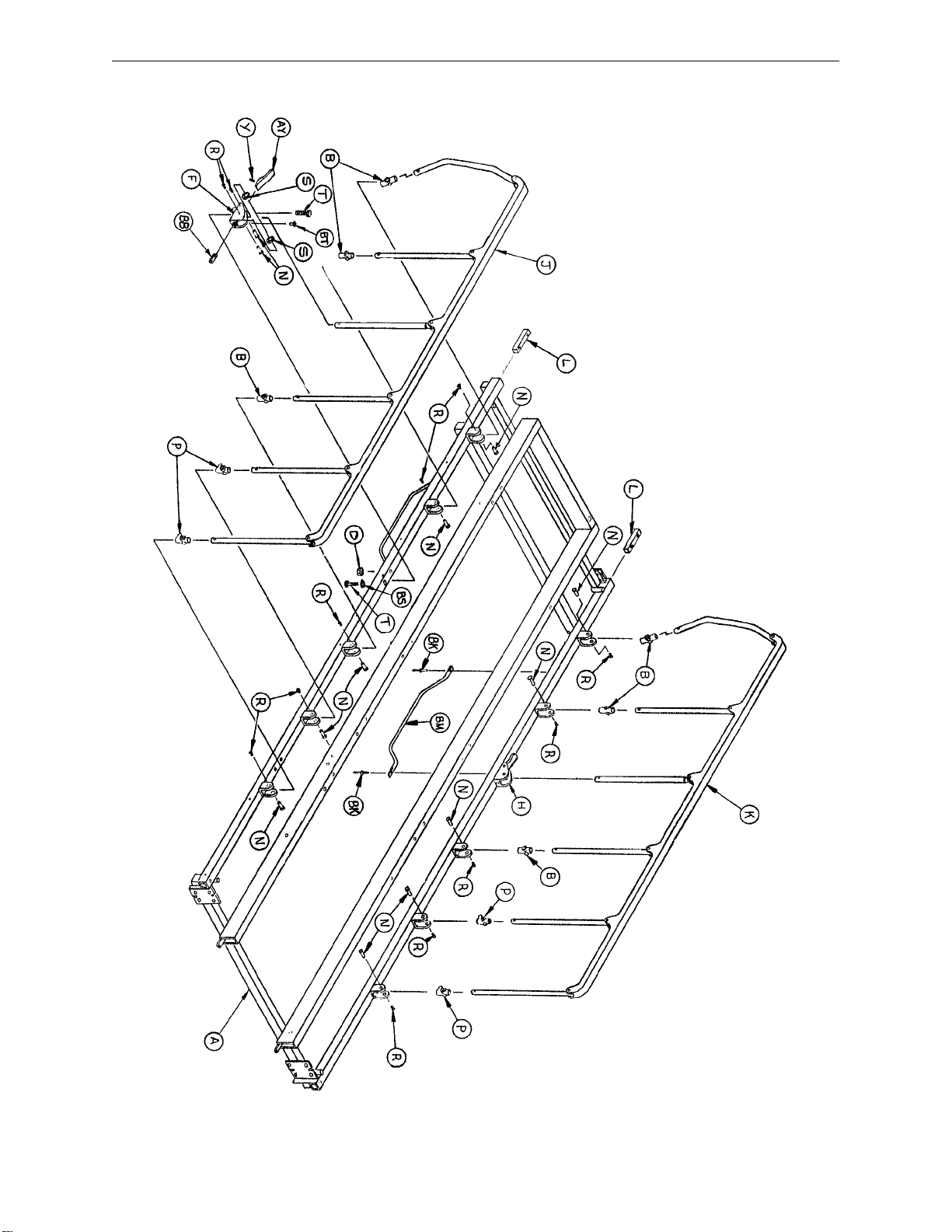

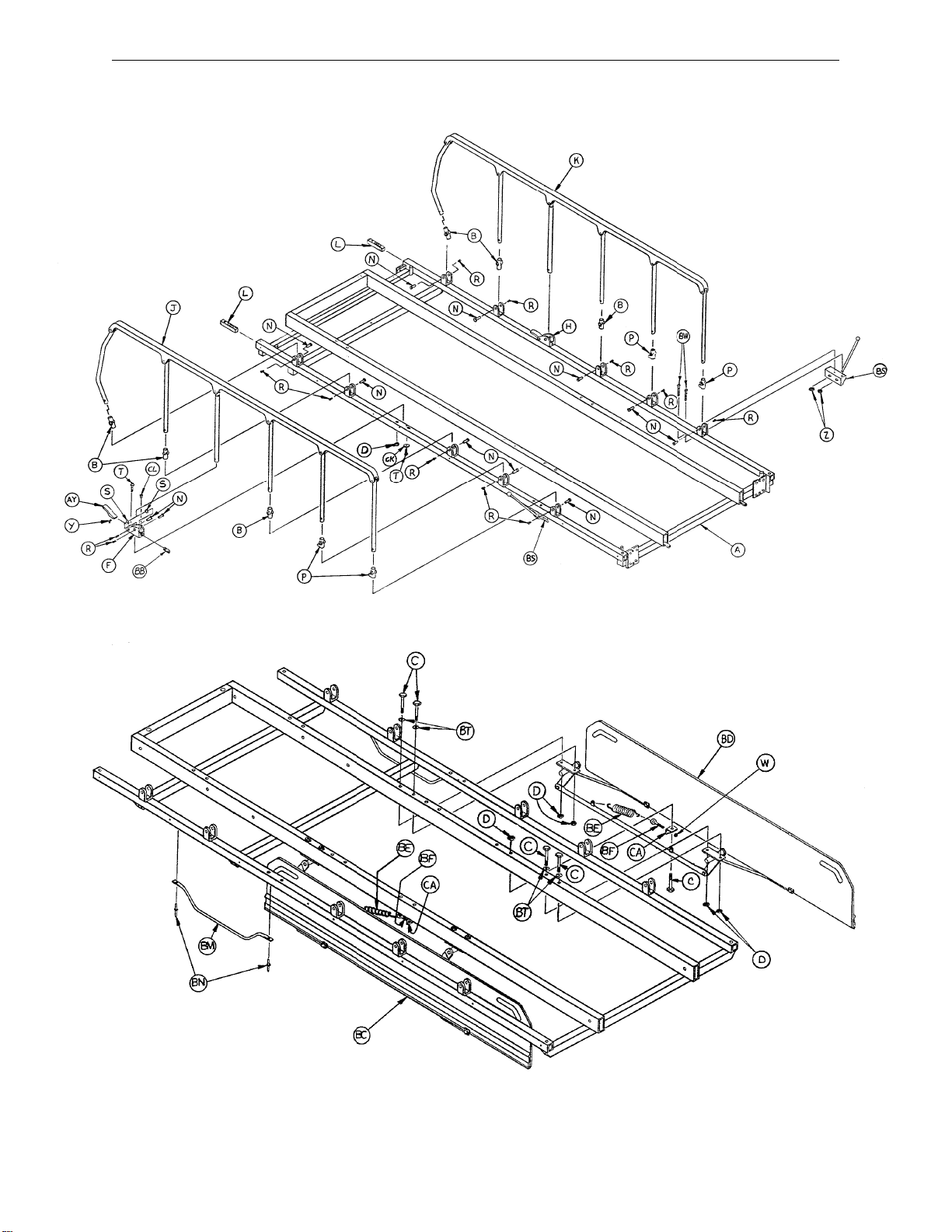

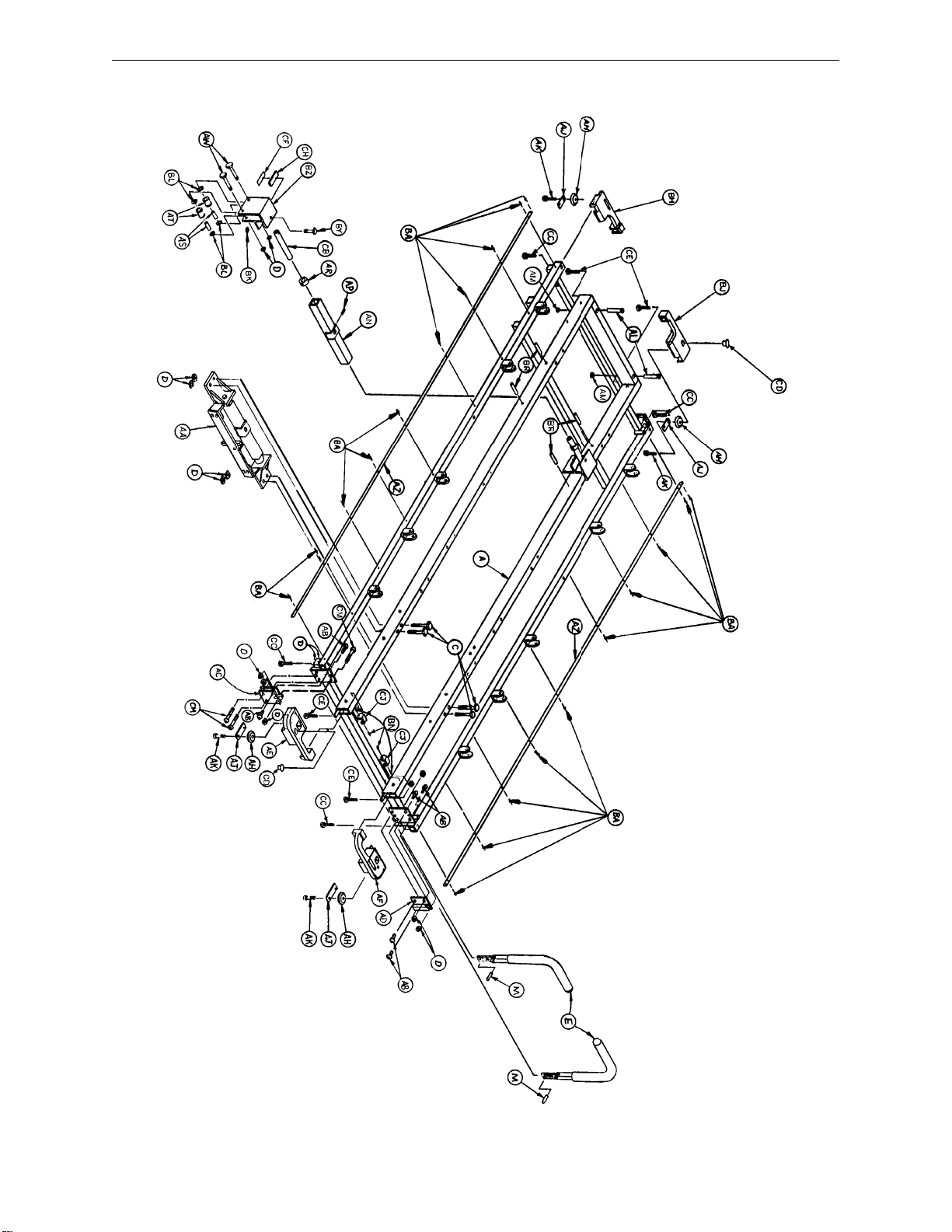

1010–1–10 Folddown Siderail Litter

Page 58

1010–1–10 Folddown Siderail Litter

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A 1010–1–45 Frame Assembly 1 AT 721–32–108 Support Roller 4 B 721–26–69 Upright Sleeve 6 AW 3–76 Hex Hd. Cap Screw 4 C3–73 Hex Hd. Cap Screw 14 AY 721–26–74 Lock Handle, Mach’d2 D16–28 Nylock Hex Nut 19 AZ 1010–1–56 Bumper Channel 2 E (page 71) Handle Assembly 2 BA 25–38 Pop Rivet 20 F 1010–26–81 Lock Housing Ass’y, Lt. 1 BB 21–104 Set Screw 2 H 1010–26–80 Lock Housing Ass’y, Rt. 1 BC (Page 54) Transfer Sys. Ass’y, Lt. 1 J (Page 72) Siderail Ass’y, Right 1 BD (Page 55) Transfer Sys. Ass’y , Rt. 1 K (Page 72) Siderail Ass”y, Left 1 BE 38–218 Tension Spring 2 L 1010–26–69 Lock Support 2 BF 10–11 Eye Bolt 2 M26–12 Roll Pin 2 BH 1010–1–14 Cover, Foot, Left 1 N 721–26–66 Pivot Screw 14 BJ 1010–1–13 Cover, Foot, Right 1 P 721–26–68 Upright Cradle 4 BK 16–11 Flexloc Nut 2 R4–136 Button Hd. Cap Screw 14 BL 11–14 Flat Washer 8 S11–179 Nylon Flat Washer 4 BM 1010–32–92 Foley Bag Rack 2 T4–135 Button Hd. Cap Screw 4 BN 25–79 Pop Rivet 8 W15–21 Jam Nut 2 BR 26–57 Roll Pin 4 Y38–220 Compression Spring 2 BS (Page 58) Board Support Ass’y2 Z16–3 Fiberlock Nut 4 BT 11–180 Flat Washer 8 AA (Page 50) J. Supt. & T. Limiter Ass’y 1 BW 2–36 Straight Slot Screw 4 AB 4–161 Hex Soc. Bt. Hd. Cap Scr. 6 BY 3–40 Hex Hd. Cap Screw 2 AC 1010–54–70 Socket Ass’y, Left 1 BZ 1010–32–108 Roller Assembly 2 AD 1010–54–71 Socket Ass’y, Right 1 CA 1010–24–25 Spring Retainer 2 AE 1010–1–15 Cover, Head, Left 1 CB 1010–32–64 Carrier Tube, Standard 2 AF 1010–1–16 Cover, Head, Right 1 CC 3–47 Hex Hd. Cap Screw 4 AH 721–32–49 Bumper Roller 4 CD 37–59 Hole Plug 2 AJ 1010–1–17 Roller Plate 4 CE 3–54 Hex Hd. Cap Screw 4 AK 8–24 Shoulder Bolt 4 CF 919–30–28 Rack Guide 2 AL 721–40–26 Footboard Receptacle 2 CH 44–29 Dbl. Sided Foam Tape 6” AM 28–23 Retaining Ring 2 CJ 1010–1–35 Handle Rest 2 AN 1010–32–85 Support Tube Ass’y1 CK11–2 Flat Washer 2 AP 46–1 Square Hd. Set Screw 1 CL 37–74 Hole Plug 2 AR 938–1–401 Collar Assembly 2 CM 4–163 Hex Soc. Bt. Hd. Cap Scr. 3 AS 721–32–107 Roller Sleeve 4 CN 1010–1–31 S’rail Bmpr. (not shown) 2

Page 59

1510–1–10 Folddown Siderail Litter Assembly

Page 60

1510–1–10 Folddown Siderail Litter Assembly

Page 61

1510–1–10 Folddown Siderail Litter Assembly

Item Part No. Part Name Qty.

A 1510–1–25 Frame Assembly 1

B 721–26–69 Upright Sleeve 6

C 1010–54–70 Socket Ass’y, Left 1

D16–28 Nylock Hex Nut 19

E 1010–54–71 Socket Ass’y, Right 1

F 1010–26–81 Lock Housing Ass’y, Left 1

H 1010–26–80 Lock Housing Ass’y, Right 1

J (Page 72) Siderail Ass’y, Left 1

K (Page 72) Siderail Ass’y, Right 1

L 1010–26–69 Lock Support 2

M37–59 Hole Plug 2

N 721–26–66 Pivot Screw 14

P 721–26–68 Upright Cradle 4

R4–136 Button Hd. Cap Screw 14

S11–179 Nylon Flat Washer 4

T4–135 But. Hd. Cap Screw 4

W16–11 Flexloc Nut 2

Y38–220 Compression Spring 2

Z3–47 Hex Hd. Cap Screw 4

AA (Page 50) Jack Supt. & Trend. Limiter 1

AB 4–161 Hex Soc. But. Hd. Cap Screw 6

AC 1010–1–15 Cover, Head, Left 1

AD 1010–1–16 Cover, Head, Right 1

AE 1010–1–13 Cover, Foot, Right 1

AF 1010–1–14 Cover, Foot, Left 1

AH 721–32–49 Bumper Roller 4

AJ 1010–1–17 Roller Plate 4

AK 8–24 Shoulder Bolt 4

AL 721–40–26 Footboard Receptacle 2

AM 28–23 Retaining Ring 2

AN 1510–32–20 Support Tube Assembly 1

AP 46–1 Square Hd. Set Screw 1

AR 938–1–401 Collar Assembly 2

AS 721–32–107 Roller Sleeve 4

AT 721–32–108 Support Roller 4

AW 3–76 Hex Hd. Cap Screw 4

AY 721–26–74 Lock Handle, Machined 2

AZ 1010–1–56 Bumper Channel 2

BA 25–38 Pop Rivet 20

BB 21–104 Set Screw 2

BC 3–40 Hex Hd. Cap Screw 2

BD 1010–32–108 Roller Assembly 2

BE 1010–32–64 Carrier Tube, Standard 2

BF 3–73 Hex Hd. Cap Screw 4

BH 26–57 Roll Pin 4

BK 25–79 Pop Rivet 4

BL 11–14 Washer 8

BM 1010–32–92 Foley Bag Rack 2

BN 3–54 Hex Hd. Cap Screw 4

BP 919–30–28 Rack Guide 2

BR 44–29 Double Sided Foam Tape 6”

BS 11–2 Flat Washer 2

BT 37–74 Hole Plug 2

BW 4–163 Hex Soc. But. Hd. Cap Screw 3

BX 1510–1–21 Siderail Bumper (not shown) 2

Page 62

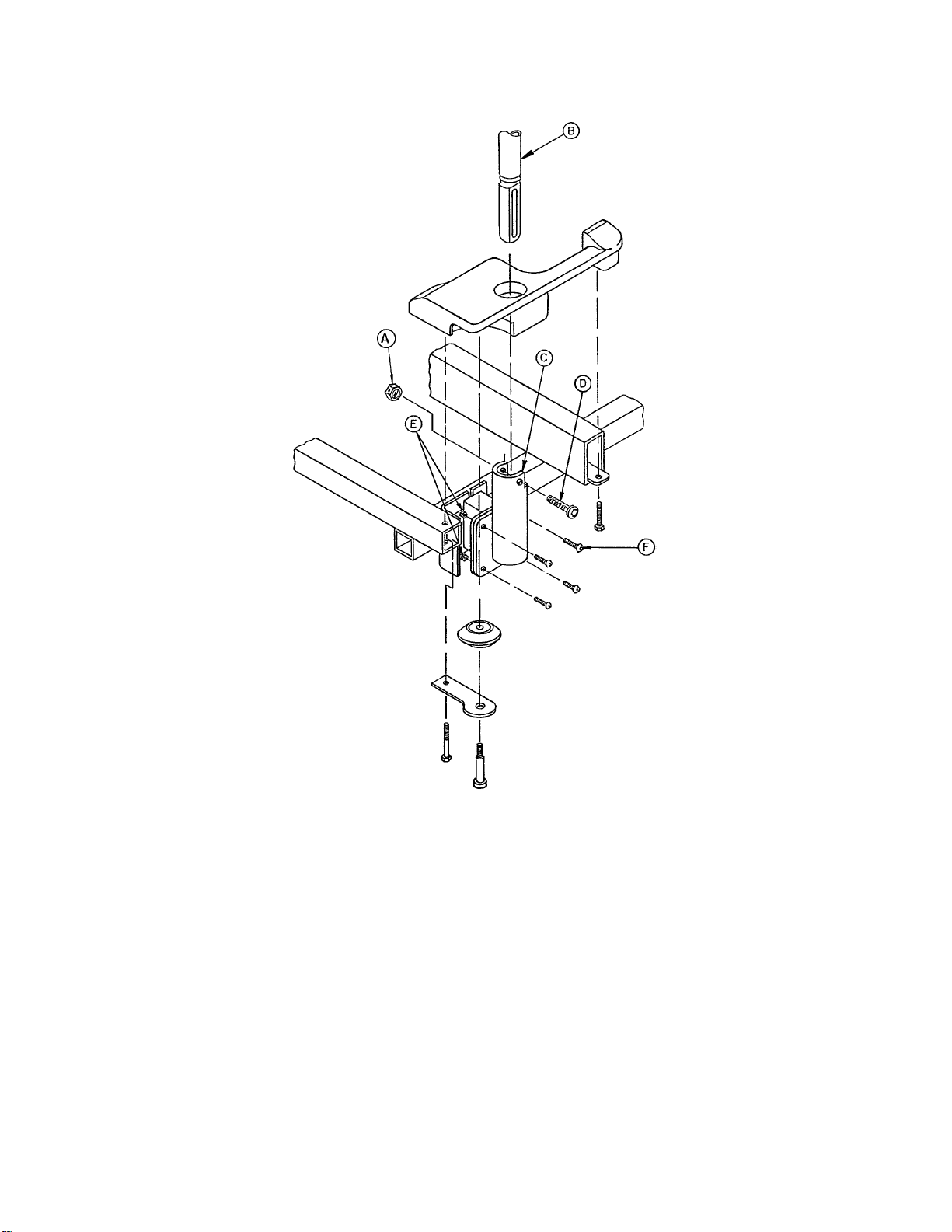

Jack Support and Trend. Limiter Assembly

1010–23–41 1510–23–20

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A 1010–23–25 Jack Supt. Ass’y, Rt. 1 A 1510–23–18 Jack Supt. Ass’y, Rt. 1 B 1010–23–30 Jack Supt. Ass’y, Lt. 1 B 1510–23–19 Jack Supt. Ass’y, Lt. 1 C 16–28 Nylock Nut 4 C 16–28 Nylock Nut 4 D 3–15 Hex Hd. Cap Screw 4 D 3–15 Hex Hd. Cap Screw 4 E 938–1–401 Collar 2 E 938–1–401 Collar 2 F 721–32–160 Support Tube Ass’y 1 F 721–32–160 Support Tube Ass’y1 H (Page 51) Trend. Limiter Ass’y 1 H (Page 51) Trend. Limiter Ass’y1 J 46–1 Set Screw 1 J 46–1 Set Screw 1

Page 63

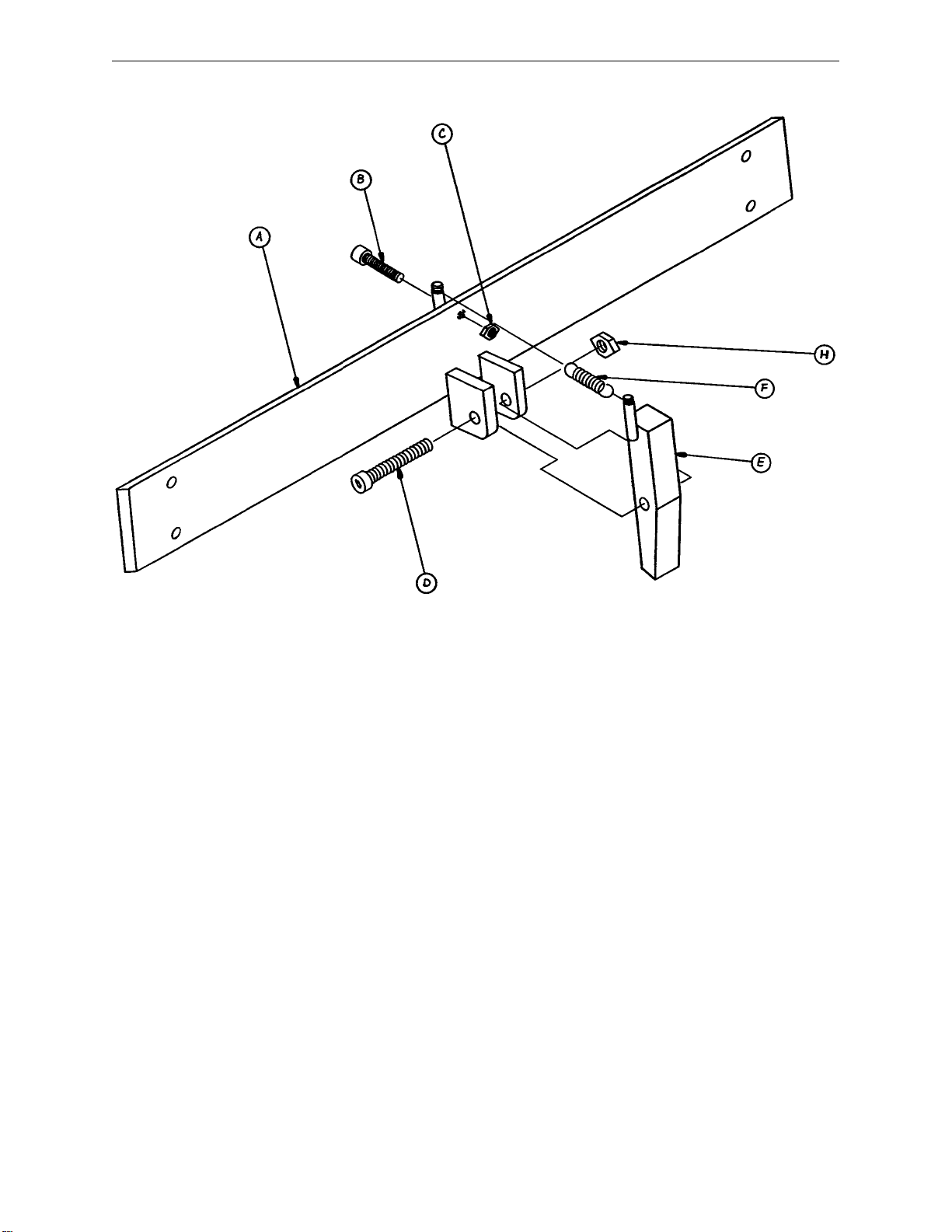

1010–23–34 Trend. Limiter Assembly

Item Part Name Part No. Qty.

A 1010–23–35 Limiter Plate Ass’y1 B4–8 Hex Soc. Machine Screw 1 C15–23 Hex Nut 1 D4–142 Hex Soc. Machine Screw 1 E 715–1–114 Limiter Pin Assembly 1 F38–233 Extension Spring 1 H16–16 Fiberlock Nut 1

Page 64

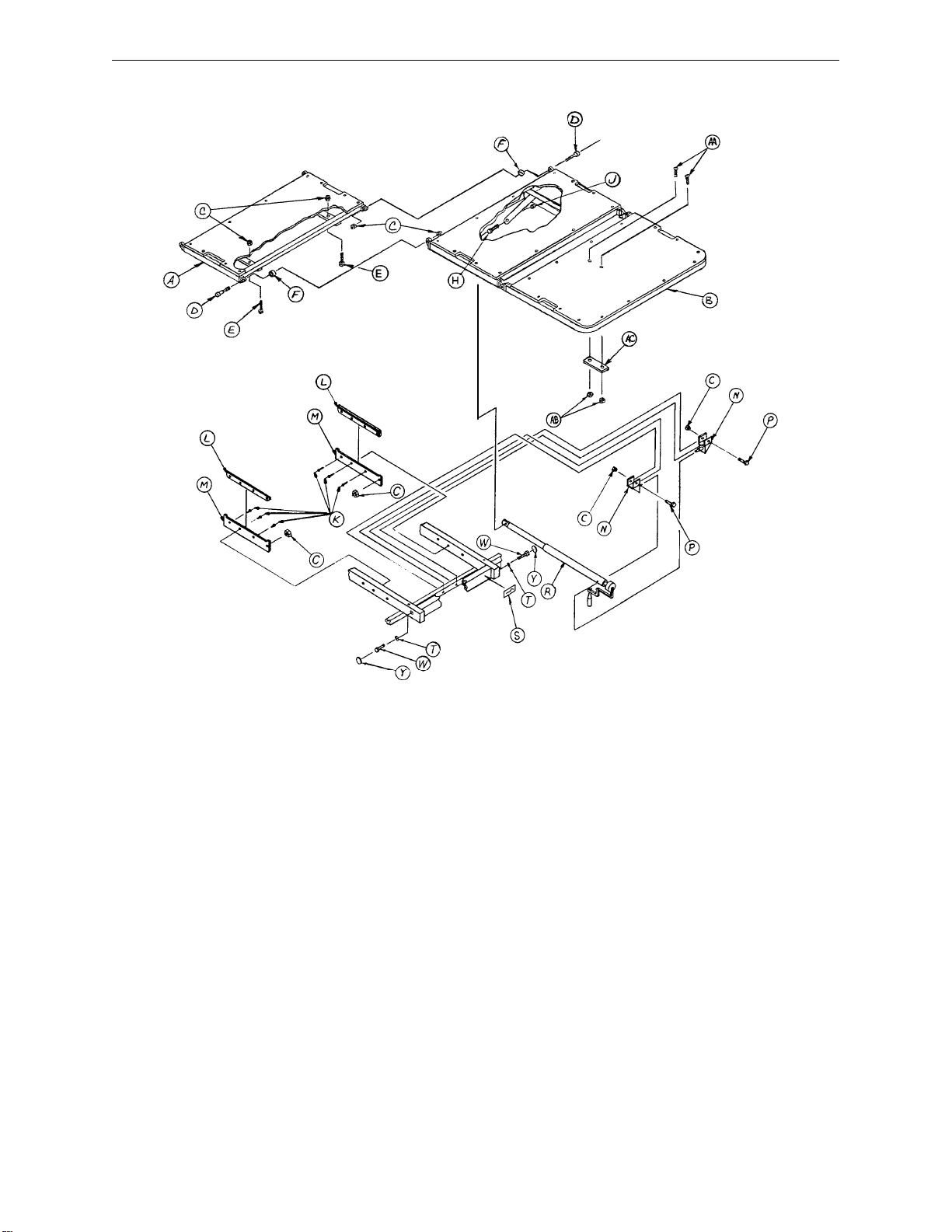

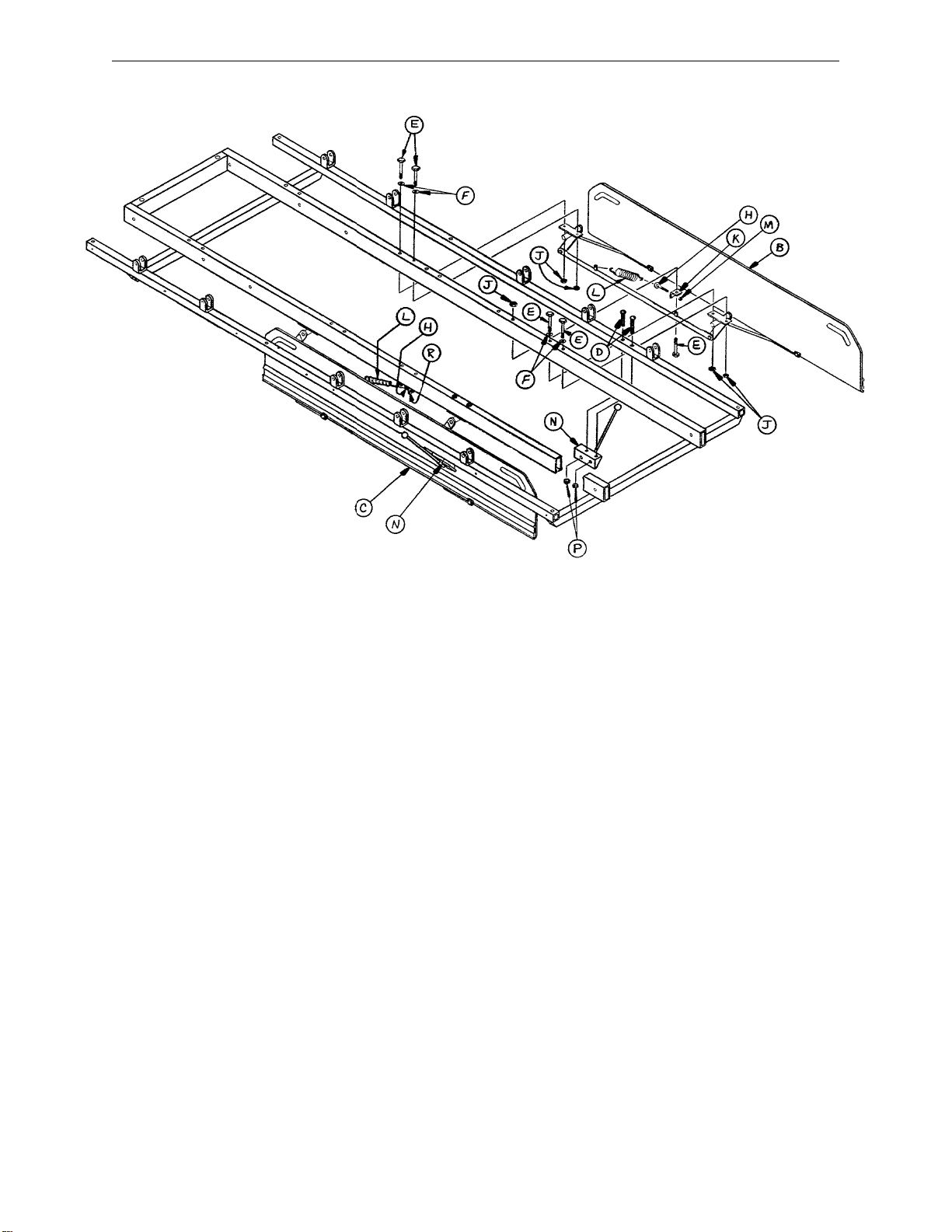

1510–27–19 Short Transfer System to Frame Ass’y

Item Part No. Part Name Qty.

B (Page 55) Rt. Trans. System Ass’y1 C (Page 54) Lt. Trans. System Ass’y1 D2–100 Pan Hd. Machine Screw 4 E3–73 Hex Hd. Cap Screw 10 F11–180 Nylon Flat Washer 8 H10–11 Eye Bolt 2 J16–28 Nylock Hex Nut 10 K 1010–24–25 Spring Retainer 2 L38–218 Extension Spring 2 M15–21 Jam Nut 2 N (Page 58) Board Support Ass’y2 P16–3 Fiberlock Hex Nut 4

Page 65

1510–29–15 Long Transfer System to Frame Assembly

Item Part No. Part Name Qty.

B (Page 57) Rt. Trans. System Ass’y1 C (Page 56) Lt. Trans. System Ass’y1 D2–100 Pan Hd. Machine Screw 4 E3–73 Hex Hd. Cap Screw 10 F11–180 Nylon Flat Washer 8 H10–11 Eye Bolt 2 J16–28 Nylock Hex Nut 10 K16–3 Fiberlock Hex Nut 4 L38–218 Extension Spring 2 M15–21 Jam Nut 2 N 1010–24–25 Spring Retainer 2 P (Page 58) Board Support Ass’y2

Page 66

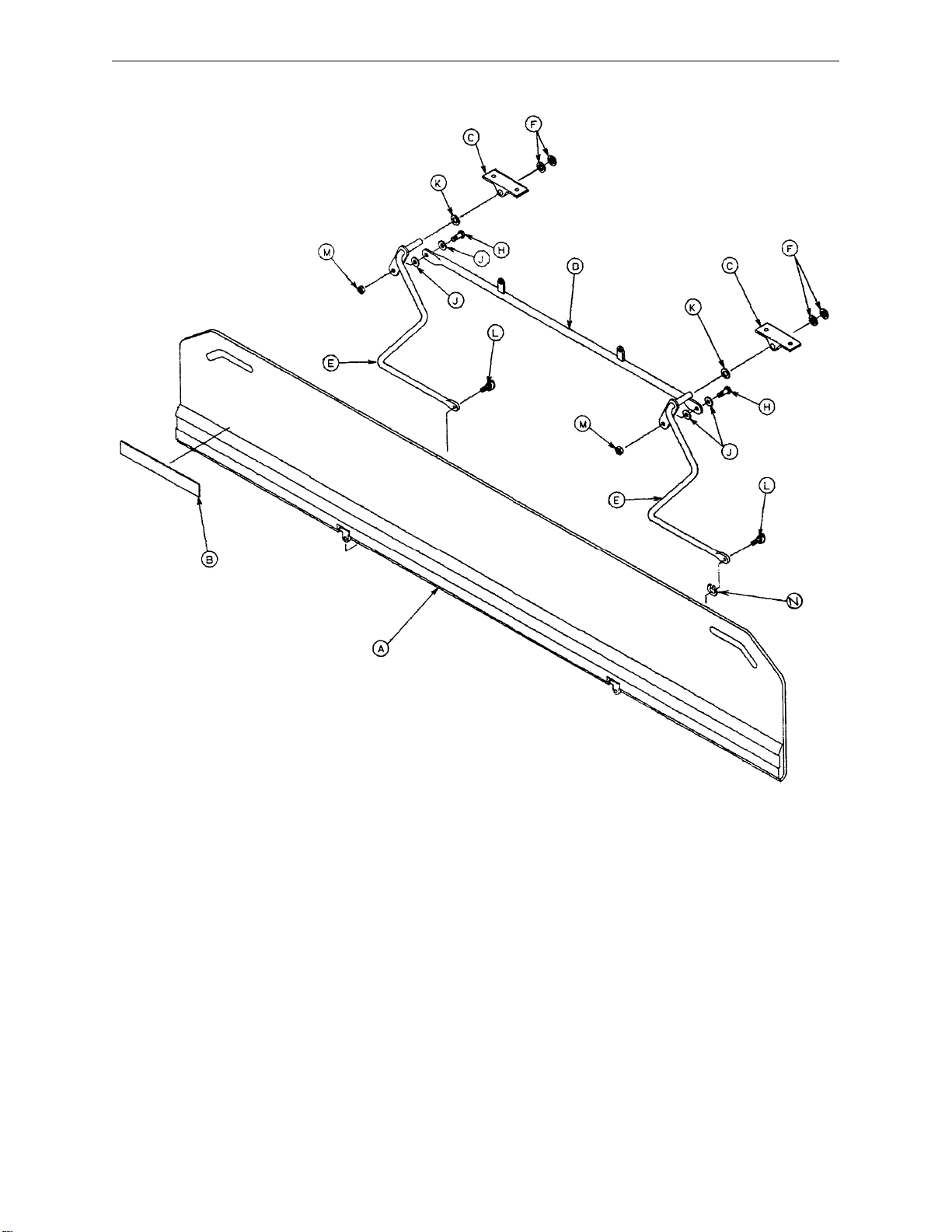

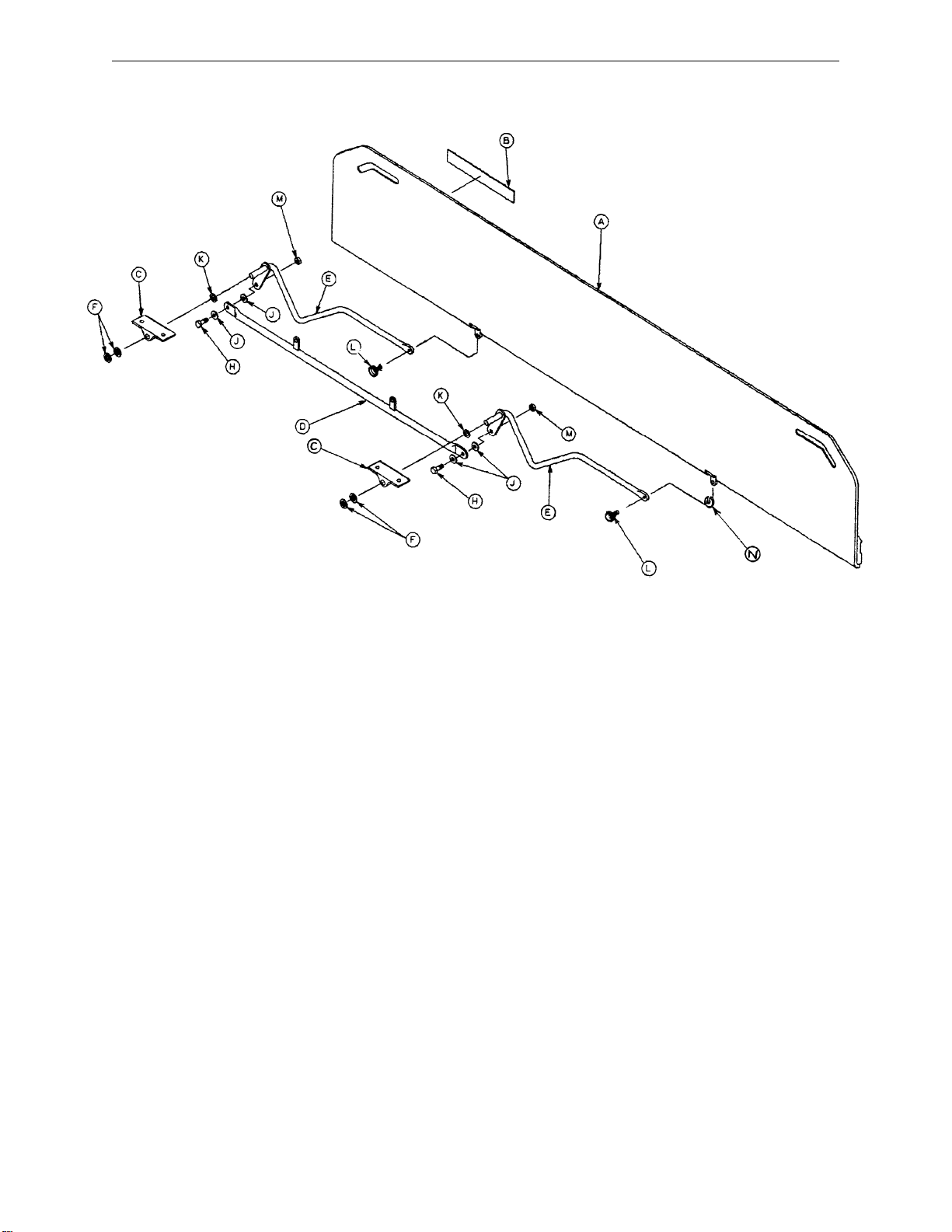

1010–32–103 Short Transfer System Assembly, Left

Item Part No. Part Name Qty.

A 1010–32–100 Transfer Board Ass’y1 B 721–24–46 Label 1 C 1010–32–98 Pivot 2 D 1010–24–22 Connecting Link Ass’y1 E 1010–32–94 Pivot Arm Ass’y, Left 2 F28–93 Retaining Ring 4 H3–50 Hex Hd. Cap Screw 2 J11–224 Nylon Flat Washer 4 K14–21 Nylon Flat Washer 2 L4–156 Soc. Hd. Cap Screw 2 M16–28 Nylock Hex Nut 2 N14–2 Washer 1

Page 67

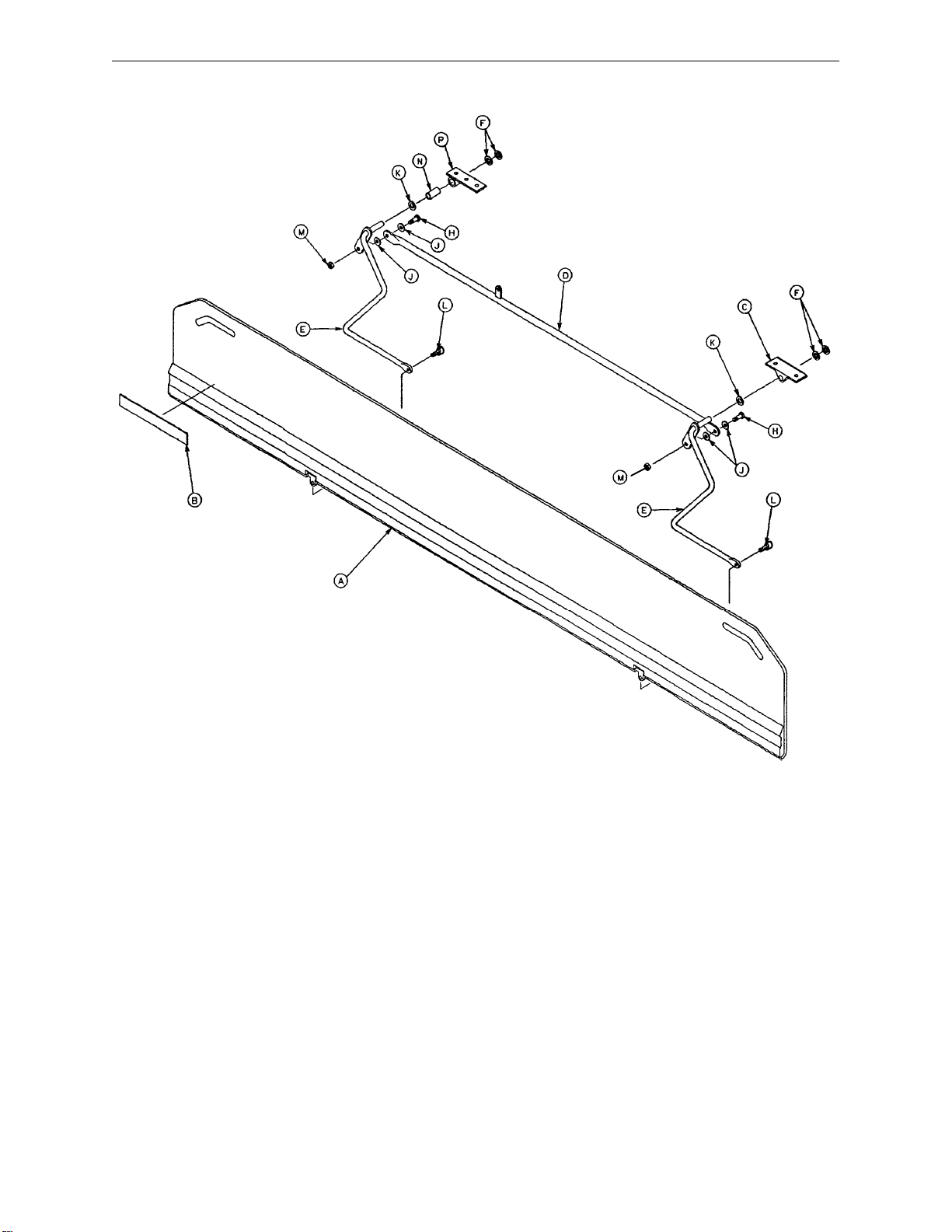

1010–32–104 Short Transfer System Assembly, Right

Item Part No. Part Name Qty.

A 1010–32–100 Transfer Board Ass’y1 B 721–24–46 Label 1 C 1010–32–98 Pivot 2 D 1010–24–22 Connecting Link Ass’y1 E 1010–32–96 Pivot Arm Ass’y, Right 2 F28–93 Retaining Ring 4 H3–50 Hex Head Cap Screw 2 J11–224 Nylon Flat Washer 4 K14–21 Nylon Flat Washer 2 L4–156 Soc. Hd. Cap Screw 2 M16–28 Nylock Hex Nut 2 N14–2 Washer 1

Page 68

1510–29–35 Long Transfer System Assembly, Left

Item Part No. Part Name Qty.

A 1510–32–9 Transfer Board Ass’y1 B 721–24–46 Label 1 C 1010–32–98 Pivot 2 D 1510–29–7 Connecting Link Ass’y1 E 1010–32–94 Pivot Arm Ass’y, Left 2 F28–93 Retaining Ring 4 H3–50 Hex Hd. Cap Screw 2 J11–224 Nylon Flat Washer 4 K14–21 Nylon Flat Washer 2 L4–156 Socket Hd. Cap Screw 2 M16–28 Nylock Hex Nut 2 N 1510–29–33 Bearing 1 P 1510–29–31 Brg. Strap & Sleeve Ass’y1

Page 69

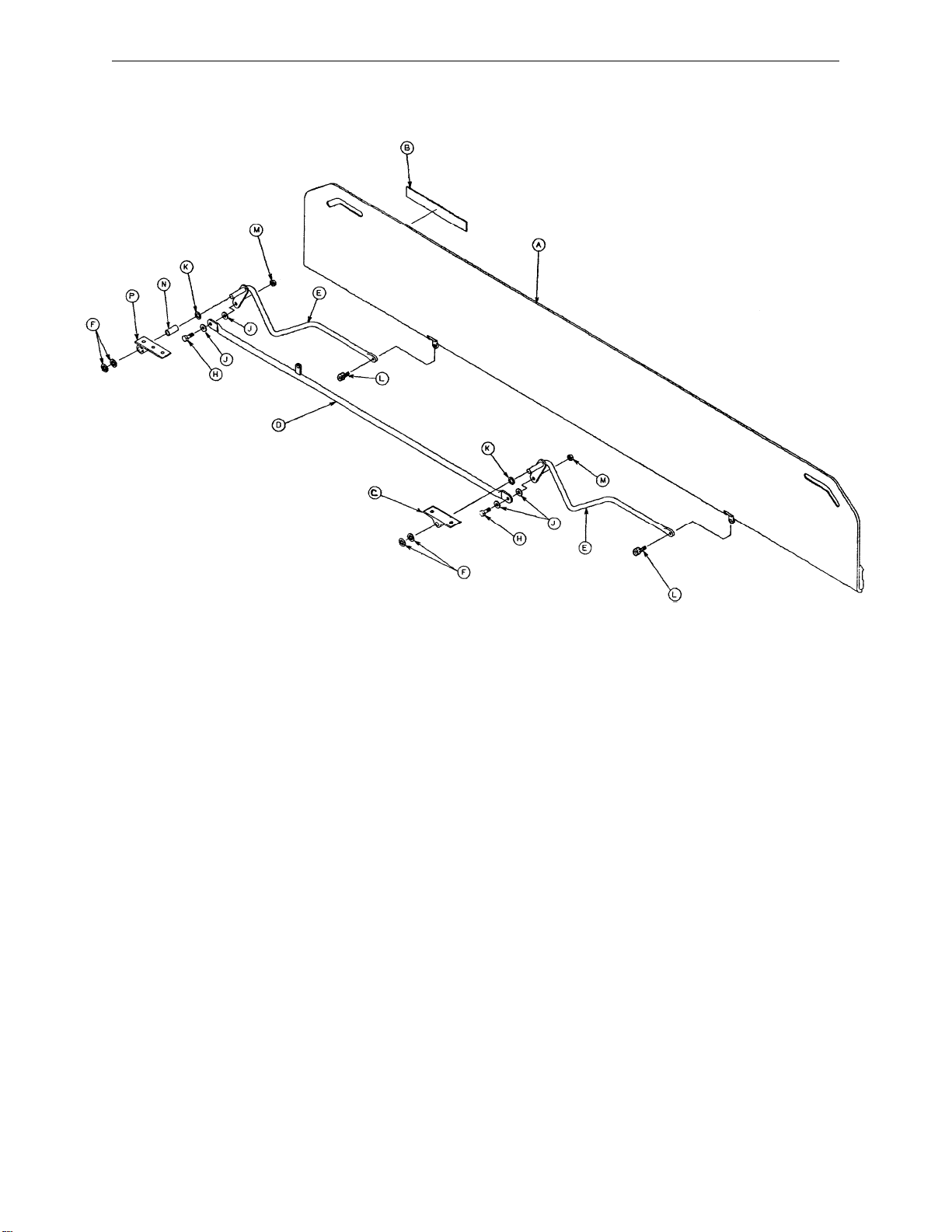

1510–29–34 Long Transfer System Assembly, Right

Item Part No. Part Name Qty.

A 1510–29–10 Transfer Bd. Ass’y1

B 721–24–46 Label 1 C 1010–32–98 Pivot 2 D 1510–29–6 Connecting Link Ass’y1 E 1010–32–96 Pivot Arm Ass’y, Right 2 F28–93 Retaining Ring 4 H3–50 Hex Hd. Cap Screw 2 J11–224 Nylon Flat Washer 4 K14–21 Nylon Flat Washer 2 L4–156 Socket Hd. Cap Screw 2 M16–28 Nylock Hex Nut 2 N 1510–29–33 Bearing 1 P 1510–29–31 Brg. Strap & Sleeve Ass’y1

Page 70

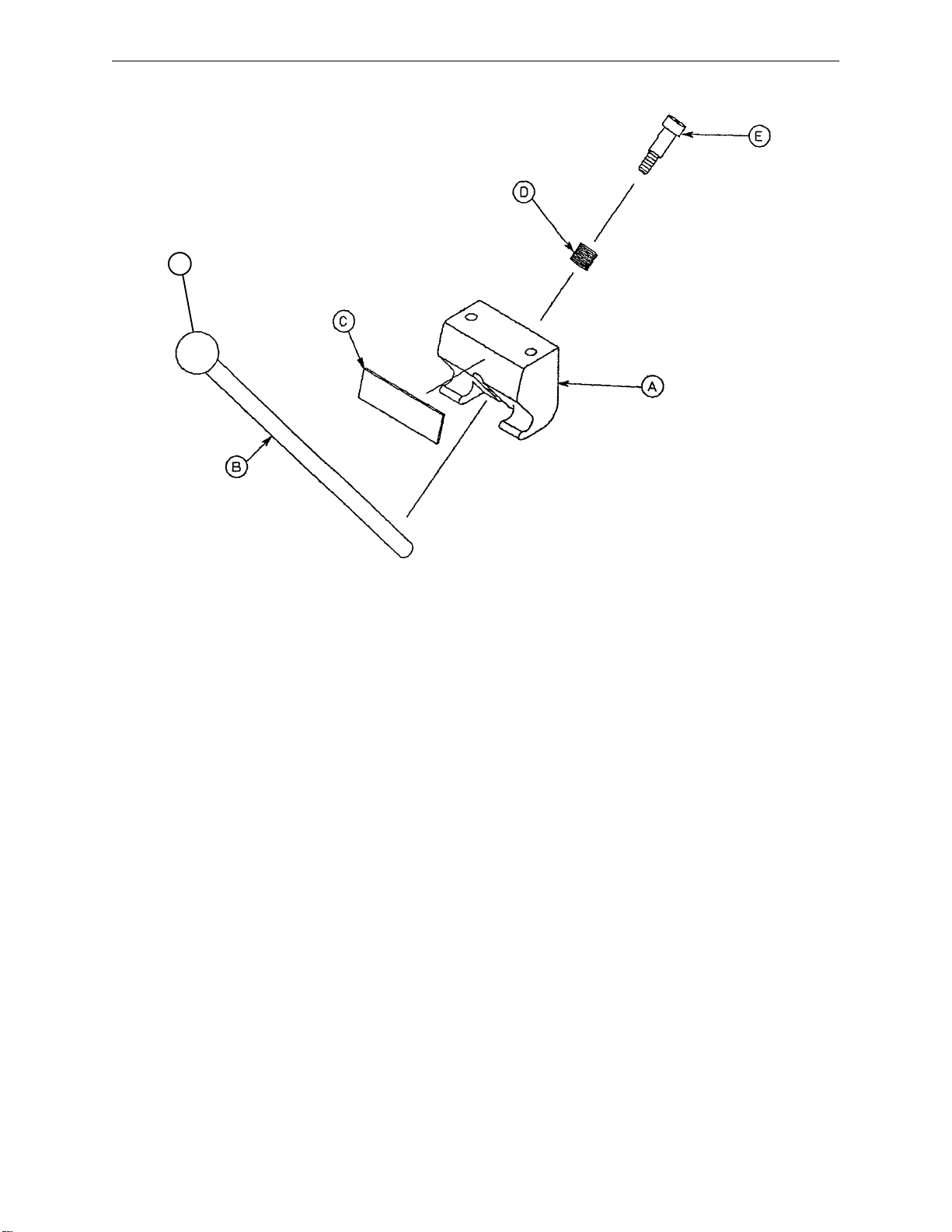

1010–24–30 Board Support Assembly

Item Part No. Part Name Qty.

A 1010–24–15 Support Block 1 B 1010–24–16 Support Arm 1 C 1010–24–14 Warning Label 1 D38–263 Spring 1 E8–17 Shoulder Bolt 1 F 1010–26–46 Ball Knob 1

Page 71

Crank Fowler Assembly

p/n 1010–1–20 Frame Assembly (Ref.)

1010–33–10 1510–33–10

Item Part No. Part Name Qty. Item Part No. Part Name Qty

A (Page 60) Crk. Fow. Subass’y 1 A (Page 60) Crk. Fow. Subass’y1 B 8–28 Shoulder Bolt 2 B 8–28 Shoulder Bolt 2 C 11–179 Washer 2 C 11–179 Washer 2 D 16–28 Lock Nut 6 D 16–28 Lock Nut 6 E 8–37 Shoulder Bolt 2 E 8–37 Shoulder Bolt 2 F 52–17 Spacer 2 F 52–17 Spacer 2 H (Page 61) Crankscrew Ass’y 1 H (Page 61) Crankscrew Ass’y1 J 3–79 Hex Hd. Cap Screw 2 J 3–79 Hex Hd. Cap Screw 2 K 3–73 Hex Hd. Cap Screw 2 K 3–73 Hex Hd. Cap Screw 2 L 1510–33–38 Crk. Fowler Pivot 2 L 1510–33–38 Crk. Fowler Pivot 2 M 1010–34–15 Mounting Brkt. Ass’y 2 M 1010–34–15 Mounting Brkt. Ass’y2 N 3–78 Hex Hd. Cap Screw 2 N 3–78 Hex Hd. Cap Screw 2 P 946–1–64 Fow. Symbol Label 1 P 946–1–64 Fow. Symbol Label 1

Page 72

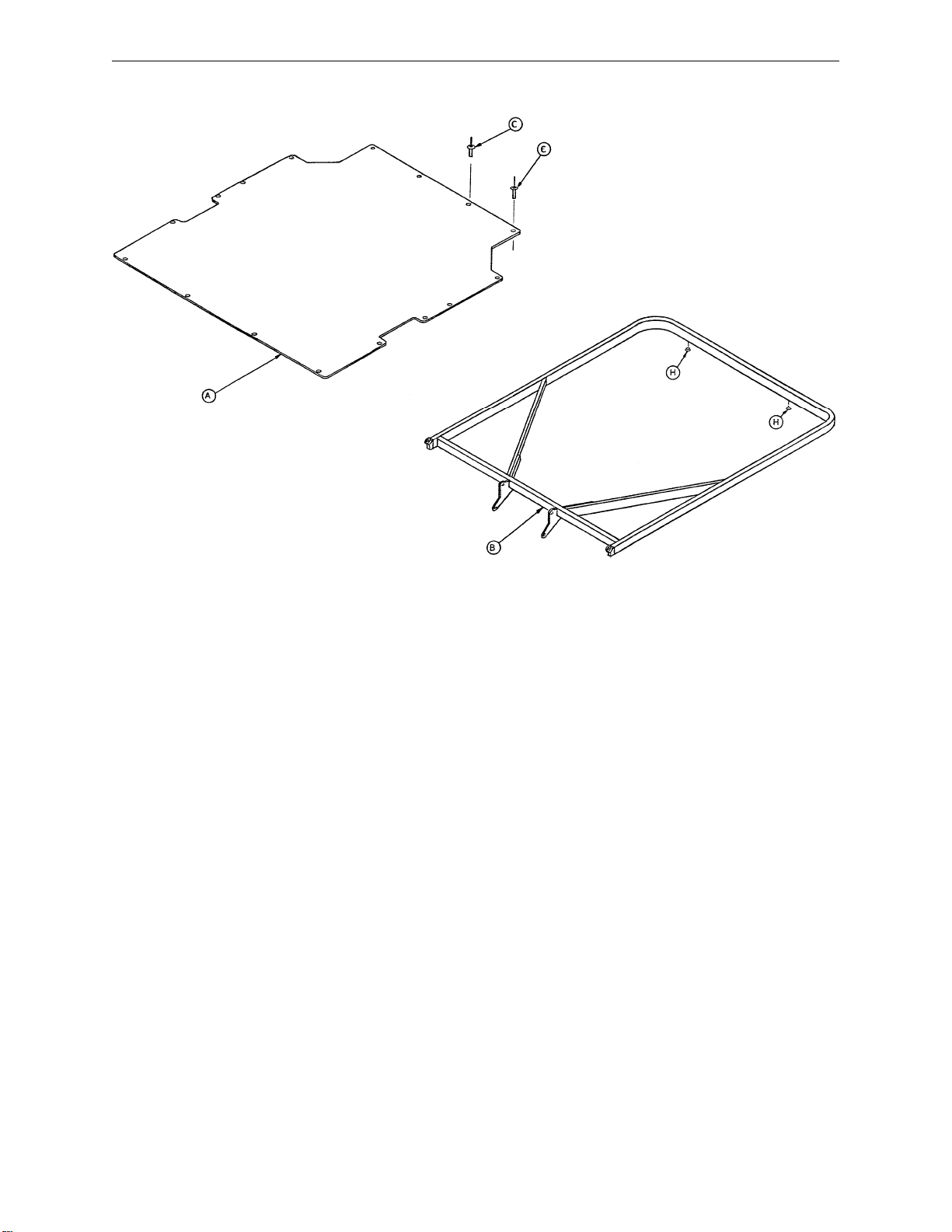

Crank Fowler Subassembly

1010–33–13 1510–33–43

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A 1010–31–88 Skin 1 A 1510–31–46 Skin 1 B 1010–34–27 Fowler Weldment 1 B 1510–33–40 Fowler Weldment 1 C 25–103 Rivet 16 C 25–103 Rivet 16

H37–52 Rubber Bumper 2 H 37–52 Rubber Bumper 2

Page 73

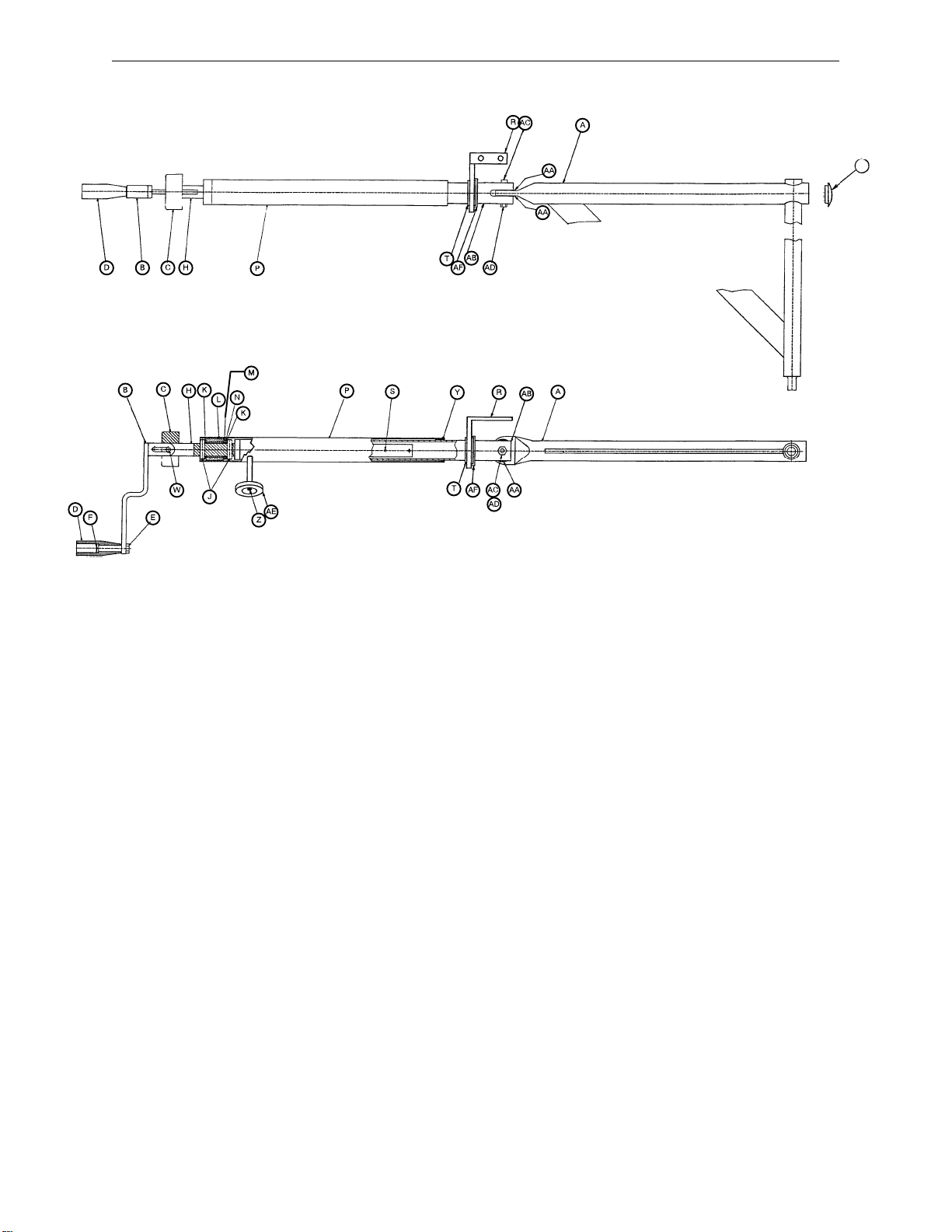

Fowler Crankscrew Assembly

1010–34–30 1510–33–42

Item Part No. Part Name Qty. Item Part No. Part Name Qty

A 1010–33–12 Pivot Tube Assembly 1 A 1510–33–12 Pivot Tube Assembly 1 B 1510–34–85 Crank Assembly 1 B 1510–34–85 Crank Assembly 1 C 946–33–18 Crank Disc 1 C 946–33–18 Crank Disc 1 D 938–1–177 Knob 1 D 938–1–177 Knob 1 E 16–5 Conelock Nut 1 E 16–5 Conelock Nut 1 F 378–24–29 Shoulder Bolt 1 F 378–24–29 Shoulder Bolt 1 H 946–33–35 Fowler Screw 1 H 946–33–35 Fowler Screw 1 J 26–14 Roll Pin 2 J 26–14 Roll Pin 2 K 81–174 Thrust Washer 2 K 81–174 Thrust Washer 2 L 938–1–175 Bearing Assembly 1 L 938–1–175 Bearing Assembly 1 M 81–176 Thrust Washer 1 M 81–176 Thrust Washer 1 N 81–175 Thrust Bearing 1 N 81–175 Thrust Bearing 1 P 1510–34–84 Screw Cover Ass’y 1 P 1510–34–84 Screw Cover Ass’y1 R 1510–33–37 Brace 1 R 1510–33–37 Brace 1 S 26–10 Roll Pin 1 S 26–10 Roll Pin 1 T 1510–33–45 Slide Bearing 1 T 1510–33–45 Slide Bearing 1 W 26–45 Roll Pin 1 W 26–45 Roll Pin 1 Y 7900–1–102 Velcro Pile Tape 4” Y 7900–1–102 Velcro Pile Tape 4” Z 4–7 Soc. Hd. Cap Screw 1 Z 4–7 Soc. Hd. Cap Screw 1 AA 14–55 Plastic Washer 2 AA 14–55 Plastic Washer 2 AB 1510–33–9 Fow. Drive Tube Ass’y 1 AB 1510–33–9 Fow. Drive T ube Ass’y1 AC 3–45 Hex Hd. Cap Screw 1 AC 3–45 Hex Hd. Cap Screw 1 AD 16–35 Nylock Hex Nut 1 AD 16–35 Nylock Hex Nut 1 AE 1550–1–14 Magnet 1 AE 1550–1–14 Magnet 1 AF 28–94 Retaining Ring 1 AF 28–94 Retaining Ring 1

AH 37–76 Hole Plug 1 AH 37–76 Hole Plug 1

Page 74

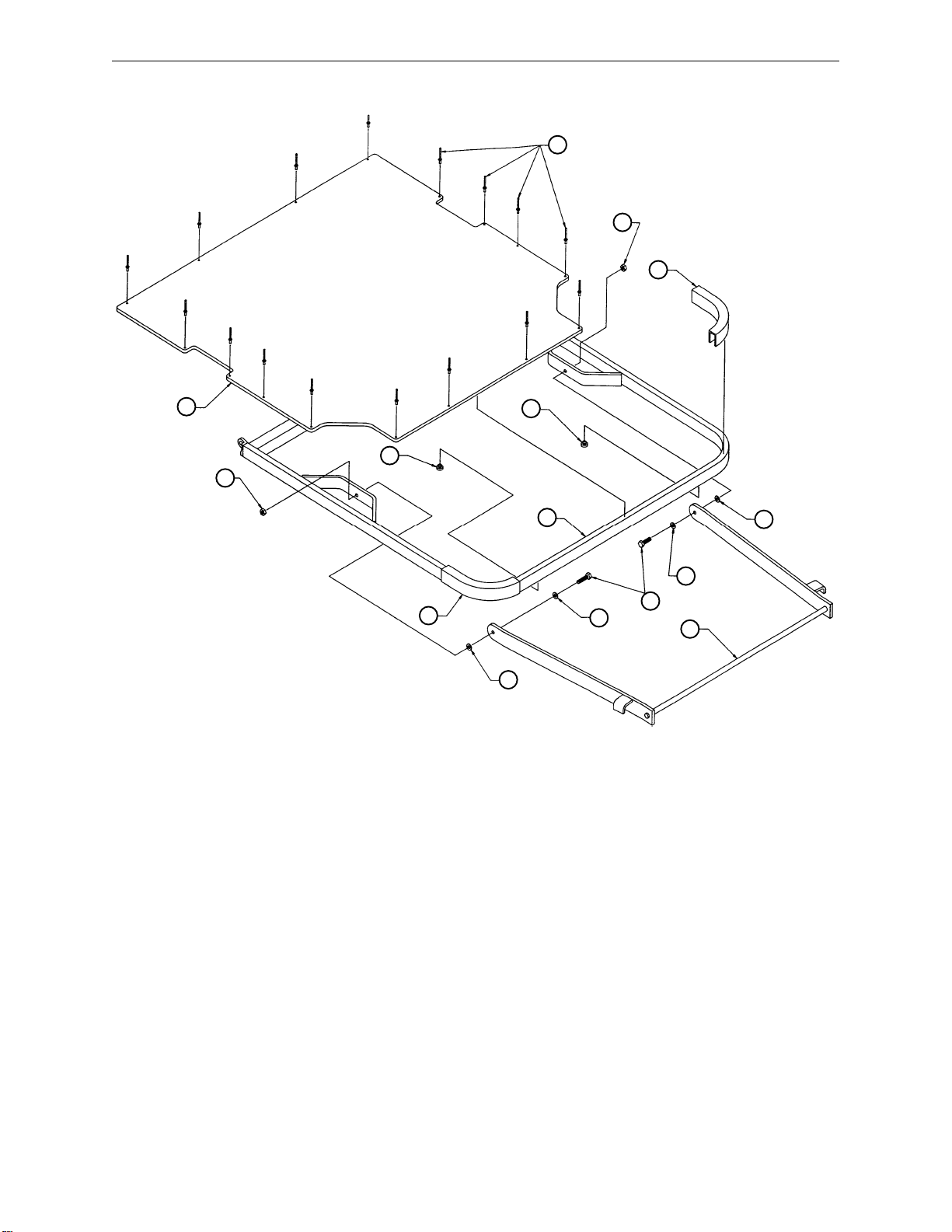

Manual Fowler Assembly

1010–32–61 1510–32–61

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A 1010–32–106 Fowler Weldment 1 A 1510–32–66 Fowler Weldment 1 B 1010–31–88 Fowler Skin 1 B 1510–31–46 Fowler Skin 1 C 1010–32–48 Brace Assembly 1 C 1510–34–42 Brace Assembly 1 D 1010–54–26 Handle Ass’y, R t . 1 D 1010–54–26 Handle Ass’y, Rt. 1 E 1010–54–16 Handle Ass’y, Lt. 1 E 1010–54–16 Handle Ass’y, Lt. 1 F 25–103 Pop Rivet 16 F 25–103 Pop Rivet 16 J 3–54 Hex Hd. Cap Screw 2 J 3–54 Hex Hd. Cap Screw 2 K 16–28 Nylock Hex Nut 2 K 16–28 Nylock Hex Nut 2 L 14–2 Nylon Washer 4 L 14–2 Nylon Washer 4 M 37–52 Rubber Bumper 2 M 37–52 Rubber Bumper 2

Page 75

Pneumatic Fowler Assembly

1010–31–90 1510–31–25

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A 1010–31–86 Fowler Weldment 1 A 1510–31–39 Fowler Weldment 1 B 1010–31–85 Handle Assembly 1 B 1510–31–36 Handle Assembly 1 C 1510–31–26 Housing 2 C 1510–31–26 Housing 2 D 1510–31–28 Yoke 2 D 1510–31–28 Yoke 2 E 946–35–25 Liner 4 E 946–35–25 Liner 4 F 28–76 Retaining Ring 4 F 28–76 Retaining Ring 4 H 28–8 Retaining Ring 4 H 28–8 Retaining Ring 4 J 1510–31–37 Pivot 2 J 1510–31–37 Pivot 2 L 3–78 Hex Hd. Cap Screw 4 L 3–78 Hex Hd. Cap Screw 4 M 16–28 Nylock Hex Nut 4 M 16–28 Nylock Hex Nut 4 N 21–119 Set Screw 2 N 21–119 Set Screw 2 P 4–54 Adjustment Screw 2 P 4–54 Adjustment Screw 2 R 1510–31–41 Jam Nut/Spacer 2 R 1510–31–41 Jam Nut/Spacer 2 S 21–104 Set Screw 2 S 21–104 Set Screw 2 T 1010–31–88 Fowler Skin 1 T 1510–31–46 Fowler Skin 1 W 25–103 Pop Rivet 16 W 25–103 Pop Rivet 16 Y 15–37 Jam Nut 2 Y 15–37 Jam Nut 2 Z 1010–54–26 Handle Cover, Rt. 1 Z 1010–54–26 Handle Cover, Rt. 1 AA 1010–54–16 Handle Cover, Lt. 1 AA 1010–54–16 Handle Cover, Lt. 1 AC 37–52 Rubber Bumper 2 AC 37–52 Rubber Bumper 2

Page 76

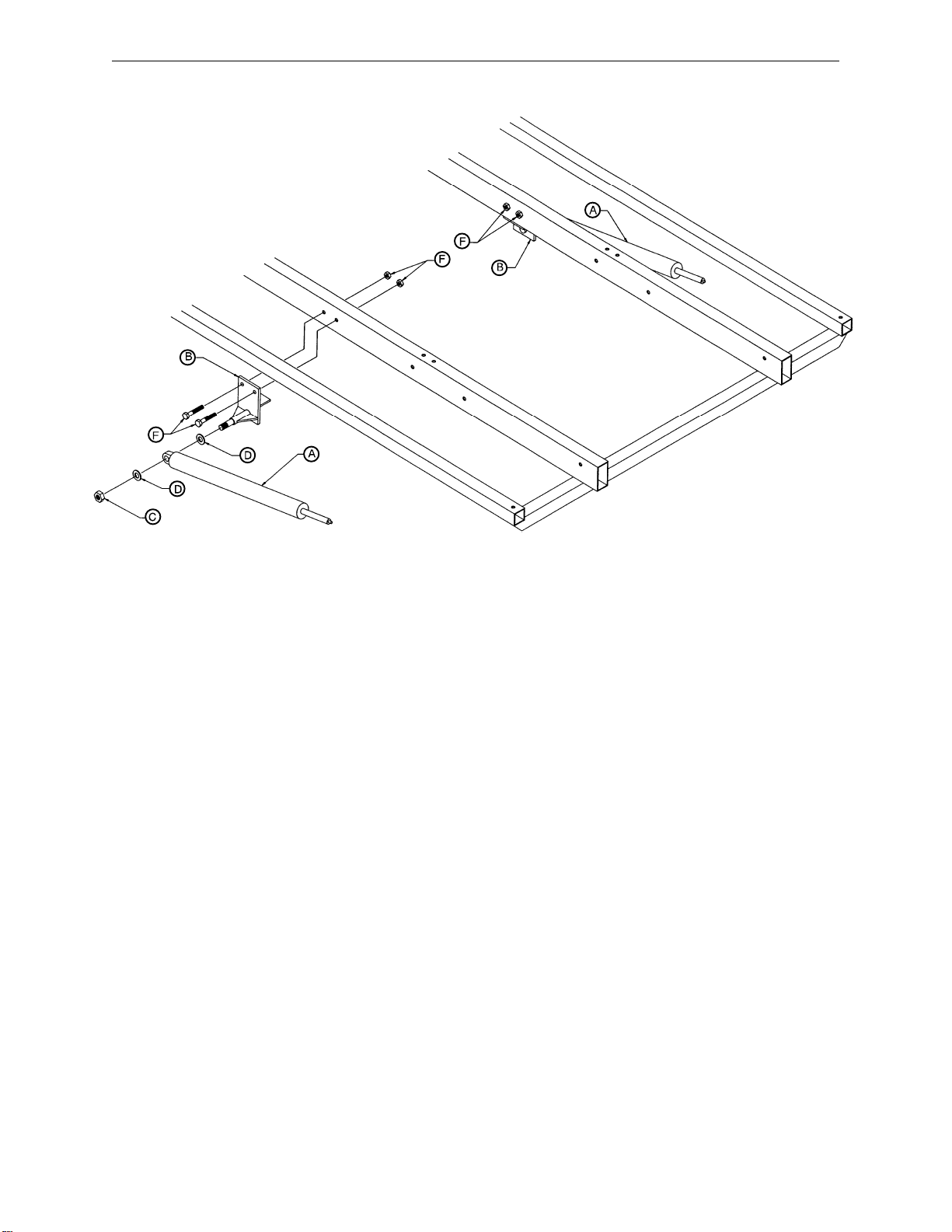

Pneumatic Fowler to Frame Assembly

Item Part No. Part Name Qty.

A 1010–31–77 Gas Cylinder 2 B 1010–31–31 Cylinder Mount 2 C16–35 Nylock Hex Nut 2 D14–21 Flat Washer 4 E3–5 Hex Hd. Cap Screw 4 F16–28 Nylock Hex Nut 4

Page 77

Knee Gatch Assembly

1010–34–70 1510–34–70

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A (Page 66) Midsection Pre–Ass’y 1 A (Page 66) Midsection Pre–Ass’y1 B (Page 66) Ft. & Thigh Pre–Ass’y 1 B (Page 66) Ft. & Thigh Pre–Ass’y1 C 16–28 Nylock Hex Nut 12 C 16–28 Nylock Hex Nut 12 D 1010–32–60 Pivot Bolt 4 D 1010–32–60 Pivot Bolt 4 E 3–73 Hex Hd. Cap Screw 4 E 3–73 Hex Hd. Cap Screw 4 F 14–3 Washer 4 F 14–3 Washer 4 H 4–105 Soc. Hd. Cap Screw 1 H 4–105 Soc. Hd. Cap Screw 1 J 16–12 Flexlock Nut 1 J 16–12 Flexlock Nut 1 K 25–79 Pop Rivet 6 K 25–79 Pop Rivet 6 L 1510–34–90 Slider Pad 2 L 1510–34–90 Slider Pad 2 M 1510–34–94 Calf Stand Rest 2 M 1510–34–94 Calf Stand Rest 2 N 1010–34–15 Mounting Brkt. Ass’y 2 N 1010–34–15 Mounting Brkt. Ass’y2 P 3–78 Hex Hd. Cap Screw 2 P 3–78 Hex Hd. Cap Screw 2 R (Page 67) Gatch Crkscrw. Ass’y 1 R (Page 67) Gatch Crkscrw. Ass’y1 S 946–1–65 Gatch Symbol Label 1 S 946–1–65 Gatch Symbol Label 1 T 37–56 Retaining Washer 2 T 37–56 Retaining W asher 2 W 3–47 Hex Hd. Cap Screw 2 W 3–47 Hex Hd. Cap Screw 2 Y 37–55 Protective Cap 2 Y 37–55 Protective Cap 2 Z 721–31–65 Hole Plug 16 Z 721–31–65 Hole Plug 16

AA 4–169 But. Hd. Cap Screw 2 AA 4–169 But. Hd. Cap Screw 2

AB 16–3 Lock Nut 2 AB 16–3 Lock Nut 2

AC 1010–34–36 Calf Stand Spacer 1 AC 1010–34–36 Calf Stand Spacer 1

Page 78

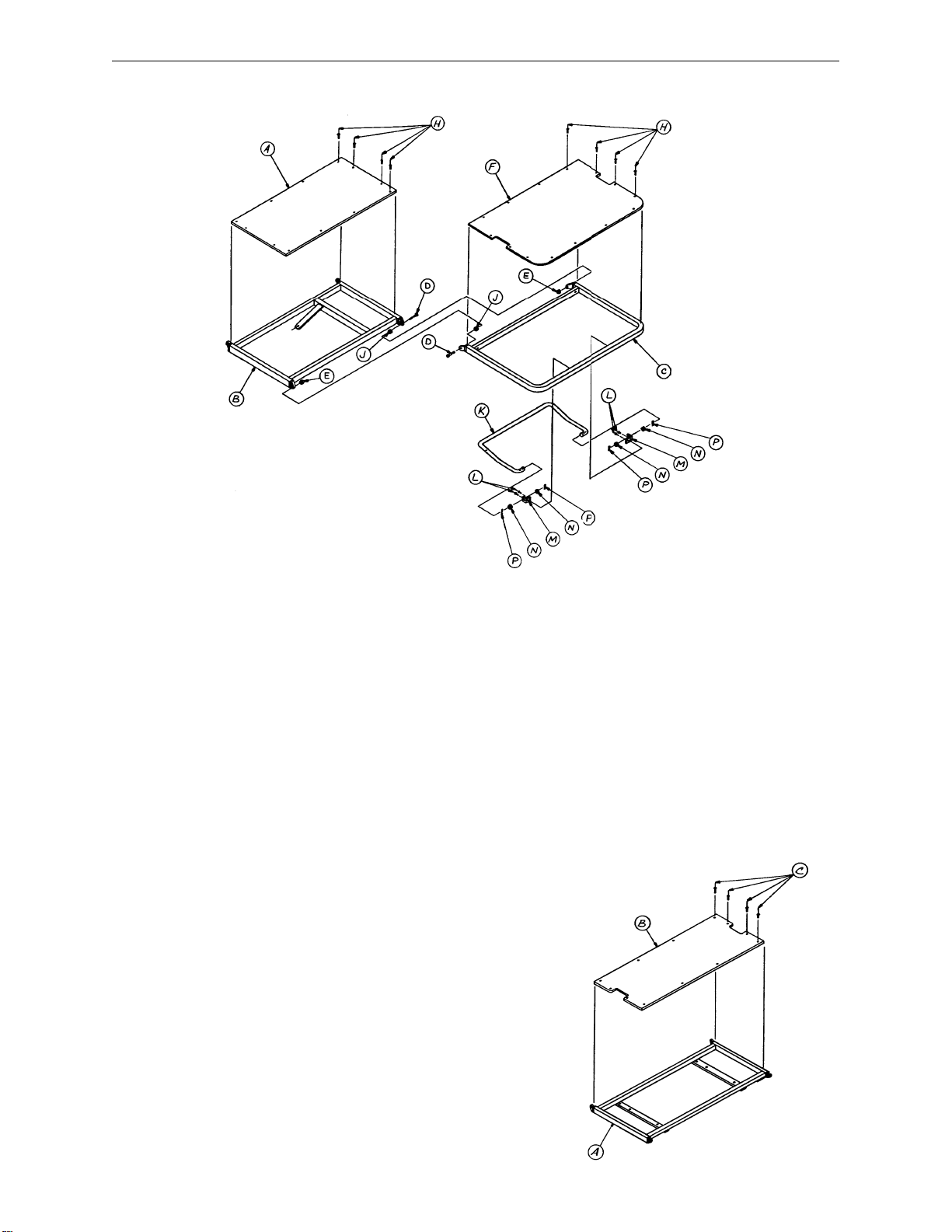

Foot and Thigh Subass’y & Midsection Subass’y

1010–34–39 1510–34–65

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A 1010–34–62 Thigh Sect. Skin 1 A 1510–34–62 Thigh Sect. Skin 1 B 1010–34–25 Thigh Sect. Ass’y 1 B 1510–34–12 Thigh Sect. Ass’y1 C 1010–34–26 Foot Sect. Ass’y 1 C 1510–34–13 Foot Sect. Ass’y1 D 1010–32–60 Pivot Bolt 2 D 1010–32–60 Pivot Bolt 2 E 16–28 Nylock Hex Nut 2 E 16–28 Nylock Hex Nut 2 F 1010–34–63 Calf Section Skin 1 F 1510–34–63 Calf Section Skin 1 H 25–103 Pop Rivet 26 H 25–103 Pop Rivet 26 J 14–3 Nylon Washer 2 J 14–3 Washer 2 K 1010–34–23 Calf Stand Bar 1 K 1510–34–89 Calf Stand Bar 1 L 25–79 Pop Rivet 4 L 25–79 Pop Rivet 4 M 1510–34–88 Calf Stand Brkt. 2 M 1510–34–88 Calf Stand Brkt. 2 N 14–21 Nylon Washer 4 N 14–21 Nylon Washer 4 P 27–7 Cotter Pin 4 P 27–7 Cotter Pin 4

1010–34–38

Item Part No. Part Name Qty.

A 1010–34–24 Midsection Ass’y1 B 1010–34–61 Midsection Skin 1 C 25–103 Pop Rivet 12

1510–34–60

Item Part No. Part Name Qty.

A 1510–34–11 Midsection Ass’y1 B 1510–34–61 Midsection Skin 1 C 25–103 Pop Rivet 12

Page 79

1510–34–14 Knee Gatch Crankscrew Assembly

Item Part No. Part Name Qty.

A 946–33–18 Crank Disk 1 B 1510–34–85 Crank Assembly 1 C26–45 Roll Pin 1 D26–14 Roll Pin 2 E81–176 Thrust Washer 1 F81–175 Thrust Bearing 1 H81–174 Thrust Washer 2 J 938–1–175 Bearing Assembly 1 K 938–1–177 Knob 1 L 378–24–29 Shoulder Bolt 1 M16–5 Conelock Nut 1 N 946–34–25 Knee Gatch Screw 1 P 1510–34–84 Screw Cover Assembly 1 R 1510–34–55 Gatch Drive Tube Assembly 1 S26–10 Roll Pin 2 T 7900–1–102 Velcro Pile Tape 1 Y 1550–1–14 Magnet 1 Z4–7 Soc. Head Cap Screw 1

Page 80

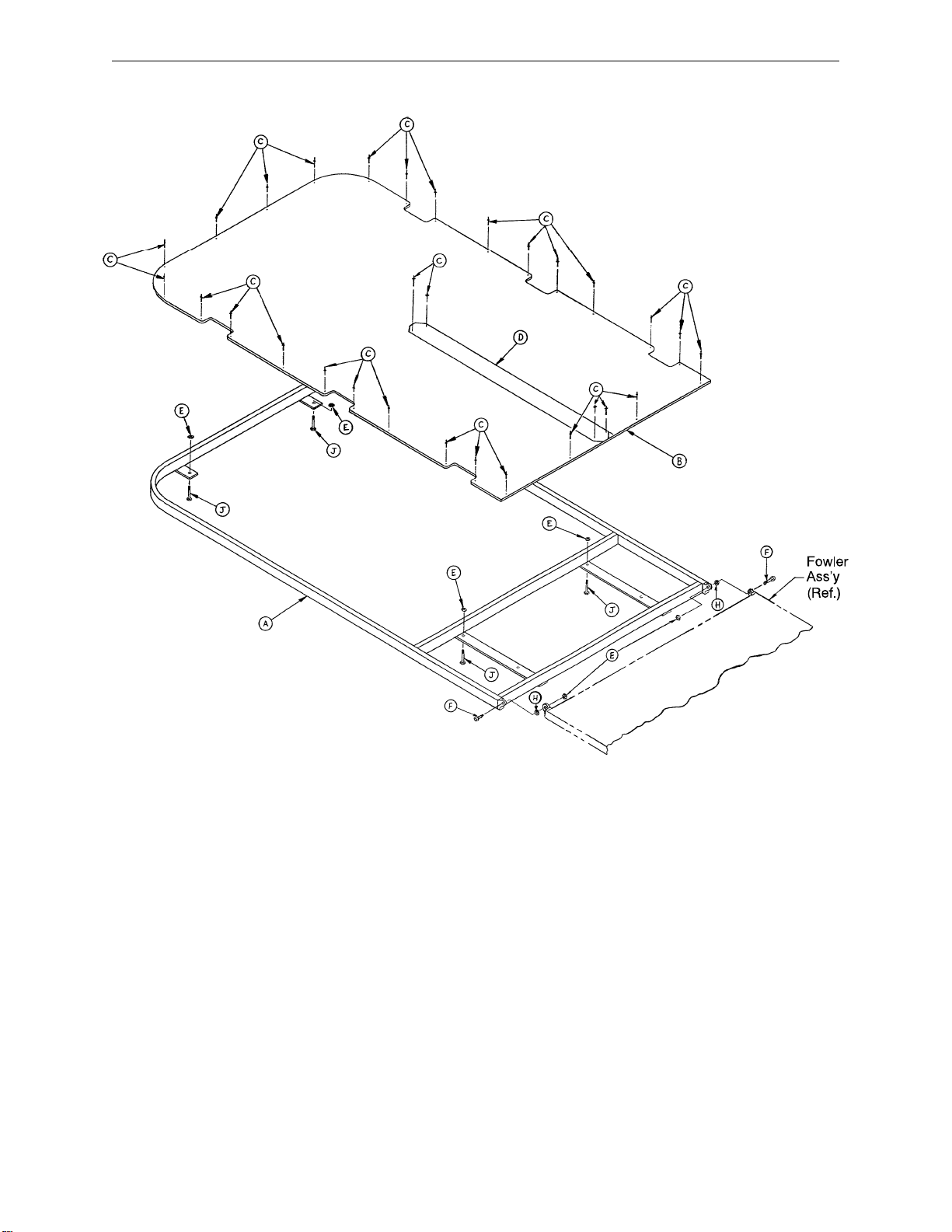

Footsection Assembly

1010–1–36 1510–1–36

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A 1010–1–37 Footsection Wldmt. 1 A 1510–1–37 Footsection Wldmt. 1 B 1010–32–105 Footsection Skin 1 B 1510–32–23 Footsection Skin 1 C 25–103 Pop Rivet 28 C 25–103 Pop Rivet 28 D 7900–1–102 Velcro 24.5” D 7900–1–102 Velcro 24.5” E 16–28 Nylock Nut 6 E 16–28 Nylock Nut 6 F 1010–32–60 Pivot Bolt 2 F 1010–32–60 Pivot Bolt 2 H 14–3 Nylon Flat Washer 2 H 14–3 Nylon Flat Washer 2 J 3–73 Hex Hd. Cap Screw 4 J 3–73 Hex Hd. Cap Screw 4 K 721–31–65 Hole Plug 2 K 721–31–65 Hole Plug 2

Page 81

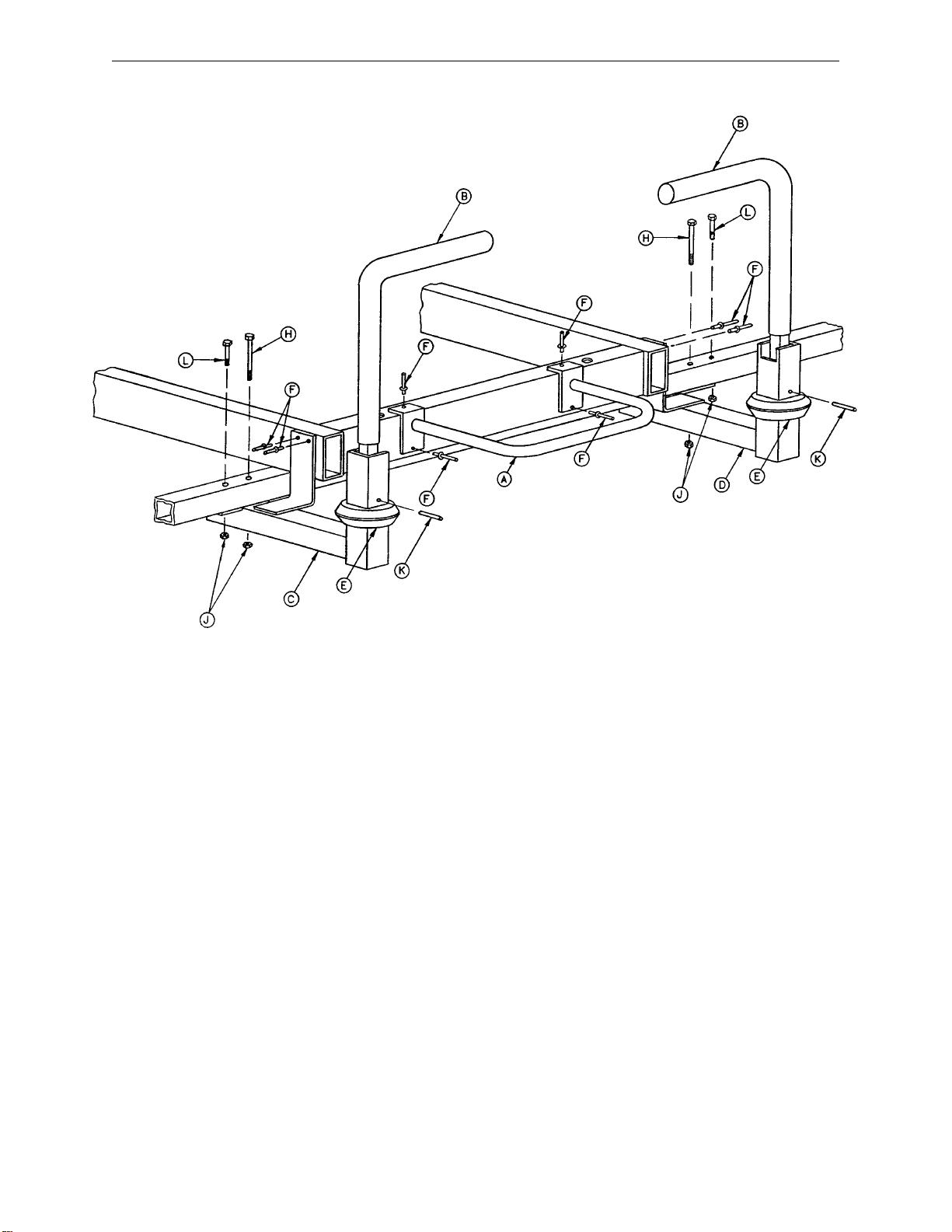

Foot End Push Handle Assembly

1010–51–17 1510–51–13

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A 1010–51–19 Guard 1 A 1510–51–12 Guard 1 B 1000–58–19 Handle, Push 2 B 1000–58–19 Handle, Push 2 C 1010–51–13 Handle Socket, Rt. 1 C 1010–51–13 Handle Socket,Rt. 1 D 1010–51–14 Handle Socket, Lt 1 D 1010–51–14 Handle Socket, Lt. 1 E 1010–51–18 Rubber Bumper 2 E 1010–51–18 Rubber Bumper 2 F 25–79 Pop Rivet 8 F 25–79 Pop Rivet 8 H 3–23 Hex Hd. Bolt 2 H 3–23 Hex Hd. Bolt 2 J 16–28 Nylock Nut 4 J 16–28 Nylock Nut 4 K 26–7 Roll Pin 2 K 26–7 Roll Pin 2 L 3–5 Hex Hd. Bolt 2 L 3–5 Hex Hd. Bolt 2

Page 82

1510–88–18 Head End Push Handle Assembly

Item Part No. Part Name Qty.

A 1010–1–15 Cover, Head, Left 1 B 1010–1–16 Cover, Head, Right 1 C (Page 71) Handle Assembly 2 D26–12 Roll Pin 2 E 1010–1–35 Handle Rest 2 F25–79 Pop Rivet 4

Page 83

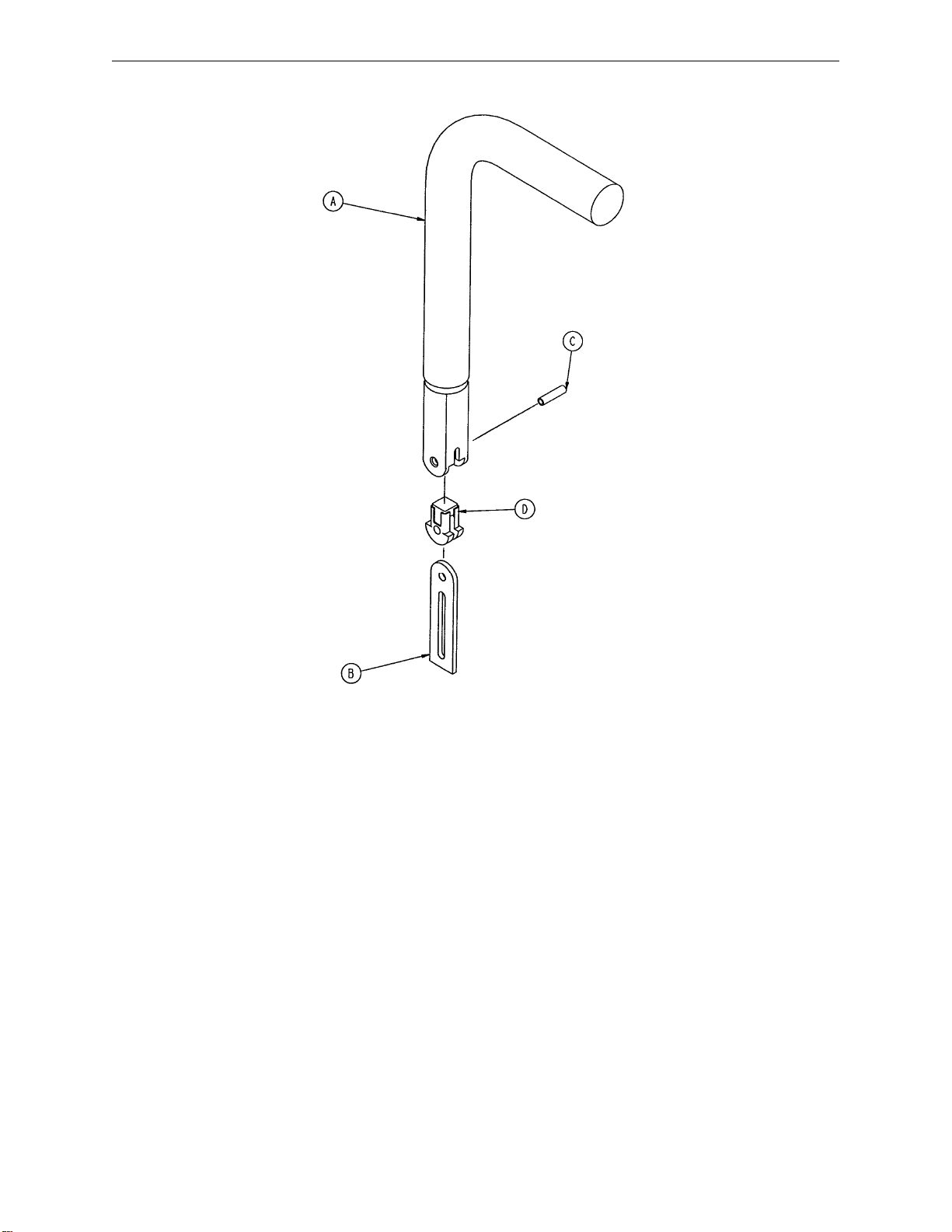

1010–1–30 Push Handle Assembly

Item Part Name Part No. Qty.

A 1010–254–18 Sleeve Assembly 1 B 1010–254–24 Stop Link 1 C26–10 Roll Pin 1 D 1010–254–23 Link Support 1

Page 84

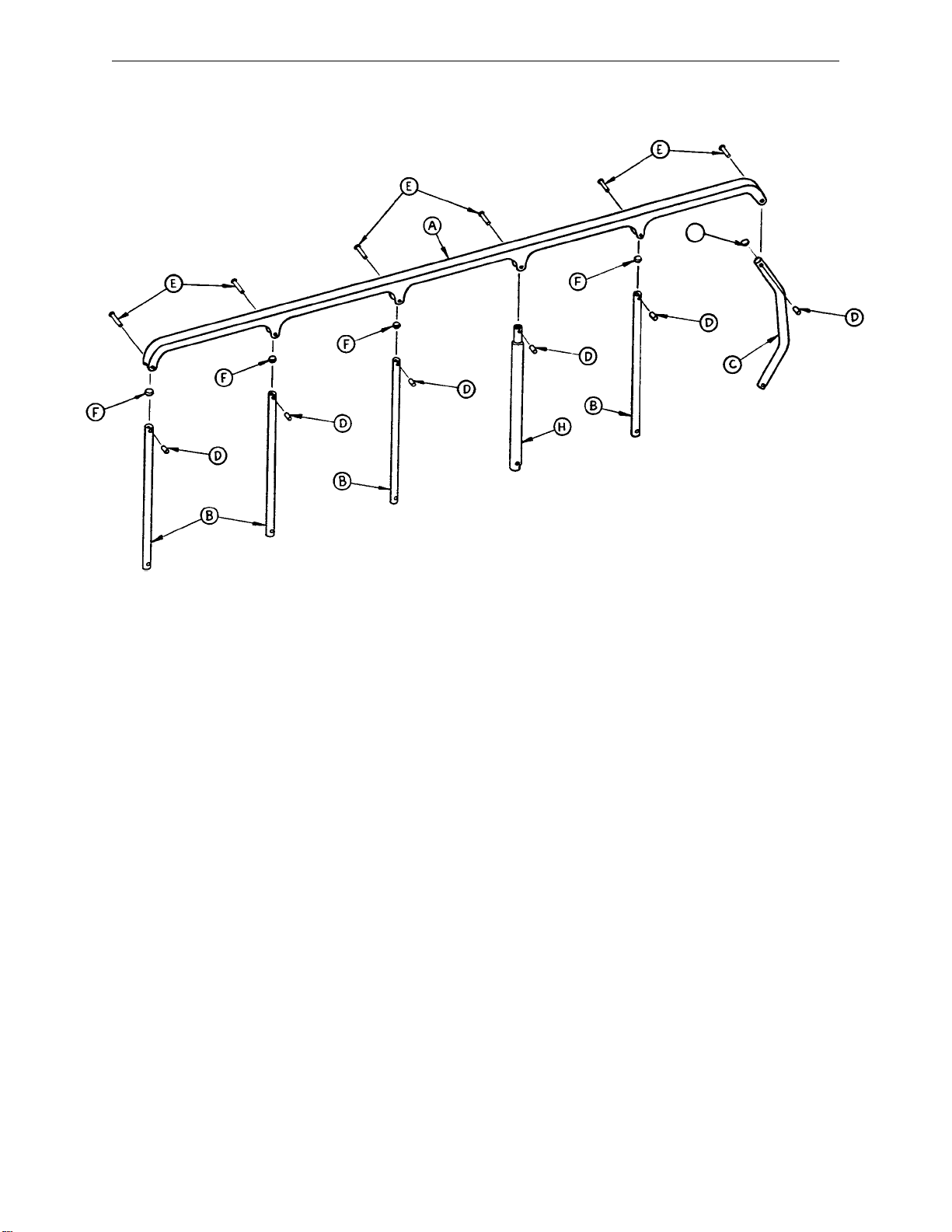

1010–26–17 & 1010–26–19 Siderail Ass’y, Right & Left

(LEFT SIDERAIL IS SHOWN)

Item Part No. Part Name Qty.

A 1010–26–15 Top Rail 1 B 1010–26–83 Upright 4 C 1010–26–84 Upright, Bent 1 D 1010–26–82 Sleeve Bearing 6 E25–106 Semi–Tubular Rivet 6 F 1010–26–10 Round Hole Plug 4 H 1010–26–85 Upright, Latch 1 J 1010–26–12 Bent Spindle Rest 1

Page 85

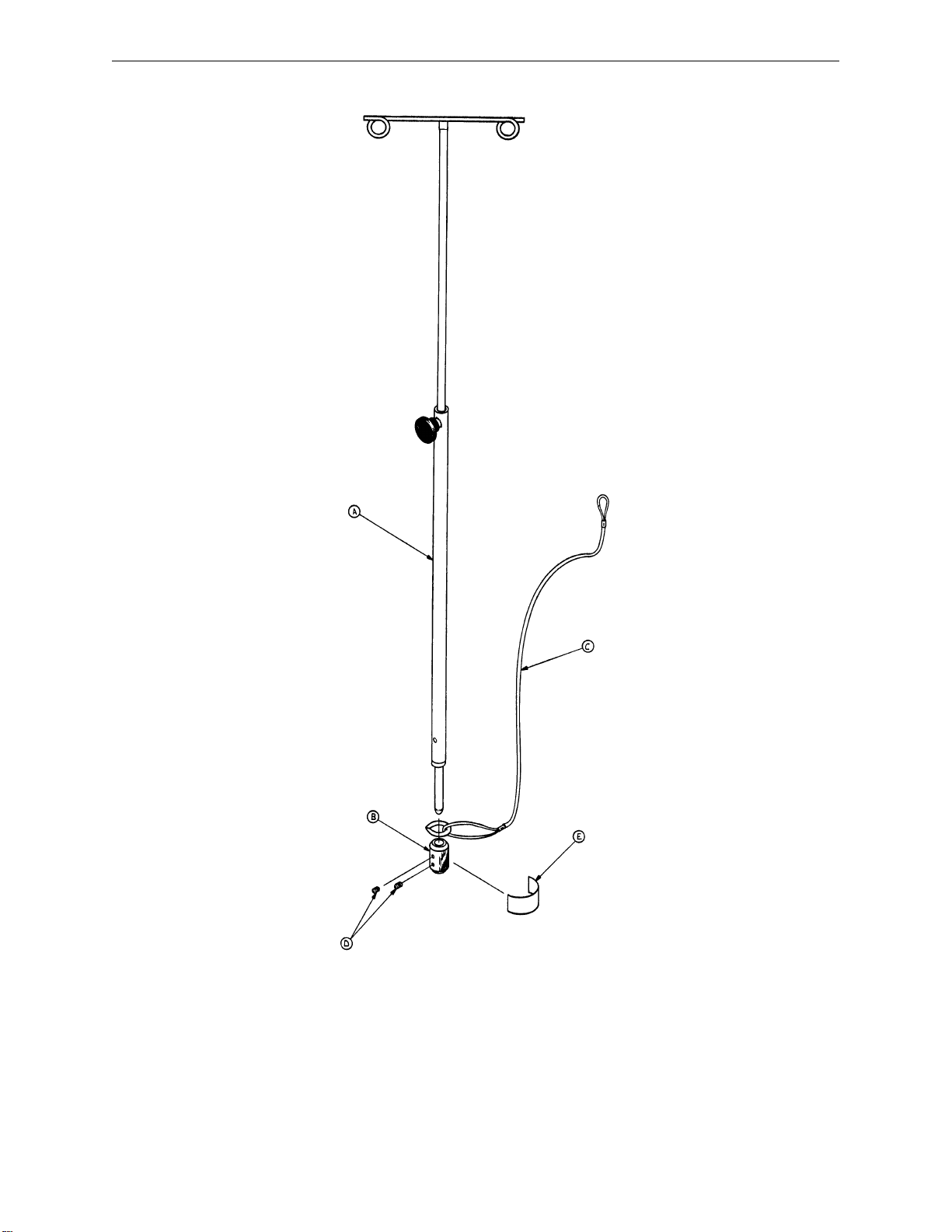

1010–22–26 Tethered I.V. Pole Assembly

Item Part No. Part Name Qty.

A 721–47–6 I.V. Holder 1 B 721–47–14 Retainer 1 C 1010–22–27 Cable Assembly 1 D21–16 Set Screw 2 E 1010–22–27 Label 1

Page 86

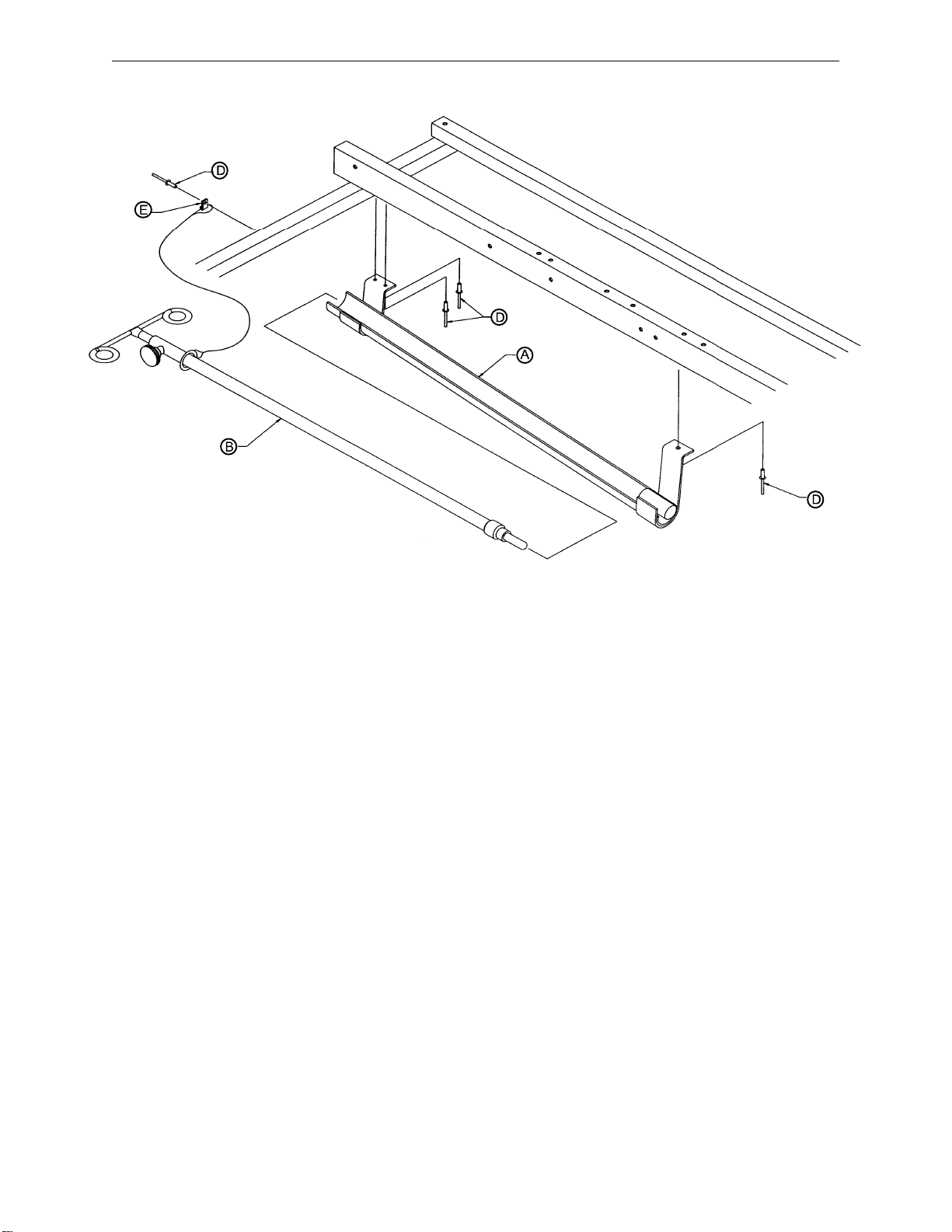

1010–22–10 Tethered I.V. to Frame Assembly

Item Part No. Part Name Qty.

A 1010–22–25 Trough Assembly 1 B (Page 73) Tethered I.V. Assembly 1 D25–92 Pop Rivet 4 E34–22 Loop Clamp 1

Page 87

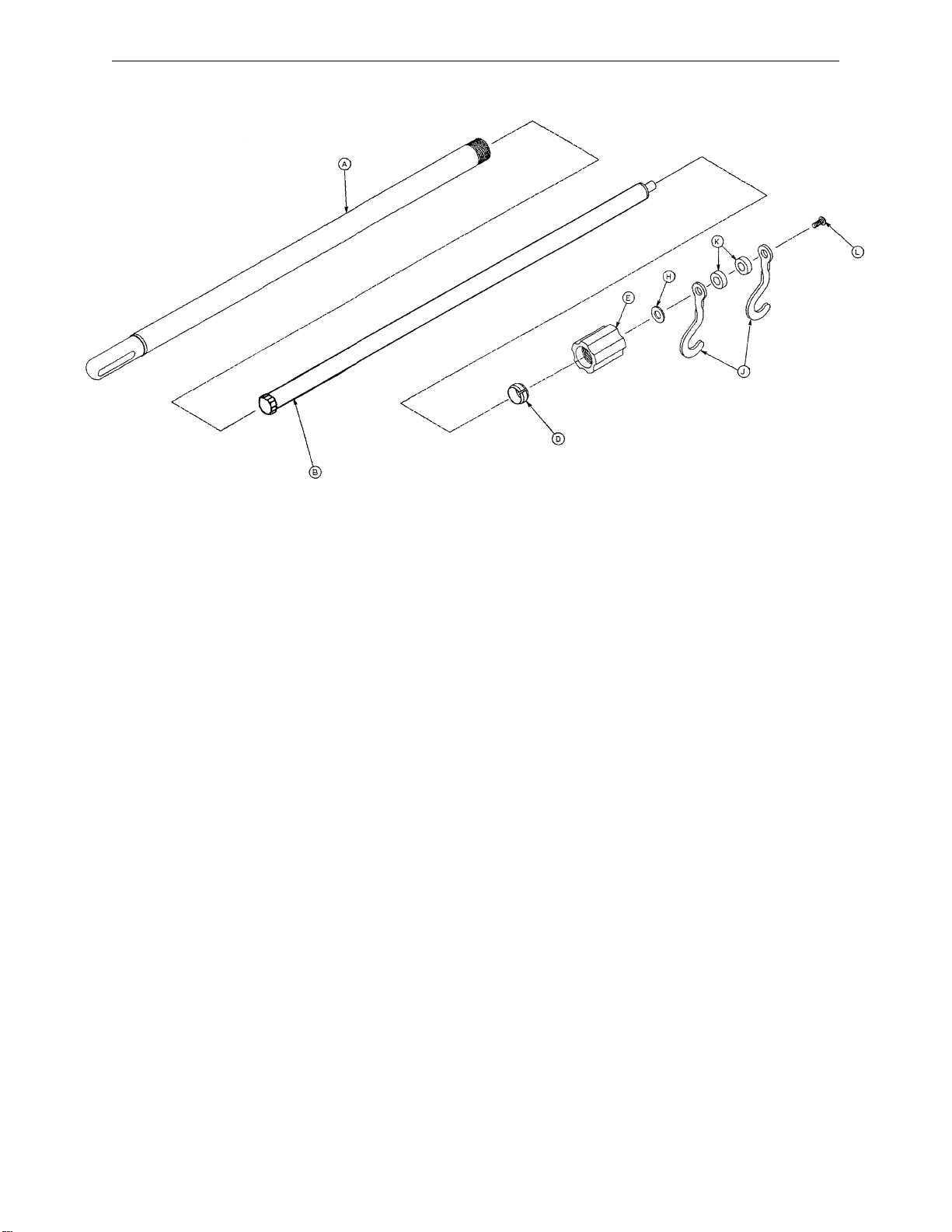

1010–59–10 Permanent I.V. Pole Assembly

Item Part No. Part Name Qty.

A 1010–59–24 Base Tube Ass’y1 B 1010–59–30 Exten. Tube Ass’y1 D 1001–59–47 Lock Ring 1 E 1001–59–46 Lock Actuator 1 H14–20 Nylon Flat Washer As Req’d J 1010–59–16 I.V. Hook 2 K52–17 Nylon Spacer 2 L7–4 Truss Hd. Mach. Scr. 1

Page 88

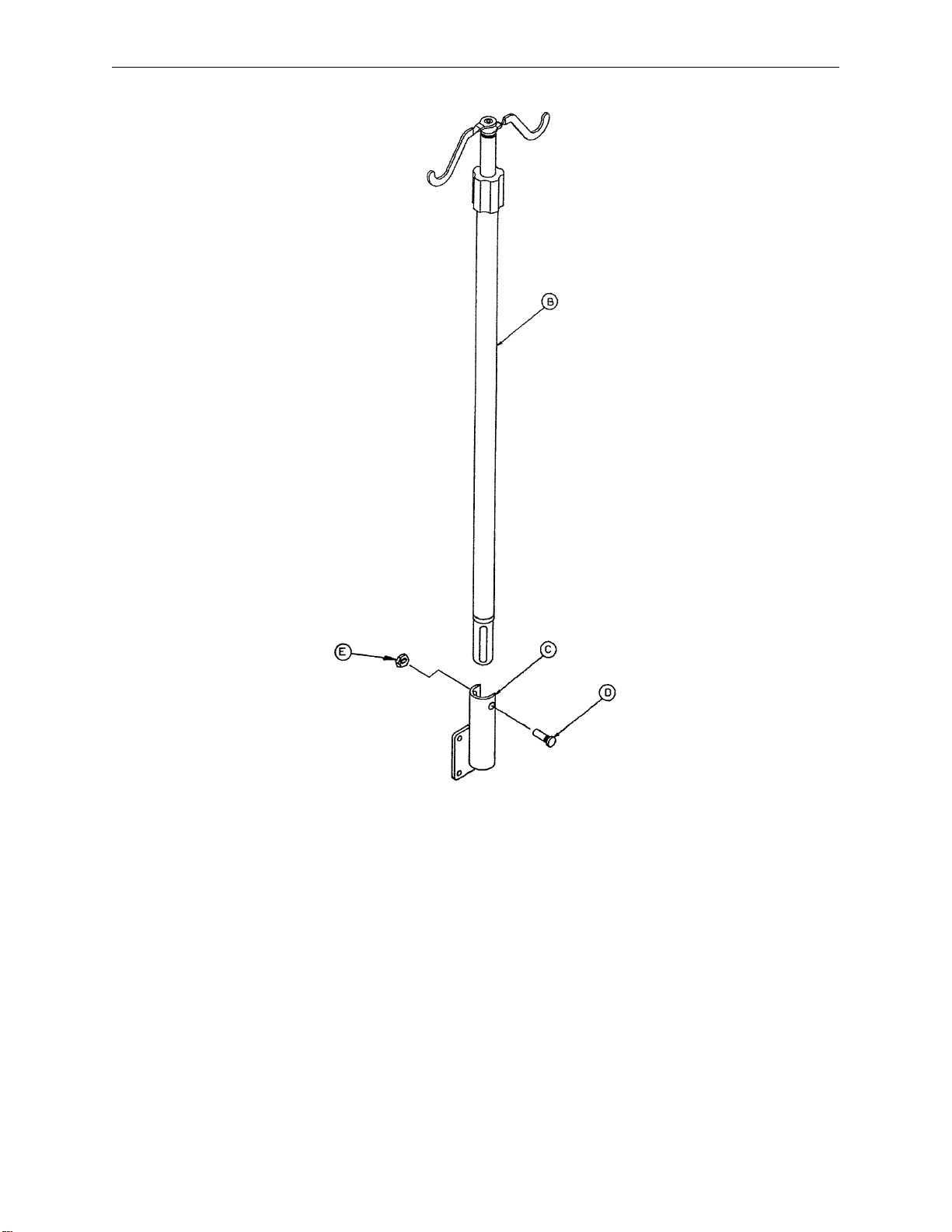

Permanent I.V. Pole Mounting Assembly

1010–80 (Foot) 1010–81 (Head)

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

B (Page 75) I.V. Pole Ass’y 1 B (Page 75) I.V. Pole Ass’y1 C 1001–259–11 I V. Socket Ass’y 1 C 1001–259–11 I V. Socket Ass’y1 D4–91 But. Hd. Cap Screw 1 D 4–91 But. Hd. Cap Screw 1 E16–20 Self–Locking Nut 1 E 16–20 Self–Locking Nut 1 F 1001–59–42 I.V. Plug 1 F 1001–59–42 I.V. Plug 1

1510–80 (Foot) 1510–81 (Head)

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

B (Page 75) I.V. Pole Ass’y 1 B (Page 75) I.V. Pole Ass’y1 C 1001–259–11 I.V. Socket Ass’y 1 C 1001–259–1 1 I.V. Socket Ass’y1 D4–91 But. Hd. Cap Screw 1 D 4–91 But. Hd. Cap Screw 1 E16–20 Self–Locking Nut 1 E 16–20 Self–Locking Nut 1 F 1001–59–42 I.V. Plug (not shown) 2 F 1001–59–42 I.V. Plug (not shown) 2 H52–291 Spacer (not shown) 1 H 52–291 Spacer (not shown) 1

Page 89

1010–80–100 Replacement Perm. I.V. Pole Ass’y, Foot

Item Part No. Part Name Qty.

A16–20 Self–Locking Nut 1 B (Page 75) I.V. Pole Ass’y1 C 1001–259–11 Socket Ass’y1 D4–91 But. Hd. Cap Screw 1 E16–28 Nylock Hex Nut 4 F4–161 Button Hd. Cap Screw 4 J 1001–59–42 I.V. Plug 1

Page 90

1010–81–100 Replacement Perm. I.V. Pole Ass’y, Head

Item Part No. Part Name Qty.

A16–20 Self–Locking Nut 1

B (Page 75) I.V. Pole Ass’y1

C 1001–259–11 Socket Ass’y1

D4–91 But. Hd. Cap Screw 1

E16–28 Nylock Hex Nut 4 F3–50 Hex Hd. Cap Screw 2 H4–163 Button Hd. Cap Screw 2 J 1001–59–42 I.V. Plug 1

Page 91

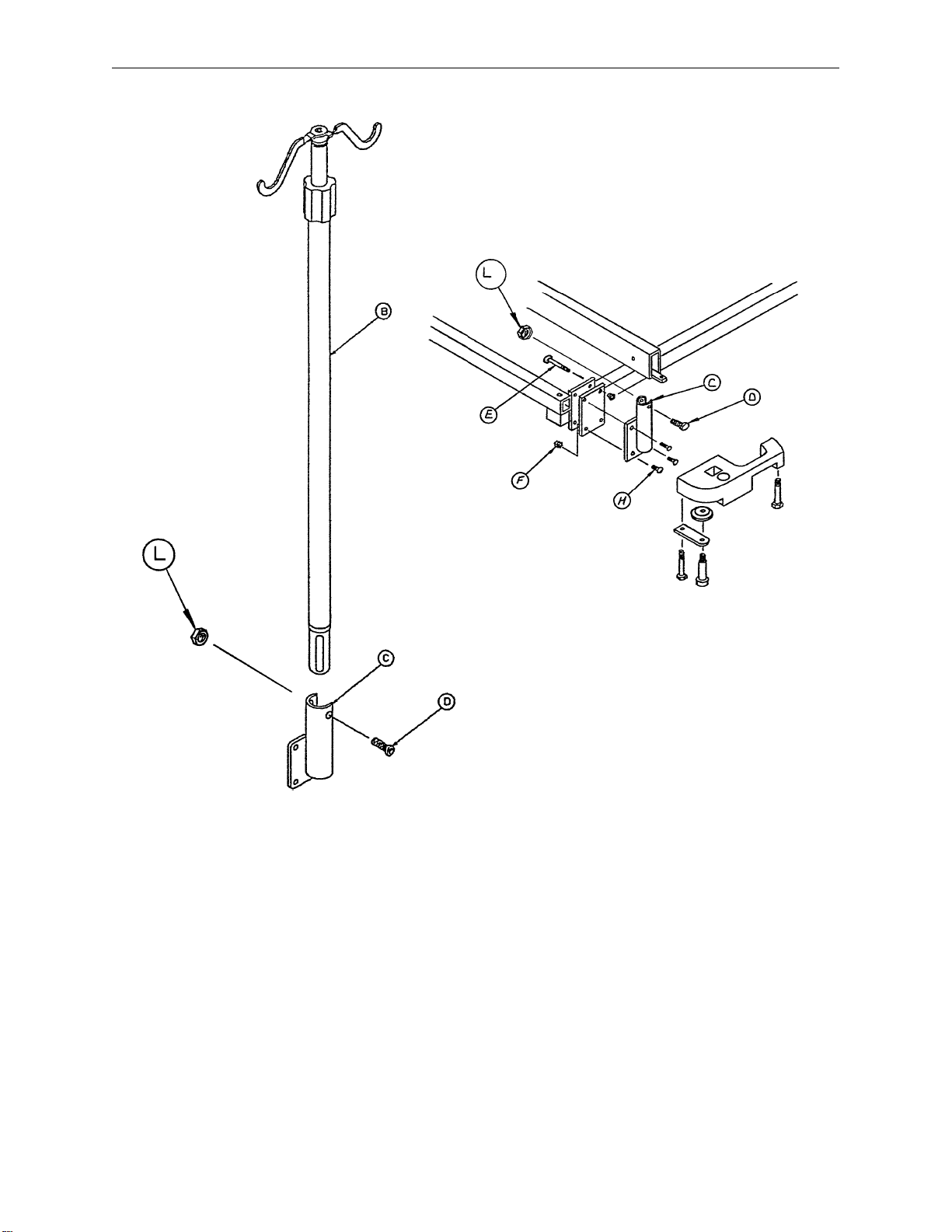

Replacement Permanent I.V. Pole Assembly (1510)

1510–80–100 (Foot) 1510–81–100 (Head)

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

B (Page 75) I.V. Pole Ass’y 1 B (Page 75) I.V. Pole Ass’y1 C 1001–259–11 I.V. Socket Ass’y 1 C 1001–259–11 I.V. Socket Ass’y1 D4–91 But. Hd. Cap Screw 1 D 4–91 But. Hd. Cap Screw 1 E4–163 But. Hd. Cap Screw 1 E 4–163 But. Hd. Cap Screw 1 F16–28 Nyloc Hex Nut 4 F 16–28 Nyloc Hex Nut 4 H4–161 But. Hd. Cap Screw 4 H 4–161 But. Hd. Cap Screw 4 J26–12 Roll Pin (Not Shown) 1 J 26–12 Roll Pin (Not Shown) 1 K51–13 Loctite (Not Shown) 1 K 51–13 Loctite (Not Shown) 1 L16–20 Self–Locking Nut 1 L 16–20 Self–Locking Nut 1 M 1001–59–42 I.V. Plug (not shown) 2 M 1001–59–42 I.V. Plug (not shown) 2 N52–291 Spacer (not shown) 1 N 52–191 Spacer (not shown) 1

Page 92

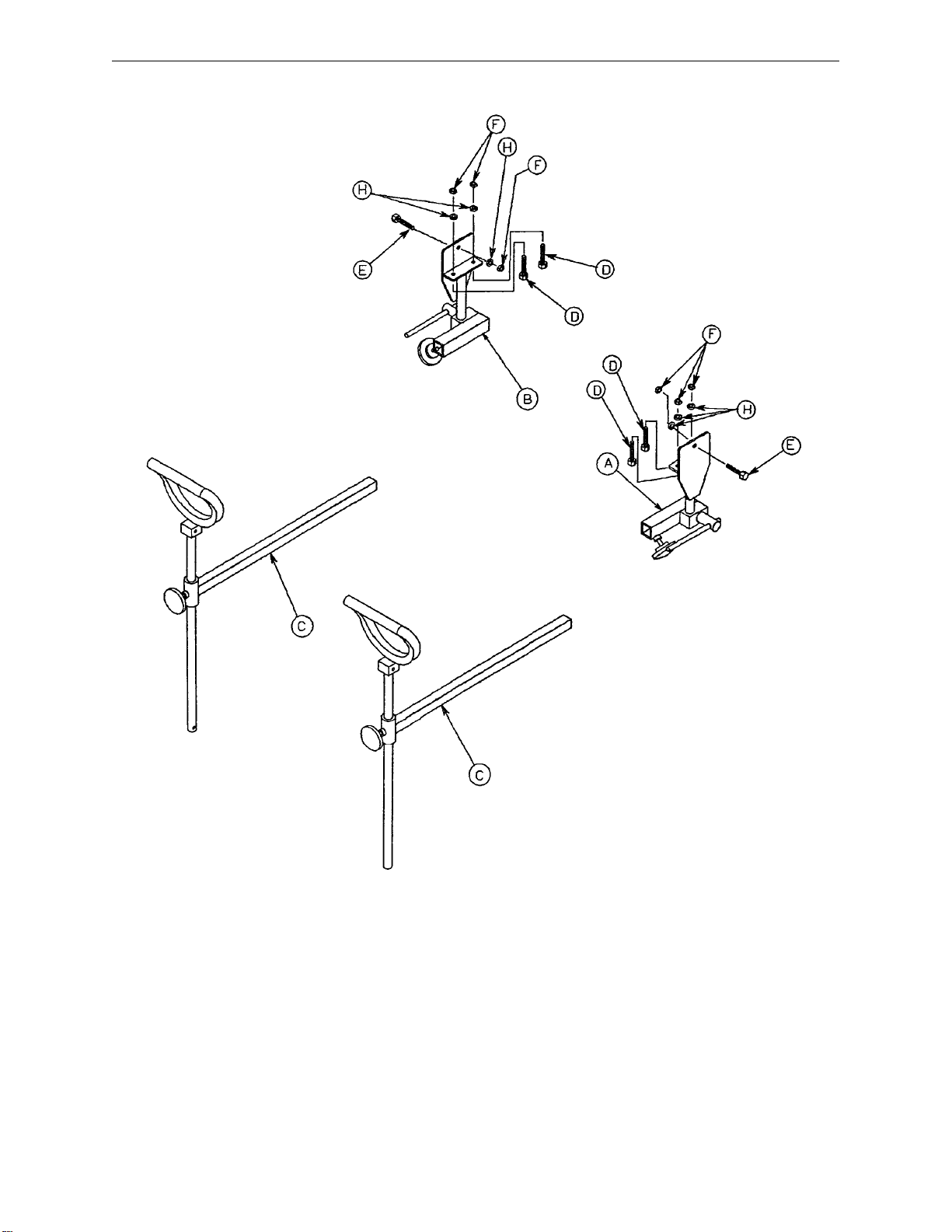

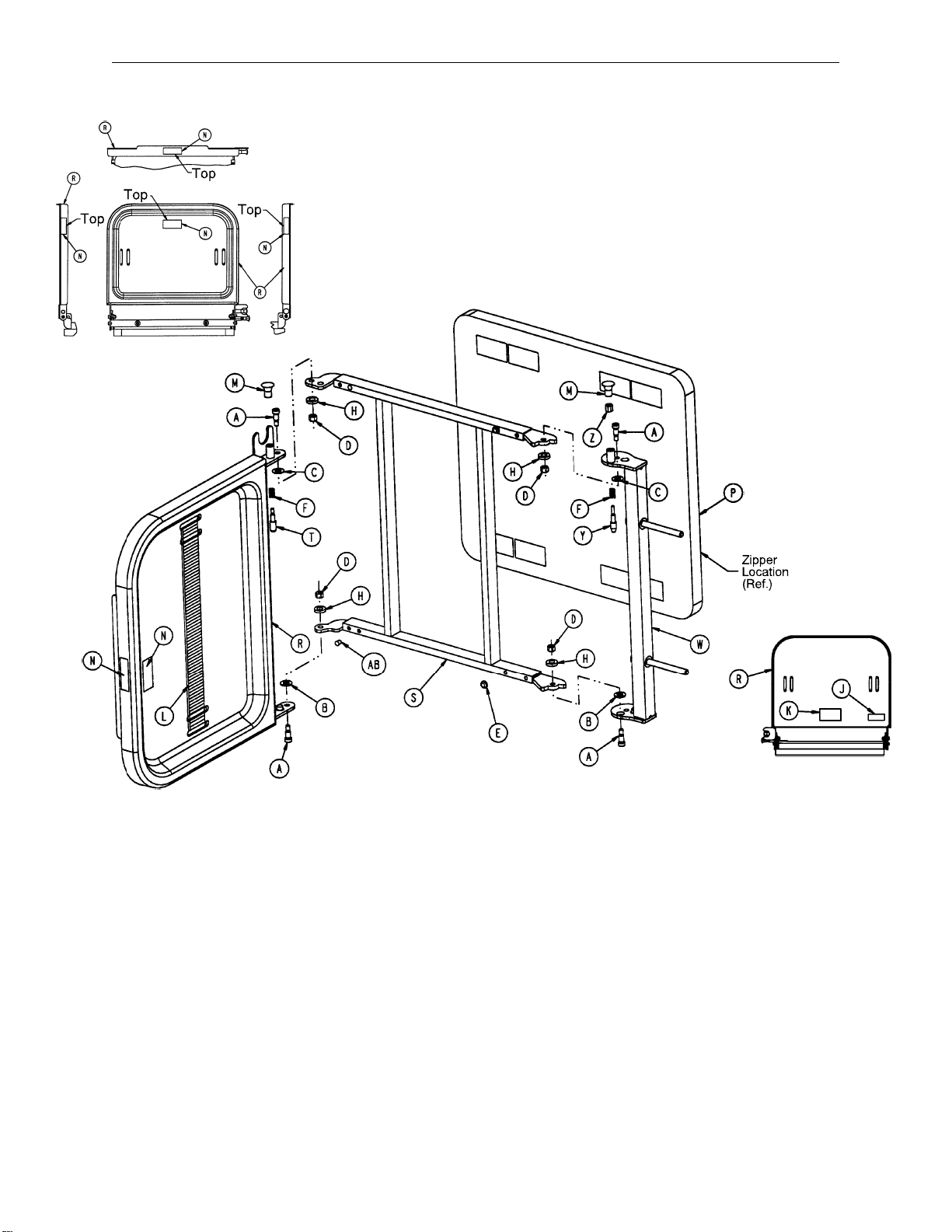

Foot Extension/Defibrillator Tray Assembly

Label Detail

Assembly part number 1010–50–210*

Label Detail

Item Part No. Part Name Qty. Item Part No. Part Name Qty.

A8–49 Socket Hd. Shoulder Bolt 4 M 1010–50–50 Knob 2

B14–20 Nylon Washer 2 N 1010–50–57 “Max. Weight” Label 4

C14–21 Nylon Washer 2 P 1010–50–205 Cushion Assembly 1

D16–28 Fiberlock Nut 4 R 1010–50–218 Foot & Tray Board 1

E37–52 Rubber Bumper 2 S 1010–50–225 Pivot Frame Weldment 1

F38–133 Spring 2 T 1010–50–242 Pin Lock 1

H52–17 Spacer 4 W 1010–50–246 Base Mounting Ass’y1

J 1010–50–17 Specification Label 1 Y 1010–50–248 Lower Pin Lock 1

K 1010–50–19 “Push/Pull” Label 1 Z 1010–50–250 Pin Adjuster 1

L 1010–50–21 Long Strap 1 AB 721–31–65 Hole Plug 2

* Replacement part number 1010–50–100.

Page 93

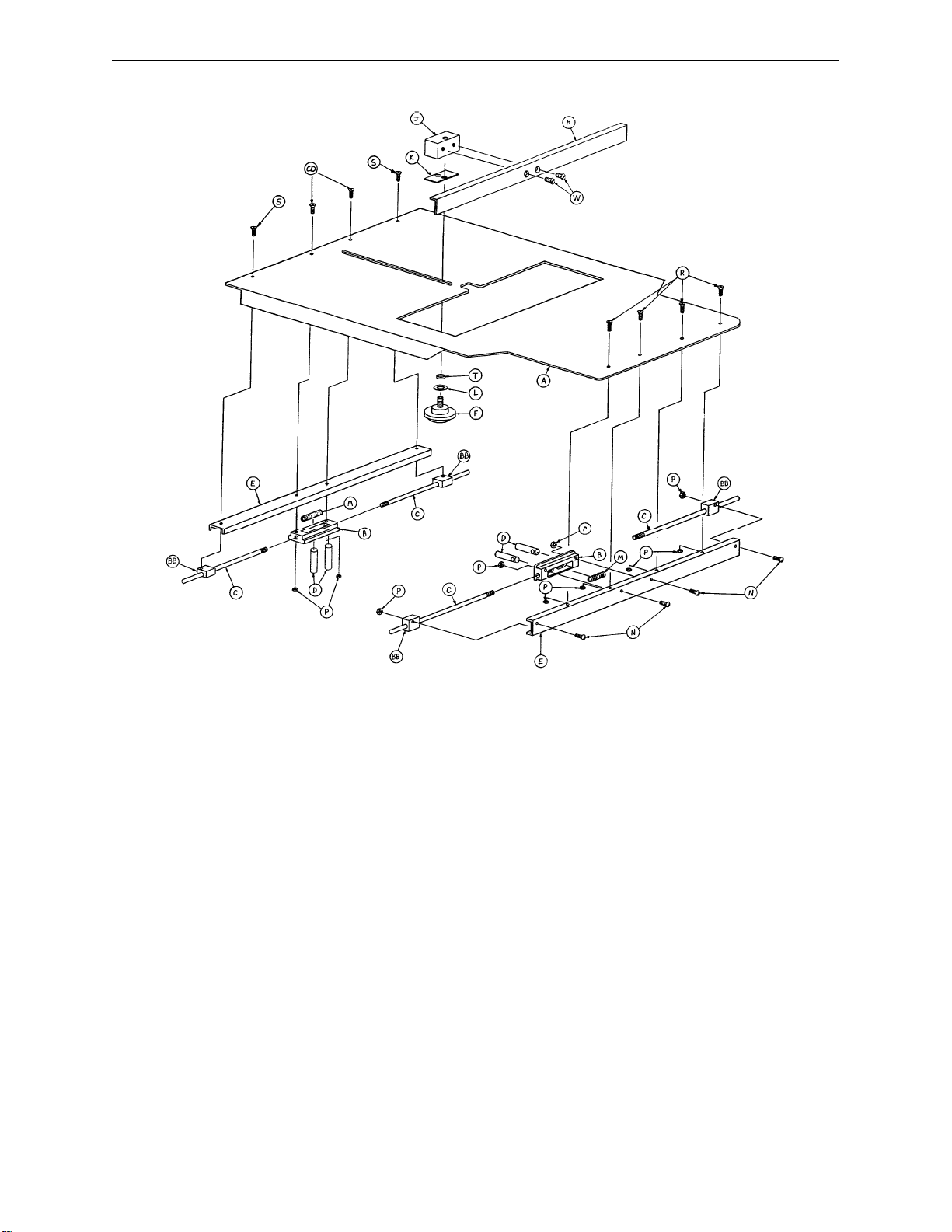

1010–23–10* Fowler X–Ray Cassette Assembly

Item Part No. Part Name Qty

A 1010–23–16 Tray 1 B 926–23–62 Post Housing 2 C 1010–23–24 Actuating Rod 4 D 926–23–64 Post 4 E 1010–23–36 Bearing Housing 2 F24–10 Knob 1 H 1010–23–28 Tray Angle 1 J 926–23–70 Block Assembly 1 K 926–23–69 Washer 1 L14–3 Washer 1 M38–122 Compression Spring 2 N2–10 Rd. Hd. Machine Screw 4 P16–14 Fiberlock Nut 10 R1–22 Flat Hd. Machine Screw 4 S1–6 Flat Hd. Machine Screw 2 T 926–23–71 Bushing 1 W1–20 Flat Hd. Machine Screw 2 Y 1010–23–17 Specification Label 1 AA 1010–23–19 Operation Label 1 BB 1010–23–37 Rod Guide 4 CC 1010–23–18 Warning Label 1 CD 1–79 Flat Hd. Machine Screw 2

*Replacment Part Number 1010–23–200

Page 94

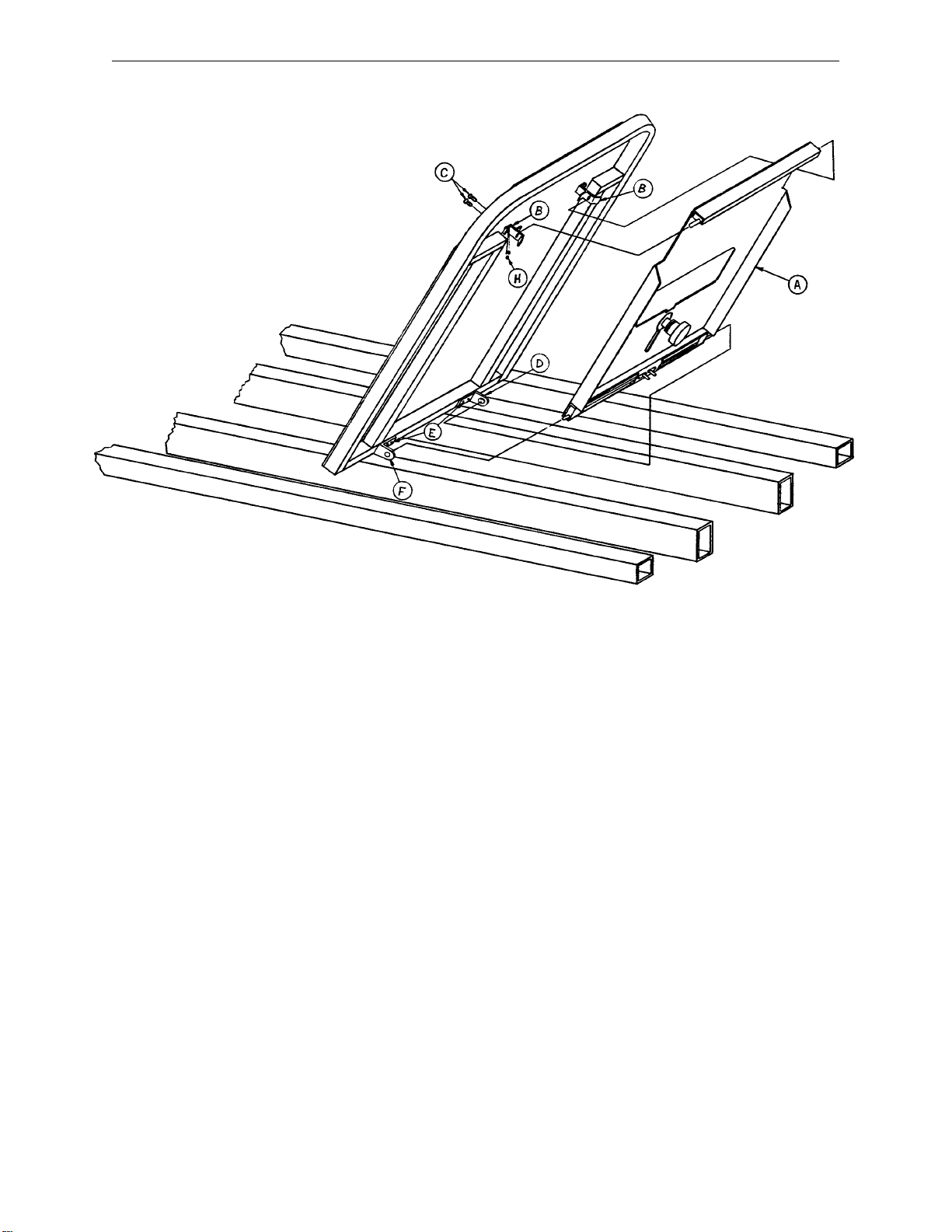

1010–23–11 Fowler X–Ray Cassette Mounting Ass’y

Item Part No. Part Name Qty.

A (Page 81) X–Ray Cassette Ass’y1 B 1010–23–32 Cassette Lock 2 C4–149 Button Hd. Cap Screw 4 D 1010–23–39 Mtg. Bracket, Right 1 E25–86 Pop Rivet 4 F 1010–23–38 Mtg. Bracket, Left 1 H16–3 Self–Locking Nut 4

Page 95

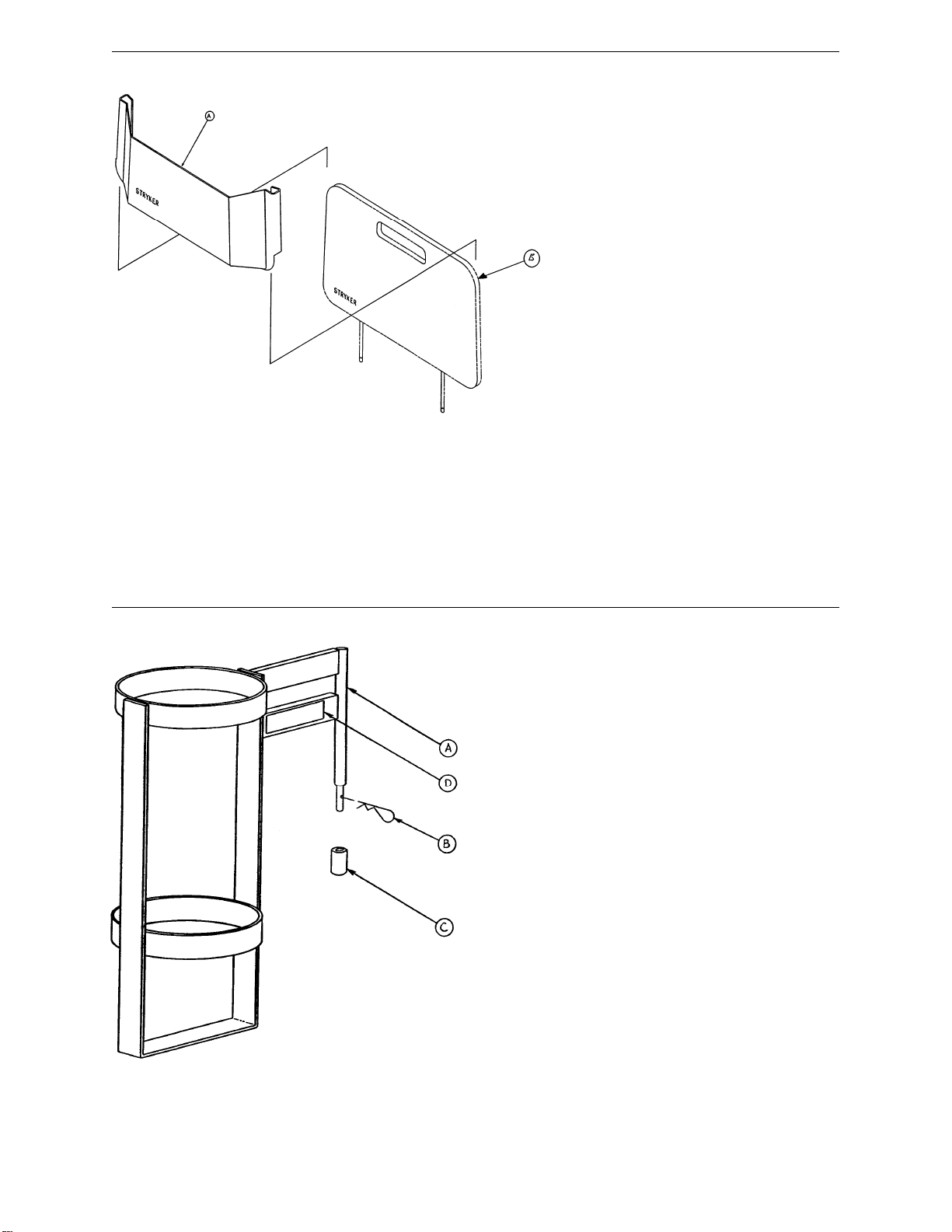

741–34* Foot Board/Chartholder Assembly

Item Part No. Part Name Qty.

A 946–28–11 Chart Holder 1 B 741–29–18 Head/Foot Board 1

*Replacement Part Number 741–34–100

1010–30 Upright Oxygen Bottle Holder Assembly

Item

A 1010–30–11 Upright Bottle Holder 1 B27–12 Cotter Pin 1 C 741–30–24 Nylon Stand–Off 1 D 1010–30–17 Spec. Label 1

Part No. Part Name Qty.

Page 96

1010–55–10* Heel Stirrup and Support Assembly

Item Part No. Part Name Qty.

A (Page 85) Rt. Stirrup Support Ass’y1 B (Page 86) Lt. Stirrup Support Ass’y1 C (Page 87) Stirrup Assembly 2 D3–73 Hex Head Cap Screw 4 E3–47 Hex Head Cap Screw 2 F16–28 Nylock Hex Nut 6 H11–158 Flat Washer 6

*Replacement Part Number 1010–55–100

Page 97

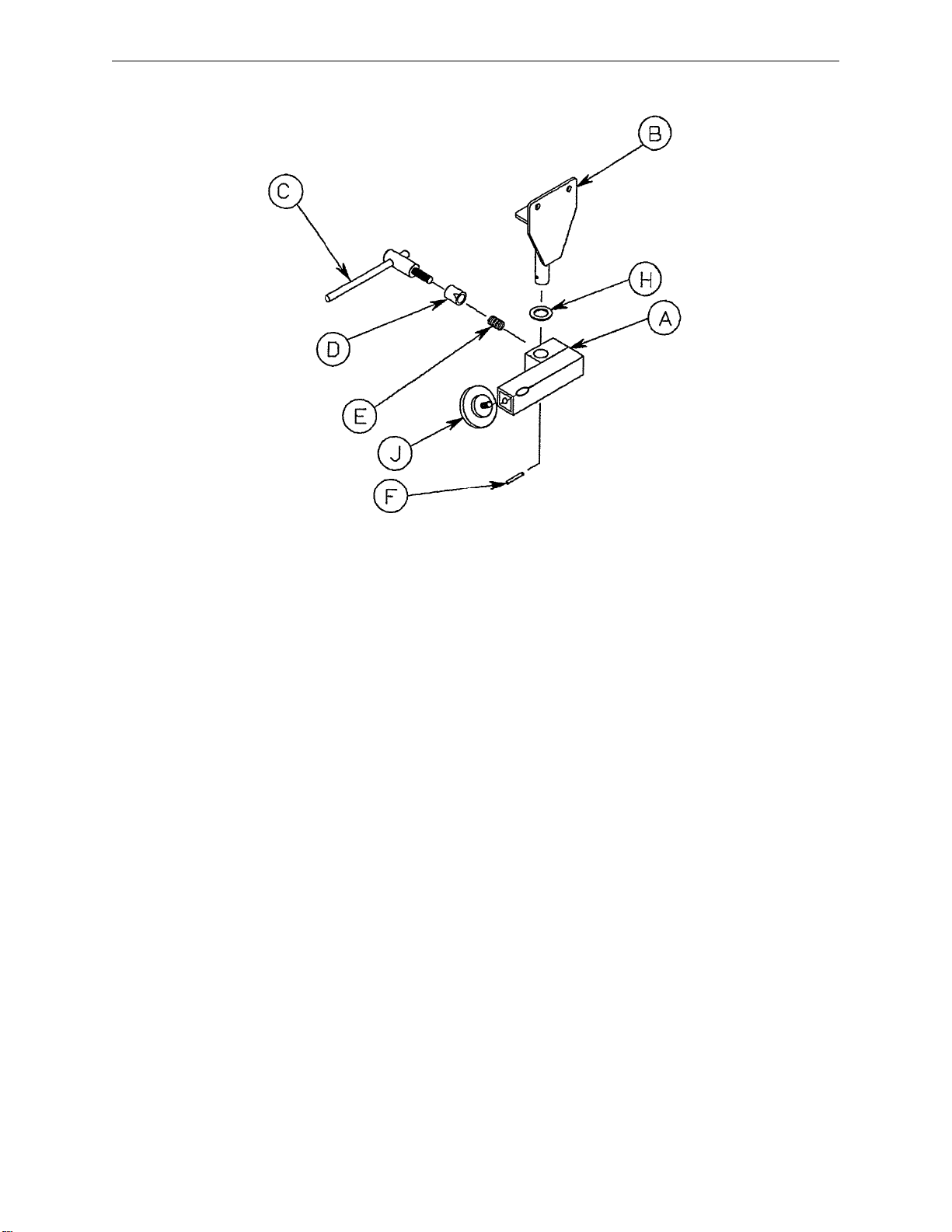

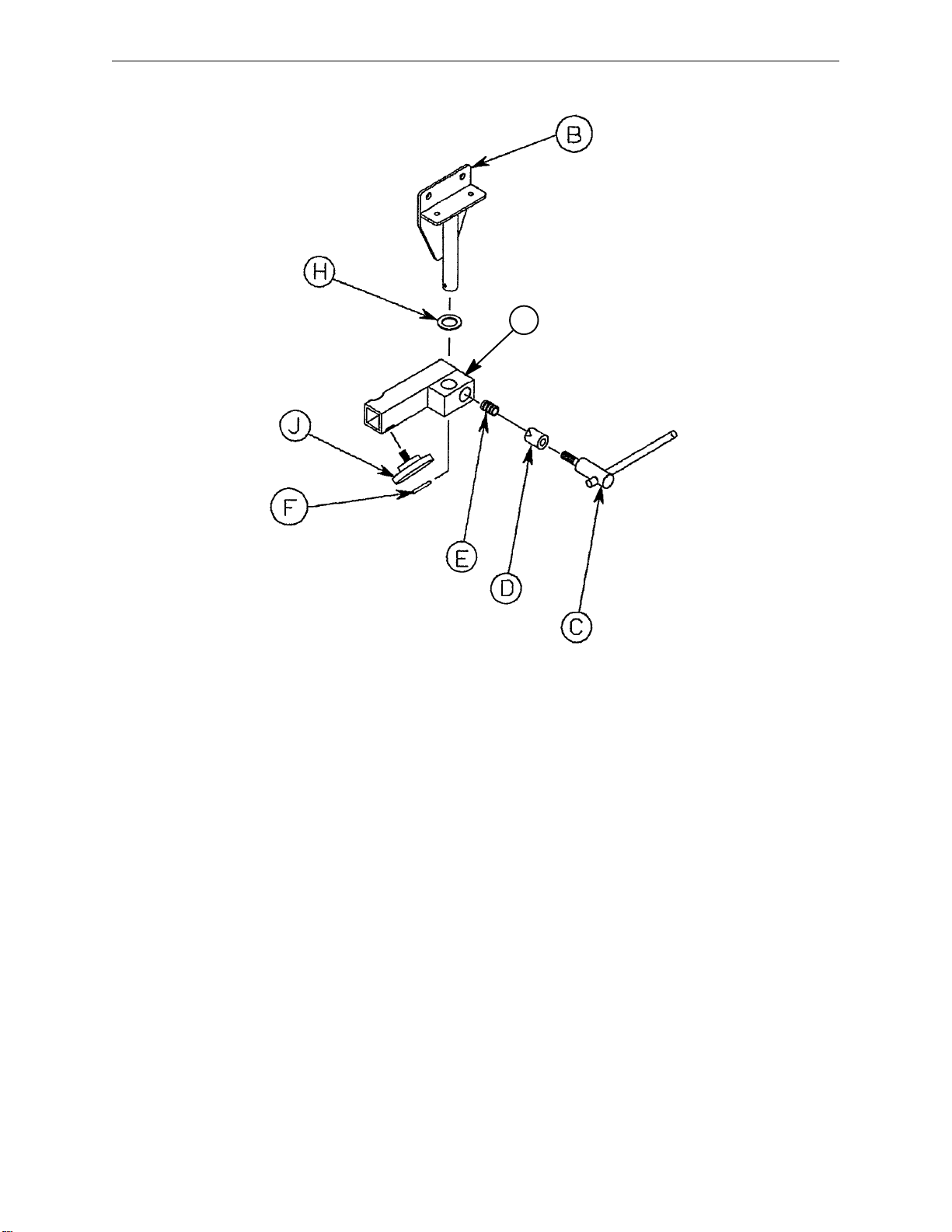

1001–55–15 Right Stirrup Support Assembly

Item Part No. Part Name Qty.

A 1010–55–16 Right Support Tube Ass’y1 B 1001–55–11 Mounting Bracket 1 C 650–2–32 Lock Screw Assembly 1 D 966–51–19 Wedge Lock, Modified 1 E38–171 Compression Spring 1 F26–7 Roll Pin 1 H14–40 Nylon Flat Washer 1 J24–11 Knob 1

Page 98

1001–55–16 Left Stirrup Support Assembly

Item Part No. Part Name Qty.

A 1010–55–26 Left Support Tube Ass’y1 B 1001–55–11 Mounting Bracket 1 C 650–2–32 Lock Screw Assembly 1 D 966–51–19 Wedge Lock, Modified 1 E38–171 Compression Spring 1 F26–7 Roll Pin 1 H14–40 Nylon Flat Washer 1 J24–11 Knob 1

Page 99

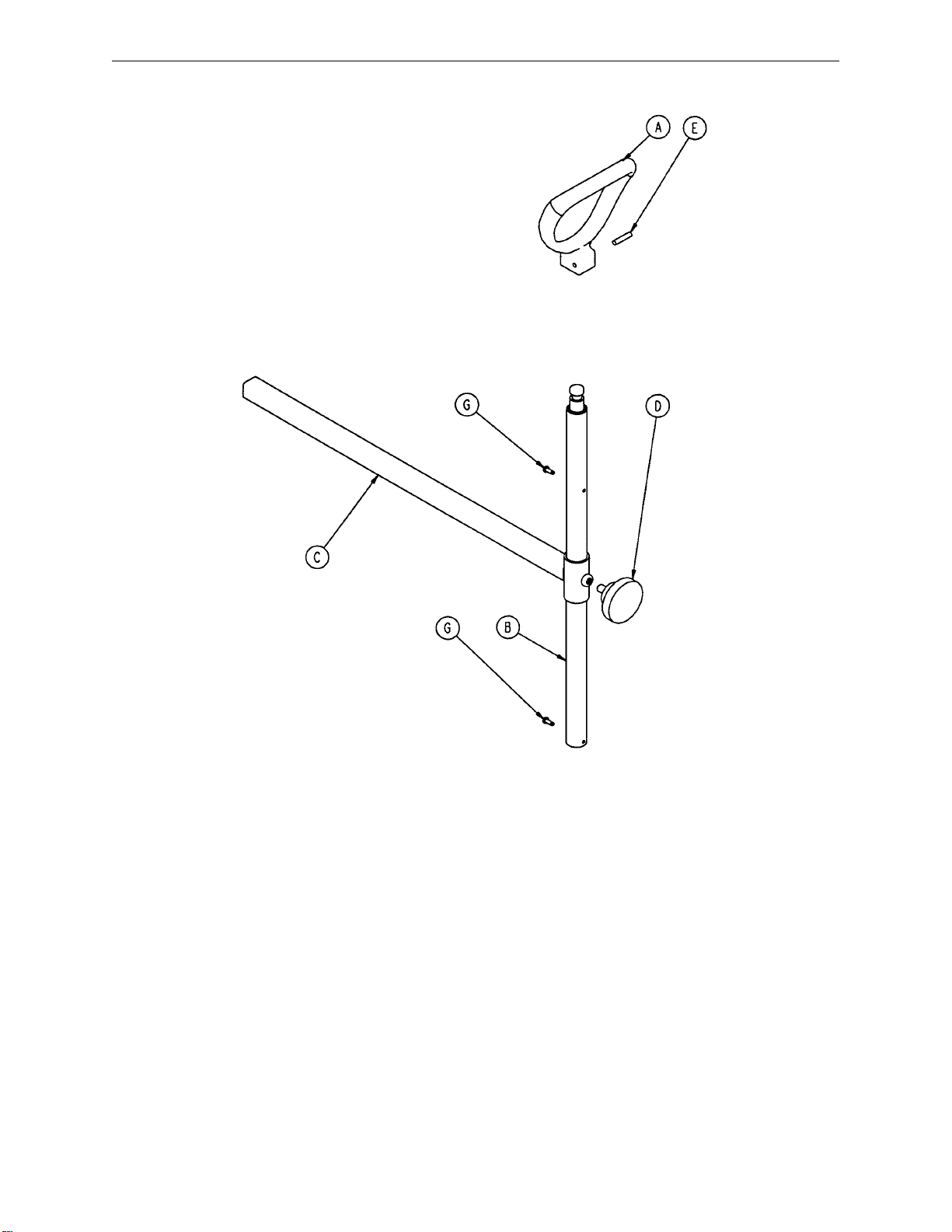

Heel Stirrup Assembly

Assembly part number 1010–55–29

Item Part No. Part Name Qty.

A 390–20–13 Stirrup 1 B 390–20–9 Stirrup Holder Assembly 1 C 1010–55–30 Extension Tube Assembly 1 D24–11 Knob 1 E26–43 Roll Pin 1 G22–8 Drive Screw 2

Page 100

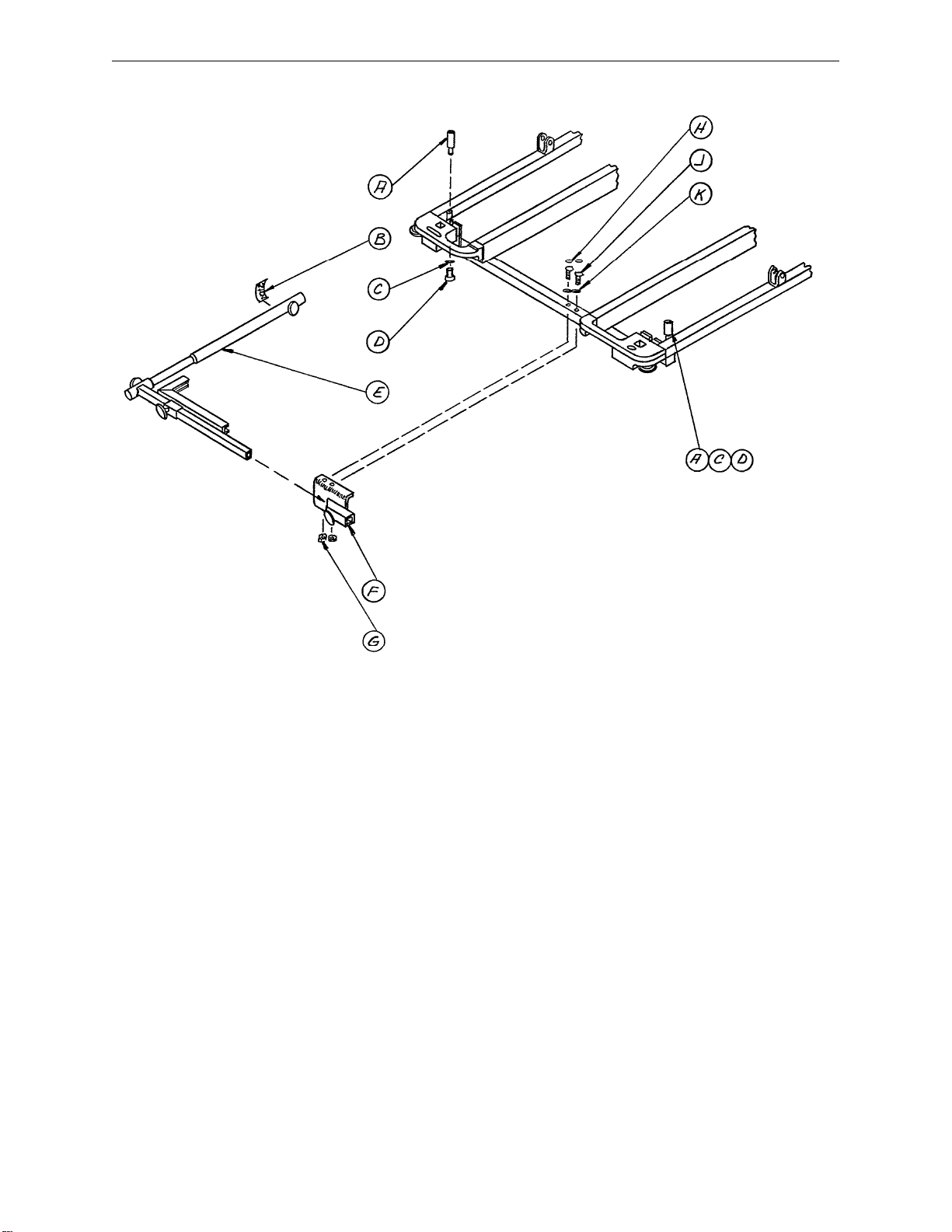

1010–70–1 C–Spine Cassette Holder Assembly

Item Part No. Part Name Qty.

A 1010–70–25 I.V. Adaptor 2 B 1010–70–18 Specification Label 1 C11–3 Flat Washer 2 D4–91 Soc. Hd. Cap Screw 2 E (page 87.2) Support Pole Assembly 1 F (page 87.3) Storage Bracket Ass’y1 G16–5 Conelock Nut 2 H37–55 Cap 2 J3–47 Hex Hd. Cap Screw 2 K37–56 Washer 2

87.1
