Strong SRT 8106, STR 8106 User Manual

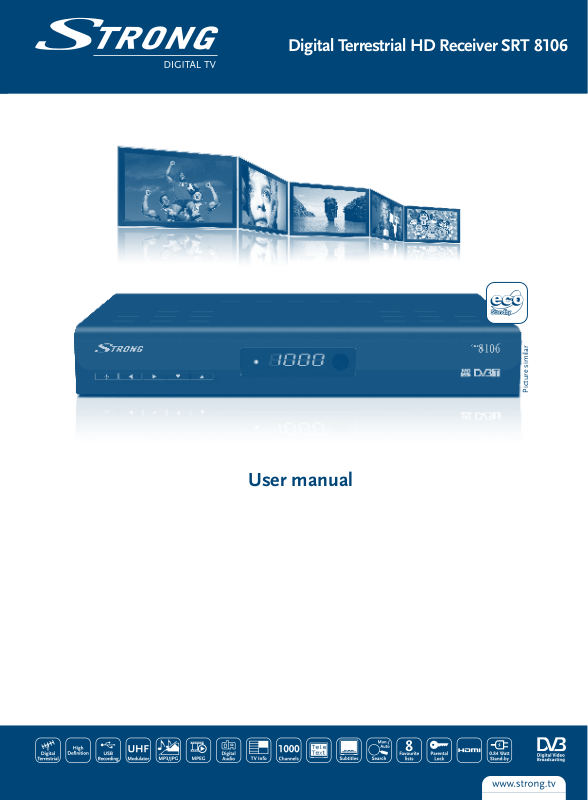

Digital Terrestrial HD Receiver SRT 8106
User manual
Picture similar
PART 1 • English
TABLE OF CONTENTS
1.0 INTRODUCTION 2
1.1 Safety Instructions 2
1.2 Storage 2
1.3 Equipment Set-up 3
1.4 Accessories 3
1.5 Usage of external USB devices 3
2.0 YOUR RECEIVER 3
2.1 PIN-CODE DEFAULT: 0000 3
2.2 Front Panel 3
2.3 Rear Panel 4
2.4 Remote Control 4
3.0 CONNECTION 5
3.1 Connecting to a Terrestrial Antenna 5
3.2 Connecting to TV with HDMI cable 5
3.3 Connecting to TV with SCART cable 5
3.4 Connecting to TV with Cinch cable 5
3.5 Connecting to a Digital Audio Amplifier with S / PDIF 5
3.6 Connecting to a Digital Audio Amplifier and TV using HDMI 6
3.7 Connecting a USB storage device 6
3.8 Connecting to a TV using modulator output 6
4.0 STARTING UP FOR THE FIRST TIME 6
5.0 QUICK GUIDE TO USING YOUR RECEIVER 7
6.0 OPERATION 7
6.1 Changing channels 8
6.2 Info Banner 8
6.3 Selection of audio language 8
6.4 Teletext 8
6.5 Subtitles 9
6.6 Time Shift 9
6.7 EPG (Electronic Programme Guide) 9
6.8 Instant Recording 9
7.0 MAIN MENU 9
7.1 Edit Channel 9
7.2 Installation 11
7.3 System Setup 12
7.4 Tools 14
7.5 Games 16
7.6 Media+ 16
8.0 TROUBLESHOOTING 18
9.0 TECHNICAL SPECIFICATIONS 19
STRONG declares that this item complies with the basic requirements
and other relevant regulations of directives 2004/108/EC and 73/23/EC,
RoHS 2002/95/EC
Subject to alterations. In consequence of continuous research and
development technical specifications, design and appearance of products
may change. All product names are trademarks or registered trademarks of
their respective owners.
© STRONG 2012. All rights reserved.
14 Mar 2012 18:16
English
1
PART 1 • English
1.0 INTRODUCTION
1.1 Safety Instructions
DO NOT INSTALL YOUR RECEIVER:
DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES:
Safety Precautions
If the receiver does not operate normally even after strictly following the instructions in this user
manual, it is recommended to consult your dealer.
1.2 Storage
Your receiver and its accessories are stored and delivered in a packaging designed to protect against
electric shocks and moisture. When unpacking it, make sure that all the parts are included and keep
the packaging away from children. When transporting the receiver from one place to another or if you
are returning it under warranty conditions, make sure to repack the receiver in its original packaging
with its accessories. Failing to comply with such packaging procedures could damage the product
and void your warranty.
2
In a closed or poorly ventilated cabinet; directly on top of or under any other
equipment; on a surface which might obstruct the ventilation slots.
To direct sunlight or any other equipment that generates heat; to rain or intense
moisture; to intense vibration and to any shock which may cause permanent damage
to your receiver or to any magnetic objects, such as loudspeakers, transformers, etc.
Do not use a damaged power cord. It may cause a fire or an electric shock. Do not
touch a power cord with wet hands. It may cause an electric shock.
When the receiver is not used for a long period of time, you should unplug the power
cord from the wall socket.
Do not use alcohol or ammonia based liquids to clean the receiver. If you wish, you may
clean your receiver with a soft lint-free cloth slightly made damp with a mild soap solution,
and only after disconnecting from the mains voltage supply. Make sure no foreign objects
fall through the ventilation slots because this could cause fire or an electric shock.
Do not place any objects on top of the receiver because this might prevent proper
cooling of the components inside.
Never try to open the receiver. It is dangerous to touch the inside of the receiver
due to high voltages and possible electrical hazards. Opening the receiver will
void the warranty of the product. Refer all maintenance or servicing to suitably
qualified personnel.
When you are connecting cables, be sure that the receiver is disconnected from the
mains supply. Wait a few seconds after switching off the receiver before you move the
receiver or disconnect any equipment.
Use only approved extension cords with compatible wiring that is suitable for the
electrical power consumption of the installed equipment. Please ensure that the
electrical power supply corresponds with the voltage on the electrical identification
plate at the back of the receiver.
PART 1 • English
1.3 Equipment Set-up
We recommend you consult a professional installer to set up your equipment. Otherwise, please
follow the instructions below:
This manual provides complete instructions for installing and using this receiver. The following
symbols will serve as follow.
WARNING Indicates warning information.
TIPS Indicates any other additional important or helpful information.
MENU Represents a button on the remote control or the receiver. (Bold Characters)
Move to Represents a menu item within a window. (Italic Characters)
1.4 Accessories
NOTE: The batteries should not be recharged, disassembled, electrically short-
Refer to the user manual of your TV and antenna.
Make sure that the HDMI cable and outdoor components are in a good condition.
Use only a HDMI 1.3 cable or higher for maximum performance.
If you use the TV SCART connection, use a well shielded SCART cable.
If you use the modulator connection, use a good quality coaxial RF cable.
User Manual
1 Remote control unit
2x Batteries (AAA type)
circuited, be mixed or used with other types of batteries.
English
1.5 Usage of external USB devices
It is recommended to use USB 2.0 storage devices. If your device is not compatible to
USB 2.0 specifications, multimedia functions of the receiver might not work properly.
To ensure best performance of your USB storage device please format it by this
receiver (menu “Media+”) to FAT32 system. Other file systems are not supported by
the receiver. However, it is possible to use already NTFS formatted disks. STRONG
cannot guarantee compatibility with all types of USB storage devices.
It is advised not to store important information on USB storage devices used with
the receiver. Always make backups of data on your USB storage device before using it
with this receiver. STRONG will not take responsibility for any loss of information or
circumstances caused by loss of information.
2.0 YOUR RECEIVER
2.1 PIN-CODE DEFAULT: 0000
2.2 Front Panel
1. q (STANDBY) Turns the receiver Standby
2. tu (VOLUME UP/DOWN)
Decreases/increases the volume
Fig. 1
3
3. pq (CHANNEL UP/DOWN)
Change channel to previous/next
4. MODE INDICATOR: RED indicates that the receiver is in STAND-BY mode.
5. 4 DIGITS DISPLAY: Indicates current time in STAND-BY mode
6. IR SENSOR: Point your remote control towards this sensor.
GREEN indicates that the receiver is in
OPERATING mode.
Indicates current channel number in OPERATING mode
2.3 Rear Panel
1. ANT IN To connect to your antenna for the reception of broadcast signal.
2. TO TV To connect to the terrestrial antenna input of your TV set.
3. S / PDIF COAXIAL To connect your receiver to a digital audio amplifier.
4. MODULATOR To connect to a TV using a coaxial cable.
5. HDMI To connect your receiver with your TV set using a HDMI cable.
6. TV SCART To connect your receiver with your TV set using a SCART cable.
7. VIDEO CONNECTOR
To connect your receiver with your TV set using a cinch cable.
8. AUDIO L/R CONNECTOR
To connect your receiver with your TV set using a cinch cable.
9. USB Connector for USB hard disk devices
10. POWER CORD Your receiver requires a voltage of 220~240V AC (Auto-
This connection will allow you to watch analogue terrestrial
programmes via the tuner in your TV.
selectable), 50/60Hz ±5%. Check the local power specification
before connecting your receiver to the wall outlet.
2.4 Remote Control
1. q Turns the receiver On/Standby
2. ! Mutes audio output of the receiver
3. PG+/PG- Page up/down and 10 channels steps in channel list mode
4. DTV/VCR No function
5. INFO Shows the actual channel information
6. VOL+/VOL- Volume up/down
7. MENU Opens the main menu, in menu you will get one step back
8. EXIT Exits from the menu or sub-menu
9. pq Menu Off: Change channel to previous/next.
10. tu Menu Off: Decreases/increases the volume level.
11. OK Menu Off: Displays the current channel list
12. RECORD Records the TV programme to the connected storage device
13. TIMESHIFT Activates the time shift function
4
Menu On:Moves the cursor up/down.
Menu On: Change settings for specific Menus
Menu On: Activates the highlighted menu item.
PART 1 • English
Fig. 2
Fig. 3
