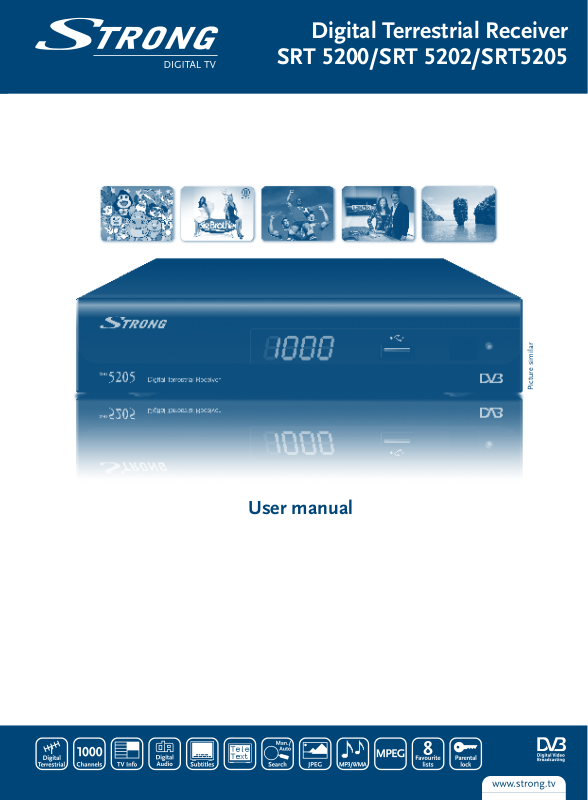

Strong SRT 5200, SRT 5202 User Manual

Digital Terrestrial Receiver

SRT 5200/SRT 5202/SRT5205

User manual

Picture similar

PART 1 • English

TABLE OF CONTENTS

1.0 INSTRUCTION 2

1.1 Safety Instructions 2

1.2 Storage 3

1.3 Equipment Set-up 4

1.4 Features & Accessories 4

2.0 CONNECTION 5

2.1 Connecting to TV and Terrestrial Antenna 5

2.2 Connecting to TV and VCR 5

2.3 Connecting to a Digital Audio Amplifier 5

2.4 Connecting to RCA (Audio L/R, Video) 5

3.0 YOUR RECEIVER 5

3.1 Front Panel 5

3.2 Rear Panel 6

3.3 Remote Control 6

3.4 Default password: 0000 7

4.0 FIRST TIME INSTALLATION 7

5.0 MAIN MENU 7

5.1 Channel 7

5.2 Installation 9

5.3 Setup 10

5.4 Tools 12

5.5 Media+ 13

6.0 OPERATION 13

6.1 Changing Channels 13

6.2 Accessing the Electronic Program Guide (EPG) 14

6.3 Accessing the favourite channels 14

A.1 TROUBLESHOOTING 14

A.2 SPECIFICATIONS 15

English

STRONG declares that this item complies with the basic requirements and
other relevant regulations of directives CE 2004/108/EEC and 73/23EEC;
RoHS 2002/95EEC

Subject to alterations. In consequence of continuous research and
development technical specifications, design and appearance of products
may change. All product names are trademarks or registered trademarks of
their respective owners.
© STRONG 2010. All rights reserved. 02/2010

1

PART 1 • English

1.0 INSTRUCTION

1.1 Safety Instructions

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert
the user to the presence of not isolated dangerous voltage with the inside of the product
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and servicing instructions in the literature
accompanying the appliance.

Read All Instructions - Before you use the product, read all operation instructions, For
more information on accessories such as the lithium ion battery, refer to the manuals
provided with those products.

Save These Instructions- Save all safety and operating instructions for future reference.
Heat Warnings - Read carefully and follow all warning labels on the product and those

described in the instructions.

Follow Instructions- Follow all instructions provided with this product.
Cleaning - Always unplug this product from the wall outlet before cleaning. Use only a

damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of
organic solvent to clean this product.
Attachments - For your safety, and to avoid damaging the product, use only accessories
recommended by STRONG.
Water and Moisture - Never use this product around water (near a bathtub, kitchen
sink, laundry tub, wet basement. swimming pool or in the rain)
Location -To avoid damage to the product and prevent personal injury, never place this
product on an unstable stand, tripod, bracket, Follow the instructions that describe
how to safely mount the product, and use only the mounting devices recommended by
the manufacturer.
Power Sources - Connect this product only to the power source described on the
product label. If you are not sure about the type of power supply in your home, consult
your local power company.
Refer to instruction pages for information on using the product with a battery.
Grounding, Polarization - If this product is used with a specified AC adapter, the
adapter may be equipped with a polarized alternating current line plug (a plug with
one blade wider than the other). This safety feature allows the plug to fit into the power
outlet only one way, If you cannot insert the plug into the wall outlet, pull it out, reverse
it, and have the receptacle replaced.
Protecting the Power Cord - The power supply cord should be placed so it will not be
walked on. Never put a heavy object on the power cord or wrap it around the leg of a
table or chair. Keep the area around the power cord connection points, at the power
outlet, and at the product connection, free of all AC adapter or accessory power cords.

2

PART 1 • English

GENERAL PRECAUTIONS - SAFETY PRECAUTIONS
Lightning - If a lightning storm occurs while using a specified AC adapter, remove it

from the wall outlet immediately. To avoid damage from unexpected power surges,
always unplug the AC adapter from the power outlet and disconnect it from the
receiver when the receiver is not in use.
Overloading - Never overload wall outlets, extension cords, power strips, or other
power connection points with too many plugs.
Foreign Objects, Liquid Spillage-To avoid personal injury caused by fire or electrical
shock from contact with internal high voltage points, never insert a metal object into
the product. Avoid using the product where there is a danger of spillage.
Heat - Never use or store this product near any heat source such as a radiator heat
register, stove, or any type of equipment or appliance that generates heat, including
stereo amplifiers.
Servicing - Refer all servicing to qualified personnel. Attempting to remove the covers
or disassemble the product, could expose you to dangerous high voltage points.
Damage Requiring Service - If you notice any of the conditions described below while
using a specified AC adapter. unplug it from the wall outlet and refer servicing to
qualified service personnel:

1. Liquid has been spilled onto the product or some other object has fallen into
the product.

2. The product has been exposed to water.

3. The product does not operate normally despite following operating
instructions. Adjust only the controls described in the operating
instructions ad improper adjustment of other controls could damage the
product and require extensive repair word by a qualified technician.

4. The product has been dropped or damaged in any way.

5. The product exhibits distinct change in performance.

Replacement Parts - When replacement parts are required, mare sure that the
authorized service centre uses only parts with the same characteristics as the originals,
as recommended by the manufacturer. Unauthorized substitution of parts could result
in fire, electrical shock, or create other hazards.
Safety Check - Upon completion of servicing or repairs, ask the service technician to
perform safety checks to determine that the product is in good working order.
Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
Where the mains plug or all-pole mains switch is used as the disconnect device, the
disconnect device shall remain readily operable.

1.2 Storage

Your receiver and its accessories are stored and delivered in a packaging designed to
protect against electric shocks and moisture. When unpacking it, make sure that all the
parts are included and keep the packaging away from children.
