S pecification for C6D AI
1 - 9

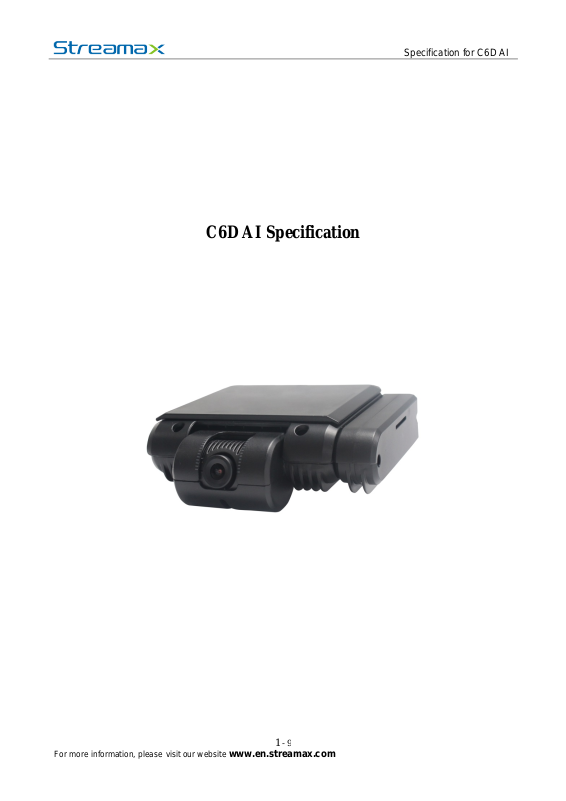

C6D AI Specification
For more information, please visit our website www.en.streamax.com
Page 2
S pecification for C6D AI
2 - 9
Contentsg
Product Characteristics ..................................................................................................................................... 3
1.1. Overview ........................................................................................................................................... 3
1.2. Specifications ..................................................................................................................................... 5
1.3. Dimension ( Unit:mm) ...................................................................................................................... 7
1.4. The Definition of Cable Interface ...................................................................................................... 8
1.5. System Connection Diagram ............................................................................................................. 9
For more information, please visit our website www.en.streamax.com
Page 3
S pecification for C6D AI
3 - 9
Product Characteristics

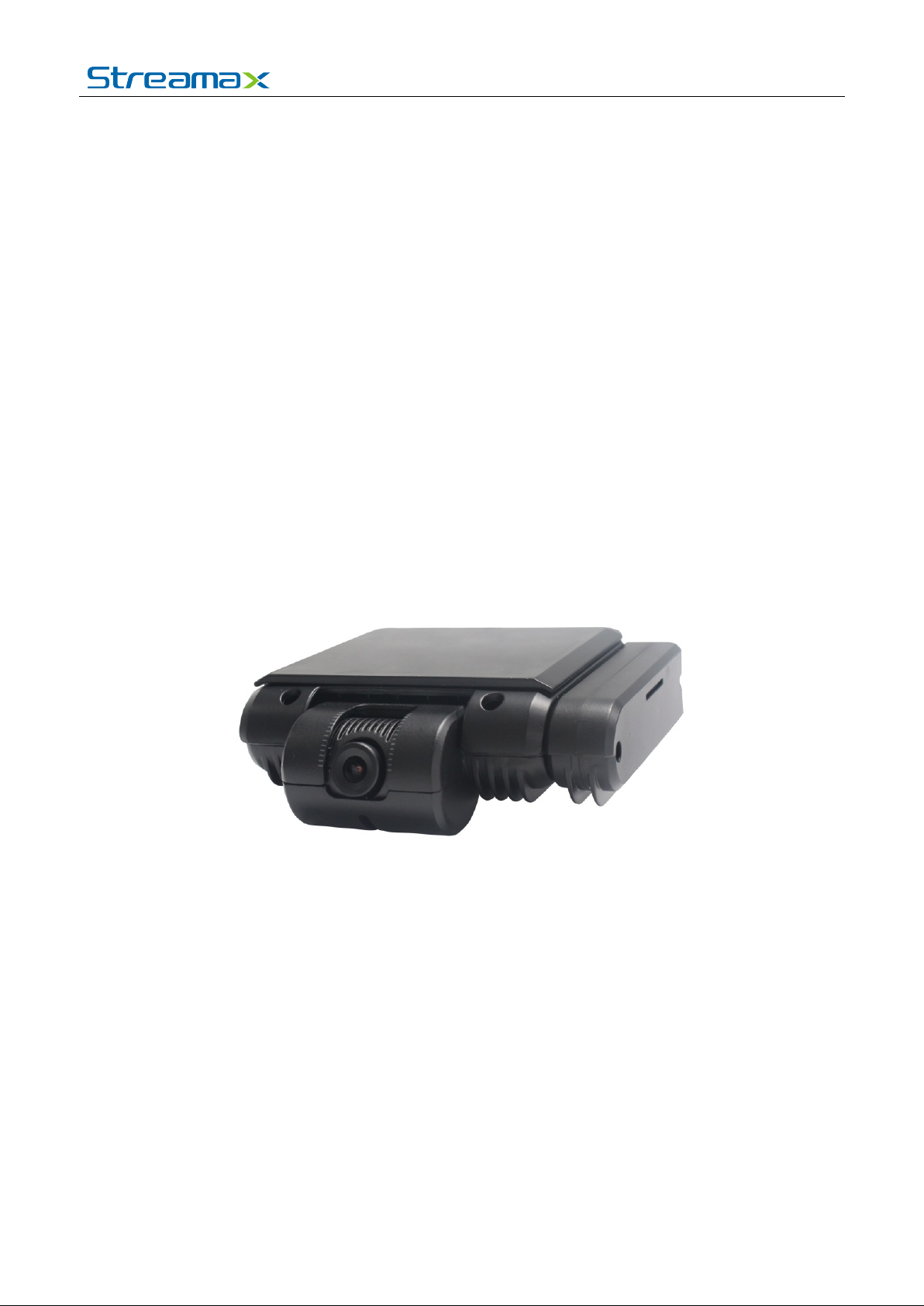

1.1. Overview
Streamax C6DAI-M is a cost-effective device specially developed for remote video and driving
safety monitoring of truck s. Its features are shown below:
The product has three components: C6DAI host (A DA S) , D SM-L camera and IP camera;
The product integrates multiple modules, such as 4G, WIFI, Bluetooth and G-sensor an d is q uit e
versatile;
The product supports GPS positioning, real-ti m e r ecord of vehicle track for analys i s;
The product supports dual-SD card recording storage. Up to 256GB storage can be supported for
one SD card;
The product supports rem ot e mo nit oring and recording;
Special file system to ensure record ing data security and pr ot ec t per sonal privacy;
Industrial design, alumin um alloy shell and massive heat sink for good heat dissipation;
Compact and lightweight host can be easily mounted on the front windshield;
The product supports 720P, 960P, 1080P HD resolution recording;
The device is able to intellige nt ly recognize forward vehicles , lan es and traffic scenarios via the
ADAS camera. Therefor e, it eff ect ively forecasts driv ing ris ks, l ike too close following dista nce,
forward collision and lane depar t ur e by referring to the vehicle operating;
The product intelligent ly recogn iz es driv er d istract ion , fatig ued dr iving, p hon e c alling an d s mokin g via
the DSM camera. It effectively reduces fatigue-induc ed t r af fic a cci dents by referring to the v ehic le
operating;
The product uploads the alarm event and related video evidence to the cloud platform, of fers
real-time alarm and keeps on-site evidence to help restor e t he truth.
For more information, please visit our website www.en.streamax.com
Page 4
S pecification for C6D AI
4 - 9
Label
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including inter f erence that may cause und esired operation.
FCC warning:
Any Changes or modifications not expr essly approved by the party r esponsi ble for compliance could void
the user's authority to ope r at e t he equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. Thes e lim it s are designed to provide reasonable prot ection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communi cat ions. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipm ent off and on, the user is e ncouraged to try to corr ect t he
interference by one or mor e of t he f ol low i ng measures:
-Reorient or relocate the rec eiv ing antenna.
-Increase the separation b et w een the equipment and receiver.
-Connect the equipment int o an out let on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV tech nician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
For more information, please visit our website www.en.streamax.com
Page 5
S pecification for C6D AI
5 - 9
Model
C6D AI
WIFI
Support
Bluetooth
Support
3G/4G
Support
Positioning
GPS
Support
Sensor
6-axis sensor
Support
Taximeter
function
CAN data collection
Support
The indicator can show four different device states:
for working
Power on: the red light flashes after the device is powered on;
Upgrading: the indicator flashes twice every second;
SD Card
SD card with SDXC64G/128G/256G and hot
plugging supported
Audio &
Resolution and frame rate of
CBR/VBR
Support
Audio input
Support
Built-in loudspeaker
Built-in loudspeaker for broadcasting voice
1.2. Specifications
Network
Indicator
Normal operation: the green light flashes
conditions
Failure alarm: the red light flashes once every second;
Storage
video
Audio & video recording 3 channels for video and 1 channel for audio
ADAS:1080P@30fps
primary stream
Total resource
Image settings
DSM:960P@30fps
1080P@30fps+960P@30fps+720P@30fps,
3-channel sub-stream CIF@15fps
Brightness, chroma, contrast, color saturation and
sharpness adjustment
Video coding H.264/H.265
Audio compression standard ADPCM/G.711
For more information, please visit our website www.en.streamax.com
message
Page 6
6 - 9
Sensor types
(ADAS)
Shutter speed
1/30s-1/100000s
Lens
4mm
Lens interface
types
Wide dynamic
range
Backlight
compensation
S/N
≥48db
RS232
1 channel
RS485
1 channel
IO alarm input
4 channels
IO alarm output
1 channel
CAN
1 channel
related to
Power supply
9-36V
Internal battery
Do not support
Typical power
consumption
Power
consumption
Less than 9W
Working
temperature
Storage
temperature
Humidity
0% - 90%
S pecification for C6D AI
1/2.9" 2M pixel CMOS Sensor
Camera
parameters
Interface
Protocol
Information
power supply
M12
D-WDR
Support
Power output 5VDC@500mA，12VDC@500mA
Network
protocol
HTTP,TCP,ARP,UDP,FTP,DHCP,DNS,IPV4,NTP
6W
General
specification
For more information, please visit our website www.en.streamax.com
-30℃~+70℃
-40℃~+85℃
Page 7
S pecification for C6D AI
7 - 9

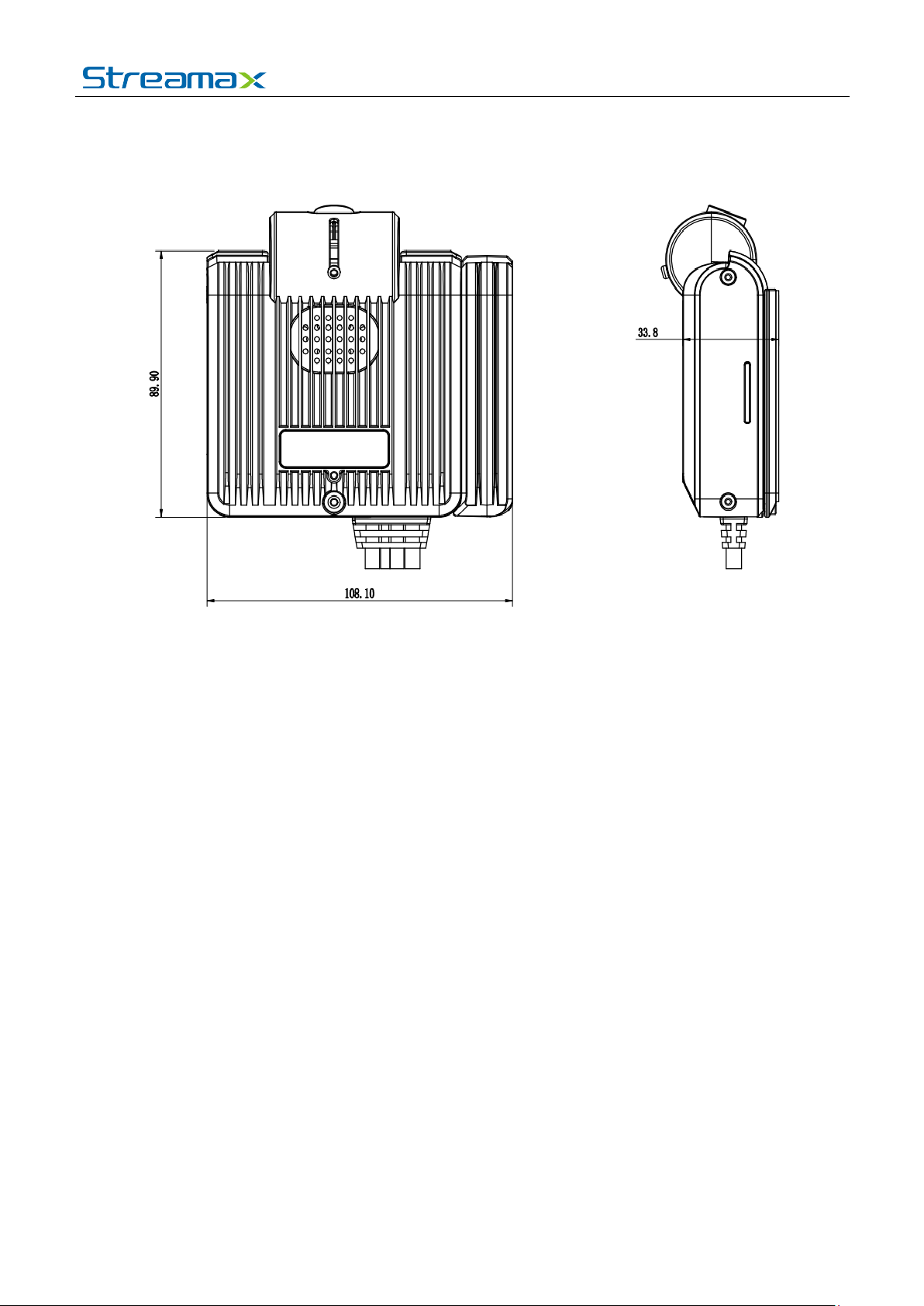

1.3. Dimension (Unit:mm)
For more information, please visit our website www.en.streamax.com
Page 8
S pecification for C6D AI
8 - 9
No
Items
CAN
DJ7041A-2.8-11 connector
RS232
MOLEX 5559 4PIN connector
R-Watch
MOLEX 5559 6PIN connector

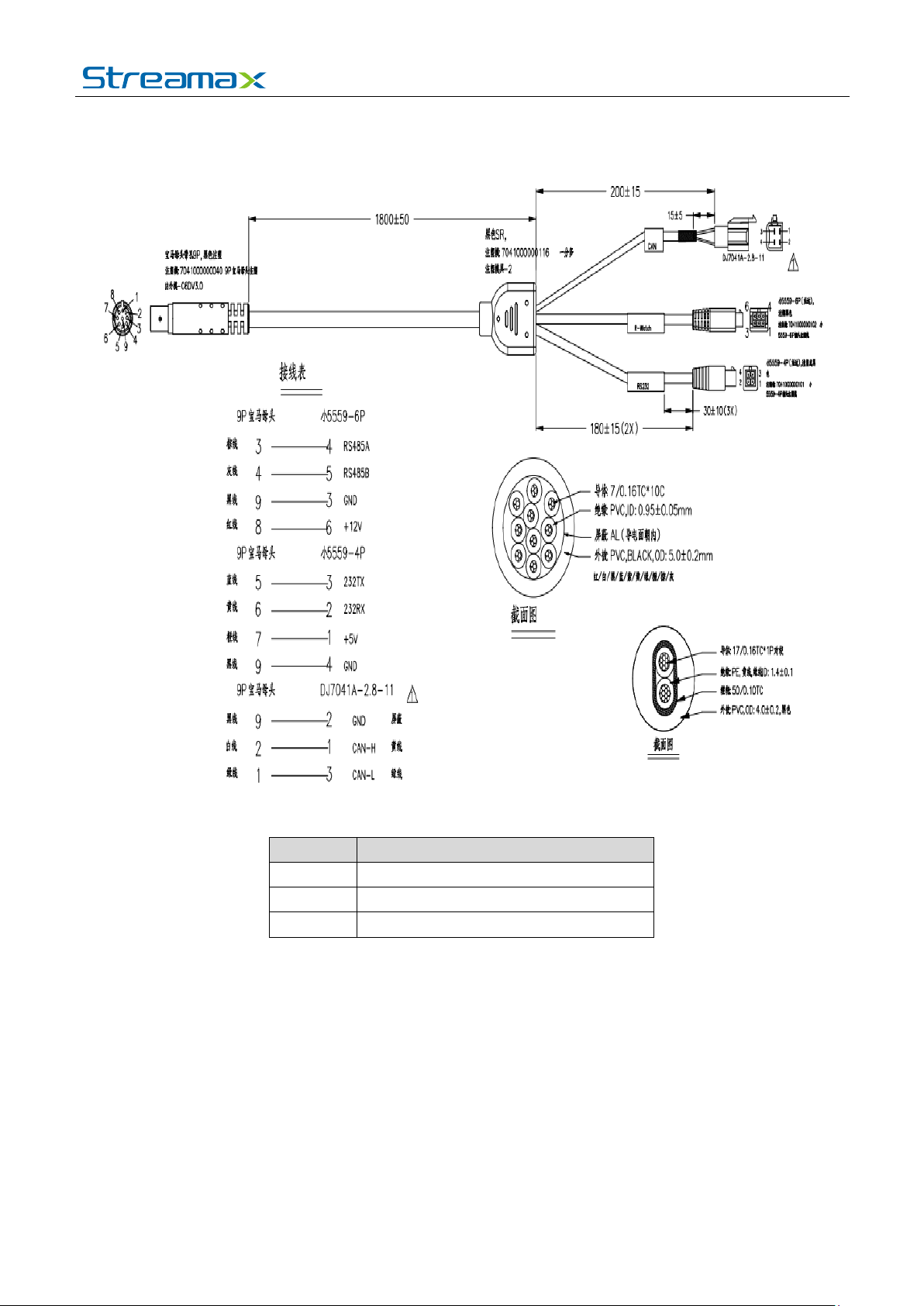

1.4. The Definition of Cable Interface
For more information, please visit our website www.en.streamax.com
Page 9
S pecification for C6D AI
9 - 9

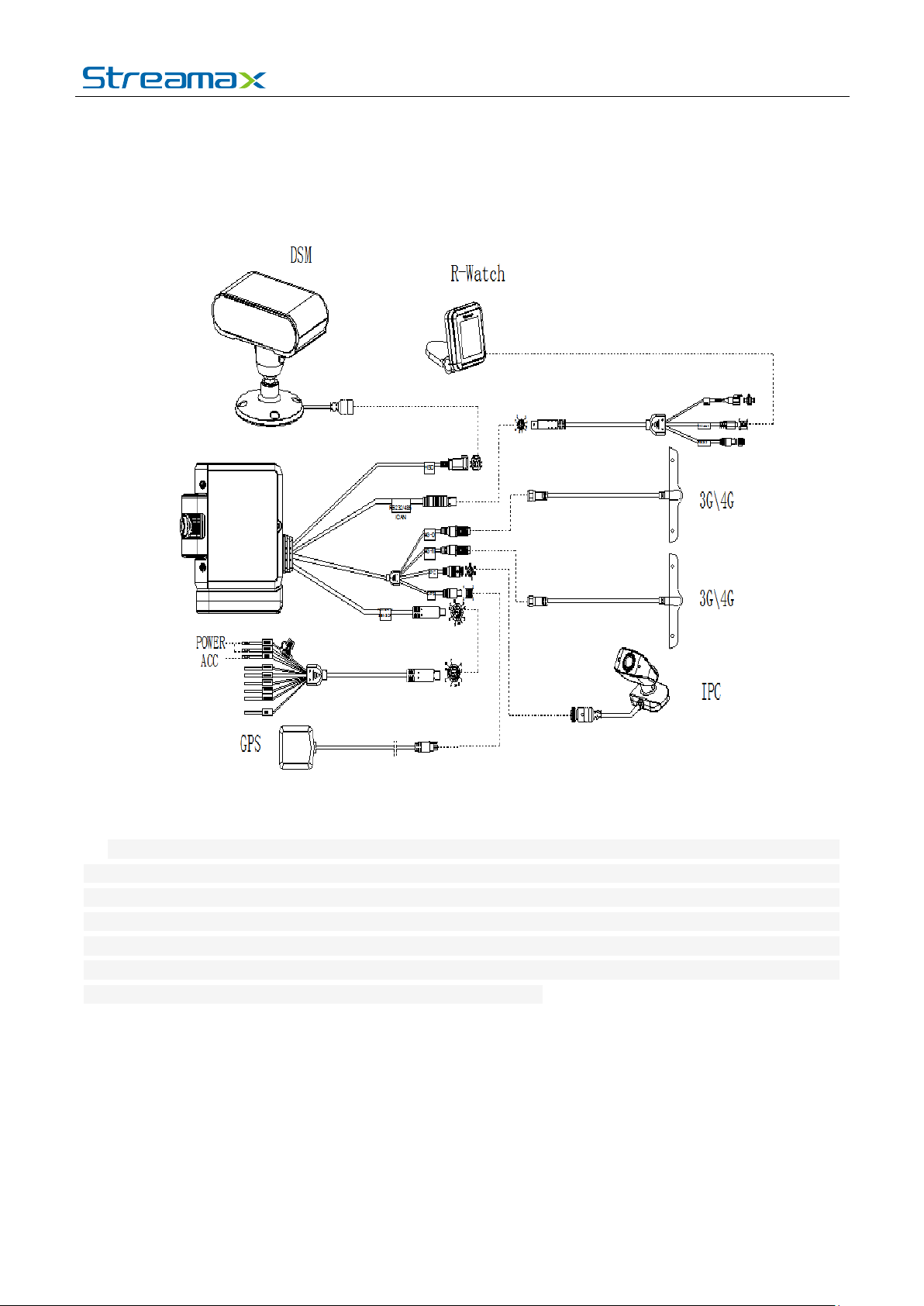

1.5. System Connection Diagram
warning:
External antennas are only suitable for antennas of type C6D-3000TKX placed in accessories boxes,
and other external antennas ar e pr ohi bit ed from use. BT, WIFI supports a maximum antenna gain of 3.14
dBi. 4G band 2 supports a maximum antenna gain of 3.09 dBi, 4G band 4 supports a maximum antenna
gain of 4.53 dBi, 4G band 5 supports a maximum antenna gain of 2.52 dBi, 4G band 12 supports a
maximum antenna gain of 1.92 dBi, 4G band 13 supports a maximum antenna gain of 2.17 dBi, 4G band
14 supports a maximu m antenna ga in of 2.78 d Bi, 4G band 66 supports a maximum antenna gain of 4.53
dBi, 4G band 71 support s a maximum antenna gain of 1.69 dBi,
