Philips Selecon Offices

Philips Selecon - Dallas

10911 Petal Stree t Dallas, TX 75238

Tel: 214-647-7880

Fax: 214-647-8031

Philips Selecon - New York

267 5th A ve, 4th Floor

New York, NY 10016

Tel: 212-213-8219

Fax: 212-532-2593

Philips Selecon - Asia Limited

Room 6-10, 20/F Delta House 3 On Yiu Street

Shatin, N.T. Hong Kong

Tel: + 852 2757 3033

Fax: + 852 2757 1767

The material in this manual is for information purposes only and is subject to change without notice. Philips Selecon assumes no responsibility for any errors or omissions which may appear in this manual. For comments and suggestions regarding corrections and/or updates to this manual, please visit the Philips Selecon web site at www.seleconlight.com or contact your nearest Philips Selecon office.

El contenido de este manual es solamente para información y está sujeto a cambios sin previo aviso. Philips Selecon no asume responsabilidad por errores o omisiones que puedan aparecer. Cualquier comentario, sugerencia o corrección con respecto a este manual, favor de dirijirlo a la oficina de Philips Selecon más cercana.

Der Inhalt dieses Handbuches ist nur für Informationszwecke gedacht, Aenderungen sind vorbehalten. Philips Selecon uebernimmt keine Verantwortung für Fehler oder Irrtuemer, die in diesem Handbuch auftreten. Für Bemerkungen und Verbesserungsvorschlaege oder Vorschlaege in Bezug auf Korrekturen und/oder Aktualisierungen in diesem Handbuch, moechten wir Sie bitten, Kontakt mit der naechsten Philips SeleconNiederlassung aufzunehmen.

Le matériel décrit dans ce manuel est pour information seulement et est sujet à changements sans préavis. La compagnie Philips Selecon n'assume aucune responsibilité sur toute erreur ou ommission inscrite dans ce manuel. Pour tous commentaires ou suggestions concernant des corrections et/ou les mises à jour de ce manuel, veuillez s'il vous plait contacter le bureau de Philips Selecon le plus proche.

Philips Selecon - Auckland

19-21 Kawana Street

Northcote, Auckland 0627

New Zealand

Tel: +64 9 481 0100

Fax: +64 9 481 0101

Philips Selecon - Europe

Marssteden 152

Enschede 7547 TD

The Netherlands

Tel: +31 53 4500424

Fax: +31 53 4500425

Website:

www.seleconlight.com

Note: Information contained in this document may not be duplicated in full or in part by any person without prior written

approval of Philips Selecon. Its sole purpose is to provide the user with conceptual information on the equipment mentioned. The use of this document for all other purposes is specifically prohibited.

Document Number: 02.9693.0001 A

Version as of: 25 August 2011

PL3 LED Luminaire Installation & User’s Manual

Page 3

PL3 LED Luminaires

IMPORTANT INFORMATION

Warnings and Notices

When using electrical equipment, basic safety precautions should always be followed including the following:

a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. b. For indoor, dry locations use only. Do not use outdoors. c. Do not mount near gas or electric heaters. d. Equipment should be mounted in locations and at heights where it will not readily be subjected to

tampering by unauthorized personnel.

e. The use of accessory equipment not recommended by the manufacturer may cause an unsafe

condition. f. Not for residential use. Do not use this equipment for other than intended use. g. Refer service to qualified personnel.

SAVE THESE INSTRUCTIONS.

Installation & User’s Manual

WARNING: This equipment is intended for installation in accordance with the National Electric Code® and local regulations. It is also intended for installation in indoor application s on ly. Before any electrical work is performed, disconnect power at the circuit breaker or remove the fuse to avoid shock. It is recommended that a qualified electrician perform this installation.

Additional Resources for DMX512

For more information on installing DMX512 control systems, the following publication is available for purchase from the United States Institute for Theatre Technology (USITT), "Recommended Practice for DMX512: A Guide for Users and Installers, 2nd edition" (ISBN: 9780955703522). USITT Contact Information:

USITT 315 South Crouse Avenue, Suite 200 Syracuse, NY 13210-1844 Phone: 800-938-7488 or +1-315-463-6463 www.usitt.org

Philips Selecon Limited Three-Year Warranty

Philips Selecon offers a three-year limited warranty of its luminaires against defects in materials or workmanship from the date of delivery. A copy of Philips Selecon three-year limited warranty containing specific terms and conditions can be obtained from the Philips Selecon web site at www.seleconlight.com or by contacting your local Philips Selecon office.

PL3’s powerful LED engine offers exceptional performance and life. Under normal operating conditions, our LED engine has a life expectancy in excess of 25,000 hours, however under worst case operating conditions with the luminaire set to continuous full output it is possible that a small percentage of LED’s may require replacement sooner. The Philips Selecon three-year limited warranty includes our guarantee against premature failure of the LED engine.

Page 4

Installation & User’s Manual PL3 LED Luminaires

Philips Selecon Offices......................................................... .................................................................. Inside Front Cover

IMPORTANT INFORMATION

Warnings and Notices..................... ... ......................................................................... ........................................................ 1

Additional Resources for DMX512.................................................................................................................................... 1

Philips Selecon Limited Three-Year Warranty .................................................................................................................. 1

TA BLE OF CONTENTS PREFACE

About this Manual ...................................................................................................................................................................... 3

ACCESSORIES.......................................................................................................................................................................... 3

PL3 LED LUMINAIRE OVERVIEW

PL3 LED Luminaire Components.............................................................................................................................................. 4

Luminaire Components....................................................................................................................................................... 4

LCD Display / Menu........................................................................................................................................................... 4

INSTALLATION AND SET UP

Power Requirements................................................................................................................................................................... 5

Connecting Power....................................................................................................................................................................... 5

Connecting to the DMX512 Network......................................................................................................................................... 5

Mounting..................................................................................................................................................................................... 6

Pan & Tilt Adjustments .............................................................................................................................................................. 7

OPERA TION AND PROGRAMMING

User Interface.............................................................................................................................................................................. 8

Function Keys.................................................. ........................................................................................................................... 9

Fixture Status Screens................................................................................................................................................................. 9

Menu Options ................. .. .......................................................................... .............................................................................. 10

Menu Structure ..................................................................................... ............................................................................ 10

Security..................................................................................................................................................................................... 12

Passwords.......................................................................................................................................................................... 12

Security Levels ................................................................................................................................................................. 13

Locking Fixture............................................................................................ ..................................................................... 13

Presets....................................................................................................................................................................................... 13

Presets Types .......................... ..................................... ...................................... ............................................................... 13

Editing Preset Names........................................................................................................................................................ 14

Settings...................................................................................................................................................................................... 14

DMX CONTROL

16-Bit Mode.............................................................................................................................................................................. 16

Pan & Tilt DMX Operation Notes.................................................................................................

8-Bit Mode................................................................................................................................................................................ 19

DMX 3-Channel (3-Chan) Mode.............................................................................................................................................. 21

Lighting Console Settings for Preset White ............................................................................................................................. 22

PL3 Luminaire DMX Timing Channel Detail.......................................................................................................................... 22

INFRARED REMOTE CONTROL

Infrared Remote Control Overview .......................................................................................................................................... 28

Infrared Remote Control Features .................................................................................................................................... 28

CLEANING AND CARE

Special Cleaning and Care Instructions .................................................................................................................................... 30

Lens Cleaning ........................................................................................................................................................................... 30

Front Lens (Exterior) ............................... ...................................... ..................................... .............................................. 30

Service and Maintenance....... ...................................... ..................................... ........................................................................ 31

Accessories ............................................................................................................................................................................... 31

TROUBLESHOOTING

Troubleshooting Guide............................................................................................................................................................. 32

TECHNICAL SPECIFICA TIONS

PL3 LED Luminaire Specifications.......................................................................................................................................... 33

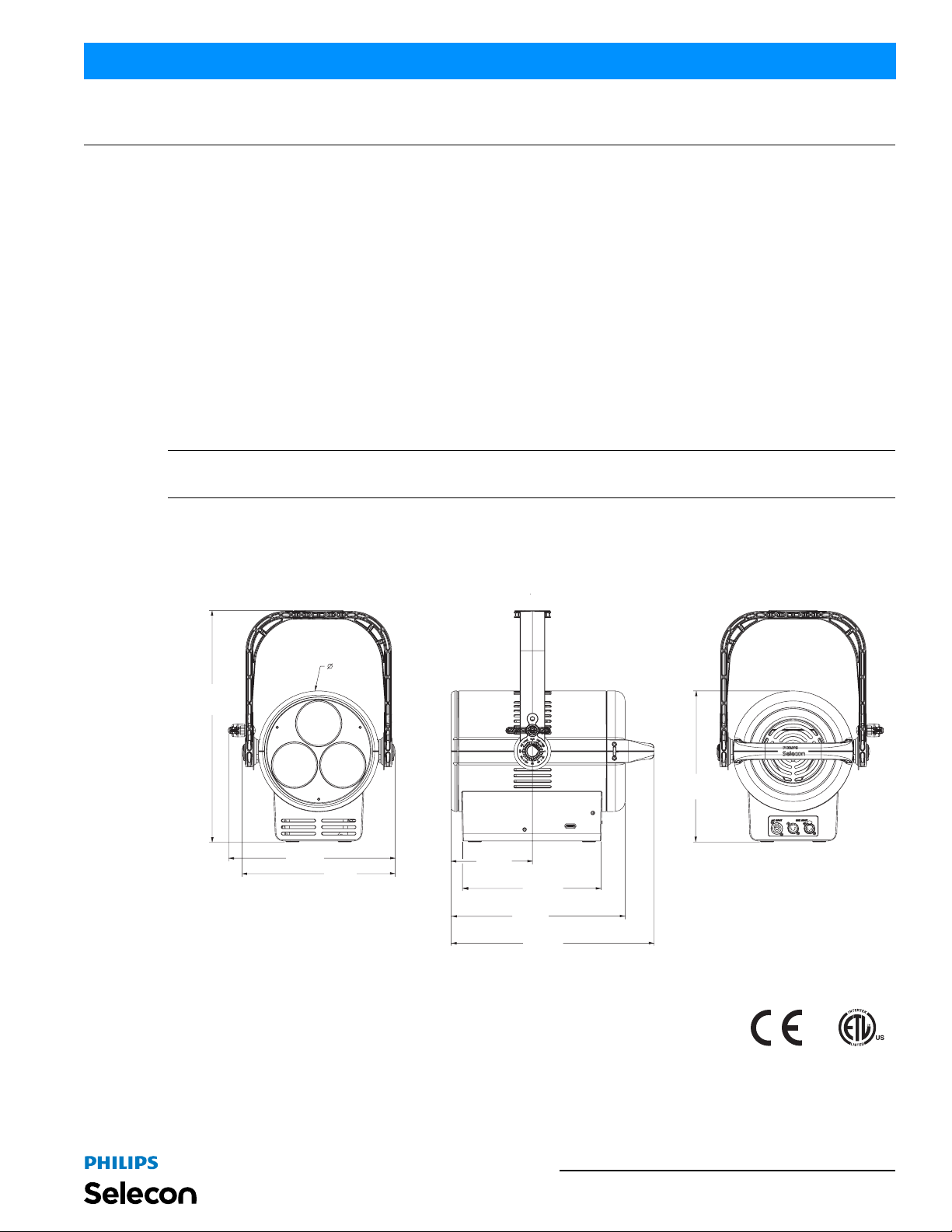

PL3 LED Luminaire Dimensions ............................................................................................................................................. 33

................................... 18

2 TABLE OF CONTENTS

Page 5

PL3 LED Luminaires

PREFACE

1. About this Manual

The document provides installation and operation instructions for the following products:

• PL3 LED Luminaires (part number: PL3) Please read all instructions before installing or using this product. Retain this manual for future reference. Additional

product information and descriptions may be downloaded at www.seleconlight.com.

Note: All PL3 luminaires ship with a "bare-end" 39 inch/1 meter power input cable. Add -GR, -GP, or -GTL to the part number to have a connector installed. All other accessories sold separately.

Product accessories can be found in "ACCESSORIES".

2. ACCESSORIES

Contact your Authorized Philips Selecon Dealer for price and availability of all accessories for PL3 LED Luminaires. Additional information can be found on the Philips Selecon web site at www.seleconlight.com.

PL3 LED Luminaire IR Remote

Part Number Description

PL3IRR PL3 LED Luminaire Handheld IR Preset Programmer

Installation & User’s Manual

PL3 LED Luminaire Pan & Tilt Motor Kit / Clamps

Part Number Description

PL3MKIT Pan & Tilt Motor Kit (note, includes all hardware, wiring and truss hook) SC Selecon Molded Yoke Rated C-Clamp MC Mega Claw, Black Anodized

Note: Do Not install the PL3 LED Luminaire using C-Clamp (82019 or USCLAMP). This Luminaire requires the longer bolt utilized in clamps Molded Yoke Rated C-Clamp (SC) or Mega Claw (MC).

PL3 LED Luminaire Barndoors & Holders

Part Number Description

PL3ACH PL3 LED Luminaire Accessory Holder with Frame 20BDSF2020 Barndoor, Black 20BDSF20208 Barndoor, 8 Way, Black 20CFSF2020 Spare Color Frame

PL3 LED Luminaire Connectors

Part Number Description

GR 15A NEMA 5-15P Male Edison Connector GP 20A, Male Stage Pin Connector GTL 20A, NEMA L5-20P Male Twist-Lock Connector

PL3 LED Luminaire Spare Power Input Cables

Part Number Description

PL3BE

PC1GP

PC1GTL

PC1GR

PL3 Luminaire AC Power Input Cable (39 inches / 1 meter), Powercon (luminaire AC in) with no connector (bare end - user to supply connector)

PL3 Luminaire AC Power Input Cable (39 inches / 1 meter), Powercon (luminaire AC in) with Stage Pin Connector (to power source)

PL3 Luminaire AC Power Input Cable (39 inches / 1 meter), Powercon (luminaire AC in) with Twistlock Connector (to power source)

PL3 Luminaire AC Power Input Cable (39 inches / 1 meter), Powercon (luminaire AC in) with Edison Connector (to power source)

About this Manual 3

Page 6

Installation & User’s Manual PL3 LED Luminaires

PL3 LED LUMINAIRE OVERVIEW

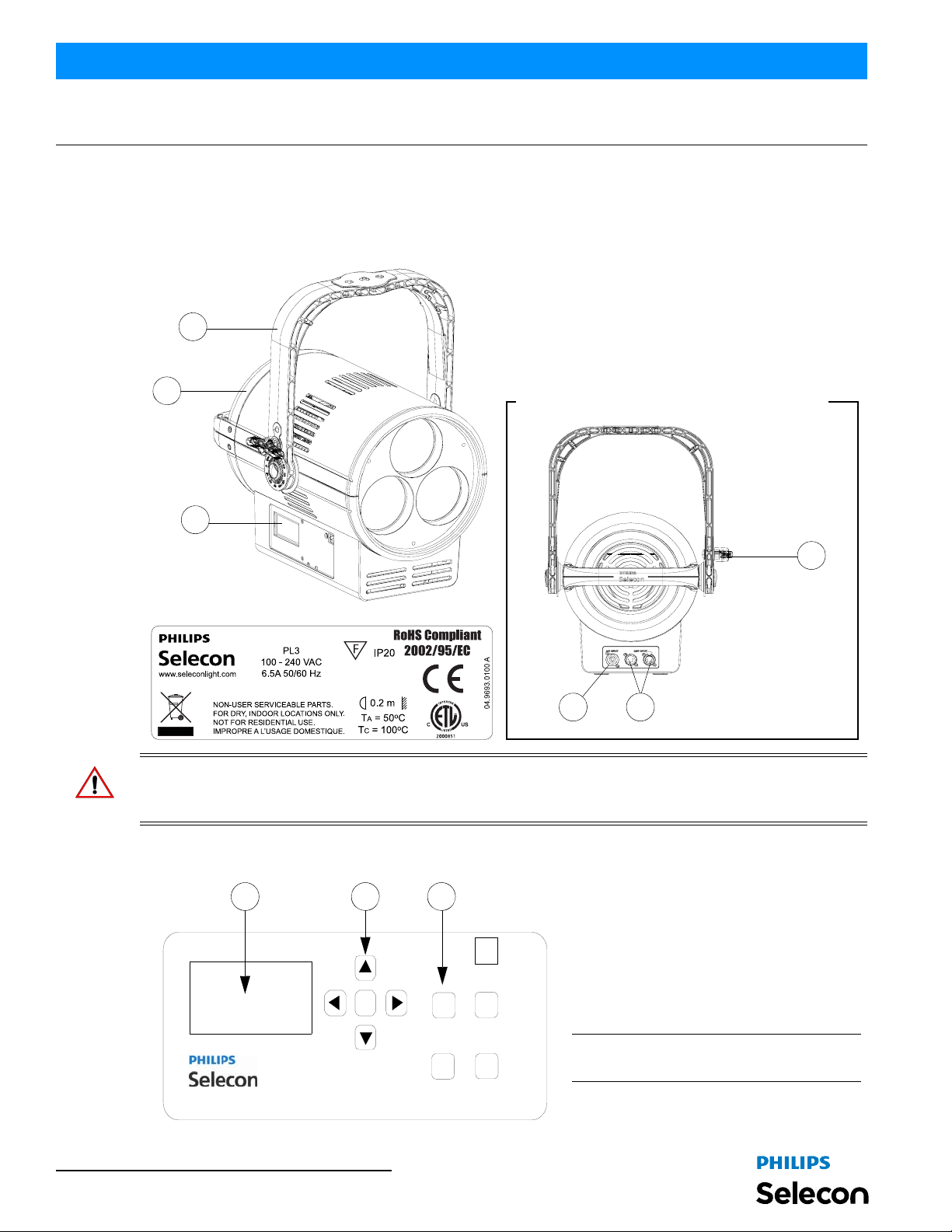

1. PL3 LED Luminaire Components

Luminaire Components

1) LCD Display Menu (see "LCD Display /

Menu" on page 4

2) Lens (Head) Assembly

3) Tilt Locking Knob

4) Yoke Assembly

5) DMX512 In/Out Connections (see detail)

6) Power Input Connection (PowerCon)

AC Input Power and DMX512 In / Out Connections

for more information)

Product Label (on yoke assembly)

WARNING! The PL3 luminaire produces heat. At an ambient temperature of 22o C, the exterior (rear metal grill) of

the luminaire reaches 51

C after 5 minutes; 55o C at steady state. In high ambient temperatures, the luminaire

temperature will be higher. Handle with care.

LCD Display / Menu

2 3

INTENSITY

ESC

Pan/Tilt

FOCUS

PRESET

1) LCD Display (Menu System)

2) Menu Navigation Buttons

3) Function (Menu System) Select Push Buttons / Intensity / Luminaire Focus / Preset Buttons

Note: For Menu operation and programming details, refer to "User Interface" on page 8.

4 PL3 LED LUMINAIRE OVERVIEW

Page 7

PL3 LED Luminaires

INSTALLATION AND SET UP

1. Power Requirements

The PL3 LED Luminaire operates on 120 to 240 volts AC (+/- 10%, auto-ranging). The luminaire contains an autoranging power supply. Depending on supply voltage, each luminaire can draw up to 4.60 amps.

2. Connecting Power

If the unit is supplied with an AC input cable (PL3BE), Table 1 describes how to connect power to your PL3 LED Luminaire. Field wiring of the PL3 LED Luminaire is straight forward. A total of 3 wires/conductors need to be brought to the unit. For detailed power specifications, see "PL3 LED Luminaire Specifications" on page 33. The following wiring scheme is required:

Table 1: PL3 LED Luminaire AC Input Connections

Wire Color Purpose

Brown Main / Line (120 to 240VAC)

Blue Neutral

Green/Yellow Ground / Earth

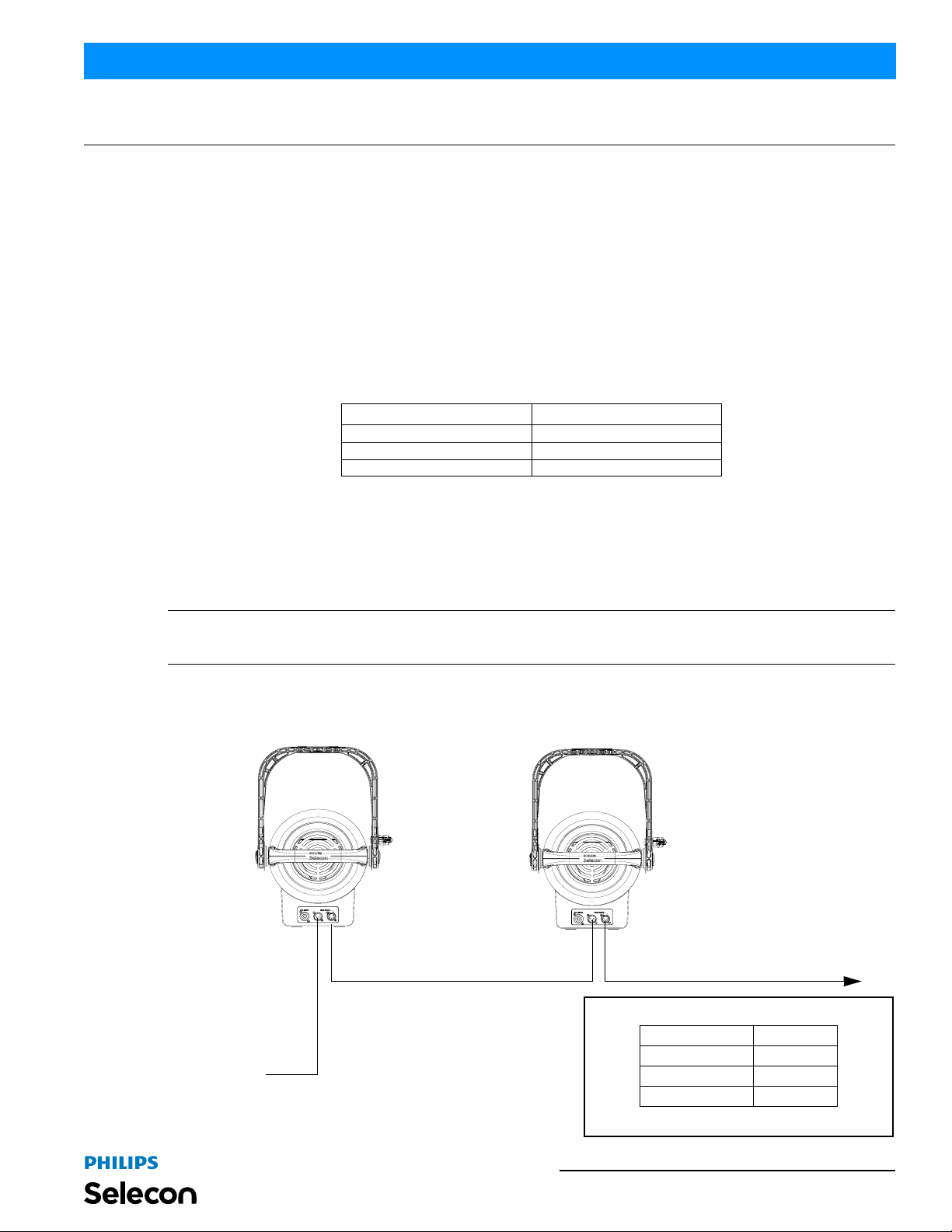

3. Connecting to the DMX512 Network

Installation & User’s Manual

Basic DMX512 installation consists of connecting multiple PL3 LED Luminaires together in "daisy-chai n" fashion. A cable runs from the control console (or DMX512 control source) to the DMX connector on the first PL3 LED Luminaire. Another cable runs from the other DMX connector on the first unit to a DMX connector on the next PL3 LED Luminaire (or DMX512 device to be controlled).

Note: For more information on DMX512 networking and systems, refer to "Additional Resources for DMX512" on

page 1. For PL3 LED Luminaire DMX Mapping, refer to "DMX CONTROL" on page 16.

PL3 LED Luminaires

DMX512 (out to the next luminair e or

DMX512 controlled device)

DMX512

(from console or control device)

DMX512 (out from first

to second luminaire)

DMX512 Connections

DMX512 Signal XLR Pin

Common (Drain) 1

DMX512 - 2

DMX512 + 3

Note: Remaining pins on each connector are not used.

Power Requirements 5

Page 8

Installation & User’s Manual PL3 LED Luminaires

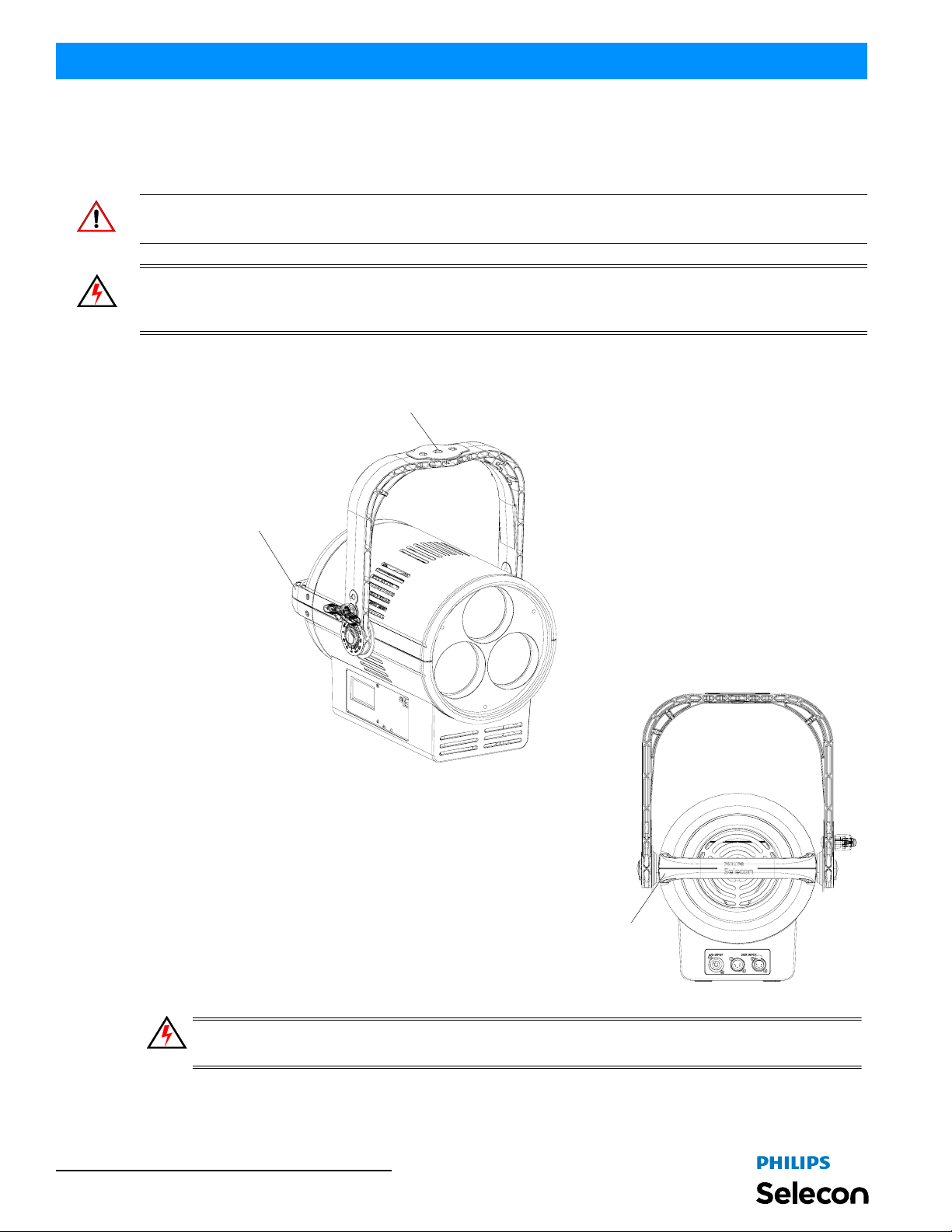

4. Mounting

PL3 LED Luminaires offer a plastic monocoque yoke design for mounting by theatrical clamps or hooks (sold separately).

Note: Do Not install the PL3 LED Luminaire using C-Clamp (82019 or USCLAMP). This Luminaire requires the longer bolt utilized in clamps Molded Yoke Rated C-Clamp (SC) or Mega Claw (MC).

WARNING! Before attempting any installatio n or service, disconnect all power at power source. T urning of f the luminaire does not disconnect power. Installation and service should only be performed by trained and qualified personnel. You must follow local and national codes for fixture installation.

1/2-inch (13 mm) Clamp Mounting Hole. Clamp sold sep arately. See “PL3 LED Luminaire Pan & Tilt Motor Kit / Clamps” chapter

Luminaire Handle

Rear View

Luminaire Handle

WARNING! Safety cable (integrated into the lumi naire handl e assembly) should be used per local or national code.

6 INSTALLATION AND SET UP

Page 9

PL3 LED Luminaires

5. Pan & Tilt Adjustments

WARNING! Before adjusting pan or tilt, the luminaire should be mounted per local and national safety codes.

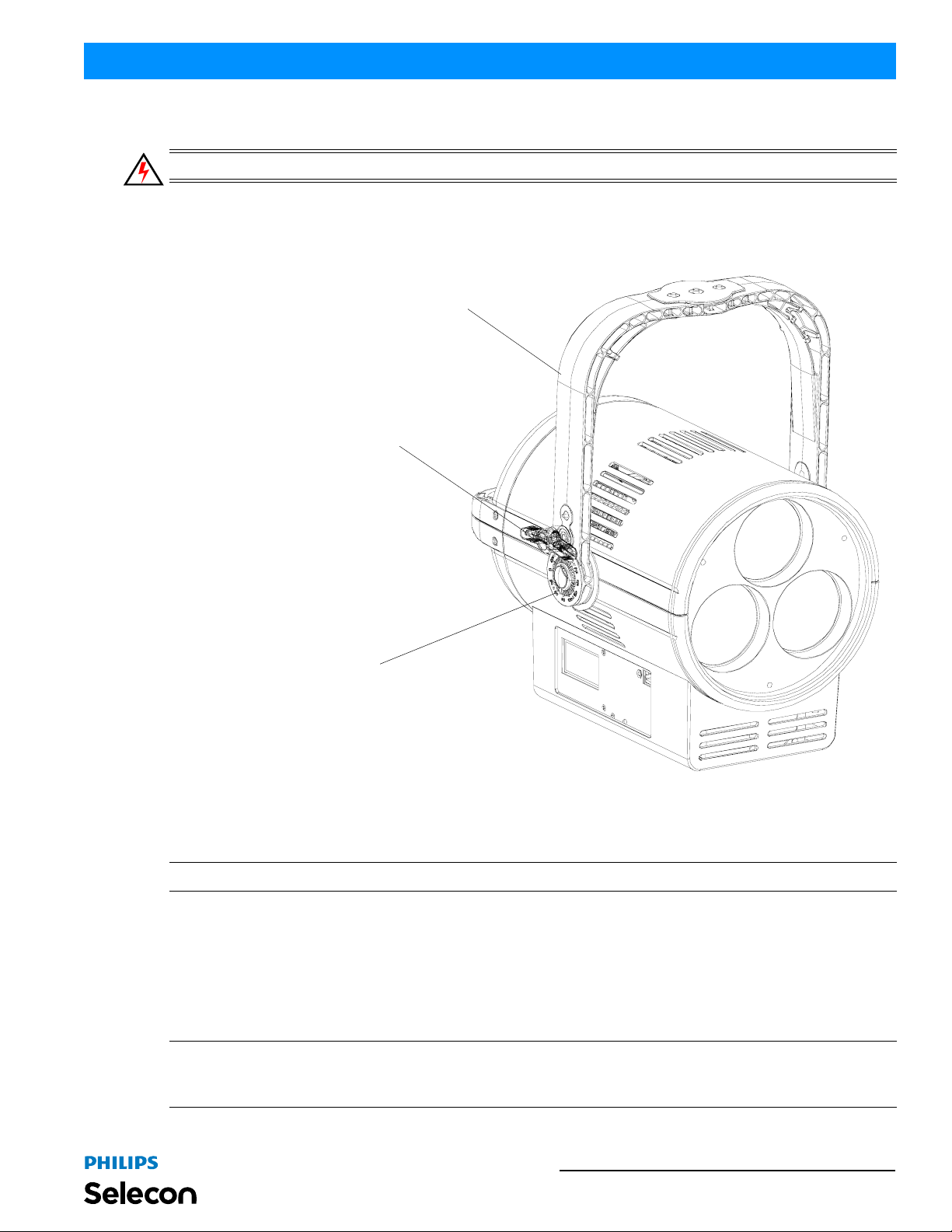

To ad just tilt: Step 1. Locate yoke lock handle, as illustrated in Figure 1, on side of yoke assembly.

Yoke Lock Handle

Installation & User’s Manual

Yoke Assembly

Luminaire Tilt Indicator

Figure 1: PL3 Yoke Lock Handle

Step 2. Loosen yoke lock handle by hand. Step 3. Position luminaire tilt (up or down) as desired.

Note: Each luminaire contains a tilt indicator near the yoke lock handle to allow setting of luminaires at same angle.

Step 4. Hand-tighten, but do not over tighten, yoke lock handle.

To adjust pan:

Step 1. Loosen, but do not remove, nut securing clamp to yoke assembly. Step 2. Position luminaire pan (left or right) as desired. Step 3. Retighten clamp nut.

Note: If Pan and Tilt Motors (PL3MKIT, sold separately) are installed, see "Focus Button (also for manual Pan &

Tilt control*)" on page 9 for manual control operation or "DMX CONTROL" on page 16 for DMX512 control

parameters.

Pan & Tilt Adjustments 7

Page 10

Installation & User’s Manual PL3 LED Luminaires

OPERATION AND PROGRAMMING

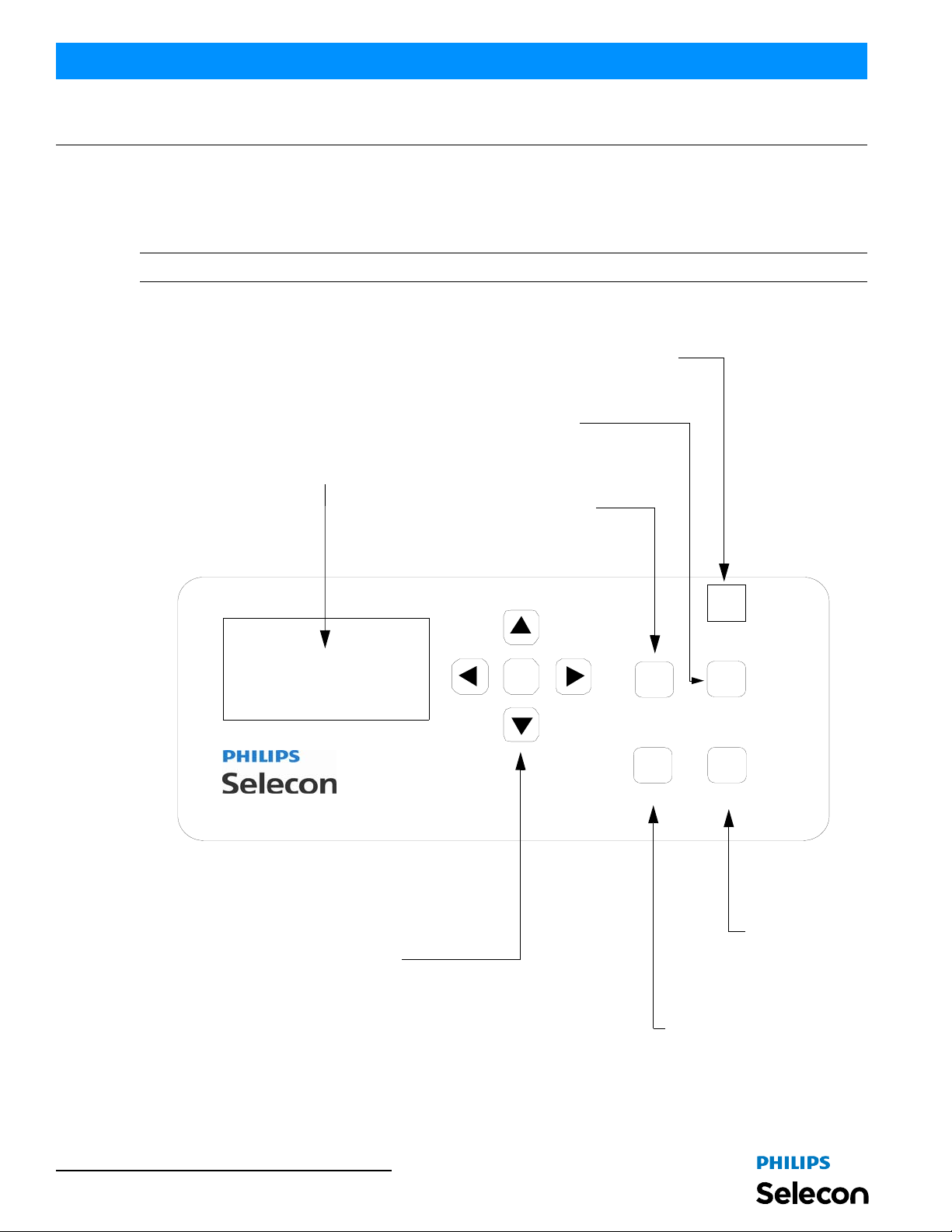

1. User Interface

The PL3 LED Luminaire’s LCD Display and Menu System provides local control for accessing all the fixture’s status information, menu options, and settings.

Note: If there are multiple luminaires in a system, changes would need to be made at each LCD Menu as desired.

Upon power up, the LCD will display the main screen showing the product type/name. If DMX is enabled, the programmed address will appear after power up.

Pan/Tilt Control Port -

(For use with PL3MKIT

- sold separately)

LCD Display Displays all menu parameters and option settings. Also displays DMX512 address (DMX models only).

Focus Button Allows adjustment of the luminaire’s lens zoom.

Intensity Button Allows the customization of current intensity (light output).

INTENSITY

Pan/Tilt

FOCUS

ESC

PRESET

Up/Down/Left/Right Arrow Buttons Navigates menu system and used for selecting and setting options.

OK (Enter) Button Accesses details, activates a field, or enters a setting depending on the current menu item.

8 OPERATION AND PROGRAMMING

PRESET Button Allows the recall of stored presets.

Menu / Escape Button Enters menu options. Navigates (backs up) one menu level.

Figure 2: LCD Display and Menu System

Page 11

PL3 LED Luminaires

2. Function Keys

These keys provide single touch access to commonly changed parameters of the fixture.

Intensity Button

Once pressed the [UP ARROW] or [DOWN ARROW] keys can be used to change the Intensity level of the Fixture's output. Press the [LEFT ARROW] or [RIGHT ARROW] keys to scroll between the primary colors to change their level. Press [OK] to save, or press [ESC] to Cancel changes; and exit.

Preset Button

Once pressed a list of available Presets is displayed, use the [UP ARROW] or [DOWN ARROW] keys to scroll to the desired Preset. The output changes to the levels stored in the Preset, as you scroll. Press [OK] to Exit and save, or press [ESC] to Cancel selection; and exit screen.

Focus Button (also for manual Pan & Tilt control*)

Note: * The Focus Button is also used to access manual control of Pan & Tilt operation (requires installation of PL3MKIT pan/Tilt Motor Kit - sold separately).

For manual Focus or Pan / Tilt control:

Step 1. At luminaire menu panel, press FOCUS button. Zoom Screen appears. Step 2. Use [UP ARROW] and [DOWN ARROW] keys to switch between ZOOM, PAN, or TILT screens. Step 3. Use [LEFT ARROW] or [RIGHT ARROW] keys to control ZOOM, PAN, or TILT setting s . Step 4. Press [OK] when adjustment is complete to exit screen.

Installation & User’s Manual

Note: For DMX512 Control of Zoom (Beam) or Pan / Tilt operation, see "DMX CONTROL" on page 16.

3. Fixture Status Screens

To navigate the Fixture Status Screens:

Press [LEFT ARROW] or [RIGHT ARROW] keys to scroll between the available Status Screens (Note: depending on scrolling direction Screens may appear in reverse order).

a. DMX Address (Note: If fixture is UNLOCKED, hit [OK] to change DMX address; Screen is not

displayed if DMX id disabled)

b. Fixture Hours (Displays fixture, outputting light, ON time) c. Fixture Power (Displays Present power to the LEDs (in watts)) d. Fixture Status (Displays, Current Preset, Temperature Status, LED Status, and Fan Status) e. Splash Screen (Displays Serial Number, Software version, and Status Icons)

Press [ESC] at anytime to access the Menu Options Note: The default Status Screen is DMX Address, if DMX is Enabled; otherwise the Splash Screen is the Default.

T o make one of the other screens the Default Screen, scroll to that screen and press [OK], a "tack" icon will appear to the right of the Screen's Name, at the top of the screen. Press [OK] again to remove "tack" and return to default operation.

Function Keys 9

Page 12

Installation & User’s Manual PL3 LED Luminaires

4. Menu Options

The menu provides access to numerous Screens to control the Fixtures operation and configuration.

• Press [MENU], while at one of the Status Screens to display the Menu List.

• Use the [UP ARROW] and [DOWN ARROW] keys to select the Menu option, then press [OK] to go to that sub screen.

• Press [ESC] to close the Menu without making a selection.

• Use the navigation keys to view and change in formation on the Sub Screen(s). Use [OK], or the appropriate "screen button", to save any changes; use [ESC], or the appropriate "screen button", to cancel changes.

Note: Depending on the security settings, certain menu items may be password protected. You must enter the PassPIN in order to access these items. Locked items will have a "Key" icon displayed next to them.

Menu Structure

MAIN MENU

Save as Preset

Sub Menu Options Comments

Users can:

• Save the current settings (look) to a specific recallable Preset in the fixture’s memory.

• Edit the levels (values) for Red, Green, Blue, White, and Intensity values (in percent%) by using the arrow buttons. Once the values are adjusted, the preset is saved as desired.

*Only intensities may be stored on White Color Temperature presets. RGBW in these presets cannot be edited or changed.

Select Preset to Save - (Option)

Scrolls and sets current user-defined color mix to various recallable presets in the fixture using arrow buttons.

Note: T o edit a current (set) preset, see Edit Presets.

Off

Scratch Pad

Warm White*

Cool White*

Day Light*

Preset X (5 through 31)

Continued next page

Note: See "To navigate the Fixture Status Screens:" on page 9 to learn how to access menus. To save changes, hit [OK]. Press [ESC] to cancel any changes you made.

10 OPERATION AND PROGRAMMING

Page 13

PL3 LED Luminaires

Menu Structure (continued)

Continued from previous page

Edit a Preset

Sub Menu Options Comments

Users can:

Select Preset to Edit - (Option)

Selects a current preset and outputs the preset, so preset can be edited.

Note: To save a specific look of the fixture, see Save Presets.

Off

Scratch Pad

Warm White*

Cool White*

Day Light*

Preset X (5 through 31)**

• Edit the current settings (look) to a specific recallable Preset in the fixture’s memory.

• Edit the values for Red, Green, Blue, White, and Intensity values (in percent%) by using the arrow buttons.

• Once the values are adjusted, the "Save Preset" menu option appears to save the edits.

NOTES: *Only intensities may be stored on White Color Temperature presets. RGBW in these presets cannot be edited or changed.

**If a Calibrated Preset's Color Mix is changed (5 thru 25), an asterisk '*' is appended to the end of the name to indicate that it has been modified. This only happens if the name matches the original calibrated name, stored in EEPROM. This does not happen if the Intensity is changed, only the color mix.

Installation & User’s Manual

Color Mix

Sub Menu Options Comments

Red

Users can:

• Edit Red, Green, Blue, White, and Intensity values (in percent%) by using the arrow buttons.

• Once the values are adjusted, press [OK] to save the edits.

Select Color or Intensity to Adjust -

(Option)

Green

Blue

White

Intensity

Fan Control

Sub Menu Options Comments

Highlight "Max" button and hit [OK] button on menu. Sets the maximum speed of the fan.

Level sets the fan to a const ant spee d (will not vary). Adjust level (on fan speed level bar) using Left and Right arrow buttons, highlight "Level" button in menu, and hit [OK] on menu to use user-defined level.

Select and Set Fan Speed - (Option)

Note, hit Cancel to cancel any changes you made.

Continued next page

Max

Level

Menu Options 11

Page 14

Installation & User’s Manual PL3 LED Luminaires

Menu Structure (continued)

Continued from previous page

Settings

Sub Menu Options Comments SETTINGS - (Option)

Scrolls and sets the various fixture settings using arrow buttons.

Lock Fixture

Sub Menu Options Comments

LOCK - Are you sure? Yes (to Lock Fixture) / No

Enter Password

Sub Menu Options Comments

Enter Pass PIN Enter four-digit password

See "Settings" on page14 for details.

Use arrow buttons to make selection. Press [OK] to accept. Note, a password must be established (set) in order to lock a fixture. Locking the fixture will disable access to changing menu settings.

For details, refer to "Security" on

page 12.

LED Status

Sub Menu Options Comments

Displays LED’s current status (in

LED Status Information

Scrolls through the various levels using arrow buttons as indicated on menu screen. Depending on the arrow button pressed, the screens may appear in a different order that shown in "Options".

LED 1

Levels

percentage%) of Intensity, Red, Green, Blue, and White elements of the LED). Also displays current color temperature (i.e., WARM WHITE), Fan Speed, operational LED junction temperature, power settings.

Displays DMX levels for each LED element (Red, Green, Blue, and White) and total power.

5. Security

Unwanted changes to the Fixture's Configuration or Setting can be controlled by setting a security level, or Locking the Fixture. Three levels of security are available in addition to completely Locking the Fixture.

PL3 luminaires are shipped with default passwords. Users may set their own password (four-digit number). When setting a password, write it down and keep it in a secure location. Note, Philips Selecon does not have records of passwords established by users or owners.

Note: Contact Philips Selecon technical support if a unit is locked and the password is lost for instructions on how to reset luminaire.

Note: If the Fixture is locked when it is powered down the fixture will remain in the locked state when powered up.

Passwords

Establishing or Changing Passwords

Step 1. At a Status Screen, press [MENU] and scroll to "Settings", press [OK]. Step 2. Go to the Security section.

12 OPERATION AND PROGRAMMING

Page 15

PL3 LED Luminaires

Step 3. Select a Level to change ( Level 1 PIN / Level 2 PIN / Level 3 PIN). Step 4. Press [OK] to edit using the [UP ARROW], [DOWN ARROW], [LEFT ARROW] or [RIGHT ARROW]

keys to enter a four-digit password (using 0 to 9).

Step 5. Press [OK] to save changes. If you hit [ESC] (Escape) password will not be stored and process must be

repeated.

Step 6. Password is set.

Note: The current security level is displayed next to the Security heading. Only Passwords at, or below, th at level will be displayed for modification. The level can be changed by entering a higher level Password on the "Enter PassPIN line directly below the Security heading, like Step 4 above.

Security Levels

Security Level Description Default PassPIN

Installation & User’s Manual

System is locked; the only key that is active is the Menu/ESC Key. When this key is pressed a PassPIN is requested.

Not Applicable

2 Editing and Saving of Presets is added to Level 1 functionality. 2222

3 Operationally the same as level 2, however all settings are available on the Settings screen. 3333

All keys are Active. You can select any Preset, and change Intensity, set DMX Address.

Locking Fixture

To lock the fixture:

Step 1. At a Status Screen, press [MENU] and scroll to "Lock Fixture". Step 2. Press [OK]. Step 3. Use [LEFT ARROW] or [RIGHT ARROW] keys to highlight "YES" ", press [OK]. Step 4. Fixture is now locked.

Note: When the Fixture is Locked only the [ESC]/[MENU] key is functional. Pressing this key will display a request for a password. When a valid password is entered the fixture is unlocked to the security level of the entered password.

6. Presets

Presets are Color Mixes that are stored in the Fixture, they can be recalled to reproduce a specific output from the fixture. Presets are made up of a Color Mix; Red, Green, Blue, and White. They also have Intensity associated with them.

Presets can be recalled via the User interface or by a DMX channel, when under DMX control. The Preset’s Intensity is applied if the User Interface is used; if DMX, the DMX Intensity channel is used for Intensity.

1111

Presets Types

Presets are classified as Locked, Protected, or User. The type of preset determines what aspects of the Preset can be modified.

Locked

Locked Presets are factory Calibrated, and their Color Mix cannot be changed by the user. Their Intensity can be changed. Three Presets (2-4), "Warm White', "Cool White", and "Day Light", are Locked.

Presets 13

Page 16

Installation & User’s Manual PL3 LED Luminaires

Preset 0, the "off" preset is also Locked to the OFF value.

Protected

Protected Presets are also Factory Calibrated, and by default are Protected from changes to their Color Mix. Their Intensity can be changed. Protected Presets are Presets 5-25. They can be Un-Protected by setting "Protected" to "No"; see section on Settings. If Un-Protected these presets function like User Presets.

The Factory Calibrated values for the protected presets can be re-loaded to the original factory calibration settings by setting "Load Factory" to "Yes" "; see section on Settings.

User

User Presets can have their Color Mix and Intensity changed without restriction.

Note: If the Color Mix of a Factory Calibrated Preset is changed, by turning protection Off, an '*' is appended to the end of the Preset's Name to indicate that the Calibrated values have been changed.

Editing Preset Names

On the Edit Preset screen, the option is available to edit the name of a preset, via Screen button. However, the names of Presets 0-4 cannot be edited.

Use the [LEFT ARROW] and [RIGHT ARROW] keys to select the character to be changed and use the [UP ARROW] and [DOWN ARROW] keys to change that character. The Character Scroll order is A-Z, space, 0-9. If you are scrolling up the Alpha character displays as Upper Case; if you are scrolling down the Alpha character displays as Lower Case. Stop on the character you want, ignoring case, then press the opposite [UP ARROW] or [DOWN ARROW] key if you want to change the case. [OK] to save changes, [ESC] to cancel changes.

7. Settings

The following Parameters can be changed on the Settings Screen. The first column "Security Level" is the minimum security level you have to be at before the l ine is displayed for

editing in the Settings screen. To edit a value on the Setting Screen, use the [UP ARROW] or [DOWN ARROW] keys to move the hi ghligh t to the

settings value you wish to change. Press [OK] to begin editing that value. Use the [UP ARROW], [DOWN ARROW], [LEFT ARROW] or [RIGHT ARROW] keys to make changes to the value. Press [OK] when complete to save changes, or [ESC] to cancel changes to that value.

When done making changes on the Settings Screen press [ESC] to re-boot fixture and implement changes. Fixture will not re-boot if nothing was changed.

Security Level Parameter Values Default Description

Security

3 Level 1 PIN 4-Digits (0 to 9) 1111 Sets Level 1 PassPIN

3 Level 2 PIN 4-Digits (0 to 9) 2222 Sets Level 2 PassPIN

Enter PassPIN

4-Digits (0 to 9) ****

There are 4 levels of security, this allows you to change the level while in the Settings Screen.

3 Level 3 PIN 4-Digits (0 to 9) 3333 Sets Level 3 PassPIN

3 Power-Up 1 - 3 or Locked 3

14 OPERATION AND PROGRAMMING

Security Level after Power-Up, if not Locked (Level 0)

Page 17

PL3 LED Luminaires

General

1 Power-Up

3 IR Enabled No, Yes Yes Turns IR/Laser detection On/Off

3 Reset Hours No, Yes No Resets luminaire’s operational hours.

Presets

3 Protected No, 5 - 25 Yes

3 Load Factory No, Yes No

DMX

3 DMX Enabled

1 Address 001 to 512 001

2 Map 8-bit, 16-bit, or 3-Chan 16-bit

2 When no DMX

Fan

3 Normal / Quiet Normal or Quiet Quiet

Off, Scratch Pad,

Warm White, Cool

White, Day Light,

Preset30, Preset31,

Last Set

No, Yes, or Wire less (if

equipped)

Off, Hold, Hold 8hr (8

hours), or Power-Up

Cool White

Yes

Hold

Installation & User’s Manual

When the Fixture Powers-Up what does it output. Scratch Pad is an automatically saved Preset. Last Set is the last thing coming out of the fixture, this could be Warm White with the intensity changed from that of the Preset.

Determines if the factory Calibrated Presets' Color Mix is protected from changes.

Reload Factory Calibrated Presets, Intensity changes will also be reloaded.

Enables or disabled DMX communication through the luminaires DMX512 ports. Sets the DMX feature to Wireless DMX (if wireless DMX option is installed - sold separately).

DMX512 address. Note, it can be set if displayed.

Defines size/precision of DMX map. Color Mixing/Intensity in 16-bit provides higher resolution for precision control. 3-Chan provides minimal channel usage.

If DMX is detected and then goes away, this defines what will happen to the output. At end of 8Hr hold Fixture goes to PowerUp setting.

NormalNormal - (Normal Mode) Normal Mode Provides higher cooling margin for thermally challenging applications. Recommended for full power (RGBW @ 100%) applications with large and numerous changes in power. Quiet (Quiet Mode) Quite Mode is similar to Normal mode, but it controls fan tightly to reduce fan noise.

3 Max% 0 to 100% 100 Sets the maximum fan speed

3 Min% 0 to 100% 1 Sets the minimum fan speed

Display

3 Flip Display No, Yes No Flips (inverts) Display and Keypad Arrows.

Note: To Exit the Settings screen, use the [ESC] key. [ESC] and [OK] can be used to cancel or save changes to an individual parameter. However, once a parameter has been accepted, by pressing [OK] that change cannot be undone/ canceled by pressing the [ESC] key.

Settings 15

Page 18

Installation & User’s Manual PL3 LED Luminaires

DMX CONTROL

This section contains information for operating the luminaire using DMX control in 16-Bit, 8-Bit, or 3-Channel (3Chan) modes. For Menu options and detailed information, see "Settings" on page 14.

Note: These tables assume a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence.

1. 16-Bit Mode

Table 2 provides DMX channel mapp ing of all DMX5 12 control values when the PL3 LED Luminaire is in 16-bit DMX512 mode (as set by the luminaire’s menu system).

Table 2: PL3 Luminaire DMX Channel Mapping (16-Bit Mode)

DMX

Channel

1 Intensity - High 2 Intensity - Low 3 Red - High Byte 4 Red - Low Byte 5 Green - High Byte 6 Green - Low Byte 7 Blue - High Byte 8 Blue - Low Byte 9 White - High Byte 10 White - Low Byte

12 Not used (for future use)

Parameter Range DMX Range%

Preset Color Selection

Notes:

• Color Presets 5 through 25 are calibrated factory colors and can be reloaded if needed through the fixture’s menu system.

• These colors have been matched to precise X and Y coordinates at the center of the beam at wide angle, we have given you the ability to adjust these colors as your personal perception may vary.

Default - recommended console

default values

0 - 65535 0 - 100% 0 16-bit control for Intensity of LED settings.

0 - 65535 0 - 100% 0 16-bit control of Red LEDs from 0 to full.

0 - 65535 0 - 100% 0 16-bit control of Green LEDs from 0 to full.

0 - 65535 0 - 100% 0 16-bit control of Blue LEDs from 0 to full.

0 - 65535 0 - 100% 0 16-bit control of White LEDs from 0 to fu ll.

0 - 255 0 - 100% 0

Description

Used to access presets stored in fixture firmware, such as CCT presets, defined gel presets, and more. No Preset Activated = DMX 0 - 3 Color Preset 0 (Off) = DMX 4 - 7 Color Preset 1 (Scratch Pad) = DMX 8 - 11 Color Preset 2 (Warm White) = DMX 12 - 15 Color Preset 3 (Cool White) = DMX 16 - 19 Color Preset 4 (Daylight) = DMX 20 - 23 Color Preset 5 (Arc White) = DMX 24 - 27 Color Preset 6 (Red) = DMX 28 - 31 Color Preset 7 (Yellow) = DMX 32 - 35 Color Preset 8 (Daylight Blue) = DMX 36 - 39 Color Preset 9 (Magenta) = DMX 40 - 43 Color Preset 10 (Kelly Green) = DMX 44 - 47 Color Preset 11 (Medium Amber) = DMX 48 - 51 Color Preset 12 (Lavender) = DMX 52 - 55 Color Preset 13 (Blue) = DMX 56 - 59 Color Preset 14 (Light Pink) = DMX 60 - 63 Color Preset 15 (Green) = DMX 64 - 67 Color Preset 16 (Pink) = DMX 68 - 71 Color Preset 17 (Amber White) = DMX 72 - 75 Color Preset 18 (Dark Fuchsia) = DMX 76 - 79 Color Preset 19 (Light Amber) = DMX 80 - 83 Color Preset 20 (Steel Blue) = DMX 84 - 87 Color Preset 21 (Lt. Green/Blue) = DMX 88 - 91 Color Preset 22 (Orange) = DMX 92 - 95 Color Preset 23 (Medium Pink) = DMX 96 - 99 Color Preset 24 (Cyan) = DMX 100 - 103 Color Preset 25 (Purple) = DMX 104 - 107 Color Preset 26 (Custom) = DMX 108 - 111 Color Preset 27 (Custom) = DMX 112 -115 Color Preset 28 (Custom) = DMX 116 - 119 Color Preset 29 (Custom) = DMX 120 - 123 Color Preset 30 (Custom) = DMX 124 - 127 Color Preset 31 (Custom) = DMX 128 - 131

16 DMX CONTROL

- Continued next page -

Page 19

PL3 LED Luminaires

Table 2: PL3 Luminaire DMX Channel Mapping (16-Bit Mode)

13 Intensity Time 0 - 255 0 - 100% 255

14 Color Time 0 - 255 0 - 100% 255

15 Control 0 - 255 0 - 100% 0

16 Beam 0 - 255 0 - 100%

Pan

(See "Pan & Tilt DMX

Operation Notes" on page 18 for more

information).

0 - 255 0 - 100%

- Continued next page -

DMX 127 (50%,

Motor Stop)

DMX 127 (50%,

Motor Stop)

Installation & User’s Manual

Allows for luminaire timing of intensity. Profile should default to DMX 255 for smoothest console fade times. Refer to "PL3 Luminaire DMX Timing Channel Detail" on page22 for more information on timing values.

Allows for luminaire timing of LEDs. Profile should default to DMX 255 for smoothest console fade times.Refer to "PL3 Luminaire DMX Timing Channel Detail" on page22 for more information on timing values.

Default Setting on Console = DMX 0 Display On/Off = DMX 3 - 4 Reset All to Defaults = DMX 5 - 7 Quiet Mode = DMX 11 - 13 Normal Mode = DMX 14 - 15 Preset 1 Store = DMX 20 - 21 Preset 2 Store (Intensity Only) = DMX 22 - 23 Preset 3 Store (Intensity Only) = DMX 24 - 25 Preset 4 Store (Intensity Only) = DMX 26 - 27 Preset 5 Store = DMX 28 - 29 Preset 6 Store = DMX 30 - 31 Preset 7 Store = DMX 32 - 33 Preset 8 Store = DMX 34 - 35 Preset 9 Store = DMX 36 - 37 Preset 10 Store = DMX 38 - 39 Preset 11 Store = DMX 40 - 41 Preset 12 Store = DMX 42 - 43 Preset 13 Store = DMX 44 - 45 Preset 14 Store = DMX 46 - 47 Preset 15 Store = DMX 48 - 49 Preset 16 Store = DMX 50 - 51 Preset 17 Store = DMX 52 - 53 Preset 18 Store = DMX 54 - 55 Preset 19 Store = DMX 56 - 57 Preset 20 Store = DMX 58 - 59 Preset 21 Store = DMX 60 - 61 Preset 22 Store = DMX 62 - 63 Preset 23 Store = DMX 64 - 65 Preset 24 Store = DMX 66 - 67 Preset 25 Store = DMX 68 - 69 Preset 26 Store = DMX 70 - 71 Preset 27 Store = DMX 72 - 73 Preset 28 Store = DMX 74 - 75 Preset 29 Store = DMX 76 - 77 Preset 30 Store = DMX 78 - 79 Preset 31 Store = DMX 80 - 81

Fixture Reset* = DMX 250 - 255 Controls zoom mechanism motor in 3 speeds,

forward and backwards as follows . . . Motor Stop = DMX 0 - 15 Motor <<< Fast = DMX 16 - 49 Motor << Medium = DMX 50 - 84 Motor < Slow = DMX 85 - 119 Motor Stop = DMX 120 - 135 Motor > Slow = DMX 136 - 170 Motor >> Medium = DMX 171 - 204 Motor >>> Fast = DMX 205 - 238 Motor Stop = DMX 239 - 255

Controls Pan motor in 3 speeds, forward and backwards as follows . . . Motor Stop = DMX 0 - 15 Motor <<< Fast = DMX 16 - 49 Motor << Medium = DMX 50 - 84 Motor < Slow = DMX 85 - 119 Motor Stop = DMX 120 - 135 Motor > Slow = DMX 136 - 170 Motor >> Medium = DMX 171 - 204 Motor >>> Fast = DMX 205 - 238 Motor Stop = DMX 239 - 255

16-Bit Mode 17

Page 20

Installation & User’s Manual PL3 LED Luminaires

Table 2: PL3 Luminaire DMX Channel Mapping (16-Bit Mode)

Controls Tilt motor in 3 speeds, forward and backwards as follows . . .

Tilt

(See "Pan & Tilt DMX

Operation Notes" on page 18 for more

information).

0 - 255 0 - 100%

DMX 127 (50%,

Motor Stop)

Motor Stop = DMX 0 - 15 Motor <<< Fast = DMX 16 - 49 Motor << Medium = DMX 50 - 84 Motor < Slow = DMX 85 - 119 Motor Stop = DMX 120 - 135 Motor > Slow = DMX 136 - 170 Motor >> Medium = DMX 171 - 204 Motor >>> Fast = DMX 205 - 238 Motor Stop = DMX 239 - 255

Pan & Tilt DMX Operation Notes

• PL3MKIT is an accessory and is sold separately. PL3MKIT must be installed in order to use this feature.

• Under DMX Control, the PAN and TILT are interlocked, you cannot move both at the same time. In order to move PAN, TILT and BEAM the level for each axis of movement must be set to 50% (DMX 127) to start. To initiate movement, from the starting point of 50% (DMX 127) the user must set values above or below this level. Increasing the value above 50% starts movement in one direction and entering a value below 50% moves the luminaire or the focus in the opposite direction. The greater the change in value the faster the luminaire will move (see table). To stop movement return the control to the 50%.

• The very ends of the DMX ranges 0-15 and 239-255, represent the end of travel stop ranges; if that range is entered you must return to 50% (DMX 127) before it will move again. This was done so that if a DMX control device uses sliders, 0 is stopped and moving back towards 50% (DMX 127) will not cause the fixture to move.

• All Strand Lighting Palette and Light Palette consoles feature fixture libraries to simplify control of these luminaires. The luminaire attribute map is published in this manual and has been provided to all console manufacturers to allow them to create fixture libraries. Contact your console manufacturer for a library if you do not have one in your control system.

18 DMX CONTROL

Page 21

PL3 LED Luminaires

Installation & User’s Manual

2. 8-Bit Mode

T able 2-1 provides DMX channel mapping of all DMX512 control values when the PL3 LED Luminaire is in 8-bit DMX512 mode (as set by the luminaire’s menu system).

Table 2-1: PL3 Luminaire DMX Channel Mapping (8-Bit Mode)

Default -

DMX

Channel

1 Intensity 0 - 255 0 - 100% 0 8-bit control for Intensity of LED setti ngs. 2 Red 0 - 255 0 - 100% 0 8-bit control of Red LEDs from 0 to full. 3 Green 0 - 255 0 - 100% 0 8-bit control of Green LEDs from 0 to full. 4 Blue 0 - 255 0 - 100% 0 8-bit control of Blue LEDs from 0 to full. 5 White 0 - 255 0 - 100% 0 8-bit control of White LEDs from 0 to full.

7 Not used (for future use)

8 Timing 0 - 255 0 - 100% 255

Parameter Range DMX Range%

Preset Color Selection

Notes:

• Color Presets 5 through 25 are calibrated factory colors and can be reloaded if needed through the fixture’s menu system.

• These colors have been matched to precise X and Y coordinates at the center of the beam at wide angle, we have given you the ability to adjust these colors as your personal perception may vary.

0 - 255 0 - 100% 0

recommended

console default

values

Description

Allows for timing control of both the intensity and color parameters. Channel should default to 255 for smoothest actions using console and/or manual fades. Refer to "PL3 Luminaire DMX

Timing Channel Detail" on page22 for more

information.

- Continued next page -

8-Bit Mode 19

Page 22

Installation & User’s Manual PL3 LED Luminaires

Table 2-1: PL3 Luminaire DMX Channel Mapping (8-Bit Mode)

Used to set different modes, parameters, and functions of the luminaire. Set control channel value for desired action. Hold value for at least 3 seconds. Set control channel value to 0 without any scaling. Default Setting on Console = DMX 0 Display On/Off = DMX 3 - 4 Reset All to Defaults = DMX 5 - 7 Quiet Mode = DMX 11 - 13 Normal Mode = DMX 14 - 15 Preset 1 Store = DMX 20 - 21 Preset 2 Store (Intensity Only) = DMX 22 - 23 Preset 3 Store (Intensity Only) = DMX 24 - 25 Preset 4 Store (Intensity Only) = DMX 26 - 27 Preset 5 Store = DMX 28 - 29 Preset 6 Store = DMX 30 - 31 Preset 7 Store = DMX 32 - 33 Preset 8 Store = DMX 34 - 35 Preset 9 Store = DMX 36 - 37 Preset 10 Store = DMX 38 - 39

9 Control 0 - 255 0 - 100% 0

10 Beam 0 - 255 0 - 100%

Pan

(See "Pan & Tilt DMX

Operation Notes" on page 18 for more

information).

Tilt (See "Pan & Tilt DMX

Operation Notes" on page 18 for more

information).

0 - 255 0 - 100%

DMX 127 (-50%,

Motor Stop)

DMX 127 (50%,

Motor Stop)

DMX 127 (50%,

Motor Stop)

- Continued next page -

Preset 11 Store = DMX 40 - 41 Preset 12 Store = DMX 42 - 43 Preset 13 Store = DMX 44 - 45 Preset 14 Store = DMX 46 - 47 Preset 15 Store = DMX 48 - 49 Preset 16 Store = DMX 50 - 51 Preset 17 Store = DMX 52 - 53 Preset 18 Store = DMX 54 - 55 Preset 19 Store = DMX 56 - 57 Preset 20 Store = DMX 58 - 59 Preset 21 Store = DMX 60 - 61 Preset 22 Store = DMX 62 - 63 Preset 23 Store = DMX 64 - 65 Preset 24 Store = DMX 66 - 67 Preset 25 Store = DMX 68 - 69 Preset 26 Store = DMX 70 - 71 Preset 27 Store = DMX 72 - 73 Preset 28 Store = DMX 74 - 75 Preset 29 Store = DMX 76 - 77 Preset 30 Store = DMX 78 - 79 Preset 31 Store = DMX 80 - 81

Fixture Reset* = DMX 250 - 255 Controls zoom mechanism motor in 3 speeds,

Controls Tilt motor in 3 speeds, forward and backwards as follows . . . Motor Stop = DMX 0 - 15 Motor <<< Fast = DMX 16 - 49 Motor << Medium = DMX 50 - 84 Motor < Slow = DMX 85 - 119 Motor Stop = DMX 120 - 135 Motor > Slow = DMX 136 - 170 Motor >> Medium = DMX 171 - 204 Motor >>> Fast = DMX 205 - 238 Motor Stop = DMX 239 - 255

20 DMX CONTROL

Page 23

PL3 LED Luminaires

Installation & User’s Manual

3. DMX 3-Channel (3-Chan) Mode

T able 2-1 provides DMX channel mapping of all DMX512 control values when the PL3 LED Luminaire is in 3Channel (3-Chan) DMX512 mode (as set by the luminaire’s menu system).

Table 2-2: PL3 Luminaire DMX Channel Mapping (3-Chan Mode)

Default -

DMX

Channel

1 Intensity 0 - 255 0 - 100% 0 8-bit control for Intensity of LED setti ngs.

3 Timing 0 - 255 0 - 100% 255

Parameter Range DMX Range%

Preset Color Selection

Notes:

• Color Presets 5 through 25 are calibrated factory colors and can be reloaded if needed through the fixture’s menu system.

• These colors have been matched to precise X and Y coordinates at the center of the beam at wide angle, we have given you the ability to adjust these colors as your personal perception may vary.

0 - 255 0 - 100% 0

recommended

console default

values

Description

Allows for timing control of both the intensity and color parameters. Channel should default to 255 for smoothest actions using console and/or manual fades. Refer to "PL3 Luminaire DMX

Timing Channel Detail" on page22 for more

information.

DMX 3-Channel (3-Chan) Mode 21

Page 24

Installation & User’s Manual PL3 LED Luminaires

4. Lighting Console Settings for Preset White

16-Bit Mode

Below are the DMX512 console values and levels* for Warm White, Cool White, and Day Light presets in 16-bit mode.

Red Channel Green Channel Blue Channel White Channel

White Preset

Warm White 65535 100 36700 56 0 0 47185 72

Cool White 65535 100 41287 63 8520 13 61603 94

Day Light 65535 100 53739 82 26214 40 58982 90

8-Bit or 3-Channel Modes

Below are the DMX512 console values and levels* for Warm White, Cool White, and Day Light presets in 8-bit or 3Channel modes.

White Preset

DMX

Value

DMX

Value

DMX%

Red Channel Green Channel Blue Channel White Channel

DMX%

DMX

Value

DMX

Value

DMX%

DMX

Value

DMX

Value

DMX%

DMX

Value

DMX

Value

DMX%

Warm White (3200K) 255 100 163 64 0 0 217 85

Cool White (4000K) 255 100 194 76 46 18 255 100

Day Light (5600K) 255 100 237 93 130 51 255 100

Note: *Values and levels shown for Preset White (in 16-Bit, 8-Bit, or 3-Channel modes) are approximate. Due to the characteristics of LED technology, actual values may vary slightly between fixtures.

5. PL3 Luminaire DMX Timing Channel Detail

Timing channel control improves the timed moves of certain groups of parameters. The PL3 LED Luminaire provides two timing channels in 16-bit mode (one for intensity time and one for color time) and one timing channel in 8-b it (color and intensity timing combined). The luminaire uses its timing channel value to calculate a smooth continuous operation for a given time and transition.

Guidelines:

• Timing channels support time values from zero to 169 seconds.

• To use a timing channel instead of console timing, it is recommended to set the timing channel to the desired value and set cue and/or console cue fade time to zero. A combination of time controls can produce unexpected results.

• The default value setting in the profile should be 255 (proportional control) to allow smooth operation when using console timing.

• The timing chan nel dat a sho uld change as a snap. A zero value will give the fastest operation, however, without any smoothing this can appear "steppy" in console timed moves.

Refer to "PL3 Luminaire Timing Channel Detail" on page 23 for more information.

22 DMX CONTROL

Page 25

PL3 LED Luminaires

Installation & User’s Manual

Table 3: PL3 Luminaire Timing Channel Detail

% Value DMX = Seconds

0 0 (Full Speed)

10.2

20.4

130.6

40.8

251

61.2

71.4

381.6

91.8

4102

11 2.2 12 2.4

5132.6 14 2.8

6153

16 3.2 17 3.4

7183.6 19 3.8

8204

21 4.2 22 4.4

9234.6 24 4.8

10 25 5

26 5.2 27 5.4

11 28 5.6

29 5.8 30 6

12 31 6.2

32 6.4

13 33 6.6

34 6.8 35 7.0

14 36 7.2

37 7.4

15 38 7.6

39 7.8 40 8

16 41 8.2

42 8.4

17 43 8.6

44 8.8 45 9

18 46 9.2

47 9.4

19 48 9.6

49 9.8 50 10

20 51 10.2

PL3 Luminaire DMX Timing Channel Detail 23

Page 26

Installation & User’s Manual PL3 LED Luminaires

% Value DMX = Seconds

52 10.4 53 10.6

21 54 10.8

55 11

22 56 11.2

57 11.4 58 11.6

23 59 11.8

60 12

24 61 12.2

62 12.4 63 12.6

25 64 12.8

65 13

26 66 13.2

67 13.4 68 13.6

27 69 13.8

70 14

28 71 14.2

72 14.4 73 14.6

29 74 14.8

75 15

30 76 15.2

77 15.4 78 15.6

31 79 15.8

80 16 81 16.2

32 82 16.4

83 16.6

33 84 16.8

85 17 86 17.2

34 87 17.4

88 17.6

35 89 17.8

90 18 91 18.2

36 92 18.4

93 18.6

37 94 18.8

95 19 96 19.2

38 97 19.4

98 19.6

39 99 19.8

100 20 101 21

40 102 22

103 23 104 24

41 105 25

24 DMX CONTROL

Page 27

PL3 LED Luminaires

Installation & User’s Manual

% Value DMX = Seconds

106 26

42 107 27

108 28 109 29

43 110 30

111 31

44 112 32

113 33 114 34

45 115 35

116 36

46 117 37

118 38 119 39

47 120 40

121 41

48 122 42

123 43 124 44

49 125 45

126 46 127 47

50 128 48

129 49

51 130 50

131 51 132 52

52 133 53

134 54

53 135 55

136 56 137 57

54 138 58

139 59

55 140 60

141 61 142 62

56 143 63

144 64

57 145 65

146 66 147 67

58 148 68

149 69

59 150 70

151 71 152 72

60 153 73

154 74 155 75

61 156 76

157 77

62 158 78

159 79

PL3 Luminaire DMX Timing Channel Detail 25

Page 28

Installation & User’s Manual PL3 LED Luminaires

% Value DMX = Seconds

160 80

63 161 81

162 82

64 163 83

164 84 165 85

65 166 86

167 87

66 168 88

169 89 170 90

67 171 91

172 92

68 173 93

174 94 175 95

69 176 96

177 97 178 98

70 179 99

180 100

71 181 101

182 102 183 103

72 184 104

185 105

73 186 106

187 107 188 108

74 189 109

190 110

75 191 111

192 112 193 113

76 194 114

195 115

77 196 116

197 117 198 118

78 199 119

200 120

79 201 121

202 122 203 123

80 204 124

205 125

81 206 126

207 127 208 128

82 209 129

210 130 211 131

83 212 132

213 133

26 DMX CONTROL

Page 29

PL3 LED Luminaires

% Value DMX = Seconds

84 214 134

215 135 216 136

85 217 137

218 138

86 219 139

220 140 221 141

87 222 142

223 143

88 224 144

225 145 226 146

89 227 147

228 148 229 149

90 230 150

231 151

91 232 152

233 153 234 154

92 235 155

236 156

93 237 157

238 158 239 159

94 240 160

241 161

95 242 162

243 163 244 164

96 245 165

246 166

97 247 167

248 168 249 169

98 250* 60mS

251* 80mS

99 252* 100mS

253* 120mS 254* 140mS

100

255*

(default)

160mS

Installation & User’s Manual

Note: * DMX values 250 to 255 provide smoothing when using console fade timing. DMX value 255 (recommended default) will provide the smoothest timing.

PL3 Luminaire DMX Timing Channel Detail 27

Page 30

Installation & User’s Manual PL3 LED Luminaires

INFRARED REMOTE CONTROL

1. Infrared Remote Control Overview

The PL3IRR infrared preset programming remote (sold separately) allows users convenient access to adjust and program luminaire parameters - presets (1 through 6 and Off), intensity, preset color temperatures, zoom/focus control, or full color mixing from the floor. Before using the remote, please familiarize yourself with all available controls shown in Figure 3.

Infrared Remote Control Features

Laser / IR Window -

Program Enter - Press ENTER to set the

luminaire to Luminaire Select. Laser (Luminaire Selector) - Press

LASER to select individual luminaire for programming / adjustment.

Exit - Press EXIT to exit programming mode.

Preset (White Color Temperature) Allows selection of Warm, Cool or Day

color temperatures. Note, only intensities may be stored

on White Color Temperature presets. These presets cannot be edited or changed

Laser and IR programming emits from this end.

PL3IRR LED (indicator) The LED indicator will flash each time

a button is pressed.

Intensity Raise/Lower Press top button to raise intensity and

bottom button to lower it. Tap the up for 2% increase or tap down for a 1% decrease. Press and hold (top or bottom button) for sequential raise/ lower.

Individual LED Color Adjustment Allows the raising or lowering of

individual LED colors. Press top button to change color and bottom button to lower it. Tap the up for 2% increase or tap down for a 1% decrease. Press and hold (top or bottom button) for sequential raise/ lower.

Presets (6 Levels or Off) Allows selection and programming of

one of six Presets (1 through 6) or Preset Off.

Notes:

• Preset Off cannot be edited or changed.

• Presets 1 through 6 on remote control (equate to) Presets 5 through 10 on PL3

LASER RADIATION DO NOT STAREINTO BEAM CLASS 2 LASER PRODUCT

LASER DIODE WAVELENGTH: 630 - 680 nm MAX OUTPUT: <5 mW

28 INFRARED REMOTE CONTROL

Zoom Allows for adjustment of the fixture’s

zoom assembly for focusing.

Note: Pan / Tilt controls for future use.

Learn After adjustments are made, the Learn

button (in conjunction with a preset button) stores the new settings to a specific preset if desired.

Cancel Cancels the learn features (any

programming made will not be recorded) RGBW will not be changed.

WARNING! THIS DEVICE IS A CLASS 2 LASER. DO NOT STARE OR LOOK DIRECTLY INTO BEAM.

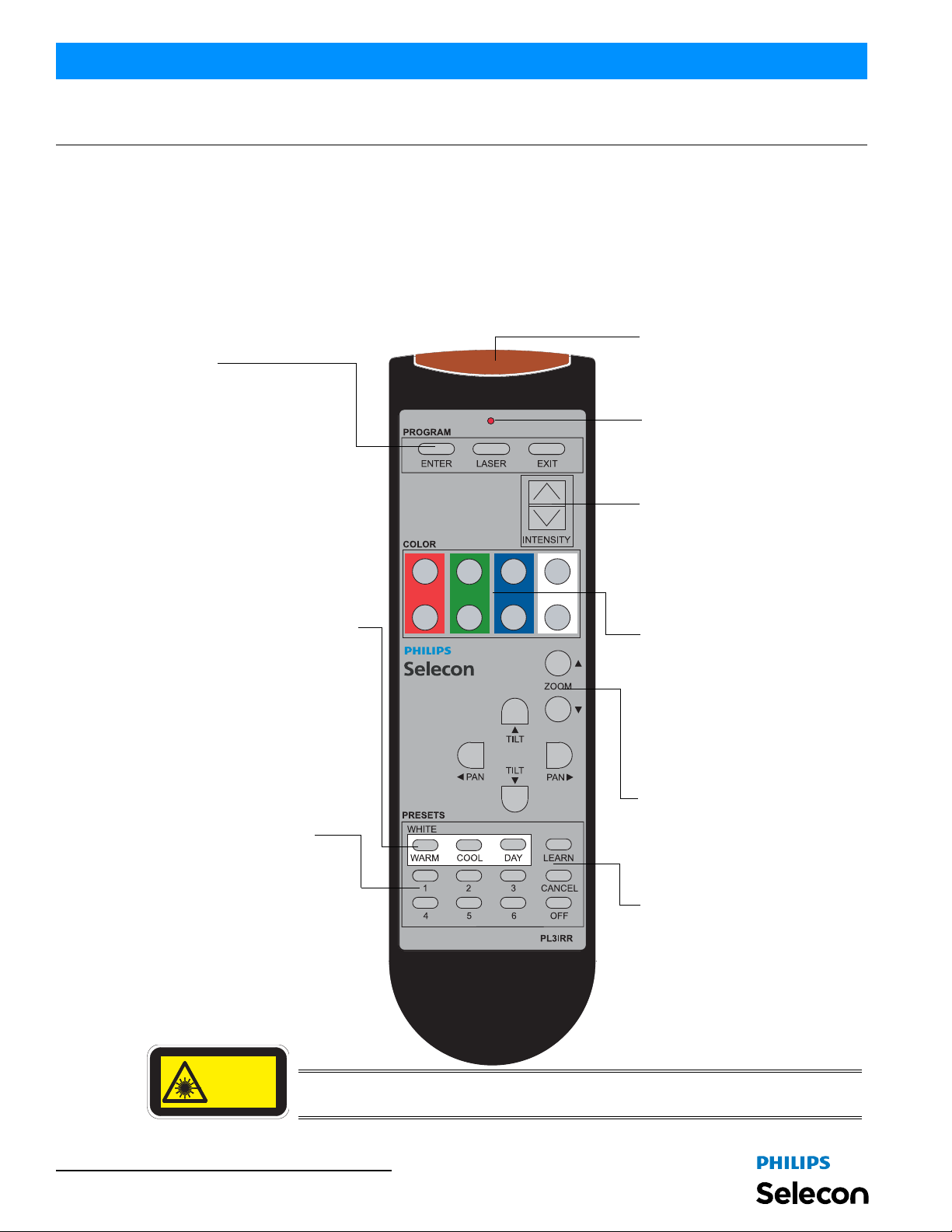

Figure 3: PL3IRR Programming Remote

Page 31

PL3 LED Luminaires

To select and program PL3 LED lumina ire with PL3IRR remote:

Note: The IR, on the PL3 LED luminaire, must be set to "Enabled" in order for the PL3IRR remote to communicate

and control the fixture. Each luminaire to be programmed/adjusted needs to be selected and programmed/adjusted individually.

Step 1. Aim PL3IRR programming remote (as shown in Figure 4) and press "Enter" button. Luminaire will flash an

LED (at bottom of unit) to provide a target for the laser to aim at. Luminaire will look for laser beam (from PL3IRR) to enter selected mode.

Installation & User’s Manual

PL3 LED Luminaire

PL3 Luminaire IR Port

(located underneath luminaire)

PL3IRR Remote Control

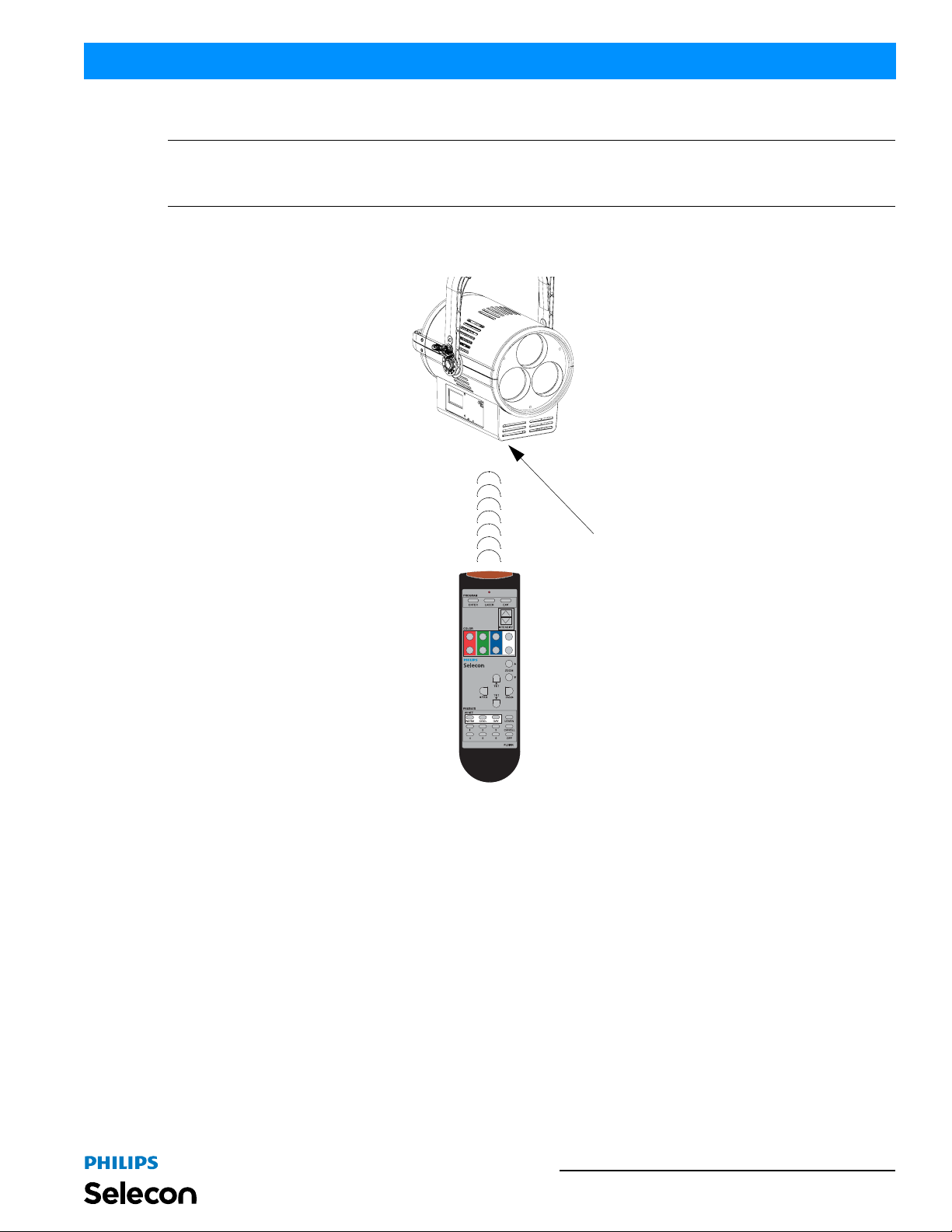

Figure 4: PL3 LED Luminaire Programming / Control

Step 2. Point PL3IRR remote directly at luminaire IR window and press "Laser" button. Luminaire to be

programmed or adjusted is now selected.

Note: At luminaire IR port, a Blue LED will illuminate when the fixture is in programming mode and blink Red when buttons are pressed on IR remote to confirm it sees the remote and is receiving commands.

Step 3. Set luminaire to preset or make adjustments as desired. Step 4. To save settings, press "Learn" button and then press any Preset button (except Off . Off cannot be

programmed). Preset is now saved. To cancel programming, press "Cancel" button.

Step 5. After programming or adjustments are complete, press "Exit" button. Repeat, as desired, on additional

luminaires to be programmed/adjusted.

Infrared Remote Control Overview 29

Page 32

Installation & User’s Manual PL3 LED Luminaires

CLEANING AND CARE

WARNING! All cleaning should be performed wi th power completely removed from the luminaire. Never remove protective covers. Wear appropriate protective eye wear and gloves when cleaning the fixture. All service and maintenance, other than described herein, should be performed by qualified personnel or Authorized Service Center.

1. Special Cleaning and Care Instructions

Being a solid-state fixture, the PL3 LED Luminaire requires very little routine mainten ance by the user. This section covers portions of the luminaire that can be removed for cleaning.

The PL3 Luminaire requires special care when it comes to cleaning the front lens assembly. Additional care needs to be taken with the plastic components because they are much easier to scratch or damage than glass.

WARNING! Do not use acidic solutions, such as ammonia-based cleaners, acetone, or other harsh solvents on or near the PL3 LED Luminaire. These types of cleaners and solvents will attack the luminaire’s polymers and will permanently damage the optics or housings of the fixture.

The following is a list of cleaning materials required to care for your PL3 LED Luminaire:

• Lint free lens tissue

• Lint or powder free gloves

• Mild soap solution com prised of 1 to 2% mild detergent and 98 - 99% distilled water. If mild soap solution does not clean after several attempts, reagent grade isopropyl alcohol may be used.*

Note: *Reagent grade isopropyl alcohol is good to use on the PL3 LED Luminaire plastic optics with anti-reflection coatings.

If the lens is still dirty after using isopropyl alcohol, for instance if fingerprints or oil is just redistributed and not cleaned off the optic, then a mild soap and water solution can be used to gently wash the lens. Repeat the cleani ng with isopropyl alcohol to eliminate streaks and soap residue.

If you have any questions regarding the use or care of you r PL3 LED Luminaire, please contact Philips Selecon technical support or your local Authorized Dealer.

2. Lens Cleaning

Front Lens (Exterior)

To clean the exterior front lens:

Step 1. Turn off luminaire and allow to cool completely. Step 2. Apply a small amount of reagent grade isopropyl alcohol to lint-free lens tissue. Step 3. Wipe all debris, dirt, fingerprints, etc. from lens. Step 4. Using a second lint-free lens tissue, wipe off any alcohol residue.

30 CLEANING AND CARE

Page 33

PL3 LED Luminaires

3. Service and Maintenance

For all other service and maintenance issues, please contact your local Philips Selecon office or an Authorized Service Center.

WARNING! Disassembly, alterations, unauthorized service, etc. will void the product warranty. There are no userserviceable parts in this product. Contact your local Philips Selecon office or an Authorized Service Center for technical support and service.

4. Accessories

Only Philips Selecon approved accessories should be used with your PL3 LED Luminaire. For a list of available accessories from Philips Selecon, please see "ACCESSORIES" on page 3. For questions regarding accessories, please contact your local Authorized Philips Selecon Dealer or Philips Selecon office.

Installation & User’s Manual

Service and Maintenance 31

Page 34

Installation & User’s Manual PL3 LED Luminaires

TROUBLESHOOTING

1. Troubleshooting Guide

The chart below provides possible causes and remedies for various error messages and/or symptoms.

WARNING! Any service and maintenance (i nclud ing troubleshooting), other than described herein should be performed by an Authorized Philips Selecon Dealer or Service Center. The PL3 LED Luminaire contains no userserviceable parts.

Description Symptom Possible Cause/Remedy

No light output.

No power at luminaire. Luminaire does not power up

DMX Data Control.

IR remote programming.

LED (light) is getting dimmer.

Local programming.

Pan & Tilt Movement.

(Note, PL3MKIT, sold separately, must be installed)

Fixture will not produce or output light

Fixture will not respond to DMX commands.

Fixture will not respond to IR remote programming unit.

Fixture appears not to be operating at full brightness.

Unit will not allow local programming or changes.

Unit will not follow Pan and/or Tilt Commands.

Unit is set to Preset Off... Make sure unit is set to proper Preset. DMX command to 0 intensity... Adjust intensity to higher level.

Circuit not energized... verify circuit breaker is turned on. Not plugged in... ensure A/C cable is connected to power source. Power cable wired incorrectly. .. verify power cable and connector are wired correctly. See "Connecting Power" on page5 for more information.

Not detecting DMX data... Disconnect and reconnect DMX input cable. Unit is not set to be controlled by DMX - check menu settings. Check all DMX connections (at control source and luminaire). DMX data cable not wired correctly or has a broken conductor... check DMX data cable for proper wiring. See "Connecting to the DMX512 Network" on page5 for more information.

Luminaire not selected by laser... Reselect luminaire by repeating luminaire selection step. Not seeing IR remote control... Make sure batteries are good in remote. Try fresh, fully ch arged batteries. Make sure IR is enabled in the fixture menu. Insure IR remote is pointing at IR window in luminaire and that the re is nothing in between IR remote and luminaire IR window. Clean luminaire IR window.

Luminaire has detected an over temperature condition... The luminaire will reduce power to its LED if it senses that the LED is operating over the specified temperature. LED temperature is read and recorded through a thermistor imbedded in the LED chip. Fan is not operating. Listen for fan operation or adjust settings to increase fan speed. On luminaires with a display check system status menu for status of fans and LED operation.

Password protection is on (locked)... Input proper password to allow local programming and/or adjustments. Unit is controlled by DMX or Vision.net... Disconnect input cables to check issue.

Unit is not DMX enabled... Disconnect and reconnect DMX input cable. Unit is not set to be controlled by DMX - check menu settings. Check all DMX connections (at control source and luminaire). DMX data cable not wired correctly or has a broken conductor... check DMX data cable for proper wiring. See "Connecting to the DMX512 Network" on page5 for more information. See "Pan & Tilt DMX Operation Notes" on page 18 for more information on Pan and Tilt settings. Refer to PL3MKIT installation guide for more information.

32 TROUBLESHOOTING

Page 35

PL3 LED Luminaires

TECHNICAL SPECIFICATIONS

1. PL3 LED Luminaire Specifications

Source: 3 Each, True RGBW 120 Watt LED chips Beam Spread: 15 to 55 degrees Light Output: > 6,000 lumens Color Temperature: 3000 - 5600K (user adjustable) Input Voltage: 120V to 240V (+/- 10%, auto-ranging) Current: 4.60 Amps (120V) / 2.35 Amps (240V) Frequency: 50/60Hz Ambient Temperature: 0 to 50 degrees C (32 to 122 degrees F) Humidity: 5%-95% Non condensing Cooling: Forced-Air Weight: 22.1 lbs (10.1 kg) - Luminaire only (no accesso ries) Compliance: ETL / cETL Listed (North America models) and CE Marked (International models)

Note: For complete model specifications, features, and accessories, refer to the product specification sheet or visit the Philips Selecon web site at www.seleconlight.com for more details.

Installation & User’s Manual

2. PL3 LED Luminaire Dimensions

Dimensions

9.75 in /

247.7 mm

18.7 in /

475.0 mm

13.5 in /

343.0 mm

12.4 in /

315.0 mm

167.6 mm

6.6 in /

11.2 in /

284.5 mm

14.1 in /

358.1 mm

16.4 in /

416.6 mm

12.2 in /

310.0 mm

PL3 LED Luminaire Specifications 33

Page 36
