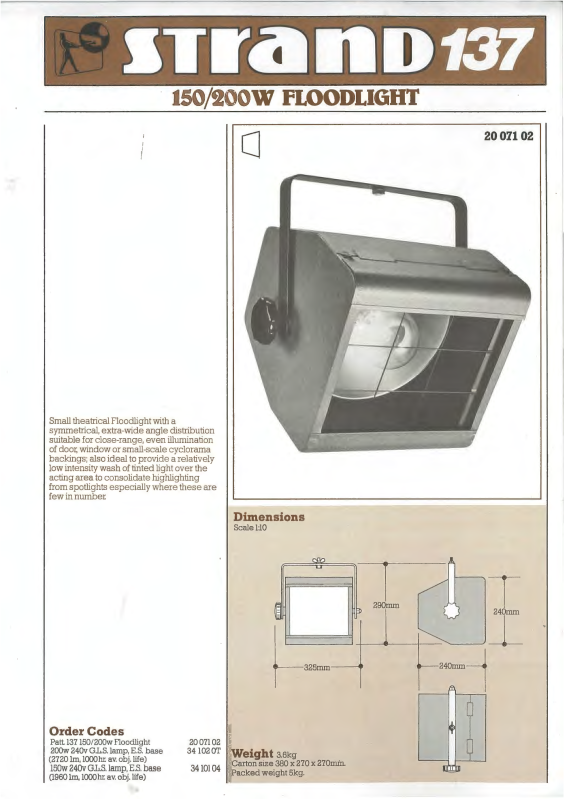

1S0/200W FLOODLIGHT
[]
2007102
Small theatrical Floodlight with a
symmetrical, extra-wide angle distribution
suitable for close-range, even illuminatio n
of door, window or small-scale cyclorarna
backings; also ideal to provide a relatively
low intensity wash of tinted light over the
acting area to consolidate highligh ting
from spotlights especially where these are
few in number:
Dimensions
Scale 1:10
Order Codes
Patt 137 150/200w Floodlight
200w 240v G.L.S. lamp, E.S. base
(2720 lm, 1000hr: av. obj. life)
150w 240v G.L.S. lamp, E.S. base
(1960 lm, 1000hr. av. obj. life)
2007102
34102 OT
3410104
Weight 3.6kg
Carton size 380 x 270 x 270mm .
Pac k e d weig ht 5kg.
2007102
Performance
Typical performance , base d upon
200w 240v General Lighting Service lamp,
Single coil filament, 2720 lm. ,
½ peak angle 80"
1/10 p eak angle 110"
825 peak cand ela
(cd)
1000
800
600
ed.
400
200
0 10"
Degrees from axis
_ .....
/"
20" 300 40"
'\_
"
Specification
Lamphouse
Presse d stee l housing with sprung-c losed
hinged lid over colour runners .
Fork
Mild steel, reversible, with handgrip knob for
tilt clamp. Fork threaded and supplied with
· 3/s-in. Whit bolt, washer and wingnut for
suspension and swivel clamp .
Lampholder
E.27 (E.S.) Porcelain body, fitted with lm
external length of 3 xl.5mm
toughened silicone rubber insulated and
sheathed flexible cable secured by a strain-
relief gland.
Reflector
215mm diameter; etched and anodised
\
\
\
i\.
'\
'
"
500
aluminium mounted on spring steel spider.
Colour Frame
Top-access double internal runners, with
sprung-closed hinged lid; one 210 x 235mm
colour frame supplied for 'Cinemoid'.
Finish
High temperature stoved texture black.
Lamps
60"
200w or 150w E.27 (E.S.) base, General
Lighting Service , clear .
Accessories
Additional 'Cinemoid' colour frame 27 240 09
2
conductor,
The Company reserves the nght to make any
variation in design or construction to the
equipment described
Rank Strand Elec tric
A Division of Rank Audio Visual Limited
P.O. Box 51, Great West Road
Bre ntford, Middlesex TW8 9HR
Telephone: 01-568 9222 Telex: 27976
