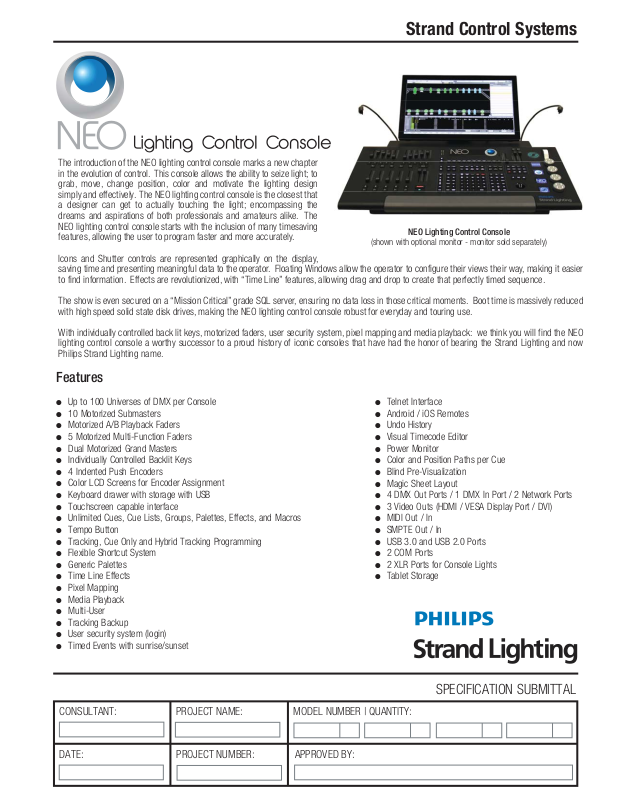

Strand Neo Console Datasheet

Strand Control Systems

The introduction of the NEO lighting control console marks a new chapter
in the evolution of control. This console allows the ability to seize light; to
grab, move, change position, color and motivate the lighting design
simply and effectively. The NEO lighting control console is the closest that
a designer can get to actually touching the light; encompassing the
dreams and aspirations of both professionals and amateurs alike. The
NEO lighting control console starts with the inclusion of many timesaving
features, allowing the user to program faster and more accurately.

(shown with optional monitor - monitor sold separately)

Icons and Shutter controls are represented graphically on the display,
saving time and presenting meaningful data to the operator. Floating Windows allow the operator to configure their views their way, making it easier
to find information. Effects are revolutionized, with “Time Line” features, allowing drag and drop to create that perfectly timed sequence.

The show is even secured on a “Mission Critical” grade SQL server, ensuring no data loss in those critical moments. Boot time is massively reduced
with high speed solid state disk drives, making the NEO lighting control console robust for everyday and touring use.

NEO Lighting Control Console

With individually controlled back lit keys, motorized faders, user security system, pixel mapping and media playback: we think you will find the NEO
lighting control console a worthy successor to a proud history of iconic consoles that have had the honor of bearing the Strand Lighting and now
Philips Strand Lighting name.

Features

● Up to 100 Universes of DMX per Console

● 10 Motorized Submasters

● Motorized A/B Playback Faders

● 5 Motorized Multi-Function Faders

● Dual Motorized Grand Masters

● Individually Controlled Backlit Keys

● 4 Indented Push Encoders

● Color LCD Screens for Encoder Assignment

● Keyboard drawer with storage with USB

● Touchscreen capable interface

● Unlimited Cues, Cue Lists, Groups, Palettes, Effects, and Macros

● Tempo Button

● Tracking, Cue Only and Hybrid Tracking Programming

● Flexible Shortcut System

● Generic Palettes

● Time Line Effects

● Pixel Mapping

● Media Playback

● Multi-User

● Tracking Backup

● User security system (login)

● Timed Events with sunrise/sunset

● Telnet Interface

● Android / iOS Remotes

● Undo History

● Visual Timecode Editor

● Power Monitor

● Color and Position Paths per Cue

● Blind Pre-Visualization

● Magic Sheet Layout

● 4 DMX Out Ports / 1 DMX In Port / 2 Network Ports

● 3 Video Outs (HDMI / VESA Display Port / DVI)

● MIDI Out / In

● SMPTE Out / In

● USB 3.0 and USB 2.0 Ports

● 2 COM Ports

● 2 XLR Ports for Console Lights

● Tablet Storage

CONSULTANT: PROJECT NAME:

DATE:

PROJECT NUMBER:

SPECIFICATION SUBMITTAL

MODEL NUMBER | QUANTITY:

APPROVED BY:

Strand Control Systems

Console Features

A

C

D

E

H

G

Top of Unit

B

F

I

L

K

Pull out Keyboard Drawer with Phone Storage
and USB Charger (phone by others)

Legend

A. Motorized Faders / Submasters
B. Level Wheel
C. 10 Bump Buttons
D. USB Port (showfile storage, USB key sold separately)
E. Tablet Well with USB Power (tablet by others)
F. Grand Masters (2)

AC Input

On/Off Switch

Display Port

HDMI

HDMI Port

USB 3.0 Ports
USB 2.0 Ports

DVI Port

COM Ports

DMX Input

SMPTE In/Out

DMX Output (x4)

J

G. Black Out Buttons
H. Shortcuts (10 each)
I. Encoders with Encoder Status (4 each)
J. Programming Buttons
K. A/B Playback Controls (with Go and Stop/Back buttons)
L. Track Ball

VESA Display Port

Network Ports

DVI

1/8-inch Mini Headphone
Jack (headphone by others)

Rear of Unit

Console Light
Receptacle (x2)
Kensington
Security Lock Slot

(security cable and
lock by others)

Status Indicators
MIDI In/Out

Philips Advantage DMX

Every NEO lighting control console also benefits from the all new Philips
Advantage DMX model. This concept allows you to patch Philips
Entertainment and Color Kinetics brand luminaires without consuming
the console’s purchased DMX outputs. It does not matter if you own or
rent the luminaires; as long as the one of the supported Philips brands.
With Philips Advantage DMX, you can control thousands of Philips
luminaires at no additional cost or output license limitations.

Philips Advantage DMX Overview (example):

● A NEO lighting control console is purchased with 1 universe of

512 DMX outputs.

● The purchased universe of 512 DMX outputs is patched to

dimmers or other DMX-controlled products.

● Philips Entertainment Group luminaires (sold separately) are

patched to any other DMX universe. Philips Entertainment Group
luminaires (regardless if you own or rent them) will not count
against any of the purchased channels unless patched to the
purchased DMX universe.

Product Dimensions

Strand Control Systems

NEO Lighting Control Console

(shown with keyboard drawer open - monitor sold separately)

19.5 in. /

495.3 mm

3.5 in. /

88.9 mm

24.0 in. / 609.6 mm

31.0 in. / 787.4 mm

3.5 in. /

88.9 mm

4.0 in. /

101.6 mm

15.5 in. /

393.7 mm

5.6 in. /

142.3 mm

Technical Specifications

Strand Control Systems

Electrical

Supply Voltage: Universal power supply 100-240VAC
Approvals: cETLus, CE, C-Tick

Mechanical

Construction: High Density and Impact Resistant
Aluminum and Plastics

Operating Temperature: 0° to 40°C ambient (32° to 104°F)
Humidity: 0% - 95% non-condensing
Storage Temperature: 0° to 35°C (32° to 95°F)
Weight: 37.0 lbs (16.8 kgs) - Console Only (no

accessories)

Protocols / Connectivity

● Shownet

● E1.31 (Streaming ACN)

● Artnet

● DMX512

● KiNet (Philips Color Kinetics Control Protocol)

● Pathway

● RDM

Connections / Ports

4 DMX Out via 5-pin DMX
1 DMX In via 5-pin DMX
1 MIDI In / Out
1 SMPTE In / Out
1 VESA Display Port
1 HDMI Port
1 DVI Port
2 Network Ports – RJ45
1 Audio Line In/Out/Mic In – via 1/8” mini
2 COM ports
2 USB 3.0 (on rear panel)
7 USB 2.0 (2 on rear panel, 4 on front of console, and 1 in
keyboard drawer)
2 3-pin XLR ports (12 Volt) for Console Lights (2 console lights
are included with each console purchased)

Ordering Information
Cat. No. Description

NEO Lighting Control Consoles

91001 NEO Lighting Control Console (One Universe of DMX)

Includes: Console dust cover, universal voltage power supply, IEC
Cables (1 each - US, Europe, Asia) Console Lights (2 each), and
quick start guide. Monitor not included.

Accessories

91001-DC Replacement Dust Cover
91002 One NEO Console Universe of DMX (512 Channels)*

Note: *Up to 100 can be ordered on one console.

91021 21-inch Touch Screen Monitor (Multi-Touch)
66219 Additional / Replacement Console Light

Peripheral Equipment - Cables

95090 DMX512 Control Cable 25’ (A5F to A5M)
96456 Ethernet cable 10’ 10/100BaseT (RJ-45)
96459 Ethernet cable 25’ 10/100BaseT (RJ-45)

Philips Strand Lighting

Dallas Auckland www.strandlighting.com

10911 Petal Street 19-21 Kawana Street © Philips Group 2014
Dallas, TX 75238 Northcote, Auckland 0627 All rights reserved.
Tel: [phone] New Zealand The Company reserves the right
Fax: [phone] Tel: + 64 9 481 0100 to make any variation in design or
Fax: + 64 9 481 0101 construction to the equipment
described. E&OE
