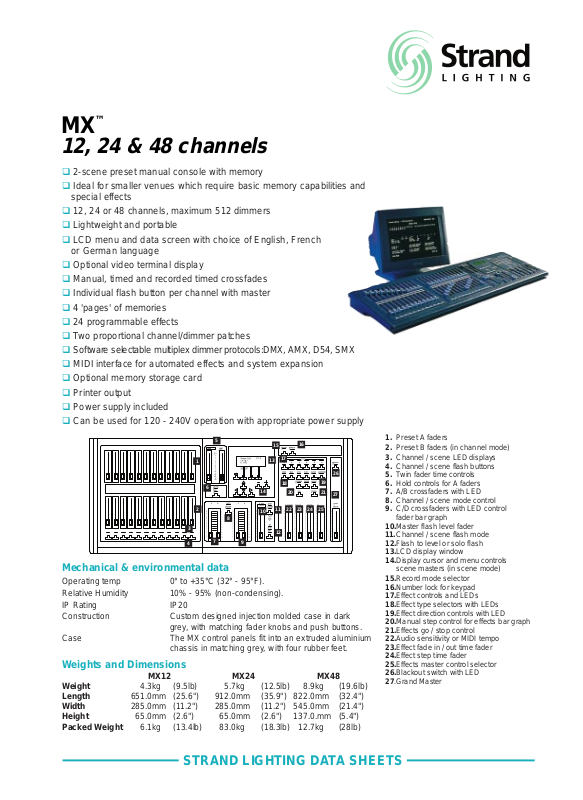

Strand MX Datasheet

STRAND LIGHTING DATA SHEETS

MX

™

12, 24 & 48 channels

22 23 24 25

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20 21

26

27

1. Preset A faders

2. Preset B faders (in channel mode)

3. Channel / scene LED displays

4. Channel / scene flash buttons

5. Twin fader time controls

6. Hold controls for A faders

7. A/B crossfaders with LED

8. Channel / scene mode control

9. C/D crossfaders with LED control

fader bar graph

10.Master flash level fader

11. Channel / scene flash mode

12.Flash to level or solo flash

13.LCD display window

14.Display cursor and menu controls

scene masters (in scene mode)

15.Record mode selector

16.Number lock for keypad

17.Effect controls and LEDs

18.Effect type selectors with LEDs

19.Effect direction controls with LED

20.Manual step control for effects bar graph

21.Effects go / stop control

22.Audio sensitivity or MIDI tempo

23.Effect fade in / out time fader

24.Effect step time fader

25.Effects master control selector

26.Blackout switch with LED

27.Grand Master

q 2-scene preset manual console with memory
q Ideal for smaller venues which require basic memory capabilities and

special effects

q 12, 24 or 48 channels, maximum 512 dimmers
q Lightweight and portable
q LCD menu and data screen with choice of English, French

or German language

q Optional video terminal display
q Manual, timed and recorded timed crossfades
q Individual flash button per channel with master
q 4 'pages' of memories
q 24 programmable effects
q Two proportional channel/dimmer patches
q Software selectable multiplex dimmer protocols:DMX, AMX, D54, SMX
q MIDI interface for automated effects and system expansion
q Optional memory storage card
q Printer output
q Power supply included
q Can be used for 120 - 240V operation with appropriate power supply

Weights and Dimensions

MX12 MX24 MX48

Weight 4.3kg (9.5lb) 5.7kg (12.5lb) 8.9kg (19.6lb)
Length 651.0mm (25.6") 912.0mm (35.9") 822.0mm (32.4")
Width 285.0mm (11.2") 285.0mm (11.2") 545.0mm (21.4")
Height 65.0mm (2.6") 65.0mm (2.6") 137.0.mm (5.4")
Packed Weight 6.1kg (13.4lb) 83.0kg (18.3lb) 12.7kg (28lb)

Mechanical & environmental data

Operating temp 0° to +35°C (32° - 95°F).
Relative Humidity 10% - 95% (non-condensing).
IP Rating IP20
Construction Custom designed injection molded case in dark

grey, with matching fader knobs and push buttons.

Case The MX control panels fit into an extruded aluminium

chassis in matching grey, with four rubber feet.

The Company reserves the right to make
any variation in design or construction to the
equipment described. © Strand Lighting Ltd

1998. Strand™ and Strand Lighting™ are
trade marks of Strand Lighting Limited and
Strand Lighting Inc.

www.strandlight.com

Strand Lighting Ltd North Hyde House Hayes Road Heston Middx UB2 5NL UK Tel: [phone] Fax: [phone]

MX 12

Portable 12 channel memory console with 48 memories (4 pages of 12), 2 presets of manual faders (which can be used as
scene masters), manual and timed playback controls and programmable effects. Complete with power supply.

MX 24

Portable 24 channel memory console with 96 memories (4 pages of 24), 2 presets of manual faders (which can be used as
scene masters), manual and timed playback controls and programmable effects. Complete with power supply.

MX 48

Portable 48 channel double height memory control console with 192 memories (4 pages of 48), 2 presets of manual faders (which
can be used as scene masters), manual and timed playback controls and programmable effects. Complete with power supply.

Operational data

Dimmers

The console is capable of controlling up to 512 dimmers over multiplexed control
lines. DMX512, AMX192 and D54 protocols are all included as standard, and are
software selectable.

Patch Tables

Two software-controlled patch tables are available to link any dimmer or group of
dimmers to a single channel. Additionally every dimmer may be set with a level
which is proportional to the controlling channel.

Cue Storage

Capacity is related to channel size.
MX12: 48 scenes (12 x 4 pages) MX24: 96 scenes (24 x 4 pages) MX48: 192
scenes (48 x 4 pages)

Memory Retention

One month without power (by internal rechargable batteries.) MX can distinguish
between being turned off and loss of power. If switched off a series of diagnostic
tests will be run before the desk is operational. After power loss the desk is
restored to the same state, including running effects and timed fades, as it was
prior to power failure.

Library

A 64kB memory card can store the entire MX memory, or selectively record
scenes, effects, patch tables and setup data.

Display

An integral 4 x 20 backlit LCD display provides access to setup information, and
preview and modification of recorded states and effects. The terminal display
option can show output, scene memory, held memory and patch details.

MIDI

Interface allows use with other MIDI equipment, such as sequencers for external
playback control, or other MX consoles, for slave or back-up operations.

Ordering information

Cat No Description

64112 MX12, 12 Channel Console

UK style psu

64212 MX12, 12 Channel Console

EC style psu

64124 MX24, 24 Channel console

UK style psu

64224 MX24, 24 Channel console

EC style psu

64148 MX48, 48 Channel console

UK style psu

64248 MX48, 48 Channel console

EC style psu

MX Accessories

66112 Terminal display, 14"
66113 Terminal cable
66114 Memory card, 64kB
65009 Demultiplexer, 24 channel
66083 DMX control cable, 2m
66081 DMX control cable, 10m
66082 DMX control cable, 25m

Technical specifications

Supply input

-18V DC ± 10% 800mA

Multiplexed dimmer outputs

DMX: 5-pin XLR - Female
AMX: 4-pin XLR - Male
D54: 3-pin XLR - Female

MIDI

in: 5-pin DIN socket (180°)
thru: 5-pin DIN socket (180°)
out: 5-pin DIN socket (180°)

Terminal display and printer

EIA-RS232 25-pin D-type socket

Standards compliance

Designed to conform to SELV.
