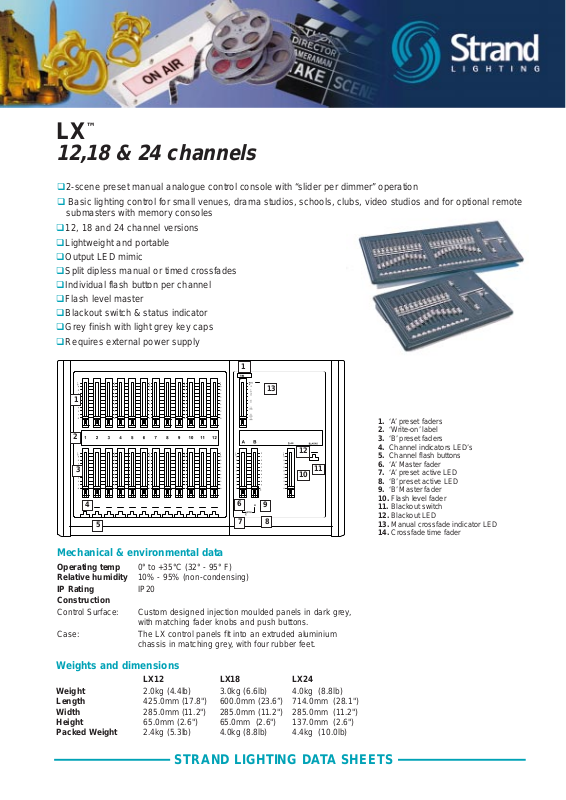

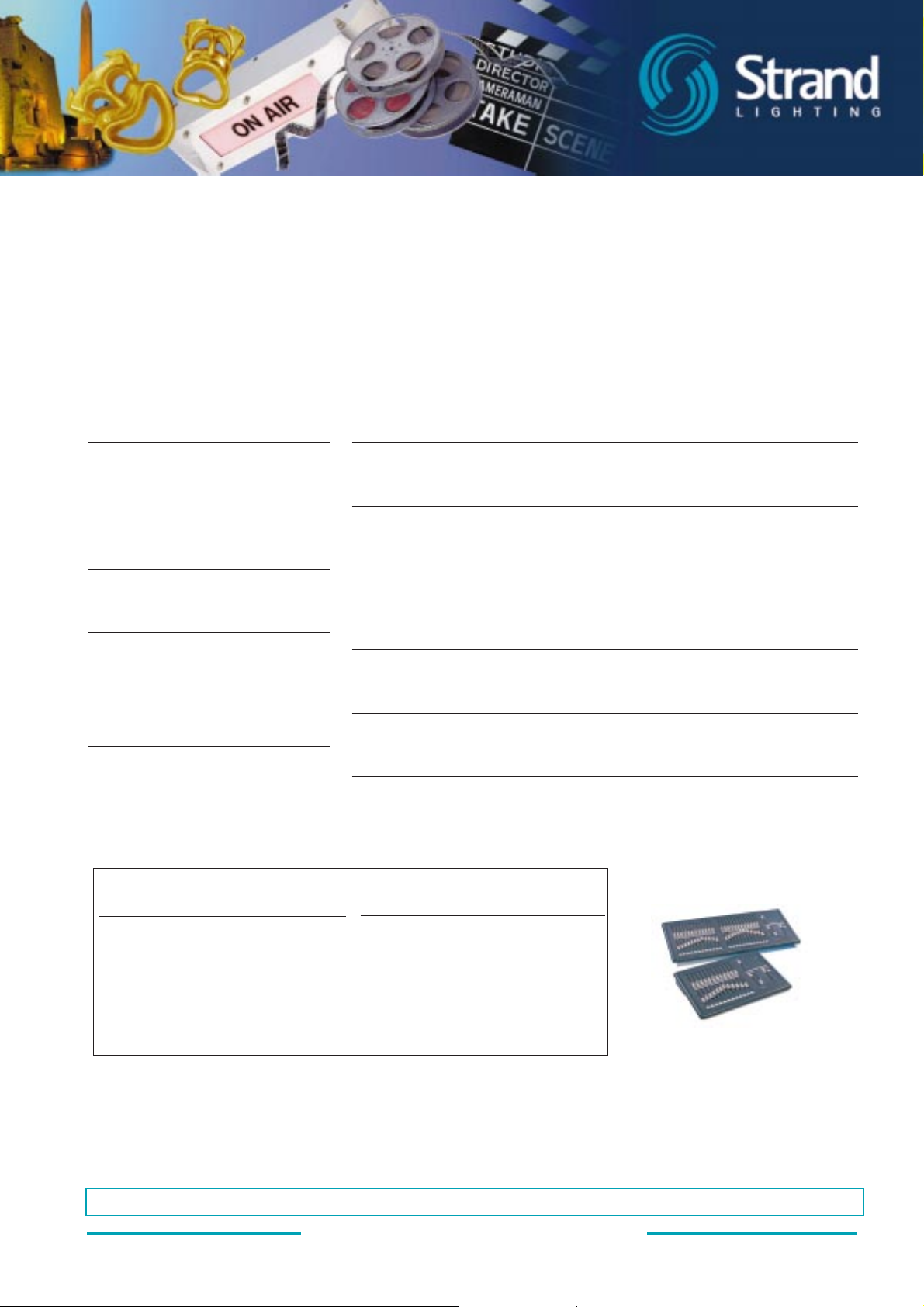

Strand LX Datasheet

LX

™

12,18 & 24 channels

q 2-scene preset manual analogue control console with “slider per dimmer” operation
q Basic lighting control for small venues, drama studios, schools, clubs, video studios and for optional remote

submasters with memory consoles

q 12, 18 and 24 channel versions
q Lightweight and portable
q Output LED mimic
q Split dipless manual or timed crossfades
q Individual flash button per channel
q Flash level master
q Blackout switch & status indicator
q Grey finish with light grey key caps
q Requires external power supply

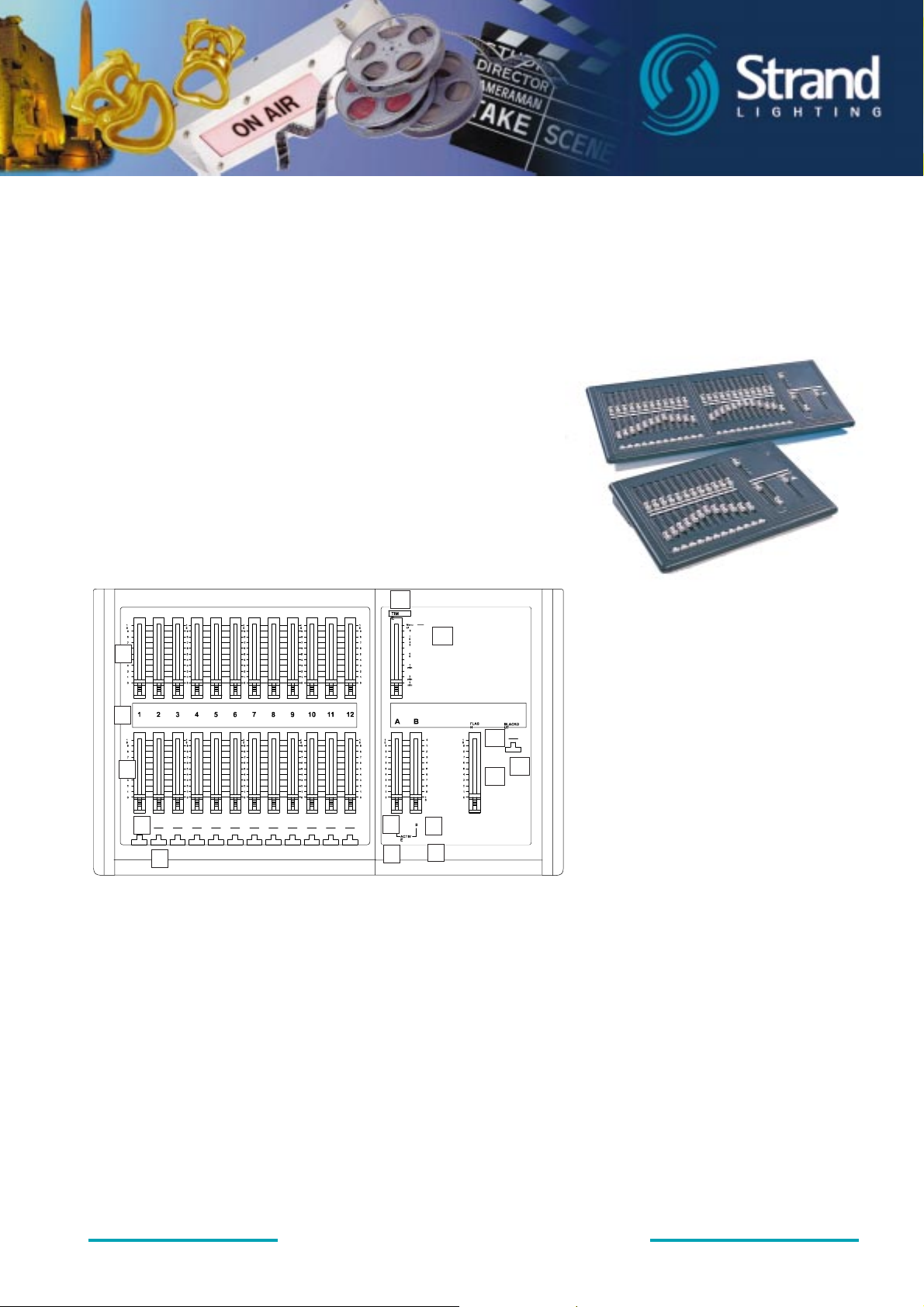

14

13

1

2

12

3

4

5

6

9

8

7

10

11

Mechanical & environmental data

Operating temp 0° to +35°C (32° - 95° F)
Relative humidity 10% - 95% (non-condensing)

IP Rating IP20
Construction

Control Surface: Custom designed injection moulded panels in dark grey,

with matching fader knobs and push buttons.

Case: The LX control panels fit into an extruded aluminium

chassis in matching grey, with four rubber feet.

Weights and dimensions

LX12 LX18 LX24

Weight 2.0kg (4.4lb) 3.0kg (6.6lb) 4.0kg (8.8lb)
Length 425.0mm (17.8") 600.0mm (23.6”) 714.0mm (28.1")
Width 285.0mm (11.2") 285.0mm (11.2") 285.0mm (11.2")
Height 65.0mm (2.6") 65.0mm (2.6") 137.0mm (2.6")
Packed Weight 2.4kg (5.3lb) 4.0kg (8.8lb) 4.4kg (10.0lb)

1. ‘A’ preset faders

2. ‘Write-on’ label

3. ‘B’ preset faders

4. Channel indicators LED’s

5. Channel flash buttons

6. ‘A’ Master fader

7. ‘A’ preset active LED

8. ‘B’ preset active LED

9. ‘B’ Master fader

10. Flash level fader

11. Blackout switch

12. Blackout LED

13. Manual crossfade indicator LED

14. Crossfade time fader

STRAND LIGHTING DATA SHEETS

LX 12

12 channel 2 preset manual control desk with +10V output on a Miniature D socket. Desks are powered by external power
supply (not included). Requires control cables, and power supply.

LX 18

18 channel 2 preset manual control desk with -10V output on DIN 8 socket. Desks are powered by external PSU or two
Act 6+ or Act 3+ Analogue Dimmer Packs. Requires control cables and PSU.

LX 24

24 channel 2 preset manual control desk with +10V output on two Miniature D sockets. Desks are powered by external
power supply (not included). Requires control cables, and power supply.

Technical specifications

Supply voltage

-18V DC ±10%.

Cable/connection

15 pin Min-D panel socket(s). Cable
size depends on length: 0.22mm
to 100m), 0.5mm2(up to 200m).

Input current

12 channel 110mA
24 channel 180mA

Control outputs

+10V versions: 0V (off) to +10V (full
on) via a 1kW resistor and silicon
diode.

-10V versions: 0V (off) to -10V (full on)
via a 1kW resistor and silicon diode.

Standards compliance

SELV

2

(up

Operational data

Channel faders

Two faders for each channel, mounted one above the other as two presets. Each preset of
channel faders is under the control of a separate master fader.

Master faders

Two master faders mounted adjacent and in opposition so that a dipless crossfade is per­formed by moving both faders in tandem. If the master faders are set at opposite ends of
their scales, the LX will either mix both presets (both at 10) or blackout (both at 0).

Timed fades

If the time fader is set to a time from 1 second to 5 minutes, the crossfade will complete in
the time set after the master faders move to the other end of the scale.

Flash effects

A flash master fader sets the maximum level for any channel when its flash button is
pressed. If the flash master is set to zero, the flash buttons are disabled.

Displays

LED indicators for ‘A ’ & ‘B’ faders to show active preset, channel indicators to show active
channels, manual level selected indicator, and blackout active indicator.

Blackout

When the blackout button is pressed, the LED lights, and all channels are set to zero.
Pressing the blackout button again extinguishes the LED and resets the channels to their
previous levels. If power is disconnected to the LX while blackout is active, the desk will
retain the blackout condition if power is resumed within a 5 minute period.

Ordering information

Cat No Description

61212 LX12 manual desk, +10V output
61112 LX12 manual desk, -10V output
61118 LX18 Manual Desk, -10V Output
61224 LX24 manual desk, +10V output
61124 LX24 manual desk, -10V output

The Company reserves the right to make any variation in design or construction to the equipment described. © Strand Lighting Ltd 1998.
Strand™, Strand Lighting™, Strand Quartzcolor ™ are trade marks of Strand Lighting Limited and Strand Lighting Inc.

Strand Lighting Ltd North Hyde House Hayes Rd Heston Middx UB2 5NL UK Tel: [phone] Fax: [phone]
Strand Lighting GmbH Ullsteinstrasse 114-142 D-12109 Berlin Germany Tel: [phone] Fax: [phone]
Strand Lighting Italia srl Via delle Gardenie 33 00040 Pomezia-Roma Italy Tel: [phone] Fax: [phone]
Strand Lighting Asia Ltd 7/F Corporation Square 8 Lam Lok Street Kowloon Bay Hong Kong Tel: [phone] Fax: [phone]

LONDON - BERLIN - ROME - PARIS - MOSCOW - LOS ANGELES - NEW YORK - TORONTO - HONG KONG

LX Accessories

66090 DIN8 2m control cable
66091 DIN8 5m control cable
66092 DIN8 25m control cable
66093 Min-D15 5m cable to open-ends
66102 Power supply, 13A UK plugtop
66103 Power supply, Schuko style

plugtop
