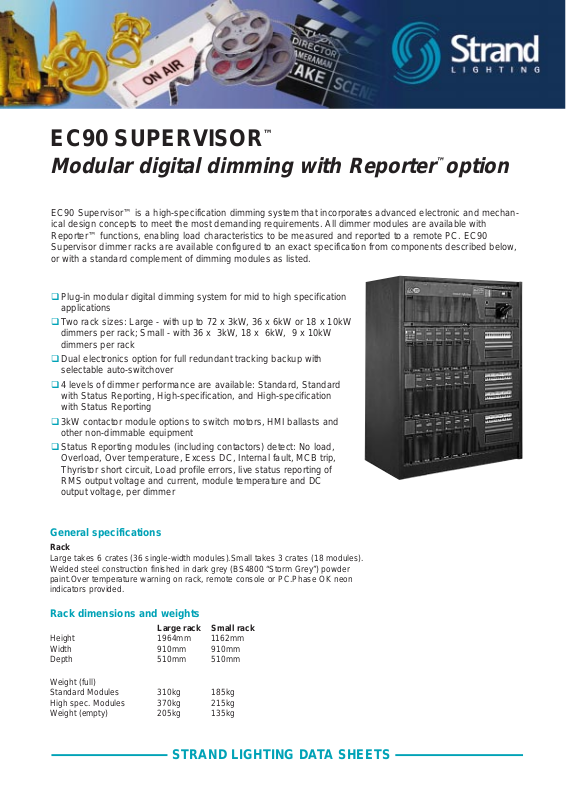

Strand EC90 Supervisor Datasheet

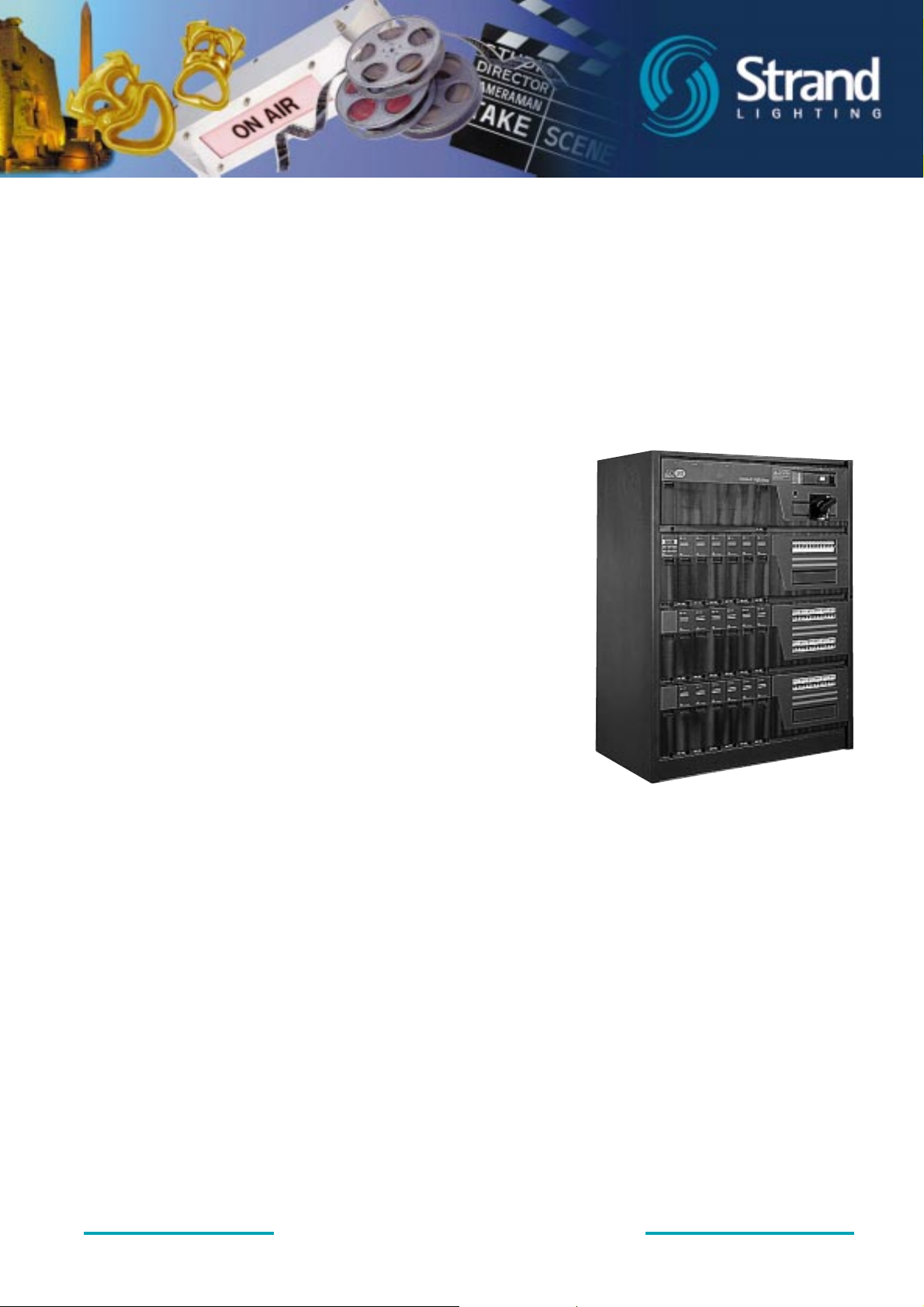

EC90 SUPERVISOR

™

Modular digital dimming with Reporter™option

EC90 Supervisor™ is a high-specification dimming system that incorporates advanced electronic and mechan­ical design concepts to meet the most demanding requirements. All dimmer modules are available with
Reporter™ functions, enabling load characteristics to be measured and reported to a remote PC. EC90
Supervisor dimmer racks are available configured to an exact specification from components described below,
or with a standard complement of dimming modules as listed.

q Plug-in modular digital dimming system for mid to high specification

applications

q Two rack sizes: Large - with up to 72 x 3kW, 36 x 6kW or 18 x 10kW

dimmers per rack; Small - with 36 x 3kW, 18 x 6kW, 9 x 10kW
dimmers per rack

q Dual electronics option for full redundant tracking backup with

selectable auto-switchover

q 4 levels of dimmer performance are available: Standard, Standard

with Status Reporting, High-specification, and High-specification
with Status Reporting

q 3kW contactor module options to switch motors, HMI ballasts and

other non-dimmable equipment

q Status Reporting modules (including contactors) detect: No load,

Overload, Over temperature, Excess DC, Internal fault, MCB trip,
Thyristor short circuit, Load profile errors, live status reporting of
RMS output voltage and current, module temperature and DC
output voltage, per dimmer

General specifications

Rack

Large takes 6 crates (36 single-width modules).Small takes 3 crates (18 modules).
Welded steel construction finished in dark grey (BS4800 “Storm Grey”) powder
paint.Over temperature warning on rack, remote console or PC.Phase OK neon
indicators provided.

Rack dimensions and weights

Large rack Small rack

Height 1964mm 1162mm
Width 910mm 910mm
Depth 510mm 510mm

Weight (full)
Standard Modules 310kg 185kg
High spec. Modules 370kg 215kg
Weight (empty) 205kg 135kg

STRAND LIGHTING DATA SHEETS

q Reporting modules, including non-dims, can detect a load change, down to 10% of the dimmer’s power rat-

ing, detecting failure of an individual element of a paralleled load

q Reporting modules may perform Load Cable Compensation, using the programmed cable resistance (per

circuit) and load characteristic to continuously compensate for voltage drop

q Racks may contain a mixture of dimmer types including reporting and non-reporting
q Load status reporting to PC using the Reporter™ PC software
q ”Panic” function, to bring selected dimmers to full, operational without processor and can be actuated manu-

ally or automatically (e.g. by a fire alarm system)

q Precision line voltage regulation to minimise output changes when the supply voltage fluctuates
q Two opto-isolated Mux inputs with individual patches provided as standard

q DMX 512, SMX, AMX 192 and

D54 control protocols supported

q Up to 32 analogue +/- 10V

inputs per rack, patchable to

905mm

510mm

any dimmer

q 99 System Wide Control,

SWC™ memories for additional
preset and backup use, using
simple “snapshot” recording

q Direct circuit and preset control

by hand-held System Wide
Control (SWC™) programmer
with specialised riggers func-

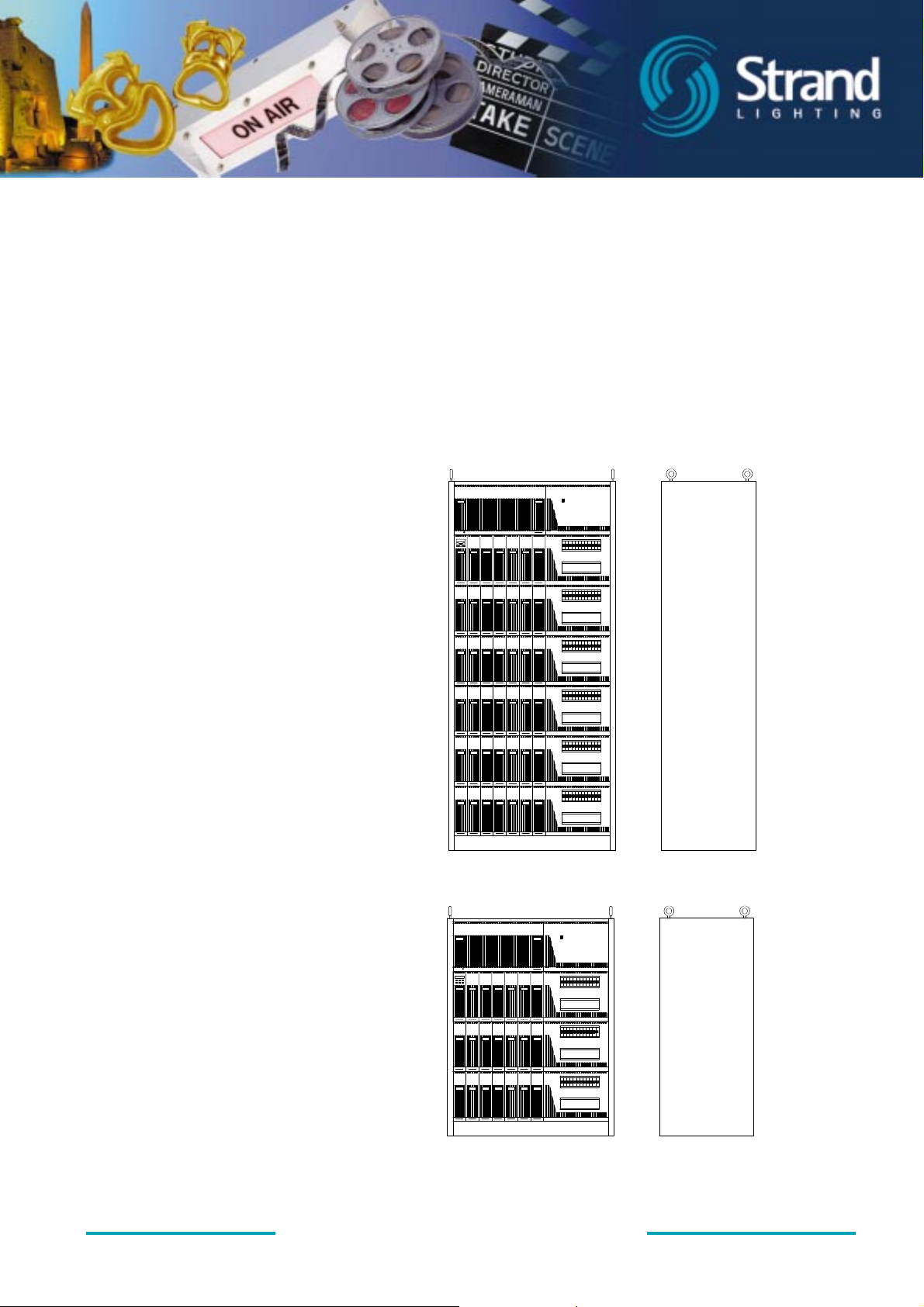

Large

Rack

1968mm

tions

q 16 room (zone) by 8 preset

Outlook™ architectural lighting
control for auditorium, front of
house and other “zoned” uses

q Library of 6 fixed and 5 down-

loadable dimmer curves,
programmable per dimmer

q 16 bit digital fade processing to

ensure smooth fades with 8 bit
protocol

q LED Outputs for remote

Overtemp/Fan fail, Panic and

905mm

510mm

Active processor
(dual systems)

q 12 independent fully program-

mable +10V analogue signal
outputs (large processor only)

q Complies with all mandatory

Small

Rack

1168mm

European safety and EMC reg­ulations

STRAND LIGHTING DATA SHEETS

EC90 Supervisor racks

Two sizes available - large for 6 crates; small for 3 crates. The maximum capacity of a small rack is 36 x 3kW, or 18 x 6kW
or 9x10kW. Large racks can accommodate a maximum of 72 x 3kW, or 36 x 6kW or 18 x10kW. Crate types can be mixed in
any rack, and there is top and bottom cable access.

EC90 Supervisor crates

Crates are available for six dual 3kW modules or six single 6kW modules or 3x10kW. Each crate version is available with
Single Pole, Single Pole (Neutral Disconnect) or Double Pole protection.

EC90 Supervisor modules

Dimmer modules are available in five module categories: dual 3kW Economy
dimmers; dual 3kW Hi-Spec dimmers; single 6kW Hi-Spec dimmers; 3kW Hi­Spec dimmer/contactor modules and double width 10kW dimmers. All dimmer
and contactor modules are available in standard or Reporter™ versions.

3kW Dimmer module

Economy module with two 3kW firm-fired thyristor dimmers and standard filtering.

3kW High specification dimmer module

High specification module with two 3kW hard-fired thyristor dimmers and
Broadcast TV-standard filtering.

6kW High specification dimmer module

High specification module with a single 6kW hard-fired thyristor dimmer and
Broadcast TV-standard filtering.

10kW High specification dimmer module

High specification module with a single 10kW hard-fired thyristor dimmer and
Broadcast TV-standard filtering.

Hybrid contactor modules

Three modules which offer dual contactor, dimmer/contactor or contactor/dimmer
(left/right positions) versions. Both dimmers and contactors are rated at 3kW, and
the dimmers are hard-fired thyristors with Broadcast-standard filtering.

EC90 Supervisor and Reporter™ functions

All versions of EC90 Supervisor module can be supplied as standard or with
Reporter features which operate with a remote PC.

Standard Supervisor functionality from a remote PC includes:

• Dimmer setup functions (library and user programmable curves, max/min out­puts, dimmer response times, etc.)

• Patch setup for Mux A, Mux B and analogue inputs

• Direct dimmer and preset control

• Rack fan fail warning

• MUX failure A, B

• Master/Backup active or tracking

Additional Reporter Features Include

• Memorised load per dimmer

• Warning if load deviates from memorised value

• No load

• Dimmer fault

• Breaker trip: thyristor (or contactor) short circuit plus thyristor (or contactor) open circuit

• No control of dimmer.

• Excess DC voltage output.

• Overheat per dimmer.

• Overload current per dimmer.

Mechanical

Installation

Racks designed for adjacent mounting or
back to back (front access only
required).Racks can be bolted to floor.
Module removal requires use of a tool.

Ventilation

Max ambient temperature 40°C.Dual
tangentile cooling fans. A single fan
failure forces the second fan to full.
Variable or continuous fan speed con­trol for minimum acoustic noise, and
maximum fan-life.

Electrical

Rack power input

220V to 240V 3 phase, neutral + earth
TNS 600A per phase maximum,
50Hz/60Hz.

Bus bars

Bus bars rated at 50kA fault current

Standard load

10mm2 for 3kW, 16mm2 for 6kW, and
25mm2 for 10kW Wire Terminal Size
dimmers

Phasing

Single phase by strapping busbars,
with max. current 600A per rack.
3-phase Delta to special order.
Crates are normally 3-phase, Single
phase available to special order.
Most requirements for custom dimmer
phasing are possible to special order.

Standards

Conforms to all mandatory European
safety and EMC standards, including
EN60950, EN50081, EN50082. All High
Specification modules comply with BBC
noise specifications PID/171.

Protection

A rack can be supplied with most power
and protection combinations including
RCD’s on most crates. Provision for
optional 4-pole rack isolator.

STRAND LIGHTING DATA SHEETS

Control logic

All or individual dimmers may be programmed to conform to a selection of control logic rules.

Power modules

Type Firing Rise Time Current

(10-90%)
Dual 3kW Firm 100 µs 2 x 16A
Dual 3kW Hard 450 µs 2 x 16A
6 kW Hard 450 µs 32A
Double width 10kW Hard 450 µs 50A
3kW dimmer & contactor Hard + c 450 µs 2 x 16A
3kW contactor & dimmer c + Hard 450 µs 2 x 16A
Dual contactor - - 2 x 16A

Miscellaneous power modules

Type Current
Constant 2 x 16 A

Note: Blank modules must be used wherever dimmer modules are not installed to maintain adequate air flow.

Power modules - general

Indicators

All modules have POWER ON and
proportional OUTPUT mimic LEDs

Status

Reporting modules have flashing red
ERROR LED indicators

Safety

Power modules are class 2, double
insulated and fully enclosed to prevent
exposure of live parts if a module is
removed from the rack. Each module
shuts down automatically under an
overheat condition

Efficiency

Dimmer power efficiency at least 97%
at full load. No-load loss of 3V RMS
for standard 3kW dimmers

Non-Dims

Contactors are used for Non-Dims
modules - not thyristors.

Interchangability

Modules are keyed preventing wrong
type insertion. Any 3kW dimmer
(including reporting) can fit in any
3kW crate, any 6kW in 6kW crate etc.

Protection

Each circuit is protected by a MCB
with 10,000A fault current rating.
MCBs conform to European standard
EN60 898 ‘C’ characteristic

Power pevices

Firm Fired (standard) or Hard Fired
thyristors (high-specification)DC compo­nent of output is normally less than 0.5V

Control electronics
specification

General

Processing

Completely digital dimmer processing

Controls

6 button keypad to program all rack
functions on processor module
Local switch for single rack PANIC
function

Indicators

2 line by 8 character back lit LCD dis­play on processor module

Languages

English, Spanish, French, German

Data port

Connector on rack front for configura­tion, control and Operating Software
upgrades.

STRAND LIGHTING DATA SHEETS

Dimmer characteristics

Settings

Set max output voltage, 50V to 250V in 1V steps.
Set min output level, 0 to 100%.
Override dimmer level, 0 to full.

Library curves

Square, S-curve, Linear power output, User programmable curves, Non-Dim
trigger level 0 to 99%,

Fluorescent - electronic ballast, Fluorescent - magnetic ballast, 5 user defined
curves.

Response time

Fast (30 ms), Normal (100 ms), Slow (300 ms).

Reporting

Dimmer status reporting enabled or disabled (Reporter modules only). Cable resis­tance in m , for use with Reporting dimmers, and Cable Compensation feature.

Security features

Dual electronics

Redundant tracking backup using an optional second plug-in processor.
Backup processor activated by remote switching or automatically.
Set-up data is automatically transferred between main and backup processors in
case of replacement of either processor.

Set-up data storage

Non-volatile storage of set-up data on removable memory pcb
Memory pcb can be moved on exchange of processors.
Set-up data can be saved and restored using the Reporter PC program.

Mux fail options

Hold forever (status quo). User programmable “hold” period before fade to user
assigned SWC backup preset.

PANIC function

Any of the 72 or 36 dimmer and 12 analogue outputs (not on the 36 dimmer
processor) may be user selected to go fully ON on activation of the rack PANIC
switch or an external switch, or failure of the processor if programmed.
Activation is by hardware only - no processor needed.
AUTO PANIC on processor failure (requires optional power supply).
PANIC operation forces cooling fans on at full.

Thermal control

Cooling

All power components fan cooled.
High capacity heat sink in each module.
2 fans for redundancy in case of one fan failure.

Overheat Protection

Fan fail warning on rack, remote console or PC.
Fan fail warning forces cooling fans on at full.
Individual module shutdown.
Reporting modules warn of O/T before module shut down and forces fans to full.

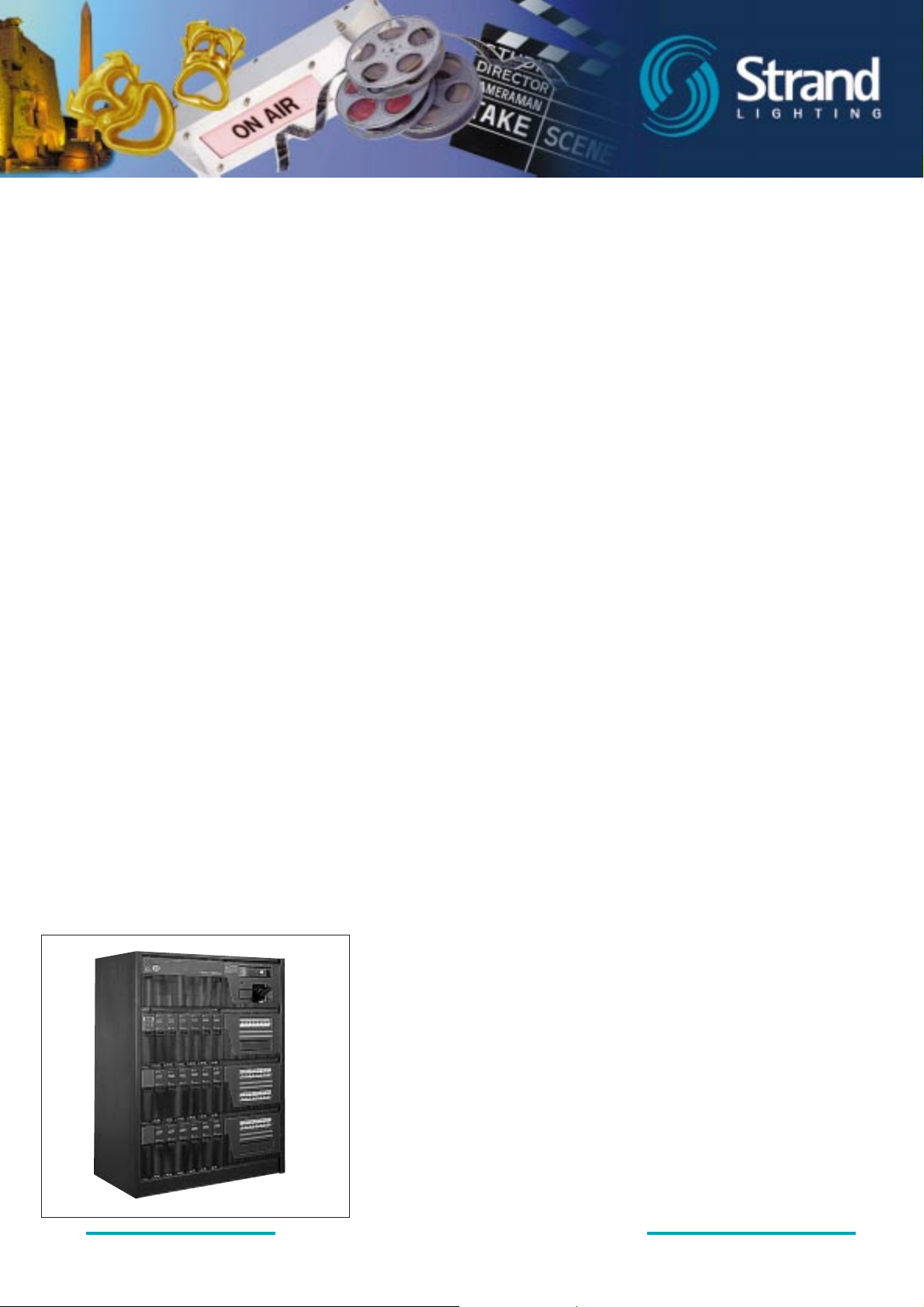

STRAND LIGHTING DATA SHEETS

Opto-isolation

Inputs All digital inputs are opto-isolated to 2,500V RMS:

Mux A and Mux B - DMX512, SMX, SWC input, Outlook input, Reporter input, External switch inputs.

Reporter PC

The Reporter PC program is available to run on an IBM compatible desktop or laptop PC.

Minimum PC Preferred PC

Function Specification Specification
Processor Intel486DX2®-50 Intel Pentium® Processor
Memory 8 Mb RAM > 8 Mb RAM
Monitor VGA 640 x 480 SVGA 800 x 600

monochrome colour

Operating System Windows® 3.1 Windows® 3.1, 3.11

or Windows 95®

Control electronics - performance

Dimmer Update Rate 16 ms (60 Hz) or 20 ms (50 Hz).

Response Time to 16 ms (60 Hz) or 20 ms (50 Hz).
Signal Changes

Line Regulation Maintains dimmer output levels to within +/- 1V of set output within the range of the control

electronics (200V to 240V nominal), providing that the set level is not higher than the power
input voltage less the dimmer voltage loss.
Automatically compensates for frequency variations 45 Hz to 62 Hz.
Line regulation acts on each individual dimmer and maintains dimmer curve parameters
(set curve, max level and min level).

Fade Smoothing Up to 8 point interpolation between DMX values to smooth console fade steps.

Control electronics - programmable features

Patching User programmable patches for Mux A and B inputs.

User programmable rack start address with following dimmers automatically sequenced.
Free format patching - any dimmer to any Mux input and address for total flexibility.
User programmable 4-digit ID for sequential numbering of systems larger than 512 circuits.
Patch any analogue 10V input to any circuit(s)
“Room” to channel to dimmer patch for Outlook architectural control.

STRAND LIGHTING DATA SHEETS

Control inputs

Dimmer Control Mux A: DMX512 or AMX192 or D54 or SMX.

Mux B: DMX512 or SMX.

Analogue: 32 inputs, +/- 10V (72 dimmer processor and dual electronics processor).

16 inputs, +/-10V (36 dimmer processor).

Remote Control Control of Circuits and SWC™ presets using hand held(system-wide)programmer unit.

Up to 25 SWC™ 8 or 16 button preset panels to record and playback presets*.
Outlook™ 16 room (zone) by 8 preset stations to provide integrated architectural control*.
*Outlook and SWC stations require 1 optional power supply per system, located in a rack.

Reporting Windows® based Reporter™ PC program for remote configuration and status reporting.

Local Control Rack processor keypad and LCD display with full functionality, (per rack) and optional

keypad lock.
Switch for rack PANIC control.

RS232 Port for Local PC Control Rack configuration using the Reporter PC program.

Library and backup rack set-up storage on PC, via Reporter PC program.
Operating software upgrades via DOS PC program.

External Dry Contacts Select main or backup processor (dual processor systems)

Select mux A or mux B (with appropriate control logic mode)
Set or Reset PANIC
SWC preset 1 GO
Next SWC preset GO

Control Outputs Analogue

12 analogue +10V output signals (72-way processor only).

External LED Processor Active (dual electronics systems only).

Drive Signals Panic active.

Fan Fail/Overtemp
(Overtemp for Status Reporting dimmers only).

Electrical Signal wire termination at one easily accessible point.

Signal wire termination on two-part plug-in connectors.
Loop-out connectors for daisy chaining signals between racks.

Status LEDs 5V opto isolation power ok.

Auxiliary power supply ok.
PANIC active.
Fan fail/module overtemp (reporting dimmers only).

Presets 99 user programmable SWC presets, plus preset 0 (blackout).

Snapshot recording of SWC presets from any remote preset station, hand held programmer
or Reporter program.
Individual SWC preset crossfade time recording.
One user assignable SWC backup preset on loss of both Mux inputs
16 rooms (independent zones), each with 8 Outlook presets, plus on/off, per room.

STRAND LIGHTING DATA SHEETS

Ordering information
EC90 Supervisor 72 x 3kW

Standard configuration large rack with 36 dual 3kW dimmer modules. Racks
available with standard specification or high specification modules, and with or
without Reporter™ options (see general details). Racks also may be configured
to special order.

Cat. No. Description

74461 EC90SV, 72 x 3kW, standard, Reporting
74462 EC90SV, 72 x 3kW, standard
74471 EC90SV, 72 x 3kW, hi-spec, Reporting
74472 EC90SV, 72 x 3kW, hi-spec

EC90 Supervisor 36 x 3kW

Standard configuration small rack with 18 dual 3kW dimmer modules. Racks
available with standard specification or high specification modules, and with or
without Reporter™ options (see general details). Racks also may be configured
to special order.

Cat. No. Description

74463 EC90SV, 36 x 3kW, standard, Reporting
74464 EC90SV, 36 x 3kW, standard
74473 EC90SV, 36 x 3kW, hi-spec, Reporting
74474 EC90SV, 36 x 3kW, hi-spec

EC90 Supervisor 36 x 6kW

Standard configuration large rack with 36 single 6kW dimmer modules. Racks
include high specification modules, with or without Reporter™ options (see gen­eral details). Racks also may be configured to special order.

Cat. No. Description

74481 EC90SV, 36 x 6kW, hi-spec, Reporting
74482 EC90SV, 36 x 6kW, hi-spec

EC90 Supervisor 18 x 6kW

Standard configuration small rack with 18 single 6kW dimmer modules. Racks
include high specification modules, with or without Reporter™ options (see gen­eral details). Racks also may be configured to special order.

Cat. No. Description

74483 EC90SV, 18 x 6kW, hi-spec, Reporting
74484 EC90SV, 18 x 6kW, hi-spec

The Company reserves the right to make any variation in design or construction to the equipment described. © Strand Lighting Ltd 1998.
Strand™, Strand Lighting™, Strand Quartzcolor ™ are trade marks of Strand Lighting Limited and Strand Lighting Inc.

Strand Lighting Ltd North Hyde House Hayes Rd Heston Middx UB2 5NL UK Tel: [phone] Fax: [phone]
Strand Lighting GmbH Ullsteinstrasse 114-142 D-12109 Berlin Germany Tel: [phone] Fax: [phone]
Strand Lighting Italia srl Via delle Gardenie 33 00040 Pomezia-Roma Italy Tel: [phone] Fax: [phone]
Strand Lighting Asia Ltd 7/F Corporation Square 8 Lam Lok Street Kowloon Bay Hong Kong Tel: [phone] Fax: [phone]

LONDON - BERLIN - ROME - PARIS - MOSCOW - LOS ANGELES - NEW YORK - TORONTO - HONG KONG

www.strandlighting.com
