STRAND LIGHTING DATA SHEETS

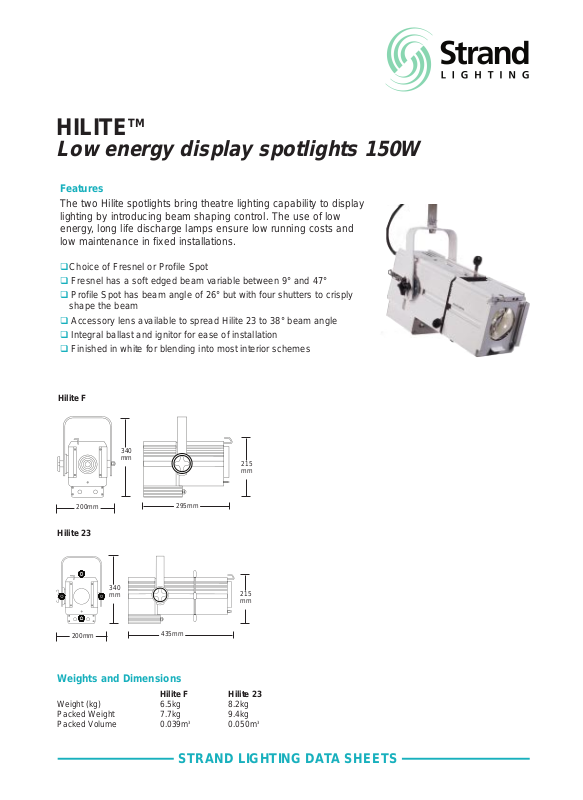

HILITE
TM
Low energy display spotlights 150W
Features
The two Hilite spotlights bring theatre lighting capability to display
lighting by introducing beam shaping control. The use of low
energy, long life discharge lamps ensure low running costs and
low maintenance in fixed installations.
q Choice of Fresnel or Profile Spot
q Fresnel has a soft edged beam variable between 9° and 47°
q Profile Spot has beam angle of 26° but with four shutters to crisply
shape the beam
q Accessory lens available to spread Hilite 23 to 38° beam angle
q Integral ballast and ignitor for ease of installation
q Finished in white for blending into most interior schemes

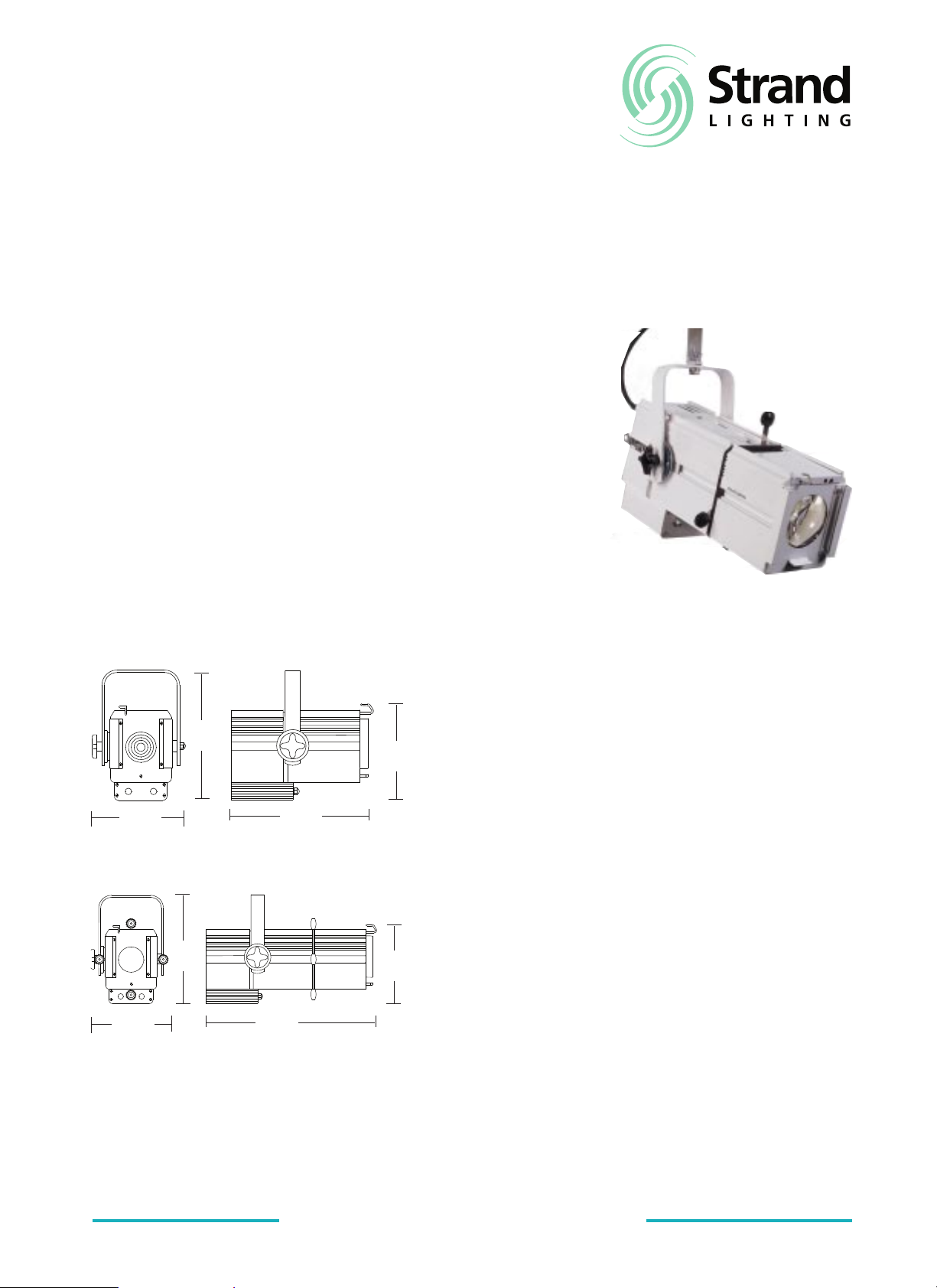

Weights and Dimensions
Hilite F Hilite 23
Weight (kg) 6.5kg 8.2kg
Packed Weight 7.7kg 9.4kg
Packed Volume 0.039m
3
0.050m
3
200mm
200mm
340
mm
340
mm
215
mm
215
mm
295mm
435mm
Hilite F
Hilite 23
Page 2

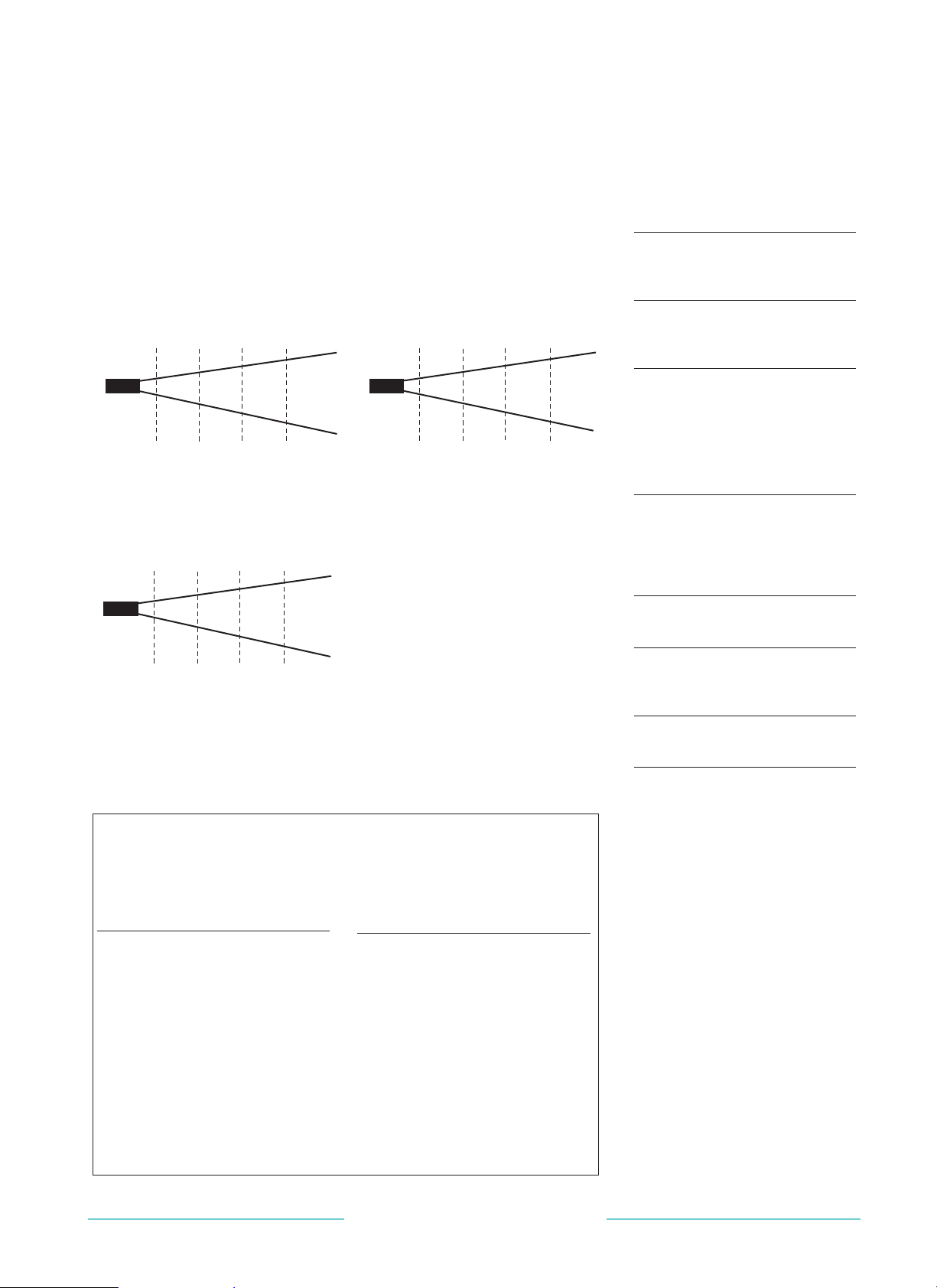

Performance Guide
Typical performance based on laboratory readings using MBI-T 150W lamp
Hilite F: spot
Hilite 23: Narrow (28°)
Operational Data
Lamp Access
Through sliding top cover secured
by screw.
8
6
(m)
4
1.85
2300
2.8
1020
3.7
575
Distance (m)
Beam Ø (m)
Illum (lux)
4
0.63
2660
6
0.94
1180
8
1.26
665
10
1.58
425
Distance (m)
Beam Ø
Illum (lux)
Hilite F: flood
10
8
6
(m)
3.5
350
4
5.2
155
7.0
90
-
-
Distance (m)
Beam Ø
Illum (lux)
To calculate lux levels at any throw distance divide the following factors by the
distance squared: Hilite F - Spot Hilite F - Flood Hilite 23
42525 5560 36763
To calculate beam diameters at any throw distance multiply the throw in metres
by the following factors: Hilite F - Spot Hilite F - Flood Hilite 23
0.16 0.87 0.46
10
4.6
370
Focus Adjustment
By sliding lock knobs on underside
of units
Accessories
Colour runners take DIN standard
125 x 125mm colour frames.
Iris diaphragm for Hilite 23 allows
adjustment of beam angle
Mechanical/Electrical Data
Construction
Extruded aluminium side panels
with pressed steel front, rear and
infill panels all finished in white
epoxy powder coating.
Lenses
Heat resistant borosilicate lenses.
Lampholder
G12 to take single ended metal
halide lamps of 150W
Supply Voltage
230V +/- 10% 50/60 Hz
Standards compliance
Designed to conform to EN 60 598 2-17
Ordering information
Hilite spotlights are supplied with integral ignitor and ballast suitable for
230V/240V/250V operation, mounting fork with M10 fixing bolt and wing nut and
a colour frame. A mains input socket is fitted to the rear panel and a mating
connector is provided for use with contractors wiring.
Cat No.Description
11500 Hilite F - Fresnel Spot
11520 Hilite 23 - Profile Spot
Strand Lighting LtdNorth Hyde House Hayes Road Heston Middx UNB2 5NL UK Tel: +44 (0)181 571 3588 Fax: +44 (0)181 571 3305
Optional accessories and lamps
18031 Barndoor, 4 leaf rotatable for
Hilite F
18033 Iris diaphragm for Hilite 23
18032 Wide angle lens for Hilite 23
18034 Additional colour frame, card
42020 MBI-T 150W Lamp, 4000K,
6000Hrs
82010 Hook clamp
82200 Standard wall bracket
82201 Heavy duty wall bracket
82202 Universal mounting bracket
82203 Boom bracket for vertical
48mm ext diam pipe
82000 Safety cable, light duty
(up to 16kg)
www.strandlight.com
The Company reserves the right to make
any variation in design or construction to the
equipment described. © Strand Lighting Ltd
1998. Strand™ and Strand Lighting™ are
trade marks of Strand Lighting Limited and
Strand Lighting Inc.
