Stovax Coal Effect Stove Range Conventional Flue User Manual
Ceramica
Coal Effect Stove Range
Conventional Flue
With upgradeable control valve
Instructions for Use,
Installation and Servicing
For use in GB, IE (Great Britain and Eire)
PR0615 Issue 4 (February 2007))
IMPORTANT
Do not attempt to burn rubbish in this fire. This stove must only be operated with the door secured firmly in position.
The outer casing of this stove will become hot whilst in operation, it is therefore recommended that the appliance be
guarded to protect the young and infirm using a suitable guard.
Ensure that fabrics such as curtains are not positioned above or near to the stoves outer casing.
Please read these Instructions carefully and keep them in a safe place.
They will be needed when servicing the fire.
The commissioning sheet found on page 3 should be completed by the installer.
This appliance has been certified for use in countries other than those stated. To install this appliance in these countries, it is essential to obtain the
translated instructions and in some cases the appliance will require modification. Contact Gazco for further information.
2
CONTENTS
COVERING THE FOLLOWING MODELS:
CERAMICA MANHATTAN 8578-P8578
PAGE
APPLIANCE COMMISSIONING CHECKLIST 3
USER INSTRUCTIONS 4
INSTALLATION INSTRUCTIONS 10
Technical Specifications 10
Site Requirements 11
Installation 12
Commissioning 17
SERVICING INSTRUCTIONS 18
Servicing Requirements 18
Fault Finding 19
How to replace parts 20
Basic spare parts list 24
Service records 25
3
APPLIANCE COMMISSIONING CHECKLIST
Dealer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contact No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Date of Purchase. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Model No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gas Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Company. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engineer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contact No.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Corgi Reg No.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Date of Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IMPORTANT NOTICE
Explain the operation of the appliance to the end user, hand the completed instructions to them for safe keeping,
as the information will be required when making any guaranteed claims.
DEALER AND INSTALLER INFORMATION
FLUE CHECK PASS FAIL
1. Flue is correct for appliance
2. Flue flow test
3. Spillage test
GAS CHECK
1. Gas soundness & let by test (Please circle Y / N as appropriate) Y / N Y / N
2. Standing pressure test in figures (e.g. 20 mb) mb
3. Appliance working pressure (on High Setting) in figures (e.g. 20 mb) mb
NB All other gas appliances must be operating on full
4. Gas rate m3/h
5. Does ventilation meet appliance requirements
6. Have controls been upgraded (Upgradeable models only) 8455 Standard YES NO
8456 Programmable Time & Temperature YES NO
This product is guaranteed for 2 years from the date of installation, as set out in the terms and conditions of sale between Gazco and your
local Gazco dealer. This guarantee will be invalid, to the extent permitted by law, if the above Appliance Commissioning Checklist is
not fully completed by the installer and available for inspection by a Gazco engineer. The guarantee will only be valid during the
second year, to the extent permitted by law, if the annual service recommended in the Instructions for Use has been completed by a
Corgi registered engineer, and a copy of the service visit report is available for inspection by a Gazco engineer.
1.12 In all correspondence, please quote the appliance type and
serial number which can be found on the databadge at the
rear of the stove.
1.13 This product is guaranteed for 2 years from the date of
installation, as set out in the terms and conditions of sale
between Gazco and your local Gazco dealer. Please consult
with your local Gazco dealer if you have any questions. In
all correspondence always quote the Model No. and Serial
No. Please ensure the commissioning checklist is completed
by your installer; this is a requirement of your Guarantee.
2.1 Locate the control valve on the appliance. There are two
control knobs on the valve:
- right controls the pilot ignition
- left controls the main burner.
2.2 If your appliance has already been upgraded to battery
remote control, please refer to the instructions provided
with the upgrade to operate the remote control. The
following instructions work for either situation.
2.3 Ensure that the left-hand control knob is pointing to off ( ).
2.4 Ensure that the right-hand control knob is pointing to off ( ).
2.5 Press in the right-hand control knob and, keeping he knob
depressed, turn it anti-clockwise until a click is heard and
the knob is pointing to pilot ( ). The pilot should now
light. If the pilot does not light, release the knob and repeat
the procedure until it does.
2.6 Keep the control knob pressed in for 10 seconds and then
release it, the pilot should stay alight. If the pilot goes out,
repeat the procedures until it remains lit.
2.7 If the pilot does not light after repeated attempts, contact
the retailer or installer from whom the appliance was
purchased.
2.8 Turn the right-hand control to point to main burner ( ).
The appliance can now be controlled using the left-hand
control knob.
2.9 Turn the left-hand control knob to point to low fire ( ),
the main burner lights on low. The burner can now be
controlled between low and high settings. Turn the control
knob anticlockwise to increase the flame height and
clockwise to decrease the flame height.
THE YELLOW FLAMES WILL APPEAR WHEN THE FIRE
HAS REACHED SUFFICIENT HEAT - TYPICALLY 10 TO 20
MINUTES.
IF THE APPLIANCE IS EXTINGUISHED OR GOES OUT IN
USE, WAIT 3 MINUTES BEFORE ATTEMPTING TO RELIGHT THE APPLIANCE.
4
USER INSTRUCTIONS
1.1 Installation and servicing must be carried out by a
competent person in accordance with Gas Safety
(Installation and Use) Regulations 1998, the relevant British
Standards for Installation, appropriate Codes of Practice and
in accordance with the manufacturers instructions. It is a
requirement that a CORGI registered engineer be used for
this purpose as they are approved by the HSE under the
above regulations.
1.2 This appliance is suitable for use in G.B. and I.E. using
Natural Gas at a supply pressure of 20mbar or LPG at a
supply pressure of 29mbar (Butane) or 37mbar (propane).
1.3 The installation shall also be completed in accordance with:
The Building Regulations issued by The Department of The
Environment.
The Building Standards (Scotland) Regulations issued by the
Scottish Development Department.
For Republic of Ireland, reference should be made to the
relevant standards governing installations (IS813:1996)
1.4 Read all these instructions before commencing installation.
1.5 This appliance must be installed in accordance with the
rules in force and only used in a sufficiently ventilated
space.
1.6 Ensure that curtains are not positioned above the stove, and
that there is at least a clearance of 300mm between the
sides of the stove and any curtains.
1.7 The manufacturer considers the full outer casing of this
stove to be a working surface which becomes hot whilst in
operation. A suitable guard is recommended to protect
young children, the aged and the infirm.
1.8 This stove must only be operated with the door secured
firmly in position. If any cracks appear in the glass the
appliance must not be used until the glass panel is replaced.
1.9 Do not attempt to burn rubbish in this stove.
1.10 Any combustible shelves or surrounding furniture must only
be fitted in accordance with the minimum dimensions

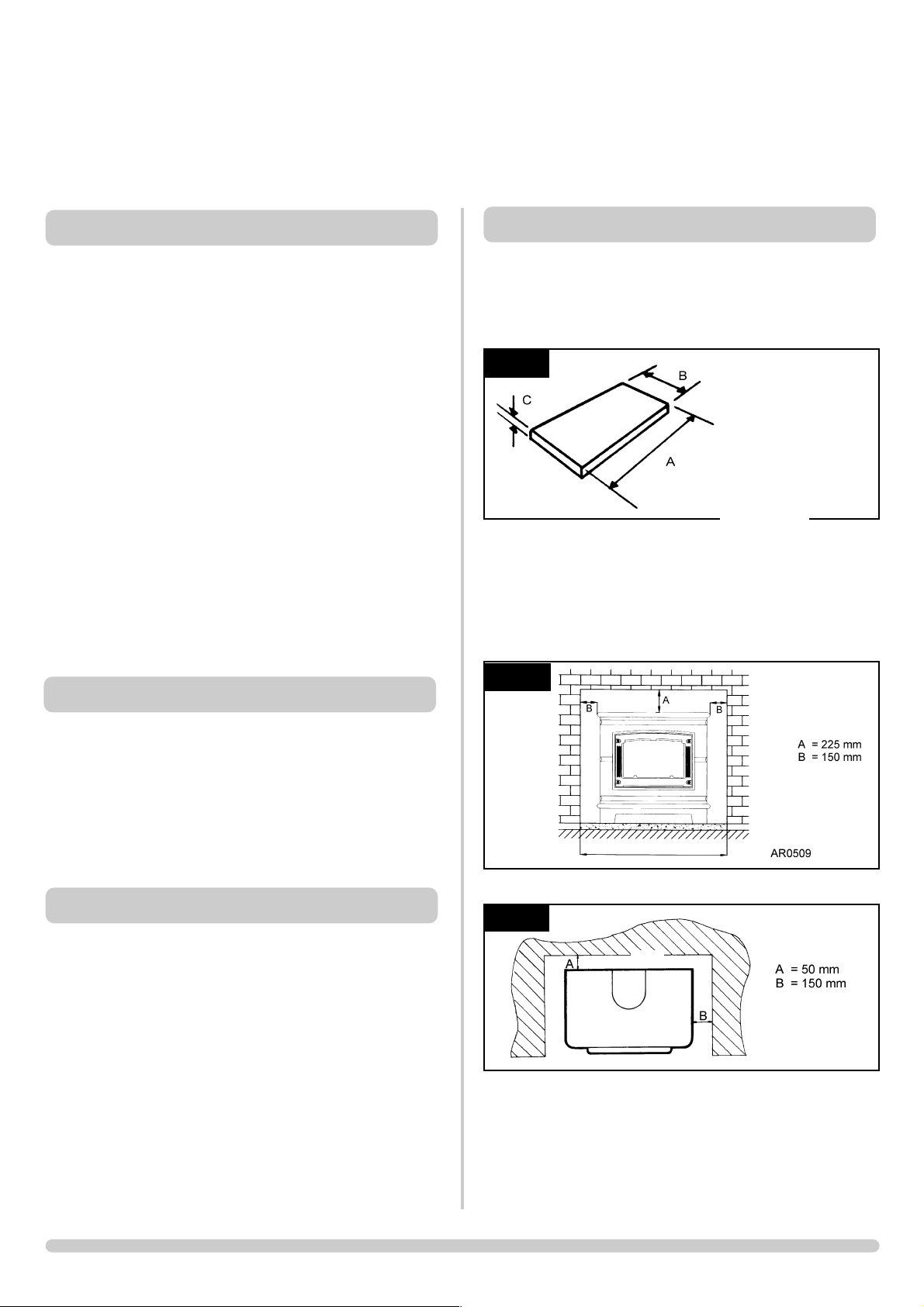

detailed in diagram 1.
1.11 Contact a competent service engineer to carry out relevant
spillage checks etc. following home improvements carried
out after installation of this stove (e.g. the fitting of double
glazing).
1. GENERAL
2. LIGHTING THE APPLIANCE
1
2
AR0914
5
3.1 To turn the stove off, locate the control valve, turn the lefthand control knob until it points to off ( ). The main
burner goes out leaving the pilot burning.
3.2
To turn the pilot off, locate the control valve, turn the righthand control knob until it points to off ( ), the pilot goes out.
4.1
Your stove is fitted with a control valve that can easily be
upgraded to battery powered remote control. This upgrade can
be fitted by anyone capable of simple DIY jobs and requires no
special training. There are two versions of this control which
can be obtained through your local Gazco stockist.
4.2 STANDARD REMOTE CONTROL. This remote controls the
gas appliance after the pilot has been lit. It can turn the
main burner on and regulate it from low through to high
and back again. It can turn the main burner off leaving the
pilot burning GAZCO PART NUMBER 8455.
4.3 THERMOSTATIC AND TIMER REMOTE CONTROL. This
remote controls the gas appliance after the pilot has been
lit. In ‘MANUAL MODE’ it can be used to turn the main
burner on and manually regulate it from low through to
high and back again. It can also be used to turn the main
burner leaving the pilot burning. In ‘AUTO MODE’ it will
automatically regulate the room temperature to a pre-set
temperature. In ‘TIMER MODE’ it will turn the fire on and
off according to a pre-set programme and automatically
regulate the room temperature during the two ON periods.
GAZCO PART NUMBER 8456
WARNING: DO NOT ATTEMPT TO CLEAN THE STOVE
UNTIL IT IS COLD. THE STOVE RETAINS ITS HEAT FOR
A CONSIDERABLE TIME AFTER SHUTDOWN.
NOTE: THE CAST IRON DOOR IS HEAVY, TAKE
EXTREME CARE WHEN HANDLING.
5.1 Remove the door by undoing the four dome nuts using the
tool supplied and place to one side.
5.2 Carefully remove the ceramic fuel bed components and
place to one side taking care to protect floor coverings etc,
PLEASE HANDLE WITH CARE.
5.3 The coals should not require cleaning. Do not use a
vacuum cleaner or brush to clean the coals, any large pieces
of debris can be removed by hand.
5.4 Ensure any debris is removed from the burner ports.
5.5 Replace the ceramics by referring to section 6.
5.6 Use a damp cloth to clean the outer casing of the
appliance.
5.7
The fuel effect and side panels in this appliance are made
from Refractory Ceramic Fibre (RCF), a material which is
commonly used for this application.
Protective clothing is not required when handling these
articles, but we recommend you follow normal hygiene
rules of not smoking, eating or drinking in the work area
and always wash your hands before eating or drinking.
To ensure that the release of RCF fibres are kept to a
minimum, during installation and servicing a HEPA filtered
vacuum is recommended to remove any dust accumulated
in and around the appliance before and after working on it.
When servicing the appliance it is recommended that the
replaced items are not broken up, but are sealed within
heavy duty polythene bags and labelled as RCF waste.
RCF waste is classed as stable, non-reactive hazardous
waste and may be disposed of at a licensed landfill site.
Excessive exposure to these materials may cause temporary
irritation to eyes, skin and respiratory tract; wash hands
thoroughly after handling the material.
The major ceramic components can be found inside the
firebox. Remove the cast iron door using the tool provided,
and remove all the protective packaging from these
components. See Diagram 3.
NOTE: THE CAST IRON IS HEAVY, TAKE EXTREME CARE
WHEN HANDLING.
The loose coals should be arranged as specified in the
following steps. Care should be taken to ensure that there is
sufficient space between the coals to allow flames to pass
through.
4. UPGRADING YOUR STOVE
5. CLEANING THE FIRE
6. FUEL BED ARRANGEMENT
USER INSTRUCTIONS
3. TURNING THE STOVE OFF
Advice on Handling and disposal of fire ceramics
6
USER INSTRUCTIONS
6.1 Place the flame baffle onto the shelf at the rear of the tray
and push up against the rear ledge, see diagram 3.
6.2 Locate the front coal moulding in front of the flame baffle
ensuring that the end legs sit flat against the burner skin, see
diagram 4.
6.3 Place three large coals on the front coal so that they lean
against the flame baffle, and the four large coals on the
flame baffle so that they sit on the fingers, see diagram 5.
6.4 Place two small coals at each end of the front coal so that
they lean against the flame baffle, and a further two large
coals on the flame baffle, one at each end, see diagram 6.
6.5 Place five small coals along the rear of the flame baffle,
resting against the rear ledge, see diagram 7.
6.6
Ensure that the fibreglass seal on the back of the door is intact,
locate the door on the four studs and slide back to the firebox.
Secure in place using the four dome nuts and the tool
supplied, do not over tighten the nuts, see diagram 16. Keep
the tool with these instructions for future use.
NEVER OPERATE THE STOVE WHEN THE DOOR IS
REMOVED OR WHEN THE GLASS IS BROKEN.
Medium Ceramica
3
AR0365
4
AR0366
5
AR0367
6
AR0368
7
AR0369
16
AR0390
13.1 Parts of this appliance become hot during normal use. It is
recommended that a suitable fire guard be used for
protection of young children and the infirm. Indeed, all
parts of the appliance should be treated as a ‘working
surface’ except for the control area.
7.1 The stove is fitted with the Gazco Flue Sure System, which
will act to cut off the gas supply to the burner in the event
of incorrect operation of the flue. If the system acts to cut
off the gas supply, this indicates that there is insufficient flue
pull. If this occurs a minimum of 10 minutes should be
allowed before trying to relight. Continued operation of this
safety device means there may be a serious problem with
the flue system. A qualified gas engineer should inspect this.
Do not use the stove until an engineer says it is safe to
do so.
8.1 This is a safety feature incorporated in all GAZCO fires,
which automatically switches off the gas supply if the pilot
light goes out and fails to heat the thermocouple.
9.1 The surface coating on your GAZCO stove will ‘burn off’
during the first 24 hours of operation on high, producing a
harmless and temporary odour. If the odour persists ask
your retailer for advice.
10.1 A qualified gas engineer must service the stove every 12
months. In all correspondence, always quote the appliance
type and the Serial Number found on the data badge on
the appliance.
11.1 Any purpose provided ventilation should be checked
periodically to ensure it is free from obstruction.
12.1 To assist in any future correspondence, your installer should
have completed the Appliance Commissioning Checklist in
this manual. This records the essential installation details of
this appliance. In all correspondence always quote the
Model No. and Serial No.
7
USER INSTRUCTIONS
8. THE FLAME FAILURE DEVICE
9. 'RUNNING IN'
10. SERVICING
11. VENTILATION
12. INSTALLATION DETAILS
13. HOT SURFACES
7. GAZCO FLUE SURE SYSTEM
Loading...
