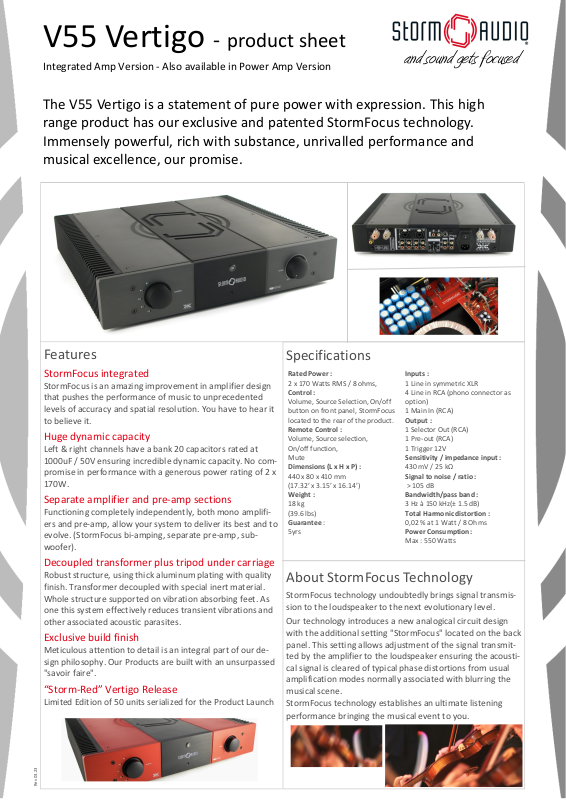

V55 Vertigo - product sheet
Integrated Amp Version - Also available in Power Amp Version
The V55 Vertigo is a statement of pure power with expression. This high
range product has our exclusive and patented StormFocus technology.
Immensely powerful, rich with substance, unrivalled performance and
musical excellence, our promise.
and sound gets focused
Features
StormFocus integrated
StormFocus is an amazing improvement in amplifier design
that pushes the performance of music to unprecedented
levels of accuracy and spatial resolution. You have to hear it
to believe it.
Huge dynamic capacity
Left & right channels have a bank 20 capacitors rated at
1000uF / 50V ensuring incredible dynamic capacity. No compromise in performance with a generous power rating of 2 x
170W.
Separate amplifier and pre-amp sections
Functioning completely independently, both mono amplifiers and pre-amp, allow your system to deliver its best and to
evolve. (StormFocus bi-amping, separate pre-amp, subwoofer).
Decoupled transformer plus tripod under carriage
Robust structure, using thick aluminum plating with quality
finish. Transformer decoupled with special inert material.
Whole structure supported on vibration absorbing feet. As
one this system effectively reduces transient vibrations and
other associated acoustic parasites.
Exclusive build finish
Meticulous attention to detail is an integral part of our design philosophy. Our Products are built with an unsurpassed
"savoir faire".
“Storm-Red” Vertigo Release
Limited Edition of 50 units serialized for the Product Launch
Specifications
Rated Power :
2 x 170 Watts RMS / 8 ohms,
Control :
Volume, Source Selection, On/off
button on front panel, StormFocus
located to the rear of the product.
Remote Control :
Volume, Source selection,
On/off function,
Mute
Dimensions (L x H x P) :
440 x 80 x 410 mm
(17.32’ x 3.15’ x 16.14’)
Weight :
18 kg
(39.6 lbs)
Guarantee :
5yrs
Inputs :
1 Line in symmetric XLR
4 Line in RCA (phono connector as
option)
1 Main In (RCA)
Output :
1 Selector Out (RCA)
1 Pre-out (RCA)
1 Trigger 12V
Sensitivity / impedance input :
430 mV / 25 kΩ
Signal to noise / ratio :
> 105 dB
Bandwidth/pass band :
3 Hz à 150 kHz(± 1.5 dB)
Total Harmonic distortion :
0,02 % at 1 Watt / 8 Ohms
Power Consumption:
Max : 550 Watts
About StormFocus Technology
StormFocus technology undoubtedly brings signal transmission to the loudspeaker to the next evolutionary level.
Our technology introduces a new analogical circuit design
with the additional setting "StormFocus" located on the back
panel. This setting allows adjustment of the signal transmitted by the amplifier to the loudspeaker ensuring the acoustical signal is cleared of typical phase distortions from usual
amplification modes normally associated with blurring the
musical scene.
StormFocus technology establishes an ultimate listening
performance bringing the musical event to you.
Rev 03.23
