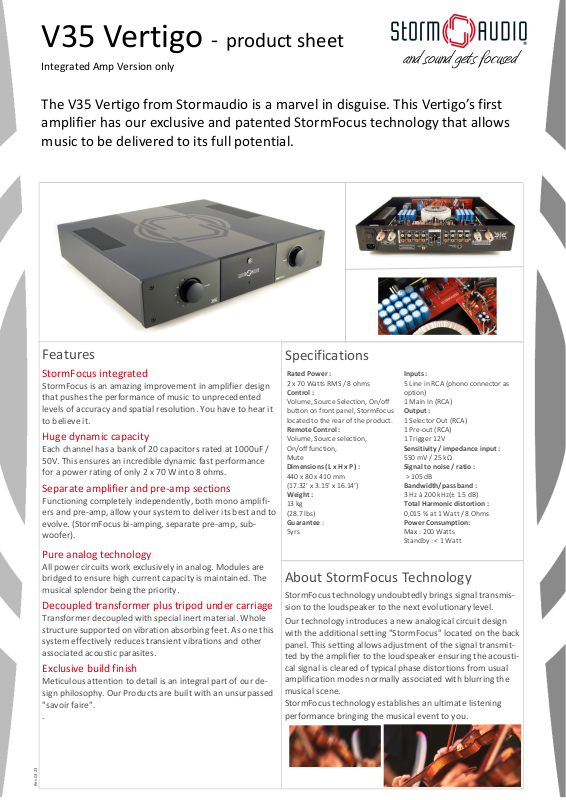

V35 Vertigo - product sheet
Integrated Amp Version only
The V35 Vertigo from Stormaudio is a marvel in disguise. This Vertigo’s first
amplifier has our exclusive and patented StormFocus technology that allows
music to be delivered to its full potential.
and sound gets focused
Features
StormFocus integrated
StormFocus is an amazing improvement in amplifier design
that pushes the performance of music to unprecedented
levels of accuracy and spatial resolution. You have to hear it
to believe it.
Huge dynamic capacity
Each channel has a bank of 20 capacitors rated at 1000uF /
50V. This ensures an incredible dynamic fast performance
for a power rating of only 2 x 70 W into 8 ohms.
Separate amplifier and pre-amp sections
Functioning completely independently, both mono amplifiers and pre-amp, allow your system to deliver its best and to
evolve. (StormFocus bi-amping, separate pre-amp, subwoofer).
Pure analog technology
All power circuits work exclusively in analog. Modules are
bridged to ensure high current capacity is maintained. The
musical splendor being the priority.
Decoupled transformer plus tripod under carriage
Transformer decoupled with special inert material. Whole
structure supported on vibration absorbing feet. As one this
system effectively reduces transient vibrations and other
associated acoustic parasites.
Exclusive build finish
Meticulous attention to detail is an integral part of our design philosophy. Our Products are built with an unsurpassed
"savoir faire".
.
Specifications
Rated Power :
2 x 70 Watts RMS / 8 ohms
Control :
Volume, Source Selection, On/off
button on front panel, StormFocus
located to the rear of the product.
Remote Control :
Volume, Source selection,
On/off function,
Mute
Dimensions (L x H x P) :
440 x 80 x 410 mm
(17.32’ x 3.15’ x 16.14’)
Weight :
13 kg
(28.7 lbs)
Guarantee :
5yrs
Inputs :
5 Line in RCA (phono connector as
option)
1 Main In (RCA)
Output :
1 Selector Out (RCA)
1 Pre-out (RCA)
1 Trigger 12V
Sensitivity / impedance input :
550 mV / 25 kΩ
Signal to noise / ratio :
> 105 dB
Bandwidth/pass band :
3 Hz à 200 kHz(± 1.5 dB)
Total Harmonic distortion :
0,015 % at 1 Watt / 8 Ohms
Power Consumption:
Max : 200 Watts
Standby : < 1 Watt
About StormFocus Technology
StormFocus technology undoubtedly brings signal transmission to the loudspeaker to the next evolutionary level.
Our technology introduces a new analogical circuit design
with the additional setting "StormFocus" located on the back
panel. This setting allows adjustment of the signal transmitted by the amplifier to the loudspeaker ensuring the acoustical signal is cleared of typical phase distortions from usual
amplification modes normally associated with blurring the
musical scene.
StormFocus technology establishes an ultimate listening
performance bringing the musical event to you.
Rev 03.23
