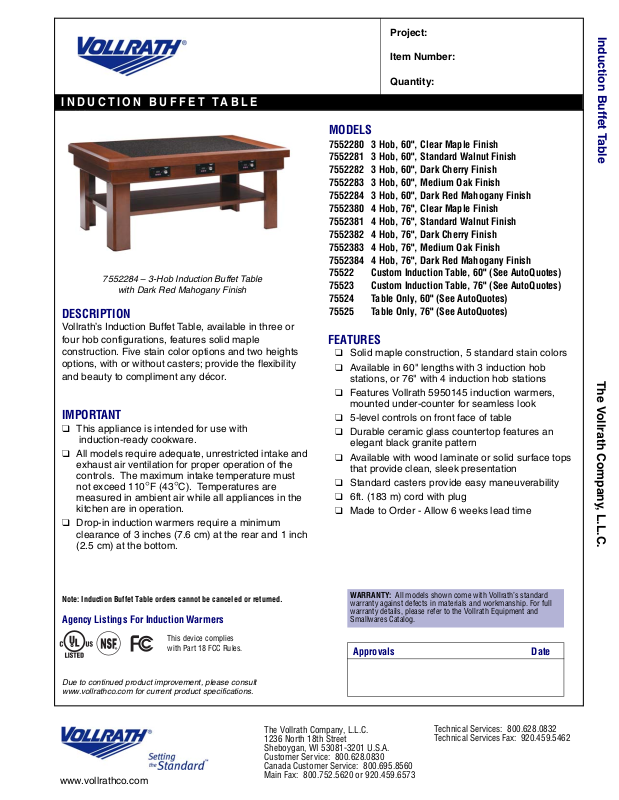

Stoelting 75522 User Manual
INDUCTION BUFFET TABLE
www.vollrathco.com
The Vollrath Company, L.L.C.
1236 North 18th Street
Sheboygan, WI 53081-3201 U.S.A.
Customer Service: 800.628.0830
Canada Customer Service: 800.695.8560
Main Fax: 800.752.5620 or 920.459.6573
Technical Services: 800.628.0832
Technical Services Fax: 920.459.5462
Agency Listings For Induction Warmers
This device complies
with Part 18 FCC Rules.
Induction Buffet Table
7552284 – 3-Hob Induction Buffet Table
with Dark Red Mahogany Finish
DESCRIPTION
Vollrath’s Induction Buffet Table, available in three or
four hob configurations, features solid maple
construction. Five stain color options and two heights
options, with or without casters; provide the flexibility
and beauty to compliment any décor.
IMPORTANT
❑ This appliance is intended for use with
induction-ready cookware.
❑ All models require adequate, unrestricted intake and
exhaust air ventilation for proper operation of the
controls. The maximum intake temperature must
not exceed 110
measured in ambient air while all appliances in the
kitchen are in operation.
❑ Drop-in induction warmers require a minimum
clearance of 3 inches (7.6 cm) at the rear and 1 inch
(2.5 cm) at the bottom.
F (43C). Temperatures are
Project:
Item Number:
Quantity:
MODELS
7552280 3 Hob, 60", Clear Maple Finish
7552281 3 Hob, 60", Standard Walnut Finish
7552282 3 Hob, 60", Dark Cherry Finish
7552283 3 Hob, 60", Medium Oak Finish
7552284 3 Hob, 60", Dark Red Mahogany Finish
7552380 4 Hob, 76", Clear Maple Finish
7552381 4 Hob, 76", Standard Walnut Finish
7552382 4 Hob, 76", Dark Cherry Finish
7552383 4 Hob, 76", Medium Oak Finish
7552384 4 Hob, 76", Dark Red Mahogany Finish
75522 Custom Induction Table, 60" (See AutoQuotes)
75523 Custom Induction Table, 76" (See AutoQuotes)
75524 Table Only, 60" (See AutoQuotes)
75525 Table Only, 76" (See AutoQuotes)
FEATURES
❑ Solid maple construction, 5 standard stain colors
❑ Available in 60" lengths with 3 induction hob
stations, or 76" with 4 induction hob stations
❑ Features Vollrath 5950145 induction warmers,
mounted under-counter for seamless look
❑ 5-level controls on front face of table
❑ Durable ceramic glass countertop features an
elegant black granite pattern
❑ Available with wood laminate or solid surface tops
that provide clean, sleek presentation
❑ Standard casters provide easy maneuverability
❑ 6ft. (183 m) cord with plug
❑ Made to Order - Allow 6 weeks lead time
Induction Buffet Table
The Vollrath Company, L.L.C.
Note: Induction Buffet Table orders cannot be canceled or returned.
Due to continued product improvement, please consult
www.vollrathco.com for current product specifications.
WARRANTY: All models shown come with Vollrath’s standard
warranty against defects in materials and workmanship. For full
warranty details, please refer to the Vollrath Equipment and
Smallwares Catalog.
Approvals Date
INDUCTION BUFFET TABLE
www.vollrathco.com
The Vollrath Company, L.L.C.
1236 North 18th Street
Sheboygan, WI 53081-3201 U.S.A.
Customer Service: 800.628.0830
Canada Customer Service: 800.695.8560
Main Fax: 800.752.5620 or 920.459.6573
Technical Services: 800.628.0832
Technical Services Fax: 920.459.5462
To p
To p
Front
Front
30
(76.2)
30
(76.2)
60
(152.4)
76
(193)
34
(186.4)
34
(186.4)
12 (30.5)
12 (30.5)
5ft Table with Casters
6ft Table with Casters
5-20R
120V
MODELS
7552280 3 Hob, 60", Clear Maple Finish 7552380 4 Hob, 76", Clear Maple Finish
7552281 3 Hob, 60", Standard Walnut Finish 7552381 4 Hob, 76", Standard Walnut Finish
7552282 3 Hob, 60", Dark Cherry Finish 7552382 4 Hob, 76", Dark Cherry Finish
7552283 3 Hob, 60", Medium Oak Finish 7552383 4 Hob, 76", Medium Oak Finish
7552284 3 Hob, 60", Dark Red Mahogany Finish 7552384 4 Hob, 76", Dark Red Mahogany Finish
75522 Custom Induction Table, 60" (See AutoQuotes) 75524 Table Only, 60" (See AutoQuote)
75523 Custom Induction Table, 76" (See AutoQuotes) 75525 Table Only, 76" (See AutoQuotes)
DIMENSIONS
Induction Buffet Table
Dimensions shown in inches (cm)
SPECIFICATIONS
Dimensions
Model
7552280 60 x 30 x 34 (152.4 x 76.2 x 186.4) 3 14 (55.6) Yes 11.25 120V AC 1350 5-20P
7552281 60 x 30 x 34 (152.4 x 76.2 x 186.4) 3 14 (55.6) Yes 11.25 120V AC 1350 5-20P
The Vollrath Company, L.L.C.
7552282 60 x 30 x 34 (152.4 x 76.2 x 186.4) 3 14 (55.6) Yes 11.25 120V AC 1350 5-20P
7552283 60 x 30 x 34 (152.4 x 76.2 x 186.4) 3 14 (55.6) Yes 11.25 120V AC 1350 5-20P
7552284 60 x 30 x 34 (152.4 x 76.2 x 186.4) 3 14 (55.6) Yes 11.25 120V AC 1350 5-20P
7552380 76 x 30 x 34 (193 x 76.2 x 186.4) 4 14 (55.6) Yes 15 120V AC 1800 5-20P
7552381 76 x 30 x 34 (193 x 76.2 x 186.4) 4 14 (55.6) Yes 15 120V AC 1800 5-20P
7552382 76 x 30 x 34 (193 x 76.2 x 186.4) 4 14 (55.6) Yes 15 120V AC 1800 5-20P
7552383 76 x 30 x 34 (193 x 76.2 x 186.4) 4 14 (55.6) Yes 15 120V AC 1800 5-20P
7552384 76 x 30 x 34 (193 x 76.2 x 186.4) 4 14 (55.6) Yes 15 120V AC 1800 5-20P
75522 Custom 3 14 (55.6) Custom 11.25 120V AC 1350 5-20P
75523 Custom 4 14 (55.6) Custom 15 120V AC 1800 5-20P
75524 Custom 0 N/A Custom N/A N/A N/A N/A
75525 Custom 0 N/A Custom N/A N/A N/A N/A
(Width x Depth x Height)
Number of
Hobs
Max Pan
Size
Casters Amps Volts kW Plug
©
2011 The Vollrath Company L.L.C. Form Number L35863 8/11
Receptacle
Printed in USA
