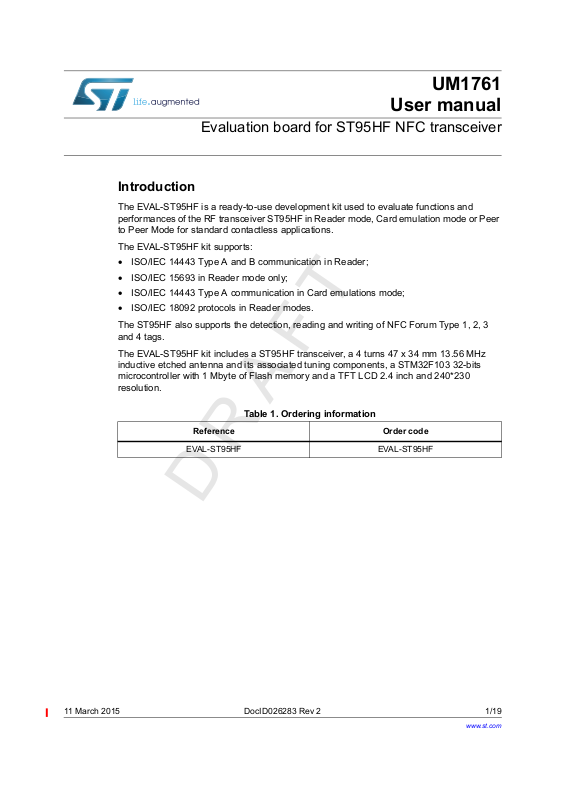

UM1761
User manual
Evaluation board for ST95HF NFC transceiver
Introduction
The EVAL-ST95HF is a ready-to-use development kit used to evaluate functions and
performances of the RF transceiver ST95HF in Reader mode, Card emulation mode or Peer
to Peer Mode for standard contactless applications.
The EVAL-ST95HF kit supports:
• ISO/IEC 14443 Type A and B communication in Reader;
• ISO/IEC 15693 in Reader mode only;
• ISO/IEC 14443 Type A communication in Card emulations mode;
• ISO/IEC 18092 protocols in Reader modes.
The ST95HF also supports the detection, reading and writing of NFC Forum Type 1, 2, 3
and 4 tags.
The EVAL-ST95HF kit includes a ST95HF transceiver, a 4 turns 47 x 34 mm 13.56 MHz
inductive etched antenna and its associated tuning components, a STM32F103 32-bits
microcontroller with 1 Mbyte of Flash memory and a TFT LCD 2.4 inch and 240*230
resolution.
Table 1. Ordering information
Reference Order code
EVAL-ST95HF EVAL-ST95HF
11 March 2015 DocID026283 Rev 2 1/19
www.st.com
Contents UM1761
Contents
1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Hardware and layout description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Eval-ST95HF assembly drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Eval-ST95HF board powering and Startup . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.3 Program/debug the RF transceiver demo board. . . . . . . . . . . . . . . . . . . . . 9
3.4 Electrical schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Bill of material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Federal Communications Commission (FCC) and
Industry Canada (IC) compliance statements . . . . . . . . . . . . . . . . . . . . 17
5.1 FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.1.1 Part 15.19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.1.2 Part 15.21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.1.3 FCC ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.2 IC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.2.1 Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.2.2 Déclaration de conformité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.2.3 IC ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2/19 DocID026283 Rev 2
UM1761 List of tables
List of tables
Table 1. Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table 2. Bill of materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 3. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
DocID026283 Rev 2 3/19
3
List of figures UM1761
List of figures
Figure 1. Functional block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 2. Top assembly view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 3. Bottom assembly view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 4. EVAL-ST95HF RF transceiver board top picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 5. EVAL-ST95HF RF transceiver board back picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 6. Electric schematics diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4/19 DocID026283 Rev 2
UM1761 Description
069
1 Description
The EVAL-ST95HF board includes a ST95HF transceiver, a 4 turns 47 X 34 mm, 13.56 MHz
inductive etched antenna ant its associated tunings components, a STM32F103 32-bits
microcontroller with 1Mbytes of Flash memory and a TFT LCD 2.4 inch and 240*230
resolutions. The functional scheme is shown in Figure 1.
It is powered by USB cable. A SPI bus allows the microcontroller to communicate with the
ST95HF and LCD screen.
A 4 positions joystick is used to move in the menu.
Two other pushbuttons are placed on the board, one for the reset, the second to rotate the
LCD picture.
The download is possible through the JTAG connector.
The ST android application "ST95HF demo App" shows a proprietary IAP application. The
user can upload from the NFC reader (NFC Phone or RFID reader) the firmware of the
STM32F103 of the EVAL-ST95HF board and boot on it.
More information on the ST95HF evaluation kit and associated demonstration software can
be found at www.st.com.
Figure 1. Functional block diagram
DocID026283 Rev 2 5/19
18
Features UM1761
2 Features
• ST95HF, a 13.56-MHz multi-protocol contactless transceiver IC with SPI serial access
communication:
• Reader mode
– ISO/IEC 14443 Type A
– ISO/IEC 15693
– ISO/IEC 18092
• Card Emulation mode:
– ISO/IEC 14443 Type A
• ISO/IEC 14443 Type A in Peer To Peer mode.
• 47 x 34 mm with 4 turn. 13.56 MHz inductive antenna etched on PCB and associated
tuning circuit.
• STM32F103RGT6 64LQFP 32-bits microcontroller, with 1Mbytes of Flash memory and
USB interface in a 64-pin LQFP package.
• KF33BDT, a 3.3V low dropout (LDO) voltage regulator
• USB mini B connector
• NX2016SA, a 27.12-MHz EXS00A-CS01188 crystal oscillator for ST95HF transceiver
• HC-49SD 8.000MHz 20pF/80ppm for STM32
• 20-pin JTAG connector for STM32 programming and debugging
• 2 push button (Reset & 180 degree rotation of the LCD screen)
• 1 joystick 4 directions + select
• 5 different color LEDs indicating the presence of RF field and protocol used for
communicating.
• JTAG connector for microcontroller firmware upgrade and debug.
• LCD color screen (320*200pixels).
• USB cable: Type A / mini B
6/19 DocID026283 Rev 2
UM1761 Hardware and layout description
0+];7$/
WXUQV0+]
ORRSDQWHQQD
069
3URWRFROGHWHFWLRQ
/('V
SLQV
-7$*FRQQHFWRU
86%FRQQHFWRU
3RZHUVXSSO\
5HVHW
SXVKEXWWRQ
/&'VFUHHQ
SLFWXUHURWDWLRQ
SXVKEXWWRQ
-R\VWLFN *URXQGSUREH5)ILHOGGHWHFWLRQ/(' 67+),&
/&'VFUHHQ
0+]RVFLOODWRU
/'2UHJXODWRU
6705)*7
069
3 Hardware and layout description
3.1 Eval-ST95HF assembly drawing
The top and bottom assembly views are shown in Figure 2 and Figure 3, respectively.
Figure 2. Top assembly view
Figure 3. Bottom assembly view
The corresponding pictures of the final board are shown in Figure 4 and Figure 5.
DocID026283 Rev 2 7/19
18
Hardware and layout description UM1761
Figure 4. EVAL-ST95HF RF transceiver board top picture
Figure 5. EVAL-ST95HF RF transceiver board back picture
3.2 Eval-ST95HF board powering and Startup
The EVAL-ST95HF board is powered by the USB bus via a Type A / mini B USB cable
connected to a PC.
When powered up, the ST95HF starts the firmware already downloaded in STM32 flash
memory. A general menu appears in which you can reach in various function of the
ST95HF: user can choose mainly between two modes, namely Card emulation mode or
NFC reader mode.
A push button is placed in order to choose the ST95HF LCD screen picture orientation
according to the board direction or in case of two ST95HF used “face to face”.
8/19 DocID026283 Rev 2
UM1761 Hardware and layout description
Please refer to the firmware user manual available on ST web site www.st.com to get more
detail.
3.3 Program/debug the RF transceiver demo board.
In order to flash or debug an STM32 microcontroller application on the EVAL-ST95HF
board, simply connect the 20-pin JTAG/SWD flat ribbon of the STLINK/V2 in-circuit
debugger and programmer to the RF transceiver demonstration board JTAG connector (J3),
then launch STLink.
For more information, documentation about the STLINK/V2 in-circuit debugger and
programmer, please visit www.st.com.
3.4 Electrical schematics
A detailed view of the electrical schemes for the EVAL-ST95HF board can be found in
Figure 6.
DocID026283 Rev 2 9/19
18
10/19 DocID026283 Rev 2
Figure 6. Electric schematics diagram
Hardware and layout description UM1761
4 Bill of material
The parts needed for the EVAL-ST95HF development kit are listed in Table 2.
UM1761 Bill of material
Table 2. Bill of materials
DocID026283 Rev 2 11/19
Quantity Description Reference Package Manufacturer Part number Distributor
1 ST95HFVMD5 ST95HF U1 VFQFPN32_5x5 STMicroelectronics ST95HF VMD5T - -
1
1
1
1 LCD Screen FRD24048 U5 SF-TC240T-48P-07 FRDA LCD FRD24048 - -
2
1
1
1
MCU 32 BITS 1MB Flash
64LQFP STM32F103RGT6
3.3V Voltage regulator
KF33BDT
Joystick
4 directions1 select
Wealth Metal Factory
MT008-A
293D TANTAL SMD
POL CAP 1uF 16V 10%
Boitier A 1µF
293D TANTAL SMD
POL CAP 2,2uF 35V 10%
Boitier C 2,2uF
293D TANTAL SMD
POL CAP 4,7uF 16V 10%
Boitier A 4.7µF
293D TANTAL SMD
POL CAP 10uF 35V 10%
boitier D 10uF
U2 LQFP64_10x10 STMicroelectronics STM32F103RGT6 - -
U3 DPAK STMicroelectronics KF33BDT - -
U4 JOYSTICK_MT-008A
C11, C17 293D-A - - Farnell 1754174
C30 293D-C - - Farnell 1754228
C33 293D-A - - Farnell 1754174
C19 293D-D - - Farnell 2112949
Wealth Metal
Factory
MT008-A - -
Order
code
6
CONDENSATEUR MLCC
0603 NP0 50V 2% NC
(1)
C37, C38,
C40, C41, Cb,
Cc
0603 - - - -
12/19 DocID026283 Rev 2
Table 2. Bill of materials (continued)
Bill of material UM1761
Quantity Description Reference Package Manufacturer Part number Distributor
2
4
1
2
2
1
1
2
CONDENSATEUR MLCC
0603 NP0 50V 2% 47pF
CONDENSATEUR MLCC
0603 NP0 50V 2% 100pF
CONDENSATEUR MLCC
0603 NP0 50V 2% 82pF
CONDENSATEUR MLCC
0603 NP0 50V 5% 10pF
CONDENSATEUR MLCC
0603 NP0 50V 5% 20pF
CONDENSATEUR MLCC
0603 NP0 50V 5% 1nF
CONDENSATEUR MLCC
0603 NP0 50V 5% 4,7nF
CONDENSATEUR MLCC
0603 NP0 50V 5% 10nF
C22, C25 0603 Murata
C23, C24,
C35, C36
0603 Murata
Ca 0603 Murata
C27, C28 0603 - - Farnell 1759053
C1, C4 0603 - - Farnell 1844172
C21 0603 - - Farnell 1759089
C26 0603 - - Farnell 1833869
C16, C18 0603 - - Farnell 1833871
(2)
(2)
(2)
GRM1885C1H470GA01 - -
GRM1885C1H101GA01 - -
GRM1885C1H820GA01 - -
C2, C3, C5,
C6, C7, C8,
C9, C10, C12,
C13, C14,
C15, C20,
0603 - - Farnell 1740621
18
CONDENSATEUR MLCC
0603 NP0 50V 5% 100nF
C29, C31,
C32, C34, C39
NOISE SUPPRESSOR
1
CMS 90OHM. 370MA
FL1 744232xxx
744232090
NOISE SUPPRESSOR
1
CMS 90OHM. 0.37A
FL2 744232xxx Murata
WURTH
ELEKTRONIK
(2)
(2)
744232090 Farnell 1636474
DLW31SN900SQ2 Radiospares 724-1687
DLW31SN900SQ2
Order
code
Table 2. Bill of materials (continued)
UM1761 Bill of material
DocID026283 Rev 2 13/19
Quantity Description Reference Package Manufacturer Part number Distributor
FILTER SUPPRESSION,
1
0603, 1UF, 6.3VDC
FL3 NFM18PS Murata
(2)
NFM18PS105R0J3D Farnell 1686506
NFM18PS105R0J3D
5
1
FERRITE CMS 600OHM.
0805 742792042
FERRITE CMS 2200OHM.
0805 742792093
FERRITE BEAD, 0.38OHM,
1
500MA, 0603
L1, L2, L3,
L8, L9
L10 0805
0805
ELEKTRONIK
ELEKTRONIK
L4 0603 Murata
WURTH
WURTH
(2)
(2)
(2)
742792042 Farnell 1635716
742792093 Farnell 1635726
BLM18AG601SN1D Farnell 1515679
BLM18AG601SN1D
1
2
FERRITE CMS 300OHM.
0603 742792641
Inductor SMD 0805,
LQM21NNR56K10D 560nH
L7 0603
L5, L6 0805 Murata
WURTH
ELEKTRONIK
(2)
(2)
742792641 Farnell 1635705
LQM21NNR56K10D Radiospares 786-7087
R12, R16,
R29, R30,
Resistance CMS 0603 0,1W
12
5% NC
(1)
R53, R56,
R58, R59,
0603 - - - -
R65, R67,
R69, Rq
R13, R15,
R31, R32,
R37, R38,
Resistance CMS 0603 0,1W
16
5% 0
R47, R61,
R62, R63,
0603 - - - -
R64, R66,
R68, R70,
R72, R73
Resistance CMS 0603 0,1W
3
5% 10
R3, R20, R21 0603 - - - -
Order
code
Resistance CMS 0603 0,1W
1
5% 180
R46 0603 - - - -
14/19 DocID026283 Rev 2
Table 2. Bill of materials (continued)
Bill of material UM1761
Quantity Description Reference Package Manufacturer Part number Distributor
Resistance CMS 0603 0,1W
2
Resistance CMS 0603 0,1W
1
Resistance CMS 0603 0,1W
3
Resistance CMS 0603 0,1W
1
Resistance CMS 0603 0,1W
5
Resistance CMS 0603 0,1W
10
Resistance CMS 0603 0,1W
17
Resistance CMS 0603 0,1W
1
Resistance CMS 0603 0,1W
1
Resistance CMS 0603 0,1W
2
5% 330
5% 560
5% 1k
5% 1.5k
5% 3.3k
5% 4.7k
5% 10k
5% 36k
5% 47k
5% 1M
Z-RX1, Z-RX2 0603 - - - -
R43 0603 - - - -
R2, R44, R45 0603 - - - -
R28 0603 - - - -
R17, R18,
R19, R23, R24
R1, R48, R49,
R50, R51,
R52, R54,
R55, R57, R60
R5, R6, R7,
R8, R9, R10,
R11, R22,
R33, R34,
R35, R36,
R39, R40,
R41, R42, R71
R27 0603 - - - -
R25 0603 - - - -
R4, R26 0603 - - - -
0603 - - - -
0603 - - - -
0603 - - - -
Order
code
1
1
HEADER, RIGHT ANGLE,
Mini USB
5075BMR-05-SM
20WAY
J2 5075BMR-05-SM Neltron Industrial 5075BMR-05-SM - -
J3 HE10_20PTS_M_COUDE MULTICOMP MC9A22-2034 Farnell 1099248
Table 2. Bill of materials (continued)
UM1761 Bill of material
DocID026283 Rev 2 15/19
Quantity Description Reference Package Manufacturer Part number Distributor
2 Connector 1PT, NC ST1, ST3 CON_1PTS FCI 77311-401-36LF Farnell 1097954
1 Connector 3PTS 2,54, NC
2 Push Button SW_BP_ST
(1)
(1)
ST2 CON_3PTS_P2.54 FCI 77311-401-36LF Farnell 1097954
SW1, SW2 FSM4JSMA ALCOSWITCH FSM4JSMA Farnell 3801305
LED, 1206, RED,
1
80MCD, 635NM
LED1 LED-1206 DIALIGHT 598-8210107F Farnell 1850747
RED Led
LED, 1206,YELLOW,
1
130MCD, 593NM YELLOW
LED2 LED-1206 DIALIGHT 5988240107F Farnell 1465998
Led
LED, 1206, BLUE, 140MCD
1
BLUE Led
LED3 LED-1206 DIALIGHT 5988291107F Farnell 1850752
LED, 1206, ORANGE,
1
110MCD, 610NM ORANGE
LED4 LED-1206 DIALIGHT 5988230107F Farnell 1872396
Led
LED, 1206, GREEN,
1
20MCD, 570NM
LED5 LED-1206 DIALIGHT 5988270107F Farnell 1466000
GREEN Led
BC817-16 - TRANSISTOR
2
NPN 0.5A 45V SOT23
Q1, Q2 SOT23 MULTICOMP BC817-16 Farnell 1798077
BC817
SMD CRYSTAL
1
OSCILLATOR,8M,20PF,20p
pm 8MHz
NX2016SA 27.12MHz
1
EXS00A-CS01188
27.12MHz
1 NFC Antenna
(1)
Y1 HC49SD
Y2 NX2016 NDK
ant1 ANT_90DEG - - - -
FOX
ELECTRONICS
(2)
(2)
FOXSDLF/080-20 Farnell 2063972
NX2016SA 27.12MHz
EXS00A-CS01188
--
Order
code
16/19 DocID026283 Rev 2
Table 2. Bill of materials (continued)
Bill of material UM1761
Quantity Description Reference Package Manufacturer Part number Distributor
MIRE1,
MIRE2,
6 PCB MIRE
(1)
MIRE3,
MIRE4,
MIRE - - - -
MIRE5,
MIRE6
(3)
PCB
150mmx60mmx1.6mm
1
(FR4, dual side,
-- - ---
components on both sides,
green color)
5 Bumpon protective product - 3M SJ5306 - - -
Five_way switch button hat,
1
PB-504/PB-MT008A (Cyan),
-- - ---
along, AKG004, for U4
1 Carton box
1. Not fitted
2. No double source allowed
3. Version B
(1)
-- - ---
Order
code
UM1761 Federal Communications Commission (FCC) and Industry Canada (IC) compliance state-
5 Federal Communications Commission (FCC) and
Industry Canada (IC) compliance statements
5.1 FCC Compliance Statement
5.1.1 Part 15.19
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
5.1.2 Part 15.21
Any changes or modifications to this equipment not expressly approved by
STMicroelectronics may cause harmful interference and void the user’s authority to operate
this equipment.
5.1.3 FCC ID
FCC ID: YCPEVALST95HF
5.2 IC Compliance Statement
5.2.1 Compliance Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation.
5.2.2 Déclaration de conformité
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
5.2.3 IC ID
IC ID: 8976A-EVALST95HF
DocID026283 Rev 2 17/19
18
Revision history UM1761
6 Revision history
Date Revision Changes
20-Jun-2014 1 Initial release.
dd-Mar-2015 2
Table 3. Document revision history
Added Section 5: Federal Communications Commission (FCC) and
Industry Canada (IC) compliance statements.
18/19 DocID026283 Rev 2
UM1761
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on
ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or
the design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2015 STMicroelectronics – All rights reserved
DocID026283 Rev 2 19/19
19
Loading...
