TS2012FC
Filter-free flip-chip stereo 2x2.5 W class D audio power amplifer
Features
■ Operates from V
■ Dedicated standby mode active low for each
= 2.5 V to 5.5 V
CC
channel
■ Output power per channel: 1.15 W @5 V or
0.63 W @ 3.6 V into 8Ω with 1% THD+N max.
■ Output power per channel: 1.85 W @5 V into
4 Ω with 1% THD+N max.
■ Output short-circuit protection
■ Four gain setting steps: 6, 12, 18, 24 dB
■ Low current consumption
■ PSSR: 63 dB typ @ 217 Hz.
■ Fast startup phase: 7.8 ms
■ Thermal shutdown protection
■ Flip-chip 16-bump lead-free package
LOUT-
LOUT-
LOUT+
LOUT+
Flip chip 16 bumps
Pin connections (top view)
STDBYL
PVCC
PVCC
STDBYL
STDBYR
STDBYR
G1
G1
G1
G1
PGND
PGND
AGND
AGND
G0
G0
ROUT-
ROUT-
ROUT+
ROUT+
AVCC
AVCC
Applications
■ Cellular phone
■ PDA
Description
The TS2012 is a fully differential stereo class D
power amplifier able to drive up to 1.15 W into an
8 Ω load at 5 V per channel. It achieves better
efficiency compared to typical class AB audio
amps.
The device has four diff erent gain settings utilizing
2 digital pins: G0 and G1.
Pop and click reduction circuitry provides low
on/off switch noise while allowing the device to
start within 8 ms.
Two standby pins (active low) allow each channel
to be switched off separately.
The TS2012 is available in a flip-chip 16-bump
lead-free package.
LIN+
LIN+
INL+
INL+
LIN- RIN-
LIN- RIN-
RIN+
RIN+
April 2008 Rev 3 1/31
www.st.com
31
Contents TS2012FC
Contents
1 Absolute maximum ratings and operating conditions . . . . . . . . . . . . . 3
2 Typical application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Electrical characteristics tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Electrical characteristic curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1 Differential configuration principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.2 Gain settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.3 Common mode feedback loop limitations . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.4 Low frequency response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.5 Decoupling of the circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.6 Wake-up time (t
4.7 Consumption in shutdown mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.8 Single-ended input configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.9 Output filter considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.10 Short-circuit protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.11 Thermal shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
) and shutdown time (t
WU
) . . . . . . . . . . . . . . . . . . . . 23
STBY
5 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2/31
TS2012FC Absolute maximum ratings and operating conditions
1 Absolute maximum ratings and operating conditions
Table 1. Absolute maximum ratings
Symbol Parameter Value Unit
(2)
(1)
(6)
(5)
(7)
(3)
6V
GND to V
CC
V
200 °C/W
(4)
2kV
200 V
GND to V
CC
V
V
T
T
R
V
oper
P
Supply voltage
CC
Input voltage
in
Operating free air temperature range -40 to + 85 °C
Storage temperature -65 to +150 °C
stg
T
Maximum junction temperature 150 °C
j
Thermal resistance junction to ambient
thja
Power dissipation Internally limited
d
HBM: human body model
ESD
MM: machine model
Latch-up Latch-up immunity 200 mA
V
STBY
Standby pin maximum voltage
Lead temperature (soldering, 10sec) 260 °C
Output short circuit protection
1. All voltage values are measured with respect to the ground pin.
2. The magnitude of the input signal must never exceed VCC + 0.3V / GND - 0.3V.
3. The device is protected in case of over temperature by a thermal shutdown active @ 150°C.
4. Exceeding the power derating curves during a long period will cause abnormal operation.
5. Human body model: 100 pF discharged through a 1.5 kΩ resistor between two pins of the device, done for
all couples of pin combinations with other pins floating.
6. Machine model: a 200 pF cap is charged to the specified voltage, then discharged directly between two
pins of the device with no external series resistor (internal resistor < 5 Ω), done for all couples of pin
combinations with other pins floating.
7. Implemented short-circuit protection protects the amplifier against damage by short-circuit between
positive and negative outputs of each channel and between outputs and ground.
3/31
Absolute maximum ratings and operating conditions TS2012FC
Table 2. Operating conditions
Symbol Parameter Value Unit
V
CC
V
V
V
STBY
R
V
V
R
thja
1. I Voo I ≤ 40 mV max with all differential gains except 24 dB. For 24 dB gain, input decoupling capacitors are
mandatory.
2. Without any signal on standby pin, the device is in standby (internal 300 kΩ +/-20% pull-down resistor).
3. Minimum current consumption is obtained when V
4. Between G0, G1pins and GND, there is an internal 300 kΩ (+/-20%) pull-down resistor. When pins are
floating, the gain is 6 dB. In full standby (left and right channels OFF), these resistors are disconnected
(HiZ input).
5. With a 4-layer PCB.
Supply voltage 2.5 to 5.5 V
Input voltage range GND to V
in
(2)
(3)
(1)
(4)
STBY
(5)
= GND.
GND+0.5V to VCC-0.9V V
1.4 ≤ V
GND
≤ V
STBY
STBY
1.4 ≤ VIH ≤ VCC
≤ VIL ≤ 0.4
GND
90 °C/W
Input common mode volt a ge
ic
Standby voltage input
Device ON
Device in STANDBY
Load resistor ≥ 4 Ω
L
GO, G1 - high level input voltage
IH
GO, G1 - low level input voltage
IL
Thermal resistance junction to ambient
CC
≤ VCC
≤ 0.4
V
V
V
V
4/31
TS2012FC Typical application
2 Typical application
Figure 1. Typical application schematics
Differential
Left Input
Left IN +
Left IN -
Differential
Rig ht In pu t
Right IN+
Right IN-
Differential
Left Input
Left IN +
Left IN -
Input cap a c itors
are optional
Cin
Cin
Cin
Cin
Input cap a c itors
are optional
Cin
Cin
Gain Select
Control
TS2012
Lin+
A1
Lin-
B1
G0
C2
G1
B2
Rin+
D1
Rin-
C1
STBYL
B4
STBYR
B3
Standby Control
Gain Select
Control
TS2012
Lin+
A1
Lin-
B1
Gain
Select
Gain
Select
Gain
Select
Standby
Control
D2
AVCC
C3
D2
AVCC
PWM
Oscillator
PWM
Protection
Circ uit
PWM
Cs2
0.1uF
Cs2
0.1uF
PVCC
H
Bridge
H
Bridge
PGNDAGND
PVCC
H
Bridge
VCC
VCC
Cs1
1uF
A2
Lout+
A3
LC Output Filter
Left speak er
Righ t sp eake r
Load
A4
Lout-
Rout+
D3
Rout-
D4
C4
Cs1
1uF
A2
Lout+
A3
A4
Lout-
Differential
Rig ht In pu t
Right IN+
Right IN-
G0
C2
C3
Oscillator
PWM
Protection
Circ uit
H
Bridge
PGNDAGND
Rout+
Rout-
C4
D3
D4
Ω
4 LC Ou tp ut Fi l ter
μ
15 H
μ
2 F
μ
2 F
μ
15 H
LC Output Filter Load
Ω
8 LC Outpu t F ilter
μ
30 H
μ
1 F
μ
1 F
μ
30 H
G1
B2
Rin+
D1
Cin
Cin
C1
B4
B3
Gain
Select
Rin-
STBYL
STBYR
Standby Control
Standby
Control
5/31
Typical application TS2012FC
Table 3. External component descriptions
Components Functional description
C
, C
S1
C
in
Table 4. Pin descriptions
Pin number Pin name Pin description
A1 Lin+ Left channel positive differential input
A2 PVCC Power supply voltage
A3 Lout+ Left channel positive output
A4 Lout- Left channel negative output
B1 Lin- Left channel negative differential input
B2 G1 Gain select pin (MSB)
B3 STBYR Standby pin (active low) for right channel output
B4 STBYL Standby pin (active low) for left channel output
C1 Rin- Right channel negative differential input
C2 G0 Gain select pin (LSB)
Supply capacitor that provides power supply filtering.
S2
Input coupling capacitors (optional) that block the DC voltage at the amplifier input
terminal. The capacitors also form a high pass filter with Zin
= 1 / (2 x π x Zin x Cin)). Be aware that value of Z
(F
cl
is changing with gain setting.
in
C3 AGND Analog ground
C4 PGND Power ground
D1 Rin+ Right channel positive differential input
D2 AVCC Analog supply voltage
D3 Rout+ Righ t chan nel positive output
D4 Rout- Right channel negative output
6/31
TS2012FC Electrical characteristics
3 Electrical characteristics
3.1 Electrical characteristics tables
Table 5. VCC = +5V, GND = 0V, Vic=2.5V, T
= 25°C (unless otherwise specified)
amb
Symbol Parameters and test conditions Min. Typ. Max. Unit
I
CC
I
STBY
V
oo
Supply current
No input signal, no load, both channels
Standby current
No input signal, V
STBY
= GND
Output offset voltage
Floating inputs, G = 6dB, RL = 8Ω
57mA
12µA
25 mV
Output power
P
o
THD + N
THD + N = 1% max, f = 1kHz, RL = 4Ω
THD + N = 1% max, f = 1kHz, R
= 8Ω
L
THD + N = 10% max, f = 1kHz, RL = 4Ω
THD + N = 10% max, f = 1kHz, R
Total harmonic distortion + noise
= 0.8W, G = 6dB, f =1kHz, RL = 8Ω
P
o
= 8Ω
L
1.85
1.15
2.5
1.6
0.5 %
Efficiency per channel
Efficiency
= 1.85W, RL = 4Ω +15µH
P
o
Po = 1.16 W, RL = 8Ω+15µH
78
88
Power supply rejection ratio with inputs grounded
PSRR
Crosstalk
C
V
Channel separation
P
o
(1)
=1µF
in
ripple
,f = 217Hz, RL = 8Ω, Gain=6dB,
= 200mV
pp
= 0.9W, G = 6dB, f =1kHz, RL = 8Ω
65 dB
90 dB
Common mode rejection ratio
CMRR
C
=1µF, f = 217Hz, RL = 8Ω, Gain=6dB,
in
= 200mV
Δ
VICM
pp
63 dB
Gain value with no load
Gain
G1 = G0 = V
IL
G1 = VIL & G0 = VIH
G1 = VIH & G0 = V
IL
G1 = G0 = VIH
5.5
11.5
17.5
23.5
12
18
24
6
6.5
12.5
18.5
24.5
W
%
dB
Single-ended input impedance
Referred to ground
Z
in
Gain = 6dB
Gain = 12dB
Gain = 18dB
Gain = 24dB
F
Pulse width modulator base frequency 190 280 370 kHz
PWM
SNR
Signal to noise ratio (A-weighting)
P
= 1.1W, G = 6dB, RL = 8Ω
o
24
24
12
30
30
15
6
7.5
36
36
18
99 dB
7/31
kΩ
9
Electrical characteristics TS2012FC
Table 5. VCC = +5V, GND = 0V, Vic=2.5V, T
= 25°C (unless otherwise specified) (continued)
amb
Symbol Parameters and test conditions Min. Typ. Max. Unit
(2)
(2)
9 13 16.5 ms
11 15.8 20 ms
t
WU
t
STBY
Total wake-up time
Standby time
Output voltage noise f = 20Hz to 20kHz, RL=8Ω
Unweighted (filterless, G=6dB)
A-weighted (filterless, G=6dB)
Unweighted (with LC output filter, G=6dB)
V
N
A-weighted (with LC output filter, G=6dB)
Unweighted (filterless, G=24dB)
A-weighted (filterless, G=24dB)
Unweighted (with LC output filter, G=24dB)
A-weighted (with LC output filter, G=24dB)
1. Dynamic measurements - 20*log(rms(V
2. See Section4.6: Wake-up time (t
) and shutdown time (t
WU
)/rms(V
out
ripple
)). V
is the superimposed sinus signal to VCC @ f = 217 Hz.
ripple
) on page 23
STBY
61
31
59
31
87
52
87
53
µV
RMS
8/31
TS2012FC Electrical characteristics
Table 6. VCC = +3.6V, GND = 0V, Vic=1.8V, T
= 25°C (unless otherwise specified)
amb
Symbol Parameter Min. Typ. Max. Unit
I
CC
I
STBY
V
oo
Supply current
No input signal, no load, both channels
Standby current
No input signal, V
STBY
= GND
Output offset voltage
Floating inputs, G = 6dB, RL = 8Ω
3.5 5.5 mA
0.7 2 µA
25 mV
Output power
0.96
0.63
1.3
0.8
0.35 %
P
o
THD + N
THD + N = 1% max, f = 1kHz, RL = 4Ω
THD + N = 1% max, f = 1kHz, R
= 8Ω
L
THD + N = 10% max, f = 1kHz, RL = 4Ω
THD + N = 10% max, f = 1kHz, RL = 8Ω
Total harmonic distortion + noise
= 0.45W, G = 6dB, f =1kHz, RL = 8Ω
P
o
Efficiency per channel
Efficiency
= 0.96W, RL = 4Ω +15µH
P
o
Po = 0.63W, RL = 8Ω+15µH
78
88
Power supply rejection ratio with inputs grounded
PSRR
Crosstalk
C
V
Channel separation
G = 6dB, f =1kHz, R
=1µF
in
ripple
(1)
,f = 217Hz, RL = 8Ω, Gain=6dB,
= 200mV
pp
= 8Ω
L
65 dB
90
Common mode rejection ratio
CMRR
C
=1µF, f = 217Hz, RL = 8Ω, Gain=6dB,
in
Δ
= 200mV
VICM
pp
62 dB
Gain value with no load
Gain
G1 = G0 = V
IL
G1 = VIL & G0 = VIH
G1 = V
& G0 = V
IH
IL
G1 = G0 = VIH
5.5
11.5
17.5
23.5
12
18
24
6
6.5
12.5
18.5
24.5
W
%
dB
Single-ended input impedance
Referred to ground
Z
in
Gain = 6dB
Gain = 12dB
Gain = 18dB
Gain = 24dB
F
Pulse width modulator base frequency 190 280 370 kHz
PWM
SNR
t
WU
t
STBY
Signal-to-noise ratio (A-weighting)
P
= 0.6W, G = 6dB, RL = 8Ω
o
Total wake-up time
Standby time
(2)
(2)
24
24
12
6
30
30
15
7.5
36
36
18
96 dB
7.5 11.3 15 ms
10 13.8 18 ms
9/31
kΩ
9
Electrical characteristics TS2012FC
Table 6. VCC = +3.6V, GND = 0V, Vic=1.8V, T
= 25°C (unless otherwise specified) (continued)
amb
Symbol Parameter Min. Typ. Max. Unit
Output voltage noise f = 20Hz to 20kHz, RL=8Ω
Unweighted (filterless, G=6dB)
A-weighted (filterless, G=6dB)
Unweighted (with LC output filter, G=6dB)
V
N
A-weighted (with LC output filter, G=6dB)
Unweighted (filterless, G=24dB)
A-weighted (filterless, G=24dB)
Unweighted (with LC output filter, G=24dB)
A-weighted (with LC output filter, G=24dB)
1. Dynamic measurements - 20*log(rms(V
2. See Section4.6: Wake-up time (t
) and shutdown time (t
WU
)/rms(V
out
ripple
)). V
is the superimposed sinus signal to VCC @ f = 217 Hz.
ripple
) on page 23
STBY
54
28
52
27
80
50
79
49
µV
RMS
10/31
TS2012FC Electrical characteristics
Table 7. VCC= +2.5V, GND= 0V, Vic=1.25V, T
= 25°C (unless otherwise specified )
amb
Symbol Parameter Min. Typ. Max. Unit
I
CC
I
STBY
V
oo
Supply current
No input signal, no load, both channels
Standby current
No input signal, V
STBY
= GND
Output offset voltage
Floating inputs, G = 6dB, RL = 8Ω
2.8 4 mA
0.45 2 µA
25 mV
Output power
0.45
0.3
0.6
0.38
0.2 %
P
o
THD + N
THD + N = 1% max, f = 1kHz, RL = 4Ω
THD + N = 1% max, f = 1kHz, R
= 8Ω
L
THD + N = 10% max, f = 1kHz, RL = 4Ω
THD + N = 10% max, f = 1kHz, RL = 8Ω
Total harmonic distortion + noise
= 0.2W, G = 6dB, f =1kHz, RL = 8Ω
P
o
Efficiency per channel
Efficiency
= 0.45W, RL = 4Ω +15µH
P
o
Po = 0.3W , RL = 8Ω+15µH
78
87
Power supply rejection ratio with inputs grounded
PSRR
Crosstalk
C
V
Channel separation
G = 6dB, f =1kHz, R
=1µF
in
ripple
(1)
,f = 217Hz, RL = 8Ω, Gain=6dB,
= 200mV
pp
= 8Ω
L
65 dB
90
Common mode rejection ratio
CMRR
C
=1µF, f = 217Hz, RL = 8Ω, Gain=6dB,
in
Δ
= 200mV
VICM
pp
62 dB
Gain value with no load
Gain
G1 = G0 = V
IL
G1 = VIL & G0 = VIH
G1 = V
& G0 = V
IH
IL
G1 = G0 = VIH
5.5
11.5
17.5
23.5
12
18
24
6
6.5
12.5
18.5
24.5
W
%
dB
Single-ended input impedance
Referred to ground
Z
in
Gain = 6dB
Gain = 12dB
Gain = 18dB
Gain = 24dB
F
Pulse width modulator base frequency 190 280 370 kHz
PWM
SNR
t
WU
t
STBY
Signal-to-noise ratio (A-weighting)
P
= 0.28W, G = 6dB, RL = 8Ω
o
Total wake-up time
Standby time
(2)
(2)
24
24
12
6
30
30
15
7.5
36
36
18
93 dB
37.812 ms
81216ms
11/31
kΩ
9
Electrical characteristics TS2012FC
Table 7. VCC= +2.5V, GND= 0V, Vic=1.25V, T
= 25°C (unless otherwise specifie d ) (c on t inued )
amb
Symbol Parameter Min. Typ. Max. Unit
Output voltage noise f = 20Hz to 20kHz, RL=8Ω
Unweighted (filterless, G=6dB)
A-weighted (filterless, G=6dB)
Unweighted (with LC output filter, G=6dB)
V
N
A-weighted (with LC output filter, G=6dB)
Unweighted (filterless, G=24dB)
A-weighted (filterless, G=24dB)
Unweighted (with LC output filter, G=24dB)
A-weighted (with LC output filter, G=24dB)
1. Dynamic measurements - 20*log(rms(V
2. See Section4.6: Wake-up time (t
) and shutdown time (t
WU
)/rms(V
out
ripple
)). V
is the superimposed sinus signal to VCC @ f = 217 Hz.
ripple
) on page 23
STBY
51
26
49
26
77
49
76
48
µV
RMS
12/31
TS2012FC Electrical characteristics
3.2 Electrical characteristic curves
The graphs shown in this section use the following abbreviations:
● R
● Filter = LC output filter (1 µF+ 30 µH for 4 Ω and 0.5 µF+15 µH for 8Ω)
+ 15 µH or 30 µH = pure resistor + very low series resistance inductor
L
All measurements are done with C
PSRR where C
is removed (see Figure 3).
S1
=1 µF and CS2=100 nF (see Figure 2), except for the
S1
Figure 2. Test diagram for measurements
Cs2
100nF
μμ
15 H or 30 H
or
LC Filter
Aud io Mea su r em ent
Bandwith < 30k Hz
Cin
Cin
VCC
GND GND
In+
1/2 TS2 012
In-
GND
Cs1
μ
1 F
Out+
Out-
RL
4 or 8
Ω
5th order
50kHz
low-pass filter
13/31
Electrical characteristics TS2012FC

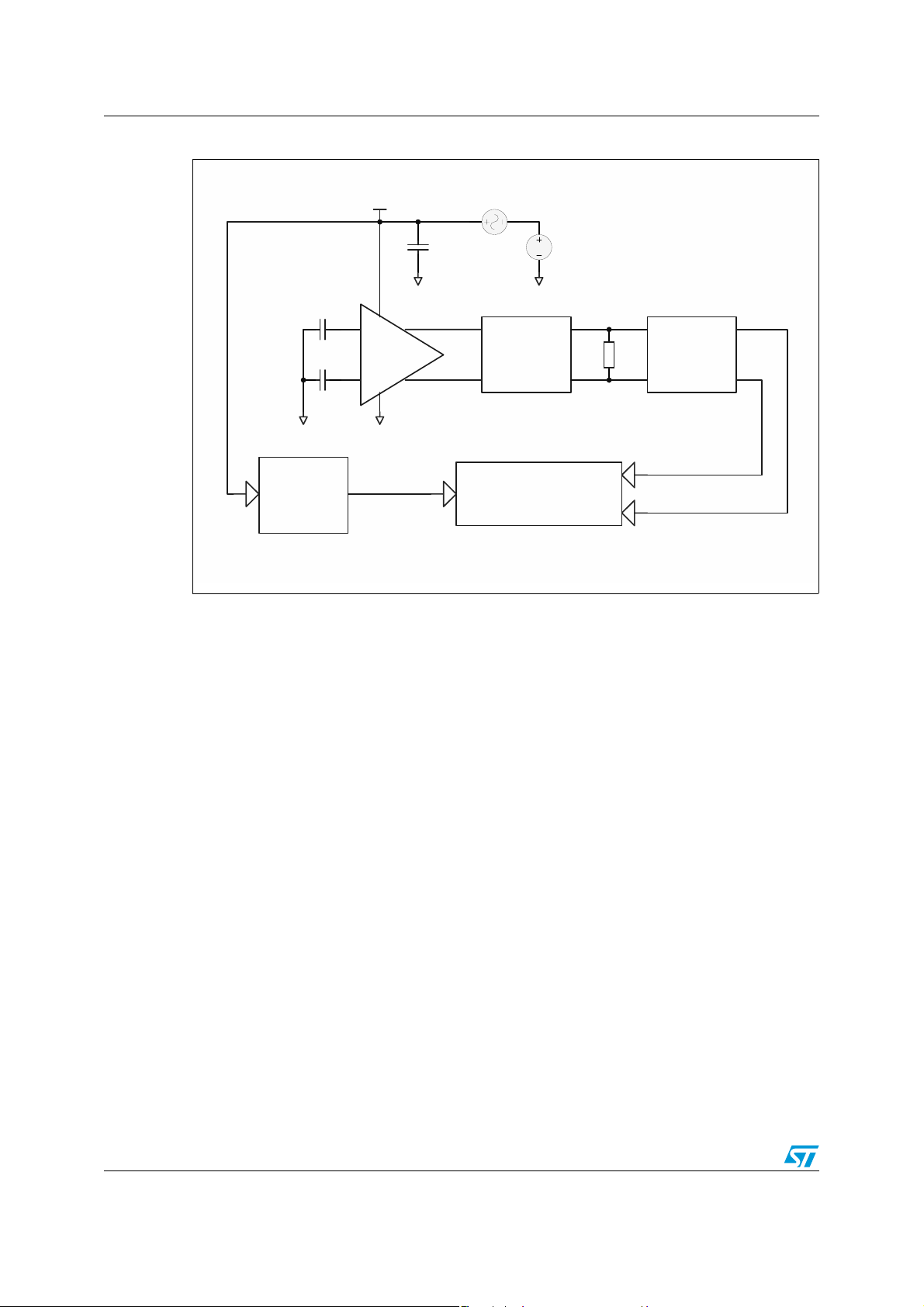

Figure 3. Test diagram for PSRR measurements
Cs2
VCC
100nF
20Hz to 20kHz
μ
1 F
Cin
Cin
μ
1 F
GND
5th order
50kHz
low-pas s filter
GND
In+
1/2 TS2 012
In-
GND
reference
Out+
Out-
Vripple
μμ
15 H or 30 H
LC Filter
RMS Sele ctive Measurement
Ban dwi th =1% of Fmeas
Vcc
GND
4 or 8
or
RL
Ω
5th or der
50kHz
low-pass fi lter
14/31
TS2012FC Electrical characteristics
Figure 4. Current consumption vs. power
supply voltage
6
No load
Tamb = 25°C
5
Both channels active
4
One channel active
3
2
1
Current Consumption (mA)
0
012345
Power Supply Voltage (V)
Figure 6. Efficiency vs. output power
(one channel)
100
80
60
40
Efficiency (%)
20
0
0.00.40.81.21.62.02.4
Efficiency
Power dissipation
Output Power (W)
Vcc = 5V
RL = 4Ω + 16μH
F = 1kHz
THD+N ≤ 10%
Figure 5. Current consumption vs. standby
voltage (one channel)
3
2
Vcc=3.6V
One channel active
1
Current Consumption (mA)
0
012345
Vcc=2.5V
Standby Vo ltage (V )
Figure 7. Efficiency vs. output power
(one channel)
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
100
80
60
40
Efficiency (%)
Dissipated Power (W)
20
0
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4
Efficiency
Power dissipation
Output Power (W)
Vcc = 3.6V
RL = 4Ω + 16μH
F = 1kHz
THD+N ≤ 10%
Vcc=5V
No load
Tamb = 25°C
0.50
0.45
0.40
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0.00
Dissipated Power (W)
Figure 8. Efficiency vs. output power
(one channel)
100
80
60
40
Efficiency (%)
20
0
0.0 0.1 0.2 0.3 0.4 0.5 0.6
Efficiency
Power dissipation
Vcc = 2.5V
RL = 4Ω + 16μH
F = 1kHz
THD+N ≤ 10%
Output Power (W)
Figure 9. Efficiency vs. output power
(one channel)
0.24
0.22
0.20
0.18
0.16
0.14
0.12
0.10
0.08
0.06
0.04
0.02
0.00
100
80
Efficiency
60
Power dissipation
40
Efficiency (%)
Dissipated Power (W)
20
0
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6
Output Power (W)
Vcc = 5V
RL = 8Ω + 16μH
F = 1kHz
THD+N ≤ 10%
15/31
0.30
0.28
0.26
0.24
0.22
0.20
0.18
0.16
0.14
0.12
0.10
0.08
0.06
0.04
0.02
0.00
Dissipated Power (W)
Electrical characteristics TS2012FC
Figure 10. Efficiency vs. output power
100
80
60
40
Efficiency (%)
20
0
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
(one channel)
Efficiency
Power dissipation
Output Power (W)
Vcc = 3.6V
RL = 8Ω + 16μH
F = 1kHz
THD+N ≤ 10%
Figure 11. Efficiency vs. output power
(one channel)
0.15
0.10
0.05
0.00
100
80
60
40
Efficiency (%)
Dissipated Power (W)
20
0
0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40
Efficiency
Power dissipation
Output Power (W)
Figure 12. PSRR vs. frequency Figure 13. PSRR vs. frequency
0
Vcc = 3.6V
-10
Vripple = 200mVpp
Cin = 10μF
-20
RL = 8Ω + 16μH
-30
Tamb = 25°C
-40
-50
-60
PSRR (dB)
-70
-80
-90
-100
G=+24dB
G=+6dB
G=+18dB
G=+12dB
100 1000 10000
Frequency (H z)
-10
-20
-30
-40
-50
-60
PSRR (dB)
-70
-80
-90
-100
0
Vcc = 5V
Vripple = 200mVpp
Cin = 10μF
RL = 8Ω + 16μH
Tamb = 25°C
G=+24dB
G=+6dB
100 1000 10000
G=+18dB
G=+12dB
Frequency (Hz)
Vcc = 2.5V
RL = 8Ω + 16μH
F = 1kHz
THD+N ≤ 10%
0.08
0.06
0.04
0.02
0.00
Dissipated Power (W)
Figure 14. PSRR vs. frequency Figure 15. PSRR vs. common mode input
voltage
0
Vcc = 2.5V
-10
Vripple = 200mVpp
Cin = 10μF
-20
RL = 8Ω + 16μH
-30
Tamb = 25°C
-40
-50
-60
PSRR (dB)
G=+24dB
G=+18dB
-70
-80
-90
-100
100 1000 10000
G=+12dBG=+6dB
Frequency (Hz)
16/31
0
Vcc = 5V
-10
Vripple = 200mVpp
F = 217Hz
-20
RL = 8Ω + 16μH
-30
Tamb = 25°C
G=+24dB
-40
G=+18dB
PSRR (dB)
-50
-60
-70
-80
-90
-100
012345
G=+12dB
Common Mode Input Voltage (V)
G=+6dB
TS2012FC Electrical characteristics
Figure 16. PSRR vs. common mode input
-10
-20
-30
-40
-50
-60
PSRR (dB)
-70
-80
-90
-100
voltage
0
Vcc = 3.6V
Vripple = 200mVpp
F = 217Hz
RL = 8Ω + 16μH
Tamb = 25°C
G=+12dB
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5
Common Mode Input Voltage (V)
G=+24dB
G=+18dB
G=+6dB
Figure 17. PSRR vs. common mode input
voltage
0
Vcc = 2.5V
-10
Vripple = 200mVpp
F = 217Hz
-20
RL = 8Ω + 16μH
-30
Tamb = 25°C
-40
-50
-60
PSRR (dB)
-70
-80
-90
-100
0.0 0.5 1.0 1.5 2.0 2.5
G=+12dB
Common Mode Input Voltage (V)
G=+24dB
G=+18dB
G=+6dB
Figure 18. CMRR vs. frequency Figure 19. CMRR vs. frequency
CMRR (dB)
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
-100
Vcc = 5V
Vripple = 200mVpp
Cin = 10μF
RL = 8Ω + 15μH
Tamb = 25°C
G=+18dB
G=+6dB
100 1000 10000
G=+24dB
G=+12dB
Frequency (H z)
CMRR (dB)
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
-100
Vcc = 3.6V
Vripple = 200mVpp
Cin = 10μF
RL = 8Ω + 15μH
Tamb = 25°C
G=+18dB
G=+6dB
100 1000 10000
Frequency (H z)
G=+24dB
G=+12dB
Figure 20. CMRR vs. frequency Figure 21. CMRR vs. common mode input
voltage
0
Vcc = 2.5V
-10
Vripple = 200mVpp
Cin = 10μF
-20
RL = 8Ω + 15μH
-30
Tamb = 25°C
-40
-50
-60
CMRR (dB)
-70
-80
-90
-100
G=+18dB
G=+6dB
100 1000 10000
Frequency (H z)
G=+24dB
G=+12dB
0
Vripple = 200mVpp
-10
F = 217Hz, G = +6dB
RL = 8Ω + 15μH
-20
Tamb = 25°C
-30
-40
-50
-60
CMRR (dB)
-70
-80
-90
-100
012345
Vcc=3.6V
Vcc=2.5V
Common Mode Input Voltage (V)
Vcc=5V
17/31
Electrical characteristics TS2012FC
Figure 22. CMRR vs. common mode input
voltage
0
Vripple = 200mVpp
-10
F = 217Hz, G = +12dB
RL = 8Ω + 15μH
-20
Tamb = 25°C
-30
-40
CMRR (dB)
-50
-60
-70
-80
-90
-100
Vcc=2.5V
012345
Vcc=3.6V
Vcc=5V
Common Mode Input Voltage (V)
Figure 24. CMRR vs. common mode input
voltage
0
Vripple = 200mVpp
F = 217Hz, G = +24dB
-10
RL = 8Ω + 15μH
-20
Tamb = 25°C
-30
-40
-50
CMRR (dB)
-60
-70
-80
Vcc=2.5V
012345
Vcc=3.6V
Common Mode Input Voltage (V)
Vcc=5V
Figure 23. CMRR vs. common mode input
voltage
0
Vripple = 200mVpp
-10
F = 217Hz, G = +18dB
RL = 8Ω + 15μH
-20
Tamb = 25°C
CMRR (dB)
-30
-40
-50
-60
-70
-80
-90
-100
Vcc=2.5V
012345
Vcc=3.6V
Common Mode Input Voltage (V)
Vcc=5V
Figure 25. THD+N vs. output power
10
F = 1kHz
RL = 4Ω + 15μH
G = +6dB
BW < 30kHz
Tamb = 25°C
1
THD + N (%)
0.1
Vcc=2.5V
0.01
0.01 0.1 1
Vcc=5V
Vcc=3.6V
Output power (W)
Figure 26. THD+N vs. output power Figure 27. THD+N vs. frequency
THD + N (%)
10
1
0.1
0.01
RL = 8Ω + 15μH
G = +6dB
BW < 30kHz
Tamb = 25°C
Vcc=5V, Po=200mW
100 1000 10000
Vcc=5V, Po=800mW
Vcc=3.6V, Po=450mW
Frequency (Hz)
10
F = 1kHz
RL = 8Ω + 15μH
G = +6dB
BW < 30kHz
Tamb = 25°C
1
THD + N (%)
0.1
Vcc=2.5V
0.01
0.01 0.1 1
Vcc=5V
Vcc=3.6V
Output power (W)
18/31
TS2012FC Electrical characteristics
Figure 28. THD+N vs. frequency Figure 29. Crosstalk vs. frequency
THD + N (%)
10
1
0.1
0.01
RL = 8Ω + 15μH
G = +6dB
BW < 30kHz
Tamb = 25°C
Vcc=5V, Po=200mW
100 1000 10000
Vcc=5V, Po=800mW
Vcc=3.6V, Po=450mW
Frequency (Hz)
-10
-20
-30
-40
-50
-60
-70
-80
Crosstalk Level (dB)
-90
-100
-110
-120
0
RL = 4Ω + 15μH
Cin = 1μF
G = +6dB
Tamb = 25°C
Vcc=5V
100 1000 10000
Vcc=2.5V
Vcc=3.6V
Frequency (Hz)
Figure 30. Crosstalk vs. frequency Figure 31. Output po wer vs. power supply
voltage
Crosstalk Level (dB)
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
-100
-110
-120
RL = 8Ω + 15μH
Cin = 1μF
G = +6dB
Tamb = 25°C
Vcc=5V
100 1000 10000
Vcc=2.5V
Vcc=3.6V
Frequency (Hz)
2.0
F = 1kHz
1.8
BW < 30kHz
Tamb = 25°C
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
Output power at 1% THD + N (mW)
0.0
2.5 3.0 3.5 4.0 4.5 5.0
RL=4Ω +15μH
RL=8Ω +15μH
Supply voltage (V)
Figure 32. Output power vs. power supply
voltage
2.6
F = 1kHz
2.4
BW < 30kHz
2.2
Tamb = 25°C
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
Output power at 10% THD + N (W)
0.0
2.5 3 .0 3.5 4 .0 4.5 5 .0
RL=4Ω +15μH
RL=8Ω +15μH
Vcc (V)
Figure 33. Power derating curves
1.6
1.4
1.2
1.0
0.8
0.6
0.4
No Heat sink
0.2
AMR value
Flip-Chip Package Power Dissipation (W)
0.0
0 255075100125150
Ambiant Temperature (°C)
19/31
With a 4-layer PCB
Electrical characteristics TS2012FC
Figure 34. Startup and shutdown phase
V
= 5V, G= 6dB, Cin= 1µF, inputs
CC
grounded
Out+
Out-
Standby
Out+ - Out-
Figure 35. Startup and shutdown phase
VCC=5V, G=6dB, Cin=1µF,
V
=2Vpp, F= 500Hz
in
Out+
Out-
Standby
Out+ - Out-
20/31
TS2012FC Application information
4 Application information
4.1 Differential configuration principle
The TS2012 is a monolithic fully-differential input/output class D power amplifier. The
TS2012 also includes a common-mode feedback loop that controls the output bias value to
average it at V
always have a maximum output voltage swing, and by consequence, maximize the output
power. Moreover, as the load is connected differentially compared with a single-ended
topology, the output is four times h igher for the same power supply voltage.
The advantages of a full-differential amp lifier are:
● High PSRR (power supply rejection ratio)
● High common mode noise rejection
● Virtually zero pop without additional circuitry, giving a faster start-up time compared
with conventional single-ended input amplifiers
● Easier interfacing with differential output audio DAC
● No input coupling capacitors required thanks to common mode feedback loop
/2 for any DC common mode input voltage. This allows the device to
CC
4.2 Gain settings
In the flat region of the frequency-response curve (no input coupling capacitor or internal
feedbac k loop + lo ad effect), the differential gain can be set to 6, 1 2 18, or 24 dB depen ding
on the logic level of the G0 and G1 pins, as shown in Table 8.
Table 8. Gain settings with G0 and G1 pins
G1 G0 Gain (dB) Gain (V/V)
0062
01124
10188
1 1 24 16
Note: Between pins G0, G1 and GND there is an internal 300 kΩ (+/-20%) resistor . Wh en the pins
are floating, the gain is 6 dB . In full standby ( left and right channel s OFF), these resist ors are
disconnected (HiZ input).
4.3 Common mode feedback loop limitations
As explained pre viously, the common mode feedbac k loop allows the output DC bias v oltage
to be averaged at V
Due to the V
limitation of the input stage (see Table 2: Operating conditions on page 4), the
ic
common mode feedback loop can fulfil its role only within the defined range.
/2 for any DC common mode bias input voltage.
CC
21/31
Application information TS2012FC
4.4 Low frequency response
If a low frequency bandwidth limitation is required, it is possible to use input coupling
capacitors. In the low frequency region, the input coupling capacitor C
effect. C
forms, with the input impedance Zin, a first order high-pass filter with a -3 dB cut-
in
off frequency (see Table 5 to Table 7):
starts to have an
in
1
⋅⋅ ⋅
inCin
is calculated as follows:
1
⋅⋅ ⋅
inFCL
So, for a desired cut-off frequency F
with F
The input impedance Z
in Hz, Zin in Ω and Cin in F.
CL
is for the whole pow er supply v oltage range and it changes with the
in
F
C
CL
CL
in
--------------------------------------------=
2 π Z
, C
in
--------------------------------------------- -=
2 π Z
gain setting. There is also a tolerance around the typical values (see Table 5 to Table 7).
Figure 36. Cut-off frequency vs. input capacitor
Tamb=25°C
100
G=24dB
Zin=7.5kΩ typ.
10
G=18dB
Zin=15kΩ typ.
G=6dB, G=12dB
Low -3dB Cut Off Frequency (Hz)
1
0.1 1
Zin=30kΩ typ.
4.5 Decoupling of the circuit
Power supply capacitors, referred to as CS1 and CS2 are needed to correctly bypass the
TS2012.
The TS2012 has a typical switching frequency of 280 kHz and output fall and rise time about
5 ns. Due to these very fast transients, careful decoupling is mandatory.
A 1 µF ceramic capacitor (C
capacitor 0.1 µF (C
) are enough. A 1 µF capacitor must be located as close as possible to
S2
the device PVCC pin in order to avoid any extra parasitic inductance or resistance created
by a long track wire. Par asitic loop inductance, in relation with di/dt, introduces overvoltage
that decreases the global efficiency of the de vice and ma y ca use, if this par asitic inductance
22/31
) between PVCC and PGND and one additional ceramic
S1
Input Capa c itor Cin (μF)
TS2012FC Application information
is too high, a TS2012 breakdown. F or filtering lo w frequency noise signals on the po wer line ,
you can use a capacitor a C
capacitor of 4.7 µF or greater.
S1
In addition, even if a ceramic capacitor has an adequate high freque ncy ESR (equivalent
series resistance) value, its current capability is also important. A 0603 size is a good
compromise, particularly when a 4 Ω load is used.
Another important parameter is the rated volt age of the capacitor. A 1 µF/6.3 V capacitor
used at 5 V, loses about 50% of its value. Wit h a pow er supply v oltage of 5 V, the decoupling
value, instea d of 1 µF, could be reduced to 0.5 µF. As C
has particular influe nc e on the
S
THD+N in the medium to high frequency region, this capacitor variation becomes decisive.
In addition, less decoupling means higher o vershoots wh ich can be prob lematic if they r each
the power supply AMR value (6 V).
4.6 Wake-up time (tWU) and shutdown time (t
During the wake-up sequence wh en the standby is released to set the device ON, there is a
delay. The wake-up sequence of the TS2012 consists of two phases. During the first phase
t
, a digitally generated dela y m ut es t he outp ut s. Then, the gain increasing phase t
WU-A
begins. The gain increases smoothly form the mute state to the preset gain selected by the
digital pins G0 and G1. This startup sequence allows to avoid any pop noise during startup
of the amplifier. See Figure 37: Wake-up phase.
Figure 37. Wake-up phase.
STBY
Level
HI
LO
Gain
Mute
STBY
STBY
Mute
t
WU-A
t
WU-B
STBY
Preset gainGain increasing
G = 24dB
G = 18dB
G = 12dB
G = 6dB
)
Time
Time
WU-A
t
WU
When the standby command is set, the time re quired to set the output stage into high
impedance and to put the internal circuitry in shutdown mode is called the standby time.
This time is used to decrease the gain from its nominal value set by the digital pins G0 and
G1 to mute and avoid any pop noise during shutdown. The gain decreases smoothly until
the outputs are muted. See Figure 38: Shutdown phase
23/31
Application information TS2012FC
Figure 38. Shutdown phase
STBY
Level
STBY
HI
LO
STBY
Preset gain
Gain
G = 24dB
G = 18dB
G = 12dB
G = 6dB
Gain decr easing
Mute
t
STBY
4.7 Consumption in shutdown mode
Between the shutdown pin and GND th ere is an internal 300 kΩ (+-/20%) resistor. This
resistor forces the TS2012 to be in shutdown when the shutdown input is left floa ting.
However, this resistor also introduces additional shutdown power consumption if the
shutdown pin voltage is not at 0 V.
With a 0.4 V shutdown voltage pin f or exam ple, y ou must add 0.4 V/300 kΩ=1.3 µA in typical
(0.4 V/240 kΩ=1.66 µA in maximum) for each shutdown pin to the standby current specified
in Table 5 to Table 7. Of course, this current will be provided by the external control device
for standby pins.
Time
Mute
Time
4.8 Single-ended input configuration
It is possible to use the TS2012 in a single-ended input configuration. However, input
coupling capacitors are mandatory in this configuration. The schematic diagram in Figure 39
shows a typical single-ended input application.
24/31
TS2012FC Application information
Figure 39. Typical application for single-ended input configuration
Left Input
Cs2
VCC
0.1uF
Gain Se lect
Control
TS2012
Cin
Cin
Lin+
A1
B1
C2
B2
Lin-
Gain
Select
G0
G1
D2
AVCC
PWM
Oscillator
PVCC
H
Bridge
VCC
Cs1
1uF
A2
A3
Lout+
Lout-
A4
Left spea k er
D1
Rig h t In p u t
Cin
Cin
Rin+
C1
Rin-
B4
STBYL
B3
STBYR
Standby Control
Gain
Select
Standby
Control
4.9 Output filter considerations
The TS2012 is designed to operate without an output filter. However, due to very sharp
transients on the TS2012 output, EMI radiated emissions may cause some standard
compliance issues.
These EMI standard compliance issues can appear if the distance bet ween the TS2012
outputs and loudspeaker terminal are long (typically more than 50 mm, or 100 mm in both
directions, to the speaker terminals). Because the PCB layout and internal equip m en t
device are different for each configuration, it is difficult to provide a one-size-fits-all solution.
However, to decrease the probability of EMI issues, there are several simple rules to follow:
● Reduce, as much as possible, the distance between the TS2012 output pins and the
speaker terminals.
● Use a ground plane for “shielding” sensitive wires.
● Place, as close as possible t o the TS2012 and i n series with each output , a f errite bead
with a rated current of minimum 2.5A and impedance greater than 50Ω at frequencies
above 30MHz. If , after testing, these f errite beads are no t necessary, replace them by a
short-circuit.
● Allow extra footprint to place, if necessary, a capacitor to short perturbations to ground
(see Figure 40).
C3
PWM
Protection
Circuit
H
Bridge
PGNDAGND
D3
Rout+
D4
Rout-
C4
Righ t sp e a ke r
25/31
Application information TS2012FC
Figure 40. Ferrite chip bead placement
From output

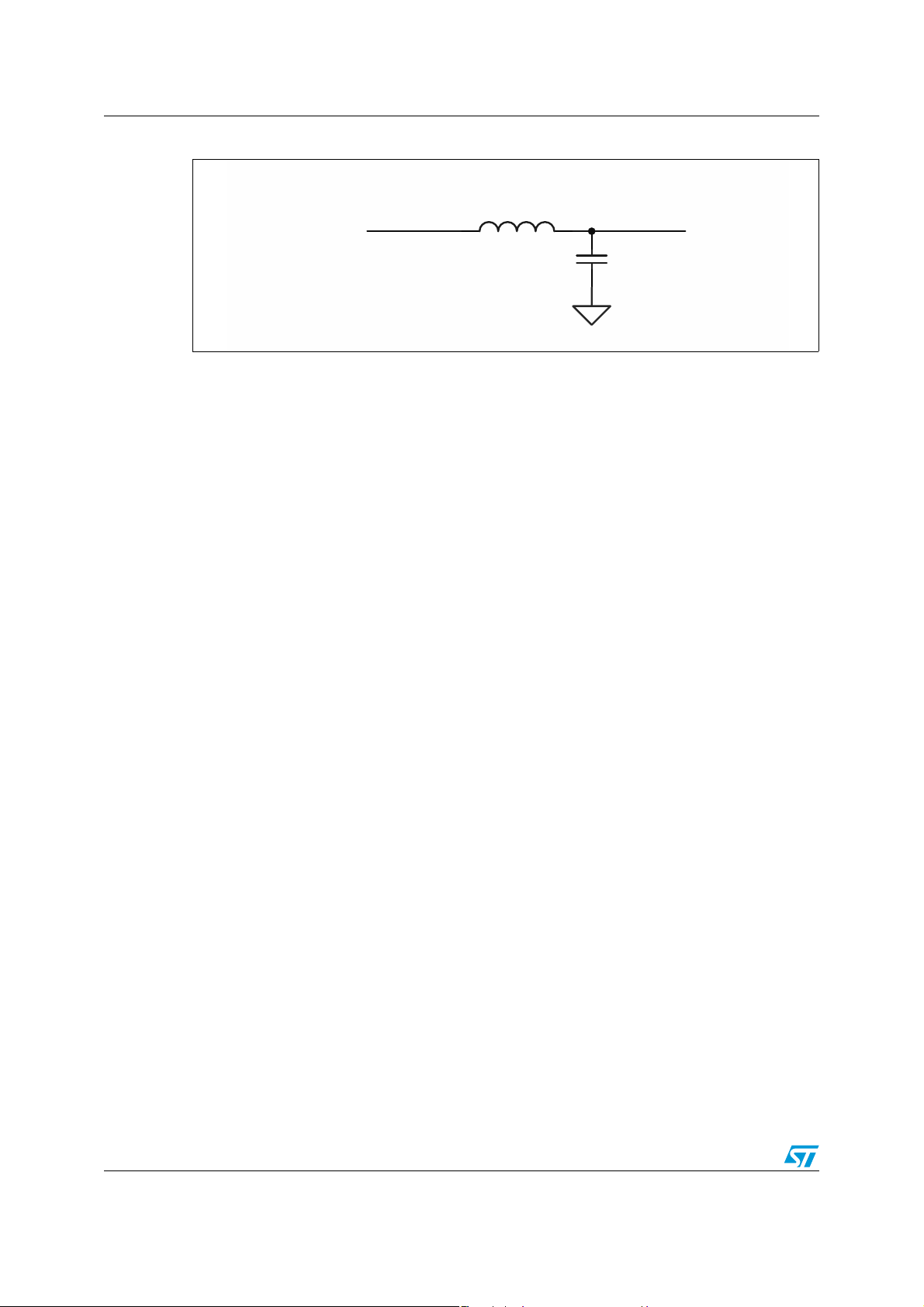

In the case where the distance betw een the TS20 12 output and t he speak er te rminals is too
long, it is possible to ha v e low frequ ency EMI issues due to the fa ct that the typical o perating
frequency is 280 kHz. In this configuration, it is necessary to use the output filter
represented in Figure 1 on page 5 as close as possible to the TS20 12.
4.10 Short-circuit protection
The TS2012 includes output short-circuit protection. This protection prevents the device
from being damaged in case of fault conditions on the amplifier outputs.
When a channel is in operating mode an d a short-circuit occurs between two outputs of the
channel or between an output and gro und, the short-circuit protection detects this situation
and puts the appropriate channel into standb y. To put the channel back into oper ating mode ,
is needed to put standby pin of the channel to logical LO and after again to logical HI and
wake-up the channel.
Ferrite chip bead
to speaker
about 100pF
gnd
4.11 Thermal shutdown
The TS2012 device has an internal thermal shutdown protection in the event of extreme
temperatures to protect the device from overheating. Thermal shutdown is active when the
device reaches 150°C. When the temperature decreases to safe levels, the circuit switches
back to normal operation.
26/31
TS2012FC Package information
5 Package information
In order to meet environmental requ irements, ST offers these devices in ECOPACK®
packages. These packages have a lead-free second level interconnect. The category of
second level interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related t o soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com
Figure 41. Flip-chip package mechanical drawing
2.1 mm
2.1 mm
250μm
250μm
G1
G1
INL+
INL+
2.1 mm
2.1 mm
.
Die size: 2.1x2.1 mm ± 30µm
Die height (including bumps):
600µm
Bump diameter: 315µm ±50µm
Bump diameter before reflow:
300µm ±10µm
Bump height: 250µm ±40µm
Die height: 350µm ±20µm
Pitch: 500µm ±50µm
Bump Coplanarity: 60µm max
Optional*: Back coating height:
40µm
500μm
500μm
600 μm
600 μm
40 μm*
40 μm*
27/31
Package information TS2012FC
Figure 42. Pinout (top view)
LOUT-
LOUT-
4
4
3
3
2
2
1
1
LOUT-
LOUT+
LOUT+
LOUT+
PVCC
PVCC
PVCC
LIN+
LIN+
LIN+
INL+
INL+
INL+
ADCB
ADCB
Figure 43. Marking (top view)
K0 X
K0 X
E
E
ROUT-
ROUT-
STDBYL
STDBYL
STDBYL
STDBYR
STDBYR
STDBYR
G1
G1
G1
G1
G1
G1
LIN- RIN-
LIN- RIN-
LIN- RIN-
■ ST Logo
■ Symbol for lead-free: E
■ Two first product code: K0
■ Third X: Assembly line plant code
■ Three digits date code: Y for year - WW for
PGND
PGND
PGND
AGND
AGND
AGND
G0
G0
G0
ROUT-
ROUT+
ROUT+
ROUT+
AVCC
AVCC
AVCC
RIN+
RIN+
RIN+
week
■ The dot indicates pin A1
YWW
YWW
28/31
TS2012FC Package information
Figure 44. Tape and reel schematics (top view)
4
4
1
1
1
A
A
8
8
Die size X + 70µm
Die size X + 70µm
4
4
All dimensions are in mm
All dimensions are in mm
User direction of feed
User direction of feed
1
A
A
Die size Y + 70µm
Die size Y + 70µm
Figure 45. Recommended footprint
Φ=250μm
Φ=250μm
Φ=400μm typ.
Φ=400μm typ.
Φ=340μm min.
Φ=340μm min.
500μm
500μm
500μm
500μm
Non Solder mask opening
Non Solder mask opening
75µm min.
500μm
500μm
500μm
Pad in Cu 18μm with Flash NiAu(2-6μm, 0.2μm max.)
Pad in Cu 18μm with Flash NiAu(2-6μm, 0.2μm max.)
500μm
75µm min.
100μm max.
100μm max.
150μm min.
150μm min.
Track
Track
29/31
Ordering information TS2012FC
6 Ordering information
Table 9. Order code
Order code Temperature range Package Packing Marking
TS2012EIJT -40°C to +85°C Flip chip 16 Tape & reel K0
7 Revision history
Table 10. Document revision history
Date Revision Changes
14-Jan-2008 1 Initial release, preliminary information.
16-Apr-2008 2 Document status promoted to full datasheet (internal release).
17-Apr-2008 3 Pu blic release of full datasheet.
30/31
TS2012FC
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely res ponsibl e fo r the c hoic e, se lecti on an d use o f the S T prod ucts and s ervi ces d escr ibed he rein , and ST as sumes no
liability whatsoever relati ng to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third pa rty p ro duc ts or se rv ices it sh all n ot be deem ed a lice ns e gr ant by ST fo r t he use of su ch thi r d party products
or services, or any intellectua l property c ontained the rein or consi dered as a warr anty coverin g the use in any manner whats oever of suc h
third party products or servi ces or any intellectual propert y contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICUL AR PURPOS E (AND THEIR EQUIVALE NTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJ URY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST fo r the ST pro duct or serv ice describe d herein and shall not cr eate or exten d in any manne r whatsoever , any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in vari ous countries.
Information in this document su persedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2008 STMicroelectronics - All rights reserved
STMicroelectronics group of compan ie s
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - Fran ce - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
31/31
Loading...
