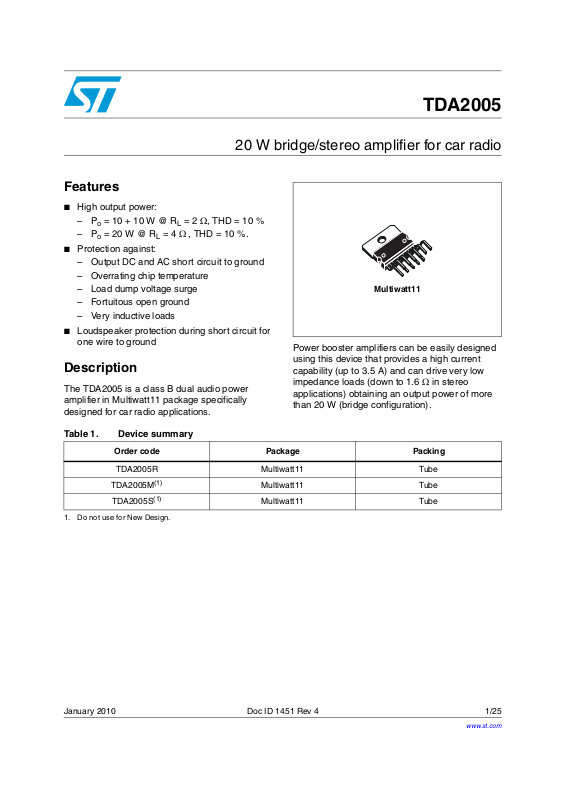

ST MICROELECTRONICS TDA 2005 Datasheet

20 W bridge/stereo amplifier for car radio
Features
High output power:
–P
= 10 + 10 W @ RL = 2 Ω, THD = 10 %
o
–P
= 20 W @ RL = 4 Ω , THD = 10 %.
o
Protection against:
– Output DC and AC short circuit to ground – Overrating chip temperature – Load dump voltage surge – Fortuitous open ground – Very inductive loads
Loudspeaker protection during short circuit for
one wire to ground
Description
The TDA2005 is a class B dual audio power amplifier in Multiwatt11 package specifically designed for car radio applications.

Table 1. Device summary

TDA2005
Multiwatt11
Power booster amplifiers can be easily designed using this device that provides a high current capability (up to 3.5 A) and can drive very low impedance loads (down to 1.6 Ω in stereo applications) obtaining an output power of more than 20 W (bridge configuration).
Order code Package Packing
TDA2005R Multiwatt11 Tube
(1)
(1)
Multiwatt11 Tube
Multiwatt11 Tube
www.st.com
TDA2005M
TDA2005S
1. Do not use for New Design.
January 2010 Doc ID 1451 Rev 4 1/25
1
Contents TDA2005
Contents
1 Schematic and pins connection diagrams . . . . . . . . . . . . . . . . . . . . . . . 5
2 Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Bridge amplifier section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3.1 Electrical characteristics (bridge application) . . . . . . . . . . . . . . . . . . . . . . 7
2.3.2 Bridge amplifier design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4 Stereo amplifier application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.4.1 Electrical characteristics (stereo application) . . . . . . . . . . . . . . . . . . . . . 11
3 Application suggestion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4 Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Built-in protection systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.1.1 Load dump voltage surge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.1.2 Short circuit (AC and DC conditions) . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1.3 Polarity inversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1.4 Open ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1.5 Inductive load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1.6 DC voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1.7 Thermal shut-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.1.8 Loudspeaker protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2/25 Doc ID 1451 Rev 4
TDA2005 List of tables
List of tables
Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table 2. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Table 3. Thermal data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Table 4. Electrical characteristics (bridge application) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Table 5. Bridge amplifier design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Table 6. High gain vs. Rx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 7. Electrical characteristics (stereo application) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 8. Recommended values of the component of the bridge application circuit . . . . . . . . . . . . . 15
Table 9. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Doc ID 1451 Rev 4 3/25
List of figures TDA2005
List of figures
Figure 1. Schematic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 2. Pins connection diagram (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 3. Test and application circuit (bridge amplifier) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 4. PC board and components layout of Figure 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 5. Output offset voltage vs. supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 6. Distortion vs. output power (R Figure 7. Distortion vs. output power (R
Figure 8. Bridge configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 9. Typical stereo application circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 10. Quiescent output voltage vs. supply voltage (stereo amplifier). . . . . . . . . . . . . . . . . . . . . . 12
Figure 11. Quiescent drain current vs. supply voltage (stereo amplifier) . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 12. Distortion vs. output power (stereo amplifier) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 13. Output power vs. supply voltage, R Figure 14. Output power vs. supply voltage, R Figure 15. Distortion vs. frequency, R Figure 16. Distortion vs. frequency, R
Figure 17. Supply voltage rejection vs. C3 (stereo amplifier). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 18. Supply voltage rejection vs. frequency (stereo amplifier) . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 19. Supply voltage rejection vs. C2 and C3, G Figure 20. Supply voltage rejection vs. C2 and C3, G Figure 21. Gain vs. input sensitivity R Figure 22. Gain vs. input sensitivity R
Figure 23. Total power dissipation and efficiency vs. output power (bridge) . . . . . . . . . . . . . . . . . . . . 14
Figure 24. Total power dissipation and efficiency vs. output power (stereo) . . . . . . . . . . . . . . . . . . . . 14
Figure 25. Bridge amplifier without boostrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 26. PC board and components layout of Figure 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 27. Low cost bridge amplifier (GV = 42dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 28. PC board and components layout of Figure 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 29. 10 + 10 W stereo amplifier with tone balance and loudness control. . . . . . . . . . . . . . . . . . 18
Figure 30. Tone control response (circuit of Figure 29) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 31. 20 W bus amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 32. Simple 20 W two way amplifier (FC = 2 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 33. Bridge amplifier circuit suited for low-gain applications (GV = 34 dB) . . . . . . . . . . . . . . . . 20
Figure 34. Example of muting circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 35. Suggested LC network circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 36. Voltage gain bridge configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 37. Maximum allowable power dissipation vs. ambient temperature . . . . . . . . . . . . . . . . . . . . 22
Figure 38. Output power and drain current vs. case temperature (R Figure 39. Output power and drain current vs. case temperature (R
Figure 40. Multiwatt11 mechanical data and package dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
= 4 Ω) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
L
= 3.2 Ω). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
L
= 2 and 4 Ω (stereo amplifier). . . . . . . . . . . . . . . . . . 12
L
= 1.6 and 3.2Ω (Stereo amplifier) . . . . . . . . . . . . . . . 13
= 2 and 4 Ω (stereo amplifier) . . . . . . . . . . . . . . . . . . . . . . . . 13
L
= 1.6 and 3.2 Ω (stereo amplifier) . . . . . . . . . . . . . . . . . . . . . 13
L
= 4 Ω (stereo amplifier) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
L
= 2 Ω (stereo amplifier) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
L
L
= 390/1Ω (stereo amplifier) . . . . . . . . . . . . . . 13
V
= 1000/10Ω (stereo amplifier) . . . . . . . . . . . . 14
V
= 4 Ω) . . . . . . . . . . . . . . . . . . . 22
L
= 3.2 Ω) . . . . . . . . . . . . . . . . . . 22
L
4/25 Doc ID 1451 Rev 4
TDA2005 Schematic and pins connection diagrams

1 Schematic and pins connection diagrams

Figure 1. Schematic diagram

Figure 2. Pins connection diagram (top view)

11
10
9
8
7
6
5
4
3
2
1
TAB CONNECTED TO PIN 6
Doc ID 1451 Rev 4 5/25
D95AU318
BOOTSTRAP(1)
OUTPUT(1)
+V
S
OUTPUT(2)
BOOTSTRAP(2)
GND
INPUT+(2)
INPUT-(2)
SVRR
INPUT-(1)
INPUT+(1)
Electrical specifications TDA2005

2 Electrical specifications

2.1 Absolute maximum ratings

Table 2. Absolute maximum ratings

Symbol Parameter Value Unit
Peak supply voltage (50 ms) 40
V
S
Operating supply voltage 18
VDC supply voltage 28
(1)
Io
Output peak current (non repetitive t = 0.1 ms) 4.5
Output peak current (repetitive f 10 Hz) 3.5
P
tot
T
, T
stg
1. The max. output current is internally limited.
Power dissipation at T
Storage and junction temperature -40 to 150 °C
j
case

2.2 Thermal data

Table 3. Thermal data

Symbol Parameter Value Unit
R
th-j-case
Thermal resistance junction-to-case max 3 °C/W

2.3 Bridge amplifier section

Figure 3. Test and application circuit (bridge amplifier)

A
= 60 °C 20 W
6/25 Doc ID 1451 Rev 4
TDA2005 Electrical specifications

Figure 4. PC board and components layout of Figure 3

2.3.1 Electrical characteristics (bridge application)

Refer to the bridge application circuit T
= 25°C; Gv = 50dB; R
amb
th(heatsink)
= 4°C/W unless
otherwise specified.
Table 4. Electrical characteristics (bridge application)
Symbol Parameter Test condition Min. Typ. Max. Unit
V
S
V
os
I
d
P
o
THD Total harmonic distortion
V
i
R
i
f
L
f
H
Gv Closed loop voltage gain f = 1 kHz - 50 - dB
e
N
SVR Supply voltage rejection
Supply voltage - 8 - 18 V
Output offset voltage (between pin 8 and pin 10)
Total quiescent drain current
= 14.4 V
V
S
VS = 13.2 V
V
= 14.4 V; RL = 4 Ω
S
= 13.2 V; RL = 3.2 Ω
V
S
--
-
75 70
150 150
150 150
f = 1 kHz, THD = 10 %
Output power
VS = 14.4 V; RL = 4 Ω VS = 14.4 V; RL = 3.2 Ω
= 13.2 V; RL = 3.2 Ω
V
S
f = 1 kHz; V
= 4 Ω; Po = 50 mW to 15 W;
R
L
f = 1 kHz; V R
= 3.2 Ω; Po = 50m W to
L
= 14.4 V;
S
= 13.2 V;
S
18 20 17
--1%
--1%
20 22 19
-W
13 W;
f = 1 kHz
Input sensitivity
RL = 4 Ω; Po = 2 W;
= 3.2 Ω; Po = 2 W
R
L
-98-mW
Input resistance f = 1 kHz 70 - - kΩ
Low frequency roll off (-3 dB) RL = 3.2 Ω --40Hz
High frequency roll off (-3 dB) RL = 3.2 Ω 20 - - KHz
Total Input noise voltage Rg = 10 Ω
V
ripple
= 10 kΩ; C4 = 10 μF
R
g
(1)
= 0.5 V; f
ripple
=100 Hz
-310μV
45 55 - dB
mV mV
mA mA
Doc ID 1451 Rev 4 7/25
Electrical specifications TDA2005
Table 4. Electrical characteristics (bridge application) (continued)
Symbol Parameter Test condition Min. Typ. Max. Unit
f = 1 kHz; VS = 14.4 V;
= 4 Ω; Po = 20 W;
R
L
= 3.2 Ω; Po = 22 W
η Efficiency
R
L
f = 1 kHz; V RL = 3.2 Ω; Po = 19 W
SVR Supply voltage rejection
T
V
OSH
1. Bandwidth filter: 22 Hz to 22 kHz.
Thermal shut-down junction
j
temperature
Output voltage with one side of the speaker shorted to ground
f = 100 Hz; V
= 10 kΩ; RL = 4 Ω
R
g
f = 1 kHz; V
= 4 Ω; P
R
L
= 14.4 V; RL = 4 Ω
V
S
VS = 13.2 V; RL = 3.2 Ω
Figure 5. Output offset voltage vs. supply
voltage
V
os
(mV)
100
80
= 13.2 V;
S
= 0.5 V;
ripple
= 14.4V;
S
= 13 W
tot
Figure 6. Distortion vs. output power (RL=
4 Ω)
d
(%)
10
-6060-
-58-
30 36 - dB
- 145 - °C
--2V
Vs = 14.4 V
Gv = 50 dB R
= 4 Ω
L
f = 1 kHz
%
60
40
20
0
8
10
12
14 16
Vs (V)
Figure 7. Distortion vs. output power (RL=
3.2 Ω)
d
(%)
Vs = 13.2 V
Gv = 50 dB R
= 3.2 Ω
L
10
1
0.1
f = 1 kHz
110
Po (W)
1
0.1
110
Po (W)
8/25 Doc ID 1451 Rev 4
TDA2005 Electrical specifications

2.3.2 Bridge amplifier design

The following considerations can be useful when designing a bridge amplifier.
Table 5. Bridge amplifier design
Parameter Single ended Bridge
1
V
o max
I
o max
Peak output voltage (before clipping)
Peak Output current (before clipping)
-- -
2V
()Vs2V
V
s
2
V
1
-----------------------------------
-- -
2
CEsat
2V
s
CEsat
R
L
CEsat
Vs2V
R
CEsat
L
-----------------------------------
P
o max
RMS output power (before clipping)
V
2V
()
1
s
-- -
-------------------------------------------
4
2R
2
CEsat
L
V
2V
()
s
-------------------------------------------
2R
2
CEsat
L
Where:
V V R
= output transistors saturation voltage
CE sat
= allowable supply voltage
S
= load impedance
L
Voltage and current swings are twice for a bridge amplifier in comparison with single ended amplifier.
In order words, with the same R
the bridge configuration can deliver an output power that is
L
four times the output power of a single ended amplifier, while, with the same max output current the bridge configuration can deliver an output power that is four times the output power of a single ended amplifier, while, with the same max output current the bridge configuration can deliver an output power that is twice the output power of a single ended amplifier.
Core must be taken when selecting V
and RL in order to avoid an output peak current
S
above the absolute maximum rating.
From the expression for I
, assuming VS = 14.4V and V
Omax
= 2V, the minimum load
CE sat
that can be driven by TDA2005 in bridge configuration is:
R
Lmin
I
Omax
CEsat
----------------------------------- -
14.4 4
-------------------- - 2.97Ω===
3.5
Vs2V
The voltage gain of the bridge configuration is given by (see Figure 36):
V
v
0
------ - 1 V
1
G
Doc ID 1451 Rev 4 9/25
R
1
--------------------------
R2R4⋅
⎛⎞
-------------------- -
⎜⎟
R
+
⎝⎠
2R4
R
3
------ -++==
R
4
Electrical specifications TDA2005
For sufficiently high gains (40 to 50 dB) it is possible to put R2 = R4 and R3 = 2R1, simplifying the formula in:
R
1
------ -
4
=
v
R
2
Table 6. High gain vs. Rx
G
Gv (dB) R1 (Ω)R
40 1000 39 2000
50 1000 12 2000
Figure 8. Bridge configuration

2.4 Stereo amplifier application

Figure 9. Typical stereo application circuit

= R4 (Ω)R
2
3
(Ω)
10/25 Doc ID 1451 Rev 4
TDA2005 Electrical specifications

2.4.1 Electrical characteristics (stereo application)

Refer to the stereo application circuit T
= 25 °C; Gv = 50 dB; R
amb
th(heatsink)
= 4°C/W unless
otherwise specified
Table 7. Electrical characteristics (stereo application)
Symbol Parameter Test condition Min. Typ. Max. Unit
V
S
V
o
I
d
P
o
THD Total harmonic distortion
CT Cross talk
V
i
V
i
R
i
f
L
f
H
G
v
Supply voltage 8 18 V
Quiescent offset voltage
Total quiescent drain current
VS = 14.4 V VS = 13.2 V
VS = 14.4 V VS = 13.2 V
6.6 6
7.2
6.6
-
65 62
7.8
7.2
120 120
f = 1 kHz; THD = 10 %
Output power (each channel)
VS = 14.4 V; RL = 4 Ω
= 14.4 V; RL = 3.2 Ω
V
S
= 14.4 V; RL = 2 Ω
V
S
= 14.4 V; RL = 1.6 Ω
V
S
10
6 7 9
6.5 8
10
-W
11
f = 1 kHz; THD = 10 %
= 13.2 V; RL =3.2 Ω
V
S
VS = 13.2 V; RL = 1.6 Ω
V
= 16 V; RL = 2 Ω
S
f = 1 kHz; V
= 4 Ω; Po = 50 mW to 4 W;
R
L
f = 1 kHz; V
= 2 Ω; Po = 50 mW to 6 W;
R
L
f = 1 kHz; V
= 3.2 Ω; Po = 50 mW to 3W;
R
L
f = 1KHz; V
= 1.6Ω; Po = 40mW to 6W;
R
L
V
= 14.4 V; Vo = 4 V
S
= 5 kΩ; RL = 4 Ω;
R
g
= 14.4 V;
S
= 14.4 V;
S
= 13.2 V;
S
= 13.2V;
S
RMS
f = 1 kHz f = 10 kHz
;
6 9
6.5
10
-W
12
-
-
-
-
-
0.2
0.3
0.2
0.3
60
1%
1%
1%
1%
-
45
Input saturation voltage - 300 - mW
f = 1 kHz; Po = 1W;
Input sensitivity
RL = 4 Ω;
= 3.2Ω;
R
L
-6
5.5
-mV
Input resistance f = 1 kHz 70 200 - kΩ
Low frequency roll off (-3 dB) RL = 2 Ω --50Hz
High frequency roll off (-3 dB) RL = 2 Ω 15 - - kHz
Open loop voltage gain f = 1 kHz - 90 -
Closed loop voltage gain f = 1 kHz 48 50 51
V V
mA mA
mW mW
mV
dB
Doc ID 1451 Rev 4 11/25
Electrical specifications TDA2005
Table 7. Electrical characteristics (stereo application) (continued)
Symbol Parameter Test condition Min. Typ. Max. Unit
ΔGv Closed loop gain matching - - 0.5 - dB
e
SVR Supply voltage rejection
Total input noise voltage Rg = 10 kΩ
N
V
ripple
= 10 kΩ; C3 = 10 μF;
R
g
f = 1 kHz; V
= 4 Ω; Po = 6.5 W;
R
L
RL = 2Ω; Po = 10 W;
η Efficiency
f = 1 kHz; V RL = 3.2 Ω; Po = 6.5 W;
= 1.6 Ω; Po = 100 W;
R
L
1. Bandwidth filter: 22 Hz to 22 kHz.
Figure 10. Quiescent output voltage vs. sup-
ply voltage (stereo amplifier)
V
O
(V)
8
7
6
5
4
(1)
-1.55μV
= 0.5 V; f
S
=100 Hz
ripple
= 14.4 V;
35 45 - dB
-7060-%
= 13.2 V;
S
-7060-%
Figure 11. Quiescent drain current vs. supply
voltage (stereo amplifier)
I
d
(mA)
100
80
60
40
20
08
Figure 12. Distortion vs. output power (stereo
10 12 14 16 Vs (V)
Figure 13. Output power vs. supply voltage,
amplifier)
12/25 Doc ID 1451 Rev 4
d
(%)
f = 1 kHz Gv = 50 dB
8
6
4
2
0
0.01 0.1 1 Po (W)
Vs = 13.2 V
Vs = 14.4 V
Vs = 13.2 V
Vs = 14.4 V
R
R
L
R
L
L
R
L
= 3.2 Ω
= 4 Ω
= 1.6 Ω
= 2 Ω
08
R
L
P
o
(W)
15
f = 1 kHz G
d = 10 %
12
9
6
3
0
8
10 12 14 16 Vs (V)
= 2 and 4 Ω (stereo amplifier)
v = 50 dB
RL = 2 Ω
RL = 4 Ω
10
12
14 16
Vs (V)
TDA2005 Electrical specifications
Figure 14. Output power vs. supply voltage,
R
= 1.6 and 3.2Ω (Stereo amplifier)
P
(W)
15
L
o
f = 1 kHz G
v = 50 dB
d = 10 %
RL = 1.6 Ω
12
9
RL = 3.2 Ω
6
3
0
8
10
12
14 16
Vs (V)
Figure 16. Distortion vs. frequency, RL = 1.6
and 3.2 Ω (stereo amplifier)
(%)
d
= 13.2 V
V
s
Gv = 50 dB
Figure 15. Distortion vs. frequency, R
= 2 and
L
4 Ω (stereo amplifier)
d
(%)
= 14.4 V
V
s
Gv = 50 dB
1.2
= 2.5 W
P
o
R
= 2 Ω
L
0.8
P
= 2.5 W
o
= 4 Ω
R
L
0.4
10
2
10
3
10
4
f (Hz)
10
Figure 17. Supply voltage rejection vs. C3
(stereo amplifier)
SVR (dB)
10
20
Vs = 14.4 V
= 100 kHz
f
ripple
V
= 0.5 V
ripple
Gv = 50 dB
= 3.2 Ω
R
L
1.2
= 2.5 W
P
o
R
= 1.6 Ω
L
0.8
= 2.5 W
P
o
R
= 3.2 Ω
L
0.4
10
2
10
3
10
4
f (Hz)
10
Figure 18. Supply voltage rejection vs.
frequency (stereo amplifier)
SVR (dB)
Vs = 14.4 V Gv = 50 dB
= 10 µF
C
3
60
50
40
30
20
Rg = 0
Rg = 10 kΩ
30
40
50
60
10 12 C
(µF)13
3
Figure 19. Supply voltage rejection vs. C2 and
SVR (dB)
50
40
30
20
C3, G
Vs = 14.4 V R
= 4 Ω
L
R
= 10 kΩ
g
Gv = 390/1 Ω f
ripple
= 390/1Ω (stereo amplifier)
V
= 100 Hz
C2 = 220 µF
C2 = 22 µF
C2 = 5 µF
10 10
2
3
10
f (Hz)
10 20 C
(µF)12 5
3
Doc ID 1451 Rev 4 13/25
Electrical specifications TDA2005
Figure 20. Supply voltage rejection vs. C2 and
C3, G
= 1000/10Ω (stereo amplifier)
= 4 Ω = 10 kΩ
= 100 Hz
V
C2 = 220 µF
C2 = 22 µF
C2 = 5 µF
10 20 C
(µF)12 5
3
SVR (dB)
50
40
30
20
Vs = 14.4 V R
L
R
g
Gv = 1000/10 Ω f
ripple
Figure 22. Gain vs. input sensitivity RL = 2 Ω
(stereo amplifier)
G
v
(dB)
54
50
46
42
38
34
30
26
22
2468 2 468
10 100
Po = 10 W
Po = 0.5 W
30
VS = 14.4 V f = 1 kHz
= 2 Ω
R
L
300 V
(mV)
i
G
500
200
100
v
50
20
Figure 24. Total power dissipation and
efficiency vs. output power (stereo)
P (W)
tot
(%)
η
Figure 21. Gain vs. input sensitivity RL = 4 Ω
(stereo amplifier)
(mV)
i
G
500
200
100
v
50
20
G
v
(dB)
54
50
46
42
38
34
30
26
22
2468 2468
10 100
Po = 6 W
Po = 0.5 W
30
VS = 14.4 V f = 1 kHz
= 4 Ω
R
L
300 V
Figure 23. Total power dissipation and
efficiency vs. output power (bridge)
P
tot
(W)
12
P
10
8
6
4
2
tot
η
Vs = 14.4 V R
= 4 Ω
L
f = 1 kHz Gv = 50 dB
20 24 P
η
(%)
60
40
20
(W)841216
o
6
4
2
P
tot
η
Vs = 13.2 V
= 3.2 Ω
R
L
f = 1 kHz Gv = 50 dB
10 12 P
60
40
20
(W)4268
o
14/25 Doc ID 1451 Rev 4
TDA2005 Application suggestion

3 Application suggestion

The recommended values of the components are those shown on bridge application circuit of Figure 3. Different values can be used; the following table can help the designer.

Table 8. Recommended values of the component of the bridge application circuit

Component
Recommended
value
Purpose Larger than Smaller than r
C1 2.2 μF Input DC decoupling - -
High Turn on Pop, Higher low frequency cutoff Increase of Noise
C2 2.2 μF
Optimization of turn on Pop and turn on Delay
High turn on delay
C3 0.1 μF Supply bypass - Danger of oscillation
Increase of SVR,
C4 10 μF Ripple rejection
Increase of the Switch-
Degradation of SVR
on Time
C5, C7 100 μF Bootstrapping -
Feedback input DC
C6, C8 220 μF
decoupling, low frequency cut-off
-
Increase of distortion at low frequency
Danger of oscillation at high frequencies with inductive loads
C9, C10 0.1 μF Frequency stability - Danger of oscillation
R1 120 kΩ
Optimization of the output symmetry
Smaller P
omax
Smaller P
omax
R2 1 kΩ ---
R3 2 kΩ ---
Closed loop gain setting
R4, R5 12 Ω
(see Bridge Amplifier
(1)
Design
)
--
R6, R7 1 Ω Frequency stability
1. The closed loop gain must be higher than 32 dB.
Danger of oscillation at high frequencies with
-
inductive loads
Doc ID 1451 Rev 4 15/25
Application information TDA2005

4 Application information

Figure 25. Bridge amplifier without boostrap

Figure 26. PC board and components layout of Figure 25

16/25 Doc ID 1451 Rev 4
TDA2005 Application information

Figure 27. Low cost bridge amplifier (GV = 42dB)

Figure 28. PC board and components layout of Figure 27

Doc ID 1451 Rev 4 17/25
Application information TDA2005

Figure 29. 10 + 10 W stereo amplifier with tone balance and loudness control

Figure 30. Tone control response (circuit of Figure 29)

(dB)
+6
+3
0
-3
-6
-9
-12
10 f (Hz)10
MID
BASS
2
3
10
4
10
TREBLE
18/25 Doc ID 1451 Rev 4
TDA2005 Application information

Figure 31. 20 W bus amplifier

Figure 32. Simple 20 W two way amplifier (F
= 2 kHz)
C
Doc ID 1451 Rev 4 19/25
Application information TDA2005

Figure 33. Bridge amplifier circuit suited for low-gain applications (GV = 34 dB)

Figure 34. Example of muting circuit

4.1 Built-in protection systems

4.1.1 Load dump voltage surge

The TDA2005 has a circuit which enables it to withstand voltage pulse train, on Pin 9, of the type shown in Figure 36. If the supply voltage peaks to more than 40 V, then an LC filter must be inserted between the supply and pin 9, in order to assure that the pulses at pin 9 will be held within the limits shown.
A suggested LC network is shown in Figure 35. With this network, a train of pulses with amplitude up to 120 V and width of 2 ms can be applied at point A. This type of protection is ON when the supply voltage (pulse or DC) exceeds 18 V. For this reason the maximum operating supply voltage is 18 V.
20/25 Doc ID 1451 Rev 4
TDA2005 Application information
Figure 35. Suggested LC network circuit
Figure 36. Voltage gain bridge configuration

4.1.2 Short circuit (AC and DC conditions)

The TDA2005 can withstand a permanent short-circuit on the output for a supply voltage up to 16 V.

4.1.3 Polarity inversion

High current (up to 10 A) can be handled by the device with no damage for a longer period than the blow-out time of a quick 2 A fuse (normally connected in series with the supply). This feature is added to avoid destruction, if during fitting to the car, a mistake on the connection of the supply is made.

4.1.4 Open ground

When the ratio is in the ON condition and the ground is accidentally opened, a standard audio amplifier will be damaged. On the TDA2005 protection diodes are included to avoid any damage.

4.1.5 Inductive load

A protection diode is provided to allow use of the TDA2005 with inductive loads.

4.1.6 DC voltage

The maximum operating DC voltage for the TDA2005 is 18 V. However the device can withstand a DC voltage up to 28 V with no damage. This could occur during winter if two batteries are series connected to crank the engine.
Doc ID 1451 Rev 4 21/25
Application information TDA2005

4.1.7 Thermal shut-down

The presence of a thermal limiting circuit offers the following advantages:
1. an overload on the output (even if it is permanent), or an excessive ambient temperature can be easily withstood.
2. the heatsink can have a smaller factor of safety compared with that of a conventional circuit. There is no device damage in the case of excessive junction temperature : all that happens is that P
(and therefore P
o
) and Id are reduced.
tot
The maximum allowable power dissipation depends upon the size of the external heatsink (i.e. its thermal resistance); Figure 37 shows the power dissipation as a function of ambient temperature for different thermal resistance.

4.1.8 Loudspeaker protection

The circuit offers loudspeaker protection during short circuit for one wire to ground.
Figure 37. Maximum allowable power dissipa-
tion vs. ambient temperature
P (W)
20
16
12
8
tot
32
28
24
R
4
0
-50
th
= 8˚C/W
0
R
th
= 4˚C/W
R
th
= 2˚C/W
50
INFINITE HEATSINK
100 T
amb
(˚C)
Figure 39. Output power and drain current vs.
case temperature (R
P
o
(W)
8
P
o
6
I
d
= 3.2 Ω)
L
VS = 13.2V
Ω
= 3.2
R
L
f = 1 kHz
1.2
0.9
I (A)
d
Figure 38. Output power and drain current vs.
case temperature (R
P
o
(W)
16
12
8
4
0 40 80 120 160
I
d
P
o
= 4 Ω)
L
VS = 14.4V
Ω
= 4
R
L
f = 1 kHz
I
d
(A)
1.2
0.9
0.6
0.3
(˚C)
T
case
4
2
0 40 80 120 160
0.6
0.3
T
(˚C)
case
22/25 Doc ID 1451 Rev 4
TDA2005 Package information

5 Package information

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK
®
packages, depending on their level of environmental compliance. ECOPACK
®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK
®
is an ST trademark.

Figure 40. Multiwatt11 mechanical data and package dimensions

DIM.
A50.197
B 2.65 0.104
C1.60.063
D 1 0.039
E 0.49 0.55 0.019 0.022
F 0.88 0.95 0.035 0.037
G 1.45 1.7 1.95 0.057 0.067 0.077
G1 16.75 17 17.25 0.659 0.669 0.679
H1 19.6 0.772
H2 20.2 0.795
L 21.9 22.2 22.5 0.862 0.874 0.886
L1 21.7 22.1 22.5 0.854 0.87 0.886
L2 17.4 18.1 0.685 0.713
L3 17.25 17 .5 17.75 0.679 0.689 0.699
L4 10.3 10.7 10.9 0.406 0.421 0.429
L7 2.65 2.9 0.104 0.114
M 4.25 4.5 5 4.85 0.167 0.179 0.191
M1 4.73 5.08 5.43 0.186 0.200 0.214
S 1.9 2.6 0.075 0.102
S1 1.9 2.6 0.075 0.102
Dia1 3.65 3.85 0.144 0.152
mm inch
MIN. TYP. MAX. MIN. TYP. MAX.
OUTLINE AND
MECHANICAL DATA
Multiwatt11 (Vertical)
0016035 H
Doc ID 1451 Rev 4 23/25
Revision history TDA2005

6 Revision history

Table 9. Document revision history

Date Revision Changes
09-Jun-1998 1 Initial release.
20-May-2000 2 Update logo.
10-Sep-2003 3 Update package drawing.
Document reformatted.
28-Jan-2010 4
Updated Features, Description and Table 1: Device summary in cover page.
24/25 Doc ID 1451 Rev 4
TDA2005
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2010 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
Doc ID 1451 Rev 4 25/25
Loading...
