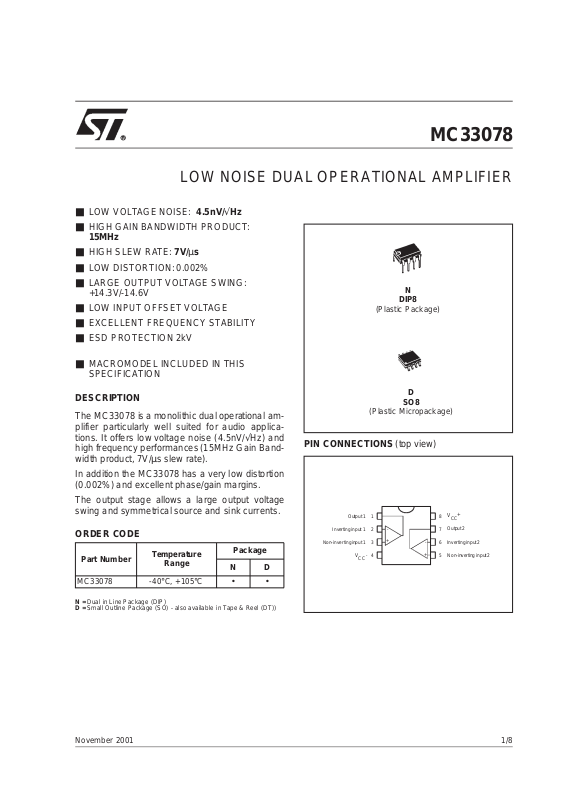

ST MICROELECTRONICS MC 33078 D Datasheet

LOW NOISE DUAL OPERATIONAL AMPLIFIER

■ LOW VOLTAGENOISE: 4.5nV/√Hz

■ HIGH GAIN BANDWIDTH PRODUCT:

15MHz

■ HIGH SLEW RATE: 7V/µs

■ LOW DISTORTION: 0.002%

■ LARGE OUTPUT VOLTAGE SWING:

+14.3V/-14.6V

■ LOW INPUT OFFSET VOLTAGE

■ EXCELLENT FREQUENCY STABILITY

■ ESD PROTECTION 2kV

■ MACROMODEL INCLUDED IN THIS

SPECIFICATION

MC33078

N

DIP8

(Plastic Package)

DESCRIPTION

The MC33078 isamonolithic dualoperational am­plifier particularly well suited for audio applica­tions. It offers low voltage noise (4.5nV/√Hz) and
high frequency performances (15MHz Gain Band­width product, 7V/µs slew rate).

In addition the MC33078 has a very low distortion
(0.002%) and excellent phase/gain margins.

The output stage allows a large output voltage
swing and symmetrical sourceand sink currents.

ORDER CODE

Part Number

Temperature

Range

MC33078 -40°C, +105°C ••

N=Dual in Line Package (DIP)
D=Small Outline Package (SO) - also available inTape & Reel (DT))

Package

ND

D

SO8

(Plastic Micropackage)

PIN CONNECTIONS (top view)

1

Output 1

Invertinginput 1

Non-invertinginput 1

2

-

+

3

45

-

V

CC

-

+

+

V

8

CC

Output2

7

6

Inverting input 2

Non-invertinginput2

November 2001

1/8

MC33078

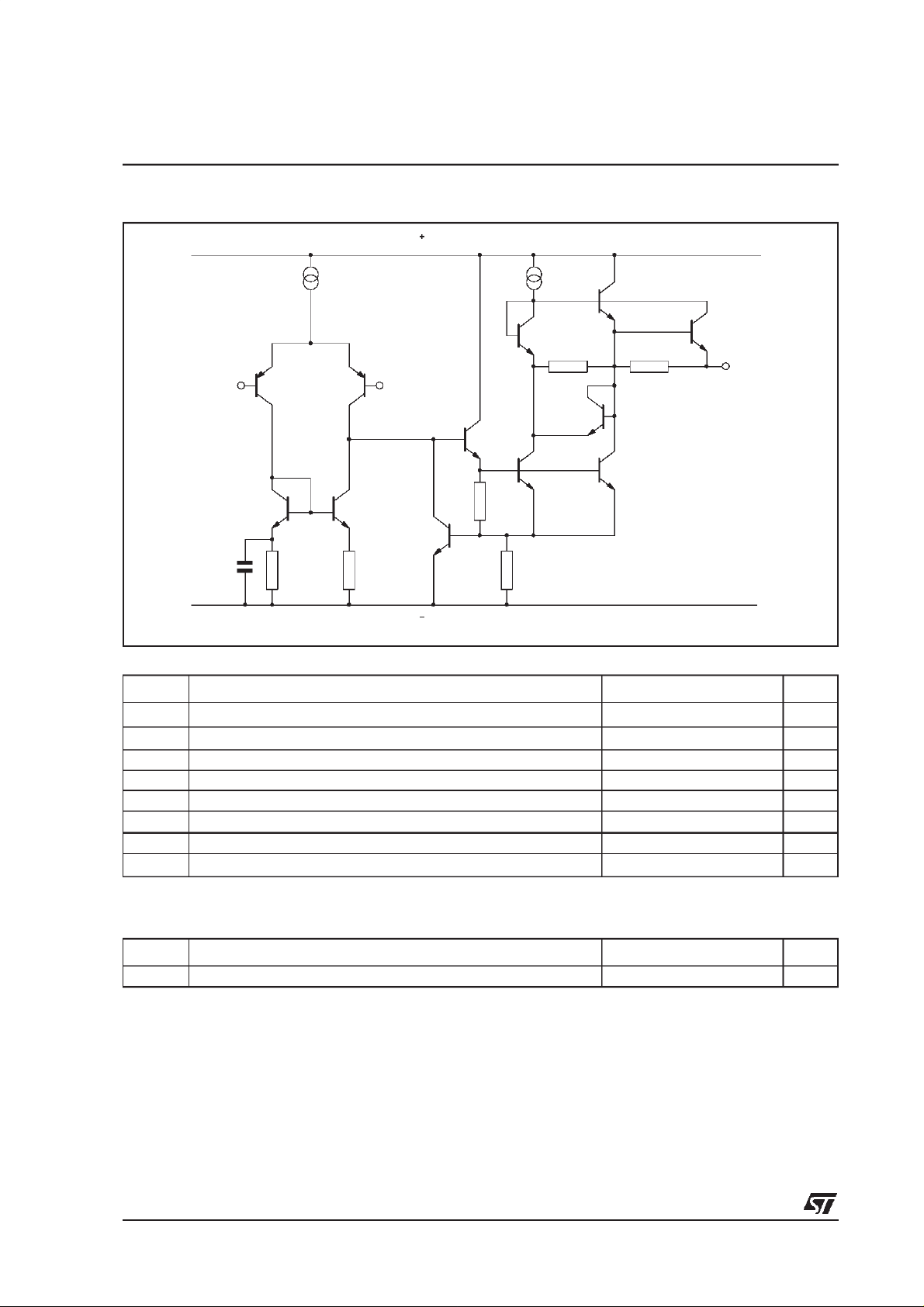

SCHEMATIC DIAGRAM (1/2 MC33078)

V

CC

Output

Inverting

Input

Non-inverting

Input

V

CC

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

V

T

T

Ptot

1. Either or both input voltages must not exceed the magnitude of Vcc+or Vcc-.

2. Power dissipation must be considered to ensuremaximum junction temperature (Tj)isnot exceeded.

Supply Voltage ±18 or +36 V

CC

V

id Differential Input Voltage - note

V

Input Voltage - see note 1 ±15 V

i

1)

±30 V

Output Short Circuit Duration Infinite s
Operating Free-Air Temperature Range -40 to 105 °C

oper

T

Junction Temperature +150 °C

j

Storage Temperature -65 to +150 °C

stg

Maximum Power Dissipation - note

2)

500 mW

OPERATING CONDITIONS

Symbol Parameter Value Unit

V

2/8

Supply Voltage ±2.5 to ±15 V

CC

MC33078

ELECTRICAL CHARACTERISTICS

+

V

= +15V, V

CC

Symbol Parameter Min. Typ. Max. Unit

Input Offset Voltage (Vo=0V,Vic= 0V)

V

io

DV

Input Offset Voltage Drift

io

Input Offset Current (Vo=0V,Vic= 0V)

I

io

Input Bias Current (Vo=0V,Vic= 0V)

I

ib

V

Input Common Mode Voltage Range (∆Vio= 5mV, Vo= 0V)

icm

Large Signal Voltage Gain (RL=2kΩ,Vo=±10V)

A

vd

Output Voltage Swing (Vid= ±1V)

±V

opp

CMR

SVR

Common-mode Rejection Ratio (V
Supply Voltage Rejection Ratio (V

Output Short Circuit Current (Vid= ±1V,Output to Ground)

I

o

Supply Current (Vo= 0V, All amplifiers)

I

CC

Slew Rate (V

SR

GBP

Gain Bandwidth Product (R

B Unity Gain Bandwidth (Open loop) 9 MHz

Gain Margin (RL=2kΩ)C

A

m

Phase Margin (R

φm

e

Equivalent Input Noise Voltage (RS= 100Ω, f = 1kHz)

n

i

Equivalent Input Noise Current (f = 1kHz) 0.5

n

THD

V

O1/VO2

FPB

TotalHarmonic Distortion (R
Channel Separation (f = 20Hz to 20kHz) 120 dB

Full Power Bandwidth (V

Z

Output Impedance (Vo= 0V, f = 9MHz)

o

Input Resistance (Vic= 0V)

R

i

Input Capacitance (Vic= 0V)

C

i

-

= -15V, T

CC

T

= +25°C

amb

. ≤ T

T

min

amb

V

=0V,Vic=0V,T

o

= +25°C

T

amb

. ≤ T

T

min

amb

= +25°C

T

amb

T

. ≤ T

min

amb

= +25°C

T

amb

T

. ≤ T

min

amb

Source
Sink

T

= +25°C

amb

. ≤ T

T

min

amb

= -10V to +10V,RL=2kΩ,CL= 100pF, AV=+1)

i

L

=25°C (unless otherwise specified)

amb

≤ T

max.

≤ T

≤ T

≤ T

max.

max.

max.

min

. ≤ T

amb

≤ T

R
R
R
R
R
R

= ±13V)

ic

+

/V

CC

≤ T

max.

=2kΩ,CL= 100pF, f = 100kHz)

L

C

=2kΩ)CL= 0pF

= 100pF

C

L

=2kΩ, f = 20Hz to 20kHz, Vo=3V

L

= 27Vpp,RL=2kΩ, THD ≤ 1%)

o

max.

= 600Ω

L

= 600Ω

L

= 2.0kΩ

L

= 2.0kΩ

L

= 10kΩ

L

= 10kΩ

L

-

= +15V / -15V to +5V / -5V)

CC

= 0pF

L

= 100pF

L

rms,AV

0.15 2

2

10 150

250 750

±13 ±14 V

9085100 dB

12.2

-12.7

13.2

14

-14.2

14.3

13.5

-14.6

80 100 dB
80 105 dB

152029

27

45

57 V/µs

10 15 MHz

-11

-6

55
30

4.5

=+1)

0.002 %

120 kHz

37 Ω

175 kΩ

12 pF

3

µV/°C

175

800

-13.2

-14

5.5

Degrees

----------- -

----------- -

mV

nA

nA

V

mA

mA

dB

nV

Hz

pA

Hz

3/8

MC33078

TOTAL SUPPLY CURRENT vs SUPPLY
VOLTAGE

5

4.5
4

3.5
3

2.5
2

1.5

Total SupplyCurrent (mA)

1

0.5
0

0 5 10 15 20 25 30

Supply Voltage (V)

OUTPUT VOLTAGE vs SUPPLY VOLTAGE

15

10

5

0

-5

Output Voltage (V)

-10

Vid= ±1V

R

= 600Ω

L

OUTPUT SHORT CIRCUIT CURRENT vs
OUTPUT VOLTAGE

50
40
30
20
10

0

-10

-20

Output Short CircuitCurrent (mA)

-30

-40
0102030

VCC= 0/30V
T

=25°C

amb

OutputVoltage (V)

OUTPUT VOLTAGE vs SUPPLY VOLTAGE

15

10

5

Vid= ±1V

R

=2kΩ

L

-10

Output Voltage (V)

0

-5

-15
0 5 10 15

Supply Voltage (V)

EQUIVALENT INPUT NOISE VOLTAGE vs
FREQUENCY

= ±15V,G = 100

V

CC

R

= 100, T

s

amb

=25°C

-15
0 5 10 15

Supply Voltage(V)

THD + NOISE vs FREQUENCY

1

RL=2kΩ, Vo=3V

0.1

0.01

THD+Noise (%)

0.001

VCC= ±15V,Av=1

0.01 0.1 1 10 100

rms

Frequency (kHz)

4/8

VOLTAGE GAINANDPHASE vs FREQUENCY THD + NOISE vs Vout

MC33078

50

40

30

gain

20

10

Gain (dB)

0

-10

RL=2kΩ, CL= 100pF

-20

V

= ±15V, G = -100

CC

-30
10 100 1000 10000 100000

phase

Frequency (kHz)

180

120

60

0

-60

-120

Phase (Deg)

1.000

RL=2kΩ, f = 1kHz

0.100

0.010

THD+Noise (%)

0.001
12345678910

V

= ±15V, Av=10

CC

Vout (Vrms)

5/8

MC33078

MACROMODELS

** Standard Linear Ics Macromodels, 1993.
** CONNECTIONS :
* 1 INVERTING INPUT
* 2 NON-INVERTING INPUT
* 3 OUTPUT
* 4 POSITIVE POWER SUPPLY
* 5 NEGATIVE POWER SUPPLY
.SUBCKT MC33078 1 3 2 4 5(analog)
********************************************************
.MODEL MDTH D IS=1E-8 KF=2.286238E-16
CJO=10F
* INPUT STAGE
CIP 2 51.200000E-11
CIN 1 5 1.200000E-11
EIP 10 5 2 5 1
EIN 16 5 1 5 1
RIP 10 11 2.363636E+00
RIN 15 162.363636E+00
RIS 11 15 1.224040E+01
DIP 11 12 MDTH 400E-12
DIN 15 14MDTH 400E-12
VOFP 12 13 DC 0
VOFN 13 14DC 0
IPOL 13 5 1.100000E-04
CPS 11 15 2.35E-09
DINN 17 13 MDTH 400E-12
VIN 17 5 1.000000e+00
DINR 15 18 MDTH 400E-12
VIP 4 18 1.000000E+00
FCP 4 5 VOFP 1.718182E+01
FCN 5 4VOFN 1.718182E+01
FIBP 2 5 VOFN 4.545455E-03
FIBN 5 1 VOFP 4.545455E-03
* AMPLIFYING STAGE
FIP 5 19 VOFP 9.545455E+02
FIN 5 19 VOFN 9.545455E+02
CC 19 29 1.500000E-08
HZTP 30 29 VOFP 1.523529E+02

HZTN 5 30 VOFN 1.523529E+02
DOPM 51 22 MDTH 400E-12
DONM 21 52 MDTH 400E-12
HOPM 22 28 VOUT 5.172414E+03
VIPM 28 4 1.500000E+02
HONM 21 27 VOUT 4.054054E+03
VINM 5 27 1.500000E+02
DBIDON1 19 53 MDTH 400E-12
V1 51 53 0.68
DBIDON2 54 19 MDTH 400E-12
V2 54 52 0.68
RG11 51 53.04E+05
RG12 51 43.04E+05
RG21 52 50.6072E+05
RG22 52 40.6072E+05
E1 50 40 51 0 1 E2 40 39 52 0 1
EDEC1 38 39 4 0 0.5
EDEC2 0 385 0 0.5
DOP 51 25MDTH 400E-12
VOP 4 251.474575E+00
DON 24 52 MDTH 400E-12
VON 24 5 1.474575E+00
RAJUS 50 5 1E12
GCOMP 5 4 4 5 8.1566068E-04
RPM1 5 80 1E+06
RPM2 4 80 1E+06
GAVPH 5 82 50 80 3.26E-03
RAVPHGH 82 4 613
RAVPHGB 82 5 613
RAVPHDH 82 83 1000
RAVPHDB 82 84 1000
CAVPHH 4 83 0.159E-09
CAVPHB 5 84 0.159E-09
EOUT 26 23 82 5 1
VOUT 23 5 0
ROUT 26 3 4.780354E+01
COUT 3 5 1.000000E-12
.ENDS

ELECTRICAL CHARACTERISTICS

+

V

= +15V, VCC- = -15V, T

CC

Symbol Conditions Value Unit

V

io

RL=2kΩ, Vo = ±10V
No load, per operator 2 mA

∆Vio= 5mV, VO=0V
RL=2kΩ
VO=0V
VO=0V

=2kΩ,CL= 100pF

R

L

= 10kΩ,CL= 100pF, Av=+1

R

L

=2kΩ,CL= 0pF

R

L

6/8

I

source

GBP

A

V
V

I

vd

I

CC

icm
opp

sink

SR
φm

=25°C (unless otherwise specified)

amb

0mV

100 dB

28 V

28.2 V
37 mA
29 mA
15 MHz

7V/µs

55 Degrees

PACKAGE MECHANICAL DATA

8 PINS - PLASTIC DIP

MC33078

Dimensions

Min. Typ. Max. Min. Typ. Max.

A 3.32 0.131

a1 0.51 0.020

B 1.15 1.65 0.045 0.065

b 0.356 0.55 0.014 0.022

b1 0.204 0.304 0.008 0.012

D 10.92 0.430
E 7.95 9.75 0.313 0.384

e 2.54 0.100
e3 7.62 0.300
e4 7.62 0.300

F 6.6 0260

i 5.08 0.200
L 3.18 3.81 0.125 0.150
Z 1.52 0.060

Millimeters Inches

7/8

MC33078

PACKAGE MECHANICAL DATA

8 PINS - PLASTIC MICROPACKAGE (SO)

a2

L

c1

C

A

a3

b

e3

D

8

1

M

5

4

s

F

a1

E

b1

Millimeters Inches

Dimensions

Min. Typ. Max. Min. Typ. Max.

A 1.75 0.069
a1 0.1 0.25 0.004 0.010
a2 1.65 0.065
a3 0.65 0.85 0.026 0.033

b 0.35 0.48 0.014 0.019

b1 0.19 0.25 0.007 0.010

C 0.25 0.5 0.010 0.020
c1 45° (typ.)

D 4.8 5.0 0.189 0.197

E 5.8 6.2 0.228 0.244

e 1.27 0.050

e3 3.81 0.150

F 3.8 4.0 0.150 0.157

L 0.4 1.27 0.016 0.050
M 0.6 0.024
S8°(max.)
