Page 1
Gas Cooktop
Model Number STR-GH
INSTRUCTION MANUAL
IM Version No: V1.5 Issue Date: 01 July 2015
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
N13275
Page 2
Welcome
Congratulations on choosing to buy a STIRLING® product.
®
All products brought to you by STIRLING
are manufactured to the highest
standards of performance and safety and, as part of our philosophy of
customer service and satisfaction, are backed by our comprehensive 3 Year
in Home Warranty. We hope you will enjoy using your purchase for many years
to come.
2
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 3
Contents
02 Welcome
04 Warranty Details
05 General Safety Instructions
08 Product Overview
10 Installation
19 Instructions
21 FAQs & Troubleshooting Guide
22 Other Useful Information
27 Repair and Refurbished Goods or Parts Notice
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
3
Page 4
Gas Cooktop
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts
for a period of 36 months from the date of purchase. Defects that occur
within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion, solely at our option with no charge for
parts and labour. The benefits conferred by this warranty are in addition
to all rights and remedies in respect of the product that the consumer
has under the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and to compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
4
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 5
General Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before first use, even if you are familiar with
this type of product. The safety precautions enclosed herein reduce the risk
of fire, electric shock and injury when correctly adhered to. Make sure you
understand all instructions and warnings.
Keep the manual in a safe place for future reference, along with the
completed warranty card and purchase receipt. If you sell or transfer
ownership of this product, pass on these instructions to the new owner.
Always follow basic safety precautions and accident prevention
measures when using an electrical appliance, including the following:
• Professional installation: This cooktop must be installed by a licensed
plumber/gasfitter in accordance with all instructions in this manual and
all applicable rules and regulations. Any electrical work required for
installation must be carried out by a licensed electrician. Comprehensive
installation instruction follow on pages 10 to 18 of this manual.
• Cut hazard: Installation of this stainless steel cooktop involves handling
sharp edges. Take due care to avoid injury or cuts.
• Electric shock hazard: This appliance must be connected to a good
earth wiring system. Before carrying out any work on the electrical
section of the appliance, or any maintenance work or repairs, the
appliance must be disconnected from the mains. If accessible, always
switch off the cooktop at the wall before cleaning the appliance. Failure
to follow this advice may result in death or electric shock.
• Hot surface hazard: While in use, direct contact with the cooktop surface
may cause burns! Take utmost care when the equipment is in use. Do not
touch the cooktop components (base, burners, caps, enamelled trivets)
when hot. We recommend using oven gloves when handling cookware.
• Fire hazard: Never leave items on top of the cooktop as this can be a fire
hazard when switched on. In case of a fire, never try to extinguish it with
water. Switch off the burner and cover the flame(s) with a lid or fire blanket.
• Explosion hazard: Do not store flammable materials such as petrol near
the cooktop. Do not spray aerosols near the cooktop when it is in use.
Do not modify the appliance. Failure to follow this advice may result in
death or serious injury.
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
5
Page 6
General Safety Instructions (Cont.)
General usage conditions and restrictions
• Domestic use only: This cooktop is designed for indoor domestic use
only; commercial catering may invalidate the warranty. The cooktop can
be built into a standard kitchen cabinet or housing unit.
• Intended purpose: Only use this cooktop for its intended purpose, in
its intended environment and as described in this manual. Any other use
may cause fire, electric shock or injury, and invalidate the warranty.
• No space heating: Do not use this cooktop for space heating purposes.
• Ventilation: Heat, steam and moisture will be created during use of
the cooktop. Take care to avoid injury and ensure that the kitchen is
adequately ventilated.
• Follow instructions: Make sure to observe all rules and provisions in
this instruction manual. Do not allow anybody who is not familiar with the
contents of this manual to operate the cooktop. These instructions are
not intended to cover every possible condition and situation. As with any
electrical household appliance, use common sense and caution when
installing, operating and maintaining the cooktop.
• Power cord: Do not allow the power cord to come into contact with
areas on the cooktop that get hot. Check the cord regularly for damage.
Do not use the appliance if the cord, or any other part of the appliance,
has been damaged. If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
• Usage restriction: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children and pets: Cooking appliances become very hot in use,
therefore ensure children and pets are kept away. If it is necessary for
younger family members to be in the kitchen, ensure that they are kept
under close supervision at all times. Do not allow children to operate or
play with any part of the appliance.
6
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 7
General Safety Instructions (Cont.)
• Pots and pans: Do not use unstable cookware, plastic cookware or
aluminium foil containers on the cooktop. Do not let large cookware
overlap the bench as this cook deflect heat onto the benchtop, which
could damage the surface. Pot and pan handles may become hot during
use; position handles away from the edge of the cooktop and out of
children’s reach.
• Frying food: When frying food on the cooktop, check constantly and
ensure the oil is not overheating and becoming a fire hazard. Do not fill
deep frypans more than one third full of oil. Do not leave unattended.
• Combustible materials: Do not cover the cooktop or place combustible
materials on or near the surface even when the hob is not in use.
• After use: Switch off all controls and allow the cooktop surface to cool
before cleaning.
• Clean regularly: In the interests of safety and hygiene, ensure the
cooktop is kept clean as a build-up of grease could cause a fire hazard.
• Cleaning precautions: Disconnect the appliance from the mains before
cleaning, if your setup allows and the plug is accessible. Do not immerse
the appliance or power cord in water or any other liquid. Do not use steam
cleaning equipment for cleaning the cooktop.
• Disconnect: Do not disconnect the appliance with wet hands. Grip by
the plug, do not pull by the cord when disconnecting.
• Damage: Do not use the cooktop if any part has been damaged or does
not work properly. Only have it repaired by an authorised service centre.
Incorrect repair could expose you to the risk of electric shock, fire or
injury. Prolonged use of the unit in such conditions could cause fire or
electrocution. In case of damage, contact our after sales support
centre using the details at the bottom of this page.
• Do not modify: Do not attempt to modify the appliance.
• Do not use when faulty: Do not use the cooktop in the event of a
technical fault. Any faults must be fixed by an appropriately qualified and
authorised person. Contact our after sales support line for advice.
• Liability: We assume no liability for any eventual damages to property or
injury to persons caused by misuse of the product or noncompliance with
these instructions.
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
7
Page 8
Product Overview

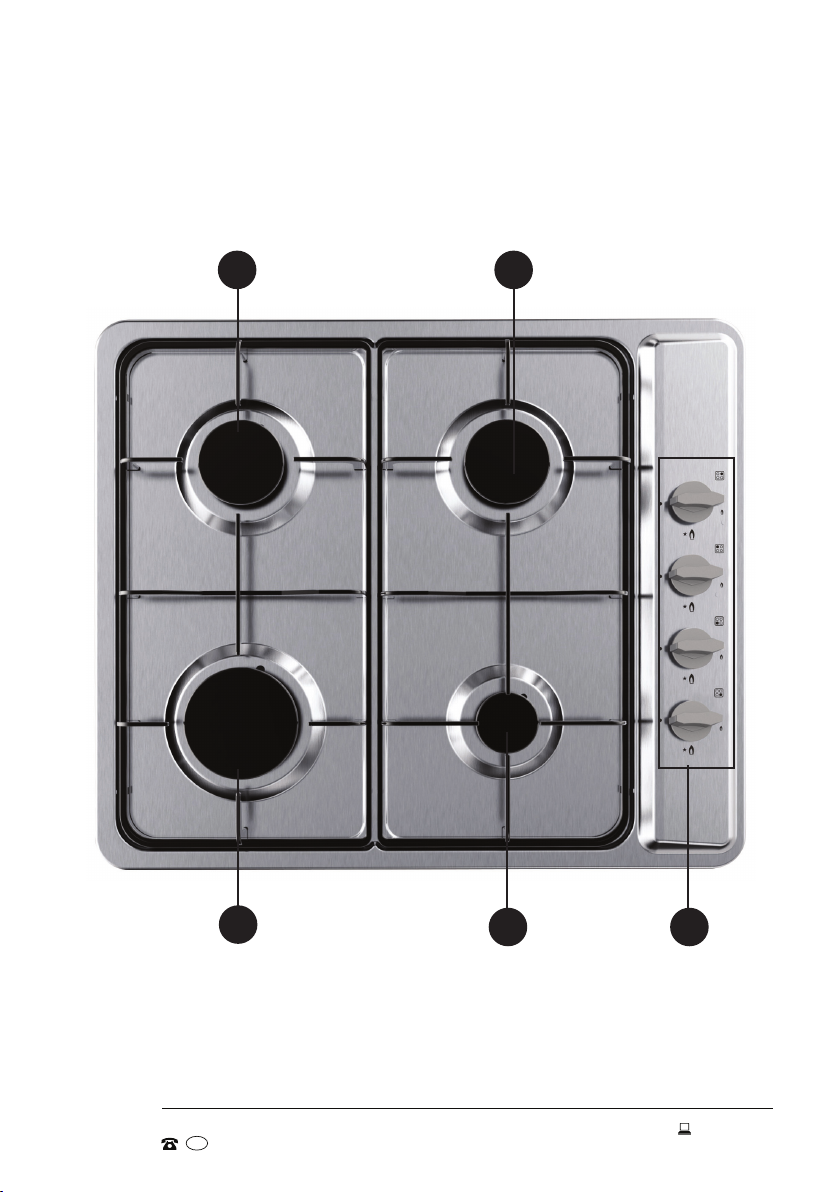

Gas cooktop (hob) layout
B
B
A
A 11.9 MJ/h (3.3 kW/h) Rapid gas burner
B 6.5 MJ/h (1.8 kw/h) Semirapid gas burner (x2)
C 3.6 MJ/h (1.0 kW/h) Auxiliary gas burner
D Control panel (see opposite for details)
AFTER SALES SUPPORT
AUS
8
1300 886 649
C
D
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 9

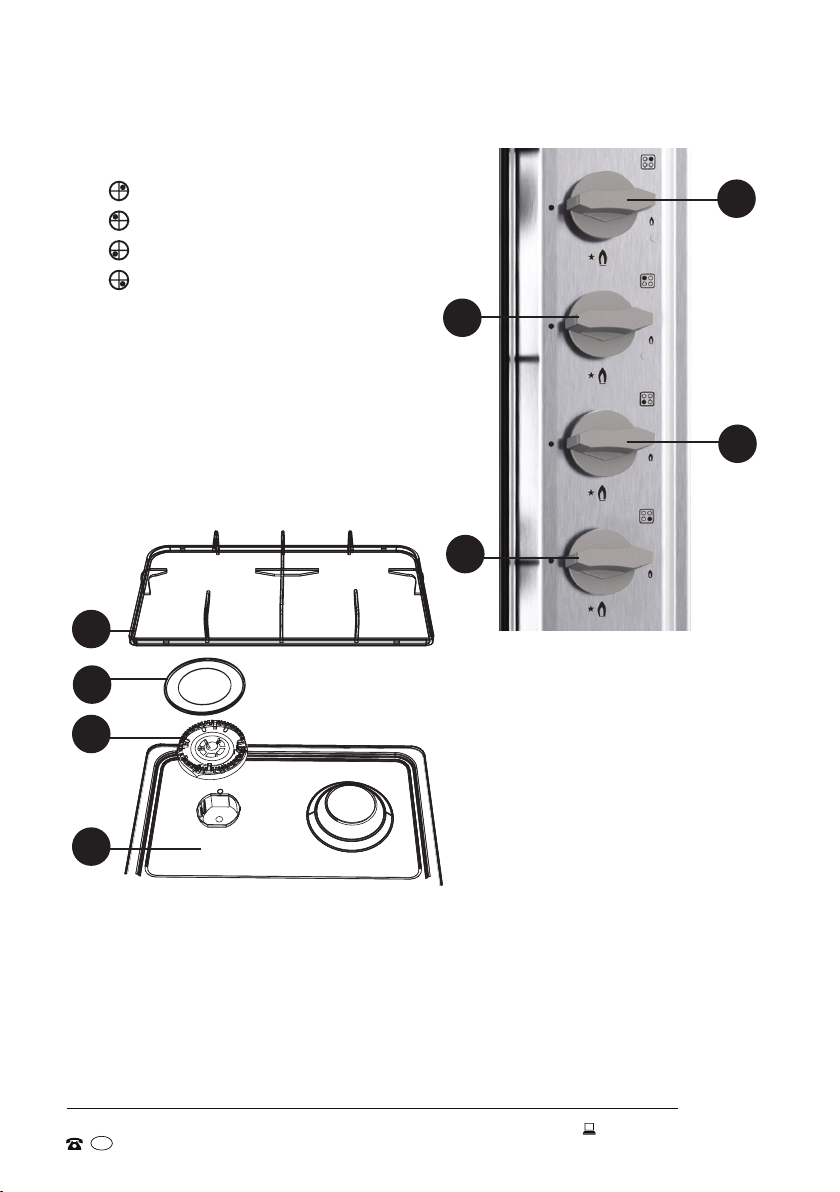

Product Overview (Cont.)

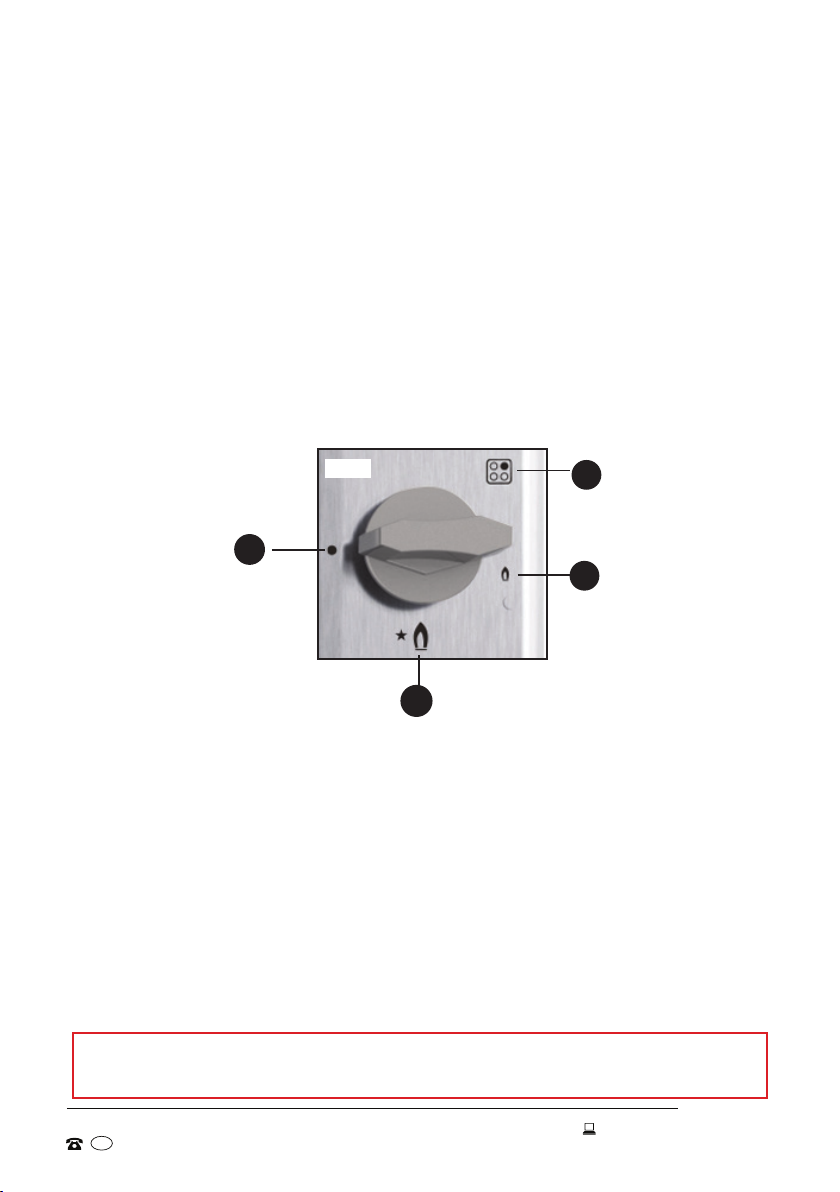

Control knobs
1 Rear right-hand cooking zone
2 Rear left-hand cooking zone
3 Front left-hand cooking zone
4 Front right-hand cooking zone
Cooktop parts
5 Enamelled trivet (x2)
6 Burner cap (x4)
7 Burner (x4)
8 Cooktop (hob) surface
5
6
7
1
2
3
4
8
Also included, but not pictured:
Installation hardware
Hob fixing bracket (x4)
ST4*33 zinc tapping screw (x4)
Sealing tape
Instruction manual, Quick start guide, Warranty certificate
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
9
Page 10
Installation
Unpacking the appliance
• This product has been packaged to protect it against transportation
damage. Unpack the appliance but keep all packaging materials until
you have made sure your new gas cooktop is undamaged and in perfect
condition. If you have any doubts, do not use the appliance and call our
after sales support centre for advice.
• The carton is recyclable. Whenever possible, reuse the carton and recycle
it when disposing of the packaging materials.
• Some parts on the appliance are protected by a plastic film. This protective film must be removed before the appliance is used. We recommend
carefully slitting the plastic film along the edges with a sharp knife.
• Plastic wrapping can be a suffocation hazard for babies and young
children, so ensure all packaging materials are out of their reach, and
dispose of them safely.
WARNING: Professional installation only!
• This cooktop must be correctly installed by an authorised, licensed
gasfitter/plumber only, in accordance with Gas Installation Code
AS NZS 5601, all other applicable rules and regulations and all
instructions in this manual. It is in your interest and that of your safety
to ensure compliance.
• Do not try to install the cooktop yourself! Doing so will expose you
to danger and void the warranty. Improper installation, adjustment,
alteration or service can cause injury or damage. We decline any
responsibility for injury or damage, to persons or property, as a result of
improper use or installation.
• This appliance is not connected to a flue for discharge of the
combustion products; therefore, it must be connected in compliance
with the above mentioned installation rules. Particular attention must
be paid to the instructions given on the opposite page for ventilation.
• Any adjustments, conversions and maintenance of this product may
only be carried out by an appropriately authorised person, as mentioned
above.
• The safety and automatic adjustment devices of the appliance may
only be modified by an authorised service agent.
10
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 11
Installation (Cont.)
Important installation advice
• Natural gas only: This appliance is intended for use with natural gas only.
• Location: The cooktop may be located in a kitchen, kitchen/dining room
or a bed-sitting room, but not in a room containing a bath or shower. The
hob must not be installed in a bed-sitting room of less than 20m3.
• Other use: This appliance is unsuitable for use in marine craft, caravans
or mobile homes unless each burner is fitted with a flame safeguard.
• Heat resistance of surrounding surfaces: Wall and bench surfaces
must be capable of sustaining temperatures of 95°C. All laminates,
fixing adhesive and surfacing materials must be certified suitable for
this temperature. We assume no liability for any damage caused if the
appliance is installed contrary to this advice. Do not install the cooktop
near curtains or other flammable materials.
• Clearances: Fire resistant materials (such as ceramic tiles) are required
up to 450mm above the burner top.
Walls or vertical structures must be at least 200mm away from the burner.
There must be a minimum clearance of 50mm between the base of the
appliance and a combustible surface.
There must be no overhanging surfaces, and no rangehood or exhaust
system, within 750mm above the burner tops.
If fitting a 600mm bridging unit above the 700mm hob unit, the sides of
adjacent cabinets may be lower than 760mm down to 334mm, provided
that they are resistant to heat and steam.
• Ventilation requirements: This appliance must only be used in rooms
equipped with adequate ventilation. The use of a gas cooking appliance
results in the production of heat and moisture in the room in which
it is installed. Always ensure that the kitchen is well ventilated; keep
natural ventilation holes open or install a mechanical ventilation device
(mechanical extractor hood).
Prolonged intensive use of the appliance may require additional or more
effective ventilation, for example, opening of a window or increasing the
level of mechanical ventilation, where present.
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
11
Page 12
Installation (Cont.)
Benchtop preparation
• Make sure the kitchen area is dry and there is sufficient ventilation and
easy access to all control elements.
• Do not install the cooktop near curtains or other flammable materials.
• The cooktop can be fitted to any benchtop with a thickness of 40-50mm.
• If you have (or plan to have) a rangehood fitted above the cooktop, check
in the rangehood instructions that you will have the required clearance
before starting with the installation.

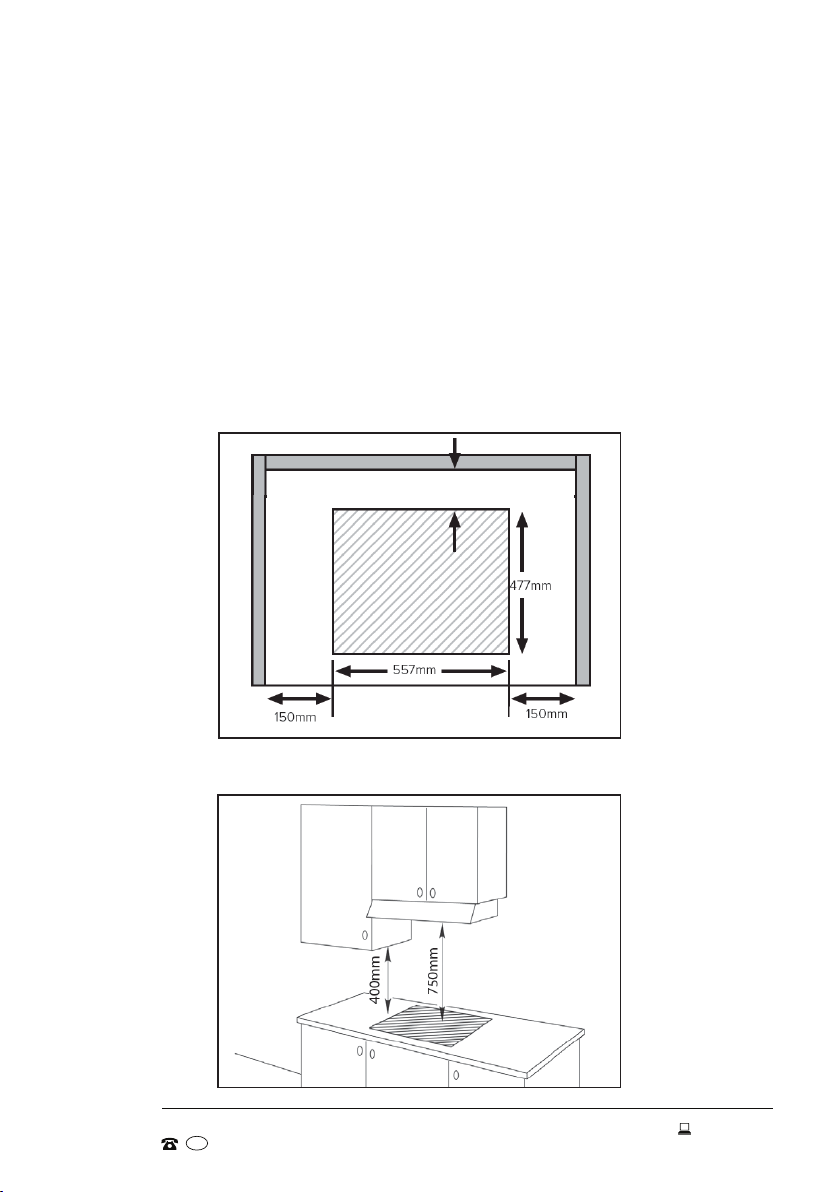

• The cut-out illustration (Fig. 1) shows the minimum distances to any vertical
structures around the cooktop.
Fig. 1
140mm
140mm
• The required height clearances are illustrated below (Fig. 2).
Fig. 2
12
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 13
Installation (Cont.)

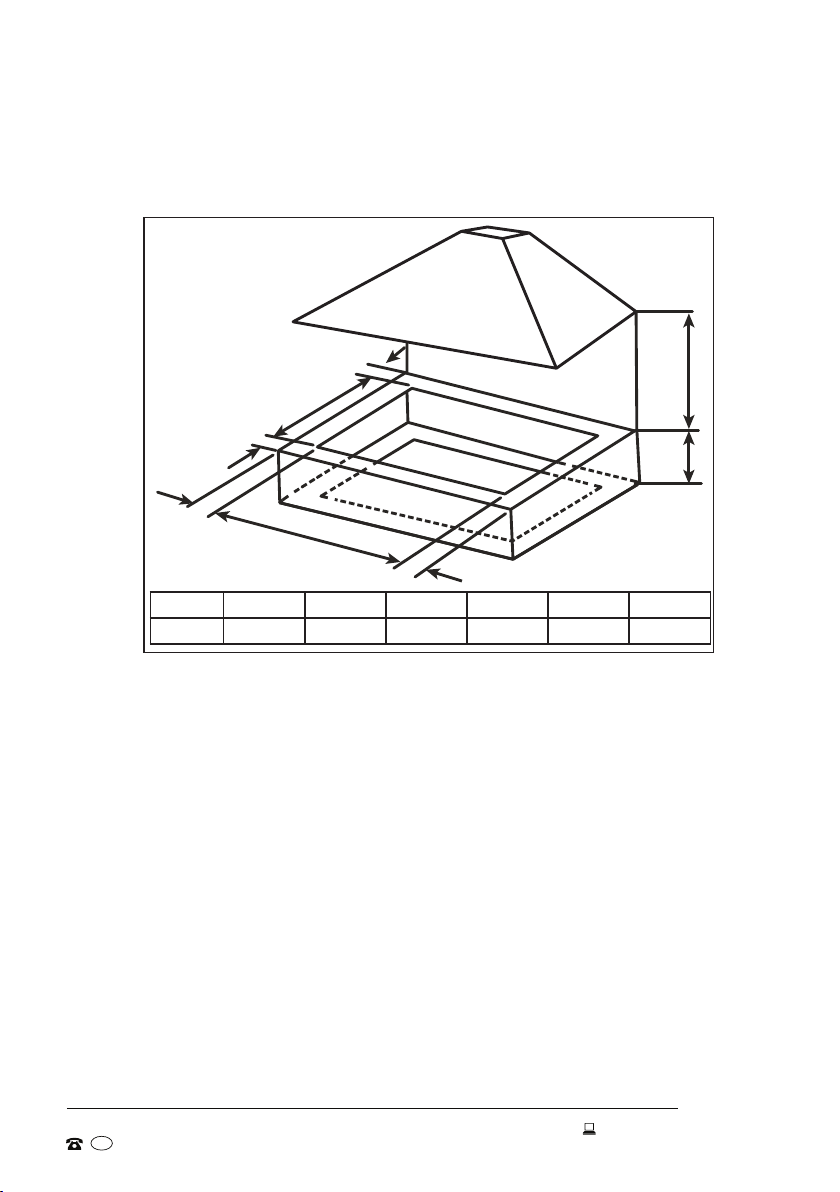

• To install the cooktop in your benchtop, make an opening with the
dimensions given below (Fig. 3).
Fig. 3
C
G F
B
D
E
A
E
A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm)
557 477 140 62 150 min. 90 min. 750 min.
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
13
Page 14
Installation (Cont.)
Applying the seal
The installation hardware includes four lengths of sealing tape which when
applied around the hob prevents liquid from entering the cabinet.
Follow the instructions below in order to correctly apply this sealing tape
before inserting the hob into the work surface.
• Remove the enamelled trivets and the burner caps, then turn the cooktop
upside down, taking care not to damage the ignition plugs and the
thermocouples.
• Detach the backing strip from sealing tape but ensure that the
transparent adhesive still adheres to the seal itself.

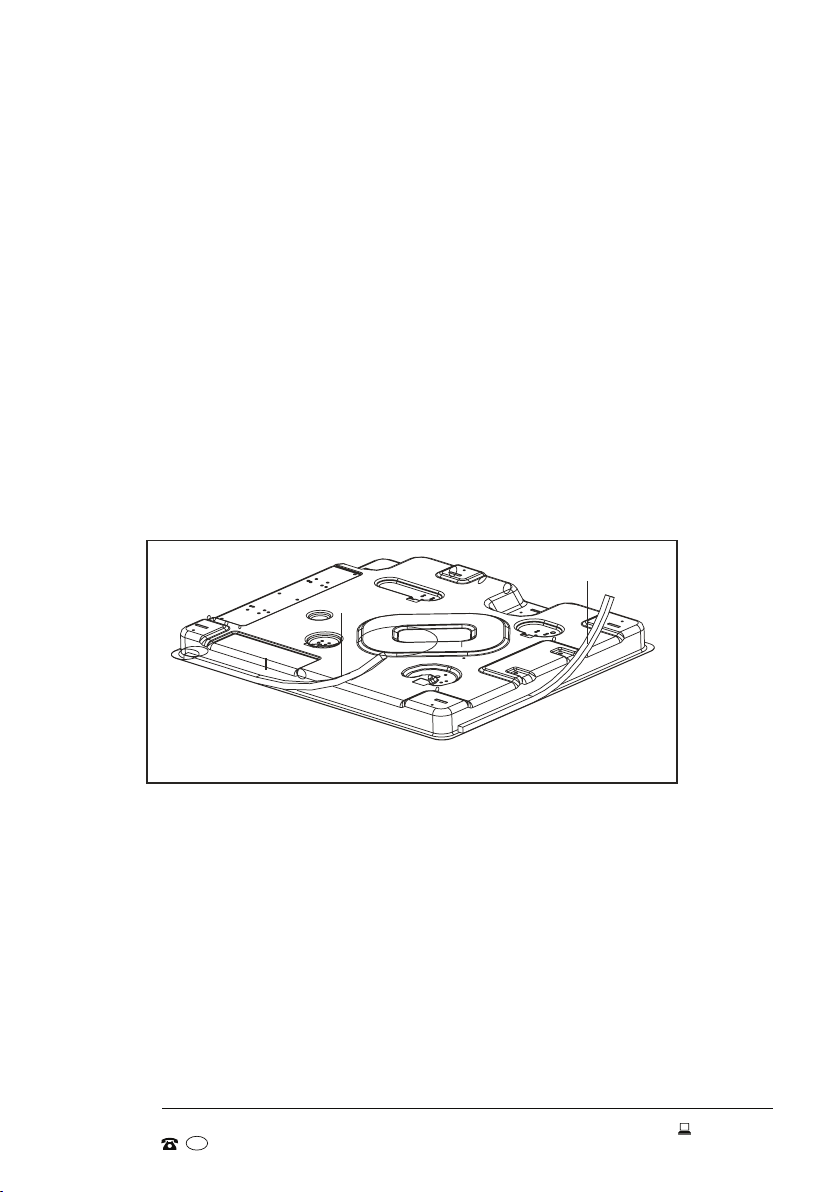

• Apply the sealing tape as illustrated below. Correctly position the sealing
tape (A) under the edge, ensuring that the outer part of the seal perfectly
matches the outer edge of the hob (Fig. 4). The ends of the strips must fit
together without overlapping.
Fig. 4
A
A
• Evenly and securely fix the seal to the hob, pressing it firmly in place at
the underside of the hob.
• Do not use a silicon sealant to seal the appliance against the aperture.
This will make it difficult to remove the cooktop from the aperture in
future, particularly if it needs to be serviced.
AFTER SALES SUPPORT
AUS
14
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 15
Installation (Cont.)
Installation options

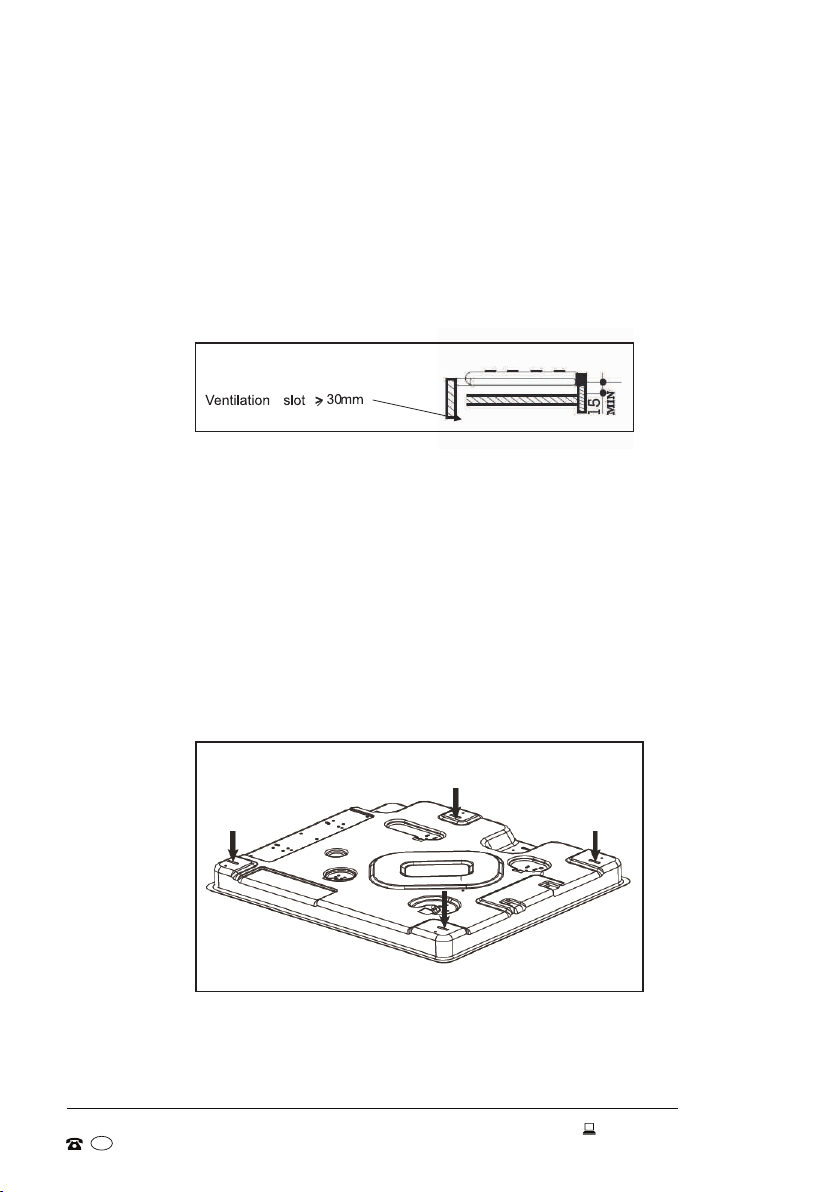

When fitting a gas cooktop above a drawer or standard housing unit, suitable
precautions must be taken to prevent contact with the cooktop housing,
which becomes very hot during operation. The recommended method for
overcoming this problem is to fix a wooden panel within the cabinet at a
minimum distance of 15mm below the underside of the cooktop. This panel
must have adequate ventilation (≥ 30mm) to the rear (Fig 5).
Fig. 5
NOTE: The panel underneath the cooktop must be easily removable to allow
for any servicing requirements.
Inserting and fixing the hob
• After having affixed the sealing tape around the underside of the cooktop,
carefully turn it over and then gently lower it into the aperture hole that
you have cut out. Push it down gently so that the cooktop is resting firmly
on the cabinet/benchtop surface.
• Secure the cooktop in position using the mounting brackets supplied.
• There are four mounting slots on the base of the cooktop where you can
affix the brackets (Fig. 6).
AFTER SALES SUPPORT
AUS
1300 886 649
Fig. 6
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
15
Page 16
Installation (Cont.)

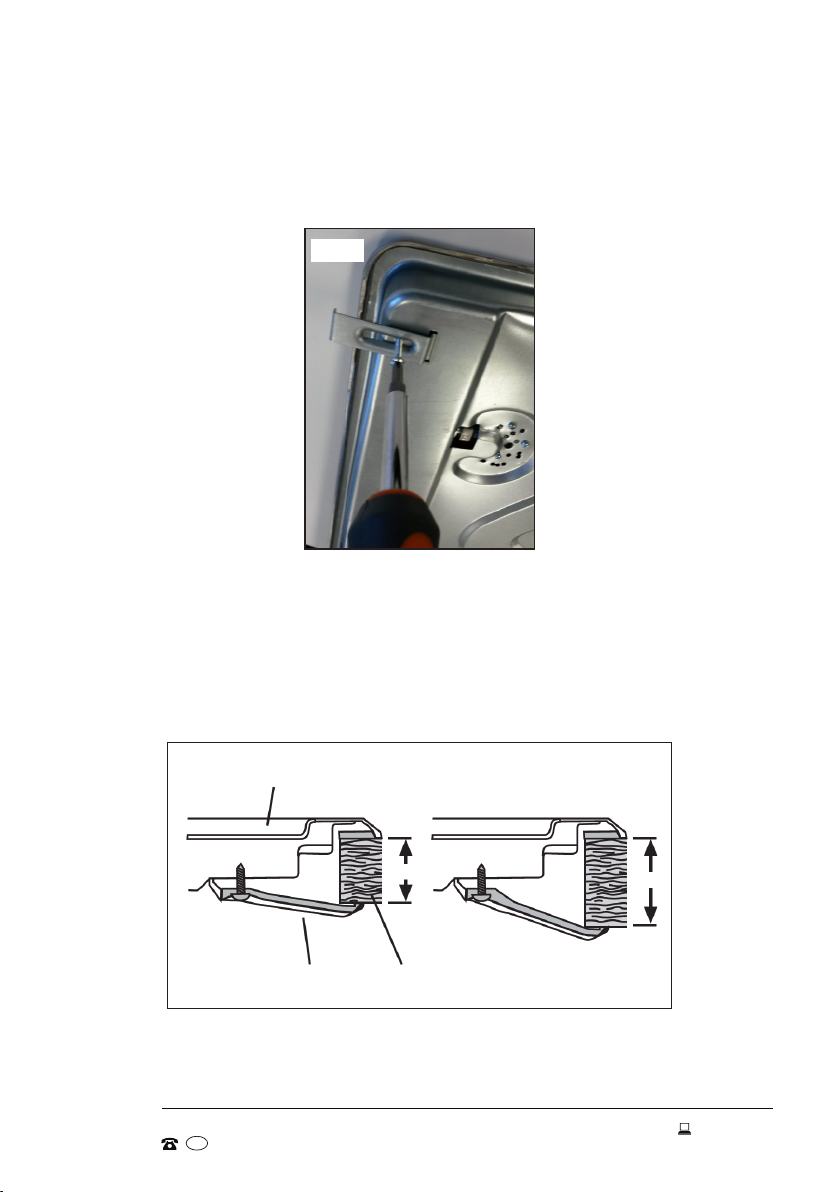

• Place a bracket each in the slots and, using the screws provided, affix the
bracket to the cooktop and then tighten the screws securely (Fig. 7). This
is very important.
Fig. 7
NOTE: Fig. 7 illustrates how to affix the brackets to the cooktop. At this
stage of the installation process the cooktop should be sitting securely
in the benchtop cut-out and the sealing tape should be fitted around the
edge.
• The other end of the bracket should be located underneath the benchtop
to secure the hob in position (Fig. 8).
16
Fig. 8
AFTER SALES SUPPORT
AUS
Cooktop
Mounting bracket Benchtop
1300 886 649
4cm
5cm
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 17
Installation (Cont.)
Gas connection

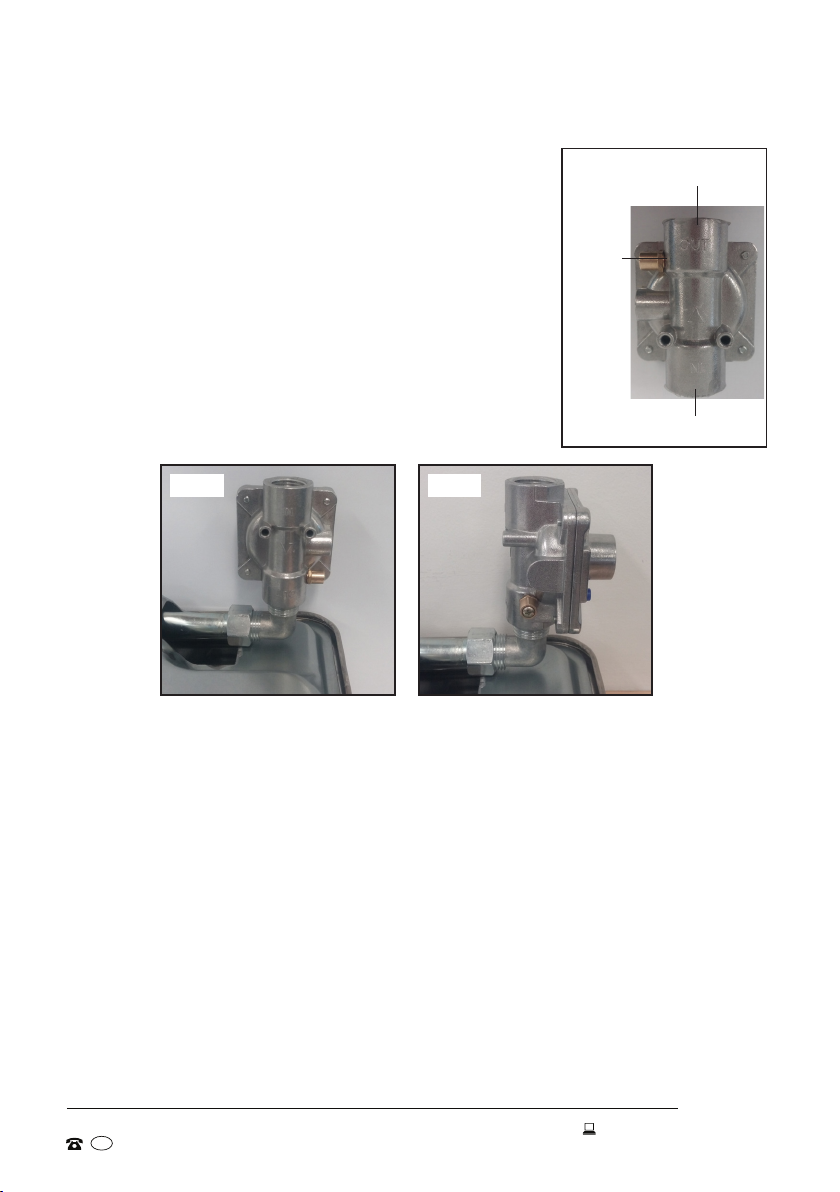

• Using the supplied gas regulator (Fig.9), remove
the dust seals on the inlet and outlet ports
and position the “OUT” port of the regulator
towards the gas inlet pipe of the cooktop as per
Fig 10.
• Using a suitable thread sealant, screw the
regulator on and ensure that it is orientated with
easy access to the test point (Fig 10).
• Connect the appropriate Natural Gas supply to
the “IN” port of the gas regulator.
Fig. 11Fig. 10
Electrical connection
Fig. 9
Gas
regulator
test point
Outlet port to
gas cooktop
Gas supply
inlet port
• Connection: The appliance is equipped with an electrical cord and power
plug, which must be connected to the mains electricity supply in order
for the ignition to work. Insert the power plug firmly into an appropriate
electrical outlet and switch on power at the outlet.
• Wall socket: The electric wall outlet must be properly earthed and
accessible. It must be suitable for the power drawn by the appliance.
The outlet voltage and circuit frequency must correspond to the voltage
stated on the appliance rating label.
• Power cord: If the supply cord is damaged, it must be replaced by the
manufacturer or a similarly qualified person in order to avoid a hazard.
The power supply cord must not touch the hot parts of the cooktop.
• Electrical work: Should any electrical work be required associated with
the electrical outlet that is to be used for the cooktop, all such work must
be carried out by an appropriately qualified, licensed electrician.
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
17
Page 18
Installation (Cont.)
Commissioning process
The below process must be performed on the gas cooktop by the authorised
installer before leaving:
• The supplied gas regulator is a “non-adjustable” type, to check operation,
turn on and light the Rapid Burner only.
• Measure and confirm the Test Point pressure is 1KPa.
Final installation checks
After commissioning and before leaving, the installer must check and ensure
that:
• There are no leaks in the gas supply, using a soap and water solution.
• All parts (burners, enamelled trivets, knobs) and the gas pipe are installed
correctly.
• The ignition system is working satisfactorily on all burners, both individually
and combined.
• When lit, each burner produces a well defined blue flame without any
yellow tipping.
• Each burner flame remains lit when the respective control knob is rotated
quickly from the Maximum to the Minimum aperture position.
• A duplicate data label is provided with this appliance. Please attach this
label to an accessible and nearby surface for easy reference.
18
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 19
Instructions
Before first use
• When your new gas cooktop has been professionally installed, please
take the time to read this manual thoroughly to familiarise yourself with the
appliance. Pay particular attention to the safety instructions on pages 5–7.
• Check and ensure the cooktop is securely plugged into an appropriate
wall outlet and power is switched on to the outlet.
Lighting the cooktop
• The control panel at the right side of the cooktop has four control knobs,
one for each burner; the small diagram to the right of each knob illustrates
which burner it controls. (Fig. 11: A).
Fig. 11
B
B
A
A
D
D
C
• Each control knob has three positions: Closed (Fig. 11: B), Maximum
aperture (Fig. 11: C), and Minimum aperture (Fig. 11: D).
• To light a burner, press down the appropriate control knob gently and
turn it anticlockwise to the Maximum aperture position. When the burner
lights, keep the knob depressed for approximately 10 seconds to ensure
it stays lit when released.
• Turn the knob to the required position, anywhere between the Maximum and
Minimum aperture setting. Do NOT set it between Closed and Maximum.
• In the event of a burner flame being accidentally extinguished, turn off the
burner control and wait for at least one minute before reigniting it.
• After use, always turn the control knob to the Closed position.
NOTE
You can use matches to light the burners in the event of a power failure.
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
19
Page 20
Instructions (Cont.)
Flame failure feature
• This gas cooktop has a flame failure safety device, which cuts off the gas
supply to the burner if the flame is blown out. To ensure the flame stays
lit, you must hold down the control knob for approximately 10 seconds
before releasing it.
• Gas cooktops with a flame failure safety advice have ignition plugs
(ignitors) and flame failure probes (thermocouples), which need to be kept
clean for proper operation (cleaning instructions follow on page 23).
Cooking on the gas cooktop

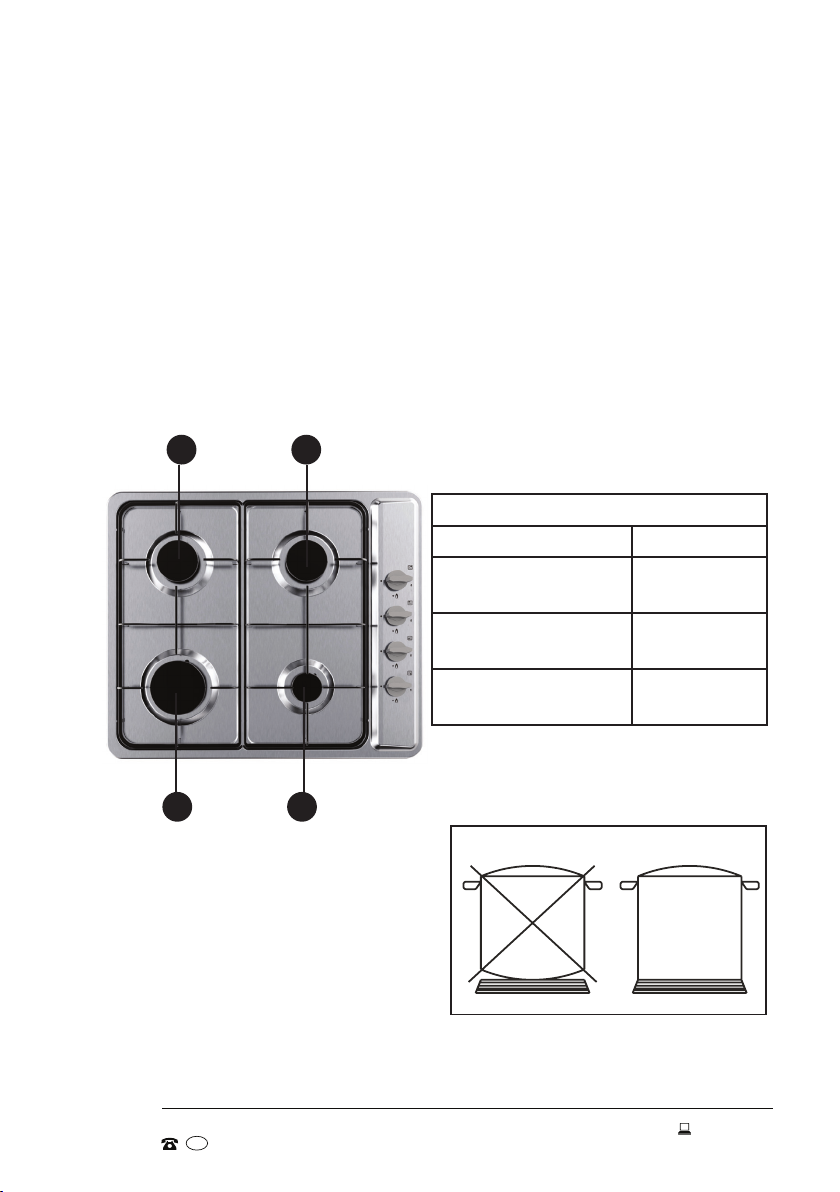

• Use an appropriately sized pan for each burner (Table 1).
B B
Table 1: Appropriate Pan Size
Burner Pan Diameter
11.9 MJ/h (3.3 kW/h)
Rapid (A)
6.5 MJ/h (1.8 kw/h)
Semirapid (B)
3.6 MJ/h (1.0 kW/h)
Auxiliary (C)
20–22cm
16–18cm
10–14cm
A C
• Make sure your pot/pan has a flat
Fig. 12
base (Fig. 12).
• Position your pot/pan properly on the
enamelled trivets above the burners.
Do not use saucepans that overlap
the boundaries of the hob.
• Always cover pots/pans with a lid.
• When the contents of the pot/pan
start to boil, turn the knob down to the Minimum aperture position.
• Always switch off the burner before removing the pot or pan.
AFTER SALES SUPPORT
AUS
20
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 21
FAQs & Troubleshooting Guide
If you experience problems with your gas cooktop, or it appears not to be
operating correctly, check the information below for solutions to common
problems. If none of the solutions offered help you solve your problem, please
contact our after sales support centre for advice; contact details are printed
at the bottom of the page. Do not attempt to repair the appliance yourself!
Problem Possible cause and solution
The burner
produces an
uneven or yellow
flame rather
than a blue one.
The burner fails
to ignite.
The burner
sparks but there
is no gas.
I can smell gas. • Check whether any gas tap has been left on.
Still not
working?
Switch off the burner and check the following points:
• Are the burners fitted correctly?
• Are the holes in the burner clear?
• Are all parts of the burner clean and dry?
• Check that no dust has fallen into the flame turning it
yellow.
• If none of the above solved the irregular burning issue,
call your licensed gasfitter or our after sales support
centre and arrange a service.
• Check and ensure that the cooktop is plugged in and
power is turned on at the outlet.
• Check whether your home circuit breaker has flipped
or the fuse blown, and flip or replace as necessary.
• Make sure that the ignitor is not coated with food
spillage. Clean and check it for proper operation.
• Make sure you are holding down the control knob for
about 10 seconds when lighting a burner.
• Make sure the gas is turned on.
• Check that the burner holes are not blocked.
• If all burners are off, switch off the gas at the mains
and call our after sales support centre, or the gasfitter
who installed your cooktop, for service.
• DO NOT search with a naked flame, smoke, strike any
matches or press an ignitor.
• DO NOT operate electrical switches or devices,
including mobile phones.
Call your licensed gasfitter, or our after sales support
centre, and arrange a service.
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
21
Page 22
Other Useful Information
Cleaning and maintenance
CAUTION!
• Before cleaning the cooktop, unplug the appliance from the mains
electricity supply, if the power plug is accessible.
• Make sure that all burners are switched off and the cooktop surface is
cool enough to touch before cleaning.
• Do not use abrasive or harsh cleaning agents (such as scouring powders,
abrasive stones, wire brushes and so on) or sharp objects that may
scratch the stainless steel cooktop
Cleaning the cooktop
To ensure food safety and keep the cooktop in good working order, clean it
regularly after each use.
Stainless steel surfaces
• Wipe the stainless steel cooktop surface with a soft cloth or sponge,
dampened in warm, soapy water and wrung out.
• Dry the cooktop with a clean, dry cloth.
• The silver coloured plastic control knobs may be removed for thorough
cleaning, if necessary, but ensure not to damage the seal.
surface
.
Enamelled parts

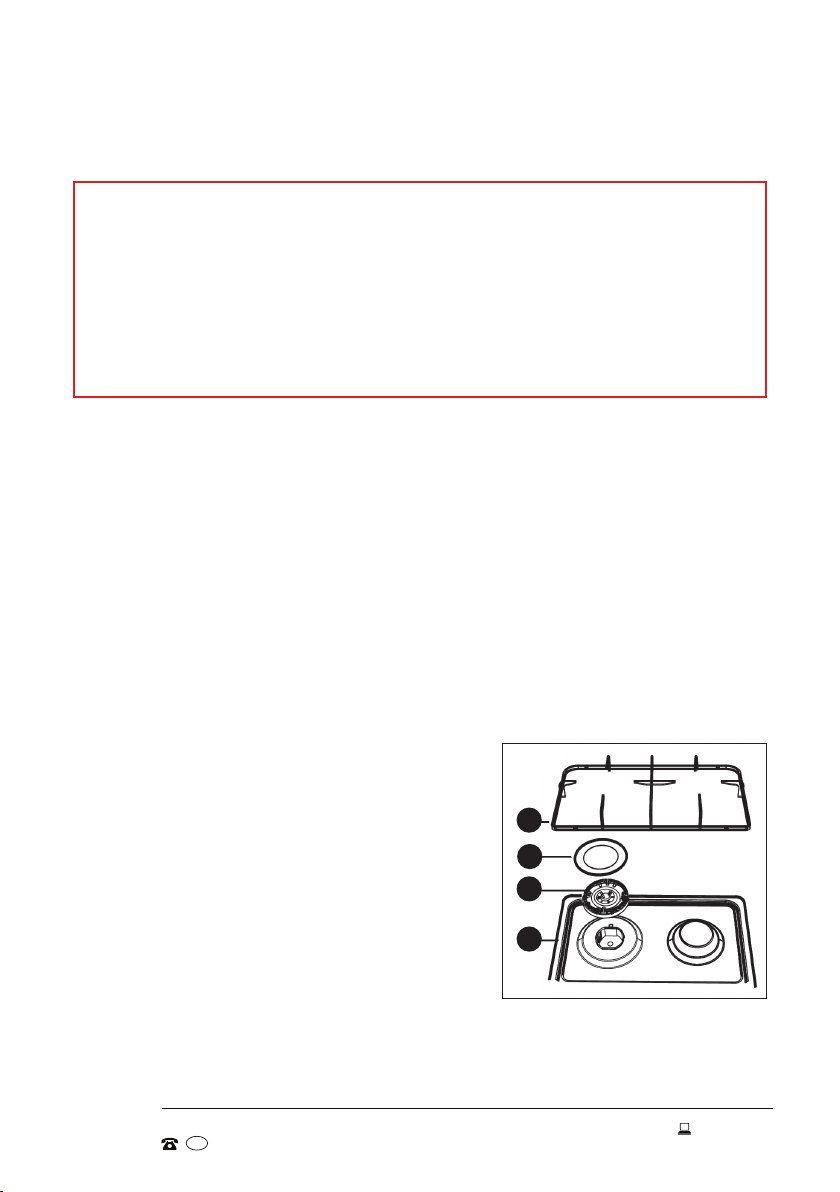

• Remove the enamelled trivets (Fig. 13:
A) and burner caps (Fig. 13: B) from the
cooktop and clean them the same way
as the cooktop surface: with a soft cloth
wrung out in warm, soapy water.
• Remove tough stains from enamelled
parts using a nonabrasive liquid
detergent, a creamy cleanser suitable for
cleaning vitreous enamel or a fine steel
wool soap pad.
• The enamelled trivets may also be
washed in a dishwasher.
AFTER SALES SUPPORT
AUS
22
1300 886 649
Fig. 13
A
B
C
D
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 23
Other Useful Information (Cont.)
Aluminium parts
• Clean the burner parts once a month to ensure nothing is clogging the
mechanism. Use a thin steel needle to remove any dirt, combustion
residues or spilled food residues from the burner holes.
• Remove the burner bodies (Fig. 13: C) from the cooktop and clean them
the same way as the enamelled parts, or use a nylon brush to remove any
cleaning materials, water or dirt.
• After cleaning, rinse and dry thoroughly.

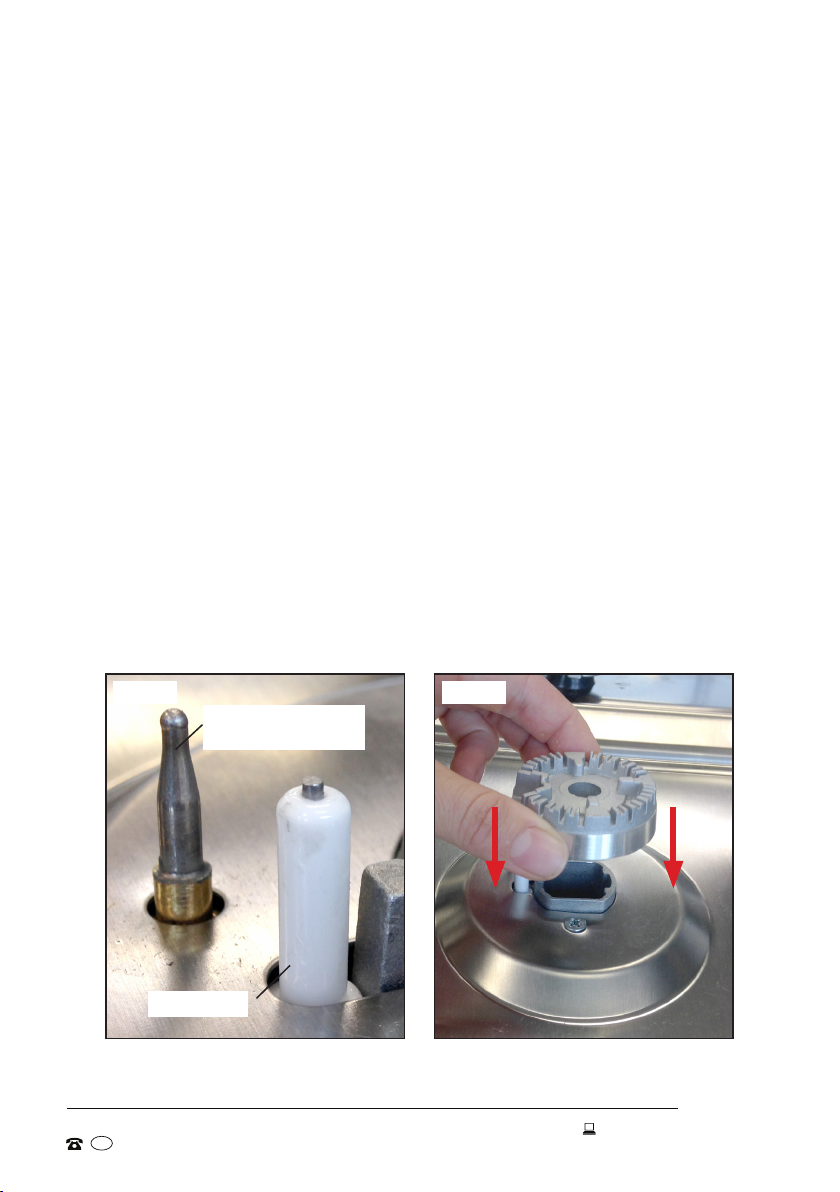

• Clean the ignition plugs and flame failure probes (Fig. 14) carefully
with a nylon brush and methylated spirits to ensure proper ignition and
operation of the safety valves.
• Refit all burner parts to their dedicated spaces on the cooktop, ensuring
they are correctly in place. The hole in the ring of the burner fits over the
ignition plug (Fig. 15). If it does not fit, you are trying to fit the burner body
onto the wrong burner.
• To check that all parts are reassembled correctly, light the burners and
allow them to dry out.
Fig. 14
Ignition plug
AFTER SALES SUPPORT
AUS
1300 886 649
Flame failure probe
(thermocouple)
Fig. 15
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
23
Page 24
Other Useful Information (Cont.)
Service and repair
CAUTION!
• This appliance must only be serviced by authorised personnel.
• If your cooktop appears not to be operating correctly, contact our after
sales support centre for advice. Do not attempt to repair the appliance
yourself!
• Gas appliances should be checked and maintained by authorised
personnel on a regular basis in order to maintain proper function and
safety.
Spare parts
Our after sales support centre stocks the following spare parts for the
STR-GH STIRLING Gas Cooktop. To purchase a part, call the centre
on 1300 886 649 or email us at [email protected]
• Burner crown (big, medium, small)
• Crown cap (big, medium, small)
• Gas nozzle (for big, medium, small burner)
• Knob
• Knob seat
• Pan bracket (right, left)
• Spark ignition generator
• Spark ignitor (large)
• Thermocouple
• Valve (with FFD)
24
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 25
Other Useful Information (Cont.)
Technical specifications
Rated Voltage 220–240V AC 50Hz 2W
Certified Gas Type Natural Gas (NG)
Total Gas Consumption 28.4 MJ/h (7.9 kW)
Rapid Gas Burner 11.9 MJ/h (3.3 kW), Injector size
1.45mm
Semirapid Gas Burner 6.5 MJ/h (1.8 kW), Injector size 1.13mm
Auxiliary Gas Burner 3.6 MJ/h (1.0 kW), Injector size 0.87mm
Gas Regulator Test Point Pressure 1 kPa
Cooktop Material Stainless Steel
Flame Failure Device Yes
Cooktop dimensions (mm) 580 (W) x 500 (D) x 80 (H)
Benchtop cut-out dimensions
(mm)
Weight 6.5kg
This product complies with AS 4551:2008 for gas safety, and with
EN 55014-1:2006+A2:2011 for electromagnetic compatibility.
557 (W) x 477 (D)
Responsible disposal
At the end of its working life, do not throw the appliance out with your
household rubbish. Electrical and electronic products contain substances
that can have a detrimental effect on the environment and human health
if disposed of inappropriately. Observe any local regulations regarding the
disposal of electrical consumer goods and dispose of it appropriately for
recycling. Contact your local authorities for advice on recycling facilities in
your area.
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
25
Page 26
This page has been left blank intentionally.
26
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Page 27
Gas Cooktop
Repair and Refurbished
Goods or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to
be returned to the supplier for repair.
Please be aware that if your product is capable of retaining user-generated data
(such as files stored on a computer hard drive, telephone numbers stored on
a mobile telephone, songs stored on a portable media player, games saved on
a games console or files stored on a USB memory stick) during the process of
repair, some or all of your stored data may be lost. We recommend you save this
data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them with
refurbished goods of the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used
where they meet ALDI’s stringent quality specifications.
If at any time you feel your repair is being handled unsatisfactorily, you may
escalate your complaint. Please telephone us on 1300 886 649 or write to us at:
Tempo (Aust) Pty Ltd ABN 70 106 100 252
PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086
Telephone: 1300 886 649 (Aust) - Fax: (02) 9975 2688
Tempo Help Desk: 1300 886 649 (Aust)
(Operating Hours: Mon-Fri 08:30am to 06:00pm EST)
Email: [email protected]
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
27
Page 28
Warranty returns
Should you for any reason need to return this product for
a warranty claim, make sure to include all accessories with
the product.
Product does not work?
If you encounter problems with this product, or if it fails to
perform to your expectations, make sure to contact our
After Sales Support Centre on 1300 886 649 before
returning it to the store for a refund.
For an electronic copy of this manual, go to www.stirlingappliances.com.au and
download a copy.
Instruction Manual Revision Index
Version No Issue Date Description
V1.0 05 February 2015 Original release
V1.1 05 February 2015 Minor amendments
V1.2 11 March 2015 Compliance updates on pages 8, 17, 18, 25
V1.3 12 March 2015 Minor amendments on pages 20, 25
V1.4 18 March 2015 Minor amendments on pages 12, 13
V.1.5 01 July 2015 Minor amendments on pages 17,18
AFTER SALES SUPPORT
AUS
1300 886 649
MODEL: STR-GH PRODUCT CODE: 49187 05/2015
Loading...
