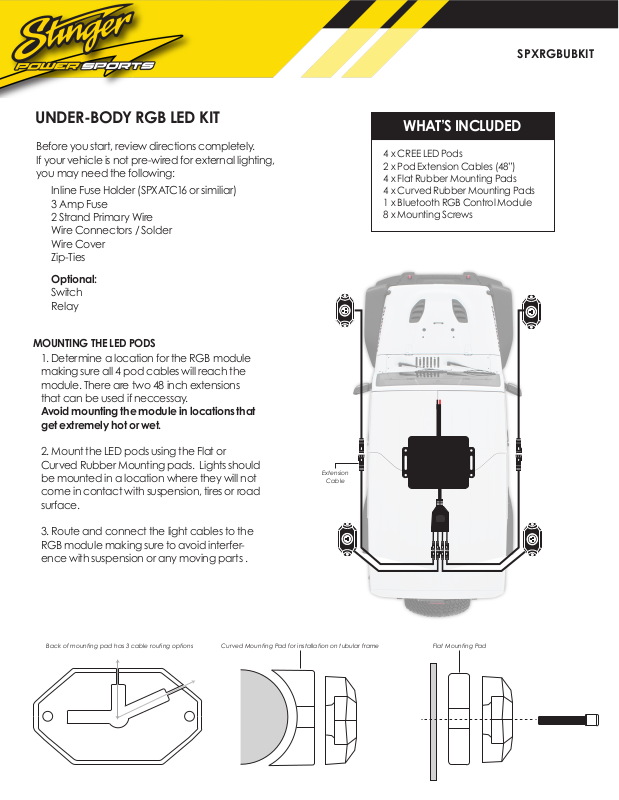

Stinger SPXRGBUBKIT User Manual

SPXRGBUBKIT

UNDER-BODY RGB LED KIT

Before you start, review directions completely.
If your vehicle is not pre-wired for external lighting,
you may need the following:

Inline Fuse Holder (SPXATC16 or similiar)
3 Amp Fuse
2 Strand Primary Wire
Wire Connectors / Solder
Wire Cover
Zip-Ties

Optional:

Switch
Relay

MOUNTING THE LED PODS

1. Determine a location for the RGB module
making sure all 4 pod cables will reach the
module. There are two 48 inch extensions
that can be used if neccessay.

Avoid mounting the module in locations that
get extremely hot or wet.

WHAT’S INCLUDED

4 x CREE LED Pods
2 x Pod Extension Cables (48”)
4 x Flat Rubber Mounting Pads
4 x Curved Rubber Mounting Pads
1 x Bluetooth RGB Control Module
8 x Mounting Screws

2. Mount the LED pods using the Flat or
Curved Rubber Mounting pads. Lights should
be mounted in a location where they will not
come in contact with suspension, tires or road
surface.

3. Route and connect the light cables to the
RGB module making sure to avoid interfer­ence with suspension or any moving parts .

Back of mounting pad has 3 cable routing options

Curved Mounting Pad for installation on tubular frame

Extension

Cable

Flat Mounting Pad

UNDER-BODY RGB LED KIT (CONT)

WIRING DIAGRAMS

Diag ram 1: Wiring direct to power

and using an App to turn on/off.
Must add 3 AMP fuse on RED 12V+
wire.

Diagram 2: Wiring with a switch. You
can add a new dedicated switch or
use an existing light switch that
outputs 12V+ when ON. You will
need to add a 3 AMP fuse on the
RED 12V+ wire and also requires a
12V relay. Note: When wired to a
switch, the RGB contoller will default
to last mode/color used. No need to
access the app.

Diagram 2

Diagram 1

AMP

3

FUSE

AMP

3

FUSE

Posit ive +

Negative -

ON

87

86

87a

30

12V+

85

Positive +

Nega tive -

GET THE APP

Scan the QR Code, or visit Google Play or iTunes to
download the Happy Lighting app. Once the app is
installed, power up the RGB Module and open the
app. The module should auto-connect and be listed
in the device list. And Dan says Let There Be Light.

SCAN for Apple iOS SCAN for Android

LIMITED WARRANTY:
Stinger warrants this product to be free of defects in materials and workmanship for a period of
one (1) years from the original date of purchase. This warranty is not transferable and applies
only to the original purchaser from an authorized Stinger dealer in the United States of America
only. Should service be necessary under this warranty for any reason due to manufacturing
defect or malfunction, Stinger will (at its discretion), repair or replace the defective product with
new or remanufactured product at no charge. Damage caused by the following is not covered
under warranty: accident, misuse, abuse, product modification or neglect, failure to follow
installation instructions, unauthorized repair attempts, misrepresentations by the seller. This
warranty does not cover incidental or consequential damages and does not cover the cost of
removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear
is not covered under warranty.

INTERNATIONAL WARRANTIES:
Products purchased outside the United States of America are covered only by that country’s
Authorized Stinger reseller and not by Stinger. Consumers needing service or warranty informa­tion for these products must contact that country’s reseller for information.

Group

Device List

Power Button

User Guide

Happy Lighting App
