Dear Customer,

Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers' requirements. The products are designed for reliability even under extreme conditions.

STIHL also stands for premium service quality. Our specialist dealers guarantee competent advice and instruction as well as comprehensive service support.

We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

Dr. Nikolas Stihl

IMPORTANT: READ BEFORE USE AND KEEP IN A SAFE PLACE.

1. Table of contents

Notes on the instruction manual 4

General 4 Country-specific versions 4 Instructions for reading the

instruction manual 5

Machine overview 6

Robotic mower 6 Docking station 7 Display 8

How the robotic mower works 9

Operating principle 9

Safety devices 10

STOP button 10 Disabling device 10 Protective covers 10 Impact sensor 10 Lifting protection 11 Tilt sensor 11 Display illumination 11 PIN request 11 GPS protection 11

For your safety 11

General 11 Clothing and equipment 12 Warning – dangers caused by

electrical current 13 Battery 13 Transporting the machine 14 Before initial operation 14 Programming 15 During operation 15 Maintenance and repairs 16 Storage for prolonged periods

without operation 17

Disposal 17

Description of symbols 17 Standard equipment 18 Initial installation 18

Notes on the docking station 22 Docking station connections 24 Connecting the power cable to the

docking station 25 Installation material 26 Adjusting the cutting height 26 Notes on initial installation 26 Setting the language, date and

time 27 Installing the docking station 27 Routing the perimeter wire 28 Connecting the perimeter wire 31 Linking the robotic mower and

docking station 35 Checking installation 36 Programming the robotic mower 38 Completing initial installation 39 First mowing operation after initial

installation 39

iMOW® app 39 Menu 40

Operating instructions 40 Status screen 41 Information area 42 Main menu 43 Start 43 Drive home 43 Mowing plan 43 More 45 Settings 45 iMOW® – machine settings 45 Setting the rain sensor 46 Configuring the status screen 46

ENES

PTSLSKCS

0478 131 9265 C - EN

Printed on chlorine-free bleached paper. Paper is recyclable. Cover is halogen free.

Installation 46 Setting starting points 47 Direct drive home 48 Safety 49 Service 50 Information 50

Perimeter wire 51

Planning routing of the perimeter wire 52

Making a sketch of the mowing area 52

Routing the perimeter wire 53 Connecting the perimeter wire 53 Wire clearances – use

iMOW® Ruler 53 Acute corners 54 Confined areas 54 Installing linking sections 55 No-go areas 55 Secondary areas 56 Corridors 56 Guide loops for offset drive home 58 Accurate mowing along edges 59 Sloping terrain along the perimeter

wire 59 Installing reserve wire 60 Using wire connectors 60 Narrow edge clearances 60

Docking station 61

Docking station controls 61

Notes on mowing 62

General 62 Mulching 62 Active times 62 Mowing duration 62 Home area 63

Operating the machine 63

Preparation 63 Flap 63 Adapting the programming 63 Automatic mowing 64 Mowing independently of active

times 64 Docking the robotic mower 65 Charging the battery 65

Maintenance 66

Maintenance schedule 66 Cleaning the machine 66 Checking the mowing blade wear

limits 67 Removing and installing the

mowing blade 67 Sharpening the mowing blade 68 Removing and installing the carrier

plate 68 Finding a wire break 69 Storage and winter break 70 Removing the docking station 71

Standard spare parts 71 Accessories 71 Minimising wear and preventing

damage 72 Environmental protection 72

Removing the battery 72

Transport 74

Lifting or carrying the machine 74 Securing the machine (lashing) 74

Declaration of conformity 74

EU declaration of conformity – Cordless, electric robotic mower (RMI) with docking station (ADO) 74

UKCA-Declaration of Conformity STIHL RMI 522.0 C Cordless, Electric Robotic Mower 75

Technical specifications 75

Messages 76 Troubleshooting 83 Service schedule 87

Handover confirmation 87 Service confirmation 87

Installation examples 88 Open source software 92

2. Notes on the instruction manual

2.1 General

This instruction manual constitutes original manufacturer's instructions in the sense of EC Directive 2006/42/EC.

STIHL is continually striving to further develop its range of products; we therefore reserve the right to make alterations to the form, technical specifications and equipment level of our standard equipment. For this reason, the information and illustrations in this manual are subject to alterations.

This instruction manual may describe models that are not available in all countries.

2.2 Country-specific versions

STIHL supplies machines with different plugs and switches, depending on the country of sale.

0478 131 9265 C - EN

Machines with European plugs are shown in the illustrations. Machines with other types of plug are connected to the mains in a similar way.

2.3 Instructions for reading the instruction manual

Illustrations and texts describe specific operating steps.

All symbols which are affixed to the machine are explained in this instruction manual.

Viewing direction:

Viewing direction when "left" and "right" are used in the instruction manual: the user is standing behind the machine and is looking forwards in the direction of travel.

Section reference:

References to relevant sections and subsections for further descriptions are made using arrows. The following example shows a reference to a section: (Ö 3.)

Designation of text passages:

The instructions described can be identified as in the following examples.

Operating steps which require intervention on the part of the user:

● Release bolt (1) using a screwdriver,

operate lever (2)... General lists: – Use of the product for sporting or

competitive events

Texts with added significance:

Text passages with added significance are identified using the symbols described below in order to especially emphasise them in the instruction manual:

Danger

Risk of accident and severe injury to persons. A certain type of behaviour is necessary or must be avoided.

Warning

Risk of injury to persons. A certain type of behaviour prevents possible or probable injuries.

Caution

Minor injuries or material damage can be prevented by a certain type of behaviour.

Note

Information for better use of the machine and in order to avoid possible operating errors.

Texts relating to illustrations:

Some Illustrations which are necessary for use of the machine can be found at the front of this instruction manual.

The camera symbol serves to link the figures on the illustration pages with the corresponding text passages in the instruction manual.

Illustrations with text passages:

Operating steps relating directly to the illustration can be found immediately after the illustration, with a corresponding reference to the item numbers.

Example:

ENES

PTSLSKCS

The control pad (1) serves for navigation in the menus. Settings are confirmed and menus opened using the OK button (2). Menus can be exited again using the Back button (3).

0478 131 9265 C - EN

3. Machine overview

3.1 Robotic mower

1 Movably mounted hood (Ö 5.4),

(Ö 5.5)

2 Impact protector 3 Charging contacts:

Connecting contacts to the docking station

4 Front carrying handle (integrated in

the movable hood) (Ö 21.1)

5 STOP button (Ö 5.1) 6 Flap (Ö 15.2) 7 Drive wheel

8 Rear carrying handle (integrated in

the movable hood) (Ö 21.1)

9 Rain sensor (Ö 11.10) 10 Rotary handle for cutting height

adjustment (Ö 9.5)

11 Identification plate with machine

number

12 Front wheel 13 Dual-ground mowing blade (Ö 16.4) 14 Mowing deck

0478 131 9265 C - EN

3.2 Docking station

1 Floor plate 2 Cable guides for retaining the perim-

eter wire (Ö 9.10)

3 Power supply unit 4 Removable cover (Ö 9.2) 5 Charging contacts:

Connecting contacts to the robotic mower

6 Control panel

with button and LED (Ö 13.1)

7 Button 8 LED display

ENES

PTSLSKCS

0478 131 9265 C - EN

3.3 Display

1 Graphical display 2 Control pad:

Navigating in menus (Ö 11.1)

3 OK button:

Navigating in menus (Ö 11.1)

4 Back button:

Navigating in menus

0478 131 9265 C - EN

4. How the robotic mower works

4.1 Operating principle

ENES

PTSLSKCS

The robotic mower (1) is designed for the automatic mowing of lawns. It mows the lawn in randomly selected paths.

In order for the robotic mower to detect the borders of the mowing area A, a perimeter wire (2) must be routed around that area. A wire signal generated by the docking station (3) flows through this perimeter wire.

Solid obstacles (4) in the mowing area are reliably detected by the robotic mower by means of an impact sensor. Areas (5) that

0478 131 9265 C - EN

the robotic mower is not to enter and obstacles that need to be avoided must be separated from the remaining mowing area using the perimeter wire.

When automatic mowing is switched on, the robotic mower independently

leaves the docking station and mows the lawn during the active times (Ö 14.3). The robotic mower automatically travels to the docking station to recharge the battery. If the mow plan type "Standard" is selected, the robotic mower mows and

charges throughout the entire active time. If the mow plan type "Dynamic" is selected, the number and duration of mowing and charging operations within the active times are adapted fully automatically.

When automatic mowing is switched off and for mowing operations independent of active times, a mowing

operation can be activated in the "Start" menu. (Ö 11.5)

The STIHL robotic mower can be operated reliably and without interference in close vicinity to other robotic mowers. The wire signal meets the EGMF

(European Garden Machinery Federation) standard with regard to electromagnetic emissions.

5. Safety devices

The machine is equipped with several safety devices for safe operation and for the prevention of improper use.

Risk of injury!

If a safety device is found to be defective, the machine must not be operated. Consult a specialist dealer; STIHL recommends STIHL specialist dealers.

5.1 STOP button

When the red STOP button on the top of the robotic mower is pressed, operation of the machine is stopped immediately. The mowing blade comes to a standstill within a few seconds and the message "STOP button pressed" appears on the display. The robotic mower cannot be operated and is safe while the message is active. (Ö 24.)

When automatic mowing is switched on, following confirmation of the message with OK, the system enquires whether automatic operation is to be continued. If the response is Yes, the robotic mower continues to mow the mowing area in accordance with the mowing plan.

If the response is No, the robotic mower remains stationary in the mowing area and automatic mowing is switched off. (Ö 15.4)

Pressing and holding the STOP button also activates the disabling device. (Ö 5.2)

5.2 Disabling device

The robotic mower must be disabled prior to any maintenance or cleaning work, prior to transportation and prior to inspection. The robotic mower cannot be operated when the disabling device is activated.

Activating the disabling device: – Press and hold the STOP button – in the More menu, – in the Safety menu.

Activating the disabling device via the More menu:

● In the "More" menu, select the "Lock

iMOW®" entry and confirm with the OK button. (Ö 11.8)

Activating the disabling device via the Safety menu:

● In the "More" menu, open the "Settings"

and "Safety" submenus. (Ö 11.16)

● Select the "Disab. device" entry and

confirm with the OK button.

Deactivating the disabling device:

● When required, wake up the machine

by pressing any button.

● Unlock the robotic mower using

the illustrated button combination. For this purpose, press the OK button and the Back button in the sequence shown on the display.

5.3 Protective covers

The robotic mower is equipped with protective covers that prevent inadvertent contact with the mowing blade and the clippings. These include, in particular, the hood.

5.4 Impact sensor

The robotic mower is equipped with a movable hood which serves as an impact sensor. During automatic operation, it immediately comes to a standstill if it contacts a solid obstacle which has a specific minimum height (8 cm) and is firmly attached to the ground. It then turns to face another direction and continues mowing. If the impact sensor is triggered too frequently, the mowing blade is also stopped.

Impacts against obstacles occur with a certain force. Sensitive obstacles, e.g. light objects such as small flower pots, can therefore be knocked over or damaged.

STIHL recommends removing obstacles or blocking them off by means of no-go areas. (Ö 12.9)

0478 131 9265 C - EN

5.5 Lifting protection

If the robotic mower is lifted by the hood, mowing is stopped immediately. The mowing blade comes to a standstill within a few seconds.

5.6 Tilt sensor

If the permissible slope inclination is exceeded during operation, the robotic mower immediately changes its direction of travel. In the event of a rollover, the selfpropulsion and mowing motor are switched off.

5.7 Display illumination

The display illumination is activated during operation. Thanks to this illumination, the robotic mower is easily recognisable, even in darkness.

5.8 PIN request

When the PIN request is activated, an alarm signal sounds when the robotic mower is lifted unless the PIN code is entered within one minute. (Ö 11.16)

The robotic mower can only be operated in conjunction with the docking station supplied. A further docking station must be linked with the robotic mower. (Ö 11.16)

STIHL recommends that one of the safety levels "Low", "Medium" or "High" be set. This ensures that unauthorised people cannot operate the robotic mower using other docking stations and are unable to change settings or the programming.

5.9 GPS protection

The robotic mower is equipped with a GPS receiver. When GPS protection is activated, the owner of the machine is notified if the machine is operated outside the home area. The PIN code is also requested on the display. (Ö 14.5)

Recommendation:

Always activate GPS protection. (Ö 11. 16)

6. For your safety

6.1 General

These safety regulations must be observed when working with the machine.

Read the entire instruction manual before using the machine for the first time. Keep the instruction manual in a safe

place for future reference. These safety precautions are essential for

your safety, however the list is not exhaustive. Always use the machine in a reasonable and responsible manner and be aware that the user is responsible for accidents involving third parties or their property.

The term "use" covers all work on the robotic mower, the docking station and the perimeter wire.

A "user" is defined as: – A person who reprograms the robotic

mower or changes the existing programming.

– A person who performs work on the

robotic mower.

– A person who activates or operates the

machine.

– A person who installs or removes the

perimeter wire or docking station.

The use of the iMOW® app also falls under the term "use" for the purpose of this instruction manual.

The machine must only be operated by persons who are well rested and in good physical and mental condition. If your health is impaired, you should consult your doctor to determine whether working with the machine is possible. The machine should not be operated after the consumption of alcohol, drugs or medications which impair reactions.

Make sure that you are familiar with the controls and use of the machine.

The machine must only be used by persons who have read the instruction manual and are familiar with operation of the machine. The user should seek expert and practical instruction prior to initial operation. The user must receive instruction on safe use of the machine from the vendor or another expert.

During this instruction, the user should be made aware that the utmost care and concentration are required for working with the machine.

Residual risks persist even if you operate this machine according to the instructions.

Risk of death from suffocation!

Packaging material is not a toy danger of suffocation! Keep packaging material away from children.

ENES

PTSLSKCS

0478 131 9265 C - EN

Only give or lend the machine to persons who are familiar with this model and how to operate it. The instruction manual forms part of the machine and must always be provided to persons operating it.

Make sure that the user is physically, sensorily and mentally capable of operating the machine and working with it. If the user is physically, sensorily or mentally impaired, the machine must only be used under supervision or following instruction by a responsible person.

Make sure that the user is of legal age or being trained under supervision in a profession in accordance with national regulations.

Caution - risk of accident!

Children must be kept away from the machine and mowing area during mowing operation.

Dogs and other pets must be kept away from the machine and mowing area during mowing operation.

For safety reasons, any modification to the machine, except the proper installation of accessories or attachments approved by STIHL, is forbidden and results in voiding of the warranty cover. Information regarding approved accessories and attachments can be obtained from your STIHL specialist dealer.

In particular, any tampering with the machine which increases the power output or speed of the motors is forbidden.

It is not permissible to make any modifications to the machine that could lead to increased noise emissions.

For safety reasons, the machine software must never be modified or tampered with.

Particular care is required during use in public green spaces, parks, sports fields, along roads and in agricultural and forestry businesses.

It is not permitted to transport objects, animals or persons, particularly children, on the machine.

Never allow people, particularly children, to ride or sit on the robotic mower.

Caution – risk of accident!

The robotic mower is intended for automatic lawn care. Its use for other purposes is not permitted and may be dangerous or result in damage to the machine.

Due to the physical danger to the user, the machine must not be used for the following applications (incomplete list):

– for trimming bushes, hedges and

shrubs, – for cutting creepers, – for the care of lawn roofs and balcony

boxes, – for shredding or chipping tree or hedge

cuttings, – for clearing paths (vacuuming,

blowing), – for levelling earth mounds, e.g. mole

hills.

6.2 Clothing and equipment

Wear sturdy footwear with highgrip soles and never work barefoot or when wearing e.g.

sandals – when approaching the robotic mower

during operation.

Wear suitable work clothes during installation, maintenance operations and all other work on the machine and docking

station. Never wear loose clothes which may

become caught on moving parts – do not wear jewellery, ties or scarves.

In particular, wear long trousers – when approaching the robotic mower

during operation.

Always wear thick gloves during maintenance and cleaning operations, when laying and

removing wires and when securing the docking station. In particular, protect the hands when working on the mowing blade and when driving in the fixing pins or the docking station pegs.

Long hair must always be tied up and secured (headscarf, cap, etc.) when working on the machine.

Suitable safety glasses must be

worn when driving in the fixing

pins and the docking station

pegs.

0478 131 9265 C - EN

6.3 Warning – dangers caused by electrical current

Warning: Risk of electric shock!

Particularly important for electrical safety are an intact power cable and mains plug on the power supply unit. Damaged cables, connectors and plugs, or electric cables that do not conform to regulations must not be used, to prevent any risk of electric shocks.

Therefore, check the electric cable regularly for signs of damage or ageing (brittleness).

Only use an original power supply unit. The power supply unit must not be used: – if it is damaged or worn, – if the cables are damaged or worn.

Check the power cable in particular for damage and ageing.

Maintenance and repair work on power cables and power supply units must only be performed by specially qualified technicians.

Danger of electric shock!

Do not connect a damaged cable to the mains and only touch a damaged cable once it has been disconnected from the mains.

The electric cable on the power supply unit must not be modified (e.g. shortened). The cable between the power supply unit and docking station must not be extended.

The power supply unit plug must only be connected to the docking station electronics in dry and clean condition.

The power supply unit and cable must not be left on wet ground for prolonged periods.

Danger of electric shock!

Damaged cables, connectors and plugs, or electric cables which do not conform with regulations may not be used.

Always ensure that the power cables used are adequately protected by a fuse.

Detach electric cables at the plug and socket and not by pulling on the electric cable.

Only connect the machine to a power supply that is protected by means of a residual current-operated protective device with a release current of a maximum of 30 mA. Your electrician can provide further information.

If the power supply unit is connected to the mains supply outside a building, the socket must be approved for outdoor use. Your electrician can provide further information about country-specific legislation.

It must be noted that current fluctuations can damage the machine when it is connected to a power generator.

6.4 Battery

Only use original batteries. The battery is intended exclusively for

fixed installation in a STIHL robotic mower. There, it is optimally protected and is charged when the robotic mower is in the docking station. No other charger must be used. The use of an unsuitable charger can result in danger due to electric shock, overheating or escaping corrosive battery fluid.

Never open the battery.

Do not drop the battery. Never use a defective or deformed battery. Store the battery out of reach of children.

Explosive hazard!

Protect the battery against direct sunlight, heat and fire – never throw it into a fire.

Only use or store the battery at temperatures from -10°C to max. +50°C.

Protect the battery against rain and moisture – do not immerse in liquids.

Do not subject the battery to microwaves or high pressure.

Never connect the battery terminals with metallic objects (short-circuit). The battery can be damaged through short circuits.

Keep the unused battery away from metallic objects (e.g. nails, coins, jewellery). Do not use metallic transport containers – explosive and fire hazard!

Fluid may escape from the battery due to improper use – avoid contact! In the case of inadvertent contact, rinse with water. Seek medical attention if the fluid comes into contact with the eyes. Escaping battery fluid can cause skin irritation and burns.

Do not insert any objects in the ventilation slots of the battery.

For further safety instructions, see http://www.stihl.com/safety-data-sheets

ENES

PTSLSKCS

0478 131 9265 C - EN

6.5 Transporting the machine

Before transporting, and especially before lifting the robotic mower, activate the disabling device. (Ö 5.2)

Allow the machine to cool down before transporting.

Avoid contact with the mowing blade when lifting and carrying the machine. The robotic mower must only be lifted at both carrying handles. Never reach under the machine.

Take the weight of the machine into account and use suitable loading aids (lifters) if required.

Secure the machine and other machine parts being transported (e.g. docking station) on the load floor using fastening materials (straps, ropes, etc.) of an adequate size at the fastening points described in this instruction manual. (Ö 21.)

When transporting the machine, always observe regional legislation, especially regarding load security and the transport of objects on load floors.

Do not leave the battery inside a vehicle and never expose it to direct sunlight.

Lithium-ion batteries must be treated with special care during transport. In particular, short-circuit protection must be ensured. Only transport the battery in the robotic mower.

6.6 Before initial operation

It must be ensured that all persons who use the machine are familiar with the instruction manual.

Carefully follow the instructions for installing the docking station (Ö 9.1) and perimeter wire (Ö 12.).

The perimeter wire and the power cable must be securely fastened to the ground so that they do not present a tripping hazard. Avoid routing the perimeter wire and power cable over edges (e.g. edges of pathways or paving stones). When routing the perimeter wire and power cable on ground into which the supplied fixing pins cannot be driven (e.g. paving stones, pathways), a cable duct must be used.

Correct routing of the perimeter wire and power cable must be regularly checked.

To prevent the risk of stumbling, always drive in the fixing pins all the way.

Do not install the docking station in a place where it is difficult to see and could become a tripping hazard (e.g. around the corner of a house).

If possible, install the docking station out of the reach of pests such as ants or slugs – in particular avoid the area around anthills and composting units.

Areas in which the robotic mower cannot operate safely (e.g. due to danger of falling) must be blocked off through appropriate routing of the perimeter wire. STIHL recommends that the robotic mower is only operated on lawns and surfaced paths (e.g. paved drives).

The robotic mower does not detect any sudden drops such as edges, steps, swimming pools or ponds. If the perimeter wire is routed along potential sudden drops, a clearance of at least 1m must be maintained between the perimeter wire and the danger area for safety reasons.

Regularly inspect the area on which the machine is to be used and remove any sticks, stones, wires, bones and all other foreign objects that could be thrown up by the machine. After installing the perimeter wire, particularly remove all tools from the mowing area. Broken or damaged fixing pins must be removed from the lawn and disposed of.

Regularly check the area to be mown for uneven areas and level them out.

Never use the machine with damaged safety devices or with safety devices removed.

The switch and safety devices installed in the machine must not be removed or bypassed.

All faulty, worn or damaged parts must be replaced before using the machine. Replace any illegible or damaged danger signs and warnings on the machine. Your STIHL specialist has a supply of replacement stickers and all the other spare parts.

Risk of injury!

Worn or damaged parts (e.g. blunt blades) can affect the safety of the machine and result in injury to the user.

Before initial operation, it must be ensured – that the machine is in good operational

condition. This means that the covers, guards and the flap must be in place and in good condition.

– that the docking station is in a safe

operating condition. Here, all covers must be properly installed and be in good condition.

0478 131 9265 C - EN

– that the power supply unit has been

connected to a properly installed socket.

– that the insulation of the electric cable

and the mains plug on the power supply unit is in good condition.

– that the entire machine (housing, hood,

flap, fastening elements, mowing blade, blade shaft, etc.) is neither worn nor damaged.

– that the mowing blade and the blade

fastening are in proper condition (secure seating, damage, wear). (Ö 16.3)

– that all screws, bolts, nuts and other

fastening elements are in place and properly tightened. Tighten any loose screws, bolts and nuts prior to initial operation (observe tightening torques).

Carry out any necessary work or consult a specialist dealer. STIHL recommends STIHL specialist dealers.

6.7 Programming

Observe local regulations regarding permitted operating times for gardening power tools with motors and programme the active times accordingly. (Ö 14.3)

In particular, programming must also be adapted so that no children, spectators or animals are in the area to be mown during operation.

Changing the programming using the iMOW® app can result in activities that will not be expected by other people. Changes to the mowing plan must therefore be communicated in advance to all affected people.

The robotic mower must not operate at the same time as a sprinkler system. Adapt the programming accordingly.

Ensure that the correct date and the correct time are set on the robotic mower. Correct the settings if necessary. Incorrect values may cause the robotic mower to start up unintentionally.

6.8 During operation

Keep others, particularly children and animals, out of the danger area.

Never allow children to approach or play with the robotic mower.

Starting a mowing operation using the iMOW® app may not be expected by third parties. Affected people must therefore be notified in advance about possible activity of the robotic mower.

Never allow the robotic mower to operate if you know that animals or people, particularly children, are in the vicinity.

When operating the robotic mower in public places, signs with the following notice must be affixed around the mowing area: "Warning! Automatic lawn mower! Keep away from the machine! Children must be supervised!"

Caution – risk of injury!

Never put hands or feet on or underneath rotating parts. Never touch the rotating blade.

Before thunderstorms, or if there is a danger of lightning strikes, disconnect the power supply unit from the mains. The robotic mower must not be operated.

The robotic mower must never be tilted or lifted when the motor is running.

Never attempt to change settings on the machine when one of the motors is running.

For safety reasons, the machine must not be used on slopes with an incline of more than 21,8° (40 %). Risk of injury! A slope inclination of 21,8° corresponds to a vertical height increase of 40 cm for a 100 cm horizontal distance.

Beware of the cutting tool

running on for several seconds

before coming to a standstill.

Press the STOP button (Ö 5.1)

during running operation – before opening the flap. Activate the disabling device (Ö 5.2) – before lifting or carrying the machine, – before transporting the machine, – before removing blockages, – before carrying out any work on the

mowing blade,

– before checking or cleaning the

machine,

ENES

PTSLSKCS

0478 131 9265 C - EN

– after hitting a foreign object or if the

robotic mower begins to vibrate excessively. In these cases, check the machine, in particular the cutting unit (blade, blade shaft, blade fastening) for damage and carry out the necessary repairs before restarting and working with the machine.

Risk of injury!

Strong vibration is normally an indication of a fault. In particular, the robotic mower must not be operated with a damaged or bent blade shaft or mowing blade. If you do not have the appropriate expertise, have the necessary repairs carried out by a specialist dealer (STIHL recommends STIHL specialist dealers).

Before leaving the machine unattended, the safety settings of the robotic mower must be adapted so that it cannot be operated by unauthorised persons. (Ö 5.)

Do not lean forward and always ensure that you maintain your balance and a firm footing on inclines when operating the machine and its peripherals. Always walk, do not run.

Never operate the machine in the vicinity of naked flames.

6.9 Maintenance and repairs

Before starting cleaning, repair or maintenance operations, activate the disabling device and park the robotic mower on firm and level ground.

Disconnect the mains plug of the power supply unit before performing any work on the docking station and the perimeter wire.

Allow the robotic mower to cool down for approx. 5 minutes before performing any maintenance operations.

The power cable must only be repaired or replaced by authorised electricians.

Following any work on the machine, check and, if necessary, correct the programming of the robotic mower before putting it back into operation. In particular, the date and time must be set.

Cleaning:

The complete machine must be cleaned carefully at regular intervals. (Ö 16.2)

Never spray water (particularly highpressure cleaners) onto motor components, seals, electric components or bearing points. This may result in damage and expensive repairs. Do not clean the machine under running water (e.g. using a garden hose). Do not use aggressive cleaning agents. These can damage plastics and metals, impairing the safe operation of your STIHL machine.

Maintenance operations:

Only maintenance operations described in this instruction manual may be carried out. Have all other work performed by a specialist dealer. If you do not have the necessary expertise or auxiliary equipment, please always contact a specialist dealer. STIHL recommends that you have maintenance operations and repairs performed exclusively by a STIHL specialist dealer.

STIHL specialist dealers regularly attend training courses and are provided with technical information.

Only use tools, accessories or attachments approved for this machine by STIHL or technically identical parts. Otherwise, there may be a risk of accidents resulting in personal injury or damage to the machine. If you have any questions, please consult a specialist dealer.

The characteristics of original STIHL tools, accessories and spare parts are optimally adapted to the machine and the user's requirements. Genuine STIHL spare parts can be recognised by the STIHL spare parts number, by the STIHL lettering and, if present, by the STIHL spare parts symbol. On smaller parts, only the symbol may be present.

Always keep warning and information stickers clean and readable. Damaged or missing stickers must be replaced by new, original plates from your STIHL specialist dealer. If a component is replaced with a new component, ensure that the new component is provided with the same stickers.

Only perform work on the cutting unit when wearing protective gloves and exercising extreme care.

Ensure that all screws and nuts, especially all screws and fastening elements of the cutting unit, are securely tightened, so that the machine is in a safe operating condition.

Check the entire machine for wear or damage on a regular basis, particularly before extended periods when the machine is not in use (e.g. over winter). For safety reasons, worn or damaged

0478 131 9265 C - EN

parts must be replaced immediately to ensure that the machine is always in a safe operating condition.

Components or guards that are removed for maintenance operations must be properly reinstalled immediately.

6.10 Storage for prolonged periods without operation

Before putting into storage – Charge the battery (Ö 15.7) – Set the highest safety level (Ö 11.16) – Place the robotic mower in hibernation

(Ö 11.17)

Ensure that the machine is protected from unauthorised use (e.g. by children).

Store the machine in good operational condition.

Thoroughly clean the machine before storage (e.g. winter break).

Allow the machine to cool for approx. 5 minutes before storing it in an enclosed space.

The storage room must be dry, frost-free and lockable.

Never store the machine close to naked flames or powerful heat sources (e.g. oven).

Consult your recycling centre or your specialist dealer for information on the proper disposal of waste products. STIHL recommends STIHL specialist dealers.

Ensure that old machines are properly disposed of. Render the machine unusable prior to disposal. In particular, remove the power cable of the power supply unit, as well as the battery of the robotic mower in order to prevent accidents.

Risk of injury due to the mowing blade!

Always store an old lawn mower in a safe place prior to scrapping. Ensure that the machine and particularly the mowing blade are kept out of the reach of children.

The battery must be disposed of separately from the machine. Ensure that batteries are disposed of safely and in an environmentally friendly manner.

7. Description of symbols

Warning!

Read the instruction manual before initial use.

Warning!

Never touch the rotating blade.

Warning!

Disable the machine before lifting it and before working on it.

Warning!

Do not climb onto or sit on the machine.

Warning!

Never touch the rotating blade.

Warning!

Keep children away from the machine and mowing area during mowing operation.

ENES

PTSLSKCS

6.11 Disposal

Waste products can be harmful to people, animals and the environment. They must consequently be disposed of properly.

0478 131 9265 C - EN

Warning!

Keep a safe distance from the machine during operation. Keep other persons out of the danger area.

Warning!

Keep dogs and other pets away from the machine and mowing area during mowing operation.

8. Standard equipment

9. Initial installation

For a quick, easy and robust installation, read and comply with the specifications and instructions, especially the wire clearance of 28 cm during routing. (Ö 12.)

It is possible to increase the mown area by routing the perimeter wire closer to the edge. (Ö 12.17) For reliable operation, the wire clearance must be adapted to the onsite conditions during routing.

iMOW® quick guide

A separate quick guide on installing the docking station and routing the perimeter wire is enclosed with the robotic mower to assist you. More detailed information can be found in the respective chapters of this instruction manual. Always use the quick guide in combination with the instruction manual for the robotic mower.

Item Designation Qty. A Robotic mower 1 B Docking station 1 C Power supply unit 1 D iMOW® Ruler* 2 E Peg for docking station 4 F Puller for carrier plate 1 G AKM 100 1 H Wire connector 2 I Corridor template* 1

 Instruction manual 1 * must be separated from the cardboard

insert in the packaging.

0478 131 9265 C - EN

iMOW® quick guide

Reduced view of page 1:

ENES

PTSLSKCS

0478 131 9265 C - EN

iMOW® quick guide

Reduced view of pages 2 and 3:

0478 131 9265 C - EN

iMOW® quick guide

Reduced view of page 4:

ENES

PTSLSKCS

0478 131 9265 C - EN

9.1 Notes on the docking station Requirements for the docking station

location:

– Protected, shady.

Direct sunlight can lead to increased temperatures in the machine and longer battery charging times. A canopy top available as an accessory can be mounted on the docking station. This provides better protection for the robotic mower against the weather.

– Easily visible.

The docking station should be easily visible in its chosen location to prevent the risk of tripping over it.

– In the immediate vicinity of a suitable

socket.

The mains connection must be close enough to the docking station that the respective power cables can be connected to both the docking station and the mains connection – do not change the power cable of the power supply unit. A socket with overvoltage protection is recommended.

– Free from sources of interference.

Metal, iron oxides and magnetic or electrically conductive materials as well as old perimeter wire installations can interfere with the mower's operation. It is recommended to remove these sources of interference.

– Level and flat.

Uneven ground has a significant influence on the robotic mower's docking. It must be ensured that the ground underneath the docking station floor plate is level and flat. Level or flatten the ground if necessary.

Preparatory measures:

● Mow the lawn using a conventional

lawn mower prior to initial installation (ideal grass height max. 6 cm).

● In the case of a hard and dry surface,

water the mowing area lightly in order to make it easier to drive in the fixing pins.

The docking station must not be inclined by more than 8 cm rearwards or 2 cm forwards.

Mowing areas must not overlap. Maintain a minimum clearance of ≥ 1m between the perimeter wires of two mowing areas.

Never bend the floor plate. Any unevenness must be removed under the floor plate so that it fully contacts the ground.

Installation options:

The docking station can be installed internally and externally.

0478 131 9265 C - EN

Internal docking station:

The docking station (1) is installed within the mowing area (A), right at the edge.

There must be a free, level area (2) with a radius of at least 1 m in front of the docking station (1). Remove any bumps or depressions.

Route the perimeter wire (2) in front of and behind the docking station (1) for 0.6 m in a straight line and at right angles to the floor plate. Then follow the edge of the mowing area with the perimeter wire.

External docking station:

In conjunction with an external docking station, guide loops must be installed for offset drive home. (Ö 12.12)

Space requirement for external docking station:

The docking station (1) can be installed as illustrated with a corridor (2) for docking and undocking to take place correctly. The areas around the docking station and outside of the perimeter wire must be flat and freely travellable. Remove any bumps or depressions.

The corridor (2) is installed using the corridor template (3). (Ö 12.11)

Minimum clearance from the floor plate to the start of the corridor: ≥ 50 cm

Width of the free area to the side: 40 cm Maximum clearance to the mowing area: ≤ 12 m

ENES

PTSLSKCS

0478 131 9265 C - EN

The docking station (1) is installed outside the mowing area (A).

Installing the docking station on a wall:

If the docking station is installed on a wall, a recess (1) must be made on the left or right of the floor plate using a pliers to make space for the power cable (2).

Opening the panel:

9.2 Docking station connections Removing the cover:

Fold the panel (1) forwards. Hold the panel in the opened position as the hinge springs will close it automatically.

Pull the cover (1) apart slightly on the left and right as illustrated and remove upwards.

The connections for the perimeter wire (1) and the power cable (2) are protected against the weather when the panel is closed.

0478 131 9265 C - EN

Closing the panel:

Fold the panel (1) rearwards – do not pinch any cables.

Fitting the cover:

Fit the cover (1) onto the docking station and allow it to engage – do not pinch any cables.

9.3 Connecting the power cable to the docking station

Note:

The plug and connection socket must be clean.

● Remove the docking station cover and

open the panel. (Ö 9.2)

ENES

PTSLSKCS

Guide the power cable through the cable guide (1) on the panel.

● Close the panel. (Ö 9.2)

0478 131 9265 C - EN

Connect the connector of the power supply unit (1) to the connector of the docking station (2).

Press the power cable into the cable guide (1) as illustrated and guide through the strain relief (2) and the cable duct (3) to the power supply unit.

● Close the docking station cover. (Ö 9.2)

9.4 Installation material

If the perimeter wire is not routed by the specialist dealer, additional installation material not included in the standard equipment will be required to be able to operate the robotic mower. (Ö 18.)

The installation kits contain perimeter wire on a reel (1) as well as fixing pins (2) and wire connectors (3). The standard equipment in the installation kits may include additional parts not required for the installation.

9.5 Adjusting the cutting height

Set the cutting height to at least level 4 in the first weeks (until the grass has grown over the perimeter wire) to guarantee reliable operation.

Levels S1, S2 and S3 are special heights for very level lawns (ground unevenness < +/- 1 cm).

Lowest cutting height: Level S1 (20 mm)

Highest cutting height: Level 8 (60 mm)

– Open the flap. (Ö 15.2)

Turn the rotary knob (1). The marking (2) indicates the set cutting height.

The rotary knob can be removed upwards from the adjustment element. This design serves a safety function (it ensures that the machine cannot be lifted and carried by the rotary knob) and to prevent the cutting height from being modified by unauthorised persons.

9.6 Notes on initial installation

An installation assistant is available for installation of the robotic mower. This program guides you through the entire initial installation process:

● Setting the language, date and time

● Installing the docking station

● Routing the perimeter wire

● Connecting the perimeter wire

● Linking the robotic mower and docking

station

● Checking installation

● Programming the robotic mower

● Completing initial installation

The installation assistant must be worked through in its entirety. Only then is the robotic mower ready for operation.

The installation assistant is reactivated following a reset (reset to factory defaults). (Ö 11.17)

Preparatory measures:

● Mow the lawn using a conventional

lawn mower prior to initial installation (ideal grass height max. 6 cm).

● In the case of a hard and dry surface,

water the mowing area lightly in order to make it easier to drive in the fixing pins.

● The robotic mower must be activated by

a STIHL specialist dealer and assigned to the owner's e-mail address. (Ö 10.)

When navigating through the menus, follow the instructions in the "Operating instructions" section. (Ö 11.1)

You can select options, menu items and buttons using the control pad.

You can open submenus and confirm selections using the OK button.

Use the Back button to leave the active menu or jump one step back in the installation assistant.

If errors or faults occur during the initial installation, a corresponding message appears on the display. (Ö 24.)

0478 131 9265 C - EN

9.7 Setting the language, date and time

● Pressing any button on the display

activates the machine and thus the installation assistant.

ENES

PTSLSKCS

Select the required display language and confirm with the OK button.

Confirm your language selection with the OK button or select "Change" and repeat the language selection.

● If necessary, enter the 9-digit serial

number of the robotic mower. This number is printed on the identification plate (see Machine overview). (Ö 3.)

Set the current date using the control pad and confirm with the OK button.

Set the current time using the control pad and confirm with the OK button.

9.8 Installing the docking station

Read the "Notes on the docking station" section (Ö 9.1) and study the installation examples (Ö 27.) in this instruction manual.

● Connect the power cable to the docking

station. (Ö 9.3)

● Route the power cable under the floor

plate when the docking station is installed at a wall. (Ö 9.1)

Note:

Drive the pegs into the ground in such a way that the docking station floor plate does not bend.

Fix the docking station (B) into position at the chosen location using four pegs (E).

● Install the power supply unit outside the

mowing area, protected from direct sunlight, humidity and moisture – fasten to a wall if necessary.

0478 131 9265 C - EN

Correct operation of the power supply unit is only ensured at an

ambient temperature between 0° C and 40° C.

● Route all power cables outside the

mowing area, in particular out of reach of the mowing blade, and fasten them to the ground or accommodate in a cable duct.

● Unreel power cables in the vicinity of

the docking station in order to avoid interference with the wire signal.

● Connect the mains plug.

The red LED on the docking station flashes rapidly as long as no perimeter wire is connected. (Ö 13.1)

● After completing this installation

work, press the OK button.

With external docking station:

Define at least one starting point outside the corridor to the docking station after initial installation is complete. Define the starting frequency so that 0 of 10 mowing operations (0/10) are started at the docking station (starting point 0). (Ö 11.14)

Lift the robotic mower slightly by the carrying handle (1) to relieve the weight on the drive wheels. Push the machine, resting on its front wheels, into the docking station.

Then press the OK button on the display.

If the battery is discharged, a plug symbol appears instead of the battery symbol at the top right corner of the display after docking and the battery is charged while the perimeter wire is being routed. (Ö 15.7)

For smaller mowing areas with a wire length of less than 80 m, the AKM 100 supplied must be installed together with the perimeter wire. If the wire lengths are too short, the docking station flashes SOS and no wire signal is output.

Install the AKM 100 with a minimum clearance to the docking station of 3 m.

9.9 Routing the perimeter wire

Please read and observe the entire "Perimeter wire" section before performing wire routing. (Ö 12.)

In particular, plan the routing, observe the wire clearances and install no-go areas, reserve wire,

linking sections, secondary areas and corridors during wire

routing.

Fasten the AKM 100 (1) 30 cm outside the mowing area using a fixing pin. Twist the wire ends as far as the mowing area and fasten using a fixing pin.

0478 131 9265 C - EN

Cut the perimeter wire (2) and connect the ends to the ends of the AKM 100's perimeter wire using wire connectors (3) (Ö 12.16). Fasten the left and right connecting pieces as illustrated using fixing pins.

Only use genuine fixing pins and genuine perimeter wire. Installation kits with the necessary installation material are available as an accessory from the STIHL specialist dealer. (Ö 18.)

Draw the wire routing in the garden sketch. Content of the sketch:

– Contour of the mowing area including

important obstacles, borders and any no-go areas which the robotic mower must not mow. (Ö 27.)

– Position of the docking station (Ö 9.1) – Position of the perimeter wire

After a short while, the perimeter wire is overgrown and is no longer visible. Make a note of the routing of the wire around obstacles in particular.

– Position of the wire connectors

After a short while, the wire connectors used are no longer visible. Their position should be noted in order to replace them as required. (Ö 12.16)

The perimeter wire must be routed in a continuous loop around the entire mowing area. Maximum length: 500 m

The robotic mower must not be more than 17 m from the perimeter wire at any point, as this would prevent the wire signal being picked up.

Route the perimeter wire starting at the docking station. A distinction must be made between an internal docking station and an external docking station here.

Starting routing with an internal docking station:

Fasten the perimeter wire (1) to the ground on the left or right as appropriate, next to the floor plate, directly next to a wire outlet, using a fixing pin (2).

ENES

PTSLSKCS

Provide a free wire end (1) with a length of approx. 1.5 m.

0478 131 9265 C - EN

If offset drive home (passage) is used, the perimeter wire must be routed at least 1.5 m in front of and behind the docking station in a straight line and at right angles to the floor plate. (Ö 11.13)

Starting routing with an external docking station:

Provide a free wire end (1) with a length of approx. 2m.

Wire routing in the mowing area:

Fasten the perimeter wire (1) to the ground on the left or right as appropriate, behind the floor plate, directly next to a wire outlet, using a fixing pin (2).

Route the perimeter wire (2) in front of and behind the docking station (1) with 50 cm of clearance and at right angles to the floor plate. A corridor can then be installed (Ö 12.11) or the edge of the mowing area followed with the perimeter wire.

A freely travellable area with a minimum width of 40 cm must be available to the side of the floor plate (3).

Further information on installation of the external docking station is contained in the "Installation examples" section. (Ö 27.)

Route the perimeter wire (1) around the mowing area and around any obstacles (Ö 12.9) and fasten it to the ground using fixing pins (2). Check the clearances using the iMOW® Ruler. (Ö 12.5)

The robotic mower must not be more than 17 m from the perimeter wire at any point, as this would prevent the wire signal being picked up.

0478 131 9265 C - EN

Avoid routing at acute angles (less than 90°). In acutely angled lawn corners, fasten the perimeter wire (1) to the ground with fixing pins (2) as illustrated.(Ö 12.6)

After a 90° corner, at least the length of an iMOW® Ruler must be routed in a straight line before the next corner is installed.

When routing around high obstacles such as wall corners or high flowerbeds (1), the wire clearance must be maintained at the corners to prevent the robotic mower from scraping against the obstacle. Route the perimeter wire (2) with the aid of the iMOW® Ruler (3) as illustrated.

● If necessary, extend the perimeter wire

using the wire connectors supplied. (Ö 12.16)

● In the case of several adjacent mowing

areas, install secondary areas (Ö 12.10) or join the mowing areas with corridors. (Ö 12.8)

Last fixing pin with internal docking station:

Drive in the last fixing pin (1) on the left or right next to the floor plate, directly next to the wire outlet. Cut off the perimeter wire (2) to a free length of approx. 1.5 m.

Last fixing pin with external docking station:

Completing wire routing:

● Check the fastening of the perimeter

wire to the ground. One fixing pin per metre is sufficient as a rough guide. The perimeter wire must always lie on the lawn. Drive the fixing pins fully into the ground.

● After completing this installation

work, press the OK button.

If the battery is not sufficiently charged to work through the remaining steps of the installation assistant, an appropriate message is displayed. In this case, leave the robotic mower in the master docking station and continue charging the battery. Jumping to the next step of the installation assistant with the OK button is only possible once the necessary battery voltage is available.

9.10 Connecting the perimeter wire

ENES

PTSLSKCS

0478 131 9265 C - EN

Drive in the last fixing pin (1) on the left or right behind the floor plate, directly next to the wire outlet. Cut off the perimeter wire (2) to a free length of approx. 2 m.

Place the robotic mower (1) within the mowing area, behind the docking station (2) as illustrated, then press the OK button.

Perimeter wire with internal docking station:

Remove the cover. (Ö 9.2) Press the OK button.

Insert the perimeter wire (1) into the cable guides in the floor plate and guide it through the socket (2).

Disconnect the power supply unit plug from the mains, then press the OK button.

0478 131 9265 C - EN

Perimeter wire with external docking station:

Route the perimeter wire (1) in the area (2) under the floor plate. To do this, guide the wire into the wire outlets (3, 4) – loosen the pegs if necessary.

Insert the perimeter wire (1) into the cable guides in the floor plate and guide it through the socket (2).

Connecting the perimeter wire:

Note:

Make sure that the contacts are clean (not corroded, dirty, etc).

Shorten the left wire end (1) and right wire end (2) to the same length. Length from the wire outlet to the wire end: 40 cm

Strip the left wire end (1) to the specified length X using a suitable tool and twist the wire strands.

X = 10-12 mm

ENES

PTSLSKCS

0478 131 9265 C - EN

Twist the free wire ends (1) together as illustrated.

● Open the panel and hold. (Ö 9.2)

Thread a grommet (1) onto each of the two wire ends (2).

1 Fold open the left clamping lever (1). 2 Insert the stripped wire end (2) into the

terminal block as far as it will go. 3 Close the clamping lever (1).

Strip the right wire end (1) to the specified length X using a suitable tool and twist the wire strands.

X = 10-12 mm

1 Fold open the right clamping lever (1). 2 Insert the stripped wire end (2) into the

terminal block as far as it will go. 3 Close the clamping lever (1).

Fit the grommets over the terminal blocks. Check the seating of the wire ends in the

terminal block: the two wire ends must be firmly fastened.

● Close the panel. (Ö 9.2)

Close the cover of the cable duct (1).

● After completing this installation

work, press the OK button.

0478 131 9265 C - EN

Install the cover. (Ö 9.2) Press the OK button.

When the perimeter wire is correctly installed and the docking station is connected to the mains power supply, the LED (1) illuminates.

Note the "Docking station controls" section, particularly if the LED does not illuminate as described. (Ö 9.2)

9.11 Linking the robotic mower and docking station

The robotic mower can only be operated if it correctly receives the wire signal emitted by the docking station. (Ö 11. 16)

ENES

PTSLSKCS

Connect the power supply unit plug to the mains, then press the OK button.

0478 131 9265 C - EN

Checking the wire signal may take several minutes. The red STOP button on top of the machine terminates the link, the previous installation assistant step is called up.

Lift the robotic mower slightly by the carrying handle (1) to relieve the weight on the drive wheels. Push the machine, resting on its front wheels, into the docking station.

Then press the OK button on the display.

Normal reception

Wire signal OK:

The text "Wire signal OK" appears on the display. The robotic mower and docking station are correctly linked.

Continue initial installation by pressing the OK button.

"Standard" energy mode is activated following successful linking. (Ö 11.10)

Interrupted reception The robotic mower receives no

wire signal:

The text "No wire signal" appears on the display.

The robotic mower receives a faulty wire signal: The text "Check wire signal" appears on the display.

The robotic mower receives a reversed-polarity wire signal: The text "Connections swapped or iMOW® outside" appears on the display.

Possible cause:

– Temporary malfunction – Robotic mower is not docked

– Perimeter wire has been connected

incorrectly (reversed polarity)

– Docking station is switched off or not

connected to mains supply – Faulty plug connections – Minimum perimeter wire length not

reached – A coiled power cable in the vicinity of

the docking station – Perimeter wire ends excessively long or

not sufficiently twisted together – Perimeter wire break – Extraneous signals such as a mobile

phone or the signal from another

docking station – Live underground cables, reinforced

concrete or disruptive metals in the

ground under the docking station – Maximum length of the perimeter wire

exceeded (Ö 12.1)

Remedy:

– Repeat linking without other corrective

action – Dock the robotic mower (Ö 15.6) – Connect the perimeter wire ends

correctly (Ö 9.10) – Check the docking station mains

connection, roll out the power cable in

the vicinity of the docking station, do not

set down coiled – Check the seating of the wire ends in

the terminal block, shorten excessively

long wire ends and twist the wire ends

together (Ö 9.10)

– For smaller mowing areas with a wire

length of less than 80 m, the AKM 100 supplied must be installed together with the perimeter wire (Ö 9.9)

– Check the LED indicator on the docking

station (Ö 13.1) – Repair the wire break – Switch off mobile phones or nearby

docking stations – Change the position of the docking

station or remove interference sources

under the docking station – Use a perimeter wire with larger cross

section (special accessory) Following the appropriate corrective

action, repeat linking by pressing the OK button.

Contact your specialist dealer if the measures described above do not result in a correct wire signal.

9.12 Checking installation

Start edge following by pressing the OK button – this does not activate the mowing blade.

0478 131 9265 C - EN

The robotic mower alternately follows the edge of the mowing area in both directions during running operation after initial installation. Edge following should therefore also be checked in both directions during initial installation.

Close the flap of the robotic mower. (Ö 15.2) Only once the flap has been closed does the robotic mower start automatically and follow the edge along the perimeter wire.

Edge following is used to define the home area of the robotic mower. (Ö 14.5)

If the robotic mower is not receiving a GPS signal before starting edge following, the text "Waiting for GPS" appears on the display. The robotic mower starts edge following after a few minutes despite no GPS signal being received. The "Test edge" function (Ö 11.13) must be performed later in order to use GPS protection, as otherwise no home area is defined.

As the robotic mower follows the edge, walk behind it and ensure

– that the robotic mower follows the edge

of the mowing area as planned,

– that the clearances to obstacles and the

borders of the mowing area are correct,

– that docking in and out takes place

correctly.

The distance covered is shown on the display – this metric specification is required for setting starting points at the edge of the mowing area. (Ö 11.14)

● Read off the displayed value at the

required location and write it down. Manually set starting points after initial installation.

The following of edges is automatically interrupted by obstacles, during operation on excessively steep slopes or by pressing the STOP button.

● If edge following has been interrupted

automatically, correct the position of the perimeter wire and remove any obstacles.

● Check the position of the robotic mower

before continuing edge following. The

machine must either be located on the

perimeter wire or within the mowing

area with the front facing the perimeter

wire.

Continuation following interruption:

After an interruption, continue edge following with OK.

It is recommended by STIHL not to interrupt edge following. Possible problems when following the edge of the mowing area or when docking may not be recognised.

Edge following can be repeated following initial installation if necessary. (Ö 11.13)

The robotic mower docks after one complete circuit around the mowing area. The system then queries as to whether a second circuit in the opposite direction should be started.

Automatic completion of edge following:

The next step of the installation assistant is called up when the robotic mower docks following the second complete circuit or if edge following in the opposite direction is refused.

ENES

PTSLSKCS

0478 131 9265 C - EN

9.13 Programming the robotic mower

Enter the size of the lawn and confirm with OK.

Installed no-go areas and secondary areas must not be included when calculating the size of the mowing area.

A new mowing plan is being calculated. The procedure can be cancelled using the red STOP button on the top of the machine.

Confirm the message "Confirm each day individually or change active time" by pressing the OK button.

The active times for Monday are displayed and the menu item Confirm active times is enabled.

All the active times are confirmed with OK and the next day is displayed.

In the case of small mowing areas, not all the week days are used for mowing. In this case, no active times are displayed and the menu item "Delete all active times" is omitted. Days without active times must also be confirmed with OK.

The displayed active times can be changed. For this purpose, select the required time interval using the control pad and open with OK. (Ö 14.3)

If additional active times are required, select the menu item New active time and open with OK. Specify the start and end times of the new active time in the selection window and confirm with OK. Up to three active times per day are possible.

If all the displayed active times are to be deleted, select the menu item Delete all active times and confirm with OK.

The mowing plan is displayed after the active times for Sunday have been confirmed.

0478 131 9265 C - EN

The displayed mowing plan is confirmed with OK and the final step of the installation assistant is called up.

If changes are necessary, select Change and individually adapt active times.

During the active times, third parties must keep out of the danger area. The active times should be adapted accordingly. Moreover, the applicable local regulations on the use of robotic mowers as well as the information in the "For your safety" section (Ö 6.) must be observed and the active times changed accordingly in the "Mowing plan" menu as required, either immediately or after completion of initial installation. (Ö 11. 7) In particular, you should check the times of the day and night at which it is permissible to use the machine with the responsible authorities.

9.14 Completing initial installation

Remove all foreign bodies (e.g. toys, tools) from the mowing area.

Complete initial installation by pressing the OK button.

After initial installation, the safety level "None" is activated.

Recommendation:

Set the safety level to "Low", "Medium" or "High". This ensures that unauthorised people cannot change any settings or operate the robotic mower using other docking stations. (Ö 11. 16) In addition, activate GPS protection. (Ö 5.9)

To be able to use all the functions of the robotic mower, the iMOW® app must be installed on a smartphone or tablet with an Internet connection and GPS receiver, and started. (Ö 10.)

Close the dialog window by pressing the OK button.

9.15 First mowing operation after initial installation

If completion of initial installation occurs during an active time, the robotic mower will begin to mow the mowing area immediately.

ENES

PTSLSKCS

If completion of the initial installation occurs outside the active time, a mowing operation can be started by pressing the OK button. If you do not wish the robotic mower to mow, select "No".

10. iMOW® app

The robotic mower can be operated using the iMOW® app. The app is available for the most popular operating systems in respective app stores.

Further information is available on the web.imow.stihl.com/systems/ homepage.

The regulations in the "For your safety" section apply in particular to all users of the iMOW® app. (Ö 6.)

Activation:

In order for the app and robotic mower to be able to exchange data, the machine must be activated with the owner's e-mail address by the specialist dealer. An activation link is sent to the e-mail address. The iMOW® app should be installed on a smartphone or tablet with an Internet connection and GPS receiver. The e-mail

0478 131 9265 C - EN

recipient is defined as the administrator and primary user; this person has full access to all functions.

Keep the e-mail address and password safe so that the iMOW® app can be reinstalled should the smartphone or tablet be changed (e.g. if the mobile phone is lost).

Data traffic:

Data transmission from the robotic mower to the Internet (M2M service) is included in the purchase price. Data transmission does not take place continuously and can therefore take a few minutes. The transmission of data from the app to the Internet will result in costs that must be borne by the user; these costs will be determined by the contract with the mobile phone provider or Internet provider.

GPS protection is only available without e-mail, SMS and push notifications without a mobile radio connection and app.

Main functions of the app: – Viewing and editing the mowing plan – Starting mowing – Switching automatic mowing on and off – Sending the robotic mower to the

docking station

– Changing the date and time

Changing the mowing plan, starting a mowing operation, switching automatic mowing on and off, sending the robotic mower home and changing the date and time can result in activities that will not be expected by other people. Affected people must therefore always be notified in advance about possible activities of the robotic mower.

– Calling up machine information and the

location of the robotic mower

11. Menu

11.1 Operating instructions

The control pad comprises four direction buttons (1). It serves for navigation in the menus. Settings are confirmed and menus opened using the OK button (2). Menus can be exited again using the Back button (3).

The main menu comprises 4 submenus, displayed as buttons. The selected submenu has a black background and is opened using the OK button.

The second menu level is displayed as a list. You move up and down through the submenus by pressing the control pad. Active menu entries have a black background.

The scroll bar at the right edge of the display indicates that further entries can be displayed by pressing the control pad downwards or upwards.

Submenus are opened by pressing the OK button.

0478 131 9265 C - EN

The "Settings" and "Information" submenus are shown as tabs. The tabs can be selected by pressing the control pad to the left or right, submenus by pressing the control pad downwards or upwards. Active tabs and menu entries have a black background.

Selection window:

Settings can be changed by pressing the control pad. The current value is highlighted in black. The OK button confirms all the values.

Dialog window:

11.2 Status screen

The status screen appears – when standby mode of the robotic

mower is ended by pressing a button, – when the Back button is pressed in the

main menu, – during running operation.

ENES

PTSLSKCS

Options are listed in the submenus. Active list entries have a black background. Pressing the OK button opens a selection or a dialog window.

0478 131 9265 C - EN

If changes have to be saved or messages confirmed, a dialog window appears on the display. The active button has a black background.

In the case of selection options, the relevant button can be activated by pressing the control pad to the left or right.

The selected option is confirmed and the higher-level menu called up using the OK button.

There are two configurable fields in the top display area. Various information regarding the robotic mower and the mowing operations can be displayed here. (Ö 11.12)

Status information with no running activity:

The name of the robotic mower (Ö 10.) and the text "iMOW® ready for op." are displayed in the bottom area of the screen together with the symbol shown, the automatic mowing status (Ö 15.4) and information on GPS protection (Ö 5.9).

Status information during running activities:

The text "iMOW® mowing lawn" and a corresponding symbol are shown on the display during a running mowing operation. The text and symbol are adapted to the respective active operation.

The text "Attention – iMOW® starting" and a warning symbol are displayed before the mowing operation.

Flashing of the display illumination and a signal tone additionally indicate the impending start of the mowing motor. The mowing blade is only activated a few seconds after the robotic mower has been set into motion.

Edge mowing: While the robotic mower mows the edges of the mowing area, the text "Mowing edge" is displayed.

Drive to docking station: When the robotic mower returns to the docking station, the relevant reason is indicated in the display (e.g. Battery discharged, Mowing completed).

Battery charging: The text "Charging battery" appears during charging of the battery.

Approach starting points: When the robotic mower approaches a starting point when a mowing operation starts, the text "Approaching starting point" is displayed.

Travel to desired zone: When the robotic mower approaches a desired zone when a mowing operation starts, the text "Travel to desired zone" is displayed.

Message screen:

Errors, faults or recommendations are displayed together with warning symbol, date, time and message code. If several messages are active, they appear alternately. (Ö 24.)

The message and status information appear alternately if the robotic mower is ready for operation.

11.3 Information area

The following information is shown in the top right corner of the display:

1. Charge state of the battery or charging

in progress

2. Automatic mowing status

3. Time

4. Mobile radio signal

1. Charge state:

The battery symbol serves to indicate the charge state.

No bars – battery discharged 1 to 5 bars – battery partially discharged 6 bars – battery fully charged

During charging, the mains plug symbol is shown instead of the battery symbol.

2. Automatic mowing status:

When automatic mowing is switched on, the Automatic symbol appears.

0478 131 9265 C - EN

3. Time:

The current time is indicated in 24 hour format.

4. Mobile radio signal:

The signal strength of the mobile radio connection is indicated using 4 bars. The more bars visible, the better the reception.

A reception symbol with a small x indicates that there is no connection with the Internet.

A question mark is shown during initialisation of the radio module (checking hardware and software, e.g. after switching on the robotic mower).

11.4 Main menu

2. Drive home (Ö 11.6)

3. Mowing plan (Ö 11.7)

Automatic mowing Mowing duration Active times New mowing plan

4. More (Ö 11.8) Lock iMOW® Edge mowing Settings Information

11.5 Start

11.6 Drive home

The robotic mower travels back to the docking station and charges the battery. If automatic mowing is switched on, the robotic mower will mow the mowing area again at the next possible active time.

The robotic mower can also be sent back to the docking station using the app. (Ö 10.)

11.7 Mowing plan

ENES

PTSLSKCS

The main menu is displayed, – when the status screen (Ö 11.2)

is left by pressing the OK button,

– when the Back button is pressed in the

second menu level.

1. Start (Ö 11.5) Mowing time Starting pt. Mowing on

0478 131 9265 C - EN

1. Mowing time:

The mowing time can be defined.

2. Starting pt.:

The starting point where the robotic mower starts mowing can be selected. This selection is only available if starting points are defined and if the robotic mower is in the docking station.

3. Mowing on:

The area to be mown can be selected. This selection is only available if there is a secondary area installed.

Automatic mowing On - Automatic mowing is switched on.

The robotic mower mows the lawn until the next active time.

Off - All active times are disabled. Pause today - The robotic mower

suspends automatic mowing until the next day. This selection is only available if there are more active times scheduled on the current day.

Mowing duration

The weekly mowing duration can be set. This setting is only possible with the mow plan type "Dynamic". The preset value is adapted to the size of the

mowing area. (Ö 14.4) Follow the instructions in the "Adapting the programming" section. (Ö 15.3)

The mowing duration can also be set using the app. (Ö 10.)

Active times

The saved mowing plan can be called up via the "Active times" menu in the "Mowing plan" menu. The rectangular blocks beneath the respective days represent the saved active times. Mowing is possible in active times marked in black. Grey blocks represent active times without mowing operations – e.g. in the case of a disabled active time.

When automatic mowing is switched off, the entire mowing plan is disabled and all active times are shown in grey.

If the active times for an individual day need to be edited, the day must be activated via the control pad (press to the left or right) and the Active times submenu must be opened.

Mowing is permitted during ticked active times; these times are marked in black in the mowing plan.

Mowing is not permitted during unticked active times; these times are marked in grey in the mowing plan.

Follow the instructions in the "Notes on mowing – Active times" section. (Ö 14.3) In particular, third parties must keep out of the danger area during the active times.

Active times can also be edited using the app. (Ö 10.)

The saved active times can be individually selected and edited.

The New active time menu item can be selected provided fewer than 3 active times per day have been saved. An additional active time must not overlap with other active times.

If the robotic mower is not to mow on the selected day, the menu item Delete all active times should be selected.

Changing active times:

The selected active time for automatic mowing can be disabled or enabled using Active time off and Active time on respectively.

The time window can be changed with Change active time.

If the selected active time is no longer required, the menu item Delete active time should be selected.

If the time windows for the necessary mowing and charging operations are not sufficient, active times must be extended or added, or the mowing duration must be reduced. A corresponding display message appears.

New mowing plan

The command New mowing plan deletes all stored active times. The step "Program the robotic mower" of the installation assistant is called up. (Ö 9.13)

If completion of the reprogramming occurs during an active time, the robotic mower begins an automatic mowing operation after the individual daily plans have been confirmed.

0478 131 9265 C - EN

11.8 More

1. Lock iMOW®:

Activates the disabling device. Press the illustrated button combination to unlock. (Ö 5.2)

2. Edge mowing:

Following activation, the robotic mower mows the edge of the mowing area. After completing one circuit, it travels back to the docking station and charges the battery.

3. Settings (Ö 11.9)

4. Information (Ö 11.18)

11.9 Settings

1. iMOW®:

Adapt machine settings (Ö 11.10)

2. Installation:

Adapt and test the installation (Ö 11.13)

3. Safety:

Adapt the safety settings (Ö 11.16)

4. Service:

Maintenance and service (Ö 11.17)

5. Dealer area:

The menu is protected by the dealer code. Your specialist dealer performs a variety of maintenance and service operations with the aid of this menu.

11.10 iMOW® – machine settings

1. Mow plan type: Standard: The robotic mower mows the

lawn throughout the entire active time. Mowing operations are only interrupted for charging. The mow plan type Standard is preset.

Dynamic: The number and duration of mowing and charging times are adapted fully automatically within the active times.

2. Rain sensor:

The rain sensor can be set so that mowing is interrupted or does not start when it is raining.

● Setting the rain sensor (Ö 11.11)

3. Status screen:

Select the information that is to appear in the status screen. (Ö 11.2)

● Configuring the status screen (Ö 11.12)

4Time:

Set the current time. The set time must correspond to the actual time in order to prevent inadvertent mowing by the robotic mower.

The time can also be set using the app. (Ö 10.)

5Date:

Set the current date. The set date must correspond to the actual calendar date in order to prevent inadvertent operation of the robotic mower.

The date can also be set using the app. (Ö 10.)

6. Date format:

Set the required date format.

7. Language:

Set the required display language. The language selected during initial installation is set as the default.

8. Contrast:

The display contrast can be adjusted as required.

9. Energy mode:

In Standard, the robotic mower is connected to the Internet at all times and can be reached using the app. (Ö 10.) In ECO, radio communication is deactivated during rest periods to reduce energy consumption; the robotic mower cannot be reached using the app. The most recent available data is shown in the app.

ENES

PTSLSKCS

0478 131 9265 C - EN

11.11 Setting the rain sensor

In order to set the 5-stage sensor, press the control pad to the left or right. The current value is displayed in the "Settings" menu by means of a line diagram.

Moving the control influences – the sensitivity of the rain sensor, – the time the robotic mower waits for the

sensor surface to dry following rain.

In the case of medium sensitivity, the robotic mower is ready for operation under normal ambient conditions.

Move the bar further to the left for mowing at a higher humidity. If the bar is moved all the way to the left, the robotic mower will mow even in wet external conditions and will not interrupt the mowing operation if rain drops land on the sensor.

Move the bar further to the right for mowing at a lower humidity. If the bar is moved all the way to the right, the robotic mower will only mow if the rain sensor is completely dry.

11.12 Configuring the status screen

In order to configure the status screen, select the left or right screen with the control pad and confirm with OK.

Charge state: Shows the battery symbol with the charge state in percent

Rem. time: The remaining mowing duration during the current week in hours and minutes. This display is only available with the mow plan type "Dynamic".

Time and date: Current time and current date

Start time: Start of the next planned mowing operation. During a running active time, the text "active" is displayed.

Mowing ops: Total number of mowing operations performed

Mowing hours: Total duration of all mowing operations performed

Distance: Total distance covered

Network:

Signal strength of the mobile radio connection with network ID. A small x or question mark indicates that the robotic mower is not connected to the Internet. (Ö 11.3), (Ö 11.18)

GPS reception:

GPS coordinates of the robotic mower. (Ö 11.18)

11.13 Installation

1. Passage:

Switch offset drive home on and off. When the passage is activated, the robotic

mower travels back home to the docking station, offset at a distance, along the perimeter wire.

If no mapping for the direct drive home (Ö 11.15) is stored, the robotic mower's drive home will be executed at the edge and the settings for the passage will be taken into consideration.

Three versions can be selected: Off – Default setting

The robotic mower travels along the perimeter wire. Narrow – 40 cm The robotic mower alternatively travels along the perimeter wire or offset by 40 cm. Wide – 40 - 80 cm The distance to the perimeter wire is selected randomly within this passage during each drive home.

In conjunction with an external docking station as well as with corridors and confined areas, guide loops must be installed for offset drive home. (Ö 12.12)

Observe a minimum wire clearance of 2 m for offset drive home.

2. Starting points:

The robotic mower either starts the mowing at the docking station (default setting) or at a starting point.

Starting points are to be defined – if partial areas are to be travelled to in a

targeted manner because they are

insufficiently mowed, – if areas can only be accessed via a

corridor. At least one starting point must

be defined in these partial areas. The starting points can be assigned a

radius. If the robotic mower starts mowing at the relevant starting point, it always mows within a circle around the starting

0478 131 9265 C - EN

point first. Once it has mown this partial area, it continues mowing in the remaining area.

● Setting starting points (Ö 11.14)

3. Direct drive home:

Create internal mapping of the mowing area for the direct drive home. (Ö 11.15)

4. Secondary areas:

Enable secondary areas.

Inactive – Default setting Active – Setting if secondary areas are to

be mown. The mowing area (main area/secondary area) must be selected in the "Start" menu. (Ö 12.10)

5. Edge mowing:

Define the mowing frequency. Never – The edges are never mown. Once – Default setting, the edges are mown once a week.

Twice/Three times/Four times/Five times – The edges are mown twice/three

times/four times/five times per week.

6. Test edge:

Start edge following for checking correct wire routing. The step "Check installation" of the installation assistant is called up. (Ö 9.12)

To check correct wire routing around no-go areas, position the robotic mower in the mowing area with the front facing the no-go area and start edge following.

The home area of the robotic mower is defined during edge following. If necessary, a home area already stored in the memory is extended. (Ö 14.5)

7. New installation:

The installation assistant is started again, the existing mowing plan is deleted. (Ö 9.)

11.14 Setting starting points

To set, either

● learn starting points or

● select the required starting point and

define it manually.

Learn start points: After pressing the OK button, the robotic mower begins a new learning run along the perimeter wire. If it is not docked, it first travels to the docking station. All the existing starting points are deleted.

The home area of the robotic mower is defined during the learning run. If necessary, a home area already stored in the memory is extended. (Ö 14.5)

During travel, up to 4 starting points can be specified by pressing the OK button after opening the flap.

Avoid pressing the STOP button before opening the flap as this interrupts the learning run. Interruption is generally only necessary to change the wire position or remove obstacles.

Interrupting the learning procedure:

Manually – by pressing the STOP button. Automatically – by obstacles at the edge of the mowing area.

● If the learning run has been interrupted

automatically, correct the position of the

perimeter wire and remove any

obstacles.

● Check the position of the robotic mower

before continuing the learning run. The

machine must either be located on the

perimeter wire or within the mowing

area with the front facing the perimeter

wire.

Ending the learning procedure:

Manually – following an interruption. Automatically – after docking. After docking or after the interruption, the new starting points are saved by confirming with OK (after opening the flap).

Starting frequency:

The starting frequency defines how often a mowing operation is to begin from a starting point. The default setting is 2 of 10 mowing operations (2/10) at each starting point.

● Change the starting frequency as

required after learning.

● If the learning procedure has been

aborted prematurely, send the robotic

mower back to the docking station via a

command. (Ö 11.6)

● A radius from 3 m to 30 m around each

starting point can be defined after

learning. The stored starting points are

not assigned any radius as standard.

Starting points with radius:

When the mowing operation is started at the respective starting point, the robotic mower starts by mowing the partial area within the circular segment around the starting point. Only then does it mow the rest of the mowing area.

ENES

PTSLSKCS

0478 131 9265 C - EN

Setting starting point 1 to 4 manually:

Determine the distance of the starting points from the docking station and define the starting frequency. The distance corresponds to that covered from the docking station to the starting point in metres, measured in a clockwise direction. The starting frequency can be between 0 of 10 mowing operations (0/10) and 10 of 10 mowing operations (10/10).

A radius from 3 m to 30 m around the starting point can be defined.

The docking station is defined as starting point 0; mowing operations are started from here as standard. The starting frequency corresponds to the calculated residual value of 10 out of 10 operations.

11.15 Direct drive home

Intelligent pathfinding enables the robotic mower to execute a more direct and more efficient drive home to the docking station.

active - Direct drive home is active. The robotic mower travels over the mowing area to the docking station.

inactive - Direct drive home is inactive. The robotic mower travels along the perimeter wire to the docking station.

Teach-in - An internal mapping of the mowing area is created. If there is already a map stored, this is deleted.

An internal map of the mowing area is created during the teach-in run. The edge following run must be executed without interruption for this.

Prerequisites for mapping of the mowing area:

● The robotic mower must travel the

entire length of the perimeter wire without interruption.

● Obstacles and errors in the wire routing

result in interruptions. Obstacles must be removed and the wire routing must be corrected if applicable.

Performing mapping of the mowing area:

● Select the "Teach-in" menu item.

● The teach-in process requires an

uninterrupted edge following run.

● Remove obstacles along the perimeter

wire. Confirm with OK.

● If an internal map is already available, a

query is displayed asking whether it should be deleted.

● If confirmed with OK, close the flap. The

robotic mower follows the edge. The internal map of the mowing area is created in the background.

If the mowing area is successfully mapped:

● The teach-in process is automatically

terminated when the robotic mower

docks.

● The message "Teach-in process

successful" appears.

Direct drive home is active. If edge following is interrupted:

Edge following is interrupted by hitting obstacles or can be interrupted manually by pressing the Stop button.

Following an interruption, the teach-in process must be started again from the docking station.

● The message "Cancel teach-in - Teach-

in failed" appears.

● A query is displayed asking whether the

edge following should be cancelled.

If the response is No, the robotic mower

automatically travels along the

perimeter wire to the docking station.

The teach-in run must be started again

for successful mapping.

If the response is Yes, carry the

machine to the docking station.

● A query is displayed asking whether the

teach-in process should be repeated.

● If the response is Yes, place the robotic

mower in the docking station, confirm

with OK and close the flap. The teach-in

process starts again.

The mowing area map must be created again if the perimeter wire routing is adjusted.

0478 131 9265 C - EN

If the "Test edge" step of initial installation is carried out without interruption, a map of the mowing area is already created automatically in the background.

11.16 Safety

1. Disab. device

2. Level

3. GPS protect.

4. Change PIN code

5. Start signal

6. Menu signal

7. Keylock

8. Link iMOW® and dock

1. Disab. device:

The disabling device is activated with OK; the robotic mower can no longer be operated. The robotic mower must be disabled prior to any maintenance or cleaning work, prior to transportation and prior to inspection. (Ö 5.2)

● To deactivate the disabling device,

press the illustrated button combination.

2. Level: Four safety levels can be set; various locks and safety devices are activated, depending on the level.

– None:

The robotic mower is unprotected.

– Low:

The PIN request is active; a PIN code must be entered in order to link the robotic mower and docking station, and to reset the machine to the default settings.

– Medium:

As "Low", but the time lock is also active.

– High:

Entry of a PIN code is always required.

STIHL recommends that one of the safety levels "Low", "Medium" or "High" be set.

● Select the required level and confirm

with OK; enter the 4-digit PIN code if necessary.

PIN request: If the mower is tilted for longer than 10 seconds, the PIN request appears. If the PIN code is not entered within one minute, an alarm sounds and automatic mowing is switched off. Connection lock: PIN code request prior to linking the robotic mower and docking station. Reset lock: PIN code request prior to resetting the machine to the factory defaults. Time lock: PIN code request for changing a setting if no PIN code has been entered for more than one month. Setting prot.: PIN code request when settings are changed.

3. GPS protect.:

For switching position monitoring on and off. (Ö 5.9)

Recommendation:

Always switch on GPS protection. Before switching on, enter the mobile phone number of the owner in the app (Ö 10.) and set the safety level "Low", "Medium" or "High" on the robotic mower.

4. Change PIN code:

The 4-digit PIN code can be changed if required.

The "Change PIN code" menu item is only displayed in the safety levels "Low", "Medium" or "High".

● First enter the old PIN code and confirm

with OK.

● Then enter the new 4-digit PIN code

and confirm with OK.

STIHL recommends writing down the new PIN code. If the PIN code is entered incorrectly five times, a 4-digit master code is required, and automatic mowing is also switched off.

To create the master code, contact your STIHL specialist dealer or contact iMOW® Support directly at support@imow.stihl.com. Please provide the 9-digit serial number and the 4-digit date, which are shown on the iMOW® display.

5. Start signal:

For switching on and off the acoustic signal that sounds when the mowing blade is activated.

6. Menu signal:

For switching on and off the acoustic click that sounds when a menu is opened and a selection is confirmed with OK.

ENES

PTSLSKCS

0478 131 9265 C - EN

7. Keylock:

When the keylock is switched on, the buttons on the display can only be operated if the Back button is pressed and held and the control pad is then pressed forwards. The keylock is activated 2 minutes after the last button has been pressed.

8. Link iMOW® and dock:

Following initial operation, the robotic mower can only be operated in conjunction with the docking station installed. Following a replacement of the docking station or of electronic components in the robotic mower or for initial operation of the robotic mower on an additional mowing area using a different docking station, the robotic mower and docking station must be linked.

● Install the docking station and connect

the perimeter wire. (Ö 9.8), (Ö 9.10)

L i f t

t h e

r o b o t ic mower slightly by the carrying handle (1) to relieve the weight on the drive wheels. Push the machine, resting on its front wheels, into the docking station.

● After pressing the OK button,

enter the PIN code. The robotic mower will then search for the wire signal and save it automatically. This process takes several minutes. (Ö 9.11)

No PIN code is required in the safety level "None".

11.17 Service

1. Blade change:

Installation of a new mowing blade is confirmed with OK. The counter is reset.

2. Find wire break:

If the red LED on the docking station flashes rapidly, there is a break in the perimeter wire. (Ö 13.1)

● Finding a wire break (Ö 16.7)

3. Hibernation:

OK places the robotic mower in hibernation. The settings are kept, the time and date are reset.

● Charge the battery fully before

hibernation.

● When resuming operation, wake up the

machine by pressing any button.

4. Reset settings:

The robotic mower is reset to the factory defaults with OK, the installation assistant is restarted. (Ö 9.6)

● Enter the PIN code after pressing

the OK button.

No PIN code is required in the safety level "None".

11.18 Information

1. Messages:

List of all active errors, faults and recommendations; shown together with the times of occurrence. During trouble-free operation, the text "No messages" appears. The message details are displayed by pressing the OK button. (Ö 24.)

2. Events:

List of the last activities of the robotic mower. Details of the events (additional text, time and code) can be displayed by pressing the OK button.

If certain activities occur too frequently, detailed information is available from your specialist dealer. Errors during normal operation are documented in the messages.

3. iMOW® status:

Information on the robotic mower

– Charge state:

Battery charge in percent – Rem. time:

The remaining mowing duration during

the current week in hours and minutes

0478 131 9265 C - EN

– Date and time – Start time:

Start of the next planned mowing operation

– Total number of completed mowing

operations

– Mowing hours:

Duration of all completed mowing operations in hours

– Distance:

Total distance covered in metres

– Ser.-No.:

Serial number of the robotic mower. This can also be found on the identification plate (see Machine overview). (Ö 3.1)

–Battery:

Serial number of the battery

– Software:

Installed machine software

4. Lawn status:

Information on the lawn – Mowing area in square metres:

This value is entered during initial installation or new installation. (Ö 9.13)

– Round time:

Duration of one circuit around the mowing area in minutes and seconds

– Starting points 1 – 4:

Distance of the relevant starting point from the docking station in metres, measured in a clockwise direction. (Ö 11.14)

– Circumference:

Circumference of the mowing area in metres

– Edge mowing:

Frequency of edge mowing per week (Ö 11.13)

5. Radio module status:

Information on the radio module – Satellites:

Number of satellites within range

– Position:

Current position of the robotic mower; available if the satellite connection is strong enough

– Signal strength:

Signal strength of the mobile radio connection; the more plus characters shown (max. "++++"), the better the connection.

–Network:

Network ID, comprising country code (MCC) and provider code (MNC)

– Mobile phone number:

Mobile phone number of the owner; is entered in the app. (Ö 10.)

–IMEI:

Hardware number of the radio module

–IMSI:

International mobile subscriber identity

–SW:

Software version of the radio module

– Ser.-No.:

Serial number of the radio module

– Modem SN:

Serial number of the modem

12. Perimeter wire

Before routing the

perimeter wire, particularly prior to initial installation, read the entire section and plan the wire routing in detail.

Perform initial installation using the installation assistant. (Ö 9.)

Should you require support, your STIHL specialist dealer will be pleased to assist you with preparation of the mowing area and installation of the perimeter wire.

Check the installation of the perimeter wire before it is finally secured in place. (Ö 9.) Adjustments to the wire routing are generally necessary in the vicinity of corridors, confined areas or no-go areas.

Deviations can occur – if the technical limits of the robotic

mower are reached, for example with

very long corridors or when routing the

perimeter wire in the vicinity of metal

objects or above metal under the lawn

(e.g. water pipes and power supply

lines), – if the mowing area is structurally altered

for using the robotic mower.

ENES

PTSLSKCS

0478 131 9265 C - EN

The wire clearances specified in this instruction manual are adapted to the routing of the perimeter wire on the lawn area.

The perimeter wire can also be buried up to a depth of 10 cm (e.g. using a cable-laying machine).

Burial in the ground generally influences signal reception, particularly if flagstones or paving stones are laid over the perimeter wire. The robotic mower may travel along at a greater offset to the perimeter wire, requiring more space in corridors, confined areas and when travelling along edges. Adapt the wire routing if necessary.

12.1 Planning routing of the perimeter wire

Study the installation examples at the end of this instruction manual. (Ö 27.) Include no-go areas, corridors, secondary areas, guide loops and reserve wire during routing of the perimeter wire in order to prevent subsequent corrections.

● Determine the location of the docking

station.(Ö 9.1)

● Either remove obstacles from the

mowing area, or include no-go areas. (Ö 12.9)

● Perimeter wire:

The perimeter wire must be routed in a continuous loop around the entire mowing area. Maximum length:

500 m

For small mowing areas with a wire length of less than 80 m, the AKM 100 supplied must be installed together with the perimeter wire. (Ö 9.9)

● Corridors and secondary areas:

For automatic mowing, join all parts of the mowing area by means of corridors.(Ö 12.11) If there is insufficient space to do so, secondary areas must be installed. (Ö 12.10)

● Observe the clearances when routing

the perimeter wire (Ö 12.5): for adjoining areas that can be travelled on (stepped area height of less than +/-

1 cm, e.g. paths): 0cm

for corridors: 22 cm for high obstacles (e.g. walls, trees):

28 cm

minimum wire clearance in confined areas: 44 cm or water features and potential sudden drops (edges, steps): 100 cm

● Corners:

Avoid routing at acute angles (less than 90°).

● Guide loops:

If offset drive home (passage) is to be used, guide loops must be installed for corridors or for the external docking station. (Ö 12.12)

● Reserve wire:

Reserve wire should be installed at several points to make it easier to subsequently change the routing of the perimeter wire. (Ö 12.15)

Mowing areas must not overlap. Maintain a minimum clearance of ≥ 1m between the perimeter wires of two mowing areas.

Coiled up residual pieces of perimeter wire can cause malfunctions and must be removed.

12.2 Making a sketch of the mowing area

During installation of the robotic mower and docking station, it is recommended to make a sketch of the mowing area. A page has been provided at the start of this instruction manual for this purpose. The sketch should be modified in the event of subsequent changes.

Content of the sketch: – Contour of the mowing area including

important obstacles, borders and any

no-go areas which the robotic mower

must not mow. (Ö 27.) – Position of the docking station (Ö 9.8) – Position of the perimeter wire

After a short while, the perimeter wire is

overgrown and is no longer visible.

Make a note of the routing of the wire

around obstacles in particular. (Ö 9.9)

0478 131 9265 C - EN

– Position of the wire connectors

After a short while, the wire connectors used are no longer visible. Their position should be noted in order to replace them as required. (Ö 12.16)

12.5 Wire clearances – use iMOW® Ruler

ENES

12.3 Routing the perimeter wire

Only use genuine fixing pins and genuine perimeter wire. Installation kits with the necessary installation material are available as an accessory from the STIHL specialist dealer. (Ö 18.)

The routing direction (clockwise or counterclockwise) is freely selectable according to requirements.

Never pull out fixing pins using the perimeter wire – always use a suitable tool (e.g. universal pliers).

Make a sketch of the perimeter wire routing. (Ö 12.2)

● Install the docking station. (Ö 9.8)

● Route the perimeter wire around the

mowing area and any obstacles beginning at the docking station (Ö 12.9) and fasten it to the ground using fixing pins. Check the clearances using the iMOW® Ruler. (Ö 12.5) Follow the instructions in the "Initial installation" section. (Ö 9.9)

● Connect the perimeter wire. (Ö 9.10)

Note:

Avoid excessive tensile stress on the perimeter wire to prevent wire breaks. In particular when using a wire routing machine, make sure that the perimeter wire unwinds loosely from the spool.

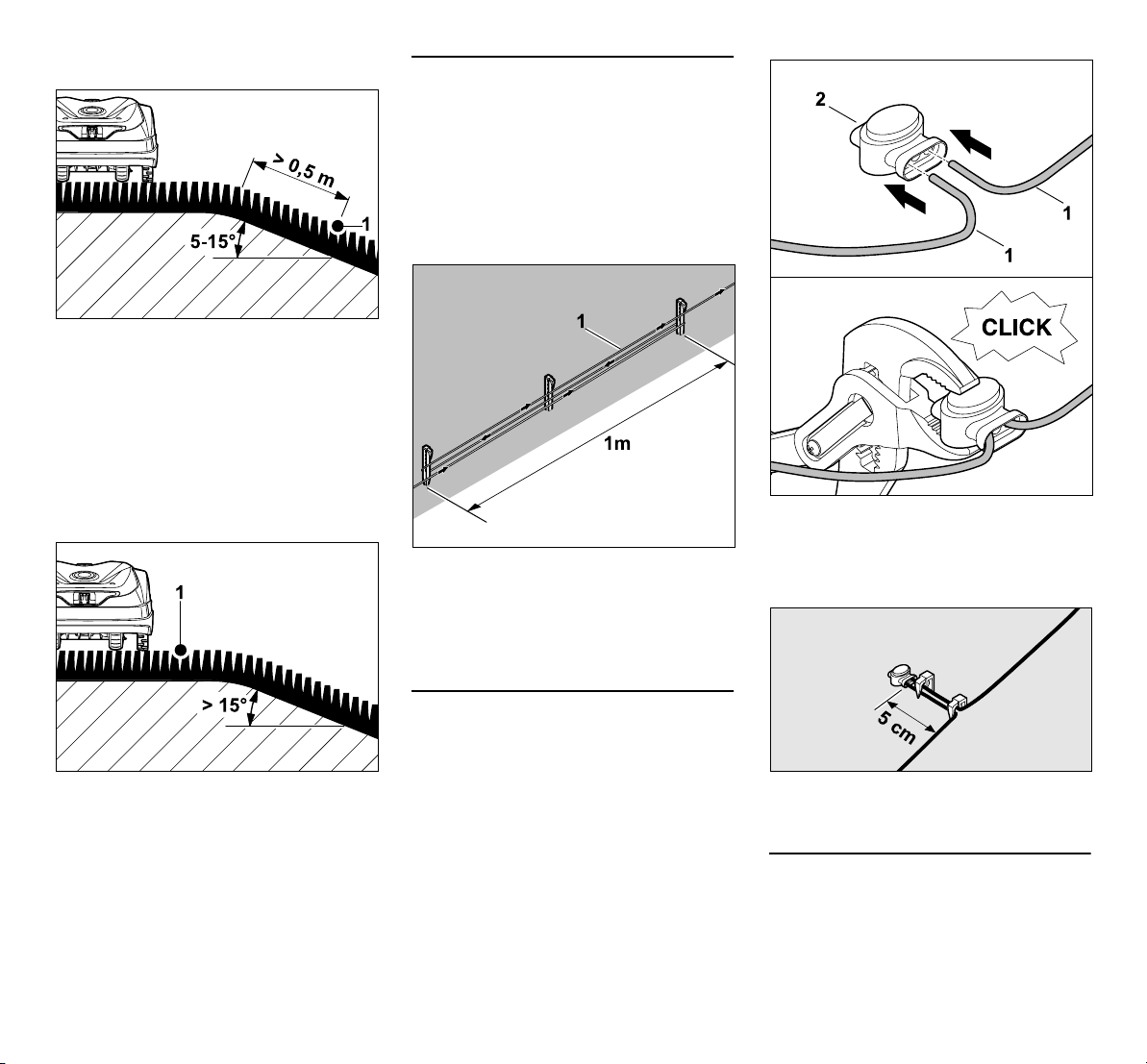

The perimeter wire (1) is routed above ground and attached with additional fixing pins (2) in case of unevenness. This prevents the wire being cut by the mowing blade.

12.4 Connecting the perimeter wire

● Disconnect the mains plug

and then remove the docking station cover.

● Insert the perimeter wire into the cable

guides of the floor plate, guide it through the socket, strip the ends and connect to the docking station. Follow the instructions in the "Initial installation" section. (Ö 9.10)

● Install the docking station

cover and then connect the mains plug.

● Check the wire signal. (Ö 9.11)

● Check docking. (Ö 15.6)

If necessary, correct the position of the perimeter wire in the area of the docking station.

PTSLSKCS

The perimeter wire (1) can be routed without clearance along obstacles that can be travelled on such as patios and paths. The robotic mower then travels with one rear wheel outside the mowing area. Maximum stepped area to the turf: +/-

1cm

Take care not to damage the perimeter wire when tending to the lawn edge. If necessary, install the perimeter wire at a slight distance (28 cm) from the lawn edge.

Measuring wire clearances with the iMOW® Ruler:

To ensure the correct clearance from the perimeter wire to the edge of the lawn and to obstacles, the iMOW® Ruler should be used for measuring the distances.

High obstacle:

Clearance between a high obstacle and the perimeter wire.

0478 131 9265 C - EN

12.6 Acute corners

The robotic mower must run completely within the mowing area and must not touch the obstacle.

Through the clearance of 28 cm, the robotic mower travels along the perimeter wire without bumping into the obstacle in the corner around a high obstacle.

Wire routing around high obstacles:

When routing around high obstacles (1) such as wall corners or high flowerbeds, the wire clearance must be maintained at the corners to prevent the robotic mower from scraping against the obstacle. Route the perimeter wire (2) with the aid of the iMOW® Ruler (3) as illustrated.

Wire clearance: 28 cm

When routing the perimeter wire (1) at an internal corner at a high obstacle, measure the wire clearance with the iMOW® Ruler (2).

Wire clearance: 28 cm Measuring the height of obstacles:

The robotic mower can cross adjoining areas such as paths if the height of the stepped area is less than +/- 1 cm.

Height difference to obstacle that can be travelled on (1) is less than +/- 1 cm: route the perimeter wire (2) without clearance to the obstacle.

If necessary, set the cutting height so that the mowing deck of the robotic mower does not hit the obstacles. If the lowest cutting height is set, the robotic mower can consequently only clear lower stepped areas than specified.

The perimeter wire is routed as illustrated in acutely angled lawn corners (45° - 90°). The two angles must have a clearance of at least 28 cm so that the robotic mower can follow the edge.

Corners smaller than 45° should not be included in the wire routing.

12.7 Confined areas

If confined areas are to be installed, switch off offset drive home (passage) (Ö 11.13) or install guide loops. (Ö 12.12)

The robotic mower travels automatically in all confined areas, provided the minimum wire clearance is maintained. Narrower areas of the mowing area must be blocked off through appropriate routing of the perimeter wire.

If two mowing areas are linked via a narrow passage that can be travelled on, a corridor can be installed. (Ö 12.11)

0478 131 9265 C - EN

The minimum wire clearance is 44 cm. This results in the following space

requirements in confined areas: – between high obstacles with a height

+/- 1 cm, such as walls 100 cm,

– between adjoining areas that can be

travelled on with a stepped area height of less than +/- 1 cm, such as paths 44 cm.

STIHL recommends laying linking sections together with the relevant no-go areas or secondary areas during wire routing.

In the case of retrospective installation, the wire loop must be cut and linking sections must then be integrated using the wire connectors supplied. (Ö 12.16)

– around obstacles that are too low.

Minimum height: 8 cm STIHL recommends

● blocking off obstacles by means of no-

go areas or removing them,

● checking no-go areas after initial

installation or after changes to the wire

installation using the "Test edge"

command. (Ö 11.13) Clearance for routing the perimeter wire

around a no-go area: 28 cm

ENES

PTSLSKCS

12.8 Installing linking sections

The robotic mower ignores the perimeter wire signal if the wires are routed parallel and close together. Linking sections must be installed

– where secondary areas are to be

installed. (Ö 12.10)

– where no-go areas are necessary.

(Ö 12.9)

0478 131 9265 C - EN

In linking sections, the perimeter wire (1) must be routed parallel, the wires must not cross and must be close to one another. Attach the linking section to the ground with a sufficient number of fixing pins (2).

12.9 No-go areas

No-go areas have to be installed – around obstacles that the robotic

mower must not touch,

– around obstacles that are not

sufficiently sturdy,

The robotic mower travels along the perimeter wire (1) around the obstacle (2) without bumping into it.

To guarantee robust operation, no-go areas should be more or less round and not oval, angular or inwardly curved.

No-go areas must have a minimum diameter of 56 cm. The clearance to the edge loop (X) must be greater than 44 cm.

Recommendation:

No-go areas should have a maximum diameter of 2 - 3 m.

In order for docking to take place smoothly, no no-go area must be installed within a radius of at least 2m around the docking station (1).

Route the perimeter wire (1) from the edge to the obstacle with the correct clearance around the obstacle (2) and attach it to the ground with a sufficient number of fixing pins (3). Then route the perimeter wire back to the edge again.

The perimeter wire must be routed parallel in a linking section. It is important to observe the routing direction around the no-go area (Ö 12.8)

12.10 Secondary areas

Secondary areas are parts of the mowing area that cannot be mown fully automatically by the robotic mower because access is not possible. In this manner, several separate mowing areas can be surrounded with a single perimeter wire. The robotic mower must be manually taken from one mowing area to another. The mowing operation is initiated via the "Start" menu (Ö 11.5).

The docking station (1) is installed in the mowing area A, which is cut fully automatically in accordance with the mowing plan. The secondary areas B and C are connected to the mowing area A via the linking sections (2). The perimeter wire must be routed in the same direction in all areas – do not cross perimeter wires in the linking areas.

● Activate secondary areas in the "More –

Settings – Installation" menu. (Ö 11.13)

12.11 Corridors

If several mowing areas have to be mown (e.g. mowing areas in front of and behind the house), these can be linked by installing a corridor. This allows all the mowing areas to be mown automatically.

0478 131 9265 C - EN

In corridors, the lawn is only mown along the path of the perimeter wire. If necessary, activate automatic edge mowing or mow the corridor area manually on a regular basis. (Ö 11.13)

If corridors are to be installed, switch off offset drive home (passage) (Ö 11.13) or install guide loops. (Ö 12.12)

The specified wire clearances and the corridor template are adapted to the routing of the perimeter wire on the lawn area. The dimensions will deviate if the perimeter wire is routed very deeply, e.g. under stone paving. Check the function and adapt the wire routing if necessary.

Requirements: – Minimum width is 88 cm between solid

obstacles in the corridor area and 22 cm between paths that can be travelled on.

In longer corridors, a slightly increased space requirement should be taken into account depending on the ground conditions. Longer corridors should always be installed as centrally as possible between obstacles.

– The corridor can be travelled on freely. – At least 1 starting point must be

defined in the area of the second mowing area. (Ö 11.14)

The docking station (1) is installed in mowing area A. Mowing area B is linked to mowing area A by means of a corridor (2). The perimeter wire (3) can be continuously followed by the robotic mower. In order to mow mowing area B, starting points (4) must be defined. (Ö 11.14) Individual mowing operations can then be started at the starting points, depending on the setting (starting frequency).

Installing the start and end of the corridor:

The perimeter wire (1) must be routed in a funnel shape as illustrated at the start and end of a corridor. This prevents the robotic mower from accidentally driving into the corridor during mowing.

The dimensions are very much dependent on the environment and the terrain. For corridors with a funnel-shaped start or end, always check whether the robotic mower can pass through it.

Route the perimeter wire roughly one device length to the left and right of the corridor entrance.

ENES

PTSLSKCS

0478 131 9265 C - EN

Use the corridor template supplied (I) for installing the funnel-shaped entrance and exit areas.

Installing the corridor:

– between paths/obstacles that can be

travelled on (less than 1 cm in height – e.g. paths): 22 cm.

In corridors, the perimeter wire (1) must be routed parallel and attached to the ground with a sufficient number of fixing pins (2). At the start and end of the corridor, funnelshaped entrance and exit areas must be installed.

Function: When the robotic mower follows the perimeter wire offset at a distance, it crosses one of these guide loops during the drive home. It then travels to the perimeter wire and on to the docking station.

Guide loops with an external docking station:

To the right and left of the access to the external docking station, two guide loops (1) have to be installed at an angle of 90° to the perimeter wire. Minimum clearance to access: 2m

Guide loops with corridors:

Wire clearance in corridors: 22 cm This results in the following space

requirements: – between high obstacles (over 1 cm in

height – e.g. walls): 88 cm,

12.12 Guide loops for offset drive home

If offset drive home is activated, guide loops must be provided

– if an external docking station has been

installed or – if there are corridors or confined areas

in the mowing area.

0478 131 9265 C - EN

To the right and left of the corridor access, two guide loops (1) have to be installed at an angle of 90° to the perimeter wire. These must always be located in the part of the mowing area that can only be accessed via a corridor. Minimum clearance to corridor access:

If several consecutive corridors are installed, guide loops must be installed in each of the relevant mowing areas.

Installation of a guide loop:

Guide loops must not be installed in the vicinity of corners. Minimum clearance to corners: 2m

Install the guide loop in the mowing area as shown. The perimeter wire (1) must be fastened to the ground with two fixing pins at the edge A and must not be crossed. Minimum length: 100 cm Wire routing pin to pin B.

● Attach the guide loop to the ground with

a sufficient number of fixing pins.

12.13 Accurate mowing along edges

A strip with a width of up to 26 cm is left unmown along high obstacles. If necessary, edging stones can be laid around high obstacles.

Minimum width of edging stones:

ENES

PTSLSKCS

Route the perimeter wire at a clearance of 28 cm to the obstacle. To ensure that the lawn edge is mown completely, the edging stones must have a width of at least 26 cm. If wider edging stones are laid, the lawn edge is cut even more precisely.

12.14 Sloping terrain along the perimeter wire

Note:

For a robust installation, it is recommended to route the perimeter wire on a maximum slope of 10° (17 %). The wire can be routed on a slope of 15° (27 %), however this can significantly increase the effort and level of adjustment involved in routing the wire. Slopes should also always be noted in garden sketches.

In order for the robotic mower to automatically mow a slope in the mowing area (incline up to 15°) without any trouble, the perimeter wire must be installed in the slope with a minimum clearance to the edge of the incline.

A clearance of at least 100 cm must be observed for water features and sudden drops like edges and steps.

0478 131 9265 C - EN

Slope with an incline of 5° - 15°:

If there is a slope with an incline of 5° - 15° in the mowing area, the perimeter wire can be routed below the top edge of the slope in the slope as illustrated. The minimum clearance (0,5 m) from the top edge of the slope to the perimeter wire must be taken into account for trouble-free operation of the robotic mower.

Slope with an incline > 15°:

12.15 Installing reserve wire

Reserve wire installed at regular intervals makes it easier to make any necessary corrections such as subsequently changing the position of the docking station or the routing of the perimeter wire. In particular, reserve wire should be installed near difficult passages.

Route perimeter wire (1) as illustrated between 2 fixing pins spaced approx. 1 m apart. Attach the reserve wire to the ground in the centre using a further fixing pin.

Insert loose, unstripped wire ends (1) to the stop in the wire connector (2). Press the wire connector together using suitable pliers – ensure correct engagement.

If there is a slope with an incline > 15° on which a perimeter wire is to be installed in the mowing area, it is recommended that the perimeter wire (1) be routed in the flat area before the top edge of the slope. The top edge and area of the slope are not mown.

12.16 Using wire connectors

In order to extend the perimeter wire or to connect loose wire ends, only the gel-filled wire connectors available as accessories may be used. They prevent premature wear (e.g. corrosion of the wire ends) and ensure optimal connections.

Make a note of the positions of the wire connectors on the sketch of the mowing area. (Ö 12.2)

Attach the perimeter wire strain relief to the ground with two fixing pins as illustrated.

12.17 Narrow edge clearances

It is possible to reduce the wire clearance to a high obstacle to 22 cm on a straight section (not at corners). This will result in a

0478 131 9265 C - EN

larger mown area. Sufficient clearance (at least 5 cm) between the robotic mower and obstacles must be ensured for edge following (Ö 9.12), (Ö 11.13). If necessary, increase the wire clearance to the obstacles.

Narrow edge clearances should always be noted in the garden sketch. (Ö 12.2)

Narrow edge clearances at the internal corner:

Route the perimeter wire (1) as illustrated at the internal corner. Use the iMOW® Ruler (2).

Narrow edge clearances at the external corner:

Route the perimeter wire (1) as illustrated at the external corner. Use the iMOW® Ruler (2).

13. Docking station

13.1 Docking station controls

A circular red LED (1) provides information on the status of the docking station and the wire signal.

Function button (2):

– Switching docking station on and off – Activating Homecall – Activating find wire break

LED does not illuminate:

– Docking station and wire signal are

switched off.

LED illuminates continuously:

– Docking station and wire signal are

switched on.

– Robotic mower is not docked.

LED flashes slowly (2 seconds on – briefly off):

– Robotic mower is docked, battery is

charging if required.

– Docking station and wire signal are

switched on.

LED flashes rapidly:

– Perimeter wire is interrupted – wire

break or wire is not correctly connected to the docking station.(Ö 16.6)

LED illuminates for 3 seconds, followed by 1 second pause:

– Homecall was activated.

LED gives 3 short flashes, 3 long flashes, 3 short flashes, followed by approx. 5 second pause (SOS signal):

– Error in the docking station.

Switching the docking station on and off:

The docking station is switched on and off automatically during automatic operation.

ENES

PTSLSKCS

0478 131 9265 C - EN

If the robotic mower is not docked, briefly pressing the button activates the docking station. The wire signal remains active for 48 hours if the robotic mower has not previously docked.

Pressing the button for 2 seconds switches off the docking station.

Activating Homecall:

Briefly press the button twice within 2 seconds during a mowing operation. The robotic mower ends the running mowing operation, searches for the perimeter wire and returns to the docking station to recharge the battery. No further mowing operation takes place in the current active time.

Homecall remains active until the robotic mower is docked. Homecall can also be ended by pressing the button on the docking station twice again.

14. Notes on mowing

14.1 General

The robotic mower is designed for the automatic mowing of lawns. The grass is kept short through continuous mowing. The result is a perfect, thick lawn.

Lawns that have not previously been mown using a conventional lawn mower will only be mown neatly following several mowing operations. Especially in the case of high grass, a good cutting pattern is only achieved after a few mowing operations.

In hot, dry conditions, the lawn should not be kept too short as it will otherwise be burnt by the sun and become unsightly.

The cutting pattern will be better with a sharp blade than with a blunt one; the blade should therefore be replaced regularly.

14.2 Mulching

The robotic mower is a mulching mower. During mulching, the grass clippings are

further shredded in the mowing deck housing after cutting. They then fall back into the turf, where they remain and decompose.

The finely shredded clippings return organic nutrients to the lawn, serving as a natural fertiliser. Fertiliser requirements are thereby reduced significantly.

14.3 Active times

In the mow plan type "Standard", the robotic mower mows throughout the entire active time, only interrupted by charging operations.

In the mow plan type "Dynamic", the robotic mower is allowed to leave the docking station at any time during the active times and mow the lawn. During these times, mowing operations, charging operations and rest periods take place. The robotic mower automatically distributes the mowing and charging operations between the available time windows.

During installation, active times are automatically distributed over the entire week. Time reserves are taken into account – this ensures perfect lawn care, even if individual mowing operations cannot take place, (e.g. due to rain).

During the active times, third parties must keep out of the danger area. The active times should be adapted accordingly. Moreover, the applicable local regulations on the use of robotic mowers as well as the information in the "For your safety" section (Ö 6.1) must be observed and the active times changed accordingly in the "Mowing plan" menu as required. (Ö 11. 7) In particular, you should check the times of the day and night at which it is permissible to use the machine with the responsible authorities.

14.4 Mowing duration

The mowing duration specifies how many hours per week the lawn is to be mown. It can be extended or reduced. (Ö 11.7)

The mowing duration corresponds to the time during which the robotic mower mows the lawn. Times during which the battery is charged are not part of the mowing duration.

During initial installation, the robotic mower automatically calculates the mowing duration based on the specified size of the mowing area. This reference value is based on a normal lawn under dry conditions.

Mowing performance:

For 100 m

, the robotic mower needs on

average 100 minutes.

0478 131 9265 C - EN

14.5 Home area

The robotic mower identifies its location using the built-in GPS receiver. During each edge following run to check the correct wire routing (Ö 9.12) and when learning the starting points (Ö 11.14), the robotic mower stores the coordinates of the most westerly, easterly, southerly and northerly point.

This area is defined as the home area and the robotic mower can be used here. The coordinates are updated each time edge following is repeated.

When GPS protection is activated, the owner of the machine is notified if the machine is operated outside the home area. The PIN code is also requested on the robotic mower display.

15. Operating the machine

15.1 Preparation

An installation assistant is available for initial installation. (Ö 9.)

The robotic mower should be charged and operated at an ambient temperature between +5°C and +40°C.

● Install the docking station (Ö 9.8)

● Route (Ö 9.9) and connect (Ö 9.10) the

perimeter wire

● Remove foreign bodies (e.g. toys,

tools) from the mowing area

● Charge the battery (Ö 15.7)

● Set the time and date (Ö 11.10)

● Check the mowing plan and adapt if

necessary – in particular it must be

ensured that third parties keep away

from the danger area during active

times. (Ö 11.7)

Cut very high grass short using a conventional lawn mower prior to use of the robotic mower (e.g. following a lengthy break).

15.2 Flap

The robotic mower is equipped with a flap which protects the display from the weather and from inadvertent operation. If the flap is opened during use of the robotic mower, operation is stopped and the mowing blade and robotic mower come to a standstill.

Opening the flap:

For safety reasons, the Stop button must be pressed before opening the flap during operation of the robotic mower.

Grasp the flap (1) at the lifting point (A) and release upwards by pulling lightly. Open the flap as far as the stop.

The opened flap can be removed upwards from the machine. This design is implemented for safety reasons: this ensures that the machine cannot be lifted and carried by the flap.

Closing the flap:

Carefully fold the flap downwards and allow to engage.

The robotic mower can only be operated when the flap is fully engaged.

15.3 Adapting the programming

The current programming can be seen in the mowing plan or in the iMOW® app. (Ö 11.7) The mowing plan is calculated based on the size of the mowing area during installation or during the creation of a new mowing plan.

The active times and the mowing duration can be changed individually. With the mow plan type Standard the robotic mower mows and charges precisely within the active times, with the mow plan type Dynamic the necessary mowing operations are automatically distributed over the possible active times. If required, several mowing or charging operations can run during an active time. If required, the edge of the mowing area can be cut automatically at regular intervals. (Ö 11.13)

Up to three different active times per day are possible. (Ö 14.3)

If the robotic mower has to travel to specific areas of the mowing area, starting points must be defined. (Ö 11.14)

ENES

PTSLSKCS

0478 131 9265 C - EN

If the mow plan type Dynamic is selected, not all the active times may be necessary for optimal lawn care under certain circumstances (e.g. warm weather or generous time window).

Changing the active times: (Ö 11.7) – Additional active times for further

mowing operations.

– Adapting the time window, e.g. to

prevent mowing during the morning or night.

– Omitting individual active times

because the mowing area is e.g. being used for a party.

Extending the mowing duration: (Ö 11.7) – There are areas which are not mown

sufficiently, e.g. because the mowing area has many corners.

– Intensive grass growth during the

growing period.

– Particularly dense lawn. Reducing the mowing duration: (Ö 11.7) – Reduced grass growth due to heat, cold

or dryness.

Creation of a new mowing plan: (Ö 11.7) – The size of the mowing area has been

changed.

New installation: (Ö 11.13) – New location of the docking station. – Initial operation on a new mowing area

15.4 Automatic mowing

● Switching on automatic

mowing:

When automatic mowing is

switched on, the Automatic

symbol appears next to the battery

symbol in the display. (Ö 11.7)

● Starting mowing operation:

With the mow plan type Standard, the

robotic mower sets off at the beginning

of each active time and mows the lawn.

With the mow plan type Dynamic, the

mowing operations are automatically

distributed between the available active

times. (Ö 14.3)

● Ending mowing operation:

When the battery is discharged, the

robotic mower automatically travels

back to the docking station. (Ö 15.6)

A running mowing operation can be

ended manually at any time using the

STOP button or the "Drive home"

menu. (Ö 5.1)

Activating Homecall on the docking

station also ends the running mowing

operation immediately. (Ö 13.1)

The mowing operation can also be

ended using the app – send the robotic

mower to the docking station. (Ö 10.)

Mowing areas that the robotic mower reaches via a corridor are only mown if starting points have been defined in the relevant area.

15.5 Mowing independently of active times

● Activate the docked robotic mower by

pressing a button. This also switches on

the docking station.

Mowing areas with docking station:

● Immediate mowing:

Call up the Start mowing command (Ö 11.5). The mowing operation starts immediately and continues until the selected time. A starting point can be selected, if available.

● Start mowing using the app. (Ö 10.)

The mowing operation starts at the selected start time and continues until the selected end time. A starting point can be selected, if available.

● Ending mowing manually:

A running mowing operation can be ended at any time using the STOP button or the "Drive home" menu (Ö 11.6). (Ö 5.1) Activating Homecall on the docking station also ends the running mowing operation immediately. (Ö 13.1) The mowing operation can also be ended using the app – send the robotic mower to the docking station. (Ö 10.)

If necessary, the robotic mower charges the battery in the interim and then continues the mowing operation until the selected end time.

Secondary areas:

● Activate the robotic mower upright in

the docking station. This also activates the docking station.

● Carry the robotic mower to the

secondary area.

● Activate the secondary area. (Ö 12.10)

0478 131 9265 C - EN

● Immediate mowing:

Call up the Start mowing command (Ö 11.5). The mowing operation starts immediately and continues until the selected time.

● Ending mowing:

When the selected end time is reached, the robotic mower travels to the perimeter wire and comes to a standstill. Return the machine to the docking station to recharge the battery and confirm the displayed message. (Ö 24.) A running mowing operation can be ended manually at any time using the STOP button. (Ö 5.1)

If the battery runs flat before the selected end time, the mowing operation is shortened accordingly.

15.6 Docking the robotic mower Docking during automatic operation:

The robotic mower automatically travels to the docking station when the active time ends or when the battery is discharged.

Forcing docking:

● If necessary, switch on the

docking station (Ö 13.1)

● Activate drive home. (Ö 11.6)

During a mowing operation, Homecall can also be activated on the docking station.

● The robotic mower can also be sent to

the docking station using the app. (Ö 10.)

After docking, no further mowing operation takes place in the current active time.

Manual docking:

● Push the robotic mower into the

docking station by hand.

Lift the robotic mower slightly by the carrying handle (1) to relieve the weight on the drive wheels. Push the machine, resting on its front wheels, into the docking station.

15.7 Charging the battery

Only charge the battery via the docking station. Never remove the battery and charge it using an external charger.

Automatic charging:

During mowing, charging occurs automatically when the robotic mower docks into the docking station at the end of the mowing operation.

Starting charging manually:

● Following use in secondary areas,

return the robotic mower to the mowing

area and dock it. (Ö 15.6)

● Dock the robotic mower following

interruption of a mowing operation. (Ö 15.6)

● If necessary, end standby mode of the

robotic mower by pressing a button. Charging starts automatically.

Charging:

During charging, the text "Charging battery" is displayed in the status screen.

A plug symbol appears instead of the battery symbol in the information area of the display in all the other menus.

The charging time varies and is automatically adapted to the subsequent period of use.

In the event of charging problems, a corresponding message appears on the display. (Ö 24.)

The battery is only charged when the voltage falls below a certain value.

Charge state:

The momentary charge state can be seen in the status screen when the relevant display is selected. (Ö 11.12)

In all other menus, the battery symbol in the information area of the display serves to indicate the charge state. (Ö 11.3)

ENES

PTSLSKCS

0478 131 9265 C - EN

If the battery charge is too low, the corresponding battery symbol appears. In this case, place the robotic mower in the docking station to recharge.

16. Maintenance

Risk of injury!

Carefully read the section "For your safety" (Ö 6.), particularly the subsection "Maintenance and repairs" (Ö 6.9), and follow all safety instructions exactly before performing any maintenance or cleaning operations on the machine.

Activate the disabling device prior to any maintenance or cleaning work. (Ö 5.2)

Disconnect the mains plug before performing any maintenance operations on the docking station.

Always wear gloves when carrying out any maintenance work, particularly when working on the mowing blade.

16.1 Maintenance schedule

The maintenance intervals are based on the operating hours among other factors. The relevant "Mowing hours" counter can be called up in the "More - Information" menu. (Ö 11.18)

The specified maintenance intervals must be strictly observed.

Maintenance operations on days with active times:

● Visually inspect the general condition of

the machine and the docking station.

● Check the display – check the current

time and the start of the next mowing

operation.

● Check the mowing area and remove

foreign bodies, etc. as required.

● Check that the battery is being charged.

(Ö 15.7)

Weekly maintenance operations:

● Clean the machine. (Ö 16.2)

● Visually inspect the mowing blade,

blade fastening and mowing deck for

damage (notches, cracks, fractures,

etc.) and wear. (Ö 16.3)

Every 200 hours:

● Replace the mowing blade. (Ö 16.3)

Annual maintenance operations:

● STIHL recommends an annual

inspection by a STIHL specialist dealer

during the winter months.

Here, maintenance of the battery,

electronics and software in particular is

performed.

In order for your specialist dealer to perform all the maintenance operations correctly, set the safety level to "None" or give your specialist dealer the appropriate PIN code.

16.2 Cleaning the machine

Treating the machine carefully will protect it against damage and extend its service life.

Cleaning and maintenance position:

Make sure that the rotary knob is properly installed before cleaning as otherwise water can get into the machine.

Place the machine on a firm, level and flat surface for cleaning the top of the machine (hood, flap). To clean the

0478 131 9265 C - EN

underside of the machine (mowing blade, mowing deck), tilt the robotic mower onto its left or right side as illustrated and lean it against a wall.

● Clean off dirt with a brush or a cloth. In

particular, clean the mower blade, the charging contacts of the robotic mower and the docking station.

● Remove accumulated clipping deposits

in the housing and in the mowing deck beforehand using a stick.

● If necessary, use a special cleaner

(e.g. STIHL special cleaner).

● Regularly remove the carrier plate and

remove grass residues. (Ö 16.6)

The carrier plate must be cleaned frequently in wet weather. Dirt deposits between the carrier plate and the mowing deck housing create friction, leading to increased power consumption.

16.3 Checking the mowing blade wear limits

Risk of injury!

A worn mowing blade may break off and cause serious injuries. The instructions for blade maintenance must therefore always be observed. Mowing blades are subject to differing degrees of wear depending on the location and duration of use. If you use the machine on sandy ground or use it frequently under dry conditions, the mowing blade will be subjected to greater loads and will wear more quickly than normal.

Replace the mowing blade at least every 200 operating hours – do not resharpen. (Ö 16.5)

● Activate the disabling device. (Ö 5.2)

● Tilt the robotic mower onto its side and

lean it securely against a stable wall.

Carefully clean the mowing deck and

mowing blade. (Ö 16.2)

ENES

PTSLSKCS

Check the blade width A and blade thickness B using a slide calliper.

If the blade width is less than 25 mm or the blade thickness is less than 1,3 mm at any point, the mowing blade must be replaced.

0478 131 9265 C - EN

16.4 Removing and installing the mowing blade

● Activate the disabling

device (Ö 5.2) and wear gloves.

● Tilt the robotic mower onto its

side and lean it securely against a stable wall. Carefully clean the mowing deck and mowing blade. (Ö 16.2)

Removing the blade:

Push in both tabs (1) on the carrier plate with one hand and hold. Remove the fastening nut (2) with your other hand. Remove the mowing blade together with the fastening nut.

Installing the mowing blade:

Risk of injury!

Check the blade for damage before installation. The blade must be replaced if notches or cracks are identified or if its width is less than 25 mm, or its thickness is less than 1,3 mm at any point. (Ö 16.3)

The carrier plate and the fastening nut must also be replaced if damaged (e.g. broken, worn). The fastening nut in particular must engage cleanly in the carrier plate.

● Clean the blade, carrier plate and

fastening nut prior to installation.

Fit the mowing blade (1) and fastening nut (2) on the carrier plate (3) as illustrated. Ensure the correct position of the retainers (4) in the mowing blade.

Screw on the fastening nut (1) as far as possible. Several clicks are audible during tightening. Ensure secure seating of the mowing blade by shaking carefully.

● Following installation of a new mowing

blade, confirm the blade replacement in the "Service" menu. (Ö 11.17)

16.5 Sharpening the mowing blade Never re-sharpen blades.

STIHL recommends always replacing a blunt blade with a new one.

Only new mowing blades are balanced with the necessary precision and guarantee proper functioning of the machine as well as low noise emissions.

16.6 Removing and installing the carrier plate

The carrier plate can be removed in order to clean the mowing deck.

● Activate the disabling

device (Ö 5.2) and wear gloves.

● Tilt the robotic mower onto its

side and lean it securely against a stable wall. Carefully clean the mowing deck and mowing blade. (Ö 16.2)

Removing the carrier plate:

● Remove the mowing blade. (Ö 16.4)

0478 131 9265 C - EN

Insert the puller (F) and turn anti-clockwise to the stop.

Support the machine with one hand. Remove the carrier plate (1) by pulling on the puller (2).

Installing the carrier plate:

Thoroughly clean the blade shaft (1) and the mounting on the carrier plate (2). Push the carrier plate as far as possible onto the blade shaft.

● Install the mowing blade. (Ö 16.4)

16.7 Finding a wire break

In the event of a wire break, the red LED on the docking station flashes rapidly. (Ö 13.1) A corresponding message appears in the display of the robotic mower.

If a wire break cannot be found as described, contact your specialist dealer.

● Before finding the wire break, the button

on the docking station must be pressed

once (LED continues to flash rapidly).

● Remove the docking station cover and

open the panel. (Ö 9.2)

ENES

PTSLSKCS

1 Fold open the left clamping lever (1). 2 Remove the wire end (2) from the

terminal block and then close the clamping lever again.

● Open the panel and fit the docking

station cover. (Ö 9.2)

The following instructions describe how to search for a wire break in a clockwise direction, i.e. the perimeter wire is followed in a clockwise direction starting at the docking station. If necessary, the search can also be carried out counterclockwise, but in this case the right wire end must be removed from the terminal block.

● In the "More - Service" menu, select the

"Find wire break" entry and confirm with OK. (Ö 11.17)

0478 131 9265 C - EN

Starting at the docking station, follow the edge of the mowing area clockwise with the robotic mower. For this purpose, lift the machine slightly by the rear carrying handle (1) to relieve the weight on the drive wheels. Push the robotic mower, supported by its front wheels, and follow the perimeter wire (2). It must be ensured that the perimeter wire (2) runs under the wire sensors. The wire sensors are installed in a protected position on the left and right at the front of the robotic mower. During the wire break search, the signal strength is indicated on the display; the wire sensors are in the ideal position above the perimeter wire when this value is at its highest.

The Wire signal OK symbol appears on the display when the wire sensors are correctly receiving the wire signal.

In the area of the wire break, the signal strength drops and the Check wire signal symbol appears on the display.

● Bridge the break with the aid of a wire

connector (Ö 12.16). If necessary, re-

route the perimeter wire in the area of

the break.

● Reconnect the left wire end. (Ö 9.10)

● Once the wire break has been correctly

rectified, the red LED illuminates.

(Ö 13.1)

16.8 Storage and winter break

Note the following points when storing the robotic mower (e.g. winter break, temporary storage):

● Charge the battery (Ö 15.7)

● Place the robotic mower in hibernation

(Ö 11.17)

● Disconnect the power supply unit plug

from the mains

● Carefully clean all external parts of the

robotic mower and the docking station

Cover the docking station with a suitable bucket, fasten the bucket in place.

● Store the robotic mower on its wheels in

a dry, closed and dust-free room. Make sure that the machine is kept out of reach of children.

● Always store the robotic mower in good

operational condition.

● Keep all screws tightly fastened,

replace danger signs and warnings on the machine that have become illegible, check the entire machine for wear and damage. Replace all worn or damaged parts.

● Any machine faults must be completely

remedied prior to storage.

Never place or store objects on the robotic mower.

The temperature in the storage room should not fall below 5°C.

Resuming operation of the robotic mower following storage for a long period:

The date and time may need to be corrected following storage for a long period. Appropriate selection windows are displayed during initial operation. If the selection windows are not automatically displayed, check the date and time in the "Settings" menu and correct if necessary. (Ö 11.10)

● Prepare the mowing area:

Remove foreign objects and cut high grass short using a conventional lawn mower.

● Uncover the docking station and

connect the power supply unit to the mains supply.

● Charge the battery (Ö 15.7)

● Link the robotic mower and docking

station. (Ö 9.11)

0478 131 9265 C - EN

● Remove obstacles and foreign bodies

in the edge area. Start edge following and check whether corridors and confined areas can be travelled on. (Ö 11.13)

● Check the mowing plan and change as

necessary. (Ö 11.7)

● Switch on automatic mowing (Ö 11.7)

● If necessary, activate Standard energy

mode (Ö 11.10) and switch on GPS protection. (Ö 5.9)

16.9 Removing the docking station

The docking station can also be removed if the robotic mower is to be stored for long periods (e.g. winter break).

● Preparing the robotic mower for storage

for a long period (Ö 16.8)

● Disconnect the power supply unit plug

from the mains

● Remove the docking station cover and

open the panel (Ö 9.2)

1 Fold open the right clamping lever (1). 2 Remove the right wire end (2) from the

terminal block. Close the clamping lever (1) again.

3 Fold open the left clamping lever (3). 4 Remove the left wire end (4) from the

terminal block. Close the clamping lever (3) again.

● Close the panel (Ö 9.2)

● Guide the right and left wire ends out of

the docking station separately from

each other

● Fit the docking station cover (Ö 9.2)

Pull out the pegs (1), remove the docking station (2) from the lawn with the power supply unit connected, clean thoroughly (with a moist cloth) and put into storage.

● Store the robotic mower together with

the docking station and the power

supply unit in the normal position and in

a dry, closed and dust-free room. Dock

the robotic mower in the docking

station. Make sure that the machine is

kept out of reach of children.

● Protect the terminals of the perimeter

wire from environmental influences (e.g. wrap with suitable insulating tape).

● Reinstall the docking station in the

same way as during initial installation – in particular connect the right and left perimeter wire ends on the correct sides. (Ö 9.10)

17. Standard spare parts

Mowing blade:

6301 702 0101

18. Accessories

– STIHL Kit S for mowing areas up to

– STIHL Kit L for mowing areas from

– Fixing pins STIHL AFN 075 – Perimeter wire STIHL ARB 501:

– Wire connectors STIHL ADV 010 Additional accessories are available for

the machine. Further information is available from your STIHL specialist dealer, on the internet (www.stihl.com) or in the STIHL catalogue.

500 m

2,000 m

Length: 500 m Diameter: 3,4 mm

– 4,000 m

For safety reasons, only accessories approved by STIHL may be used with the machine.

ENES

PTSLSKCS

0478 131 9265 C - EN

19. Minimising wear and preventing damage

Important information on maintenance and care of the product group

robotic mower, cordless (STIHL RMI)

STIHL assumes no liability for material or personal damage caused by the nonobservance of information contained in the operating instructions, in particular with regard to safety, operation and maintenance, or which arise through the use of unauthorised attachment or spare parts.

Please always observe the following important information for the prevention of damage or excessive wear to your STIHL machine:

1. Wearing parts

Some parts of the STIHL machine are subject to normal wear even when used properly and must be replaced in due time depending on type and duration of use.

These include: – Mowing blade –Battery –Tyres

2. Compliance with the information in this instruction manual

The STIHL machine must be used, maintained and stored with the care described in this instruction manual. Any damage caused by non-compliance with the safety, operating and maintenance instructions is the sole responsibility of the user.

This applies in particular to:

– Incorrect handling of the battery

(charging, storage) – Incorrect electrical connection (voltage) – Product modifications not approved by

STIHL – Use of tools or accessories which are

not approved or suitable for the

machine, or are of inferior quality – Improper use of the product – Use of the product for sporting or

competitive events – Resultant damage due to continued use

of the product with defective

components.

3. Maintenance operations

All operations listed in the section "Maintenance" must be performed regularly.

If these maintenance operations cannot be carried out by the user, a specialist dealer must be commissioned to perform them.

STIHL recommends that you have maintenance operations and repairs performed exclusively by a STIHL specialist dealer.

STIHL specialist dealers regularly attend training courses and are provided with technical information.

If these operations are neglected, faults may arise which are the responsibility of the user.

These include: – damage to the machine as a result of

inadequate or incorrect cleaning, – corrosive and other resultant damage

caused by incorrect storage,

– damage to the machine through the use

of inferior-quality spare parts,

– damage due to untimely or inadequate

maintenance or damage due to maintenance or repair work not performed in the workshops of specialist dealers.

20. Environmental protection

The machine, its packaging and accessories are all produced from recyclable materials and must be disposed of accordingly.

By disposing of materials separately, and in an environmentally friendly manner, valuable resources can be re-used. For this reason, the machine should be disposed of for recycling at the end of its useful life. Pay particular attention to the information in the "Disposal" section during disposal. (Ö 6.11)

Waste products such as batteries must always be disposed of properly. Observe local regulations.

Do not dispose of lithium-ion batteries with domestic waste. Please hand them in to a specialist dealer or at a hazardous waste collection

point.

20.1 Removing the battery

● Activate the disabling device. (Ö 5.2)

● Open the flap. (Ö 15.2)

0478 131 9265 C - EN

Remove the rotary knob (1) upwards.

Unscrew the screws (1) and remove.

Risk of injury!

Do not cut cables at the battery. Risk of short circuit! Always disconnect the cables and remove together with the battery.

ENES

PTSLSKCS

Remove the screws (1) from the cover (2). Remove the cover (2) upwards.

0478 131 9265 C - EN

Detach the connector (1) (battery).

Fold the upper housing (1) rearwards.

Remove cable (1) and cable (2) from the cable guides and remove the battery (3).

Risk of injury!

Prevent damage to the battery.

21. Transport

Risk of injury!

Before transporting, carefully read the section "For your safety" (Ö 6.), particularly the subsection "Transporting the machine" (Ö 6.5), and follow all safety instructions – always activate the disabling device. (Ö 5.2)

21.1 Lifting or carrying the machine

Lift and carry the robotic mower at the front carrying handle (1) and at the rear carrying handle (2). Ensure that the mowing blade always faces away from your body and that there is sufficient distance between the mowing blade and body, particularly the feet and legs.

21.2 Securing the machine (lashing)

Secure the robotic mower on the load floor. Fasten the machine as illustrated using suitable fastening materials (straps, ropes) for this purpose.

Secure any other machine components being transported (e.g. docking station, small components) against slipping.

22. Declaration of conformity

22.1 EU declaration of conformity – Cordless, electric robotic mower (RMI) with docking station (ADO)

Manufactured by: STIHL Tirol GmbH

Hans Peter Stihl-Strasse 5 6336 Langkampfen Austria

ANDREAS STIHL AG & Co. KG declares under our sole responsibility that

0478 131 9265 C - EN

design: Lawn mower,

automatic and cordless

manufacturer's

STIHL

brand: type: RMI 522.0 C serial number: 6305

design: Docking station manufacturer's

STIHL

brand: type: ADO 500

Firmware V 2.00

serial number: 6301 complies with the relevant provisions of

Directives 2006/42/EC, 2011/65/EU, 2006/66/EC, 2014/53/EU and has been developed and manufactured in accordance with the versions of the following standards valid on the date of manufacture: EN 50636-2-107, EN 60335-1 Ed 5, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3

ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-19 V2.1.1 ETSI EN 301 489-52 V2.1.1 ETSI EN 301 511 V 12.5.1 ETSI EN 301 908-1 V13.1.1 ETSI EN 301 908-13 V13.1.1 ETSI EN 303 413 V1.1.1 ETSI EN 303 447 V1.2.0 The notified body TÜV Rheinland LGA

Products GmbH, No. 0197, has reviewed the conformity according to Annex III Module B of the Directive 2014/53/EU and

issued the following EU type examination certificate: RT 60154540 0001

Storage of technical documentation: Andreas STIHL AG & Co. KG Product approval

The year of manufacture and machine number (serial number) are indicated on the machine.

Waiblingen, 02.11.2020 ANDREAS STIHL AG & Co. KG p.p.

Dr. Jürgen Hoffmann, Head of Product Data, Product Regulations and Approval

22.2 UKCA-Declaration of Conformity STIHL RMI 522.0 C Cordless, Electric Robotic Mower

Hereby, Andreas Stihl AG & Co. KG declares that the radio equipment type STIHL RMI 522.0 C is in compliance with the relevant statutory requirements.The full text of the declaration of conformity is available at the following internet address: www.stihl.com/conformity.

23. Technical specifications

Serial number 6305 Mowing system Mulching mow-

ing deck Cutting utilities Cutter bar Cutting width 20 cm Speed of cutting

utilities 4450 rpm Battery type Lithium-ion Battery voltage U

Cutting height 20 - 60 mm Protection class III Type of protection IPX4 In accordance with EN 50636-2-107: Sound pressure level

Uncertainty K

In accordance with 2000/14/EG / S.I. 2001/1701:

Measured sound power level L

Uncertainty K L

WA+KWA

Length 60 cm Width 43 cm Height 27 cm

Power 60 W Battery designation AAI 100 Battery capacity 4,9 Ah Weight 9,7 kg

Mobile radio:

Supported frequency bands

18,0 V

52 dB(A)

2 dB(A)

60 dB(A)

2 dB(A)

62 dB(A)

E-GSM-900 and

DCS-1800

ENES

PTSLSKCS

0478 131 9265 C - EN

Radiated maximum transmitting power:

E-GSM-900 880 - 915 MHz:

33.0 dBm

DCS-1800 1710 -

1785 MHz:

30.0 dBm

LTE-CAT-M1 698 - 960 MHz:

23 dBm

LTE-CAT-M1 1710 -

2170 MHz: 23 dBm

Docking station ADO 500:

Voltage U

27 V Protection class III Type of protection IPX4 Weight 2,7 kg

Perimeter wire and guide loop:

Frequency range 1.0 kHz - 90 kHz Maximum field

strength < 72 µA/m

Power supply unit:

OWA-60E-27

2,23 A Mains voltage U

100-240 V Frequency 50/60 Hz Direct current voltage

27 V Protection class II Type of protection IP67

Transporting STIHL batteries:

STIHL batteries meet the requirements specified in UN manual ST/SG/AC.10/11/Rev.5 Part III, subsection 38.3.

The user may carry STIHL batteries to the place of use of the machine without further restrictions during road transport.

Country-specific legislation must be observed in the case of air or sea transport.

For further transport instructions, see http://www.stihl.com/safety-data-sheets

REACH:

REACH is an EC Directive for the registration, evaluation, authorisation and restriction of chemicals. For information on compliance with the REACH Directive (EC) No. 1907/2006, see www.stihl.com/reach

24. Messages

Messages provide information on active errors, faults and recommendations. They are displayed in a dialog window and can be called up after pressing the OK button in the "More - Information - Messages" menu. (Ö 11.18)

Recommendations and active messages also appear in the status screen. (Ö 11.2)

The message code, the time of occurrence, the priority and the frequency of occurrence can be called up in the message details.

– Recommendations are awarded

the priority "Low" or "Info", they appear in the status screen alternately with the text "iMOW® ready for op". The robotic mower can still be operated, automatic operation continues.

– Faults are awarded the priority

"Medium" and require action on the part of the user. The robotic mower can only be operated again once the fault has been rectified.

– In the case of errors awarded the

priority "High", the text "Contact your specialist dealer" appears on the display. The robotic mower can only be operated again once the error has been rectified by a STIHL specialist dealer.

If a message is still active despite the proposed remedial action, please contact your STIHL specialist dealer.

Errors that can only be rectified by a STIHL specialist dealer are not listed in the following. Should an error of this kind occur, please communicate the 4-digit error code and the error text to your specialist dealer.

Messages that impair normal operation are also reported to the app. (Ö 10.)

The robotic mower enters standby after the message is sent and disables radio communication to preserve the battery.

Message:

0001 – Data updated Press OK to release

Possible cause:

– Machine software has been updated – Voltage loss

0478 131 9265 C - EN

– Software or hardware error

Remedy:

– After the OK button is pressed, the

robotic mower operates with the default settings – check and correct the settings (date, time, mowing plan)

Message:

0100 – Battery discharged Charge battery

Possible cause:

– Battery voltage too low

Remedy:

– Place robotic mower in docking station

to recharge battery (Ö 15.7)

Message:

0180 – Temperature low Main circuit board

Possible cause:

– Temperature inside robotic mower too

low

Remedy:

– Allow robotic mower to warm up

Message:

0181 – Temperature high Main circuit board

Possible cause:

– Temperature inside robotic mower too

high

Remedy:

– Allow robotic mower to cool down

Message:

0183 – Temperature high Charge control circuit board

Possible cause:

– Temperature inside robotic mower too

high

Remedy:

– Allow robotic mower to cool down

Message:

0185 – Temperature high Drive control circuit board

Possible cause:

– Temperature inside robotic mower too

high

Remedy:

– Allow robotic mower to cool down

Message:

0186 – Temperature low Battery

Possible cause:

– Battery temperature too low

Remedy:

– Allow robotic mower to warm up

Message:

0187 – Temperature high Battery

Possible cause:

– Battery temperature too high

Remedy:

– Allow robotic mower to cool down

Message:

0302 – Drive motor fault Temperature range exceeded

Possible cause:

– Temperature in left drive motor too high

Remedy:

– Allow robotic mower to cool down

Message:

0305 – Drive motor fault Left wheel is stuck

Possible cause:

– Overload at left drive wheel

Remedy:

– Clean robotic mower (Ö 16.2) – Level out any uneven areas (holes,

depressions) in mowing area

Message:

0402 – Drive motor fault Temperature range exceeded

Possible cause:

– Temperature in right drive motor too

high

Remedy:

– Allow robotic mower to cool down

Message:

0405 – Drive motor fault Right wheel is stuck

Possible cause:

– Overload at right drive wheel

Remedy:

– Clean robotic mower (Ö 16.2) – Level out any uneven areas (holes,

depressions) in mowing area

ENES

PTSLSKCS

0478 131 9265 C - EN

Message:

0502 – Mowing motor fault Temperature range exceeded

Possible cause:

– Temperature in mowing motor too high

Remedy:

– Allow robotic mower to cool down

Message:

0505 – Mowing motor fault Mowing motor overloaded

Possible cause:

– Dirt between carrier plate and mowing

deck housing – Mowing motor cannot be switched on – Mowing motor overloaded

Remedy:

– Clean mowing blade and mowing deck

(Ö 16.2)

Clean carrier plate (Ö 16.6) – Set higher cutting height (Ö 9.5) – Level out any uneven areas (holes,

depressions) in the mowing area

Message:

0701 – Battery temperature Outside temperature range

Possible cause:

– Temperature in battery too low or too

high

Remedy:

– Allow robotic mower to warm up or cool

it down – observe permissible

temperature range of battery (Ö 6.4)

Message:

0703 – Battery discharged Battery voltage too low

Possible cause:

– Battery voltage too low

Remedy:

– Place robotic mower in docking station

to recharge battery (Ö 15.7)

Message:

0704 – Battery discharged Battery voltage too low

Possible cause:

– Battery voltage too low

Remedy:

– Place robotic mower in docking station

to recharge battery (Ö 15.7)

Message:

1000 – Rollover Allowed inclination exceeded

Possible cause:

– Tilt sensor has detected a rollover

Remedy:

– Place robotic mower on its wheels,

check for damage and confirm message with OK

Message:

1010 – iMOW® raised Press OK to release

Possible cause:

– Robotic mower has been lifted by hood

Remedy:

– Check movement of hood and confirm

message with OK

Message:

1030 – Hood fault Check hood Then press OK

Possible cause:

– No hood detected

Remedy:

– Check hood (movement, firm seating)

and confirm the message with OK

Message:

1105 – Flap open Operation aborted

Possible cause:

– Flap open during automatic operation – Flap open during automatic edge

following

Remedy:

– Close the flap (Ö 15.2)

Message:

1120 – Hood blocked Check hood then press OK

Possible cause:

– Permanent collision detected – Uneven areas around or underneath

docking station floor plate

Remedy:

– Free robotic mower, remove obstacle or

change routing of perimeter wire if necessary – then confirm message with OK

– Check movement of hood and confirm

message with OK

– Level out uneven areas and confirm

message with OK (Ö 9.1)

0478 131 9265 C - EN

Message:

1125 – Remove obstacle Check wire routing

Possible cause:

– Perimeter wire routed inaccurately

Remedy:

– Check routing of the perimeter wire,

check clearances using the

iMOW® Ruler (Ö 12.5)

Message:

1126 – Cancel teach-in Teach-in failed Remove obstacle

Possible cause:

– Obstacle in the area of the perimeter

wire – Hood has been lifted – Wire routing incorrect

Remedy:

– Free robotic mower, remove obstacle or

change routing of perimeter wire if

necessary – Check movement of the hood – Level out uneven areas – Confirm the message with OK – Restart teach-in run if necessary

Message:

1127 – Cancel teach-in Teach-in failed

Possible cause:

– STOP button was pressed – Allowed inclination exceeded – Delete/save internal map of the mowing

area failed – Docking was not successful

Remedy:

– Confirm the message with OK – Restart teach-in run if necessary

Message:

1128 – Direct drive home Drive home on the wire aborted

Possible cause:

– Direct drive home could not be

successfully completed

Remedy:

– No action required, confirm message

with OK if necessary

– Contact your STIHL specialist dealer if

the problem persists

Message:

1130 – Stuck Free iMOW® then press OK

Possible cause:

– Robotic mower has become stuck – Drive wheels are spinning

Remedy:

– Free robotic mower, level out mowing

area or change routing of perimeter wire if necessary – then confirm message with OK

– Clean drive wheels, if necessary

prevent operation during rain – then confirm message with OK (Ö 11.11)

Message:

1135 – Outside Place the iMOW® on the mowing area

Possible cause:

– Robotic mower is located outside

mowing area

Remedy:

– Return robotic mower to mowing area

Message:

1140 – Too steep Check wire routing

Possible cause:

– Tilt sensor has detected a slope

inclination exceeding 40%

Remedy:

– Change routing of perimeter wire, block

off lawns with slope inclinations exceeding 40%

Message:

1170 – No signal Switch on docking station

Possible cause:

– Docking station is switched off – No reception of wire signal during

operation

– Robotic mower is located outside

mowing area

– Docking station or electronic

components were replaced

Remedy:

– Switch on docking station and give

mowing command – Check power supply to docking station – Check LED on docking station – the red

LED must be permanently illuminated

during operation (Ö 13.1) – Return robotic mower to mowing area – Link robotic mower and docking station

(Ö 11.16)

Message:

1180 – Dock iMOW® Automatic docking not possible

Possible cause:

– The docking station was not found

ENES

PTSLSKCS

0478 131 9265 C - EN

– The start or end of a corridor was

installed incorrectly

Remedy:

– Check LED on the docking station,

switch on the docking station if

necessary (Ö 13.1) – Check docking (Ö 15.6) – Check funnel-shaped entrance and exit

areas of the corridor (Ö 12.11)

Message:

1190 – Docking error Docking station occupied

Possible cause:

– Docking station occupied by a second

robotic mower

Remedy:

– Dock robotic mower once docking

station is unoccupied again

Message:

1200 – Mowing motor fault Mowing motor start not possible after 5 attempts

Possible cause:

– Dirt between carrier plate and mowing

deck housing – Mowing motor cannot be switched on – Mowing motor overloaded

Remedy:

– Clean mowing blade and mowing deck

(Ö 16.2)

Clean carrier plate (Ö 16.6) – Set higher cutting height (Ö 9.5) – Level out any uneven areas (holes,

depressions) in the mowing area

Message:

1210 – Drive motor fault Wheel stuck

Possible cause:

– Overload at a drive wheel

Remedy:

– Clean robotic mower (Ö 16.2) – Level out any uneven areas (holes,

depressions) in mowing area

Message:

1220 – Rain detected Mowing interrupted

Possible cause:

– Mowing operation has been interrupted

or not started due to rain

Remedy:

– No action necessary; adjust rain sensor

if required (Ö 11.11)

Message:

1230 – Docking error Dock iMOW®

Possible cause:

– Docking station has been located,

automatic docking not possible

Remedy:

– Check docking, if necessary dock

robotic mower manually (Ö 15.6)

– Check perimeter wire – ensure correct

routing in area of docking station (Ö 9.9)

Message:

2000 – Signal problem Dock iMOW®

Possible cause:

– Wire signal faulty, fine tuning necessary

Remedy:

– Place robotic mower in docking station

– then press OK

Message:

2020 – Recommendation Annual service by spec. dealer required

Possible cause:

– Machine service recommended

Remedy:

– Have the annual service carried out by

a STIHL specialist dealer

Message:

2030 – Battery Allowed operating time reached

Possible cause:

– Battery replacement necessary

Remedy:

– Have the battery replaced by a STIHL

specialist dealer

Message:

2031 – Charging failure Check charging contacts

Possible cause:

– Charging cannot be started

Remedy:

– Check docking station and robotic

mower charging contacts and clean if necessary – then confirm message with OK

0478 131 9265 C - EN

Message:

2032 – Battery temperature Outside temperature range

Possible cause:

– Temperature in battery during charging

too low or too high

Remedy:

– Allow robotic mower to warm up or cool

it down – observe permissible

temperature range of battery

Message:

2040 – Battery temperature Outside temperature range

Possible cause:

– Temperature in battery when starting

mowing operation too low or too high

Remedy:

– Allow robotic mower to warm up or cool

it down – observe permissible

temperature range of battery (Ö 6.4)

Message:

2050 – Adapt mowing plan Extend active times

Possible cause:

– Active times have been

shortened/deleted or the mowing

duration has been extended – the

stored active times are insufficient for

the necessary mowing operations.

Remedy:

– Extend the active times (Ö 11.7) or

shorten the mowing duration (Ö 11.7)

Message:

2060 – Mowing completed Press OK to release

Possible cause:

– Mowing in secondary area successfully

completed

Remedy:

– Return robotic mower to mowing area

and dock to charge battery (Ö 15.6)

Message:

2070 – GPS signal No reception at edge

Possible cause:

– The entire edge of the mowing area is in

a dead spot

Remedy:

– Repeat edge following (Ö 11.13) – Contact a STIHL specialist dealer for a

detailed diagnosis

Message:

2071 – GPS signal No reception at starting pt. 1

Possible cause:

– Starting point 1 is in a dead spot

Remedy:

– Change the position of starting point 1

(Ö 11.14)

Message:

2072 – GPS signal No reception at starting pt. 2

Possible cause:

– Starting point 2 is in a dead spot

Remedy:

– Change the position of starting point 2

(Ö 11.14)

Message:

2073 – GPS signal No reception at starting pt. 3

Possible cause:

– Starting point 3 is in a dead spot

Remedy:

– Change the position of starting point 3

(Ö 11.14)

Message:

2074 – GPS signal No reception at starting pt. 4

Possible cause:

– Starting point 4 is in a dead spot

Remedy:

– Change the position of starting point 4

(Ö 11.14)

Message:

2075 – GPS signal No reception in desired zone

Possible cause:

– The desired zone is in a dead spot

Remedy:

– Redefine the desired zone (Ö 10.)

Message:

2076 – GPS signal Desired zone not found

Possible cause:

– The desired zone could not be found

during edge following

Remedy:

– Redefine the desired zone. Make sure

that the desired zone and perimeter wire overlap (Ö 10.)

ENES

PTSLSKCS

0478 131 9265 C - EN

Message:

2077 – Desired zone Desired zone outside home area

Possible cause:

– The desired zone is outside the stored

home area

Remedy:

– Redefine the desired zone (Ö 10.)

Message:

2090 – Radio module Contact your specialist dealer

Possible cause:

– Communication with the radio module

interrupted

Remedy:

– No action required, firmware will be

automatically updated if necessary – Contact your STIHL specialist dealer if

the problem persists

Message:

2100 – GPS protect. Outside home area Machine disabled

Possible cause:

– Robotic mower was removed from

home area

Remedy:

– Return robotic mower to home area and

enter PIN code (Ö 5.9)

Message:

2110 – GPS protect. New location New installation req.

Possible cause:

– Robotic mower was operated on a

different mowing area. Wire signal of second docking station is already stored.

Remedy:

– Perform new installation (Ö 11.13)

Message:

2400 – iMOW® successfully reset to factory default

Possible cause:

– Robotic mower has been reset to

factory default

Remedy:

– Confirm message with OK

Message:

4000 – Voltage fault Battery overvoltage or undervoltage

Possible cause:

– Battery overvoltage or undervoltage

Remedy:

– No action required, firmware will be

automatically updated if necessary

– Contact your STIHL specialist dealer if

the problem persists

Message:

4001 – Temperature fault Outside temperature range

Possible cause:

– Temperature in battery or inside

machine too low or too high

Remedy:

– Allow robotic mower to warm up or cool

it down – observe permissible temperature range of battery (Ö 6.4)

Message:

4002 – Rollover see message 1000

Message:

4003 – Hood lifted Check hood Then press OK

Possible cause:

– Hood has been lifted

Remedy:

– Check the hood and confirm the

message with OK

Message:

4004 – Drive braking time exceeded Press OK to release

Possible cause:

– Error in the programme sequence – Wire routing incorrect – Obstacles in the area of the perimeter

wire

Remedy:

– Confirm message with OK – Check wire routing, especially in the

area of the corners, using the iMOW® Ruler (Ö 12.5)

– Remove obstacles

0478 131 9265 C - EN

Message:

4005 – Blade braking time exceeded Please OK to release

Possible cause:

– Error in the programme sequence – Signal collapse (e.g. due to a power

failure) during automatic mowing

Remedy:

– Confirm message with OK – Check power supply to the docking

station – the red LED must be

illuminated permanently during

operation; then press the OK

button (Ö 13.1)

Message:

4006 – Charging interrupted Press OK to release

Possible cause:

– Error in programme sequence – Power failure during charging – Robotic mower rolled out of docking

station

Remedy:

– Confirm message with OK – Check power supply to docking station

– the red LED flashes slowly when

robotic mower is docked (Ö 13.1) – Check that docking station is in correct

position (Ö 9.1)

Message:

4008 – Flap not closed. Press OK to release

Possible cause:

– Flap position not detected correctly – Sensor signal transmission error

Remedy:

– Confirm message with OK – Open and close flap again

– Contact your STIHL specialist dealer if

the problem persists

Message:

4009 – Hood sensor faulty Press OK to release

Possible cause:

– Hood displaced

Remedy:

– Check position of the hood – Check movement of the hood and clean

hood mounting if necessary

– Confirm message with OK

Message:

4016 – STOP button sensor value deviation Press OK to release

Possible cause:

– Error in the programme sequence

Remedy:

– Confirm message with OK

Message:

4027 – STOP button pressed Press OK to release

Possible cause:

– STOP button has been pressed

Remedy:

– Confirm message with OK

25. Troubleshooting

Support and help on use

Support and help on use are available from a STIHL specialist dealer.

Contact options and further information can be found at https://support.stihl.com or https://www.stihl.com.

# If necessary, contact a specialist

dealer; STIHL recommends STIHL specialist dealers.

Fault:

The robotic mower operates at the wrong times

Possible cause:

– Date and time incorrectly set – Active times incorrectly set – Machine has been operated by

unauthorised persons

Remedy:

– Set time and date (Ö 11.10) – Set active times (Ö 11.7) – Set safety level to "Medium" or "High"

(Ö 11.16)

Fault:

The robotic mower fails to operate during an active time

Possible cause:

– Battery is charging – Automatic mowing switched off – Active time switched off – Rain detected – If mow plan type "Dynamic" is activated:

weekly mowing duration has been reached, no further mowing operations

required that week – Message is active – Flap open or not present – Docking station not connected to power

supply – Outside allowed temperature range – Power failure

Remedy:

– Allow battery to finish charging (Ö 15.7)

ENES

PTSLSKCS

0478 131 9265 C - EN

– Switch on automatic mowing (Ö 11.7) – Release active time (Ö 11.7) – Set rain sensor (Ö 11.11) – No further action necessary, mowing

operations are automatically distributed over the week in the mow plan type "Dynamic" – if necessary, start the mowing operation in the "Start" menu (Ö 11.5)

– Rectify displayed fault and confirm

message with OK (Ö 24.) – Close flap (Ö 15.2) – Check power supply to docking station

(Ö 9.3) – Allow the robotic mower to warm up or

cool down – standard temperature

range for operation of the robotic

mower: +5°C to +40°C. Detailed

information is available from your

specialist dealer. # – Check the power supply. When the

robotic mower detects a wire signal

again after a periodic check, it resumes

the interrupted mowing operation. This

means that it can take several minutes

before mowing operation is

automatically resumed following the

power failure. The intervals between

the individual periodic checks increase,

the longer the power failure lasts.

Fault:

The robotic mower fails to mow after the "Start" menu has been called up

Possible cause:

– Insufficient battery charge – Rain detected – Flap not closed or not present – Message is active – Homecall activated on docking station

Remedy:

– Charge battery (Ö 15.7) – Set rain sensor (Ö 11.11)

– Close flap (Ö 15.2) – Rectify displayed fault and confirm

message with OK (Ö 24.)

– End Homecall or repeat command

following docking

Fault:

The robotic mower is not working and nothing is shown in the display

Possible cause:

– Machine is in standby – Battery defective

Remedy:

– Press any button to wake up robotic

mower – status screen appears (Ö 11.2)

– Replace battery (#)

Fault:

The robotic mower is noisy and vibrates

Possible cause:

– Mowing blade is damaged – Mowing deck is very dirty

Remedy:

– Replace mowing blade – remove any

obstacles from lawn (Ö 16.4), (#)

– Clean mowing deck (Ö 16.2)

Fault:

Poor mulching or mowing result

Possible cause:

– Grass is too high in relation to cutting

height – Lawn is extremely wet – Mowing blade is blunt or worn – Active times insufficient, mowing

duration too short – Size of mowing area set incorrectly – Mowing area with very high grass

– Long periods of rain

Remedy:

– Adjust cutting height (Ö 9.5) – Adjust rain sensor (Ö 11.11)

Change active times (Ö 11.7) – Replace mowing blade (Ö 16.4), (#) – Extend or add active times (Ö 11.7)

Extend mowing duration (Ö 11.7) – Create new mowing plan (Ö 11.7) – For neat mowing results, the robotic

mower needs up to 2 weeks, depending

on the size of the mowing area – Allow mowing in rain (Ö 11.11)

Extend active times (Ö 11.7)

Fault:

Display in a foreign language

Possible cause:

– Language setting has been changed

Remedy:

– Set the language (Ö 9.7)

Fault:

Brown (earthy) patches appear in the mowing area

Possible cause:

– Mowing duration is too long in relation

to the mowing area – Perimeter wire has been routed with

excessively tight radii – Size of mowing area set incorrectly

Remedy:

– Reduce the mowing duration (Ö 11.7) – Correct the routing of the perimeter wire

(Ö 12.) – Create a new mowing plan (Ö 11.7)

0478 131 9265 C - EN

Fault:

Mowing operations are significantly shorter than usual

Possible cause:

– Grass is very high or too wet – Machine (mowing deck, drive wheels) is

very dirty

– Battery has reached end of service life

Remedy:

– Adjust the cutting height (Ö 9.5)

Set the rain sensor (Ö 11.11)

Change the active times (Ö 11.7) – Clean the machine (Ö 16.2) – Replace the battery – observe

corresponding recommendation in the

display (#), (Ö 24.)

Fault:

The robotic mower is docked, the battery is not charging

Possible cause:

– Battery does not need to be charged – Docking station not connected to power

supply – Incorrect docking – Charging contacts corroded – Power supply unit defective – Machine is in standby

Remedy:

– No action necessary – battery charging

occurs automatically below a certain

voltage – Check power supply to the docking

station (Ö 9.8) – Place the robotic mower in the mowing

area and send it back to the docking

station (Ö 11.6), check for correct

docking – if necessary, correct the

position of the docking station (Ö 9.1) – Replace charging contacts (#)

– Disconnect the power supply and

contact your STIHL specialist dealer (#)

– Press any button to wake up the robotic

mower – status screen appears (Ö 11.2)

Fault:

Docking not working

Possible cause:

– Uneven entry area to docking station – Uneven areas around or underneath

docking station floor plate – Docking station floor plate bent – Dirty drive wheels or dirty floor plate – Perimeter wire incorrectly routed in

area of docking station – Ends of perimeter wire not cut

Remedy:

– Level out entry area to docking station

(Ö 9.1) – Level out uneven areas around or

underneath docking station floor plate

(Ö 9.1) – Ensure that floor plate is level and flat

(Ö 9.1) – Clean drive wheels and docking station

floor plate (Ö 16.2) – Re-route perimeter wire – ensure

correct routing in area of docking

station (Ö 9.9) – Cut perimeter wire as described and

route it without excess length – do not

roll up protruding ends (Ö 9.10)

Fault:

The robotic mower travels past the docking station or docks at an angle

Possible cause:

– Wire signal affected by environmental

influences

– Perimeter wire incorrectly routed in

area of docking station

Remedy:

– Link robotic mower and docking station

again – ensure that robotic mower is in correct alignment to docking station (Ö 11.16)

– Re-route perimeter wire – ensure

correct routing in area of docking station (Ö 9.9) Check for correct connection of perimeter wire ends in docking station (Ö 9.10)

Fault:

The robotic mower has crossed the perimeter wire

Possible cause:

– Perimeter wire incorrectly routed,

clearances are not correct

– Slope inclination of mowing area too

steep

– Interference affecting robotic mower

Remedy:

– Check routing of perimeter wire

(Ö 11.13), check clearances using iMOW® Ruler (Ö 12.5)

– Check routing of perimeter wire; block

off areas with excessively steep slope inclinations (Ö 11.13)

– Contact your STIHL specialist dealer

(#)

Fault:

The robotic mower frequently becomes stuck

Possible cause:

– Cutting height too low – Drive wheels dirty

ENES

PTSLSKCS

0478 131 9265 C - EN

– Depressions or obstacles in mowing

area

Remedy:

– Increase cutting height (Ö 9.5) – Clean drive wheels (Ö 16.2) – Fill up holes in mowing area, install no-

go areas around obstacles such as exposed roots, remove obstacles (Ö 12.)

Fault:

The impact sensor is not activated when the robotic mower hits an obstacle

Possible cause:

– Low obstacle (height less than 8 cm) – The obstacle is not firmly attached to

the ground – e.g. fallen fruit or tennis ball

Remedy:

– Remove obstacle or block it off with a

no-go area (Ö 12.9)

– Remove obstacle

Fault:

Driving tracks at edge of mowing area

Possible cause:

– Excessively frequent edge mowing – Excessive mowing duration – Starting points in use – Battery is charged very frequently

towards the end of its service life

– Offset drive home (passage) not

switched on

Remedy:

– Switch off edge mowing or reduce it to

once per week (Ö 11.13) – Reduce the mowing duration – Start all mowing operations at the

docking station in suitable mowing

areas (Ö 11.14)

– Replace the battery – observe

corresponding recommendation on the display (#), (Ö 24.)

– Switch on offset drive home (passage)

(Ö 11.13)

Fault:

Unmown grass at edge of mowing area

Possible cause:

– Edge mowing switched off – Perimeter wire routed inaccurately – Grass is out of reach of mowing blade

Remedy:

– Mow the edge once or twice per week

(Ö 11.13)

– Check routing of the perimeter wire

(Ö 11.13), check clearances using the iMOW® Ruler (Ö 12.5)

– Cut the unmown areas regularly using a

suitable grass trimmer

Fault:

No wire signal

Possible cause:

– Docking station switched off – LED

does not illuminate

– Docking station not connected to mains

supply – LED does not illuminate

– Perimeter wire not connected to

docking station – red LED flashes (Ö 13.1)

– Break in perimeter wire – red LED

flashes (Ö 13.1)

– Robotic mower and docking station are

not linked

– Electronics fault – LED flashes SOS

(Ö 13.1)

Remedy:

– Switch on docking station (Ö 13.1) – Check power supply to docking station

(Ö 9.8)

– Connect perimeter wire to docking

station (Ö 9.10)

– Find wire break (Ö 16.7), then repair

perimeter wire using wire connectors (Ö 12.16)

– Link robotic mower and docking station

(Ö 11.16)

– Contact your specialist dealer (#)

Fault:

LED on the docking station flashes SOS

Possible cause:

– Minimum perimeter wire length not

reached

– Electronics fault

Remedy:

– Install AKM 100 (#) – Contact your specialist dealer (#)

Fault:

The robotic mower is not receiving any GPS signal

Possible cause:

– Connection to satellites is currently

being established – 3 or fewer satellites within range – Machine is in a dead spot

Remedy:

– No further action required; it can take a

few minutes for connection to be

established – Avoid or remove obstacles that might

be blocking signal (e.g. trees, canopies)

Fault:

The robotic mower cannot establish a mobile radio connection

Possible cause:

– Mowing area is in a dead spot

0478 131 9265 C - EN

– Radio module is not activated

Remedy:

– Have radio module checked by a STIHL

specialist dealer (#)

26. Service schedule

ENES

Fault:

The robotic mower cannot be reached using the app

Possible cause:

– Radio module inactive – Robotic mower is in standby mode – No Internet connection – Robotic mower is not associated with

correct e-mail address

Remedy:

– The radio module is switched off during

linking, then it is reactivated and the robotic mower can be reached again

– Activate robotic mower by pressing

button, set "Standard" energy mode (Ö 11.10)

– Connect machine on which app is

installed to Internet

– Correct e-mail address (Ö 10.)

Fault:

Internal mapping for direct drive home cannot be created

Possible cause:

– Edge following interrupted or aborted,

e.g. by an obstacle, machine being

lifted – Incorrect wire routing – Robotic mower leaving perimeter wire

Remedy:

– Repeat edge following, edge following

must be carried out without interruption – Carry out edge following at a later time – Correct wire routing

26.1 Handover confirmation

26.2 Service confirmation

Please hand this instruction manual to your STIHL specialist dealer in the case of maintenance operations. He will confirm the service operations performed in the pre-printed boxes.

Service performed on

Next service date

PTSLSKCS

0478 131 9265 C - EN

27. Installation examples

Rectangular mowing area with one tree and swimming pool

Docking station: Location (1) directly next to the house A

No-go area: Installation around the free-standing tree (3), based on a linking section installed at right angles to the edge.

Pool: For safety reasons (specified wire clearance), the perimeter wire (2) is routed around the pool B.

Wire clearances: (Ö 12.5) Clearance to the edge: 28 cm Clearance to adjoining area that can be travelled on (e.g. footpath) with a stepped area height of less than +/- 1 cm: 0cm Clearance around the tree: 28 cm Clearance to the pond: 100 cm

Programming: No further adaptation is necessary following definition of the size of the mowing area.

Points to note: Unmown areas around the swimming pool must be mown manually on a regular basis or cut using a suitable lawn trimmer.

0478 131 9265 C - EN

ENES

PTSLSKCS

U-shaped mowing area with several freestanding trees

Docking station: Location (1) directly next to the house A

No-go areas: Installation around the free-standing trees, based on linking sections installed at right angles to the edge (2), two no-go areas are connected via a linking section.

0478 131 9265 C - EN

Programming: No further adaptation is necessary following definition of the size of the mowing area.

Points to note: Tree in the corner of the mowing area – mow the area behind the blocked-off tree regularly using a suitable lawn trimmer or leave as a patch of high grass.

Divided mowing area with a pond and a free-standing tree

Docking station: Location (1) directly next to the house A

No-go area: Installation around the free-standing tree, based on a linking section installed at right angles to the edge.

Pond: For safety reasons (specified wire clearance), the perimeter wire (2) is routed around the pond B.

Wire clearances: (Ö 12.5) Clearance to the edge: 28 cm Clearance to adjoining area that can be travelled on (e.g. footpath) with a stepped

area height of less than +/- 1 cm: 0cm Around the tree: 28 cm Clearance to the pond: 100 cm

Corridor: Installation of a corridor (3). Wire clearance: 22 cm (Ö 12.11)

Guide loops: Installation of two guide loops (4) for using the offset drive home function.(Ö 11.13) Minimum clearance from the corridor entrance: 2m Note the minimum clearance to corners. (Ö 12.12)

Programming: Define the total size of the mowing area, program two starting points (5) (close to the docking station and in the contorted corner near the pond) (Ö 11.14)

Points to note: Unmown areas, e.g. around the pond must be mown manually on a regular basis or cut using a suitable lawn trimmer.

0478 131 9265 C - EN

ENES

PTSLSKCS

Divided mowing area – the robotic mower cannot travel independently from one mowing area to the other.

Docking station: Location (1) directly next to the houses A

No-go areas: Installation around the free-standing tree and around the vegetable patch B based on a linking section installed at right angles to the edge.

Wire clearances: (Ö 12.5) Clearance to adjoining area that can be travelled on (e.g. patio) with a stepped area height of less than +/- 1 cm: 0cm Clearance to high obstacles: 28 cm Clearance to the tree: 28 cm Minimum wire clearance in the confined areas behind the vegetable patch: 44 cm

0478 131 9265 C - EN

Secondary area: Installation of a secondary area C, linking section (3) on the patio accommodated in a cable duct.

Programming: Define the size of the mowing area (without secondary area), program one starting point (4) in the confined area for using the offset drive home function (Ö 11.13) – starting frequency 2 of 10 operations (Ö 11.14)

Points to note: Bring the robotic mower to the secondary area several times per week and activate the "Start" menu. (Ö 11.5) Take the mowing performance into account. (Ö 14.4) If necessary, install two separate mowing areas with 2 docking stations.

Mowing area with external docking station (1)

Docking station: Location (1) next to the garage B and behind the house A.

Wire clearances: (Ö 12.5) Clearance to the edge: 28 cm Clearance to adjoining area that can be travelled on (e.g. patio) with a stepped area height of less than +/- 1 cm: 0cm Clearance to the pond: 100 cm

Guide loops: Installation of two guide loops (2) for using the offset drive home function. (Ö 11.13) Minimum distance from the corridor entrance: 2m Note the minimum clearance to corners. (Ö 12.12)

Programming: Define the size of the mowing area and program at least one starting point outside the corridor to the docking station.(Ö 11.14)

Points to note: Installation of a corridor (4) with funnelshaped entrance area (3). (Ö 12.11) Wire clearance: 22 cm

The corridor (4) leads to the external docking station (1). Increase the wire clearance in the corridor to the width of the ground plate (5) one metre in front of the docking station. (Ö 9.1) Note the space requirement in the corridor and beside the docking station.

28. Open source software

This product contains proprietary open source software published by the respective authors under specific license conditions, such as the "GNU General Public License" (GPL), the "GNU Lesser General Public License" (LGPL), the "Apache License" or similar. Copyright notices, terms of use or license provisions contained in this instruction manual that contradict an applicable open source license shall not apply. The use and distribution of the open source software contained in the product is subject exclusively to the respective open source license. If the applicable license grants you the right to the source code for this

0478 131 9265 C - EN

software and/or other additional files, you can obtain it during a period of three years following our final delivery of the product and, if the license conditions require this, for as long as we offer customer support for the product. You can obtain the complete corresponding source code from us by sending an e-mail to oss@stihl.de. If you would like to receive the complete corresponding source code on a physical medium (e.g. a CD-ROM), you will be billed for the costs of physical distribution of the source code. This offer applies to anyone who receives this information.

An up-to-date list of the open source components contained in the product can be found at the following URL: http://opensource.stihl.com/

ENES

PTSLSKCS

0478 131 9265 C - EN

Distinguido cliente:

Nos alegramos de que se haya decidido por STIHL. Desarrollamos y confeccionamos nuestros productos en primera calidad y con arreglo a las necesidades de nuestros clientes. De esta manera conseguimos elaborar productos altamente fiables incluso en condiciones de esfuerzo extremas.

STIHL también presta un Servicio Postventa de primera calidad. Nuestros comercios especializados garantizan un asesoramiento e instrucciones competentes, así como un amplio asesoramiento técnico.

Le agradecemos su confianza y le deseamos que disfrute de su producto STIHL.

Dr. Nikolas Stihl

IMPORTANTE: LEER ANTES DE USAR Y GUARDAR.

1. Índice

Acerca de este manual de instrucciones 96

Información general 96 Variantes de país 97 Instrucciones para leer el manual 97

Descripción del equipo 98

Robot cortacésped 98 Estación de carga 99 Display 100

Cómo trabaja el robot cortacésped 101

Principio de funcionamiento 101

Dispositivos de seguridad 102

Tec l a S TO P 10 2 Bloqueo de la máquina 102 Cubiertas protectoras 102 Sensor de impacto 102 Protección contra elevación 103 Sensor de inclinación 103 Iluminación del display 103 Solicitud PIN 103 Protector GPS 103

Para su seguridad 103

Información general 103 Ropa y equipamiento de trabajo 104 Advertencia de peligros causados

por la corriente eléctrica 105 Batería 106 Transporte de la máquina 106 Antes de la puesta en servicio 106 Programación 107 Durante el servicio 108 Mantenimiento y reparaciones 109 Almacenamiento durante largos

periodos de inactividad 109

Eliminación 110

Descripción de los símbolos 110 Contenido del suministro 111 Instalación inicial 111

Indicaciones para la estación de carga 115

Conexiones de la estación de carga 117

Conectar el cable de alimentación a la estación de carga 118

Material de instalación 119 Ajustar la altura de corte 119 Indicaciones para la primera

instalación 119 Ajustar idioma, fecha y hora 120 Instalar la estación de carga 120 Tender el cable delimitador 122 Conectar el cable delimitador 125 Conectar el robot cortacésped y la

estación de carga 129 Comprobar la instalación 130 Programar el robot cortacésped 132 Finalizar la primera instalación 133 Primer proceso de corte tras

finalizar la primera instalación 133

Aplicación iMOW® 133 Menú 134

Instrucciones de manejo 134 Indicador de estado 135 Campo de información 137 Menú principal 137 Inicio 137 Regreso est. 138 Plan de corte 138 Más 139 Ajustes 139 Ajustes de la máquina iMOW® 139

ENPTSLSKCS ES

0478 131 9265 C - ES

Impreso en papel blanqueado sin cloro. Papel reciclable. Sobrecubierta sin halógenos.

Ajustar el sensor de lluvia 140 Ajustar el indicador de estado 140 Instalación 141 Ajustar los puntos de inicio 142 Regreso directo a la estación 142 Seguridad 143 Servicio 145 Información 145

Cable delimitador 146

Planificar el tendido del cable delimitador 147

Preparar un croquis de la superficie a cortar 147

Tender el cable delimitador 148 Conectar el cable delimitador 148 Distancias del cable – Usar la regla

virtual iMOW® 148 Esquinas pronunciadas 150 Pasos estrechos 150 Instalar tramos de unión 150 Superficies prohibidas 150 Superficies contiguas 151 Pasillos 152 Lazos de búsqueda para el regreso

desplazado 153 Corte preciso de bordes 154 Terreno inclinado a lo largo del

cable delimitador 155 Instalar reservas de cable 155 Utilizar conectores de cable 155 Distancias al borde reducidas 156

Estación de carga 156

Mandos de la estación de carga 156

Indicaciones para cortar 157

Información general 157 Mulching 157 Tiempos de actividad 158

Dur. de corte 158 Zona de hogar 158

Poner el equipo en servicio 158

Preparación 158 Ta pa 1 58 Adaptar la programación 159 Corte con servicio automático 160 Corte independientemente de los

tiempos de actividad 160 Conectar el robot cortacésped a la

estación de carga 160 Cargar la batería 161

Mantenimiento 162

Plan de mantenimiento 162 Limpiar la máquina 162 Comprobar los límites de desgaste

de la cuchilla 163 Desmontar y montar la cuchilla 163 Afilar la cuchilla 164 Desmontar y montar el disco de

arrastre 164 Buscar rotura de cable 165 Almacenamiento y parada invernal 166 Desmontaje de la estación de

carga 167

Piezas de recambio habituales 168 Accesorios 168 Reducir el desgaste y prevenir

daños 168 Protección del medio ambiente 169

Desmontar la batería 169

Transporte 170

Levantar o sostener la máquina 170 Amarrar la máquina 171

Declaración de conformidad 171

Declaración de conformidad de la UE para robot cortacésped, de batería y eléctrico con estación de carga 171

Datos técnicos 171 Mensajes 172 Localización de anomalías 180 Plan de mantenimiento 185

Confirmación de entrega 185 Confirmación de servicio técnico 185

Ejemplos de instalación 186 Software de Open Source 191

2. Acerca de este manual de instrucciones

2.1 Información general

Este manual de instrucciones es un manual original del fabricante en conformidad con la directiva 2006/42/EC.

STIHL desarrolla continuamente su gama de productos, por lo que nos reservamos el derecho de modificar los componentes suministrados en cuanto a forma, técnica y equipamiento. Por consiguiente, las indicaciones e ilustraciones contenidas en este manual no constituyen compromiso contractual alguno.

Es posible que en este manual de instrucciones se describan modelos que no están disponibles en todos los países.

Este manual de instrucciones está protegido por derechos de autor. Quedan reservados todos los derechos, sobre todo el derecho a la reproducción, traducción y procesamiento con sistemas electrónicos.

0478 131 9265 C - ES

2.2 Variantes de país

STIHL suministra equipos con distintas clavijas e interruptores, dependiendo del mercado de cada país.

Las ilustraciones muestran equipos con euroconectores; la conexión a la red de los equipos con otros modelos de conector se realiza análogamente.

2.3 Instrucciones para leer el manual

Las imágenes y los textos describen determinados pasos para el manejo del equipo.

Todos los símbolos que se encuentran en el equipo se explican en este manual de instrucciones.

Perspectiva:

Perspectiva "izquierda" y "derecha" del manual durante la utilización: con el usuario situado detrás del equipo y mirando en la dirección de desplazamiento hacia delante.

Referencias a capítulos:

Se hace referencia a los capítulos y subcapítulos correspondientes que contienen más información con una flecha. El siguiente ejemplo muestra una referencia a un capítulo: (Ö 3.)

Identificación de párrafos de texto:

Las instrucciones descritas pueden identificarse como en los siguientes ejemplos.

Pasos de manejo del equipo que requieren la intervención del usuario:

● Afloje el tornillo (1) con un

destornillador, accione la palanca (2) ...

Enumeraciones generales: – Utilización del producto en eventos

deportivos o en campeonatos

Texto con significado adicional:

Los fragmentos de texto con un significado adicional tienen asignados uno de los símbolos descritos a continuación para destacarlos en el manual de instrucciones.

¡Peligro!

Riesgo de accidente y de sufrir lesiones personales graves. Es necesario evitar hacer algo o atenerse a un comportamiento determinado.

¡Advertencia!

Peligro de lesiones personales. Es necesario atenerse a un comportamiento determinado para evitar sufrir lesiones personales.

¡Atención!

Es posible evitar daños materiales o lesiones leves comportándose de una manera determinada.

Nota

Información relativa al uso óptimo del equipo evitando posibles manejos erróneos.

Texto con relación a las ilustraciones:

Al inicio del manual de instrucciones se encuentran algunas ilustraciones que son necesarias para el uso del equipo.

El símbolo de la cámara sirve para vincular las ilustraciones de las diferentes páginas con el texto

correspondiente del manual.

Ilustraciones con texto:

Los pasos de manejo en relación directa con las ilustraciones los podrá encontrar inmediatamente a continuación de las mismas junto con las correspondientes cifras de posición de los componentes.

Ejemplo:

El botón multidireccional (1) sirve para navegar por los menús. Con la tecla OK (2) se confirman los ajustes y se abren los menús. Con la tecla Volver (3) se puede salir nuevamente de un menú.

ENPTSLSKCS ES

0478 131 9265 C - ES

3. Descripción del equipo

3.1 Robot cortacésped

1 Capó móvil montado (Ö 5.4),

(Ö 5.5)

2 Moldura protectora 3 Contactos de carga:

Contactos de conexión a la estación de carga

4 Asa de transporte delantera (inte-

grada en el capó móvil) (Ö 21.1)

5 Tec la ST O P ( Ö 5.1) 6 Tap a ( Ö 15.2) 7 Rueda motriz

8 Asa de transporte trasera (integrada

en el capó móvil) (Ö 21.1)

9 Sensor de lluvia (Ö 11.10 ) 10 Empuñadura giratoria del ajuste de

la altura de corte (Ö 9.5)

11 Placa de modelo con número de

serie

12 Rueda delantera 13 Cuchilla afilada por ambos lados

(Ö 16.4)

14 Equipo de corte

0478 131 9265 C - ES

Stihl RMI 522.0 C Instruction Manual [cs, en, es, pt, sk, sl]

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Table of contents

2. Notes on the instruction manual

2.1 General

2.2 Country-specific versions

2.3 Instructions for reading the instruction manual

3. Machine overview

3.1 Robotic mower

3.2 Docking station

3.3 Display

4. How the robotic mower works

4.1 Operating principle

5. Safety devices

5.1 STOP button

5.2 Disabling device

5.3 Protective covers

5.4 Impact sensor

5.5 Lifting protection

5.6 Tilt sensor

5.7 Display illumination

5.8 PIN request

5.9 GPS protection

6. For your safety

6.1 General

6.2 Clothing and equipment

6.3 Warning – dangers caused by electrical current

6.4 Battery

6.5 Transporting the machine

6.6 Before initial operation

6.7 Programming

6.8 During operation

6.9 Maintenance and repairs

6.10 Storage for prolonged periods without operation

7. Description of symbols

6.11 Disposal

8. Standard equipment

9. Initial installation

9.1 Notes on the docking station Requirements for the docking station

9.2 Docking station connections Removing the cover:

9.3 Connecting the power cable to the docking station

9.4 Installation material

9.5 Adjusting the cutting height

9.6 Notes on initial installation

9.7 Setting the language, date and time

9.8 Installing the docking station

9.9 Routing the perimeter wire

9.10 Connecting the perimeter wire

9.11 Linking the robotic mower and docking station

9.12 Checking installation

9.13 Programming the robotic mower

9.14 Completing initial installation

9.15 First mowing operation after initial installation

10. iMOW® app

11. Menu

11.1 Operating instructions

11.2 Status screen

11.3 Information area

11.4 Main menu

11.5 Start

11.6 Drive home

11.7 Mowing plan

11.8 More

11.9 Settings

11.10 iMOW® – machine settings

11.11 Setting the rain sensor

11.12 Configuring the status screen

11.13 Installation

11.14 Setting starting points

11.15 Direct drive home

11.16 Safety

11.17 Service

11.18 Information

12. Perimeter wire

12.1 Planning routing of the perimeter wire

12.2 Making a sketch of the mowing area

12.5 Wire clearances – use iMOW® Ruler

12.3 Routing the perimeter wire
