Contents
English
1 Introduction
2 Guide to Using this Manual
2.1 Signal Words
2.2 Symbols in Text
3 Main Parts
3.1 Chain Saw
4 Safety Symbols on the Product
4.1 Chain Saw
Original Instruction ManualPrinted on chlorine-free paper
5 General Power Tool Safety Warnings
5.1 Introduction
5.2 Work Area Safety
5.3 Electrical Safety
5.4 Personal Safety
5.5 Power Tool Use and Care
5.6 Service
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.7 General Chain Saw Safety Warnings
5.8 Causes and Operator Prevention of Kickback
6 IMPORTANT SAFETY INSTRUCTIONS
6.1 Intended Use
6.2 Operator
6.3 Personal Protective Equipment
6.4 Chain Saw
6.5 Power Supply Cord and Extension Cord
Printing inks contain vegetable oils, paper can be recycled.
6.6 Using the Chain Saw
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Kickback and Other Reactive Forces
7.1 Reactive Forces
7.2 Kickback
7.3 Pull-in
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4 Pushback
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Proper Techniques for Basic Bucking, Limbing,
Pruning and Felling
8.1 Intended Uses
8.2 Bucking
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . .
. . . . . . . . . . . . . . .
8.3 Cutting Logs Under Tension
2
8.4 Limbing
2
8.5 Pruning
2
8.6 Felling
3
9 Maintenance, Repair and Storage
3
9.1 Warnings and Instructions
3
10 Before Starting Work
4
10.1 Preparing the Chain Saw for Operation
4
11 Assembling the Chain Saw
5
11.1 Cutting Attachment
5
11.2 Mounting and Removing the Guide Bar and
5
5
5
6
6
6
7
8
8
8
9
10
11
12
17
17
18
22
23
Chain
11.3 Tensioning the Chain
11.4 Lubricating the Saw Chain and Guide Bar
12 The Chain Brake
12.1 Engaging the Chain Brake
12.2 Disengaging the Chain Brake
12.3 Maintaining the Chain Brake
13 Overload Cutout
13.1 Resetting the Overload Cutout
14 Switching the Chain Saw On and Off
14.1 Switching On
14.2 Switching Off
15 Checking the Chain Saw
15.1 Checking the Operation of the Chain Brake
15.2 Testing the Controls
15.3 Testing Chain Lubrication
16 After Finishing Work
16.1 Preparing for Transportation or Storage
17 Transporting
23
17.1 Transporting the Chain Saw
23
18 Storing
23
18.1 Storing the Chain Saw
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . .
. . . . . . . .
. . . . . . . . . . . .
24
25
26
26
30
30
31
31
31
31
32
33
34
35
35
36
36
37
37
37
37
38
38
38
38
39
39
39
40
40
40
40
© ANDREAS STIHL AG & Co. KG 2020
0458-729-8621-A. VA4.C20.
0000007641_006_GB
0458-729-8621-A
This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process
with electronic systems.
1
English
1 Introduction
19 Cleaning
19.1 Cleaning the Chain Saw
19.2 Cleaning the Guide Bar and Saw Chain
20 Inspection and Maintenance
20.1 Inspection and Maintenance Chart
20.2 Inspecting and Maintaining the Chain Saw
20.3 Inspecting and Maintaining the Chain Sprocket
20.4 Inspecting and Maintaining the Guide Bar
20.5 Inspecting, Maintaining and Sharpening the Saw
Chain
21 Troubleshooting Guide
21.1 Chain Saw
22 Specifications
22.1 STIHL MSE 141 C
22.2 Extension Cords
22.3 Chain Sprockets
22.4 Minimum Groove Depth of Guide Bars
22.5 Depth Gauge Setting
22.6 Symbols on the Chain Saw
22.7 Engineering Improvements
23 Combinations of Guide Bars and Saw Chains
23.1 STIHL MSE 141 C
24 Replacement Parts and Equipment
24.1 Genuine STIHL Replacement Parts
25 Disposal
25.1 Disposal of the Power Tool
26 Limited Warranty
26.1 STIHL Incorporated Limited Warranty Policy
27 Trademarks
27.1 Registered Trademarks
27.2 Common Law Trademarks
28 Addresses
28.1 STIHL Incorporated
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . .
. . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . .
41
1 Introduction
41
41
Thank you for your purchase. The information contained in
42
this manual will help you receive maximum performance and
42
satisfaction from your STIHL chain saw and, if followed,
42
reduce the risk of injury from its use.
43
SAVE THIS MANUAL!
43
Because a chain saw is a high-speed wood-
44
47
47
48
48
48
48
48
Have your authorized STIHL servicing dealer show you how
48
to operate your chain saw. All safety precautions that are
48
generally observed when working with an axe or a hand saw
49
also apply to the operation of chain saws. Observe all
applicable federal, state and local safety regulations,
50
standards and ordinances.
50
Do not lend or rent your chain saw without this instruction
51
manual. Allow only persons who have the proper training
51
and fully understand the information in this manual to
51
operate the chain saw.
51
For further information, or if you do not understand any of
51
the instructions in this manual, please go to
51
www.stihlusa.com or contact your authorized STIHL
servicing dealer.
51
51
51
2 Guide to Using this Manual
52
52
cutting tool, special safety precautions must be
observed to reduce the risk of personal injury.
Read this instruction manual thoroughly before
use and periodically thereafter. Follow all safety
precautions. Careless or improper use of the
chain saw can cause serious or fatal injury.
2.1 Signal Words
This manual contains safety information that requires your
special attention. Such information is introduced with the
following symbols and signal words:
2
0458-729-8621-A
3 Main Parts
12
15
16
0000-GXX-2119-A0
10
9
5
1
6
3
13
14
8
7
11
2
#
4
17
20
19
18
English
DANGER
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
WARNING
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
NOTICE
Indicates a risk of property damage, including damage to the
machine or its individual components.
2.2 Symbols in Text
The following symbol is included to assist you with the use
of the manual:
Refers to a designated chapter or sub-chapter in this
instruction manual.
3 Main Parts

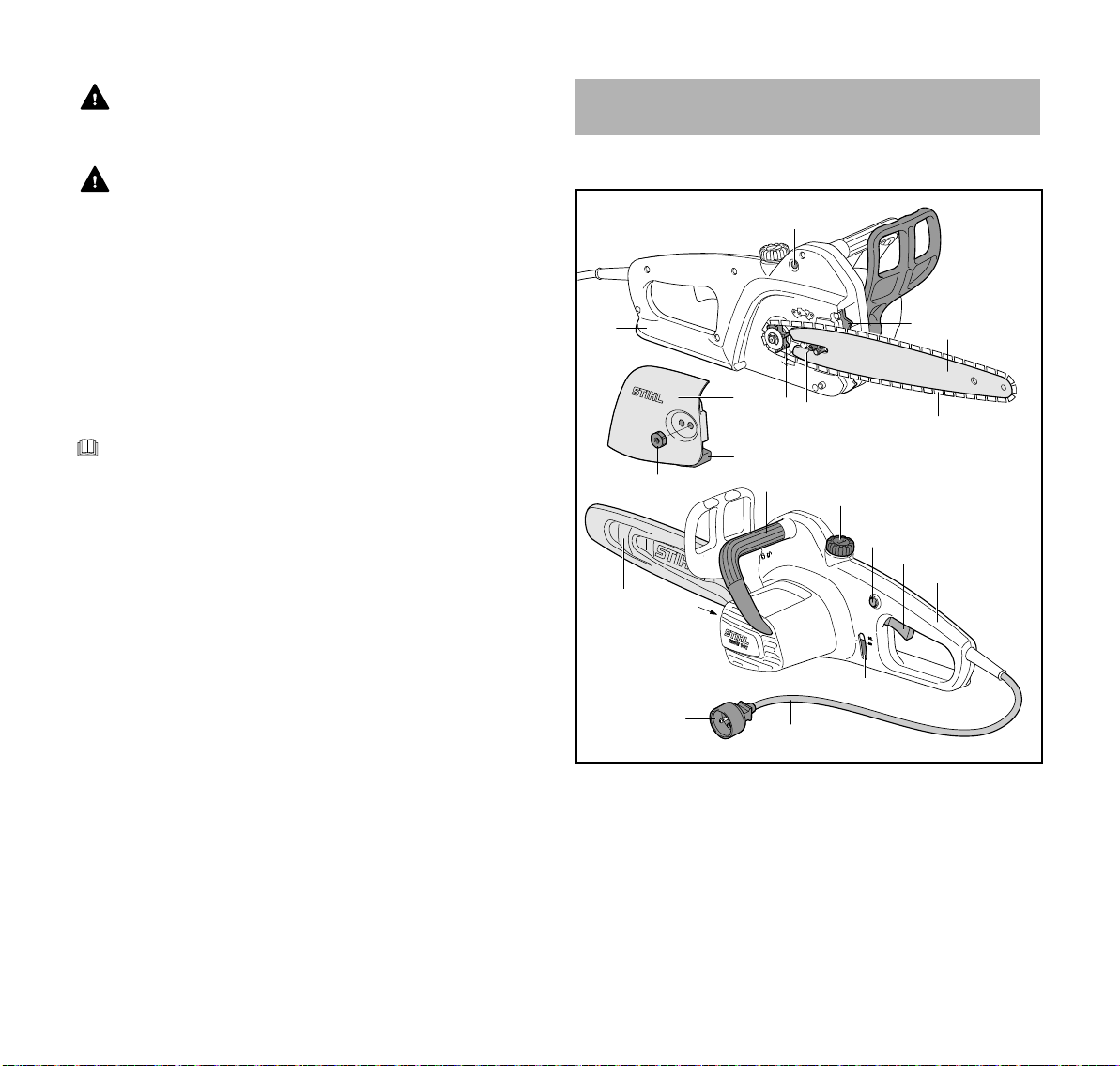

3.1 Chain Saw
0458-729-8621-A
1 Rear Hand Guard
Helps protect the operator's right hand in the event the
chain breaks or comes off the bar.
2 Chain Sprocket Cover
Covers the chain sprocket.
3
English
4 Safety Symbols on the Product
3 Chain Catcher
Helps contain the saw chain and reduce the risk of
operator contact in the event the chain breaks or comes
off the bar.
4Nut
Tightens the chain sprocket cover to the chain saw.
5 Chain Sprocket
Drives the saw chain.
6 Side Chain Tensioner
Permits precise adjustment of saw chain tension.
7 Reset Button for Overload Cutout
Resets the overload circuit breaker.
8 Front Hand Guard
Helps protect the operator's left hand from projecting
branches and contact with the saw chain. Serves as the
activation lever for the chain brake.
9Bumper Spike
Helps hold the saw steady against the wood during
cutting.
10 Guide Bar
Supports and guides the saw chain.
11 Saw Chain
Toothed cutting tool consisting of cutters, tie straps and
drive links.
12 Front Handle
Handle for the operator's left hand.
13 Oil Filler Cap
Closes and seals the bar and chain oil tank.
14 Trigger Switch Lockout
Prevents activation of the trigger switch until depressed.
15 Trigger Switch
Switches the motor on and off.
16 Rear Handle
Handle for the operator's right hand.
17 Oil Sight Glass
Shows the bar and chain oil level.
18 Power Supply Cord
Supplies the chain saw with electricity when connected
to an electrical outlet (power supply).
19 Plug
Connects the power supply cord to an extension cord.
20 Chain Scabbard
Covers the guide bar and saw chain to reduce the risk of
injury from inadvertent contact during transportation and
storage.
# Rating Plate
Contains electrical information and the product's serial
number.
4 Safety Symbols on the Product
4.1 Chain Saw
The following safety symbols are found on the chain saw:
To reduce the risk of injury, follow the specified
safety precautions.
Read and follow all safety precautions in the
instruction manual. Improper use can lead to
serious or fatal personal injury or property
damage.
To reduce the risk of serious personal injury and
hearing loss, always wear proper eye protection
and an approved protective helmet. Power tool
noise may damage your hearing. Always wear
proper sound barriers (ear plugs or ear mufflers)
to protect your hearing, @ 6.3.
4
0458-729-8621-A
5 General Power Tool Safety Warnings
English
Avoid contact of the bar tip with any object. This
can cause the bar to kick suddenly up and back,
which may result in serious or fatal injury. Always
use two hands to operate the saw, @ 7.
To reduce the risk of injury or property damage,
immediately disconnect the chain saw from the
power supply if the power supply cord or the
extension cord is damaged, @ 6.6.
To reduce the risk of electric shock, do not
expose the chain saw to rain, water or excessive
moisture. Store it indoors. If it is exposed to rain
or very damp conditions, take it to your
authorized STIHL servicing dealer before further
operation, @ 6.4.
5 General Power Tool Safety Warnings
5.1 Introduction
This chapter contains the prescribed general safety
warnings and instructions for handheld, motor-operated
electric power tools and motor-operated electric chain saws.
Additional important warnings and instructions are provided
in subsequent chapters of this manual.
WARNING
￭ Read all safety warnings, instructions, illustrations and
specifications provided with this power tool. Failure to
follow all instructions listed below may result in electric
shock, fire and/or serious injury.
￭ Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless)
power tool.
5.2 Work Area Safety
a)Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
b)Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
5.3 Electrical Safety
a)Power tool plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce the risk of electric shock.
b)Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric
shock.
d)Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away from
heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e)When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD) or
ground fault circuit interruptor (GFCI) protected supply.
Use of an RCD or GFCI reduces the risk of electric shock.
5.4 Personal Safety
a)Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
0458-729-8621-A
5
English
5 General Power Tool Safety Warnings
alcohol or medication. A moment of inattention while
operating power tools may result in serious personal
injury.
b)Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the
off-position before connecting to power source and/or
battery pack, picking up or carrying the tool. Carrying
power tools with your finger on the switch or energizing
power tools that have the switch on invites accidents.
d)Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
e)Do not overreach. Keep proper footing and balance at all
times. This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery.
Keep your hair and clothing away from moving parts.
Loose clothes, jewellery or long hair can be caught in
moving parts.
g)If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
h)Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury
within a fraction of a second.
5.5 Power Tool Use and Care
a)Do not force the power tool. Use the correct power tool for
your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
b)Do not use the power tool if the switch does not turn it on
and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove
the battery pack, if detachable, from the power tool before
making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d)Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e)Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power
tool's operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
g)Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account
the working conditions and the work to be performed. Use
of the power tool for operations different from those
intended could result in a hazardous situation.
h)Keep handles and grasping surfaces dry, clean and free
from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the
tool in unexpected situations.
5.6 Service
a)Have your power tool serviced by a qualified repair person
using only identical replacement parts. This will ensure
that the safety of the power tool is maintained.
5.7 General Chain Saw Safety Warnings
a)Keep all parts of the body away from the saw chain when
the chai n saw is operating. Befor e you start the chain saw,
make sure the saw chain is not contacting anything. A
6
0458-729-8621-A
5 General Power Tool Safety Warnings
English
moment of inattention while operating chain saws may
cause entanglement of your clothing or body with the saw
chain.
b)Always hold the chain saw with your right hand on the rear
handle and your left hand on the front handle. Holding the
chain saw with the reversed hand configuration increases
the risk of personal injury and should never be done.
c) Hold the power tool by insulated gripping surfaces only,
because the saw chain may contact hidden wiring or its
own cord. Saw chains contacting a "live" wire may make
exposed metal parts of the power tool "live" and could give
the operator an electric shock.
d)Wear safety glasses and hearing protection. Adequate
protective clothing will reduce personal injury by flying
debris or accidental contact with the saw chain.
e)Do not operate a chain saw in a tree, on a ladder, from a
rooftop, or any unstable support. Operation of a chain saw
in this manner could result in serious personal injury.
f) Always keep proper footing and operate the chain saw
only when standing on fixed, secure and level surface.
Slippery or unstable surfaces may cause a loss of balance
or control of the chain saw.
g)When cutting a limb that is under tension, be alert for
spring back. When the tension in the wood fibers is
released, the spring loaded limb may strike the operator
and/or throw the chain saw out of control.
h)Use extreme caution when cutting brush and saplings.
The slender material may catch the saw chain and be
whipped toward you or pull you off balance.
i) Carry the chain saw by the front handle with the chain saw
switched off and away from your body. When transporting
or storing the chain saw, always fit the guide bar cover.
Proper handling of the chain saw will reduce the likelihood
of accidental contact with the moving saw chain.
j) Follow instructions for lubricating, chain tensioning and
changing the bar and chain. Improperly tensioned or
lubricated chain may either break or increase the chance
for kickback.
k) Cut wood only. Do not use chain saw for purposes not
intended. For example: do not use chain saw for cutting
metal, plastic, masonry or non-wood building materials.
Use of the chain saw for operations different than intended
could result in a hazardous situation.
5.8 Causes and Operator Prevention of Kickback
a)Kickback may occur when the nose or tip of the guide bar
touches an object, or when the wood closes in and
pinches the saw chain in the cut.
b)Tip contact in some cases may cause a sudden reverse
reaction, kicking the guide bar up and back towards the
operator.
c)Pinching the saw chain along the top of the guide bar may
push the guide bar rapidly back towards the operator.
d)Either of these reactions may cause you to lose control of
the saw which could result in serious personal injury. Do
not rely exclusively upon the safety devices built into your
saw. As a chain saw user, you should take several steps
to keep your cutting jobs free from accident or injury.
e)Kickback is the result of chain saw misuse and/or incorrect
operating procedures or conditions and can be avoided by
taking proper precautions as given below:
1)Maintain a firm grip, with thumbs and fingers encircling
the chain saw handles, with both hands on the saw and
position your body and arm to allow you to resist
kickback forces. Kickback forces can be controlled by
the operator, if proper precautions are taken. Do not let
go of the chain saw.
2)Do not overreach and do not cut above shoulder height.
This helps prevent unintended tip contact and enables
better control of the chain saw in unexpected situations.
3)Only use replacement guide bars and saw chains
specified by the manufacturer. Incorrect replacement
guide bars and saw chains may cause chain breakage
and/or kickback.
4)Follow the manufacturer's sharpening and maintenance
instructions for the saw chain. Decreasing the depth
gauge height can lead to increased kickback.
0458-729-8621-A
7
English
6 IMPORTANT SAFETY INSTRUCTIONS
6 IMPORTANT SAFETY
INSTRUCTIONS
6.1 Intended Use
WARNING
￭ This chain saw is designed for cutting small diameter
trees, branches and limbs around the home. It is not
designed for felling large trees or cutting large diameter
logs. Use of the chain saw for operations different than
intended could result in serious injury or death.
– Cut wood only. For example, do not use chain saw
for cutting metal, plastic or masonry.
– Use this chain saw only for light-duty cutting tasks
around the home and garden.
– Read and follow the operating and use instructions
in this manual for approved applications and
recommended working techniques.
￭ The saw chain has many sharp cutters. If they contact
your flesh, they will cut you even if the chain is not moving.
– Always wear heavy-duty work gloves when handling
the saw or its chain.
– Keep hands, feet and other parts of your body away
from the chain.
￭ Reactive forces, including kickback, can be dangerous.
– Pay special attention to the sections of this
instruction manual dealing with reactive forces.
￭ Observe all applicable federal, state and local safety
regulations, standards and ordinances.
– When using a chain saw for logging purposes, for
instance, refer to the OSHA regulations for "logging
operations" at 29 Code of Federal Regulations
1910.266.
￭ Improper use could result in personal injury or property
damage, including damage to the chain saw.
– Use the chain saw only as described in this manual.
– Never attempt to modify or override the chain saw's
controls or safety devices in any way.
– Never use a chain saw that has been modified or
altered from its original design.
6.2 Operator
WARNING
￭ Working with the chain saw can be strenuous. The
operator must be in good physical condition and mental
health. To reduce the risk of personal injury from fatigue
and loss of control:
– Check with your doctor before using the chain saw if
you have any health condition that may be
aggravated by strenuous work.
– Do not operate the chain saw while under the
influence of any substance (drug, alcohol or
medication, etc.) that might impair vision, balance,
dexterity or judgment.
– Be alert. Do not operate the chain saw when you are
tired. Take a break if you become tired.
– Do not permit minors to use the chain saw.
– Bystanders, especially children, and animals should
not be allowed in the area where the chain saw is in
use.
￭ Prolonged use of a chain saw (or other power tools)
exposing the operator to vibration may produce white
finger disease (Raynaud's phenomenon) or carpal tunnel
syndrome. These conditions reduce the hand's ability to
feel and regulate temperature. They produce numbness
and burning sensations and may also cause nerve and
circulation damage as well as tissue necrosis.
￭ All factors which contribute to white finger disease are not
known. Cold weather, smoking and diseases or physical
conditions that affect blood vessels and blood transport,
as well as high vibration levels and long periods of
exposure to vibration, are mentioned as factors in the
development of white finger disease.
8
0458-729-8621-A
6 IMPORTANT SAFETY INSTRUCTIONS
English
￭ To reduce the risk of white finger disease and carpal
tunnel syndrome:
– Wear gloves while working and keep your hands
warm.
– Keep the chain saw well maintained. An improperly
maintained chain saw or one with loose components
will tend to have higher vibration levels.
– Keep the saw chain sharp. A dull chain will increase
cutting time, and pressing a dull chain through wood
will increase the vibration transmitted to your hands.
– Maintain a firm grip at all times, but do not squeeze
the handles with constant, excessive pressure. Take
frequent breaks.
￭ These precautions do not guarantee that you will not
sustain white finger disease or carpal tunnel syndrome.
– Closely monitor the condition of your hands and
fingers if you are a regular operator.
– Seek medical advice immediately if any of the above
symptoms appear.
￭ According to STIHL's current knowledge, the electric
motor of this chain saw should not interfere with a
pacemaker.
– However, persons with a pacemaker or other
implanted medical device should consult their
physician and device manufacturer before operating
this chain saw.
6.3 Personal Protective Equipment
WARNING
￭ To reduce the risk of personal injury:
– Always wear proper clothing and protective apparel,
including proper eye protection.
￭ Loss of control and severe cut injuries may result if hair,
clothing or apparel make contact with the moving saw
chain or otherwise become entangled in the components
of the saw. To reduce the risk of severe personal injury:
– Wear sturdy and snug-fitting clothing that
also allows complete freedom of
movement.
– Wear the type of overalls, long pants or
chaps that contain pads of cut-retardant
material.
– Wear a long-sleeve shirt or jacket.
– Avoid loose-fitting jackets, scarves, neckties, flared
or cuffed pants, jewelry and any other apparel that
could be caught on branches, brush or the moving
chain.
– Secure hair above shoulder level before starting
work.
￭ To reduce the risk of eye injury:
– Always wear goggles or close-fitting
protective glasses with adequate top and
side protection that are impact-rated and
marked as complying with ANSI Z87 "+".
– To reduce the risk of injury to your face, STIHL
recommends that you also wear a face shield or face
screen over your goggles or protective glasses.
￭ To reduce the risk of head injury from falling branches or
other objects encountered during work:
– Wear an approved protective helmet.
￭ Prolonged exposure to power tool noise may result in
permanent hearing damage. To reduce the risk of hearing
damage:
– Wear sound barriers (ear plugs or ear
muffs).
– Regular operators should have their
hearing checked periodically.
– Be particularly alert and cautious when
using hearing protection. Your ability to
hear shouts, alarms or other audible
warnings is restricted.
￭ Good footing is very important. To help maintain a secure
footing and reduce the risk of injury while working:
0458-729-8621-A
9
English
6 IMPORTANT SAFETY INSTRUCTIONS
– Wear sturdy boots with non-slip soles.
Steel-toed safety boots are
recommended. Do not wear sandals, flipflops, open-toed or similar footwear.
￭ To improve your grip and help protect your hands:
– Always wear heavy-duty non-slip work
gloves made of leather or another wearresistant material when handling the
chain saw or its chain.
6.4 Chain Saw
WARNING
￭ The chain saw's electric motor is not waterproof. To
reduce the risk of serious or fatal injury from electrocution
or electric shock:
– Do not expose the chain saw to rain,
water or excessive moisture.
– Store the chain saw indoors.
– Never use your chain saw if the casing around the
motor is cracked or damaged.
￭ The saw chain has many sharp cutters. Contacting the
cutters may result in serious laceration injuries, even if
the chain is not moving. To reduce the risk of such injuries:
– Keep hands, feet and other parts of your body away
from the chain.
– Wear heavy-duty work gloves when handling the
chain saw or its chain.
– Never touch a moving chain with your hand or any
other part of your body.
– Cover the guide bar with a chain scabbard before
transporting or storing the chain saw to reduce the
risk of injury from inadvertent contact.
￭ Reactive forces, including kickback, can be dangerous.
– Pay special attention to the section of this instruction
manual on "Kickback and Other Reactive Forces,"
@ 7.
￭ This electric chain saw is intended only for light-duty
garden and landscape maintenance around the home.
Use for other purposes may increase the risk of personal
injury and property damage.
– Do not use the chain saw for felling large trees or
cutting large diameter logs.
– Read and follow the operating instructions in this
manual for approved applications, @ 8.
￭ To reduce the risk of personal injury to the operator and
bystanders:
– Always release the trigger switch, engage the chain
brake by moving the front hand guard to and
disconnect the chain saw from the power supply
before assembling, transporting, adjusting,
inspecting, cleaning, servicing, maintaining or
storing the chain saw and any other time it is not in
use.
￭ Although certain unauthorized attachments may fit your
STIHL chain saw, their use may be extremely dangerous.
Only attachments supplied by STIHL or expressly
approved by STIHL for use with this specific model are
recommended.
– Use only attachments supplied or expressly
approved by STIHL.
– Never modify this chain saw in any way.
– Never attempt to modify or override the chain saw's
controls or safety devices in any way.
– Never use a chain saw that has been modified or
altered from its original design.
￭ If the chain saw is dropped or subjected to similar heavy
impacts:
– Check that it is undamaged, in good condition and
functioning properly before continuing work.
– Check that the controls and safety devices, including
the chain brake, are working properly, @ 15.1.
10
0458-729-8621-A
6 IMPORTANT SAFETY INSTRUCTIONS
English
– Check that the power supply cord has not been
damaged.
– Never work with a damaged or malfunctioning
battery or chain saw. In case of doubt, have the
chain saw and battery checked by your authorized
STIHL servicing dealer.
￭ If the chain saw is damaged, not working properly, has
been left outdoors, exposed to rain or damp conditions or
dropped into water or other liquid, its components may no
longer function properly and safety devices may be
inoperative. To reduce the risk of personal injury and
property damage:
– Take the chain saw to your authorized STIHL
servicing dealer to be checked before further
operation.
￭ Genuine STIHL replacement parts are specifically
designed to match your chain saw and meet safety and
performance requirements. Use of parts that are not
authorized or approved by STIHL may cause serious or
fatal injury or property damage.
– STIHL recommends that only identical STIHL
replacement parts be used.
6.5 Power Supply Cord and Extension Cord
WARNING
￭ Using a damaged power supply cord, plug, or extension
cord may result in fire, electric shock and other personal
injury or property damage. To reduce these risks:
– Check the chain saw’s power supply
cord, plug and your extension cord
regularly for damage. If it becomes
damaged, immediately disconnect the
chain saw from the power supply. Never
use a damaged power supply cord, plug
or extension cord.
– Do not abrade, crush, jerk, or otherwise abuse or
misuse the power supply cord and extension cord.
Protect them from heat, oil and sharp edges.
– If the power supply cord becomes damaged, have it
replaced by an authorized STIHL servicing dealer
before use. A damaged power supply cord must be
replaced with an identical STIHL replacement part.
– Unplug the power supply cord and extension cord
when the chain saw is not in use.
– Never yank or jerk the power supply cord or
extension cord to disconnect. To unplug, grasp the
plug, not the power supply cord or extension cord.
– Make sure the power supply cord and extension cord
are positioned and secured or marked so that they
will not be stepped on, tripped over, come in contact
with sharp objects, moving parts, or otherwise be
subjected to damage or stress.
￭ To reduce the risk of electric shock:
– Use only extension cords that are intended for
outdoor use, identified in the U.S. by the following
marking: "Suitable for use with outdoor appliances.
Store indoors while not in use."
– The chain saw must be connected to an electrical
outlet equipped with a Ground Fault Circuit
Interruptor (GFCI) or Residual Current Device (RCD)
with a maximum differential tripping current of
30 mA.
￭ This power tool has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized electrical
outlet only one way. To reduce the risk of electric shock:
– Do not change the plug in any way.
– If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, use a different outlet or
contact a qualified electrician to install the proper
outlet.
0458-729-8621-A
11
English
6 IMPORTANT SAFETY INSTRUCTIONS
￭ Overloading an extension cord can result in overheating
and fire. To reduce these risks:
– Be sure to use an extension cord heavy enough to
carry the current your electric saw will draw. Read
and follow the minimum wire size requirements for
120 Volt appliances set out in, @ 22.2.
– Use of an extension cord not meeting the minimum
wire size will cause a drop in wire voltage and result
in a loss of power and overheating.
– Never use an extension cord with a wattage or
electrical rating lower than the wattage or electrical
rating on your chain saw's rating plate.
– Never use an extension cord if the blades on its plug
are different from the blades on the power tool plug
in number, size or shape.
– Never connect more than one chain saw or other
device to a single extension cord.
– Do not link (chain) extension cords.
6.6 Using the Chain Saw
6.6.1 Before Operation
WARNING
￭ Misuse or unauthorized use may result in personal injury
and property damage.
– Use the chain saw only as described in this
instruction manual.
￭ For proper assembly of the bar and chain:
– Read and follow the instructions on mounting the
guide bar and chain, @ 11.2.
￭ The chain, guide bar and sprocket must match each other
in gauge and pitch. Before mounting or replacing:
– Read the information on guide bar and chain
combinations, @ 23.
– Read and follow the instructions on kickback and
other reactive forces, @ 7.
– Select the shortest bar that will meet your cutting
needs. Longer bars add weight and may be more
difficult to control.
￭ Proper tension of the chain is extremely important to
maximize cutting performance and reduce the risk of
personal injury from chain breakage, derailment or
reactive forces:
– Read and follow the chain tensioning instructions,
@ 11.3.
– Always make sure the chain sprocket cover is
tightened securely after tensioning the chain in order
to secure the bar. Never start the chain saw with the
chain sprocket cover loose or missing.
– Check chain tension once more after tightening the
chain sprocket cover.
– After adjusting the chain, let the motor run for a
minute or two, then switch the motor off and engage
the chain brake. Disconnect the chain saw from the
power supply and recheck chain tension.
– Check chain tension periodically thereafter at
regular intervals (only after engaging the chain brake
and disconnecting the chain saw from the power
supply).
– Never cut with a loose chain. If the chain becomes
loose while cutting, switch off the motor, engage the
chain brake and disconnect the chain saw from the
power supply before tightening the chain. Never
attempt to adjust the chain while the chain saw is
connected to the power supply.
￭ Using a chain saw that is modified, damaged, improperly
adjusted or maintained, or not completely and securely
assembled can lead to a malfunction and increase the risk
of serious personal injury or death.
– Never operate a chain saw that is modified,
damaged, improperly maintained or not completely
and securely assembled.
– Always check your chain saw for proper condition
and operation before starting work, particularly the
trigger switch, trigger switch lockout, front hand
guard, chain brake and cutting attachment.
12
0458-729-8621-A
6 IMPORTANT SAFETY INSTRUCTIONS
0000-GXX-2107-A0
English
– Ensure that the trigger switch and trigger switch
lockout move freely and always spring back to the
locked position when released. The trigger switch
must not engage until the trigger switch lockout is
depressed.
– Never attempt to modify or override the controls or
safety devices in any way.
– If your saw or any part is damaged or does not
function properly, take it to your authorized STIHL
servicing dealer. Do not use the saw until the
problem has been corrected.
￭ Before connecting the chain saw to the power supply:
– Read and follow the instructions on switching on the
chain saw, @ 14.1.
￭ To help reduce the risk of serious personal injury or death
from unintentional starting:
– Be sure the trigger switch and trigger switch lockout
are in the off position when connecting the chain saw
to the power supply.
– Never carry the chain saw with your finger on the
trigger switch.
– Release the trigger switch and trigger switch lockout
and engage the chain brake before disconnecting
the chain saw from the power supply.
– Engage the chain brake and disconnect the chain
saw from the power supply before assembling,
transporting, adjusting, inspecting, cleaning,
servicing, maintaining or storing the chain saw and
any other time it is not in use.
– Never leave the chain saw unattended when it is
connected to the power supply.
￭ Before disengaging the chain brake and switching on your
chain saw, take the following steps to reduce the risk of
personal injury from reactive forces, loss of control or
inadvertent contact with the chain:
– Be sure that the guide bar and chain are clear of you
and all other obstructions and objects, including the
ground.
– Never attempt to switch on the chain saw when the
guide bar is in a cut or kerf. Doing so could lead to
reactive forces and injury.
– Read and follow the instructions on switching on the
chain saw, @ 14.1.
6.6.2 Holding and Controlling the Chain Saw
WARNING
￭ To maintain a firm grip and properly control your chain
saw:
– Keep the handles clean and dry at all times. Keep
them free of moisture, pitch, oil, grease and resin.
￭ To reduce the risk of serious or fatal injuries to the
operator or bystanders from loss of control:
– Avoid contacting any object with the
upper quadrant of the tip of the guide
bar. It may cause kickback to occur.
0458-729-8621-A
13
English
0000-GXX-1889-A0
6 IMPORTANT SAFETY INSTRUCTIONS

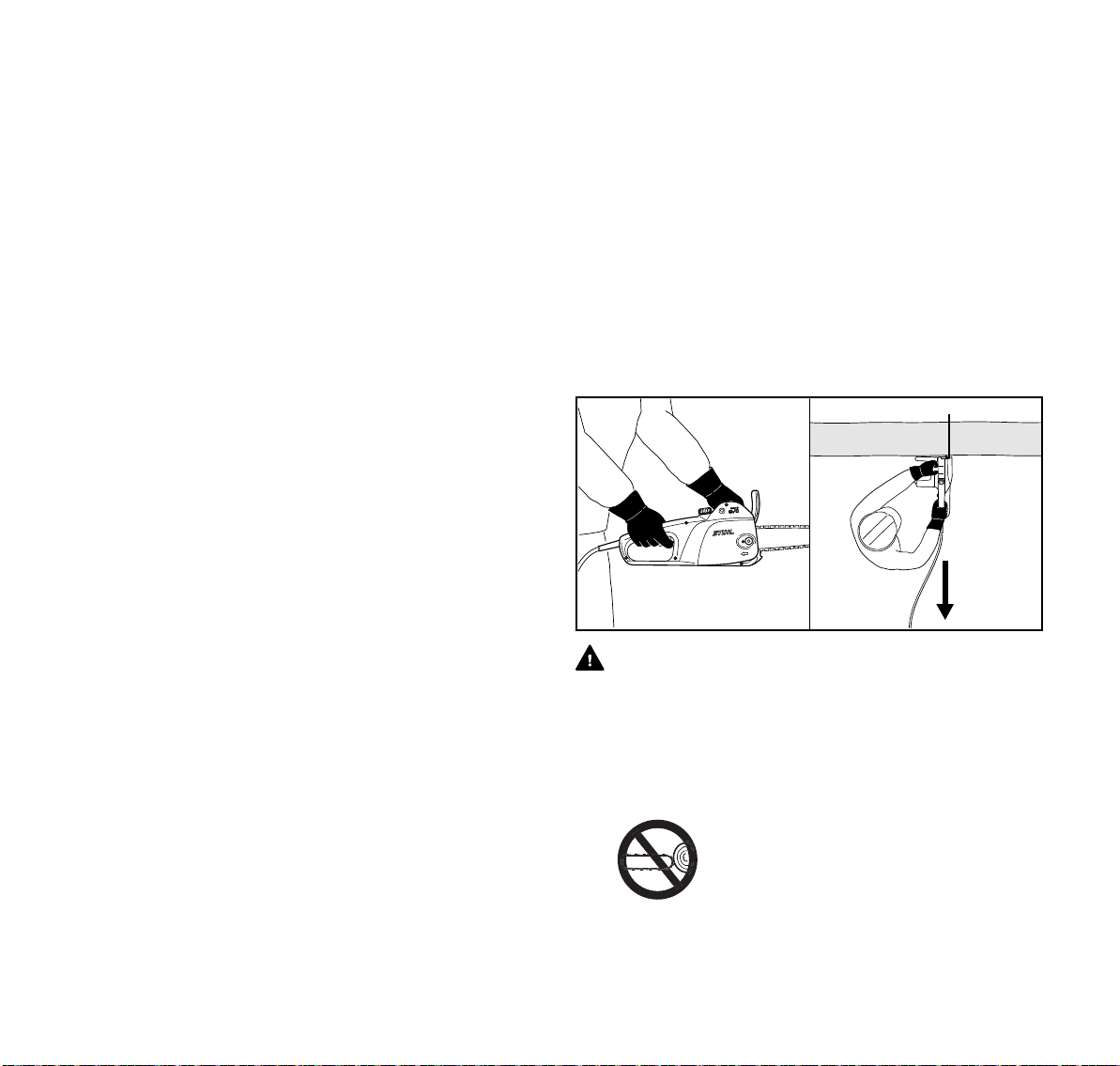

– Always hold the chain saw firmly with
both hands when you are working.
– Place your left hand on the front handle and your
right hand on the rear handle (see illustration). Lefthanders must follow these instructions too.
– Wrap your fingers tightly around the handles,
keeping the handles cradled between your thumb
and forefinger.
– Position the chain saw in such a way that all parts of
your body are clear of the cutting attachment
whenever the extension cord is connected. Stand to
the left of the cut while bucking, outside of the cutting
plane (see illustration).
– Read and follow all warnings and instructions in the
chapter Kickback and Reactive Forces, @ 7.
– Position the power supply cord and extension cord
so that they will not be damaged while working with
the saw.
– Always keep the power supply cord and extension
cord behind the operator and away from the bar and
chain. Always be sure that your cable does not
become entangled with obstacles or objects.
￭ Operating the chain saw with one hand is extremely
dangerous. One-handed operation makes it difficult to
oppose and absorb reactive forces (pushback, pull-in,
kickback) without losing control of the chain saw. It also
makes it difficult to prevent the bar and chain from skating
or bouncing along a limb or log. To reduce the risk of
serious or fatal injury to the operator or bystanders from
loss of control:
– Never attempt to operate the chain saw
with one hand.
￭ To reduce the risk of serious or fatal cut injuries to the
operator or bystanders from loss of control, keep proper
footing and balance at all times:
– Take special care in overgrown or wet terrain and
always watch for hidden obstacles such as tree
stumps, roots, rocks, holes and ditches to avoid
stumbling or falling.
– Know where the power supply cord and extension
cord are at all times to avoid tripping or stumbling.
– Be extremely cautious when working on slopes or
uneven ground.
– For better footing, always clear away fallen
branches, scrub and cuttings. Freshly debarked logs
and other material can increase the danger of
slipping, tripping or falling.
– Use extreme caution when cutting small-size brush,
branches and saplings because slender material
may catch the chain and spring toward you or pull
you off balance.
￭ To reduce the risk of injury from loss of control:
– Never work on a ladder, roof, in a tree or
while standing on any other insecure
support.
– Never operate the chain saw above
shoulder height.
– Do not overreach. Keep proper footing and balance
at all times.
– Never switch on the chain saw when the guide bar is
in a cut or kerf. Doing so could lead to reactive forces
and injury. Instead, remove the guide bar from the
cut and re-enter at full speed, taking care to avoid
contacting any object with the tip of the guide bar.
14
0458-729-8621-A
6 IMPORTANT SAFETY INSTRUCTIONS
English
￭ The bumper spike is designed to provide greater control
of the chain saw while cutting. If you work without the
bumper spike, the chain saw may pull you forward
suddenly. This could cause loss of control or, if the tip of
the guide bar strikes an object, kickback.
– Always work with the bumper spike to maintain
better control of the saw.
￭ Applying pressure to the chain saw when reaching the end
of a cut may cause the bar and rotating chain to accelerate
out of the kerf, go out of control and strike the operator or
some other object. To reduce the risk of injury:
– Use caution when approaching the end of a cut.
– Never put pressure on the chain saw when reaching
the end of a cut.
– STIHL recommends that first-time chain saw users
cut logs on a sawhorse.
6.6.3 Working Conditions
WARNING
￭ Operate your chain saw only under good visibility during
favorable daylight conditions.
– Postpone the work if the weather is windy, foggy,
rainy or inclement.
– Never cut near power lines.
￭ Your chain saw is a one-person machine.
– Do not allow other persons in the general work area.
– Bystanders, especially children, and animals should
not be allowed in the area where it is in use.
– Switch off the motor immediately if you are
approached.
￭ To reduce the risk of injury to bystanders and
unauthorized users:
– Never leave the chain saw unattended when it is
connected to the power supply.
– Switch off the chain saw, engage the chain brake
and disconnect from the power supply during work
breaks and any other time the chain saw is not in
use.
￭ Sparks generated from the operation of the chain saw may
be capable of igniting combustible gases, liquids, vapors,
dusts or other combustible materials and substances. To
reduce the risk of fire and explosion:
– Never operate the chain saw in a location where
combustible gases, liquids, vapors, dusts or other
combustible materials and substances are present.
– Read and follow recommendations issued by
government authorities (e.g., OSHA) for identifying
and avoiding the hazards of combustible gases,
liquids, vapors, dusts or other combustible materials
and substances.
￭ If a rotating chain strikes a rock or other hard object,
sparks may be created, which can ignite flammable
materials under certain circumstances. Flammable
materials can include dry vegetation and brush,
particularly when weather conditions are hot and dry.
– When there is a risk of fire or wildfire, do not use your
chain saw around flammable materials or around dry
vegetation or brush.
– Contact your local fire authorities or the U.S. Forest
Service if you have any question about whether
vegetation and weather conditions are suitable for
the use of a chain saw.
￭ Using this chain saw and sharpening its chain can
generate dust, oil mist and other substances containing
chemicals known to cause respiratory problems, cancer,
birth defects and other reproductive harm.
– Consult governmental agencies such as EPA,
OSHA, CARB and NIOSH and other authoritative
sources on hazardous materials if you are unfamiliar
0458-729-8621-A
15
English
6 IMPORTANT SAFETY INSTRUCTIONS
with the risks associated with the particular
substances you are cutting or with which you are
working.
￭ Inhalation of certain dusts, especially organic dusts such
as mold or pollen, can cause susceptible persons to have
an allergic or asthmatic reaction. Substantial or repeated
inhalation of dust or other airborne contaminants,
especially those with a smaller particle size, may cause
respiratory or other illnesses. This includes wood dust,
especially from hardwoods, but also from some softwoods
such as Western Red Cedar.
– Control dust (such as saw dust) and mists (such as
oil mist from chain lubrication) at the source where
possible.
– Always work with a properly sharpened chain, which
produces wood chips rather than fine dust.
– To the extent possible, operate the chain saw so that
the wind or operating process directs any dust, mist
or other particulate matter raised by the chain saw
away from the operator.
– When respirable dust or other particulate matter
cannot be kept at or near background levels, always
wear a respirator that is approved by NIOSH and
rated for worksite-specific conditions. Follow the
recommendations of governmental authorities (e.g.,
OSHA/NIOSH) and occupational and trade
associations.
￭ If the vegetation being cut or the surrounding ground is
coated with a chemical substance, such as pesticide or
herbicide:
– Read and follow the instructions and warnings that
accompanied the substance coating the vegetation
or surrounding ground.
￭ Breathing asbestos dust is dangerous and can cause
severe or fatal injury, respiratory illness or cancer,
including mesothelioma. The use and disposal of
asbestos-containing products is strictly regulated by
OSHA and the EPA.
– Do not use your chain saw to cut or disturb asbestos
or asbestos-containing products.
– Stop work immediately and contact the relevant
state and local authorities and/or EPA, your
employer or local OSHA representative if you have
reason to believe that you might be disturbing
asbestos.
￭ Repeated contact with waste oil can cause skin cancer
and its use is harmful to the environment.
– Do not use waste oil to lubricate the bar and chain of
your STIHL chain saw.
16
0458-729-8621-A
7 Kickback and Other Reactive Forces
English
6.6.4 Operating Instructions
WARNING
￭ To reduce the risk of severe personal injuries from
unintentional starting:
– Never touch a chain with your hand or any part of
your body when the chain saw is connected to the
power supply, even when the chain is not rotating.
￭ The chain continues to move for a short period after the
trigger switch is fully released.
– Wait for the chain to stop and engage the chain
brake before walking with the chain saw or putting it
down.
￭ In the event of an emergency:
– Switch off the motor immediately, engage the chain
brake and disconnect the chain saw from the power
supply.
￭ Your chain saw is equipped with a chain catcher. It is
designed to reduce the risk of personal injury in the event
of a thrown or broken chain.
– Never operate the chain saw with a damaged or
missing chain catcher.
￭ Contacting foreign objects while sawing might cause the
chain to break or be thrown, or cause the chain saw to
propel dangerous debris or kick back in the direction of the
operator. To reduce the risk of severe or fatal personal
injury caused by contact with foreign objects:
– Inspect the tree, log or branch before cutting.
– Remove any foreign objects to ensure that the wood
is free of materials such as nails, spikes, cables, or
wires.
– Before starting a cut, ensure that it can be completed
without contacting surrounding objects or structures
such as fencing or stonework.
￭ Check the chain and guide bar at regular short intervals
during operation, or immediately if there is a change in
cutting behavior:
– Switch off the motor, activate the chain brake and
disconnect the chain saw from the power supply.
– Check the condition and tension of the chain. Look
for damage to the chain or guide bar.
– If the chain cannot be properly tensioned, or if other
components of the saw are worn or damaged, stop
work immediately and take your chain saw to an
authorized STIHL servicing dealer for inspection,
repair or maintenance.
DANGER
￭ To reduce the risk of electrocution:
– Never operate this chain saw in the
vicinity of any wires or cables that may
be carrying electric current.
– Never cut near power lines.
– Do not rely on the chain saw's insulation
against electric shock.
– Never use your chain saw if the casing
around the motor is cracked or damaged.
– Always use care to avoid contacting the
power supply cord and extension cord
with the chain.
7 Kickback and Other Reactive Forces
7.1 Reactive Forces
WARNING
￭ Reactive forces may occur any time the chain is rotating.
Reactive forces can cause serious or fatal personal injury.
0458-729-8621-A
17
English
0000-GXX-1374-A0
7 Kickback and Other Reactive Forces
￭ The powerful forces used to cut wood can be reversed and
work against the operator. If the rotating saw chain is
suddenly and significantly slowed or stopped by contact
with any solid object such as a log or branch, or is
pinched, the reactive forces may occur instantly.
￭ These reactive forces may result in loss of control, which,
in turn, may cause serious or fatal injury.
– An understanding of the causes of these reactive
forces may help you avoid the element of surprise
and loss of control. Surprise contributes to
accidents.
The most common reactive forces are:
– Kickback
– Pull-in
– Pushback
7.2 Kickback
7.2.1 Kickback
￭ When this occurs, the energy driving the chain can create
a force that moves the chain saw in a direction opposite to
the chain movement at the point where the chain is slowed
or stopped. This may fling the bar up and back in a
lightning fast reaction mainly in the plane of the bar and
can cause severe or fatal injury to the operator.
￭ Kickback may occur, for example, when the chain near the
upper quadrant of the bar nose contacts the wood or is
pinched during limbing or when it is incorrectly used to
begin a plunge or boring cut.
￭ The greater the force of the kickback reaction, the more
difficult it becomes for the operator to control the chain
saw. Many factors influence the occurrence and force of
the kickback reaction. These include chain speed, the
speed at which the bar and chain contact the object, the
location and angle of contact, the condition of the chain,
and how quickly the chain is slowed or stopped, among
other factors.
– The type of bar and chain you use is an important
factor in the occurrence and force of the kickback
reaction. Some STIHL bar and chain types are
designed to reduce kickback forces.
– STIHL recommends the use of reduced kickback
bars and low kickback chains.
7.2.2 Chain Saw Kickback Standards
The following standards apply with respect to kickback:
– § 19.108 of UL 60745-2-13
– § 5.11 of ANSI/OPEI B175.1
WARNING
Kickback may occur when the moving chain near
the upper quadrant of the bar nose contacts a
solid object or is pinched.
18
These standards, referred to as "the chain saw kickback
standards" in this chapter, set certain performance and
design criteria related to chain saw kickback.
To comply with the chain saw kickback standards, electric
chain saws:
– must, in their original condition, meet a 45° computer-
derived kickback angle when equipped with certain cutting
attachments; and
0458-729-8621-A
7 Kickback and Other Reactive Forces
0000-GXX-1207-A0
English
– must be equipped with at least two devices to reduce the
risk of kickback injury, such as a chain brake, low kickback
chain, reduced kickback bar, etc.
The computer-derived angles for electric chain saws are
measured by applying a computer program to test results
from a kickback test machine.
WARNING
￭ Compliance with the chain saw kickback standards does
not mean that the bar and chain will rotate at most 45° in
a real life kickback.
￭ The computer-derived angles of the chain saw standards
may bear no relationship to actual kickback bar rotation
angles that may occur in a real life cutting situation.
￭ Devices designed to reduce the risk of kickback injuries
may lose some of their effectiveness when they are no
longer in their original condition, especially if they have
been improperly maintained.
– Read and follow the safety precautions and
instructions in this manual.
– When working, always position the chain saw such
that your body is clear of the cutting attachment and
outside of the cutting plane.
– Follow the maintenance and service instructions in
this manual.
￭ For the chain saw to meet the chain saw kickback
standards, use only the following cutting attachments:
– Compliant bar and chain combinations listed in
"Combinations of Guide Bars and Saw Chains,"
@ 23;
– Other replacement bar and chain combinations
marked in accordance with the standards for use on
the chain saw; or
– Replacement chain designated "low kickback chain."
7.2.3 Devices for Reducing the Risk of Kickback Injury
The STIHL Quickstop chain brake and STIHL's greenlabeled, reduced kickback bars and green-labeled, low
kickback chains are designed to reduce the risk of kickback
injury.
1. STIHL Quickstop Chain Brake
There are two mechanisms for activating the chain brake if
it is in a properly maintained condition:
– Manual Activation: If a kickback occurs, the chain saw
moves upwards toward the user in a rotating motion
around the front handle. The brake is designed to engage
if the left hand contacts the front hand guard, which is the
activation lever for the brake, and pushes it forward.
– Inertia Activation: All STIHL chain saws are equipped with
an inertia Quickstop chain brake. If the kickback impulse
is strong enough, this alone is sufficient to engage the
brake even without contacting the front hand guard.
WARNING
￭ To reduce the risk of kickback injury:
– Never use a saw if the chain brake does not function
properly.
– When in doubt, take the saw to an authorized STIHL
servicing dealer for inspection and/or repair.
– Do not use the saw until the problem has been
corrected.
0458-729-8621-A
19
English
7 Kickback and Other Reactive Forces
￭ In a kickback situation, the front hand guard helps protect
your left hand from contacting the chain. Removal of the
front hand guard on a chain saw equipped with a
Quickstop chain brake will reduce this protection and also
disable the chain brake, increasing the risk of kickback
injury.
– Never operate your saw without a properly
functioning front hand guard. If the front hand guard
is missing, manual activation and inertia activation of
the chain brake will be completely disabled.
– Never attempt to remove, modify or disable the front
hand guard or any other component of the chain
brake.
￭ No Quickstop or other chain brake device prevents
kickback. These devices are designed to reduce the risk
of injury, if activated, in certain kickback situations. To
reduce the risk of severe personal injury or death from
kickback:
– Always follow the instructions in this manual and
follow good working technique. For example,
position your body clear of the cutting attachment
whenever the motor is running. Stand to the left of
the cut while bucking, outside of the cutting plane.
See chapter "Holding and Controlling the Chain
Saw", @ 6.6.2.
– Maintain as much distance as possible, and never
less than 45 degrees, between the bar and your
body to ensure that the Quickstop has sufficient time
to activate and stop the chain before reaching any
part of your body.
– Follow the other precautions provided in chapter
@ 8.
￭ An improperly maintained chain brake may increase the
time needed to stop the chain after activation, or may not
activate at all. For the Quickstop to reduce the risk of
kickback injury, it must be properly maintained and in
good working order.
– Read and follow the instructions on engaging and
disengaging the chain brake, @ 12, and
maintaining and repairing it, @ 12.3.
2. Low Kickback Saw Chain and Reduced Kickback Bars
STIHL offers a variety of guide bars and chains. STIHL
reduced kickback bars and low kickback chains are
designed to reduce the risk of kickback injury. Other chains
are designed to achieve higher cutting performance or
sharpening ease, but are more prone to kickback and may
kick back with more energy, making it more difficult to
control the chain saw.
STIHL has developed a color code system to help you
identify the STIHL reduced kickback bars and low kickback
chains.
– Cutting attachments with green labels on the packaging
are designed to reduce the risk of kickback injury.
– Matching green-marked or labeled chain saws with green-
labeled bars and green-labeled chains provides
compliance with the computed kickback angle
requirements of the chain saw standards when the
products are in their original condition.
– Products with yellow labels are for users with
extraordinary cutting needs, who have experience and
specialized training for dealing with kickback.
STIHL recommends the use of its green-labeled reduced
kickback bars, green-labeled low kickback chains and a
chain saw equipped with a STIHL Quickstop chain brake for
both experienced and inexperienced operators.
STIHL recommends green-labeled bars and chains for all
chain saws. See your "STIHL Bar and Chain Information"
leaflet for details.
New bar and chain combinations may be developed after
publication of this literature, which will, in combination with
certain electric chain saws, comply with the chain saw
standards as well.
20
0458-729-8621-A
7 Kickback and Other Reactive Forces
English
WARNING
￭ Use of bar and chain combinations not listed in the STIHL
Bar and Chain Information leaflet (or other combinations
that do not comply with the chain saw standards) may
increase kickback forces as well as the propensity for
kickback and increase the risk of kickback injury.
– Please ask your authorized STIHL servicing dealer
to properly match your chain saw with the
appropriate bar and chain combination to reduce the
risk of kickback injury.
￭ Reduced kickback bars and low kickback chains do not
prevent kickback, but they are designed to reduce the risk
of kickback injury.
– STIHL recommends green-labeled bars and green-
labeled chains for all chain saws and all users.
￭ Even if your saw is equipped with a Quickstop chain
brake, a reduced kickback bar and/or low kickback chain,
this does not eliminate the risk of injury from kickback.
– Observe all safety precautions discussed in this
manual to avoid kickback situations.
a. Low Kickback Saw Chain
Some types of chain have specially designed components to
reduce the propensity for kickback and the force of kickback
if it occurs. STIHL has developed low kickback chain for your
chain saw.
A "low kickback chain" is a chain that has met the kickback
performance requirements of ANSI/OPEI B175.1 when
tested according to the provisions specified in ANSI/OPEI
B175.1.
WARNING
￭ Some low kickback chains have not been tested with all
chain saw and bar combinations. There are potential saw,
bar and low kickback chain combinations which have not
been specifically certified to comply with the 45°
computer-derived kickback angle of the chain saw
standards.
– STIHL recommends green-labeled bars and green-
labeled chains for all chain saws and all users.
– Please see your STIHL Bar and Chain Information
leaflet for the appropriate bar and chain
combinations for your saw.
– Please ask your authorized STIHL servicing dealer
to properly match your chain saw with the
appropriate bar and chain combination to reduce the
risk of kickback injury.
￭ A blunt or incorrectly sharpened chain may reduce or
negate the effectiveness of design features intended to
reduce kickback energy and the propensity for kickback.
Improper lowering or sharpening of the depth gauges or
changing the shape of the cutters may increase the risk
and the energy of kickback.
– Always cut with a properly sharpened chain.
– Read and follow the instructions on sharpening a
chain, @ 20.5.
￭ Any chain saw mounted with a bow guide is potentially
very dangerous. The risk of kickback is increased with a
bow guide because of the increased kickback contact area
and because the design of bow guides places the upper
portion of the bar closer to the operator's body. Using a
low kickback chain will not significantly reduce the risk of
kickback injury when used on a bow guide.
– Never mount a bow guide on any STIHL chain saw.
b. Reduced Kickback Bars
STIHL green-labeled reduced kickback bars are designed to
reduce the risk of kickback injury when used with STIHL
green-labeled low kickback chains.
0458-729-8621-A
21
English
0000-GXX-1348-A0
7 Kickback and Other Reactive Forces
WARNING
￭ When used with other, more aggressive chains,
green-labeled reduced kickback bars may be less
effective in reducing kickback.
– STIHL recommends green-labeled bars and green-
labeled chains for all chain saws and all users.
￭ For proper balance and to comply with the chain saw
standards:
– Use only bar lengths listed in this manual, @ 23.
7.2.4 To Avoid Kickback
The best protection from personal injury that may result from
kickback is to avoid kickback situations:
1)Hold the chain saw firmly and with both hands and
maintain a secure grip, with your right hand on the rear
handle and left hand on the front handle. Maintain a
secure grip with thumbs and fingers encircling the chain
saw handles. Don't let go.
2)Make sure the area in which you are cutting is free from
obstructions.
3)Be aware of the location of the guide bar nose at all times.
Never let the nose of the guide bar unintentionally contact
any object. Do not cut limbs with the nose of the guide bar.
Be especially careful near wire fences and when cutting
small, tough limbs, small size brush and saplings which
may easily catch the saw chain.
4)Do not overreach.
5)Do not cut above shoulder height.
6)Begin cutting and continue at full speed.
7)Cut only one log at a time.
8)Use extreme caution when re-entering a previous cut.
9)Do not attempt to plunge cut if you are not experienced
with this cutting technique.
10)Be alert for shifting of the log or other forces that may
cause the cut to close and pinch the saw chain.
11)Maintain saw chain properly. Cut with a correctly
sharpened, properly tensioned saw chain at all times.
12)Stand to the side of the cutting path of the chain saw.
13)Use only replacement bars and chains specified by
STIHL, or the equivalent.
7.3 Pull-in
WARNING
￭ Pull-in occurs when the chain on the bottom of the bar is
suddenly stopped or significantly slowed when it is
pinched, caught or encounters a foreign object in the
wood. The reaction of the chain pulls the saw forward and
may cause the operator to lose control, which, in turn, may
cause serious or fatal injury. If the tip contacts an object,
kickback may occur.
￭ Pull-in usually occurs when the bumper spike of the saw
is not held securely against the tree or limb and when the
chain is not rotating at full speed before it contacts the
wood.
￭ To reduce the risk of pull-in:
– Cut with a sharp, properly tensioned chain.
– Always start a cut with the chain rotating at full speed
and with the bumper spike in contact with the wood.
– Use wedges to open the kerf or cut, where possible.
– Use extreme caution when cutting small-size brush
and saplings which may easily catch the chain,
spring towards you or pull you off balance.
22
0458-729-8621-A
8 Proper Techniques for Basic Bucking, Limbing, Pruning and Felling
0000-GXX-1349-A0
0000-GXX-2125-A0
English
7.4 Pushback
WARNING
￭ Pushback occurs when the chain on the top of the bar is
suddenly stopped or significantly slowed when it is
pinched, caught or encounters a foreign object in the
wood. The reaction of the chain may drive the saw rapidly
straight back toward the operator, causing loss of control
which, in turn, may cause serious or fatal injury.
￭ Pushback usually occurs when the top of the bar is used
for cutting.
￭ To reduce the risk of pushback:
– Be alert to forces or situations that may cause
material to pinch or bind the top of the chain.
– Do not cut more than one log at a time.
– Do not twist the chain saw when withdrawing the bar
from an underbuck cut because the chain can pinch
or bind.
– Cut with a sharp, properly tensioned chain.
8 Proper Techniques for Basic Bucking,
Limbing, Pruning and Felling
8.1 Intended Uses
WARNING
￭ This chain saw is not designed for felling large trees or
cutting large diameter logs.
￭ Position the chain saw in such a way that your body is
clear of the cutting attachment and the extension cord
whenever the motor is running. Stand to the left of the cut
while bucking, outside of the cutting plane.
8.2 Bucking
Bucking is cutting a log into sections.
WARNING
￭ Be aware of rolling logs. Rolling logs can cause serious or
fatal personal injury. To prevent a log from rolling while
bucking:
– Make sure the log is secure and will not roll downhill
before starting your cut. If necessary, use sturdy
wedges, shims or chocks.
– If on a slope, always stand on the uphill side of the
log.
– Never stand on the log.
0458-729-8621-A
23
English

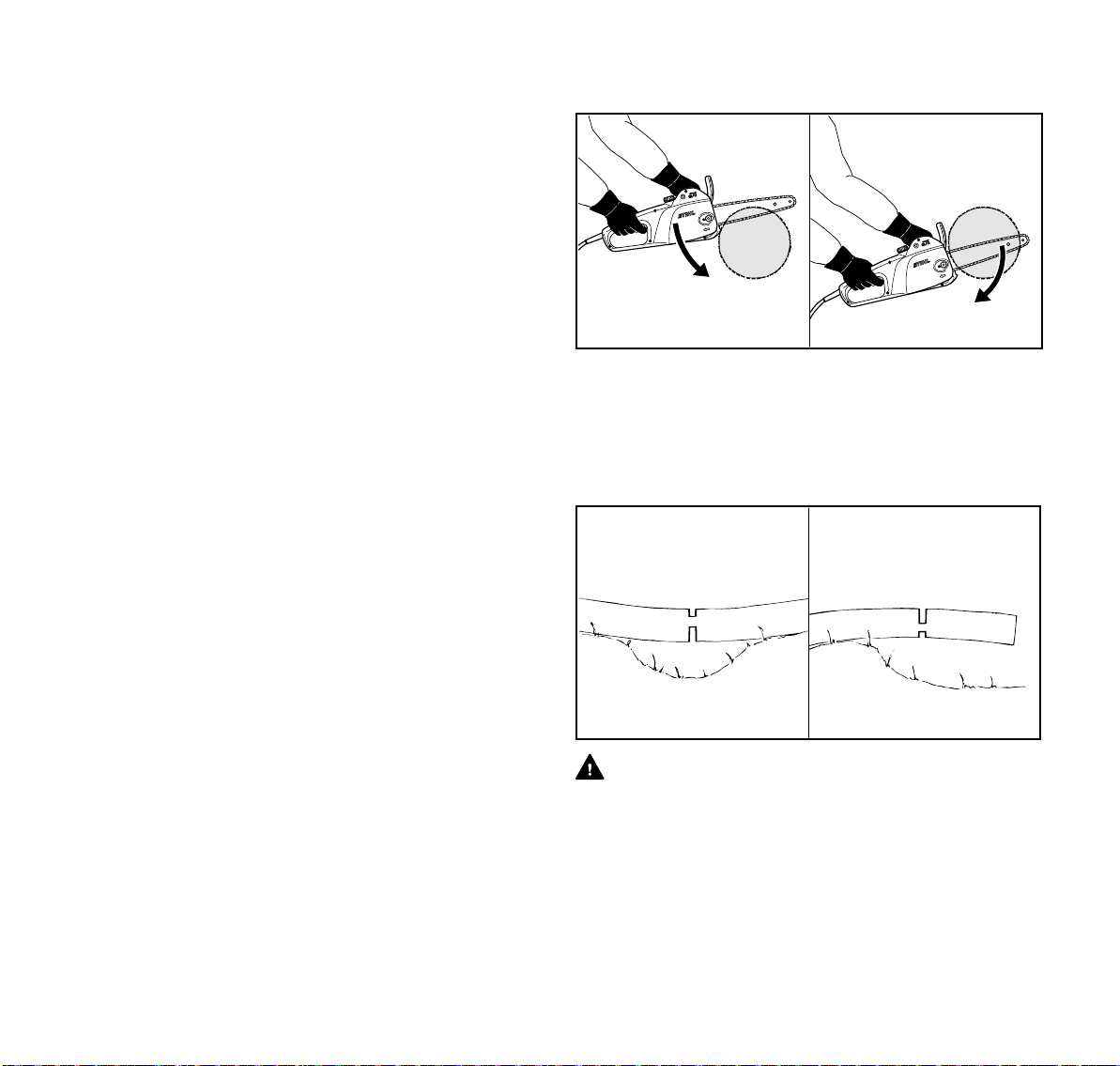

0000-GXX-2117-A0
0000-GXX-1245-A0
1
2
1
2
8 Proper Techniques for Basic Bucking, Limbing, Pruning and Felling
￭ To reduce the risk of kickback caused by contacting the
nose of the guide bar with other logs or limbs:
– Cut only one log at a time.
– Do not cut logs in a pile.
￭ When cutting splintered wood, sharp slivers of wood may
be caught and flung in the direction of the operator of the
saw or bystanders.
– Use caution when cutting splintered wood and
always wear appropriate apparel and personal
protective equipment, including eye protection.
– Keep bystanders out of the work area.
￭ When cutting smaller logs, make sure the log is properly
supported to reduce the risk of personal injury from loss of
control of the chain saw or movement of the log. Small
logs can move when contacted by the teeth of the chain:
– Place logs through "V-shaped" supports on top of a
sawhorse whenever possible.
– Never permit another person to hold the log.
– Never stabilize the log with your leg or foot.
￭ Failing to control the saw at the bottom of a bucking cut
can cause severe personal injury or death.
– Prepare the saw to exit the bottom of the cut by
reducing the feed force you exert on the saw.
– Cushion the weight of the saw so that the bar and
chain are not thrust downward into your lower body
and legs as the bar/chain exits the cut.
When bucking:

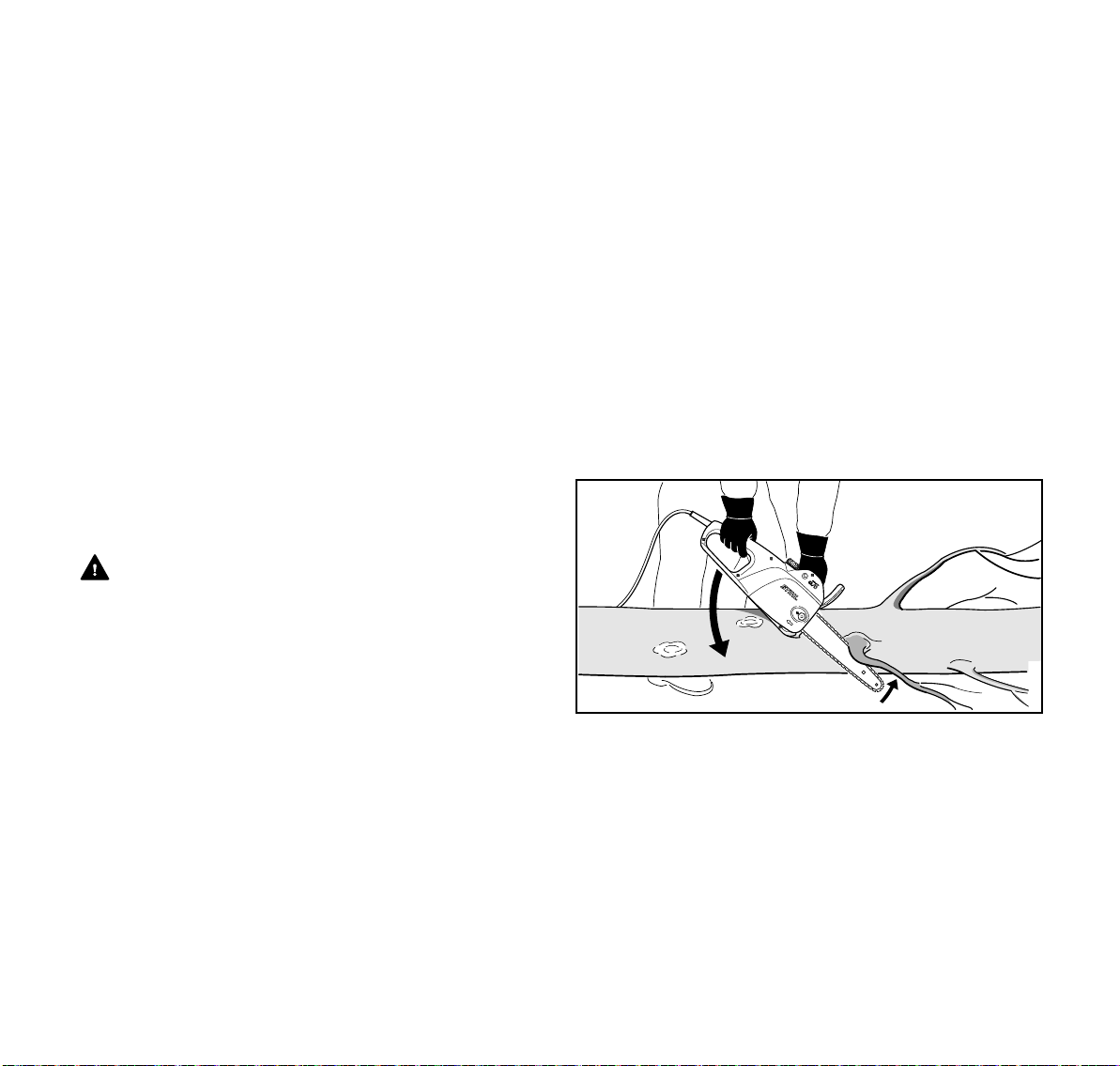

► Position the bumper spike of the saw against the log and
use it as a fulcrum.
► Continually repositioning the bumper spike while pushing
the guide bar completely through the log.
8.3 Cutting Logs Under Tension
24
WARNING
￭ There is an increased danger of pinching the chain saw
when cutting logs under tension. The tension in wood can
also release suddenly and with great force, propelling the
log, limb or chain saw into the saw operator, causing injury
or loss of control.
0458-729-8621-A
8 Proper Techniques for Basic Bucking, Limbing, Pruning and Felling
000SY129
English
￭ To reduce the risk of severe or fatal personal injury from
reactive forces, including kickback, or loss of control when
cutting wood under tension:
– Always start with a relieving cut (1) at the
compression side of the log, and then make a
bucking cut (2) at the tension side.
– If a pinch occurs that traps the bar/chain, switch off
the motor, activate the chain brake and disconnect
the saw from the power supply before attempting to
remove the saw from the log, exercising caution that
the limb does not suddenly snap or release.
￭ Working in areas where logs, limbs and roots are tangled
is extremely dangerous.
– Drag the logs, limbs and other material to be cut into
a clear area before cutting. Pull out exposed and
cleared logs first. Do not cut where the tip of the bar
may come into contact with other logs, limbs or leafy
material.
8.4 Limbing
Limbing is removing the branches from a fallen tree.
WARNING
￭ To prevent a log from rolling while limbing:
– Start limbing by leaving the limbs on the lower,
downhill side of the log to hold the log off the ground.
– Stabilize the log with sturdy wedges, shims or
chocks, if necessary.
– Never stand on a log while limbing it.
￭ There is an increased danger of kickback during limbing
operations, as limbs, leaves, stems and other material can
entangle (bind) the cutters of the chain in the upper
quadrant of the bar nose, causing the chain to slow or stop
suddenly.
– Do not use the nose of the bar to cut limbs.
– Be extremely cautious and avoid contacting the log,
the ground, other limbs and any leafy materials with
the nose of the guide bar.
￭ When underbucking freely hanging limbs, a pinch may
result or the limb may fall, hitting the operator or the chain
saw and causing loss of control.
– If a pinch occurs that traps or holds the bar or chain,
switch off the motor, activate the chain brake and
disconnect the saw from the power supply before
attempting to remove the saw from the cut,
exercising caution that the limb does not suddenly
snap or release.
￭ Limbs or logs under tension (spring poles) can spring back
toward you with great force, striking you or causing you to
lose control of the saw, resulting in severe or fatal injury.
– Be extremely cautious when cutting limbs or logs
that may be under tension.
– Read and follow the warnings and instructions on
cutting logs under tension, @ 8.3.
When limbing:
► Rest the chain saw on the log.
► Stand on the side of the log opposite the limb to be cut if
it can be done safely.
► Push the guide bar at full throttle with a hinge motion
against the branch.
► Cut the branch with the top or the bottom side of the guide
bar, keeping the tip of the bar free of the log, the ground,
other limbs and any leafy materials.
0458-729-8621-A
25
English
0000-GXX-1627-A0
1
2
8 Proper Techniques for Basic Bucking, Limbing, Pruning and Felling
8.5 Pruning
Pruning is selectively removing branches from a standing
tree.
WARNING
￭ To reduce the risk of injury from loss of control:
– Do not use the chain saw one-handed.
– Never work on a ladder, on a roof, in a tree or while
standing on any other insecure support.
– Never operate the chain saw above shoulder height
or cut overhead.
– Do not overreach.
– If you are unable to follow these instructions, you
must use a different tool, such as a pole pruner, or
have the work performed by a reputable tree service.
￭ To reduce the risk of injury:
– Never stand directly underneath the branch you are
cutting.
– Watch for falling branches. As soon as the branch
starts to fall, step aside and keep a sufficient
distance away from the falling wood. A branch may
spring back at you after it hits the ground.
– Prior to beginning work, clear the work area of limbs
and brush to reduce the risk of tripping and losing
control of the chain saw.
To cut branches from a standing tree:
► Make the first cut (1) on the underside of the branch,
approximately 2 in. (5 cm) from the trunk. Cut through
approximately 1/4 of the diameter of the branch. This will
help prevent the branch from splintering after it is cut.
► Make the second cut (2) on the top side of the branch,
approximately 2 in. (5 cm) from the first cut.
► As soon as the branch starts to fall, withdraw the chain
saw and let the branch fall to the ground.
8.6 Felling
8.6.1 Felling Conditions Felling is cutting down a tree. Before felling a tree, carefully
consider all of the conditions that may affect the direction of
fall.
WARNING
￭ This chain saw is not designed for felling large trees, and
using it to cut large trees could result in an inability to
control the fall of the tree or limb, and can lead to serious
or fatal personal injury.
￭ Before starting the felling operation, make sure the saw
you are using has sufficient size, power and run time to
complete the felling operation efficiently.
￭ There are a number of factors that may affect and change
the intended direction of fall, e.g. wind direction and
speed, lean of tree, surrounding trees and obstacles,
sloping ground, one-sided limb or foliage structure, wood
structure, decay, snow load, etc.
– To reduce the risk of severe or fatal injury to yourself
or others, look for, analyze and plan for these
conditions prior to beginning the cut, and be alert for
a change in direction while the tree is falling.
￭ Felling a tree that has a diameter greater than twice the
effective cutting length of the guide bar requires use of
either the sectioning felling back cut or plunge-cut
method. Neither of these cutting techniques is
recommended for this model chain saw. These methods
can be extremely dangerous because they involve the use
of the nose of the guide bar and can result in kickback.
Only properly trained professionals should attempt these
26
0458-729-8621-A
8 Proper Techniques for Basic Bucking, Limbing, Pruning and Felling
1 1
2
2
1
/
2
1
/
0000-GXX-1437-A0
English
techniques. If you are inexperienced with a chain saw,
plunge-cutting should not be attempted. Seek the help of
a qualified professional.
￭ Never attempt to cut a large diameter tree with a chain
saw that lacks sufficient size, power or run-time to
complete the task efficiently.
￭ Trees that are split, decayed or rotted inside or that are
leaning or otherwise under tension are more likely to snap
or split while being cut, causing serious or fatal injury to
the operator or bystanders.
– Always observe and be aware of the general
condition of the tree.
– Inexperienced users should never attempt to cut
such trees.
– Also look for broken or dead branches which could
vibrate loose and fall on the operator during the
felling operation. Certain types of trees are more
susceptible to this condition, such as Douglas firs.
You should check with a reputable tree service if you
have questions about the stability of the trees you
will be cutting.
– When felling on a slope, the operator should stand
on the uphill side if possible.
When felling:
► Take extra precautions in the vicinity of roads, railways
and power lines. Inform the police, utility company or
railway authority before beginning to cut.
8.6.2 Escape Path
Before making your first cut, prepare an escape path:
B
B
► First clear limbs and brush from the area around the base
of the tree. Remove vegetation from the lower portion of
the tree with an axe.
► Next, establish at least two clear paths of escape (B) and
remove any obstacles such as brush, small trees and
other vegetation. These paths should lead away from the
planned direction of the tree's fall (A) at a 45° angle from
the expected fall line. Place all tools and equipment a safe
distance away from the tree, but not on the escape paths.
0000-GXX-1246-A0
► Maintain a distance of at least 2 1/2 tree lengths from the
nearest person or structure.
0458-729-8621-A
27
English
C
0000-GXX-1438-A0
C
C
0000-GXX-1439-A0
C
8 Proper Techniques for Basic Bucking, Limbing, Pruning and Felling
8.6.3 Conventional Notch
For a conventional notch:
► The felling notch determines the direction of the tree's fall.
Make the felling notch perpendicular to the line of fall you
have determined, close to the ground.
► Be aware of conditions such as wind, limb and foliage
structure, tree lean, the slope of the terrain and other
factors that could alter the direction of fall.
► Cut down at a 45° angle to a depth of approximately 1/5 to
1/4 of the trunk diameter.
► Make a horizontal cut that meets the bottom of the first cut.
► Remove the resulting 45° piece. The size of the wedge will
vary by tree size. The larger the tree, the larger the wedge.
This model chain saw is not intended for felling large
diameter trees.
8.6.4 Open-faced Notch
For an open-faced notch:
► The felling notch determines the direction of the tree's fall.
Make the felling notch perpendicular to the line of fall you
have determined, close to the ground.
► Be aware of conditions such as wind, limb and foliage
structure, tree lean, slope of the terrain and other factors
that could alter the direction of fall.
► Cut down at a 50° angle to a depth of approximately 1/5 to
1/4 of the trunk diameter.
► Make a second cut that meets the bottom of the first cut
from below at a 40° angle.
► Remove the resulting 90° piece. The size of the wedge will
vary by tree size. The larger the tree, the larger the wedge.
This model chain saw is not intended for felling large
diameter trees.
28
0458-729-8621-A
Loading...
