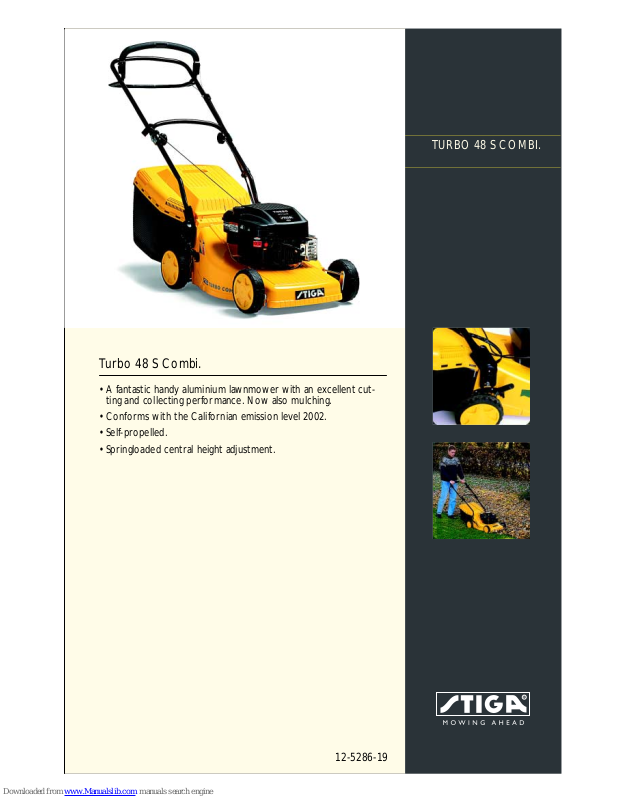

Page 1
Turbo 48 S Combi.
12-5286-19
TURBO 48 S COMBI.
• A fantastic handy aluminium lawnmower with an excellent cutting and collecting performance. Now also mulching.
• Conforms with the Californian emission level 2002.
• Self-propelled.
• Springloaded central height adjustment.
Page 2
Turbo 48 S Combi. (12-5286-19)
MOTOR
Brand Quantum XT E 55 CARB 2002
Power 5,5 hp 4 stroke engine, 4,1 Kw
Number of revolutions 3000 rpm
WHEELS
Type of wheels Composite wheels with double ball bearings
Wheel size Front 175 mm Rear 190 mm
Driving Rear wheels self-propelled. 3.6 km/h
CUTTING SYSTEM
Type of cutting system Collecting. High impact PP, 65 l.
Cutting heights 9 heights 20, 24, 29, 36, 42, 49, 56, 62, 70 mm
Cutting width 48 cm
Cutting height adjustment Central springloaded.
VIBRATIONS & NOISE LEVEL
Noise effect 94,1 db(A) measuring average, new European noise regula-
tion is < 96 db(A) valid from July 2001
CONTROLS
Handlebar Stiga with OPC soft lever. Handlebar adjustable up and
down.Foldable handlebar in box.
Type of switch Soft and comfortable OPC and clutch controls.
COLOUR & MATERIAL
Colour of chassis Yellow UV-stabilized polyester powder coating
Material of chassis High quality aluminium. (Car wheel quality HI SI)
MEASURES & WEIGHT
Weight 36 kg
Gross weight 39 kg
Package size W*H*L 855x570x510 mm
Units on pallet 6
OTHER FACTS
Instruction 8211-0208-09
EAN bar code 731 332 120 274 3
Other Combi; mulching, collecting or free discharge
