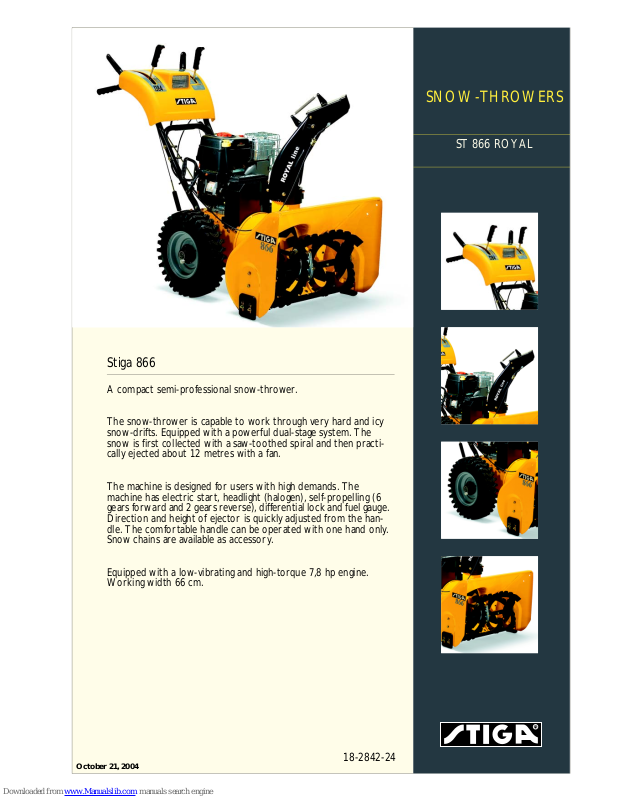

Stiga ST 866 ROYAL Specifications
October 21 , 2004
Stiga 866
18-2842-24
SNOW-THROWERS
ST 866 ROYAL
A compact semi-professional snow-thrower.
The snow-thrower is capable to work through very hard and icy
snow-drifts. Equipped with a powerful dual-stage system. The
snow is first collected with a saw-toothed spiral and then practically ejected about 12 metres with a fan.
The machine is designed for users with high demands. The
machine has electric start, headlight (halogen), self-propelling (6
gears forward and 2 gears r ev erse), diffe rential lock and fue l gauge.
Direction and height of ejector is quickly adjusted from the handle. The comfortable handle can be operated with one hand only.
Snow chains are available as accessory.
Equipped with a low-vibrating and high-torque 7,8 hp engine.
Working width 66 cm.
ST 866 Royal (18-2842-24)
MOTOR
Brand Briggs& Stratton Intek OHV 4-stroke
Power 7,8 hp/5,8 kW
Cylinders 1
FUEL
Type of fuel Unleaded petrol
Tank volume 3,8 l
Fuel gauge Yes
SPEED CONTROL
Type of transmission Friction disc
Number of gears 6 forward, 2 reverse
WHEELS
Type of wheels Maxi-grip tyres
Wheel size 40 x 10 cm
Bearings Ball bearings
Snow chains Accessory
CONTROLS
Electric start Yes, 230 V
Head light Yes, integrated halogen
Choke Manual
Type of switch Plastic key
Throttle lever On engine
Turnable chute Horizontal and vertical controlled from handlebar
COLOUR & MATERIA L
Colour of chassis Yellow
Material of chassis Metal
MEASURES & WEIGHT
Weight 93 kg
Gross weight 108 kg
Type of package Wooden frame, board on sides
Working width 66 cm
Auger, diameter 30 cm, saw-teeth
Impeller diameter 30 cm
OTHER FACTS
CE-mark Yes
EAN bar code 731 332 180 053 6
Other features Shear bolt and tool box
