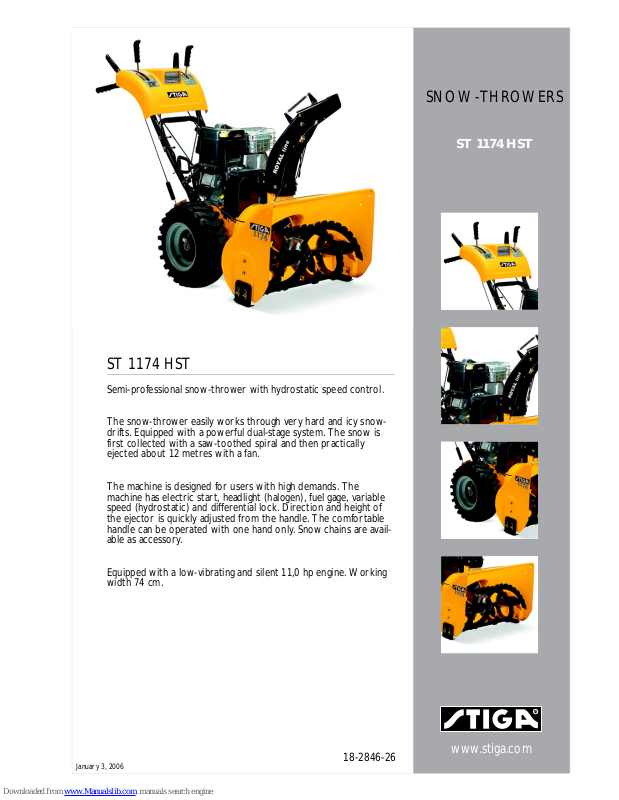

Stiga ST 1174 HST Specifications

January 3, 2006

www.stiga.com

ST 1174 HST

18-2846-26

SNOW-THROWERS

ST 1174 HST

Semi-professional snow-thrower with hydrostatic speed control.

The snow-thrower easily works through very hard and icy snow­drifts. Equipped with a powerful dual-stage system. The snow is
first collected with a saw-toothed spiral and then practically
ejected about 12 metres with a fan.

The machine is designed for users with high demands. The
machine has electric start, headlight (halogen), fuel gage, variable
speed (hydrostatic) and differential lock. Direction and height of
the ejector is quickly adjusted from the handle. The comfortable
handle can be operated with one hand only. Snow chains are avail­able as accessory.

Equipped with a low-vibrating and silent 11,0 hp engine. Working
width 74 cm.

ST 1174 HST (18-2846-26)

ENGINE

Brand Briggs& Stratton Intek OHV
Power 11,5 hp/8,6 kW
Cylinders 1

FUEL

Type of fuel Unleaded
Tank volume 3,8 l
Fuel gauge Yes

SPEED CONTROL

Type of transmission Hydrogear hydrostatic
Number of gears Hydrostatic front and reverse

WHEELS

Type of wheels Maxi-grip tyres
Wheel size 40 x 17 cm
Bearings Ball bearings
Snow chains Accessory

VIBRATIONS & SOUND LEVELS

Sound power level 108 dB(A)
Vibrations 10,7 m/s2

CONTROLS

Electric start Yes, 230 V
Head light Integrated halogen light
Handle bar Yes
Choke Manual
Type of switch Plastic key
Throttle lever Yes, on motor
Turnable chute Horizontal and vertical controlled from handlebar

COLOUR & MATERIA L

Colour of chassis Yellow
Material of chassis Metal

MEASURES & WEIGHT

Weight 129 kg
Type of package Wodden frame, board on sides
Working width 74 cm
Capacity diameter 50 cm
Auger, diameter 30 cm, saw-teeth
Impeller diameter 30 cm

OTHER FACTS

CE-mark Yes
Instructions for use 8218-2217-03
EAN bar code 731 332 180 047 5
Other features Tool box with shear bolts
