Stiga ST 1074 POWER Specification
October 21 , 2004

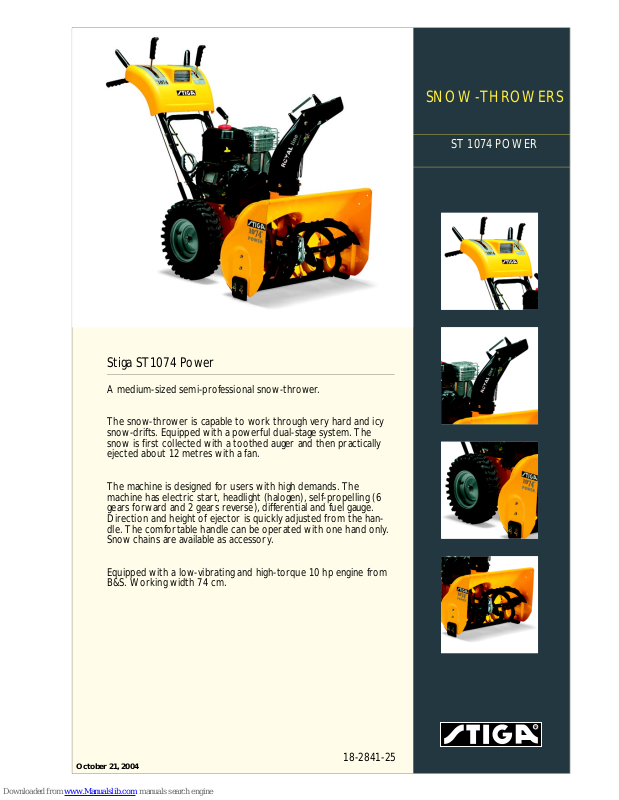

Stiga ST1074 Power
18-2841-25
SNOW-THROWERS
ST 1074 POWER
A medium-sized semi-professional snow-thrower.
The snow-thrower is capable to work through very hard and icy
snow-drifts. Equipped with a powerful dual-stage system. The
snow is first collected with a toothed auger and then practically
ejected about 12 metres with a fan.
The machine is designed for users with high demands. The
machine has electric start, headlight (halogen), self-propelling (6
gears forward and 2 gears reverse), differential and fuel gauge.
Direction and height of ejector is quickly adjusted from the hanÂdle. The comfortable handle can be operated with one hand only.
Snow chains are available as accessory.
Equipped with a low-vibrating and high-torque 10 hp engine from
B&S. Working width 74 cm.
ST 1074 Power (18-2841-25)
MOTOR
Brand Briggs& Stratton Powerbuilt OHV
Power 10 Hp/7,35 kW
Cylinders 1
FUEL
Type of fuel Unleaded petrol
Tank volume 3,8 l
Fuel gauge Yes
SPEED CONTROL
Type of transmission Friction disc
Differential lock Differential on driving axle
Number of gears 6 forward, 2 reverse
WHEELS
Type of wheels Maxi-grip tyres
Wheel size 40 x 10 cm
Bearings Ball bearings
Snow chains Accessory
CONTROLS
Electric start Yes, 230 V
Head light Yes, integrated halogen
Choke Manual
Type of switch Plastic key
Throttle lever No
Turnable chute Horizontal and vertical controlled from handlebar
COLOUR & MATERIA L
Colour of chassis Yellow
Material of chassis Metal
MEASURES & WEIGHT
Weight 93 kg
Gross weight 108 kg
Type of package Wooden frame, board on sides
Working width 74 cm
Auger, diameter 30 cm, serrated type
Impeller diameter 30 cm
OTHER FACTS
CE-mark Yes
Instructions for use 8218-2217-02
EAN bar code 731 332 180 0611
Other features Shear bolt and tool box
