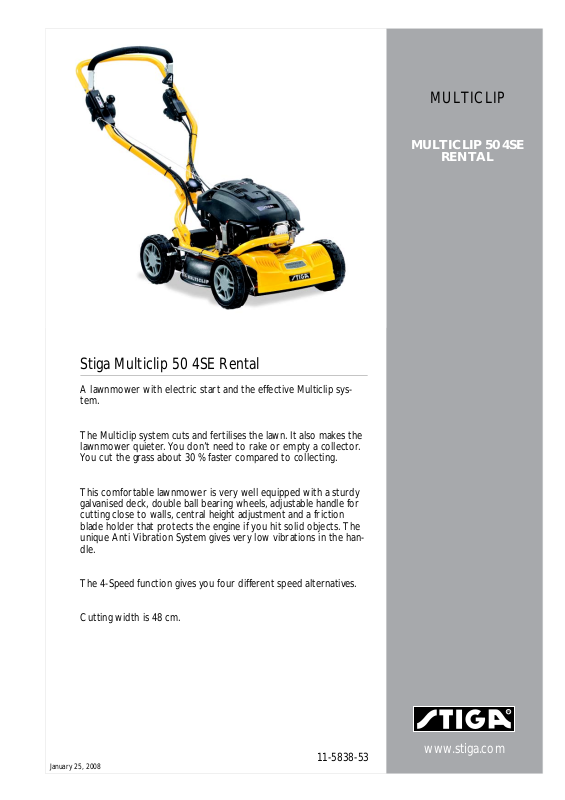

Stiga MULTICLIP 50 4SE User Manual

Stiga Multiclip 50 4SE Rental

MULTICLIP

MULTICLIP 50 4SE

RENTAL

A lawnmower with electric start and the effective Multiclip sys­tem.

The Multiclip system cuts and fertilises the lawn. It also makes the
lawnmower quieter. You don’t need to rake or empty a collector.
You cut the grass about 30 % faster compared to collecting.

This comfortable lawnmower is very well equipped with a sturdy
galvanised deck, double ball bearing wheels, adjustable handle for
cutting close to walls, central height adjustment and a friction
blade holder that protects the engine if you hit solid objects. The
unique Anti Vibration System gives very low vibrations in the han­dle.

The 4-Speed function gives you four different speed alternatives.

Cutting width is 48 cm.

January 25, 2008

11-5838-53

www.stiga.com

Multiclip 50 4SE Rental (11-5838-53)

ENGINE

Brand STIGA RM 65 ES
Number of revolutions 2900 rpm
Type of fuel Leadfree 95
Self propelled Yes, front wheels. 4-Speed

WHEELS

Type of wheels Composite wheels
Wheel size Front 210 mm. Rear 210 mm.
Bearings Double ball bearings
Driving 4-speed

CUTTING INFORMATION

Type of cutting system Multiclip
Cutting heights 5 heights, 31-73 mm
Cutting width 48 cm
Cutting height adjustment Central with 1 lever, springloaded

VIBRATIONS & SOUND LEVELS

Anti Vibration System Yes

CONTROLS

Yes
Handlebar Collapsible Stiga Pro handle, Ø 28 mm, with soft steel at-

tached OPC lever
Handle adjustable in height Yes
Handle adjustable sideways Yes, for cutting close to walls and hedges
Carrying handle Yes

COLOUR & MATERIAL

Material of chassis Galvanized steel

MEASURES & WEIGHT

Gross weight 36 kg
Package size WxHxL 560x490x800 mm

OTHER FACTS

EAN bar code 7313321103583
Other features Removal of grass with automatic wheel cleaner.
Friction blade holder
Low vibrations in handle, P0-classified = Approved for full

day work
