Page 1
GB/US ....LP7 & LP7+ Lifting platform
Vers. 1.00
Page 2
LP7 & LP7+
Item numbers:
LP7: 5582-xx
LP7+: 5583-xx
1.00 ........Purpose and use ..............................................3
1.01 ........Manufaturer ...................................................3
1.02 ........Purpose and use ...............................................3
1.03 ........Important/warnings .............................................4
1.04 ........Unpacking and preparation .......................................4
1.05 ........Safety rules ...................................................5
1.06 ........Assembly .....................................................6
1.07 ........Electrical connection ............................................6
2.00 ........Description of functions ........................................6
2.01 ........Labels .......................................................6
2.02 ........The operating panel .............................................7
2.03 ........Safety functions ................................................8
2.04 ........Accessories ..................................................10
3.00 ........Dismantling and transport .....................................11
3.01 ........Transport ....................................................11
3.02 ........Packaging during transport ......................................11
4.00 ........Maintenance and storage ......................................11
4.01 ........Cleaning .....................................................11
4.02 ........Storage and keeping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.03 ........How is corrosion avoided?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.04 ........What maintenance is required by the owner? ........................12
5.00 ........Servicing and useful life .......................................12
5.01 ........Useful life and servicing .........................................12
5.02 ........Troubleshooting ...............................................13
6.00 ........Technical specications .......................................14
7.00 .........EC-declaration of conformity ...................................14
. . . . . . . . . . . . . USA and countries outside the EU ..............................15
A. ...........Users guide ..................................................15
B. ..........WARRANTY ..................................................15
2
© Guldmann GB/US-2583/06/18 • # 558526
Page 3
1.00 Purpose and use
1.01 Manufaturer
V. Guldmann A/S
Graham Bells Vej 21-23A
DK-8200 Aarhus N
Denmark
Tel. + 45 8741 3100
Fax + 45 8741 3131
1.02 Purpose and use
Purpose
The lifting platform can be used to lift people in need of help with negotiating
height differences.
Use
The LP7 & LP7+ are designed for permanent installation indoors and
outdoors.
The lifting platform may only be operated by users who have been properly
instructed to do so, or by personnel who have been professionally trained to
use this assistive technology/working tool.
Entering and exiting the platform takes place at each end of the lifting platform.
The access ramp and doors serve to protect the user by keeping him/her
from rolling off during use. There are also handrails on both sides of the lifting
platform. The LP7+ is tted with doors as a standard feature.
The lifting platform is designed and manufactured in relation to applicable
norms.
© Guldmann GB/US-2583/06/18 • # 558526
LP7 can lift up to 800 mm.
LP7+ can lift up to 1500 mm.
The lifting interval of the LP7 and the LP7+ can be adjusted between heights
of 50-1500 mm.
The lifting platform may be used in temperatures from -10 to +40 degrees.
In temperatures of less than zero, the application of suitable heating beneath
the platform is recommended.
Great importance is attached to the design and implementation to achieve
attractive and harmonious installation in different environments, private and
public. Public environments are institutions, public buildings, etc., where the
lifting platform is subject to a certain amount of supervision. In these environments, the lifting platform should be locked, protecting it against unintentional
use or games.
3
Page 4
1.03 Important/warnings
• All of the operating instructions must be read before the product is used.
• The LP7 & LP7+ must be assembled by the Guldmann Service Team, or by
an engineer approved by Guldmann.
• The LP7 & LP7+ are controlled by a microprocessor print which can be
damaged by static electricity if touched without the necessary precautions.
The electronics must therefore be serviced by trained technicians only.
• The accompanying safety chain must be used when the service engineer
moves around beneath the lifting platform.
• The platform’s secondary power source (battery) must be disconnected via
the key switch when the service engineer is working beneath the platform.
• The MAXIMUM load of 350 kg (770 lbs.) must not be exceeded.
• The lifting platform and access ramp must be swept clean of gravel, fallen
leaves, snow, etc. before use.
• The lifting platform is to be used to transport people, and must be used in
accordance with the describtions in this manual.
• The lifting platform must not be used during re.
• Safety equipment must only be reset by qualied assistance.
• All playing by and with the lifting platform is forbidden.
1.04 Unpacking and preparation
Visual check
If the packaging is damaged on receipt, the parts of the LP7 & LP7+ must be
carefully examined for visible deciencies, defects, or faults. If damage is
suspected, the LP7 & LP7+ must not be used until qualied service personnel
or the Guldmann Service Team have approved this.
Any type of damage or defects on the packaging must always be noted in the
shipping documents.
4
© Guldmann GB/US-2583/06/18 • # 558526
Page 5

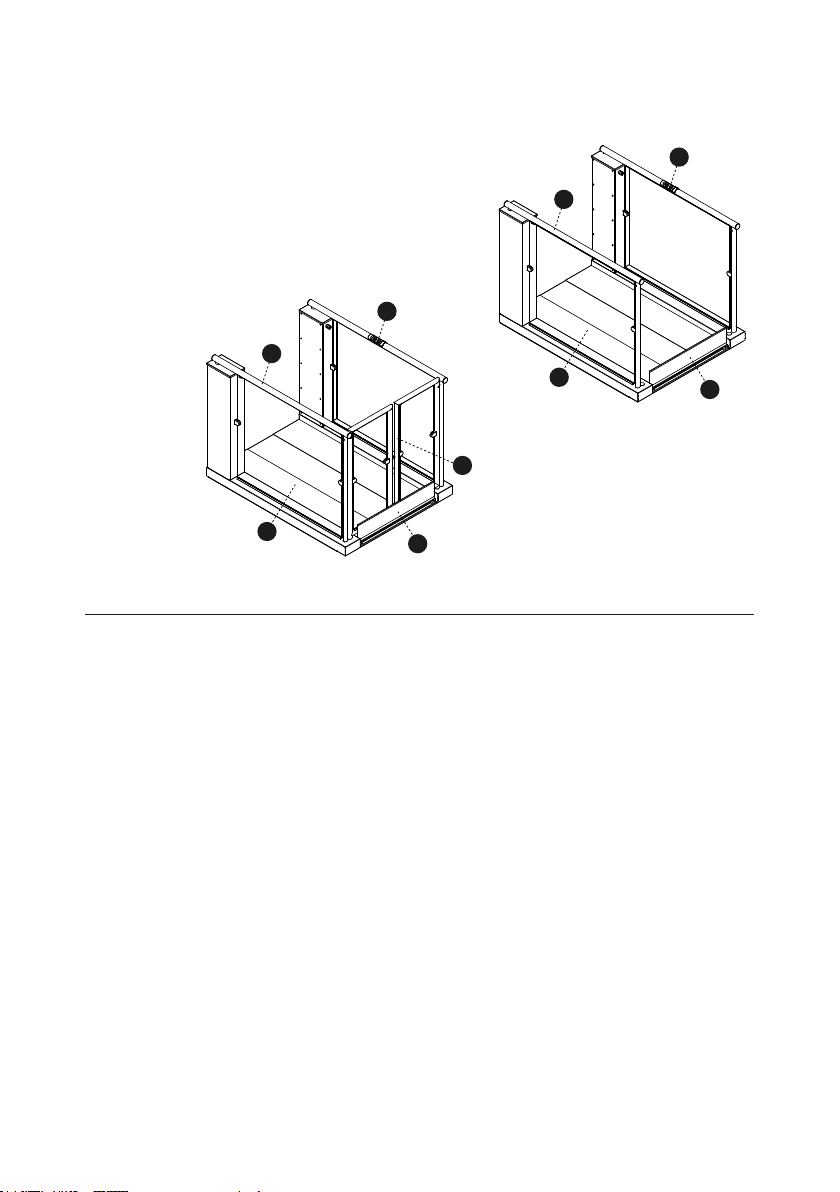

Contents
1. Lifting platform
2. Access ramp
3. Railing
4. Door
5. Operation panel
Safety door (optional)
5
3
5
3
LP7+
1
1.05 Safety rules
When working beneath the platform, there is a risk of becoming trapped
between the moving parts of the platform. The following safety rules must
therefore be observed:
1. The safety chain/strap must always be used while working beneath the
platform.
2. The secondary power source (battery) must be disconnected via the key
switch while working beneath the platform.
3. The lifting platform may NOT be raised/lowered while work is being performed
beneath the platform. This rule applies even if safety devices are in place.
4. Once the platform has been installed, connected and can be raised/lowered
only one person must work at the platform at a time.
Safety equipment
When working beneath the platform, a safety stop MUST be used to
mechanically block the platform from desending.
LP7
1
4
2
2
© Guldmann GB/US-2583/06/18 • # 558526
5
Page 6
1.06 Assembly
max 350 kg / 770 lbs
The LP7 & LP7+ must be assembled by the Guldmann Service Team or an
engineer approved by Guldmann according to Guldmann’s instructions.
1.07 Electrical connection
• Input: 100-240V AC, 50-60 Hz
• Maximum consumption: 0.35 A
Connect the platform to the mains network via the tted rubber cable.
The cable can be used both indoors and outdoors.
• Brown lead: Phase lead
• Blue lead: 0 lead
• Green/yellow lead: Earth clamp
Important!
For safety reasons, the lifting platform must always be earthed.
2.00 Description of functions
2.01 Labels
(positioned on the lifting platform).
LP7 / LP7+
LP7 LP7+
V. Guldmann A/S
Graham Bells Vej 21-23A
DK-8200 Aarhus N
Made in Denmark
yyyy-mm-dd
Lifting Platform LP7
Part no. xxxxxx
Serial no. xxxxxxxxxx
230V, 0.5A
Internally powered
equipment 24V DC
Lifting Platform LP7+
V. Guldmann A/S
Graham Bells Vej 21-23A
DK-8200 Aarhus N
Made in Denmark
yyyy-mm-dd
6
Part no. xxxxxx
Serial no. xxxxxxxxxx
230V, 0.5A
Internally powered
equipment 24V DC
© Guldmann GB/US-2583/06/18 • # 558526
Page 7

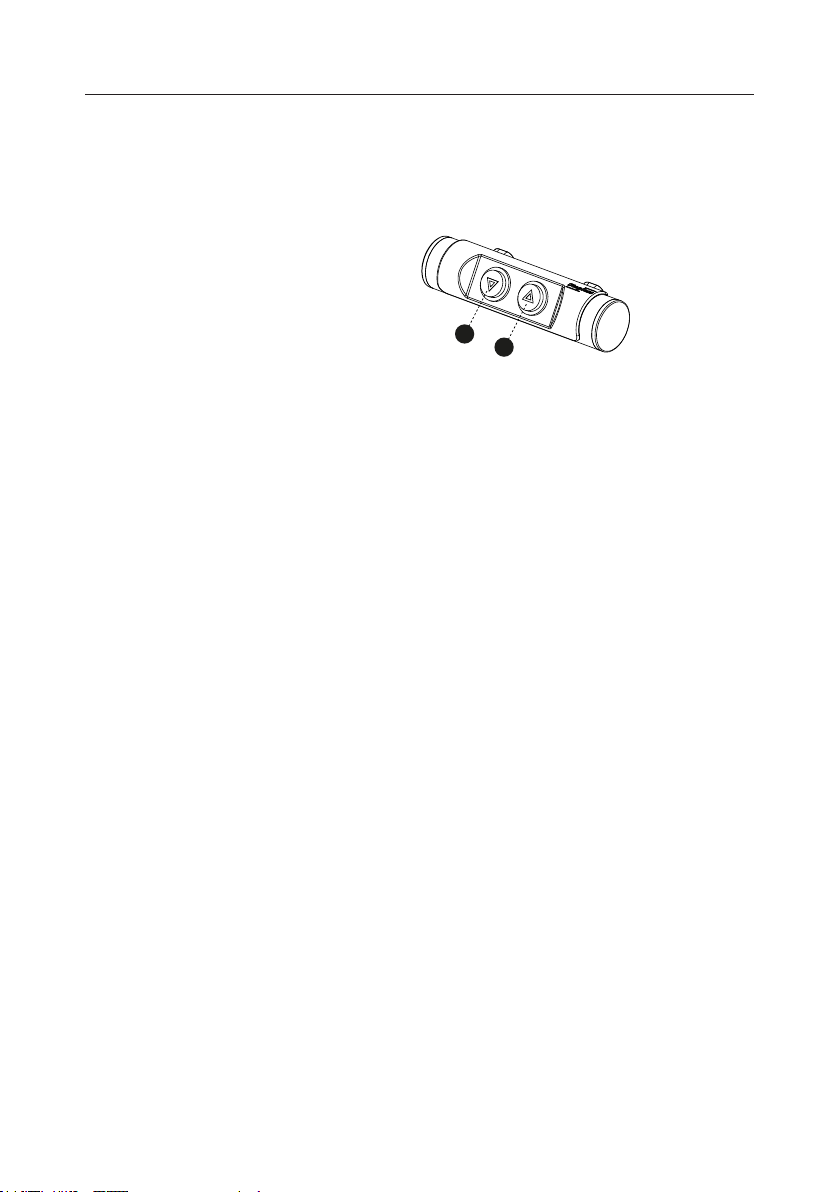

2.02 The operating panel
The lifting platform is operated by means of the operating panel.
The lifting platform is logical and unproblematic to operate and use, even with
no prior knowledge.
When the platform is parked at the lower level, the ramp/doors can be
opened by pressing and holding the DOWN button.
1. UP
2. DOWN
Raising the lifting platform from the lower level
1. When the lifting platform is at the lowest level and the access ramp has been
lowered to the proper level, users can freely drive up on to the
lifting platform.
2. Activate the control panel by pressing (1), and the access ramp will go up /
the doors will close; this way, the access ramp serves to protect the user from
rolling off.
3. When the access ramp is all the way up and (1) is held in, the platform will
begin its ascent. The platform only ascends when (1) is actively held down
(hold-to-run).
4. When the lifting platform is level with the landing, the platform stops automatically and the user can drive onto the landing.
5. When using the safety gate, it is opened automatically. It is electronically
secured and cannot be opened until the lifting platform is in the highest position.
2
1
© Guldmann GB/US-2583/06/18 • # 558526
Lowering the platform from the upper level
1. The user drives onto the lifting platform.
2. When using the safety gate, it must be closed before the platform can be
operated. This is done by activating (2).
3. Activate the operating panel by pressing button (2) to lower the lifting platform.
The platform only descends when (2) is actively held down (hold-to-run).
4. When the lifting platform is at its lowest level, the access ramp will be lowered/the doors opend, and the user can drive off the lifting platform.
7
Page 8
Error situation
The lifting platform may indicate multiple error situations on the control panel.
This is indicated on the raise and lower buttons by one or more ashes
followed by a pause. The following is a description of error situations along
with possible solutions. See section 5.3 Troubleshooting for additional
information.
1 ash: Overload activated. Remove load so that the platform can be
operated again.
2 ashes: Contact the supplier
3 ashes: Contact the supplier
4 ashes: Overheating – allow the lifting platform to cool off for 20
minutes, and contact the supplier if problems continue
5 ashes: Contact supplier
6 ashes: Contact supplier
7 ashes: Contact supplier
8 ashes: Contact supplier
Lasting ash: Contact supplier
2.03 Safety functions
Important!
Individual and specic consideration must be given to how an emergency
summoning system must work. One or more responsible people should be
appointed to help with the correct use of the lifting platform. It should always
be possible to call those responsible in any emergency situation. The users
must be informed of who holds this responsibility.

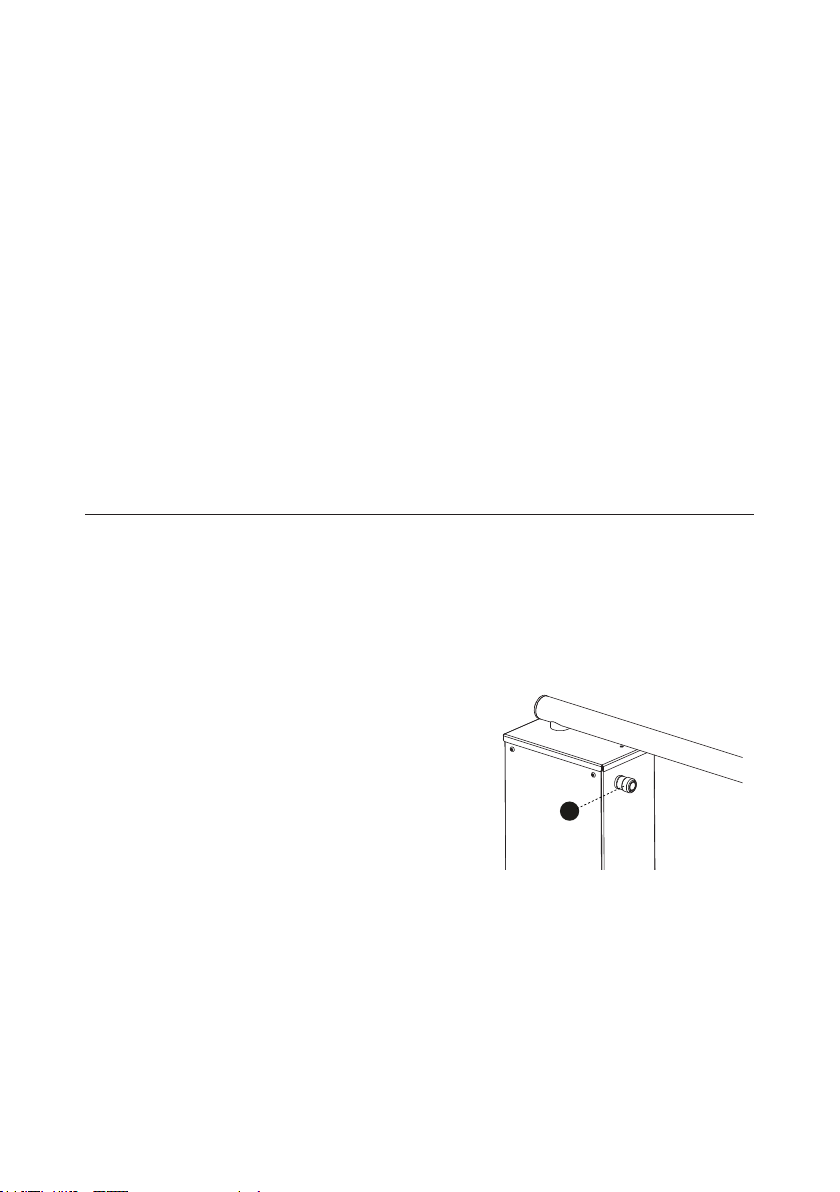

Description of emergency stop
The emergency stop must be used
in emergencies only. If the emergency stop is activated owing to a
malfunction, the dealer must be
contacted before the LP7 & LP7+
3
are used again.
The emergency stop button (3) is
located at the top of the right tower.
It stops all movement when activated.
Important!
The emergency stop button must be pulled out, and the LP7/LP7+ can be
restarted by pressing the control buttons.
Activate the emergency stop button for 5 seconds and then release it to
restart the control system.
8
© Guldmann GB/US-2583/06/18 • # 558526
Page 9

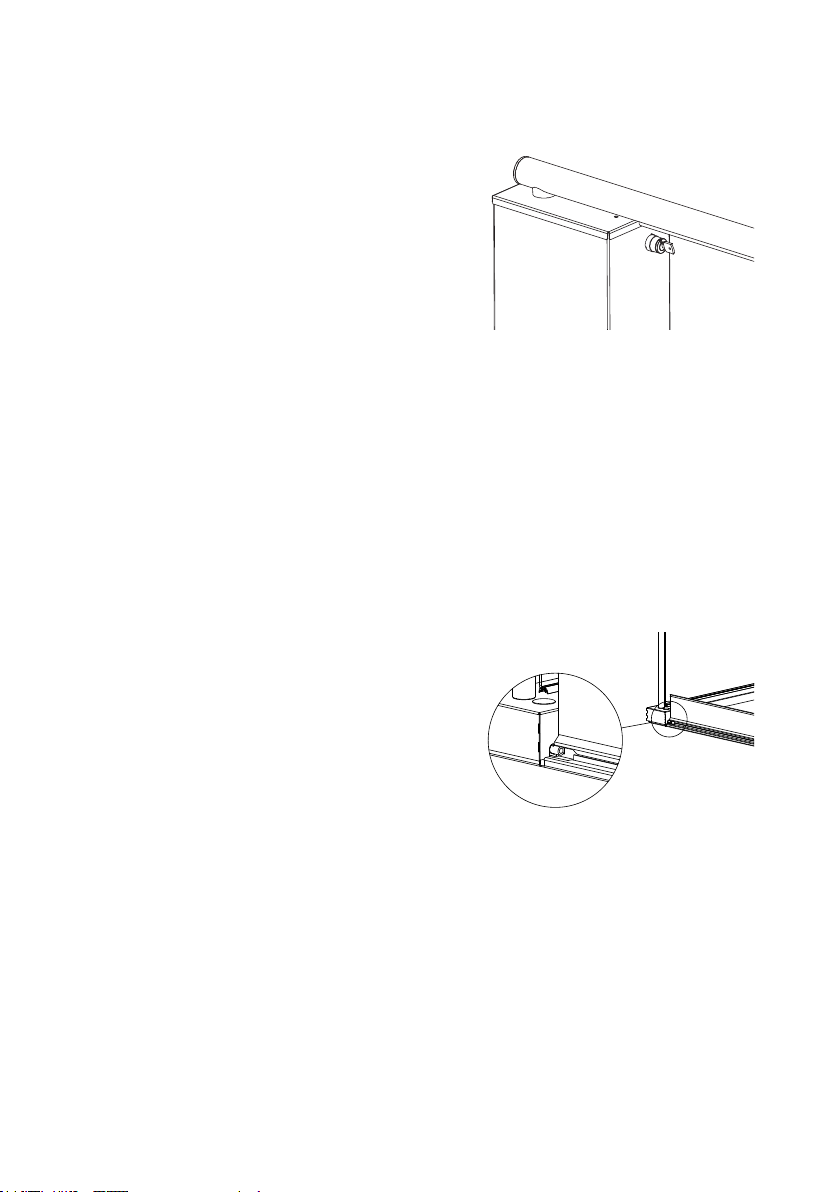

Description of electrical emergency
lowering – lifting platform
Great attention and the required
mobility is needed to use the
emergency lowering, which is why
the person responsible for the use
of the lifting platform should be
called.
The person responsible must have
read the manual so that he can be
called at any time to assist a user.
The emergency lowering must be used in emergencies only. This requires
qualied assistance.
You must contact the dealer before using the LP7 & the LP7+ again. Remove
the key after installation and keep it with the manual.
The electric emergency lowering device is activated by turning the key switch
to the left for 10 seconds. The platform will then begin its descent. The platform will stop if the key is released. If the key is not activated for 10 seconds,
the electrical emergency lowering device will be deactivated, after which it
can be activated again.
The switch is located in the left tower on the lifting platform.
Description of emergency lowering – access ramp
The access ramp is tted with a
hexagonal screw on the left side.
Remove this screw and the access
ramp can be closed up.
© Guldmann GB/US-2583/06/18 • # 558526
Important!
When the screw is removed from the
access ramp, the ramp can no longer
be secured. Hold onto the access
ramp when removing the screw.

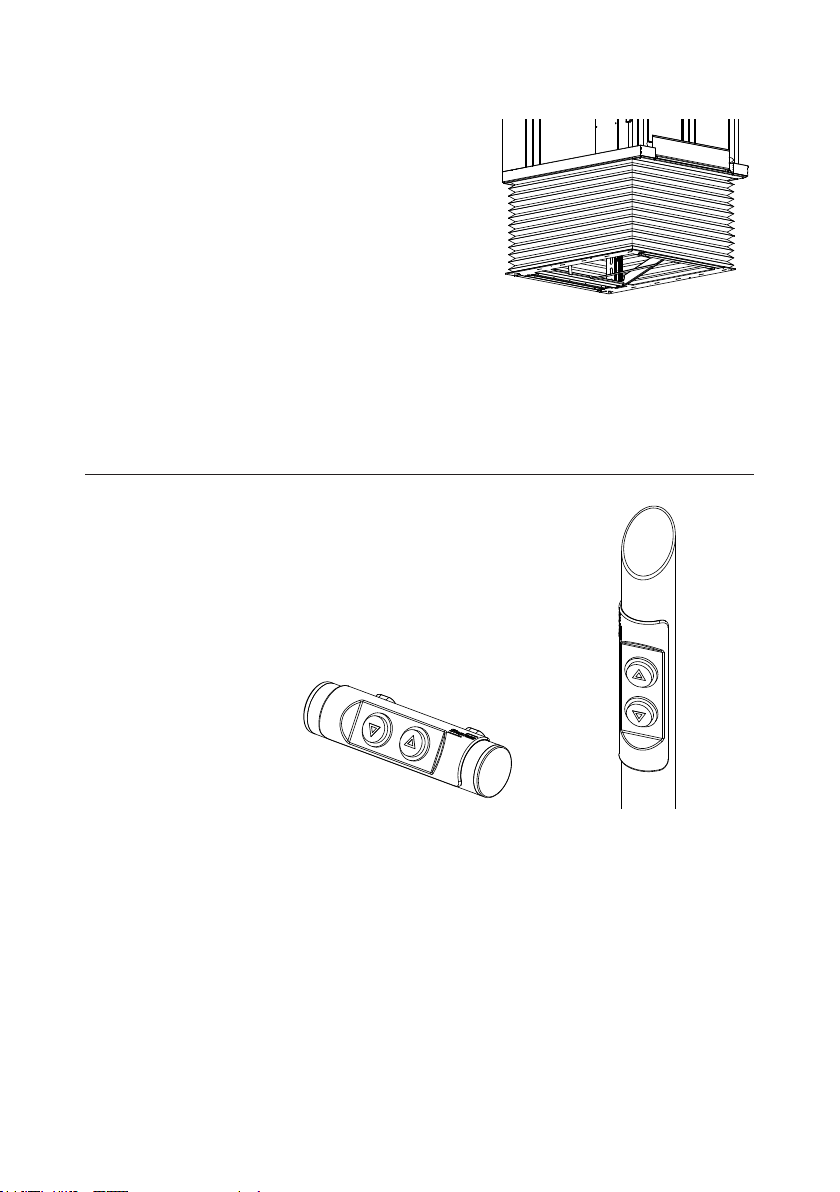

Safety curtain
The safety curtain ensures that nobody can move in beneath the platform
when it is at its high est level and thereby risk getting caught when the lifting
platform is lowered. The safety curtain is tted upon delivery.
If the safety curtain has not been installed, or if it is damaged and the area
beneath the platform cannot be accessed, the platform cannot be used until
the problem has been solved.
9
Page 10
Safety cut-out function
If anyone or anything gets caught
beneath the platform when it is
lowered, the descent will stop as
soon as the safety safety llist
is activated.
The safety function is reset by
pressing ”Raise” (1), which will raise
the platform. Next, remove the object
that activated the safety llist.
Overload protection
The platform is designed so that it is protected against overloading. In the
event of overload, the platform will issue a visual alert on the control panel.
The platform cannot be used in the event of an overload. Remove load so
that the platform can be operated again.
2.04 Accessories
Extra operating panel
External control panels with ”Raise” or ”Lower”
buttons for wall or free-standing installation.
The control panel is tted with a lock. The
control panel is also available in a wireless
version.
Wireless operation
Use this when there are one or more independent users.
This allows users to control the lifting platform without being dependent on a
helper.
10
© Guldmann GB/US-2583/06/18 • # 558526
Page 11
Heating cable
The lifting platform is delivered without heating. Heating cables can be
embed ded in a concrete foundation beneath the base frame. The purpose of
heating is to keep the lifting platform free of snow and ice.
Recessing the Platform
It is possible to recess the platform to provide access without changing levels.
If the platform is for recessing, please order it on at special item No.
Be aware that when the platform is recessed, the lifting height is reduced by
that amount.
Proper drainage must be provided for outdoor recessed installations.
3.00 Dismantling and transport
3.01 Transport
The lifting platform is delivered assembled on a transport pallet.
3.02 Packaging during transport
The lifting platform must always be transported in its original packaging.
4.00 Maintenance and storage
4.01 Cleaning
The LP7 & LP7+ are cleaned with a sponge or brush and soapy water.
The LP7 & LP7+ can be sprayed or rinsed at ordinary water pressure; they
must not be rinsed under high pressure.
Never use acids, bases or solvents for cleaning.
4.02 Storage and keeping
No special requirements. Please note, however, that the batteries’ life span is
shortened if they are not connected to the charger for a long period of time.
© Guldmann GB/US-2583/06/18 • # 558526
11
Page 12
4.03 How is corrosion avoided?
The LP7 & LP7+ are made of corrosion-resistant materials and require no
further corrosion prevention.
Avoid using salt on the platform as it will reduce the platform’s lifetime.
4.04 What maintenance is required by the owner?
The owner is responsible for ensuring that legally mandated service
inspections are performed.
Cleaning as required.
Keep the space around the lifting platform clean to avoid interruptions caused
by foreign objects.
5.00 Servicing and useful life
5.01 Useful life and servicing
The LP7 & LP7+ must be inspected in accordance with the national law and
at least twice a year.
Attention: Please note that there can be specic demands if there is public
access to the lifting platform.
• The LP7 & LP7+ have an expected life span of 15 years with regular daily
use.
• The lifting actuator must be replaced after 10 000 lifts.
The life span is based on correct usage, cleaning, and maintenance, as
well as two annual inspection and maintenance by qualied personnel or the
Guldmann Service Team. After this period, the LP7 & LP7+ must be assessed
by qualied personnel before future use.
Spare parts lists and drawings can be ordered from the manufacturer or the
distributor.
12
© Guldmann GB/US-2583/06/18 • # 558526
Page 13
5.02 Troubleshooting
Fault Possible cause Solution
None of the electrical functions
works.
The emergency stop button
has been pressed.
The platform is off. Turn on the platform using the
The platform has been shut off. Wait about three hours for the
The fuse has blown. Change the fuse or reset the
Turn the emergency stop
button to the right.
key switch. The key must be
vertical to turn the platform on.
batteries to recharge.
residual current device.
The lifting platform does not go
all the way down.
The lifting platform shows
overload.
The lifting platform won’t start
after the lower door has been
closed.
The lifting platform does not go
down after the upper door has
been closed.
The control panel flashes 1 flash: Over load
Foreign objects below the
lifting platform/lift basket.
Remove some of the load from
the lifting platform.
The lower door does not indicate closed and locked.
The upper door shows no sign
that it has been closed and
locked.
activated.
2 flashes: Error on EOS inputs Contact supplier
3 flashes: Error on hall ele-
ments or magnet
4 flashes: Overheating Allow the lifting platform to
5 flashes: Error on Power_
Hbridge
6 flashes: Low voltage Contact supplier
7 flashes: Power supply error Contact supplier
8 flashes: Overvoltage Contact supplier
Lasting flash: Lost position Contact supplier
The safety list is activated.
Clear away snow/ice or other
foreign objects.
Do not exceed the maximum
load of the platform.
Press the DOWN button until
the door is completely open.
Check that there are no foreign
objects between the door and
the lifting platform. Run the
lifting platform as normal. If the
problem continues, contact the
supplier to adjust the door lock.
Press the UP button until the
door is open. Check that there
are no foreign objects between
the door and the lifting platform. Run the lifting platform
as normal. If the problem continues, contact the supplier to
adjust the door lock.
Remove load so that the platform can be operated again.
Contact supplier
cool off for 20 minutes, and
contact the supplier if problems
continue
Contact supplier
© Guldmann GB/US-2583/06/18 • # 558526
13
Page 14
6.00 Technical specications
Dimensions
LP7 exterior dimensions (LxWxH) ...............1609 x 1246 x 1206 mm
LP7 interior dimensions (LxW) 1560 x 900 mm
LP7+ exterior dimensions (LxWxH) ..............1609 x 1246 x 1206 mm
LP7+ interior dimensions (LxW) .......................1520 x 900 mm
Safety door (WxH) .................................. 970 x 1100 mm
Lifting height
LP7 and LP7+ .................................... 50 til 1500 mm**
* Be aware of local regulations in relation to lifting height.
Weight
LP7 ............................................. 225 kg / 495 lbs.
LP7+. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275 kg / 605 lbs.
Safety door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 kg / 121 lbs.
Maximum load .................................... 350 kg / 770 lbs.
Lifting speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 mm/sec.
Electrical connection .....................230V/115V (USA: 120V/115V)
Power consumption on stand-by ................................ 3 W
Power consumption in use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.7 W
Batteries ...........................................2 x 12V/7.2 Ah
Gastight and maintenance-free
Cap class
Lifting platform – components ................................. IP 65
Operating panel ............................................ IP 54
Permissible connection time/intermittence factor
(Work/Break ratio in per cent) .................................10/90
7.00 EC-declaration of conformity
The product is manufactured in compliance with the Council Directive
2006/42/EC of May 17th 2006 on machinery and amending Directive 95/16/EC.
14
© Guldmann GB/US-2583/06/18 • # 558526
Page 15
USA and countries outside the EU
A. Users guide
Before using the product, read the entire operation manual
including warranty.
B. WARRANTY
Guldmann warrants its equipment is free from material defects under normal
use, and will perform substantially in accordance with the specications set
forth in documentation provided with the equipment.
This express warranty shall be in effect for one year from the date of original
purchase and installation (the “Warranty Period”). If a valid claim is made
during the Warranty Period for malfunction or equipment defect, Guldmann will
repair or replace the equipment at no additional cost to you. Guldmann retains
sole discretion as to whether the equipment will be repaired or replaced.
This warranty shall be null and void if the equipment is operated and maintained in any manner inconsistent with its intended use or the instructions
provided with the product. Further, in order for the warranty to remain in effect
for the full Warranty Period, all service to the equipment must be provided
by a Guldmann designated technician. Any parts or components repaired or
replaced by a Guldmann designated technician will be guaranteed for the
remainder of the Warranty Period.
The warranty does not cover any part of the equipment which has been subject to damage or abuse by the user or others. The warranty does not cover
any part of the equipment which has been altered or changed in any way by
the user or others. Guldmann does not warrant that the lifting device functions
will meet your requirements, be uninterrupted or error free.
© Guldmann GB/US-2583/06/18 • # 558526
The warranty set forth is in lieu of all other express and implied warranties,
whether oral, written or implied, and the remedies set forth above are your
sole and exclusive remedies. Only an authorized ofcer of Guldmann may
make modications to this warranty, or additional warranties binding on Guld-
mann. Accordingly, additional statements such as advertising or presentations, whether oral or written, do not constitute warranties by Guldmann.
Service or Repair
Contact Guldmann Repair for an authorization to return any defective item
during the Warranty Period. You will be provided with a return authorization
number and address for returning the item for warranty service or replacement. Do not return items to Guldmann under warranty without receiving a
Return Authorization Number.
If mailing the item, pack it carefully in a sturdy carton to prevent damage. Include
your Return Authorization Number, a brief description of the problem and your
return address and phone number. Guldmann does not assume the risk of loss
or damage while in transit, so it is recommended you insure the package.
15
Page 16
V. Guldmann A/S
Corporate Ofce:
Tel. +45 8741 3100
Fax +45 8741 3131
E-mail [email protected]
www.stepless.com
Guldmann Inc.
© Guldmann GB/US-2583/06/18 • # 558526
Loading...
