Manual for charging menu PR charge controller
In the additional menu it is possible to change charging, disconnecting and
reconnecting values.
The menu can be opened up to 5min after connecting batteries. Here you can see
how it works.
Standard display
If you press the left key for 3s standard
menu will be opened.
You can see the operating mode.
If you press both keys for 3s the charging
menu will be opened.
The first bar on the left side shows the
value for float-charging.
With the right key you can select it and
with the left key you can change it.
After pressing the left key again the second
bar and the value for boost-charging will
appear. With the right key you can select it
and with the left key you can change it.
PR menu charging voltage.doc Speicherdatum: 02.08.2012 Seite 1 von 2
Manual for charging menu PR charge controller

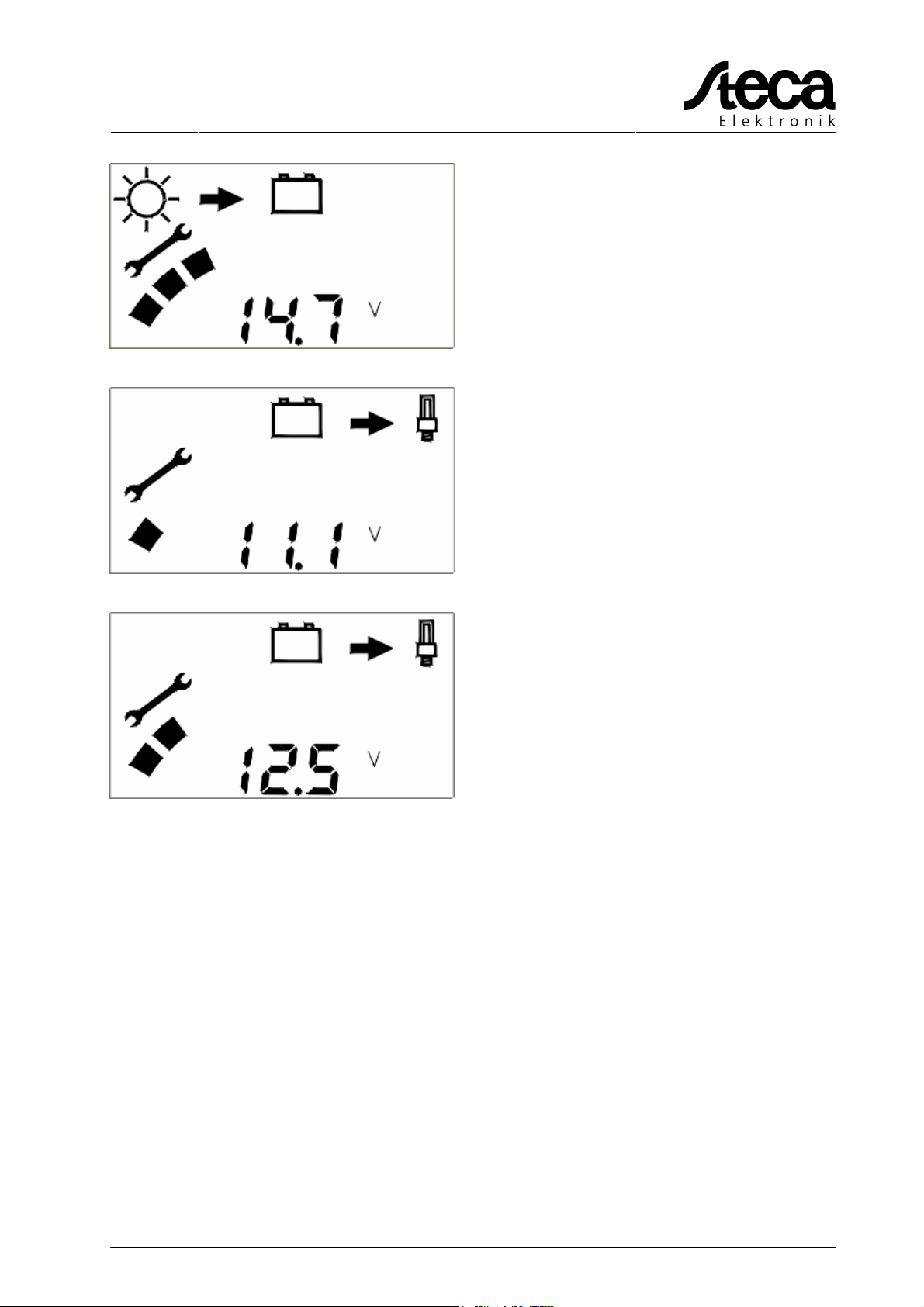

After pressing the left key again the third
bar and the value for equal-charging will
appear. With the right key you can select it
and with the left key you can change it.
After pressing the left key again the
disconnecting value of the discharge
protection will appear. With the right key
you can select it and with the left key you
can change it.
After pressing the left key again the
reconnecting value of the discharge
protection will appear. With the right key
you can select it and with the left key you
can change it.
You can leave the menu with pressing the left key for 3s.
