Steca PR 3030 User guide

708.219 | 08.44
PHOTOVOLTAIK - PHOTOVOLTAIC - PHOTOVOLTAIQUE - FOTOVOLTAICA
EN
Operating instructions
Solar Charge Controller
10 A / 15 A / 20 A / 30 A
Contents
1. Safety instructions and liability disclaimer ........................................3
1.1. The safety instructions are marked as follows ...................................
1.2. General Safety Instructions ...............................................................
1.3. Scope of Application
1.4. Liability Disclaimer ............................................................................
2. Installation ........................................................................................
2.1. Installation Site ................................................................................
2.2. Connecting the Regulator ................................................................ 5
2.3. Grounding ........................................................................................
3. Protective functions of the controller
4. Operating the system regulator ........................................................
4.1. Display and Operation Elements .......................................................
4.2. Display Window ................................................................................
4.2.1. SOC Window ....................................................................................
4.2.2. Voltage window ...............................................................................
4.2.3. Module current .................................................................................
4.2.4. Charging current ..............................................................................
4.2.5. Load current .....................................................................................
4.2.6. Ah – Battery charging meter .............................................................
4.2.7. Ah – Battery discharging meter ........................................................
4.2.8. Warning deep discharge protection ..................................................
4.2.9. Load disconnection ...........................................................................
5. Function Overview ............................................................................
5.1. SOC Calculation ...............................................................................
5.2. PWM Charge Control .......................................................................
5.3. Deep Discharging Protection ............................................................
6. Regulator Settings ............................................................................
6.1. Calling up and Modifying the Settings
6.2. SOC Setting / Voltage Control ...........................................................
6.3. Gel / Liquid Battery Type Setting ....................................................
6.4. Night Light Function Setting ...........................................................
6.5. Default Setting (Presetting) Activation ............................................
6.6. Auto-test ........................................................................................
6.7. Serial Number Query .......................................................................

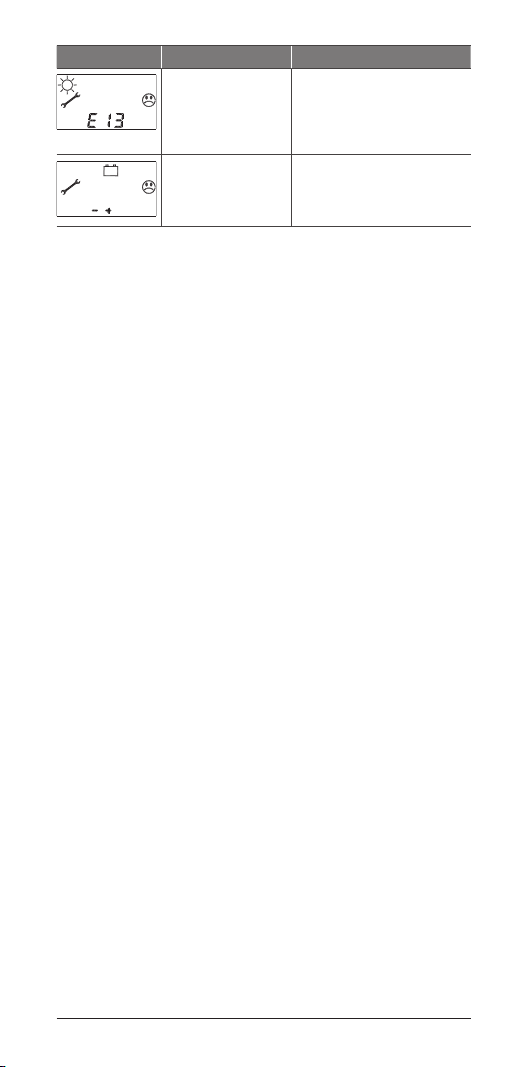

7. Error Messages .............................................................................
8. Legal Guarantee
9. Technicel Data .................................................................................
......................................................................... 4
............................................... 6
.............................................. 9
..............................................................................13
3 3
4
5
5
6
7
7 7 7 7 8 8 8 8 8 8 8
8
8 9 9
9
9 10 10 10 10 11
11
14
2 708.219 | 08.44
1. Safety instructions and liability dis­claimer
1.1. The safety instructions are marked as follows
In this manual, safety instructions for personal protection are marked with this symbol.
The relevant operational safety notes of the system and regulator are marked in bold.
1.2. General Safety Instructions
Observe the following while installing the regulator and handling the battery:
Danger of explosion due to improper handling of batteries! Cor­rosive hazard by leaking battery acid!
Keep children away from batteries and acid! Smoking, fire and naked lights are prohibited when handling batteries. Prevent sparking and wear eye protection gear during installation. Observe and follow the handling instructions in the user manual and on the battery.
Solar modules generate power from light incidence. Even by low light incidence solar modules carry the full voltage. Therefore, work cautiously and avoid sparking during all work. Observe the responding safety precautions.
During installation and electrical installation, the photovoltaic system’s DC circuit may carry twice its system voltage value (in the 12 V system up to 24 V, 24 V system up to 48 V).
Use only well-isolated tools! Do not use any technical measuring equipment that you know is
damaged or defective! When installing the power line ensure that no fire safety measures
are damaged. The regulator may not be installed and operated in moist rooms (e.g. restrooms), or rooms, in which easily flammable gasoline mixtures may be present, such as by gas bottles, paint, lacquer, solvents etc. Do not store any of the mentioned mixtures in the room, in which the solar regulator is installed!
If the regulator is operated in a manner not specified by the manufacturer, the regulator’s constructive protective measures can deteriorate.
The factory signs and marking may not be modified, removed or made unrecognizable. All work must be performed in confor­mity with the national electrical specifications and related local regulations!
When installing the regulator in foreign countries, information concerning regulations and protective measures must be obtained from the relevant institutions / authorities.
Do not begin the installation until you are sure that you have technically understood the manual and perform the work only in the order provided in this manual!
The manual must be available during all work performed on the system, third parties included.
This manual is a component of the system regulator and must be included with the regulator when given to a third person.
cor-
3708.219 | 08.44
1.3. Scope of Application
This manual describes the function and installation of a regulator for photo­voltaic (PV) systems for charging 12 V or 24 V lead batteries for recreational, residential, business, commercial areas and small businesses.
The charge regulator is only suitable for regulating photovoltaic solar mo­dules. Never connect another charging source to the charge regulator. This can destroy the regulator and / or source. Consult your specialized dealer or installer if other charging sources should be used and observe the ”5.1. SOC Calculation” item in this manual.
The regulator is only suitable for the following chargeable 12 V or 24 V battery types:
- Lead storage batteries with liquid electrolytes
- Sealed lead storage batteries; AGM, GEL
The respective battery type must be set on the regulator, see ”6.3. Battery Type Gel / Li”.
Observe the manufacturer’s instructions before connecting the battery.
Important! The regulator is not suited for nickel cadmium, nickel metal hydride, lithium ions or other rechargeable or non-rechargeable batteries. Such batteries may not be con nected to the regulator. Observe the respective battery’s safety instructions.
The corresponding manufacture’s installation manual must be observed when installing the remaining components, e.g. solar module, battery or consumer.
The regulator is not for outdoor use. The regulator must be in stalled so that it is protected against exposure to the elements, such as rain and direct sunlight. Vents may not be covered. Do not expose the battery regulator to rain.
The regulator may only be used for the particular solar applica tions provided. Also, observe that the permitted, model-speci fic, nominal currents and voltages are not exceeded.
No liability shall be assumed for any non-compliant usage. Carefully handle the product.
-
-
-
-
1.4. Liability Disclaimer
The manufacturer cannot monitor the compliance to this manual as well as the conditions and methods during the installation, operation, usage and maintenance of the system regulator. Improper installation can cause damages and endanger people.
Therefore, we assume no responsibility and liability for losses, damages or costs that result due to incorrect installation, improper operation, usage and maintenance or in any manner associated therewith.
Similarly, we assume no responsibility for patent right or other right infrin­gements of third parties caused by usage of this system regulator.
The manufacturer reserves the right, without prior notification, to make modifications concerning the product, technical data or installation and operating manual.
Caution: Opening the regulator, manipulation and repair attempts as well as
improper operation voids the guarantee.
4 708.219 | 08.44
5708.219 | 08.44
2. Installation
2.1. Installation Site
Only install the regulator near the battery on a suitable surface. This surface should be solid, stabile, even, dry and nonflammable. The battery cable should be as short as possible (1-2 m) and have a suitable cable diameter size to minimize loss, e.g. use 2.5 mm² at 10 A and 2 m length; 4 mm² at 20 A and 2m length; 6 mm² at 30 A and 2 m length.
The regulator and battery should have same temperature ratio for the tem­perature compensation function of the charging voltage. When the battery is placed far away from the regulator, an external temperature sensor is available as an accessory unit.
Do not assemble the charge controller outdoors. The regulator must be installed so that it is protected against humidity, dripping, splashing and rain water as well as direct and indirect warming e.g. sunlight.
The regulator also generates heat during normal operation. The installation or assembly into another housing may not obstruct the rear vents necessary for cooling the device.
To ensure the air circulation for cooling the regulator, an area of 15 cm on each side of the regulator must be kept free. The temperature at the instal­lation site may never fall below or exceed the maximal permitted ambient temperature.
The integrated LC display should be protected against UV rays (e.g. sun­light). Chronic exposure to UV rays can permanently discolor the LCD.
2.2. Connecting the Regulator
Connect the individual components to the symbols provided. Observe the following connection sequence during commissioning:
1. Connect the battery to the charge regulator - plus and minus
2. Connect the photovoltaic module to the charge regulator
- plus and minus
3. Connect the consumer to the charge regulator - plus and minus
The reverse order applies when deinstalling!
Please observe that the automatic adjustment to 12V / 24V systems does not function properly, if this sequence order is not followed. An improper sequence order can damage the battery!
15 cm
15 cm
15 cm15 cm
