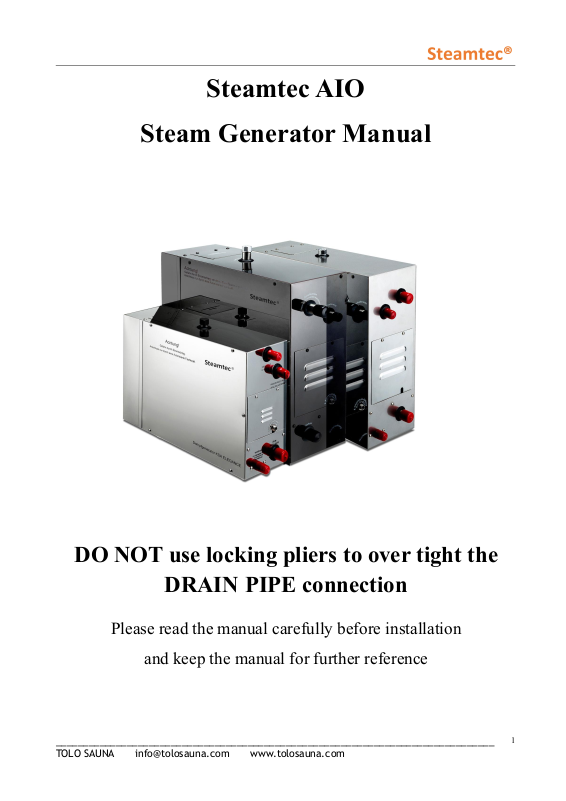

Steamtec AIO
Steam Generator Manual
DO NOT use locking pliers to over tight the
DRAIN PIPE connection
Please read the manual carefully before installation
and keep the manual for further reference
________________________________________________________________________________
TOLO SAUNA [email protected] www.tolosauna.com
Page 2
2

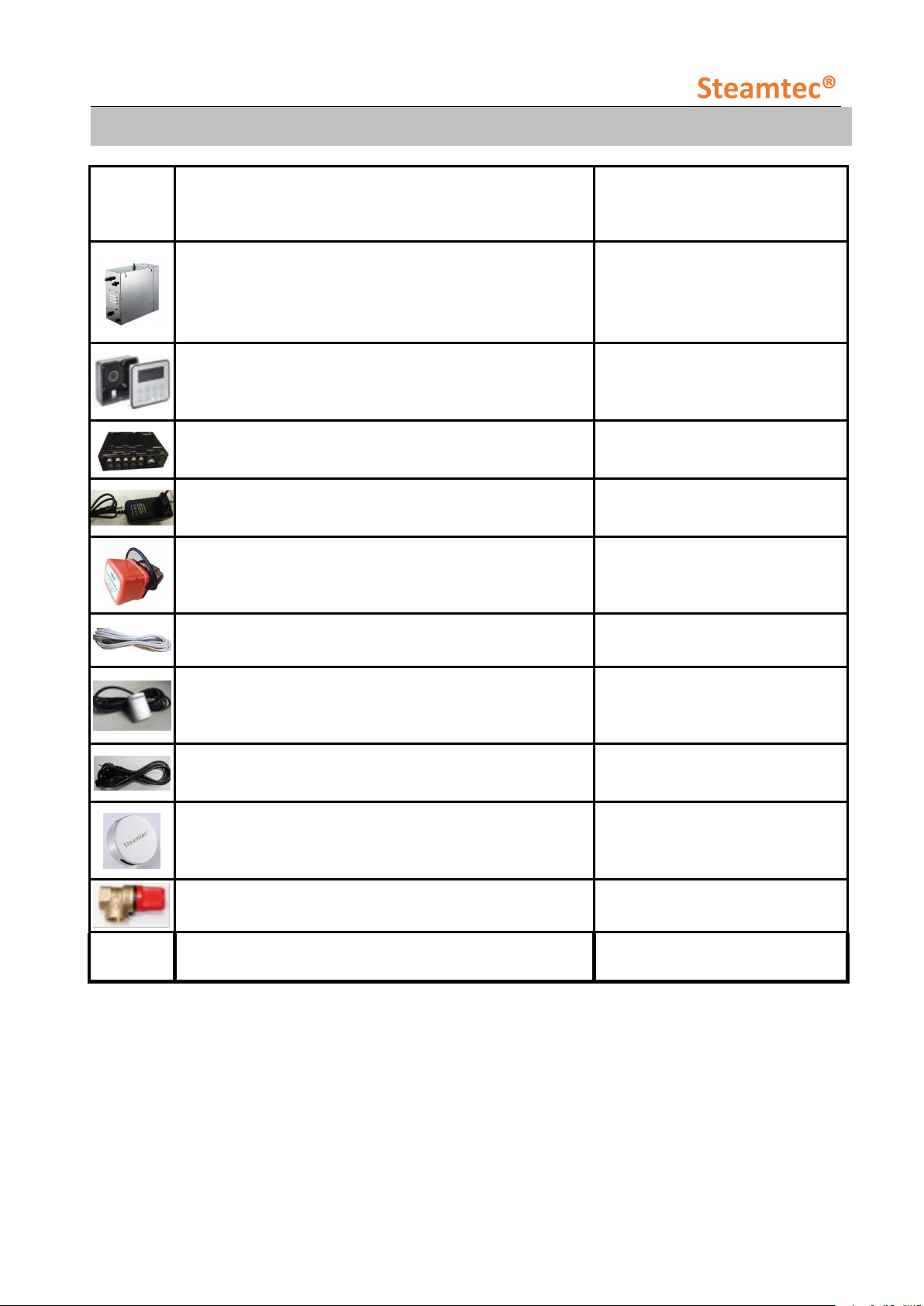

1. Configuration List
Photos
Item name
Quantity
Steam generator in stainless steel housing
1pc
Controller+housing box, waterproof touch screen
1set
Central function box
1pc
Central function box power cord
1pc
3/4" Full-bore straight auto drain valve
1pc
Control cable, length 5 m (central function box ->
controller)
1pc
Temp sensor with box, length 5 m (central function
box -> sensor end position)
1pc
Central function box cable (steam generator -> central
function box)
1pc
Stainless steel#304 steam nozzle
1pc for 3kw~13.5kw;
2pcs for 15kw~24kw
Safety valve
1pc
English User Manual
1pc
________________________________________________________________________________
TOLO SAUNA [email protected] www.tolosauna.com
Table 1
Page 3
3
2. Parameters
Model
Power
Phase
Heating elements
Voltage / Current
Power wire
Breaker
Room
volume
Dimension
(L*W*H)
kWNN*KW
V/A
N*mm2
Am3mm
TOLO-30
3.012*1.5
215-240/13.6
3*2.5
16
2～3
425*160*315
TOLO-40
4.012*2.0
215-240/18.2
3*2.5
25
3～5
TOLO-45
4.513*1.5
215-240/20.5
3*2.5
25
3.5
～
5.5
3
380-415/6.8
5*1.5
16
TOLO-50
5.012*1.5+1*2.0
215-240/22.7
3*2.5
32
4～6
3
380-415/7.6
5*1.5
16
TOLO-60
6.013*2.0
215-240/27.3
3*4.0
40
5～7
3
380-415/9.1
5*1.5
16
TOLO-70
7.012*2.5+1*2.0
215-240/31.8
3*6.0
40
5.5～8
475*185*450
3
380-415/10.6
5*2.5
16
TOLO-75
7.513*2.5
215-240/33.75
3*6.0
60
6.5～9
3
380-415/11.25
5*2.5
16
TOLO-90
9.036*1.5
380-415/13.6
5*2.5
16
8～11
TOLO-105
10.533*1.5+3*2.0
380-415/15.9
5*2.5
25
9～12
TOLO-120
12.036*2.0
380-415/18.2
5*2.5
25
11～14
TOLO-135
13.533*2.0+3*2.5
380-415/20.25
5*2.5
32
12～15
TOLO-150
15.036*2.5
380-415/22.7
5*2.5
32
13～18
510*185*460
TOLO-165
16.536*2.0+3*1.5
380-415/24.75
5*4.0
40
14～20
TOLO-180
18.039*2.0
380-415/27.3
5*4.0
40
16～22
TOLO-225
22.539*2.5
380-415/34.1
5*6.0
60
19～26
TOLO-240
24.036*2.5+3*3.0
380-415/36.4
5*6.0
60
22～30
2.1. EU Type Models, parameters and dimension
(Only apply to European style voltage and phase)
________________________________________________________________________________
TOLO SAUNA [email protected] www.tolosauna.com
Table 2
Page 4
4
2.2. USA Type Models, parameters and dimension
Model
Power
(kW)
Phase
Voltage(V)/
Currency(A)
Heating
elements
(N*kW)
Power
wire
(N*AWG)
Room
volume
(m3)
Dimension
(L*W*H)
(mm)
TOLO-30
3.0
1(2L)
230/13.1
2*1.5
2*10
2～3
425*160*315
TOLO-40
4.0
1(2L)
230/17.4
2*2.0
2*10
3～5
TOLO-45
4.5
1(2L)
230/19.6
3*1.5
2*10
3.5～5.5
TOLO-50
5.0
1(2L)
230/21.8
2*1.5+1*2.0
2*10
4～6
TOLO-60
6.0
1(2L)
230/26.1
3*2.0
2*8
5～7
TOLO-75
7.5
1(2L)
230/32.6
3*2.5
2*8
5.5～8
475*185*450
TOLO-90
9.0
1(2L)
230/39.2
6*1.5
2*8
8～11
3(3L)
230/22.6
3*8
TOLO-105
10.5
1(2L)
230/45.7
3*1.5+3*2.0
2*6
9～12
3(3L)
230/26.4
3*8
TOLO-120
12.0
1(2L)
230/52.2
6*2.0
2*4
11～14
3(3L)
230/30.2
3*8
TOLO-150
15.0
3(3L)
230/37.7
6*2.5
3*8
13～18
510*185*460
TOLO-165
16.5
3(3L)
230/41.5
6*2.0+3*1.5
3*8
14～20
TOLO-180
18.0
3(3L)
230/45.2
9*2.0
3*6
16～22
TOLO-195
19.5
3(3L)
230/49
6*2.0+3*2.5
3*6
17～23
TOLO-210
21.0
3(3L)
230/52.8
6*2.5+3*2.0
3*4
18～24
TOLO-225
22.5
3(3L)
230/56.5
9*2.5
3*4
19～26
( Below Only apply to American style voltage and phase)
________________________________________________________________________________
TOLO SAUNA [email protected] www.tolosauna.com
Page 5
5
2.3. Controller parameters and dimension
Controller
model
Controlling time
range (minutes)
Temperature
showing range
Temperature
controlling range
Dimension
(mm)
AIO
1~60 or long-term
(CH)
6～60℃
(43℉～140℉)
35～60°C
(95℉～140℉)
103*103*4.5

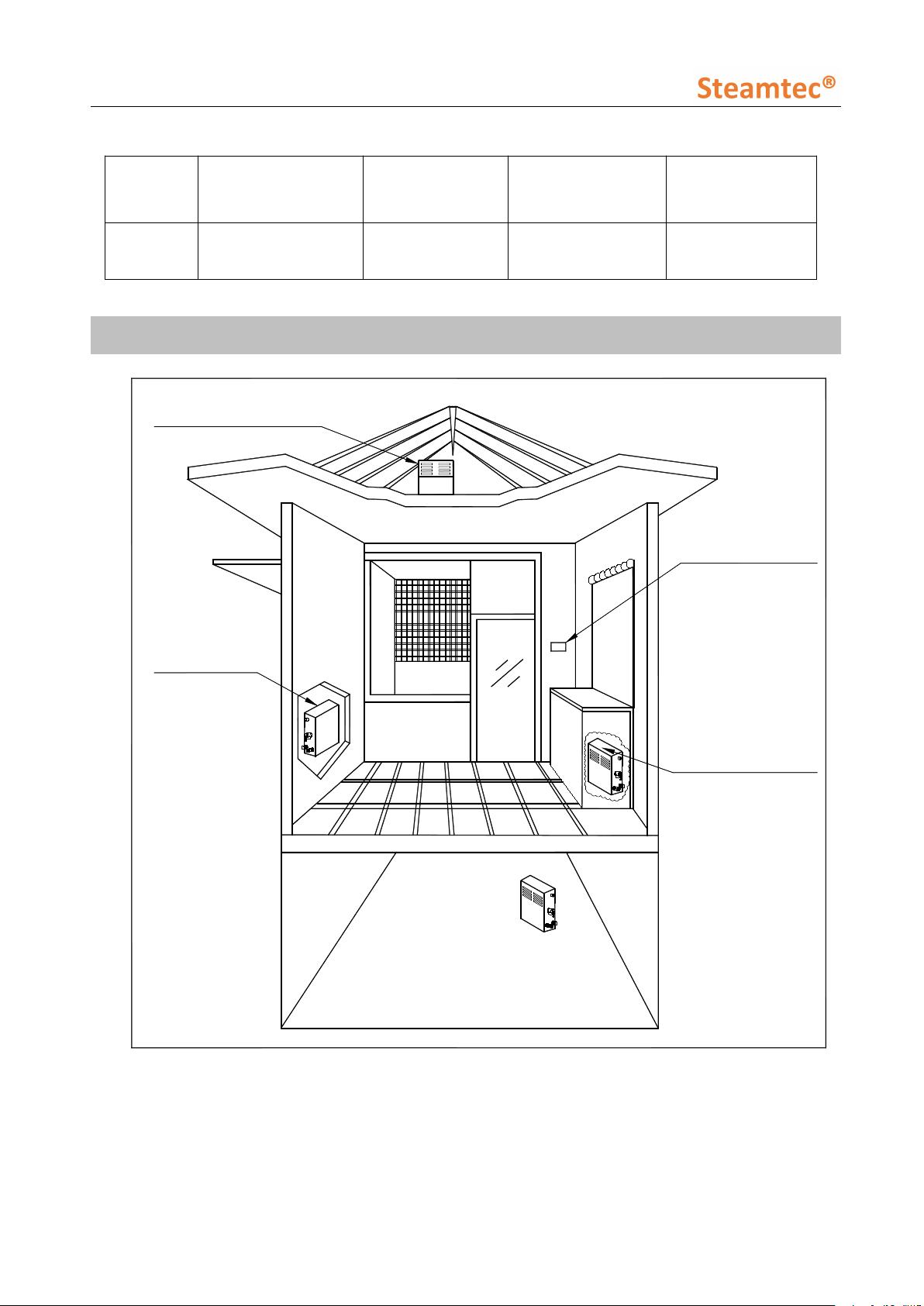

Install in the roof
Install in
the closet
Install in the basement
Install under the
washing basin
Suitable
for installation
Table 3
3. Installation
________________________________________________________________________________
TOLO SAUNA [email protected] www.tolosauna.com
Page 6
6

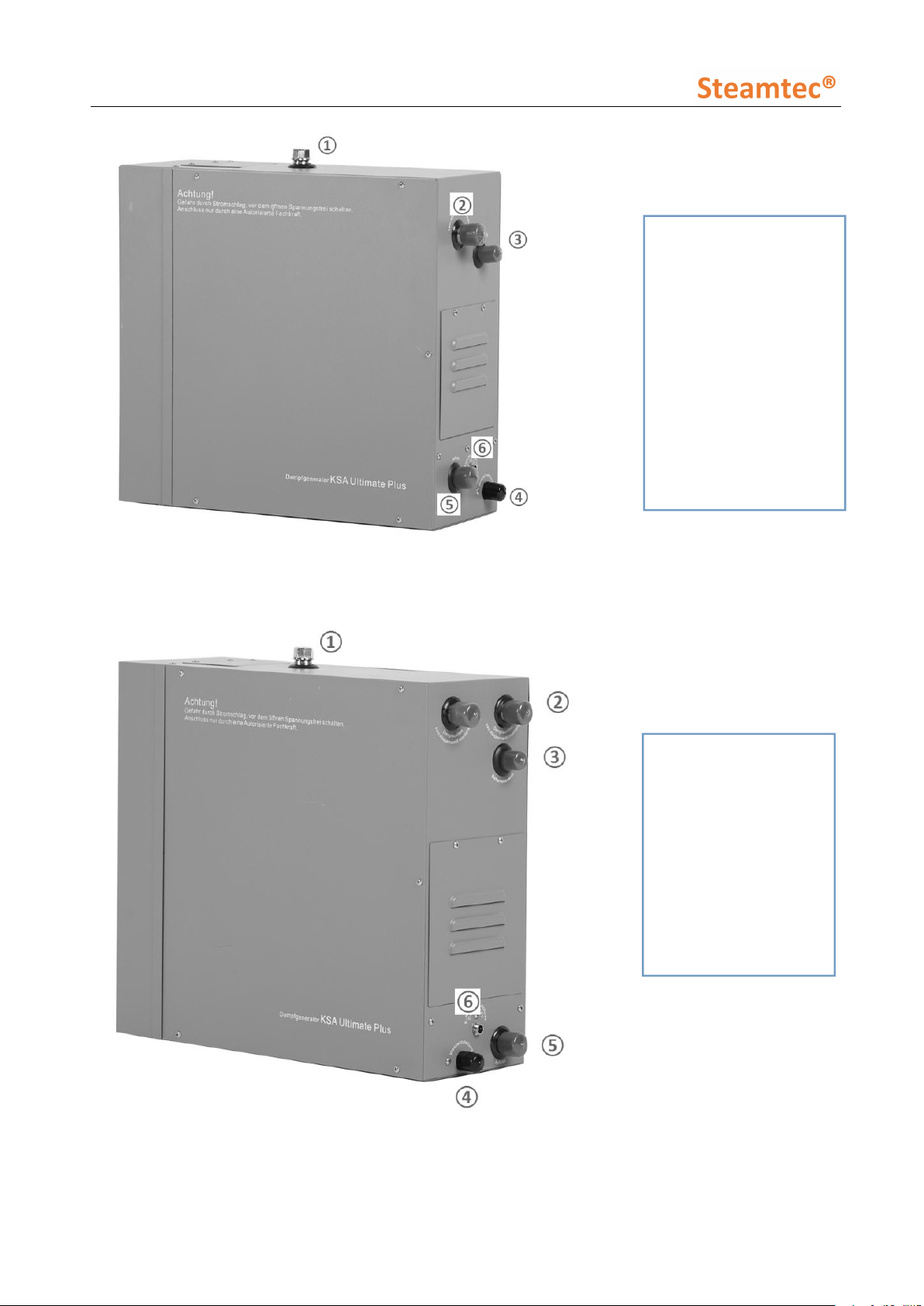

3KW- 13.5KW AIO Pipe Connection
3kw ~ 13.5kw
① Service hole 1/2’’
② Steam outlet
3kw~6kw: 1/2
’’
7kw~13.5kw:3/4
’’
③ Safety valve 1/2’’
④ Water inlet 1/2’’
⑤ Drain outlet 3/4’’
⑥ Power supply for
drain valve
15kw ~ 24kw
① Service hole 1/2’’
② Steam outlet 3/4’’
③ Safety valve 1/2’’
④ Water inlet 1/2’’
⑤ Drain outlet 3/4’’
⑥ Power supply for
drain valve
②
