Steam Spa STSP1157 Installation & Assembly

MODELS

W

H

I

S

P

E

R

Q

U

I

E

T

B

U

I

L

T

-

I

N

A

U

T

O

D

R

A

I

N

C

O

N

T

I

N

U

O

U

S

S

T

E

A

M

Q

U

I

C

K

S

T

A

R

T

4.5KW

STEAM BATH GENERATOR USER GUIDE

6KW

7.5KW
9KW

10.5KW
12KW
15KW

Steam Spa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

v2.2

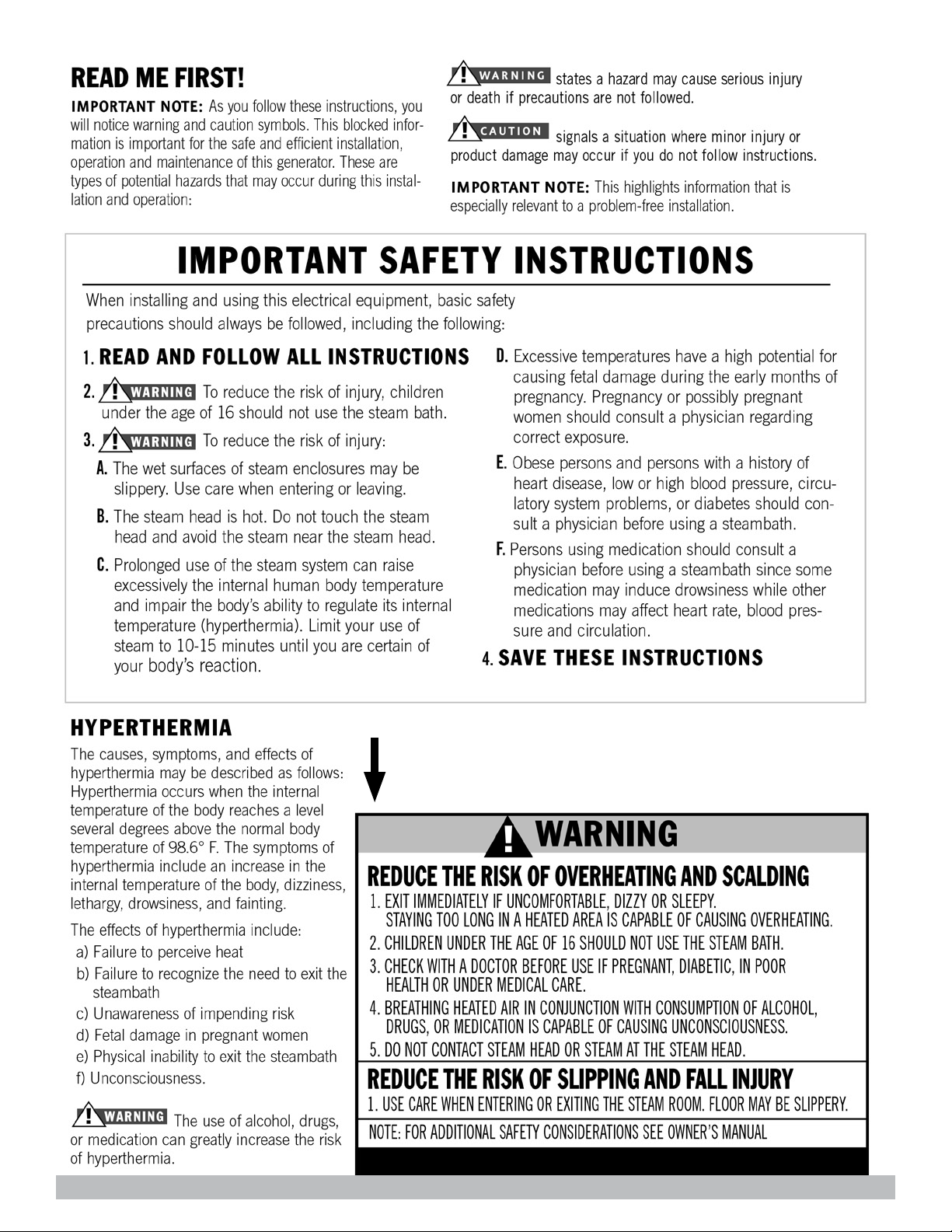

This peel-n-stick warning label must be applied to the wall of the
shower or steam enclosure, at a point visible to all users. Failure to
install sticker may result in serious injury or death. For replacement label
contact SteamSpa at 1-800-856-0172 or [email protected].

Steam Spa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

TABLE OF CONTENTS

PROLOGUE ....................................................................................................................... 4

USER INSTRUCTIONS ......................................................................................................... 4

CHOOSING THE RIGHT LOCATION .......................................................................................... 4

INSTALLATION DRAWING OF STEAM GENERATOR ..................................................................... 5

PLUMBING INSTALLATION ................................................................................................... 8

STEAM GENERATOR SPECIFICATIONS ................................................................................... 10

ELECTRICAL REQUIREMENTS ............................................................................................. 11

ASSEMBLY GRAPH FOR POWER WIRE .................................................................................. 12

INSTALLATION OF THE TOP LIGHT ........................................................................................ 14

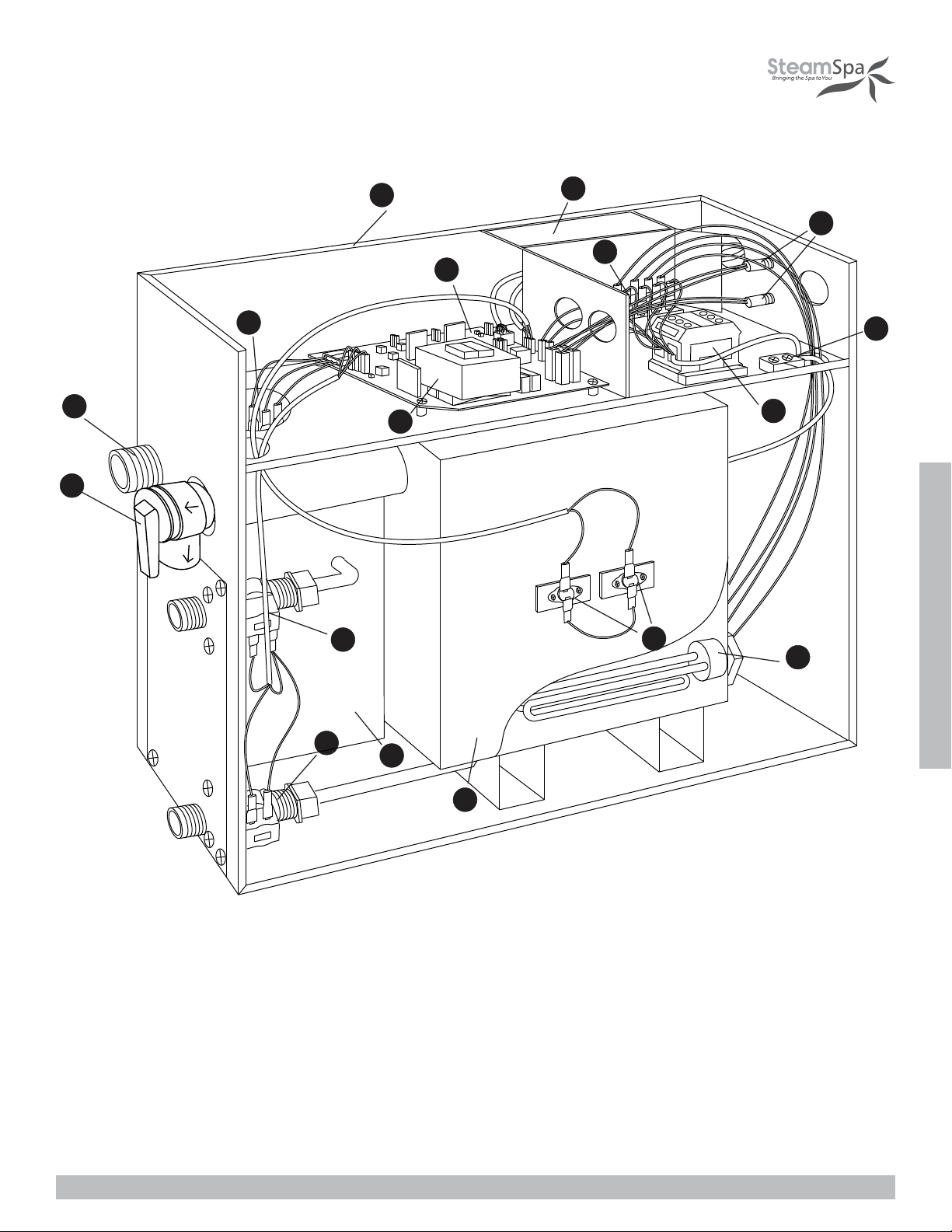

STEAM GENERATOR DISSECTION DIAGRAM ........................................................................... 15

CARE & USE FOR THE CONTROL PANEL ................................................................................ 16

CONTROLLER BOX CONTENT .............................................................................................. 16

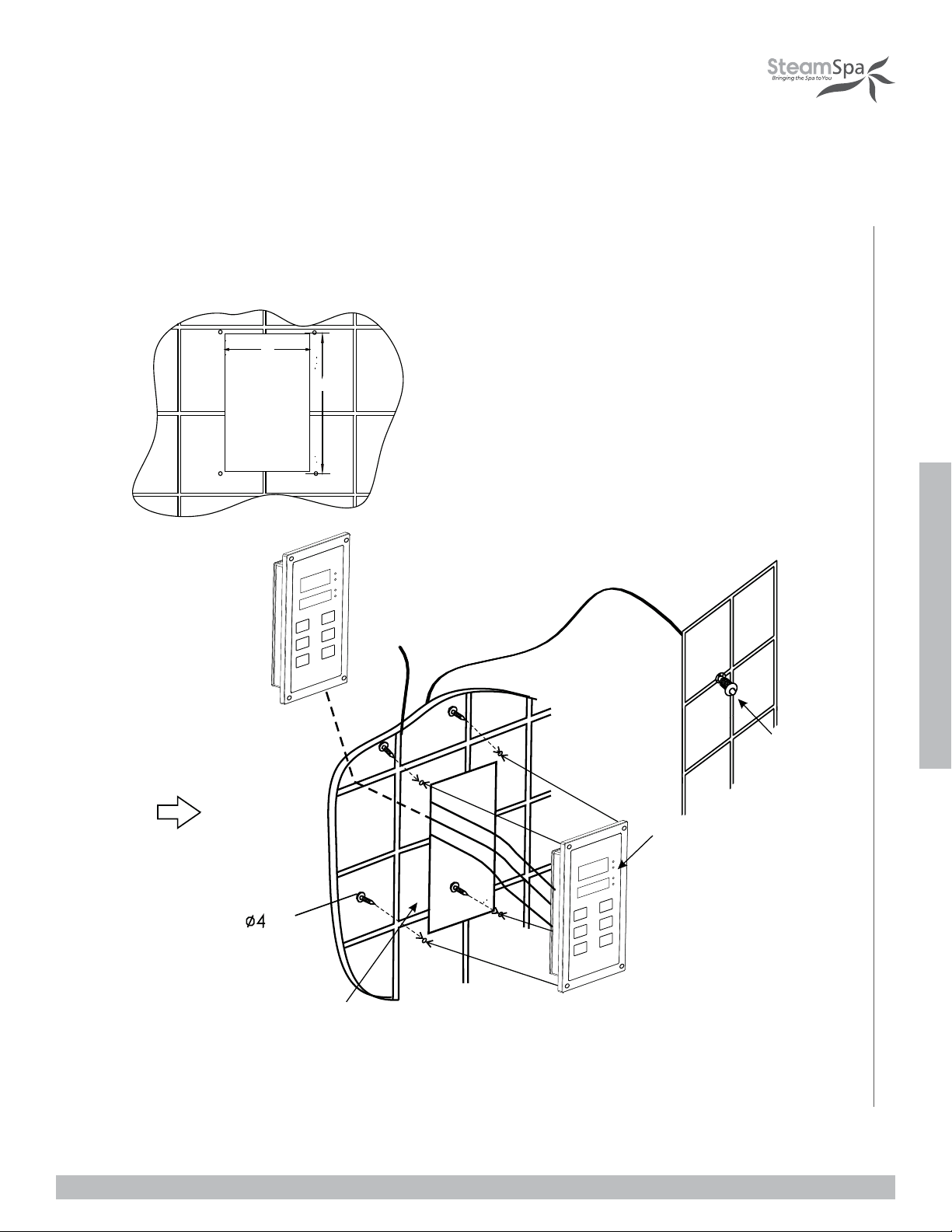

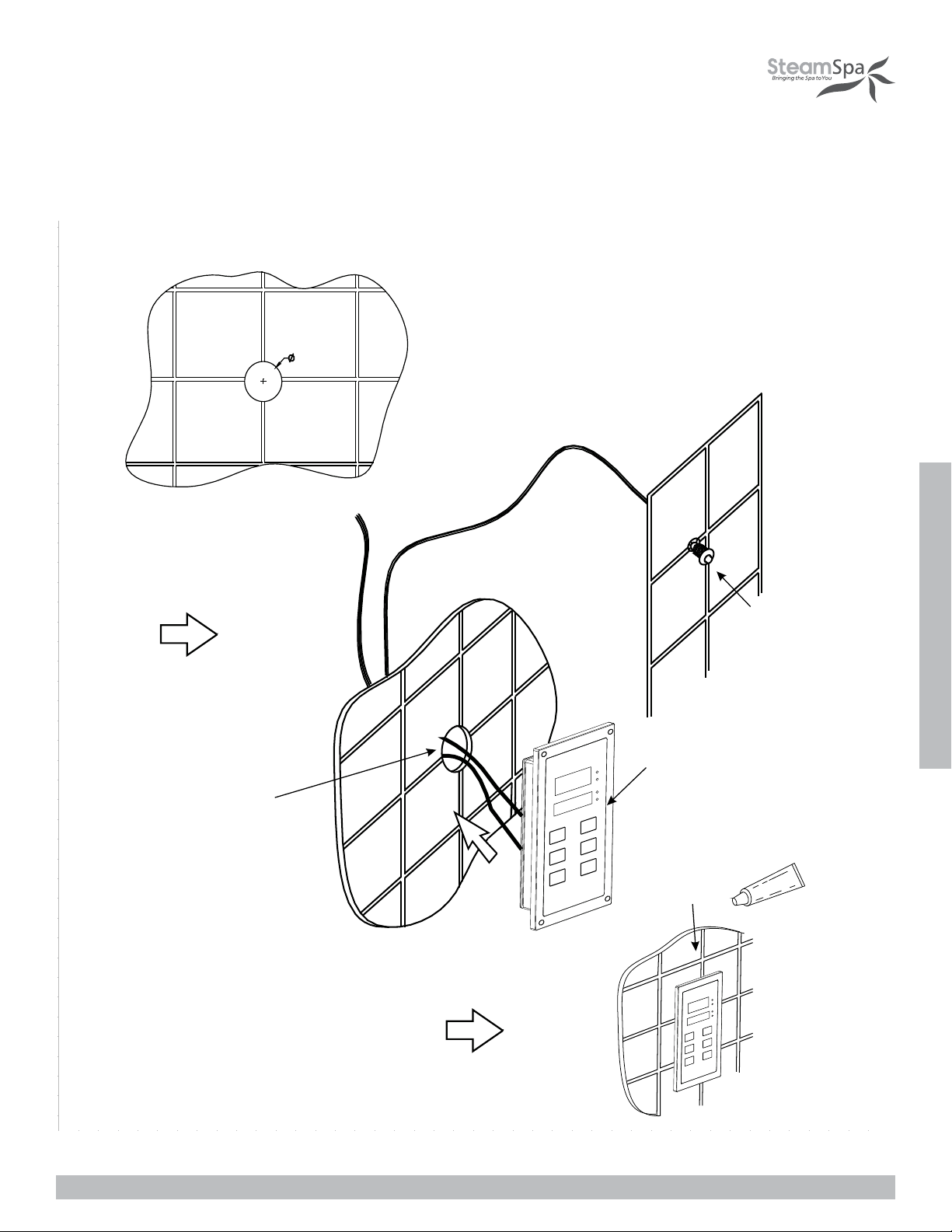

CONTROL PANEL INSTALLATION INSTRUCTIONS ..................................................................... 17

TESTING THE MACHINE ..................................................................................................... 18

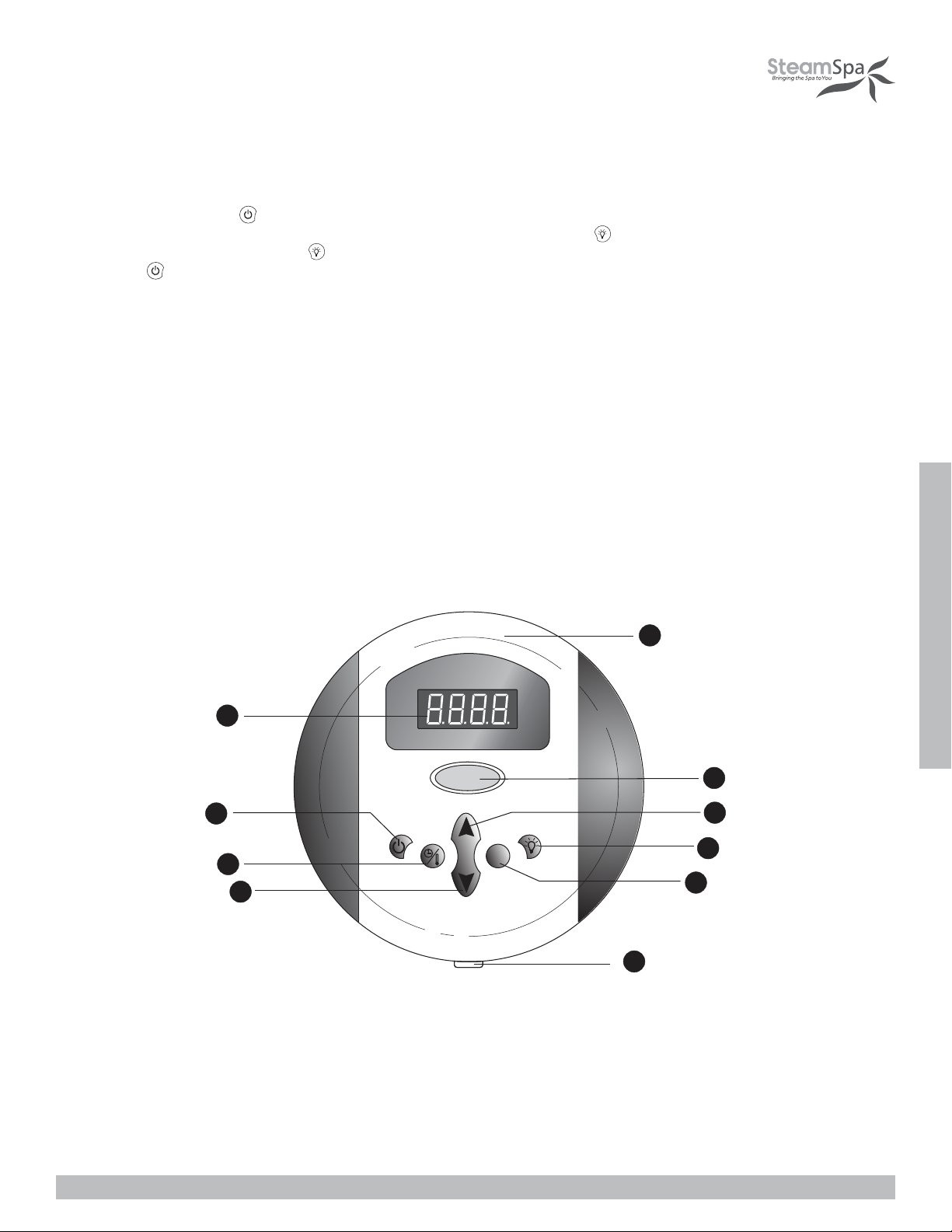

CONTROL PANEL DIAGRAM ................................................................................................ 18

CONTROL PANEL OPERATION ............................................................................................. 19

STEAM GENERATOR MAINTENANCE ..................................................................................... 25

TECHNICAL PARAMETERS .................................................................................................. 29

WIRING DIAGRAMS .......................................................................................................... 30

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Page 4

PROLOGUE

Thank You for choosing SteamSpa for health, beauty and relaxation. Now you can enjoy your own private sanctuary in the comfort
of your own home. Let your stress melt away as you relax in your state of the art Steam Room.

For Centuries people have recognized the health benefits of saunas. Leave your stress behind and enter a world of total relaxation,
ridding you of pain, toxins, and sore muscles as well as increasing your blood circulation etc., leaving your skin glowing. Besides
these physical effects, a SteamSpa Session will leave you totally relaxed by providing you a peaceful and relaxing environment
away from all.

Our advanced technology, engineering, and product development provides Steam Generators that enhance the lifestyles of people
throughout the world. SteamSpa is continuously refining, updating and developing their products assuring the optimum quality
and performance of their products. Working with the industries top engineers we have developed the most efficient, dependable
and highest quality products.

USER INSTRUCTIONS

1. Check for visible damages upon delivery of Generator. Any damages to packaging should be reported immediately to shipping
company delivery representative and SteamSpa’s Customer Service Dept.

2. Check model and accessories are correct, including voltage input. Any discrepancies are to be reported to SteamSpa’s
Customer Service Dept. within 48 hours of delivery.

3. Read installation instructions in detail for a secure and effective installation of SteamSpa generators.

4. SteamSpa recommends the use of a licensed plumber and electrician for proper installation of SteamSpa generators.

5. SteamSpa shall not be responsible for product damage or malfunction caused by self-installation or installation procedures
which do not comply with user manual.

6. SteamSpa generators are for indoor use only.

CHOOSING THE RIGHT LOCATION

1. The generator should be less than 25ft from the steam room for best performance.

2. The steam generator should not be installed in the steam room

3. Do not install outdoor or in any places that will influence the performance of the machine by the environment.

4. Do not install in a frigid location or any places where the water will freeze.

5. Do not install near flammable chemicals.

6. Install in a dry place where the ventilation is good.

7. Install an exhaust fan outside of the steam room for the excess steam to be expelled from the shower room.

8. The steam generator has a hanging groove for wall installations..

9. Both sides and the top of the steam generator need to reserve at least 12 inches space.

10. The area where the machine is installed must be easily cleaned up and convenient for the disassembly of the machine.

11. The installation area must be convenient for the steam generator draining system.

12. The steam tube, safety valve, drain valve, water tube and steam outlet remain very heated after the steam generator has
stopped working for some time.

13. The controller panel should be installed away from the steam head to avoid false readings,please read the instructions for the
controller’s installation and operation.

Page 5

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

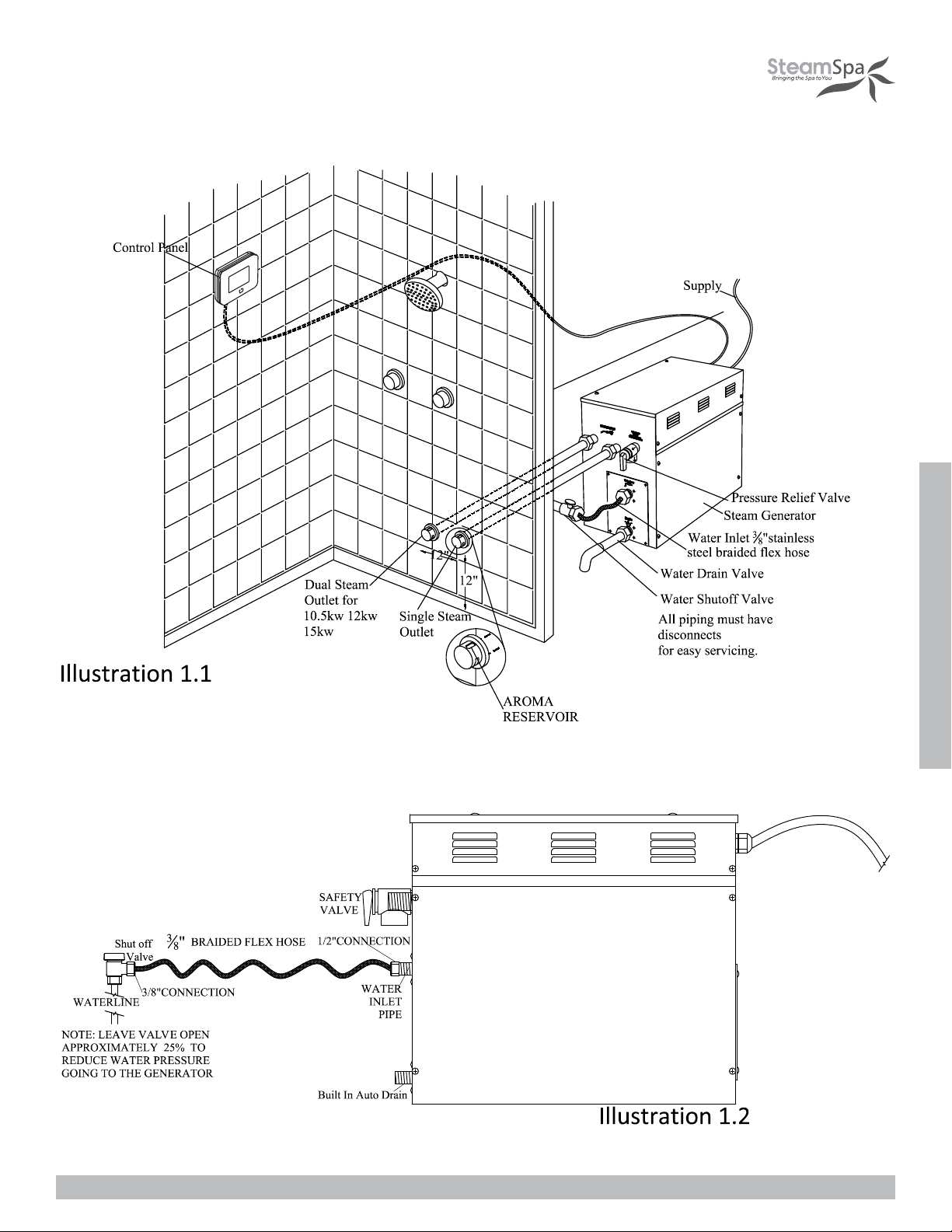

INSTALLATION DRAWING OF STEAM GENERATOR

ATTENTION! The drawing is only for explanation purposes. As for practical design of steam room, please consult with a qualified

designer, architect or builder.

Page 6

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

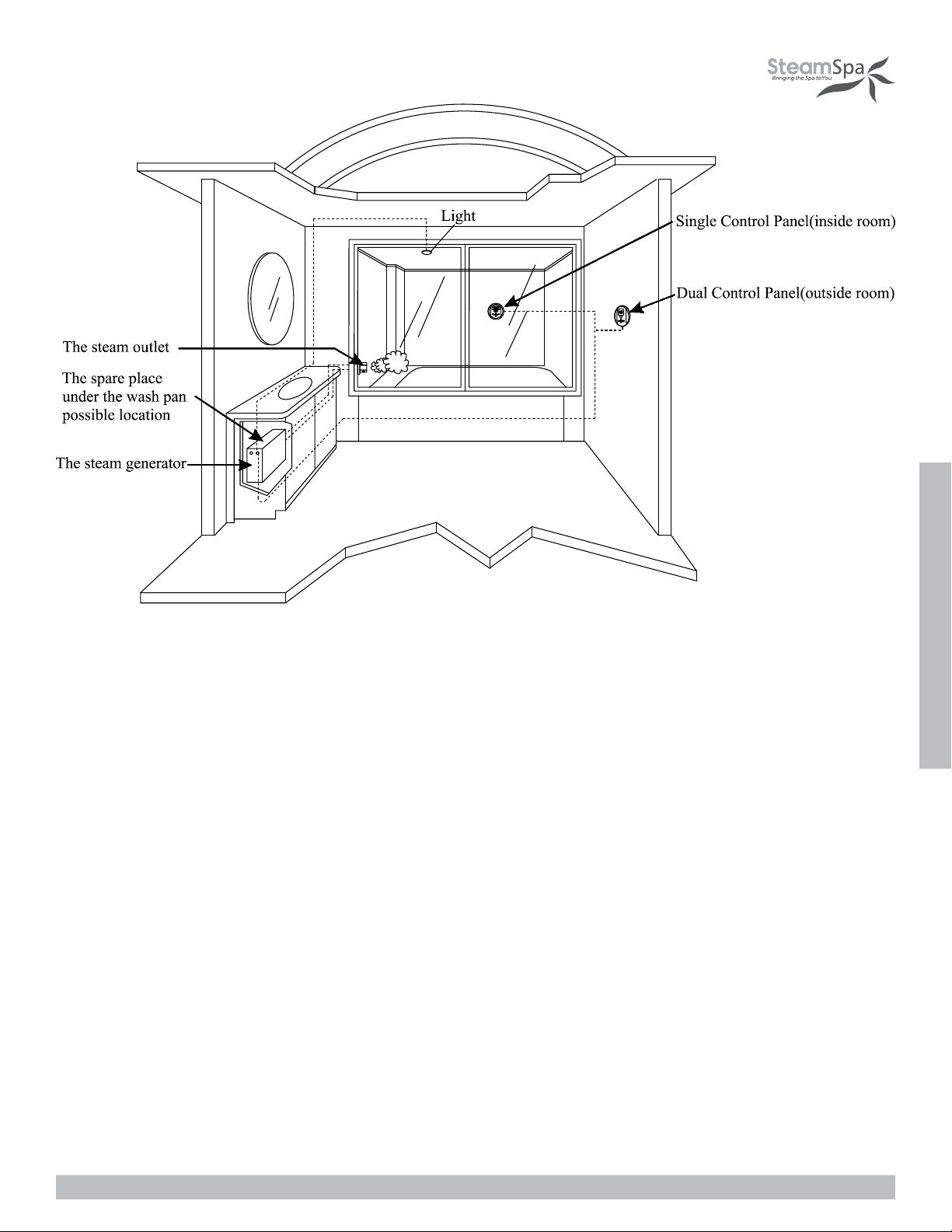

ATTENTION! The drawing is only for explanation purposes , please consult with a qualified designer, architect or builder.

INSTALLATION & USER GUIDE

Page 7

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

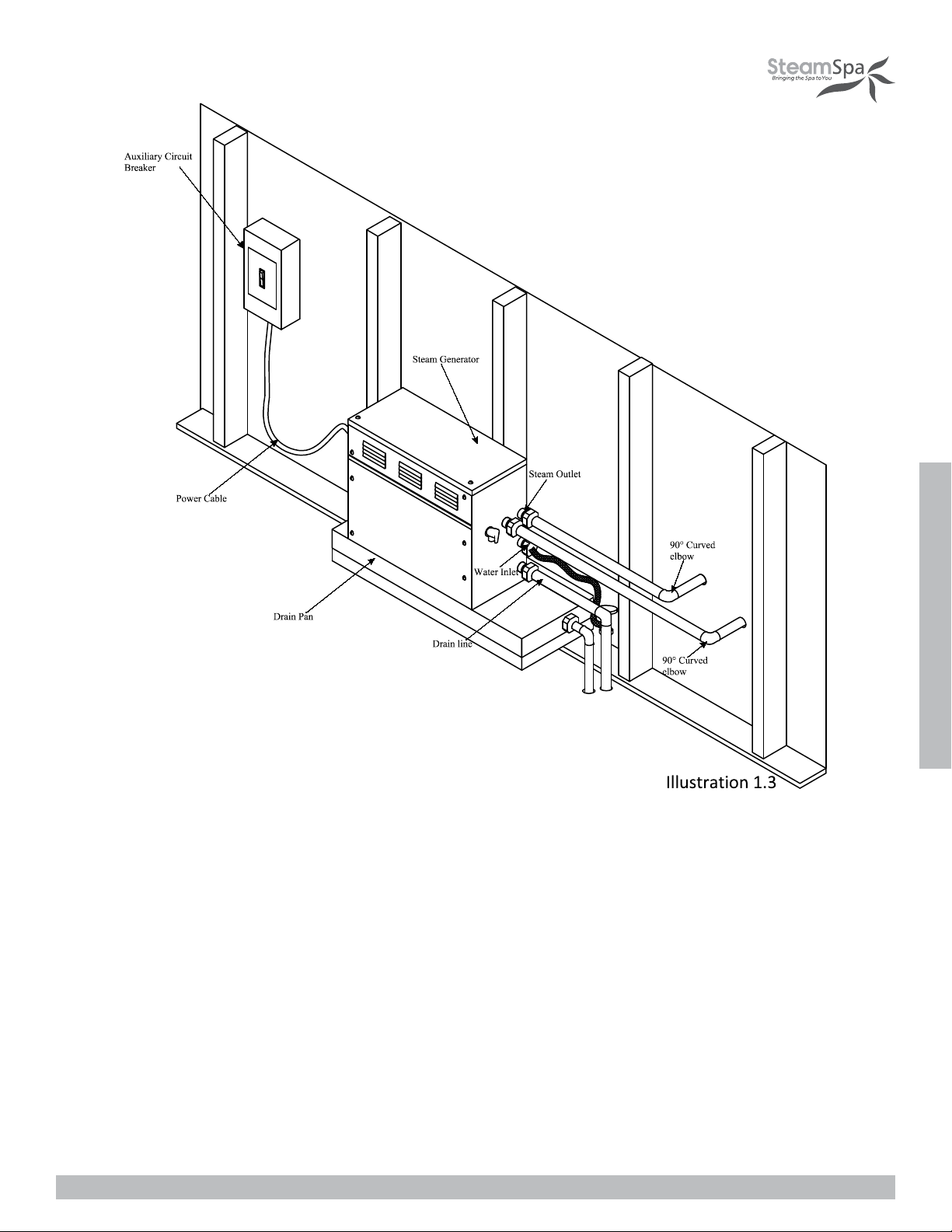

ATTENTION! The illustration is just an example; the practical installation must comply with the nation’s electrical criteria, and be

done by a professional electrician.

The steam generator maybe installed in these location.

1. In closet located behind the shower.

2. In Attic

3. In basement etc.

ATTENTION! If the installation of the steam generator will be more then 10 to 15 feet away from the steam room. It is

recommended to increase the size of the generator 1 or 2 kilowatts higher to increase the steam flow.

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Page 8

PLUMBING INSTALLATION

WARNING! The installation of all water supply lines should be in accordance to all national and local codes by a licensed plumber.

1. Use unions when connecting pipes.

2. Use brass pipes or copper pipe only.

3. Do not use black and galvanized or PVC pipes.

WATER SUPPLY PIPE (1/2’’)

1. Connect hot water or cold water pipes. However it should not exceed 160F.

2. Install a shut off valve in the water supply line.The shut off valve should be installed in a place where it is easily accessible in
case of an emergency.

3. Flush the water supply line completely before connecting the water pipe to the steam generator, to remove any sediments in
the water.

4. Use a 3/8” steel braded flex hose with a shut off valve to connect the main waterline to the generator. See page 5 illustration

1.2.

5. The shut off valve should be open approximately 25% to reduce water pressure to the generator. The water pressure to the
generator should be between15 to 20 PSIG if necessary, decrease the pressure accordingly.

6. If necessary, install a Hydro pneumatic device which reduces pressure spikes.

7. Do not use PEX or PVC tubing.

STEAM PIPE (3/4’’)

1. Do not install any stop valves in the steam pipes. The steam can never be obstructed.

2. Install a 3/4” copper or brass pipe between the steam generator and the steam nozzle.

3. If needed, the heat insulation material used to insulate the steam pipe should be resistant to temperatures as high as 240F or
higher.

4. The shorter the distance, the better. Use curved elbows when connecting pipes to allow the steam to flow smoothly through
the steam pipe.

STEAM HEAD (3/4’’)

ATTENTION! Steam Head and the steam outlet gets very hot, try to avoid installing the steam head in a position which will easily

come into contact with the person bathing.

1. Install the steam head approximately 12 inches above the ground floor. If the steam room material is acrylic or non-heat­resistant sheet, please consult with material manufacturer about steam room applications.

2. The steam head outlet should be installed face down. To prevent scalding bather with steam or water.

ATTENTION! Tighten steam head by hand. Do not use a spanner or other tools, use a little soap water and soft sponge to wipe,

and do not use erosive chemical solutions or crude cleaning tools.

IMPORTANT!

1. Please consult manufacturer of materials like acrylic, fiber glass or other anti-heat sheet about the installation of the steam
head.

2. In the entire steam room, it is required that steam does not leak out. The pipes, its accessories and the holes should be air
proof by applying sealant so that no steam will enter the holes in the wall.

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Page 9

DRAINPIPE (1/2’’)

ACCORDING TO THE NATIONAL AND LOCAL PLUMBING CODES: The steam generator drain valve should be equipped with

a drainpipe. The steam generator drains the water by gravity.Check local code requirements for drain valves. Do not connect the
safety valve or steam line to drain line.

SAFETY VALVE (3/4’’)

1. Safety valve is an automatic system that is actuated by pressure in order to prevent steam pressure increasing in the interior
of the generator .

2. The pressure limit range of the safety valve is 15 PSIG and the pressure will begin to decrease if pressure should come over
this value.

3. If it is allowed by local codes, provide the safety valve with exterior drainpipe.

4. Do not dismantle the pressure relief valve while generator is in operation..

5. To maintain the proper automatic operation of the safety valve, make sure the safety valve connection pipe is smooth.

Page 10

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

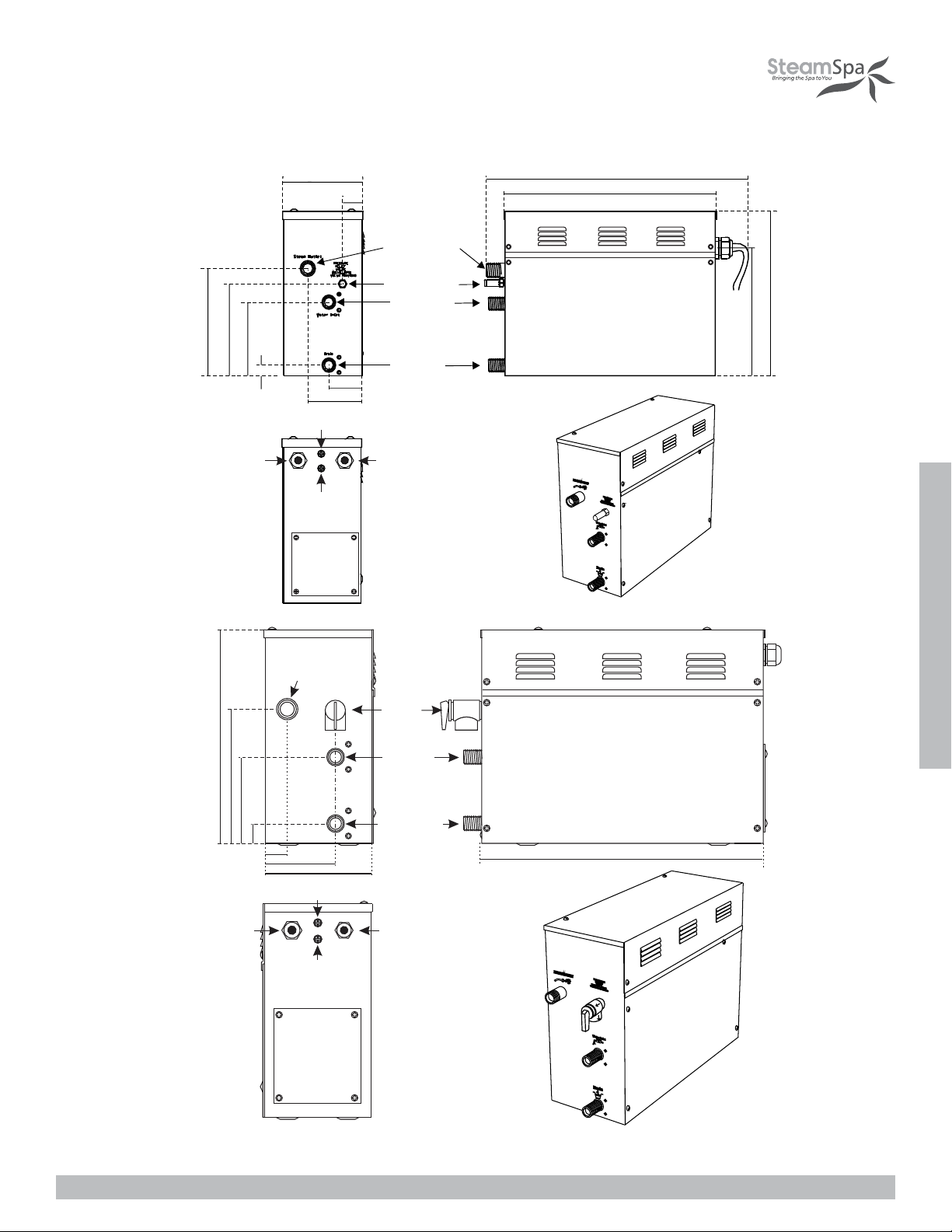

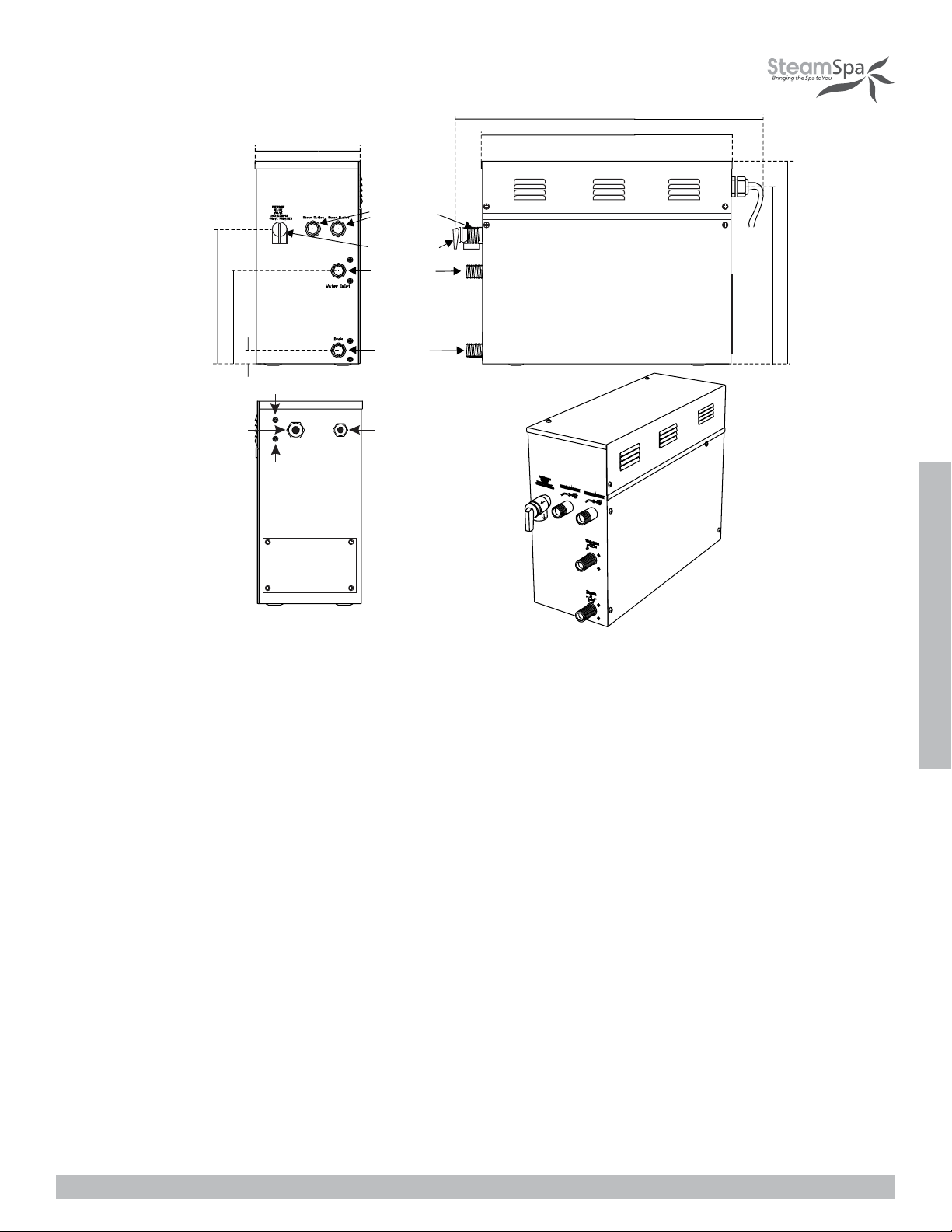

STEAM GENERATOR SPECIFICATIONS

20 6 mm

18 8 mm

15 1 mm

Power wi re hol e

142mm

43mm

32mm

62mm

72mm

Fuse for wire power supply

C on tr olle r w i r e
and l i ght wi re hol e

Fuse for wire
power supply

St eam outlet

Sa fe t y val ve

Wate r inlet

Wate r
drainage

395mm
304mm

302mm

266 mm

4.5kW

37 0mm

26 0m m

Pow er w ire hole

Steam outlet

18 0mm

30mm

30 mm

10 0m m

16 0m m

Fus e for wire powe r suppl y

Fuse for wire
power supply

S a f e ty
valve

Wat er inl et

Wat er drai nage

C on tro lle r wi re
an d lig ht wi re
hole

6kW/7.5kW/9kW

INSTALLATION & USER GUIDE

40 0mm

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Page 11

234mm

273mm

34mm

183mm

Fus e for wire po wer supp ly

Steam outlet

Safety valve

Water inlet

Water
dr ainag e

535mm

435mm

35 0m m

38 5m m

Power wir e h ole

Fus e for wire
po wer supp ly

Co ntr oller wire and
ligh t wire h ole

10.5k W / 12k W / 15k W

ATTENTION! To facilitate maintenance, keep the steam engine clean. If the information provided is limited, do not operate on the

pipeline and electric equipment arbitrarily as shown in the figure for proportion.

ELECTRICAL REQUIREMENTS

ELECTRICAL SUPPLY CIRCUITRY

1. Test the voltage of the power supply and make sure suitable voltage is used for the steam generator.

2. Insulated copper wire should be used with an anti-heat temperature of 90 C and a specified voltage of 300V. Refer to national
or local electricity consumption code for the specifications. Refer to the ammeter for the ampere.

3. Connect suitably sized equipment grounding wire into the ground terminal.

4. All the connections must be in accordance with national and local electricity consumption codes and be installed by
professional electricians.

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Page 12

Amp ere Meter

Ty p e Powe r K W

Ap p li cab le sp ace o f
the room (cu.F t . *)

E l e c t r i c i t y
supply (1P H)

E l e c t r i c
current (A)

Spe cifi cat i ons for
power wi re (AWG)

S450

S600

S750

S900

S1050

S1200

90

150

225

300

450

4.5 240V

6

7.5

9

10.5

12

240V

240V

240V

240V 44 6400

240V

240V

19

25

32

38

50

12

10

8

8

6

The data provided above is for 240V single-phased motors. Install an independent circuit breaker between supply line and steam
generator. Install a power disconnect within sight of steam generator to cut-off power when not in use.

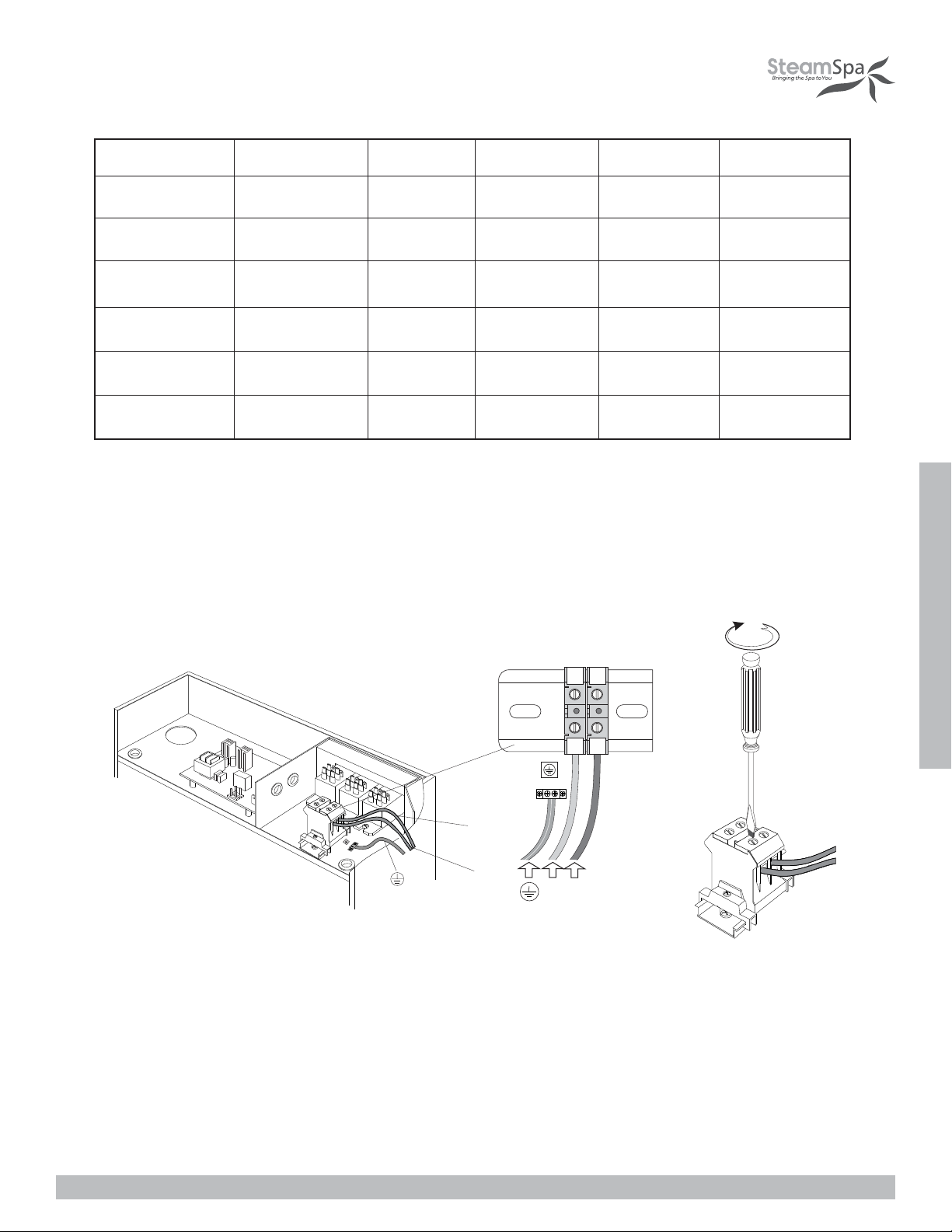

ASSEMBLY GRAPH FOR POWER WIRE

Po wer con n ectio n term ina l

L1 L2

L2

L1

L1

L2

Ground Hot

( 4. 5- 1 2k W)

( 24 0V ~ 1PH)

ATTENTION! To avoid damage to the equipment, do not connect electric current directly to heating elements.
WARNING! This graph is for explanation only. For actual installation, refer to national and local electricity consumption codes by

professional electricians.

Page 13

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

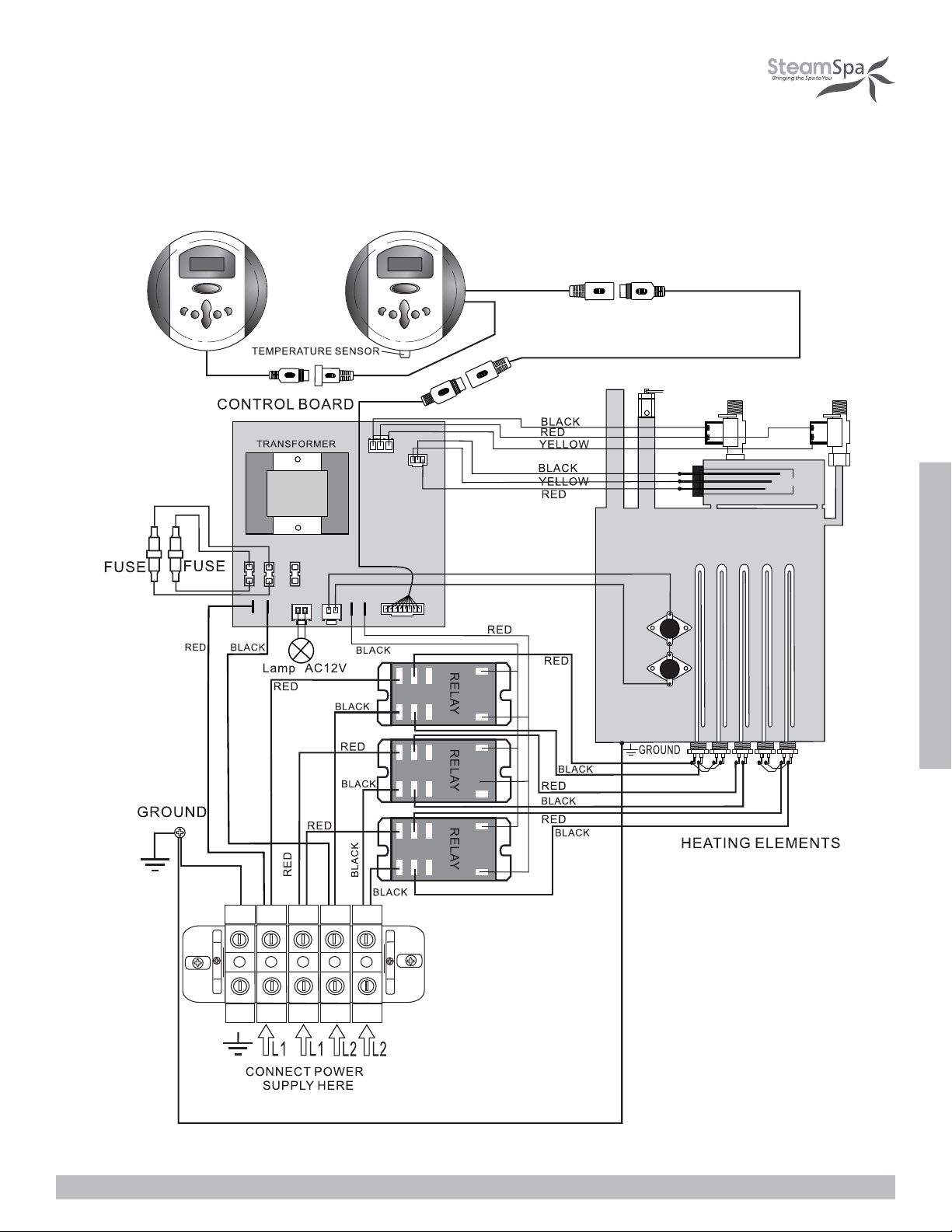

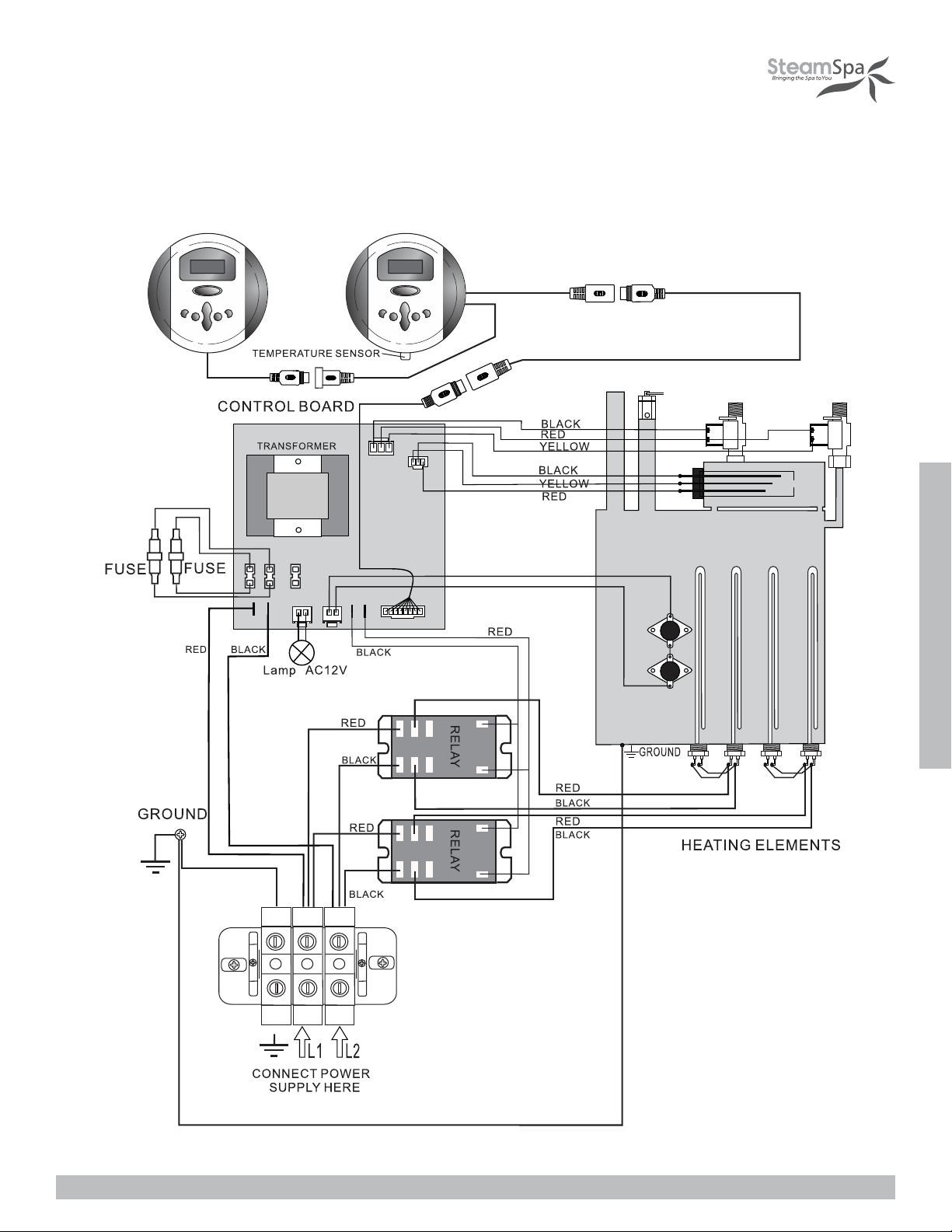

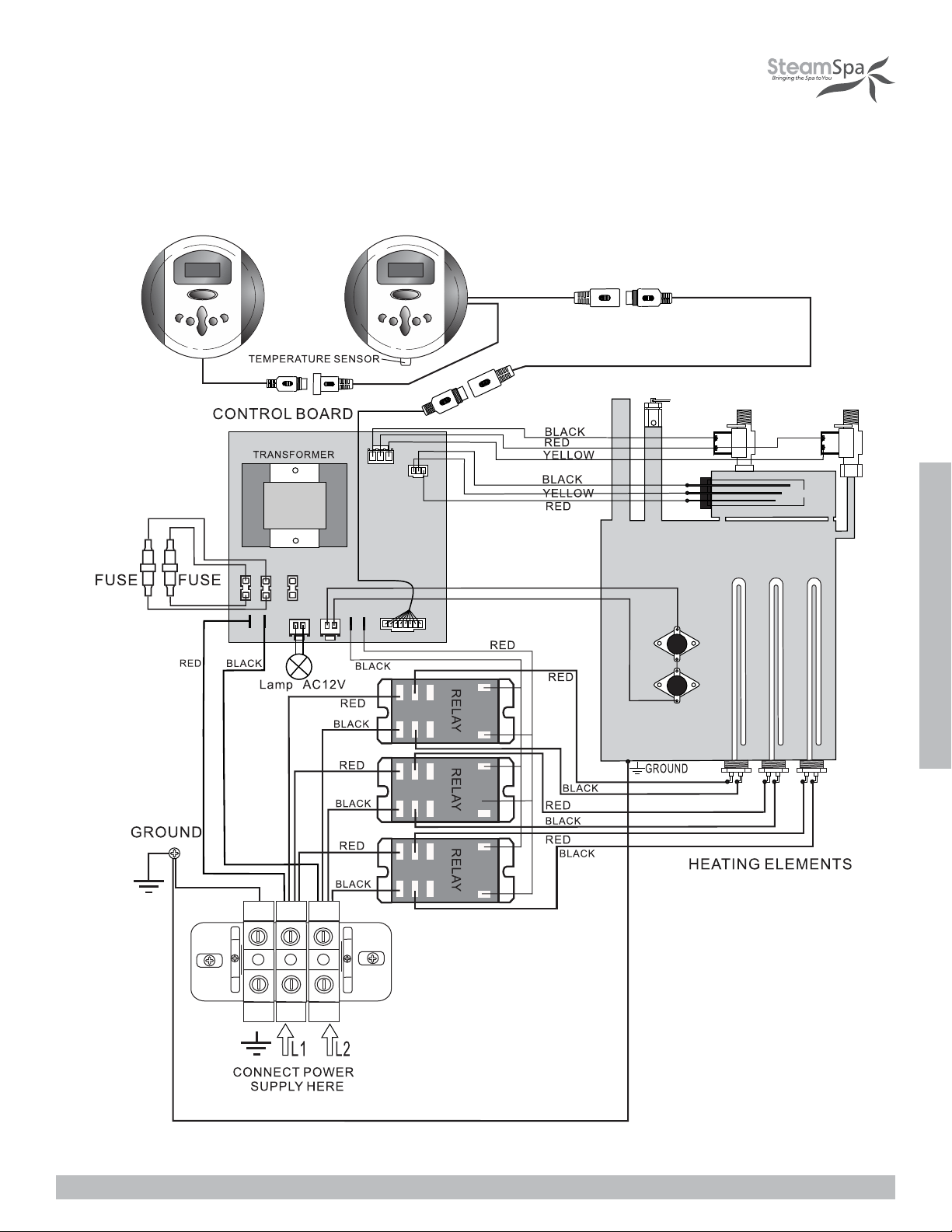

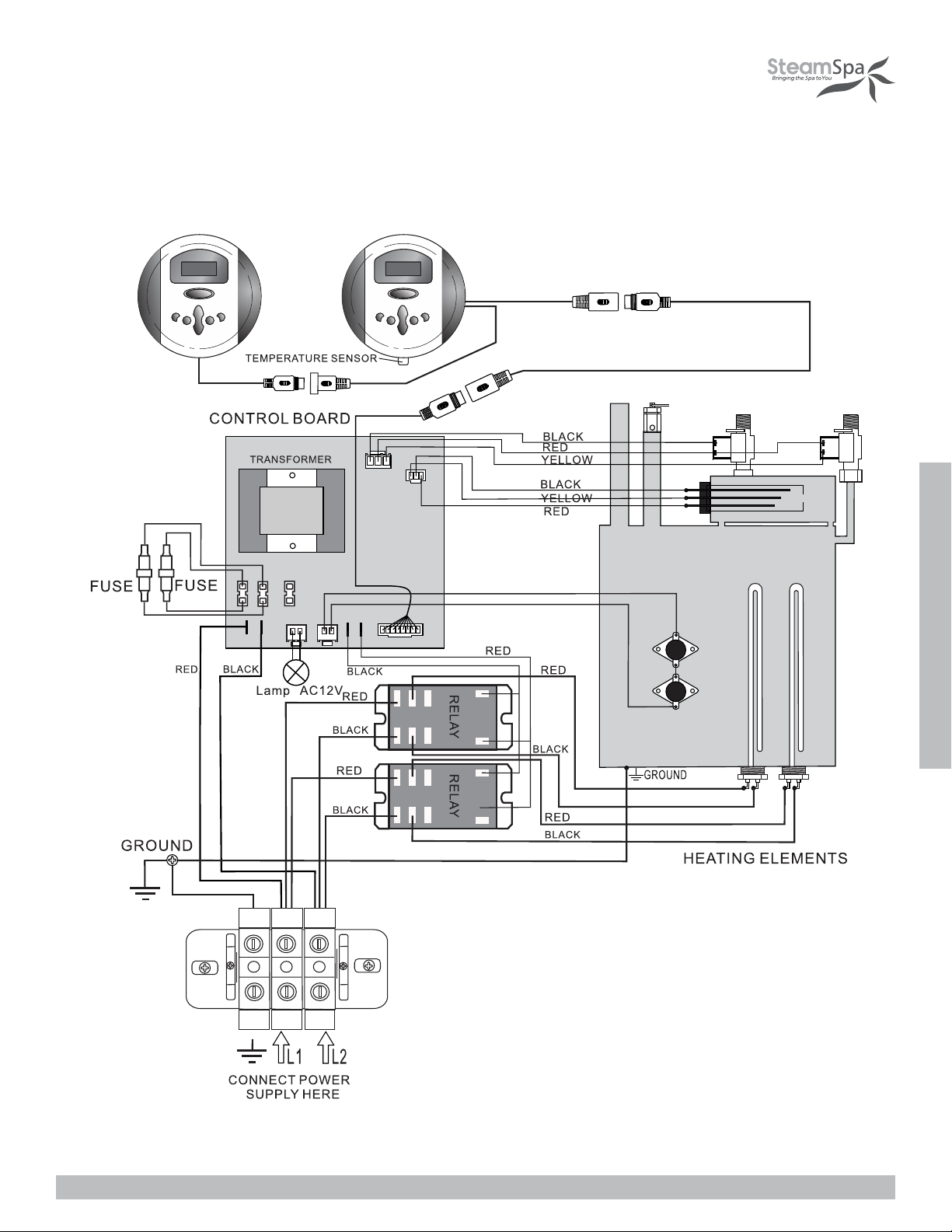

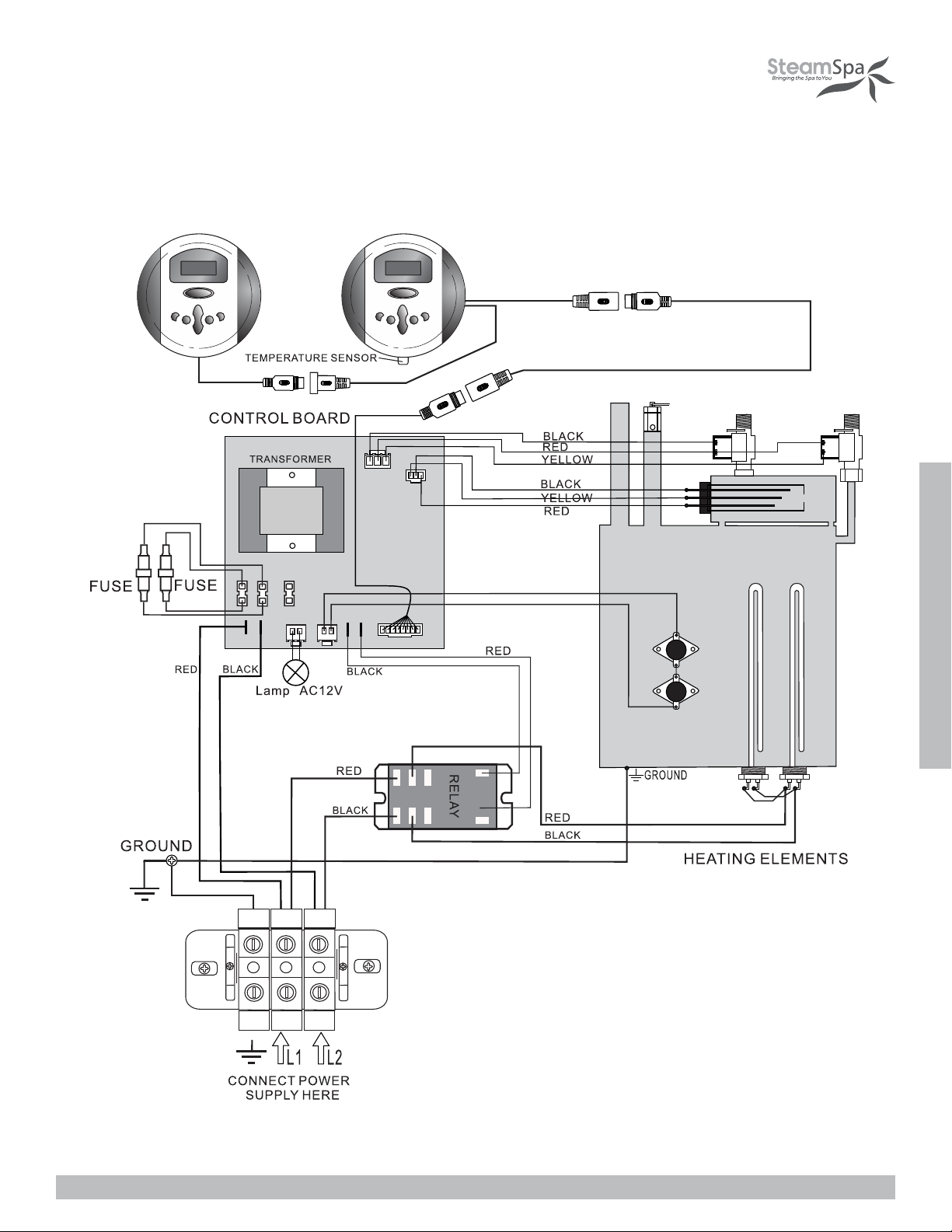

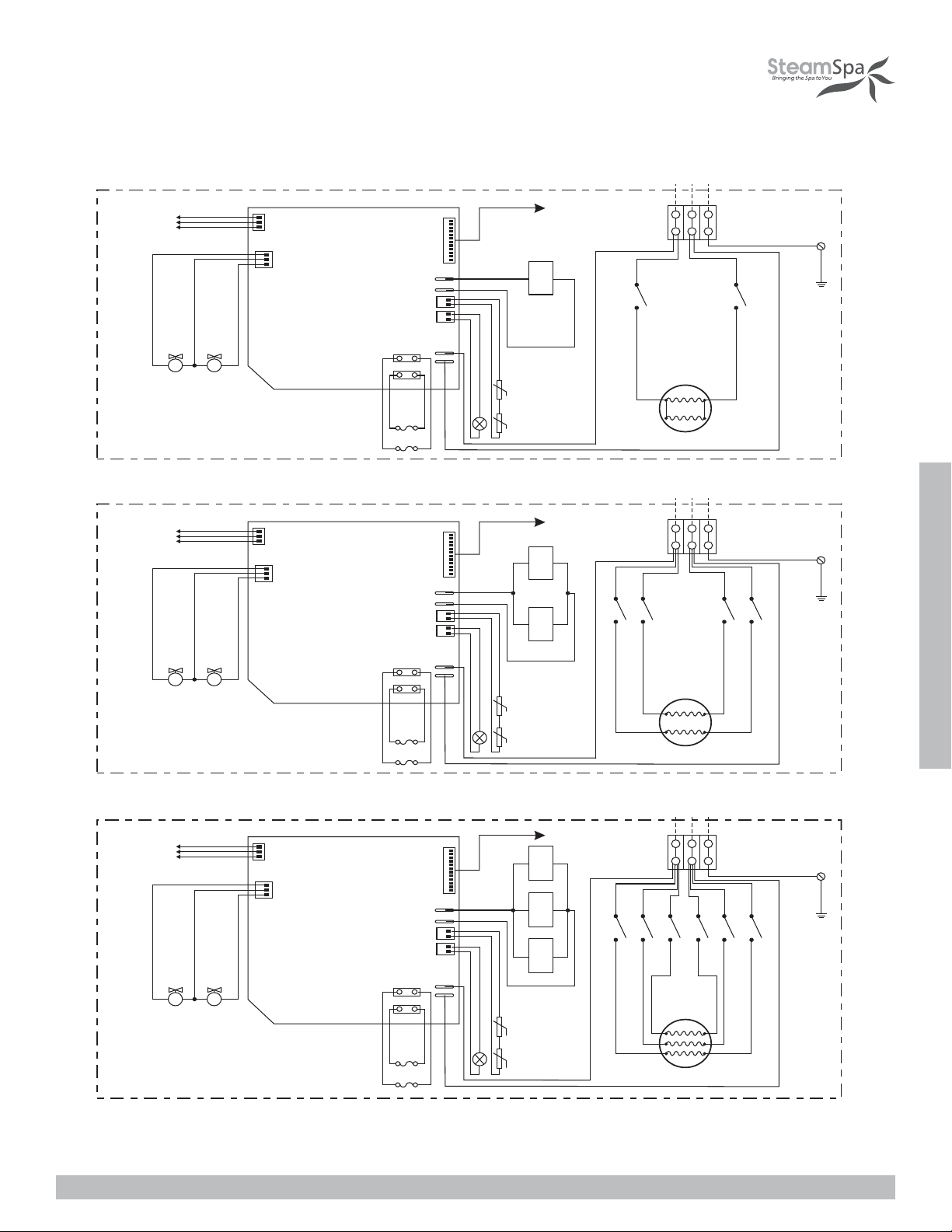

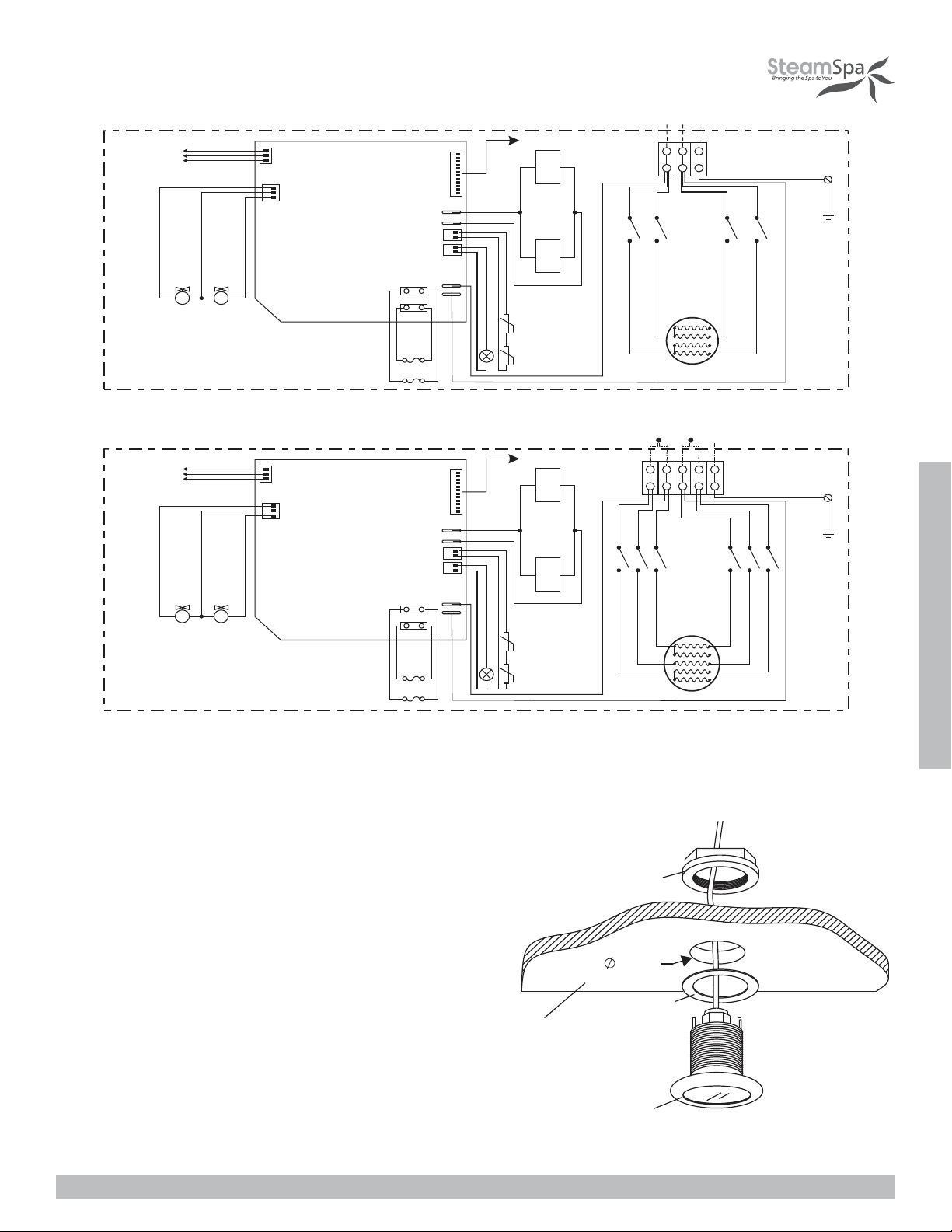

WIRING DIAGRAM

S750 S900

Su pp ly

Wa ter Le ve l Se nso r

Red ( S h o rt P i n )

Bl ac k (L o n g Pi n )

Yel l o w ( Mi d d l e P i n )

B la ck

R ed

Yellow

R ed

Bl a ck

Re d

T o C ont rol P ane l

J1

L1 G

L2

Te rm i na l B loc k

Ye l lo w /G re en

Bla ck

J1-1

Red

J1-2

S S

Fill water valve

Wa ter Le ve l Se nso r

Red ( S h o rt P i n )

Bl ac k (L o n g Pi n )

Yel l o w ( Mi d d l e P i n )

S S

Fill water va lve

Wa ter Le ve l Se nso r

Red ( S h o rt P i n )

Bl ac k (L o n g Pi n )

Yel l o w ( Mi d d l e P i n )

S S

R ed

R ed

Drain water valve

B la ck

Drain water valve

B la ck

White

Black

B la ck

Red

Red

Red

Red

B la ck

Black

Red

R ed

S450

Su pp ly

L1 G

T o C ont rol P ane l

L2

Te rm i na l B loc k

Ye l lo w /G re en

J1J2

R ed

Yellow

Bl a ck

Black

Re d

White

B la ck

Blac k

Black

J1-1

J2-1

Black

Black

Red

Red

J2-2

J1-2

Red

Red

INSTALLATION & USER GUIDE

Red

Red

Red

Red

B la ck

R ed

S600

Su pp ly

G

T o C ont rol P ane l

J1J2J3

Black

R ed

Yell ow

Blac k

Black

Red

White

B la ck

Black

J1-1

Black

L1L2

Te rm i na l B loc k

Ye l lo w /G re en

Red

Red

RedBlack

J2-1

Black

J3-2

J3-1

Black

J2-2

J1-2

Red

Red

Red

Red

Red

Fill water valve

Drai n water valve

Red

Red

B la ck

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

R ed

Page 14

Wa ter Le ve l Se nso r

Red ( S h o rt P i n )

Bl ac k (L o n g Pi n )

Yel l o w ( Mi d d l e P i n )

S S

Fill water valve

Wa ter Le ve l Se nso r

Red ( S h o rt P i n )

Bl ac k (L o n g Pi n )

Yel l o w ( Mi d d l e P i n )

S S

R ed

R ed

B la ck

Drain water valve

B la ck

Su pp ly

G

L1

T o C ont rol P ane l

J1J2

R ed

Yell ow

Red

Red

Red

Red

S1050

Bl a ck

Black

Re d

White

B la ck

B la ck

S1200

T o C ont rol P ane l

J1J2

R ed

Yellow

Bl a ck

Black

Re d

White

B la ck

L2

Te rm i na l B loc k

Ye l lo w /G re en

Red

Black

Black

J1-1

J2-1

Blac k

Black

L1

L2

Black

Black

J1-1

J2-1

J3-1

Black

Black Black

Black

Red

J2-2

J1-2

Red

R ed

G

Te rmi na l B lo c k

Ye l lo w /G re en

Red

J2-2

J3-2

Red

Red Red

Red

Red

J1-2

Red

Red

Red

Fill water valve

Drain water valve

Red

Red

S1500

INSTALLATION OF THE TOP LIGHT

CAUTION! The power of the light should not surpass 3

watts(rated power) to prevent the damage of the transformer.

1. A whole set is equipped with AC 12V 3 watt LED lamp.

2. The light should be installed on the ceiling of the steam
room or in a location not accessible to children.

CAUTION! Installer must take some moisture proof measures

in the process of installation. Electrophorus components cannot
be exposed to moisture, as it will cause damage to the light
components causing a possible short circuit.

Ceili ng of s tea m room

B la ck

Tighte n N ut

Rubber G a s ke t

LED light

4 5 mm

R ed

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Page 15

STEAM GENERATOR DISSECTION DIAGRAM

1

3

17

4

12

5

6

2

14

16

15

13

11

10

1. ENCLOSURE

2. INSULATION BRACKET

3. CIRCUIT BOARD

4. STEAM OUTLET

5. PRESSURE RELIEF VALVE

6. WATER FILL VALVE

7

8

9

7. WATER DRAIN VALVE

8. SUBSIDIARY WATER TANK

9. MAIN WATER TANK

10. HEATING ELEMENT

11. 221 F HI-LIMIT

12. TRANSFORMER

INSTALLATION & USER GUIDE

13. TERMINAL BLOCK

14. FUSE

15. GROUND WIRE CONNECTOR

16. RELAY

17. WATER LEVEL SENSOR

Page 16

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

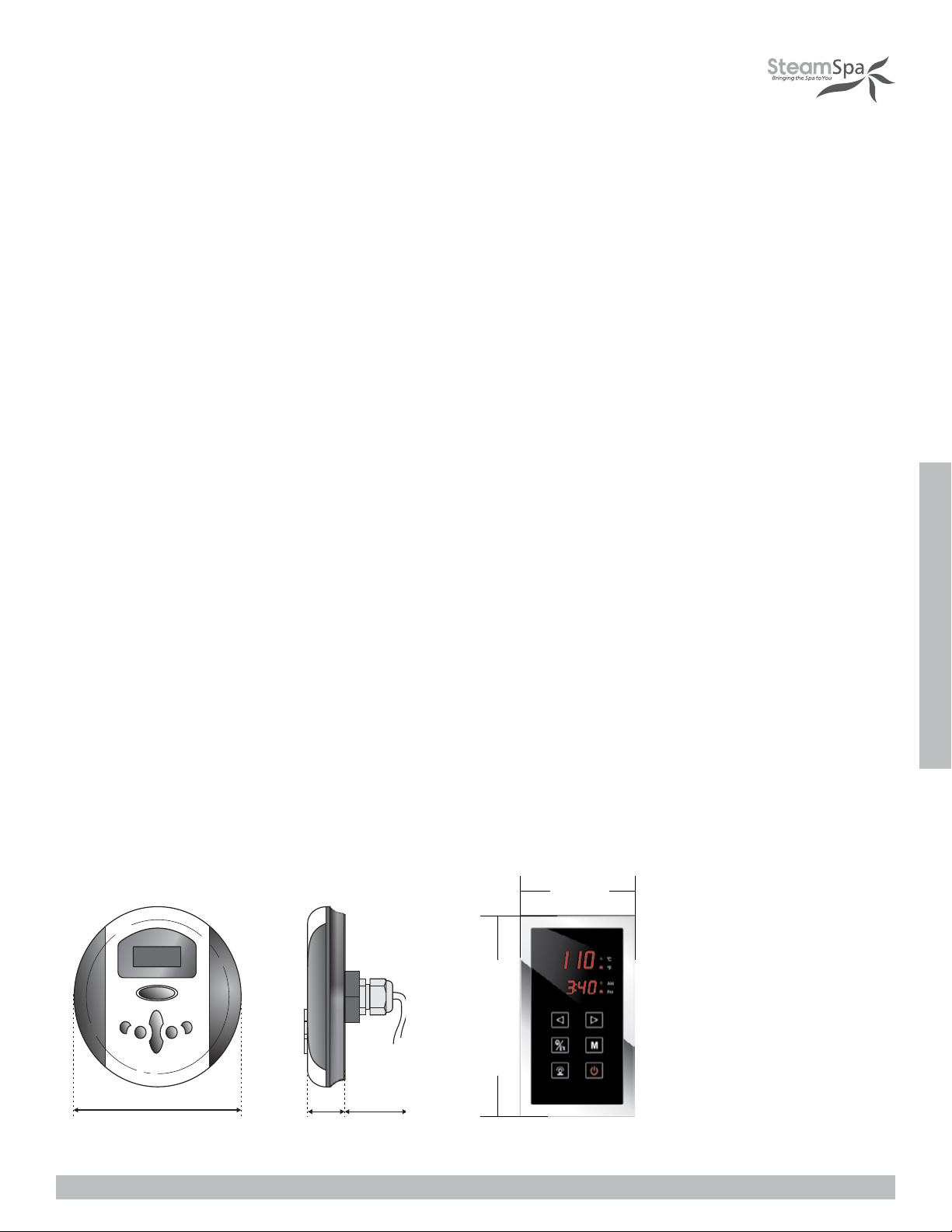

CARE & USE FOR THE CONTROL PANEL

113mm 23mm 50mm

3. 5 in ch es

5. 9 inc he s

1. Use soft cloth with a little soap water to clean the control panel.

2. Do not use crude cleaning tools.

3. If the decorating facade is damaged, contact service electrician to change it.

Do not install any SteamSpa controls without reading and understanding the SteamSpa generator Installation and Instruction
manual. Failure to read and understand these instructions will result in inoperative control, generator, hazardous overheating, and/
or inadequate heating of the steam room.

Do not route control wiring inside or close to power lines conduit, hot water or steam piping. Doing so may result in an inoperative
control, generator, and/or hazardous installation.

Do not install SteamSpa controls with other than SteamSpa compatible steam generators. Doing so may result in possible
generator damage or inoperative installation.

Single Control Panel with Temperature sensor must be installed inside bathing area 5 feet above floor. Do not install Control
directly above Steam Head or below shower head but rather in the seating area on a vertical wall. Doing so may result in improper
temperature reading and/or inoperable control.

Dual Control Panel with Temperature sensor in Master Control must be installed inside bathing area 5 feet above floor. Do not
install Control directly above Steam Head or below shower head but rather in the seating area on a vertical wall. Doing so may
result in improper temperature reading and/or inoperable control. Slave Control installation location is designed to be installed
outside the steam room.

Turn power to the steam generator off before connecting the control to the generator. Failure to turn the power off generator prior
to connecting controls will result in an inoperable control.

Discontinue use of the steam generator or control if the steam generator is damaged. Continue to do so may result in an
inoperative or hazardous installation.

CONTROLLER BOX CONTENT

• Control panel

• Steam nozzle

• User guide

• Controller cable wire (20 feet)

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Page 17

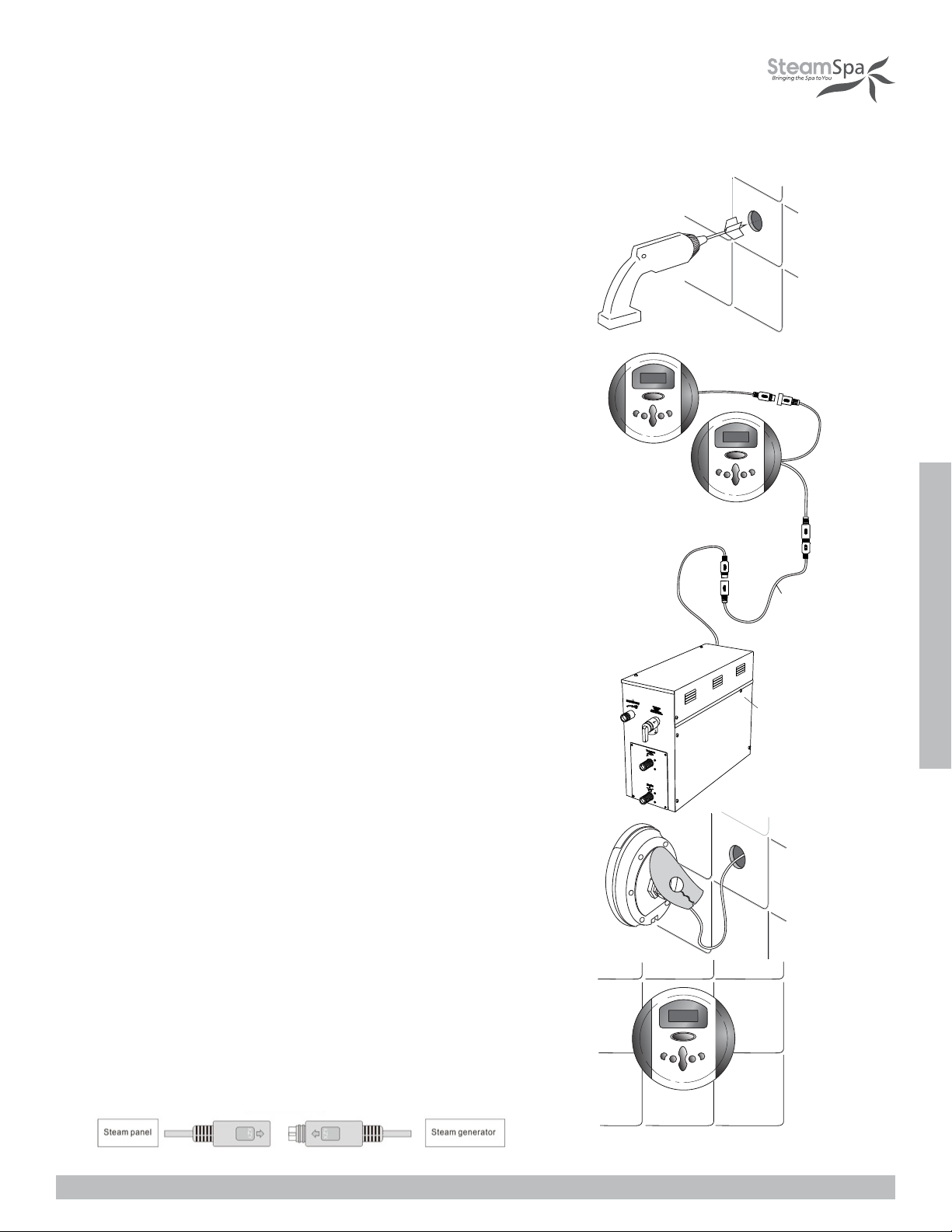

CONTROL PANEL INSTALLATION INSTRUCTIONS

STEP ONE

Determine the installation location of the control panel. The master control
panel is designed to be installed in the steam room only, please install:

1. 4-5 feet from the ground.

2. Keep away from the steam head and do not expose under the direct
spray of steam.

3. Install in the perpendicular wall.

4. The position of installation should facilitate easy operation and
convenient wiring.

The controller wire is 1.6 feet long with a controller lengthen wire of 20 feet
max. The installation of the controller should be in a position not more than
25 feet from the steam generator.

Control pa nel

STEP TWO

Drill a round hole of 1 inch in diameter in a chosen position.

STEP THREE

Pull control panel wire inside steam room through opening connect it to
the lengthened wire and then to the steam generator and connect with
the corresponding wire in the generator. Connecting the wire of control
panel outside room to the wire of control panel inside the room. When
connecting wires please follow arrows on connector heads for proper
connection. Failure to do so will result in damaging of control pins.

(outside room )

Control pa nel
(inside room )

Extended wi re

STEP FOUR

Start the power supply of steam generator, check and adjust connection,
check each item on the page to make sure all functions work well.

IMPORTANT! Before adjusting the control panel, make sure the steam

generator is shut off otherwise the control panel may get damaged.

STEP FIVE

Remove the adhesive paper from Control Panel.
To achieve proper adhesion, make sure surface clean, dry and free of dust.

IMPORTANT! Do not over extend or clip control panel wire as it may cause

possible damage.

STEP SIX

Run a bead of silicone around adhesive gasket. Press Control Panel against
wall at a 12 O’clock position until firmly adhered to surface.

IMPORTANT! Please do not apply an excessive amount of silicone. Just

enough to provide a moisture seal should suffice.

ATTENTION!: Avoid bending the pins inside the cable connection the

control panel and steam generator. Make sure the arrows on the male and
female ends are lined up as illustrated below.

St eam Gene ra tor

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Page 18

TESTING THE MACHINE

1. Make sure the power switch of the control panel is turned on (the control panel displays ---), and the water supply valve will
open.

2. Press the steam switch, , the control panel will display the temperature of the environment, the steam engine begins to
input water to start the steam function, and while opening the steam, press the button to open light function.

3. When there is steam output, press again, the steam will stop and the light will go off automatically.

4. Press the button to start the steam, the steam will come out of the steam generator in no more than 1 minute. Afterwards,
the steam generator will supply water about every minute, the steam will decrease but not stop, and about 10 seconds
later the steam will come out normally. As time goes on, the temperature displayed in the control panel will rise with the
temperature in the room before it stops and stays at the set temperature.

5. Based on different requirements of the user for temperature and steam time, the control panel can adjust temperature and
steam time. While testing the machine, set the time to be 30 minutes and the temperature to be 120F.

6. When the set steam time is due, the system will shut off the steam and light function automatically to stop water input and
steam production .

7. 10 minutes after the steam is shut off, the system will start drainage automatically for 7 minutes. After testing the machine and
it is working properly. Then the machine can be operated normally.

WARNING! Do not dismantle the safety pressure decrease valve arbitrarily.

IMPORTANT! Do not switch the water input pipe when the steam generator is working.

CONTROL PANEL DIAGRAM

7

1

2

3

1. POWER ON/OFF

2. TIME/TEMP SET

3. TIME/TEMP DECREASE

4. TIME/TEMP INCREASE

5. LIGHT ON/OFF

M

6. MEMORY (MEMORY ONLY
ON DUAL SYSTEMS)

7. DIGITAL DISPLAY SCREEN

8. STEAMSPA LOGO

9. FRONT DECORATIVE BEZEL

9

INSTALLATION & USER GUIDE

8

4

5

6

10

10. TEMP SENSOR

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Page 19

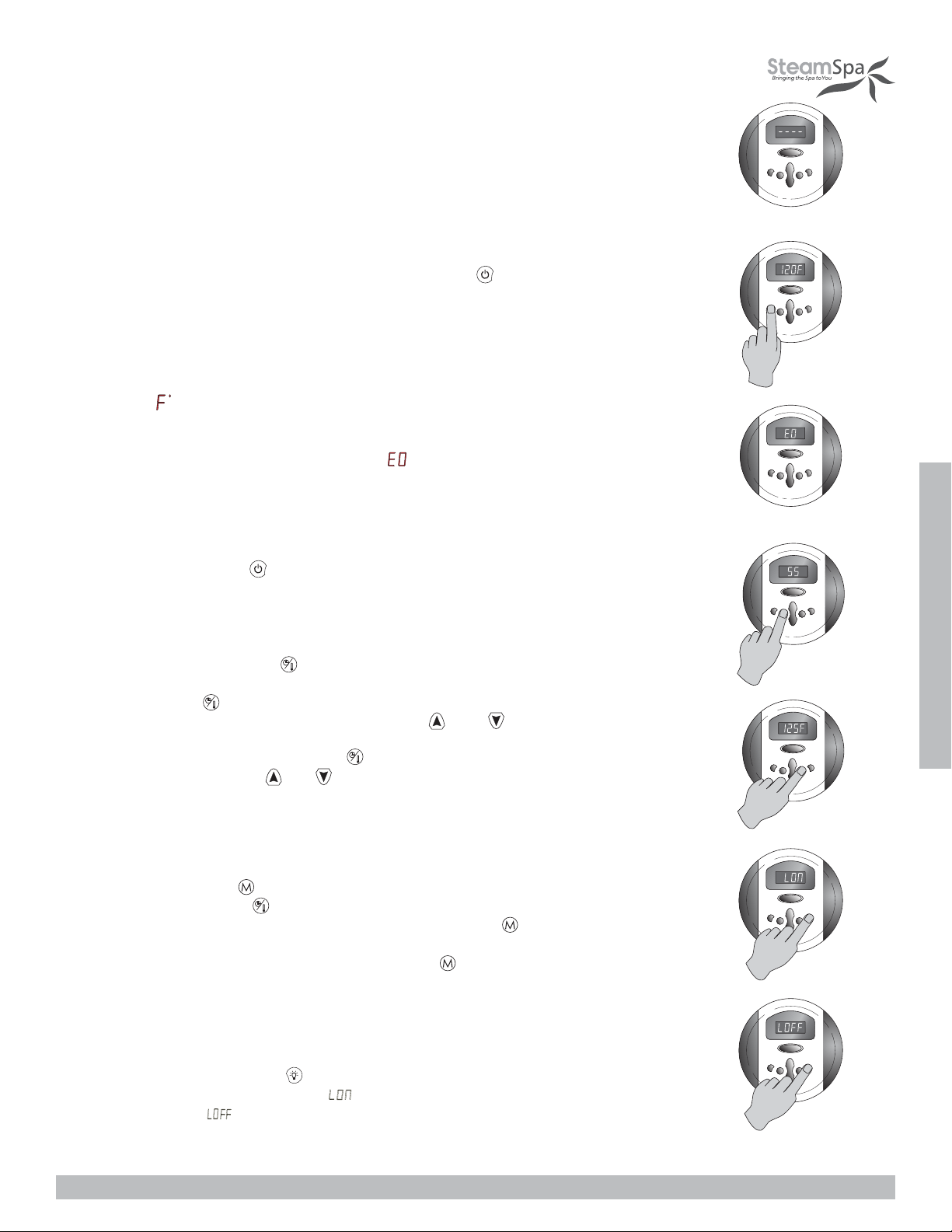

CONTROL PANEL OPERATION

The control panel has a digital temperature control system which can start, stop or pause in the
preset time to keep the temperature at the set number.

ON/OFF

When system is powered, all functions will still not be activated and remain in a waiting state.
Digital tube will display ---- (Fig.1). In the waiting state, press the button to turn on the system
and activate steam function. System will recall last use steam time and TEMP, system begins
to count down. During this time, the digital tube will display the ambient temperature. Steam
temperature display range is 32° F-140° F.

Fig .1

When the actual temperature is lower or equal to 32° F, the digital tube will display 32° F. When
the actual temperature is higher or equal to 140° F, the digital tube will display 140° F. The last digit
displays as the unit (Fig.2) of Fahrenheit temperature. The default steam time is 30 minutes.
When lacking water, the heating elements will stop heating and the water inlet valve will work
automatically. If there is no water detected in 5 seconds or the water coming in does not reach the
set point in 15 seconds, the digital tube will display (Fig.3)to indicate an error of not enough
water cycling. If there is enough water cycling, the steam function will return to normal. When
the steam function is started, if the ambient room temperature is higher than the set point, the
heating element will stop heating, the digital tube will flash to display the current environment
temperature; when the environment temperature is lower than the set point, the heating element
will work again, the digital tube will display current room temperature normally.
When the system is on, press button to turn off the system, or when the steam time is over
the system shuts off. 10 minutes after the system is shut off, the drainage function will be started
automatically for 7 minutes.

TIME AND TEMPERATURE SETTING

When system is on, pressing the button will cycle the system between the Time setting,
Temperature limit setting, and ambient TEMP display on the LED screen(Fig.4). When system
is powered on, press button one time to adjust Steam time. Its range is 1-60 minutes,
with 1 minute intervals, which can be adjusted using the and arrow keys. If there
is no adjustment in 5 seconds, the system will exit time setting automatically and the LED will
display current ambient TEMP. Pressing the twice will allow you to set the Temperature limit
setting. During this time, press or to adjust steam TEMP (Fig.5). Its range is 50°~130°
Fahrenheit, with 1° increments. If no adjustment is done in 5 seconds, the system will exit the
TEMP setting automatically, and the LED screen will display ambient temperature.

Fig 2

Fig. 3

Fig. 4

INSTALLATION & USER GUIDE

Fig. 5

MEMORY FUNCTION

Press the memory button, , to select which memory setting you would like to program,
SET1 or SET2. Then use the to set the desired Time and Temp setting for that memory slot.
Once you have set the time and temp as desired, press and hold the button for 1.5 seconds
to save the setting , then LED display will flash the name of the selected memory slot that was
programmed. When the system is on, you can now press to switch to your desired memory
preset, SET1 and SET2, and the control will automatically adjust the time and temp to the saved
setting.

LIGHT FUNCTION

When the machine is started, press button to turn on/off light function. When the light is turned
on, the digital tube will temporarily display (Fig.6). When the light is turned off, the digital tube
will temporarily display (Fig.7). Screen will turn to display ambient TEMP if no operation is
selected in 5 seconds.

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Fig .6

Fig .7

Page 20

TESTING THE MACHINE

1. Press the power button, , and the control panel will display the room’s temperature and the water inlet valve will open up to
allow the correct amount of water into the generator to begin producing steam.

2. The generator must be operating in order to turn the light on or off. (Light sold separately)

3. After starting the generator steam production will begin in a short while and will continue until the set temperature is reached.
Afterwards production will restart when the room temperature begins to fall.

4. 10 minutes after the generator is shut off the Auto Drain will automatically open and allow the water to drain out for
approximately 7 minutes.

WARNING! Do not touch the safety release valve while the generator is running.

CONTROL PANEL DIAGRAM

1. TEMP DISPLAY SCREEN

2. TIME DISPLAY SCREEN

3. TIME/TEMP DECREASE

4. TIME/TEMP INCREASE

5. TIME/TEMP SET

INSTALLATION & USER GUIDE

6. MEMORY

7. LIGHT ON/OFF

8. POWER ON/OFF

Page 21

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

CONTROL PANEL OPERATION

The control panel has a digital temperature control system which can start, stop or pause in the
preset time to keep the temperature at the set number.

ON/OFF

When system is powered, all functions will still not be activated and remain in a waiting state.
Digital tube will display ---- . In the waiting state, press the button to turn on the system and
activate steam function. System will recall last use steam time and TEMP, system begins to count
down. During this time, the digital tube will display the ambient temperature. Steam temperature
display range is 32° F-140° F.

When the actual temperature is lower or equal to 32° F, the digital tube will display 32° F. When
the actual temperature is higher or equal to 140° F, the digital tube will display 140° F. The last
digit displays as the unit of Fahrenheit temperature. The default steam time is 30 minutes.
When lacking water, the heating elements will stop heating and the water inlet valve will work
automatically. If there is no water detected in 5 seconds or the water coming in does not reach
the set point in 15 seconds, the digital tube will display to indicate an error of not enough
water cycling. If there is enough water cycling, the steam function will return to normal. When
the steam function is started, if the ambient room temperature is higher than the set point, the
heating element will stop heating, the digital tube will flash to display the current environment
temperature; when the environment temperature is lower than the set point, the heating element
will work again, the digital tube will display current room temperature normally.
When the system is on, press button to turn off the system, or when the steam time is over
the system shuts off. 10 minutes after the system is shut off, the drainage function will be started
automatically for 7 minutes.

TIME AND TEMPERATURE SETTING

When system is on, pressing the button will cycle the system between the Time setting,
Temperature limit setting, and ambient TEMP display on the LED screen. When system is
powered on, press button one time to adjust Steam time. Its range is 1-60 minutes, with
1 minute intervals, which can be adjusted using the and arrow keys. If there is no
adjustment in 5 seconds, the system will exit time setting automatically and the LED will display
current ambient TEMP. Pressing the twice will allow you to set the Temperature limit setting.
During this time, press or to adjust steam TEMP. Its range is 50°~130° Fahrenheit,
with 1° increments. If no adjustment is done in 5 seconds, the system will exit the TEMP setting
automatically, and the LED screen will display ambient temperature.

MEMORY FUNCTION

Press the memory button, , to select which memory setting you would like to program,
SET1 or SET2. Then use the to set the desired Time and Temp setting for that memory
slot. Once you have set the time and temp as desired, press and hold the button for 1.5
seconds to save the setting, then LED display will flash the name of the selected memory slot that
was programmed. When the system is on, you can now press to switch to your desired
memory preset, SET1 and SET2, and the control will automatically adjust the time and temp to
the saved setting.

LIGHT FUNCTION

When the machine is started, press button to turn on/off light function. When the light is
turned on, the digital tube will temporarily display . When the light is turned off, the digital tube
will temporarily display . Screen will turn to display ambient TEMP if no operation is selected
in 5 seconds.

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Page 22

INSTALLATION OF CONTROL PANEL

Installation of control panel and TEMP sensor

GS08A

Recess mount into wall

3.9 inc he s

drill a
round hole

5.6 inc he s

to steam generator

D

INSTALLATION & USER GUIDE

sensor

control panel

Screw

3.9 feet to 4.5feet high
from the ground

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Page 23

INSTALLATION OF CONTROL PANEL

G S 8A

ol panel and TEMP sensor

dri ll a
round hole

to steam generator

1.37 8 inche s

Stick on the wall

sensor

4f eet to 4. 5feet high

f rom the ground

INSTALLATION & USER GUIDE

control panel

sti ck

seal ant

Page 24

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

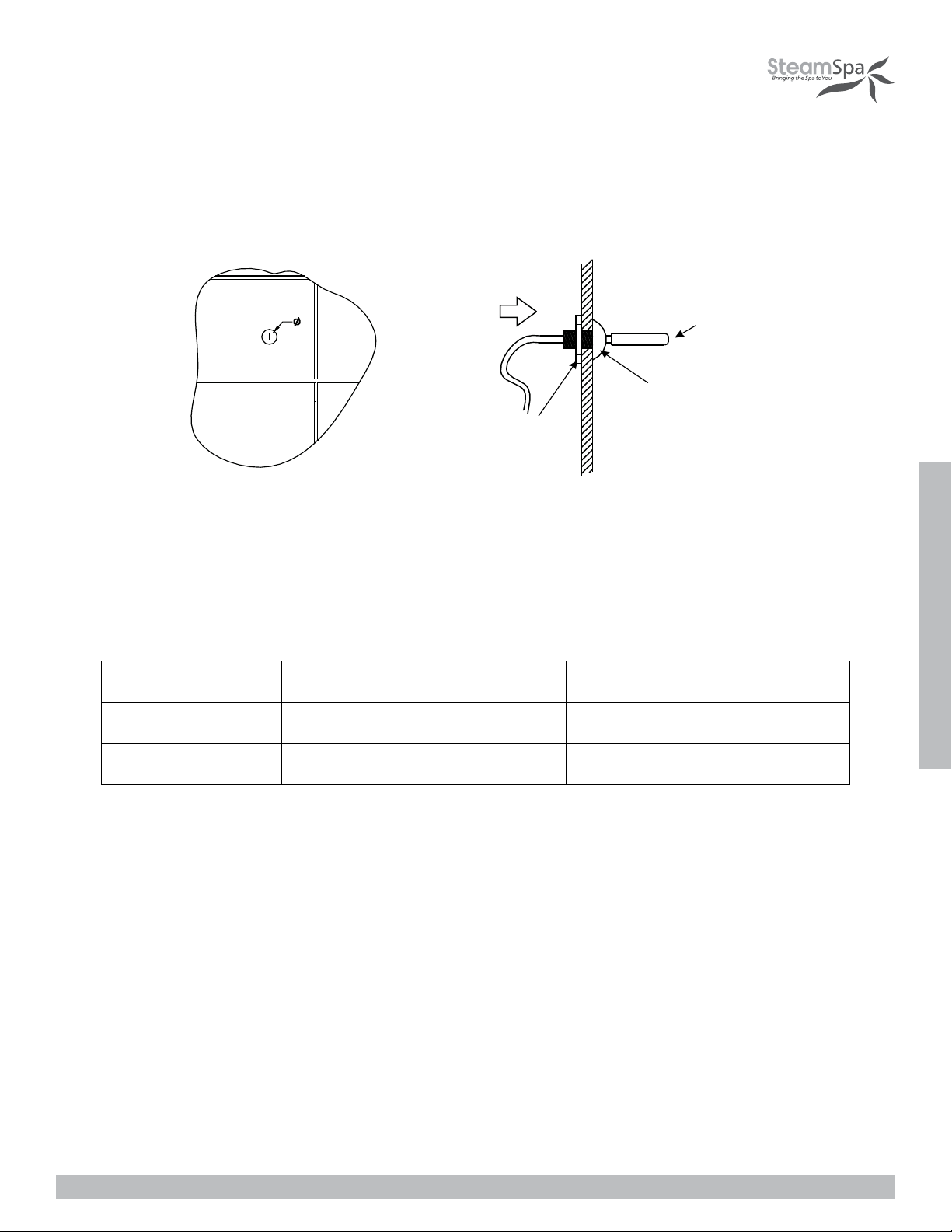

INSTALLATION OF TEMPERTURE SENSOR

temperature
sensor

temperature
sensor holder

Controller oof rating

S08A

drill a
round hole

0.4 inches

Installation of control panel and TEMP sensor

Control panel model

GS1090C(single panel)

Panel size
( length*width*height)

Waterproof rating

I P5 4

5.9x3.5x1 inches

GS1090D(dual panel)

I P54

5.9x3.5x1 inches

GS08A

IMPORTANT! Do not install temperature sensor on the same wall as the steam head to avoid a false reading. Can be placed on

any other surface away from the steam head.

CONTROLLER SIZE AND WATERPROOF RATING

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

Page 25

STEAM GENERATOR MAINTENANCE

IMPORTANT! The steam generator automatically performs a water discharge operation after each use.

1. Wait for the completion of automatic water discharge after each time using the steam generator to make sure the water in the
tank is discharged completely before cutting off power supply.

2. There should not be any leakage or damage among the steam generator, steam nozzle, components and pipes. They should
be checked and repaired annually.

3. Clean the water supply pipes of the steam generator once a year.

4. Check all the faucet connections, to ensure wether they are tight and not damaged due to overheat.

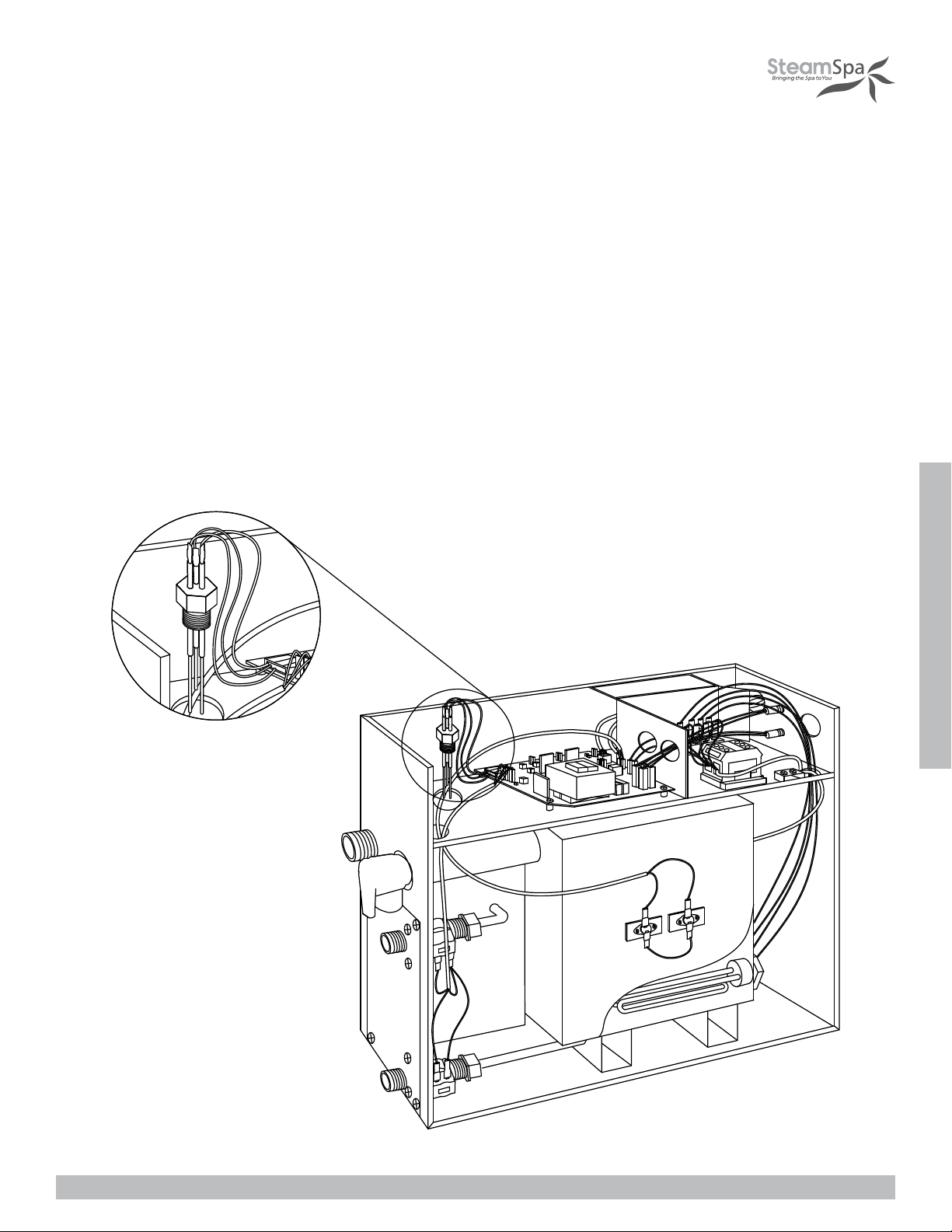

5. It is recommended that the water sensor prong gets clean once every six month.

1. Remove the casing of the generator.

2. Locate the water sensor.

3. Label each electrical connections then carefully remove all connections.

4. With a wrench or a 32mm ratchet socket carefully unscrew the water senor.

5. Thoroughly clean any residue buildup accumulated on the prong.

Page 26

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES SOLUTIONS

The machine does not start when
powered

Breakers are tripping

When the machine is started, hot water
comes out with little or no steam

The display screen on the control panel
does not display anything

Water leakage

No steam when starting the machine

The steam does not come out, the water
sounds in the machine

Light doesn’t turn on

Cold water is coming from the steam
head

1. Burned out fused

2. The electrical wiring became loose

3. Control panel connection loose

1. The wire connector is dampened or

2. Damaged heating element

1. Bad water drainage valve 1. Replace water drainage valve

1. The control panel wire is not

2. Trouble with generator

1. The water pipe connector becomes

2. Water leakage in the water input

1. No electricity

2. No water

3. The set temperature is too low

4. Wiring connection problem

1. Possible steam pipe blockage

1. Bad LED light bulb

2. Wiring connection improperly

1. The water sensor cable is loose or

2. The main PC board is defected

damaged

connected properly

motherboard

loose or pipe is broken.

valve or the water drainage valve

connected or light cable damage

water level sensor is defected

1. Replace fuse (0.8A/240V)

2. Cut power Supply and reconnect
wiring

3. Reconnect control panel and reset

4. Controller (turn off and on)

1. Check whether the wire connector
is dampened or damaged, and dry if
dampened

2. Replace heating element

1. Check whether the connection plug
between the control panel and the
generator has become loose, and
whether the power circuitry has
good contact

2. Replace the motherboard

1. Tighten the loose connection or
change the broken pipe

2. Change the water input valve or the
water drainage valve

1. Check the power supply and
connections

2. Check the water input pipe and water
input valve

3. Reset the temperature

4. Check wiring connection and tighten

1. Cut power supply and check
blockage in steam pipe

1. Change LED light bulb

2. Tighten connection or replace light
cable

1. Make sure that the water level
cable isn’t loose if the cable is well
connected replace the water sensor

2. Replace the main board

INSTALLATION & USER GUIDE

Hot water is coming from the steam
head

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

1. The water inlet valve may have
residue buildup inside

1. Try to clean the water inlet valve
by switching on/off a few times to
dislodge the buildup

2. Replace the water inlet valve

Page 27

PROBLEM POSSIBLE CAUSES SOLUTIONS

Receiving an error “E1” on the control
panel

Receiving an error “E0” on the control
panel

The control panel shows the
temperature, but does not go on

1. The signal that transfers between
the control panel and generator has
a problem

1. Lack of water in the tank. The water
inlet valve is not turning on which is
preventing water from entering

1. The water level sensor cable or the
cable from the relay to element is
loose

2. The heating element is
malfunctioning

1. Check the connection on the control
cable to make sure all 13 pins are
functional

1. The water inlet valve is jammed or
the connecting cable is loose so
attempt to clean the water inlet valve
by switching it on and off a few
times to dislodge any buildup

2. Check the cable and make sure it is
firmly connected

3. Replace the water inlet valve

4. If the problem persists it may be
neccessary to replace the PC board

1. Make sure all cables to the heating
elements are well connected

2. Replace the heating element

Page 28

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

TECHNICAL PARAMETERS

Type
Power (KW) 4.5 6 7.5 9 10.5 12 15
Voltage (V) 240 240 240 240 240 240 240
Current (A) 19 25 32 38 44 50 63
Errors Range +10% +10% +10% +10% +10% +10% +10%
Anti-Static Constant >1500V >1500V >1500V >1500V >1500V >1500V >1500V
Insulation Resistance >20M Ω >20M Ω >20M Ω >20M Ω >20M Ω >20M Ω >20M Ω
Head Lamp ~12V/3W ~12V/3W ~12V/3W ~12V/3W ~12V/3W ~12V/3W ~12V/3W
Temperature Range (°F) 50-130 50-130 50-130 50-130 50-130 50-130 50-130
Time Set Range (min) 1-60 1-60 1-60 1-60 1-60 1-60 1-60
Steam Press (psi) 3 4 4 4 5 5 5
Steam Vol. (cu. in./min) 9 11 13 16 19 21 25
Steam Spray Time (sec) 100-180 180-240 150-210 120-180 170-230 150-160 120-150
Water Vol. (cu. in.) 80 160 160 160 330 330 330
Applicable Space of the

Room (cu. ft.)

IMPORTANT! The list above is for reference only. Actual checking and repairing should be based on national and local codes, ask

professional service personnel to operate.

IMPORTANT! The parameter listed above will vary by geographical location and environment. Please consult a qualified designer

and architect for more detailed use.

4.5KW 6KW 7.5KW 9KW 10.5KW 12KW 15KW

90 150 225 300 400 450 500

Page 29

INSTALLATION & USER GUIDE

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

WIRING DIAGRAMS

4.5KW

Control panel(outside room) Control panel(inside room)

240V~

INSTALLATION & USER GUIDE

Page 30

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

6KW

Control panel(outside room) Control panel(inside room)

240V

INSTALLATION & USER GUIDE

Page 31

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

7.5KW & 9KW

Control panel(outside room) Control panel(inside room)

240V~

INSTALLATION & USER GUIDE

Page 32

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

10.5KW & 12KW

Control panel(outside room) Control panel(inside room)

240V

INSTALLATION & USER GUIDE

Page 33

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

15KW

Control panel(outside room) Control panel(inside room)

240V

INSTALLATION & USER GUIDE

Page 34

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

STEAM BATH GENERATOR USER GUIDE

W

H

I

S

P

E

R

Q

U

I

E

T

B

U

I

L

T

-

I

N

A

U

T

O

D

R

A

I

N

C

O

N

T

I

N

U

O

U

S

S

T

E

A

M

Q

U

I

C

K

S

T

A

R

T

Steam Spa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]
