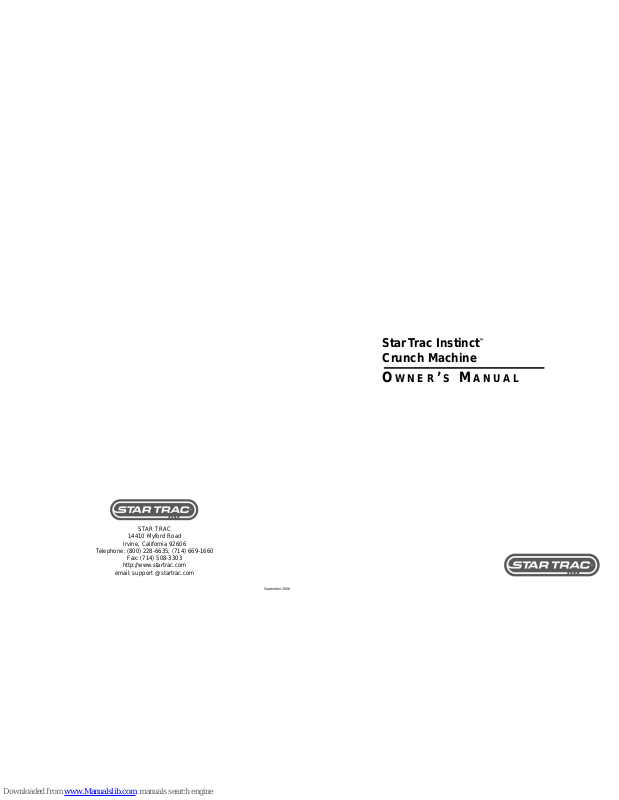

Page 1
ST AR TRA C
14410 Myford Road
Irvine, California 92606
Telephone: (800) 228-6635, (714) 669-1660
Fax:(714) 508-3303
http://www.startrac.com
email: support @startrac.com
September 2006
Star T rac Instinct
™
Crunch Machine
OWNER’S MANUAL
Page 2
Introduction
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly and Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Parts and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Siting Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Anchoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Exercise Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Product Use and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Preventative Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Labels and Placards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warranty and Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2 STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
T
ABLE OFCONTENTS
Copyright 2006. Star Trac by Unisen, Inc. All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission
from Star Trac.
Every effort has been made to keep this information current; however, periodically, changes are made to the information herein, and these changes will be incorporated into
new editions of this publication. All product names and logos are trademarks of their respective owners. Printed in the USA.
STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
15
Page 3
STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
314 STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
Page 4
STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
134 STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
Thank you for choosing the STAR TRAC INSTINCT CRUNCH MACHINE. This unit has been designed to provide the user the
most rewarding experience based upon the carefully planned features it possesses. The design elements of this product will provide you with a comfortable, intuitive, safe and reliable experience,guiding you to a habit-forming lifestyle. Our mission is to provide products to mold lifelong habits for health and fitness, and the INSTINCT CRUNCH MACHINE will provide the path to
meet your goals.
ABOUT THIS MANUAL
This manual is applicable to the INSTINCT CRUNCH MACHINE. The manual is divided into eight sections, as follows:
Introduction
Provides an overview of each section within the manual.
Safety Instructions
Provides guidelines for safely operating the INSTINCT CRUNCH MACHINE.
Assembly and Setup
Provides instructions for unpacking, assembling and setting up the INSTINCT CRUNCH MACHINE.
Exercise Guidelines
Provides general guidelines to be followed when using the INSTINCT CRUNCH MACHINE.
Preventative Maintenance
Describes the preventative maintenance measures required to keep the INSTINCT CRUNCH MACHINE in top condition.
Labels and Placards
Provides illustrations and part number information for labels and placards used on STAR TRAC INSTINCT products.
Regulatory Information
Provides warrant and servicing information for the INSTINCT CRUNCH MACHINE.
I
NTRODUCTION
Page 5
STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
512 STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
Read this Owner's Manual carefully before assembling, servicing or using your STAR TRAC INSTINCT CRUNCH MACHINE.
WARNING: SERIOUS INJURY MAY OCCUR IF THESE SAFETY PRECAUTIONS ARE NOT OBSERVED.
UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT. IF ANY OF THESE WARN-
INGS ARE UNCLEAR, CONTACT STAR TRAC PRODUCT SUPPORT FOR CLARIFICATION.
S
AFETYINSTRUCTIONS
1. Do not use any equipment in any way other than
designed or intended by the manufacturer. It is imperative that weight stack machines as well as any other
STAR TRAC INSTINCT equipment is used properly to
avoid injury.
2. Make sure there is enough room for safe access and operation of the INSTINCT
CRUNCH MACHINE.
3. Keep hands, feet, head, limbs, fingers and hair clear at all
times from moving parts to avoid injury.Use appropriate
positioning, speed and controlled movements.
4. DO NOT use any equipment that is damaged and or has
worn or broken parts. Use only replacement parts supplied by STAR TRAC.
5. DO NOT wear loose or dangling clothing while using the
INSTINCT
CRUNCH MACHINE. Keep away from all
moving parts.
6. Obtain a medical examination prior to beginning an exercise program.
7. If at any time during exercise you feel faint, dizzy or
experience pain, STOP IMMEDIATELY and consult your
physician before continuing.
8. Children must NOT be allowed to operate the
INSTINCT
CRUNCH MACHINE. Adolescents must be
supervised when using the INSTINCT
CRUNCH
MACHINE.
9. DO NOT attempt to fix a broken or jammed unit. Notify
authorized personnel.
10. Use the INSTINCT
CRUNCH MACHINE only for the
intended use. Obtain instruction on proper use of the
unit. It is the purchaser's sole responsibility to properly
instruct end users and supervising personnel as to the
proper operating procedures of all STAR TRAC
INSTINCT equipment. DO NOT modify the unit.
11. Load plates evenly and carefully to avoid tipping equip-
ment and possible crushing injuries.
12. DO NOT use the INSTINCT
CRUNCH MACHINE if
guards or shrouds are missing or damaged.
13. USE A SPOTTER.
14. DO NOT add incremental weights, except those provided
by STAR TRAC.
15. MAINTAIN PLACARDS AND LABELS: Do not remove
labels for any reason; they contain important information. If illegible or missing, contact the STAR TRAC
Parts Department for replacement.
16. SECURING EQUIPMENT: The INSTINCT
CRUNCH
MACHINE MUST be secured to the floor to stabilize
and eliminate rocking or tipping over.This must be performed by a licensed contractor. DO NOT use the UNIT
if it is not set up and located on a solid level surface.
17. Make sure that each machine is set up and operated on a
solid level surface. DO NOT install equipment on an
uneven surface.
18. MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to ensuring smooth and reliable operation of the INSTINCT
CRUNCH MACHINE, as well
as keeping your liability to a minimum. Inspect the unit
prior to use. Give particular attention to the areas most
susceptible to wear. DO NOT use if the unit is damaged
or inoperable.
19. Ensure that adjustment, maintenance and/or repair of
the INSTINCT
CRUNCH MACHINE is performed by
qualified personnel ONLY. Immediately replace worn or
damaged components. If unable to immediately replace
worn or damaged components then remove the
INSTINCT
CRUNCH MACHINE from service until
repairs are made.
20. Keep a repair log of all maintenance activities.
21. Routinely inspect all accessory clips that join attachments to weight belts or cables, and replace at the first
sign of wear.
22 Use only weight selector pins supplied by STAR TRAC
on weight stacks. Substitutes are forbidden.
23. Cables and belts pose an extreme liability if used when
frayed. Always replace any cable or belt at first sign of
wear (consult STAR TRAC Product Support if uncertain).
24. Fully insert the weight selector pin when selecting the
desired weight. Partially inserted pins can cause weights
to fall unexpectedly.NEVER remove the weight selector
pin if any weights are suspended. NEVER attempt to
release jammed weights or parts.
25. DO NOT use Lat Pulldown Bars on Multi-jungle
Crossover cable systems or any other pulley systems.
These bars are designed for lat pulldown machines
ONLY. If improperly used, the Lat Bar could fall unexpectedly,striking the user when weight selector pin is
removed.
26. Lat Pulldown Machines pose a danger if used with worn
or damaged cables and connecting links. The user can be
struck in the head if the cable or related parts break during use.
27. When adjusting any seat, knee hold down pad, range of
motion limiter, foothold pad or any other type of adjuster,
make certain that the adjusting pin is fully engaged in
the retainer hole to avoid injury.
NOTE: It is the sole responsibility of the user/owner or facility
operator to ensure that regular maintenance is performed.
STAR TRAC warrants all frameworks for a period of 10 years.All moving parts are warranted for 1 year. 10 year limited warranty on structural frame not including coatings. 90 days on upholstery stitching only, cables and belts.Warranty is for parts only. Warranty is good and available
to the original purchaser only as noted by STAR TRAC invoice and is not transferable nor assumable.STAR TRAC cannot warrant products that
have been abused, neglected and or poorly maintained. All equipment should be reviewed at the time of delivery for damage,breakage, loosening
of nuts and bolts, components and or any other moving parts.Any and all claims for warranty must be received in writing within 70 days of defect.
Do not alter, modify or redesign any STAR TRAC products or use any replacement parts or materials other that those components original to
STAR TRAC as it will limit the warranty and liability of STAR TRAC.STAR TRAC reserves the right to change, replace or modify products,
parts, accessories and or design without notice. Deposits on cancelled orders will be subject to handling and restocking charges.
W
ARRANTY
& D
ISCLAIMER
WHAT IS COVERED
This STAR TRAC INSTINCT CRUNCH MACHINE is warranted to
be free of all defects in material and workmanship.
WHO IS COVERED
The original purchaser or any person receiving the Product as a gift
from the original purchaser.
WHO PAYS TRANSPORTATION & INSURANCE FOR SERVICE
If the Product or any covered part must be returned to a service facility for repairs, We, STAR TRAC,will pay all transportation and insurance charges for the first year. You are responsible for transportation
and insurance charges for all subsequent years.
WHAT WE WILL DO TO CORRECT COVERED DEFECTS
We will ship to you any new or rebuilt replacement part or component,
or,at our option, replace the Product. Such replacement parts are warranted for the remaining portion of the original warranty period.
WHAT IS NOT COVERED
Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or installation, debris resulting
from any construction activities in the Products environment, rust or
corrosion as a result of the Product(s) location, alterations or modifications without our written authorization or by failure on your part to
use, operate and maintain the Product as set out in your Owners
Manual.
OWNERS MANUAL
It is VERY IMPORTANT THAT YOU READ THIS MANUAL before
operating the Product. Remember to perform the periodic maintenance
requirements specified in the Manual to assure proper operation and
your continued satisfaction.
HOW TO GET PARTS & SERVICE
Simply call Customer Support Services at (800) 966-3539 or (951) 6003800, Monday through Friday from 8:00 a.m. to 5:00 p.m. Pacific
Standard Time, and tell them your name,address and the model number of your Product. They will tell you how to get a replacement part,
or, if necessary, arrange for service where your Product is located or
advise you on how and where to ship the Product for service. You can
also contact us via Fax at (951) 600-1706 or e-mail us at
Before shipping:
1. Obtain a Return Authorization Number (RA#) from Customer
Support Services
2. Securely pack your Product (use the original shipping carton,if possible)
3. Write the RA# on the outside of the carton
4. Insure the Product, and
5. Include a letter explaining the defect or problem and a copy of your
proof of purchase if you believe the service is covered by warranty.
EXCLUSIVE WARRANTY
THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND EITHER EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR
PART. We neither assume nor authorize any person to assure for us
any other obligation or liability concerning the sale of this Product.
Under no circumstances shall we be liable under this warranty,or otherwise, of any damage to any person or property, including any lost
profits or lost savings, for any special,indirect, secondary, incidental or
consequential damages of any nature arising out of the use of or inability to use this Product. Some states do not allow the exclusion or limitation of implied warranties or of liability for incidental or consequential damages, so the above limitations or exclusions may not apply to
you.
CHANGES IN WARRANTY NOT AUTHORIZED
No one is authorized to change, modify or extend the terms of this limited warranty.
EFFECT OF STATE LAWS
This warranty gives you specific legal rights and you may have other
rights, which vary, from state to state.
OUR PLEDGE TO YOU
Our Products are designed and manufactured to the highest standards.
STAR TRAC wants you completely satisfied with our Products and
will do everything possible under the terms of this warranty to keep
you secure in knowing you have bought the best!
Page 6
PARTS AND MATERIALS
The following parts are included with the STAR TRAC INSTINCT CRUNCH MACHINE:
T
OOLSREQUIRED
Most STAR TRAC INSTINCT machines can be assembled using the following tools:
Your INSTINCT CRUNCH MACHINE includes a hex key set and combination open-end wrench.
SITING REQUIREMENTS
Your INSTINCT CRUNCH MACHINE requires approximately 32 square feet of floor space to ensure safe operation of the unit.
UNPACKING
Your INSTINCT CRUNCH MACHINE is shipped in one or more shipping cartons. Each carton will generally contain one subassembly of the entire unit. To unpack:
■
Remove the shipping straps from the outside of each shipping carton.
■
Open the top of each carton and fold back all four flaps.
■
Remove the packing materials, foam inserts,and ALL parts from each shipping carton. Keep the contents of each carton in
a separate area to facilitate assembly. To ensure personal safety during assembly, place all packing materials outside the
assembly area.
■
Verify that all parts listed above are included in your shipment.
Take time now to enter your INSTINCT CRUNCH MACHINE serial number in the space below. If parts are missing, or if you
have any operational questions, please call Star Trac’s Service department at (800) 503-1221;have your serial number ready.
Serial No. __________________________________________
■
Deep scratches and chips must be repaired by filling the damaged area using a “touch-up” bottle of color-matched paint
(available through the STAR TRAC Parts Department). Fill the damaged area sparingly, using two or more coats. Allow
the area to dry thoroughly between coats. Once the touch-up is complete,it can be left “as is”, or it can be blended and colorsanded to the surrounding surface.
NOTE: The process of blending and sanding repaired areas to the surrounding surface is difficult. It should be attempted ONLY
by persons knowledgeable in this area.
The weight stack shrouds are made of PETG (glycol-modified polyethylene terephthalate). Proper cleaning is necessary to preserve the appearance of the shrouds. The following cleaners are compatible with PETG: Original Dawn®, Freon® T.F., Palmolive
Liquid®, Top Job® and Windex® with Ammonia D.
CAUTION: Use ONLY recommended cleaning agents and procedures when cleaning the weight stack shrouds:
■
DO NOT use abrasive or highly alkaline cleaners to clean the shrouds.
■
DO NOT use scrape the shrouds with squeegees, razor blades or other sharp instruments. DO NOT scrub or use
brushes on the shrouds.
■
DO NOT use Benzene, gasoline, acetone or tetrachloride to clean the shrouds.
■
DO NOT clean the shrouds in hot sun or at elevated temperatures.
Wash the shrouds using a clean sponge or soft cloth,and a solution of mild soap or detergent and lukewarm water. Rinse well with
clean water,and dry thoroughly with a chamois or moist cellulose sponge to prevent water spots.
Remove stubborn accumulations (paint, grease, scuff marks) before drying by rubbing lightly with Isopropyl alcohol. Remove
labels, placards or other adhesive residue using kerosene. If solvent does not penetrate the adhesive,heat the area using a handheld blow dryer to soften the adhesive and aid in removal.
Clean all areas treated with solvent using a clean sponge or soft cloth, and a solution of mild soap or detergent and lukewarm
water. Rinse thoroughly with clean water.
U
PHOLSTERYMAINTENANCE
CAUTION: DO NOT use cleaners such as Lysol®, Armor All®, Windex®, or other abrasive detergents to clean uphol-
stered surfaces. These products will remove moisture from the Naugahyde® upholstery, resulting in premature
cracking.
Upholstered cushions should be cleaned on a daily basis to prevent damaged due to corrosives found in perspiration.
Wipe the top and sides of upholstered cushions using a cloth moistened with a solution of one part lanolin hand cleaner to nine
parts water.After cleaning, wipe down using a dry towel to remove any residue.
STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
116 STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
A
SSEMBLY ANDSETUP
1 Frame, Front 1
2 Frame, Rear 2
3 Foot, Rear 1
4 Bracket, Handle 1
5 Handle Subassembly 1
6 Armrest, Left 1
7 Armrest, Right 1
8 Cushion, Seat 1
9 Cushion, Back 1
10 Handle, Front 2
14 Nut, Flange, 1/2”-13 4
15 Nut, Nylon 4
21 Cap, Front Frame 1
26 Screw, Button Head Socket Cap,10X30M 2
27 Screw, Button Head Socket Cap,10X35M 8
28 Screw, Button Head Socket Cap,10X25M 2
29 Screw, Button Head Socket Cap,8X20M 8
30 Screw, Socket Head Cap,8X20M 3
31 Screw, Socket Head Cap,8X15M 2
32 Screw, Button Head Socket Cap,10X75M 2
33 Screw, Button Head Socket Cap,10X80M 2
36 Washer, 9M 8
37 Washer, 11M 22
38 Lock Nut, Nylon Insert, 10M 6
40 Washer, Spring, 8M 8
41 Washer, Spring, 10M 2
■
Metric Hex Key Wrenches - 2.5mm, 5mm, 6mm, 8mm,
10mm
■
Metric Open-End Wrenches - 10mm, 15mm, 17mm
■
Metric Ratchet Socket Wrench Set (including 17mm socket)
■
Torque Wrench
■
Channel Lock Pliers
■
Vice Grip Pliers
■
Rubber Mallet
■
Phillips Head Screwdriver - #2
L
ABELS ANDPLACARDS
Pinch Points.
Keep hands away
from moving parts.
Page 7
To minimize user and/or bystander injury:
■
Do not lean the against framework, weight stack or any component, regardless of whether it is dynamic or static.
■
Exercising on free weight and selectorized products should be performed with the assistance of a spotter.
PRODUCT USE AND MAINTENANCE
Repair of the INSTINCT CRUNCH MACHINE should be performed only by authorized persons.
NEVER modify the INSTINCT CRUNCH MACHINE or attempt to make adjustment(s) to, or the repair of, the unit equipment
without first calling STAR TRAC Product Support. Always notify authorized personnel to make such repairs.
Instruct all users to report any equipment or training irregularities to supervisory personnel IMMEDIATELY.
ASSEMBLY
1. Assemble the Frame
Align the six drilled holes in the rear frame (2)
with the mating holes in the mounting bracket of the front frame (1). Secure the rear frame
to the front frame using two screws (26), two
screws (32), eight washers (37) and four lock
nuts (38). Tighten the nuts securely.
2. Install the Rear Foot
Align the two drilled holes in the rear foot (3)
with the mating holes in the rear frame (2).
Secure the rear foot to the rear frame using
two screws (28), two washers (41) and two
washers (37). Tighten the screws securely.
3. Install the Handle Bracket
Position the handle bracket (4) on the underside of the rear frame (2) and align the two
drilled holes in the handle bracket with the
mating holes in the rear frame. Secure the
handle bracket to the rear frame using two
screws (33), four washers (37) and two lock
nuts (38). Tighten the nuts securely.
STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
710 STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
1
38
38
38
37
37
37
37
37
26
2
32
28
41
37
2
3
37
38
37
33
2
4
P
REVENTIVEMAINTENANCE
MAINTENANCE SCHEDULE
Star Trac strongly recommends performing regular preventive maintenance on your STAR TRAC INSTINCT CRUNCH
MACHINE. Without regularly scheduled maintenance,normal wear and tear may cause cumulative effects, such as misalignment
or premature wear, resulting in downtime. For this reason, we highly recommend following the maintenance schedules.
Additionally,unusual symptoms, such as excessive noise during use, stiffness or free play in moving parts, etc., should be investigated and necessary corrective actions (adjustment or parts replacement) should be performed. If any components are found to be
worn or damaged, the unit should be removed from service until repairs can be made. Only components supplied or approved by
Star Trac shall be used to maintain and/or repair the unit.
D
AILYMAINTENANCE
■
Wipe down and inspect the framework and other structural components (see FRAMEWORK MAINTENANCE on page 10 for
requirements). Check all attaching hardware for security. Tighten as needed.
■
Clean and inspect the upholstered cushions and the hand grips (see UPHOLSTERY MAINTENANCE on page 11 for requirements).
W
EEKLYMAINTENANCE
■
Check all labels and placards affixed to the unit for legibility and security.Replace illegible labels and placards as needed
(see LABELS AND PLACARDS on page 11 for illustrations and part numbers of standard labels and placards used on
STAR TRAC INSTINCT products).
Q
UARTERLYMAINTENANCE
■
Apply wax to powder-coated areas of the framework and other structural components.
MAINTENANCE PROCEDURES
F
RAMEWORKMAINTENANCE
CAUTION: DO NOT use lacquer thinner, acetone, or other solvents to clean powder-coated finishes on the framework
or other structural components. Solvents will dull the finish, and contain components that may remove the epoxybased powder from the frame.
Framework and other structural components should be wiped down on a daily basis using a moistened with water. This will
increase the longevity of protective powder-coat finishes.The framework should be inspected while cleaning for evidence of fatigue
cracks, scratches or chips in the finish, loose hardware, and other areas that may require attention.
Apply easy-application car wax to all powder-coated surfaces quarterly. Regular waxing will aid in preventing premature rusting due
to corrosives found in perspiration, and will allow loose particles to be removed more easily when performing the daily wipe-down.
Procedures to repair scratches and chips depend on the severity of the damage:
■
Surface scratches can generally be repaired by polishing with an automotive rubbing compound.
Page 8
4. Install the Handle Subassembly
Place the handle subassembly (5) in position
on the handle bracket (4). Insert the two
threaded couplings on each side of the handle
subassembly through the drilled holes in the
handle bracket. Secure the couplings to the
handle bracket using four flange nuts (14).
Tighten the nuts securely.
Press a nylon nut (15) over each flange nut
(14). If needed, use a rubber mallet to tap the
caps in place. Make sure the bottom of each
cap is flush with the handle bracket.
5. Install the Armrests
Slide the left armrest (6) onto the left handle
and into position on the handle bracket (4).
Align the four drilled holes in the armrest with
the four mounting studs on the handle bracket. Secure the armrest to the handle bracket
using four screws (29), four washers (40) and
four washers (36). Tighten the screws securely.
Repeat for the right armrest (7).
6. Install the Front Handles and
Cap
Install the front frame cap (21) into the top of
the front frame (1). If needed, use a rubber
mallet to tap the cap in place. Make sure the
cap is fully seated in the front frame.
Insert the front handles (10) through the guide
holes in the front frame (1), centering the handles in the frame.
Secure the upper front handle to the front
frame using one screw (30). Secure the lower
front handle to the front frame using two
screws (30) and two screws (31). Tighten all
screws securely.
7. Install the Back and Seat Cushions
Hold the seat cushion (8) in place on the rear
frame (2). Secure the seat cushion to the rear
frame using four screws (27) and washers (37).
Tighten the screws securely.
Hold the back cushion (9) in place on the rear
frame (2). Secure the back cushion to the rear
frame with four screws (27) and washers (37).
Tighten the screws securely.
You have now completed assembly of your
INSTINCT CRUNCH MACHINE.
ANCHORING
IMPORT ANT:
The INSTINCT CRUNCH MACHINE must be secured to the floor to stabi-
lize and eliminate rocking or tipping over. This must be performed by a licensed con-
tractor. Failure to anchor the unit will void the warranty. STAR TRAC shall not be
liable for damage or injury caused by unanchored or improperly anchored units.
The INSTINCT CRUNCH MACHINE must be anchored to the floor using through bolts or anchoring studs. Each foot pad on
the unit provides two anchoring holes that will accommodate bolts of up to 12mm (7/16") diameter. Only one hole in each foot
pad is required during anchoring. The holes used for anchoring may be selected based on installation site requirements or customer preference.
Anchoring bolts/studs must meet the following requirements:
■
Anchor bolts shall be Grade 8.8 or Grade SAE 5.
■
Anchoring bolts or studs shall have a minimum size of 6mm (1/4") diameter; 8mm (5/16") diameter bolts/studs are recommended.
■
Pull-out force shall be 100kg (2201 lbs) minimum for any single anchor. This will ensure a secure anchoring system and
safe operation of the unit by all users.
STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
98 STAR TRAC INSTINCT CRUNCH MACHINE O
WNER’SMANUAL
15
15
15
15
14
14
14
14
5
4
29
40
40
40
40
36
36
36
6
36
29
29
29
7
4
10
21
30
30
31
1
8
9
27
27
37
2
27
37
E
XERCISEGUIDELINES
GENERAL GUIDELINES
As with any exercise program, strength training involves an element of risk.The information provided in this section will help you
and/or your members make safe and productive use of your STAR TRAC INSTINCT CRUNCH MACHINE.
■
ALWAYS consult a physician before beginning any strength-training program. This is particularly important for persons
with known health conditions and/or persons that are not familiar with the risks involved with weight training.
■
All training sessions should be supervised by trained personnel.
■
BE SURE that all warning labels and placards affixed to the INSTINCT CRUNCH MACHINE remain on the unit. DO
NOT alter warning labels and placards. BE SURE that each user reads and understands the information shown on all
labels and placards (safety,instructional and/or other).
■
Instruct all users on the proper use of the INSTINCT CRUNCH MACHINE, as well as those actions that should be avoided.
Loading...
