Introduction
The SVID2USB23 S-Video & Composite to USB Video Capture Cable enables you to
capture analog video, as well as the accompanying 2-channel RCA audio, to your Mac®
or Windows® computer, from an S-Video or Composite video device.
This USB video capture Device connects from an S-Video or Composite/RCA video
output device, such as a Beta/VHS VCR, camcorder or PVR to a USB 2.0 port on your
Mac® or PC, to provide real-time MPEG-1, MPEG-2, and MPEG-4 encoding, and TWAIN
support, ensuring compatibility with a wide range of systems and software.
The analog video capture cable supports a broad range of operating systems,
delivering seamless USB video capture for Mac® computers (OS 10.X), Windows® 7
computers, as well as older Windows operating systems (Windows® 2000/XP(32/64bit)/Vista(32/64-bit).
Compact enough to t in the palm of your hand, the USB capture cable is the ideal
solution for mobile applications, more than suitable for use with laptop and
desktop computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaging Contents
• 1x USB Video Capture Cable
• 1x Software CD
• 1x Driver CD
• 1x Instruction Manual
System Requirements
• USB 2.0 enabled computer system with available USB port
• Microsoft® Windows® 2000/XP/Vista(32/64bit)/7(32/64bit), and Apple® Mac OS X®
(Tiger 10.4.11 and up)
• Analog video Source with S-Video or Composite cabling (DVD, DVR, VCR, Etc.)
Instruction Manual
1
Installation
S-Video connector
USB type A
connector (host)
RCA connector
(input)
Hardware Installation
1. Connect the USB type A connector (host) into an available USB 2.0 port on your
computer system.
2. Connect your analog video source (DVD, DVR, VCR, Etc.) to the composite or S-Video
input on the SVID2USB23 AV Cable.
NOTE: After you connect the physical hardware to the computer it is likely that you
may receive prompts for installation. Please close these specic prompts as these
steps will be performed during software installation.
Software Installation
Windows®
After Hardware Installation the “Found New Hardware Wizard” will open, click “Cancel”
to close the window.
1. Download the latest drivers from the StarTech.com website (recommended), or
insert the included Driver and Software Disk into your DVD-ROM drive.
2. Locate the Setup(.exe) application. This le will be located in Windows directory
in the downloaded folder, or if using the included Driver and Software DVD the
installation will begin automatically.
(input)
Instruction Manual
2

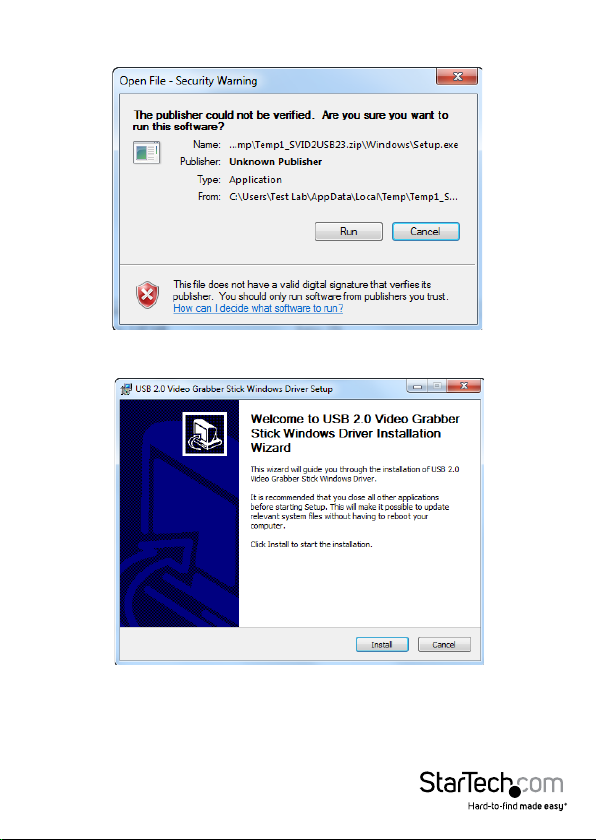

3. If a Windows Security dialog window appears, click the “Run” or “Install this driver
software anyway” option to proceed.
4. The “USB 2.0 Video Grabber Stick Windows Driver Installation Wizard” will appear.
Click Install to begin the installation.
Instruction Manual
3
5. The USB Video Grabber Video software will install all required drivers and settings
6. You will receive notication that the Windows Driver Installation was successful.
Click Finish to complete the driver installation.
Instruction Manual
4
7. (Optional) Install included video capturing Software
a) Place the Software CD into a CD-ROM drive and setup should launch
automatically. If setup does not launch, use Windows Explorer to navigate to
appropriate CD-ROM drive and run the Setup.
b) The installation wizard will start the installation process. Click OK to begin the
installation. Then follow on screen prompts until installation is complete.
Note: This twain device will work with any video capture software in a supported
Windows® environment. The included software is provided as a courtesy and is not
supported by Startech.com. For any assistance with the installation, troubleshooting,
or general functionality, please contact the developer of the software.
Instruction Manual
5
Apple® Mac OS X®
1. Download the latest drivers from the StarTech.com website (recommended), or
insert the included Software and Driver Disk into your DVD-ROM drive.
2. Locate and extract the “EXCAP 1.0.9 Multiple Languages.zip” File. Double click to
launch the “English_EzCAP 1.0.9.pkg” Disk Image. These les will be located in the
Mac folder on the downloaded le, or Software CD.

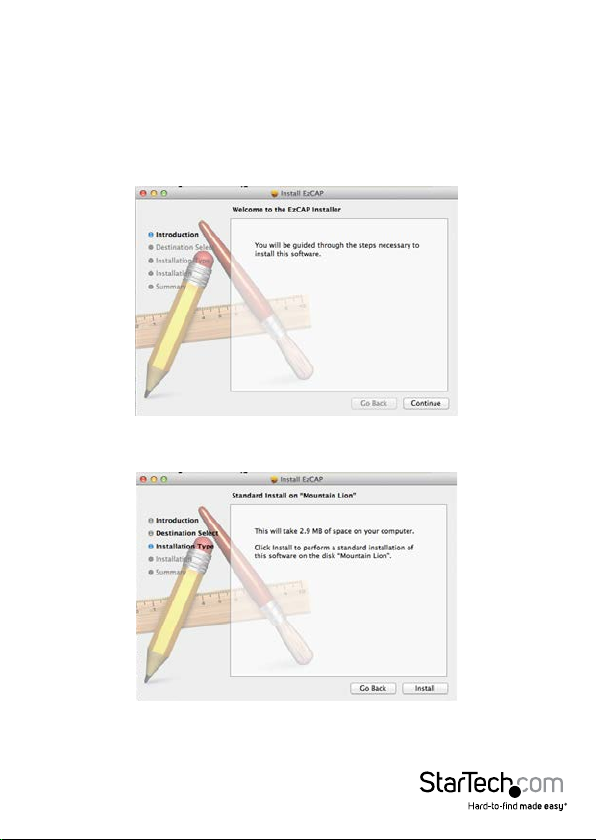

3. The Install EzCAP introduction screen will appear. Click “Continue” to begin installation.
4. Next the Installation type screen will identify your operating system and alert you of
the required disk space. Click “Install” to continue.
Instruction Manual
6
5. The EzCAP installation will now alert you that a system restart will be required
during installation. Save any unsaved data, then Click “Continue Installation” to
proceed further.
6. When the installation has completed the summary screen will appear alerting that
the installation was successful. Click “Restart” to complete installation.
Using the SVID2USB23 in Apple® Mac OS X®
1. Open EzCap by going to Applications > EzCap > EzCap.
2. Ensure EzCap is set as the system’s Digitzer. Click “Digitizers” from the EzCap Capture
menu > Select “EzCap” from the drop down menu.
3. Set your recording preferences by clicking “Record” from the EzCap Capture menu.
From the drop down menu, click and place check marks to customize your preferred
resolution, and screen size. You can also select whether the software will capture
video, audio or both.
Instruction Manual
7
4. To Begin video recording. Click “Record” from the EzCap Capture menu > Then
select “Record…” from the drop down menu. A save menu will appear allowing you
to select the le name, and the location you would like the le saved to.
5. To stop the recording, simply click the mouse in the recording window.
NOTE: You can also specify a recording length by selecting “Record Duration…” from
the “Record” drop down menu.
6. Capture is now complete and the video is now saved in the location specied in step 4.
Instruction Manual
8
NOTE: Additional Advanced settings are available including MPEG-4 compression, and
frames per second in the “Record” drop down menu by selecting “Video Settings”.
Specications
Max Resolution 480i / 576i
Maximum Data Transfer Rate 480Mbps
Maximum Analog Resolutions 720x480(NTSC) / 720x576(PAL)
OS Compatibility
AV Input Audio RCA/Composite/S-Video
AV Output USB
Chipset ID eMPIA EM2860
Industry Standards
Color Black
Enclosure Type Plastic
Windows 2000/Windows 7/Windows Vista/
Windows XP/Mac OSX 10.x
NTSC, PAL, SECAM Video Encoding:
MPEG 1, MPEG 2, and MPEG 4
Instruction Manual
9
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
