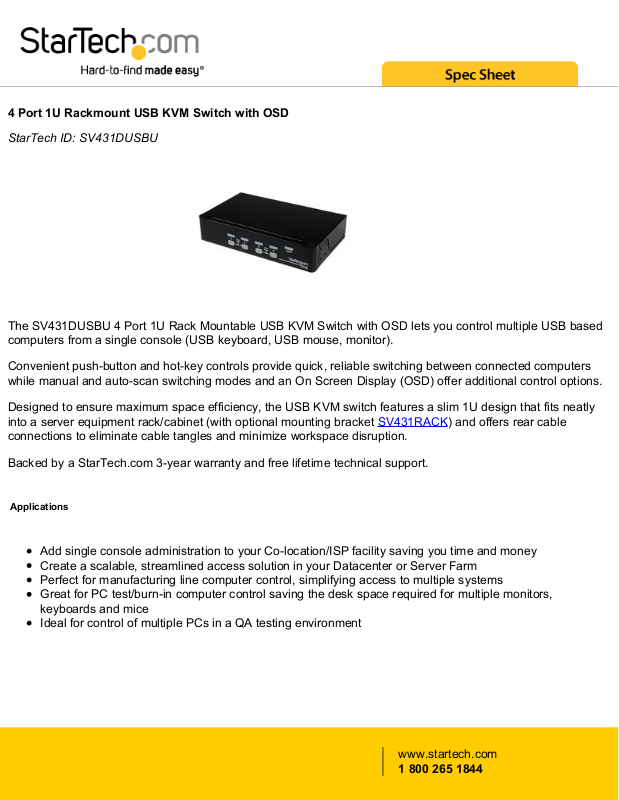

4 Port 1U Rackmount USB KVM Switch with OSD

StarTech ID: SV431DUSBU

The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based
computers from a single console (USB keyboard, USB mouse, monitor).

Convenient push-button and hot-key controls provide quick, reliable switching between connected computers
while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.

Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly
into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable
connections to eliminate cable tangles and minimize workspace disruption.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Applications

Add single console administration to your Co-location/ISP facility saving you time and money
Create a scalable, streamlined access solution in your Datacenter or Server Farm
Perfect for manufacturing line computer control, simplifying access to multiple systems
Great for PC test/burn-in computer control saving the desk space required for multiple monitors,
keyboards and mice
Ideal for control of multiple PCs in a QA testing environment

www.startech.com

1 800 265 1844

Features

OS Independent – No drivers or software required
Auto-scan function automatically selects computer sequentially
Front panel push-button and Hotkey switching allow easy computer access
Identifies and selects computers by the names assigned using the OSD
USB console connections
Rename connected computers for easy identification
OSD security allows each PC to be password protected
Plug-and-play system configuration
Rugged, all-metal 1U chassis for use in harsh environments and space-saving cabinets
Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900,
1360x768
Supported 4 : 3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
